User Manual
1
Nokia 6215i User Guide
2
LEGAL INFORMATION
PART NO. 9248917, ISSUE NO. 1
Copyright ©2006 Nokia. All rights reserved.
Nokia, Nokia Connecting People, and the Nokia Original Enhancements logos are trademarks
or registered trademarks of Nokia Corporation. Other company and product names
mentioned herein may be trademarks or trade names of their respective owners.
US Patent No. 5818437 and other pending patents.
T9 text input software copyright ©1999-2006 Tegic Communications, Inc. All rights reserved.
cdma2000 is a registered certification mark of the Telecommunications Industry Association.
Includes RSA BSAFE cryptographic or security protocol software from
RSA Security.
Java™ is a trademark of Sun Microsystems, Inc.
The information contained in this user guide was written for the Nokia 6215i products. Nokia
operates a policy of ongoing development. Nokia reserves the right to make changes to any
of the products described in this document without prior notice.
UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR
INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES
HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED “AS IS.” EXCEPT
AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO
THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE
RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.
EXPORT CONTROLS: This device may contain commodities, technology, or software subject to
export laws and regulations from the U.S. and other countries. Diversion contrary to law is
prohibited.
FCC/INDUSTRY CANADA NOTICE: Your device may cause TV or radio interference (for
example, when using a telephone in close proximity to receiving equipment). The FCC or
Industry Canada can require you to stop using your telephone if such interference cannot be
eliminated. If you require assistance, contact your local service facility. This device complies
with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation. Any changes or
modifications not expressly approved by Nokia could void the user’s authority to operate this
equipment.
Contents
3
Contents
For your safety .......................................................................................................................4
Welcome...................................................................................................................................6
1. Phone at a glance ........................................................................................................... 8
2. Set up your phone........................................................................................................ 12
3. Text entry ....................................................................................................................... 19
4. Get It Now...................................................................................................................... 22
5. Messaging...................................................................................................................... 27
6. Contacts ......................................................................................................................... 37
7. Recent calls ................................................................................................................... 44
8. Settings and tools........................................................................................................ 46
9. Enhancements .............................................................................................................. 57
10. Reference information ............................................................................................... 58
Care and maintenance ................................................................................................... 60
Additional safety information ........................................................................................ 61
Index..........................................................................................................................................66
For your safety
4
For your safety
Read these simple guidelines. Not following them may be dangerous or illegal.
Read the complete user guide for further information.
SWITCH ON SAFELY
Do not switch the device on when wireless phone use is prohibited or
when it may cause interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the
vehicle while driving. Your first consideration while driving should be
road safety.
INTERFERENCE
Do not switch the device on when wireless phone use is prohibited or
when it may cause interference or danger.
SWITCH OFF IN HOSPITALS
Follow any restrictions. Switch the device off near medical
equipment.
SWITCH OFF IN AIRCRAFT
Follow any restrictions. Wireless devices can cause interference in
aircraft.
SWITCH OFF WHEN REFUELING
Don't use the device at a refueling point. Don't use near fuel or
chemicals.
SWITCH OFF NEAR BLASTING
Follow any restrictions. Don't use the device where blasting is in
progress.

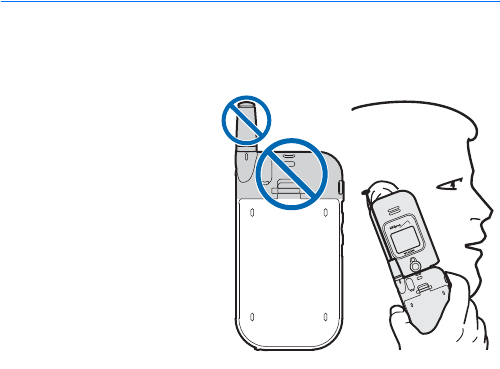

USE SENSIBLY
Use only in the normal position as explained in the product
documentation. Don't touch the antenna unnecessarily.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
ENHANCEMENTS AND BATTERIES
Use only approved enhancements and batteries. Do not connect
incompatible products.
For your safety
5
WATER-RESISTANCE
Your phone is not water-resistant. Keep it dry.
BACK-UP COPIES
Remember to make back-up copies or keep a written record of all
important information.
CONNECTING TO OTHER DEVICES
When connecting to any other device, read its user guide for detailed
safety instructions. Do not connect incompatible products.
EMERGENCY CALLS
Ensure the device is switched on and in service. Press the end key as
many times as needed to clear the display and return to the main
screen. Enter the emergency number, then press the send key. Give
your location. Do not end the call until given permission to do so.
■About your phone
The wireless phone described in this guide is approved for use on the following
Verizon networks: CDMA 800 and 1900 MHz and CDMA2000 1xRTT. Contact
Verizon for more information about networks.
When using the features in this phone, obey all laws and respect privacy and the
legitimate rights of others.
Warning: To use any features in this phone, the phone must be switched
on. Do not switch the phone on when wireless phone use may cause
interference or danger.
■Network services
To use the phone you must have service from a wireless service provider. Many of
the features in this phone depend on features in the wireless network to
function. These network services may not be available on all networks or you may
have to make specific arrangements with your service provider before you can
utilize them. Your service provider may need to give you additional instructions
for their use and explain what charges will apply. Some networks may have
limitations that affect how you can use network services. For instance, some
networks may not support all language-dependent characters and services.
Your service provider may have requested that certain features be disabled or not
activated in your phone. If so, they will not appear on your phone menu. Contact
Verizon for more information.
Welcome
6
Welcome
Congratulations on your purchase of this Nokia mobile phone. Your phone
provides many functions that are practical for daily use, such as a hands-free
speaker phone, alarm clock, calculator, calendar, camera, image and data
downloads, and more. To personalize your phone you can set your favorite
ringtones.
■Getting help
If you need help, the Nokia Care Contact Center is available for assistance. Before
calling, we recommend that you write down the electronic serial number (ESN)
and your zip code (only in the US) and have it available.

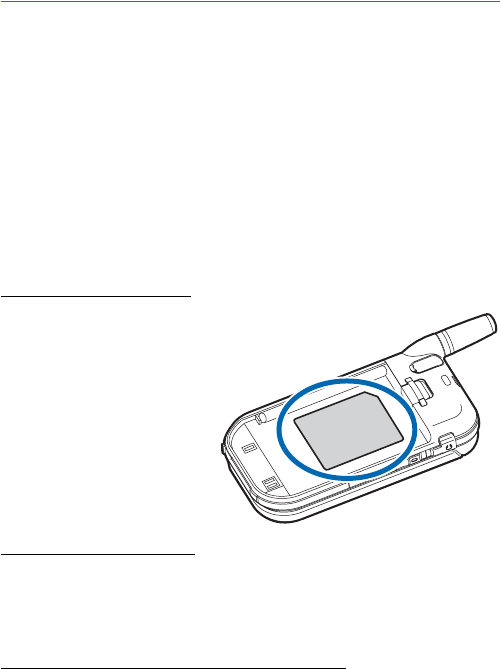

Find your device label
The ESN is found on the type
label, which is located beneath
the battery on the back of the

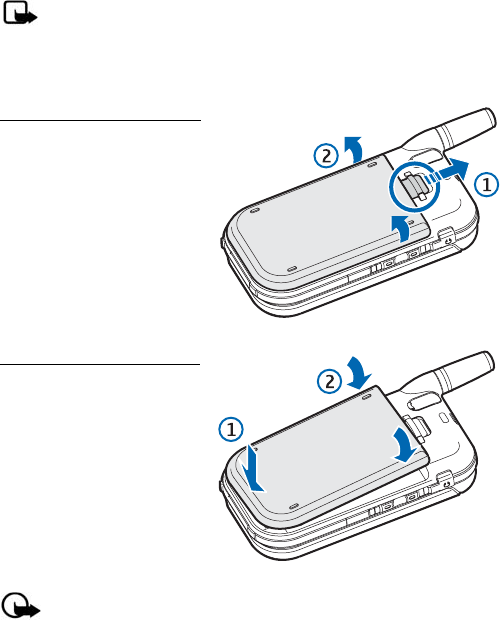

phone. See "Remove the back
cover," p. 13.
Accessibility solutions
Nokia is committed to making mobile phones easy to use for all individuals,
including those with disabilities. For more information visit the Web site at
www.nokiaaccessibility.com.
Nokia support and contact information
Check www.nokiausa.com/support or your local Nokia Web site for the latest
version of this guide, additional information, downloads, and services related to
your Nokia product.
Welcome
7
On the Web site, you can get information on the use of Nokia products and
services. If you need to contact customer service, check the list of local Nokia
Care Contact Centers at www.nokia.com/customerservice.
For maintenance services, check your nearest Nokia Care Contact Center location
at www.nokia.com/repair.
Billing and customer service
To reach Verizon’s billing and customer service support, dial 1-800-256-4646.
■Get the most out of this guide
The following sections illustrate the various components of your phone.
Familiarize yourself with these sections to help you understand the instructions
that follow.
This guide uses certain terms for the steps that you are asked to perform.
•Press means to press and release a key quickly. For example, press 7 means
press the key on the keypad that is labeled with the number 7 and pqrs.
•Press and hold means to press and hold a key for 2–3 seconds; then release
the key.
• Selection keys and the center selection key are used to select a menu option.
To select an option, press the selection key below the menu item on the
phone screen, or press the center selection key for the OK or select options, if
shown.
• The scroll key is used to move up, down, left, or right in the menus.
• Call and end keys: Press the send key to place a call or to answer an incoming
call. Press the end key to end a call or press and hold to return to the start
screen.
Phone at a glance
8

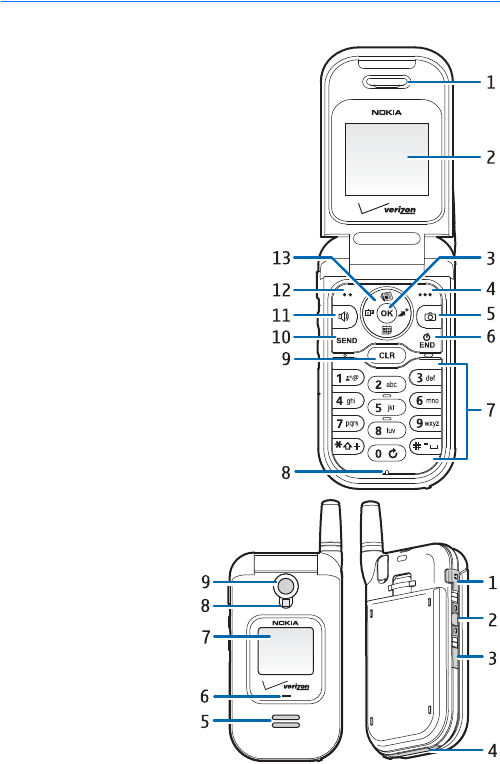

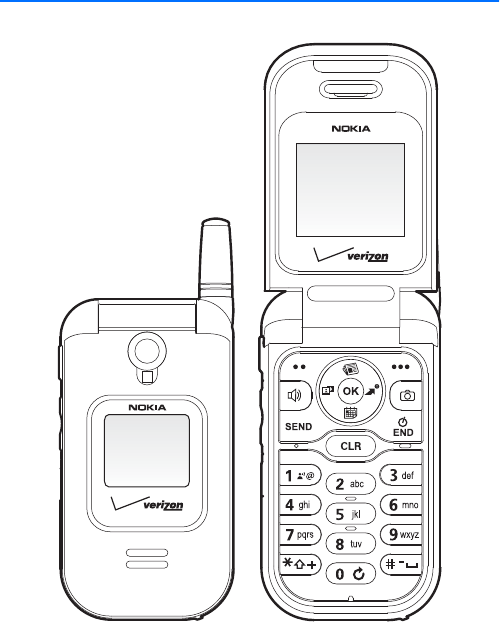

1. Phone at a glance
Earpiece (1)
Main display (2)
Center selection key (3)
Right selection key (4)
Camera key (5)
End/power key (6)
Keypad (7)
Microphone (8)
Clear (CLR) key (9)
Send key (10)
Speaker phone key (11)
Left selection key (12)
Scroll key (13)
Headset jack (1)
Volume keys (2)
Camera key (3)
Charger port (4)
Speaker (5)
Charge/activity LED (6)
Mini display (7)
Camera flash (8)
Camera lens (9)
Phone at a glance
9
■The standby mode
The start screen is home base and indicates your phone is in the standby mode.
Battery level (1)—Four bars indicate a fully
charged battery.
Location (2)—Location information
sharing mode.
Contacts (3)—Press the right selection key
to select this option.
Message (4)—Press the left selection key
to select this option.
Menu (5)—Press the center selection key to
select this option.
Signal strength (6)—The strength of the
signal received by the phone is indicated
by the number of bars displayed. (Signal
strength not shown in standalone mode.)
■Indicators and icons
Depending on your phone settings and modes, some or all of the following
indicators and icons may appear in the standby mode. See "Phone information,"
p. 56, for instructions on how to display the complete Icon Glossary.
Signal strength indicator. You are in a 1XRTT network. See
"Network services," p. 5.
Signal strength indicator. You are in a digital network. See
"Network services," p. 5.
No service indicator: the phone is not in service.
Battery strength indicator.
Call state indicator: a call is in progress. No icon indicates the
phone is in the standby mode.
Data session: a wireless data communication is in progress.
You are roaming outside your home network.
Message Contacts
MENU
1
5
2
43
6
X
1
Phone at a glance
10
■Phone menus
Phone features are grouped according to function and are accessed through the
main menus (Get It Now, Messaging, Contacts, Recent Calls, and
Settings & Tools). Each main menu contains submenus and lists from which you
can select or view items and customize your phone features. To access these
submenus, enter the number associated with the option. You may also use the
scroll method.
The left, right, and center selection keys are also called soft keys. The function
associated with the selection keys can change for each phone menu and depends
on each selected feature.
SSL security feature is on.
TTY is enabled.
Location information sharing is set to E911 Only. See
"Security," p. 52.
Location information sharing is set to Location On. See
"Security," p. 52.
Voice privacy is activated.
Sounds are set to off.
Alarm only is on.
Alarm is set to on.
Standalone mode is on.
Speaker phone is set to on.
Vibrate mode is set to on.
A schedule entry is set.
There are new voice mails.
There are new messages in your inbox.
You have missed calls.
Phone at a glance
11
Some features may not be available, depending on your network. Contact Verizon
for more information.
■Scroll method
1. In the standby mode, use the right and left selection keys to select Message
or Contacts. To access the main menus, select Menu with the center selection
key, then scroll left or right.
To provide a visual representation of your current position in the menu
structure, a scroll bar may be displayed on the right side of the screen.
2. Press the clear key (CLR) to return to the previous screen except when in a
voice call, creating a TXT message, or in a wireless or Get It Now application.
3. Press the end key to return to the standby mode from any menu or submenu.
■Scroll key
You can use the scroll key to move up, down, left, and right
through the menu options. Press the center selection key to
select an item.
Depending on how you configure your phone, some or all of
the following menu shortcuts may be available in the
standby mode using the scroll key. See "Shortcut key," p. 51.
Up—Launch browser.
Right—View Get It Now menu.
Down—Go to calendar.
Left—Get PIX.
Press OK—Select highlighted menus and submenus.
Set up your phone
12
2. Set up your phone
■Antenna
Your device has both an internal
and external antenna. The
wireless signal antenna is
external and located towards the
top of the phone. To improve the
signal strength on your phone,
extend the external antenna as
far as possible while in use. An
internal GPS antenna is activated
when you place an emergency
call or when you select Location
On from the Location menu. See
"Security," p. 52.
Hold the phone as you would any
other telephone with the
antenna area pointed up and
over your shoulder.
As with any other radio transmitting device, do not touch the antenna
unnecessarily when the phone is switched on. Contact with the antenna affects
call quality and may cause the phone to operate at a higher power level than
otherwise needed. Not touching the antenna area during a phone call optimizes
the antenna performance and battery life.
Set up your phone
13
■Replace the battery
The battery is built into the back cover of your phone.
Note: Before removing the cover, always switch off the power and
disconnect the charger and any other device. Avoid touching electronic
components while changing the cover. Always store and use the phone
with the cover attached.
Remove the back cover
1. With the back of the phone
facing you, slide the release
button up (1).
2. Use the side grips to lift the
back cover from the device
(2).
Replace the back cover
1. Set the back cover on the
phone so that the metal tabs
on the battery align with the
tabs in the device.
2. Lower the base of the back
cover onto the phone (1) and
press the top down (2) until
it snaps securely in place.
Important: Do not remove the front cover of this phone. Attempts to
remove the front cover may damage the phone. If your phone requires
service, contact the Nokia Care Contact Center.
Set up your phone
14
Charge the battery
1. Plug the XX-XXXX charger transformer into a standard ac outlet.

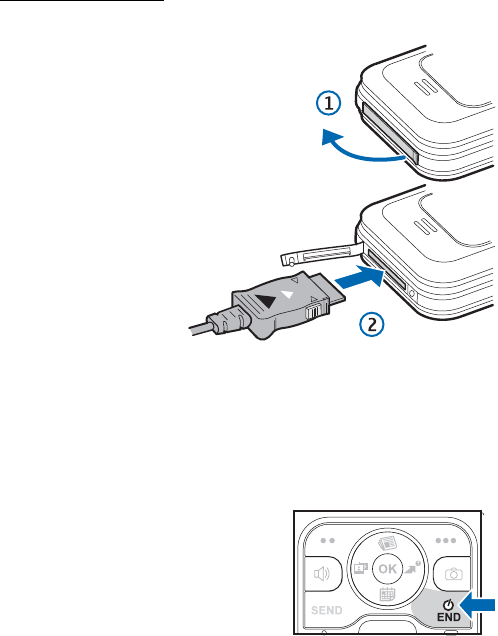

2. Open the charger slot
cover at the bottom end
of the phone (1).
3. Insert the charger
output plug into the
charger slot (2).
The charge LED on the
front cover of your
phone will change from
red to green when
charging is complete.
The charge time varies
depending on the
battery level. The
maximum charge time
for a fully discharged,
standard battery is
approximately 3.5 hours.
■Turn your phone on or off
To turn your phone on or off, press and hold
the end/power key for at least 3 seconds.
Set up your phone
15
■Connect the headset
You can connect a compatible headset with a standard 2.5-mm plug into your
phone to allow hands-free operation.
Warning: When you use the headset, your ability to hear outside sounds
may be affected. Do not use the headset where it can endanger your
safety.

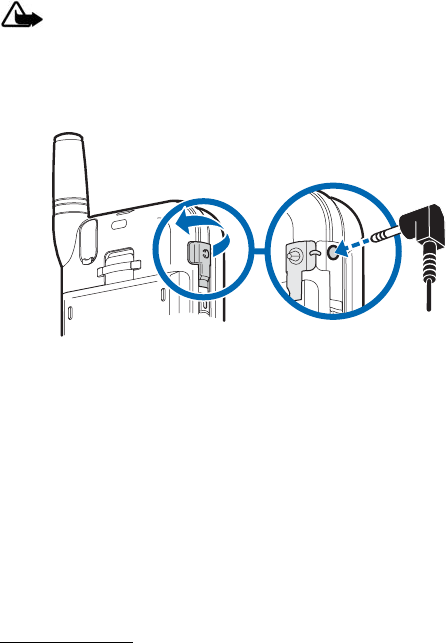

1. Open the headset connector port.
2. Plug the headset connector into the 2.5-mm headset jack on the side of your
phone.
3. Position the headset on your ear.
With the headset connected, you can make, answer, and end calls as usual.
• Use the keypad to enter numbers.
• Press the send key to place a call. See "Phone at a glance," p. 8.
• Press the end key to end a call.
■Make a call
To make a call, make sure the phone is turned on. From the standby mode, enter
the number you want to call, and press the send key. See "Contacts," p. 37, to use
the contacts menu and to enter contact numbers. This is a network feature.
Use the keypad
Enter the phone number (including the area code if necessary), and press the
send key. To delete a character to the left of the cursor, press the clear (CLR) key.
Press the end key to end the call. This is a network feature.
Set up your phone
16
Recently dialed numbers
Press the send key once to display the latest numbers dialed, received, or missed.
Press the send key again to dial the last number you dialed, or highlight the
number (or name) you wish to redial, and press the send key. This is a network
feature.
Speaker phone
To use the speaker phone when in a call, press (speaker phone key). To turn
the speaker phone off, press again. This is a network feature.
Warning: Do not hold the device near your ear when the loudspeaker is
in use, because the volume may be extremely loud.
Headset calls
To answer a call when the headset is connected, press the send key on your phone
or, if included, press the send key on the headset enhancement. If included, use
the volume key on your headset to adjust call volume.
■Answer calls
The following options are available to manage incoming calls. This is a network
feature.
Answer or silence an incoming call
• To answer a call, open the flip; or, if the flip is already open, press the send
key.
• To silence an incoming call, select Quiet.
• To forward an incoming call to voice mail, select Ignore.
• To end a call, press the end key.
Adjust the earpiece volume
The volume keys are located on the left side of your phone. To adjust the volume
when in a call, press the volume up key or volume down key. When you adjust the
volume, a bar chart is displayed to indicate volume level.
Set up your phone
17
Caller ID
To display both the name and number of the person calling you, the caller’s
identity must be stored in the contact list. If the caller is not in the contact list,
only the phone number is displayed, or the incoming caller number may be shown
as RESTRICTED or UNAVAILABLE. The date and time when the incoming call
arrives is always displayed.
Picture ID
You can assign a picture to display with incoming calls from contacts. See
"Assign picture ID," p. 39.
Silent mode
To turn sounds off, press the volume down key until All Sounds Off is displayed. To
turn sounds back on, press the volume up key until the desired level is reached.
Vibrate mode
To turn vibrate only mode on for your phone and silence all other sounds, press
the volume down key to reduce the volume until Vibrate Only is displayed.
To turn the vibrate mode on with the ringtone, select Menu > Settings & Tools >
Sounds Settings > Call Sounds > Call Vibrate > On > OK.
Other options during a call
The following additional options are available when you are in a call:
Send TXT Msg—Send or retrieve messages.
Contacts—Search your contact list.
Recent Calls—Check recent calls.
Voice Privacy—Protect the privacy of your current phone conversation from other
callers placing phone calls on your same network. Contact Verizon for the
availability of Voice Privacy in your area.
Mute function
When in a call, select Mute to prevent the other party from hearing your voice,
but allow you to hear the other party. Select Unmute to turn off this feature.
Set up your phone
18
Phone lock
To prevent accidental key presses when the phone flip is open, or to prevent
access to your phone by others, press and hold # for quick phone lock activation.
To unlock the phone, select Unlock, then enter your four-digit lock code.
When the phone lock is on, the only outgoing calls that can be made are to the
emergency number programmed into your phone. The phone remains locked even
if the phone is switched off and switched back on again.
See "Security," p. 52.
Text entry
19
3. Text entry
Your phone offers four methods for entering text and numbers: Abc (sentence
case, uppercase, and lowercase), Word (sentence case, uppercase, and
lowercase), 123, and Symbols. The following rules apply when entering text:
•Press CLR to backspace the cursor and delete a character.
•Press and hold CLR to backspace continuously and delete all characters.
•Press # to enter a space, thereby accepting a completed word, when in the
subject or text area of a message or entering a contact or group name.
•Press 1 to enter the symbol mode when in the subject or text area of a
message.
•Press * to switch between sentence case (the first letter of entries or
sentences is capitalized and the following letters are lower case), uppercase
and lowercase in abc or word modes when in the text area of a message, or
entering a contact or group name.
• The entry mode selection key displays the currently selected entry mode (Abc,
Word, 123, or Symbols).
■Abc (multi-tap) mode
In the abc (or multi-tap) mode, to enter a letter, repeatedly press a key until the
letter you want appears.
Activate abc mode
Press the entry mode selection key, and select Abc for sentence case or ABC for
uppercase. Press * to switch among sentence case, uppercase, and lowercase
(abc).
Abc mode text entry
Press a key once to insert the first letter on the key, twice for the second letter,
and so on. If you pause briefly, the last letter in the display is accepted, and your
phone awaits the next entry.
Text entry
20
■Word mode
Word mode is a predictive method of text entry using your keypad and the
built-in dictionary to quickly recognize the most commonly used word for a
specific key sequence. Word mode is much faster than the abc method because
you only press the corresponding key on your keypad once for each letter.
Activate word mode
To activate word mode, at any text entry screen press the entry mode selection
key, and then select Word. Press * to switch among sentence case, uppercase
(WORD), and lowercase (word).
Word mode text entry

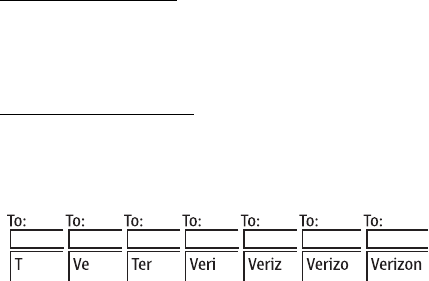

The illustration below simulates your display each time a key is pressed in word
mode. For example, to write "Verizon" with word mode on and the English
dictionary selected, press each of the following keys once:
8 3 7 4 9 6 6
• If a displayed word is not correct, press 0 to view other word options.
• If your word does not appear, delete your entry and press the entry mode
selection key to change the mode to Abc. Reenter your word using the multi-
tap mode.
■123 (number) mode
To enter a number in abc or word mode, press and hold the desired number key.
To switch to 123 mode from any other mode, press the entry mode selection key,
and select 123.
■Symbols mode
Press the entry mode selection key, and select Symbols to insert special
characters into your message. Depending on which screen you are viewing, this
may be either the left or right selection key. To step through the list of symbols in
abc mode, press 1 repeatedly.
Text entry
21
Symbols are not allowed in contact or group names.
Get It Now
22
4. Get It Now
Get It Now allows you to download tunes, ringtones, pictures, news, information,
and games. You can also find information such as the location of restaurants or
ATMs. With Get It Now you can personalize your phone to your own lifestyle and
tastes. This is a network feature.
Get It Now can be used anywhere on the Verizon Wireless network, as long as
your phone has a digital signal available. Most applications do not use a network
connection while in use. Visit verizonwireless.com/getitnow for additional
information on Get It Now services.
Your phone must be switched on to use Get It Now. Do not switch the phone on
when wireless phone use is prohibited or when it may cause interference or
danger.
This feature shares memory space with other features.
■Get Tunes & Tones
You can personalize your phone with sounds and ringtones using Get Tunes &
Tones. A large variety of music styles are available to choose from, such as
current hits, pop, and hip-hop. This is a network feature.
Select Menu > Get It Now > Get Tunes & Tones and one of the following options:
Get New Ringtones—Select Get New App to download new ringtone applications
or use one of the applications to download ringtones from the Internet. A
ringtone can be set as a Ringtone, a Contact ID for a particular contact, or as an
Alert Tone for calendar entries. New ringtones are stored in the My Ringtones
folder.
My Ringtones—Select Get New App. > Get New App to download a new ringtone
or use one of the tones stored in this folder. To apply a ringtone, highlight the
tone and select Set As > Ringtone, Contact ID, or Alert Tone. Select PLAY to
preview the highlighted ringtone. Select Options > Erase to delete the
highlighted ringtone, or select Options > Ringtone Info to view file information
about the highlighted ringtone.
My Sounds—Select Record New to record sounds such as music or spoken words,
or select prerecorded sounds such as Happy Birthday and crowd roar. Recorded
sounds can be played back later or can be sent in a TXT message. Select Play to
preview the highlighted sound. Select Options > Erase to delete the highlighted
Get It Now
23
sound, or select Options > Sound Info to view file information about the
highlighted sound.
■Get PIX
Get PIX allows you to view, take, and send your digital pictures right from your
wireless phone. This is a network feature.
You can take photos with the built-in 330-k pixel camera and flash. The camera
produces photos in JPEG format.
After you take a picture, you can attach it to a TXT message, or set it as wallpaper,
screensaver, or picture ID for a contact. When you attach a picture to an entry in
your list of contacts, the picture is displayed when the contact calls you. Pictures
can be stored in the My PIX folder or uploaded to PIX Place. See "PIX
messaging," p. 27.
Your phone supports an image capture resolution from 160x120 to 640x480
pixels.
If there is not enough memory to take a new photo, delete old photos in the
My PIX folder.
Take a picture
To turn on the built-in camera, press the camera key on the keypad or the side of
the phone, or select Menu > Get It Now > Get PIX > Take PIX. Select TAKE to take
a picture or Options to adjust picture Resolution, Self Timer, Flash, Brightness,
White Balance, Shutter Sound, Color Effects, Capture Mode, or Sub Display.
Warning: Keep a safe distance when using the flash. Do not use on
people or animals at close range. Do not cover the flash while taking a
picture.
Other options
The following Get PIX options allow you to download and manage your pictures.
Get New PIX—Select Get New App to download PIX applications or use one of the
applications to download images from the Internet.
My PIX—Select pictures from your My PIX gallery to send, upload, lock, erase,
modify, get info on, or view. To use a picture as a Wallpaper for your Main Screen
or Front Screen, select Options > Set As. To protect image files from Erase and
Erase All functions, select Options > Lock or Unlock.
Get It Now
24
PIX Place—Access the online picture album to upload pictures. For more
information, please visit www.verizonwireless.com/getitnow/pixmessaging.
■Fun and games
To open games from the games gallery or download a new game, select Menu >
Get It Now > Get Fun & Games > Get New App and a game option. Select the
game you want and a payment option, and download the title. You can start
using the application as soon as the download is complete. This is a network
feature.
■News and info
To connect to the Internet and browse for the latest news, stock quotes, movie
listings, and more, select Menu > Get It Now > Get News & Info. This is a network
feature.
■Get going
To browse the Internet for everything you need to know while on the go, such as
the location of a restaurant or the nearest ATM, select Menu > Get It Now >
Get Going > Get New App. This is a network feature.
■Get extras
To access the Internet for additional Verizon downloads and applications, select
Menu > Get It Now > Get Extras > Get New App. This is a network feature.
■Information and help
To check memory status or find information on how to download applications,
select Menu > Get It Now > Info to view the information screen. This menu
enables you to check the application memory, content memory, or view the log of
downloads. Select Help to find information on how to add, delete, disable, or
restore applications, determine airtime charges, or cancel subscriptions.
Notifications are displayed in the standby mode when memory is 80% full and
100% full. Select OK to clear these messages. If your phone displays a message
that the memory is full when you try to use a feature, delete some of the
information or entries stored in memory before continuing.
See "Memory," p. 56.
Get It Now
25
■Incoming calls
While downloading an application, calls are automatically sent to your voice
mail, if available. If you do not have voice mail, downloading is not interrupted by
an incoming call, and the caller receives a busy signal.
When using an application, an incoming call automatically interrupts the
application and allows you to answer the call. When you complete your call, you
can resume using the application.
Make an emergency call while online
You can end your data connection and make an emergency call.
1. To close your connection, press the end key. Press the end key as many times
as needed to clear the display and ready the phone for calls.
2. Enter the emergency number for your present location. Emergency numbers
vary by location.
3. Press the send key.
■Security and functionality
Your phone supports a digital rights management system to protect content that
you have acquired. Content such as ringtones may be protected and associated
with certain usage rules.
Usage rules are defined in the content activation key that can be delivered with
the content or delivered separately. You may be able to update the activation key.
Always check the delivery terms of any content and activation key before
acquiring them, as they may be subject to a fee.
Copyright protections may prevent some images, music (including ringtones),
and other content from being copied, modified, transferred, or forwarded.
Mobile Web 2.0 is a digital network service that is not available everywhere.
Mobile Web text messages and alerts fees apply to sent and received messages.
Airtime charges apply. See "Network services," p. 5.
Your phone may have some bookmarks loaded for sites not affiliated with Nokia.
Nokia does not warrant or endorse these sites. If you choose to access them, you
must take the same security or content precautions as you would with any
Internet site.
The security icon ( ) does not indicate that the data transmission between
the gateway and the content server (or place where the requested resource is
Get It Now
26
stored) is secure. Verizon secures the data transmission between the gateway
and the content server.
Important: Use only services that you trust and that offer adequate
security and protection against harmful software.
Messaging
27
5. Messaging
If you have subscribed to a message network service, you can send and receive
messages to and from compatible phones that also subscribe to a message
service. You can also send and receive multimedia messages and e-mail.
Messaging features are network services.
Important: Exercise caution opening messages. Messages may contain
malicious software or otherwise be harmful to your phone or PC.
Note: When sending messages, your phone may display MESSAGE SENT.
This is an indication that the message has been sent by your phone to the
message center number programmed into your phone. This is not an
indication that the message has been received at the intended
destination. For messages that fail, the network will create a new error
message, explaining why the message was not delivered. Contact
Verizon for more details about messaging services.
■TXT messaging
When composing TXT messages (SMS) or enhanced messages (EMS, messages
that can contain graphics, sounds or formatted text), the number of characters
used (out of a maximum of 160 per message) appears in the top left corner of the
message screen. Segments are created when the message length exceeds 160
characters. The number of segments used (out of a maximum of 7) appears in the
top right corner of the message screen. No additional text can be entered when
all segments and characters have been used. Segments are delivered as individual
messages.
The use of special characters takes up more space than standard characters.
E-mail addresses are counted as characters. EMS messages cannot be sent to
e-mail addresses.
For information on entering text into messages, see "Text entry," p. 19.
■PIX messaging
PIX messages are multimedia (MMS) messages can contain text, sound files, and
image files. Your phone supports PIX messages that are up to 300 KB. If the
maximum size is exceeded, your phone may not be able to receive the message.
Messaging
28
Depending upon your network services, you may receive a message that includes
an Internet address where you can go to view the PIX messages.
Images are scaled to fit the display area of the phone. Your phone has a PIX
message viewer for playing messages. Incoming messages reside in the inbox
until you delete or save them. Once you save the PIX message, you can use the
image as wallpaper or use the sound as a ringtone, unless the content is
protected by copyright. See "Get PIX," p. 23.
Only compatible devices that offer picture message features can receive and
display PIX messages. The appearance of PIX messages may vary depending on
the receiving device.
Copyright protections may prevent some images, ringtones, and other content
from being copied, modified, transferred, or forwarded. Contact Verizon for
availability of and a subscription to the multimedia messaging service.
PIX messaging supports the following formats:
• Picture: JPEG, GIF, animated GIF, BMP, WBMP, PNG, and BCI
• Sound: MIDI, SP-MIDI, PMD, QCP-13K, iMelody, EVRC, MMF, and MP3
If a received message contains unsupported elements, these elements may be
replaced with an alert such as File format not supported.
You can receive multimedia message notification, but cannot receive multimedia
messages if you have a call in progress or other applications running, or you are
in an active browsing session. Because delivery of multimedia messages can fail
for a variety of reasons, do not rely solely upon them for essential
communications.
Important: Exercise caution when opening messages. Multimedia
message objects may contain malicious software or otherwise be
harmful to your phone.
■New messages
To compose a new message, in the standby mode, select Menu > Messaging >
New Msg > TXT Msg or PIX Msg.
Messaging
29
TXT message
To write and send a TXT message, do the following:
1. Select a recipient. To add a recipient from your contact list, select Add >
From Contacts, Groups, or Recent Calls, highlight the recipient, and select
MARK > Done.
You may also use the keypad to manually enter a phone number or e-mail
address in the To: field. Scroll down to the next available address field to enter
each recipient. The default entry mode for the To: field is 123 (number). To
switch to multi-tap mode for e-mail address entry, select 123 > Abc or ABC.
See "Text entry," p. 19.
To add a manual entry to your contact list, select Add > To Contacts. See
"Create new contacts," p. 37.
2. To open the text entry field, select OK.
3. Compose a message using the keypad. See "Text entry," p. 19.
4. To send the message, select SEND.
5. To save the message as a draft, press the end key, and select Yes > OK. Your
message is saved in the Drafts folder.
TXT message options
To customize a new TXT message, select Options when the cursor is in the text
entry field and select one of the following options:
Save As Draft—Save your message into the Drafts folder.
Add Graphic—Include a graphic icon in your message. EMS messages cannot be
sent to e-mail addresses.
Add Sound—Include a sound in your message. EMS messages cannot be sent to
e-mail addresses.
Add Quick Text—Insert text from the Quick Text gallery into your document. See
the Quick Text option under "All message settings," p. 34.
Priority Level—To set the priority level, select Normal or High.
Cancel Msg—Close out of the message without sending. Select Yes > OK to save
the message in the Drafts folder.
PIX message
To compose and send a PIX message, do the following:
Messaging
30
1. Select a recipient. To add a recipient from your contact list, select Add >
Contacts, Groups, or Recent Calls, highlight the recipient, and select MARK >
Done. Select Add > To PIX Place > OK to upload an image to the online picture
album.
You may also use the keypad to manually enter a phone number or e-mail
address in the address area. Use a space to separate each recipient. The
default entry mode for the To: field is 123 (number). To switch to multi-tap
mode for e-mail address entry, select 123 > Abc or ABC. See "Text
entry," p. 19.
To add a manual entry to your contact list, select Add > To Contacts. See
"Create new contacts," p. 37.
2. Select OK or scroll down to open the text entry field.
3. Enter text into the Text: field of the PIX message using the keypad. See "Text
entry," p. 19. When composing PIX messages, the number of characters used
(out of a maximum of 1000 per message) appears in the top left corner of the
message screen. No additional text can be entered when all characters have
been used.
4. To add a picture, scroll to PIX:, select My PIX, the desired picture, and OK. To
add a new picture using the built-in camera, select Camera > TAKE > OK.
5. To add a sound file, scroll to Sound:, select Sounds, a recorded sound, and OK.
To record a new sound, select Sounds > Record New. The new sound is added
to the top of the gallery list. Select Play to preview a recorded sound.
6. To add a message title, scroll to Subject:. Enter text (up to 100 characters)
using the keypad.
7. To send the message, select SEND.
8. To save the message as a draft, press the end key, and select Yes > OK. Your
message is saved in the Drafts folder.
PIX message options
To set PIX message options, select Options, scroll to Text:, PIX:, Sound:, or
Subject:, and choose from the following:
Preview—View your message.
Add Quick Text—Insert text from the Quick Text gallery (in Text: and Subject:
only).
Messaging
31
Save As Draft—Save your message into the Drafts folder.
Priority Level—To set the priority level, select Normal or High.
Remove PIX—Remove picture from message (if previously added).
Remove Sound—Remove sound file from message (if previously added).
Add Slide—Add a slide to the message.
Cancel Msg—Close out of the message without sending. Select Yes > OK to save
the message in the Drafts folder.
■Inbox
Your phone can receive text messages (SMS), enhanced messages (EMS), PIX
messages (MMS), e-mails using SMS, WAP push messages, and alerts in the
inbox. This is a network service.
Upon receiving an incoming message, an alert is displayed. You may open the
message immediately or view it later. Select View Now to open the new message
in the inbox. If you select View Later, the new message notification icon ( ) is
displayed, and you must open the inbox to view new messages.
To open the inbox and view or edit messages, select Message > Inbox.
If Auto View or Auto Receive are enabled for incoming messages, View Now and
View Later are not displayed. See "Message settings," p. 34.
View the inbox
The number of messages in Inbox is shown in parentheses. When you open the
inbox, the list of messages is displayed. The newest messages are displayed first.
Select a message and Erase > OK to delete the selected message, or select
Options and from the following options:
Reply—Send a TXT Msg or PIX Msg reply.
Reply w. Copy—Send a reply which includes the original message text (TXT
messages only).
Forward—Forward the message to another phone number or e-mail address or
upload the message to PIX Place.
Lock or Unlock—Protect or unprotect the selected message from Erase and
Erase All commands.
To Contacts—Save the contact information to the contact list.
Erase Inbox—Delete all messages in your Inbox.
Messaging
32
Message Info—Display sender information and timestamp.
View or play messages
To view or play a message in Inbox, select the message and OPEN. If necessary,
scroll up or down to view the whole message. You can scroll left or right to view
the content of the other messages in Inbox.
With the message open, you can select from the following:
Erase—Delete the message (messages without sound files attached only).
Mute or Unmute—Turn on or off the sound of a sound object (messages with
sound files attached only).
REPLY—Send a TXT Msg or PIX Msg reply.
Options—Select from the following options:
•Forward—Forward the message to another phone number or e-mail address,
or upload the message to PIX Place.
•Save Quick Text—Save the message in Quick Text.
•Lock or Unlock—Protect or unprotect the selected message from Erase and
Erase All commands.
•To Contacts—Save the contact information to the contact list.
•Message Info—Display sender information and timestamp.
The following Options are displayed for specific message types:
•Play Again—Replay the attached sound (PIX messages with sound only).
•Reply w. Copy—Send a reply which includes the original message text (TXT
messages only).
•Erase—Delete the message (messages with sound files attached only).
•Save Graphic—Save a graphic object attached to a message (TXT messages
only).
•Save PIX—Save the attached PIX file (PIX messages only).
•Save As Ringtone—Save a sound attached to a message as a ringtone
(messages with sound only).
•Save Sound—Save a sound attached to a message (messages with sound
only).
Messaging
33
■Sent messages
The Sent folder is used to store TXT and PIX messages that have been delivered to
their recipients. The number of messages stored in the Sent folder is shown in
parentheses. To open the Sent folder, select Message > Sent.
The list of sent messages is displayed. The newest messages are displayed first.
Select a message, and from the following:
Erase—Select Yes > OK to delete the sent message.
Options—Select from the following:
•Forward—Forward the message to another phone number or e-mail address,
or to upload to PIX Place.
•Resend—Resend a TXT or PIX message.
•Lock or Unlock—Protect or unprotect the selected message from Erase and
Erase Sent commands.
•To Contacts—Save the contact information to the contact list.
•Erase Sent—Delete all sent messages.
•Message Info—Display sender information and timestamp.
OPEN—View the message. With the message open, you can select from the
following options:
Erase—Delete the message (messages without sound files attached only).
Mute or Unmute—Turn on or off the sound of a sound object (messages with
sound files attached only).
RESEND—Resend the message.
Options—Select from the available options.
■Draft messages
The drafts folder is used to store drafts of TXT and PIX messages. The number of
messages stored in Drafts is shown in parentheses. To open the drafts folder,
select Message > Drafts. The list of draft messages is displayed. The newest
messages are displayed first. Highlight a message and select from the available
options.
Messaging
34
■Message settings
To configure settings for TXT or PIX messages, select Menu > Messaging >
Settings > All Msg, TXT Msg, or PIX Msg > OK.
All message settings
Select from the following options to apply settings to all messages:
Auto Save—Automatically save all sent messages to the Sent folder. Select On or
Off to enable or disable Auto Save. Select Prompt to receive a prompt to save
after each message is sent.
Auto Erase—Automatically erase the oldest (unlocked) message from your inbox
if it is full. Select On or Off. If Auto Erase is set to Off, a message is displayed
when memory is full prompting you to manually delete unwanted messages from
your inbox.
Quick Text—View and edit Quick Text entries, which are short, pre-written
messages that can be recalled and inserted into a TXT message. The gallery of
preloaded and user-defined Quick Text entries is displayed. To add an entry, select
New, enter the text, and select OK. To erase a Quick Text entry, highlight the
entry, and select Erase > Yes.
Voicemail #—Change the default voice mail speed dialing number. Enter the new
number, and select OK.
Entry Mode—Change the default entry mode for the text entry area in a TXT
message and the text and subject entry areas in PIX messages. Select Word, Abc,
ABC, 123, or Symbols.
Callback #—Change the default callback number that is sent. Enter the new
number, and select OK.
Signature—Create or edit text that will automatically append to each outgoing
TXT and PIX message. Select Custom, enter the signature text, then select OK.
Select None > OK to turn off the Signature function.
TXT message settings
To view the content of a received TXT message, select Auto View > On. The
content of incoming TXT messages is displayed when the phone is in the standby
mode.
To create or edit text that automatically appends to each outgoing TXT message,
select Signature. Select Custom, enter the signature text, and select OK. Select
Messaging
35
None > OK to turn off the Signature function. A signature for TXT messages
cannot be created if a signature is enabled using the All Msg > Signature menu.
PIX message settings
To download the content of a received PIX message, select Auto Receive > On.
To create or edit text that automatically appends to each outgoing PIX message,
select Signature. Select Custom, enter the signature text, and select OK. Select
None > OK to turn off the Signature function. A signature for PIX messages
cannot be created if a signature is enabled using the All Msg > Signature menu.
■Message options
To erase TXT or PIX messages, select Message > Options and from the available
options. Messages are permanently deleted.
■Voice mail messages
Voice mail is a network service that allows you to listen to voice messages
recorded in the voice mailbox. When you have a new voice message, your phone
alerts you and you are prompted to listen now or listen later. If you select
Listen later, the new voice mail icon ( ) is displayed in the standby mode.
Listen to voice mail messages
When you have a new voice message alert, select Listen now > OK to access your
voice mailbox. To reach the voice mail screen to play back existing voice
messages, select Message > Voicemail. To access voice mail using speed dial,
press and hold 1.
The voice mail screen displays the number of new messages and the date and
time of the last message received. To access your voice mailbox, select OPEN.
To reset the voice mail counter, select Clear > Yes > OK. The new voice mail icon
will no longer appear on the screen.
The clear voice mail icon option does not delete voice mail from your voice
mailbox. To delete messages, you must access your voice mailbox and use the
voice mail system commands. If you exceed the storage limit for your voice
mailbox, old messages may be overwritten.
Messaging
36
■E-mail messages
To launch the Internet browser and access the e-mail messaging screen, select
Message > E-mail. This is a network service.
Important: Exercise caution when opening messages. E-mail messages
may contain malicious software or otherwise be harmful to your phone.
■Mobile instant messaging
To access instant messaging (IM), select Message > Mobile IM > Get New App.
This is a network service.
■Chat
To launch a browser and chat with IM users, select Message > Chat. This is a
network service.
Contacts
37
6. Contacts
You can keep track of contact information in Contacts. Contact names are saved
in Contacts memory and each contact entry can contain multiple phone numbers
and e-mail addresses. Contact entries can be assigned to speed dials, picture IDs,
ringtones, and caller groups.
■Create new contacts
To add a contact to your contact list, do the following:
1. Select Contacts > New Contact.
2. Scroll to each field and enter the contact information for any of the
following:
Name:—The name of the contact, which is displayed in the contact list. If no
name is entered, the default phone number or address is displayed in the
contact list.
Mobile 1:—The primary mobile phone number for the contact. This is the
default number for the contact.
Home:—The home phone number for the contact.
Work:—The business phone number for the contact.
Email 1:—The primary e-mail address for the contact.
Group:—Add the contact to a caller group. See "Edit caller groups," p. 41.
Picture:—Add a picture ID for the contact. See "Assign picture ID," p. 39.
Ringtone:—Set a distinctive ringtone for the caller. See "Add a
ringtone," p. 39.
Mobile 2:—The secondary mobile phone number for the contact.
Fax:—The fax number for the contact.
E-mail 2:—The secondary e-mail address for the contact.
3. Select SAVE.
To create a new contact, enter a phone number for the new contact in the
standby mode. To save the new number to your contact list, select Save > Create
New > Mobile 1, Mobile 2, Home, Work, or Fax entry. Enter a name for the new
Contacts
38
contact and any additional contact information, and select SAVE. If no name is
entered, the default phone number or address is displayed in the contact list.
Change the default number
The default number is the contact number that is called when you dial by contact
name. To change the default number when multiple numbers are assigned to a
single contact, do the following:
1. Select Contacts > Contact List, highlight the contact you wish to modify, and
select Edit.
2. Highlight the Mobile 1, Mobile 2, Home, Work, or Fax number you wish to set
as the default number, and select Options > Set As Default > OK > Yes > OK.
Set up phone numbers with pauses
Pause codes instruct the receiving system to pause or wait before entering the
numbers that follow them in the dialing string.
To add pause codes to a new phone numbers, do the following:
1. Enter the number and select Options and one of the following options:
2-Sec Pause—To dial the contact number, pause for 2 seconds and dial a
secondary number or extension. "P" appears in the dialing string. You can
enter as many pauses as you need to accommodate the timing on automated
answering services.
Wait—To dial the contact number and wait for you to select Release before
sending a secondary number. The secondary number can be entered as part of
the dial string or it can be entered manually. "W" appears in the dialing string.
2. Select Save > Create New to add a new contact that includes the new
number, or Update Existing to modify an existing contact.
To add pause codes to phone numbers in contact list entries, do the following:
1. Select Contacts > Contact List, highlight the contact you wish to modify, and
select Edit.
2. Highlight the number you wish to modify, and select Options > Add Pause >
Wait or 2-Sec Pause > OK.
Contacts
39
Assign picture ID
You can set picture ID to display the picture of a caller from your contact list
when your phone rings. To assign a picture ID to a contact:
1. Select Contacts > Contact List, highlight the contact you wish to modify, and
select Edit.
2. Scroll to the Picture: field, and select Set.
3. Highlight an existing image from My PIX, and select OK to use the image as
the picture ID for the contact.
4. To take a new picture with the built-in camera, select Options >
Take New PIX. To download an image from the Internet, select Options >
Get New > Get New App.
Add a ringtone
You can add a distinctive ringtone to distinguish which contact is calling your
phone. To assign a ringtone to a contact:
1. Select Contacts > Contact List, highlight the contact you wish to modify, and
select Edit.
2. Scroll to the Ringtone: field, and select Set.
3. Highlight an existing ringtone from your MY RINGTONES gallery and select
OK to use the ringtone for the contact. Select Play to preview the ringtone.
4. To download and use a new ringtone from the Internet, select Get New >
Get New App. > Get New App when in the MY RINGTONES gallery.
Set up voice dial
Your phone uses voice activated dialing to call phone numbers in your contact
list entries. See "Voice services," p. 54.
■Contact list
The contact list can hold up to 500 contacts. The amount of numbers, addresses
and contact information that you can save may vary, depending on length and
the total number of entries in the contact list.
Contacts
40
Access the contact list
You can access the CONTACT LIST screen in the standby mode with the right
selection key. Select Contacts > Contact List. To quickly find a contact in your
contact list, enter the first letter of the contact name in the Search field, and that
portion of the list is displayed.
To call the highlighted contact, press the send key. When you select a contact
name, the default number associated with the contact is used unless you select
another number.
View or edit the contact list
To edit a contact list entry, from the CONTACT LIST screen, highlight a contact list
entry, and select Edit. See "Create new contacts," p. 37 for editing options.
To view contact information, from the CONTACT LIST screen, highlight a contact
list entry, and select VIEW. Numbers, e-mail addresses, and groups are displayed
for the contact list entry. Select from the following options:
Erase—Delete the contact list entry.
EDIT—Modify the information for the contact list entry. See "Create new
contacts," p. 37 for editing options.
Options—When a number or e-mail address is highlighted, select Send TXT Msg,
Send PIX Msg, or Call (except e-mail addresses). These are network services.
Contact list options
The following Options are available from the CONTACT LIST screen:
New Contact—Create a new contact list entry.
Erase—Delete the contact list entry.
Send TXT Msg—Send the contact a text message. This is a network service.
Send PIX Msg—Send the contact a picture message. This is a network service.
Call—Dial the contact. This is a network service.
Erase All—Delete all contact list entries.
■Groups
You can add contact list entries to up to 30 caller groups and send messages to
everyone in a group. To reach the GROUPS screen, select Contacts > Groups. The
default caller groups are Family and Work, but new caller groups can be created.
Contacts
41
A contact can only be associated with one caller group at a time. If you add a
contact from one group to another group, that contact is removed from the first
group.
Create a new caller group
Select Contacts > Groups > New, enter the new group name, and select SAVE.
See "Add contacts to groups," p. 41.
Edit caller groups
Once created, caller groups can be updated with new contacts, renamed, or
erased. The default caller groups cannot be renamed or erased.
Add contacts to groups
Caller groups can be populated in multiple ways. You can update caller groups by
assigning contact list entries to the groups.
1. To add contacts to a group, from the GROUPS screen, highlight a group from
the list, and select VIEW > ADD or Options > Add.
2. For each contact, select MARK > Done.
You can edit individual contact list entries by adding them to caller groups.
1. Select Contacts > Contact List, highlight the contact you wish to add to a
group, and select Edit.
2. Scroll to the Group field, and select Set.
3. Highlight an existing group from the list of group names, and select OK to add
the contact to the group.
4. To create a new group, select New, enter the new group name, and select
SAVE. To add the contact to the group, highlight the new group from the list
of group names, and select OK.
A contact can only be associated with one caller group at a time.
Rename a group
When a caller group is created, it can be quickly and easily renamed. From the
GROUPS screen, highlight the group you wish to rename, and select Options >
Rename. Edit the caller group name, and select SAVE.
Contacts
42
Erase a group
To erase a group you have created, from the GROUPS screen, highlight the group,
and select Options > Erase > Yes > OK. The contacts associated with the group
will not be erased.
Send a group message
To send a message to a group, select Contacts > Groups, the group name, and
select Options > Send TXT Msg or Send PIX Msg. Create the message you want to
send to the group, and select SEND. See "New messages," p. 28. This is a network
service.
■Speed Dials
You can associate any mobile, home, or work entry in the contact list with a
speed dial key from 2 to 99. Speed dial key 1 is used to access voice mail. This is a
network service.
Call a speed dial number
To dial a single-digit speed dial number (1-9), press and hold the number of the
assigned key. To dial a two-digit speed dial number (10-99), use a short press on
the first number, and press and hold the second number.
Set up speed dialing
1. Select Contacts > Speed Dials.
2. Scroll to an Unassigned speed dial slot, and select SET.
3. Highlight the contact you want assigned to the selected speed dial slot.
4. Select OK, highlight the mobile, home, or work number you want to assign,
and select OK.
You can also assign speed dial numbers by editing contact information. Select
Contacts > Contact List, highlight the contact you wish to modify, and select
Edit. Highlight the mobile, home, or work number you want to assign to a speed
dial slot, and select Options > Set Speed Dial. Scroll to an Unassigned speed dial
slot, and select SET.
Contacts
43
Edit speed dial numbers
1. Select Contacts > Speed Dials.
2. Scroll to an assigned speed dial slot, and select SET.
3. Select Yes > OK to overwrite the existing speed dial number. Highlight the
contact you want assigned to the selected speed dial slot, and select OK.
4. Highlight the new mobile, home, or work number you want to assign, and
select OK.
Delete speed dial numbers
Select Contacts > Speed Dials, scroll to an assigned speed dial slot, and select
Remove > Yes > OK.
Recent calls
44
7. Recent calls
Information about calls missed, received, or dialed is stored in the Recent Calls
menu. When the number of calls exceeds the maximum, the most recent call
replaces the oldest.
■View calls
To view calls, select Menu > Recent Calls > Missed, Received, or Dialed. Select All
to view all missed, received, and dialed calls. The calls are listed by most recent
first.
Missed calls are calls that are not answered. The missed calls feature does not
function when your phone is switched off.
When viewing the call lists, the following options are available:
Message—Send the selected number a TXT Msg or PIX Msg. See "New
messages," p. 28. This option is not shown for UNAVAILABLE or voice mail
numbers in the call lists.
OPEN—View call details.
Select Options for further call list options.
■View call timers
You can view the total number of calls, duration (hh:mm) of calls, and the data
transfer information with the View Timers option.
Note: Some timers, including the lifetime call timer, may be reset during
service or software upgrades. The actual time invoiced for calls and
services by Verizon may vary, depending on network features, rounding
off for billing, taxes, and so forth.
Select Menu > Recent Calls > View Timers, and scroll to view the call duration
data.
Reset call timers
To reset a selected call or data timer or to reset all timers to zero (except
Lifetime Calls and Lifetime Data Count), do the following:
Select Menu > Recent Calls > View Timers, and highlight the timer you wish to
modify. To reset the selected call or data timer to zero, select Reset > Yes > OK. To
Recent calls
45
reset all timers (except Lifetime Calls and Lifetime Data Count), select Reset All >
Yes > OK.
Settings and tools
46
8. Settings and tools
Use the Settings & Tools menu to customize your phone and to use your phone as
an organizer and personal digital assistant.
■My account
The Verizon My Account Web portal allows you to access your account
information. Select Menu > Settings & Tools > My Account. This is a network
service.
■Tools
To access the calculator, calendar, alarm and world clocks, notepad, and
stopwatch, select Menu > Settings & Tools > Tools.
Calculator
To perform simple mathematical calculations using your phone, select Menu >
Settings & Tools > Tools > Calculator. You can enter numbers up to the sixth
decimal place.
• Use the keypad to enter numbers.
• Use the scroll key to add (up), subtract (down), multiply (right), or divide (left)
values. Press the center selection key (equals) to solve your equation.
• Select Operator to use parentheses in your equation or to enter an exponent
(Power).
• Press the CLR key to delete a keystroke, or select Clear to cancel your
calculation and clear the screen.
• Press # to switch a value to positive or negative, and press * to enter a
decimal point.
Note: This calculator has limited accuracy and is designed for simple
calculations.
Calendar
The Calendar allows you to document your agenda and keep it convenient and
easy to access. You can schedule events into the calendar and set your phone to
Settings and tools
47
alert you with a reminder. Select Menu > Settings & Tools > Tools > Calendar and
one of the following:
Weekly or Monthly—View the calendar in weekly or monthly mode.
OK—Open the calendar entry.
Select Options > New (create a new event), Go To Date (enter a specific date
using the keypad), Erase Passed (delete past events), or Erase All (delete all events
on your calendar).
Schedule a new event
To enter a new event in your calendar, do the following:
1. Select Menu > Settings & Tools > Tools > Calendar.
2. Highlight the event date, and select Options > New to add a new event entry.
3. Highlight and edit the event entry fields you wish to complete, and select
SAVE.
Update an existing event
To update an event in your calendar, do the following:
1. Select Menu > Settings & Tools > Tools > Calendar.
2. To open the date, highlight the event date, and select OK. To update the entry,
highlight the entry you wish to modify and select VIEW > EDIT.
3. Highlight and edit the event entry fields you wish to update and select SAVE.
4. To delete the selected event, select Erase > Yes > OK.
Alarm clock
Your phone must be turned on to use the alarm feature. To set one of three
alarms, do the following:
1. Select Menu > Settings & Tools > Tools > Alarm Clock > Alarm 1, Alarm 2, or
Alarm 3.
2. Scroll left or right to turn the alarm mode on.
3. Highlight the Time field and set the alarm time using the keypad and scroll
key.
4. To set how often the alarm will occur (Once, Daily, Mon - Fri, Weekends),
highlight the Frequency field, and scroll left or right.
5. To choose an alarm ringtone, highlight the Ringer field and select Set.
Settings and tools
48
6. Select SAVE. When an alarm is set, is displayed in the standby mode.
To turn an alarm off, select Menu > Settings & Tools > Tools > Alarm Clock.
Highlight the alarm you wish to modify and select OK > Options > Off.
When an alarm time is reached, the alarm tone sounds and/or vibrates
(depending on the alarm settings). Select Snooze to turn the alarm off and have it
sound again after 10 minutes. Select Dismiss to turn off the occurrence of the
alarm.
World clock
To determine the current time in another time zone or country, select Menu >
Settings & Tools > Tools > World Clock. Scroll to move the indicators over the
world map. The local time is displayed below the city name. Select DST to turn
Daylight Savings Time on or off for the selected city. Select Cities to view a text
list of cities.
Notepad
To create a note, select Menu > Settings & Tools > Tools > Notepad > New, enter
your note text (see "Text entry," p. 19), and select SAVE. To view or edit a note,
highlight the note, and select VIEW > Edit. To delete one note or all notes, select
Notepad > Options > Erase or Erase All.
Stop watch
The stop watch can be used for elapsed time measurement, such as for a sporting
event. Up to eight events or records can be timed simultaneously.
The stop watch accuracy is not the same as that of a professional instrument.
Therefore, Nokia advises against its use for official competitions or any other
event in which a high-precision device would be required to establish exact
times.
To time a single event, select Menu > Settings & Tools > Tools > Stop Watch >
Start. The elapsed time is displayed in h:mm:ss:ms format. To stop or pause the
stop watch, select Stop. To resume the stop watch from the stopped time, select
Start again. To reset the stop watch to zero, select Reset with the watch in
stopped mode.
To time multiple events, select Menu > Settings & Tools > Tools > Stop Watch >
Start. To mark the elapsed time for each event you are measuring, select Cont (up
to eight times). To display the event times, select View.
Settings and tools
49
■Sounds settings
To adjust volumes and assign sounds to phone calls and alarms, select Menu >
Settings & Tools > Sounds Settings and from the following options:
Master Volume—Use the volume keys or scroll key to change the volume setting
of your phone from High to Low or to Alarm Only or Vibrate Only, then select OK.
To silence the phone, scroll down, or press and hold the volume down key until
All Sounds Off is displayed. To preview the sound level, select Play.
Call Sounds—To set ringtones for incoming calls, select Call Ringtone. to set the
phone to vibrate when a call is received, select Call Vibrate > On.
Alert Sounds—Select the alert type (Tone, Vibrate, or Reminder) for an incoming
TXT Message, PIX Message, or Voicemail Msg.
Keypad Volume—Use the volume keys or scroll key to set the keypad volume from
Off to High.
Earpiece Volume—Use the volume keys or scroll key to set the earpiece volume
from Low to High.
Service Alerts—Set any of the alert options to On or Off:
•ERI—Enhanced roaming indicator (ERI) alerts you to the status of cellular
service. The ERI banner text displays “Verizon Network,” “Extended Network,”
or “Roaming.” See "Banner," p. 49. This is a network service.
•Minute Beep—Sounds an alert every minute while in a call
•Call Connect—Alerts you when a call is successfully connected
Power On/Off—Enable or disable tones when your phone is turned on or off.
Alarm Sounds—To set a tone for alarms, select Alarm Tone. To set the phone to
vibrate when an alarm time is reached, select Alarm Vibrate > On.
■Display settings
Use the Display Settings menu to modify the look and feel of the phone display.
Banner
To display a text banner on the standby mode screen, select Menu >
Settings & Tools > Display Settings > Banner. Select from the following banners:
Personal—Enter your own banner text of up to 16 characters.
Settings and tools
50
ERI Banner—Display ERI text under your personal banner, alerting you to the
current cellular status. This is a network service.
Backlight
To conserve battery life, you can set the phone backlighting to dim when idle. To
set the backlight duration, select Menu > Settings & Tools > Display Settings >
Backlight. Select from the following options:
Display—Set how long the main display backlight remains on before dimming.
Keypad—Set how long the keypad remains backlit before dimming.
Contrast
To set the display contrast of your phone, select Menu > Settings & Tools >
Display Settings > Contrast. Select Main LCD to set the main display contrast or
Front LCD to set the mini display contrast. Select from one of five contrast levels.
Wallpaper
To set your phone to display a background picture (wallpaper), select Menu >
Settings & Tools > Display Settings > Wallpaper >
Main Screen or Front Screen. Highlight the image you wish to set as wallpaper,
and select OK. Select View to preview an image as wallpaper and Thumb to return
to thumbnail view. Wallpaper images can be used from your My PIX folder, or you
can select Get New to browse for a new wallpaper image.
Screensaver
To choose a screensaver, select Menu > Settings & Tools > Display Settings >
Screensaver > Main Screen or Front Screen. Highlight the image file you wish to
set as the screensaver, and select OK. Select View to preview an image file as a
screensaver and Thumb to return to thumbnail view. To browse for a new
screensaver file, select Get New.
Display themes
To choose the color of the background screen, select Menu > Settings & Tools >
Display Settings > Display Themes > Default, Business, Tropical, or Blue.
Settings and tools
51
Dial fonts
To set the font size of the characters displayed on the screen when entering a
phone number, select Menu > Settings & Tools > Display Settings > Dial Fonts >
Normal or Large.
Clock format
To set the clock format on your phone’s main display or mini display, select
Menu > Settings & Tools > Display Settings > Clock Format > Main Clock or
Front Clock > Digital, Analog, Minimize (mini display only), or Off.
■Phone settings
The Phone Settings menu allows you to designate specific network settings and
operational modes for your phone.
Standalone mode
To turn off radio frequencies, as in airplane mode, select Menu >
Settings & Tools > Phone Settings > Standalone Mode > Off.
Shortcut key
You can assign menu shortcuts on the scroll key to your favorite or most
frequently used functions. The shortcut is activated when you press the scroll key
while in the standby mode. See "Scroll key," p. 11 for the default shortcuts.
1. Select Menu > Settings & Tools > Phone Settings > Set Shortcut Key.
2. Select a shortcut key to modify (Left Key, Up Key, Right Key, or Down Key). To
reset the scroll key shortcuts to the default settings, select Reset All > Yes >
OK.
3. Highlight the function you wish to assign as a shortcut, and select OK.
Language
To set the default language of your phone menu and displays, select Menu >
Settings & Tools > Phone Settings > Language > English or Spanish.
Settings and tools
52
Security
To secure the phone electronically, select Menu > Settings & Tools >
Phone Settings > Security. This feature protects your phone from unauthorized
outgoing calls or unauthorized access to information stored in the phone.
Enter your lock code (0000 or the last four digits of your phone number), and
select from the following options:
Lock Mode—To prevent others from using your phone or changing location
settings. To turn the phone lock on, off, or on when the phone is first switched on,
select Device > Lock, Unlock, or On Power Up > OK. When device lock is on for the
phone, you must input your phone lock code to use the phone. Press and hold #
for quick Lock Mode phone activation. To cancel Lock Mode, select Unlock, and
enter your lock code. To share position information over the network, select
Location. Select Location On to make position information continually available
or select E911 Only to make this information available for emergency services
only.
For calls to emergency numbers, location information may be used by the
emergency operator to determine the position of the phone. The functionality
and accuracy of this feature are dependent on the network, satellite systems, and
the agency receiving the information. This feature may not function in all areas
or at all times.
Edit Code—To change the lock code for the phone. Enter matching four-digit lock
codes in the New Code and Confirm Code entry areas, and select OK.
When Device lock is on, the only outgoing calls that can be made are to the
emergency number programmed into your phone. The phone will remain locked
even if the phone is switched off and switched back on again.
System select
To set your phone to roam or search for another network when you are not in
your home area, select Menu > Settings & Tools > Phone Settings > System Select
and one of the following options:
Automatic B or Automatic A—Search for service in another network. The roaming
rate applies when you are not in the home service area.
Home Only—Make and receive calls in your home area only.
Settings and tools
53
Number assignment modules
If your phone is registered with two phone numbers using number assignment
modules (NAM) (for example, work and personal numbers), you can choose which
number to use as your origination number. Select Menu > Settings & Tools >
Phone Settings > NAM Selection. To have your phone automatically switch to the
proper NAM, select Auto NAM > On. To manually choose the origination number,
select Change NAM.
■Call settings
To designate how your phone handles incoming and outgoing calls, select
Call Settings.
Answer options
To determine how calls may be answered on your phone, select Menu >
Settings & Tools > Call Settings > Answer Options and one of the following:
Flip Open—Answer the call when the flip is opened.
Any Key—Answer the call by pressing any key on the keypad.
Send Only—Accept no incoming calls. Incoming calls are forwarded to voice mail.
Auto Answer—Answer the call automatically in about 5 seconds, using the
speaker phone. If the flip is closed, Auto Answer mode is not activated except
when a headset or hands-free car kit is attached to the phone.
Auto retry
To set the length of time the phone waits before automatically redialing a
number when the attempted call fails, select Menu > Settings & Tools >
Call Settings > Auto Retry > Off, Every 3 Seconds, Every 5 Seconds,
Every 7 Seconds, or Every 10 Seconds. Occasionally, your network may experience
heavy traffic resulting in a fast busy signal when you dial. With automatic retry
activated, your phone redials the number (the number of times is specified by the
network) and notifies you once the network is available.
TTY mode
A phone with TTY/TDD (teletype/telecommunication device for the Deaf) support
is able to translate typed characters to voice. Voice can also be translated into
characters and displayed on the TTY. To attach a TTY enabling you to
Settings and tools
54
communicate with parties also using a TTY device, select Menu >
Settings & Tools > Call Settings > TTY Mode and one of the following:
TTY Full—Turn on full TTY capability.
TTY + TALK—Turn on TTY in voice carry-over (VCO) mode.
TTY + HEAR—Turn on TTY in hearing carry-over (HCO) mode.
TTY Off—Turn off TTY mode.
One-touch dial
To initiate a speed dial call by entering the speed dial digits, select Menu >
Settings & Tools > Call Settings > One Touch Dial > On or Off. If set to Off, speed
dial numbers designated in your contact list do not function. See "Speed
Dials," p. 42.
Voice privacy
To set the voice privacy feature for CDMA calls, select Menu > Settings & Tools >
Call Settings > Voice Privacy > On or Off. The voice privacy feature protects the
privacy of your current phone conversation from other callers placing phone calls
on your same network. CDMA offers inherent voice privacy that protects the
identity of users and makes interception very difficult. This is a network service.
Voice services
Before using voice services, note the following:
• Voice tags are not language-dependent. They are dependent on the speaker’s
voice.
• You must say the name exactly as you said it when you recorded it.
• Voice tags are sensitive to background noise. Record voice tags, and use them
in a quiet environment.
• Voice tag recording prompts are turned off when your phone is in All sounds
off mode.
• Very short names are not accepted. Use long names, and avoid similar names
for different numbers.
Note: Using voice tags may be difficult in a noisy environment or during
an emergency, so you should not rely solely upon voice dialing in all
circumstances.
Settings and tools
55
To access the voice services available with your phone, select Menu >
Settings & Tools > Call Settings > Voice Services and one of the following options:
•Voice Dial—Call a person in your contact list by speaking their name into your
phone. To create a voice dial, select New, and highlight or search for a
contact. Choose the number for the contact that will be voice dialed, and
select OK. To record a voice dial for the contact, select OK, and follow the
phone prompts "Name please" and "Again." You will hear "Added," and the
contact is added to the voice dial list.
In the voice dial list, highlight a voice dial entry, and select PLAY to hear the
voice dial recording, or select from the available options.
The voice dial feature is also available on the EDIT CONTACT screen in the
Contacts menu when you highlight a number for the contact and select
Options > Set Voice Dial. See "View or edit the contact list," p. 40.
•Voice Setting—Activate the voice dial function, and set the voice dial
activation mode. To activate voice dialing and set the mode, use the scroll key
to change the Set Active mode from Off to Send Key (you are prompted for a
voice dial when you press and hold the send key) or Active Flip (you are
prompted for a voice dial when you flip open the phone).
To enable hands-free kit mode, use the scroll key to change the HFK Mode
from Off to On.
•Train Word—Use your voice to enable voice services to recognize how you
pronounce control words. Highlight Yes, No, or Wake-up and follow the
prompts. You will hear "Training successful" when complete. Highlight a
word, and select Undo > Yes to undo the word training or Undo Train All to
undo all control word training.
DTMF tones
DTMF tones or touch tones are the tones that sound when you press the keys on
your phone keypad. You can use touch tones for many automated dial-up
services such as banking and airlines or for entering your voice mailbox number
and password.
To set the key tone length, select Menu > Settings & Tools > Call Settings >
DTMF Tones. Select Normal to send out a tone for a fixed period of time no matter
how long you press the key or Long to send out a continuous tone for as long as
you keep the key pressed.
Settings and tools
56
■Memory
To check the amount of phone memory you are using for PIX and sound file
storage, select Menu > Settings & Tools > Memory, and one of the following
options:
Memory Usage—To display the total used and available memory in MB.
My PIX—To display the size (in kB) of the PIX files stored in My PIX. To delete PIX
files, select Erase, the files you wish to delete, and MARK or Mark All. Select
Done > Yes > OK.
My Sounds—To display the size (in kB) of the sound files stored in the My Sounds
folder. To delete sound files, select Erase, the files you wish to delete, and MARK
or Mark All. Select Done > Yes > OK.
See "Information and help," p. 24.
■Phone information
To view information about your phone, select Menu > Settings & Tools >
Phone Info to display the following information:
My Number—The active phone number.
SW Version—The current software version for your phone.
Icon Glossary—The library of screen icons shown while in a call or when using
features.
Enhancements
57
9. Enhancements
Check the model number of any charger before use
with this phone. This phone is intended for use when
supplied with power from charger XX-XXXX for the
XX-XXXX battery.
Warning: Use only batteries, chargers and enhancements approved by
Nokia for use with this particular model. The use of any other types may
invalidate any approval or warranty, and may be dangerous. For
availability of approved enhancements, please check with your dealer.
A few practical rules about accessories and enhancements:
• Keep all accessories and enhancements out of the reach of small children.
• When you disconnect the power cord of any accessory or enhancement, grasp
and pull the plug, not the cord.
• Check regularly that enhancements installed in a vehicle are mounted and
are operating properly.
• Installation of any complex car enhancements must be made by qualified
personnel only.
Power
• 1000 mAh Li-Ion Battery (XX-XXXX)
• Travel Charger (XX-XXXX)
Reference information
58
10. Reference information
This chapter contains safety and maintenance information and specifications for
your product.
■Battery information
For battery installation and replacement information, see "Replace the
battery," p. 13.
Your phone is powered by a rechargeable battery. The full performance of a new
battery is achieved only after two or three complete charge and discharge cycles.
The battery can be charged and discharged hundreds of times but it will
eventually wear out. When the talk and standby times are noticeably shorter
than normal, buy a new battery. Use only Nokia approved batteries, and recharge
your battery only with Nokia approved chargers designated for this phone.
If a replacement battery is being used for the first time or if the battery has not
been used for a prolonged period, it may be necessary to connect the charger
then disconnect and reconnect it to begin charging the battery.
Unplug the charger from the electrical plug and the phone when not in use. Do
not leave the battery connected to a charger. Overcharging may shorten its
lifetime. If left unused, a fully charged battery will lose its charge over time.
Temperature extremes can affect the ability of your battery to charge.
Use the battery only for its intended purpose. Never use any charger or battery
that is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a
metallic object such as a coin, clip, or pen causes direct connection of the
positive (+) and negative (-) terminals of the battery. (These look like metal strips
on the battery.) This might happen, for example, when you carry a spare battery
in your pocket or purse. Short-circuiting the terminals may damage the battery
or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or
winter conditions, will reduce the capacity and lifetime of the battery. Always try
to keep the battery between 59°F and 77°F (15°C and 25°C). A phone with a hot
or cold battery may not work temporarily, even when the battery is fully charged.
Battery performance is particularly limited in temperatures well below freezing.
Reference information
59
Do not dispose of batteries in a fire as they may explode. Batteries may also
explode if damaged. Dispose of batteries according to local regulations. Please
recycle when possible. Do not dispose as household waste.
Care and maintenance
60
Care and maintenance
Your phone is a product of superior design and craftsmanship and should be
treated with care. The suggestions below will help you protect your warranty
coverage and enjoy your phone for many years.
• Keep the phone and all of its parts and accessories out of the reach of small
children.
• Keep the phone dry. Precipitation, humidity and all types of liquids or
moisture can contain minerals that will corrode electronic circuits. If your
phone does get wet, remove the battery and allow the phone to dry
completely before replacing it.
• Do not use or store the phone in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
• Do not store the phone in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the phone in cold areas. When the phone returns to its normal
temperature, moisture can form inside the phone and damage electronic
circuit boards.
• Do not attempt to open the phone other than as instructed in this guide.
• Do not drop, knock, or shake the phone. Rough handling can break internal
circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
the phone.
• Do not paint the phone. Paint can clog the moving parts and prevent proper
operation.
• Use a soft, clean, dry cloth to clean any lenses (such as camera, proximity
sensor, and light sensor lenses).
• Use only the supplied or an approved replacement antenna. Unauthorized
antennas, modifications, or attachments could damage the phone and may
violate regulations governing radio devices.
• Use chargers indoors.
All of the above suggestions apply equally to your phone, battery, charger, or any
enhancement. If any device is not working properly, take it to the nearest
authorized service facility for service.
Additional safety information
61
Additional safety information
■Operating environment
Your phone and its enhancements may contain small parts. Keep them out of the
reach of small children.
Remember to follow any special regulations in force in any area and always
switch off your phone when its use is prohibited or when it may cause
interference or danger. Use the phone only in its normal operating positions. This
phone meets RF exposure guidelines when used either in the normal use position
against the ear or when positioned at least 22 millimeters away from the body.
When a carry case, belt clip, or holder is used for body-worn operation,
it should not contain metal and should position the phone the above-stated
distance from your body.
In order to transmit data files or messages, this phone requires a good quality
connection to the network. In some cases, transmission of data files or messages
may be delayed until such a connection is available. Ensure the above separation
distance instructions are followed until the transmission is completed.
■Medical devices
Operation of any radio transmitting equipment, including wireless phones, may
interfere with the functionality of inadequately protected medical devices.
Consult a physician or the manufacturer of the medical device to determine if
they are adequately shielded from external RF energy or if you have any
questions. Switch off your phone in health care facilities when any regulations
posted in these areas instruct you to do so. Hospitals or health care facilities may
be using equipment that could be sensitive to external RF energy.
Pacemakers
Pacemaker manufacturers recommend that a minimum separation of
15.3 centimeters (6 inches) be maintained between a wireless device or phone
and a pacemaker to avoid potential interference with the pacemaker. These
recommendations are consistent with the independent research by and
recommendations of Wireless Technology Research. To minimize the potential
for interference, persons with pacemakers should:
• Always keep the phone more than 15.3 centimeters (6 inches) from their
pacemaker.
• Not carry the phone in a breast pocket.
Additional safety information
62
• Hold the phone to the ear opposite the pacemaker to minimize the potential
for interference.
If you suspect interference, switch off your phone and move the phone away.
Hearing aids
Some digital wireless devices may interfere with some hearing aids. If
interference occurs, consult your service provider.
■Vehicles
RF signals may affect improperly installed or inadequately shielded electronic
systems in motor vehicles such as electronic fuel injection systems, electronic
antiskid (antilock) braking systems, electronic speed control systems, and air bag
systems. For more information, check with the manufacturer or its representative
of your vehicle or any equipment that has been added.
Only qualified personnel should service the phone, or install the phone in a
vehicle. Faulty installation or service may be dangerous and may invalidate any
warranty that may apply to the phone. Check regularly that all wireless phone
equipment in your vehicle is mounted and operating properly. Do not store or
carry flammable liquids, gases, or explosive materials in the same compartment
as the phone, its parts, or enhancements. For vehicles equipped with an air bag,
remember that air bags inflate with great force. Do not place objects, including
installed or portable wireless equipment in the area over the air bag or in the air
bag deployment area. If in-vehicle wireless equipment is improperly installed and
the air bag inflates, serious injury could result.
FCC regulations prohibit using your wireless phone while in the air. The use of
wireless telephones in an aircraft may be dangerous to the operation of the
aircraft, disrupt the wireless telephone network, and may be illegal.
■Potentially explosive environments
Switch off your phone when in any area with a potentially explosive atmosphere
and obey all signs and instructions. Potentially explosive atmospheres include
areas where you would normally be advised to turn off your vehicle engine.
Sparks in such areas could cause an explosion or fire resulting in bodily injury or
even death. Switch off the phone at refueling points such as near gas pumps at
service stations. Observe restrictions on the use of radio equipment in fuel
depots, storage, and distribution areas, chemical plants or where blasting
operations are in progress. Areas with a potentially explosive atmosphere are
often but not always clearly marked. They include below deck on boats, chemical
transfer or storage facilities, vehicles using liquefied petroleum gas (such as
Additional safety information
63
propane or butane), and areas where the air contains chemicals or particles such
as grain, dust or metal powders.
Failure to observe these instructions may lead to suspension or denial of
telephone services to the offender, legal action, or both.
■Emergency calls
Important: Wireless phones, including this phone, operate using radio
signals, wireless networks, landline networks, and user-programmed
functions. Because of this, connections in all conditions cannot be
guaranteed. You should never rely solely on any wireless phone for
essential communications like medical emergencies.
To make an emergency call, make sure your phone is properly charged before
attempting any emergency calls. If your battery becomes empty, you cannot
receive or make calls, including emergency calls and must wait a few minutes
after the charging begins to place your call.
1. Press the end key as many times as needed to clear the display and ready the
phone for calls.
2. Enter the official emergency number for your present location and press the
send key. Emergency numbers vary by location.
If certain features are in use, you may first need to turn those features off before
you can make an emergency call. Consult this guide or your service provider for
more information.
When making an emergency call, give all the necessary information as accurately
as possible. Your wireless phone may be the only means of communication at the
scene of an accident. Do not end the call until given permission to do so.
■Certification information (SAR)
THIS MOBILE DEVICE MEETS GUIDELINES FOR EXPOSURE TO RADIO WAVES.
Your mobile device is a radio transmitter and receiver. It is designed not to
exceed the limits for exposure to radio waves recommended by international
guidelines. These guidelines were developed by the independent scientific
organization ICNIRP and include safety margins designed to assure the
protection of all persons, regardless of age and health.
The exposure guidelines for mobile devices employ a unit of measurement known
as the Specific Absorption Rate, or SAR. The SAR limit stated in the ICNIRP
guidelines is 2.0 watts/kilogram (W/kg) averaged over 10 grams of tissue. Tests
for SAR are conducted using standard operating positions with the device
transmitting at its highest certified power level in all tested frequency bands. The
Additional safety information
64
actual SAR level of an operating device can be below the maximum value
because the device is designed to use only the power required to reach the
network. That amount changes depending on a number of factors such as how
close you are to a network base station. The highest SAR value under the ICNIRP
guidelines for use of the device at the ear is 0.749 W/kg.
Use of device accessories and enhancements may result in different SAR values.
SAR values may vary depending on national reporting and testing requirements
and the network band. Additional SAR information may be provided under
product information at www.nokia.com.
Your mobile device is also designed to meet the requirements for exposure to
radio waves established by the Federal Communications Commission (USA) and
Industry Canada. These requirements set a SAR limit of 1.6 W/kg averaged over
one gram of tissue. The highest SAR value reported under this standard during
product certification for use at the ear is 1.25 W/kg and when properly worn on
the body is 1.1 W/kg. Information about this device model can be found at
http://www.fcc.gov/oet/fccid by searching the equipment authorization system
using FCC ID QMNRM-214.
■Hearing aid compatibility (HAC)
Your mobile device model complies with FCC rules governing hearing aid
compatibility. These rules require an M3 microphone or higher value. The
M-value, shown on the device box, refers to lower radio frequency (RF) emissions.
A higher M-value generally indicates that a device model has a lower RF
emissions level, which may improve the likelihood that the device will operate
with certain hearing aids. Some hearing aids are more immune than others are to
interference. Please consult your hearing health professional to determine the
M-rating of your hearing aid and whether your hearing aid will work with this
device. More information on accessibility can be found at
www.nokiaaccessibility.com.
■Technical information
Type designation—RM-214
Dimensions—Width, 46 mm; length, 85 mm; depth, 19 mm
Weight—84 g with 1000 mAh Li-Ion Battery (XX-XXXX)
Display—1.5-in VGA, 128x128 pixels, 16.7M colors
Camera—Integrated 330k pixel with 4x digital zoom and flash
Wireless networks—CDMA 800 and 1900 MHz, and CDMA2000 1xRTT
Additional safety information
65
Frequency range (Tx)—PCS: 1851.25–1908.75 MHz, Cellular: 824.70-
848.37 MHz
Frequency range (Rx)—PCS: 1931.25–1988.75 MHz, Cellular: 869.70–
893.37 MHz
GPS frequency—1575.42 MHz
■Battery information
This section provides information about battery charging times with the travel
charger, talk-times, and standby times. Be aware that the information in this
section is subject to change. For more information, contact your service provider.
Charging times
The following charging times are approximate with the XX-XXXX 1000 mAh
Li-Ion battery:
Travel Charger: Up to 3.5 hours
Talk and standby times
Operation times are estimates only and depend on signal strength, phone use,
network conditions, features used, battery age and condition (including charging
habits), temperatures to which the battery is exposed, and many other factors.
Talk time: Up to 203 minutes (digital)
Standby time: Up to 220 hours (digital)
Index
66
Index
A
Abc mode 19
about your phone 5
accessibility 6
account information 46
alarm clock 47
alarm sounds 49
alerts 31
answer options 53
antenna 12
B
back cover, removing 13
backlight 50
banner 49
battery
and chargers 58
changing 13
charging 14
charging times 65
information 65
removing 13
talk and standby times 65
billing 7, 44
C
calculator 46
calendar 46
call log 44
call settings
answer options 53
auto retry 53
DTMF tones 55
one-touch dial 54
TTY mode 53
voice privacy 54
voice services 54
call timers 44
callback number 34, 53
caller group 40
caller ID 17
calls
answering 16
duration of 44
headset 16
in-call options 17
making 15
muting 17
pauses when making 38
silencing 16
vibrate mode 17
camera 23
care and maintenance 60
certification information (SAR) 63
charger
connecting 14
information 58
times 65
chat messages 36
clock 51
contact information 6
contact list 39
contacts 37
default number 38
new 37
numbers with pauses 38
voice dial 39
contrast settings 50
copyright protection 25
customer service 6, 7
D
default number
callback 34
contacts 38
device information 56
dimensions 64
display
backlight 50
banner 49
contrast 50
font size 51
screensaver 50
themes 50
wallpaper 50
downloading
extras 24
games 24
Index
67
information 24
pictures 23
videos 23
drafts 34
erase all 35
DTMF tones 55
duration of calls 44
E
edit message 29
e-mail 36
emergency calls 63
location sharing 52
while using wireless Internet 25
EMS 31
enhanced roaming indicator 49
enhancements 57
entry mode 20, 34
erase messages 35
ERI 49
ESN 6
event scheduler 47
F
FCC information 63
font size 51
G
games 24
Get Extras 24
Get Fun & Games 24
Get Going 24
Get It Now 22
Get News & Info 24
Get News and Info 24
Get PIX 23
Get Tunes & Tones 22
groups 40
H
headset 15, 16
hearing aid compatibility 64
hearing aids 62
help 6, 24
I
Inbox 31
erase messages 35
indicators and icons 9, 56
instant messages 36
L
language 51
location sharing 52
lock code 18, 52
loudspeaker 16
M
master volume 49
medical devices
hearing aids 62
pacemakers 61
memory information 24, 56
message
options 30, 31, 35
reply 31
segments 27
settings 34
size 27
messages
characters in 30
chat 36
composing 28, 29
draft 34
e-mail 36
EMS 27, 31
erasing 35
Inbox 31
MMS 27, 31
mobile IM 36
options for 33
Quick Text 34
sent 33
SMS 31
text 27
voice mail 35
MMS 31
mobile IM 36
multi-tap mode 19
mute function 17, 33
my account 46
Index
68
N
NAM selection 53
network services 5
network settings 51
news & info 24
Nokia support 6
notepad 48
number mode 20
O
one-touch dial settings 54
options
contact list 40
Inbox 31
message 35
PIX message 23
sent message 33
TXT message 29
P
pacemakers 61
pauses 38
phone lock 18, 52
phone settings 51
phone setup 12
picture gallery 23
picture ID 39
picture taking 23
pictures
camera 23
download 23
PIX & FLIX messages 27
PIX messages
formats 28
settings 35
Q
Quick Text 34
R
recent calls 44
recordings 22
redialing 53
reference information 58
reply to messages 31
ringtones 22
S
safety 4
important safety information
61
screensaver 50
scroll key 11
scrolling 11
security 52
web 25
selection keys 10
sent messages 33, 35
settings 34
phone 51
sounds 49
settings & tools 46
shortcut key 51
shortcuts 11
signature 34
silent mode 17
SMS 31
software version 56
sound settings
call 49
sounds
alert 49
formats for PIX messages 28
PIX message 30
speaker phone 16
speed dials 42
standalone mode 51
standard mode 19
standby mode 9
stop watch 48
system
device information 56
language 51
NAM selection 53
security 52
select 52
standalone mode 51
T
T9Word 20
talk and standby times 65
technical information 64
text entry 19, 34
Abc mode 19
entry mode 20
Index
69
number mode 20
T9 mode 20
text messages 27, 28
themes 50
timers 44
tools & settings 46
touch tones 55
TTY mode 53
turn phone off/on 14
TXT messages
characters 27
edit 29
write and send 28
type designation 64
U
usage rules 25
V
vibrate mode 17
video
gallery 23
view calls 44
view Inbox 31
view missed calls 44
voice dial 39
voice mail 35
voice privacy 54
voice services 54
volume
adjusting 16, 49
earpiece 49
W
wallpaper 50
WAP 31
wireless Internet
make an emergency call 25
wireless networks 64
Word mode 20
world clock 48
write and send messages 28
Index
70
