Microsoft RM-230 GSM/WCDMA cellular phone w/BT User Manual RM 230 FCC sg draft 26 Jan 07
Microsoft Mobile Oy GSM/WCDMA cellular phone w/BT RM 230 FCC sg draft 26 Jan 07
Manual
DRAFT
RM-230
User Guide
DRAFT
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this RM-230 product is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of
Conformity can be found at
http://www.nokia.com/phones/declaration_of_conformity/
© 2007 Nokia. All rights reserved.
Nokia, Nokia Connecting People, Nokia Care, Navi, and Visual Radio are trademarks or registered
trademarks of Nokia Corporation. Nokia tune and Visual Radio are sound marks of Nokia Corporation.
Other product and company names mentioned herein may be trademarks or tradenames of their
respective owners.
Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form
without the prior written permission of Nokia is prohibited.
This product includes software licensed from Symbian Software Ltd © 1998-2007.
Symbian and Symbian OS are trademarks of Symbian Ltd.
US Patent No 5818437 and other pending patents. T9 text input software Copyright (C) 1997-2007. Tegic
Communications, Inc. All rights reserved.
Java™ and all Java-based marks are trademarks or registered trademarks of Sun Microsystems,
Inc.
This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and
noncommercial use in connection with information which has been encoded in compliance with the
MPEG-4 Visual Standard by a consumer engaged in a personal and noncommercial activity and (ii) for use
in connection with MPEG-4 video provided by a licensed video provider. No license is granted or shall be
implied for any other use. Additional information, including that related to promotional, internal, and
commercial uses, may be obtained from MPEG LA, LLC. See <http://www.mpegla.com>.
Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and
improvements to any of the products described in this document without prior notice.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO CIRCUMSTANCES SHALL NOKIA
OR ANY OF ITS LICENSORS BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL,
INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED.
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAW,
NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN
RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE
RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.
The availability of particular products and applications for these products may vary by region. Please
check with your Nokia dealer for details, and availability of language options.
0434
DRAFT
This device complies with Directive 2002/95/EC on the restriction of the use of certain hazardous
substances in electrical and electronic equipment.
Export controls
This device may contain commodities, technology or software subject to export laws and regulations from
the US and other countries. Diversion contrary to law is prohibited.
NO WARRANTY
The third-party applications provided with your device may have been created and may be owned by
persons or entities not affiliated with or related to Nokia. Nokia does not own the copyrights or
intellectual property rights to the third-party applications. As such, Nokia does not take any responsibility
for end-user support, functionality of the applications, or the information in the applications or these
materials. Nokia does not provide any warranty for the third-party applications.
BY USING THE APPLICATIONS YOU ACKNOWLEDGE THAT THE APPLICATIONS ARE PROVIDED AS IS
WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW. YOU FURTHER ACKNOWLEDGE THAT NEITHER NOKIA NOR ITS AFFILIATES MAKE ANY
REPRESENTATIONS OR WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTIES OF TITLE, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR THAT THE
APPLICATIONS WILL NOT INFRINGE ANY THIRD-PARTY PATENTS, COPYRIGHTS, TRADEMARKS, OR OTHER
RIGHTS.
Model: 5700
FCC/INDUSTRY CANADA NOTICE
Your device may cause TV or radio interference (for example, when using a telephone in close proximity to
receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such
interference cannot be eliminated. If you require assistance, contact your local service facility. This device
complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Any changes or modifications not expressly
approved by Nokia could void the user's authority to operate this equipment.
4
DRAFT
Contents
For your safety ................................. 6
General information ........................ 8
Access codes ...................................................... 8
Lock code......................................................... 8
PIN codes......................................................... 8
PUK codes........................................................ 9
Barring password........................................... 9
Nokia support and contact information .... 9
1. Get started.................................. 10

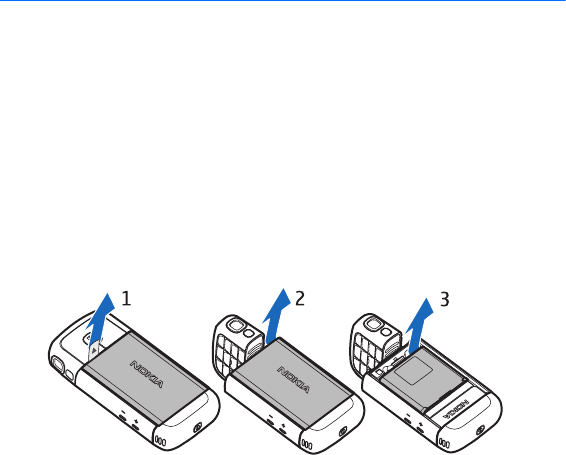

Insert a (U)SIM card and battery .............. 10

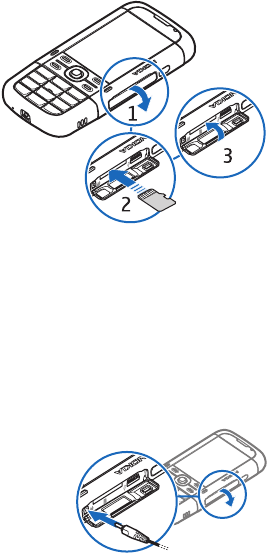

MicroSD card slot .......................................... 11
Charge the battery ........................................ 12

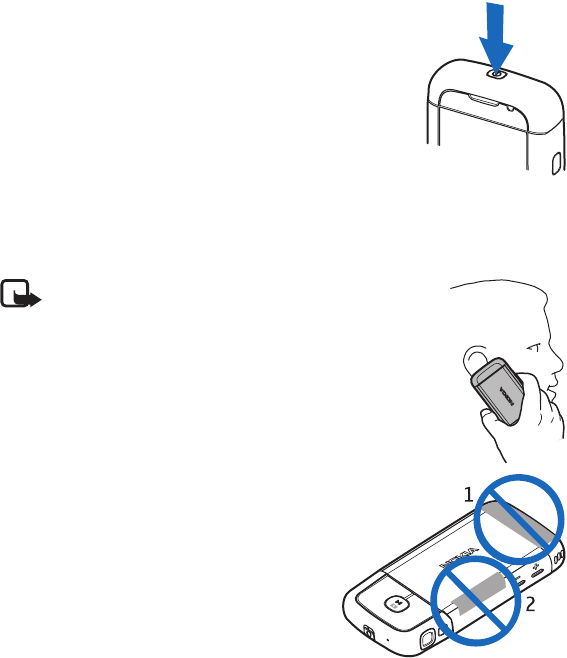

Switch the phone on and off ..................... 13
Normal operating position.......................... 13
Configuration settings ................................. 13
2. Your phone ................................. 14

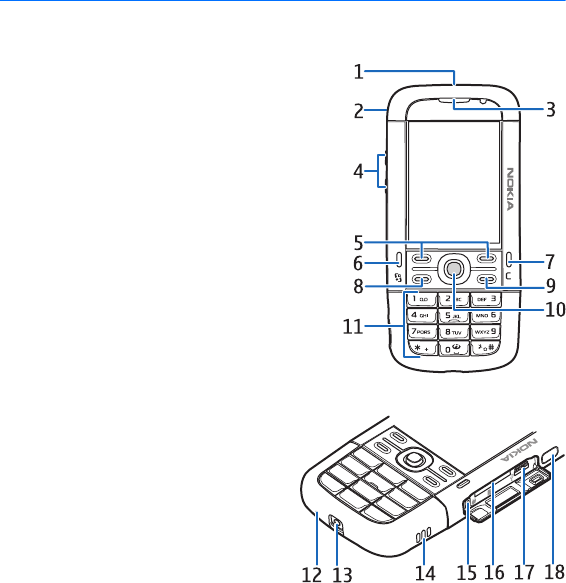

Keys and parts ................................................ 14

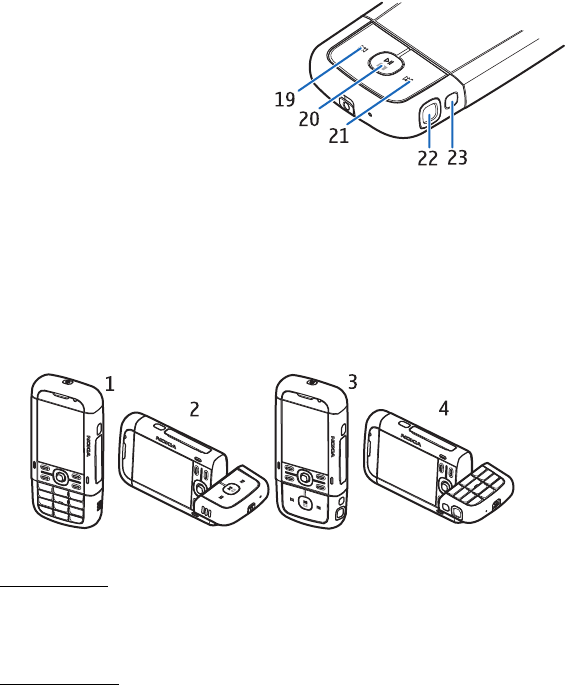

Modes................................................................ 15
Phone mode................................................. 15
Camera mode .............................................. 15
Music mode ................................................. 16
Video call mode .......................................... 16
Video view mode ........................................ 16
Standby mode................................................. 16
Active standby............................................. 16
Offline profile.............................................. 17
Indicators ......................................................... 17
Menu ................................................................. 18
Help ................................................................... 19
Volume control............................................... 19
Keypad lock (keyguard)................................ 19

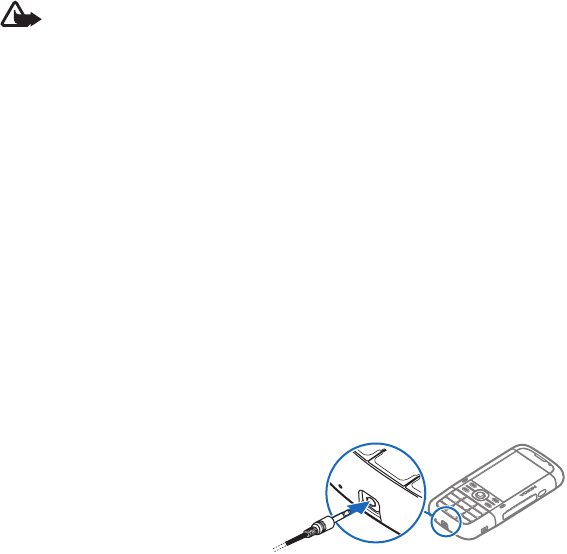

Connect a compatible headset .................. 19

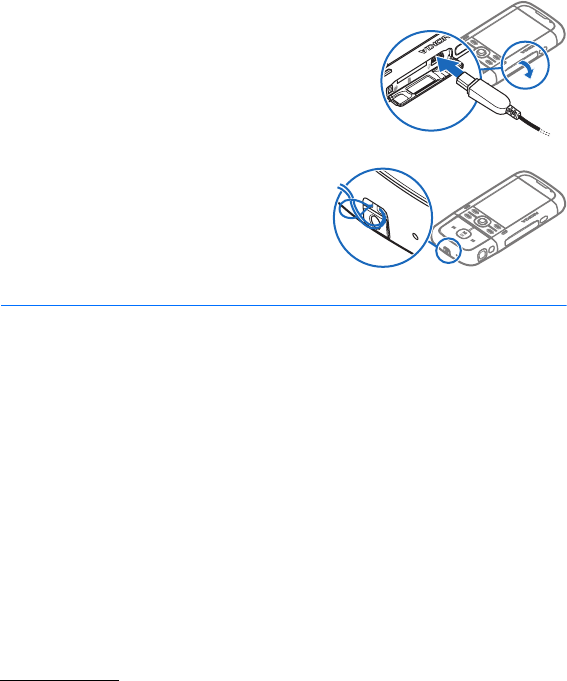

Connect a USB data cable .......................... 20
Attach a wrist strap ...................................... 20
3. Call functions ............................. 20
Make a voice call........................................... 20
Voice dialing ............................................... 20
Answer or reject a call ................................. 21
Call waiting (network service) ................ 21
Make a video call ........................................... 22
Answer a video call........................................ 22
Video sharing................................................... 23
Settings.......................................................... 23
Share live video........................................... 23
Accept an invitation .................................. 24
Log...................................................................... 24
4. Write text................................... 24
Traditional text input.................................... 25
Predictive text input...................................... 25
Copy text .......................................................... 26
5. Messaging .................................. 26
Write and send messages ............................ 27
Mailbox ............................................................. 28
View messages on the SIM card ................ 28
Messaging settings ........................................ 29
Text and multimedia message settings 29
E-mail settings ............................................ 29
Message reader............................................... 29
6. Contacts ..................................... 30
Add a ringing tone......................................... 30
7. Gallery ........................................ 31
Gallery functions............................................ 31
View videos and images............................ 31
Edit images................................................... 32
Edit videos .................................................... 32
Transfer videos from PC............................ 32
Download files............................................. 33
8. Music player............................... 33
Listen to music................................................ 33
Music menu ..................................................... 34
Playlists ............................................................. 34
Music shop....................................................... 35
Music shop settings ................................... 35
Transfer music................................................. 36
Transfer music from PC............................. 36
5
DRAFT
Music transfer with Windows Media
Player............................................................. 37
9. Media .......................................... 37
Visual Radio..................................................... 37
Camera.............................................................. 38
Camera settings.......................................... 38
Movie director ................................................ 38
Create a quick muvee ............................... 39
Create a custom muvee............................ 39
10.Personalization.......................... 40
Themes.............................................................. 40
Profiles.............................................................. 41
3-D tones ......................................................... 41
11.Web............................................ 42
Mobile Search................................................. 42
Web.................................................................... 42
Set up the phone for the browser
service............................................................ 42
Make a connection .................................... 42
View bookmarks.......................................... 42
Connection security................................... 43
Browse web pages ..................................... 43
Download ..................................................... 44
End a connection........................................ 45
Empty the cache......................................... 45
Browser settings......................................... 45
12.Organizer................................... 45
Clock.................................................................. 45
Alarm clock .................................................. 45
Calendar ........................................................... 46
13.Applications .............................. 46
Download! ........................................................ 46
14.Settings..................................... 47
Voice commands ............................................ 47
Call mailbox..................................................... 47
Phone settings ................................................ 47
General .......................................................... 47
Phone ............................................................. 48
Connection ................................................... 48
Applications.................................................. 49
Speech............................................................... 49
15.Connectivity.............................. 50
PC Suite............................................................. 50
Bluetooth connection ................................... 50
Bluetooth connection settings ............... 50
Send data...................................................... 51
Paired devices view.................................... 52
Receive data................................................. 52
USB data cable................................................ 52
Data transfer ................................................... 53
16.Data manager ........................... 53
Application manager..................................... 53
Memory card ................................................... 54
Activation keys................................................ 55
17.Battery information ................. 56
Charging and discharging............................ 56
Nokia battery authentication guidelines. 57
Care and maintenance................... 59
Additional safety information ...... 60
Index............................................... 64
6
DRAFT
For your safety
Read these simple guidelines. Not following them may be dangerous or illegal. Read the
complete user guide for further information.
SWITCH ON SAFELY
Do not switch the device on when wireless phone use is prohibited or when it
may cause interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle while
driving. Your first consideration while driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect
performance.
SWITCH OFF IN HOSPITALS
Follow any restrictions. Switch the device off near medical equipment.
SWITCH OFF IN AIRCRAFT
Follow any restrictions. Wireless devices can cause interference in aircraft.
SWITCH OFF WHEN REFUELING
Do not use the device at a refueling point. Do not use near fuel or chemicals.
SWITCH OFF NEAR BLASTING
Follow any restrictions. Do not use the device where blasting is in progress.
USE SENSIBLY
Use only in the normal position as explained in the product documentation. Do
not touch the antenna unnecessarily.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
ENHANCEMENTS AND BATTERIES
Use only approved enhancements and batteries. Do not connect incompatible
products.
WATER-RESISTANCE
Your device is not water-resistant. Keep it dry.
BACK-UP COPIES
Remember to make back-up copies or keep a written record of all important
information stored in your device.
7
DRAFT
CONNECTING TO OTHER DEVICES
When connecting to any other device, read its user guide for detailed safety
instructions. Do not connect incompatible products.
EMERGENCY CALLS
Ensure the phone function of the device is switched on and in service. Press the
end key as many times as needed to clear the display and return to the standby
mode. Enter the emergency number, then press the call key. Give your location.
Do not end the call until given permission to do so.
■About your device
The wireless device described in this guide is approved for use on the GSM 850, 900, 1800,
and 1900 and UMTS 2100 networks. Contact your service provider for more information
about networks.
When using the features in this device, obey all laws and respect local customs, privacy and
legitimate rights of others, including copyrights.
Copyright protections may prevent some images, music (including ringing tones), and other
content from being copied, modified, transferred, or forwarded.
Your device supports internet connections and other methods of connectivity. Like
computers, your device may be exposed to viruses, malicious messages and applications, and
other harmful content. Exercise caution and open messages, accept connectivity requests,
download content, and accept installations only from trustworthy sources. To increase the
security of your device, consider installing antivirus software with a regular update service
and using a firewall application.
Warning: To use any features in this device, other than the alarm clock, the device
must be switched on. Do not switch the device on when wireless device use may
cause interference or danger.
■Network services
To use the phone you must have service from a wireless service provider. Many of the
features require special network features. These features are not available on all networks;
other networks may require that you make specific arrangements with your service provider
before you can use the network services. Your service provider can give you instructions and
explain what charges will apply. Some networks may have limitations that affect how you
can use network services. For instance, some networks may not support all language-
dependent characters and services.
Your service provider may have requested that certain features be disabled or not activated
in your device. If so, these features will not appear on your device menu. Your device may
also have a special configuration such as changes in menu names, menu order, and icons.
Contact your service provider for more information.
8
DRAFT
This device supports WAP 2.0 protocols (HTTP and SSL) that run on TCP/IP protocols. Some
features of this device, such as web browsing, e-mail, push to talk, instant messaging, and
multimedia messaging, require network support for these technologies.
■Enhancements, batteries, and chargers
Check the model number of any charger before use with this device. This device is intended
for use when supplied with power from the AC-3, AC-4, AC-5, DC-4 chargers or CA-44
charger adapter.
Warning: Use only batteries, chargers, and enhancements approved by Nokia for
use with this particular model. The use of any other types may invalidate any
approval or warranty, and may be dangerous.
For availability of approved enhancements, please check with your dealer. When you
disconnect the power cord of any enhancement, grasp and pull the plug, not the cord.
Practical rules about accessories and enhancements
• Keep all accessories and enhancements out of the reach of small children.
• When you disconnect the power cord of any accessory or enhancement, grasp and pull
the plug, not the cord.
• Check regularly that enhancements installed in a vehicle are mounted and are operating
properly.
• Installation of any complex car enhancements must be made by qualified personnel only.
General information
■Access codes
Lock code
The lock code (5 to 10 digits) helps to protect your phone against unauthorized
use. The preset code is 12345. You can change the code and set the phone to
request the code. See Security in “General,” p. 47.
When the device is locked, calls may be possible to the official emergency number
programmed into your device.
PIN codes
The personal identification number (PIN) code and the universal personal
identification number (UPIN) code (4 to 8 digits) help to protect your SIM card
9
DRAFT
against unauthorized use. See Security in “General,” p. 47. The PIN code is usually
supplied with the SIM card.
The PIN2 code (4 to 8 digits) may be supplied with the SIM card and is required for
some functions.
The module PIN is required to access the information in the security module. The
signing PIN is required for the digital signature. These PIN codes are supplied with
the SIM card if the SIM card has a security module in it.
PUK codes
The personal unblocking key (PUK) code and the universal personal unblocking key
(UPUK) code (8 digits) are required to change a blocked PIN code and UPIN code,
respectively. The PUK2 code is required to change a blocked PIN2 code.
If the codes are not supplied with the SIM card, contact your local service provider
for the codes.
Barring password
The barring password (4 digits) is required when using Call barring. See “Phone,”
p. 48. You can obtain the password from your service provider. If the password is
blocked, contact your service provider.
■Nokia support and contact information
Check www.nokia.com/support or your local Nokia web site for the longer version of the
user guide, additional information, downloads, and services related to your Nokia product.
On the web site, you can get information on the use of Nokia products and
services. If you need to contact customer service, check the list of local Nokia
contact centers at www.nokia.com/customerservice.
For maintenance services, check your nearest Nokia service center at
www.nokia.com/repair.
Software updates
Nokia may produce software updates that may offer new features, enhanced functions, or
improved performance. You may be able to request these updates through the Nokia
Software Updater PC application. To update the device software, you need the Nokia
Software Updater application and a compatible PC with Microsoft Windows 2000 or XP
10
DRAFT
operating system, broadband internet access, and a compatible data cable to connect your
device to the PC.
To get more information and to download the Nokia Software Updater application, visit
www.nokia.com/softwareupdate or your local Nokia web site.
1. Get started
■Insert a (U)SIM card and battery
Always switch the device off and disconnect the charger before removing the battery.
This phone uses BP-5M batteries.
For availability and information on using SIM card services, contact your SIM card vendor.
This may be the service provider or other vendor.
1. To open the back cover of the phone for the first time, lift it using the plastic
strip shown on the back of the phone (1). You can then remove the strip.
To open the back cover later, turn the lower part of the phone 90 degrees left
or right when the number keys of the lower part are on the same side as the
display, and lift the back cover (2). To remove the battery, lift it as shown (3).
2. To release the SIM card holder, slide it backwards (4), and lift it (5).
Insert the (U)SIM card to the SIM card holder (6). Make sure that the (U)SIM
card is properly inserted and that the golden-colored contact area on the card
is facing downwards, and the beveled corner faces upwards.
11
DRAFT
Close the SIM card holder (7), and slide it forward to lock it (8).
3. Replace the battery (9). Replace the back cover (10) and (11).
■MicroSD card slot
Use only compatible microSD cards approved by Nokia for use with
this device. Nokia uses approved industry standards for memory
cards, but some brands may not be fully compatible with this device.
Incompatible cards may damage the card and the device and corrupt
data stored on the card.
Keep microSD cards out of the reach of small children.
You can extend the available memory with a microSD memory card. You can insert
or remove a microSD card without switching the phone off.
Important: Do not remove the memory card in the middle of an operation when
the card is being accessed. Removing the card in the middle of an operation may
damage the memory card as well as the device, and data stored on the card may be
corrupted.
12
DRAFT
Insert a microSD card
Note that the memory card may be
supplied with the phone, and may
already be inserted.
1. Open the side door (1).
2. Place the microSD card in the slot
with the golden contact area facing
down (2). Push the card gently to
lock it into place.
3. Close tight the side door (3).
Remove a microSD card
1. Open the side door.
2. Push the card gently to release it. Remove memory card and press 'OK' is
displayed. Pull the card out, and select OK.
3. Close tight the side door.
■Charge the battery
1. Connect the charger to the wall socket.
2. Open the side door (1), and connect the charger
plug to the charger connector in the phone (2).
3. After charging, close tight the side door.
If the battery is completely discharged, it may take
a few minutes before the charging indicator
appears on the display or before any calls can be made.
The charging time depends on the charger and the battery used. Charging a
BP-5M battery with the AC-5 charger takes approximately 80 minutes.
1
2
13
DRAFT
■Switch the phone on and off
Press and hold the power key.
If the phone asks for a PIN code, enter the PIN code, and
select OK.
If the phone asks for the lock code, enter the lock code, and
select OK. The factory setting for the lock code is 12345.
To set the correct time zone, time, and date, select the
country you are presently in, then enter the local time and
date.
■Normal operating position
Use the phone only in its normal operating position.
Note: As with any radio transmitting device, avoid touching
an antenna unnecessarily when the antenna is in use. For
example, avoid touching the cellular antenna during a
phone call. Contact with a transmitting or receiving
antenna affects the quality of the radio communication,
may cause the device to operate at a higher power level
than otherwise needed, and may reduce the battery life.
Your device has internal antennas.
Cellular antenna (1)
Bluetooth antenna (2)
■Configuration settings
Before you can use multimedia messaging, instant messaging, push to talk,
e-mail, synchronization, streaming, and the browser, you must have the proper
configuration settings on your phone. Your phone may automatically configure
browser, multimedia messaging, access point, and streaming settings based on
the SIM card used. You may also receive the settings directly as a configuration
14
DRAFT
message, which you save to your phone. For more information on availability,
contact your service provider or nearest authorized Nokia dealer.
When you receive a configuration message, and the settings are not automatically
saved and activated, 1 new message is displayed. Select Show to open the
message. To save the settings, select Options > Save. You may need to enter a PIN
code provided by the service provider.
2. Your phone
■Keys and parts
Power key (1)
Loudspeaker (2)
Earpiece (3)
Volume keys (4)
Left and right selection keys (5)
Menu key (6),
hereafter described as "select Menu"
Clear key (7)
Call key (8)
End key (9)
Navi™ scroll key (10),
hereafter referred to as scroll key
Number keys (11)
Microphone (12)
Nokia AV 2.5-mm connector (13)
Loudspeaker (14)
Charger connector (15)
microSD card slot (16)
USB connector (17)
Infrared port (18)
15
DRAFT
Media keys:
Rewind, zoom out (19)
Play/Pause/Stop, capture key (20)
Fast forward, zoom in (21)
Camera lens (22)
Camera flash (23)
■Modes
Your phone has five functional modes: phone mode (1), camera mode (2), music
mode (3), video call mode (4), and video view mode. To switch between the modes,
turn the lower part of the phone. There is a short pause before a mode is activated.
In the phone mode, do not try to rotate the lower part of the phone more than 90
degrees to the left or 180 degrees to the right. If you force the lower part of the
phone to rotate more, the phone will be damaged.
Phone mode
The phone mode is activated when the number keys of the lower part are on the
same side as the display.
Camera mode
To activate the camera mode while in the phone mode, turn the lower part of the
phone 90 degrees to the left so that the camera lens is pointing away from you
when you look at the display.
To take a self portrait, turn the lower part of the phone 90 degrees to the right
while in the phone mode so that the camera lens is pointing toward you when you
look at the display.
16
DRAFT
Music mode
To activate the music mode while in the phone mode, turn the lower part of the
phone 180 degrees to the right so that the keys used to control music playback are
on the same side as the display.
Video call mode
During video calls, you can let the call recipient to see your face. Turn the lower
part of the phone so that the camera lens is pointing toward you when you look at
the display. You can also turn the camera lens to the opposite direction.
Video view mode
When you are viewing a video or still images in the
phone mode, you can activate the video view mode.
Turn the lower part of the phone 90 degrees to the
left so that the camera lens is pointing away from
you. In video view mode the display automatically
changes to landscape, and you can put the phone
on the table, for example, while viewing.
To view the next or previous still images or to fast forward or rewind the video,
press the fast forward or rewind media key.
To play or pause the video, press the play/pause/stop media key. To stop the video,
press and hold the play/pause/stop media key.
■Standby mode
When you have switched on the phone, and it is registered to a network, the
phone is in the standby mode and ready for use.
To open the list of last dialed numbers, press the call key.
To use the voice commands or voice dialing, press and hold the right selection key.
To change the profile, press the power key, and select a profile.
To start a connection to the web, press and hold 0.
Active standby
When active standby is enabled, you can use the display for fast access to
frequently used applications. To select whether the active standby is shown, select
17
DRAFT
Menu > Settings > Phone sett. > General > Personalisation > Standby mode >
Active standby > On or Off.
To access active standby applications, scroll to the application, and select it. In
active standby the default applications are shown across the top of the active
standby area, and calendar, to-do, and player events are listed below. To select an
application or event, scroll to it, and select it.
Offline profile
The Offline profile lets you use the phone without connecting it to a network.
When the Offline profile is active, the connection to the wireless network is
turned off, as indicated by in the signal strength indicator area. All wireless RF
signals to or from your phone are prevented, and you can use your device without
a (U)SIM card. Use the offline profile in radio sensitive environments—on board
aircraft or in hospitals. You can listen to music using the music player when the
offline profile is active.
To leave the Offline profile, press the power key, and select another profile.
Important: In the offline profile you cannot make or receive any calls, or use other
features that require cellular network coverage. Calls may still be possible to the
official emergency number programmed into your device. To make calls, you must
first activate the phone function by changing profiles. If the device has been
locked, enter the lock code.
■Indicators
The phone is connected to a UMTS network.
The phone is connected to a GSM network.
The phone is in offline mode and not connected to a cellular network. See
“Offline profile,” p. 17.
You received messages to the Inbox folder in Messaging.
There are messages waiting to be sent in Outbox.
You have missed calls. See “Log,” p. 24.
The phone keypad is locked. See “Keypad lock (keyguard),” p. 19.
The loudspeaker is activated.
All calls to the phone are diverted to another number.
18
DRAFT
A headset is connected to the phone.
A GPRS packet data connection is active. indicates the connection is on
hold and that a connection is available.
A packet data connection is active in a part of the network that supports
EGPRS. indicates the connection is on hold and that a connection is
available. The icons indicate that EGPRS is available in the network, but
your device is not necessarily using EGPRS in the data transfer.
A UMTS packet data connection is active. indicates the connection is
on hold and that a connection is available.
Bluetooth is switched on.
Data is being transmitted using Bluetooth. See “Bluetooth connection,”
p. 50.
A USB connection is active.
Other indicators may also be shown.
■Menu
In the menu you can access the functions in your phone. To access the main menu,
press the menu key; hereafter described as "select Menu".
To open an application or a folder, scroll to it, and press the scroll key.
To change the menu view, select Menu > Options > Change Menu view and a
view type.
If you change the order of the functions in the menu, the order may differ from
the default order described in this user guide.
To close an application or a folder, select Back and Exit as many times as needed
to return to the standby mode, or select Options > Exit.
To display and switch between open applications, select and hold Menu. The
application switching window opens, showing a list of open applications. Scroll to
an application, and select it.
To mark or unmark an item in applications, press #. To mark or unmark several
consecutive items, press and hold #, and scroll up or down.
Leaving applications running in the background increases the demand on battery power and
reduces the battery life.
19
DRAFT
■Help
Your device has context-sensitive help. To access help when an application is
open, select Options > Help. To view a list of available help topics in the
appropriate category, select Options > Topic list.
To open a list of all help categories, select Menu > Applications > Utilities > Help.
■Volume control
To adjust the earpiece or loudspeaker volume during a call or when listening to an
audio file, press the volume keys.
To activate the loudspeaker during a call, select Loudspeaker.
To deactivate the loudspeaker during a call, select Handset.
Warning: Do not hold the device near your ear when the loudspeaker is in use,
because the volume may be extremely loud.
■Keypad lock (keyguard)
To prevent accidental keypresses, you can lock the keypad.
To lock the keypad in the phone mode, press the left selection key and * within 1.5
seconds. Or, to set the phone automatically lock the keypad after a certain time,
select Menu > Settings > Phone sett. > General > Security > Phone and SIM
card > Keypad autolock period > User defined and the desired time.
To lock the keypad in music mode, press the power key quickly, and select Lock
keypad.
To unlock the keypad in the phone mode, select Unlock, and press * within 1.5
seconds.
To unlock the keypad in music mode, select Unlock > OK.
When the keypad lock is on, calls may be possible to the official emergency number
programmed into your device.
■Connect a compatible headset
Do not connect products that create an
output signal as this may cause damage
to the device. Do not connect any voltage
source to the Nokia AV connector.
20
DRAFT
When connecting any external device or any headset, other than those approved by Nokia
for use with this device, to the Nokia AV connector, pay special attention to volume levels.
■Connect a USB data cable
To set the default USB connection mode, select
Menu > Settings > Connectivity > USB > USB mode
and the desired mode. To set whether the default
mode is activated automatically, select Ask on
connection > No.
■Attach a wrist strap
Connect the wrist strap according to the
graphic.
3. Call functions
■Make a voice call
1. In the standby mode, enter the phone number, including the area code. Press
the clear key to remove a number.
For international calls, press * twice for the international prefix (the +
character replaces the international access code).
2. To call the number, press the call key.
3. To end the call, or to cancel the call attempt, press the end key.
To make a call from Contacts, select Menu > Contacts, and scroll to the desired
name. To call the number, press the call key.
To call your call mailbox (network service), press and hold 1 in the standby mode.
You must define the mailbox number before you can call your mailbox. See “Call
mailbox,” p. 47.
Voice dialing
A voice tag is added automatically to all entries in Contacts.
Use long names, and avoid similar names for different numbers.
1
2
21
DRAFT
Make a voice dialing call
Voice tags are sensitive to background noise. Use voice tags in a quiet environment.
Note: Using voice tags may be difficult in a noisy environment or during an
emergency, so you should not rely solely upon voice dialing in all circumstances.
1. In the standby mode, press and hold the right selection key. A short tone is
played, and Speak now is displayed.
If you are using a compatible headset with the headset key, press and hold the
headset key.
2. Speak the voice command clearly. The phone plays the voice command of the
best match. After 1.5 seconds, the phone dials the number; if the result is not
the correct one, before dialing select Next and another entry.
Using voice commands to carry out a phone function is similar to voice dialing.
See “Voice commands,” p. 47.
■Answer or reject a call
To answer a call, press the call key.
To adjust the volume during the call, press the volume keys.
Tip: If a compatible headset is connected to the phone, press the
headset key to answer and end a call.
To reject the call, press the end key, or select Reject.
To send a text message to the caller informing why you cannot answer the call,
select Options > Send text message. To activate the text message reply and edit
the text in the message, select Menu > Settings > Phone sett. > Phone > Call >
Reject call with SMS and Message text. See “Phone,” p. 48.
Call waiting (network service)
During a call, to answer the waiting call, press the call key. The first call is put on
hold. To end the active call, press the end key.
To activate the Call waiting function, select Menu > Settings > Phone sett. >
Phone > Call > Call waiting > Activate.
To switch between the two calls, select Swap.
22
DRAFT
■Make a video call
To be able to make a video call, you may need to have a USIM card and be in the
coverage of a UMTS network. For availability of and subscription to video call
services, contact your service provider. A video call can only be made between two
parties. The video call can be made to a compatible mobile phone or an ISDN
client. Video calls cannot be made while there is another voice, video, or data call
active.
You are not receiving video (the recipient is not sending video or the network
is not transmitting it).
You have denied video sending from your device.
1. Enter the phone number in the standby mode; or select Menu > Contacts, and
scroll to the desired contact.
2. Select Options > Call > Video call.
Starting a video call may take a while. If the call is not successful you are asked
if you want to try a normal call or send a message instead.
The video call is active when you see two video images, and hear the sound
through the loudspeaker. The call recipient may deny video sending ( ), in
which case you hear the sound and may see a still image or a grey background
graphic. During video calls while the phone is in phone mode, turn the lower
part of the phone so that the camera lens is pointing toward you to let the call
recipient to see your face.
To change between showing video or only hearing sound, select Enable or
Disable > Sending video, Sending audio, or Sending aud. & video.
Even if you have denied video sending during a video call, the call will still be
charged as a video call. Check the pricing with your network operator or
service provider.
To end the video call, press the end key.
■Answer a video call
When a video call arrives, is displayed. Press the call key to answer the call.
Select Yes , and image captured by the camera in your phone is shown to the
caller. Otherwise, video sending is not activated. To end the video call, press the
end key.
Even if you have denied video sending during a video call, the call is still charged
as a video call. Check the pricing with your service provider.
23
DRAFT
■Video sharing
Use Video sharing to send live video from your mobile device to another
compatible mobile device during a voice call.
To use Video sharing you must do the following:
• Ensure that your device is set up for person-to-person connections.
• Ensure you have an active UMTS connection and are within UMTS network
coverage. If you start the sharing session while you are within UMTS network
coverage and a handover to GSM occurs, the sharing session is discontinued,
but your voice call continues.
• Ensure that both the sender and recipient are registered to the UMTS network.
If you invite someone to a sharing session and that person’s phone is turned
off, or the person is not within UMTS network coverage, they do not know that
you are sending an invitation. However, you receive an error message that the
recipient cannot accept the invitation.
Settings
A person-to-person connection is also known as a session initiation protocol (SIP)
connection. The SIP profile settings must be configured in your device before you
can use Video sharing.
Ask your service provider for the SIP profile settings, and save them in your device.
Your service provider may send you the settings over the air.
If you know a recipient’s SIP address, you can enter it on your contact card for that
person. Select Menu > Contacts, a contact, and Options > Edit > Options > Add
detail > SIP or Share view. Enter the SIP address in the format
sip:username@domainname (you can use an IP address instead of a domain
name).
Share live video
1. When a voice call is active, select Options > Share video > Live video.
2. The phone sends the invitation to the SIP address you have added to the
contact card of the recipient.
If the recipient has several SIP addresses in the contact card, select the SIP
address to which you want to send the invitation, and Select to send the
invitation.
3. Sharing begins automatically when the recipient accepts the invitation.
24
DRAFT
The loudspeaker is active. You can also use a headset to continue your voice
call while you share live video.
4. Select Pause to pause the sharing session. Select Continue to resume sharing.
5. To end the sharing session, select Stop. To end the voice call, press the end key.
Accept an invitation
When someone sends you a share invitation, an invitation message is displayed
showing the sender’s name or SIP address.
When you receive an invitation, select from the following:
Accept — to begin the sharing session and activate the View mode.
Reject — to decline the invitation. The sender receives a message that you rejected
the invitation. You can also press the end key to decline the sharing session and
disconnect the voice call.
To end the sharing session, select Stop.
■Log
In the log, you can monitor phone calls, text messages, packet data connections,
and fax and data calls registered by the phone.
Connections to your remote mailbox, multimedia messaging center, or browser
pages are shown as data calls or packet data connections in the general
communications log.
Note: The actual invoice for calls and services from your service provider may vary,
depending on network features, rounding off for billing, taxes, and so forth.
Note: Some timers, including the life timer, may be reset during service or software
upgrades.
4. Write text
When you write text, appears on the top right of the display, indicating
predictive text input, or appears, indicating traditional text input. To set the
predictive text input on or off when writing text, press *, and select Predictive text
on or Predictive text > Off.
25
DRAFT
, , or is displayed next to the text input indicator, indicating
the character case. To change the character case, press #.
indicates the number mode. To change between letter and number mode,
press # repeatedly until number mode is active; or press *, and select Number
mode or Alpha mode.
■Traditional text input
Press a number key, 1 to 9, repeatedly until the desired character appears. The
availability of characters depends on the selected writing language. To select the
language, select Menu > Settings > Phone sett. > General > Personalisation >
Language > Writing language.
If the next letter you want is on the same key as the present one, wait until the
cursor appears (or scroll forward to end the time-out period), and enter the letter.
To insert a number, press and hold the number key.
The most common punctuation marks and special characters are available under
the 1key. For more characters, press and hold *.
To erase a character, press the clear key. To erase more characters, press and hold
the clear key.
To insert a space, press 0. To move the cursor to the next line, press 0 three times.
■Predictive text input
To enter any letter with a single keypress, use predictive text input.
1. To write the desired word, press the keys 2–9. Press each key only once for one
letter. The word changes after every keypress.
For the most common punctuation marks, press 1. For more punctuation marks
and special characters, press and hold *.
To erase a character, press the clear key. To erase more characters, press and
hold the clear key.
2. When you have finished the word and it is correct, to confirm it, scroll forward
or insert a space.
If the word is not correct, to view the matching words the dictionary has found
one by one, press * repeatedly.
If the ? character is shown after the word, the word you intended to write is
not in the dictionary. To add a word to the dictionary, select Spell. Enter the
26
DRAFT
word (up to 32 letters) using traditional text input, and select OK. The word is
added to the dictionary. When the dictionary becomes full, a new word
replaces the oldest added word.
■Copy text
1. To select letters and words, press and hold #, and at the same time scroll left or
right. To select lines of text, press and hold #, and at the same time scroll up or
down.
2. To copy the text to the clipboard, press and hold #, and at the same time select
Copy.
3. To insert the text, scroll to the insertion point, press and hold #, and at the
same time select Paste.
5. Messaging
You can create, send, receive, view, edit, and organize text messages, multimedia
messages, e-mail messages, presentations, and documents. You can also receive
messages and data using Bluetooth wireless technology, receive and forward
picture messages, receive service messages and cell broadcast messages, and send
service commands.
To open the Messaging menu, select Menu > Messaging. You can see the New
message function and a list of default folders:
Inbox — contains received messages except e-mail and cell broadcast
messages. When there are unread messages in the inbox, the icon changes to .
To open a received message, select Menu > Messaging > Inbox and the desired
message.
My folders — for organizing your messages into folders. You can create new
folders, rename and delete folders.
Mailbox — for connecting to your remote mailbox to retrieve your new e-mail
messages or viewing your previously retrieved e-mail messages offline. After you
define settings for a new mailbox, the name given to that mailbox is displayed
instead of Mailbox.
Before you can send, receive, retrieve, reply to, and forward e-mail to a separate
e-mail account, you must do the following:
27
DRAFT
• Configure an internet access point (IAP) correctly. See “Connection,” p. 48.
• Define your e-mail settings correctly. See “E-mail settings,” p. 29.
Drafts — saves draft messages that have not been sent.
Sent — saves the messages that are sent, excluding messages sent using
Bluetooth.
Outbox — temporarily saves the messages waiting to be sent.
Reports (network service) — saves the delivery reports of the text messages,
special message types such as business cards, and multimedia messages you have
sent. Receiving a delivery report of a multimedia message that has been sent to an
e-mail address may not be possible.
■Write and send messages
Your device supports the sending of text messages beyond the character limit for a single
message. Longer messages are sent as a series of two or more messages. Your service
provider may charge accordingly. Characters that use accents or other marks, and characters
from some language options, take up more space, limiting the number of characters that can
be sent in a single message.
The wireless network may limit the size of MMS messages. If the inserted picture exceeds
this limit, the device may make it smaller so that it can be sent by MMS.
Only devices that have compatible features can receive and display multimedia messages.
The appearance of a message may vary depending on the receiving device.
Before you can send and receive an SMS message, a multimedia message, or an
e-mail, or connect to your remote mailbox, you must have the correct connection
settings in place. See “Messaging settings,” p. 29.
1. To create a message, select Menu > Messaging > New message > Text
message, Multimedia message, Audio message, or E–mail.
Audio messages are multimedia messages that consist of a single sound clip.
2. Press the scroll key to select the recipients or groups from Contacts or enter
the phone number or e-mail address of the recipient in the To field. Separate
recipients with a semicolon (;).
3. When creating an e-mail or multimedia message, scroll down to the subject
field, and write the message subject.
4. Scroll down to the message field.
28
DRAFT
5. Write the message. The message length indicator shows how many characters
you can enter in the message. For example, 10 (2) means that you can still add
10 characters for the text to be sent as two separate text messages.
To use a template for the text message, select Options > Insert > Template. To
use a text template for the multimedia message, select Options > Insert
object > Template.
To add a media object to a multimedia message, select Options > Insert
object > Image, Sound clip, or Video clip. To create and add a new media
object, select Options > Insert new > Image, Sound clip, Video clip or Slide.
To add a media object to an e-mail, select Options > Insert > Image, Sound
clip, Video clip, Note or Template.
6. To send the message, select Options > Send.
■Mailbox
Select Menu > Messaging > Mailbox. When Connect to mailbox? is displayed,
select Yes to connect to your mailbox (network service) or No to view previously
retrieved e-mail messages offline. To connect to the mailbox afterwards, select
Options > Connect.
Important: Exercise caution when opening messages. E-mail messages may
contain malicious software or otherwise be harmful to your device or PC.
To retrieve all e-mail messages from the mailbox to your phone, select Options >
Retrieve e-mail > All.
To delete an e-mail from the phone while still retaining it in the remote mailbox,
select Options > Delete > Phone only. The e-mail heading stays in your phone. To
delete an e-mail from the phone and the remote mailbox, select Options >
Delete > Phone and server.
When you are online, to end the data connection to the remote mailbox, select
Options > Disconnect. You can view the retrieved e-mail messages and headings
offline.
■View messages on the SIM card
To view messages on the SIM card, select Menu > Messaging > Options > SIM
messages, and copy the SIM messages to a folder in your phone.
29
DRAFT
■Messaging settings
Text and multimedia message settings
To change the settings affecting the sending, receiving and viewing of text or
multimedia messages, select Menu > Messaging > Options > Settings > Text
message or Multimedia message, and the desired settings.
E-mail settings
Select Menu > Messaging > Options > Settings > E-mail > Mailboxes and a
mailbox. If no mailbox settings have been defined before, you are asked if you
want to define the settings.
Select from the following:
Connection settings — To define the correct Incoming e-mail and Outgoing e-mail
settings, contact your e-mail service provider for the settings
User settings — To define settings for sending your e-mails and set the phone to
alert when receiving a new e-mail
Retrieval settings — To define settings for retrieving e-mail messages, such as
retrieving only message headers, the number of messages to retrieve
Automatic retrieval —To define whether to automatically retrieve the headings to
your device when you receive a notification of new e-mail in your remote mailbox,
or to have e-mail headers automatically retrieved
■Message reader
With Msg. reader, you can listen to received text, multimedia, and e-mail
messages.
To listen to a message in Inbox or Mailbox, scroll to the message or mark the
messages, and select Options > Listen. To skip to the next message, scroll down.
Tip: When 1 new message or New e-mail is displayed in the standby mode,
to listen to the received messages, press and hold the left selection key
until Msg. reader starts.
30
DRAFT
6. Contacts
You can save and manage contact information, such as names, phone numbers,
and addresses.
Select Menu > Contacts.
To add a new contact, select Options > New contact. Fill in the fields you want,
and select Done.
To assign default numbers and addresses, select a contact and Options > Defaults.
Scroll to the desired default option, and select Assign.
To copy names and numbers from a SIM card to your phone, select Options > SIM
contacts > SIM directory. Scroll to the name you want to copy or mark the desired
names, and select Options > Copy to Contacts.
To copy a phone, fax, or pager number from contacts to your SIM card, scroll to
the contact you want to copy, and select Options > Copy > To SIM directory.
Create a contact group so that you can send text or e-mail messages to several
recipients at the same time. Select Menu > Contacts, scroll right, and select
Options > New group. Enter a name for the group, and select the group. Select
Options > Add members. Mark the contacts you want to add to the group, and
select OK.
■Add a ringing tone
To set a ringing tone (also a video ringing tone) to a contact or a contact group,
select Menu > Contacts.
To add a ringing tone to a contact, select the contact and Options > Ringing tone,
and the desired ringing tone.
To add a ringing tone to a group, scroll right to the groups list and to a group.
Select Options > Ringing tone and the ringing tone for the group.
To remove the personal or group ringing tone, select Default tone as a ringing
tone.
31
DRAFT
7. Gallery
Use Gallery to save and organize your images, videos, music tracks, sound clips,
track lists, streaming links, .ram files, and presentations.
Select Menu > Gallery. To open a folder (such as Images), select it.
To open a file, select it. The file opens in its corresponding application.
The videos you download or transfer to your phone are saved in Videos. To access
Videos in the standby mode, select Videos, or select Menu > Gallery > Videos.
You can transfer videos to your phone from a compatible PC, and download video
clips from compatible internet video services to your phone using packet data.
■Gallery functions
To set an image as a wallpaper, select Images, and scroll to the image. Select
Options > Use image > Set as wallpaper. To assign the image to a contact, select
Assign to contact.
To set a video as a video ringing tone, select Videos, and scroll to the video. Select
Options > Use video > Set as ringing tone. To assign the video for a contact, select
Assign to contact.
To copy files to phone memory or to the memory card, scroll to the file or mark the
files, and select Options > Organise > Copy to phone mem. or Copy to memory
card.
To create image or video folders and move files to them, select Images or Videos,
and scroll to a file. Select Options > Organise > New folder and the memory, and
enter a name for the folder. Mark the files you want to move to the folder, and
select Options > Organise > Move to folder and the folder.
View videos and images
When you are viewing a videos or still images in the phone mode, you can activate
the video view mode. Turn the lower part of the phone 90 degrees to the left so
that the camera lens is pointing away from you. In video view mode the display
automatically changes to landscape, and you can put the phone on the table, for
example, while viewing.
To view the next or previous still images, press the fast forward or rewind
media key.
32
DRAFT
To fast forward or rewind the video, press the fast forward or rewind media key. To
play or pause the video, press the play/pause/stop media key. To stop the video,
press and hold the play/pause/stop media key.
Edit images
To edit images in Gallery, scroll to the image, and select Options > Edit.
Select Options > Apply effect to crop and rotate the image; adjust the brightness,
color, contrast, and resolution; and add effects, text, clip art, or a frame to the
picture.
Shortcuts in the image editor:
• To view an image in the full screen, press *. To return to the normal view, press *
again.
• To rotate an image clockwise or counterclockwise, press 3 or 1.
• To zoom in or out, press 5 or 0.
• To move on a zoomed image, scroll up, down, left, or right.
Edit videos
To edit videos in Gallery and create custom video clips, scroll to a video clip, and
select Options > Video editor > Options > Edit video clip.
In the video editor you can see two timelines: video clip timeline and sound clip
timeline. The images, text, and transitions added to a video are shown on the
video clip timeline. To switch between the timelines, scroll up or down.
Transfer videos from PC
To transfer videos from a compatible PC, use a compatible USB cable or Bluetooth
connectivity.
The requirements of the PC for video transfer:
• Microsoft Windows XP operating system (or later)
• Nokia PC Suite 6.82 or later
• Nokia Video Manager application (a add-on application to PC Suite)
To transfer videos use Nokia Video Manager, connect the compatible USB cable or
activate Bluetooth connection, and select PC Suite as the connection mode.
33
DRAFT
To change the default USB connection mode, select Menu > Settings >
Connectivity > USB > USB mode.
Nokia Video Manager in Nokia PC Suite have been optimized for transcoding and
transfering video files. For information about transfering video with Nokia Video
Manager, see the Nokia Video Manager help.
Download files
Select Menu > Gallery, the folder for the file type you want to download, and the
download function (for example, Images > Downl. graphics). The browser opens.
Choose a bookmark for the site to download from.
8. Music player
Warning: Listen to music at a moderate level. Continuous exposure to high volume
may damage your hearing. Do not hold the device near your ear when the
loudspeaker is in use, because the volume may be extremely loud.
To activate music mode and start Music player, turn the lower part of the phone to
the right so that the playback control keys are on the same side as the display.
You can listen to music also when the Offline profile is activated. See “Offline
profile,” p. 17.
To add songs to your device, see “Transfer music,” p. 36.
For more information about copyright protection, see “Activation keys,” p. 55.
■Listen to music
1. Activate the music mode.
2. In Music menu, select the category, such as All songs or Albums.
3. Select the music you want to play.
Use the media keys to control playback.
• Press the play/pause/stop key to play or pause a song. Press and hold the key to
stop the playback.
• Press the rewind key to rewind the track or to skip backwards.
• Press the fast forward key to fast forward the track or to skip forward.
You can also use the scroll key to control the player.
34
DRAFT
To adjust the volume, use the volume key.
To switch random play ( ) on or off, select Options > Shuffle.
To repeat the current song ( ), all songs ( ), or to switch repeat off, select
Options > Repeat.
To modify the tone of the music playback, select Options > Equaliser.
To modify the balance loudness or stereo widening, select Options > Audio
settings.
To view a visualization during playback, select Options > Start visualisation.
To return to the standby mode and leave the player in the background, press the
end key. If Active standby is On, the currently playing track is displayed in the
standby mode. To access the music player from the standby mode, select the
currently playing track. To switch to another open application, press and hold
Menu.
■Music menu
To select more music to play in Now playing view, select Options > Go to Music
menu. To return to the Now playing view, select Options > Go to Now playing.
The music menu shows the music available in the phone and compatible memory
card (if inserted). All songs lists all music. To view sorted songs, select Albums,
Artists, Genres, or Composers. To view playlists, select Track lists.
To refresh the library after you have updated the song selection in your phone,
select Options > Refresh Music library.
■Playlists
To view and manage playlists, in the music menu, select Track lists. The following
playlists appear automatically: Most played tracks, Recent tracks, and Recent
additions.
To view details of the playlist, select Options > Track list details.
Create a playlist
1. Select Options > Create playlist.
2. Enter a name for the playlist, and select OK.
3. Select artists to find the songs you want to include in the playlist. Press the
scroll key to add items. To show the song list under an artist title, scroll right.
To hide the song list, scroll left.
35
DRAFT
4. When you have made your selections, select Done. If a compatible memory
card is inserted, the playlist is saved to the memory card.
To add more songs later, when viewing the playlist, select Options > Add songs.
To add songs, albums, artists, genres, and composers to a playlist from the
different views of the music menu, select an item and Options > Add to track
list > Saved track list or New track list.
To remove a song from a playlist, select Options > Remove from track list. This
deletion does not delete the song from the phone ; it only removes it from the
playlist.
To reorder songs in a playlist, scroll to the song you want to move, and select
Options > Reorder list > Grab, scroll to a new position, and select Drop.
■Music shop
In the music shop (network service) you can search, browse, and purchase music
for downloading to your phone. The variety and appearance of music shop services
may vary. For more information and availability of music shop, contact your
service proder.
You must have music shop settings and valid internet connections in order to use
this service. For more details, see “Music shop settings,” p. 35, and Access points in
“Connection,” p. 48.
To go to music shop, in the Music player, select Options > Go to Music shop
Music shop settings
The availability and appearance of the music shop settings may vary. The settings
may also be predefined, and you cannot edit them.
In the music shop, you may be able to edit the settings by selecting Options >
Settings.
If the settings are not predefined, you may be asked to enter the following
settings:
Address—You must define the web address of the music shop service.
Default acc. pt.—Select the access point to use when connecting to the music
shop.
User name—Enter your user name for the music shop.
Password—Enter your password for the music shop.
36
DRAFT
If User name and Password fields are left empty, you may have to enter them at
login.
■Transfer music
You can buy music protected with WMDRM from online music shops, and transfer
the music to your phone.
To transfer music from a compatible PC or other compatible devices, use a
compatible USB cable or Bluetooth connectivity. You cannot transfer WMDRM
protected music files using Bluetooth connection.
To refresh the library after you have updated the song selection in your phone, in
the Music menu, select Options > Refresh Music library
The requirements of the PC for music purchase and transfer:
• Microsoft Windows XP operating system (or later)
• A compatible version of Windows Media Player application
• Nokia PC Suite 6.82 or later
Transfer music from PC
You can use three different methods to transfer music:
• To view your phone on a PC as an external hard drive where you can transfer
any data files, make the connection with a compatible USB cable or Bluetooth
connectivity.
If you are using the USB cable, select Data transfer as the connection mode. A
compatible memory card needs to be inserted in the phone. You cannot
transfer WMDRM protected music files using Data transfer.
• To synchronize music with Windows Media Player, connect the compatible
USB cable and select Media player as the connection mode. A compatible
memory card needs to be inserted in the phone.
To use Nokia Music Manager in Nokia PC Suite, connect the compatible USB
cable or activate Bluetooth connection, and select PC Suite as the connection
mode. You cannot transfer WMDRM protected music files using PC Suite.
To change the default USB connection mode, select Menu > Settings >
Connectivity > USB > USB mode.
37
DRAFT
Both Windows Media Player and Nokia Music Manager in Nokia PC Suite have
been optimized for transferring music files. For information about transferring
music with Nokia Music Manager, see the Nokia PC Suite user guide.
Music transfer with Windows Media Player
The functionality of the music synchronization may vary between different
versions of the Windows Media Player application. For more information, see the
corresponding Windows Media Player guides and helps.
9. Media
■Visual Radio
You can use the Visual Radio application as a FM radio with automatic tuning and
preset stations, or with parallel visual information related to the radio program if
you tune in to stations that offer Visual Radio service. The Visual Radio service
uses packet data (network service).
To use the Visual Radio service, the following requirements must be met:
• The radio station and your service provider must support this service.
• Your internet access point must be defined for access to the network
operator’s Visual Radio server.
• The radio station must have the correct Visual Radio service ID defined and
have Visual Radio service enabled.
Visual Radio cannot be started when the phone is in offline mode.
The FM radio depends on an antenna other than the wireless device antenna. A compatible
headset or enhancement needs to be attached to the device for the FM radio to function
properly.
Warning: Listen to music at a moderate level. Continuous exposure to high volume
may damage your hearing. Do not hold the device near your ear when the
loudspeaker is in use, because the volume may be extremely loud.
You can make a call or answer an incoming call while listening to the radio. The
radio is turned off when there is an active call.
To open Visual Radio, select Menu > Media > Radio.
To turn the radio off, select Exit.
38
DRAFT
■Camera
To activate the camera mode while in the phone mode, turn the lower part of the
phone 90 degrees to the left so that the camera lens is pointing away from you
when you look at the display. To take a self portrait, turn the lower part of the
phone 90 degrees to the right so that the camera lens is pointing toward you
when you look at the display. on the upper left of the display indicates the
still image mode.
To capture an image, press the capture key. The image is saved to Images in
Gallery, and the image is displayed. To return to the viewfinder, select Back. To
delete the image, press the clear key.
To zoom in or out, press the fast forward or rewind media key.
To turn the flash on, select Options > Flash > On. If you select Automatic, flash is
used automatically when necessary.
Keep a safe distance when using the flash. Do not use the flash on people or animals at close
range. Do not cover the flash while taking a picture.
To record a video, select Options > Video mode, or scroll right. on the upper
left of the display indicates the video mode. To start the recording, press the
capture key or the scroll key. To pause the recording, press the capture key. To
stop the recording, press and hold the capture key.
To use the panorama mode, select Options > Panorama mode, or scroll right.
on the upper left of the display indicates the panorama mode. Press the
capture key to start capturing a panorama image. The panorama preview is shown
on the display. Turn slowly to right or left. You cannot change the direction. You
turn too fast if the arrow on the display is red. To stop the panorama, press the
capture key again.
Camera settings
Your device supports an image capture resolution of 1600 x 1200 pixels.
To change camera settings for images or videos, select Menu > Media >
Camera > Options > Settings > Image or Video and the desired settings.
■Movie director
A muvee is a short, edited video clip that can contain video, images, music, and
text. Quick muvee is created automatically by Movie director after you select the
style for the muvee. Movie director uses the default music and text associated
39
DRAFT
with the chosen style. In a custom muvee you can select your own video and
music clips, images and style, and add an opening and closing message. You can
send muvees with MMS.
A muvee can be saved in Gallery in .3gp file format.
To create muvees, select Menu > Media > Movie. Mark images and videos, and
select Options > Create muvee.
Create a quick muvee
1. To create a quick muvee, select Menu > Media > Movie. Select the videos for
the muvee, and scroll right to select the images, and select Options > Create
muvee.
2. Select a style for the muvee from the style list.
Create a custom muvee
1. To create a a custom muvee, select Menu > Media > Movie. Select the videos
for the muvee, and scroll right to select the images, and select Options >
Create muvee. The style selection view opens.
2. Scroll to the desired style, and select Options > Customise.
3. In Videos & images, reorder and edit the selected items, or add or remove items
from your muvee. You can define the order in which the files are played in the
muvee. Select the file you want to move. Scroll to the file below which you
want to place the marked file, and press the scroll key. To add or remove
images and videos from the muvee, select Options > Add/Remove.
In Music, select the music for the muvee.
To add albums and their content to the muvee, in the image or video clip list
view, select Options > Albums.
In Message you can add an opening and closing text to a muvee.
In Length, you can define the length of the muvee. Select from the following:
Multimedia message—to optimize the length of the muvee for MMS sending
Auto-select—to include all the selected images and video clips in the muvee
Same as music—to set the muvee duration to be the same as the chosen music
clip
User defined—to define the length of the muvee
4. Select Options > Create muvee. The preview view opens.
40
DRAFT
5. To preview the custom muvee before saving it, select Options > Play.
6. To save the muvee, select Options > Save.
To create a new custom muvee by using the same style settings, select Options >
Recreate.
Select content
To edit the selected video clips, in the Videos & images folder, select Options >
Select contents. You can select which parts of the video clip you want to include
or exclude in the muvee. In the slide, green indicates included, red indicates
excluded, and grey indicates neutral parts.
To include a part of the video clip in the muvee, scroll to the part, and select
Options > Include. To exclude a part, select Options > Exclude. To exclude a shot,
select Options > Exclude shot.
To let Movie director randomly include or exclude a certain part of the video clip,
scroll to the part, and select Options > Mark as neutral. To randomly include or
exclude parts of the clip, select Options > Mark all as neutral.
Settings
In the style selection view, select Options > Customise > Settings to edit the
following options:
Memory in use—Select where to save your muvees.
Resolution—Select the resolution of your muvees. Select Automatic to use the
optimal resolution based on the number and length of the video clips you have
selected.
Default muvee name—Set a default name for the muvees.
10. Personalization
■Themes
To change the look of your phone display, activate a theme. A theme can include
the standby mode wallpaper and power saver. You can edit a theme to personalize
your phone further.
Select Menu > Personalis. > Themes. To see a list of the available themes, select
General. The active theme is indicated by a check mark.
41
DRAFT
To preview a theme, scroll to the theme, and select Options > Preview. To activate
the previewed theme, select Set.
In Themes, you can also set the menu view type, set a custom wallpaper, and
personalize the look of the power saver and the cover display.
To apply or edit an audio theme, select Menu > Personalis. > Themes > Audio
themes.
■Profiles
In Profiles, you can adjust and personalize the phone tones for different events,
environments, or caller groups. You can see the currently selected profile at the
top of the display in the standby mode. If the General profile is in use, only the
current date is shown.
Select Menu > Personalis. > Profiles.
To activate the profile, select the profile and Activate.
Tip: To quickly change to Silent profile from any other profile, in the
standby mode, press and hold #.
To personalize a profile, select the profile, Personalise and the desired settings.
When using the Offline profile, the phone is not connected to the GSM network. If
no SIM card is installed, to use some functions of the phone, start the phone in
Offline.
Important: In the offline profile you cannot make or receive any calls, or use other
features that require cellular network coverage. Calls may still be possible to the
official emergency number programmed into your device. To make calls, you must
first activate the phone function by changing profiles. If the device has been
locked, enter the lock code.
■3-D tones
With 3-D tones you can apply three-dimensional sound effects to ringing tones.
Not all ringing tones support 3-D effects. To edit 3-D tone settings, select Menu >
Personalis. > 3-D tones.
42
DRAFT
11. Web
■Mobile Search
Use Mobile Search to access search engines, and find and connect to local
services, web sites, images, and mobile content. For example, you can use the
application to find and call local restaurants and shops, and use the advanced
mapping technology to assist you in finding their location.
The availability of this service may vary according to your country or sales area.
Select Menu > Web and the Search application. For additional instructions on the
application, see the application help.
■Web
To browse web pages, select Menu > Web > Browser.
Check the availability of services, pricing, and tariffs with your service provider.
Service providers also give you instructions on how to use their services.
Set up the phone for the browser service
Your device may configure the WAP or internet access point automatically based
on your SIM card.
You may receive service settings in a configuration message from the service
provider.
To define an access point manually, see Access points in “Connection,” p. 48.
Make a connection
To access web pages, do the following:
• Select the home page ( ) of your service provider.
• Select a bookmark from the bookmarks view.
• In the bookmarks view, enter the address of the web page, and select Go to.
View bookmarks
Your device may have preinstalled bookmarks and links for third-party internet sites. You
may also access other third-party sites through your device. Third-party sites are not
43
DRAFT
affiliated with Nokia, and Nokia does not endorse or assume liability for them. If you choose
to access such sites, you should take precautions for security or content.
Bookmarks are indicated by the following icons:
The starting page defined for the default access point.
The automatic bookmarks folder contains bookmarks ( ) that are collected
automatically when you browse pages.
Any bookmark showing the title or internet address of the bookmark.
and may be replaced with the website’s icon.
Connection security
If the security indicator is displayed during a connection, the data transmission
between the device and the internet gateway or server is encrypted.
The security icon does not indicate that the data transmission between the gateway and the
content server (or place where the requested resource is stored) is secure. The service
provider secures the data transmission between the gateway and the content server.
To view details about the connection, encryption status, and information about
server authentication, select Options > Tools > Page info.
Security features may be required for some services, such as banking services. For
such connections you need security certificates. For more information, contact
your service provider. See also Security in “General,” p. 47.
Browse web pages
Keys and commands for browsing
To open a link, make selections, or check boxes, press the scroll key.
To go to the previous page while browsing, select Back; or select Options >
Navigation options > History to view list of the pages visited during a browsing
session. The history list is cleared each time a session is closed.
To save a bookmark while browsing, select Options > Save as bookmark.
To retrieve the latest content from the server, select Options > Navigation
options > Reload.
To open the browser toolbar, scroll to an empty part of the page, and press the
scroll key.
Keypad shortcuts while browsing
1 — Open your bookmarks.
44
DRAFT
2 — Search for keywords in the current page.
3 — Return to the previous page.
5 — List all open windows.
8 — Show the page overview of the current page. Press 8 again to zoom in and
view the desired section of the page.
9 — Enter a new web address.
0 — Go to the start page.
* or # — Zoom the page in or out.
Mini map
Mini map helps you navigate web pages that contain large amount of
information. To set Mini map on, select Options > Settings > General > Mini map.
Web feeds and blogs
The browser automatically detects if a web page contains web feeds. To subscribe
to a web feed, select Options > Subscribe and a feed, or click on the link. To view
the web feeds you have subscribed to, in the bookmarks view, select Web feeds.
To update a web feed, select it, and Options > Refresh.
To define how the web feeds are updated, select Options > Settings > Web feeds.
Saved pages
You can save pages and view them later offline.
To save a page while browsing, select Options > Tools > Save page.
To open the Saved pages view, in the bookmarks view, select Saved pages. To open
a page, select it.
To start a connection to the browser service and retrieve the page again, select
Options > Navigation options > Reload. The phone stays online after you reload
the page.
Download
You can download items such as ringing tones, images, operator logos, software,
and video clips using the mobile browser.
Once downloaded, items are handled by the respective applications on your
phone, for example, a downloaded photo is saved in Gallery.
45
DRAFT
Important: Only install and use applications and other software from trusted
sources, such as applications that are Symbian Signed or have passed the Java
VerifiedTM testing.
End a connection
To end the connection and view the browser page offline, select Options > Tools >
Disconnect. To quit browsing and to return to the standby mode, select Options >
Exit.
Empty the cache
A cache is a memory location that is used to store data temporarily. If you have tried to
access or have accessed confidential information requiring passwords, empty the cache
after each use. The information or services you have accessed are stored in the cache. To
empty the cache, select Menu > Web > Browser > Options > Clear privacy data > Clear
cache.
To clear all privacy data, including the cache, cookies, form data passwords, and
browsing history, select Menu > Web > Browser > Options > Clear privacy data >
All.
Browser settings
To change the settings, such as access point, page view, or privacy settings, select
Options > Settings > General, Page, Privacy, or Web feeds.
12. Organizer
■Clock
Select Menu > Organiser > Clock. To change the clock settings, and to set the
time and date, select Options > Settings.
Alarm clock
To set a new alarm, scroll right to Alarm, and select Options > New alarm. Enter
the alarm time, select whether and when the alarm is repeated, and select Done.
To cancel an alarm, scroll to the alarm, and select Options > Remove alarm. To
deactivate a repeated alarm, select Options > Deactivate alarm.
46
DRAFT
Select Stop to turn off the alarm.
Select Snooze to stop the alarm for 5 minutes, after which it resumes.
If the alarm time is reached while the device is switched off, the device switches itself on
and starts sounding the alarm tone. If you select Stop, the device asks whether you want to
activate the device for calls. Select No to switch off the device or Yes to make and receive
calls. Do not select Yes when wireless phone use may cause interference or danger.
■Calendar
Select Menu > Organiser > Calendar. Press # in the month, week, or day views to
automatically highlight the current date.
To create a new calendar entry, select Options > New entry and an entry type.
Anniversary entries are repeated every year. To-do entries help you to keep a list of
tasks that you need to do. Fill in the fields, and select Done.
13. Applications
In Applications folder you can find the Utilities folder including calculator and
converter, in My own folder GPS data and Landmarks application, and the
applications you have downloaded in your phone, a folder for games, and the
Download! application.
■Download!
Download! (network service) is a mobile content shop available on your device.
You may be able to download some content free of charge.
With Download! you can discover, preview, buy, download, and upgrade content,
services, and applications. The items are categorized under catalogs and folders
provided by different service providers. The available content depends on your
service provider.
Select Menu > Applications > Download!.
Download! uses your network services to access the most up-to-date content. For
information on additional items available through Download!, contact your
service provider, or the supplier or manufacturer of the item.
47
DRAFT
14. Settings
■Voice commands
To select the functions to use by voice command, select Menu > Settings > Voice
comm.. The voice commands for changing profiles are in the Profiles folder.
To activate a new voice command for an application, select Options > New
application and the application. To play the activated voice command, select
Options > Playback.
To use voice commands, see “Voice dialing,” p. 20.
■Call mailbox
Call mailbox is a network service. Contact your service provider for the call
mailbox number.
To define the call mailbox number if no number is set, select Menu > Settings >
Call mailbox, and when Voice mailbox number: is displayed, enter the voice
mailbox number.
To change the call mailbox number, select Menu > Settings > Call mailbox >
Options > Change number, and enter the number.
■Phone settings
General
Select Menu > Settings > Phone sett. > General >
•Personalisation — to adjust the display, standby mode, tones, language,
themes and voice command settings.
•Date and time — to set the time and date and the display format.
•Enhancement — to change the settings for an enhancement. Select an
enhancement and the desired setting.
•Security — to change the phone and SIM card settings, such as PIN and lock
codes; to view certificate details and check authenticity, and view and edit
security modules.
When security features that restrict calls are in use (such as call barring, closed user group,
and fixed dialing), calls may be possible to the official emergency number programmed into
your device.
48
DRAFT
•Factory settings — to reset some of the settings to their original values. You
need the lock code.
•Positioning (network service) — to enable a positioning method and to define a
positioning server.
With the positioning service you can receive information from service
providers about local issues such as weather and traffic conditions, based on
the location of your device.
Phone
Select Menu > Settings > Phone sett. > Phone >
•Call — to adjust the call settings, such as Send my caller ID (network service) to
display or hide your number; Reject call with SMS to enable rejecting phone
calls with a text message; and Speed dialling to activate the speed dialing
function
•Call divert (network service) — to divert your incoming calls to your call
mailbox or another phone number
•Call barring (network service) — to restrict the calls that you make and receive
with your phone
Call barring and call diverting cannot be active at the same time.
When calls are barred, calls may be possible to certain official emergency numbers.
•Network (shown only if supported by the service provider) — to select which
network to use. If you select Dual mode, the device uses the GSM or UMTS
network automatically, according to the network parameters and the roaming
agreements between the network operators.
Connection
Select Menu > Settings > Phone sett. > Connection >
•Bluetooth — to switch Bluetooth on or off, and edit Bluetooth settings. See
“Bluetooth connection,” p. 50.
•USB — to edit USB settings. See “USB data cable,” p. 52.
•Access points — To establish a data connection, an access point is required. You
can define access points for MMS to send and receive multimedia messages;
for WAP to view web pages; and for internet access point (IAP) to send and
receive e-mail.
49
DRAFT
Check with your service provider for the type of access point you need. For
availability and subscription to data connection services, contact your service
provider.
You may receive access point settings in a message from your service provider,
or you may have preset access point settings in your phone.
•Packet data — to select the packet data connection settings. The packet data
settings affect all access points using a packet data connection.
Select Packet data connection > When available to set the phone to register to
the packet data network when you are in a network that supports packet data.
If you select When needed, the phone uses a packet data connection only if you
start an application or function that needs it.
Select Access point to set the access point name to use your phone as a modem
with your computer.
•Data call — to set the online time for the data call connection. The data call
settings affect all access points that use a GSM data call.
•SIP settings — to view and edit session initiation protocol (SIP) profiles.
•Configurations — to view and delete configurations. Certain functions, such as
web browsing and multimedia messaging, may require configuration settings.
You may receive the settings from your service provider. See “Configuration
settings,” p. 13.
•APN control — to restrict the use of packet data access points. This setting is
only available if your SIM card supports the service. To change the settings, you
need the PIN2 code.
Applications
To view and edit settings of applications installed to your phone, select Menu >
Settings > Phone sett. > Applications.
■Speech
In Speech, you can select the default language and voice used for reading
messages and adjust the voice properties, such as rate and volume. Select Menu >
Settings > Speech.
To view details of a voice, scroll right, scroll to the voice, and select Options >
Voice details. To test a voice, scroll to the voice, and select Options > Play voice.
50
DRAFT
15. Connectivity
■PC Suite
You can use your phone with a variety of PC connectivity and data
communication applications. With PC Suite you can synchronize contacts,
calendar and to-do notes and notes between your phone and a compatible PC.
You may find more information about PC Suite and the download link in the
support area on the Nokia website, www.nokia.com/pcsuite.
■Bluetooth connection
Bluetooth technology enables wireless connections between electronic devices
within a maximum range of 10 meters (33 feet). A Bluetooth connection can be
used to send images, videos, text, business cards, calendar notes, or to connect
wirelessly to compatible devices using Bluetooth technology, such as computers.
This device is compliant with Bluetooth Specification 2.0 supporting the following profiles:
Dial Up Networking, Serial Port, Object Push, File Transfer, Handsfree, Headset, Basic
Imaging, SIM Access, Generic Object Exchange, and Advanced Audio Distriubting. To ensure
interoperability between other devices supporting Bluetooth technology, use Nokia
approved enhancements for this model. Check with the manufacturers of other devices to
determine their compatibility with this device.
There may be restrictions on using Bluetooth technology in some locations. Check with your
local authorities or service provider.
Features using Bluetooth technology, or allowing such features to run in the background
while using other features, increase the demand on battery power and reduce the battery
life.
Bluetooth connection settings
Select Menu > Settings > Connectivity > Bluetooth.
When you activate Bluetooth technology for the first time, you are asked to give a
name to your phone.
Bluetooth — to switch Bluetooth on or off.
My phone's visibility — to allow your phone to be found by other Bluetooth devices
at all times or for a defined time period. For security reasons it is advisable to use
the Hidden setting whenever possible.
My phone's name — to define a name for your phone.
51
DRAFT
Remote SIM mode > On — to enable the usage of the SIM card of the phone by
another device
When the wireless device is in the remote SIM mode, you can only use a compatible
connected enhancement, such as a car kit, to make or receive calls. Your wireless device will
not make any calls, except to the emergency numbers programmed into your device, while in
this mode. To make calls from your device, you must first leave the remote SIM mode. If the
device has been locked, enter the lock code to unlock it first.
Send data
There can be only one active Bluetooth connection at a time.
1. Open an application where the item you wish to send is saved.
2. Scroll to the item you want to send, and select Options > Send > Via
Bluetooth.
3. The phone starts to search for devices within range. Paired devices are shown
with .
When searching for devices, some devices may show only the unique device
addresses. To find out the unique address of your phone, enter the code
*#2820# in the standby mode.
If you have searched for devices earlier, a list of the devices that were found
previously is shown first. To start a new search, select More devices. If you
switch off the phone, the list of devices is cleared, and the device search needs
to be started again before sending data.
4. Select the device with which you want to connect.
5. Pair the devices
• If the other device requires pairing before data can be transmitted, a tone
sounds and you are asked to enter a passcode.
• Create your own passcode (1–16 digits) and agree with the owner of the
other device to use the same code. You do not have to memorize the
passcode.
• After pairing, the device is saved to the Paired devices view.
6. When the connection has been successfully established, the note Sending data
is displayed.
Data received using Bluetooth connection can be found in Inbox in Messaging.
52
DRAFT
Paired devices view
Paired devices are indicated by in the search result list. In the Bluetooth main
view, scroll right to open a list of paired devices.
Do not accept Bluetooth connections from sources you do not trust.
To pair with a device, select Options > New paired device. Select the device with
which to pair. Exchange passcodes.
To cancel pairing, scroll to the device whose pairing you want to cancel, and press
the clear key.
To set a device to be authorized, scroll to the device, and select Options > Set as
authorised. Connections between your phone and the authorized device can be
made without your knowledge. Use this status only for your own devices to which
others do not have access, for example, your PC or devices that belong to someone
you trust. is added next to authorized devices in the Paired devices view. If you
select Set as unauthorised, each connection request from the device must be
accepted separately.
Receive data
When you receive data using Bluetooth technology, a tone sounds, and you are
asked if you want to accept the message. If you accept, the item is placed in Inbox
in Messaging.
■USB data cable
You can use the USB data cable to transfer data between the phone and a
compatible PC. You can also use the USB data cable with Nokia PC Suite.
Select Menu > Settings > Connectivity > USB. To select the default USB
connection mode, select USB mode and the desired mode. To have the device ask
the purpose of the connection each time the cable is connected, select Ask on
connection > Yes.
To use the phone with Nokia PC Suite, select PC Suite. To synchronize media files,
such as music, with a compatible version of Windows Media Player, select Media
player. To access files on the inserted memory card as a removable drive, select
Data transfer.
After transferring data, ensure that it is safe to unplug the USB data cable from
the PC.
53
DRAFT
■Data transfer
With data transfer you can copy or synchronize contacts, calendar entries, and
possibly other data, such as video clips and images, from a compatible phone
using a Bluetooth or infrared connection. When both Bluetooth and infrared are
available on both devices, it is preferable to use Bluetooth.
Depending on the other phone, synchronization may not be possible and data can
be copied only once.
To transfer or synchronize data, do the following:
1. When using infrared, place the devices so that the infrared ports face each
other, and activate infrared on both devices.
Select Menu > Settings > Connectivity > Transfer. If you have not used
Transfer before, information about the application is displayed. Select
Continue to start transferring data.
If you have used Transfer, select Transfer data.
2. Select whether to use Bluetooth or infrared for transferring the data. When
using Bluetooth, the phones need to be paired in order to transfer data.
Depending on the type of the other phone, an application may be sent and
installed on the other phone to enable the data transfer. Follow the
instructions.
3. Select what content you want to be transferred to your phone.
4. Content is transferred to your phone. The transfer time depends on the amount
of data. You can stop the transfer and continue later.
16. Data manager
■Application manager
You can install two types of applications and software to your phone:
J2METM applications based on JavaTM technology with the extension .jad
or .jar. PersonalJavaTM applications cannot be installed on your phone.
Other applications and software suitable for the Symbian operating
system. The installation files have the .sis extension. Only install software
specifically designed for your phone.
54
DRAFT
Installation files may be transferred to your phone from a compatible computer,
downloaded during browsing, or sent to you in a multimedia message, as an
e-mail attachment or by using Bluetooth. You can use Nokia Application Installer
in Nokia PC Suite to install an application to your phone or a memory card.
To open App. manager, select Menu > Settings > Data mgr. > App. mgr..
Important: Only install and use applications and other software from trusted
sources, such as applications that are Symbian Signed or have passed the Java
VerifiedTM testing.
Before installation, in App. manager, scroll to the installation file, and select
Options > View details to view information such as the application type, version
number, and the supplier or manufacturer of the application.
The .jar file is required for installing Java applications. If it is missing, the phone
may ask you to download it.
To install an application or software package, scroll to an installation file, and
select Options > Install. Applications on the memory card are indicated with .
To remove an application, in App. manager, scroll to the software package, and
select Options > Remove.
For application manager settings, select Options > Settings.
■Memory card
Keep all memory cards out of the reach of small children.
Select Menu > Settings > Data mgr. > Memory.
To format a new memory card, select Options > Format memory card >Yes. Enter
a name for the memory card.
To back up information from phone memory to the memory card, select Options >
Back up phone memory.
To restore information from the memory card to the phone memory, select
Options > Restore from card. You can only back up the phone memory and restore
it to the same phone.
To set a password (up to 8 characters) to help prevent unauthorized use, select
Options > Set password. To unlock the card, select Options > Unlock memory
card.
For details on inserting a memory card into the phone, see “Get started,” p. 10.
55
DRAFT
■Activation keys
Digital rights management
Content owners may use different types of digital rights management (DRM) technologies
to protect their intellectual property, including copyrights. This device uses various types of
DRM software to access DRM-protected content. With this device you can access content
protected with WMDRM 10, OMA DRM 2.0 and OMA DRM 1.0. If certain DRM software fails
to protect the content, content owners may ask that such DRM software's ability to access
new DRM-protected content be revoked. Revocation may also prevent renewal of such
DRM-protected content already in your device. Revocation of such DRM software does not
affect the use of content protected with other types of DRM or the use of non-DRM-
protected content.
Digital rights management (DRM) protected content comes with an associated activation
key that defines your rights to use the content.
If your device has OMA DRM protected content, to back up both the activation keys and the
content, use the backup feature of Nokia PC Suite. Other transfer methods may not transfer
the activation keys which need to be restored with the content for you to be able to
continue the use of OMA DRM protected content after the device memory is formatted. You
may also need to restore the activation keys in case the files on your device get corrupted.
If your device has WMDRM protected content, both the activation keys and the content will
be lost if the device memory is formatted. You may also lose the activation keys and the
content in case the files on your device get corrupted. Losing the activation keys or the
content may limit your ability to use the same content on your device again. For more
information, contact your service provider.
Some activation keys may be connected to a specific SIM card, and the protected content
can be accessed only if the SIM card is inserted in the device.
Select Menu > Settings > Data mgr. > Actv. keys to view the digital rights
activation keys saved in your phone.
To view valid keys ( ) that are connected to one or more media files, select Valid
keys. Group keys, which contain several keys, are indicated with . To view the
keys contained in the group key, select the group key.
To view invalid keys ( ) with which the time period for using the file is exceeded,
select Invalid keys. To buy more usage time or extend the usage period for a media
file, scroll to a key, and select Options > Get activation key. It may not be possible
to update activation keys if web service message reception is disabled. To enable
the service message reception, select Menu > Messaging > Options > Settings >
Service message > Service messages > On.
56
DRAFT
To view activation keys that are not in use, select Not in use. Unused activation
keys have no media files connected to them.
To view detailed information such as the validity status and the ability to send the
file, scroll to an activation key, and select it.
17. Battery information
■Charging and discharging
Your device is powered by a rechargeable battery. The battery can be charged and
discharged hundreds of times, but it will eventually wear out. When the talk and standby
times are noticeably shorter than normal, replace the battery. Use only Nokia approved
batteries, and recharge your battery only with Nokia approved chargers designated for this
device.
The full performance of a new battery is achieved only after two or three complete charge
and discharge cycles.
If a replacement battery is being used for the first time or if the battery has not been used
for a prolonged period, it may be necessary to connect the charger, then disconnect and
reconnect it to begin charging the battery.
Unplug the charger from the electrical plug and the device when not in use. Do not leave a
fully charged battery connected to a charger, since overcharging may shorten its lifetime. If
left unused, a fully charged battery will lose its charge over time.
If the battery is completely discharged, it may take several minutes before the charging
indicator appears on the display or before any calls can be made.
Use the battery only for its intended purpose. Never use any charger or battery that is
damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic
object such as a coin, clip, or pen causes direct connection of the positive (+) and
negative (—) terminals of the battery. (These look like metal strips on the battery.) This might
happen, for example, when you carry a spare battery in your pocket or purse. Short-
circuiting the terminals may damage the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or winter
conditions, will reduce the capacity and lifetime of the battery. Always try to keep the
battery between 15°C and 25°C (59°F and 77°F). A device with a hot or cold battery may not
work temporarily, even when the battery is fully charged. Battery performance is particularly
limited in temperatures well below freezing.
57
DRAFT
Do not dispose of batteries in a fire as they may explode. Batteries may also explode if
damaged. Dispose of batteries according to local regulations. Please recycle when possible.
Do not dispose as household waste.
Do not dismantle or shred cells or batteries. In the event of a battery leak, do not allow the
liquid to come in contact with the skin or eyes. In the event of such a leak, flush your skin or
eyes immediately with water, or seek medical help.
■Nokia battery authentication guidelines
Always use original Nokia batteries for your safety. To check that you are getting an original
Nokia battery, purchase it from an authorized Nokia dealer, look for the Nokia Original
Enhancements logo on the packaging, and inspect the hologram label using the following
steps:
Successful completion of the four steps is not a total assurance of the authenticity of the
battery. If you have any reason to believe that your battery is not an authentic, original
Nokia battery, you should refrain from using it, and take it to the nearest authorized Nokia
service point or dealer for assistance. Your authorized Nokia service point or dealer will
inspect the battery for authenticity. If authenticity cannot be verified, return the battery to
the place of purchase.
Authenticate hologram
1. When looking at the hologram on the label, you should see the
Nokia connecting hands symbol from one angle and the Nokia
Original Enhancements logo when looking from another angle.
2. When you angle the hologram left, right, down, and up, you
should see 1, 2, 3, and 4 dots on each side respectively.
3. Scratch the side of the label to reveal a 20-digit code, for
example, 12345678919876543210. Turn the battery so that the
numbers are facing upwards. The 20-digit code reads starting
from the number at the top row followed by the bottom row.
58
DRAFT
4. Confirm that the 20-digit code is valid by following the
instructions at www.nokia.com/batterycheck.
What if your battery is not authentic?
If you cannot confirm that your Nokia battery with the hologram on the label is an authentic
Nokia battery, please do not use the battery. Take it to the nearest authorized Nokia service
point or dealer for assistance. The use of a battery that is not approved by the manufacturer
may be dangerous and may result in poor performance and damage to your device and its
enhancements. It may also invalidate any approval or warranty applying to the device.
To find out more about original Nokia batteries, visit www.nokia.com/battery.
Care and maintenance
Your device is a product of superior design and craftsmanship and should be treated with
care. The following suggestions will help you protect your warranty coverage.
• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can
contain minerals that will corrode electronic circuits. If your device does get wet, remove
the battery, and allow the device to dry completely before replacing it.
• Do not use or store the device in dusty, dirty areas. Its moving parts and electronic
components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of electronic
devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal temperature,
moisture can form inside the device and damage electronic circuit boards.
• Do not attempt to open the device other than as instructed in this guide.
• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards
and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.
• Do not paint the device. Paint can clog the moving parts and prevent proper operation.
• Use a soft, clean, dry cloth to clean any lenses, such as camera, proximity sensor, and
light sensor lenses.
59
DRAFT
• Use only the supplied or an approved replacement antenna. Unauthorized antennas,
modifications, or attachments could damage the device and may violate regulations
governing radio devices.
• Use chargers indoors.
• Always create a backup of data you want to keep, such as contacts and calendar notes.
• To reset the device from time to time for optimum performance, power off the device
and remove the battery.
These suggestions apply equally to your device, battery, charger, or any enhancement. If any
device is not working properly, take it to the nearest authorized service facility for service.
Disposal
The crossed-out wheeled-bin symbol on your product, literature, or packaging
reminds you that in the European Union all electrical and electronic products,
batteries, and accumulators must be taken to separate collection at the end of their
working life. Do not dispose of these products as unsorted municipal waste.
Return the products to collection to prevent possible harm to the environment or
human health from uncontrolled waste disposal and to promote the sustainable
reuse of material resources. Collection information is available from the product
retailer, local waste authorities, national producer responsibility organizations, or
your local Nokia representative. For more information, see product Eco-Declaration
or country-specific information at www.nokia.com.
Additional safety information
■Small children
Your device and its enhancements may contain small parts. Keep them out of the reach of
small children.
■Operating environment
This device meets RF exposure guidelines when used either in the normal use position
against the ear or when positioned at least 2.2 centimeters (7/8 inches) away from the body.
When a carry case, belt clip, or holder is used for body-worn operation, it should not contain
metal and should position the device the above-stated distance from your body.To transmit
data files or messages, this device requires a quality connection to the network. In some
cases, transmission of data files or messages may be delayed until such a connection is
available. Ensure the above separation distance instructions are followed until the
transmission is completed.
Parts of the device are magnetic. Metallic materials may be attracted to the device. Do not
place credit cards or other magnetic storage media near the device, because information
stored on them may be erased.
60
DRAFT
■Medical devices
Operation of any radio transmitting equipment, including wireless phones, may interfere
with the functionality of inadequately protected medical devices. Consult a physician or the
manufacturer of the medical device to determine if they are adequately shielded from
external RF energy or if you have any questions. Switch off your device in health care
facilities when any regulations posted in these areas instruct you to do so. Hospitals or
health care facilities may be using equipment that could be sensitive to external RF energy.
Implanted medical devices
Manufacturers of medical devices recommend that a minimum separation of
15.3 centimeters (6 inches) should be maintained between a wireless device and an
implanted medical device, such as a pacemaker or implanted cardioverter defibrillator, to
avoid potential interference with the medical device. Persons who have such devices should:
• Always keep the wireless device more than 15.3 centimeters (6 inches) from the medical
device when the wireless device is turned on.
• Not carry the wireless device in a breast pocket.
• Hold the wireless device to the ear opposite the medical device to minimize the potential
for interference.
• Turn the wireless device off immediately if there is any reason to suspect that
interference is taking place.
• Read and follow the directions from the manufacturer of their implanted medical device.
If you have any questions about using your wireless device with an implanted medical
device, consult your health care provider.
Hearing aids
Some digital wireless devices may interfere with some hearing aids. If interference occurs,
consult your service provider.
■Vehicles
RF signals may affect improperly installed or inadequately shielded electronic systems in
motor vehicles such as electronic fuel injection systems, electronic antiskid (antilock)
braking systems, electronic speed control systems, and air bag systems. For more
information, check with the manufacturer, or its representative, of your vehicle or any
equipment that has been added.
Only qualified personnel should service the device or install the device in a vehicle. Faulty
installation or service may be dangerous and may invalidate any warranty that may apply to
the device. Check regularly that all wireless device equipment in your vehicle is mounted
and operating properly. Do not store or carry flammable liquids, gases, or explosive materials
in the same compartment as the device, its parts, or enhancements. For vehicles equipped
61
DRAFT
with an air bag, remember that air bags inflate with great force. Do not place objects,
including installed or portable wireless equipment in the area over the air bag or in the air
bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag
inflates, serious injury could result.
Using your device while flying in aircraft is prohibited. Switch off your device before
boarding an aircraft. The use of wireless teledevices in an aircraft may be dangerous to the
operation of the aircraft, disrupt the wireless telephone network, and may be illegal.
■Potentially explosive environments
Switch off your device when in any area with a potentially explosive atmosphere, and obey
all signs and instructions. Potentially explosive atmospheres include areas where you would
normally be advised to turn off your vehicle engine. Sparks in such areas could cause an
explosion or fire resulting in bodily injury or even death. Switch off the device at refueling
points such as near gas pumps at service stations. Observe restrictions on the use of radio
equipment in fuel depots, storage, and distribution areas; chemical plants; or where blasting
operations are in progress. Areas with a potentially explosive atmosphere are often, but not
always, clearly marked. They include below deck on boats, chemical transfer or storage
facilities, vehicles using liquefied petroleum gas (such as propane or butane), and areas
where the air contains chemicals or particles such as grain, dust, or metal powders.
■Emergency calls
Important: Wireless phones, including this device, operate using radio signals,
wireless networks, landline networks, and user-programmed functions. Because of
this, connections in all conditions cannot be guaranteed. You should never rely
solely on any wireless device for essential communications like medical
emergencies.
To make an emergency call:
1. If the device is not on, switch it on. Check for adequate signal strength.
Some networks may require that a valid SIM card is properly inserted in the device.
2. Press the end key as many times as needed to clear the display and ready the device for
calls.
3. Enter the official emergency number for your present location. Emergency numbers vary
by location.
4. Press the call key.
If certain features are in use, you may first need to turn those features off before you can
make an emergency call. If the device is in the offline profile mode, you may need to change
the profile to activate the phone function before you can make an emergency call. Consult
this guide or your service provider for more information.
62
DRAFT
When making an emergency call, give all the necessary information as accurately as
possible. Your wireless device may be the only means of communication at the scene of an
accident. Do not end the call until given permission to do so.
■Certification information (SAR)
THIS MOBILE DEVICE MEETS GUIDELINES FOR EXPOSURE TO RADIO WAVES.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits
for exposure to radio waves recommended by international guidelines. These guidelines
were developed by the independent scientific organization ICNIRP and include safety
margins designed to assure the protection of all persons, regardless of age and health.
The exposure guidelines for mobile devices employ a unit of measurement known as the
Specific Absorption Rate or SAR. The SAR limit stated in the ICNIRP guidelines is 2.0 watts/
kilogram (W/kg) averaged over 10 grams of tissue. Tests for SAR are conducted using
standard operating positions with the device transmitting at its highest certified power level
in all tested frequency bands. The actual SAR level of an operating device can be below the
maximum value because the device is designed to use only the power required to reach the
network. That amount changes depending on a number of factors such as how close you are
to a network base station. The highest SAR value under the ICNIRP guidelines for use of the
device at the ear is 1.24 W/kg.
Use of device accessories and enhancements may result in different SAR values. SAR values
may vary depending on national reporting and testing requirements and the network band.
Additional SAR information may be provided under product information at www.nokia.com.
Your mobile device is also designed to meet the requirements for exposure to radio waves
established by the Federal Communications Commission (USA) and Industry Canada. These
requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR
value reported under this standard during product certification for use at the ear is 1.02 W/
kg and when properly worn on the body is 1.33 W/kg. Information about this device model
can be found at http://www.fcc.gov/oet/fccid by searching the equipment authorization
system using FCC ID: LJPRM-230.
63
DRAFT
Index
NUMERICS
3-D tones 41
A
access codes
barring password 9
lock code 8, 13
module PIN 9
PIN 8, 13
PIN2 9
PUK 9
PUK2 9
signing PIN 9
UPIN 8
UPUK 9
access points 48
activation keys 55
active standby 16
alarm clock. See clock.
application manager 53
applications 53
B
battery
charging 12
Bluetooth
connection settings 50
paired devices 52
receiving data 52
sending data 51
browser. See web.
C
cache 45
calendar 46
call register. See log.
calls
answering 21
barring 48
diverting 48
ending 20
international 20
making 20
rejecting 21
rejecting with SMS 21
swapping 21
voice dial 21
voice mailbox 20
waiting 21
camera 38
camera mode 15
clock 45
connectivity 50
contacts 30
copyright protection. See activation keys.
D
data cable 52
data connection indicators 17
data transfer 53
digital rights management. See activation
keys
downloading 44
E
editing videos 32
e-mail
mailbox 28
e-mail messages
deleting 28
G
gallery 31
transferring videos 32
H
help 19
I
indicators 17
K
keyguard. See keypad lock.
keypad lock 19
64
DRAFT
L
listening to music 33
log 24
M
mechanical modes 15
memory card 54
menu 18
message settings
e-mail 29
multimedia messages 29
text messages 29
messages
audio 27
listening to 29
outbox 27
receiving 26
sending 27
SIM messages 28
writing 27
mobile browser. See web.
movies, muvees
custom muvees 39
quick muvees 38
music
See music player
music mode 16
music player
downloading music 35
music shop 35
playlists 34
transferring music 36
N
network 48
P
phone mode 15
phonebook. See contacts.
profiles 41
S
services. See web.
settings
connection 48
data call 49
packet data 49
phone 47
speech 49
SIM card
using phone without a SIM card 17
songs
transferring 36
standby mode 16
T
text input 26
copying text 26
predictive 25
themes 40
audio theme 41
transferring music 36
transferring videos 32
U
USB. See data cable.
V
video call 22
video call mode 16
video view mode 16
videos
transferring 32
Visual Radio 37
voice commands 47
voice dialing 20
voice mailbox 47
volume 19
W
web
browser settings 45
browsing 43
connecting 42
connection security 43
disconnecting 45
saving a page 44
settings 42
viewing a saved page 44
viewing bookmarks 42
writing text. See text input
