Microsoft RM-233 GSM 900/1800/1900 WCDMA w/BT User Manual RM 233 FCC draft 22 Aug 07 HD
Microsoft Mobile Oy GSM 900/1800/1900 WCDMA w/BT RM 233 FCC draft 22 Aug 07 HD
Manual
FCC Draft
RM-233 FCC draft User Guide
9203520
Issue 1
FCC Draft
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this RM-233 product is in
compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC. A copy of the Declaration of
Conformity can be found at http://www.nokia.com/phones/
declaration_of_conformity/.
Copyright © 2007 Nokia. All rights reserved.
Nokia, Nokia Connecting People and Navi are trademarks or registered trademarks of Nokia Corporation.
Nokia tune is a sound mark of Nokia Corporation. Other product and company names mentioned herein
may be trademarks or tradenames of their respective owners.
Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form
without the prior written permission of Nokia is prohibited.
US Patent No 5818437 and other pending patents. T9 text input software Copyright (C) 1997-2007. Tegic
Communications, Inc. All rights reserved.
Includes RSA BSAFE cryptographic or security protocol software from RSA Security.
Java is a trademark of Sun Microsystems, Inc.
This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and
noncommercial use in connection with information which has been encoded in compliance with the
MPEG-4 Visual Standard by a consumer engaged in a personal and noncommercial activity and (ii) for use
in connection with MPEG-4 video provided by a licensed video provider. No license is granted or shall be
implied for any other use. Additional information, including that related to promotional, internal, and
commercial uses, may be obtained from MPEG LA, LLC. See http://www.mpegla.com.
Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and
improvements to any of the products described in this document without prior notice.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO CIRCUMSTANCES SHALL NOKIA
OR ANY OF ITS LICENSORS BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL,
INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED.
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAW,
NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN
RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE
RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.
The availability of particular products and applications and services for these products may vary by region.
Please check with your Nokia dealer for details, and availability of language options.
0434
FCC Draft
Export controls
This device may contain commodities, technology or software subject to export laws and regulations from
the US and other countries. Diversion contrary to law is prohibited.
The third-party applications provided with your device may have been created and may be owned by
persons or entities not affiliated with or related to Nokia. Nokia does not own the copyrights or
intellectual property rights to the third-party applications. As such, Nokia does not take any responsibility
for end-user support, functionality of the applications, or the information in the applications or these
materials. Nokia does not provide any warranty for the third-party applications.
BY USING THE APPLICATIONS YOU ACKNOWLEDGE THAT THE APPLICATIONS ARE PROVIDED AS IS
WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW. YOU FURTHER ACKNOWLEDGE THAT NEITHER NOKIA NOR ITS AFFILIATES MAKE ANY
REPRESENTATIONS OR WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTIES OF TITLE, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR THAT THE
APPLICATIONS WILL NOT INFRINGE ANY THIRD-PARTY PATENTS, COPYRIGHTS, TRADEMARKS, OR OTHER
RIGHTS.
FCC/INDUSTRY CANADA NOTICE
Your device may cause TV or radio interference (for example, when using a telephone in close proximity to
receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such
interference cannot be eliminated. If you require assistance, contact your local service facility. This device
complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Any changes or modifications not expressly
approved by Nokia could void the user's authority to operate this equipment.
9203520/Issue 1
4
FCC Draft
Contents
SAFETY.............................................. 6
General information ........................ 7
Helpful hints ...................................................... 7
About your device............................................. 9
Network services............................................... 9
Enhancements ................................................ 10
Access codes ................................................... 10
Software updates........................................... 11
Download content......................................... 11
Nokia support ................................................. 12
1. Get started.................................. 12

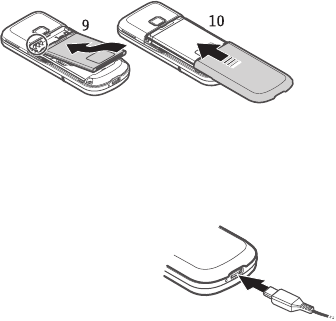

Install SIM card and battery ..................... 12
Charge the battery ........................................ 13
Desk stand DT-19 .......................................... 13
CA-101 data cable ........................................ 13
Switch the phone on and off ..................... 14
Set the time, zone, and date ...................... 14
Configuration settings service ................... 14
Antenna............................................................ 14
Keys and parts ............................................... 15
Phone memory................................................ 15
Standby mode ................................................ 16
Flight profile.................................................... 17
2. Calls............................................. 17
Make a call ...................................................... 17
Answer or reject a call ................................. 17
Speed dialling ................................................. 18
Enhanced voice dialling............................... 18
Options during a call .................................... 18
3. Write text ................................... 19
Traditional text input ................................... 19
Predictive text input ..................................... 19
4. Messaging................................... 20
Write and send a text message ................. 20
Write and send a multimedia message... 20
Read and reply to a message ..................... 20
Nokia Xpress audio messaging .................. 21
Flash messages............................................... 21
E-mail application ......................................... 21
Instant messaging.......................................... 22
Voice messages............................................... 23
Message settings............................................ 23
5. Contacts ..................................... 25
Save names and phone numbers............... 25
Add contact details........................................ 26
Search for a contact...................................... 26
Copy or move contacts................................. 26
Edit contacts.................................................... 26
Groups ............................................................... 26
Business cards................................................. 26
Contact settings ............................................. 27
6. Log .............................................. 27
7. Settings ...................................... 27
Profiles .............................................................. 27
Themes .............................................................. 28
Tones.................................................................. 28
Display............................................................... 28
Date and time ................................................. 29
My shortcuts.................................................... 29
Sync and backup ............................................ 29
Connectivity..................................................... 30
Call ..................................................................... 32
Phone................................................................. 32
Enhancements................................................. 33
Configuration .................................................. 33
Restore factory settings ............................... 34
Phone software updates............................... 34
8. Operator menu........................... 34
Info messages.................................................. 34
Service commands ......................................... 35
9. Gallery ........................................ 35
Digital rights management ......................... 35
Print images..................................................... 36
10.Media ........................................ 36
Camera .............................................................. 36
Video.................................................................. 36
5
FCC Draft
Music player.................................................... 37
Voice recorder................................................. 38
Equaliser........................................................... 38
Stereo widening ............................................. 38
11.Organiser................................... 38
Alarm clock...................................................... 38
Calendar ........................................................... 39
To-do list.......................................................... 39
Notes................................................................. 40
Calculator......................................................... 40
Countdown timer........................................... 40
Stopwatch........................................................ 40
12.Applications .............................. 41
Launch a game ............................................... 41
Launch an application.................................. 41
Application options....................................... 41
13.Web............................................ 41
Connect to a service ..................................... 42
Browse pages.................................................. 42
Bookmarks ....................................................... 42
Appearance settings...................................... 43
Security settings............................................. 43
Service inbox ................................................... 43
Browser security............................................. 44
14.SIM services.............................. 45
15.PC connectivity......................... 45
Nokia PC Suite ................................................ 45
Data communication applications ............ 46
16.Battery and charger information ..
46
Nokia battery authentication guidelines. 47
Care and maintenance................... 48
Additional safety information ...... 49
APPENDIX....................................... 52
A message from the CTIA............................. 52
Message from the FDA ................................. 54
Index............................................... 59
6
SAFETY
FCC Draft
SAFETY
Read these simple guidelines. Not following them may be dangerous or illegal. Read the
complete user guide for further information.
SWITCH ON SAFELY
Do not switch the device on when wireless phone use is prohibited or when it
may cause interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle while
driving. Your first consideration while driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect
performance.
SWITCH OFF IN RESTRICTED AREAS
Follow any restrictions. Switch the device off in aircraft, near medical
equipment, fuel, chemicals, or blasting areas.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
ENHANCEMENTS AND BATTERIES
Use only approved enhancements and batteries. Do not connect incompatible
products.
WATER-RESISTANCE
Your device is not water-resistant. Keep it dry.
7
General information
FCC Draft
General information
■Helpful hints
Before taking your phone to a service point
Q: What can I do to resolve operation issues with my phone?
A: Try the following:
• Power off the phone and remove and replace the battery.
• Restore the factory settings. Select Menu > Settings > Rest. factory sett.. The
names and phone numbers saved in Contacts are not deleted.
• Update the phone with Nokia Software Updater if available. Visit
www.nokia.com/softwareupdate or your local Nokia website.
Access codes
Q: What is my password for the lock, PIN, or PUK codes?
A: The default lock code is 12345. If you forget or lose the lock code, contact your
phone dealer.
If you forget or lose a PIN or PUK code, or if you have not received such a code,
contact your service provider.
Bluetooth connectivity
Q: Why can’t I find a Bluetooth device?
A: Try the following:
• Check that both devices have activated Bluetooth connectivity.
• Check that the distance between the two devices is not over 10 meters (33
feet) and that there are no walls or other obstructions between the devices.
• Check that the other device is not in the hidden mode.
• Check that both devices are compatible.
Calls
Q: How do I change the volume?
A: To increase or decrease the volume during a call, scroll up or down.
Q: How do I change the ringing tone?
A: Select Menu > Settings > Tones.
Clock
Q: How do I see what time it is?
8
General information
FCC Draft
A: In standby mode, double tap on the phone to show the clock and date. See
“Phone,” p 32.
Contacts
Q: How do I add a new contact?
A: Select Menu > Contacts > Names > Options > Add new contact.
Q: How do I add additional information to a contact?
A: Search for the contact to which you want to add a detail, and select Details >
Options > Add detail. Select from the available options.
Menus
Q: How can I change the look of the menus?
A: To change the menu view, select Menu > Options > Main menu view > List,
Grid, Grid with labels, or Tab.
Q: How do I personalise my menu?
A: To rearrange the menu, select Menu > Options > Organise. Scroll to the menu
you want to move, and select Move. Scroll to where you want to move the menu,
and select OK. To save the change, select Done > Yes.
Messaging
Q: Why can’t I send a multimedia message (MMS)?
A: To check availability and to subscribe to the multimedia messaging service
(MMS, network service), contact your service provider.
Q: How do I set up e-mail?
A: To use the e-mail function on your phone, you need a compatible e-mail
system. Check your e-mail settings with your e-mail service provider. You may
receive the e-mail configuration settings as a configuration message.
To activate the e-mail settings, select Menu > Messaging > Message settings >
E-mail messages.
PC connectivity
Q: Why do I have problems connecting the phone to my PC?
A: Ensure that Nokia PC Suite is installed and running on your PC. See the user
guide for Nokia PC Suite. For further information on how to use Nokia PC Suite,
see the help function in Nokia PC Suite or visit the support pages at
www.nokia.com.
Shortcuts
9
General information
FCC Draft
Q: Are there any shortcuts that I can use?
A: There are several shortcuts on your phone:
• To access the list of dialed numbers, press the call key once. Scroll to the
number or name that you want; to call the number, press the call key.
• To open the web browser, press and hold 0.
• To call your voice mailbox, press and hold 1.
• Use the scroll key as a shortcut. See “My shortcuts,” p. 29.
• To change from any profile to the silent profile and back to the general profile,
press and hold #.
■About your device
The wireless device described in this guide is approved for use on the WCDMA
2100, EGSM 900, and GSM 1800 and 1900 networks. Contact your service
provider for more information about networks.
When using the features in this device, obey all laws and respect local customs,
privacy and legitimate rights of others, including copyrights.
Copyright protection may prevent some images, music, and other content from
being copied, modified, or transferred.
Your device may have preinstalled bookmarks and links for third-party internet
sites. You may also access other third-party sites through your device. Third-party
sites are not affiliated with Nokia, and Nokia does not endorse or assume liability
for them. If you choose to access such sites, you should take precautions for
security or content.
Warning: To use any features in this device, other than the alarm clock,
the device must be switched on. Do not switch the device on when
wireless device use may cause interference or danger.
Remember to make back-up copies or keep a written record of all important
information stored in your device.
When connecting to any other device, read its user guide for detailed safety
instructions. Do not connect incompatible products.
■Network services
To use the phone you must have service from a wireless service provider. Many of
the features require special network features. These features are not available on
all networks; other networks may require that you make specific arrangements
10
General information
FCC Draft
with your service provider before you can use the network services. Your service
provider can give you instructions and explain what charges will apply. Some
networks may have limitations that affect how you can use network services. For
instance, some networks may not support all language-dependent characters and
services.
Your service provider may have requested that certain features be disabled or not
activated in your phone. If so, these features will not appear on your phone menu.
Your phone may also have a special configuration such as changes in menu
names, menu order, and icons. Contact your service provider for more information.
This device supports WAP 2.0 protocols (HTTP and SSL) that run on TCP/IP
protocols. Some features of this device, such as multimedia messaging (MMS),
browsing, e-mail application, instant messaging, presence enhanced contacts,
remote synchronisation, and content downloading using the browser or MMS,
require network support for these technologies.
■Enhancements
Warning: Use only batteries, chargers, and enhancements approved by Nokia for
use with this particular model. The use of any other types may invalidate any
approval or warranty, and may be dangerous.
For availability of approved enhancements, please check with your dealer. When you
disconnect the power cord of any enhancement, grasp and pull the plug, not the cord.
■Access codes
Select Menu > Settings > Security to set how your phone uses the access codes
and security settings.
• The keypad lock (keyguard) only locks the keys.
You can lock the keys to prevent accidental keypresses.
1. To lock the keys, close the slide, and select Lock within 3.5 seconds.
2. To unlock the keys, open the slide; or select Unlock > OK within 1.5
seconds.
To answer a call when the keyguard is on, press the call key. When you end or
reject the call, the keys are automatically locked.
You can also select Menu > Settings > Phone > Automatic keyguard or
Security keyguard > On or Off. If the Security keyguard is set On, enter the
security code when requested.
11
General information
FCC Draft
• The security code (5-10 digits) helps to protect your phone against
unauthorised use.
• The PIN code, supplied with the SIM card, helps to protect the card against
unauthorised use.
• The PIN2 code, supplied with some SIM cards, is required to access certain
services.
• PUK and PUK2 codes may be supplied with the SIM card. If you enter the PIN or
PIN2 code incorrectly three times in succession, you will be asked for the PUK
or PUK2 code. If you do not have them, contact your local service provider.
• The barring password (4 digits) is required when using the Call barring service
to restrict incoming calls to and outgoing calls from your phone (network
service).
• To view or change the security module settings, if installed, select Menu >
Settings > Security > Security module sett..
■Software updates
Important: Use only services that you trust and that offer adequate security and
protection against harmful software.
Nokia may produce software updates that may offer new features, enhanced functions, or
improved performance. You may be able to request these updates through the Nokia
Software Updater PC application. To update the device software, you need the Nokia
Software Updater application and a compatible PC with Microsoft Windows 2000 or XP
operating system, broadband internet access, and a compatible data cable to connect your
device to the PC.
To get more information and to download the Nokia Software Updater application, visit
www.nokia.com/softwareupdate or your local Nokia web site.
Downloading software updates may involve the transmission of large amounts of data
through your service provider's network. Contact your service provider for information about
data transmission charges.
Make sure that the device battery has enough power, or connect the charger before starting
the update.
If software updates over the air are supported by your network, you may also be able to
request updates through the device. See “Phone,” p. 32.
■Download content
You may be able to download new content (for example, themes) to your phone
(network service).
12
Get started
FCC Draft
For the availability of different services, pricing, and tariffs, contact your service
provider.
Important: Use only services that you trust and that offer adequate
security and protection against harmful software.
■Nokia support
Check www.nokia.com/support or your local Nokia website for the latest guides,
additional information, downloads, and services related to your Nokia product.
On the website, you can get information on the use of Nokia products and
services. If you need to contact customer service, check the list of local Nokia
contact centres at www.nokia.com/customerservice.
For maintenance services, check your nearest Nokia service centre at
www.nokia.com/repair.
1. Get started
■Install SIM card and battery
Always switch the device off and disconnect the charger before removing the battery.
The SIM card and its contacts can easily be damaged by scratches or bending, so
be careful when handling, inserting, or removing the card. Insert the SIM card
with the gold-coloured contact area facing down (7).
13
Get started
FCC Draft
■Charge the battery
Charging the BL-4U battery with the AC-6 charger takes approximately 3.5 hours
while the phone is in the standby mode.
1. Connect the charger to a wall socket.
2. Connect the lead from the charger to the charger
connector at the bottom of your phone.
If the battery is completely discharged, it may take a
few minutes before the charging indicator appears on
the display or before any calls can be made.
■Desk stand DT-19
The desk stand allows you to charge the phone battery with power supplied from
the AC-6 charger or from your laptop when connected using the CA-101 data
cable. The charge level of the phone battery is indicated on the display. The desk
stand also allows data transfer.
■CA-101 data cable
The CA-101 data cable is used for data transfer and slow charging the battery
while connected to a PC or laptop.
You must download Nokia PC Suite 6.83 to use with your phone. Updated versions
can be added after version 6.83. Go to www.nokia.com/support for more
information.
1. Connect the lead from the CA-101 to the micro USB socket on the bottom of
your phone.
2. Connect the CA-101 to your PC or laptop. Select USB mode: appears on the
display screen of your phone.
3. Select the mode you want.
The AC-6 charges the battery much faster than the CA-101. Charging with the
AC-6 is recommended when short charging times are needed.
14
Get started
FCC Draft
■Switch the phone on and off
1. Press and hold the power key as shown.
2. If the phone asks for a PIN or a UPIN code, enter the code
(for example, displayed as ****), and select OK.
When you switch on your phone for the first time, and the
phone is in the standby mode, you are asked to get the
configuration settings from your service provider (network
service). Confirm or decline the query. See “Configuration,”
p. 34, and “Configuration settings service,” p. 14.
■Set the time, zone, and date
When you switch on your phone for the first time, and the phone is in the standby
mode, you are asked to set the time and date. Fill in the fields, and select Save.
To access Date and time later, select Menu > Settings > Date and time > Date &
time settings, Date and time format, or Auto-update of time (network service) to
change the time, time zone, and date settings.
■Configuration settings service
To use some of the network services, such as mobile internet services, MMS, Nokia
Xpress audio messaging, or remote internet server synchronisation, your phone
needs the correct configuration settings. For more information on availability,
contact your network operator, service provider, nearest authorised Nokia dealer,
or visit the support area on the Nokia website, www.nokia.com/support.
When you have received the settings as a configuration message, and the settings
are not automatically saved and activated, Configuration settings received is
displayed. Select Show > Save. If required, enter the PIN code supplied by the
service provider.
■Antenna
Your device may have internal and external antennas. As with
any radio transmitting device, avoid touching the antenna
area unnecessarily while the antenna is transmitting or
receiving. Contact with such an antenna affects the
communication quality and may cause the device to operate at
a higher power level than otherwise needed and may reduce
the battery life.
15
Get started
FCC Draft
■Keys and parts
1. Power key
2. Loudspeaker
3. Camera lens
4. Battery cover release buttons
5. Earpiece
6. Navi™ key (herein referred to as scroll key)
7. Middle selection key
8. Left selection key
9. Right selection key
10.Call key
11.End key
12.Keypad
13.Connector
14.Microphone
■Phone memory
Your phone contains 1 GB of internal memory.
16
Get started
FCC Draft
■Standby mode
When the phone is ready for use, and you have not entered any characters, the
phone is in the standby mode.
1. 3G indicator
2. Signal strength of the cellular network
3. Battery charge level
4. Indicators. See “Indicators,” p. 16.
5. Name of the network or the operator logo
6. Clock
7. Display
8. The left selection key (8) is Go to or a shortcut to a
function that you selected. See “Left selection key,” p. 29
9. The middle selection key (9) mode is Menu.
10.The right selection key (10) may be Names to access the list of contacts in the
Contacts menu, an operator-specific name to access an operator-specific web
site, or a shortcut to a function that you selected. See “Right selection key,”
p. 29.
Indicators
You have unread messages.
The phone registered a missed call. See “Log,” p. 27.
The keypad is locked. See “Access codes,” p. 10.
The phone does not ring for an incoming call or text message when
Incoming call alert is set to Off and Message alert tone is set to Off. See
“Tones,” p. 28.
The alarm clock is set to On. See “Alarm clock,” p. 38.
, When the packet data connection mode Always online is selected and the
packet data service is available, the indicator is shown.
, A GPRS or EGPRS connection is established.
, The GPRS or EGPRS connection is suspended (on hold).
17
Calls
FCC Draft
Bluetooth connection indicator. See “Connecting with Bluetooth,” p. 30.
■Flight profile
You can deactivate all radio frequency functions and still have access to offline
games, calendar, music player, and phone numbers. Use the flight profile in radio
sensitive environments—on board aircraft or in hospitals. When the flight profile
is active, is shown.
Select Menu > Settings > Profiles > Flight > Activate or Personalise.
To set the phone to ask every time it is switched on whether to use the flight
profile, select Menu > Settings > Phone > Flight query > On or Off.
To deactivate the flight profile, select any other profile.
In the offline or flight profiles, you may need to unlock the device and change to the calling
profile before making a call.
Warning: With the flight profile you cannot make or receive any calls, including
emergency calls, or use other features that require network coverage. To make
calls, you must first activate the phone function by changing profiles. If the device
has been locked, enter the lock code. If you need to make an emergency call while
the device is locked and in the flight profile, you may be also able to enter an
official emergency number programmed in your device in the lock code field and
select 'Call'. The device will confirm that you are about to exit flight profile to start
an emergency call.
2. Calls
■Make a call
Do one of the following:
• Enter the phone number, including the area code, and press the call key.
For international calls, press * twice for the international prefix (the +
character replaces the international access code), enter the country code, the
area code without the leading 0, if necessary, and the phone number.
• Press the call key once to list the last called numbers, and press the call key.
• Call a name or number in Contacts. See “Contacts,” p. 25.
To increase or decrease the volume during a call, scroll up or down.
■Answer or reject a call
To answer a call, press the call key. To end the call, press the end key.
18
Calls
FCC Draft
To reject a call, press the end key.
To mute the ringing tone, select Silence. Then answer or reject the call.
■Speed dialling
To assign a number to one of the speed-dialling keys, 3 to 9:
1. Select Menu > Contacts > Speed dials.
2. Scroll to the speed-dialling number that you want.
3. Select Assign, or if a number has already been assigned to the key, select
Options > Change.
4. Select Search and the contact you want to assign.
If the Speed dialling function is off, the phone asks whether you want to activate
it.
Select Menu > Settings > Call > Speed dialling > On or Off.
To call a number, press and hold a speed-dialling key until the call begins.
■Enhanced voice dialling
You can make a phone call by saying the name that is saved in the contact list of
the phone. To set a contact for the voice playback, select Menu > Settings >
Phone > Voice recognition > Recognition lang., and follow the instructions on the
display.
Before using voice tags, note the following:
• Voice tags are not language-dependent. They are dependent on the speaker's voice.
• You must say the name exactly as you said it when you recorded it.
• Voice tags are sensitive to background noise. Record voice tags and use them in a quiet
environment.
• Very short names are not accepted. Use long names, and avoid similar names for
different numbers.
Note: Using voice tags may be difficult in a noisy environment or during an
emergency, so you should not rely solely upon voice dialling in all circumstances.
■Options during a call
Many of the options that you can use during a call are network services. For
availability, contact your service provider.
Possible options that your service provider may offer include conference calls,
video sharing and placing calls on hold.
19
Write text
FCC Draft
Call waiting
Select Menu > Settings > Call > Call waiting > Activate to have the network
notify you of an incoming call while you have a call in progress (network service).
To answer a waiting call during an active call, press the call key. The first call is put
on hold. To end the active call, press the end key.
3. Write text
You can enter text using traditional or predictive text input. When you write text,
select and hold Options to switch between traditional text input, indicated by
, and predictive text input, indicated by . Not all languages are supported
by predictive text input.
The character cases are indicated by , , and . To change the character
case, press #. To change from the letter to number mode, indicated by , press
and hold #, and select Number mode. To change from the number to the letter
mode, press and hold #.
To set the writing language, select Options > Writing language.
■Traditional text input
Press a number key, 1 to 9, repeatedly until the desired character appears. The
characters available depend on the selected writing language. Press the 0 key to
create a space. The most common punctuation marks and special characters are
available under the 1 key.
■Predictive text input
Predictive text input is based on a built-in dictionary to which you can add new
words.
1. Start writing a word using the keys 2 to 9. The phone displays * or the letter if it
separately has a meaning as a word. The entered letters are displayed
underlined.
2. When you finish writing the word and it is correct, to confirm it, press 0 to add
a space.
If the word is not correct, press * repeatedly, and select the word from the list.
If the ? character is displayed after the word, the word you intended to write is
not in the dictionary. To add the word to the dictionary, select Spell. Enter the
word using traditional text input, and select Save.
20
Messaging
FCC Draft
To write compound words, enter the first part of the word, and scroll right to
confirm it. Write the last part of the word, and confirm the word.
3. Start writing the next word.
4. Messaging
■Write and send a text message
1. Select Menu > Messaging > Create message > Message.
2. Enter one or more phone numbers in the To: field. To retrieve a phone number
from a memory, select Add.
3. Write your message in the Text: field.
To use a text template, scroll down, and select Insert.
4. Select Send.
■Write and send a multimedia message
1. Select Menu > Messaging > Create message > Message.
2. Enter one or more phone numbers or e-mail addresses in the To: field. To
retrieve a phone number or e-mail address from a memory, select Add.
3. Write your message. To add a file, scroll down, and select Insert.
4. To view the message before sending it, select Options > Preview.
5. Select Send.
Only devices that have compatible features can receive and display multimedia messages.
The appearance of a message may vary depending on the receiving device.
The wireless network may limit the size of MMS messages. If the inserted picture exceeds
this limit, the device may make it smaller so that it can be sent by MMS.
To check availability and to subscribe to the multimedia messaging service (MMS,
network service), contact your service provider.
■Read and reply to a message
1. To view a received message, select Show.
To read the message later, select Menu > Messaging > Inbox.
2. To reply to a message, select Reply. Write the reply message.
3. Select Send.
21
Messaging
FCC Draft
Important: Exercise caution when opening messages. Messages may contain
malicious software or otherwise be harmful to your device or PC.
■Nokia Xpress audio messaging
You can use the multimedia message service to create and send an audio message.
MMS must be activated before you can use audio messages.
1. Select Menu > Messaging > Create message > Audio message. The recorder
opens.
2. Speak your message.
3. Enter one or more phone numbers in the To: field, or select Add to retrieve a
number.
4. Select Send, or press the call key.
To open a received audio message, select Play. If more than one message is
received, select Show > Play. To listen to the message later, select Exit.
■Flash messages
Select Menu > Messaging > Create message > Flash message. Enter the
recipient’s phone number, and write your message.
Flash messages are text messages that are instantly displayed upon receipt. Flash
messages are not automatically saved.
■E-mail application
To activate the e-mail settings, select Menu > Messaging > Message settings >
E-mail messages.
To use the e-mail function on your phone, you need a compatible e-mail system.
You may receive the e-mail configuration settings as a configuration message.
E-mail setup wizard
Select Menu > Messaging > E-mail mailbox > Options > Add mailbox >E-mail
setup wizard.
To enter the settings manually, select Menu > Messaging > E-mail mailbox >
Options > Add mailbox > Create manually.
The e-mail application requires an internet access point without a proxy. WAP
access points normally include a proxy and do not work with the e-mail
application.
22
Messaging
FCC Draft
Write and send e-mail
You can write your e-mail message before connecting to the e-mail service; or
connect to the service first, then write and send your e-mail.
1. Select Menu > Messaging > Create message > E-mail.
If more than one e-mail account is defined, select the account from which you
want to send the e-mail.
2. Enter the recipient’s e-mail address, write the subject, and enter the message.
To attach a file to the e-mail, select Options > Insert.
To save your e-mail, select Options > Save message. To edit or continue
writing your e-mail later, select As draft message.
3. To send the e-mail message, select Send.
To send an e-mail from a draft folder, select Menu > Messaging > Drafts and the
desired message.
Download e-mail
1. To download e-mail messages that have been sent to your e-mail account,
select Menu > Messaging.
If more than one e-mail account is defined, select the account from which you
want to download the e-mail.
The e-mail application only downloads e-mail headers at first.
2. Select an e-mail and press Open to download the complete e-mail message.
Read and reply to e-mail
1. Select Menu > Messaging the account name, and the desired message.
2. To reply to an e-mail, select Options > Reply. Confirm or edit the e-mail
address and subject and create your reply.
3. To send the message, select Send.
To terminate the connection to your e-mailbox, select Options > Disconnect.
■Instant messaging
With instant messaging (IM, network service) you can send short, simple text
messages to online users. You must subscribe to a service and register with the IM
service you want to use. For more information about signing up for IM services,
contact your service provider.
23
Messaging
FCC Draft
■Voice messages
To call your voice mailbox, select Menu > Messaging > Voice messages > Listen to
voice msgs.. To enter, search for, or edit your voice mailbox number, select Voice
mailbox no..
The voice mailbox is a network service, and you may need to subscribe to it. For
more information contact your service provider.
If supported by the network, indicates new voice messages. To call your voice
mailbox number, select Listen.
■Message settings
General settings
General settings are common for text and multimedia messages.
Select Menu > Messaging > Message settings > General settings and from the
following options:
Save sent messages > Yes — to set your phone to save the sent messages in the
Sent items folder
Overwriting in Sent > Allowed — to set your phone to overwrite the old sent
messages with the new ones when the message memory is full. This setting is
shown only if you selected Save sent messages > Yes.
Favourite recipient — to define easily available message recipients or groups when
sending messages
Font size — to select the font size used in messages
Graphical smileys > Yes — to set your phone to replace character-based smileys
with graphical ones
Text messages
The text message settings affect the sending, receiving, and viewing of text and
SMS messages.
Select Menu > Messaging > Message settings > Text messages and from the
following options:
Delivery reports > Yes — to ask the network to send delivery reports about your
messages (network service)
Message centres > Add centre — to set the phone number and name of the
message centre that is required for sending text messages. You receive this
number from your service provider.
24
Messaging
FCC Draft
Msg. centre in use — to select the message centre in use
Message validity — to select the length of time for which the network attempts to
deliver your message
Messages sent via — to select the format of the messages to be sent: Text, Paging,
or Fax (network service)
Use packet data > Yes — to set GPRS as the preferred SMS bearer
Character support > Full — to select all characters in the messages to be sent as
viewed. If you select Reduced, characters with accents and other marks may be
converted to other characters.
Rep. via same centre > Yes — to allow the recipient of your message to send you a
reply using your message centre (network service)
Multimedia messages
The message settings affect the sending, receiving, and viewing of multimedia
messages. You may receive the configuration settings for multimedia messaging
as a configuration message. See “Configuration settings service,” p. 14. You can
also enter the settings manually. See “Configuration,” p. 33.
Select Menu > Messaging > Message settings > Multimedia messages and from
the following options:
Delivery reports > Yes — to ask the network to send delivery reports about your
messages (network service)
MMS creation mode — to restrict or allow various types of multimedia to be added
to messages
Image size in MMS — to set the image size in multimedia messages
Default slide timing — to define the default time between slides in multimedia
messages
Allow MMS receptn. — to receive or block the multimedia message, select Yes or
No. If you select In home network, you cannot receive multimedia messages when
outside your home network. The default setting of the multimedia message
service is generally In home network. The availability of this menu depends on your
phone.
Incoming MMS msgs. — to decide how multimedia messages are retrieved. This
setting is not shown if Allow MMS receptn. is set to No.
Allow adverts — to receive or reject advertisements. This setting is not shown if
Allow MMS receptn. is set to No, or Incoming MMS msgs. is set to Reject.
25
Contacts
FCC Draft
Configuration sett. > Configuration — only the configurations that support
multimedia messaging are shown. Select a service provider, Default, or Personal
config. for multimedia messaging. Select Account and a MMS account contained
in the active configuration settings.
E-mail messages
The settings affect the sending, receiving, and viewing of e-mail. You may receive
the settings as a configuration message. See “Configuration settings service,”
p. 14. You can also enter the settings manually. See “Configuration,” p. 33.
Select Menu > Messaging > Message settings > E-mail messages and from the
following options:
New e-mail notif. — to select whether a notification is shown when new e-mail is
received
Allow mail reception — to select whether e-mail can be received in a foreign
network or only in the home network
Reply with orig. msg. — to select whether the original message is included in the
reply
Image size in e-mail — to select the size of images in e-mail
Edit mailboxes — to add new mailboxes or edit one in use
5. Contacts
You can save names and phone numbers (contacts) in the phone
memory and in the SIM card memory.
The phone memory may save contacts with additional details, such as various
phone numbers and text items. You can also save an image for a limited number of
contacts.
The SIM card memory can save names with one phone number attached to them.
The contacts saved in the SIM card memory are indicated by .
To synchronise from a PC, see “Connectivity,” p. 30.
■Save names and phone numbers
Select Menu > Contacts > Names > Options > Add new contact. Names and
numbers are saved in the used memory.
26
Contacts
FCC Draft
■Add contact details
Select Menu > Contacts > Settings, and ensure that the Memory in use is Phone
or Phone and SIM.
In the phone memory you can save different types of phone numbers, a tone or a
video clip, and short text items for a contact.
Search for the contact to which you want to add a detail, and select Details >
Options > Add detail. Select from the available options.
■Search for a contact
Select Menu > Contacts > Names. Scroll through the list of contacts, or enter the
first characters of the name you are searching for.
■Copy or move contacts
You can move and copy contacts from the phone memory to the SIM card memory
or vice versa. The SIM card can save names with one phone number attached to
them.
To move or copy all contacts, select Menu > Contacts > Move contacts or Copy
contacts.
To move or copy contacts one by one, select Menu > Contacts > Names. Scroll to
the contact, and select Options > Move contact or Copy contact.
To move or copy multiple contacts, select Menu > Contacts > Names. Scroll to a
contact, and select Options > Mark. Mark the other contacts, and select
Options > Move marked or Copy marked.
■Edit contacts
Select Menu > Contacts > Names. Scroll to the contact, and select Options > Edit,
and scroll to the details you want to change.
■Groups
Select Menu > Contacts > Groups to arrange the names and phone numbers into
caller groups with different ringing tones and group images.
■Business cards
You can send and receive a person’s contact information from a compatible device
that supports the vCard standard as a business card.
To send a business card, search for the contact whose information you want to
send, and select Details > Options > Send business card.
27
Log
FCC Draft
When you have received a business card, select Show > Save to save the business
card in the phone memory. To discard the business card, select Exit > Yes.
■Contact settings
Select Menu > Contacts > Settings and from the following options:
Memory in use — See “Add contact details,” p. 26.
Contacts view — to select how the names and numbers in Contacts are displayed
Name display — to select whether the contact’s first or last name is displayed first
Font size — to set the font size for the list of contacts
Memory status — to view the free and used memory capacity
6. Log
Select Menu > Log > Missed calls, Received calls, or Dialled
numbers. To view your recent missed and received calls and the dialed numbers
chronologically, select Call log. To view the contacts to whom you most recently
sent messages, select Msg. recipients.
To view how many text and multimedia messages you have sent and received,
select Menu > Log > Message log.
Note: The actual invoice for calls and services from your service provider may vary,
depending on network features, rounding off for billing, taxes, and so forth.
7. Settings
■Profiles
Select Menu > Settings > Profiles, the desired profile, and from the following
options:
Activate — to activate the selected profile
Personalise — to customise the profile with ringing tones, ringing volume,
vibrating alerts, light effects and message alert tones. Select the setting you want
to change, and make the changes.
Timed — to set the profile to be active for a certain time up to 24 hours. After this
time the previous profile becomes active.
28
Settings
FCC Draft
■Themes
Select Menu > Settings > Themes and from the following options:
Select theme — to set a theme. A list of folders in Gallery opens. Open the Themes
folder, and select a theme.
Theme downloads — to open a list of links to download more themes
■Tones
Select Menu > Settings > Tones.
Select Options > Save to save the settings or Cancel to leave the settings
unchanged.
If you select the highest ringing tone level, the ringing tone reaches its highest level after a
few seconds.
■Display
With display settings you can personalise your display view.
Standby mode settings
Select Menu > Settings > Display and from the following options:
Wallpaper — to set your phone to display an image or a slide as wallpaper in the
standby mode. Select Wallpapers > Image or Slide set, scroll to the folder from
which you want to select the image or slide set, and select the image or slide set
you want.
Active standby — to select whether your phone displays the active standby
Standby font colour — to select the colour for the texts on the display in the
standby mode
Display brightness — to adjust display brightness
Navigation key icons — to display the icons of the current scroll key shortcuts in
the standby mode when active standby is off
Notification details — to show or hide details such as contact information, in both
missed call and message received notifications
Slide animation — to set your phone to display an animation and play a tone when
you open and close the phone depending on the theme
Font size — to set the font size for reading and writing messages, and viewing
contacts and web pages.
Operator logo — to set your phone to display or hide the operator logo, if available
29
Settings
FCC Draft
Cell info display > On — to receive information from the network operator
depending on the network cell used (network service).
■Date and time
Select Menu > Settings > Date and time > Date & time settings, Date and time
format, or Auto-update of time (network service) to change the time, time zone,
and date settings.
■My shortcuts
With personal shortcuts you get quick access to often used functions of the
phone.
Left selection key
To select a function from the list, select Menu > Settings > My shortcuts > Left
selection key.
Right selection key
To select a function from the list, select Menu > Settings > My shortcuts > Right
selection key.
Navigation key
To assign other phone functions from a predefined list to the scroll key, select
Menu > Settings > My shortcuts > Navigation key.
Active standby key
To select a function from the list, select Menu > Settings > My shortcuts > Active
standby key.
■Sync and backup
Select Menu > Settings > Sync and backup to synchronise or copy data between
your phone and another phone or remote server (network service).
Phone switch — to synchronise or copy data between two phones
Create backup — to create a backup of selected content and store it to your
memory card
Restore backup — to restore content previously backed up on your memory card
Data transfer — to transfer data between your phone and another device
30
Settings
FCC Draft
■Connectivity
You can connect the phone to a compatible device using Bluetooth wireless
technology or a USB data cable connection.
Connecting with Bluetooth
This device is compliant with Bluetooth Specification 2.0 supporting the following profiles:
SIM access, object push, file transfer, dial-up networking, headset, hands-free, service
discovery application, generic access, serial port, and generic object exchange. To ensure
interoperability between other devices supporting Bluetooth technology, use Nokia
approved enhancements for this model. Check with the manufacturers of other devices to
determine their compatibility with this device.
Bluetooth technology allows you to connect your phone to a compatible
Bluetooth phone within 10 meters (33 feet). Since phones using Bluetooth
technology communicate using radio waves, your phone and the other phones do
not need to be in direct line of sight, although the connection can be subject to
interference from obstructions such as walls or from other electronic devices.
Features using Bluetooth technology increase the demand on battery power and reduce the
battery life.
Set up a Bluetooth connection
Select Menu > Settings > Connectivity > Bluetooth > On.
Select My phone's name to set or change the name of your phone that is visible to
other Bluetooth devices.
indicates that Bluetooth is active. Remember that Bluetooth uses battery
power and may reduce battery life.
Connect a Bluetooth device
Select Menu > Settings > Connectivity > Bluetooth > Search audio enhanc. and
the device that you want to connect to.
See a list of your Bluetooth connections
Select Menu > Settings > Connectivity > Bluetooth > Active devices.
Send data to a Bluetooth device
Select Menu > Settings > Connectivity > Bluetooth > Paired devices. Select the
device that you want to connect to, and enter a passcode. To connect to another
device, you must agree on a passcode (up to 16 characters) to use. You only use
the passcode one time to set up the connection and begin transferring data.
31
Settings
FCC Draft
If you do not see the device on the list, select New to list Bluetooth devices in
range.
Hide your Bluetooth device from others
Select Menu > Settings > Connectivity > Bluetooth > My phone's visibility or My
phone's name. Select Hidden, or turn off Bluetooth completely.
Modem settings
You can connect the phone using Bluetooth wireless technology or a USB data
cable connection to a compatible PC and use the phone as a modem to enable
GPRS connectivity from the PC.
To define the settings for connections from your PC:
1. Select Menu > Settings > Connectivity > Packet data > Packet data settings >
Active access point, and activate the access point you want to use.
2. Select Edit active access pt., enter a name to change the access point settings,
and select OK.
3. Select Packet data acc. pt., enter the access point name (APN) to establish a
connection to a network, and select OK.
4. Establish an internet connection by using your phone as a modem.
See the “Nokia PC Suite,” user guide for more information. If you have set the
settings both on your PC and on your phone, the PC settings are used.
Synchronise from a compatible PC
To synchronise data from calendar, notes, and contacts, install the Nokia PC Suite
software for your phone on the PC. Use Bluetooth wireless technology or a USB
data cable, for the synchronisation, and start the synchronisation from the PC.
Synchronise from a server
To use a remote internet server, subscribe to a synchronisation service. For more
information and the settings required for this service, contact your service
provider.
USB data cable
You can use the USB data cable, CA-101, to transfer data between the phone and
a compatible PC or a printer supporting PictBridge. You can also use the USB data
cable with Nokia PC Suite.
Ask on conn. — to let your phone ask whether to get connected
32
Settings
FCC Draft
PC Suite — to use your phone to interact with applications on a PC that has Nokia
PC Suite
Printing & Media — to use your phone with a PictBridge compatible printer, or to
connect your phone to a PC to synchronise it with Windows Media Player (music,
video)
Data storage — to connect to a PC that does not have Nokia software and use your
phone for data storage
To change the USB mode, select Menu > Settings > Connectivity > USB data
cable > Ask on conn., PC Suite, Printing & Media, or Data storage.
■Call
Select Menu > Settings > Call and from the following options:
Call divert — to divert your incoming calls (network service). You may not be able
to divert your calls if some call barring functions are active. See Call barring
service in “Access codes,” p. 10.
Anykey answer > On — to answer an incoming call by briefly pressing any key,
except the power key, the left and right selection keys, or the end key
Automatic redial > On — to make a maximum of 10 attempts to connect the call
after an unsuccessful call attempt
Voice clarity > Active — to enhance speech intelligibility especially in noisy
environments
Speed dialling — See “Speed dialling,” p. 18.
Call waiting — See “Call waiting,” p. 19.
Summary after call > On — to briefly display the approximate duration and cost
(network service) of the call after each call
Send my caller ID > Yes — to show your phone number to the person you are
calling (network service). To use the setting agreed upon with your service
provider, select Set by network.
Slide call handling — to select the function for opening and closing the slide
■Phone
Select Menu > Settings > Phone and from the following options:
Language settings — to set the display language of your phone, select Phone
language. Automatic selects the language according to the information on the
33
Settings
FCC Draft
SIM card. To select the USIM card language, select SIM language. To set a
language for the voice playback, select Recognition lang..
Memory status — to view the amount of used and available phone memory
Automatic keyguard — See “Access codes,” p. 10.
Security keyguard — See “Access codes,” p. 10.
Tapping settings — to adjust the tapping settings on the front of your phone
Voice recognition — See “Enhanced voice dialling,” p. 18.
Flight query — See “Flight profile,” p. 17.
Welcome note — to write the note that is shown when the phone is switched on
Phone updates — to update your phone software if there is an update available
Network mode — to select dual mode (UMTS or GSM). You cannot access this
option during an active call.
Operator selection > Automatic — to set the phone to automatically select one of
the cellular networks available in your area. With Manual you can select a
network that has a roaming agreement with your service provider.
Help text activation — to select whether the phone shows help texts
Start-up tone — to select whether the phone plays a tone when it is switched on
■Enhancements
This menu or the following options are shown if the phone is or has been
connected to a compatible mobile enhancement.
Select Menu > Settings > Enhancements. Select an enhancement and, depending
on the enhancement, from the following options:
Default profile — to select the profile that you want to be automatically activated
when you connect to the selected enhancement
Automatic answer — to set the phone to answer an incoming call automatically
after 5 seconds. If Menu > Settings > Tones > Incoming call alert is set to Beep
once or Off, automatic answer is off.
■Configuration
You can configure your phone with settings that are required for certain services
to function correctly. Your service provider may also send you these settings as a
configuration message.
Select Menu > Settings > Configuration and from the following options:
34
Operator menu
FCC Draft
Default config. sett. — to view the service providers saved in the phone. To set the
configuration settings of the service provider as default settings, select Options >
Set as default.
Activ. def. in all apps. — to activate the default configuration settings for
supported applications
Preferred access pt. — to view the saved access points. Scroll to an access point,
and select Options > Details to view the name of the service provider, data bearer,
and packet data access point or GSM dial-up number.
Connect to support — to download the configuration settings from your service
provider
Personal config. sett. — to add new personal accounts for various services
manually, and to activate or delete them. The parameters differ according to the
selected service type.
■Restore factory settings
Select Menu > Settings > Rest. factory sett. to reset some of the menu settings to
their original values. Enter the security code. The names and phone numbers saved
in Contacts are not deleted.
■Phone software updates
Your service provider may send phone software updates over the air directly to
your device. This option may not be available, depending on your phone.
Warning: If you install a software update, you cannot use the device,
even to make emergency calls, until the installation is completed and the
device is restarted. Be sure to back up data before accepting installation
of an update.
8. Operator menu
This menu lets you access services provided by your network operator. The name
and the icon depend on the operator. For more information contact your network
operator. The operator can update this menu with a service message.
■Info messages
Select Menu > Messaging > Info messages to receive messages on various topics
from your service provider (network service). For more information, contact your
service provider.
35
Gallery
FCC Draft
■Service commands
Select Menu > Messaging > Serv. commands to write and send service requests
(USSD commands) to your service provider, such as activation commands for
network services.
9. Gallery
In this menu you can manage images, video clips, music files,
themes, graphics, tones, recordings, and received files. These files
are stored in the phone memory, and may be arranged in folders.
Your phone supports an activation key system to protect acquired content. Always
check the delivery terms of any content and activation key before acquiring them,
as they may be subject to a fee.
To see the list of folders, select Menu > Gallery.
To see the available options of a folder, select a folder and Options.
To view the list of files in a folder, select a folder and Open.
To see the available options of a file, select a file and Options.
■Digital rights management
Digital rights management (DRM) is copyright protection, designed to prevent
modification and to limit distribution of protected files. When you download
protected files, such as sound, video, themes, or ringing tones to your phone, the
files are free, but locked. You pay for the key to activate the file, and the activation
key is automatically sent to your phone when you download the file.
To view the permissions for a protected file, scroll to the file, and select Options >
Activation keys. For example, you can see how many times you can view a video or
how many days you have left for listening to a song.
To extend the permissions for a file, select Options and the corresponding option
for the file type, such as Activate theme. You can send certain types of protected
files to your friends, and they can buy their own activation keys.
This phone supports OMA DRM 2.0.
Content owners may use different types of digital rights management (DRM) technologies
to protect their intellectual property, including copyrights. This device uses various types of
DRM software to access DRM-protected content. With this device you can access content
protected with OMA DRM 2.0. If certain DRM software fails to protect the content, content
36
Media
FCC Draft
owners may ask that such DRM software's ability to access new DRM-protected content be
revoked. Revocation may also prevent renewal of such DRM-protected content already in
your device. Revocation of such DRM software does not affect the use of content protected
with other types of DRM or the use of non-DRM-protected content.
If your device has OMA DRM-protected content, to back up both the activation keys and the
content, use the backup feature of Nokia PC Suite. Other transfer methods may not transfer
the activation keys which need to be restored with the content for you to be able to
continue the use of OMA DRM- protected content after the device memory is formatted.
You may also need to restore the activation keys in case the files on your device get
corrupted.
■Print images
Your phone supports Nokia XpressPrint. To connect it to a
compatible printer, use the CA-101 USB data cable or send the image using
Bluetooth to a printer supporting Bluetooth technology. See “Connectivity,” p. 30.
You can print images that are in the .jpg format. The images taken with the
camera are automatically saved in the .jpg format.
Select the image you want to print and Options > Print.
10. Media
You can take photos or record live video clips with the built-in
3.1-megapixel camera.
■Camera
The camera produces pictures in .jpg format, and you can digitally zoom up to
eight times.
Take an image
Select Menu > Media > Camera > Capture. To take another image, select Back; to
send the image as a multimedia message, select Send. Your phone saves the
image in Gallery > Images.
To zoom in or out, scroll left or right.
■Video
You can record video clips in .3gp format. Available recording time depends on the
video clip length and quality settings. The length and file size of the clips may vary
depending on the selected quality and available memory.
37
Media
FCC Draft
To set the quality of your video clips, select Menu > Media > Video > Options >
Settings > Video clip quality > High, Normal, or Basic.
To select the file size limit, select Menu > Media > Video > Options > Settings >
Video clip length.
Record a video clip
Select Menu > Media > Video > Record. To zoom in or out, scroll left or right.
■Music player
Your phone includes a music player for listening to music tracks, recordings or
other MP3, MPEG4, AAC, eAAC+ or WMA music files that you have transferred to
the phone with the Nokia Audio Manager application, which is part of Nokia PC
Suite.
To open the music player, select Menu > Media > Music player.
To open a list of all songs stored in your phone, select All songs > Open, or scroll
right.
To create or manage playlists, select Playlists > Open, or scroll right.
To open folders with Artists, Albums, or Genres, scroll to the one you want, and
select Expand, or scroll right.
To open a video list stored in your phone, select Videos > Open, or scroll right.
To customise the music player and equaliser theme, select Menu > Media > Music
player > Go to Music player > Options > Settings > Music player theme.
Play music
Warning: Listen to music at a moderate level. Continuous exposure to high
volume may damage your hearing. Do not hold the device near your ear when the
loudspeaker is in use, because the volume may be extremely loud.
When you open the Music player menu, the details of the first track on the default
track list are shown.
To play, select .
To adjust the volume level, scroll up or down.
To pause the playing, select .
To stop the playing, press and hold the end key.
To skip to the next track, select . To skip to the beginning of the previous
track, select .
38
Organiser
FCC Draft
To rewind the current track, select and hold . To fast forward the current
track, select and hold . Release the key at the position you want.
■Voice recorder
You can record pieces of speech, sound, or an active call, and save them in Gallery.
This is useful when recording a name and phone number to write down later.
The recorder cannot be used when a data call or GPRS connection is active.
1. Select Menu > Media > Voice recorder.
To use the graphical keys , , or on the display, scroll left or right to
the desired key, and select it.
2. To start the recording, select . To start the recording during a call, select
Options > Record. While recording a call, all parties to the call hear a faint
beeping sound. When recording a call, hold the phone in the normal position
near to your ear. To pause the recording, select .
3. To end the recording, select . The recording is saved in Gallery > Recordings.
To listen to the latest recording, select Options > Play last recorded.
To send the last recording, select Options > Send last recorded.
To see the list of recordings in Gallery, select Options > Recordings list >
Recordings.
■Equaliser
Select Menu > Media > Equaliser.
To activate a set, scroll to one of the equaliser sets, and select Activate.
To edit or rename a selected set, select Options > Edit or Rename. Not all sets can
be edited or renamed.
■Stereo widening
Select Menu > Media > Stereo widening > On or Off to improve the stereo sound
in the phone.
11. Organ iser
■Alarm clock
Select Menu > Organiser > Alarm clock.
39
Organiser
FCC Draft
To set the alarm, select Alarm time, and enter the alarm time. To change the alarm
time when the alarm time is set, select On.
To set your phone to alert you on selected days of the week, select Repeat alarm.
To set a snooze time-out, select Snooze time-out and the time.
Stop the alarm
The alarm sounds an alert tone even if the phone is switched off. To stop the
alarm, select Stop. If you let the phone continue to sound the alarm for a minute
or select Snooze, the alarm stops for the time you set in Snooze time-out, then
resumes.
■Calendar
Select Menu > Organiser > Calendar.
The current day is indicated by a frame. If there are any notes set for the day, the
day is in bold type, and the beginning of the note is shown below the calendar. To
view the day notes, select View. To view a week, select Options > Week view. To
delete all notes in the calendar, select the month or week view, and select
Options > Delete notes.
To set the date, time, time zone, calendar tone, date or time format, date
separator, default view, or the first day of the week, select Settings. To set the
phone to delete old notes automatically after a specified time, select Auto-delete
notes.
To synchronise from a PC, see “Connectivity,” p. 30.
Make a calendar note
Select Menu > Organiser > Calendar. Scroll to the date, and select Options >
Make a note and one of the following note types: Reminder, Meeting,
Call, Birthday, or Memo. Fill in the fields.
Note alarm
The phone displays the note and, if set, plays a tone. With a call note on the
display, to call the displayed number, press the call key. To stop the alarm and to
view the note, select View. To stop the alarm for 10 minutes, select Snooze.
To stop the alarm without viewing the note, select Exit.
■To-do list
Select Menu > Organiser > To-do list.
40
Organiser
FCC Draft
To make a note if no note is added, select Add; otherwise, select Options > Add.
Fill in the fields, and select Save.
To view a note, scroll to it, and select View. While viewing a note, you can also
select an option to edit the attributes. You can also select an option to delete the
selected note and delete all the notes that you have marked as done.
■Notes
Select Menu > Organiser > Notes to write and send notes.
To make a note if no note is added, select Add; otherwise, select Options > Make a
note. Write the note, and select Save.
To synchronise from a PC, see “Connectivity,” p. 30.
■Calculator
Select Menu > Organiser > Calculator. When 0 is displayed on the screen, enter
the first number in the calculation. Press # for a decimal point. Scroll to the
desired operation or function, or select it from Options. Enter the second number.
Repeat this sequence as many times as it is necessary. To start a new calculation,
first select and hold Clear.
This calculator has limited accuracy and is designed for simple calculations.
■Countdown timer
1. To activate the countdown timer, select Menu > Organiser > Countd. timer >
Normal timer, enter the alarm time, and write a note that is displayed when
the time expires. To change the countdown time, select Change time.
2. To start the timer, select Start.
3. To stop the timer, select Stop timer.
Interval timer
1. To have an interval timer with up to 10 intervals started, first enter the
intervals.
2. Select Menu > Organiser > Countd. timer > Interval timer.
3. To start the timer, select Start timer > Start.
■Stopwatch
Select Menu > Organiser > Stopwatch and from the following options:
41
Applications
FCC Draft
Split timing — to take intermediate times. To start the time observation, select
Start. Select Split every time that you want to take an intermediate time. To stop
the time observation, select Stop.
To save the measured time, select Save.
To start the time observation again, select Options > Start. The new time is added
to the previous time. To reset the time without saving it, select Reset.
Lap timing — to take lap times
During timing, the other functions of the phone can be used. To set the stopwatch
timing in the background, press the end key. Select Continue to view the timing
that you have set in the background.
12. Applications
■Launch a game
Select Menu > Applications > Games. Scroll to the desired game, and select Open.
To set sounds, lights, and shakes for the game, select Menu > Applications >
Options > Application settings.
■Launch an application
Select Menu > Applications > Collection. Scroll to an application, and select
Open.
■Application options
Update version — to check if a new version of the application is available for
download from Web (network service)
Web page — to provide further information or additional data for the application
from an internet page (network service), if available
Application access — to restrict the application from accessing the network
13. Web
You can access various mobile internet services with your phone
browser.
Important: Use only services that you trust and that offer adequate security and
protection against harmful software.
42
Web
FCC Draft
Check the availability of these services, pricing, tariffs, and instructions with your
service provider.
With the phone browser you can view the services that use wireless markup
language (WML) or extensible hypertext markup language (XHTML) on their
pages. Appearance may vary due to screen size. You may not be able to view all
details of the internet pages.
■Connect to a service
Ensure that the correct configuration settings of the service are activated.
To select the settings for connecting to the service:
1. Select Menu > Web > Settings > Configuration sett..
2. Select Configuration. Only the configurations that support browsing service
are shown. Select a service provider, Default, or Personal config. for browsing.
You may receive the configuration settings required for browsing as a
configuration message from the service provider that offers the service that
you want to use.
3. Select Account and a browsing service account contained in the active
configuration settings.
4. Select Displ. term. window > Yes to perform manual user authentication for
intranet connections.
Make a connection to the service in one of the following ways:
•Select Menu > Web > Home; or in the standby mode, press and hold 0.
• To select a bookmark of the service, select Menu > Web > Bookmarks.
• To select the last URL, select Menu > Web > Last web addr..
• To enter the address of the service, select Menu > Web > Go to address. Enter
the address of the service, and select OK.
■Browse pages
After you make a connection to the service, you can start browsing its pages. The
function of the phone keys may vary in different services. Follow the text guides
on the display. For more information, contact your service provider.
■Bookmarks
You can save page addresses as bookmarks in the phone memory.
43
Web
FCC Draft
1. While browsing, select Options > Add bookmark; or in the standby mode,
select Menu > Web > Bookmarks.
2. Scroll to a bookmark, and select it, or press the call key to make a connection
to the page associated with the bookmark.
3. Select Options to view, edit, delete, or send the bookmark; to create a new
bookmark; or to save the bookmark to a folder.
■Appearance settings
To personalise the way web pages are displayed on your phone, while browsing,
select Options > Other options > Appearance settings; or in the standby mode,
select Menu > Web > Settings > Appearance settings.
■Security settings
Cookies and cache
A cookie is data that a site saves in the cache memory of your phone. Cookies are
saved until you clear the cache memory.
While browsing, select Options > Other options > Security > Cookie settings; or in
the standby mode, select Menu > Web > Settings > Security settings > Cookies.
To allow or prevent the phone from receiving cookies, select Allow or Reject.
A cache is a memory location that is used to store data temporarily. If you have tried to
access or have accessed confidential information requiring passwords, empty the cache
after each use. The information or services you have accessed are stored in the cache. To
empty the cache, select Options > Other options > Clear the cache; in the standby mode,
select Menu > Web > Clear the cache.
Scripts over secure connection
You can select whether to allow the running of scripts from a secure page. The
phone supports WML scripts.
To allow the scripts, while browsing, select Options > Other options > Security >
WMLScript settings; or in the standby mode, select Menu > Web > Settings >
Security settings > WMLScripts in conn. > Allow.
■Service inbox
The phone is able to receive service messages sent by your service provider
(network service). Service messages are notifications (for example, news
headlines), and they may contain a text message or an address of a service.
44
Web
FCC Draft
To access the Service inbox in the standby mode, when you have received a service
message, select Show. If you select Exit, the message is moved to the Service
inbox. To access the Service inbox later, select Menu > Web > Service inbox.
To set whether you want to receive service messages, select Menu > Web >
Settings > Service inbox sett. > Service messages > On or Off.
■Browser security
Security features may be required for some services, such as online banking or
shopping. For such connections you need security certificates and possibly a
security module, which may be available on your SIM card. For more information,
contact your service provider.
Certificates
Important: Even if the use of certificates makes the risks involved in remote
connections and software installation considerably smaller, they must be used
correctly in order to benefit from increased security. The existence of a certificate
does not offer any protection by itself; the certificate manager must contain correct,
authentic, or trusted certificates for increased security to be available. Certificates have a
restricted lifetime. If "Expired certificate" or "Certificate not valid yet" is shown, even if the
certificate should be valid, check that the current date and time in your device are correct.
Before changing any certificate settings, you must make sure that you really trust the owner
of the certificate and that the certificate really belongs to the listed owner.
There are three kinds of certificates: server certificates, authority certificates, and
user certificates. You may receive these certificates from your service provider.
Authority certificates and user certificates may also be saved in the security
module by the service provider.
To view the list of the authority or user certificates downloaded into your device,
select Menu > Settings > Security > Authority certificates or User certificates.
is displayed during a connection if the data transmission between the phone
and the content server is encrypted.
The security icon does not indicate that the data transmission between the gateway and the
content server (or the place where the requested resource is stored) is secure. The service
provider secures the data transmission between the gateway and the content server.
Digital signature
You can make digital signatures with your phone if your SIM card has a security
module. Using the digital signature can be the same as signing your name to a
paper bill, contract, or other document.
45
SIM services
FCC Draft
1. To make a digital signature, select a link on a page, for example, the title of the
book you want to buy and its price. The text to sign, which may include the
amount and date, is shown.
Check that the header text is Read and that the digital signature icon is
shown.
2. To sign the text, read all of the text first, and select Sign.
The text may not fit within a single screen. Therefore, make sure to scroll
through and read all of the text before signing.
3. Select the user certificate you want to use. Enter the signing PIN. The digital
signature icon disappears, and the service may display a confirmation of your
purchase.
14. SIM services
Your SIM card may provide additional services. You can access this
menu only if it is supported by your SIM card. The name and
contents of the menu depend on the available services.
For availability and information on using SIM card services, contact your SIM card vendor.
This may be the service provider or other vendor.
Accessing these services may involve sending messages or making a phone call for
which you may be charged.
15. PC connectivity
You can send and receive e-mail, and access the internet when your phone is
connected to a compatible PC through a Bluetooth or a data cable connection.
You can use your phone with a variety of PC connectivity and data
communications applications.
■Nokia PC Suite
With Nokia PC Suite you can synchronise contacts, calendar, notes, and to-do
notes between your phone and the compatible PC or a remote internet server
(network service). You may find more information and PC Suite at
www.nokia.com/support or your local Nokia website.
46
Battery and charger information
FCC Draft
■Data communication applications
For information on using a data communication application, refer to the
documentation provided with it.
Making or answering phone calls during a computer connection is not
recommended, as it might disrupt the operation.
For better performance during data calls, place the phone on a stationary surface
with the keypad facing downward. Do not move the phone by holding it in your
hand during a data call.
16. Battery and charger information
Your device is powered by a rechargeable battery. The battery intended for use with this
device is BL-4U. This device is intended for use when supplied with power from the following
chargers: AC-6. The battery can be charged and discharged hundreds of times, but it will
eventually wear out. When the talk and standby times are noticeably shorter than normal,
replace the battery. Use only Nokia approved batteries, and recharge your battery only with
Nokia approved chargers designated for this device. Use of an unapproved battery or charger
may present a risk of fire, explosition, leakage, or other hazard.
If a battery is being used for the first time or if the battery has not been used for a prolonged
period, it may be necessary to connect the charger, then disconnect and reconnect it to
begin charging the battery. If the battery is completely discharged, it may take several
minutes before the charging indicator appears on the display or before any calls can be
made.
Always switch the device off and disconnect the charger before removing the battery.
Unplug the charger from the electrical plug and the device when not in use. Do not leave a
fully charged battery connected to a charger, since overcharging may shorten its lifetime. If
left unused, a fully charged battery will lose its charge over time.
Always try to keep the battery between 15°C and 25°C (59°F and 77°F). Extreme
temperatures reduce the capacity and lifetime of the battery. A device with a hot or cold
battery may not work temporarily. Battery performance is particularly limited in
temperatures well below freezing.
Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic
object such as a coin, clip, or pen causes direct connection of the positive (+) and negative
(-) terminals of the battery. (These look like metal strips on the battery.) This might happen,
for example, when you carry a spare battery in your pocket or purse. Short-circuiting the
terminals may damage the battery or the connecting object.
47
Battery and charger information
FCC Draft
Do not dispose of batteries in a fire as they may explode. Batteries may also explode if
damaged. Dispose of batteries according to local regulations. Please recycle when possible.
Do not dispose as household waste.
Do not dismantle, cut, open, crush, bend, deform, puncture, or shred cells or batteries. In the
event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. In
the event of such a leak, flush your skin or eyes immediately with water, or seek medical
help.
Do not modify, remanufacture, attempt to insert foreign objects into the battery, or immerse
or expose it to water or other liquids.
Improper battery use may result in a fire, explosion, or other hazard. If the device or battery
is dropped, especially on a hard surface, and you believe the battery has been damaged, take
it to a service centre for inspection before continuing to use it.
Use the battery only for its intended purpose. Never use any charger or battery that is
damaged. Keep your battery out of the reach of small children.
■Nokia battery authentication guidelines
Always use original Nokia batteries for your safety. To check that you are getting an original
Nokia battery, purchase it from an authorised Nokia dealer, and inspect the hologram label
using the following steps:
Successful completion of the steps is not a total assurance of the authenticity of the battery.
If you have any reason to believe that your battery is not an authentic, original Nokia
battery, you should refrain from using it, and take it to the nearest authorised Nokia service
point or dealer for assistance. Your authorised Nokia service point or dealer will inspect the
battery for authenticity. If authenticity cannot be verified, return the battery to the place of
purchase.
Authenticate hologram
1. When you look at the hologram on the label, you should
see the Nokia connecting hands symbol from one angle and
the Nokia Original Enhancements logo when looking from
another angle.
2. When you angle the hologram left, right, down and up, you
should see 1, 2, 3 and 4 dots on each side respectively.
48
Care and maintenance
FCC Draft
What if your battery is not authentic?
If you cannot confirm that your Nokia battery with the hologram on the label is an authentic
Nokia battery, please do not use the battery. Take it to the nearest authorised Nokia service
point or dealer for assistance. The use of a battery that is not approved by the manufacturer
may be dangerous and may result in poor performance and damage to your device and its
enhancements. It may also invalidate any approval or warranty applying to the device.
To find out more about original Nokia batteries, visit www.nokia.com/battery.
Care and maintenance
Your device is a product of superior design and craftsmanship and should be treated with
care. The following suggestions will help you protect your warranty coverage.
• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can
contain minerals that will corrode electronic circuits. If your device does get wet, remove
the battery, and allow the device to dry completely before replacing it.
• Do not use or store the device in dusty, dirty areas. Its moving parts and electronic
components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of electronic
devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal temperature,
moisture can form inside the device and damage electronic circuit boards.
• Do not attempt to open the device other than as instructed in this guide.
• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards
and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.
• Do not paint the device. Paint can clog the moving parts and prevent proper operation.
• Use a soft, clean, dry cloth to clean any lenses, such as camera, proximity sensor, and
light sensor lenses.
• Use only the supplied or an approved replacement antenna. Unauthorised antennas,
modifications, or attachments could damage the device and may violate regulations
governing radio devices.
• Use chargers indoors.
• Always create a backup of data you want to keep, such as contacts and calendar notes.
• To reset the device from time to time for optimum performance, power off the device
and remove the battery.
These suggestions apply equally to your device, battery, charger, or any enhancement. If any
device is not working properly, take it to the nearest authorised service facility for service.
49
Additional safety information
FCC Draft
Disposal
The crossed-out wheeled-bin symbol on your product, literature, or packaging
reminds you that all electrical and electronic products, batteries, and
accumulators must be taken to separate collection at the end of their working
life. This requirement applies to the European Union and other locations where
separate collection systems are available. Do not dispose of these products as
unsorted municipal waste.
By returning the products to collection you help prevent uncontrolled waste
disposal and promote the reuse of material resources. More detailed information
is available from the product retailer, local waste authorities, national producer
responsibility organizations, or your local Nokia representative. For the product
Eco-Declaration or instructions for returning your obsolete product, go to
country-specific information at www.nokia.com.
Additional safety information
■Small children
Your device and its enhancements may contain small parts. Keep them out of the reach of
small children.
■Operating environment
This device meets RF exposure guidelines when used either in the normal use position
against the ear or when positioned at least 1.5 centimeters (5/8 inch) away from the body.
When a carry case, belt clip, or holder is used for body-worn operation, it should not contain
metal and should position the device the above-stated distance from your body.
To transmit data files or messages, this device requires a quality connection to the network.
In some cases, transmission of data files or messages may be delayed until such a
connection is available. Ensure the above separation distance instructions are followed until
the transmission is completed.
Parts of the device are magnetic. Metallic materials may be attracted to the device. Do not
place credit cards or other magnetic storage media near the device, because information
stored on them may be erased.
■Medical devices
Operation of any radio transmitting equipment, including wireless phones, may interfere
with the functionality of inadequately protected medical devices. Consult a physician or the
manufacturer of the medical device to determine if they are adequately shielded from
external RF energy or if you have any questions. Switch off your device in health care
facilities when any regulations posted in these areas instruct you to do so. Hospitals or
health care facilities may be using equipment that could be sensitive to external RF energy.
50
Additional safety information
FCC Draft
Implanted medical devices
Manufacturers of medical devices recommend that a minimum separation of 15.3
centimeters (6 inches) should be maintained between a wireless device and an implanted
medical device, such as a pacemaker or implanted cardioverter defibrillator, to avoid
potential interference with the medical device. Persons who have such devices should:
• Always keep the wireless device more than 15.3 centimeters (6 inches) from the medical
device when the wireless device is turned on.
• Not carry the wireless device in a breast pocket.
• Hold the wireless device to the ear opposite the medical device to minimise the potential
for interference.
• Turn the wireless device off immediately if there is any reason to suspect that
interference is taking place.
• Read and follow the directions from the manufacturer of their implanted medical device.
If you have any questions about using your wireless device with an implanted medical
device, consult your health care provider.
Hearing aids
Some digital wireless devices may interfere with some hearing aids. If interference occurs,
consult your service provider.
■Vehicles
RF signals may affect improperly installed or inadequately shielded electronic systems in
motor vehicles such as electronic fuel injection systems, electronic antiskid (antilock)
braking systems, electronic speed control systems, and air bag systems. For more
information, check with the manufacturer, or its representative, of your vehicle or any
equipment that has been added.
Only qualified personnel should service the device or install the device in a vehicle. Faulty
installation or service may be dangerous and may invalidate any warranty that may apply to
the device. Check regularly that all wireless device equipment in your vehicle is mounted
and operating properly. Do not store or carry flammable liquids, gases, or explosive materials
in the same compartment as the device, its parts, or enhancements. For vehicles equipped
with an air bag, remember that air bags inflate with great force. Do not place objects,
including installed or portable wireless equipment in the area over the air bag or in the air
bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag
inflates, serious injury could result.
Using your device while flying in aircraft is prohibited. Switch off your device before
boarding an aircraft. The use of wireless teledevices in an aircraft may be dangerous to the
operation of the aircraft, disrupt the wireless telephone network, and may be illegal.
51
Additional safety information
FCC Draft
■Potentially explosive environments
Switch off your device when in any area with a potentially explosive atmosphere, and obey
all signs and instructions. Potentially explosive atmospheres include areas where you would
normally be advised to turn off your vehicle engine. Sparks in such areas could cause an
explosion or fire resulting in bodily injury or even death. Switch off the device at refuelling
points such as near gas pumps at service stations. Observe restrictions on the use of radio
equipment in fuel depots, storage, and distribution areas; chemical plants; or where blasting
operations are in progress. Areas with a potentially explosive atmosphere are often, but not
always, clearly marked. They include below deck on boats, chemical transfer or storage
facilities and areas where the air contains chemicals or particles such as grain, dust, or metal
powders. You should check with the manufacturers of vehicles using liquefied petroleum gas
(such as propane or butane) to determine if this device can be safely used in their vicinity.
■Emergency calls
Important: This device operates using radio signals, wireless networks, landline
networks, and user-programmed functions. If your device supports voice calls
over the internet (internet calls), activate both the internet calls and the
cellular phone. The device will attempt to make emergency calls over both the
cellular networks and through your internet call provider if both are activated. Connections
in all conditions cannot be guaranteed. You should never rely solely on any wireless device
for essential communications like medical emergencies.
To make an emergency call:
1. If the device is not on, switch it on. Check for adequate signal strength. Depending on
your device, you may also need to complete the following:
• Insert a SIM card if your device uses one.
• Remove certain call restrictions you have activated in your device.
• Change your profile from offline or flight profile mode to an active profile.
2. Press the end key as many times as needed to clear the display and ready the device for
calls.
3. Enter the official emergency number for your present location. Emergency numbers vary
by location.
4. Press the call key.
When making an emergency call, give all the necessary information as accurately as
possible. Your wireless device may be the only means of communication at the scene of an
accident. Do not end the call until given permission to do so.
■Certification information (SAR)
This mobile device meets guidelines for exposure to radio waves.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits
for exposure to radio waves recommended by international guidelines. These guidelines
52
APPENDIX
FCC Draft
were developed by the independent scientific organization ICNIRP and include safety
margins designed to assure the protection of all persons, regardless of age and health.
The exposure guidelines for mobile devices employ a unit of measurement known as the
Specific Absorption Rate or SAR. The SAR limit stated in the ICNIRP guidelines is 2.0 watts/
kilogram (W/kg) averaged over 10 grams of tissue. Tests for SAR are conducted using
standard operating positions with the device transmitting at its highest certified power level
in all tested frequency bands. The actual SAR level of an operating device can be below the
maximum value because the device is designed to use only the power required to reach the
network. That amount changes depending on a number of factors such as how close you are
to a network base station. The highest SAR value under the ICNIRP guidelines for use of the
device at the ear is 0.39 W/kg.
Use of device accessories and enhancements may result in different SAR values. SAR values
may vary depending on national reporting and testing requirements and the network band.
Additional SAR information may be provided under product information at www.nokia.com.
Your mobile device is also designed to meet the requirements for exposure to radio waves
established by the Federal Communications Commission (USA) and Industry Canada. These
requirements set a SAR limit of 1.6 W/kg averaged over 1 gram of tissue. The highest SAR
value reported under this standard during product certification for use at the ear is 0.34 W/
kg and when properly worn on the body is 0.60 W/kg. Information about this device model
can be found at
http://www.fcc.gov/oet/fccid by searching the equipment authorization system using FCC
ID: QTKRM-233.
APPENDIX
■A message from the CTIA
© 2001 Cellular Telecommunications & Internet Association. All Rights Reserved. 1250
Connecticut Avenue, NW Suite 800, Washington, DC 20036. Phone: (202) 785-0081
Safety is the most important call you will ever make.
A Guide to Safe and Responsible Wireless Phone Use
Tens of millions of people in the U.S. today take advantage of the unique combination of
convenience, safety and value delivered by the wireless telephone. Quite simply, the wireless
phone gives people the powerful ability to communicate by voice--almost anywhere,
anytime--with the boss, with a client, with the kids, with emergency personnel or even with
the police. Each year, Americans make billions of calls from their wireless phones, and the
numbers are rapidly growing.
But an important responsibility accompanies those benefits, one that every wireless phone
user must uphold. When driving a car, driving is your first responsibility. A wireless phone
can be an invaluable tool, but good judgment must be exercised at all times while driving a
motor vehicle--whether on the phone or not.
53
APPENDIX
FCC Draft
The basic lessons are ones we all learned as teenagers. Driving requires alertness, caution
and courtesy. It requires a heavy dose of basic common sense---keep your head up, keep
your eyes on the road, check your mirrors frequently and watch out for other drivers. It
requires obeying all traffic signs and signals and staying within the speed limit. It means
using seatbelts and requiring other passengers to do the same.
But with wireless phone use, driving safely means a little more. This brochure is a call to
wireless phone users everywhere to make safety their first priority when behind the wheel of
a car. Wireless telecommunications is keeping us in touch, simplifying our lives, protecting
us in emergencies and providing opportunities to help others in need.
When it comes to the use of wireless phones, safety is your most important call.
Wireless phone "Safety Tips"
1. Get to know your wireless phone and its features such as speed dial and redial. Carefully
read your instruction manual and learn to take advantage of valuable features most
phones offer, including automatic redial and memory. Also, work to memorize the phone
keypad so you can use the speed dial function without taking your attention off the road.
2. When available, use a hands free device. A number of hands free wireless phone
accessories are readily available today. Whether you choose an installed mounted device
for your wireless phone or a speaker phone accessory, take advantage of these devices if
available to you.
3. Position your wireless phone within easy reach. Make sure you place your wireless phone
within easy reach and where you can grab it without removing your eyes from the road.
If you get an incoming call at an inconvenient time, if possible, let your voice mail
answer it for you.
4. .Suspend conversations during hazardous driving conditions or situations. Let the person
you are speaking with know you are driving; if necessary, suspend the call in heavy
traffic or hazardous weather conditions. Rain, sleet, snow and ice can be hazardous, but
so is heavy traffic. As a driver, your first responsibility is to pay attention to the road.
5. Do not take notes or look up phone numbers while driving. If you are reading an address
book or business card, or writing a “to do” list while driving a car, you are not watching
where you are going. It’s common sense. Don’t get caught in a dangerous situation
because you are reading or writing and not paying attention to the road or nearby
vehicles.
6. Dial sensibly and assess the traffic; if possible, place calls when you are not moving or
before pulling into traffic. Try to plan your calls before you begin your trip or attempt to
coincide your calls with times you may be stopped at a stop sign, red light or otherwise
stationary. But if you need to dial while driving, follow this simple tip--dial only a few
numbers, check the road and your mirrors, then continue.
7. Do not engage in stressful or emotional conversations that may be distracting. Stressful
or emotional conversations and driving do not mix--they are distracting and even
dangerous when you are behind the wheel of a car. Make people you are talking with
54
APPENDIX
FCC Draft
aware you are driving and if necessary, suspend conversations which have the potential
to divert your attention from the road.
8. Use your wireless phone to help others in emergencies. Your wireless phone provides you
a perfect opportunity to be a “Good Samaritan” in your community. If you see an auto
accident, crime in progress or other serious emergency where lives are in danger, call 9-
1-1 or other local emergency number, as you would want others to do for you.
9. Use your wireless phone to call for help. Your wireless phone is one of the greatest tools
you can own to protect yourself and your family in dangerous situations--with your
phone at your side, help is only three numbers away. Dial 9-1-1 or other local emergency
number in the case of fire, traffic accident, road hazard or medical emergency.
Remember, it is a free call on your wireless phone!
10. Use your wireless phone to help others in emergencies. Your wireless phone provides you
a perfect opportunity to be a “Good Samaritan” in your community. If you see an auto
accident, crime in progress or other serious emergency where lives are in danger, call 9-
1-1 or other local emergency number, as you would want others to do for you.
11. Call roadside assistance or a special wireless non-emergency assistance number when
necessary. Certain situations you encounter while driving may require attention, but are
not urgent enough to merit a call for emergency services. But you still can use your
wireless phone to lend a hand. If you see a broken-down vehicle posing no serious
hazard, a broken traffic signal, a minor traffic accident where no one appears injured or a
vehicle you know to be stolen, call roadside assistance or other special non-emergency
wireless number.
Careless, distracted individuals and people driving irresponsibly represent a hazard to
everyone on the road. Since 1984, the Cellular Telecommunications Industry Association and
the wireless industry have conducted educational outreach to inform wireless phone users
of their responsibilities as safe drivers and good citizens. As we approach a new century,
more and more of us will take advantage of the benefits of wireless telephones. And, as we
take to the roads, we all have a responsibility to drive safely.
The wireless industry reminds you to use your phone safely when driving.
For more information, please call 1-888-901-SAFE.
For updates: http://www.wow-com.com/consumer/issues/driving/articles.cfm?ID=85
■Message from the FDA
The U.S. Food and Drug Administration (FDA) provides the following consumer information
about wireless phones.
See http://www.fda.gov/cellphones/ for updated information.
Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health problems are associated
with using wireless phones. There is no proof, however, that wireless phones are absolutely
safe. Wireless phones emit low levels of radiofrequency energy (RF) in the microwave range
55
APPENDIX
FCC Draft
while being used. They also emit very low levels of RF when in the stand-by mode. Whereas
high levels of RF can produce health effects (by heating tissue), exposure to low level RF that
does not produce heating effects causes no known adverse health effects. Many studies of
low level RF exposures have not found any biological effects. Some studies have suggested
that some biological effects may occur, but such findings have not been confirmed by
additional research. In some cases, other researchers have had difficulty in reproducing
those studies, or in determining the reasons for inconsistent results.
What is FDA's role concerning the safety of wireless phones?
Under the law, FDA does not review the safety of radiation-emitting consumer products
such as wireless phones before they can be sold, as it does with new drugs or medical
devices. However, the agency has authority to take action if wireless phones are shown to
emit radiofrequency energy (RF) at a level that is hazardous to the user. In such a case, FDA
could require the manufacturers of wireless phones to notify users of the health hazard and
to repair, replace or recall the phones so that the hazard no longer exists.
Although the existing scientific data do not justify FDA regulatory actions, FDA has urged
the wireless phone industry to take a number of steps, including the following:
• Support needed research into possible biological effects of RF of the type emitted by
wireless phones;
• Design wireless phones in a way that minimizes any RF exposure to the user that is not
necessary for device function; and
• Cooperate in providing users of wireless phones with the best possible information on
possible effects of wireless phone use on human health.
FDA belongs to an interagency working group of the federal agencies that have
responsibility for different aspects of RF safety to ensure coordinated efforts at the federal
level. The following agencies belong to this working group:
• National Institute for Occupational Safety and Health
• Environmental Protection Agency
• Federal Communications Commission
• Occupational Safety and Health Administration
• National Telecommunications and Information Administration
The National Institutes of Health participates in some interagency working group activities,
as well.
FDA shares regulatory responsibilities for wireless phones with the Federal Communications
Commission (FCC). All phones that are sold in the United States must comply with FCC
safety guidelines that limit RF exposure. FCC relies on FDA and other health agencies for
safety questions about wireless phones.
FCC also regulates the base stations that the wireless phone networks rely upon. While these
base stations operate at higher power than do the wireless phones themselves, the RF
exposures that people get from these base stations are typically thousands of times lower
56
APPENDIX
FCC Draft
than those they can get from wireless phones. Base stations are thus not the primary subject
of the safety questions discussed in this document.
What is FDA doing to find out more about the possible health effects of wireless phone
RF?
FDA is working with the U.S. National Toxicology Program and with groups of investigators
around the world to ensure that high priority animal studies are conducted to address
important questions about the effects of exposure to radiofrequency energy (RF). FDA has
been a leading participant in the World Health Organization International Electromagnetic
Fields (EMF) Project since its inception in 1996. An influential result of this work has been
the development of a detailed agenda of research needs that has driven the establishment of
new research programs around the world. The Project has also helped develop a series of
public information documents on EMF issues. FDA and the Cellular Telecommunications &
Internet Association (CTIA) have a formal Cooperative Research and Development
Agreement (CRADA) to do research on wireless phone safety. FDA provides the scientific
oversight, obtaining input from experts in government, industry, and academic
organizations. CTIA-funded research is conducted through contracts to independent
investigators. The initial research will include both laboratory studies and studies of wireless
phone users. The CRADA will also include a broad assessment of additional research needs in
the context of the latest research developments around the world.
What steps can I take to reduce my exposure to radiofrequency energy from my wireless
phone?
If there is a risk from these products--and at this point we do not know that there is--it is
probably very small. But if you are concerned about avoiding even potential risks, you can
take a few simple steps to minimize your exposure to radiofrequency energy (RF). Since time
is a key factor in how much exposure a person receives, reducing the amount of time spent
using a wireless phone will reduce RF exposure.
If you must conduct extended conversations by wireless phone every day, you could place
more distance between your body and the source of the RF, since the exposure level drops
off dramatically with distance. For example, you could use a headset and carry the wireless
phone away from your body or use a wireless phone connected to a remote antenna
Again, the scientific data do not demonstrate that wireless phones are harmful. But if you
are concerned about the RF exposure from these products, you can use measures like those
described above to reduce your RF exposure from wireless phone use.
What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless phones, including
children and teenagers. If you want to take steps to lower exposure to radiofrequency
energy (RF), the measures described above would apply to children and teenagers using
wireless phones. Reducing the time of wireless phone use and increasing the distance
between the user and the RF source will reduce RF exposure. Some groups sponsored by
other national governments have advised that children be discouraged from using wireless
phones at all. For example, the government in the United Kingdom distributed leaflets
57
APPENDIX
FCC Draft
containing such a recommendation in December 2000. They noted that no evidence exists
that using a wireless phone causes brain tumors or other ill effects. Their recommendation
to limit wireless phone use by children was strictly precautionary; it was not based on
scientific evidence that any health hazard exists.
Do hands-free kits for wireless phones reduce risks from exposure to RF emissions?
Since there are no known risks from exposure to RF emissions from wireless phones, there is
no reason to believe that hands-free kits reduce risks. Hands-free kits can be used with
wireless phones for convenience and comfort. These systems reduce the absorption of RF
energy in the head because the phone, which is the source of the RF emissions, will not be
placed against the head. On the other hand, if the phone is mounted against the waist or
other part of the body during use, then that part of the body will absorb more RF energy.
Wireless phones marketed in the U.S. are required to meet safety requirements regardless of
whether they are used against the head or against the body. Either configuration should
result in compliance with the safety limit.
Do wireless phone accessories that claim to shield the head from RF radiation work?
Since there are no known risks from exposure to RF emissions from wireless phones, there is
no reason to believe that accessories that claim to shield the head from those emissions
reduce risks. Some products that claim to shield the user from RF absorption use special
phone cases, while others involve nothing more than a metallic accessory attached to the
phone. Studies have shown that these products generally do not work as advertised. Unlike
"hand-free" kits, these so-called "shields" may interfere with proper operation of the phone.
The phone may be forced to boost its power to compensate, leading to an increase in RF
absorption. In February 2002, the Federal trade Commission (FTC) charged two companies
that sold devices that claimed to protect wireless phone users from radiation with making
false and unsubstantiated claims. According to FTC, these defendants lacked a reasonable
basis to substantiate their claim.
How does FCC Audit Cell Phone RF?
After FCC grants permission for a particular cellular telephone to be marketed, FCC will
occasionally conduct “post-grant” testing to determine whether production versions of the
phone are being produced to conform with FCC regulatory requirements. The manufacturer
of a cell phone that does not meet FCC’s regulatory requirements may be required to remove
the cell phone from use and to refund the purchase price or provide a replacement phone,
and may be subject to civil or criminal penalties. In addition, if the cell phone presents a risk
of injury to the user, FDA may also take regulatory action. The most important post-grant
test, from a consumer’s perspective, is testing of the RF emissions of the phone. FCC
measures the Specific Absorption Rate (SAR) of the phone, following a very rigorous testing
protocol. As is true for nearly any scientific measurement, there is a possibility that the test
measurement may be less than or greater than the actual RF emitted by the phone. This
difference between the RF test measurement and actual RF emission is because test
measurements are limited by instrument accuracy, because test measurement and actual
use environments are different, and other variable factors. This inherent variability is known
58
APPENDIX
FCC Draft
as “measurement uncertainty.” When FCC conducts post-grant testing of a cell phone, FCC
takes into account any measurement uncertainty to determine whether regulatory action is
appropriate. This approach ensures that when FCC takes regulatory action, it will have a
sound, defensible scientific basis.
FDA scientific staff reviewed the methodology used by FCC to measure cell phone RF, and
agreed it is an acceptable approach, given our current understanding of the risks presented
by cellular phone RF emissions. RF emissions from cellular phones have not been shown to
present a risk of injury to the user when the measured SAR is less than the safety limits set
by FCC (an SAR of 1.6 w/kg). Even in a case where the maximum measurement uncertainty
permitted by current measurement standards was added to the maximum permissible SAR,
the resulting SAR value would be well below any level known to produce an acute effect.
Consequently, FCC’s approach with measurement uncertainty will not result in consumers
being exposed to any known risk from the RF emitted by cellular telephones.
FDA will continue to monitor studies and literature reports concerning acute effects of cell
phone RF, and concerning chronic effects of long-term exposure to cellular telephone RF
(that is, the risks from using a cell phone for many years). If new information leads FDA to
believe that a change to FCC’s measurement policy may be appropriate, FDA will contact
FCC and both agencies will work together to develop a mutually-acceptable approach.
Updated July 29, 2003
59
FCC Draft
Index
A
access codes 10
activation keys 35
alarm clock 38
antenna 14
audio messages 21
B
battery
authentication 47
Bluetooth 30
bookmarks 42
browser
appearance settings 43
bookmarks 42
security 43
business cards 26
C
calculator 40
calendar 39
call
key 15
log 27
register. See call log.
waiting 19
calls
international 17
making 17
options 18
settings 32
voice dialling 18
camera 36
certificates 44
character case 19
charge level 16
codes 10
configurations
general 33
setting service 14
contact information 12
contacts
copying 26
editing 26
groups 26
saving 25
searching 26
settings 27
speed dialling 18
cookies 43
copyright protection 35
countdown timer 40
customer service 12
D
data communication 46
digital rights management 35
digital signature 44
downloading protected files 35
downloads 11
E
e-mail application 21
end key 15
ending calls 17
equaliser 38
F
factory settings 34
flash messages 21
flight mode 17
G
gallery 35
games 41
H
handsfree. See loudspeaker.
I
images 36
indicators 16
info messages 34
instant messaging 22
internet 41
L
language settings 32
locking the keypad 10
log 27
loudspeaker 18
60
FCC Draft
M
message settings
e-mail 25
general 23
multimedia messages 24
text messages 23
messages
audio messages 21
flash messages 21
info messages 34
service commands 35
voice messages 23
N
Nokia contact information 12
notes 39, 40
O
operator logo 16, 28
operator menu 34
organiser 38
P
PC connectivity 45
PC Suite 45
power key 14, 15
predictive text input 19
profiles 27
protected files 35
pushed messages 43
R
recorder 38
ringing tones 28
S
safety information 6
selection keys 15
service commands 35
service inbox 43
service messages 43
services 41
settings
call 32
configuration 33
connectivity 30
messages 23
my shortcuts 29
phone 32
profiles 27
restore factory settings 34
themes 28
tones 28
shortcuts 29
signal strength 16
SIM services 45
software updates 11
speed dialling 18
standby mode 16, 29
stopwatch 40
switch on and off 14
T
text 19
themes 28
to-do list 39
tones 28
traditional text input 19
U
unlock the keypad 10
V
voice dialling 18
voice messages 23
voice recorder 38
W
wallpaper 28
web 41
writing text 19
