Microsoft RM-396 GSM850/900/1800/1900 FDD1/FDD5 Cell Phone w/BT/RFID User Manual FCCDraft Lynx Issue 1 24July 08 LH
Microsoft Mobile Oy GSM850/900/1800/1900 FDD1/FDD5 Cell Phone w/BT/RFID FCCDraft Lynx Issue 1 24July 08 LH
Manual
FCC Draft
Nokia 6212 classic User Guide
9208854
Issue 1 EN
FCC Draft
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this RM-396 product is in
compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC. A copy of the Declaration of
Conformity can be found at http://www.nokia.com/phones/
declaration_of_conformity/.
© 2008 Nokia. All rights reserved.
Nokia, Nokia Connecting People, and Navi are trademarks or registered trademarks of Nokia Corporation.
Nokia tune is a sound mark of Nokia Corporation. Other product and company names mentioned herein
may be trademarks or tradenames of their respective owners.
Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form
without the prior written permission of Nokia is prohibited.
US Patent No 5818437 and other pending patents. T9 text input software Copyright (C) 1997-2008. Tegic
Communications, Inc. All rights reserved.
Includes RSA BSAFE cryptographic or security protocol software from RSA Security.
Java is a trademark of Sun Microsystems, Inc.
This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and
noncommercial use in connection with information which has been encoded in compliance with the
MPEG-4 Visual Standard by a consumer engaged in a personal and noncommercial activity and (ii) for use
in connection with MPEG-4 video provided by a licensed video provider. No license is granted or shall be
implied for any other use. Additional information, including that related to promotional, internal, and
commercial uses, may be obtained from MPEG LA, LLC. See http://www.mpegla.com.
Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and
improvements to any of the products described in this document without prior notice.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO CIRCUMSTANCES SHALL NOKIA
OR ANY OF ITS LICENSORS BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL,
INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED.
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAW,
NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN
RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE
RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.
The availability of particular products and applications and services for these products may vary by region.
Please check with your Nokia dealer for details and availability of language options.
0434
FCC Draft
Export controls
This device may contain commodities, technology or software subject to export laws and regulations from
the US and other countries. Diversion contrary to law is prohibited.
The third-party applications provided with your device may have been created and may be owned by
persons or entities not affiliated with or related to Nokia. Nokia does not own the copyrights or
intellectual property rights to the third-party applications. As such, Nokia does not take any responsibility
for end-user support, functionality of the applications, or the information in the applications or these
materials. Nokia does not provide any warranty for the third-party applications.
BY USING THE APPLICATIONS YOU ACKNOWLEDGE THAT THE APPLICATIONS ARE PROVIDED AS IS
WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW. YOU FURTHER ACKNOWLEDGE THAT NEITHER NOKIA NOR ITS AFFILIATES MAKE ANY
REPRESENTATIONS OR WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTIES OF TITLE, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR THAT THE
APPLICATIONS WILL NOT INFRINGE ANY THIRD-PARTY PATENTS, COPYRIGHTS, TRADEMARKS, OR OTHER
RIGHTS.
FCC/INDUSTRY CANADA NOTICE
Your device may cause TV or radio interference (for example, when using a telephone in close proximity to
receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such
interference cannot be eliminated. If you require assistance, contact your local service facility. This device
complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Any changes or modifications not expressly
approved by Nokia could void the user's authority to operate this equipment.
9208854/Issue 1 EN
4
FCC Draft
Contents
SAFETY.............................................. 6
General information ........................ 7
Helpful hints ...................................................... 7
About your device............................................. 9
Network services............................................... 9
Enhancements ................................................ 10
Access codes ................................................... 10
Software updates........................................... 11
Phone software updates .............................. 11
My Nokia.......................................................... 11
Download content......................................... 11
Nokia support ................................................. 12
1. Get started.................................. 12
Insert SIM card, memory card
and battery...................................................... 12
Charge the battery ........................................ 13
microSD card................................................... 14
Switch the phone on and off ..................... 14
Set the time, zone, and date ...................... 14
Configuration settings service ................... 14
Antenna............................................................ 15
Wrist strap....................................................... 15

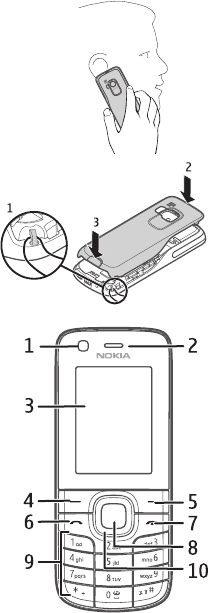

Keys and parts ............................................... 15
Standby mode ................................................ 16
Flight profile.................................................... 17
2. Near Field Communication........ 18
NFC .................................................................... 18
NFC detection................................................. 18
Share to device............................................... 18
Service tags ..................................................... 19
Share or read service tags........................... 19
Payment and ticketing ................................. 20
3. Calls............................................. 21
Make a voice call........................................... 21
Answer or reject a voice call...................... 21
Speed dialling ................................................. 21
Voice dialling .................................................. 21
Options during a call .................................... 22
Make a call using NFC.................................. 22
Make a video call ........................................... 22
4. Write text................................... 23
Traditional text input.................................... 23
Predictive text input...................................... 23
5. Messaging .................................. 24
Write and send a text message.................. 24
Write and send a multimedia
message ............................................................ 24
Read and reply to a message...................... 24
Nokia Xpress audio messaging................... 25
Flash messages ............................................... 25
E-mail application ......................................... 25
Instant messaging.......................................... 26
Voice messages............................................... 27
Video messages............................................... 27
Info messages.................................................. 27
Service commands ......................................... 27
Message settings............................................ 27
6. Contacts ..................................... 29
Save names and phone numbers............... 30
Add contact details........................................ 30
Search for a contact...................................... 30
Copy or move contacts................................. 30
Edit contacts.................................................... 30
Groups ............................................................... 30
Business cards................................................. 31
Contact settings ............................................. 31
7. Log .............................................. 31
8. Settings ...................................... 31
Profiles .............................................................. 31
Themes .............................................................. 32
Tones.................................................................. 32
Display............................................................... 32
Date and time ................................................. 33
My shortcuts.................................................... 33
Synchronisation and backup....................... 33
Connectivity..................................................... 34
Call ..................................................................... 36
5
FCC Draft
Phone ................................................................ 36
Enhancements ................................................ 37
Configuration.................................................. 37
Restore factory settings............................... 38
9. Operator menu ........................... 38
10.Gallery ....................................... 38
Digital rights management......................... 39
Print images .................................................... 39
11.Media......................................... 39
Camera.............................................................. 40
Video.................................................................. 40
Music player.................................................... 40
Voice recorder................................................. 42
Equaliser........................................................... 42
Stereo widening ............................................. 43
12.Push to talk............................... 43
13.Organiser................................... 43
Alarm clock...................................................... 43
Calendar ........................................................... 43
To-do list.......................................................... 44
Notes................................................................. 44
Calculator......................................................... 44
Countdown timer........................................... 45
Stopwatch........................................................ 45
14.Applications .............................. 45
Launch a game or application ................... 45
Application options ....................................... 45
15.Web ........................................... 46
Connect to a service...................................... 46
Browse pages .................................................. 47
Bookmarks........................................................ 47
Appearance settings...................................... 47
Security settings............................................. 47
Service inbox ................................................... 48
Browser security............................................. 48
16.SIM services.............................. 49
17.PC connectivity......................... 49
Nokia PC Suite ................................................ 50
Data communication applications ............ 50
18.Battery and charger
information .................................... 50
Nokia battery authentication
guidelines ......................................................... 51
Care and maintenance................... 52
Additional safety information ...... 53
APPENDIX....................................... 56
A message from the CTIA............................. 56
Message from the FDA ................................. 59
Index............................................... 64
6
SAFETY
FCC Draft
SAFETY
Read these simple guidelines. Not following them may be dangerous or illegal. Read the
complete user guide for further information.
SWITCH ON SAFELY
Do not switch the device on when wireless phone use is prohibited or when it
may cause interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle while
driving. Your first consideration while driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect
performance.
SWITCH OFF IN RESTRICTED AREAS
Follow any restrictions. Switch the device off in aircraft, near medical
equipment, fuel, chemicals, or blasting areas.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
ENHANCEMENTS AND BATTERIES
Use only approved enhancements and batteries. Do not connect incompatible
products.
WATER-RESISTANCE
Your device is not water-resistant. Keep it dry.
7
General information
FCC Draft
General information
■Helpful hints
Before taking your phone to a Nokia Care point
Q: What can I do to resolve operation issues with my phone?
A: Try the following:
• Switch off the phone and remove and replace the battery.
• Restore the factory settings. Select Menu > Settings > Rest. factory sett.. To
save all personal data in your phone, select Restore settings only.
• Update the phone software with Nokia Software Updater if available. See
www.nokia.com/softwareupdate or your local Nokia website.
Bluetooth connectivity
Q: Why can’t I find a Bluetooth device?
A: Try the following:
• Check that both devices have activated Bluetooth connectivity.
• Check that the distance between the two devices is not more than 10 metres
(33 feet) and that there are no walls or other obstructions between the devices.
• Check that the other device is not in the hidden mode.
• Check that both devices are compatible.
Calls
Q: How do I adjust the volume?
A: To adjust the volume during a call, press the volume key up or down.
Q: How do I change the ringing tone?
A: Select Menu > Settings > Tones.
Contacts
Q: How do I add a new contact?
A: Select Menu > Contacts > Names > Options > Add new contact.
Q: How do I add additional information to a contact?
A: Search for the contact to which you want to add a detail, and select Details >
Options > Add detail. Select from the available options.
Menus
8
General information
FCC Draft
Q: How can I change the look of the menus?
A: To change the menu view, select Menu > Options > Main menu view > List,
Grid, Grid with labels, or Tab.
Q: How do I personalise my menu?
A: To rearrange the menu, select Menu > Options > Organise. Scroll to the menu
you want to move, and select Move. Scroll to where you want to move the menu,
and select OK. To save the change, select Done > Yes.
Messaging
Q: Why can’t I send a multimedia message (MMS)?
A: To check availability and to subscribe to the multimedia messaging service
(MMS, network service), contact your service provider.
Q: How do I set up e-mail?
A: To use e-mail on your phone, you need a compatible e-mail system. For the
correct settings, contact your e-mail service provider.
To activate the e-mail settings, select Menu > Messaging > Message settings >
E-mail messages.
PC connectivity
Q: Why do I have problems connecting the phone to my PC?
A: Ensure that Nokia PC Suite is installed and running on your PC. For further
information, see the help function in Nokia PC Suite or the support pages at
www.nokia.com.
Shortcuts
Q: Are there any shortcuts that I can use?
A: There are several shortcuts on your phone:
• To access the call log, press the call key once. To make a call, scroll to a number
or name, and press the call key.
• To open the web browser, press and hold 0.
• To call your voice mailbox, press and hold 1.
• To change from any profile to the silent profile and back to the general profile,
press and hold #.
9
General information
FCC Draft
■About your device
The wireless device described in this guide is approved for use on the WCDMA 850
and 2100, and GSM 850, 900,1800, and 1900 networks. Contact your service
provider for more information about networks.
When using the features in this device, obey all laws and respect local customs,
privacy and legitimate rights of others, including copyrights.
Copyright protection may prevent some images, music, and other content from
being copied, modified, or transferred.
Your device may have preinstalled bookmarks and links for third-party internet
sites. You may also access other third-party sites through your device. Third-party
sites are not affiliated with Nokia, and Nokia does not endorse or assume liability
for them. If you choose to access such sites, you should take precautions for
security or content.
Warning: To use any feature in this device, other than the alarm clock or
NFC card applications when NFC is set on and card activation level is set
to Always, the device must be switched on. Do not switch the device on
when wireless device use may cause interference or danger.
Remember to make back-up copies or keep a written record of all important
information stored in your device.
When connecting to any other device, read its user guide for detailed safety
instructions. Do not connect incompatible products.
■Network services
To use the phone you must have service from a wireless service provider. Many of
the features require special network features. These features are not available on
all networks; other networks may require that you make specific arrangements
with your service provider before you can use the network services. Your service
provider can give you instructions and explain what charges will apply. Some
networks may have limitations that affect how you can use network services. For
instance, some networks may not support all language-dependent characters and
services.
Your service provider may have requested that certain features be disabled or not
activated in your phone. If so, these features will not appear on your phone menu.
Your phone may also have a special configuration such as changes in menu
names, menu order, and icons. Contact your service provider for more information.
10
General information
FCC Draft
This device supports WAP 2.0 protocols (HTTP and SSL) that run on TCP/IP
protocols. Some features of this device, such as multimedia messaging (MMS),
browsing, e-mail application, instant messaging, remote synchronisation, and
content downloading using the browser or MMS, require network support for
these technologies.
■Enhancements
Warning: Use only batteries, chargers, and enhancements approved by Nokia for
use with this particular model. The use of any other types may invalidate any
approval or warranty, and may be dangerous.
For availability of approved enhancements, please check with your dealer. When you
disconnect the power cord of any enhancement, grasp and pull the plug, not the cord.
■Access codes
Select Menu > Settings > Security to set how your phone uses the access codes
and security settings.
• To prevent accidental key presses, use the keypad lock (keyguard).
Select Menu > Settings > Phone > Automatic keyguard or Security keyguard >
On or Off. If the Security keyguard is activated, enter a security code of your
choice when requested.
To unlock the keys, select Unlock, and press the * key.
To answer a call when the keyguard is on, press the call key. When you end or
reject a call, the keys are automatically locked.
• To create or change a security code, select Menu > Settings > Security >
Access codes, and choose from the available options.
• The PIN code, supplied with the SIM card, helps to protect the card against
unauthorised use.
• The PIN2 code, supplied with some SIM cards, is required to access certain
services.
• PUK and PUK2 codes may be supplied with the SIM card. If you enter the PIN or
PIN2 code incorrectly three times in succession, you will be asked for the PUK
or PUK2 code. If you do not have them, contact your service provider.
• The barring password (four digits) is required when using the Call barring
service to restrict calls to and from your phone (network service).
• To view or change the security module settings, if installed, select Menu >
Settings > Security > Security module sett..
11
General information
FCC Draft
■Software updates
Important: Use only services that you trust and that offer adequate security and
protection against harmful software.
Nokia may produce software updates that may offer new features, enhanced functions, or
improved performance. You may be able to request these updates through the Nokia
Software Updater PC application. To update the device software, you need the Nokia
Software Updater application and a compatible PC with Microsoft Windows 2000, XP, or
Vista operating system, internet access, and a compatible data cable to connect your device
to the PC.
To get more information and to download the Nokia Software Updater application, see
www.nokia.com/softwareupdate or your local Nokia web site.
Downloading software updates may involve the transmission of large amounts of data
through your service provider's network. Contact your service provider for information about
data transmission charges.
Make sure that the device battery has enough power, or connect the charger before starting
the update.
If software updates over the air are supported by your network, you may also be able to
request updates through the device. See “Phone,” p. 36.
■Phone software updates
Your service provider may send phone software updates over the air directly to
your device. This option may not be available on your device.
Warning: If you install a software update, you cannot use the device,
even to make emergency calls, until the installation is completed and the
device is restarted. Be sure to back up data before accepting installation
of an update.
■My Nokia
Receive free tips and support for your Nokia phone, plus free trial content,
interactive demonstrations, a personalised web page, and news about the latest
Nokia products and services.
Get the most out of your Nokia phone and register to My Nokia today! For more
information and availability in your region, see www.nokia.com/mynokia.
■Download content
You may be able to download new content (for example, themes) to your phone
(network service).
12
Get started
FCC Draft
For the availability of different services, pricing, and tariffs, contact your service
provider.
■Nokia support
Check www.nokia.com/support or your local Nokia website for the latest guides,
additional information, downloads, and services related to your Nokia product.
The website provides information on the use of Nokia products and services. If you
need to contact Nokia Care services, see the list of local Nokia Care contact
centres at www.nokia.com/customerservice.
For maintenance services, check your nearest Nokia Care point at
www.nokia.com/repair.
1. Get started
■Insert SIM card, memory card and battery
The SIM card and its contacts can easily be damaged by scratches or bending, so
be careful when handling, inserting, or removing the card.
Insert the SIM card
1. With the back of the phone facing you, remove the back cover (1-2).
2. To release the SIM card holder, gently pull the locking clip of the card holder,
and open it (3-4).
3. Insert the SIM card (5-6). Ensure that the SIM card is properly inserted with
the gold-coloured contact area on the card facing down.
13
Get started
FCC Draft
4. Close the SIM card holder, and pull it until it locks into place (7).
Insert the memory card and battery
1. To insert the memory card, press it into the slot until it locks into place (1).
2. Ensure the card is properly inserted with the gold-coloured contact area on the
card facing down (2).
3. Observe the battery contacts and insert the battery (3-4).
4. Replace the back cover (5-6).
■Charge the battery
Always switch the device off and disconnect the charger before removing the battery.
Charging the BL-4U battery with the AC-8 charger takes approximately 1 hour 30
minutes while the phone is in the standby mode.
1. Connect the charger to a wall socket.
2. Connect the lead from the charger to the charger
connector at the bottom of your phone.
If the battery is completely discharged, it may take
several minutes before the charging indicator appears
on the display or before any calls can be made.
14
Get started
FCC Draft
■microSD card
You can save data such as ringing tones, themes, tones, images,
and video clips on a compatible microSD card.
It is possible to remove or replace the microSD card during phone
operation without switching the phone off.
Your phone supports microSD cards up to 4 GB.
Use only compatible microSD cards approved by Nokia for use with this device. Nokia uses
approved industry standards for memory cards, but some brands may not be fully compatible
with this device. Incompatible cards may damage the card and the device and corrupt data
stored on the card.
Important: Do not remove the memory card in the middle of an operation when
the card is being accessed. Removing the card in the middle of an operation may
damage the memory card as well as the device, and data stored on the card may
be corrupted.
■Switch the phone on and off
1. Press and hold the power key.
2. If the phone asks for a PIN or a UPIN code, enter the code
(displayed as ****), and select OK.
When you switch on your phone for the first time, and the
phone is in the standby mode, you are asked to obtain the
configuration settings from your service provider (network
service). Confirm or decline the query. See “Configuration,”
p. 38, and “Configuration settings service,” p. 14.
■Set the time, zone, and date
When you switch on your phone for the first time, the phone is
in the standby mode, and you are asked to set the time and
date. Fill in the fields, and select Save.
To access Date and time later, select Menu > Settings > Date and time > Date &
time settings, Date and time format, or Auto-update of time (network service) to
change the time, time zone, and date settings.
■Configuration settings service
To use some of the network services, such as mobile internet services, MMS, Nokia
Xpress audio messaging, or remote internet server synchronisation, your phone
needs the correct configuration settings. For more information on availability,
15
Get started
FCC Draft
contact your network operator, service provider, nearest authorised Nokia dealer,
or see the support area on the Nokia website, www.nokia.com/support.
When you receive the settings as a configuration message, the settings are not
automatically saved and activated. Configuration settings received is displayed.
Select Show > Save. If required, enter the PIN code supplied by the service
provider.
■Antenna
Your device may have internal and external antennas. As with
any radio transmitting device, avoid touching the antenna
area unnecessarily while the antenna is transmitting or
receiving. Contact with such an antenna affects the
communication quality and may cause the device to operate at
a higher power level than otherwise needed and may reduce
the battery life.
■Wrist strap
Remove the battery cover of the phone. Attach
the wrist strap (1). Replace the back cover (2-3).
■Keys and parts
1. Front camera lens
2. Earpiece
3. Display
4. Left selection key
5. Right selection key
6. Call key
7. End key
8. Middle selection key
9. Keypad
10. Navi™ key (hereafter referred to as scroll key)
16
Get started
FCC Draft
11. Microphone
12. Charger connector
13. Enhancements connector
14. USB connector
15. Camera lens
16. Camera flash
17. Power key
18. Loudspeaker
19. Volume up/PTT
20. Volume down
■Standby mode
The phone is in standby mode when the phone is
ready for use, and you have not entered any characters.
1. 3G indicator
2. Signal strength of the cellular network
3. Battery charge level
4. Indicators. See “Indicators,” p. 16.
5. Name of the network or the operator logo
6. Clock
7. Display
8. Left selection key. By default, this is Go to that takes
you to a list of shortcuts. See “Left and right selection
key,” p. 33
9. Middle selection key, shown as Menu.
10. Right selection key. By default, this is Names that takes you to your saved
contacts. See “Left and right selection key,” p. 33.
Indicators
You have unread messages.
17
Get started
FCC Draft
You missed a call. See “Log,” p. 31.
The keypad is locked. See “Access codes,” p. 10.
The phone is silent when an incoming call or text message is received. See
“Tones,” p. 32.
The alarm clock is activated.
, The packet data connection mode, Always online is selected and the
packet data service is available.
, A GPRS or EGPRS connection is established.
, The GPRS or EGPRS connection is suspended (on hold).
Bluetooth is activated. See “Bluetooth wireless technology,” p. 34.
You have a new unread item in your NFC Inbox. See “Share or read service
tags,” p. 19.
Indicates an item can be shared using NFC. See “Share or read service
tags,” p. 19.
■Flight profile
Use the flight profile in radio sensitive environments, such as on-board aircraft or
in hospitals, to deactivate all radio frequency transmitters. When the flight profile
is active, is displayed.
Select Menu > Settings > Profiles > Flight > Activate or Personalise.
To set the phone to ask every time it is switched on whether to use the flight
profile, select Menu > Settings > Phone > Flight query > On or Off.
To deactivate the flight profile, select any other profile.
Warning: With the flight profile you cannot make or receive any calls, including
emergency calls, or use other features that require network coverage. To make
calls, you must first activate the phone function by changing profiles. If the device
has been locked, enter the lock code. If you need to make an emergency call while the device
is locked and in the flight profile, you may be also able to enter an official emergency
number programmed in your device in the lock code field and select 'Call'. The device will
confirm that you are about to exit flight profile to start an emergency call.
18
Near Field Communication
FCC Draft
2. Near Field Communication
■NFC
Near Field Communication (NFC) is a wireless connectivity technology that
enables two-way communication between electronic devices. You can perform
contactless transactions, access digital content, and connect devices with a single
touch.
NFC operates over a distance of a few centimeters. NFC technology is supported
by leading mobile device manufacturers and is compatible with the majority of
available non-contact payment and ticketing card infrastructures.
To change your NFC device name, select Menu > NFC > NFC device name. The NFC
device name is used by other NFC devices to recognize your phone.
For more information about NFC, select Menu > NFC > NFC Introduction.
■NFC detection
To switch NFC on or off, select Menu > NFC > NFC settings.
To save battery power, your device automatically switches off the screen backlight
and sets NFC to standby mode. Any action on the device re-activates the screen
backlight and NFC.
Note: When Flight mode is activated, only NFC card applications and
services can be used.
To use NFC, switch on the phone and
activate the NFC setting, if disabled.
Touch the service tag or other NFC
device with the detection area.
The reading range is typically
0to3centimetres.
When a tag or device is recognised,
corresponding information is
displayed.
■Share to device
Select Menu > NFC > Share to device and select the desired option.
19
Near Field Communication
FCC Draft
With sharing enabled, you can send a bookmark, business card, call request, alarm
alert, calendar note, gallery item, profile, radio station, note, or to-do note.
■Service tags
A tag may contain a shortcut such as an
SMS-based service, a URL of an
internet-based service, a business card,
or a phone number of a telephone
service.
This Nokia NFC phone is compatible
with non battery-powered (passive)
tags. Use the following tag types:
MIFARE (Standard, Standard 4k,
Ultralight, and DESFire), Sony FeliCa (non-secure), and Innovision (Jewel read-
only and Topaz). Tags may be available from these manufacturers or from a local
supplier. You may also use other ISO14443-4 compliant tags or cards.
Performance of compatible tags and cards may vary.
■Share or read service tags
Select Menu > NFC > Share to tag. Scroll to the desired option, select Share, and
touch a service tag.
To read a service tag, touch a tag with the phone.
Touch a service tag with your device to enable video streaming or bluetooth
connection or receive a business card, SMS message, call request, bookmark,
calendar note, to-do note, alarm alert, note, or content shortcut.
To access NFC received items or card applications, select Menu > NFC > Inbox or
Cards.
The device memory limits the amount of tag information that can be stored. To
free memory space, delete received items from the NFC Inbox.
It is possible to share the same information repeatedly to different service tags.
Note: When sharing to a service tag, information previously written to
the service tag is automatically overwritten.
To share an item, you may also highlight the item on your device, and select
Options > Share.
20
Near Field Communication
FCC Draft
■Payment and ticketing
Using your service provider's compatible payment or ticketing services with this
device requires a service subscription with your service provider and the
installation of your service provider’s application.
The service provider may be your bank, or for public transportation, your local
public transport operator.
Payment and ticketing applications and services are provided by third parties.
Nokia does not provide any warranty or take any responsibility for any such
applications and services including end-user support, functionality or any
monetary transactions or loss of monetary value. Do not rely solely on such
applications and services as means of payment or ticketing.
Contact your service provider before providing your device for repair or
maintenance to ensure the availability of the payment or ticketing services after
repair or maintenance. Handle your device with similar care as you handle your
payment cards. Keep the device safe and in case of loss or theft of the device
immediately contact your service provider.
For any questions about payment or ticketing applications and services, contact
your service provider.
Card activation
When your phone is placed on an external NFC reader, the applicable card
application becomes accessible. Depending on the card availability settings,
confirmation or a passcode may be requested before access is granted.
To set the activation level, select Menu > NFC > NFC settings > Cards availability.
Select Always to allow payment or ticketing for card applications without
confirmation. Select By confirmation or With passcode to allow transactions with
confirmation or only after entering a passcode.
A card application remains active for approximately 60 seconds after
confirmation or after entering the passcode. Touch the external reader within this
active time to perform a transaction.
To change the card passcode, select Menu > NFC > NFC settings > Cards
passcode.
Important: If an incorrect passcode is entered10 times, you can no longer use
card applications and services with this device. Your device will require service
and additional charges may apply. For assistance, please first contact your nearest
Nokia Care point.
21
Calls
FCC Draft
3. Calls
■Make a voice call
Do one of the following:
• Enter the phone number, including the area code if required, and press the call
key.
For international calls, press * twice for the international prefix (the +
character replaces the international access code), enter the country code, the
area code without the leading 0, if necessary, and the phone number.
• To list previously called numbers, press the call key once. To call a number
select it, and press the call key.
• Call a number saved in Contacts. See “Contacts,” p. 29.
To adjust the volume during a call, press the volume key up or down.
■Answer or reject a voice call
To answer a call, press the call key. To end the call, press the end key.
To reject a call, press the end key.
To mute the ringing tone, select Silence.
■Speed dialling
To assign a number to one of the speed-dialling keys, 3 to 9:
1. Select Menu > Contacts > Speed dials.
2. Scroll to the speed-dialling number that you want.
3. Select Assign, or if a number has already been assigned to the key, select
Options > Change.
4. Select Search and the contact you want to assign.
If the speed dialling function is deactivated, the phone asks whether you want to
activate it.
Select Menu > Settings > Call > Speed dialling > On or Off.
To call a number, press and hold a speed-dialling key until the call begins.
■Voice dialling
Make a phone call by saying a name that is saved in Contacts. Voice commands
are language-dependent, so before voice dialling, select Menu > Settings >
22
Calls
FCC Draft
Phone > Voice recognition > Recognition lang., and your language. Complete the
Voice recog. training from the instructions on the display.
Before using voice tags, note the following:
Note: Using voice tags may be difficult in a noisy environment or during an
emergency, so you should not rely solely upon voice dialling in all circumstances.
1. In the standby mode, press and hold the right selection key. A short tone
sounds, and Speak now is displayed.
2. Say the name of the contact you want to call. If the voice recognition is
successful, a list with matches is shown. The phone plays the voice command
of the first match on the list. If the match is incorrect, scroll to another entry.
■Options during a call
Many options that you can use during a call are network services. For availability,
contact your service provider.
Possible options may include conference calls, video sharing and call waiting.
Call waiting
Select Menu > Settings > Call > Call waiting > Activate to receive notification of
an incoming call while you have a call in progress (network service).
To answer a waiting call during an active call, press the call key. The first call is put
on hold. To end the active call, press the end key.
■Make a call using NFC
Touch a service tag containing a call request with the NFC detection area. See
“NFC detection,” p. 18. The phone displays the callback number. Select Call to call
the number, or Exit to discard. To share a call request, see “Share or read service
tags,” p. 19.
■Make a video call
When you make a video call, you send a real-time video, recorded by the camera
on the front of your phone, to the call recipient.
To be able to make a video call, you must have a USIM card and be connected in a
WCDMA network. For availability of and subscription to video call services,
contact your network operator or service provider. A video call can only be made
between two parties. Video calls cannot be made while another voice, video, or
data call is active.
23
Write text
FCC Draft
1. To start a video call in standby mode, enter the phone number or select
Contacts and a contact.
2. Press and hold the call key, or select Options > Video call.
Starting a video call may take a while. If the call is unsuccessful, you are asked
if you want to try a voice call or send a message instead.
To adjust the volume during a call, press the volume key up or down.
3. To end the call, press the end key.
During extended operation such as an active video call and high speed data connection, the
device may feel warm. In most cases, this condition is normal. If you suspect the device is
not working properly, take it to the nearest authorised service facility.
4. Write text
You can enter text using traditional or predictive text input. Select and hold
Options to switch between traditional text input, , and predictive text input,
. Not all languages are supported by predictive text input.
The character cases are indicated by , , and . To change the character
case, press #. To change from the letter to number mode, , press and hold #,
and select Number mode. To change from the number to the letter mode, press
and hold #.
To set the writing language, select Options > Writing language.
■Traditional text input
Press a number key, 1 to 9, repeatedly until the desired character appears. The
characters available depend on the selected language. Press 0 to create a space.
Press 1 to display the most common punctuation marks and special characters.
■Predictive text input
Predictive text input is based on a built-in dictionary to which you can add new
words.
1. Start writing a word using keys from 2 to 9. The phone displays * or the entered
letters as underlined text.
2. When you finish writing the word and it is correct, to confirm it, press 0 to add
a space.
If the word is not correct, press * repeatedly, and select the word from the list.
24
Messaging
FCC Draft
If ? is displayed after the word, the word you intended to write is not in the
dictionary. To add the word to the dictionary, select Spell. Enter the word using
traditional text input, and select Save.
To write compound words, enter the first part of the word, and scroll right to
confirm it. Write the last part of the word, and confirm the word.
5. Messaging
■Write and send a text message
1. Select Menu > Messaging > Create message > Message.
2. Enter one or more phone numbers in the To: field. To retrieve a phone number
from Contacts, select Add.
3. Write your message in the Text: field.
To use a text template, scroll down, and select Insert.
4. Select Send.
■Write and send a multimedia message
1. Select Menu > Messaging > Create message > Message.
2. Enter one or more phone numbers or e-mail addresses in the To: field. To
retrieve a phone number or e-mail address from Contacts, select Add.
3. Write your message. To add a file, scroll down, and select Insert.
4. To view the message before sending it, select Options > Preview.
5. Select Send.
Only devices that have compatible features can receive and display multimedia messages.
The appearance of a message may vary depending on the receiving device.
The wireless network may limit the size of MMS messages. If the inserted picture exceeds
this limit, the device may make it smaller so that it can be sent by MMS.
To check availability and to subscribe to the multimedia messaging service (MMS),
contact your service provider.
■Read and reply to a message
1. To view a received message, select Show.
To read the message later, select Menu > Messaging > Inbox.
2. To reply to a message, select Reply. Write the reply message, and select Send.
25
Messaging
FCC Draft
Important: Exercise caution when opening messages. Messages may contain
malicious software or otherwise be harmful to your device or PC.
■Nokia Xpress audio messaging
You can use the multimedia messaging service (MMS) to create and send an audio
message. MMS must be activated before you can send audio messages.
1. Select Menu > Messaging > Create message > Audio message. The recorder
opens.
2. Speak your message.
3. Enter one or more phone numbers in the To: field, or select Add to retrieve a
number.
4. Select Send, or press the call key.
To open a received audio message, select Play. If more than one message is
received, select View > Play. To listen to the message later, select Exit.
■Flash messages
Select Menu > Messaging > Create message > Flash message. Enter the
recipient’s phone number, and write your message.
Flash messages are text messages that are instantly displayed upon receipt. Flash
messages are not automatically saved.
■E-mail application
To activate the e-mail settings, select Menu > Messaging > Message settings >
E-mail messages.
To use e-mail on your phone, you need a compatible e-mail system.
You may receive the e-mail settings as a configuration message. For more
information, contact your network operator or service provider.
E-mail setup
The e-mail setup wizard starts automatically if no e-mail settings are defined in
the phone. To start the setup for an additional account, select Menu > Messaging
and the existing e-mail account. Select Options > Add mailbox. Follow the
instructions on the display.
The e-mail application requires an internet access point without a proxy. WAP
access points normally include a proxy and do not work with the e-mail
application.
26
Messaging
FCC Draft
Write and send e-mail
You can either write an e-mail message before connecting to the e-mail service or
connect to the service first, then write and send your e-mail.
1. Select Menu > Messaging > Create message > E-mail.
If more than one e-mail account is defined, select the account from which you
want to send the e-mail.
2. Enter the recipient’s e-mail address, the subject, and the e-mail message. To
attach a file, select Options > Insert.
3. Select Send.
To send an e-mail from a draft folder, select Menu > Messaging > Drafts, the
desired message, and Send.
Download e-mail
1. To download e-mail messages, select Menu > Messaging.
If more than one e-mail account is defined, select the account from which you
want to download the e-mail.
The e-mail application only downloads e-mail headers initially.
2. Select an e-mail and press Open to download the complete message.
Read and reply to e-mail
1. Select Menu > Messaging, the account name, and the desired message.
2. To reply to an e-mail, select Options > Reply. Confirm or edit the e-mail
address and subject, and write your reply.
3. Select Send.
To end the e-mail session, select Options > Disconnect.
Important: Exercise caution when opening messages. Messages may
contain malicious software or otherwise be harmful to your device or PC.
■Instant messaging
With instant messaging (IM) you can send short text messages to online users.
You must subscribe to a service and register with the IM service you want to use.
For more information about signing up for IM services, contact your service
provider.
27
Messaging
FCC Draft
■Voice messages
To call your voice mailbox, select Menu > Messaging > Voice messages > Listen to
voice msgs. To enter, search for, or edit your voice mailbox number, select Voice
mailbox no.
The voice mailbox is a network service, and you may need to subscribe to it. For
more information, contact your service provider.
If supported by the network, indicates new voice messages. To call your voice
mailbox number, select Listen.
■Video messages
The video mailbox is a network service, and you may need to subscribe to it. For
more information, contact your service provider.
To call your video mailbox, select Menu > Messaging > Video messages > View
video msgs., or press and hold 2. To enter, search for, or edit your video mailbox
number, select Video mailbox no.
■Info messages
Select Menu > Messaging > Info messages to receive messages from your service
provider (network service). For more information, contact your service provider.
■Service commands
Select Menu > Messaging > Serv. commands to write and send service requests
(USSD commands) to your service provider, such as activation commands for
network services.
■Message settings
General settings
General settings are common for text and multimedia messages.
Select Menu > Messaging > Message settings > General settings and from the
following options:
Save sent messages — to save the sent messages in the Sent items folder
Overwriting in Sent — to overwrite old sent messages with new ones when the
message memory is full. This setting is shown only if you selected Save sent
messages.
Favourite recipient — to define easily available message recipients or groups when
sending messages
28
Messaging
FCC Draft
Font size — to select the font size used in messages
Graphical smileys — to replace character-based smileys with graphical ones
Text messages
Select Menu > Messaging > Message settings > Text messages and from the
following options:
Delivery reports — to request delivery reports for your messages (network service)
Message centres — to set the phone number and name of the message centre that
is required for sending text messages. You receive this number from your service
provider.
Msg. centre in use — to select the message centre in use
Message validity — to select the length of time for which the network attempts to
deliver your message
Messages sent via — to select the format of the messages to be sent (network
service)
Use packet data — to send text messages through a packet data connection, if
available
Character support — to select how characters in messages are shown. To show all
characters, select Full. If you select Reduced, characters with accents and other
marks may be converted to other characters.
Rep. via same centre — to allow a message recipient to send you a reply using your
message centre (network service)
Multimedia messages
You may receive the settings as a configuration message. See “Configuration
settings service,” p. 14. You can also enter the settings manually. See
“Configuration,” p. 37.
Select Menu > Messaging > Message settings > Multimedia messages and from
the following options:
Delivery reports — to request delivery reports for your messages (network service)
MMS creation mode — to restrict or allow various types of multimedia to be added
to messages
Image size in MMS — to set the image size in multimedia messages
Default slide timing — to define the default time between slides in multimedia
messages
29
Contacts
FCC Draft
Allow MMS receptn. — to receive or block multimedia messages. If you select In
home network , you can only receive multimedia messages when you are inside
your home network. The availability of this menu depends on your phone.
Incoming MMS msgs. — to decide how multimedia messages are retrieved.
Allow adverts — to receive or reject advertisements.
Configuration sett. — select Configuration to view the configurations that support
multimedia messaging. Select a service provider, Default, or Personal config. for
multimedia messaging. Select Account and an MMS account contained in the
active configuration settings.
E-mail messages
You may receive the settings as a configuration message. See “Configuration
settings service,” p. 14. You can also enter the settings manually. See
“Configuration,” p. 37.
Select Menu > Messaging > Message settings > E-mail messages and from the
following options:
New e-mail notif. — to receive a notification of new mail
Allow mail reception — to receive e-mail in a foreign network or only in your home
network
Reply with orig. msg. — to include the original message in the reply
Image size in e-mail — to select the size of images in e-mail
Edit mailboxes — to add new mailboxes or edit the one in use
Service messages
Select Menu > Messaging > Message settings > Service messages to activate
service messages and to set up preferences related to service messages.
6. Contacts
You can save names and phone numbers (contacts) to the phone and SIM card
memory.
The phone memory can save contacts with additional details. You can also save an
image for a limited number of contacts.
The SIM card memory can save a name with one phone number attached to it. The
contacts saved in the SIM card memory are indicated by .
30
Contacts
FCC Draft
To synchronise your contacts from a PC, see “Connectivity,” p. 34.
■Save names and phone numbers
Select Menu > Contacts > Names > Options > Add new contact. Names and
numbers are saved in the phone memory.
■Add contact details
Search for the contact to which you want to add a detail, select Details >
Options > Add detail, and from the available options. In the phone memory, you
can save different types of phone numbers, a tone or a video clip, and short text
items for a contact.
Select Menu > Contacts > Settings, and ensure that the Memory in use is Phone
or Phone and SIM.
■Search for a contact
Select Menu > Contacts > Names. Scroll through the list of contacts, or enter the
first characters of the name you are searching for.
■Copy or move contacts
You can move and copy contacts between the phone memory and the SIM card
memory. The SIM card can only save contacts with one phone number.
To move or copy all contacts, select Menu > Contacts > Move contacts or Copy
contacts.
To move or copy individual contacts, select Menu > Contacts > Names. Scroll to
the contact, and select Options > Move contact or Copy contact.
To move or copy multiple contacts, select Menu > Contacts > Names. Scroll to a
contact, and select Options > Mark. Mark the other contacts, and select
Options > Move marked or Copy marked.
■Edit contacts
Select Menu > Contacts > Names. Scroll to the contact, and select Options > Edit,
and scroll to the details you want to change.
■Groups
Select Menu > Contacts > Groups to arrange the names and phone numbers into
caller groups with different ringing tones and group images.
31
Log
FCC Draft
■Business cards
You can send and receive a person’s contact information from a compatible device
that supports the vCard standard as a business card.
To send a business card, search for the contact whose information you want to
send, and select Details > Options > Send business card.
When you receive a business card, select Show > Save to save the business card in
the phone memory. To discard the business card, select Exit > Yes.
■Contact settings
Select Menu > Contacts > Settings and from the following options:
Memory in use — See “Add contact details,” p. 30
Contacts view — to select how the names and numbers in Contacts are displayed
Name display — to select whether the contact’s first or last name is displayed first
Font size — to set the font size for the contact list
Memory status — to view the free and used memory capacity
7. Log
To view the information on your calls, messages, data, and synchronisation, select
Menu > Log and the desired item.
Note: The actual invoice for calls and services from your service provider may vary,
depending on network features, rounding off for billing, taxes, and so forth.
8. Settings
■Profiles
Select Menu > Settings > Profiles, the desired profile, and from the following
options:
Activate — to activate the selected profile
Personalise — to customise the profile with ringing tones, ringing volume,
vibrating alerts, light effects, and message alert tones.
Timed — to set the profile to be active for a certain time. After this time the
previous profile becomes active.
32
Settings
FCC Draft
Share — to share a profile using NFC.
■Themes
Select Menu > Settings > Themes and from the following options:
Select theme — to set a theme. Open the Themes folder, and select a theme.
Theme downloads — to open a list of links to download more themes
■Tones
Select Menu > Settings > Tones to change the tone settings of the selected
profile.
If you select the highest ringing tone level, the ringing tone reaches its highest level after a
few seconds.
■Display
To personalise your display view, adjust the display settings.
Standby mode settings
Select Menu > Settings > Display, and from the following options:
Wallpaper — to add a background image for the standby modes
Active standby — to use the active standby mode
Standby font colour — to select the text font colour in the standby mode
Navigation key icons — to display the icons of the scroll key shortcuts in the
standby mode when active standby mode is deactivated
Notification details — to display details for missed call and messages
Screen saver — to display a shifting pattern or image when no function of the
phone is used for a certain time
Power saver — to save battery power, a digital clock is displayed when no function
of the phone is used for a certain time
Sleep mode — to save battery power, the display turns black when no function of
the phone is used for a certain time
Font size — to set the font size for messaging, contacts, and web pages
Operator logo — to display or hide the operator logo, if available
Cell info display — to receive information from the network operator depending on
the network cell used (network service)
33
Settings
FCC Draft
■Date and time
Select Menu > Settings > Date and time > Date & time settings, Date and time
format, or Auto-update of time (network service) to change the time, time zone,
and date settings.
■My shortcuts
Personal shortcuts give you quick access to frequently used phone functions.
Left and right selection key
To change the function assigned to the left or right selection key, select Menu >
Settings > My shortcuts > Left selection key or Right selection key and the
function.
In the standby mode, if the left selection key is Go to, to activate a function, select
Go to > Options and from the following options:
Select options — to add or remove a function
Organise — to rearrange the functions
Scroll key
To assign other phone functions from a predefined list to the scroll key, select
Menu > Settings > My shortcuts > Navigation key.
Active standby key
To select a function from the list, select Menu > Settings > My shortcuts > Active
standby key.
■Synchronisation and backup
Select Menu > Settings > Sync and backup and from the following options:
Phone switch — Synchronise or copy selected data between two phones using
Bluetooth technology.
Create backup — Create a backup of selected content to your memory card or to
an external device.
Restore backup — Select a backup file stored on the memory card or an external
device, and restore it to the phone.
Server sync— Synchronise or copy data between your phone and another device,
PC, or network server (network service).
34
Settings
FCC Draft
■Connectivity
You can connect your phone to a compatible device using Bluetooth wireless
technology or a USB data cable.
Bluetooth wireless technology
Bluetooth technology allows you to connect your phone to a compatible
Bluetooth phone within a 10 metre (33 feet) range.
This device is compliant with Bluetooth Specification 2.0 supporting the following profiles:
advanced audio distribution, audio video remote control, dial-up networking, file transfer,
generic access, generic object exchange, generic audio/video distribution, hands-free,
headset, object push, phonebook access, serial port, service discovery application, and SIM
access. To ensure interoperability between other devices supporting Bluetooth technology,
use Nokia approved enhancements for this model. Check with the manufacturers of other
devices to determine their compatibility with this device.
Features using Bluetooth technology increase the demand on battery power and reduce the
battery life.
Activate a Bluetooth connection
Select Menu > Settings > Connectivity > Bluetooth > On.
Select My phone's name, and enter a name for your phone.
indicates that Bluetooth is active. Remember that Bluetooth uses battery
power and may reduce battery life.
Connect a Bluetooth device
Select Menu > Settings > Connectivity > Bluetooth > Search audio enhanc. and
the device that you want to connect to.
View a list of your Bluetooth connections
Select Menu > Settings > Connectivity > Bluetooth > Active devices.
Send data to a Bluetooth device
Select Menu > Settings > Connectivity > Bluetooth > Paired devices. Select the
device that you want to connect to, and enter a passcode. To connect to another
device, you must agree on a passcode (up to 16 characters) to use. You only use
the passcode once to set up the connection and begin transferring data.
If you do not see the device on the list, select New to list Bluetooth devices in
range.
35
Settings
FCC Draft
Hide your Bluetooth device from others
Select Menu > Settings > Connectivity > Bluetooth > My phone's visibility. Select
Hidden, or deactivate Bluetooth.
Modem settings
You can connect the phone using Bluetooth wireless technology or a USB data
cable connection to a compatible PC and use the phone as a modem to enable
GPRS connectivity from the PC.
To define the settings for connections from your PC:
1. Select Menu > Settings > Connectivity > Packet data > Packet data settings >
Active access point, and activate the access point you want to use.
2. Select Edit active access pt., enter a name to change the access point settings,
and select OK.
3. Select Packet data acc. pt., enter the access point name (APN) to establish a
connection to a network, and select OK.
4. Establish an internet connection by using your phone as a modem.
See the “Nokia PC Suite,”user guide for more information. If you have set the
settings both on your PC and on your phone, the PC settings are used.
Synchronise from a compatible PC
To synchronise data from calendar, notes, and contacts, install Nokia PC Suite on a
compatible PC. Use Bluetooth wireless technology or a USB data cable, for the
synchronisation, and start the synchronisation from the PC.
Synchronise from a server
To use a remote internet server, subscribe to a synchronisation service. For more
information, contact your service provider.
USB data cable
You can use a USB data cable, CA-101, to transfer data between the phone and a
compatible PC or a printer supporting PictBridge.
To activate the phone for data transfer or image printing, connect the data cable
and select the mode:
Ask on conn. — to set your phone to ask whether to get connected
PC Suite — to use the data cable for Nokia PC Suite
36
Settings
FCC Draft
Printing & Media — to use your phone with a PictBridge compatible printer, or to
connect your phone to a compatible PC
Data storage — to connect to a PC that does not have Nokia software and use your
phone for data storage
To change the USB mode, select Menu > Settings > Connectivity > USB data
cable and the desired USB mode.
■Call
Select Menu > Settings > Call and from the following options:
Call divert — to forward your incoming calls (network service). You may not be
able to forward calls if call barring is active. See Call barring service in “Access
codes,” p. 10.
Anykey answer — to answer a call by briefly pressing any key, except the power
key, the left and right selection keys, or the end key
Automatic redial — to automatically redial the number if the call fails. The phone
tries to call the number a maximum of 10 times.
Video-voice redial — to select whether the phone automatically makes a voice call
to the number to which a video call failed
Voice clarity — to enhance speech intelligibility, especially in noisy environments
Speed dialling — See “Speed dialling,” p. 21.
Call waiting — See “Call waiting,” p. 22.
Summary after call — to briefly display the approximate duration and cost
(network service) of the call after each call
Send my caller ID — to show your phone number to a person you are calling
(network service). To use the setting agreed upon with your service provider, select
Set by network.
Outgoing call line — to choose which phone line is set as default. To check
availability and costs, and to subscribe to the service, contact your network
operator or service provider.
Video sharing — to share your live camera view with the call recipient during an
ongoing voice call. To check availability and costs, and to subscribe to the service,
contact your network operator or service provider.
■Phone
Select Menu > Settings > Phone and from the following options:
37
Settings
FCC Draft
Language settings — to set the language of your phone, select Phone language.
Automatic selects the language according to the information on the SIM card. To
select the USIM card language, select SIM language. To set a language for the
voice commands, select Recognition lang.
Memory status — to view the amount of available phone memory
Automatic keyguard — See “Access codes,” p. 10.
Security keyguard — See “Access codes,” p. 10.
Voice recognition — to make a phone call by saying the name that is saved in
Contacts.
Flight query — See “Flight profile,” p. 17.
Welcome note — to write the note that is shown when the phone is switched on
Phone updates — to update your phone software
Network mode — to select both UMTS and GSM mode. You cannot access this
option during an active call.
Operator selection — to automatically or manually select one of the cellular
networks available in your area.
Help text activation — to select whether the phone displays help texts
Start-up tone — to select whether the phone plays a tone when it is switched on
■Enhancements
This menu or the following options are shown only if the phone is connected to a
compatible mobile enhancement.
Select Menu > Settings > Enhancements, and select an enhancement and option.
■Configuration
You can configure your phone with settings that are required for certain services.
Your service provider may also send you these settings as a text message.
Select Menu > Settings > Configuration and from the following options:
Default config. sett. — to view the service providers saved in the phone, and set a
default service provider
Act. def. in all apps. — to activate the default configuration settings for supported
applications
38
Operator menu
FCC Draft
Preferred access pt. — to view the saved access points. Scroll to an access point,
and select Options > Details to view the name of the service provider, data bearer,
and packet data access point or GSM dial-up number.
Connect to support — to download the configuration settings from your service
provider
Personal config. sett. — to manually add personal accounts for services, and to
activate or delete them. The parameters vary according to the selected service
type.
■Restore factory settings
To restore the phone factory settings, select Menu > Settings > Rest. factory sett.
and from the following options:
Restore settings only — to reset all preference settings without deleting any
personal data
Restore all — to reset all preference settings, and delete all personal data, such as
contacts, messages, media files, and activation keys
9. Operator menu
This menu lets you access services provided by your network operator. For more
information, contact your network operator. The operator can update the menu
with a service message.
10. Gallery
Manage various files stored in the phone memory or on a memory card.
Your phone supports an activation key system to protect acquired content. Always
check the delivery terms of any content and activation key before acquiring them,
as they may be subject to a fee.
To see the list of folders, select Menu > Gallery.
To see the available options of a folder, select a folder and Options.
To view the list of files in a folder, select a folder and Open.
To see the available options of a file, select a file and Options.
39
Media
FCC Draft
■Digital rights management
Content owners may use different types of digital rights management (DRM) technologies
to protect their intellectual property, including copyrights. This device uses various types of
DRM software to access DRM-protected content. With this device you can access content
protected with WMDRM 10, OMA DRM 2.0, OMA DRM 1.0. If certain DRM software fails to
protect the content, content owners may ask that such DRM software's ability to access new
DRM-protected content be revoked. Revocation may also prevent renewal of such DRM-
protected content already in your device. Revocation of such DRM software does not affect
the use of content protected with other types of DRM or the use of non-DRM-protected
content.
Digital rights management (DRM) protected content comes with an associated activation
key that defines your rights to use the content.
If your device has OMA DRM-protected content, to back up both the activation keys and the
content, use the backup feature of Nokia PC Suite. Other transfer methods may not transfer
the activation keys which need to be restored with the content for you to be able to
continue the use of OMA DRM-protected content after the device memory is formatted. You
may also need to restore the activation keys in case the files on your device get corrupted.
If your device has WMDRM protected content, both the activation keys and the content will
be lost if the device memory is formatted. You may also lose the activation keys and the
content if the files on your device get corrupted. Losing the activation keys or the content
may limit your ability to use the same content on your device again. For more information,
contact your service provider.
■Print images
Your phone supports Nokia XpressPrint to print images in JPG
format. To connect your phone to a compatible printer, use the CA-101 USB data
cable or send the image using Bluetooth connectivity to a printer supporting
Bluetooth technology. See “Connectivity,” p. 34.
You may also connect the phone to a printer supporting Bluetooth technology by
touching a service tag on the printer containing the Bluetooth connection data
with the NFC detection area. See “Near Field Communication,” p. 18.
Select the image you want to print and Options > Print.
11. Media
Capture images or record video clips with the built-in
2.0-megapixel camera.
40
Media
FCC Draft
■Camera
The camera produces images in JPG format, and you can digitally zoom up to eight
times.
Capture an image
Select Menu > Media > Camera > Capture. To capture another image, select
Back. To send the image as a multimedia message, select Send. Your phone saves
the image in Gallery > Images.
To zoom, press the volume key up or down.
■Video
You can record video clips in 3GP or MP4 format. The length and file size of the
clips may vary depending on the selected quality and available memory.
To set the quality of your video clips, select Menu > Media > Video > Options >
Settings > Video clip quality > High, Normal, or Basic.
To select the file size limit, select Menu > Media > Video > Options > Settings >
Video clip length.
Record a video clip
Select Menu > Media > Video > Record. To zoom, press the volume key up or
down.
Camera and video options
To use a filter, select Options > Effects.
To adapt the camera to the light conditions, select Options > White balance.
To change other camera and video settings and to select where images and video
clips are stored, select Options > Settings.
■Music player
Your phone includes a music player for listening to music tracks, recordings, or
other MP3, MPEG4, AAC, eAAC+ or WMA music files that you have downloaded
from the web or transferred to the phone with Nokia PC Suite.
To open the music player, select Menu > Media > Music player.
To open a list of all stored songs, select All songs > Open, or scroll right.
To create or manage playlists, select Playlists > Open, or scroll right.
41
Media
FCC Draft
To open folders with Artists, Albums, or Genres, scroll to the one you want, and
select Expand, or scroll right.
To open a video clip list stored in your phone, select Videos > Open, or scroll right.
To customise the music player and equaliser theme, select Menu > Media > Music
player > Go to Music player > Options > Settings > Music player theme.
Music menu
Access stored music and video files, download music or video clips from the web,
or view compatible video streams from a network server (network service).
Play music
Warning: Listen to music at a moderate level. Continuous exposure to high
volume may damage your hearing. Do not hold the device near your ear when the
loudspeaker is in use, because the volume may be extremely loud.
When you open the Music player menu, the details of the first track on the default
playlist are shown.
To play, select .
To adjust the volume, press the volume key up or down.
To pause the playing, select .
To stop the playing, press and hold the end key.
To skip to the next track, select . To skip to the beginning of the previous
track, select .
To rewind the current track, select and hold . To fast forward the current
track, select and hold .
Radio
The FM radio depends on an antenna other than the wireless device antenna. A
compatible headset needs to be attached to the device for the FM radio to
function properly.
Warning: Listen to music at a moderate level. Continuous exposure to high volume
may damage your hearing. Do not hold the device near your ear when the
loudspeaker is in use, because the volume may be extremely loud.
Select Menu > Media > Radio. To use , , , or on the display, scroll to
the key you want, and select it.
42
Media
FCC Draft
Tune-in and save radio stations
1. To start the search, select and hold or . To change the radio frequency in
0.05 MHz steps, briefly press or .
2. To save a station, select Options > Save station.
3. Enter the name of the station, and select OK.
Listen to the radio
1. To scroll to a radio station, select or , or press the headset key.
2. To select a radio station location, briefly press the corresponding number keys.
3. Select Options and from the following:
Stations — to select a saved station from the list. It is only possible to enter the
station list if the selected station is saved.
Search all stations — to search for all radio stations that the phone can receive
Set frequency — to enter the frequency of a radio station
Settings — to change the Radio Data System (RDS) settings. When RDS is on, you
can select Auto-freq. change on to automatically change to another frequency
containing the same radio station when the original signal becomes weak.
■Voice recorder
Record pieces of speech, sound, or an active call, and save them in Gallery.
The recorder cannot be used when a data call or GPRS connection is active.
Select Menu > Media > Voice recorder. To use , , or on the display, scroll
left or right.
Record sound
1. Select , or, during a call, select Options > Record. While recording a call, all
parties to the call hear a faint beeping sound. To pause the recording, select
.
2. To end the recording, select . The recording is saved in Recordings in
Gallery.
Select Options to play or send the last recording, to access the list of recordings,
or to select the memory and the folder to store the recordings.
■Equaliser
Select Menu > Media > Equaliser.
43
Push to talk
FCC Draft
To activate an equaliser set, scroll to one of the sets, and select Activate.
To edit or rename a selected set, select Options > Edit or Rename. Not all sets can
be edited or renamed.
■Stereo widening
Select Menu > Media > Stereo widening > On or Off to improve the stereo sound.
12. Push to talk
Select Menu > Push to talk.
With Push to talk (PTT) you may have a conversation with one person or with a
group of people (channel) having compatible devices. You have to subscribe to a
service and register with a PTT service. For more information, contact your service
provider.
13. Organiser
■Alarm clock
Select Menu > Organiser > Alarm clock.
To set an alarm, select Alarm time, and enter a time.
To set an alarm to repeat on selected weekdays, select Repeat alarm. If you select
the radio as the alarm tone, connect the headset to the phone.
To set a snooze time-out, select Snooze time-out and the length of time.
Stop the alarm
The alarm sounds an alert tone even if the phone is switched off. To stop the
alarm, select Stop. If you allow the alarm to sound for a minute or select Snooze,
the alarm stops for the Snooze time-out, then resumes.
■Calendar
Select Menu > Organiser > Calendar.
The current day is framed. If there are any notes set for the day, the day is in bold.
To view the day notes, select View. To view a week, select Options > Week view. To
delete all notes in the calendar, select the month or week view, and select
Options > Delete notes.
44
Organiser
FCC Draft
To set the date, time, time zone, calendar tone, date or time format, default view,
or the first day of the week, select Settings. To set the phone to delete old notes
automatically after a specified time, select Auto-delete notes.
To synchronise your calendar from a PC, see “Connectivity,” p. 34.
Make a calendar note
Select Menu > Organiser > Calendar. Scroll to the date, and select Options >
Make a note. Then select the note type, and fill in the fields.
Note alarm
At the relevant time, the phone displays the note and sounds a tone, if you set one.
If is displayed, press the call key to call a number. To stop the alarm and to
view the note, select View. If you let the alarm sound for a minute or select
Snooze, the alarm stops for the snooze time-out, then resumes.
To stop the alarm without viewing the note, select Exit.
■To-do list
Select Menu > Organiser > To-do list.
To make a note if no note is added, select Add; otherwise, select Options > Add.
Fill in the fields, and select Save.
To view a note, scroll to it, and select View.
To share a note using NFC, select Share.
■Notes
Select Menu > Organiser > Notes to write and send notes.
To make a note if no note is added, select Add; otherwise, select Options > Make a
note. Write the note, and select Save.
To share a note using NFC, select Share.
To synchronise your notes from a PC, see “Connectivity,” p. 34.
■Calculator
Select Menu > Organiser > Calculator. When 0 is displayed, enter the first
number in the calculation. Press # for a decimal point. Scroll to the desired
operation or function. Enter the second number. Repeat this sequence as many
times as it is necessary. To start a new calculation, select and press Clear as many
times as necessary until 0 is displayed.
This calculator has limited accuracy and is designed for simple calculations.
45
Applications
FCC Draft
■Countdown timer
1. To activate the countdown timer, select Menu > Organiser > Countd. timer >
Normal timer, enter the alarm time, and write a note that is displayed when
the time expires. To change the countdown time, select Change time.
2. To start the timer, select Start.
3. To stop the timer, select Stop timer.
Interval timer
1. To have an interval timer with up to 10 intervals started, first enter the
intervals.
2. Select Menu > Organiser > Countd. timer > Interval timer.
3. To start the timer, select Start timer > Start.
■Stopwatch
Select Menu > Organiser > Stopwatch and from the following options:
Split timing — to take intermediate times. To reset the time without saving it,
select Stop > Options > Reset.
Lap timing — to take lap times
Continue — to view the timing that you have set in the background
Show last — to view the most recently measured time if the stopwatch is not reset
View times or Delete times — to view or delete the saved times
To set the stopwatch timing in the background, press the end key. Select Continue
to view the timing that you have set in the background.
14. Applications
■Launch a game or application
Select Menu > Applications > Games orCollection. Scroll to the desired item, and
select Open.
■Application options
To define settings, select Menu > Applications > Options > Application settings
and select from the available options.
46
Web
FCC Draft
15. Web
You can access various mobile internet services with your phone browser.
Important: Use only services that you trust and that offer adequate security and
protection against harmful software.
For availability of these services, pricing, tariffs, and instructions, contact your
service provider.
With the phone browser you can view the services that use wireless markup
language (WML) or extensible hypertext markup language (XHTML) on their web
pages. Appearance may vary due to screen size. You may not be able to view all
details of the web pages.
■Connect to a service
Ensure that the correct configuration settings of the service are activated.
To select the settings for connecting to the service:
1. Select Menu > Web > Settings > Configuration sett.
2. Select Configuration. Only the configurations that support browsing service
are shown. Select a service provider, Default, or Personal config. for browsing.
You may receive the configuration settings required for browsing as a
configuration message from the service provider that offers the service that
you want to use.
3. Select Account and a browsing service account contained in the active
configuration settings.
4. Select Displ. term. window > Yes to perform manual user authentication for
intranet connections.
Make a connection to the service in one of the following ways:
•Select Menu > Web > Home; or in the standby mode, press and hold 0.
• To select a bookmark of the service, select Menu > Web > Bookmarks.
• To select the last URL, select Menu > Web > Last web addr.
• To enter the address of the service, select Menu > Web > Go to address. Enter
the address of the service, and select OK.
47
Web
FCC Draft
■Browse pages
After you make a connection to the service, you can start browsing its pages. The
function of the phone keys may vary in different services. Follow the text guides
on the display. For more information, contact your service provider.
■Bookmarks
You can save page addresses as bookmarks in the phone memory.
To add a bookmark while browsing, select Options > Add bookmark; or in the
standby mode, select Menu > Web > Bookmarks.
To make a connection to bookmarked page, scroll to a bookmark and select it, or
press the call key.
Select Options to view, edit, delete, send or share a bookmark.
■Appearance settings
To personalise the way web pages are displayed on your phone, while browsing,
select Options > Other options > Appearance settings; or in the standby mode,
select Menu > Web > Settings > Appearance settings.
■Security settings
Cookies and cache
A cookie is data that a site saves in the cache memory of your phone. Cookies are
saved until you clear the cache memory.
While browsing, select Options > Other options > Security > Cookie settings; or in
the standby mode, select Menu > Web > Settings > Security settings > Cookies.
To allow or prevent the phone from receiving cookies, select Allow or Reject.
A cache is a memory location that is used to store data temporarily. If you have tried to
access or have accessed confidential information requiring passwords, empty the cache
after each use. The information or services you have accessed are stored in the cache. To
empty the cache, select Options > Other options > Clear the cache; in the standby mode,
select Menu > Web > Clear the cache.
Scripts over secure connection
You can select whether to allow the running of scripts from a secure page. The
phone supports WML scripts.
To allow the scripts, while browsing, select Options > Other options > Security >
WMLScript settings; or in the standby mode, select Menu > Web > Settings >
Security settings > WMLScripts in conn. > Allow.
48
Web
FCC Draft
■Service inbox
The phone is able to receive service messages sent by your service provider
(network service). Service messages are notifications (for example, news
headlines), and they may contain a text message or an address of a service.
To access the Service inbox in the standby mode, when you have received a service
message, select Show. If you select Exit, the message is moved to the Service
inbox. To access the Service inbox later, select Menu > Web > Service inbox.
To set whether you want to receive service messages, select Menu > Web >
Settings > Service inbox sett. > Service messages > On or Off.
■Browser security
Security features may be required for some services, such as online banking or
shopping. For such connections you need security certificates and possibly a
security module, which may be available on your SIM card. For more information,
contact your service provider.
Certificates
Important: Even if the use of certificates makes the risks involved in remote
connections and software installation considerably smaller, they must be used
correctly in order to benefit from increased security. The existence of a certificate
does not offer any protection by itself; the certificate manager must contain correct,
authentic, or trusted certificates for increased security to be available. Certificates have a
restricted lifetime. If "Expired certificate" or "Certificate not valid yet" is shown, even if the
certificate should be valid, check that the current date and time in your device are correct.
Before changing any certificate settings, you must make sure that you really trust the owner
of the certificate and that the certificate really belongs to the listed owner.
There are three kinds of certificates: server certificates, authority certificates, and
user certificates. You may receive these certificates from your service provider.
Authority certificates and user certificates may also be saved in the security
module by the service provider.
To view the list of the authority or user certificates downloaded to your device,
select Menu > Settings > Security > Authority certificates or User certificates.
is displayed during a connection if the data transmission between the phone
and the content server is encrypted.
The security icon does not indicate that the data transmission between the gateway and the
content server (or the place where the requested resource is stored) is secure. The service
provider secures the data transmission between the gateway and the content server.
49
SIM services
FCC Draft
Digital signature
You can make digital signatures with your phone if your SIM card has a security
module. Using the digital signature can be the same as signing your name to a
paper bill, contract, or other document.
1. To make a digital signature, select a link on a web page, for example, the title
of a book you want to buy and its price. The text to sign, which may include the
amount and date, is shown.
Check that the header text is Read and that the digital signature icon is
shown.
2. To sign the text, read all of the text first, and select Sign.
The text may not fit within a single screen. Therefore, ensure that you scroll
through and read all of the text before signing.
3. Select the user certificate you want to use. Enter the signing PIN. The digital
signature icon disappears, and the service may display a confirmation of your
purchase.
16. SIM services
Your SIM card may provide additional services. You can access this menu only if it
is supported by your SIM card. The name and contents of the menu depend on the
available services.
For availability and information on using SIM card services, contact your SIM card vendor.
This may be the service provider or other vendor.
Accessing these services may involve sending messages or making a phone call for
which you may be charged.
17. PC connectivity
You can send and receive mail, and access the internet when your phone is
connected to a compatible PC through a Bluetooth or a data cable connection.
You can use your phone with a variety of PC connectivity and data
communications applications.
50
Battery and charger information
FCC Draft
■Nokia PC Suite
With Nokia PC Suite, you can manage your music, synchronise contacts, calendar,
notes, and to-do notes between your phone and a compatible PC or a remote
internet server (network service). You may find more information and PC Suite at
www.nokia.com/support or your local Nokia website.
■Data communication applications
For information on using a data communication application, refer to the
documentation provided with it.
Making or answering phone calls during a computer connection is not
recommended, as it might disrupt the operation.
For better performance during data calls, place the phone on a stationary surface
with the keypad facing downward. Do not move the phone by holding it in your
hand during a data call.
18. Battery and charger information
Your device is powered by a rechargeable battery. The battery intended for use with this
device is BL-4U. This device is intended for use when supplied with power from the following
chargers: AC-8. The battery can be charged and discharged hundreds of times, but it will
eventually wear out. When the talk and standby times are noticeably shorter than normal,
replace the battery. Use only Nokia approved batteries, and recharge your battery only with
Nokia approved chargers designated for this device. Use of an unapproved battery or charger
may present a risk of fire, explosion, leakage, or other hazard.
If a battery is being used for the first time or if the battery has not been used for a prolonged
period, it may be necessary to connect the charger, then disconnect and reconnect it to
begin charging the battery. If the battery is completely discharged, it may take several
minutes before the charging indicator appears on the display or before any calls can be
made.
Always switch the device off and disconnect the charger before removing the battery.
Unplug the charger from the electrical plug and the device when not in use. Do not leave a
fully charged battery connected to a charger, since overcharging may shorten its lifetime. If
left unused, a fully charged battery will lose its charge over time.
Always try to keep the battery between 15°C and 25°C (59°F and 77°F). Extreme
temperatures reduce the capacity and lifetime of the battery. A device with a hot or cold
battery may not work temporarily. Battery performance is particularly limited in
temperatures well below freezing.
51
Battery and charger information
FCC Draft
Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic
object such as a coin, clip, or pen causes direct connection of the positive (+) and negative
(-) terminals of the battery. (These look like metal strips on the battery.) This might happen,
for example, when you carry a spare battery in your pocket or purse. Short-circuiting the
terminals may damage the battery or the connecting object.
Do not dispose of batteries in a fire as they may explode. Batteries may also explode if
damaged. Dispose of batteries according to local regulations. Please recycle when possible.
Do not dispose as household waste.
Do not dismantle, cut, open, crush, bend, deform, puncture, or shred cells or batteries. In the
event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. In
the event of such a leak, flush your skin or eyes immediately with water, or seek medical
help.
Do not modify, remanufacture, attempt to insert foreign objects into the battery, or immerse
or expose it to water or other liquids.
Improper battery use may result in a fire, explosion, or other hazard. If the device or battery
is dropped, especially on a hard surface, and you believe the battery has been damaged, take
it to a service centre for inspection before continuing to use it.
Use the battery only for its intended purpose. Never use any charger or battery that is
damaged. Keep your battery out of the reach of small children.
■Nokia battery authentication guidelines
Always use original Nokia batteries for your safety. To check that you are getting an original
Nokia battery, purchase it from an authorised Nokia dealer, and inspect the hologram label
using the following steps:
Successful completion of the steps is not a total assurance of the authenticity of the battery.
If you have any reason to believe that your battery is not an authentic, original Nokia
battery, you should refrain from using it, and take it to the nearest authorised Nokia Care
point or dealer for assistance. Your authorised Nokia Care point or dealer will inspect the
battery for authenticity. If authenticity cannot be verified, return the battery to the place of
purchase.
Authenticate hologram
1. When you look at the hologram on the label, you should
see the Nokia connecting hands symbol from one angle and
the Nokia Original Enhancements logo when looking from
another angle.
52
Care and maintenance
FCC Draft
2. When you angle the hologram left, right, down and up, you
should see 1, 2, 3 and 4 dots on each side respectively.
What if your battery is not authentic?
If you cannot confirm that your Nokia battery with the hologram on the label is an authentic
Nokia battery, please do not use the battery. Take it to the nearest authorised Nokia Care
point or dealer for assistance. The use of a battery that is not approved by the manufacturer
may be dangerous and may result in poor performance and damage to your device and its
enhancements. It may also invalidate any approval or warranty applying to the device.
To find out more about original Nokia batteries, see www.nokia.com/battery.
Care and maintenance
Your device is a product of superior design and craftsmanship and should be treated with
care. The following suggestions will help you protect your warranty coverage.
• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can
contain minerals that will corrode electronic circuits. If your device does get wet, remove
the battery, and allow the device to dry completely before replacing it.
• Do not use or store the device in dusty, dirty areas. Its moving parts and electronic
components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of electronic
devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal temperature,
moisture can form inside the device and damage electronic circuit boards.
• Do not attempt to open the device other than as instructed in this guide.
• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards
and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.
• Do not paint the device. Paint can clog the moving parts and prevent proper operation.
• Use a soft, clean, dry cloth to clean any lenses, such as camera, proximity sensor, and
light sensor lenses.
• Use only the supplied or an approved replacement antenna. Unauthorised antennas,
modifications, or attachments could damage the device and may violate regulations
governing radio devices.
Additional safety information
53
FCC Draft
• Use chargers indoors.
• Always create a backup of data you want to keep, such as contacts and
calendar notes.
• To reset the device from time to time for optimum performance, power off
the device and remove the battery.
These suggestions apply equally to your device, battery, charger, or any
enhancement. If any device is not working properly, take it to the nearest
authorised service facility for service.
Disposal
The crossed-out wheeled-bin symbol on your product, literature, or
packaging reminds you that all electrical and electronic products,
batteries, and accumulators must be taken to separate collection at
the end of their working life. This requirement applies to the European Union and
other locations where separate collection systems are available. Do not dispose
of these products as unsorted municipal waste.
By returning the products to collection you help prevent uncontrolled waste
disposal and promote the reuse of material resources. More detailed information
is available from the product retailer, local waste authorities, national producer
responsibility organizations, or your local Nokia representative. For the product
Eco-Declaration or instructions for returning your obsolete product, go to
country-specific information at www.nokia.com.
Additional safety information
■Small children
Your device and its enhancements may contain small parts. Keep them out of the
reach of small children.
■Operating environment
This device meets RF exposure guidelines when used either in the normal use
position against the ear or when positioned at least 1.5 centimeters (5/8 inch)
away from the body. When a carry case, belt clip, or holder is used for body-worn
operation, it should not contain metal and should position the device the above-
stated distance from your body.
To transmit data files or messages, this device requires a quality connection to
the network. In some cases, transmission of data files or messages may be
delayed until such a connection is available. Ensure the above separation
distance instructions are followed until the transmission is completed.
Additional safety information
54
FCC Draft
Parts of the device are magnetic. Metallic materials may be attracted to the
device. Do not place credit cards or other magnetic storage media near the
device, because information stored on them may be erased.
■Medical devices
Operation of any radio transmitting equipment, including wireless phones, may
interfere with the functionality of inadequately protected medical devices.
Consult a physician or the manufacturer of the medical device to determine if
they are adequately shielded from external RF energy or if you have any
questions. Switch off your device in health care facilities when any regulations
posted in these areas instruct you to do so. Hospitals or health care facilities may
be using equipment that could be sensitive to external RF energy.
Implanted medical devices
Manufacturers of medical devices recommend that a minimum separation of
15.3 centimeters (6 inches) should be maintained between a wireless device and
an implanted medical device, such as a pacemaker or implanted cardioverter
defibrillator, to avoid potential interference with the medical device. Persons
who have such devices should:
• Always keep the wireless device more than 15.3 centimeters (6 inches) from
the medical device when the wireless device is turned on.
• Not carry the wireless device in a breast pocket.
• Hold the wireless device to the ear opposite the medical device to minimise
the potential for interference.
• Turn the wireless device off immediately if there is any reason to suspect that
interference is taking place.
• Read and follow the directions from the manufacturer of their implanted
medical device.
If you have any questions about using your wireless device with an implanted
medical device, consult your health care provider.
Hearing aids
Some digital wireless devices may interfere with some hearing aids. If
interference occurs, consult your service provider.
■Vehicles
RF signals may affect improperly installed or inadequately shielded electronic
systems in motor vehicles such as electronic fuel injection systems, electronic
antiskid (antilock) braking systems, electronic speed control systems, and air bag
55
FCC Draft
systems. For more information, check with the manufacturer, or its representative, of your
vehicle or any equipment that has been added.
Only qualified personnel should service the device or install the device in a vehicle. Faulty
installation or service may be dangerous and may invalidate any warranty that may apply to
the device. Check regularly that all wireless device equipment in your vehicle is mounted
and operating properly. Do not store or carry flammable liquids, gases, or explosive materials
in the same compartment as the device, its parts, or enhancements. For vehicles equipped
with an air bag, remember that air bags inflate with great force. Do not place objects,
including installed or portable wireless equipment in the area over the air bag or in the air
bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag
inflates, serious injury could result.
Using your device while flying in aircraft is prohibited. Switch off your device before
boarding an aircraft. The use of wireless teledevices in an aircraft may be dangerous to the
operation of the aircraft, disrupt the wireless telephone network, and may be illegal.
■Potentially explosive environments
Switch off your device when in any area with a potentially explosive atmosphere, and obey
all signs and instructions. Potentially explosive atmospheres include areas where you would
normally be advised to turn off your vehicle engine. Sparks in such areas could cause an
explosion or fire resulting in bodily injury or even death. Switch off the device at refuelling
points such as near gas pumps at service stations. Observe restrictions on the use of radio
equipment in fuel depots, storage, and distribution areas; chemical plants; or where blasting
operations are in progress. Areas with a potentially explosive atmosphere are often, but not
always, clearly marked. They include below deck on boats, chemical transfer or storage
facilities and areas where the air contains chemicals or particles such as grain, dust, or metal
powders. You should check with the manufacturers of vehicles using liquefied petroleum gas
(such as propane or butane) to determine if this device can be safely used in their vicinity.
■Emergency calls
Important: This device operates using radio signals, wireless networks, landline
networks, and user-programmed functions. If your device supports voice calls
over the internet (internet calls), activate both the internet calls and the
cellular phone. The device will attempt to make emergency calls over both the
cellular networks and through your internet call provider if both are activated. Connections
in all conditions cannot be guaranteed. You should never rely solely on any wireless device
for essential communications like medical emergencies.
To make an emergency call:
1. If the device is not on, switch it on. Check for adequate signal strength. Depending on
your device, you may also need to complete the following:
• Insert a SIM card if your device uses one.
• Remove certain call restrictions you have activated in your device.
56
FCC Draft
• Change your profile from offline or flight profile mode to an active profile.
2. Press the end key as many times as needed to clear the display and ready the device for
calls.
3. Enter the official emergency number for your present location. Emergency numbers vary
by location.
4. Press the call key.
When making an emergency call, give all the necessary information as accurately as
possible. Your wireless device may be the only means of communication at the scene of an
accident. Do not end the call until given permission to do so.
■Certification information (SAR)
This mobile device meets guidelines for exposure to radio waves.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits
for exposure to radio waves recommended by international guidelines. These guidelines
were developed by the independent scientific organization ICNIRP and include safety
margins designed to assure the protection of all persons, regardless of age and health.
The exposure guidelines for mobile devices employ a unit of measurement known as the
Specific Absorption Rate or SAR. The SAR limit stated in the ICNIRP guidelines is 2.0 watts/
kilogram (W/kg) averaged over 10 grams of tissue. Tests for SAR are conducted using
standard operating positions with the device transmitting at its highest certified power level
in all tested frequency bands. The actual SAR level of an operating device can be below the
maximum value because the device is designed to use only the power required to reach the
network. That amount changes depending on a number of factors such as how close you are
to a network base station. The highest SAR value under the ICNIRP guidelines for use of the
device at the ear is 0.79 W/kg.
Use of device accessories and enhancements may result in different SAR values. SAR values
may vary depending on national reporting and testing requirements and the network band.
Additional SAR information may be provided under product information at www.nokia.com.
Your mobile device is also designed to meet the requirements for exposure to radio waves
established by the Federal Communications Commission (USA) and Industry Canada. These
requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR
value reported under this standard during product certification for use at the ear is 0.82 W/
kg and when properly worn on the body is 1.06 W/kg.
APPENDIX
■A message from the CTIA
Safety is the most important call you will ever make.
A Guide to Safe and Responsible Wireless Phone Use.
57
FCC Draft
Tens of millions of people in the U.S. today take advantage of the unique combination of
convenience, safety and value delivered by the wireless telephone. Quite simply, the wireless
phone gives people the powerful ability to communicate by voice--almost anywhere,
anytime--with the boss, with a client, with the kids, with emergency personnel or even with
the police. Each year, Americans make billions of calls from their wireless phones, and the
numbers are rapidly growing.
But an important responsibility accompanies those benefits, one that every wireless phone
user must uphold. When driving a car, driving is your first responsibility. A wireless phone
can be an invaluable tool, but good judgment must be exercised at all times while driving a
motor vehicle--whether on the phone or not.
The basic lessons are ones we all learned as teenagers. Driving requires alertness, caution
and courtesy. It requires a heavy dose of basic common sense---keep your head up, keep
your eyes on the road, check your mirrors frequently and watch out for other drivers. It
requires obeying all traffic signs and signals and staying within the speed limit. It means
using seatbelts and requiring other passengers to do the same.
But with wireless phone use, driving safely means a little more. This brochure is a call to
wireless phone users everywhere to make safety their first priority when behind the wheel of
a car. Wireless telecommunications is keeping us in touch, simplifying our lives, protecting
us in emergencies and providing opportunities to help others in need.
When it comes to the use of wireless phones, safety is your most important call.
Wireless phone "Safety Tips"
1. Get to know your wireless phone and its features such as speed dial and redial. Carefully
read your instruction manual and learn to take advantage of valuable features most
phones offer, including automatic redial and memory. Also, work to memorize the phone
keypad so you can use the speed dial function without taking your attention off the road.
2. When available, use a hands free device. A number of hands free wireless phone
accessories are readily available today. Whether you choose an installed mounted device
for your wireless phone or a speaker phone accessory, take advantage of these devices if
available to you.
3. Position your wireless phone within easy reach. Make sure you place your wireless phone
within easy reach and where you can grab it without removing your eyes from the road.
If you get an incoming call at an inconvenient time, if possible, let your voice mail
answer it for you.
4. .Suspend conversations during hazardous driving conditions or situations. Let the person
you are speaking with know you are driving; if necessary, suspend the call in heavy
traffic or hazardous weather conditions. Rain, sleet, snow and ice can be hazardous, but
so is heavy traffic. As a driver, your first responsibility is to pay attention to the road.
5. Do not take notes or look up phone numbers while driving. If you are reading an address
book or business card, or writing a “to do” list while driving a car, you are not watching
where you are going. It’s common sense. Don’t get caught in a dangerous situation
58
FCC Draft
because you are reading or writing and not paying attention to the road or nearby
vehicles.
6. Dial sensibly and assess the traffic; if possible, place calls when you are not moving or
before pulling into traffic. Try to plan your calls before you begin your trip or attempt to
coincide your calls with times you may be stopped at a stop sign, red light or otherwise
stationary. But if you need to dial while driving, follow this simple tip--dial only a few
numbers, check the road and your mirrors, then continue.
7. Do not engage in stressful or emotional conversations that may be distracting. Stressful
or emotional conversations and driving do not mix--they are distracting and even
dangerous when you are behind the wheel of a car. Make people you are talking with
aware you are driving and if necessary, suspend conversations which have the potential
to divert your attention from the road.
8. Use your wireless phone to help others in emergencies. Your wireless phone provides you
a perfect opportunity to be a “Good Samaritan” in your community. If you see an auto
accident, crime in progress or other serious emergency where lives are in danger, call 9-
1-1 or other local emergency number, as you would want others to do for you.
9. Use your wireless phone to call for help. Your wireless phone is one of the greatest tools
you can own to protect yourself and your family in dangerous situations--with your
phone at your side, help is only three numbers away. Dial 9-1-1 or other local emergency
number in the case of fire, traffic accident, road hazard or medical emergency.
Remember, it is a free call on your wireless phone!
10. Use your wireless phone to help others in emergencies. Your wireless phone provides you
a perfect opportunity to be a “Good Samaritan” in your community. If you see an auto
accident, crime in progress or other serious emergency where lives are in danger, call 9-
1-1 or other local emergency number, as you would want others to do for you.
11. Call roadside assistance or a special wireless non-emergency assistance number when
necessary. Certain situations you encounter while driving may require attention, but are
not urgent enough to merit a call for emergency services. But you still can use your
wireless phone to lend a hand. If you see a broken-down vehicle posing no serious
hazard, a broken traffic signal, a minor traffic accident where no one appears injured or a
vehicle you know to be stolen, call roadside assistance or other special non-emergency
wireless number.
Careless, distracted individuals and people driving irresponsibly represent a hazard to
everyone on the road. Since 1984, the Cellular Telecommunications Industry Association and
the wireless industry have conducted educational outreach to inform wireless phone users
of their responsibilities as safe drivers and good citizens. As we approach a new century,
more and more of us will take advantage of the benefits of wireless telephones. And, as we
take to the roads, we all have a responsibility to drive safely.
The wireless industry reminds you to use your phone safely when driving.
For more information, please call 1-888-901-SAFE.
APPENDIX
59
FCC Draft
For updates: http://www.wow-com.com/consumer/issues/driving/
articles.cfm?ID=85
■Message from the FDA
See http://www.fda.gov/cellphones/ for updated information.
Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health problems are
associated with using wireless phones. There is no proof, however, that wireless
phones are absolutely safe. Wireless phones emit low levels of radiofrequency
energy (RF) in the microwave range while being used. They also emit very low
levels of RF when in the stand-by mode. Whereas high levels of RF can produce
health effects (by heating tissue), exposure to low level RF that does not produce
heating effects causes no known adverse health effects. Many studies of low
level RF exposures have not found any biological effects. Some studies have
suggested that some biological effects may occur, but such findings have not
been confirmed by additional research. In some cases, other researchers have had
difficulty in reproducing those studies, or in determining the reasons for
inconsistent results.
What is FDA's role concerning the safety of wireless phones?
Under the law, FDA does not review the safety of radiation-emitting consumer
products such as wireless phones before they can be sold, as it does with new
drugs or medical devices. However, the agency has authority to take action if
wireless phones are shown to emit radiofrequency energy (RF) at a level that is
hazardous to the user. In such a case, FDA could require the manufacturers of
wireless phones to notify users of the health hazard and to repair, replace or
recall the phones so that the hazard no longer exists.
Although the existing scientific data do not justify FDA regulatory actions, FDA
has urged the wireless phone industry to take a number of steps, including the
following:
• Support needed research into possible biological effects of RF of the type
emitted by wireless phones;
• Design wireless phones in a way that minimizes any RF exposure to the user
that is not necessary for device function; and
• Cooperate in providing users of wireless phones with the best possible
information on possible effects of wireless phone use on human health.
FDA belongs to an interagency working group of the federal agencies that have
responsibility for different aspects of RF safety to ensure coordinated efforts at
the federal level. The following agencies belong to this working group:
APPENDIX
60
FCC Draft
• National Institute for Occupational Safety and Health
• Environmental Protection Agency
• Federal Communications Commission
• Occupational Safety and Health Administration
• National Telecommunications and Information Administration
The National Institutes of Health participates in some interagency working group
activities, as well.
FDA shares regulatory responsibilities for wireless phones with the Federal
Communications Commission (FCC). All phones that are sold in the United States
must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA
and other health agencies for safety questions about wireless phones.
FCC also regulates the base stations that the wireless phone networks rely upon.
While these base stations operate at higher power than do the wireless phones
themselves, the RF exposures that people get from these base stations are
typically thousands of times lower than those they can get from wireless phones.
Base stations are thus not the primary subject of the safety questions discussed
in this document.
What is FDA doing to find out more about the possible health effects of
wireless phone RF?
FDA is working with the U.S. National Toxicology Program and with groups of
investigators around the world to ensure that high priority animal studies are
conducted to address important questions about the effects of exposure to
radiofrequency energy (RF). FDA has been a leading participant in the World
Health Organization International Electromagnetic Fields (EMF) Project since its
inception in 1996. An influential result of this work has been the development of
a detailed agenda of research needs that has driven the establishment of new
research programs around the world. The Project has also helped develop a series
of public information documents on EMF issues. FDA and the Cellular
Telecommunications & Internet Association (CTIA) have a formal Cooperative
Research and Development Agreement (CRADA) to do research on wireless phone
safety. FDA provides the scientific oversight, obtaining input from experts in
government, industry, and academic organizations. CTIA-funded research is
conducted through contracts to independent investigators. The initial research
will include both laboratory studies and studies of wireless phone users. The
CRADA will also include a broad assessment of additional research needs in the
context of the latest research developments around the world.
What steps can I take to reduce my exposure to radiofrequency energy from
my wireless phone?
APPENDIX
61
FCC Draft
If there is a risk from these products--and at this point we do not know that there
is--it is probably very small. But if you are concerned about avoiding even
potential risks, you can take a few simple steps to minimize your exposure to
radiofrequency energy (RF). Since time is a key factor in how much exposure a
person receives, reducing the amount of time spent using a wireless phone will
reduce RF exposure.
If you must conduct extended conversations by wireless phone every day, you
could place more distance between your body and the source of the RF, since the
exposure level drops off dramatically with distance. For example, you could use a
headset and carry the wireless phone away from your body or use a wireless
phone connected to a remote antenna
Again, the scientific data do not demonstrate that wireless phones are harmful.
But if you are concerned about the RF exposure from these products, you can use
measures like those described above to reduce your RF exposure from wireless
phone use.
What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless phones,
including children and teenagers. If you want to take steps to lower exposure to
radiofrequency energy (RF), the measures described above would apply to
children and teenagers using wireless phones. Reducing the time of wireless
phone use and increasing the distance between the user and the RF source will
reduce RF exposure. Some groups sponsored by other national governments have
advised that children be discouraged from using wireless phones at all. For
example, the government in the United Kingdom distributed leaflets containing
such a recommendation in December 2000. They noted that no evidence exists
that using a wireless phone causes brain tumors or other ill effects. Their
recommendation to limit wireless phone use by children was strictly
precautionary; it was not based on scientific evidence that any health hazard
exists.
Do hands-free kits for wireless phones reduce risks from exposure to RF
emissions?
Since there are no known risks from exposure to RF emissions from wireless
phones, there is no reason to believe that hands-free kits reduce risks. Hands-free
kits can be used with wireless phones for convenience and comfort. These
systems reduce the absorption of RF energy in the head because the phone,
which is the source of the RF emissions, will not be placed against the head. On
the other hand, if the phone is mounted against the waist or other part of the
body during use, then that part of the body will absorb more RF energy. Wireless
phones marketed in the U.S. are required to meet safety requirements regardless
APPENDIX
62
FCC Draft
of whether they are used against the head or against the body. Either
configuration should result in compliance with the safety limit.
Do wireless phone accessories that claim to shield the head from RF radiation
work?
Since there are no known risks from exposure to RF emissions from wireless
phones, there is no reason to believe that accessories that claim to shield the
head from those emissions reduce risks. Some products that claim to shield the
user from RF absorption use special phone cases, while others involve nothing
more than a metallic accessory attached to the phone. Studies have shown that
these products generally do not work as advertised. Unlike "hand-free" kits, these
so-called "shields" may interfere with proper operation of the phone. The phone
may be forced to boost its power to compensate, leading to an increase in RF
absorption. In February 2002, the Federal trade Commission (FTC) charged two
companies that sold devices that claimed to protect wireless phone users from
radiation with making false and unsubstantiated claims. According to FTC, these
defendants lacked a reasonable basis to substantiate their claim.
How does FCC Audit Cell Phone RF?
After FCC grants permission for a particular cellular telephone to be marketed,
FCC will occasionally conduct “post-grant” testing to determine whether
production versions of the phone are being produced to conform with FCC
regulatory requirements. The manufacturer of a cell phone that does not meet
FCC’s regulatory requirements may be required to remove the cell phone from use
and to refund the purchase price or provide a replacement phone, and may be
subject to civil or criminal penalties. In addition, if the cell phone presents a risk
of injury to the user, FDA may also take regulatory action. The most important
post-grant test, from a consumer’s perspective, is testing of the RF emissions of
the phone. FCC measures the Specific Absorption Rate (SAR) of the phone,
following a very rigorous testing protocol. As is true for nearly any scientific
measurement, there is a possibility that the test measurement may be less than
or greater than the actual RF emitted by the phone. This difference between the
RF test measurement and actual RF emission is because test measurements are
limited by instrument accuracy, because test measurement and actual use
environments are different, and other variable factors. This inherent variability is
known as “measurement uncertainty.” When FCC conducts post-grant testing of
a cell phone, FCC takes into account any measurement uncertainty to determine
whether regulatory action is appropriate. This approach ensures that when FCC
takes regulatory action, it will have a sound, defensible scientific basis.
FDA scientific staff reviewed the methodology used by FCC to measure cell phone
RF, and agreed it is an acceptable approach, given our current understanding of
APPENDIX
63
FCC Draft
the risks presented by cellular phone RF emissions. RF emissions from cellular
phones have not been shown to present a risk of injury to the user when the
measured SAR is less than the safety limits set by FCC (an SAR of 1.6 w/kg). Even
in a case where the maximum measurement uncertainty permitted by current
measurement standards was added to the maximum permissible SAR, the
resulting SAR value would be well below any level known to produce an acute
effect. Consequently, FCC’s approach with measurement uncertainty will not
result in consumers being exposed to any known risk from the RF emitted by
cellular telephones.
FDA will continue to monitor studies and literature reports concerning acute
effects of cell phone RF, and concerning chronic effects of long-term exposure to
cellular telephone RF (that is, the risks from using a cell phone for many years). If
new information leads FDA to believe that a change to FCC’s measurement policy
may be appropriate, FDA will contact FCC and both agencies will work together
to develop a mutually-acceptable approach.
Updated July 29, 2003
64
FCC Draft
Index
A
access codes 10
alarm clock 43
antenna 15
audio messages 25
B
battery 12
authentication 51
Bluetooth 34
bookmarks 47
browser
appearance settings 47
bookmarks 47
security 47
business cards 31
C
calculator 44
calendar 43, 44
call
log 31
register. See call log.
waiting 22
calls
international 21
making 21
options 22
settings 36
voice dialling 21
camera 40
certificates 48
character case 23
charge level 16
codes 10
configurations
general 37
setting service 14
contact information 12
contacts
copying 30
editing 30
groups 30
saving 30
searching 30
settings 31
speed dialling 21
cookies 47
countdown timer 45
customer service 12
D
data communication 50
digital rights management 39
digital signature 49
downloads 11
E
e-mail application 25
ending calls 21
equaliser 42, 43
F
factory settings 38
flash messages 25
flight mode 17
front camera 15
G
gallery 38
games 45
H
handsfree. See loudspeaker.
I
images 40
indicators 16
info messages 27
instant messaging 26
internet 46
L
language settings 37
log 31
loudspeaker 22
M
message settings
e-mail 29
general 27
multimedia messages 28
text messages 28
messages
65
FCC Draft
audio messages 25
flash messages 25
info messages 27
service commands 27
voice messages 27
microphone 15
N
Near Field Communication 18
NFC 18
call request 22
payment & ticketing 20
read tag 19
switch off 18
Nokia contact information 12
notes 44
O
operator logo 16, 32
operator menu 38
organiser 43
P
payment with NFC 20
PC connectivity 49
PC Suite 50
power key 14
predictive text input 23
profiles 31
PTT. See push to talk.
push to talk 43
pushed messages 48
R
radio 41
read tag 19
recorder 42
ringing tones 32
S
safety information 6
selection key 15
service commands 27
service inbox 48
service messages 48
service tag 19
services 46
settings
call 36
configuration 37
connectivity 34
messages 27
my shortcuts 33
phone 36
profiles 31
restore factory settings 38
themes 18, 32
tones 32
shortcuts 33
signal strength 16
SIM services 49
software updates 11
speed dialling 21
standby mode 16, 33
stopwatch 45
strap 15
switch on and off 14
T
tag
reading 19
tag detection 18
tags 19
touching 18
text 23
themes 18, 32
ticketing with NFC 20
to-do list 44
tones 32
traditional text input 23
U
unlock the keypad 10
V
voice dialling 21
voice messages 27
voice recorder 42
W
wallpaper 32
web 46
wrist strap 15
writing text 23
