Nokia 5800 XpressMusic User Guide

DRAFT 1-Dec-2008

Cyan

Magenta

Yellow

Black

DECLARATION OF CONFORMITY

Hereby, NOKIA CORPORATION declares that this RM-428 product is in compliance

with the essential requirements and other relevant provisions of Directive

1999/5/EC. A copy of the Declaration of Conformity can be found at

www.nokia.com/phones/declaration_of_conformity/.

Nokia, Nokia Connecting People, Nokia Original Enhancements logos, and Nokia Care are trademarks or registered

trademarks of Nokia Corporation. Nokia tune is a sound mark of Nokia Corporation. Other product and company

names mentioned herein may be trademarks or tradenames of their respective owners.

Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without

the prior written permission of Nokia is prohibited.

Symbian OS are trademarks of Symbian Ltd.

This software is based in part of the work of the FreeType Team. This product is covered by one or more of the

following patents: United States Patent 5,155,805, United States Patent 5,325,479, United States Patent 5,159,668,

United States Patent 2232861 and France Patent 9005712.

Java and all Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc.

This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and noncommercial use in

connection with information which has been encoded in compliance with the MPEG-4 Visual Standard by a consumer

engaged in a personal and noncommercial activity and (ii) for use in connection with MPEG-4 video provided by a

licensed video provider. No license is granted or shall be implied for any other use. Additional information, including

that related to promotional, internal, and commercial uses, may be obtained from MPEG LA, LLC. See http://

www.mpegla.com

Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and improvements to

any of the products described in this document without prior notice.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO CIRCUMSTANCES SHALL NOKIA OR ANY OF ITS

LICENSORS BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT

DAMAGES HOWSOEVER CAUSED.

THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF

ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS

DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR

NOTICE.

Reverse engineering of any software in the Nokia device is prohibited to the extent permitted by applicable law.

Insofar as this user guide contains any limitations on Nokia's representations, warranties, damages and liabilities,

such limitations shall likewise limit any representations, warranties, damages and liabilities of Nokia's licensors.

Cyan

Magenta

Yellow

Black

Cyan

Magenta

Yellow

Black

The third-party applications provided with your device may have been created and may be owned by persons or

entities not affiliated with or related to Nokia. Nokia does not own the copyrights or intellectual property rights to

the third-party applications. As such, Nokia does not take any responsibility for end-user support, functionality of

the applications, or the information in the applications or these materials. Nokia does not provide any warranty for

the third-party applications. BY USING THE APPLICATIONS YOU ACKNOWLEDGE THAT THE APPLICATIONS ARE PROVIDED

AS IS WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW.

YOU FURTHER ACKNOWLEDGE THAT NEITHER NOKIA NOR ITS AFFILIATES MAKE ANY REPRESENTATIONS OR WARRANTIES,

EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF TITLE, MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE, OR THAT THE APPLICATIONS WILL NOT INFRINGE ANY THIRD-PARTY PATENTS, COPYRIGHTS,

TRADEMARKS, OR OTHER RIGHTS.

The availability of particular products and applications and services for these products may vary by region. Please

check with your Nokia dealer for details, and availability of language options.

The availability of some features may vary by region. Please contact your operator for more details.

Export controls

This device may contain commodities, technology or software subject to export laws and regulations from the US

and other countries. Diversion contrary to law is prohibited.

FCC/INDUSTRY CANADA NOTICE

Your device may cause TV or radio interference (for example, when using a telephone in close proximity to receiving

equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be

eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC

rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by Nokia could void the user's authority to operate this

equipment.

Model number: 5800d-1b

DRAFT 1-Dec-2008 EN

Cyan

Magenta

Yellow

Black

Cyan

Magenta

Yellow

Black

Contents

Safety...........................................6

About your device......................................6

Network services.......................................7

1. Get started...............................8

Keys and parts............................................8

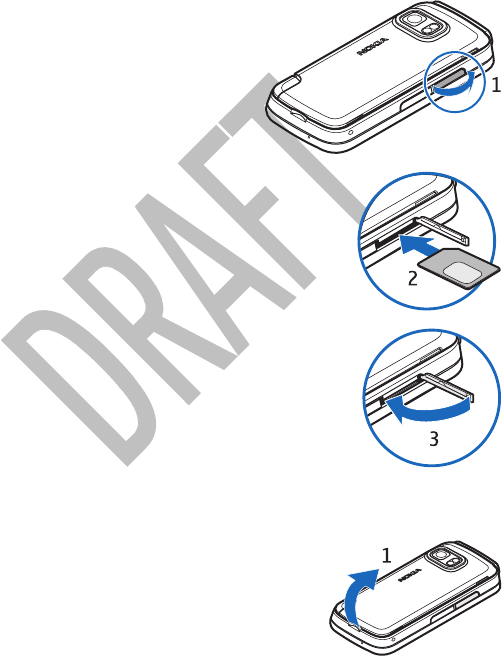

Insert the SIM card.....................................9

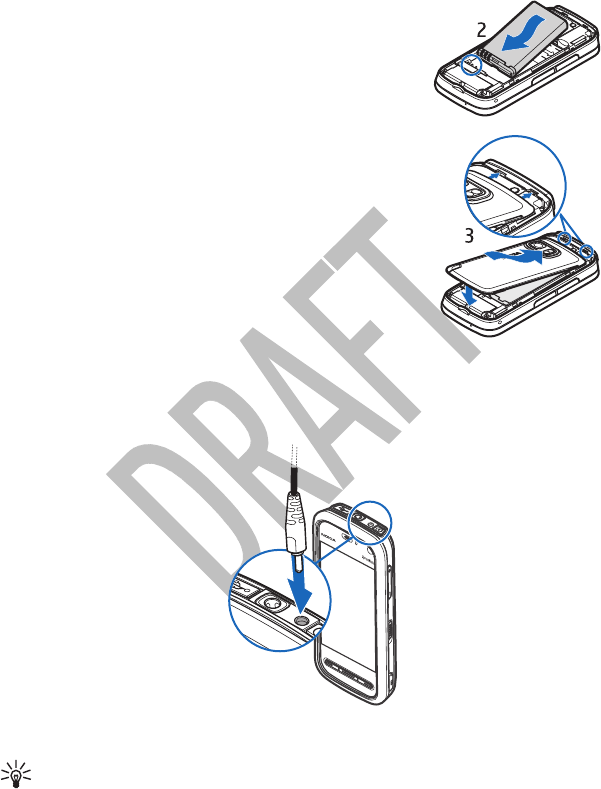

Insert battery ............................................9

Charge the battery..................................10

Switch the device on...............................11

Stylus........................................................11

Lock the keys and touch screen.............11

Home screen............................................11

Access the menu......................................12

Touch screen actions...............................12

Media key.................................................14

Change the ringing tone.........................14

Nokia support..........................................14

2. Find help................................14

In-device help..........................................15

Accessibility solutions.............................15

Extended user guide...............................15

Software updates....................................15

Access codes.............................................16

3. Your device............................16

Memory card............................................16

Shortcuts..................................................18

Antenna locations...................................18

Contacts bar.............................................18

Offline profile...........................................19

Sensor settings and display

rotation....................................................19

Headset.....................................................20

Remove the SIM card...............................20

Attach a wrist strap.................................21

4. Make calls..............................21

Proximity sensor......................................21

Voice calls ................................................21

5. Write text..............................22

On-screen keyboard................................22

Handwriting.............................................23

Alphanumeric keypad.............................23

Touch input settings...............................25

6. Messaging..............................26

Messaging main view.............................26

Write and send messages.......................26

7. Music player...........................27

Play a song or a podcast.........................28

Playlists.....................................................28

Transfer music from a computer...........29

8. Gallery...................................29

View and organise files...........................29

View images and videos.........................30

9. Camera...................................30

Activate the camera................................30

Image capture.........................................31

Video recording.......................................33

10. Positioning (GPS).................35

About GPS.................................................35

Assisted GPS (A-GPS)................................35

Hold your device correctly......................36

11. Connectivity.........................36

Wi-Fi/WLAN connection .........................36

12. Share online........................37

Share online.............................................37

Subscribe to services...............................37

Manage your accounts............................38

Create a post............................................38

Post files from Gallery.............................38

13. Nokia Video Centre..............38

View and download video clips.............39

Video feeds...............................................40

My videos..................................................40

Transfer videos from your PC.................40

Cyan

Magenta

Yellow

Black

Video centre settings..............................41

14. Web browser.......................41

Browse the web.......................................41

Browser toolbar.......................................42

Bookmarks...............................................43

Empty the cache......................................43

Connection security.................................43

Enhancements...........................45

Battery.......................................45

Battery and charger information...........45

Nokia battery authentication

guidelines.................................................46

Care and maintenance..............47

Recycle......................................................48

Additional safety

information...............................48

Small children..........................................48

Operating environment..........................48

Medical devices........................................48

Vehicles.....................................................49

Potentially explosive

environments...........................................50

Emergency calls.......................................50

Certification information (SAR)..............51

Index.........................................52

Contents

Cyan

Magenta

Yellow

Black

Safety

Read these simple guidelines. Not following them may be dangerous or illegal. Read

the complete user guide for further information.

SWITCH ON SAFELY

Do not switch the device on when wireless phone use is prohibited or when

it may cause interference or danger.

ROAD SAFETY COMES FIRST

Obey all local laws. Always keep your hands free to operate the vehicle while

driving. Your first consideration while driving should be road safety.

INTERFERENCE

All wireless devices may be susceptible to interference, which could affect

performance.

SWITCH OFF IN RESTRICTED AREAS

Follow any restrictions. Switch the device off in aircraft, near medical

equipment, fuel, chemicals, or blasting areas.

QUALIFIED SERVICE

Only qualified personnel may install or repair this product.

ENHANCEMENTS AND BATTERIES

Use only approved enhancements and batteries. Do not connect incompatible

products.

WATER-RESISTANCE

Your device is not water-resistant. Keep it dry.

About your device

The wireless device described in this guide is approved for use on the GSM 850, 900,

1800, 1900 and WCDMA/HSDPA 1900, 850 networks . Contact your service provider for

more information about networks.

When using the features in this device, obey all laws and respect local customs, privacy

and legitimate rights of others, including copyrights.

other content from being copied, modified, or transferred.

Your device supports several methods of connectivity. Like computers, your device may

be exposed to viruses and other harmful content. Exercise caution with messages,

connectivity requests, browsing, and downloads. Only install and use services and other

software from trustworthy sources that offer adequate security and protection against

harmful software, such as applications that are Symbian Signed or have passed the Java

Cyan

Magenta

Yellow

Black

Verified™ testing. Consider installing antivirus and other security software on your

device and any connected computer.

Your device may have preinstalled bookmarks and links for third-party internet sites.

You may also access other third-party sites through your device. Third-party sites are

not affiliated with Nokia, and Nokia does not endorse or assume liability for them. If

you choose to access such sites, you should take precautions for security or content.

Warning: To use any features in this device, other than the alarm clock, the

device must be switched on. Do not switch the device on when wireless device use may

cause interference or danger.

Remember to make back-up copies or keep a written record of all important information

stored in your device.

When connecting to any other device, read its user guide for detailed safety instructions.

Do not connect incompatible products.

The images in this guide may differ from your device display.

Refer to the user guide for other important information about your device.

Network services

To use the device you must have service from a wireless service provider. Many of the

features require special network features. These features are not available on all

networks; other networks may require that you make specific arrangements with your

service provider before you can use the network services. Using network services

involves transmission of data. Check with your service provider for details about fees in

your home network and when roaming on other networks. Your service provider can

give you instructions and explain what charges will apply. Some networks may have

limitations that affect how you can use network services. For instance, some networks

may not support all language-dependent characters and services.

Your service provider may have requested that certain features be disabled or not

activated in your device. If so, these features will not appear on your device menu. Your

device may also have a special configuration such as changes in menu names, menu

order, and icons. Contact your service provider for more information.

This device supports WAP 2.0 protocols (HTTP and SSL) that run on TCP/IP protocols.

Some features of this device, such as such as MMS, browsing, and e-mail, require network

support for these technologies.

Safety

Cyan

Magenta

Yellow

Black

1. Get started

Keys and parts

1 – Micro USB connector to connect to a

compatible PC

2 – Nokia AV Connector (3.5 mm) for

compatible headsets, headphones, and

TV-out connectors

3 – Charger connector

4 – Power key

5 – Earpiece

6 – Light sensor

7 – Proximity sensor

8 – Touch screen

9 – Secondary camera

10 – Volume/Zoom key

11 – Media key

12 – Screen and key lock switch

13 – Capture key 15 – Menu key

14 – End key 16 – Call key

17 – Pen stylus

18 – Camera lens

19 – Camera flash

20 – Loudspeakers

21 – Cover of the SIM card slot

22 – Cover of the memory card slot

23 – Wrist strap opening

24 – Microphone

During extended operation such as an active video call and a high speed data

connection, the device may feel warm. In most cases, this condition is normal. If you

Cyan

Magenta

Yellow

Black

suspect the device is not working properly, take it to the nearest authorised service

facility.

Insert the SIM card

Do not insert or remove the SIM card when the device is switched on.

A SIM card may be already inserted in the device. If not, do the following:

1. Open the cover of the SIM card slot.

2. Insert a SIM card in the slot. Ensure that the

contact area on the card is facing up and the

beveled edge is facing toward the device. Push

the card in.

3. Close the cover of the SIM card slot. Ensure that

the cover is properly closed.

If the SIM card is not properly in place, the device

can only be used in the offline profile.

Insert battery

Always switch the device off and disconnect the charger before removing the battery.

1. Remove the back cover by lifting it from the bottom end

of the device.

Get started

Cyan

Magenta

Yellow

Black

2. Insert the battery.

3. To replace the cover, direct the top locking catches toward

their slots first and then press down until the cover locks

into place.

Charge the battery

1. Connect a compatible charger to a wall outlet.

2. Connect the power cord to the device. If the battery is completely discharged, it may

take a while before the charging indicator starts scrolling.

3. When the battery is fully charged, the charging indicator stops scrolling. Disconnect

the charger from the device, then from the wall outlet.

Tip: Disconnect the charger from the wall outlet when the charger is not in use.

A charger that is connected to the outlet consumes power even when it is not

connected to the device.

Get started

Cyan

Magenta

Yellow

Black

Switch the device on

1. Press and hold the power key.

2. If the device asks for a PIN code or lock code, enter it, and

select OK. To delete a number, select . The factory

setting for the lock code is 12345.

3. Select your location. If you accidentally select the wrong

location, select Back.

4. Enter the date and time. When using the 12-hour time

format, to switch between a.m. and p.m., select any number.

Stylus

Some functions, such as handwriting recognition,

are designed to be used with a stylus. The pen stylus

is located in the back cover of the device.

Important: Use only a stylus approved by

Nokia for use with this device. Using any other stylus

may invalidate any warranty applying to the device

and may damage the touch screen. Avoid scratching

the touch screen. Never use an actual pen or pencil or other sharp objects to write on

the touch screen.

Lock the keys and touch screen

To lock or unlock the touch screen and the keys, slide the lock switch on the side of the

device.

When the touch screen and keys are locked, the touch screen is switched off and the

keys are inactive.

The screen and keys may be locked automatically after a period of inactivity. To change

settings for automatic screen and key locking, select Menu > Settings and Phone >

Phone mgmt. > Auto. keyguard > Keypad autolock period.

Home screen

Home screen is your starting point where you can collect all your important contacts or

application shortcuts.

Get started

Cyan

Magenta

Yellow

Black

Interactive display elements

To open the clock application, tap the clock (1).

To open calendar or change profiles in the home screen,

tap the date or the profile name (2).

To view or change connectivity settings ( ), to see the

available wireless LANs if WLAN scanning is enabled, or

to view the missed events, tap the top right corner (3).

To make a phone call, select (4).

To open Contacts, select (5).

To open the main menu, press the menu key (6).

Start using the contacts bar

To start using the contacts bar and add your contacts to

the home screen, in the home screen, select > Add

contact to Home Screen, and follow the instructions.

Change the home screen theme

To change the home screen theme or the shortcuts,

select Menu > Settings and Personal > Home

screen.

Access the menu

To access the menu, press the menu key.

To open an application or folder in the menu, tap it.

Touch screen actions

Tap and double-tap

To open an application or other element on the touch screen, you normally tap it with

your finger or the stylus. However, to open the following items, you must tap them

twice.

●List items in an application, such as the Drafts folder in the folder list in Messaging

Tip: When you open a list view, the first item is already highlighted. To open

the highlighted item, tap it once.

●Applications and folders in the menu when using the list view type

●Files in a file list, for example, an image in the images and videos view in Gallery.

Get started

Cyan

Magenta

Yellow

Black

If you tap a file or similar item once, it is not opened, it becomes highlighted. To see

the options available for the item, select Options or, if available, select an icon from

a toolbar.

Select

In this user documentation, opening applications or items by tapping them once or

twice is called "selecting". If you need to select several items in a sequence, the display

texts to select are separated by arrows.

Example: To select Options > Help, tap Options, and then tap Help.

Drag

To drag, place your finger or the stylus on the screen, and slide it across the screen.

Example: To scroll up or down on a web page, drag the page with your finger

or stylus.

Swipe

To swipe, slide your finger quickly left or right on the screen.

Example: When viewing an image, to view the

next or previous image, swipe the image left or

right, respectively.

Scroll

To scroll up or down in lists that have a scroll bar, drag

the slider of the scroll bar.

In some list views, you can scroll by placing your finger or stylus on a list item and

dragging up or down.

Example: To scroll through contacts, place your finger or stylus on a contact, and

drag up or down.

Tip: To view a brief description of icons and buttons, place your finger or stylus

on the icon or button. Descriptions are not available for all icons and buttons.

Touch screen light

The touch screen light is turned off after a period of inactivity. To turn the screen light

on, tap it.

If the touch screen and keys are locked, tapping the screen does not turn the screen

light on. To unlock the screen and keys, slide the lock switch.

Get started

Cyan

Magenta

Yellow

Black

Media key

To access applications such as the music player or browser,

tap the media key ( ) to open the media bar, and select the

application.

Tip: Hold your finger or the stylus on the icon to see

the name of the application.

Change the ringing tone

Select Menu > Settings and Personal > Profiles.

You can use profiles to set and customise the ringing tones, message alert tones, and

other tones for different events, environments, or caller groups. To personalise a profile,

scroll to the profile, and select Options > Personalise.

Nokia support

To find the latest version of this guide, additional information, downloads, and services

related to your Nokia product, see www.nokia-latinoamerica.com/soporte or your local

Nokia website.

You may find additional detailed information in the Nokia Care Services and Warranty

Conditions booklet.

Configuration settings service

To download configuration settings such as MMS, GPRS, e-mail, and other services for

your phone model, see www.nokia-latinoamerica.com/soporte.

Nokia Care services

If you need to contact Nokia Care services, check the list of local Nokia

Care contact centres at www.nokia-latinoamerica.com/contactenos.

Maintenance

For maintenance services, find your nearest Nokia Care point at www.nokia-

latinoamerica.com/centrosdeservicio.

2. Find help

For local services and warranty information, see the separate booklet.

Find help

Cyan

Magenta

Yellow

Black

In-device help

Your device contains instructions to help to use the applications in your device.

To open help texts from the main menu, select Menu > Help and the application for

which you want to read instructions.

When an application is open, to access the help text for the current view, select

Options > Help.

When you are reading the instructions, to change the size of the help text, select

Options > Decrease font size or Increase font size.

You can find links to related topics at the end of the help text. If you select an underlined

word, a short explanation is displayed. Help texts use the following indicators: shows

a link to a related help topic shows a link to the application being discussed

When you are reading the instructions, to switch between help texts and the application

that is open in the background, press and hold the menu key, and select from the list

of open applications.

Accessibility solutions

Nokia is committed to making mobile phones easy to use for all individuals, including

those with disabilities. For more information, visit the Nokia website at

www.nokiaaccessibility.com.

Extended user guide

An extended version of this user guide is available on the product support pages of the

Nokia website. Some applications or functions are explained only in the extended user

guide.

Software updates

Nokia may produce software updates that offer new features, enhanced functions, and

improved performance. You may be able to request these updates through the Nokia

Software Updater PC application. Software updates may not be available for all products

or their variants. Not all operators may endorse the latest software versions available.

To update the device software, you need the Nokia Software Updater application and a

compatible PC with the Microsoft Windows 2000, XP, or Vista operating system,

broadband internet access, and a compatible data cable to connect your device to the

PC.

Warning: If you install a software update, you cannot use the device, even to

make emergency calls, until the installation is completed and the device is restarted. Be

sure to back up data before accepting installation of an update.

Find help

Cyan

Magenta

Yellow

Black

For more information and to download the Nokia Software Updater application, see

www.nokiausa.com/softwareupdate in the United States or www.nokia-

latinoamerica.com/nsu in Latin America.

If software updates over the air are supported by your network, you may also be able

to request updates through the device.

Downloading software updates may involve the transmission of large amounts of data

through your service provider's network. Contact your service provider for information

about data transmission charges.

Make sure that the device battery has enough power, or connect the charger before

starting the update.

Tip: To check the software version in your device, select Menu > Settings and

Phone > Phone mgmt. > Device updates.

Access codes

If you forget any of the access codes, contact your service provider.

●Personal identification number (PIN) code — This code protects your SIM card against

unauthorised use. The PIN code (4 to 8 digits) is usually supplied with the SIM card.

After three consecutive incorrect PIN code entries, the code is blocked, and you need

the PUK code to unblock it.

●UPIN code — This code may be supplied with the USIM card. The USIM card is an

enhanced version of the SIM card and is supported by UMTS mobile phones.

●PIN2 code — This code (4 to 8 digits) is supplied with some SIM cards, and is required

to access some functions in your device.

●Lock code (also known as security code) — The lock code (5 digits) helps you to

protect your device against unauthorised use. The preset code is 12345. You can

create and change the code, and set the device to request the code. Keep the new

code secret and in a safe place separate from your device. If you forget the code and

your device is locked, your device will require service and additional charges may

apply. For more information, contact a Nokia Care point or your device dealer.

●Personal Unblocking Key (PUK) code and PUK2 code — These codes (8 digits) are

required to change a blocked PIN code or PIN2 code, respectively. If the codes are

not supplied with the SIM card, contact the operator whose SIM card is in your device.

●UPUK code — This code (8 digits) is required to change a blocked UPIN code. If the

code is not supplied with the USIM card, contact the operator whose USIM card is in

your device.

3. Your device

Memory card

Use only compatible microSD and microSDHC cards approved by Nokia for use with this

device. Nokia uses approved industry standards for memory cards, but some brands

Your device

Cyan

Magenta

Yellow

Black

may not be fully compatible with this device. Incompatible cards may damage the card

and the device and corrupt data stored on the card.

Insert the memory card

A memory card may be already inserted in the device. If not, do the following:

1. Open the cover of the memory card slot.

2. Insert a compatible memory card in the slot.

Ensure that the contact area is facing up. Push

the card in. You can hear a click when the card

locks into place.

3. Close the cover of the memory card slot. Ensure

that the cover is properly closed.

Remove the memory card

Important: Do not remove the memory card in the middle of an operation when

the card is being accessed. Removing the card in the middle of an operation may damage

the memory card as well as the device, and data stored on the card may be corrupted.

1. If the device is switched on, before you remove the card, press the power key, and

select Remove memory card.

2. When Removing memory card will close all open applications. Remove

anyway? is displayed, select Yes. All applications are closed.

3. When Remove memory card and press 'OK' is displayed, open the cover of the

memory card slot.

Your device

Cyan

Magenta

Yellow

Black

4. Press the memory card to release it from the slot.

5. Pull out the memory card. If the device is switched on, select OK.

Shortcuts

To switch between open applications, press and hold the menu key. Leaving

applications running in the background increases the demand on battery power and

reduces the battery life.

To start a web connection (network service), in the dialler, tap and hold 0.

To access applications available in the media bar, such as the music player and web

browser, in any view, press the media key.

To change the profile, press the power key, and select a profile.

To call your voice mailbox (network service), in the dialler, tap and hold 1.

To open a list of last dialled numbers, in the home screen, press the call key.

To use voice commands, in the home screen, press and hold the call key.

Antenna locations

Your device may have internal and external antennas. As with any radio transmitting

device, avoid touching the antenna area unnecessarily while the antenna is transmitting

or receiving. Contact with such an antenna affects the communication quality and may

cause the device to operate at a higher power level than otherwise needed and may

reduce the battery life.

Cellular antenna

Bluetooth and WLAN

antenna GPS antenna

Contacts bar

Start using the contacts bar

To start using the contacts bar and add your contacts to the home screen, in the home

screen, select > Add contact to Home Screen, and follow the instructions.

Your device

Cyan

Magenta

Yellow

Black

To add a contact to the home screen in contacts bar mode, select and either select

a contact from your contacts, or create a new contact, and add a photo to the contact

information.

To communicate with your contact, select the contact and from the following:

● — Make a phone call.

● — Send a message.

● — Modify contact information.

● — Refresh the contact's web feeds.

To view past communication events with a contact, select a contact. Select a

communication event to view event details.

To close the view, select .

Offline profile

To activate the Offline profile, press the power key briefly, and select Offline.

The Offline profile lets you use the device without connecting to the wireless network.

When you activate the Offline profile, the connection to the wireless network is turned

off, as indicated by in the signal strength indicator area. All wireless RF signals to

and from the device are prevented. If you try to send messages, they are placed in the

Outbox folder to be sent later.

When the Offline profile is active, you can use your device without a SIM card.

If the SIM card is not properly in place, the device starts in the Offline profile.

Important: In the offline profile you cannot make or receive any calls, or use

other features that require cellular network coverage. Calls may still be possible to the

official emergency number programmed into your device. To make calls, you must first

activate the phone function by changing profiles. If the device has been locked, enter

the lock code.

When you have activated the offline profile, you can still use the wireless LAN, for

example, to read your e-mail or browse on the internet. Remember to comply with any

applicable safety requirements when establishing and using a wireless LAN connection.

You can also use Bluetooth connectivity while in the offline profile.

To switch to another profile, press the power key briefly, and select another profile. The

device re-enables wireless transmissions (providing there is sufficient signal strength).

Sensor settings and display rotation

When you activate the sensors in your device, you can control certain functions by

turning the device.

Select Menu > Settings and Phone > Sensor settings.

Select from the following:

Your device

Cyan

Magenta

Yellow

Black

●Sensors — Activate the sensors.

●Turning control — Select Silencing calls and Snoozing alarms to mute calls and

snooze alarms by turning your device so that the display faces down. SelectAuto-

rotate display to rotate the display content automatically when you turn the device

on its left side or back to a vertical position. Some applications and features may not

support rotating the display content.

Headset

You can connect a compatible headset or compatible headphones to your device. You

may need to select the cable mode.

Some headsets come in two parts, a remote control unit and headphones. A remote

control unit has a microphone and keys to answer or end a phone call, adjust the volume,

and play music or video files. To use the headphones with a remote control unit, connect

the unit to the Nokia AV Connector in the device, then connect the headphones to the

unit.

Warning: When you use the headset, your ability to hear

outside sounds may be affected. Do not use the headset where

it can endanger your safety.

Do not connect products that create an output signal as this may

cause damage to the device. Do not connect any voltage source

to the Nokia AV Connector.

When connecting any external device or any headset, other than

those approved by Nokia for use with this device, to the Nokia AV

Connector, pay special attention to volume levels.

Remove the SIM card

1. Remove the back cover by lifting it

from the bottom end of the device.

2. Remove the battery.

Your device

Cyan

Magenta

Yellow

Black

3. Open the cover of the SIM card slot. Place the tip of the

stylus in the opening under the battery, and push the

SIM card sideways to slide it out of the slot. Pull the SIM

card out.

4. Replace the battery and the back cover.

Attach a wrist strap

Tip: Attach the plectrum stylus to the device

like a wrist strap.

4. Make calls

Proximity sensor

To prevent accidental selections, the touch screen is disabled automatically during calls

when you place the device next to your ear.

Voice calls

1. In the home screen, select to open the dialler, and enter the phone number,

including the area code. To remove a number, select C.

For international calls, select * twice for the + character (which replaces the

international access code), and enter the country code, area code (omit the leading

zero if necessary), and phone number. The + character as a replacement for the

international access code may not work in all regions. In this case, enter the

international access code directly.

2. To make the call, press the call key.

3. To end the call (or to cancel the call attempt), press the end key.

Pressing the end key always ends a call, even if another application is active.

Make calls

Cyan

Magenta

Yellow

Black

To make a call from the contacts list, select Menu > Contacts. Scroll to the desired

name. Or, tap the search field to enter the first letters of the name, and scroll to the

name. To call the contact, press the call key. If you have saved several numbers for a

contact, select the desired number from the list, and press the call key.

5. Write text

You can enter letters, numbers, and special characters in several different ways. The on-

screen keyboards allow you to enter characters by tapping them with your fingers or

the stylus. Handwriting recognition allows you to write characters directly onto the

screen using the stylus as a pen.

Tap any text input field to enter letters, numbers, and special characters.

Your device can complete words based on the built-in dictionary for the selected text

input language. The device also learns new words from your input.

On-screen keyboard

To activate the on-screen keyboard in portrait mode, select and Mini QWERTY

keyboard.

To activate the on-screen keyboard in landscape mode, select and Full screen

QWERTY.

When using the on-screen keyboard in portrait mode, tap the keys of the keyboard with

the stylus. When using the on-screen keyboard in landscape mode and in full-screen,

you can tap the keys with your fingers.

For an explanation of each key and its function, see the following figure.

1 — Close - Closes the on-screen keyboard view.

2 — Input menu - Opens the touch input options menu, which includes commands such

as Writing language.

3 — On-screen keyboard

4 — Shift and Caps Lock - Allows you to enter an uppercase character when you write

in lowercase using the on-screen keyboard. When you tap this key in handwriting

recognition mode, the last lowercase character switches to uppercase, and vice versa.

To turn Caps Lock on, tap the key twice. The key will have a line under it.

Write text

Cyan

Magenta

Yellow

Black

5 — Numbers and symbols - Switches between numbers, most commonly used special

characters, and alphabet characters in the on-screen keyboard.

6 — Character accents - Opens a pop-up window, in which you can select language

character accents.

7 — Space bar - Inserts a space.

8 — Enter - Moves the cursor to the next row or text input field. Additional functions

are based on the current context (for example, in the web address field of the web

browser, it acts as a Go button).

9 — Move - Moves the touch input window. Drag the key to move the touch input

window around the screen.

10 — Backspace - Deletes the previously entered character.

11 — Input mode - Opens a pop-up window, in which you can select from the available

input methods. When you tap an item, the current input method view closes, and the

selected one opens.

Handwriting

To activate handwriting mode, select and Handwriting.

You can use the stylus as a pen to write as you would write text on paper. Write legible,

upright characters on the text input area, and leave a small horizontal gap between

each character. Do not use cursive writing.

To teach the device your handwriting style, select and Handwriting training.

To enter letters and numbers (default mode), write words as you would normally write

them.

To write special characters, write them as you would normally

write them. You can also tap *# in the right pane of the input

area, and select a desired character from the pop-up table.

To delete characters or move the cursor back, swipe from right

to left (see Figure 1).

To insert a space, swipe from left to right (see Figure 2).

Alphanumeric keypad

Icons and functions

Use the on-screen keypad (Alphanumeric keypad) to enter characters like you would

with a traditional phone keypad with numbers on the keys. For an explanation of each

icon and its function, see the following figure.

Write text

Cyan

Magenta

Yellow

Black

1 — Close - Closes on-screen keypad (Alphanumeric keypad).

2 — Input menu - Opens the touch input menu, which includes commands such as

Activate predictive text and Writing language.

3 — Text input indicator - Opens a pop-up window, in which you can turn predictive

text input modes on or off, change the character case, and switch between letter and

number mode.

4 — Input mode - Opens a pop-up window, in which you can select from the available

input modes. When you tap an item, the current input method view closes, and the

selected one opens.

5 — Arrow keys - Moves the cursor left or right.

6 — Backspace - Deletes the previously entered character.

7 — Number keys - Enters the desired numbers or characters according to the current

case and input mode.

8 — Star - Opens a special characters table.

9 — Shift - Changes the character case, turns predictive text input modes on or off, and

switches between the alphabet and number modes.

Traditional text input

Tap a number key (1-9) repeatedly until the desired character appears. There are more

characters available for a number key than are visible on the key.

If the next letter is located on the same key as the present one, wait until the cursor

appears (or move the cursor forward to end the time-out period), and enter the letter.

To insert a space, tap 0. To move the cursor to the next line, tap 0 three times.

Write text

Cyan

Magenta

Yellow

Black

Predictive text input

With predictive text input, you can enter any letter with a single tap of a key. Predictive

text input is based on a built-in dictionary to which you can add new words.

1. To activate predictive text input for all editors on the device, tap , and select

Activate prediction, or quickly tap # twice. You can also tap , and select Activate

predictive text.

2. To write the desired word, tap the keys 2-9. Tap each key only once for one letter.

For example, to write "Nokia" when the English dictionary is selected, tap 6 for N,

6 for o, 5 for k, 4 for i, and 2 for a.

The word suggestion changes after each tap of a key.

3. When you finish writing the word correctly, move the cursor right to confirm it, or

tap 0 to add a space.

If the word is not correct, tap * repeatedly to view the matching words the dictionary

has found one by one.

If the ? character is shown after the word, the word is not in the dictionary. To add

a word to the dictionary, select Spell, enter the word using traditional text input,

and select OK. The word is added to the dictionary. When the dictionary is full, a new

word replaces the oldest added word.

4. Start writing the next word.

Switch between text modes

To turn predictive text input off for all editors in your device, tap , and select

Deactivate prediction or quickly double-tap#. Alternatively, you can tap , and select

Predictive text > Off.

Touch input settings

Select Menu > Settings and Touch input.

To configure text input settings for the touch screen, select from the following:

●Handwriting training — Open the handwriting training application. Train the

device to recognise your handwriting better.

●Writing language — Define which language-specific characters in your

handwriting are recognised and how your on-screen keyboard is laid out.

●Writing speed — Adjust the speed at which handwriting is recognised.

●Guiding line — Show or hide the guiding line in the writing area. The guiding line

helps you write in a straight line, and it also helps the device recognise your writing.

●Pen trail width — Change the thickness of the text written with the stylus.

●Writing colour — Change the colour of the text written with the stylus.

Write text

Cyan

Magenta

Yellow

Black

6. Messaging

Only devices that have compatible features can receive and display multimedia

messages. The appearance of a message may vary depending on the receiving device.

Messaging main view

Select Menu > Messaging (network service).

To create a new message, select New message.

Tip: To avoid rewriting messages that you send often, use texts in the Templates

folder in My folders. You can also create and save your own templates.

Messaging contains the following folders:

● Inbox — Received messages, except e-mail and cell broadcast messages, are

stored here.

● My folders — Organise your messages into folders.

● Mailbox — Connect to your remote mailbox to retrieve your new e-mail

messages, or view your previously retrieved e-mail messages offline.

● Drafts — Draft messages that have not been sent are stored here.

● Sent — The last messages that have been sent, excluding messages sent using

Bluetooth connectivity, are stored here. You can change the number of messages to

save in this folder.

● Outbox — Messages waiting to be sent are temporarily stored in the outbox,

for example, when your device is outside network coverage.

● Delivery reports — You can request the network to send you a delivery report

of the text messages and multimedia messages you have sent (network service).

Write and send messages

Select Menu > Messaging.

Important: Exercise caution when opening messages. Messages may contain

malicious software or otherwise be harmful to your device or PC.

Before you can create a multimedia message or write an e-mail, you must have the

correct connection settings defined.

The wireless network may limit the size of MMS messages. If the inserted picture exceeds

this limit the device may make it smaller so that it can be sent by MMS.

Check the size limit of e-mail messages with your service provider. If you attempt to

send an e-mail message that exceeds the size limit of the e-mail server, the message is

left in the Outbox folder, and the device attempts to resend it periodically. Sending an

e-mail requires a data connection, and continuous attempts to resend the e-mail may

Messaging

Cyan

Magenta

Yellow

Black

incur charges from your service provider. In the Outbox folder, you can delete such a

message or move it to the Drafts folder.

1. To send a message, select New message.

To send an audio or e-mail message, select Options > Create message, and the

relevant option.

2. To select recipients or groups from the contacts list, select To. To enter the number

or e-mail address manually, tap the To field.

3. In the Subject field, enter the subject of the e-mail. To change the fields that are

visible, select Options > Message header fields.

4. To write the message, tap the message field.

5. To add an object to a message, select and the relevant type of content.

The message type may change to multimedia message based on the inserted

content.

6. To capture an image or record a video or sound clip for a multimedia message, select

Options > Insert content and New image, New video clip, or New sound clip.

7. To add an attachment to an e-mail, select Options > Insert content and the

relevant type of content. E-mail attachments are indicated by .

8. To send the message, select , or press the call key.

Your device supports text messages beyond the limit for a single message. Longer

messages are sent as two or more messages. Your service provider may charge

accordingly. Characters with accents or other marks, and characters from some

language options, take up more space, and limit the number of characters that can be

sent in a single message.

You may not be able to send video clips that are saved in the MP4 file format or that

exceed the size limit of the wireless network in a multimedia message.

7. Music player

Warning: Listen to music at a moderate level. Continuous exposure to high

volume may damage your hearing. Do not hold the device near your ear when the

loudspeaker is in use, because the volume may be extremely loud.

Music player supports file formats such as AAC, AAC+, eAAC+, MP3, and WMA. Music player

does not necessarily support all features of a file format or all the variations of file

formats.

You can also use Music player to listen to podcasts. Podcasting is the method for

delivering audio or video content over the internet using either RSS or Atom

technologies for playback on mobile devices and computers.

You can transfer music from other compatible devices to your device.

Music player

Cyan

Magenta

Yellow

Black

Play a song or a podcast

To open Music player, select Menu > Music > Music player.

You may have to refresh the music and podcast libraries after you have updated the

song or podcast selection in your device. To add all available items to the library, select

Options > Refresh library.

To play a song or a podcast:

1. Select categories to navigate to the song or podcasts you want to hear.

2. To play an item, select the item from the list.

To pause playback, tap ; to resume, tap .

To fast-forward or rewind, tap and hold or .

To go to the next item, tap . To return to the beginning

of the item, tap . To skip to the previous item, tap

again within 2 seconds after a song or podcast has started.

To turn random play ( ) on or off, select Options >

Shuffle play.

To repeat the current item ( ), all items ( ), or to turn

repeat off, select Options > Repeat.

If you play podcasts, shuffle and repeat are automatically

turned off.

To adjust the volume, press the volume key.

To modify the tone of the music playback, select Options >

Equaliser.

To modify the balance and stereo image or to enhance the bass, select Options >

Settings.

To return to the home screen and leave the player playing in the background, press the

end key.

To close the player, select Options > Exit.

Playlists

Select Menu > Music > Music player and Playlists.

To view details of the playlist, select Options > Playlist details.

Create a playlist

1. Select Options > New playlist.

2. Enter a name for the playlist, and select OK.

3. To add songs now, select Yes; or to add the songs later, select No.

Music player

Cyan

Magenta

Yellow

Black

4. If you select Yes, select artists to find the songs you want to add to the playlist. Select

Add to add items.

To show the song list under an artist title, select Expand. To hide the song list, select

Collapse.

5. When you have made your selections, select Done.

If a compatible memory card is inserted, the playlist is saved to the memory card.

To add more songs later, when viewing the playlist, select Options > Add songs.

To add songs, albums, artists, genres, and composers to a playlist from the different

views of the music menu, select an item and Options > Add to playlist > Saved

playlist or New playlist.

To remove a song from a playlist, select Options > Remove. This does not delete the

song from the device; it only removes it from the playlist.

To reorder songs in a playlist, select the song you want to move, and Options >

Reorder list. To grab a song and drop it to a new position, select the song in the desired

position and Drop. To finish reordering the playlist, select Done.

Transfer music from a computer

You can use the following methods to transfer music:

●To view your device on a computer as a mass memory device where you can transfer

any data files, make the connection with a compatible USB data cable or Bluetooth

connectivity. If you are using a USB cable, select Mass storage as the connection

mode. A compatible memory card must be inserted in the device.

●To synchronise music with Windows Media Player, connect a compatible USB data

cable and select Media transfer as the connection mode. A compatible memory card

must be inserted in the device.

To change the default USB connection mode, select Menu > Settings and

Connectivity > USB > USB connection mode.

8. Gallery

To store and organise your images, video clips, sound clips, and streaming links, select

Menu > Gallery.

Tip: To access the images and videos view quickly, tap the media key ( ) to

open the media bar, and select .

View and organise files

Select Menu > Gallery and from the following:

● Images & videos — View images in the image viewer and videos in Video centre.

● Songs — Open Music player.

Gallery

Cyan

Magenta

Yellow

Black

● Sound clips — Listen to sound clips.

● Other media — View presentations.

You can browse, open, and create folders; and mark, copy, move, and add items to

folders.

Files stored on your compatible memory card (if inserted) are indicated with .

To open a file, select a file from the list. Video clips and files with the .ram file extension

open and play in Video centre, and music and sound clips in Music player.

To copy or move files to the memory card (if inserted) or device memory, select a file,

Options > Organise > Copy or Move, and from the available options.

View images and videos

Select Menu > Gallery and Images & videos.

The images, video clips, and folders are displayed in a loop and ordered by date and

time. To browse the files one by one, swipe left or right. To browse files in groups, swipe

up or down.

To open a file, select a file from the list. To zoom in an image, use the volume key in

your device.

Select Options and from the following:

●Edit — Edit a video clip or an image.

●Use image — To set the image as a call image for a contact, select Assign to

contact.

To use the image as wallpaper in the home screen, select Set as wallpaper.

To set the image as a generic call image, select Set as call image.

The toolbar helps you select frequently used functions with images, video clips, and

folders.

On the toolbar, select from the following:

● Send — Send the selected image or video clip.

● Edit — Edit the selected image or video clip.

● Delete — Delete the selected image or video clip.

9. Camera

Your device supports an image capture resolution of 2048x1536 pixels. The image

resolution in this guide may appear different.

Activate the camera

To activate the camera, press the capture key.

Camera

Cyan

Magenta

Yellow

Black

Image capture

Still image capture on-screen controls and indicators

The still image viewfinder displays the following:

1 — Capture mode indicator

2 — Zoom slider. To turn the zoom slider on and off. tap the screen.

3 — Capture icon. Tap to capture an image.

4 — Flash mode. Tap to change settings.

5 — Capture settings. Tap to change settings.

6 — Battery charge level indicator

7 — Image resolution indicator

8 — Image counter (the estimated number of images you can capture using the current

image quality setting and available memory)

9 — The device memory ( ) and memory card ( ) indicators, which show where

images are saved

Capture settings

The capture settings view provides you with shortcuts to different items and settings

before capturing an image or recording a video clip.

The capture settings return to the default settings after you close the camera.

To open the capture settings view before capturing an image or recording a video, select

Select from the following:

Select the scene

or — to switch between video and image mode

or — Show or hide the viewfinder grid (images only)

— Activate the self-timer (images only).

— Go to Gallery

Image settings:

— Select a colour effect

Camera

Cyan

Magenta

Yellow

Black

— Adjust the white balance. Select the current lighting conditions. This allows the

camera to reproduce colours more accurately.

— Adjust the exposure compensation (images only). If you are shooting a dark

subject against a very light background, such as snow, adjust the exposure to +1 or +2

to compensate for the background brightness. For light subjects against a dark

background, use -1 or -2.

— Adjust light sensitivity (images only). Increase the light sensitivity in low light

conditions to avoid too dark images and blurry images. Increasing the light sensitivity

may also increase the image noise.

— Adjust contrast (images only). Adjust the difference between the lightest and

darkest parts of the image.

— Adjust sharpness (images only)

The screen display changes to match the settings you define.

The capture settings are shooting-mode specific. Switching between the modes does

not reset the defined settings.

If you select a new scene, the capture settings are replaced by the selected scene. You

can change the capture settings after selecting a scene if needed. For more information

on the scenes, see the extended user guide on the product support pages of the Nokia

website.

Saving the captured image may take longer if you change the zoom, lighting, or colour

settings.

Capture images

When capturing an image, note the following:

●Use both hands to keep the camera still.

●The quality of a digitally zoomed image is lower than that of a nonzoomed image.

●The camera goes into battery saving mode if there are no actions for about a minute.

To continue capturing images, slide the lock switch on the side of the device.

To capture an image:

1. To switch from video mode to image mode, if necessary, select and the image

mode.

2. To lock the focus on an object, press the capture key halfway down (not available in

landscape or sport scene modes). A green locked focus indicator appears on the

display. If the focus was not locked, a yellow focus indicator appears. Release the

capture key, and press it halfway down again. You can also capture an image without

locking the focus.

3. To capture an image, press the capture key. Do not move the device before the image

is saved and the final image appears on the screen.

To zoom in or out when capturing an image, use the zoom key in your device.

Camera

Cyan

Magenta

Yellow

Black

After capturing an image

After you capture an image, select from the following options (available only if Show

captured image is enabled in the still image camera settings):

● Send — Send the image in a multimedia message, e-mail, or through connection

methods such as Bluetooth connectivity.

To send the image to a person you are talking to, select Send to caller) during

a call.

● Delete — Delete the image.

● — Open Gallery

To use the image as wallpaper in the home screen, select Options > Use image >

Set as wallpaper.

To set the image as a default call image to be used for every call situation, select

Options > Use image > Set as call image.

To assign the image to a contact, Options > Use image > Assign to contact.

To return to the viewfinder to capture a new image, press the capture key.

Flash and video light

Keep a safe distance when using the flash. Do not use the flash on people or animals at

close range. Do not cover the flash while taking a picture.

The camera of your device has a dual LED flash for low light conditions.

To select the desired flash mode, tap the current flash mode indicator, which is one of

the following: Automatic, Reduce red, On, and Off.

Avoid touching the flash LEDs when the back cover has been removed. The LEDs may

get hot after prolonged usage.

Video light

To increase light levels when recording video in low light, select

Video recording

Record videos

1. To switch from image mode to video mode, if necessary, select and the video

mode .

2. To start recording, press the capture key . The red record icon is displayed at the

bottom of the screen and a tone sounds.

3. To pause recording at any time, selectPause. To resume, select Continue. If you

pause recording and do not press any key within one minute, the recording stops.

Camera

Cyan

Magenta

Yellow

Black

To zoom in or out of the subject, use the zoom key in your device.

4. To stop recording, press the capture key. The video clip is automatically saved in

Gallery.. The maximum length of a video clip is approximately 30 seconds with

sharing quality and 90 minutes with other quality settings.

Video recording on-screen controls and indicators

The video viewfinder displays the following:

1 — Capture mode indicator

2 — Audio mute on indicator

3 — Capture icon. Tap to record video.

4 — Video light on/off.

5 — Recording settings. Tap to change settings.

6 — Battery charge level indicator

7 — Video quality indicator. To change this setting, select Options > Settings > Video

quality.

8 — Video clip file type

9 — Available recording time. When you are recording, the current video length

indicator also shows the elapsed and remaining time.

10 — The location to which the video clip is saved.

After recording a video clip

After you record a video clip, select from the following options (available only if Show

last captured video is set to On in the video settings):

● Play — Play the video clip you just recorded.

●Delete. — Delete the video.

●Send or press the call key — Send the video clip in a multimedia message, e-

mail, or through connection methods such as Bluetooth connectivity. You may not

be able to send video clips saved in the MPEG4 file format in a multimedia message.

To send the video clip to a person you are talking to, select Send to caller) during

a call.

To return to the viewfinder to record a new video clip, press the capture key.

Camera

Cyan

Magenta

Yellow

Black

10. Positioning (GPS)

You can use applications such as Maps and GPS data to find out your location, or measure

distances and coordinates. These applications require a GPS connection.

About GPS

The coordinates in the GPS are expressed in the degrees and decimal degrees format

using the international WGS-84 coordinate system.

The Global Positioning System (GPS) is operated by the government of the United States,

which is solely responsible for its accuracy and maintenance. The accuracy of location

data can be affected by adjustments to GPS satellites made by the United States

government and is subject to change with the United States Department of Defense civil

GPS policy and the Federal Radionavigation Plan. Accuracy can also be affected by poor

satellite geometry. Availability and quality of GPS signals may be affected by your

location, buildings, natural obstacles, and weather conditions. The GPS receiver should

only be used outdoors to allow reception of GPS signals.

Any GPS should not be used for precise location measurement, and you should never

rely solely on location data from the GPS receiver and cellular radio networks for

positioning or navigation.

To enable or disable different positioning methods, select Menu > Applications >

Location and Positioning > Positioning methods.

Assisted GPS (A-GPS)

Your device also supports Assisted GPS (A-GPS).

A-GPS is a network service.

Assisted GPS (A-GPS) is used to retrieve assistance data over a packet data connection,

which assists in calculating the coordinates of your current location when your device

is receiving signals from satellites.

When you activate A-GPS, your device receives useful satellite information from an

assistance data server over the cellular network. With the help of assisted data, your

device can obtain the GPS position faster.

Your device is preconfigured to use the Nokia A-GPS service, if no service provider-

specific A-GPS settings are available. The assistance data is retrieved from the Nokia A-

GPS service server only when needed.

You must have an internet access point defined in the device to retrieve assistance data

from the Nokia A-GPS service over a packet data connection. To define an access point

for A-GPS, select Menu > Applications > Location and Positioning > Positioning

server > Access point. A wireless LAN (WLAN) access point cannot be used for this

service. Only a packet data internet access point can be used. Your device asks for the

internet access point when GPS is used for the first time.

Positioning (GPS)

Cyan

Magenta

Yellow

Black

Hold your device correctly

When using the GPS receiver, ensure you do not cover the antenna with your hand.

Establishing a GPS connection may take from a couple of seconds to

several minutes. Establishing a GPS connection in a vehicle may take

longer.

The GPS receiver draws its power from the device battery. Using the GPS

receiver may drain the battery faster.

11. Connectivity

Your device offers several options to connect to the internet or to another compatible

device or PC.

Wi-Fi/WLAN connection

Your device can detect and connect to wireless local area networks (WLAN). Using a

WLAN, you can connect your device to the internet and compatible devices that have

WLAN support.

About WLAN

To use a wireless LAN (WLAN) connection, it must be available in the location, and your

device must be connected to the WLAN. Some WLANs are protected, and you need an

access key from the service provider to connect to them.

Features that use WLAN, or that are allowed to run in the background while using other

features, increase the demand on battery power and reduce the battery life.

Your device supports the following WLAN features:

●IEEE 802.11b/g standard

●Operation at 2.4 GHz

●Wired equivalent privacy (WEP) with keys up to 128 bits, Wi-Fi protected access

(WPA), and 802.1x authentication methods. These functions can be used only if they

are supported by the network.

Important: Always enable one of the available encryption methods to increase

the security of your wireless LAN connection. Using encryption reduces the risk of

unauthorised access to your data.

WLAN wizard

Select Menu > Settings and Connectivity > Wireless LAN.

Connectivity

Cyan

Magenta

Yellow

Black

The WLAN wizard helps you to connect to a wireless LAN (WLAN) and manage your WLAN

connections.

If the search finds WLANs, to create an internet access point (IAP) for a connection and

start the web browser using this IAP, select the connection and Start web browsing.

If you select a secured WLAN, you are asked to enter the relevant password. To connect

to a hidden network, you must enter the correct network name (service set identifier,

SSID).

If you already have the web browser running using the currently active WLAN

connection, to return to the web browser, select Continue web browsing. To end the

active connection, select the connection and Disconnect WLAN.

12. Share online

Share online

Select Menu > Internet > Share online.

With Share online, you can post images, video clips, and sound clips from your device

to compatible online sharing services, such as albums and blogs. You can also view and

send comments to the posts in these services, and download content to your compatible

Nokia device.

The supported content types may vary depending on the service provider.

The availability of the Share online service may vary depending on your country or sales

area.

Subscribe to services

Select Menu > Internet > Share online.

To subscribe to an online sharing service, go to the service provider's website, and check

that your Nokia device is compatible with the service. Create an account as instructed

on the website. You receive a user name and password needed to set up your device

with the account.

1. To activate a service, open the Share online application in your device, select a service

and Options > Activate.

2. Allow the device to create a network connection. If you are prompted for an internet

access point, select one from the list.

3. Sign in to your account as instructed on the service provider’s website.

The online sharing service is free of charge, but any data transferred over the network

may incur charges from your service provider. For the availability and cost of the service,

contact your service provider.

Share online

Cyan

Magenta

Yellow

Black

Manage your accounts

To view your accounts, select Options > Settings > My accounts.

To create a new account, select Options > Add new account.

To change your user name or password for an account, select the account and

Options > Open.

To set the account as the default when sending posts from your device, select

Options > Set as default.

To remove an account, select the account and Options > Delete.

Create a post

Select Menu > Internet > Share online.

To post multimedia files to a service, select a service and Options > New post. If the

online sharing service provides channels for posting files, select the desired channel.

To add an image, video clip, or sound clip to the post, select Options > Insert.

To add a title or description to the post, enter text directly to the fields, if available.

To add tags to the post, select Tags:.

To select whether to enable the posting of location information contained in the file,

select Location:.

To set the level of privacy for a file, select Privacy:. To allow everyone to view your file,

select Public. To restrict others from seeing your files, select Private. You can define

the Default setting on the service provider's website.

To send the post to the service, select Options > Post to web.

Post files from Gallery

You can post files from Gallery to an online sharing service.

1. Open Gallery, and select the files you want to post.

2. Select Options > Send > Post to web and the desired account.

3. Edit your post as required.

4. Select Options > Post to web.

13. Nokia Video Centre

With Nokia Video Centre (network service), you can download and stream video clips

over the air from compatible internet video services using a packet data or WLAN

connection. You can also transfer video clips from a compatible PC to your device and

view them in Video centre.

Nokia Video Centre

Cyan

Magenta

Yellow

Black

Using packet data access points to download videos may involve the transmission of

large amounts of data through your service provider's network. Contact your service

provider for information about data transmission charges.

Your device may have predefined services.

Service providers may provide free content or charge a fee. Check the pricing in the

service or from the service provider.

View and download video clips

Connect to video services

1. Select Menu > Applications > Video centre.

2. To connect to a service to install video services, select Video directory and the

desired video service from the service catalogue.

View a video clip

To browse the content of installed video services, select Video feeds.

The content of some video services is divided into categories. To browse video clips,

select a category. To search for a video clip in the service, select Video search. Search

may not be available in all services.

To view information about the selected video clip, select Options > Video details.

Some video clips can be streamed over the air, but others must be first downloaded to

your device. To download a video clip, select Options > Download. Downloads

continue in the background if you exit the application. The downloaded video clips are

saved in My videos. To stream a video clip or view a downloaded one, select Options >

Play. When the video clip is playing, to use the control keys for controlling the player,

tap the screen. To adjust the volume, use the volume key.

Warning: Listen to music at a moderate level. Continuous exposure to high

volume may damage your hearing.

Schedule downloads

Setting the application to download video clips automatically may involve the

transmission of large amounts of data through your service provider's network. For

information about data transmission charges, contact your service provider. To

schedule an automatic download for video clips in a service, select a category and

Options > Schedule downloads. Video centre automatically downloads new video

clips daily at the time you define.

To cancel scheduled downloads for a category, select Manual download as the

download method.

Nokia Video Centre

Cyan

Magenta

Yellow

Black

Video feeds

The content of the installed video services is distributed using Atom or RSS feeds. To

view and manage your feeds, select Video feeds.

Select Options and from the following:

●Feed subscriptions — Check your current feed subscriptions.

●Refresh feeds — Refresh the content of all feeds.

●Add feed — Subscribe to new feeds. Select Via Video directory to select a feed from

the services in the video directory, or Add manually to add a video feed address.

●Feed details — View information about a video.

●Manage account — Manage your account options for a given feed, if available.

●Remove feed — Remove a feed from your subscriptions. You may not be able to

remove some preinstalled feeds.

To view the videos available in a feed, select a feed from the list.

My videos

My videos is a storage place for all videos in the Video centre application. You can list

downloaded videos and video clips recorded with the device camera in separate views.

1. To open a folder and view video clips, select the folder. When a video clip is playing,

to use the control keys for controlling the player, tap the screen.

2. To adjust the volume, press the volume key.

Select Options and from the following:

●Mute or Unmute — Turn sound on or off.

●Resume download — Resume a paused or failed download.

●Cancel download — Cancel a download.

●Video details — View file details.

●Change aspect ratio — Select the aspect ratio of the video clip. Select Natural,

Stretch, or Zoom.

●Memory status — View the amount of free and used memory.

To move or copy video clips to a compatible memory card, select Options > Move and

copy > Copy or Move and the memory card.

Transfer videos from your PC

Transfer your own video clips to Video centre from compatible devices using a

compatible USB data cable. Video centre will display only the video clips which are in a

format supported by your device.

1. To view your device on a PC as a mass memory device where you can transfer any

data files, make the connection with a USB data cable.

2. Select Mass storage as the connection mode. A compatible memory card needs to

be inserted in the device.

Nokia Video Centre

Cyan

Magenta

Yellow

Black

3. Select the video clips you want to copy from your PC.

4. Transfer the video clips to E:\My Videos in the memory card.

The transferred video clips appear in the My videos folder in Video centre. Video files

in other folders of your device are not displayed.

Video centre settings

In the Video centre main view, select Options > Settings and from the following:

●Video service selection — Select the video services that you want to appear in

Video centre. You can also add, remove, edit, and view the details of a video service.

You cannot edit preinstalled video services.

●Connection settings — To define the network destination used for the network

connection, select Network connection. To select the connection manually each

time Video centre opens a network connection, select Always ask.

To set GPRS connection on or off, select Confirm GPRS usage.

To set roaming on or off, select Confirm roaming.

●Parental control — Set an age limit to videos. The required password is the same

as the device lock code. The factory setting for the lock code is 12345. In video-on-

demand services, videos which have the same or a higher age limit than you have

set, are hidden.

●Preferred memory — Select whether downloaded videos are saved in the device

memory or on a compatible memory card.

●Thumbnails — Select whether to download and view thumbnail images in video

feeds.

14. Web browser

To browse the web, you need to have an internet access point defined in your device.

Tip: To access the browser, tap the media key ( ) to open the media bar, and

select .

Browse the web

Select Menu > Internet > Web.

Important: Use only services that you trust and that offer adequate security and

protection against harmful software.

Important: Only install and use applications and other software from trusted

sources, such as applications that are Symbian Signed or have passed the Java

Verified™ testing.

Web browser

Cyan

Magenta

Yellow

Black

To browse a web page, in the bookmarks view, select a bookmark, or enter the address

in the field ( ), and select Go to.

Some web pages may contain material, such as graphics and sounds, that requires a

large amount of memory to view. If your device runs out of memory while loading such

a web page, the graphics on the page are not shown.

To browse web pages without graphics to save memory, select Options > Settings >

Page > Load content > Text only.

To enter a new web address you want to visit, select Options > Go to > New web

page.

To refresh the content of the web page, select Options > Web page options >

Reload.

To save the current web page as a bookmark, select Options > Web page options >

Save as bookmark.

To view snapshots of the web pages you have visited during the current browsing

session, select Back (available if History list is set on in the browser settings and the

current web page is not the first web page you visit). Select the web page you want.

To open a sublist of commands or actions for the current web page, select Options >

Service options (if supported by the web page).

To prevent or allow the automatic opening of multiple windows, select Options >

Web page options > Block pop-ups or Allow pop-ups.

Tip: To take the browser to the background, press the end key once. To end the

connection, press and hold the end key.

Browser toolbar

The browser toolbar helps you select frequently used functions of the browser.

On the toolbar, select from the following:

● Expand toolbar — Expand the toolbar to access more toolbar functions.

● Go to web address — Enter a new web address.

● Show zoom — Zoom in or out on the web page.

To use the expanded toolbar, select Expand toolbar and from the following:

● Go to feeds — View your current feed subscriptions.

● Full screen — Switch to the full screen view.

● Rotate scr. — Rotate the screen between portrait and landscape modes.

● Subsc. feeds — View a list of available web feeds on the current web page, and

subscribe to a web feed.

● Settings — Edit the settings.

● Save bkmrk. — Save the current web page as a bookmark.

Web browser

Cyan

Magenta

Yellow

Black

● Reload — Refresh the web page.

● Overview — View an overview of the current web page.

● Homepage — Go to the homepage (if defined in settings).

● Bookmarks — Open the bookmarks view.

● Find keywd. — Search on the current web page.

Bookmarks

The bookmarks view opens when you open the Web application. You can select web

addresses from a list or from a collection of bookmarks in the Recently visited

pages folder.

The toolbar helps you select frequently used functions of the browser.

On the toolbar, select from the following:

● Add bookmark — Add a new bookmark.

● Go to web address — Enter a new web address.

● Delete — Delete a bookmark.

Select Options and from the following:

●Go to — Enter a new web address, go to the previous web page, or view saved links

to web feeds and blogs.

●Bookmark options — Send and add bookmarks, and set bookmarks as a homepage.

●Bookmark manager — Edit, move, and delete bookmarks.

Web also keeps track of the web pages you visit during browsing. In the Recently

visited pages folder, you can view the list of the visited web pages.

Empty the cache

The information or services you have accessed are stored in the cache memory of the

device.

A cache is a memory location that is used to store data temporarily. If you have tried to

access or have accessed confidential information requiring passwords, empty the cache

after each use.

To empty the cache, select Options > Clear privacy data > Cache.

Connection security

If the security indicator ( ) is displayed during a connection, the data transmission

between the device and the internet gateway or server is encrypted.

The security icon does not indicate that the data transmission between the gateway

and the content server (or the place where the requested resource is stored) is secure.

The service provider secures the data transmission between the gateway and the

content server.

Web browser

Cyan

Magenta

Yellow

Black

Security certificates may be required for some services, such as banking services. You

are notified if the identity of the server is not authentic or if you do not have the correct

security certificate in your device. For more information, contact your service provider.

Important: Even if the use of certificates makes the risks involved in remote

connections and software installation considerably smaller, they must be used correctly

in order to benefit from increased security. The existence of a certificate does not offer

any protection by itself; the certificate manager must contain correct, authentic, or

trusted certificates for increased security to be available. Certificates have a restricted

lifetime. If "Expired certificate" or "Certificate not valid yet" is shown, even if the

certificate should be valid, check that the current date and time in your device are

correct.

Before changing any certificate settings, you must make sure that you really trust the

owner of the certificate and that the certificate really belongs to the listed owner.

Web browser

Cyan

Magenta

Yellow

Black

Enhancements

Warning: Use only batteries, chargers, and accessories approved by Nokia for

use with this particular model. The use of any other types may invalidate any approval

or warranty, and may be dangerous.

For availability of approved accessories, please check with your dealer. When you

disconnect the power cord of any accessory, grasp and pull the plug, not the cord.

Battery

Battery and charger information

Your device is powered by a rechargeable battery. The battery intended for use with

this device is BL-5J . Nokia may make additional battery models available for this device.

This device is intended for use when supplied with power from the following chargers:

AC-8, AC-5 . The exact charger model number may vary depending on the type of plug.

The plug variant is identified by one of the following: E, EB, X, AR, U, A, C, or UB.

The battery can be charged and discharged hundreds of times, but it will eventually

wear out. When the talk and standby times are noticeably shorter than normal, replace

the battery. Use only Nokia approved batteries, and recharge your battery only with

Nokia approved chargers designated for this device. Use of an unapproved battery or

charger may present a risk of fire, explosion, leakage, or other hazard.

If a battery is being used for the first time or if the battery has not been used for a

prolonged period, it may be necessary to connect the charger, then disconnect and

reconnect it to begin charging the battery. If the battery is completely discharged, it

may take several minutes before the charging indicator appears on the display or before

any calls can be made.

Always switch the device off and disconnect the charger before removing the battery.

Unplug the charger from the electrical plug and the device when not in use. Do not leave

a fully charged battery connected to a charger, since overcharging may shorten its

lifetime. If left unused, a fully charged battery will lose its charge over time.

Always try to keep the battery between 15°C and 25°C (59°F and 77°F). Extreme

temperatures reduce the capacity and lifetime of the battery. A device with a hot or cold

battery may not work temporarily. Battery performance is particularly limited in

temperatures well below freezing.

Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic

object such as a coin, clip, or pen causes direct connection of the positive (+) and

negative (-) terminals of the battery. (These look like metal strips on the battery.) This

might happen, for example, when you carry a spare battery in your pocket or purse.

Short-circuiting the terminals may damage the battery or the connecting object.

Cyan

Magenta

Yellow

Black

Do not dispose of batteries in a fire as they may explode. Batteries may also explode if

damaged. Dispose of batteries according to local regulations. Please recycle when

possible. Do not dispose as household waste.

Do not dismantle, cut, open, crush, bend, deform, puncture, or shred cells or batteries.

In the event of a battery leak, do not allow the liquid to come in contact with the skin

or eyes. In the event of such a leak, flush your skin or eyes immediately with water, or

seek medical help.

Do not modify, remanufacture, attempt to insert foreign objects into the battery, or

immerse or expose it to water or other liquids.

Improper battery use may result in a fire, explosion, or other hazard. If the device or

battery is dropped, especially on a hard surface, and you believe the battery has been

damaged, take it to a service centre for inspection before continuing to use it.

Use the battery only for its intended purpose. Never use any charger or battery that is

damaged. Keep your battery out of the reach of small children.

Nokia battery authentication guidelines

Always use original Nokia batteries for your safety. To check that you are getting an

original Nokia battery, purchase it from a Nokia authorised service centre or dealer, and

inspect the hologram label using the following steps:

Successful completion of the steps is not a total assurance of the authenticity of the

battery. If you have any reason to believe that your battery is not an authentic, original

Nokia battery, you should refrain from using it, and take it to the nearest Nokia

authorised service centre or dealer for assistance. If authenticity cannot be verified,

return the battery to the place of purchase.

Authenticate hologram

1. When you look at the hologram on the label, you should see the

Nokia connecting hands symbol from one angle and the Nokia

Original Enhancements logo when looking from another angle.

2. When you angle the hologram left, right, down and up, you

should see 1, 2, 3 and 4 dots on each side respectively.

Battery

Cyan

Magenta

Yellow

Black

What if your battery is not authentic?

If you cannot confirm that your Nokia battery with the hologram on the label is an

authentic Nokia battery, please do not use the battery. Take it to the nearest Nokia

authorised service centre or dealer for assistance. The use of a battery that is not

approved by Nokia may be dangerous and may result in poor performance and damage

to your device and its accessories. It may also invalidate any approval or warranty

applying to the device.

For additional information, refer to the warranty and reference leaflet included with

your Nokia device.

Care and maintenance

Your device is a product of superior design and craftsmanship and should be treated

with care. The following suggestions will help you protect your warranty coverage.

●Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can

contain minerals that will corrode electronic circuits. If your device does get wet,

remove the battery, and allow the device to dry completely before replacing it.

●Use a soft, clean, dry cloth to clean any lenses, such as camera, proximity sensor, and

light sensor lenses.

●Do not use or store the device in dusty, dirty areas. Its moving parts and electronic

components can be damaged.

●Do not store the device in hot areas. High temperatures can shorten the life of

electronic devices, damage batteries, and warp or melt certain plastics.

●Do not store the device in cold areas. When the device returns to its normal

temperature, moisture can form inside the device and damage electronic circuit

boards.

●Do not attempt to open the device other than as instructed in this guide.

●Do not drop, knock, or shake the device. Rough handling can break internal circuit

boards and fine mechanics.

●Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the

device.

●Do not paint the device. Paint can clog the moving parts and prevent proper

operation.

●Use only the supplied or an approved replacement antenna. Unauthorised antennas,

modifications, or attachments could damage the device and may violate regulations

governing radio devices.

●Use chargers indoors.

●Always create a backup of data you want to keep, such as contacts and calendar notes.

●To reset the device from time to time for optimum performance, power off the device

and remove the battery.

Care and maintenance

Cyan

Magenta

Yellow

Black

These suggestions apply equally to your device, battery, charger, or any accessory. If

any device is not working properly, take it to the nearest authorised service facility for

service.

Recycle

Always return your used electronic products, batteries, and packaging materials to a

dedicated collection point. This way you help prevent uncontrolled waste disposal and

promote the recycling of materials. More detailed information is available from the

product retailer, local waste authorities, national producer responsibility organisations,

or your local Nokia representative. Check how to recycle your Nokia products at

www.nokia.com/werecycle, or if browsing on a mobile device, www.nokia.mobi/

werecycle.

Additional safety information

Small children

Your device and its accessories may contain small parts. Keep them out of the reach of

small children.

Operating environment

This device meets RF exposure guidelines when used either in the normal use position

against the ear or when positioned at least 1.5 centimetres (5/8 inch) away from the

body. When a carry case, belt clip, or holder is used for body-worn operation, it should

not contain metal and should position the device the above-stated distance from your

body.

To transmit data files or messages, this device requires a quality connection to the

network. In some cases, transmission of data files or messages may be delayed until

such a connection is available. Ensure the above separation distance instructions are

followed until the transmission is completed.

Parts of the device are magnetic. Metallic materials may be attracted to the device. Do

not place credit cards or other magnetic storage media near the device, because

information stored on them may be erased.

Medical devices

Operation of any radio transmitting equipment, including wireless phones, may

interfere with the functionality of inadequately protected medical devices. Consult a

physician or the manufacturer of the medical device to determine if they are adequately

shielded from external RF energy or if you have any questions. Switch off your device

in health care facilities when any regulations posted in these areas instruct you to do

so. Hospitals or health care facilities may be using equipment that could be sensitive to

external RF energy.

Additional safety information

Cyan

Magenta

Yellow

Black

Implanted medical devices

Manufacturers of medical devices recommend that a minimum separation of 15.3

centimetres (6 inches) should be maintained between a wireless device and an

implanted medical device, such as a pacemaker or implanted cardioverter defibrillator,

to avoid potential interference with the medical device. Persons who have such devices

should:

●Always keep the wireless device more than 15.3 centimetres (6 inches) from the

medical device when the wireless device is turned on.

●Not carry the wireless device in a breast pocket.

●Hold the wireless device to the ear opposite the medical device to minimise the

potential for interference.

●Turn the wireless device off immediately if there is any reason to suspect that

interference is taking place.

●Read and follow the directions from the manufacturer of their implanted medical

device.

If you have any questions about using your wireless device with an implanted medical

device, consult your health care provider.

Hearing aids

Some digital wireless devices may interfere with some hearing aids. If interference

occurs, consult your service provider.

Vehicles

RF signals may affect improperly installed or inadequately shielded electronic systems

in motor vehicles such as electronic fuel injection systems, electronic antiskid (antilock)

braking systems, electronic speed control systems, and air bag systems. For more

information, check with the manufacturer, or its representative, of your vehicle or any

equipment that has been added.

Only qualified personnel should service the device or install the device in a vehicle. Faulty

installation or service may be dangerous and may invalidate any warranty that may

apply to the device. Check regularly that all wireless device equipment in your vehicle

is mounted and operating properly. Do not store or carry flammable liquids, gases, or

explosive materials in the same compartment as the device, its parts, or accessories.

For vehicles equipped with an air bag, remember that air bags inflate with great force.

Do not place objects, including installed or portable wireless equipment in the area over

the air bag or in the air bag deployment area. If in-vehicle wireless equipment is

improperly installed and the air bag inflates, serious injury could result.

Using your device while flying in aircraft is prohibited. Switch off your device before

boarding an aircraft. The use of wireless teledevices in an aircraft may be dangerous to

the operation of the aircraft, disrupt the wireless telephone network, and may be illegal.

Additional safety information

Cyan

Magenta

Yellow

Black

Potentially explosive environments

Switch off your device when in any area with a potentially explosive atmosphere, and

obey all signs and instructions. Potentially explosive atmospheres include areas where

you would normally be advised to turn off your vehicle engine. Sparks in such areas

could cause an explosion or fire resulting in bodily injury or even death. Switch off the

device at refuelling points such as near gas pumps at service stations. Observe

restrictions on the use of radio equipment in fuel depots, storage, and distribution

areas; chemical plants; or where blasting operations are in progress. Areas with a

potentially explosive atmosphere are often, but not always, clearly marked. They include

below deck on boats, chemical transfer or storage facilities and areas where the air

contains chemicals or particles such as grain, dust, or metal powders. You should check

with the manufacturers of vehicles using liquefied petroleum gas (such as propane or

butane) to determine if this device can be safely used in their vicinity.

Emergency calls

Important: This device operates using radio signals, wireless networks, landline

networks, and user-programmed functions. If your device supports voice calls over the

internet (internet calls), activate both the internet calls and the cellular phone. The

device will attempt to make emergency calls over both the cellular networks and

through your internet call provider if both are activated. Connections in all conditions

cannot be guaranteed. You should never rely solely on any wireless device for essential

communications like medical emergencies.

To make an emergency call:

1. If the device is not on, switch it on. Check for adequate signal strength. Depending

on your device, you may also need to complete the following:

●Insert a SIM card if your device uses one.

●Remove certain call restrictions you have activated in your device.

●Change your profile from offline profile mode to an active profile.

●If the screen and keys are locked, slide the lock switch on the side of the device

to unlock them.

2. Press the end key as many times as needed to clear the display and ready the device

for calls.

3. Open the dialler by selecting the dialler icon ( ).

4. Enter the official emergency number for your present location. Emergency numbers

vary by location.

5. Press the call key.

When making an emergency call, give all the necessary information as accurately as

possible. Your wireless device may be the only means of communication at the scene

of an accident. Do not end the call until given permission to do so.

Additional safety information

Cyan

Magenta

Yellow

Black

Certification information (SAR)

This mobile device meets guidelines for exposure to radio waves.

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the

limits for exposure to radio waves recommended by international guidelines. These

guidelines were developed by the independent scientific organisation ICNIRP and

include safety margins designed to assure the protection of all persons, regardless of

age and health.

The exposure guidelines for mobile devices employ a unit of measurement known as

the Specific Absorption Rate or SAR. The SAR limit stated in the ICNIRP guidelines is 2.0

watts/kilogram (W/kg) averaged over 10 grams of tissue. Tests for SAR are conducted

using standard operating positions with the device transmitting at its highest certified

power level in all tested frequency bands. The actual SAR level of an operating device

can be below the maximum value because the device is designed to use only the power

required to reach the network. That amount changes depending on a number of factors

such as how close you are to a network base station. The highest SAR value under the

ICNIRP guidelines for use of the device at the ear is 0.99 W/kg .

Use of device accessories may result in different SAR values. SAR values may vary

depending on national reporting and testing requirements and the network band.

Additional SAR information may be provided under product information at

www.nokia.com.

Your mobile device is also designed to meet the requirements for exposure to radio

waves established by the Federal Communications Commission (USA) and Industry

Canada. These requirements set a SAR limit of 1.6 W/kg averaged over one gram of

tissue. The highest SAR value reported under this standard during product certification

for use at the ear is 1.29 W/kg and when properly worn on the body is 0.92 W/kg .

Additional safety information

Cyan

Magenta

Yellow

Black

Index

access codes 16

active toolbar 33

antennas 18

assisted GPS (A-GPS) 35

audio messages 26

bookmarks 43

browser

bookmarks 43

browsing pages 41

cache memory 43

security 43

toolbar 42

cache memory 43

calls 21

camera

flash 33

image mode 32

indicators 31

options 33

recording 34

video mode 33

capture settings

in camera 31

display rotation 19

double-tap 12

drag 12

gallery 29

organising 29

viewing 29

viewing images 30

viewing videos 30

general information 14

GPS (Global Positioning System) 35

headset 20

help application 15

internet connection 41

Microsoft RM-428 GSM/WCDMA cellular phone w/BT and WLAN User Manual Manual

Microsoft Mobile Oy GSM/WCDMA cellular phone w/BT and WLAN Manual

Manual

Navigation menu

Namespaces

Views

Navigation
