Nokia X3-00 User Guide
5555555
Issue FCC
Contents
Safety...........................................4
1. Get started...............................5
Keys and parts............................................5
Insert the SIM card and battery................5
Insert and remove the memory card.......6
Charge the battery.....................................7
GSM antenna..............................................7
Accessories.................................................8
2. Switch it on..............................8
About your device......................................8
Network services.......................................9
Access codes...............................................9
Switch the device on and off..................10
Standby mode..........................................10
Navigate the menus................................11
Lock the keys............................................12
Functions without a SIM card ................12
Flight profile............................................12
3. Support and updates.............12
Support.....................................................12
My Nokia...................................................13
Download content...................................13
Software updates using your PC............13
Software updates over the air...............14
Restore factory settings..........................14
4. Make it your device...............15
Basic settings...........................................14
Personalise your phone..........................16
Connect.....................................................18
Network provider services......................20
5. Stay in touch..........................21
Make calls.................................................22
Text and messages..................................24
Mail and Instant Messaging....................27
6. Image and video...................28
Capture images........................................28
Record video clips....................................28
Camera and video settings.....................29
Gallery.......................................................29
Print images.............................................30
Memory card............................................30
7. Entertainment.......................30
Listen to music.........................................30
Web ..........................................................33
Games and applications..........................35
8. Maps......................................36
Download maps.......................................36
Maps and GPS...........................................36
Extra services...........................................37
9. Organise................................37
Manage contacts......................................38
Business cards..........................................38
Date and time..........................................38
Alarm clock...............................................39
Calendar....................................................39
To-do list..................................................39
Notes.........................................................39
Calculator.................................................39
Countdown timer....................................40
Stopwatch................................................40
10. Green tips............................40
Save energy..............................................40
Recycle......................................................41
Learn more...............................................41
Digital rights management.......42
Third-party applications...........42
Accessories................................43
Battery.......................................43
Battery and charger information...........43
Nokia battery authentication
guidelines.................................................44
Care and maintenance..............45
Recycle......................................................45
Additional safety
information...............................46
Magnets and magnetic fields.................46
Small children..........................................46
Operating environment..........................46
Medical devices........................................46
Vehicles.....................................................47
Potentially explosive environments......47
Emergency calls.......................................47
Certification information (SAR)..............48
Index.........................................50
Contents
Safety
Read these simple guidelines. Not
following them may be dangerous or
illegal. Read the complete user guide for
further information.
SWITCH ON SAFELY
Do not switch the device on
when wireless phone use is
prohibited or when it may
cause interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep
your hands free to operate the
vehicle while driving. Your first
consideration while driving
should be road safety.
INTERFERENCE
All wireless devices may be
susceptible to interference,
which could affect
performance.
SWITCH OFF IN RESTRICTED
AREAS
Follow any restrictions. Switch
the device off in aircraft, near
medical equipment, fuel,
chemicals, or blasting areas.
QUALIFIED SERVICE
Only qualified personnel may
install or repair this product.
ACCESSORIES AND BATTERIES
Use only approved accessories
and batteries. Do not connect
incompatible products.
WATER-RESISTANCE
Your device is not water-
resistant. Keep it dry.
© 2009 Nokia. All rights reserved.4
1. Get started
Get to know your phone, insert the
battery, SIM card, and memory card, and
learn some important information about
your phone.

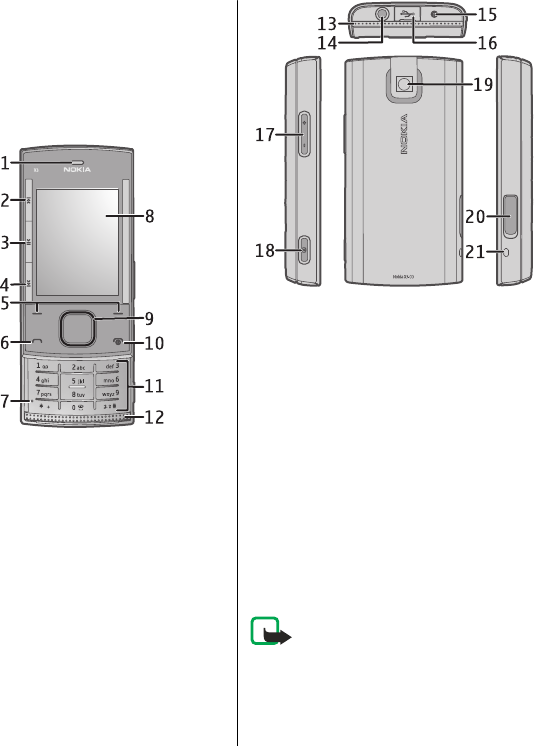

Keys and parts
1 — Earpiece
2 — Music key: skip/rewind
3 — Music key: play/pause
4 — Music key: skip/forward
5 — Left and right selection key
6 — Call key
7 — Microphone
8 — Display
9 — Navi™ key (scroll key)
10 — End/Power key
11 — Keypad
12 — Loudspeaker
13 — Loudspeaker
14 — Nokia AV Connector (3.5 mm)
15 — Charger connector
16 — Micro USB cable connector
17 — Volume keys
18 — Capture key
19 — Camera lens
20 — Memory card slot
21 — Wrist strap eyelet
Insert the SIM
card and battery
Note: Switch off the power and
disconnect the charger and any other
device before removing the covers. Avoid
touching electronic components while
changing the covers. Always store and use
the device with the covers attached.
© 2009 Nokia. All rights reserved. 5
The SIM card and its contacts can be easily
damaged by scratches or bending, so be
careful when handling, inserting, or
removing the card.

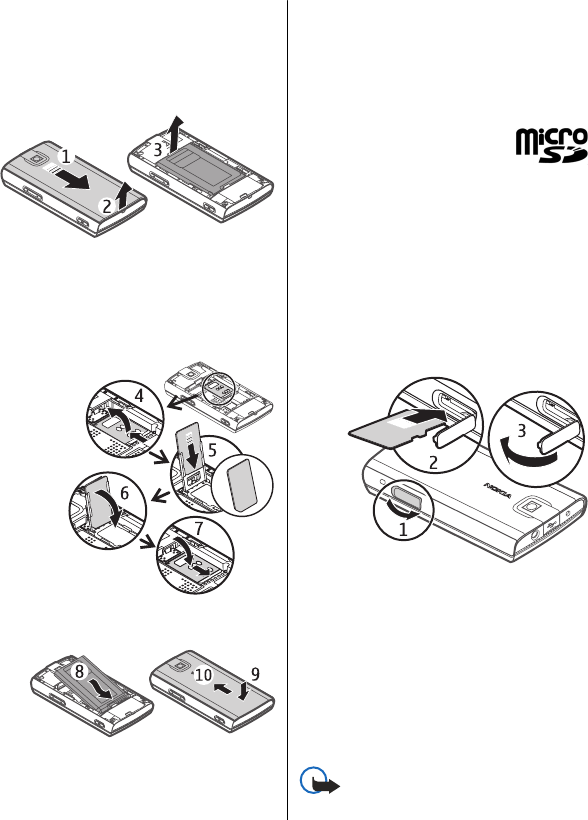

1. Open the back cover, and remove it.
Remove the battery.
2. Open the SIM card holder. Insert the
SIM card into the holder with the
bevelled corner facing down and the
contact surface area facing toward the
contacts of the device. Close the SIM
card holder.
3. Line
up the
battery contacts, and insert the
battery. Replace the back cover.
Insert and
remove the
memory card
Use only compatible microSD
cards approved by Nokia for
use with this device. Nokia
uses approved industry standards for
memory cards, but some brands may not
be fully compatible with this device.
Incompatible cards may damage the card
and the device and corrupt data stored on
the card.
Your device supports microSD cards with
a capacity of up to 8 GB. The size of a single
file must not exceed 2 GB.
Insert the memory card
1. Open the cover of the memory card
slot.
2. Insert the card into the memory card
slot with the contact surface facing
down, and press until it locks into
place.
3. Close the cover of the memory card
slot.
Remove the memory card
Important: Do not remove the
memory card during an operation when
Get started
© 2009 Nokia. All rights reserved.6
the card is being accessed. Doing so may
damage the memory card and the device,
and corrupt data stored on the card.
You can remove or replace the memory
card without switching the device off.
1. Ensure that no application is currently
accessing the memory card.
2. Open the cover of the memory card
slot.
3. Press the memory card slightly in to
release the lock, and remove the card.
Charge the
battery
Your battery has been partially charged at
the factory. If the device indicates a low
charge, do the following:
1. Connect the charger to a wall outlet.
2. Connect the charger to the device.
3. When the device indicates a full
charge, disconnect the charger from
the device, then from the wall outlet.
You can also charge the battery with a USB
cable with power from a computer.
1. Connect the USB cable to a USB port of
a computer and to your device.
2. When the battery is fully charged,
disconnect the USB cable.
You do not need to charge the battery for
a specific length of time, and you can use
the device while it is charging. If the
battery is completely discharged, it may
take several minutes before the charging
indicator appears on the display or before
any calls can be made.
Charging the device while listening to the
radio may affect the quality of reception.

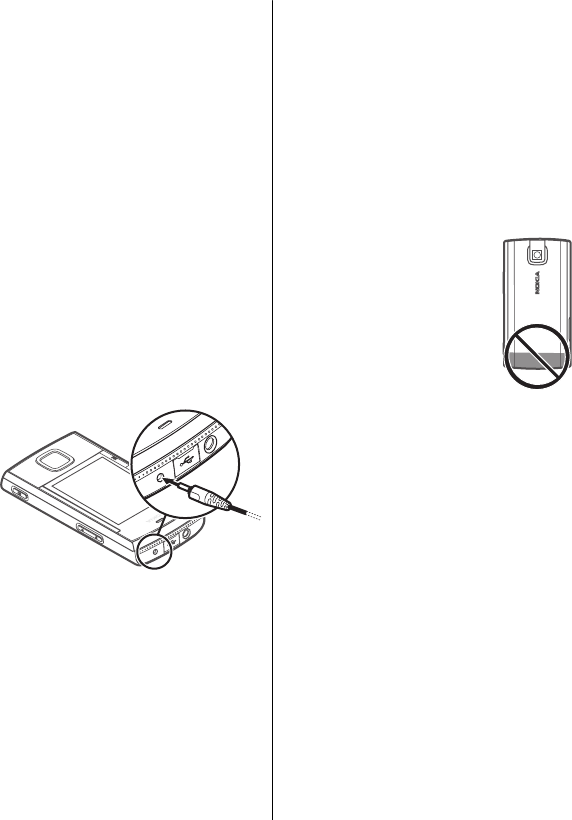

GSM antenna
Your device may have internal
and external antennas. Avoid
touching the antenna area
unnecessarily while the
antenna is transmitting or
receiving. Contact with
antennas affects the
communication quality and
may cause a higher power
level during operation and
may reduce the battery life.
The figure shows the GSM antenna area
marked in grey.
Get started
© 2009 Nokia. All rights reserved. 7

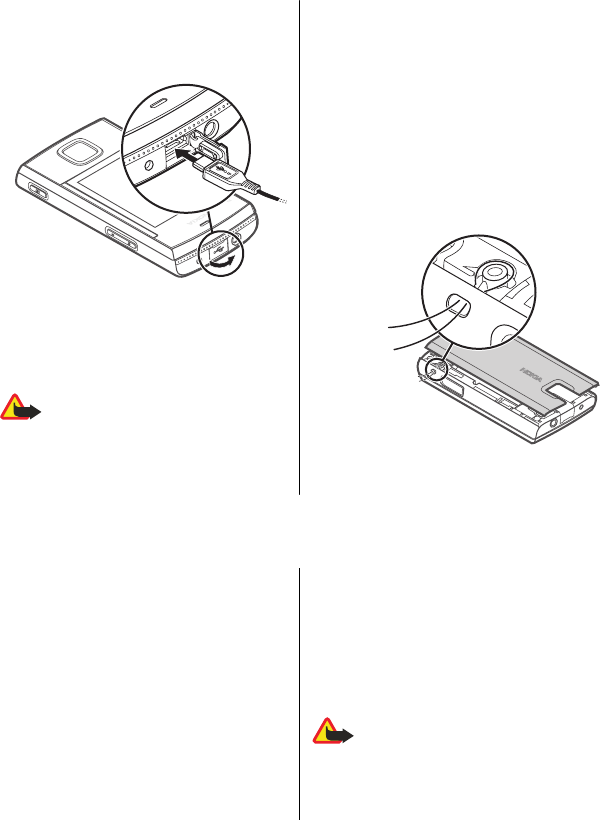

Accessories
Connect a USB cable
Open the cover of the USB connector, and
connect the USB cable to the device.
Headset
Warning: When you use the
headset, your ability to hear outside
sounds may be affected. Do not use the
headset where it can endanger your
safety.
When connecting any external device or
any headset, other than those approved
by Nokia for use with this device, to the
Nokia AV Connector, pay special attention
to volume levels.
Do not connect products that create an
output signal as this may cause damage
to the device. Do not connect any voltage
source to the Nokia AV Connector.
Strap
Thread a
strap as
shown in
the
and
tighten it.
2. Switch it on
Learn how to switch on your phone, and
how to use the basic functions.
About your
device
The wireless device described in this guide
is approved for use on the GSM 850, 900,
1800, and 1900 MHz networks. Contact
your service provider for more
information about networks.
Your device may have preinstalled
bookmarks and links for third-party
internet sites and may allow you to access
third-party sites. These are not affiliated
with Nokia, and Nokia does not endorse
or assume liability for them. If you access
such sites, take precautions for security or
content.
Warning: To use any features in
this device, other than the alarm clock, the
device must be switched on. Do not switch
the device on when wireless device use
may cause interference or danger.
Switch it on
© 2009 Nokia. All rights reserved.8
When using this device, obey all laws and
respect local customs, privacy and
legitimate rights of others, including
copyrights. Copyright protection may
prevent some images, music, and other
content from being copied, modified, or
transferred.
Make back-up copies or keep a written
record of all important information stored
in your device.
When connecting to any other device,
read its user guide for detailed safety
instructions. Do not connect incompatible
products.
The images in this guide may differ from
your device display.
Refer to the user guide for other
important information about your device.
Network
services
To use the device you must have service
from a wireless service provider. Some
features are not available on all networks;
other features may require that you make
specific arrangements with your service
provider to use them. Network services
involve transmission of data. Check with
your service provider for details about
fees in your home network and when
roaming on other networks. Your service
provider can explain what charges will
apply.
Your service provider may have requested
that certain features be disabled or not
activated in your device. If so, these
features will not appear on your device
menu. Your device may also have
customized items such as menu names,
menu order, and icons.
Access codes
To set how your phone uses the access
codes and security settings, select
Menu > Settings > Security > Access
codes.
•The security code helps to protect your
phone against unauthorised use. The
preset code is 12345. You can change
the code and set the phone to request
the code. Some operations require the
security code regardless of the
settings, for example if you want to
restore the factory settings. Keep the
code secret and in a safe place separate
from your phone. If you forget the code
and your phone is locked, your phone
will require service and additional
charges may apply. For more
information, contact a Nokia Care point
or your phone dealer.
•The PIN (UPIN) code, supplied with the
SIM (USIM) card, helps to protect the
card against unauthorised use.
•The PIN2 (UPIN2) code, supplied with
some SIM (USIM) cards, is required to
access certain services.
•PUK (UPUK) and PUK2 (UPUK2) codes
may be supplied with the SIM (USIM)
card. If you enter the PIN code
incorrectly three times in succession,
you are asked for the PUK code. If the
codes are not supplied, contact your
service provider.
•The barring password is required when
using the call barring service to restrict
calls to and from your phone (network
service).
•To view or change the security module
settings for the browser, select
Menu > Settings > Security >
Security module sett..
Switch it on
© 2009 Nokia. All rights reserved. 9
Switch the
device on and off
Switch on and
off — Press and
hold the power key.
Enter the PIN
code — If
requested , enter
the code PIN code
(displayed as ****).
Set the time and
date — If
requested, enter the
date, the local time, and the time zone and
the daylight saving time of your location.
When you switch on your device for the
first time, you may be prompted to get the
configuration settings from your service
provider (network service). For more
information, contact your service
provider.
Standby mode
When the phone is ready for use, and you
have not entered any characters, the
phone is in the standby mode.
Display
7
6
10
1 — Signal strength of the cellular
network
2 — Battery charge status
3 — Indicators
4 — Clock
5 — Name of the network or the operator
logo
6 — Date (only if the Home screen is
deactivated)
7 — Display
8 — Function of the left selection key
9 — Function of the Navi key (scroll key)
10 — Function of the right selection key
You may change the function of the left
and right selection key. See " Left and right
selection keys ", p. 17.
Home screen
The home screen displays a list of selected
features and information that you can
directly access.
Select Menu > Settings > Display >
Home screen.
Activate the home screen — Select
Home screen mode.
Switch it on
© 2009 Nokia. All rights reserved.10
Organise and personalise the home
screen — Select Personalise view.
Select a key to activate the home
screen — Select Home screen key.
Navigate in the home screen — Scroll
up or down to navigate in the list, and
select Select, View, or Edit. The arrows
indicate that further information is
available.
Stop navigating — Select Exit.
Shortcuts
When your device is in the standby or
home screen mode, you can use the
following shortcuts.
List missed, received, and dialled
calls — Press the call key. To make a call,
scroll to the number or name, and press
the call key.
Start the web browser — Press and hold
0.
Call the voice mailbox — Press and hold
1.
Use other keys as shortcuts — See
"Dialling shortcuts", p. 22.
Indicators
You have unread messages.
You have unsent, cancelled, or failed
messages.
The keypad is locked.
The device does not ring for incoming
calls or text messages.
An alarm is set.
/ The device is registered to the GPRS
or EGPRS network.
/ A GPRS or EGPRS connection is open.
/ The GPRS or EGPRS connection is
suspended (on hold).
Bluetooth connectivity is activated.
A GPS signal is available (external GPS
antenna necessary).
No GPS signal available (external GPS
antenna necessary).
If you have two phone lines, the second
line is in use.
All incoming calls are diverted to
another number.
Calls are limited to a closed user group.
The currently active profile is timed.
A headset is connected to the device.
The device is connected to another
device using a USB data cable.
Navigate the
menus
The phone offers you an extensive range
of functions that are grouped into menus.
1. To access the menu, select Menu.
2. Scroll through the menu, and select an
option (for example, Settings).
3. If the selected menu contains further
submenus, select one (for example,
Call).
4. Select the setting of your choice.
5. To return to the previous menu level,
select Back.
To exit the menu, select Exit.
To change the menu view, select
Options > Main menu view. Scroll right,
and select from the available options.
To rearrange the menu, select Options >
Organise. Scroll to the menu item to be
Switch it on
© 2009 Nokia. All rights reserved. 11
moved, and select Move. Scroll to where
you want to move the menu item, and
select OK. To save the change, select
Done > Yes.
Lock the keys
Lock the keypad to prevent accidental
keypresses.
Lock the keypad — Select Menu, and
press * within 3.5 seconds.
Unlock the keypad — Select Unlock, and
press * within 1.5 seconds. If requested,
enter the lock code.
Answer a call when the keypad is
locked — Press the call key. When you
end or reject a call, the keypad locks
automatically.
Further features are Automatic keyguard
and Security keyguard. See "Phone
settings", p. 15.
When the device or keypad is locked, calls
may be possible to the official emergency
number programmed into your device.
Functions
without a SIM
card
Some functions of your phone may be
used without inserting a SIM card, such as
Organiser functions and games. Some
functions appear dimmed in the menus
and cannot be used.
Flight profile
Use the Flight profile in radio sensitive
environments to deactivate all radio
frequency functions. You still have access
to offline games, the calendar, and phone
numbers. When the Flight profile is active,
is displayed.
Activate the Flight profile — Select
Menu > Settings > Profiles > Flight >
Activate or Personalise.
Deactivate the Flight profile — Select
any other profile.
Warning: With the Flight profile
you cannot make or receive any calls,
including emergency calls, or use other
features that require network coverage.
To make calls, you must first activate the
phone function by changing profiles. If the
device has been locked, enter the lock
code.
If you need to make an emergency call
while the device is locked and in the Flight
profile, you may be also able to enter an
official emergency number programmed
in your device in the lock code field and
select 'Call'. The device will confirm that
you are about to exit Flight profile to start
an emergency call.
3. Support and updates
Nokia helps you in many ways to gain the
most benefit from your device.
You can find the model number of your
device on the back cover.
Support
When you want to learn more about how
to use your product or you are unsure how
Support and updates
© 2009 Nokia. All rights reserved.12
your device should function, see the user
guide or see the support pages at
www.nokia.com/support or your local
Nokia website, or with a mobile device,
www.nokia.mobi/support.
If this does not resolve your issue, do one
of the following:
•Restart the device: switch off the
device, and remove the battery. After
about a minute, replace the battery,
and switch on the device.
•Restore the original factory settings as
explained in the user guide.
•Update your device software regularly
for optimum performance and possible
new features, as explained in the user
guide.
If your issue remains unsolved, contact
Nokia for repair options. See
www.nokia.com/repair, or in Latin
America, www.nokia-latinoamerica.com/
centrosdeservicio. Before sending your
device for repair, always back up the data
in your device.
My Nokia
Receive free tips, tricks, and support for
your Nokia phone, plus free trial content,
interactive demonstrations, a
personalised web page, and news about
the latest Nokia products and services.
Get the most out of your Nokia phone and
register at My Nokia today! For more
information and availability in your
region, see www.nokia.com/mynokia.
Download
content
You may be able to download new content
(for example, themes) to your phone
(network service).
Important: Use only services that
you trust and that offer adequate security
and protection against harmful software.
For the availability of different services
and pricing, contact your service provider.
Software
updates using
your PC
Nokia Software Updater is a PC application
that enables you to update your device
software. To update your device software,
you need a compatible PC, broadband
internet access, and a compatible USB
data cable to connect your device to the
PC.
To get more information, to check the
release notes for the latest software
versions, and to download the Nokia
Software Updater application, see
www.nokia.com/softwareupdate, or in
Latin America, www.nokia-
latinoamerica.com/nsu.
To update the device software, do the
following:
1. Download and install the Nokia
Software Updater application to your
PC.
2. Connect your device to the PC using a
USB data cable, and select PC Suite.
Support and updates
© 2009 Nokia. All rights reserved. 13
3. Open the Nokia Software Updater
application. The Nokia Software
Updater application guides you to
back up your files, update the
software, and restore your files.
Software
updates over the
air
Your service provider may send phone
software updates over the air directly to
your phone (network service). This option
may not be available, depending on your
phone.
Downloading software updates may
involve the transmission of large amounts
of data (network service).
Make sure that the device battery has
enough power, or connect the charger
before starting the update.
Warning: If you install a software
update, you cannot use the device, even
to make emergency calls, until the
installation is completed and the device is
restarted. Be sure to back up data before
accepting installation of an update.
Software update settings
This option may not be available,
depending on your phone.
To allow or disallow software and
configuration updates, select Menu >
Settings > Configuration > Device
manager sett. > Serv. softw. updates.
Request a software update
1. Select Menu > Settings > Phone >
Phone updates to request available
software updates from your service
provider.
2. Select Current softw. details to
display the current software version
and check whether an update is
needed.
3. Select Downl. phone softw. to
download and install a software
update. Follow the instructions on the
display.
4. If the installation was cancelled after
the download, select Install softw.
update to start the installation.
The software update may take several
minutes. If there are problems with the
installation, contact your service provider.
Restore factory
settings
To restore the phone back to factory
settings, select Menu > Settings >
Rest. factory sett. and from the
following:
•Restore settings only — Reset all
preference settings without deleting
any personal data.
•Restore all — Reset all preference
settings and delete all personal data,
such as contacts, messages, media
files, and activation keys.
Support and updates
© 2009 Nokia. All rights reserved.14
4. Make it your device
Set up your device, personalise it, and
connect it in several ways.
Basic settings
Phone settings
Select Menu > Settings and Phone.
Select from the following:
•Language settings — To set the
language of your device, select Phone
language and a language. To set the
language of your device according to
the information on the SIM card, select
Phone language > Automatic.
•Memory status — View the memory
consumption.
•Automatic keyguard — The keypad
is locked automatically after a preset
time delay when the device is in the
standby mode or home screen and no
function has been used.
•Security keyguard — Set the device
to request the security code to unlock
the keypad.
•Voice recognition — Set up voice
commands, or start voice recognition
training.
•Flight query — Set the device to
prompt for the Flight profile when you
switch the device on. In the Flight
profile, all radio connections are
closed.
•Phone updates — Allow software
updates from your service provider
(network service). The available
options may vary.
•Operator selection — Manually select
which network to use.
•Help text activation — Set the device
to display help text.
•Start-up tone — Play a tone when you
switch the device on.
•Confirm SIM actions — Access
additional network services from your
SIM card. This option may not be
available, depending on your SIM card.
Security settings
Select Menu > Settings and Security.
When security features that restrict calls
are in use (such as call barring, closed user
group, and fixed dialling), calls may be
possible to the official emergency number
programmed into your device. Call barring
and call diverting cannot be active at the
same time.
Select from the following:
•PIN code request or UPIN code
request — Set the device to request for
the PIN or UPIN code every time the
device is switched on. Some SIM cards
do not allow the code request to be
deactivated.
•Call barring service — Restrict
incoming calls to and outgoing calls
from your device (network service). A
barring password is required.
•Fixed dialling — Restrict your
outgoing calls to selected phone
numbers if supported by your SIM card.
When fixed dialling is activated, GPRS
connections are not possible except
while sending text messages over a
GPRS connection. In this case, the
recipient’s phone number and the
message centre number must be
included in the fixed dialling list.
Make it your device
© 2009 Nokia. All rights reserved. 15
•Closed user group — Define a group
of people whom you can call and who
can call you (network service).
•Security level — To request the
security code whenever a new SIM card
is inserted into the device, select
Phone.
•Access codes — Change the security
code, PIN code, UPIN code, PIN2 code,
or barring password.
•PIN2 code request — Set the device
to request the PIN2 code when using a
specific device feature protected by the
PIN2 code. Some SIM cards do not allow
the code request to be deactivated.
This option may not be available
depending on your SIM card. For
details, contact your service provider.
•Code in use — Display and select the
type of PIN code to be used.
•Authority certificates or User
certificates — View the list of the
authority or user certificates available
on your device.
•Security module sett. — View Secur.
module details, activate Module PIN
request, or change the module PIN and
signing PIN.
Personalise your
phone
Give your phone a personal touch with
ringing tones, display backgrounds, and
themes. Add shortcuts for your preferred
features, and attach enhancements.
Profiles
Your phone has various setting groups
called profiles, which you can customise
with ringing tones for different events
and environments.
Select Menu > Settings > Profiles, the
desired profile, and from the following
options:
•Activate — to activate the selected
profile
•Personalise — to change the profile
settings
•Timed — to set the profile to be active
for a certain time. When the time set
for the profile expires, the previous
profile that was not timed becomes
active.
Themes
A theme contains elements for
personalising your phone.
Select Menu > Settings > Themes and
from the following options:
•Select theme — Open the Themes
folder, and select a theme.
•Theme downloads — Open a list of
links to download more themes.
Tones
You can change the tone settings of the
selected active profile.
Select Menu > Settings > Tones. You
can find the same settings in the
Profiles menu.
Lights
To activate or deactivate light effects
associated with different phone
functions, select Menu > Settings >
Lights.
Make it your device
© 2009 Nokia. All rights reserved.16
Display
Select Menu > Settings > Display and
from the following:
•Wallpaper — to add a background
image for the home screen mode
•Home screen — to activate, organise,
and personalise the home screen mode
•Home screen font col. — to select the
font colour for the home screen mode
•Navigation key icons — to display
the scroll key icons in the home screen
mode
•Notification details — to display
details in missed call and message
notifications
•Slide animation — to display an
animation when you open or close the
slide
•Screen saver — to create and set a
screen saver
•Font size — to set the font size for
messaging, contacts, and web pages
•Operator logo — to display the
operator logo
•Cell info display — to display the cell
identity, if available from the network
My shortcuts
With personal shortcuts, you get quick
access to frequently used functions of
your phone.
Left and right selection keys
To change the function assigned to the left
or right selection key, select Menu >
Settings > My shortcuts > Left
selection key or Right selection key,
and the desired function.
In the home screen mode, if the left
selection key is Go to, to activate a
function, select Go to > Options and
from the following:
•Select options — to add or remove a
function
•Organise — to rearrange the
functions
Other shortcuts
Select Menu > Settings > My
shortcuts and from the following:
•Navigation key — to assign other
functions from a predefined list to the
navigation key (scroll key)
•Home screen key — to select the
movement of the navigation key to
activate the home screen mode
Assign dialling
shortcuts
Create shortcuts by assigning phone
numbers to the number keys 2-9.
1. Select Menu > Contacts > Speed
dials, and scroll to a number key.
2. Select Assign, or, if a number has
already been assigned to the key,
select Options > Change.
3. Enter a number or search for a contact.
Voice commands
You can use voice commands to make
phone calls, launch applications, and
activate profiles. Voice commands are
language-dependent.
Select Menu > Settings and Phone.
Set the language — Select Language
settings > Phone language and the
language.
Make it your device
© 2009 Nokia. All rights reserved. 17
Train voice recognition to your
voice — Select Voice recognition >
Voice recog. training.
Activate a voice command for a
function — Select Voice recognition >
Voice commands, a feature, and the
function. indicates that the voice
command is activated. If is not
displayed, select Add.
Play an activated voice command —
Select Play.
Rename or deactivate a voice
command — Scroll to a function, and
select Options > Edit or Remove.
Activate or deactivate all voice
commands — Select Options > Add
all orRemove all.
Connect
Your phone provides several features to
connect to other devices to transmit and
receive data.
Bluetooth wireless
technology
Bluetooth technology allows you to
connect your device, using radio waves, to
a compatible Bluetooth device within 10
metres (32 feet).
This device is compliant with Bluetooth
Specification 2.1 + EDR supporting the
following profiles: SIM access, phonebook
access, object push, file transfer, headset,
handsfree, generic access, serial port,
generic object exchange, advanced audio
distribution, audio video remote control,
service discovery application, personal
area networking, and generic audio/video
distribution. To ensure interoperability
between other devices supporting
Bluetooth technology, use Nokia
approved accessories for this model.
Check with the manufacturers of other
devices to determine their compatibility
with this device.
Features using Bluetooth technology
increase the demand on battery power
and reduce the battery life.
When the wireless device is in the remote
SIM mode, you can only use a compatible
connected accessory, such as a car kit, to
make or receive calls.
Your wireless device will not make any
calls, except to the emergency numbers
programmed into your device, while in
this mode.
To make calls, you must first leave the
remote SIM mode. If the device has been
locked, enter the lock code to unlock it
first.
Open a Bluetooth connection
1. Select Menu > Settings >
Connectivity > Bluetooth.
2. Select My phone's name, and enter a
name for your device.
3. To activate Bluetooth connectivity,
select Bluetooth > On. indicates
that Bluetooth connectivity is active.
4. To connect your device to an audio
accessory, select Conn. audio access.
and the accessory.
5. To pair your device with any Bluetooth
device in range, select Paired
devices > Add new device.
6. Scroll to a found device, and select
Add.
7. Enter a passcode (up to 16 characters)
on your device, and allow the
connection on the other Bluetooth
device.
Make it your device
© 2009 Nokia. All rights reserved.18
Operating the device in hidden mode is a
safer way to avoid malicious software. Do
not accept Bluetooth connectivity from
sources you do not trust. Alternatively,
switch off the Bluetooth function. This
does not affect other functions of the
device.
Connect your PC to the internet — You
can use Bluetooth technology to connect
your compatible PC to the internet. Your
device must be able to connect to the
internet (network service), and your PC
must support Bluetooth technology. After
connecting to the network access point
(NAP) service of the device and pairing
with your PC, your device automatically
opens a packet data connection to the
internet.
Packet data
General packet radio service (GPRS) is a
network service that allows mobile
phones to send and receive data over an
internet protocol (IP)-based network.
To define how to use the service, select
Menu > Settings > Connectivity >
Packet data > Packet data conn. and
from the following options:
•When needed — to establish the
packet data connection when an
application needs it. The connection is
closed when the application is
terminated.
•Always online — to automatically
connect to a packet data network when
you switch the phone on
You can use your phone as a modem by
connecting it to a compatible PC using
Bluetooth technology. For details, see the
Nokia PC Suite documentation.
USB data cable
You can use the USB data cable to transfer
data between the phone and a compatible
PC or a printer supporting PictBridge.
To activate the phone for data transfer or
image printing, connect the data cable
and select the mode:
•PC Suite — to use the cable for Nokia
PC Suite
•Printing & media — to use the phone
with a PictBridge compatible printer or
with a compatible PC
•Data storage — to connect to a PC that
does not have Nokia software and use
the phone as data storage
To change the USB mode, select Menu >
Settings > Connectivity > USB data
cable and the desired USB mode.
Synchronisation and
backup
Select Menu > Settings > Sync and
backup and from the following:
•Synchronisation — Create a backup
of your personal data to a Nokia server.
Before you start a backup, you need to
set up your My Nokia account. Select
Connect, and you will be guided
through the process.
•Phone switch — Synchronise or copy
selected data between your device and
another device using Bluetooth
technology.
•Create backup — Create a backup of
selected data.
•Restore backup — Select a stored
backup file, and restore it to the device.
Select Options > Details for
information about the selected backup
file.
Make it your device
© 2009 Nokia. All rights reserved. 19
•Data transfer — Synchronise or copy
selected data between your device and
another device, PC, or network server
(network service).
Connect a USB device
You can connect a USB storage (for
example, a memory stick) to your device
and browse in the file system and transfer
files.
1. Connect a compatible adapter cable to
the USB port of your device.
2. Connect the USB storage to the adapter
cable.
3. Select Menu > Gallery and the USB
device to browse.
Note: Not all USB storage devices
are supported, depending on their power
consumption.
Nokia PC Suite
With Nokia PC Suite, you can manage your
music and synchronise contacts, calendar
entries, notes, and to-do notes between
your device and a compatible PC or a
remote internet server (network service).
An installation file for Nokia PC Suite may
be available on the memory card supplied
with your device.
To install PC Suite on your PC do the
following:
1. Connect your device to your PC, using
a compatible USB data cable.
2. Select Data storage as the USB mode
on your device. Your device appears as
removable disk in your PC.
3. If the installation does not start
automatically, select the memory card
of your device on your PC and execute
the PC-Suite installation file.
4. Follow the instructions of the
installation program on your PC.
After the successful installation of PC suite
on your PC, you may delete the installation
file from the memory card of your device,
to free memory space for more media or
applications.
For more information, and to download PC
Suite, visit www.nokia.com/support.
Network
provider services
Your network provider provides several
additional services you may want to use.
For some of these services, charges may
apply.
Operator menu
Access a portal to services provided by
your network operator. For more
information, contact your network
operator. The operator can update this
menu with a service message.
SIM services
Your SIM card may provide additional
services. You can access this menu only if
it is supported by your SIM card. The name
and contents of the menu depend on the
available services.
Accessing these services may involve
sending messages or making a phone call
for which you may be charged.
Make it your device
© 2009 Nokia. All rights reserved.20
Position log
The network may send you a position
request (network service). To subscribe
and agree upon the delivery of
positioning information, contact your
service provider.
To accept or reject the position request,
select Accept or Reject. If you miss the
request, the phone automatically accepts
or rejects it according to what you have
agreed with your network operator or
service provider.
To view the information on the 10 most
recent privacy notifications and requests,
select Menu > Log > Positioning >
Position log.
Info messages, SIM
messages, and service
commands
Info messages
You can receive messages on various
topics from your service provider
(network service). For more information,
contact your service provider.
Select Menu > Messaging > Info
messages and from the available options.
Service commands
Service commands allow you to write and
send service requests (USSD commands)
to your service provider, such as activation
commands for network services.
To write and send the service request,
select Menu > Messaging > Serv.
commands. For details, contact your
service provider.
SIM messages
SIM messages are specific text messages
that are saved to your SIM card. You can
copy or move those messages from the
SIM to the phone memory, but not vice
versa.
To read SIM messages, select Menu >
Messaging > Options > SIM
messages.
Configuration
settings
You can configure your device with
settings that are required for certain
services. You may receive these settings as
a configuration message from your
service provider.
Select Menu > Settings.
Select Configuration and from the
following:
•Default config. sett. — View the
service providers saved in the device,
and set a default service provider.
•Act. def. in all apps. — Activate the
default configuration settings for
supported applications.
•Preferred access pt. — View the
saved access points.
•Device manager sett. — Allow or
prevent the device from receiving
software updates. This option may not
be available, depending on your
device.
•Personal config. sett. — Add
manually new personal accounts for
various services, and activate or delete
them. To add a new personal account,
select Add or Options > Add new.
Select the service type, and enter the
required parameters. To activate a
personal account, scroll to the account,
and select Options > Activate.
Stay in touch
© 2009 Nokia. All rights reserved. 21
5. Stay in touch
Learn how to make calls, write text, send
messages, and use the e-mail
functionality of your device.
Make calls
Make a voice call
Dial a number manually — Enter the
phone number, including the area code,
and press the call key. For international
calls, press * twice for the international
prefix (the + character replaces the
international access code), enter the
country code, the area code without the
leading 0, if necessary, and the phone
number.
Redial a number — To access the list of
dialled numbers, in the standby mode,
press the call key. Select a number or
name, and press the call key.
Call a contact — Select Menu >
Contacts and Names. Select a contact,
and press the call key.
Handle voice calls
To handle calls with the slide, select
Menu > Settings > Call > Slide call
handling.
Answer an incoming call — Press the
call key, or open the slide.
End a call — Press the end key, or close
the slide.
Mute the ringing tone — Select
Silence.
Reject an incoming call — Press the end
key.
Adjust the volume in a call — Use the
volume keys.
Dialling shortcuts
Assign a phone number to one of the
number keys, 2-9. See "Assign dialling
shortcuts", p. 17.
Use a dialling shortcut to make a call in
one of the following ways:
•Press a number key, then the call key.
•If Menu > Settings > Call > Speed
dialling > On is selected, press and
hold a number key.
Voice dialling
Make a phone call by saying the name that
is saved in Contacts.
As voice commands are language-
dependent, before voice dialling, you
must select Menu > Settings >
Phone > Language settings > Phone
language and your language.
Note: Using voice tags may be
difficult in a noisy environment or during
an emergency, so you should not rely
solely upon voice dialling in all
circumstances.
1. In the home screen mode, press and
hold the right selection key. A short
tone sounds, and Speak after the
tone is displayed.
2. Say the name of the contact you want
to dial. If the voice recognition is
successful, a list of proposed matches
is displayed. The phone plays the voice
command of the first match on the list.
Stay in touch
© 2009 Nokia. All rights reserved.22
If it is not the correct command, scroll
to another entry.
Options during a call
Many of the options that you can use
during a call are network services. For
availability, contact your service provider.
During a call, select Options and from the
available options.
Some of the network options are Hold,
New call, Add to conference, End all
calls, and the following:
•Send DTMF — to send tone strings
•Swap — to switch between the active
call and the call on hold
•Transfer — to connect a call on hold
to an active call and disconnect yourself
•Conference — to make a conference
call
•Private call — to have a private
discussion in a conference call
Voice messages
The voice mailbox is a network service to
which you may need to subscribe. For
more information, contact your service
provider.
Call your voice mailbox — Press and
hold 1.
Edit your voice mailbox number —
Select Menu > Messaging > Voice
messages > Voice mailbox no..
Call log
To view the information on your calls,
messages, data, and synchronisation,
select Menu > Log and the desired item.
Note: The actual invoice for calls
and services from your service provider
may vary, depending on network features,
rounding off for billing, taxes, and so
forth.
Call settings
Select Menu > Settings and Call and
from the following:
•Call divert — Divert your incoming
calls (network service). You may not be
able to divert your calls if some call
barring functions are active.
•Anykey answer — Answer an
incoming call by briefly pressing any
key, except the power key, the left and
right selection keys, or the end key.
•Automatic redial — The device
redials the number automatically if a
call fails. The device tries to call the
number 10 times.
•Voice clarity — Improve speech
intelligibility, especially in noisy
environments.
•Speed dialling — Dial the names and
phone numbers assigned to the
number keys (2-9) by pressing and
holding the corresponding number
key.
•Call waiting — The network notifies
you of an incoming call while you have
a call in progress (network service).
•Call duration display — Display the
duration of the call in progress.
•Summary after call — Briefly display
the approximate duration after each
call.
•Send my caller ID — Show your phone
number to the person you are calling
(network service). To use the setting
agreed upon with your service
provider, select Set by network.
Stay in touch
© 2009 Nokia. All rights reserved. 23
•Outgoing call line — Select the phone
line for making calls, if your SIM card
supports multiple phone lines
(network service).
•Slide call handling — Answer or end
a call by opening or closing the slide.
Text and
messages
Write text, and create messages and
notes.
Write text
Text modes
To enter text (for example, when writing
messages) you can use traditional or
predictive text input.
When you write text, press and hold
Options to switch between traditional
text input, indicated by , and predictive
text input, indicated by . Not all
languages are supported by predictive
text input.
The character cases are indicated by ,
, and .
To change the character case, press #. To
change from the letter to number mode,
indicated by , press and hold #, and
select Number mode. To change from the
number to the letter mode, press and hold
#.
To set the writing language, select
Options > Writing language.
Traditional text input
Press a number key, 2-9, repeatedly until
the desired character appears. The
available characters depend on the
selected writing language.
If the next letter you want is located on
the same key as the present one, wait until
the cursor appears, and enter the letter.
To access the most common punctuation
marks and special characters, press 1
repeatedly. To access the list of special
characters, press *. To insert a space, press
0.
Predictive text input
Predictive text input is based on a built-in
dictionary to which you can also add new
words.
1. Start writing a word, using the keys 2
to 9. Press each key only once for one
letter.
2. To confirm a word, scroll right or add
a space.
•If the word is not correct, press *
repeatedly, and select the word
from the list.
•If the ? character is displayed after
the word, the word you intended to
write is not in the dictionary. To add
the word to the dictionary, select
Spell. Enter the word using
traditional text input, and select
Save.
•To write compound words, enter
the first part of the word, and scroll
right to confirm it. Write the last
part of the word, and confirm the
word.
3. Start writing the next word.
Text and multimedia
messages
You can create a message and optionally
attach, for example, a picture. Your phone
Stay in touch
© 2009 Nokia. All rights reserved.24
automatically changes a text message to
a multimedia message when a file is
attached.
Text messages
Your device supports text messages
beyond the limit for a single message.
Longer messages are sent as two or more
messages. Your service provider may
charge accordingly. Characters with
accents, other marks, or some language
options take more space, and limit the
number of characters that can be sent in
a single message.
The total number of characters left and
the number of messages needed for
sending are displayed.
To send messages, the correct message
centre number must be stored in your
device. Normally, this number is set by
default through your SIM card. To set the
number manually, select Menu >
Messaging > Message settings > Text
messages > Message centres > Add
centre, and enter a name and the number
from the service provider.
Multimedia messages
A multimedia message can contain text,
pictures, and sound or video clips.
Only devices that have compatible
features can receive and display
multimedia messages. The appearance of
a message may vary depending on the
receiving device.
The wireless network may limit the size of
MMS messages. If the inserted picture
exceeds this limit, the device may make it
smaller so that it can be sent by MMS.
Important: Exercise caution when
opening messages. Messages may contain
malicious software or otherwise be
harmful to your device or PC.
For availability and subscription to the
multimedia messaging service (MMS),
contact your service provider.
Create a text or multimedia
message
1. Select Menu > Messaging > Create
message > Message.
2. To add recipients, scroll to the To:
field, and enter the recipient’s number
or e-mail address, or select Add to
select recipients from the available
options. Select Options to add
recipients and subjects and to set
sending options.
3. Scroll to the Text: field, and enter the
message text.
4. To attach content to the message,
scroll to the attachment bar at the
bottom of the display, and select the
desired type of content.
5. To send the message, select Send.
The message type is indicated at the top
of the display and changes automatically
depending on the content of the message.
Service providers may charge differently
depending on the message type. For
details, contact your service provider.
Conversations and Inbox
view
In Conversations, you can view your
received messages together with related
messages and replies you have sent. You
can switch to the traditional Inbox view to
list your received messages one by one.
Select Menu > Messaging.
View messages in a conversation
1. Select Conversations.
2. Scroll to a conversation, and select
Open.
Stay in touch
© 2009 Nokia. All rights reserved. 25
3. Scroll to a message and select
Options > Open.
Switch between Conversations and
Inbox views — Select Options > Inbox
view or Conversation view.
Read a message and reply
Your device notifies you when you receive
a message.
Important: Exercise caution when
opening messages. Messages may contain
malicious software or otherwise be
harmful to your device or PC.
Read the received message — Select
View. If more than one message was
received, select the message from Inbox
or Conversations.
Reply to the message — Select Reply.
Send and organise
messages
To send a message, select Send. The
phone saves the message in the Outbox
folder, and the sending starts.
Note: The message sent icon or
text on your device screen does not
indicate that the message is received at
the intended destination.
If message sending is interrupted, the
phone tries to resend the message a few
times. If these attempts fail, the message
remains in the Outbox folder. To cancel
message sending, in the Outbox folder,
select Options > Cancel sending.
To save the sent messages in the Sent
items folder, select Menu >
Messaging > Message settings >
General settings > Save sent
messages.
The phone saves received messages in the
Inbox folder. Organise your messages in
the Saved items folder.
To add, rename, or delete a folder, select
Menu > Messaging > Saved items >
Options.
Flash messages
Flash messages are text messages that are
instantly displayed upon reception.
1. To write a flash message, select
Menu > Messaging > Create
message > Flash message.
2. Enter the recipient’s phone number,
write your message (maximum 70
characters), and select Send.
Nokia Xpress audio
messages
Create and send an audio message using
MMS in a convenient way.
1. Select Menu > Messaging > Create
message > Audio message. The
voice recorder opens.
2. Record your message.
3. Enter one or more phone numbers in
the To: field, or select Add to retrieve
a number.
4. To send the message, select Send.
Message settings
Select Menu > Messaging > Message
settings and from the following:
•General settings — Save copies of
sent messages in your device,
overwrite old messages if the message
memory becomes full, and set up other
preferences related to messages.
Stay in touch
© 2009 Nokia. All rights reserved.26
•Text messages — Allow delivery
reports, set up message centres for SMS
and SMS e-mail, select the type of
character support, and set up other
preferences related to text messages.
•Multimedia messages — Allow
delivery reports, set up the appearance
of multimedia messages, allow the
reception of multimedia messages and
advertisements, and set up other
preferences related to multimedia
messages.
•E-mail messages — Allow e-mail
reception, set the image size in e-mail,
and set up other preferences related to
e-mail.
•Service messages — Activate service
messages, and set up preferences
related to service messages.
Mail and Instant
Messaging
Set up your device to send and receive
mails from your mail account or to chat in
your instant messaging (IM) community.
Nokia IM
With the instant messaging (IM) network
service, you can send short text messages
to online users. You must subscribe to a
service and register with the IM service
you want to use. For availability, pricing,
and instructions, contact your service
provider. The menus may vary depending
on your IM service provider.
To connect to the service, select Menu >
I M, and follow the instructions.
E-mail
Access your POP3 or IMAP4 e-mail account
with your phone to read, write, and send
e-mail. This e-mail application is different
from the SMS e-mail function.
Before you can use e-mail, you must have
an e-mail account and the correct settings.
For availability and the correct settings,
contact your e-mail service provider.
E-mail setup wizard
The e-mail setup wizard starts
automatically if no e-mail settings are
defined in the phone. To start the setup
wizard for an additional e-mail account,
select Menu > Messaging and the
existing e-mail account. Select Options >
Add mailbox to start the e-mail setup
wizard. Follow the instructions on the
display.
Write and send an e-mail
You may write your e-mail before
connecting to the e-mail service.
1. Select Menu > Messaging > Create
message > E-mail message.
2. Enter the recipient’s e-mail address,
the subject, and the e-mail message.
To attach a file, select Options >
Insert and from the available options.
3. If more than one e-mail account is
defined, select the account from which
you want to send the e-mail.
4. To send the e-mail, select Send.
Read an e-mail and reply
Important: Exercise caution when
opening messages. Messages may contain
malicious software or otherwise be
harmful to your device or PC.
Stay in touch
© 2009 Nokia. All rights reserved. 27
1. To download e-mail message headers,
select Menu > Messaging and your
e-mail account.
2. To download an e-mail and its
attachments, select the e-mail and
Open or Retrieve.
3. To reply to or forward the e-mail,
select Options and from the available
options.
4. To disconnect from your e-mail
account, select Options >
Disconnect. The connection to the e-
mail account automatically ends after
some time without activity.
New e-mail notifications
Your phone can automatically check your
e-mail account in time intervals and issue
a notification when new e-mail is
received.
1. Select Menu > Messaging >
Message settings > E-mail
messages > Edit mailboxes.
2. Select your e-mail account,
Downloading sett., and the
following options:
•Mailbox upd. interval — to set
how often your phone checks your
e-mail account for new e-mail
•Automatic retrieval — to retrieve
new e-mail automatically from your
e-mail account
3. To enable the new e-mail notification,
select Menu > Messaging >
Message settings > E-mail
messages > New e-mail notif. >
On.
6. Image and video
Capture images
Activate the camera — Press the capture
key; or, if in video mode, scroll left or right.
Zoom in or out — In image mode, scroll
up and down, or use the volume keys.
Capture an image — Press the capture
key. Images are saved in Gallery.
Display images after capture — Select
Options > Settings > Photo preview
time and the preview time.
End the image preview manually —
Select Back.
Your device supports an image capture
resolution of up to 1536x2048 pixels.
Record video
clips
Activate video mode — Press and hold
the capture key, or, if in image mode,
scroll left or right.
Start recording — Press the capture key.
Pause or resume recording — Select
Pause or Continue. Alternatively, press
the capture key.
Stop recording — Select Stop.
Video clips are saved in Gallery.
Image and video
© 2009 Nokia. All rights reserved.28
Camera and
video settings
Select Menu > Media > Camera.
In image or video mode, select Options
and from the following:
•Self-timer — Use the self-timer.
•Effects — Apply different effects (for
example, greyscale and false colour) to
the captured image.
•White balance — Adapt the camera
to the current light conditions.
•Landscape format or Portrait
format — Select the orientation of the
camera.
•Settings — Modify other camera and
video settings, and select where to
save images and video clips.
Gallery
Manage images, video clips, music files,
themes, graphics, tones, recordings, and
received files. These files are stored in the
device memory or on a memory card and
may be arranged in folders.
Photos
View images and play video clips with the
Photos application.
Select Menu > Gallery > Photos.
Select from the following:
•All photos — View images in a
thumbnail grid. You can sort images by
date, name, or size.
•Timeline — View images in the order
they were captured.
•Albums — Sort images into albums.
You can create, rename and remove
albums. If you remove an album, the
images inside the album are not
deleted from the memory.
Rotate an image — Select Options >
Landscape mode or Portrait mode.
View a slide show
A slide show uses the images of the
currently selected folder or album.
1. Select All photos, Timeline, or
Albums.
2. Select Options > Slide show.
3. Select Start slide show.
Edit images
You can, for example, rotate, flip, crop,
and adjust the brightness, contrast, and
colours of images.
1. Select an image in All photos, Timeline,
or Albums.
2. Select Options > Edit photo.
3. Select an editing option, and use the
scroll key to change the settings or
values.
Music and videos
Your device includes a media player for
playing songs and video clips. Music and
video files stored in the music folder in the
device memory or on the memory card are
automatically detected and added to the
video or music library.
Select Menu > Gallery and Music &
videos.
Select from the following:
•Videos — List all available video clips.
•All songs — List all available songs.
You can sort songs by artist, album, or
genre, for example.
Image and video
© 2009 Nokia. All rights reserved. 29
Manage folders and
files
To manage folders and files in Gallery,
select Menu > Gallery.
View a list of folders — Select All
content.
View a list of files in a folder — Select
a folder and Open.
View the folders of the memory card
when moving a file — Scroll to the
memory card, and scroll right.
Print images
Your device supports Nokia XpressPrint,
allowing you to print images in the JPEG
file format.
1. Connect your device to a compatible
printer, using a USB data cable, or, if
supported by the printer, Bluetooth
connectivity.
2. Select an image from Gallery and
Options > Print.
Memory card
Use a memory card to store your
multimedia files, such as video clips,
songs, sound files, images, and messaging
data.
Select Menu > Gallery > All content >
Memory card.
Some of the folders in Gallery that contain
content used by your device (for example,
Themes) can be stored on the memory
card.
If your memory card has not been pre-
formatted, you need to format it. When
you format a memory card, all data on the
card is permanently deleted.
Format the memory card — Select
Options > Mem. card options >
Format memory card > Yes. When
formatting is complete, enter a name for
the memory card.
Protect the memory card with a
password — Select Options > Mem.
card options > Set password. The
password is stored in your device, so you
only have to enter the password when
attempting to use the memory card in
another device.
Remove the memory card
password — Select Options > Mem.
card options > Delete password.
Check the memory consumption —
Select Options > Details. The memory
consumption of different data groups,
and the amount of available memory to
install new software, is displayed.
7. Entertainment
Listen to music
Listen to music with the music player or
radio, and record sounds or voice with the
voice recorder. Download music from the
internet, or transfer music from your PC.
Warning: Continuous exposure to
high volume may damage your hearing.
Listen to music at a moderate level, and
Entertainment
© 2009 Nokia. All rights reserved.30
do not hold the device near your ear when
the loudspeaker is in use.
Media player
To open the media player, select Menu >
Media > Media player.
Music menu
Access your music and video files stored in
the device memory or on the memory
card, download music or video clips from
the web, or view compatible video
streams from a network server (network
service).
Select Menu > Media > Media player.
Play a media file — Select a file from the
available folders and Play.
Download files from the web — Select
Options > Downloads and a download
site.
Update the music library after adding
files — Select Options > Update
library.
Create a playlist
1. Select Playlists > Create playlist,
and enter the name of the playlist.
2. Add music or video clips from the
displayed lists.
3. To store the playlist, select Done.
Configure a streaming service
You may receive the streaming settings as
a configuration message from the service
provider. You can also enter the settings
manually.
1. Select Options > Downloads >
Streaming settings >
Configuration.
2. Select a service provider, Default, or
Personal config. for streaming.
3. Select Account and a streaming
service account from the active
configuration settings.
Play songs
Operate the media player — Press the
music keys, or use the scroll keys
according to the virtual keys on the
display.
Adjust the volume — Use the volume
keys.
Start or pause playing — Press .
Skip to the next song — Press .
Skip to the previous song — Press
twice.
Fast-forward the current song — Press
and hold .
Rewind the current song — Press and
hold .
Switch to the music menu — Select
.
Switch to the current playlist — Select
.
Leave the media player playing in the
background — Press the end key.
Stop the media player — Press and hold
the end key.
Change the media player
look
Your device provides several themes to
change the look of the media player.
Select Menu > Media > Media player
and Go to Media player > Options >
Settings > Media player theme and the
desired theme.
The virtual keys may change depending
on the theme.
Entertainment
© 2009 Nokia. All rights reserved. 31
Transfer music from a
computer
You can transfer music to your device in
the following ways:
•Use Nokia Music to transfer, rip, burn,
and play new music on your PC and
mobile device. Download the PC
software from www.music.nokia.com/
download.
•Use PC Suite to connect your device to
your PC using Bluetooth connectivity or
a compatible USB data cable, and use
the Nokia Music Manager. To use a USB
data cable, select PC Suite as the
connection mode.
•Connect your device to your PC using
Bluetooth connectivity or a compatible
USB data cable, and copy music files to
the device memory. To use a USB data
cable, select Data storage as the
connection mode.
•Use Windows Media Player. Connect a
compatible USB data cable, and select
Printing & media as the connection
mode.
Radio
Your device supports Nokia XpressRadio,
allowing you to listen to radio stations
with built-in antenna.
Select Menu > Media > Radio.
Tune in to radio stations
Operate the radio — Use the scroll key
according to the virtual keys on the
display. Alternatively, use the music keys
, , and .
Search for the next available
station — Press and hold the scroll key
left or right. Alternatively, press and hold
the or music key.
Tune the radio frequency in 0,05 MHz
steps — Briefly press the scroll key left or
right.
Save a station to a memory
location — Select Options > Save
station.
Enter the name of a radio station —
Select Options > Stations > Options >
Rename.
Switch to another saved station —
Scroll up or down. Alternatively, press the
or music key. To access a station
directly from the saved station list, press
the number key that corresponds to the
number of the station.
Adjust the volume — Use the volume
keys.
Pause or resume playback — Press the
scroll key ( / ). Alternatively, press the
music key.
Set the radio to play in the
background — Briefly press the end key.
Close the radio — Press and hold the end
key.
Select Options and from the following:
•Search all stations — Search
automatically for the available stations
at your location.
•Set frequency — Enter the frequency
of a radio station.
•Station directory — Access a website
with a list of radio stations.
•Stations — List, rename, or delete
saved stations.
Radio settings
Select Menu > Media > Radio.
Select Options > Settings and from the
following:
Entertainment
© 2009 Nokia. All rights reserved.32
•RDS — Display information from the
radio data system, such as the name of
the station.
•Auto-frequency — Allow the device
to automatically switch to a frequency
with better reception (available when
RDS is activated).
•Play via — Listen using the headset or
the loudspeaker.
•Output — Switch between stereo and
mono output.
•Radio theme — Select the look of the
radio.
Voice recorder
Record speech, sound, or an active call,
and save the recordings in Gallery.
Select Menu > Media > Voice
recorder.
The recorder cannot be used when a data
call or GPRS connection is active.
To use the graphical keys , , or , scroll
left or right.
Start recording — Select , or, during a
call, select Options > Record. While
recording a call, all parties to the call hear
a faint beeping.
Pause recording — Select .
Stop recording — Select . The
recording is saved in the Recordings folder
in Gallery.
To play or send the last recording, to
access the list of recordings, or to select
the memory and the folder to store the
recordings, select Options and the
appropriate option.
Equaliser
Adjust the sound when using the media
player.
Select Menu > Media > Equaliser.
Activate a predefined equaliser set —
Scroll to a set, and select Activate.
Create a new equaliser set
1. Select one of the last two sets in the
list and Options > Edit.
2. Use the scroll key to adjust the sound
controls.
3. To save the settings and enter a name
for the set, select Save and Options >
Rename.
Stereo widening
Stereo widening creates a wider stereo
sound effect when you are using a stereo
headset.
Select Menu > Media and Stereo
widening.
Web
You can access various internet services
with your device browser (network
service). The appearance of the internet
pages may vary due to screen size. You
may not be able to see all the details on
the internet pages.
Important: Use only services that
you trust and that offer adequate security
and protection against harmful software.
For the availability of these services,
pricing, and instructions, contact your
service provider.
You may receive the configuration
settings required for browsing as a
configuration message from your service
provider.
To set up the service, select Menu >
Internet > Web settings >
Entertainment
© 2009 Nokia. All rights reserved. 33
Configuration sett., a configuration, and
an account.
Connect to a service
To make a connection to the service, select
Menu > Internet > Home; or in the
standby mode, press and hold 0.
To select a bookmark, select Menu >
Internet > Bookmarks.
To select the last visited URL, select
Menu > Internet > Last web addr..
To enter the address of a service, select
Menu > Internet > Go to address.
Enter the address, and select OK.
After you make a connection to the
service, you can start browsing its pages.
The function of the phone keys may vary
in different services. Follow the text
guides on the phone display. For more
information, contact your service
provider.
Web uploads
Open the web page of your online sharing
service to view uploaded images and
videos and to change settings (network
service).
Open an online sharing service
1. Select Menu > Internet > Web
uploads and an online sharing
service.
2. Select from the links offered by the
service.
Change settings of an online
sharing service
1. Select Menu > Internet > Web
uploads and an online sharing
service.
2. Select Options > Settings to open
the settings page of the service.
Appearance settings
While browsing the web, select
Options > Settings and from the
following:
•Display — Select the font size,
whether images are shown, and how
the text is displayed.
•General — Select whether web
addresses are sent as Unicode (UTF-8),
the encoding type for the contents, and
whether JavaScript™ is enabled.
The available options may vary.
Cache memory
A cache is a memory location that is used
to store data temporarily. If you have tried
to access or have accessed confidential
information requiring passwords, empty
the cache after each use. The information
or services you have accessed are stored
in the cache.
A cookie is data that a site saves in the
cache memory of your phone. Cookies are
saved until you clear the cache memory.
To clear the cache while browsing, select
Options > Tools > Clear the cache.
To allow or prevent the phone from
receiving cookies, select Menu >
Internet > Web settings > Security >
Cookies; or, while browsing, select
Options > Settings > Security >
Cookies.
Browser security
Security features may be required for
some services, such as banking services or
online shopping. For such connections
Entertainment
© 2009 Nokia. All rights reserved.34
you need security certificates and possibly
a security module, which may be available
on your SIM card. For more information,
contact your service provider.
To view or change the security module
settings, or to view a list of authority or
user certificates downloaded to your
device, select Menu > Settings >
Security > Security module sett.,
Authority certificates, or User
certificates.
Important: Even if the use of
certificates makes the risks involved in
remote connections and software
installation considerably smaller, they
must be used correctly in order to benefit
from increased security. The existence of
a certificate does not offer any protection
by itself; the certificate manager must
contain correct, authentic, or trusted
certificates for increased security to be
available. Certificates have a restricted
lifetime. If "Expired certificate" or
"Certificate not valid yet" is shown, even if
the certificate should be valid, check that
the current date and time in your device
are correct.
Before changing any certificate settings,
you must make sure that you really trust
the owner of the certificate and that the
certificate really belongs to the listed
owner.
Games and
applications
You can manage applications and games.
Your phone may have some games or
applications installed. These files are
stored in the phone memory or an
attached memory card and may be
arranged in folders.
Launch an application
Select Menu > Applications > Games,
Memory card, or Collection. Scroll to a
game or an application, and select Open.
To set sounds, lights, and shakes for a
game, select Menu > Applications >
Options > Application settings.
Other available options may include the
following:
•Update version — to verify that a new
version of the application is available
for download from the web (network
service)
•Web page — to provide further
information or additional data for the
application from an internet page
(network service), if available
•Application access — to restrict the
application from accessing the
network
Download an
application
Your phone supports J2ME™ Java
applications. Ensure that the application
is compatible with your phone before
downloading it.
Important: Only install and use
applications and other software from
trusted sources, such as applications that
are Symbian Signed or have passed the
Java Verified™ testing.
You can download new applications and
games in different ways.
•Select Menu > Applications >
Options > Downloads > App.
downloads or Game downloads; the
list of available bookmarks is shown.
Entertainment
© 2009 Nokia. All rights reserved. 35
•Use the Nokia Application Installer
from PC Suite to download the
applications to your phone.
For the availability of different services
and pricing, contact your service provider.
8. Maps
You can browse maps for different cities
and countries, search for addresses and
points of interest, plan routes from one
location to another, save locations as
landmarks, and send them to compatible
devices.
Almost all digital cartography is
inaccurate and incomplete to some
extent. Never rely solely on the
cartography that you download for use in
this device.
Note: Downloading content such
as maps, satellite images, voice files,
guides or traffic information may involve
transmission of large amounts of data
(network service).
Content such as satellite images, guides,
weather and traffic information and
related services are generated by third
parties independent of Nokia. The content
may be inaccurate and incomplete to
some extent and is subject to availability.
Never rely solely on the aforementioned
content and related services.
Find detailed information about Maps on
www.nokia.com/maps.
To use the Maps application, select
Menu > Maps and from the available
options.
Download maps
Your device may contain pre-installed
maps on the memory card. You can
download a new set of maps through the
internet using the Nokia Map Loader PC
software.
Download and install Nokia Map
Loader
1. To download the Nokia Map Loader on
your PC and for further instructions,
visit www.maps.nokia.com.
2. Select Menu > Maps to do an initial
configuration.
Download maps — Before you
download new maps for the first time,
ensure that you have a memory card
inserted in the device. To change the
selection of maps on your memory card,
use the Nokia Map Loader to delete all
maps on the memory card and download
a new selection, to ensure that all maps
are from the same release.
Download maps automatically —
Select Menu > Maps and Settings >
Network settings > Allow network
usage > Yes or In home network.
Deactivate automatic download —
Select No.
Note: Downloading content such
as maps, satellite images, voice files,
guides or traffic information may involve
transmission of large amounts of data
(network service).
Maps and GPS
Your device does not have an internal GPS
antenna. To use applications that require
Maps
© 2009 Nokia. All rights reserved.36
a GPS connection, use a compatible
external GPS receiver (accessory sold
separately). Pair the GPS receiver with
your device using Bluetooth wireless
technology. For more information, see the
user guide of the GPS receiver.
You can use the Global Positioning System
(GPS) to support the Maps application.
Find out your location, or measure
distances and plot coordinates.
After pairing your device with an external
GPS receiver, it may take several minutes
for the device to display the current
location.
The Global Positioning System (GPS) is
operated by the government of the United
States, which is solely responsible for its
accuracy and maintenance. The accuracy
of location data can be affected by
adjustments to GPS satellites made by the
United States government and is subject
to change with the United States
Department of Defense civil GPS policy and
the Federal Radionavigation Plan.
Accuracy can also be affected by poor
satellite geometry. Availability and
quality of GPS signals may be affected by
your location, buildings, natural
obstacles, and weather conditions. GPS
signals may not be available inside
buildings or underground and may be
impaired by materials such as concrete
and metal.
GPS should not be used for precise
location measurement, and you should
never rely solely on location data from the
GPS receiver and cellular radio networks
for positioning or navigation.
Extra services
You can upgrade Maps to a full navigation
system to be used by car and by foot. You
need a regional licence for the full
navigation system. The car navigation is
fully voice-guided with two- and three-
dimensional map views. The pedestrian
navigation is limited to a speed of 30 km/
h (18.6 miles/h) and provides no voice
guidance. The navigation service is not
available for all countries and regions. For
details, see your local Nokia website.
To use this service, you need a compatible
external GPS receiver that supports
Bluetooth wireless technology.
Purchase a navigation service — Select
Menu > Maps and Extra services >
Purchase nav. license, and follow the
instructions.
To use navigation with voice guidance,
you must allow the Maps application to
use a network connection.
The navigation licence is connected to
your SIM card. If you insert another SIM
card in your device, you are asked to
purchase a licence when starting
navigation. During the purchase
procedure, you are offered to transfer the
existing navigation licence to the new SIM
card without extra charge.
9. Organise
Let your phone help you to organise your
life.
Organise
© 2009 Nokia. All rights reserved. 37
Manage contacts
Save names, phone numbers, and
addresses as contacts in the device and on
the SIM card.
Select Menu > Contacts.
Select the memory for contacts
The device memory can save contacts with
additional details, such as various phone
numbers and text items. You can also save
an image, a tone, or a video clip for a
limited number of contacts.
The SIM card memory can save names with
one phone number attached to them. The
contacts saved in the SIM card memory are
indicated with .
1. Select Settings > Memory in use to
select the SIM card, the device
memory, or both for your contacts.
2. Select Phone and SIM to recall
contacts from both memories. When
you save contacts, they are saved in
the device memory.
Handle contacts
Search for a contact — Select Menu >
Contacts > Names. Scroll through the
list of contacts, or enter the first
characters of the contact's name.
Save a name and phone number —
Select Menu > Contacts > Add new.
Add or edit a detail — Select a contact
and Details > Options > Add detail.
Delete a detail — Select a contact and
Details. Select a detail and Options >
Delete.
Delete a contact — Select a contact and
Options > Delete contact.
Delete all contacts — Select Menu >
Contacts > Del. all contacts > From
phone memory or From SIM card.
Copy or move contacts between
the device and SIM card memories
Copy single contacts — Select
Options > Marking options > Mark.
Mark the contacts you want to copy or
move, and select Options > Copy
marked or Move marked.
Copy all contacts — Select Menu >
Contacts > Copy contacts or Move
contacts.
Create a contact group
Arrange contacts into caller groups with
different ringing tones and group images.
1. Select Menu > Contacts > Groups.
2. Select Add or Options > Add new
group to create a new group.
3. Enter the group name, optionally
select an image and a ringing tone,
and select Save.
4. To add contacts to the group, select
the group and View > Add.
Business cards
You can send and receive a person’s
contact information from a compatible
device that supports the vCard standard.
To send a business card, search for the
contact, and select Details > Options >
Send business card.
When you receive a business card, select
Show > Save to save the business card
in the phone memory.
Date and time
To change the clock type, time, time zone,
or date, select Menu > Settings > Date
and time.
Organise
© 2009 Nokia. All rights reserved.38
When travelling to a different time zone,
select Menu > Settings > Date and
time > Date & time settings > Time
zone:, and scroll left or right to select the
time zone of your location. The time and
date are set according to the time zone
and enable your phone to display the
correct sending time of received text or
multimedia messages.
For example, GMT -5 denotes the time
zone for New York (USA), 5 hours west of
Greenwich, London (UK).
Alarm clock
To sound an alarm at a desired time.
Set the alarm
1. Select Menu > Organiser > Alarm
clock.
2. Activate the alarm, and enter the
alarm time.
3. To repeat the alarm on selected days
of the week, select Repeat: > On and
the days.
4. Select the alarm tone.
5. Define the snooze time-out period,
and select Save.
Stop the alarm — To stop the sounding
alarm, select Stop.
If you let the alarm sound for a minute or
select Snooze, the alarm stops for the
snooze time-out period, then resumes.
Calendar
Select Menu > Organiser > Calendar.
The current day is framed. If there are any
notes set for the day, the day is in bold
type. To view the day notes, select View.
To view a week, select Options > Week
view. To delete all notes in the calendar,
select Options > Delete notes > All
notes.
To edit settings related to date and time,
select Options > Settings and from the
available options. To delete old notes
automatically after a specified time, select
Options > Settings > Auto-delete
notes and from the available options.
Make a calendar note
Scroll to the date, and select Options >
Make a note. Select the note type, and fill
in the fields.
To-do list
To create a note for a task that you must
do, select Menu > Organiser > To-do
list.
To create a note if no note is added, select
Add; otherwise, select Options > Add.
Fill in the fields, and select Save.
To view a note, scroll to it, and select
View.
Notes
To write and send notes, select Menu >
Organiser > Notes.
To make a note if no note is added, select
Add; otherwise, select Options > Make
a note. Write the note, and select Save.
Calculator
Your phone provides a standard, a
scientific, and a loan calculator.
Select Menu > Organiser > Calculator
and, from the available options, the
Organise
© 2009 Nokia. All rights reserved. 39
calculator type and the operating
instructions.
This calculator has limited accuracy and is
designed for simple calculations.
Countdown
timer
Normal timer
1. To activate the timer, select Menu >
Organiser > Countd. timer >
Normal timer, enter a time, and write
a note that is displayed when the time
expires. To change the time, select
Change time.
2. To start the timer, select Start.
3. To stop the timer, select Stop timer.
Interval timer
1. To have an interval timer with up to 10
intervals started, first enter the
intervals.
2. Select Menu > Organiser > Countd.
timer > Interval timer.
3. To start the timer, select Start
timer > Start.
To select how the interval timer should
start the next period, select Menu >
Organiser > Countd. timer >
Settings > Contin. to next period and
from the available options.
Stopwatch
You can measure time, take intermediate
times, or take lap times using the
stopwatch.
Select Menu > Organiser >
Stopwatch and from the following
options:
•Split timing — to take intermediate
times. To reset the time without saving
it, select Options > Reset.
•Lap timing — to take lap times
•Continue — to view the timing that
you have set in the background
•Show last — to view the most recently
measured time if the stopwatch is not
reset
•View times or Delete times — to view
or delete the saved times
To set the stopwatch timing in the
background, press the end key.
10. Green tips
Here are tips on how you can
contribute to protecting the
environment.
Save energy
When you have fully charged the battery
and disconnected the charger from the
device, unplug the charger from the wall
outlet.
You do not need to charge your battery so
often if you do the following:
•Close and disable applications,
services, and connections when not in
use.
•Decrease the brightness of the screen.
Green tips
© 2009 Nokia. All rights reserved.40
•Set the device to enter the power saver
mode after the minimum period of
inactivity, if available in your device.
•Disable unnecessary sounds, such as
keypad and ringing tones.
Recycle
Most of the materials in a Nokia phone are
recyclable. Check how to recycle your
Nokia products at www.nokia.com/
werecycle, or with a mobile device,
www.nokia.mobi/werecycle.
Recycle packaging and user guides at your
local recycling scheme.
Learn more
For more information on the
environmental attributes of your device,
see www.nokia.com/ecodeclaration.
Green tips
© 2009 Nokia. All rights reserved. 41
Digital rights management
Content owners may use different types of
digital rights management (DRM)
technologies to protect their intellectual
property, including copyrights. This
device uses various types of DRM software
to access DRM-protected content. With
this device you can access content
protected with WMDRM 10, OMA DRM 1.0,
OMA DRM 1.0 forward lock, and OMA DRM
2.0. If certain DRM software fails to protect
the content, content owners may ask that
such DRM software's ability to access new
DRM-protected content be revoked.
Revocation may also prevent renewal of
such DRM-protected content already in
your device. Revocation of such DRM
software does not affect the use of
content protected with other types of DRM
or the use of non-DRM-protected content.
Digital rights management (DRM)
protected content comes with an
associated licence that defines your rights
to use the content.
If your device has OMA DRM-protected
content, to back up both the licence and
the content, use the backup feature of
Nokia PC Suite.
Other transfer methods may not transfer
the licence which need to be restored with
the content for you to be able to continue
the use of OMA DRM-protected content
after the device memory is formatted. You
may also need to restore the licence in
case the files on your device get corrupted.
If your device has WMDRM-protected
content, both the licence and the content
will be lost if the device memory is
formatted. You may also lose the licence
and the content if the files on your device
get corrupted. Losing the licence or the
content may limit your ability to use the
same content on your device again. For
more information, contact your service
provider.
Some licence may be connected to a
specific SIM card, and the protected
content can be accessed only if the SIM
card is inserted in the device.
Third-party applications
The third-party applications provided
with your device may have been created
and may be owned by persons or entities
not affiliated with or related to Nokia.
Nokia does not own the copyrights or
intellectual property rights to the third-
party applications. As such, Nokia does not
take any responsibility for end-user
support, functionality of the applications,
or the information in the applications or
these materials. Nokia does not provide
any warranty for the third-party
applications.
BY USING THE APPLICATIONS YOU
ACKNOWLEDGE THAT THE APPLICATIONS
ARE PROVIDED AS IS WITHOUT WARRANTY
OF ANY KIND, EXPRESS OR IMPLIED, TO THE
MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW. YOU FURTHER
ACKNOWLEDGE THAT NEITHER NOKIA NOR
ITS AFFILIATES MAKE ANY
REPRESENTATIONS OR WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING BUT NOT
© 2009 Nokia. All rights reserved.42
LIMITED TO WARRANTIES OF TITLE,
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, OR THAT THE
APPLICATIONS WILL NOT INFRINGE ANY
THIRD-PARTY PATENTS, COPYRIGHTS,
TRADEMARKS, OR OTHER RIGHTS.
Accessories
Warning: Use only batteries,
chargers, and accessories approved by
Nokia for use with this particular model.
The use of any other types may invalidate
any approval or warranty, and may be
dangerous. In particular, use of
unapproved chargers or batteries may
present a risk of fire, explosion, leakage,
or other hazard.
For availability of approved accessories,
please check with your dealer. When you
disconnect the power cord of any
accessory, grasp and pull the plug, not the
cord.
Battery
Battery and
charger
information
Your device is powered by a rechargeable
battery. The battery intended for use with
this device is BL-4CT. Nokia may make
additional battery models available for
this device. This device is intended for use
when supplied with power from the
following chargers: AC-8. The exact
charger model number may vary
depending on the type of plug. The plug
variant is identified by one of the
following: E, EB, X, AR, U, A, C, K, or UB.
The battery can be charged and
discharged hundreds of times, but it will
eventually wear out. When the talk and
standby times are noticeably shorter than
normal, replace the battery. Use only
Nokia approved batteries, and recharge
your battery only with Nokia approved
chargers designated for this device.
If a battery is being used for the first time
or if the battery has not been used for a
prolonged period, it may be necessary to
connect the charger, then disconnect and
reconnect it to begin charging the battery.
If the battery is completely discharged, it
may take several minutes before the
charging indicator appears on the display
or before any calls can be made.
Safe removal. Always switch the device off
and disconnect the charger before
removing the battery.
Proper charging. Unplug the charger from
the electrical plug and the device when
not in use. Do not leave a fully charged
battery connected to a charger, since
overcharging may shorten its lifetime. If
left unused, a fully charged battery will
lose its charge over time.
Avoid extreme temperatures. Always try
to keep the battery between 15°C and
25°C (59°F and 77°F). Extreme
temperatures reduce the capacity and
lifetime of the battery. A device with a hot
or cold battery may not work temporarily.
Battery performance is particularly
Accessories
© 2009 Nokia. All rights reserved. 43
limited in temperatures well below
freezing.
Do not short-circuit. Accidental short-
circuiting can occur when a metallic object
such as a coin, clip, or pen causes direct
connection of the positive (+) and
negative (-) terminals of the battery.
(These look like metal strips on the
battery.) This might happen, for example,
when you carry a spare battery in your
pocket or purse. Short-circuiting the
terminals may damage the battery or the
connecting object.
Disposal. Do not dispose of batteries in a
fire as they may explode. Dispose of
batteries according to local regulations.
Please recycle when possible. Do not
dispose as household waste.
Leak. Do not dismantle, cut, open, crush,
bend, puncture, or shred cells or batteries.
In the event of a battery leak, prevent
battery liquid contact with skin or eyes. If
this happens, flush the affected areas
immediately with water, or seek medical
help.
Damage. Do not modify, remanufacture,
attempt to insert foreign objects into the
battery, or immerse or expose it to water
or other liquids. Batteries may explode if
damaged.
Correct use. Use the battery only for its
intended purpose. Improper battery use
may result in a fire, explosion, or other
hazard. If the device or battery is dropped,
especially on a hard surface, and you
believe the battery has been damaged,
take it to a service centre for inspection
before continuing to use it. Never use any
charger or battery that is damaged. Keep
your battery out of the reach of small
children.
Nokia battery
authentication
guidelines
Always use original Nokia batteries for
your safety. To check that you are getting
an original Nokia battery, purchase it from
a Nokia authorised service centre or
dealer, and inspect the hologram label
using the following steps:
Authenticate
hologram
1. When you look at
the hologram on
the label, you
should see the
Nokia connecting
hands symbol
from one angle
and the Nokia
Original
Enhancements logo when looking
from another angle.
2. When you angle
the hologram left,
right, down and
up, you should see
1, 2, 3 and 4 dots
on each side
respectively.
Successful
completion of the
steps is not a total assurance of the
authenticity of the battery. If you cannot
confirm authenticity or if you have any
reason to believe that your Nokia battery
with the hologram on the label is not an
authentic Nokia battery, you should
refrain from using it, and take it to the
Battery
© 2009 Nokia. All rights reserved.44
nearest Nokia authorised service centre or
dealer for assistance.
For additional information, refer to the
warranty and reference leaflet included
with your Nokia device.
Care and maintenance
Your device is a product of superior design
and craftsmanship and should be treated
with care. The following suggestions will
help you protect your warranty coverage.
•Keep the device dry. Precipitation,
humidity, and all types of liquids or
moisture can contain minerals that will
corrode electronic circuits. If your
device does get wet, remove the
battery, and allow the device to dry
completely before replacing it.
•Use a soft, clean, dry cloth to clean any
lenses, such as camera, proximity
sensor, and light sensor lenses.
•Do not use or store the device in dusty,
dirty areas. Its moving parts and
electronic components can be
damaged.
•Do not store the device in hot areas.
High temperatures can shorten the life
of electronic devices, damage
batteries, and warp or melt certain
plastics.
•Do not store the device in cold areas.
When the device returns to its normal
temperature, moisture can form inside
the device and damage electronic
circuit boards.
•Do not attempt to open the device
other than as instructed in this guide.
•Do not drop, knock, or shake the device.
Rough handling can break internal
circuit boards and fine mechanics.
•Do not use harsh chemicals, cleaning
solvents, or strong detergents to clean
the device.
•Do not paint the device. Paint can clog
the moving parts and prevent proper
operation.
•Use only the supplied or an approved
replacement antenna. Unauthorised
antennas, modifications, or
attachments could damage the device
and may violate regulations governing
radio devices.
•Use chargers indoors.
•Always create a backup of data you
want to keep, such as contacts and
calendar notes.
•To reset the device from time to time
for optimum performance, power off
the device and remove the battery.
These suggestions apply equally to your
device, battery, charger, or any accessory.
If any device is not working properly, take
it to the nearest authorised service facility
for service.
Recycle
Always return your used electronic
products, batteries, and packaging
materials to a dedicated collection point.
This way you help prevent uncontrolled
waste disposal and promote the recycling
of materials. More detailed information is
available from the product retailer, local
waste authorities, national producer
responsibility organisations, or your local
Nokia representative. Check how to
recycle your Nokia products at
www.nokia.com/werecycle, or if
Care and maintenance
© 2009 Nokia. All rights reserved. 45
browsing on a mobile device,
www.nokia.mobi/werecycle.
Additional safety information
Note: The surface of this device
does not contain nickel in the platings.
The surface of this device contains
stainless steel.
Magnets and
magnetic fields
Keep your device away from magnets or
magnetic fields.
Small children
Your device and its accessories are not
toys. They may contain small parts. Keep
them out of the reach of small children.
Operating
environment
This device meets RF exposure guidelines
in the normal use position at the ear or at
least 1.5 centimetres (5/8 inch)away from
the body. Any carry case, belt clip, or
holder for body-worn operation should
not contain metal and should position the
device the above-stated distance from
your body.
To send data files or messages requires a
quality connection to the network. Data
files or messages may be delayed until
such a connection is available. Follow the
separation distance instructions until the
transmission is completed.
Medical devices
Operation of radio transmitting
equipment, including wireless phones,
may interfere with the function of
inadequately protected medical devices.
Consult a physician or the manufacturer of
the medical device to determine whether
they are adequately shielded from
external RF energy. Switch off your device
when regulations posted instruct you to
do so. Hospitals or health care facilities
may use equipment sensitive to external
RF energy.
Implanted medical
devices
Manufacturers of medical devices
recommend a minimum separation of
15.3 centimetres (6 inches) between a
wireless device and an implanted medical
device, such as a pacemaker or implanted
cardioverter defibrillator, to avoid
potential interference with the medical
device. Persons who have such devices
should:
•Always keep the wireless device more
than 15.3 centimetres (6 inches) from
the medical device.
•Not carry the wireless device in a breast
pocket.
•Hold the wireless device to the ear
opposite the medical device.
Additional safety information
© 2009 Nokia. All rights reserved.46
•Turn the wireless device off if there is
any reason to suspect that interference
is taking place.
•Follow the manufacturer directions for
the implanted medical device.
If you have any questions about using
your wireless device with an implanted
medical device, consult your health care
provider.
Hearing aids
Some digital wireless devices may
interfere with some hearing aids.
Vehicles
RF signals may affect improperly installed
or inadequately shielded electronic
systems in motor vehicles such as
electronic fuel injection, electronic
antilock braking, electronic speed control,
and air bag systems. For more
information, check with the manufacturer
of your vehicle or its equipment.
Only qualified personnel should service
the device or install the device in a vehicle.
Faulty installation or service may be
dangerous and may invalidate your
warranty. Check regularly that all wireless
device equipment in your vehicle is
mounted and operating properly. Do not
store or carry flammable liquids, gases, or
explosive materials in the same
compartment as the device, its parts, or
accessories. Remember that air bags
inflate with great force. Do not place your
device or accessories in the air bag
deployment area.
Switch off your device before boarding an
aircraft. The use of wireless teledevices in
an aircraft may be dangerous to the
operation of the aircraft and may be
illegal.
Potentially
explosive
environments
Switch off your device in any area with a
potentially explosive atmosphere. Obey
all posted instructions. Sparks in such
areas could cause an explosion or fire
resulting in bodily injury or death. Switch
off the device at refuelling points such as
near gas pumps at service stations.
Observe restrictions in fuel depots,
storage, and distribution areas; chemical
plants; or where blasting operations are
in progress. Areas with a potentially
explosive atmosphere are often, but not
always, clearly marked. They include areas
where you would be advised to turn off
your vehicle engine, below deck on boats,
chemical transfer or storage facilities and
where the air contains chemicals or
particles such as grain, dust, or metal
powders. You should check with the
manufacturers of vehicles using liquefied
petroleum gas (such as propane or
butane) to determine if this device can be
safely used in their vicinity.
Emergency calls
Important: This device operates
using radio signals, wireless networks,
landline networks, and user-programmed
functions. If your device supports voice
calls over the internet (internet calls),
activate both the internet calls and the
cellular phone. The device may attempt to
Additional safety information
© 2009 Nokia. All rights reserved. 47
make emergency calls over both the
cellular networks and through your
internet call provider if both are activated.
Connections in all conditions cannot be
guaranteed. You should never rely solely
on any wireless device for essential
communications like medical
emergencies.
To make an emergency call:
1. If the device is not on, switch it on.
Check for adequate signal strength.
Depending on your device, you may
also need to complete the following:
•Insert a SIM card if your device uses
one.
•Remove certain call restrictions you
have activated in your device.
•Change your profile from Offline or
Flight profile to an active profile.
2. Press the end key as many times as
needed to clear the display and ready
the device for calls.
3. Enter the official emergency number
for your present location. Emergency
numbers vary by location.
4. Press the call key.
When making an emergency call, give all
the necessary information as accurately as
possible. Your wireless device may be the
only means of communication at the
scene of an accident. Do not end the call
until given permission to do so.
Certification
information
(SAR)
This mobile device meets guidelines
for exposure to radio waves.
Your mobile device is a radio transmitter
and receiver. It is designed not to exceed
the limits for exposure to radio waves
recommended by international
guidelines. These guidelines were
developed by the independent scientific
organisation ICNIRP and include safety
margins designed to assure the
protection of all persons, regardless of age
and health.
The exposure guidelines for mobile
devices employ a unit of measurement
known as the Specific Absorption Rate or
SAR. The SAR limit stated in the ICNIRP
guidelines is 2.0 watts/kilogram (W/kg)
averaged over 10 grams of tissue. Tests for
SAR are conducted using standard
operating positions with the device
transmitting at its highest certified power
level in all tested frequency bands. The
actual SAR level of an operating device can
be below the maximum value because the
device is designed to use only the power
required to reach the network. That
amount changes depending on a number
of factors such as how close you are to a
network base station.
The highest SAR value under the ICNIRP
guidelines for use of the device at the ear
is 0.73 W/kg.
Use of device accessories may result in
different SAR values. SAR values may vary
depending on national reporting and
testing requirements and the network
band. Additional SAR information may be
provided under product information at
www.nokia.com.
Your mobile device is also designed to
meet the requirements for exposure to
radio waves established by the Federal
Communications Commission (USA) and
Industry Canada. These requirements set
a SAR limit of 1.6 W/kg averaged over one
gram of tissue. The highest SAR value
reported under this standard during
Additional safety information
© 2009 Nokia. All rights reserved.48
product certification for use at the ear is
1.28 W/kg and when properly worn on the
body is 0.72 W/kg.
Additional safety information
© 2009 Nokia. All rights reserved. 49
Index
A
access codes 9
alarm clock 39
anykey answer 23
applications 35
B
backing up data 19
barring password 9
battery 5, 7
browser 33
business cards 38
C
cache memory 34
calculator 39
call divert 23
call log 23
call waiting 23
caller id 23
calls 22
camera 28
camera settings 29
chat services (IM) 27
configuration 21
contacts
groups 38
saving 38
cookies 34
D
data cable 19
dialling shortcuts 17, 22
digital rights 42
display 10, 17
downloads 13
E
e-mail 27
equaliser 33
F
factory settings, restoring 14
file management 30
flash messages 26
Flight profile 15
flight profile 12
font size 17
G
games 35
GPS (global positioning system) 36
H
handsfree 23
headset 8
help text 15
home screen 10, 17
I
IM (instant messaging) 27
images 28, 29
in-call timer 23
inbox, messages 25
indicators 10, 11
info messages 21
internet 33
K
keyguard 12, 15
keypad lock 12
keys 5
L
language settings 15
lights 16
location information 21
loudspeaker 23
M
Maps 36, 37
© 2009 Nokia. All rights reserved.50
media player 29, 31
memory 30
memory card 6
message centre number 25
message sending 26
message settings 26
messages 25, 26
microSD card 6
music 32
music player 31
My Nokia 13
N
navigation 11
navigation tools 37
nokia software updater 13
Nokia support information 12
notes 39
number mode 24
O
offline mode 12
online sharing 34
operator menu 20
P
PC Suite 20
photographs 28
PictBridge 19
PIN 9
position log 21
predictive text input 24
printing 30
profiles 16
PUK 9
R
radio 32
redial 23
restoring data 19
restoring settings 14
S
screen saver 17
scrolling 11
security code 9
security module 9
security settings 15
service commands 21
sharing 34
shortcuts 11, 17
SIM
services 20
SIM card 5, 12
SIM messages 21
software update 14
software updates 13, 15
speed dialling 17, 22, 23
stereo widening 33
stopwatch 40
strap 8
support resources 12
synchronisation 19
T
text modes 24
themes 16
tones 15, 16
traditional text input 24
transferring, files 32
U
updates 13
UPIN 9
USB data cable 19
V
video 28, 29
voice clarity 23
voice commands 17
voice dialling 22
voice recorder 33
W
wallpaper 17
web 33
write text 24
Index
© 2009 Nokia. All rights reserved. 51
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this RM-540 product is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the
Declaration of Conformity can be found at http://www.nokia.com/phones/
declaration_of_conformity/.
© 2009 Nokia. All rights reserved.
Nokia, Nokia Connecting People, XpressRadio, XpressMusic, and Navi are trademarks or registered trademarks of
Nokia Corporation. Nokia tune is a sound mark of Nokia Corporation. Other product and company names mentioned
herein may be trademarks or tradenames of their respective owners.
Portions of the Nokia Maps software are ©1996-2009 The FreeType Project. All rights reserved.
Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without
the prior written permission of Nokia is prohibited. Nokia operates a policy of continuous development. Nokia
reserves the right to make changes and improvements to any of the products described in this document without
prior notice.
Includes RSA BSAFE cryptographic or security protocol software from RSA Security.
Java and all Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc.
This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and noncommercial use in
connection with information which has been encoded in compliance with the MPEG-4 Visual Standard by a consumer
engaged in a personal and noncommercial activity and (ii) for use in connection with MPEG-4 video provided by a
licensed video provider. No license is granted or shall be implied for any other use. Additional information, including
that related to promotional, internal, and commercial uses, may be obtained from MPEG LA, LLC. See http://
www.mpegla.com.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO CIRCUMSTANCES SHALL NOKIA OR ANY OF ITS
LICENSORS BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT
DAMAGES HOWSOEVER CAUSED.
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF
ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS
DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR
NOTICE.
The availability of particular products and applications and services for these products may vary by region. Please
check with your Nokia dealer for details and availability of language options. This device may contain commodities,
technology or software subject to export laws and regulations from the US and other countries. Diversion contrary
to law is prohibited.
FCC/INDUSTRY CANADA NOTICE
Your device may cause TV or radio interference (for example, when using a telephone in close proximity to receiving
equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be
eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC
rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
0434
Any changes or modifications not expressly approved by Nokia could void the user's authority to operate this
equipment.
Model number: X3-00
5555555/Issue FCC EN
