Nokia 7230-1c User Guide
92188951234567
Issue 1
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Contents
Safety 5
General
information 7
About your device 7
Network mode 8
Network services 8
Shared memory 9
Access codes 9
Software updates using
your PC 10
Support 11
Get started 12
Keys and parts 12
Install SIM card 13
Insert a memory card 14
Insert battery 16
Charge the battery 16
Switch on and off 18
Display 18
Keypad lock 19
GSM antenna 20
Accessories 20
Calls 22
Make and answer a
call 22
Loudspeaker 23
Dialling shortcuts 23
Write text 24
Text modes 24
Traditional text input 25
Predictive text input 25
Navigate the
menus 26
Messaging 26
Text and multimedia
messages 27
Flash messages 29
Nokia Xpress audio
messages 29
Nokia Mail 30
Instant messaging 32
Voice messages 33
Message settings 33
2Contents
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Contacts 34
Call log 36
Settings 36
Profiles 36
Tones 37
Display 37
Date and time 37
Shortcuts 38
Synchronisation and
backup 38
Connectivity 39
Call and phone 42
Accessories 43
Configuration 44
Restore factory
settings 44
Gallery 45
Applications 45
Alarm clock 45
Calendar and to-do
list 46
Extras 47
Camera and video 48
FM radio 49
Voice recorder 51
Media player 51
Maps 53
Web or Internet 59
Connect to a web
service 59
SIM services 60
Green tips 60
Save energy 60
Recycle 61
Learn more 61
Accessories 62
Battery 62
Battery and charger
information 62
Nokia battery
authentication
guidelines 63
Contents 3
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Safety
Read these simple guidelines. Not following them may be
dangerous or illegal. Read the complete user guide for
further information.
SWITCH ON SAFELY
Do not switch the device on when wireless
phone use is prohibited or when it may cause
interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free
to operate the vehicle while driving. Your first
consideration while driving should be road
safety.
INTERFERENCE
All wireless devices may be susceptible to
interference, which could affect performance.
SWITCH OFF IN RESTRICTED AREAS
Follow any restrictions. Switch the device off in
aircraft, near medical equipment, fuel,
chemicals, or blasting areas.
Safety 5
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
QUALIFIED SERVICE
Only qualified personnel may install or repair
this product.
ACCESSORIES AND BATTERIES
Use only approved accessories and batteries. Do
not connect incompatible products.
WATER-RESISTANCE
Your device is not water-resistant. Keep it dry.
6Safety
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
General information
About your device
The wireless device described in this guide is approved for
use on the GSM 850, 900, 1800, 1900 and WCDMA 850, 1900,
and 2100 MHz networks. Contact your service provider for
more information about networks.
Your device may have preinstalled bookmarks and links for
third-party internet sites and may allow you to access
third-party sites. These are not affiliated with Nokia, and
Nokia does not endorse or assume liability for them. If you
access such sites, take precautions for security or content.
Warning:
To use any features in this device, other than the alarm
clock, the device must be switched on. Do not switch the
device on when wireless device use may cause interference
or danger.
When using this device, obey all laws and respect local
customs, privacy and legitimate rights of others, including
copyrights. Copyright protection may prevent some
images, music, and other content from being copied,
modified, or transferred.
General information 7
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Make back-up copies or keep a written record of all
important information stored in your device.
When connecting to any other device, read its user guide
for detailed safety instructions. Do not connect
incompatible products.
The images in this guide may differ from your device
display.
Refer to the user guide for other important information
about your device.
Network mode
To select the type of network to use, select Menu >
Settings > Phone > Network mode. You cannot access
this option during an active call.
Network services
To use the device you must have service from a wireless
service provider. Some features are not available on all
networks; other features may require that you make
specific arrangements with your service provider to use
them. Network services involve transmission of data. Check
with your service provider for details about fees in your
home network and when roaming on other networks. Your
service provider can explain what charges will apply. Some
networks may have limitations that affect how you can use
8 General information
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
some features of this device requiring network support
such as support for specific technologies like WAP 2.0
protocols (HTTP and SSL) that run on TCP/IP protocols and
language-dependent characters.
Your service provider may have requested that certain
features be disabled or not activated in your device. If so,
these features will not appear on your device menu. Your
device may also have customized items such as menu
names, menu order, and icons.
Shared memory
The following features in this device may share memory:
multimedia messaging (MMS), e-mail application, instant
messaging. Use of one or more of these features may
reduce the memory available for the remaining features.
If your device displays a message that the memory is full,
delete some of the information stored in the shared
memory.
Access codes
The security code helps to protect your device against
unauthorised use. The preset code is 12345. You can create
and change the code, and set the device to request the
code. Keep the code secret and in a safe place separate
from your device. If you forget the code and your device is
locked, your device will require service. Additional charges
may apply, and all the personal data in your device may be
General information 9
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
deleted. For more information, contact a Nokia Care point
or your device dealer.
The PIN code supplied with the SIM card protects the card
against unauthorised use. The PIN2 code supplied with
some SIM cards is required to access certain services. If you
enter the PIN or PIN2 code incorrectly three times in
succession, you are asked for the PUK or PUK2 code. If you
do not have them, contact your service provider.
The module PIN is required to access the information in the
security module of your SIM card. The signing PIN may be
required for the digital signature. The barring password is
required when using the call barring service.
To set how your device uses the access codes and security
settings, select Menu > Settings > Security.
Software updates using your PC
Nokia Software Updater is a PC application that enables you
to update your device software. To update your device
software, you need a compatible PC, broadband internet
access, and a compatible USB data cable to connect your
device to the PC.
To get more information, to check the release notes for the
latest software versions, and to download the Nokia
10 General information
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Software Updater application, see www.nokia.com/
softwareupdate or your local Nokia website.
To update the device software, do the following:
1 Download and install the Nokia Software Updater
application to your PC.
2 Connect your device to the PC using a USB data cable,
and select PC Suite.
3 Open the Nokia Software Updater application. The
Nokia Software Updater application guides you to back
up your files, update the software, and restore your
files.
Support
When you want to learn more about how to use your
product or you are unsure how your device should
function, see the user guide or see the support pages at
www.nokia.com/support or your local Nokia website, or
with a mobile device, www.nokia.mobi/support.
If this does not resolve your issue, do one of the following:
•Restart the device: switch off the device, and remove
the battery. After about a minute, replace the battery,
and switch on the device.
•Restore the original factory settings as explained in the
user guide.
General information 11
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
•Update your device software regularly for optimum
performance and possible new features, as explained
in the user guide.
If your issue remains unsolved, contact Nokia for repair
options. See www.nokia.com/repair. Before sending your
device for repair, always back up the data in your device.
Get started
Keys and parts
1Display
2Navi™ key (scroll key)
3Selection keys
4Call key
5Keypad
6Earpiece
7End/Power key
12 Get started
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
8Charger
connector
9USB port
10 Headset
connector
11 Lens
12 Capture key
13 Wrist strap
eyelet
Install SIM card
The SIM card and its contacts can be easily damaged by
scratches or bending, so be careful when handling,
inserting, or removing the card.
Get started 13
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black

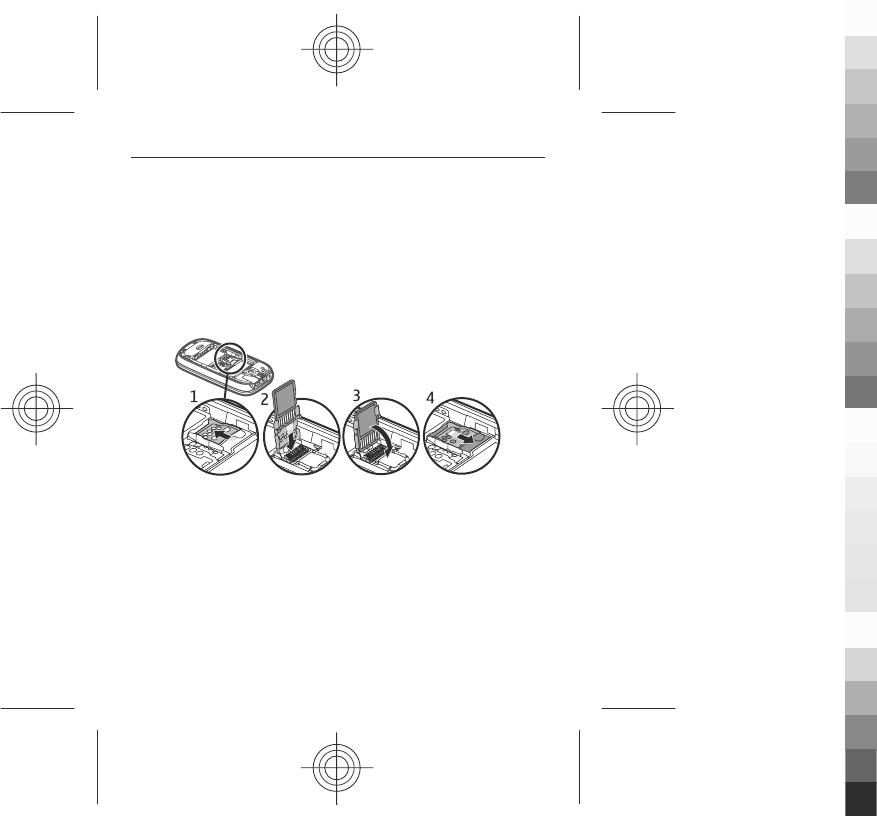

1 Remove the battery if inserted, and slide the SIM card
holder to unlock.
2 Open the card holder.
3 Insert the SIM card into the holder with the contact
surface facing down.
4 Close the card holder.
5 Slide the card holder to lock.
Insert a memory card
Use only compatible MicroSD cards approved by Nokia for
use with this device. Nokia uses approved industry
standards for memory cards, but some brands may not be
14 Get started
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
fully compatible with this device. Incompatible cards may
damage the card and the device and corrupt data stored
on the card.
Your device supports microSD cards with a capacity of up
to 16 GB. The size of a single file must not exceed 2 GB.
Insert a memory card
1 Remove the battery if inserted, and slide the memory
card holder to unlock.
2 Swing the card holder open.
3 Insert the memory card into the card holder with the
contact surface facing down.
4 Close the card holder.
5 Slide the card holder to lock.
Get started 15
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Insert battery
1 Remove the back cover if in place, observe the battery
contacts, and insert the battery.
2 Replace the back cover.
Charge the battery
Your battery has been partially charged at the factory. If
the device indicates a low charge, do the following:
1 Connect the charger to a wall outlet.
16 Get started
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2 Connect the charger to the device.
3 When the device indicates a full charge, disconnect the
charger from the device, then from the wall outlet.
You can also charge the battery with a USB cable with
power from a computer.
1 Connect the USB cable to a USB port of a computer and
to your device.
2 When the battery is fully charged, disconnect the USB
cable.
You do not need to charge the battery for a specific length
of time, and you can use the device while it is charging. If
the battery is completely discharged, it may take several
minutes before the charging indicator appears on the
display or before any calls can be made.
Charging the device while listening to the radio may affect
the quality of reception.
Get started 17
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Switch on and off
Press and hold the power key.
Display
7
6
10
1Signal strength of the cellular network
2Battery charge status
3Indicators
4Name of the network or the operator logo
5Clock
6Date (only if the enhanced home screen is deactivated)
7Display
8Function of the left selection key
9Function of the scroll key
18 Get started
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
10 Function of the right selection key
You can change the function of the left and right selection
key. See "Shortcuts", p. 38.
Keypad lock
To prevent accidental keypresses, close the phone, and
select Lock within 5 seconds to lock the keypad.
To unlock the keypad, select Unlock > OK, or open the
phone. If the security keyguard is on, enter the security
code when requested.
To set the keypad to lock automatically after a preset time
when the phone is in the standby mode, select Menu >
Settings > Phone > Automatic keyguard > On.
To answer a call when the keypad is locked, press the call
key. When you end or reject the call, the keypad locks
automatically.
When the device or keypad is locked, calls may be possible
to the official emergency number programmed into your
device.
Get started 19
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
GSM antenna
Your device may have internal and external antennas.
Avoid touching the antenna area unnecessarily while the
antenna is transmitting or receiving. Contact with
antennas affects the communication quality and may
cause a higher power level during operation and may
reduce the battery life.
The figure shows the GSM antenna area marked in grey.
Accessories
Connect a USB cable
Open the cover of the USB connector, and connect the USB
cable to the device.
20 Get started
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Headset
Warning:
When you use the headset, your ability to hear outside
sounds may be affected. Do not use the headset where it
can endanger your safety.
When connecting any external device or any headset, other
than those approved by Nokia for use with this device, to
the Nokia AV Connector, pay special attention to volume
levels.
Do not connect products that create an output signal as
this may cause damage to the device. Do not connect any
voltage source to the Nokia AV Connector.
Get started 21
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Strap
1 Open the back cover.
2 Thread the strap, and tighten it.
3 Close the back cover.
Calls
Make and answer a call
To make a call, enter the phone number, including the
country and area code if necessary, and press the call key.
22 Calls
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
To adjust the volume of the earpiece or headset during the
phone call, scroll up or down.
To answer an incoming call, press the call key. To reject the
call without answering, press the end key.
Loudspeaker
If available, you may select Loudsp. or Handset to use the
loudspeaker or the earpiece of the phone during a call.
Warning:
Continuous exposure to high volume may damage your
hearing. Listen to music at a moderate level, and do not
hold the device near your ear when the loudspeaker is in
use.
Dialling shortcuts
Assign a phone number to a number key
Select Menu > Contacts > Speed dials, scroll to a desired
number (2-9), and select Assign. Enter the desired phone
number, or select Search and a saved contact.
Activate speed dialling
Select Menu > Settings > Call > Speed dialling > On.
Calls 23
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Make a call using speed dialling
In the standby mode, press and hold the desired number
key.
Write text
Text modes
To enter text (for example, when writing messages) you
can use traditional or predictive text input.
When you write text, press and hold Options to switch
between traditional text input, indicated by , and
predictive text input, indicated by . Not all languages
are supported by predictive text input.
The character cases are indicated by , , and .
To change the character case, press #. To change from the
letter to number mode, indicated by , press and hold
#, and select Number mode. To change from the number
to the letter mode, press and hold #.
To set the writing language, select Options > Writing
language.
24 Write text
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Traditional text input
Press a number key, 2-9, repeatedly until the desired
character appears. The available characters depend on the
selected writing language.
If the next letter you want is located on the same key as
the present one, wait until the cursor appears, and enter
the letter.
To access the most common punctuation marks and special
characters, press 1 repeatedly. To access the list of special
characters, press *. To insert a space, press 0.
Predictive text input
Predictive text input is based on a built-in dictionary to
which you can also add new words.
1 Start writing a word, using the keys 2 to 9. Press each
key only once for one letter.
2 To confirm a word, scroll right or add a space.
•If the word is not correct, press * repeatedly, and
select the word from the list.
•If the ? character is displayed after the word, the
word you intended to write is not in the dictionary.
To add the word to the dictionary, select Spell.
Enter the word using traditional text input, and
select Save.
Write text 25
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
•To write compound words, enter the first part of
the word, and scroll right to confirm it. Write the
last part of the word, and confirm the word.
3 Start writing the next word.
Navigate the menus
The device functions are grouped into menus. Not all menu
functions or option items are described here.
In the home screen, select Menu and the desired menu and
submenu.
Exit the current menu level
Select Exit or Back.
Return to the home screen
Press the end key.
Change the menu view
Select Menu > Options > Main menu view.
Messaging
Create and receive messages, such as text and multimedia,
with your device. The messaging services can only be used
if your network or service provider supports them.
26 Navigate the menus
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Text and multimedia messages
You can create a message and optionally attach, for
example, a picture. Your phone automatically changes a
text message to a multimedia message when a file is
attached.
Text messages
Your device supports text messages beyond the limit for a
single message. Longer messages are sent as two or more
messages. Your service provider may charge accordingly.
Characters with accents, other marks, or some language
options take more space, and limit the number of
characters that can be sent in a single message.
The total number of characters left and the number of
messages needed for sending are displayed.
To send messages, the correct message centre number
must be stored in your device. Normally, this number is set
by default through your SIM card.
To set the number manually, do the following:
1 Select Menu > Messaging > More > Msg.
settings > Text messages > Message centre.
2 Enter the name and number supplied by your service
provider.
Messaging 27
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Multimedia messages
A multimedia message can contain text, pictures, and
sound or video clips.
Only devices that have compatible features can receive and
display multimedia messages. The appearance of a
message may vary depending on the receiving device.
The wireless network may limit the size of MMS messages.
If the inserted picture exceeds this limit, the device may
make it smaller so that it can be sent by MMS.
Important: Exercise caution when opening messages.
Messages may contain malicious software or otherwise be
harmful to your device or PC.
For availability and subscription to the multimedia
messaging service (MMS), contact your service provider.
Create a message
1 Select Menu > Messaging > Create message.
2 Write your message.
To insert a special character or a smiley, select
Options > Insert symbol.
To attach an object to the message, select Options >
Insert object. The message type changes
automatically to multimedia message.
28 Messaging
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
3 To add recipients, select Send to and a recipient.
To enter a phone number or mail address manually,
select Number or e-mail. Enter a phone number, or
select E-mail, and enter a mail address.
4 Select Send.
Multimedia messages are indicated with an icon at the top
of the display.
Service providers may charge differently depending on the
message type. For details, contact your service provider.
Flash messages
Flash messages are text messages that are instantly
displayed upon reception.
Select Menu > Messaging.
1 Select More > Other messages > Flash message.
2 Write your message.
3 Select Send to and a contact.
Nokia Xpress audio messages
Create and send audio messages using MMS in a convenient
way.
Select Menu > Messaging.
Messaging 29
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
1 Select More > Other messages > Audio message.
The voice recorder opens.
2 To record your message, select .
3 To stop recording, select .
4 Select Send to and a contact.
Nokia Mail
Access your mail account with your device to read, write,
and send mail. This mail application is different from the
SMS mail function.
Before you can use mail, you must have an mail account
from an mail service provider. For availability and the
correct settings, contact your mail service provider. You
may receive the mail configuration settings as a
configuration message.
Mail setup wizard
The mail setup wizard opens automatically if no mail
settings are defined in the device. To add an additional
mail account, select Menu > Messaging > More > E-
mail and New account. Follow the instructions.
Write and send a mail
You may write your mail before connecting to the mail
service.
30 Messaging
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
1 Select Menu > Messaging > More > E-mail and
Create e-mail.
2 Enter the recipient’s mail address, the subject, and the
mail message. To attach a file, select Options >
Insert.
3 If more than one mail account is defined, select the
account from which you want to send the mail.
4 Select Send.
Read a mail and reply
Important: Exercise caution when opening messages.
Messages may contain malicious software or otherwise be
harmful to your device or PC.
Select Menu > Messaging > More > E-mail.
Download mail headers
Select your mail account.
Download a mail and its attachments
Select a mail and Open or Retrieve.
Reply to or forward a mail
Select Options > Reply or Forward.
Messaging 31
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Disconnect from your mail account
Select Options > Disconnect. The connection to the mail
account automatically ends after some time without
activity.
New mail notifications
Your device can automatically check your mail account at
set intervals, and issue a notification when new mail is
received.
Select Menu > Messaging > More > E-mail.
1 Select E-mail settings > Edit mailboxes.
2 Select your mail account, Downloading sett., and the
following options:
Update interval — Set how often your device checks
your mail account for new mail.
Automatic retrieval — Retrieve new mail
automatically from your mail account.
3 To enable new mail notification, select E-mail
settings > New e-mail notif..
Instant messaging
With instant messaging (IM, network service) you can send
short text messages to online users. You must subscribe to
32 Messaging
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
a service and register with the IM service you want to use.
Check the availability of this service, pricing, and
instructions with your service provider. The menus may
vary depending on your IM provider.
To connect to the service, select Menu > Messaging >
IMs and follow the instructions on the display.
Voice messages
The voice mailbox is a network service to which you may
need to subscribe. For more information, contact your
service provider.
Call your voice mailbox
Press and hold 1.
Edit your voice mailbox number
Select Menu > Messaging > More > Voice messages
and Voice mailbox no..
Message settings
Select Menu > Messaging and More > Msg. settings.
Select from the following:
General settings — Save copies of sent messages in your
device, overwrite old messages if the message memory
Messaging 33
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
becomes full, and set up other preferences related to
messages.
Text messages — Allow delivery reports, set up message
centres for SMS and SMS mail, select the type of character
support, and set up other preferences related to text
messages.
Multimedia msgs. — Allow delivery reports, set up the
appearance of multimedia messages, allow the reception
of multimedia messages and advertisements, and set up
other preferences related to multimedia messages.
Service messages — Activate service messages, and set
up preferences related to service messages.
Contacts
Select Menu > Contacts.
You can save names and phone numbers in the device
memory or on the SIM card. In the device memory, you can
save contacts with numbers and text items. Names and
numbers saved on the SIM card are indicated with .
Add a contact
Select Add new.
34 Contacts
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Add details to a contact
Ensure that the memory in use is either Phone or Phone
and SIM. Select Names, scroll to the name, and select
Details > Options > Add detail.
Search for a contact
Select Names, and scroll through the list of contacts or
enter the first letters of the name.
Copy a contact to another memory
Select Names, scroll to the contact, and select Options >
More > Copy contact. On the SIM card, you can save only
one phone number for each name.
Select where to save contacts, how contacts are
displayed, and the memory consumption of contacts
Select More > Settings.
Send a business card
In the contacts list, scroll to a contact, and select
Options > More > Business card. You can send and
receive business cards from devices that support the vCard
standard.
Contacts 35
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Call log
To view the information on your calls, messages, data, and
synchronisation, select Menu > Log and the desired item.
Note: The actual invoice for calls and services from your
service provider may vary, depending on network features,
rounding off for billing, taxes, and so forth.
Settings
Profiles
Waiting for a call, but can’t let your device ring? There are
various settings groups called profiles, which you can
customise with ringing tones for different events and
environments.
Select Menu > Settings > Profiles.
Select the desired profile and from the following:
Activate — Activate the profile.
Personalise — Modify the profile settings.
Timed — Set the profile to be active until a certain time.
When the time set for the profile expires, the previous
profile that was not timed becomes active.
36 Call log
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Tones
You can change the tone settings of the selected active
profile.
Select Menu > Settings > Tones. You can find the same
settings in the Profiles menu.
Display
To view or adjust the wallpaper, font size, or other features
related to the device display, select Menu > Settings >
Display.
Date and time
Select Menu > Settings > Date and time.
To set the date and time, select Date & time settings.
To set the formats for date and time, select Date & time
format.
To set the phone to update the time and date automatically
according to the current time zone, select Auto-update of
time (network service).
Settings 37
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Shortcuts
With personal shortcuts, you can get quick access to
frequently used phone functions.
Select Menu > Settings > My shortcuts.
Assign phone functions to the selection keys
Select Right selection key or Left selection key and a
function from the list.
Select shortcut functions for the scroll key
Select Navigation key. Scroll to the desired direction, and
select Change or Assign and a function from the list.
Synchronisation and backup
Select Menu > Settings > Sync & backup.
Select from the following:
Synchronisation — Synchronise your personal data with
Ovi. Before you start synchronising, you need to set up your
Nokia account. Select Connect, and you are guided
through the process.
Phone switch — Synchronise or copy selected data
between your device and another device.
Create backup — Back up selected data.
38 Settings
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Restore backup — Restore data from a backup. To view
the details of a backup file, select Options > Details.
Data transfer — Synchronise or copy selected data
between your device and a network server (network
service).
Connectivity
Your phone has several features that allow you to connect
to other devices to transmit and receive data.
Bluetooth wireless technology
Bluetooth technology allows you to connect your device,
using radio waves, to a compatible Bluetooth device within
10 metres (32 feet).
This device is compliant with Bluetooth Specification 2.1 +
EDR supporting the following profiles: Dial-up Networking
Profile (DUN) FileTransfer Profile (FTP) General Access
Profile (GAP) Generic Object Exchange Profile (GOEP)
Handsfree Profile (HFP) Headset Profile (HSP) Object Push
Profile (OPP) Phonebook Access Profile (PBAP) Serial Port
Profile (SPP) Service Discovery Application Profile (SDAP)
SIM Access Profile (SAP). To ensure interoperability
between other devices supporting Bluetooth technology,
use Nokia approved accessories for this model. Check with
the manufacturers of other devices to determine their
compatibility with this device.
Settings 39
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Features using Bluetooth technology increase the demand
on battery power and reduce the battery life.
When the wireless device is in the remote SIM mode, you
can only use a compatible connected accessory, such as a
car kit, to make or receive calls.
Your wireless device will not make any calls, except to the
emergency numbers programmed into your device, while
in this mode.
To make calls, you must first leave the remote SIM mode.
If the device has been locked, enter the lock code to unlock
it first.
Open a Bluetooth connection
1 Select Menu > Settings > Connectivity >
Bluetooth.
2 Select My phone's name, and enter a name for your
device.
3 To activate Bluetooth connectivity, select
Bluetooth > On. indicates that Bluetooth
connectivity is active.
4 To connect your device to an audio accessory, select
Conn. to audio acc. and the accessory.
5 To pair your device with any Bluetooth device in range,
select Paired devices > Add new device.
40 Settings
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
6 Scroll to a found device, and select Add.
7 Enter a passcode (up to 16 characters) on your device,
and allow the connection on the other Bluetooth
device.
Operating the device in hidden mode is a safer way to avoid
malicious software. Do not accept Bluetooth connectivity
from sources you do not trust. Alternatively, switch off the
Bluetooth function. This does not affect other functions of
the device.
Connect your PC to the internet
You can use Bluetooth technology to connect your
compatible PC to the internet. Your device must be able to
connect to the internet (network service), and your PC must
support Bluetooth technology. After connecting to the
network access point (NAP) service of the device and
pairing with your PC, your device automatically opens a
packet data connection to the internet.
Packet data
General packet radio service (GPRS) is a network service
that allows mobile phones to send and receive data over
an internet protocol (IP)-based network.
Settings 41
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
To define how to use the service, select Menu >
Settings > Connectivity > Packet data > Packet data
conn. and from the following options:
When needed — to establish the packet data connection
when an application needs it. The connection is closed
when the application is terminated.
Always online — to automatically connect to a packet
data network when you switch the phone on
You can use your phone as a modem by connecting it to a
compatible PC using Bluetooth technology. For details, see
the Nokia PC Suite documentation.
Call and phone
Select Menu > Settings > Call.
Divert incoming calls
Select Call divert (network service). For details, contact
your service provider.
Automatically redial ten times after an unsuccessful
attempt
Select Automatic redial > On.
42 Settings
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Get a notification of incoming calls while you are in a
call
Select Call waiting > Activate (network service).
Display or hide your number to the person you are
calling
Select Send my caller ID (network service).
Answer or end a call by opening or closing the slide
Select Slide call handling.
Select Menu > Settings > Phone.
Set the display language
Select Language settings > Phone language.
Accessories
This menu and its various options are shown only if the
phone is or has been connected to a compatible mobile
accessory.
Select Menu > Settings > Accessories. Select an
accessory, and an option depending on the accessory.
Settings 43
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Configuration
You can configure your device with settings that are
required for certain services. Your service provider may
also send you these settings.
Select Menu > Settings and Configuration.
Select from the following:
Default config. sett. — View the service providers saved
in the device, and set a default service provider.
Act. def. in all apps. — Activate the default configuration
settings for supported applications.
Preferred access pt. — View the saved access points.
Personal settings — Add new personal accounts for
various services, and activate or delete them. To add a new
personal account, select Add or Options > Add new.
Select the service type, and enter the required information.
To activate a personal account, scroll to the account, and
select Options > Activate.
Restore factory settings
To restore the phone back to factory settings, select
Menu > Settings > Rest. fact. sett. and from the
following:
Settings only — Reset all preference settings without
deleting any personal data.
44 Settings
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
All — Reset all preference settings and delete all personal
data, such as contacts, messages, media files, and
activation keys.
Gallery
In Gallery, you can manage images, video clips, and music
files.
View the Gallery contents
Select Menu > Gallery.
Upload an image or video clip to a web-based service
when viewing the file
Select Options > Send > Upload to web and the desired
upload service.
Applications
Alarm clock
You can set an alarm to sound at a desired time.
Set the alarm
1 Select Menu > Applications > Alarm clock.
2 Set the alarm, and enter the alarm time.
Gallery 45
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
3 To issue an alarm on selected days of the week, select
Repeat: > On and the days.
4 Select the alarm tone. If you select the radio as the
alarm tone, connect the headset to the device.
5 Set the length of the snooze time-out period, and
select Save.
Stop the alarm
Select Stop. If you let the alarm sound for a minute or select
Snooze, the alarm stops for the length of the snooze time-
out period, then resumes.
Calendar and to-do list
Select Menu > Calendar. The current day is framed. If
there are any notes set for the day, the day is in bold.
Add a calendar note
Scroll to the date, and select Options > Make a note.
View the details of a note
Scroll to a note, and select View.
Delete all notes from the calendar
Select Options > Delete notes > All notes.
46 Applications
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
View the to-do list
Select Menu > Applications > To-do list.
The to-do list is displayed and sorted by priority. To add,
delete, or send a note, to mark the note as done, or to sort
the to-do list by deadline, select Options.
Extras
Your device may include some games and Java™
applications specially designed for your device.
Select Menu > Applications > Extras.
Open a game or application
Select Games, Collection, or Memory card, and a game or
an application.
View the amount of memory available for game and
application installations
Select Options > Memory status.
Download a game or application
Select Options > Downloads > Game downloads or
App. downloads.
Applications 47
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Your device supports J2ME™ Java applications. Ensure that
the application is compatible with your device before
downloading it.
Important: Only install and use applications and other
software from trusted sources, such as applications that
are Symbian Signed or have passed the Java Verified™
testing.
The downloaded applications may be saved in Gallery
instead of Applications.
Camera and video
Your device supports an image capture resolution of
2048x1536 pixels.
Camera mode
Use the still image function
In the home screen, press the capture key.
Zoom in or out
Scroll up or down.
Capture an image
Press the capture key.
48 Applications
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Set the preview mode and time
Select Options > Settings > Photo preview time.
To activate the self-timer, select Options and the desired
option.
Video mode
Use the video function
Press and hold the capture key.
Start recording a video clip
Press the capture key.
Switch between camera and video mode
In camera or video mode, scroll left or right.
FM radio
The FM radio depends on an antenna other than the
wireless device antenna. A compatible headset or
accessory needs to be attached to the device for the FM
radio to function properly.
Applications 49
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Warning:
Continuous exposure to high volume may damage your
hearing. Listen to music at a moderate level, and do not
hold the device near your ear when the loudspeaker is in
use.
Select Menu > Applications > Radio.
Search for a neighbouring station
Press and hold the scroll key to the left or right.
Save a station
Tune to the desired station, and select Options > Save
station.
Switch between saved stations
Scroll left or right to switch between stations, or press the
corresponding number key of the memory location of a
desired station.
Adjust the volume
Scroll up or down.
Leave the radio playing in the background
Press the end key.
50 Applications
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Close the radio
Press and hold the end key.
Voice recorder
Select Menu > Applications > Voice recorder.
Start recording
Select the record icon.
Start recording during a call
Select Options > More > Record. When recording a call,
hold the phone in the normal position near to your ear. The
recording is saved in the Recordings folder in Gallery.
Listen to the latest recording
Select Options > Play last recorded.
Send the last recording in a multimedia message
Select Options > Send last recorded.
Media player
Your device includes a media player for listening to songs
or other MP3 or AAC sound files.
Applications 51
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Warning:
Continuous exposure to high volume may damage your
hearing. Listen to music at a moderate level, and do not
hold the device near your ear when the loudspeaker is in
use.
Select Menu > Applications > Media player.
Start or pause playing
Press the scroll key.
Skip to the beginning of the current song
Scroll left.
Skip to the previous song
Scroll left twice.
Skip to the next song
Scroll right.
Rewind the current song
Press and hold the scroll key to the left.
Fast-forward the current song
Press and hold the scroll key to the right.
52 Applications
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Adjust the volume
Scroll up or down.
Mute or unmute the media player
Press #.
Leave the media player playing in the background
Press the end key.
Close the media player
Press and hold the end key.
Maps
With Maps, you can browse maps for different cities and
countries, search for addresses and different points of
interest, plan routes from one location to another, see your
current location on the map if you have a GPS connection,
and save locations and send them to compatible devices.
You can also purchase a licence for a navigation service
with voice guidance. This service is not available for all
countries or regions.
About Maps
If there are maps available in your device or on an inserted
memory card, you can browse them without an internet
connection. When you browse to an area which is not
Applications 53
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
covered by the maps already downloaded in your device,
a map for the area is automatically downloaded through
the internet. You may be prompted to select an access
point to use with the internet connection.
Downloading maps may involve the transmission of large
amounts of data through your service provider's network.
Contact your service provider for information about data
transmission charges.
You can also use the Nokia Map Loader PC software to
download maps to your device. To install Nokia Map Loader
on a compatible PC, see www.nokia.com/maps.
Select Menu > Applications > Maps and from the
following:
Last map — Open the map that was displayed last.
Find address — Search for a specific address.
Saved locations — Find a location you have saved on your
device.
Rec. locations — View the locations you have browsed.
Current position — View your current location, if a GPS
connection is available.
Plan route — Plan a route.
Extra services — Purchase a license for navigation.
Settings — Define the settings.
54 Applications
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Almost all digital cartography is inaccurate and incomplete
to some extent. Never rely solely on the cartography that
you download for use in this device.
Nokia Map Loader
With the Nokia Map Loader application for PC, you can
download maps and voice guidance files from the internet.
A memory card with sufficient space must be inserted in
your device. You must use the Maps application and browse
maps at least once before using Nokia Map Loader, as Nokia
Map Loader uses the Maps history information to check
which version of the maps to download.
To install Nokia Map loader, visit www.nokia.com/maps,
and follow the instructions.
Download maps with Nokia Map Loader
1 Connect your device to the computer with a
compatible USB data cable or Bluetooth connection. If
you use a data cable, select PC Suite as the USB
connection method.
2 Open Nokia Map Loader on the computer.
3 Select a continent and a country or region.
4 Select the maps or services, and download and install
them to your device.
Applications 55
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
On the Service tab of Nokia Map Loader, you can purchase
navigation and traffic information licences, travel guides,
and download maps.
About GPS
GPS receiver
Your device does not have an internal GPS receiver. To use
applications that require a GPS connection, use a
compatible external GPS receiver (accessory sold
separately).
Use an external GPS receiver
1 Fully charge your compatible GPS receiver, and switch
it on.
2 Set up a Bluetooth connection between your device
and the GPS receiver.
3 Place the GPS receiver in a position with an
unobstructed view to the sky.
4 Open the Maps application, and select the external GPS
receiver.
After pairing your device with an external GPS receiver, it
may take several minutes for the device to display the
current location.
You can use GPS to support the Maps application. Find out
your location or measure distances.
56 Applications
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
You can also use Maps without a GPS receiver to browse
maps, search for addresses and locations, and plan routes.
Navigate to your destination
You can upgrade Maps to a full navigation system to be
used by car and by foot. You need a regional licence for the
full navigation system, and a compatible GPS receiver. The
car navigation is fully voice-guided with two and three-
dimensional map views. Pedestrian navigation is limited
to a speed of 30 km/h (18.6 miles/h) and provides no voice
guidance. The navigation service is not available for all
countries and regions. For details, see your local Nokia
website.
Purchase a licence for navigation
Select Extra services. The licence is region-specific and can
be used only in the selected area.
Applications 57
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Navigate to the destination
1 Select Plan route, and create a route.
2 Select Options > Show route > Options > Start
navigation.
3 Accept the displayed disclaimer.
4 Select the language for voice guidance, if prompted.
If you deviate from the set route, the device automatically
plans a new route.
Repeat the voice guidance
Select Repeat.
Silence the voice guidance
Select Options > Mute audio.
Stop navigating
Select Stop.
Navigate on foot
Select Settings > Routing settings > Route selection >
On foot. This optimises the routes you create for
navigation on foot.
58 Applications
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Web or Internet
You can access various internet services with your phone
browser. The appearance of the web pages may vary due
to screen size. You may not be able to see all the details on
the web pages.
Depending on your phone, the web browsing function may
be displayed as Web or Internet in the menu, hereafter
referred to as Web.
Important: Use only services that you trust and that offer
adequate security and protection against harmful
software.
For the availability of these services, pricing, and
instructions, contact your service provider.
You may receive the configuration settings required for
browsing as a configuration message from your service
provider.
Connect to a web service
Select Menu > Internet > Home. Or, in the standby mode,
press and hold 0.
Web or Internet 59
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
After you make a connection to the service, you can start
browsing its pages. The function of the phone keys may
vary in different services. Follow the text guides on the
phone display. For more information, contact your service
provider.
SIM services
Your SIM card may provide additional services. You can
access this menu only if it is supported by your SIM card.
The name and contents of the menu depend on the
available services.
Green tips
Here are tips on how you can contribute to protecting the
environment.
Save energy
When you have fully charged the battery and disconnected
the charger from the device, unplug the charger from the
wall outlet.
60 SIM services
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
You do not need to charge your battery so often if you do
the following:
•Close and disable applications, services, and
connections when not in use.
•Decrease the brightness of the screen.
•Set the device to enter the power saver mode after the
minimum period of inactivity, if available in your
device.
•Disable unnecessary sounds, such as keypad and
ringing tones.
Recycle
Most of the materials in a Nokia phone are recyclable. Check
how to recycle your Nokia products at www.nokia.com/
werecycle, or with a mobile device, www.nokia.mobi/
werecycle.
Recycle packaging and user guides at your local recycling
scheme.
Learn more
For more information on the environmental attributes of
your device, see www.nokia.com/ecodeclaration.
Green tips 61
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Accessories
Warning:
Use only batteries, chargers, and
accessories approved by Nokia for use
with this particular model. The use of
any other types may invalidate any
approval or warranty, and may be
dangerous. In particular, use of
unapproved chargers or batteries may
present a risk of fire, explosion, leakage,
or other hazard.
For availability of approved accessories,
please check with your dealer. When
you disconnect the power cord of any
accessory, grasp and pull the plug, not
the cord.
Battery
Battery and charger information
Your device is powered by a
rechargeable battery. The battery
intended for use with this device is
BL-4CT. Nokia may make additional
battery models available for this device.
This device is intended for use when
supplied with power from the following
chargers: AC-3. The exact charger model
number may vary depending on the type
of plug. The plug variant is identified by
one of the following: E, EB, X, AR, U, A, C,
K, or UB.
The battery can be charged and
discharged hundreds of times, but it will
eventually wear out. When the talk and
standby times are noticeably shorter
than normal, replace the battery. Use
only Nokia approved batteries, and
recharge your battery only with Nokia
approved chargers designated for this
device.
If a battery is being used for the first
time or if the battery has not been used
for a prolonged period, it may be
necessary to connect the charger, then
disconnect and reconnect it to begin
charging the battery. If the battery is
completely discharged, it may take
several minutes before the charging
indicator appears on the display or
before any calls can be made.
Safe removal. Always switch the device
off and disconnect the charger before
removing the battery.
Proper charging. Unplug the charger
from the electrical plug and the device
when not in use. Do not leave a fully
charged battery connected to a charger,
since overcharging may shorten its
lifetime. If left unused, a fully charged
battery will lose its charge over time.
Avoid extreme temperatures. Always try
to keep the battery between 15°C and
62 Accessories
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
25°C (59°F and 77°F). Extreme
temperatures reduce the capacity and
lifetime of the battery. A device with a
hot or cold battery may not work
temporarily. Battery performance is
particularly limited in temperatures
well below freezing.
Do not short-circuit. Accidental short-
circuiting can occur when a metallic
object such as a coin, clip, or pen causes
direct connection of the positive (+) and
negative (-) terminals of the battery.
(These look like metal strips on the
battery.) This might happen, for
example, when you carry a spare battery
in your pocket or purse. Short-circuiting
the terminals may damage the battery
or the connecting object.
Disposal. Do not dispose of batteries in
a fire as they may explode. Dispose of
batteries according to local regulations.
Please recycle when possible. Do not
dispose as household waste.
Leak. Do not dismantle, cut, open, crush,
bend, puncture, or shred cells or
batteries. In the event of a battery leak,
prevent battery liquid contact with skin
or eyes. If this happens, flush the
affected areas immediately with water,
or seek medical help.
Damage. Do not modify, remanufacture,
attempt to insert foreign objects into
the battery, or immerse or expose it to
water or other liquids. Batteries may
explode if damaged.
Correct use. Use the battery only for its
intended purpose. Improper battery use
may result in a fire, explosion, or other
hazard. If the device or battery is
dropped, especially on a hard surface,
and you believe the battery has been
damaged, take it to a service centre for
inspection before continuing to use it.
Never use any charger or battery that is
damaged. Keep your battery out of the
reach of small children.
Nokia battery authentication
guidelines
Always use original Nokia batteries for
your safety. To check that you are
getting an original Nokia battery,
purchase it from a Nokia authorised
service centre or dealer, and inspect the
hologram label using the following
steps:
Battery 63
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Authenticate hologram
1 When you look at the hologram on
the label, you should see the
Nokia connecting hands symbol
from one angle and the Nokia
Original Enhancements logo when
looking from another angle.
2 When you angle the hologram
left, right, down and up, you
should see 1, 2, 3 and 4 dots on
each side respectively.
Successful completion of the steps is not
a total assurance of the authenticity of
the battery. If you cannot confirm
authenticity or if you have any reason to
believe that your Nokia battery with the
hologram on the label is not an
authentic Nokia battery, you should
refrain from using it, and take it to the
nearest Nokia authorised service centre
or dealer for assistance.
To find out more about original Nokia
batteries, see www.nokia.com/battery.
Taking care of your device
Your device is a product of superior
design and craftsmanship and should be
treated with care. The following
suggestions will help you protect your
warranty coverage.
•Keep the device dry. Precipitation,
humidity, and all types of liquids
or moisture can contain minerals
that will corrode electronic
circuits. If your device does get
wet, remove the battery, and
allow the device to dry completely
before replacing it.
•Do not use or store the device in
dusty, dirty areas. Its moving
parts and electronic components
can be damaged.
64 Taking care of your device
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
•Do not store the device in high or
cold temperature. High
temperatures can shorten the life
of electronic devices, damage
batteries, and warp or melt
certain plastics. When the device
warms to its normal temperature
from a cold temperature,
moisture can form inside the
device and damage electronic
circuit boards.
•Do not attempt to open the device
other than as instructed in this
guide.
•Do not drop, knock, or shake the
device. Rough handling can break
internal circuit boards and fine
mechanics.
•Do not use harsh chemicals,
cleaning solvents, or strong
detergents to clean the device.
Only use a soft, clean, dry cloth to
clean the surface of the device.
•Do not paint the device. Paint can
clog the moving parts and prevent
proper operation.
•Use only the supplied or an
approved replacement antenna.
Unauthorised antennas,
modifications, or attachments
could damage the device and may
violate regulations governing
radio devices.
•Use chargers indoors.
•Backup all data you want to keep,
such as contacts and calendar
notes.
•To reset the device from time to
time for optimum performance,
power off the device and remove
the battery.
These suggestions apply equally to your
device, battery, charger, or any
accessory.
Recycle
Always return your used electronic
products, batteries, and packaging
materials to dedicated collection points.
This way you help prevent uncontrolled
waste disposal and promote the
recycling of materials. Check product
environmental information and how to
recycle your Nokia products at
www.nokia.com/werecycle, or
nokia.mobi/werecycle.
The crossed-out wheeled-bin symbol on
your product, battery, literature, or
packaging reminds you that all electrical
and electronic products, batteries, and
accumulators must be taken to separate
Taking care of your device 65
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
collection at the end of their working
life. This requirement applies in the
European Union. Do not dispose of these
products as unsorted municipal waste.
For more environmental information,
see the product Eco-Declarations at
www.nokia.com/environment.
Additional safety information
Note: The surface of this device does
not contain nickel in the platings. The
surface of this device contains stainless
steel.
Small children
Your device and its accessories are not
toys. They may contain small parts. Keep
them out of the reach of small children.
Operating environment
This device meets RF exposure
guidelines in the normal use position at
the ear or at least 1.5 centimetre (5/8
inch) away from the body. Any carry
case, belt clip, or holder for body-worn
operation should not contain metal and
should position the device the above-
stated distance from your body.
To send data files or messages requires
a quality connection to the network.
Data files or messages may be delayed
until such a connection is available.
Follow the separation distance
instructions until the transmission is
completed.
Parts of the device are magnetic.
Metallic materials may be attracted to
the device. Do not place credit cards or
other magnetic storage media near the
device, because information stored on
them may be erased.
Medical devices
Operation of radio transmitting
equipment, including wireless phones,
may interfere with the function of
inadequately protected medical
devices. Consult a physician or the
manufacturer of the medical device to
determine whether they are adequately
shielded from external RF energy.
Switch off your device when regulations
posted instruct you to do so. Hospitals
or health care facilities may use
equipment sensitive to external RF
energy.
Implanted medical devices
Manufacturers of medical devices
recommend a minimum separation of
15.3 centimetres (6 inches) between a
wireless device and an implanted
medical device, such as a pacemaker or
implanted cardioverter defibrillator, to
avoid potential interference with the
medical device. Persons who have such
devices should:
66 Additional safety information
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
•Always keep the wireless device
more than 15.3 centimetres (6
inches) from the medical device.
•Not carry the wireless device in a
breast pocket.
•Hold the wireless device to the ear
opposite the medical device.
•Turn the wireless device off if
there is any reason to suspect that
interference is taking place.
•Follow the manufacturer
directions for the implanted
medical device.
If you have any questions about using
your wireless device with an implanted
medical device, consult your health care
provider.
Hearing aids
Some digital wireless devices may
interfere with some hearing aids.
Vehicles
RF signals may affect improperly
installed or inadequately shielded
electronic systems in motor vehicles
such as electronic fuel injection,
electronic antilock braking, electronic
speed control, and air bag systems. For
more information, check with the
manufacturer of your vehicle or its
equipment.
Only qualified personnel should service
the device or install the device in a
vehicle. Faulty installation or service
may be dangerous and may invalidate
your warranty. Check regularly that all
wireless device equipment in your
vehicle is mounted and operating
properly. Do not store or carry
flammable liquids, gases, or explosive
materials in the same compartment as
the device, its parts, or accessories.
Remember that air bags inflate with
great force. Do not place your device or
accessories in the air bag deployment
area.
Switch off your device before boarding
an aircraft. The use of wireless
teledevices in an aircraft may be
dangerous to the operation of the
aircraft and may be illegal.
Potentially explosive environments
Switch off your device in any area with
a potentially explosive atmosphere.
Obey all posted instructions. Sparks in
such areas could cause an explosion or
fire resulting in bodily injury or death.
Switch off the device at refuelling points
such as near gas pumps at service
stations. Observe restrictions in fuel
depots, storage, and distribution areas;
chemical plants; or where blasting
operations are in progress. Areas with a
potentially explosive atmosphere are
Additional safety information 67
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
often, but not always, clearly marked.
They include areas where you would be
advised to turn off your vehicle engine,
below deck on boats, chemical transfer
or storage facilities and where the air
contains chemicals or particles such as
grain, dust, or metal powders. You
should check with the manufacturers of
vehicles using liquefied petroleum gas
(such as propane or butane) to
determine if this device can be safely
used in their vicinity.
Emergency calls
Important: This device operates using
radio signals, wireless networks,
landline networks, and user-
programmed functions. If your device
supports voice calls over the internet
(internet calls), activate both the
internet calls and the cellular phone. The
device may attempt to make emergency
calls over both the cellular networks and
through your internet call provider if
both are activated. Connections in all
conditions cannot be guaranteed. You
should never rely solely on any wireless
device for essential communications
like medical emergencies.
To make an emergency call:
1 If the device is not on, switch it on.
Check for adequate signal
strength. Depending on your
device, you may also need to
complete the following:
•Insert a SIM card if your
device uses one.
•Remove certain call
restrictions you have
activated in your device.
•Change your profile from
Offline or Flight profile to an
active profile.
2 Press the end key as many times
as needed to clear the display and
ready the device for calls.
3 Enter the official emergency
number for your present location.
Emergency numbers vary by
location.
4 Press the call key.
When making an emergency call, give all
the necessary information as accurately
as possible. Your wireless device may be
the only means of communication at the
scene of an accident. Do not end the call
until given permission to do so.
Certification information (SAR)
This mobile device meets guidelines
for exposure to radio waves.
Your mobile device is a radio transmitter
and receiver. It is designed not to exceed
68 Additional safety information
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
the limits for exposure to radio waves
recommended by international
guidelines. These guidelines were
developed by the independent scientific
organisation ICNIRP and include safety
margins designed to assure the
protection of all persons, regardless of
age and health.
The exposure guidelines for mobile
devices employ a unit of measurement
known as the Specific Absorption Rate
or SAR. The SAR limit stated in the ICNIRP
guidelines is 2.0 watts/kilogram (W/kg)
averaged over 10 grams of tissue. Tests
for SAR are conducted using standard
operating positions with the device
transmitting at its highest certified
power level in all tested frequency
bands. The actual SAR level of an
operating device can be below the
maximum value because the device is
designed to use only the power required
to reach the network. That amount
changes depending on a number of
factors such as how close you are to a
network base station.
The highest SAR value under the ICNIRP
guidelines for use of the device at the
ear is 0.97 W/kg.
Use of device accessories may result in
different SAR values. SAR values may
vary depending on national reporting
and testing requirements and the
network band. Additional SAR
information may be provided under
product information at
www.nokia.com.
Your mobile device is also designed to
meet the requirements for exposure to
radio waves established by the Federal
Communications Commission (USA) and
Industry Canada. These requirements
set a SAR limit of 1.6 W/kg averaged over
one gram of tissue. The highest SAR
value reported under this standard
during product certification for use at
the ear is 1.14 W/kg and when properly
worn on the body is 0.39 W/kg.
Additional safety information 69
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Index
A
access codes 9
accessories 43
applications 45
audio messages 29
B
backing up data 38
battery 16
battery charge level
indicator 18
browser 59
C
calendar 46
call log 36
calls 22
camera 48
configuration 44
D
display settings 37
E
e-mail 30
extras 47
F
factory settings,
restoring 44
flash messages 29
G
Gallery 45
games 47
GPS (global positioning
system) 56
GSM 8
H
headset 21
I
IM 32
image mode 48
insert battery 16
instant messaging 32
internet 59
70 Index
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
K
keyguard 19
keypad lock 19
keys 12
M
mail 30, 31, 32
Maps 53
maps 53, 55, 57
media player 51
memory card 14
menus 26
message centre
number 27
message settings 33
messages 28
microSD card 14
N
network settings 8
Nokia Map Loader 55
nokia software
updater 10
Nokia support
information 11
number mode 24
P
passwords 9
phone settings 42
PIN code 9
predictive text input 25
profiles 36
R
restoring settings 44
S
security code 9
settings 36
— date 37
— time 37
settings, display 37
shortcuts 38
signal strength
indicator 18
SIM card 13
software updates 10
speed dialling 23
status indicators 18
strap 22
support resources 11
synchronisation 38
Index 71
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
DECLARATION OF CONFORMITY
0434
Hereby, NOKIA CORPORATION declares
that this RM-598 product is in
compliance with the essential
requirements and other relevant
provisions of Directive 1999/5/EC. A copy
of the Declaration of Conformity can be
found at www.nokia.com/phones/
declaration_of_conformity/.
© 2009 Nokia. All rights reserved.
Nokia, Nokia Connecting People, and
Navi are trademarks or registered
trademarks of Nokia Corporation. Nokia
tune is a sound mark of Nokia
Corporation. Other product and
company names mentioned herein may
be trademarks or tradenames of their
respective owners.
Reproduction, transfer, distribution, or
storage of part or all of the contents in
this document in any form without the
prior written permission of Nokia is
prohibited. Nokia operates a policy of
continuous development. Nokia
reserves the right to make changes and
improvements to any of the products
described in this document without
prior notice.
Includes RSA BSAFE cryptographic or
security protocol software from RSA
Security.
Java is a trademark of Sun Microsystems,
Inc.
This product is licensed under the
MPEG-4 Visual Patent Portfolio License
(i) for personal and noncommercial use
in connection with information which
has been encoded in compliance with
the MPEG-4 Visual Standard by a
consumer engaged in a personal and
noncommercial activity and (ii) for use
in connection with MPEG-4 video
provided by a licensed video provider.
No license is granted or shall be implied
for any other use. Additional
information, including that related to
promotional, internal, and commercial
uses, may be obtained from MPEG LA,
LLC. See http://www.mpegla.com.
TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, UNDER NO
73
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
CIRCUMSTANCES SHALL NOKIA OR ANY OF
ITS LICENSORS BE RESPONSIBLE FOR ANY
LOSS OF DATA OR INCOME OR ANY SPECIAL,
INCIDENTAL, CONSEQUENTIAL OR
INDIRECT DAMAGES HOWSOEVER CAUSED.
THE CONTENTS OF THIS DOCUMENT ARE
PROVIDED "AS IS". EXCEPT AS REQUIRED
BY APPLICABLE LAW, NO WARRANTIES OF
ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE MADE IN
RELATION TO THE ACCURACY, RELIABILITY
OR CONTENTS OF THIS DOCUMENT. NOKIA
RESERVES THE RIGHT TO REVISE THIS
DOCUMENT OR WITHDRAW IT AT ANY TIME
WITHOUT PRIOR NOTICE.
The availability of particular products
and applications and services for these
products may vary by region. Please
check with your Nokia dealer for details
and availability of language options.
This device may contain commodities,
technology or software subject to
export laws and regulations from the US
and other countries. Diversion contrary
to law is prohibited.
The third-party applications provided
with your device may have been created
and may be owned by persons or
entities not affiliated with or related to
Nokia. Nokia does not own the
copyrights or intellectual property
rights to the third-party applications. As
such, Nokia does not take any
responsibility for end-user support,
functionality of the applications, or the
information in the applications or these
materials. Nokia does not provide any
warranty for the third-party
applications. BY USING THE
APPLICATIONS YOU ACKNOWLEDGE THAT
THE APPLICATIONS ARE PROVIDED AS IS
WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, TO THE MAXIMUM
EXTENT PERMITTED BY APPLICABLE LAW.
YOU FURTHER ACKNOWLEDGE THAT
NEITHER NOKIA NOR ITS AFFILIATES MAKE
ANY REPRESENTATIONS OR WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO WARRANTIES OF TITLE,
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, OR THAT THE
APPLICATIONS WILL NOT INFRINGE ANY
THIRD-PARTY PATENTS, COPYRIGHTS,
TRADEMARKS, OR OTHER RIGHTS.
FCC/INDUSTRY CANADA NOTICE
Your device may cause TV or radio
interference (for example, when using a
telephone in close proximity to
receiving equipment). The FCC or
Industry Canada can require you to stop
using your telephone if such
interference cannot be eliminated. If
you require assistance, contact your
local service facility. This device
complies with part 15 of the FCC rules.
74
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that
may cause undesired operation. Any
changes or modifications not expressly
approved by Nokia could void the user's
authority to operate this equipment.
9218895/Issue 1 EN
75
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
