Nokia 5800i XpressMusic User Guide
DRAFT 26 June 2009
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this RM-602 product is in compliance with the essential requirements and other relevant provisions
of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at www.nokia.com/phones/declaration_of_conformity/.
© 2009 Nokia. All rights reserved.
Nokia, Nokia Connecting People, Nokia Original Enhancements logos, Nokia Care, and XpressMusic are trademarks or registered trademarks of Nokia Corporation. Nokia
tune is a sound mark of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.
Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited.
This product includes software licensed from Symbian Software Ltd ©1998-2009. Symbian and Symbian OS are trademarks of Symbian Ltd.
This software is based in part of the work of the FreeType Team. This product is covered by one or more of the following patents: United States Patent 5,155,805,
United States Patent 5,325,479, United States Patent 5,159,668, United States Patent 2232861 and France Patent 9005712.
US Patent No 5818437 and other pending patents. T9 text input software Copyright © 1997-2009. Tegic Communications, Inc. All rights reserved.
Java and all Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc.
Portions of the Nokia Maps software are ©1996-2009 The FreeType Project. All rights reserved.
This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and noncommercial use in connection with information which has been
encoded in compliance with the MPEG-4 Visual Standard by a consumer engaged in a personal and noncommercial activity and (ii) for use in connection with MPEG-4
video provided by a licensed video provider. No license is granted or shall be implied for any other use. Additional information, including that related to promotional,
internal, and commercial uses, may be obtained from MPEG LA, LLC. See http://www.mpegla.com
.
Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and improvements to any of the products described in this document
without prior notice.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO CIRCUMSTANCES SHALL NOKIA OR ANY OF ITS LICENSORS BE RESPONSIBLE FOR ANY LOSS OF DATA OR
INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED.
0434
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR
CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.
For the most current product information, please refer to www.nokia.com.cn.
Reverse engineering of any software in the Nokia device is prohibited to the extent permitted by applicable law. Insofar as this user guide contains any limitations on
Nokia's representations, warranties, damages and liabilities, such limitations shall likewise limit any representations, warranties, damages and liabilities of Nokia's
licensors.
The third-party applications provided with your device may have been created and may be owned by persons or entities not affiliated with or related to Nokia. Nokia
does not own the copyrights or intellectual property rights to the third-party applications. As such, Nokia does not take any responsibility for end-user support,
functionality of the applications, or the information in the applications or these materials. Nokia does not provide any warranty for the third-party applications. BY
USING THE APPLICATIONS YOU ACKNOWLEDGE THAT THE APPLICATIONS ARE PROVIDED AS IS WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, TO THE MAXIMUM
EXTENT PERMITTED BY APPLICABLE LAW. YOU FURTHER ACKNOWLEDGE THAT NEITHER NOKIA NOR ITS AFFILIATES MAKE ANY REPRESENTATIONS OR WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF TITLE, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR THAT THE APPLICATIONS WILL NOT INFRINGE
ANY THIRD-PARTY PATENTS, COPYRIGHTS, TRADEMARKS, OR OTHER RIGHTS.
The availability of particular products and applications and services for these products may vary by region. Please check with your Nokia dealer for details, and availability
of language options.
Export controls
This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is
prohibited.
FCC/INDUSTRY CANADA NOTICE
Your device may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require
you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part
15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by Nokia could void the user's
authority to operate this equipment.
DRAFT 26 June 2009
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Contents
Safety...................................................................7
About your device......................................................................7
Network services.......................................................................8
1. Get started........................................................9
Keys and parts............................................................................9
Insert the SIM card...................................................................10
Insert battery ..........................................................................10
Charge the battery...................................................................11
Switch the device on...............................................................12
Stylus.........................................................................................12
Lock the keys and touch screen.............................................12
Home screen............................................................................12
Access the menu......................................................................13
Touch screen actions...............................................................13
Media key..................................................................................14
Change the ringing tone.........................................................15
Support.....................................................................................15
2. Find help.........................................................15
In-device help..........................................................................15
Extended user guide................................................................16
Software updates using your PC............................................16
Access codes.............................................................................16
3. Your device.....................................................17
Find an item with adaptive search........................................17
Memory card............................................................................17
Shortcuts..................................................................................18

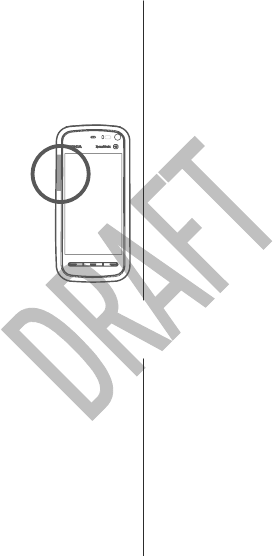

Antenna locations....................................................................18
Contacts bar.............................................................................19
Offline profile...........................................................................19
Sensor settings and display rotation.....................................20
Headset.....................................................................................20
Remove the SIM card...............................................................20
Attach a wrist strap.................................................................21
4. Make calls.......................................................21
Proximity sensor......................................................................21
Voice calls ................................................................................21
5. Write text.......................................................21
Keys and functions..................................................................22

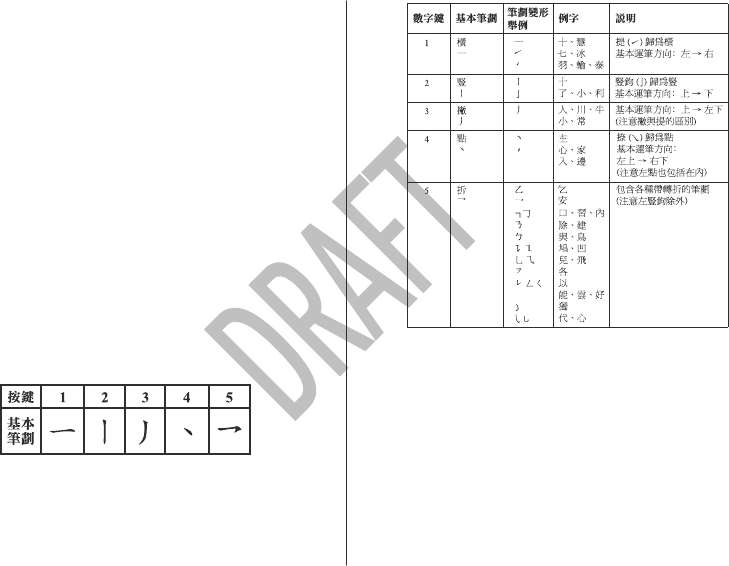

Chinese handwriting recognition..........................................23
Enter text with alphanumeric keypad...................................23
Chinese input with on-screen keyboard...............................25
Touch input settings...............................................................26
6. Messaging......................................................26
Messaging main view..............................................................26
Write and send messages.......................................................27
7. Music player....................................................28
Play a song or a podcast.........................................................28
Playlists.....................................................................................29
Transfer music from a computer...........................................29
8. Gallery............................................................29
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
View and organise files...........................................................30
View images and videos.........................................................30
9. Camera...........................................................31
Activate the camera................................................................31
Image capture..........................................................................31
Video recording.......................................................................34
10. Positioning (GPS)..........................................35
About GPS.................................................................................35
Assisted GPS (A-GPS)................................................................35
Hold your device correctly......................................................36
11. Connectivity..................................................36
12. Nokia Video Centre.......................................36
View and download video clips.............................................37
Video feeds...............................................................................38
My videos..................................................................................38
Transfer videos from your PC.................................................38
Video centre settings..............................................................39
13. Web browser................................................39
Browse the web.......................................................................39
Browser toolbar.......................................................................40
Bookmarks...............................................................................41
Empty the cache.......................................................................41
Connection security.................................................................41
14. Green tips.....................................................42
Save energy..............................................................................42
Recycle......................................................................................42
Save paper................................................................................42
Learn more...............................................................................43
Accessories.........................................................44
Battery................................................................46
Battery and charger information...........................................46
Nokia battery authentication guidelines..............................47
Care and maintenance.......................................48
Recycle......................................................................................49
China ROHS Table.....................................................................49
Additional safety information...........................49
Small children..........................................................................50
Operating environment..........................................................50
Medical devices........................................................................50
Vehicles.....................................................................................51
Potentially explosive environments......................................51
Emergency calls.......................................................................52
Certification information (SAR)..............................................52
MANUFACTURER’S LIMITED WARRANTY................53
Warranty period......................................................................53
How to get warranty service..................................................53
What is not covered?...............................................................54
Other important notices.........................................................55
Limitation of Nokia's liability.................................................55
Statutory obligations..............................................................56
Contents
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Safety
Read these simple guidelines. Not following them may be
dangerous or illegal. Read the complete user guide for further
information.
SWITCH ON SAFELY
Do not switch the device on when wireless phone
use is prohibited or when it may cause interference
or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to
operate the vehicle while driving. Your first
consideration while driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to
interference, which could affect performance.
SWITCH OFF IN RESTRICTED AREAS
Follow any restrictions. Switch the device off in
aircraft, near medical equipment, fuel, chemicals,
or blasting areas.
QUALIFIED SERVICE
Only qualified personnel may install or repair this
product.
ACCESSORIES AND BATTERIES
Use only approved accessories and batteries. Do
not connect incompatible products.
WATER-RESISTANCE
Your device is not water-resistant. Keep it dry.
About your device
The wireless device described in this guide is approved for
use on the GSM 850, 900, 1800, 1900 and UMTS 900, 2100
networks. Contact your service provider for more information
about networks.
When using the features in this device, obey all laws and
respect local customs, privacy and legitimate rights of others,
including copyrights.
Copyright protections may prevent some images, music
(including ringing tones), and other content from being
copied, modified, or transferred.
Your device supports several methods of connectivity. Like
computers, your device may be exposed to viruses and other
harmful content. Exercise caution with messages,
connectivity requests, browsing, and downloads. Only install
and use services and other software from trustworthy
sources that offer adequate security and protection against
harmful software, such as applications that are Symbian
Signed or have passed the Java Verified™ testing. Consider
installing antivirus and other security software on your
device and any connected computer.
www.nokia.com/support 7
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Your device may have preinstalled bookmarks and links for
third-party internet sites. You may also access other third-
party sites through your device. Third-party sites are not
affiliated with Nokia, and Nokia does not endorse or assume
liability for them. If you choose to access such sites, you
should take precautions for security or content.
Warning: To use any features in this device, other
than the alarm clock, the device must be switched on. Do not
switch the device on when wireless device use may cause
interference or danger.
Remember to make back-up copies or keep a written record
of all important information stored in your device.
When connecting to any other device, read its user guide for
detailed safety instructions. Do not connect incompatible
products.
The images in this guide may differ from your device display.
Refer to the user guide for other important information about
your device.
Network services
To use the device you must have service from a wireless
service provider. Many of the features require special network
features. These features are not available on all networks;
other networks may require that you make specific
arrangements with your service provider before you can use
the network services. Using network services involves
transmission of data. Check with your service provider for
details about fees in your home network and when roaming
on other networks. Your service provider can give you
instructions and explain what charges will apply. Some
networks may have limitations that affect how you can use
network services. For instance, some networks may not
support all language-dependent characters and services.
Your service provider may have requested that certain
features be disabled or not activated in your device. If so,
these features will not appear on your device menu. Your
device may also have a special configuration such as changes
in menu names, menu order, and icons. Contact your service
provider for more information.
This device supports WAP 2.0 protocols (HTTP and SSL) that
run on TCP/IP protocols. Some features of this device, such as
MMS, browsing, and e-mail, require network support for
these technologies.
Safety
8 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
1. Get started
Keys and parts
1 — Micro USB connector to connect to a compatible PC
2 — Nokia AV Connector (3.5 mm) for compatible headsets,
headphones, and TV-out connectors
3 — Charger connector
4 — Power key
5 — Earpiece
6 — Light sensor
7 — Proximity sensor
8 — Touch screen
9 — Secondary camera
10 — Volume/Zoom key
11 — Media key
12 — Screen and key lock switch
13 — Capture key
14 — End key
15 — Menu key
16 — Call key
17 — Pen stylus
18 — Camera lens
19 — Camera flash
20 — Loudspeakers
www.nokia.com/support 9
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
21 — Cover of the SIM card slot
22 — Cover of the memory card slot
23 — Wrist strap opening
24 — Microphone
During extended operation such as an active video call and a
high speed data connection, the device may feel warm. In
most cases, this condition is normal. If you suspect the device
is not working properly, take it to the nearest authorised
service facility.
Note: The surface of this device does not contain
nickel in the platings. The surface of this device contains
stainless steel.
Do not cover the area above the touch
screen, for example, with protective
film or tape.
Insert the SIM card
Important: To prevent damage to the SIM card,
always remove the battery before you insert or remove the
card.
A SIM card may be already inserted in the device. If not, do
the following:
1. Open the cover of the
SIM card slot.
2. Insert a SIM card in
the slot. Ensure that
the contact area on
the card is facing up
and the bevelled
corner is facing
toward the device.
Push the card in.
3. Close the cover of the SIM card slot.
Ensure that the cover is properly
closed.
If the SIM card is not properly in place,
the device can only be used in the
offline profile.
Insert battery
Always switch the device off and disconnect the charger
before removing the battery.
Get started
10 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
1. Remove the back cover by
lifting it from the bottom end
of the device.
2. Insert the battery.
3. To replace the cover, direct the
top locking catches toward
their slots first and then press
down until the cover locks into
place.
Charge the battery
1. Connect a compatible charger to a wall outlet.
2. Connect the power cord to the device. If the battery is
completely discharged, it may take a while before the
charging indicator starts scrolling.
3. When the battery is fully charged, the charging indicator
stops scrolling. Disconnect the charger from the device,
then from the wall outlet.
Tip: Disconnect the charger from the wall outlet when
the charger is not in use. A charger that is connected
to the outlet consumes power even when it is not
connected to the device.
Get started
www.nokia.com/support 11
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Switch the device on
1. Press and hold the power key.
2. If the device asks for a PIN code or
lock code, enter it, and select OK.
To delete a number, select
. The factory setting for the
lock code is 12345.
3. Select your location. If you
accidentally select the wrong
location, select Back.
4. Enter the date and time. When
using the 12-hour time format, to
switch between a.m. and p.m.,
select any number.
Stylus
Some functions, such as
handwriting recognition,
are designed to be used
with a stylus. The pen
stylus is located in the
back cover of the device.
Important: Use
only a stylus approved by Nokia for use with this device. Using
any other stylus may invalidate any warranty applying to the
device and may damage the touch screen. Avoid scratching
the touch screen. Never use an actual pen or pencil or other
sharp objects to write on the touch screen.
Lock the keys and touch screen
To lock or unlock the touch screen and the keys, slide the lock
switch on the side of the device.
When the touch screen and keys are locked, the touch screen
is switched off and the keys are inactive.
The screen and keys may be locked automatically after a
period of inactivity. To change settings for automatic screen
and key locking, select Menu > Settings and Phone >
Phone mgmt. > Auto. keyguard > Keypad autolock
period.
Home screen
Home screen is your starting point where you can collect all
your important contacts or application shortcuts.
Get started
12 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Interactive display elements
To open the clock application, tap the clock (1).
To open calendar or change
profiles in the home screen,
tap the date or the profile
name (2).
To view or change
connectivity settings ( ),
or to view the missed events,
tap the top right corner (3).
To make a phone call, select
(4).
To open Contacts, select
(5).
To open the main menu, press
the menu key (6).
Start using the contacts
bar
To start using the contacts bar
and add your contacts to the
home screen, in the home
screen, select > Add
contact to Home screen, and
follow the instructions.
Change the home screen theme
To change the home screen theme or the shortcuts, select
Menu > Settings and Personal > Home screen.
Access the menu
To access the menu, press the menu key.
To open an application or folder in the menu, tap it.
Touch screen actions
Tap and double-tap
To open an application or other element on the touch screen,
you normally tap it with your finger or the stylus. However,
to open the following items, you must tap them twice.
●List items in an application, such as the Drafts folder in the
folder list in Messaging
Tip: When you open a list view, the first item is
already highlighted. To open the highlighted item,
tap it once.
●Applications and folders in the menu when using the list
view type
●Files in a file list, for example, an image in the images and
videos view in Gallery.
If you tap a file or similar item once, it is not opened, it
becomes highlighted. To see the options available for the
item, select Options or, if available, select an icon from a
toolbar.
Get started
www.nokia.com/support 13
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Select
In this user documentation, opening applications or items by
tapping them once or twice is called "selecting". If you need
to select several items in a sequence, the display texts to
select are separated by arrows.
Example: To select Options > Help, tap Options, and
then tap Help.
Drag
To drag, place your finger or the stylus on the screen, and
slide it across the screen.
Example: To scroll up or down on a web page, drag
the page with your finger or stylus.
Swipe
To swipe, slide your finger quickly left or right on the screen.
Example: When
viewing an image, to
view the next or
previous image, swipe
the image left or right,
respectively.
Scroll
To scroll up or down in lists that have a scroll bar, drag the
slider of the scroll bar.
In some list views, you can scroll by placing your finger or
stylus on a list item and dragging up or down.
Example: To scroll through contacts, place your finger
or stylus on a contact, and drag up or down.
Tip: To view a brief description of icons and buttons,
place your finger or stylus on the icon or button.
Descriptions are not available for all icons and buttons.
Touch screen light
The touch screen light is turned off after a period of inactivity.
To turn the screen light on, tap it.
If the touch screen and keys are locked, tapping the screen
does not turn the screen light on. To unlock the screen and
keys, slide the lock switch.
Media key
To access applications such as the
music player or browser, tap the
media key ( ) to open the media
bar, and select the application.
Tip: Hold your finger or the
stylus on the icon to see the
name of the application.
Get started
14 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Change the ringing tone
Select Menu > Settings and Personal > Profiles.
You can use profiles to set and customise the ringing tones,
message alert tones, and other tones for different events,
environments, or caller groups. To personalise a profile, scroll
to the profile, and select Options > Personalise.
Support
When you want to learn more about how to use your product
or you are unsure how your device should function, see the
support pages at www.nokia.com/support or your local
Nokia website, www.nokia.mobi/support (with a mobile
device), the Help application in the device, or the user guide.
If this does not resolve your issue, do the following:
●Restart the device: switch off the device, and remove the
battery. After about a minute, replace the battery, and
switch on the device.
●With the Nokia Software Updater application, update your
device software regularly for optimum performance and
possible new features. See www.nokia.com.cn/
softwareupdate or your local Nokia website. Remember to
back up your device data before updating the device
software.
●Restore the original factory settings as explained in the
user guide. Your documents and files are not deleted in
the reset.
If the issue remains unsolved, contact Nokia for repair
options. See www.nokia.com.cn/repair. Before sending your
device for repair, always back up the data in your device.
2. Find help
In-device help
Your device contains instructions to help to use the
applications in your device.
To open help texts from the main menu, select Menu >
Help and the application for which you want to read
instructions.
When an application is open, to access the help text for the
current view, select Options > Help.
When you are reading the instructions, to change the size of
the help text, select Options > Decrease font size or
Increase font size.
You can find links to related topics at the end of the help text.
If you select an underlined word, a short explanation is
displayed. Help texts use the following indicators: shows
a link to a related help topic. shows a link to the
application being discussed.
When you are reading the instructions, to switch between
help texts and the application that is open in the background,
Find help
www.nokia.com/support 15
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
press and hold the menu key, and select from the list of open
applications.
Extended user guide
An extended version of this user guide is available on the
product support pages of the Nokia website. Some
applications or functions are explained only in the extended
user guide.
Software updates using your PC
Software updates may include new features and enhanced
functions that were not available at the time of purchase of
your device. Updating the software may also improve the
device performance.
Nokia Software Updater is a PC application that enables you
to update your device software. To update your device
software, you need a compatible PC, broadband internet
access, and a compatible USB data cable to connect your
device to the PC.
To get more information, to check the release notes for the
latest software versions, and to download the Nokia Software
Updater application, see www.nokia.com.cn/
softwareupdate or your local Nokia website.
To update the device software, do the following:
1. Download and install the Nokia Software Updater
application to your PC.
2. Connect your device to the PC using a USB data cable, and
open the Nokia Software Updater application. The Nokia
Software Updater application guides you to back up your
files, update the software, and restore your files.
Access codes
If you forget any of the access codes, contact your service
provider.
●Personal identification number (PIN) code — This code
protects your SIM card against unauthorised use. The PIN
code (4 to 8 digits) is usually supplied with the SIM card.
After three consecutive incorrect PIN code entries, the
code is blocked, and you need the PUK code to unblock it.
●UPIN code — This code may be supplied with the USIM
card. The USIM card is an enhanced version of the SIM card
and is supported by UMTS mobile phones.
●PIN2 code — This code (4 to 8 digits) is supplied with some
SIM cards, and is required to access some functions in your
device.
●Lock code (also known as security code) — The lock code
helps you to protect your device against unauthorised use.
The preset code is 12345. You can create and change the
code, and set the device to request the code. Keep the new
code secret and in a safe place separate from your device.
If you forget the code and your device is locked, your
device will require service and additional charges may
apply. For more information, contact a Nokia Care point or
your device dealer.
●Personal Unblocking Key (PUK) code and PUK2
code — These codes (8 digits) are required to change a
blocked PIN code or PIN2 code, respectively. If the codes
Find help
16 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
are not supplied with the SIM card, contact the operator
whose SIM card is in your device.
●UPUK code — This code (8 digits) is required to change a
blocked UPIN code. If the code is not supplied with the
USIM card, contact the operator whose USIM card is in your
device.
3. Your device
Find an item with adaptive search
Adaptive search makes the characters, letters, numbers, and
input symbols of the entries in your device available for
searching.
To turn adaptive search on or off, select Menu > Settings
and Phone > Touch input > Adaptive search.
To use adaptive search when a search field is available, tap
the search field, and select the character, letter, number, or
symbol of the entry you are searching for. To view more
characters, letters, numbers, or symbols, tap .
To change the input method for adaptive search under the
current writing language, select Menu > Settings and
Phone > Touch input > Chinese find method.
Memory card
Use only compatible microSD and microSDHC cards approved
by Nokia for use with this device. Nokia uses approved
industry standards for memory cards, but some brands may
not be fully compatible with this device. Incompatible cards
may damage the card and the device and corrupt data stored
on the card.
Insert the memory card
A memory card may be already inserted in the device. If not,
do the following:
1. Open the cover of the
memory card slot.
2. Insert a compatible
memory card in the
slot. Ensure that the
contact area is facing
up. Push the card in.
You can hear a click
when the card locks
into place.
Your device
www.nokia.com/support 17
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
3. Close the cover of the memory card
slot. Ensure that the cover is properly
closed.
Remove the memory card
Important: Do not remove the memory card in the
middle of an operation when the card is being accessed.
Removing the card in the middle of an operation may damage
the memory card as well as the device, and data stored on
the card may be corrupted.
1. If the device is switched on, before you remove the card,
press the power key, and select Remove memory card.
2. When Removing memory card will close all open
applications. Remove anyway? is displayed, select
Yes. All applications are closed.
3. When Remove memory card and press 'OK' is
displayed, open the cover of the memory card slot.
4. Press the memory card to release it from the slot.
5. Pull out the memory card. If the device is switched on,
select OK.
Shortcuts
To switch between open applications, press and hold the
menu key. Leaving applications running in the background
increases the demand on battery power and reduces the
battery life.
To start a web connection (network service), in the dialler,
tap and hold 0.
To access applications available in the media bar, such as the
music player and web browser, in any view, press the media
key.
To change the profile, press the power key, and select a
profile.
To call your voice mailbox (network service), in the dialler,
tap and hold 1.
To open a list of last dialled numbers, in the home screen,
press the call key.
To use voice commands, in the home screen, press and hold
the call key.
Antenna locations
Your device may have internal and external antennas. As with
any radio transmitting device, avoid touching the antenna
area unnecessarily while the antenna is transmitting or
receiving. Contact with such an antenna affects the
communication quality and may cause the device to operate
at a higher power level than otherwise needed and may
reduce the battery life.
Your device
18 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Cellular antenna
Bluetooth
antenna GPS antenna
Contacts bar
Start using the contacts bar
To start using the contacts bar and add your contacts to the
home screen, in the home screen, select > Add contact
to Home screen, and follow the instructions.
To add a contact to the home screen in contacts bar mode,
select and either select a contact from your contacts, or
create a new contact, and add a photo to the contact
information.
To communicate with your contact, select the contact and
from the following:
● — Make a phone call.
● — Send a message.
● — Modify contact information.
● — Refresh the contact's web feeds.
To view past communication events with a contact, select a
contact. Select a communication event to view event details.
To close the view, select .
Offline profile
To activate the Offline profile, press the power key briefly,
and select Offline.
The Offline profile lets you use the device without connecting
to the wireless network. When you activate the Offline
profile, the connection to the wireless network is turned off,
as indicated by in the signal strength indicator area. All
wireless RF signals to and from the device are prevented. If
you try to send messages, they are placed in the Outbox folder
to be sent later.
When the Offline profile is active, you can use your device
without a SIM card.
If the SIM card is not properly in place, the device starts in the
Offline profile.
Important: In the offline profile you cannot make or
receive any calls, or use other features that require cellular
network coverage. To make calls, you must first activate the
phone function by changing profiles. If the device has been
locked, enter the lock code.
To switch to another profile, press the power key briefly, and
select another profile. The device re-enables wireless
transmissions (providing there is sufficient signal strength).
Your device
www.nokia.com/support 19
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Sensor settings and display rotation
When you activate the sensors in your device, you can control
certain functions by turning the device.
Select Menu > Settings and Phone > Sensor settings.
Select from the following:
●Sensors — Activate the sensors.
●Turning control — Select Silencing calls and Snoozing
alarms to mute calls and snooze alarms by turning your
device so that the display faces down. SelectAuto-rotate
display to rotate the display content automatically when
you turn the device on its left side or back to a vertical
position. Some applications and features may not support
rotating the display content.
Headset
You can connect a compatible headset or compatible
headphones to your device. You may need to select the cable
mode.
Some headsets come in two parts, a remote control unit and
headphones. A remote control unit has a microphone and
keys to answer or end a phone call, adjust the volume, and
play music or video files. To use the headphones with a
remote control unit, connect the unit to the Nokia AV
Connector in the device, then connect the headphones to the
unit.
Warning: When you use the
headset, your ability to hear outside
sounds may be affected. Do not use
the headset where it can endanger
your safety.
Do not connect products that create an
output signal as this may cause
damage to the device. Do not connect
any voltage source to the Nokia AV
Connector.
When connecting any external device
or any headset, other than those
approved by Nokia for use with this
device, to the Nokia AV Connector, pay
special attention to volume levels.
Remove the SIM card
1. Remove
the back
cover by
lifting it
from the
bottom
end of the
device.
2. Remove the battery.
Your device
20 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
3. Open the cover of the SIM
card slot. Place the tip of the
stylus in the opening under
the battery, and push the SIM
card sideways to slide it out
of the slot. Pull the SIM card
out.
4. Replace the battery and the
back cover.
Attach a wrist strap
Tip: Attach the
plectrum stylus to
the device like a
wrist strap.
4. Make calls
Proximity sensor
Your device has a proximity sensor. To prevent accidental
selections, the touch screen is disabled automatically during
calls when you place the device next to your ear.
Do not cover the proximity sensor, for example, with
protective film or tape.
Voice calls
1. In the home screen, select to open the dialler, and
enter the phone number, including the area code. To
remove a number, select C.
For international calls, select * twice for the + character
(which replaces the international access code), and enter
the country code, area code (omit the leading zero if
necessary), and phone number.
2. To make the call, press the call key.
3. To end the call (or to cancel the call attempt), press the
end key.
Pressing the end key always ends a call, even if another
application is active.
To make a call from the contacts list, select Menu >
Contacts. Scroll to the desired name. Or, tap the search field
to enter the first letters of the name, and scroll to the name.
To call the contact, press the call key. If you have saved several
numbers for a contact, select the desired number from the
list, and press the call key.
Make calls
www.nokia.com/support 21
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
5. Write text
You can enter text in different modes. The on-screen
keyboard and alphanumeric keypad modes allow you to tap
characters with a stylus or your fingers. The handwriting
recognition modes allow you to write characters directly on
the screen using a stylus as a pen.
To activate text input mode, tap any text input field.
To switch between the available text input modes, tap ,
and select the desired input mode.
Keys and functions
The following keys are not available in all touch screen input
modes or methods.
Close - Ends the current text input mode.
Input options - Shows the available options of the current
input mode and input method, such as Writing language.
Move - Tap and hold the move key and drag the input
window to the desired position.
Backspace - Deletes the last input symbol, or, if there
is no input symbol, deletes the character before the cursor.
Character range key for numbers. In handwriting modes,
your handwriting is first recognised as numbers.
and Character range keys for letters. Shows input
symbols for entering letters, or, in handwriting modes, your
handwriting is first recognised as letters.
Character range key for Chinese characters. Shows input
symbols for entering Chinese characters, or, in handwriting
modes, your handwriting is first recognised as Chinese
characters.
and Shift key and Caps Lock - To turn Caps Lock on or off,
quickly tap the key twice. To change the case for the next
letter only, tap the key once.
Wild card stroke key. Use this key if you are unsure of
what stroke to use.
and Arrow left and arrow right - Move the cursor left or
right.
Arrow down - Shows more candidates or moves the
cursor down.
Special character key.
Number and special character key.
Enter - Enters a line feed.
Character width - Switches between full-width and half-
width when entering special characters.
Space - Enters a white space.
Write text
22 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Chinese handwriting recognition
To use Chinese handwriting recognition, the writing
language must be Chinese.
To select writing language, tap , and select Writing
language.
To use handwriting or full-screen handwriting, tap , and
select Full screen handwriting or Handwriting.
To enter a character with handwriting, write the character
upright on one of the two input areas of the input window
(the grey areas in the following figure), and select from the
displayed character candidates.
To enter a character with full-
screen handwriting, write the
character upright anywhere on
the screen, and select from the
displayed character candidates.
To enter a special character, tap
, and select from the displayed
special characters, or, write the character as you would
normally write it, and select from the displayed candidates.
To change the character range, in handwriting mode, tap the
desired character range key, or, in full-screen handwriting
mode, tap the current character range key, and select the
desired character range from the drop-down list.
To use handwriting gestures, do the following: Draw gesture
1 for backspace, gesture 2 for space, or gesture 3 for enter.
Enter text with alphanumeric keypad
You can enter characters with the alphanumeric keypad like
you would with a traditional phone keypad.
To use the virtual keypad to enter text, tap , and select
Alphanumeric keypad.
The input methods available on the device are preset
according to the market where it will be sold.
The indicator of the current input method is displayed above
the number keys.
To switch between the available input methods, tap the input
method indicator, and select the desired input method.
Pinyin input method
The pinyin symbols are mapped on the number keys. You only
need to tap a key once, regardless of the position of the
symbol on the number key. The device makes logical
combinations of the pinyin symbols.
Enter a character.
1. Tap the relevant key once for each pinyin symbol you want
to enter. Use v for u.
2. Tap * repeatedly until you get the desired tone mark.
Write text
www.nokia.com/support 23
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
3. Select the desired pinyin combination if necessary.
4. Select the desired character.
Enter a phrase.
1. Tap the relevant keys to enter a pinyin syllable or the
initial of the first character. Use v for u.
2. Tap * repeatedly to enter the desired tone mark or tap 0
to enter a separator.
3. Tap the relevant keys to enter a pinyin syllable or the
initial of the next character.
4. Repeat step 2 and step 3 if necessary.
5. Select the desired pinyin combination.
6. Select the desired phrase.
Stroke input method
The strokes constituting Chinese characters have been
divided into five categories: horizontal, vertical, left-falling,
dot, and turning. Each category corresponds to a number key
from 1 to 5 , respectively.
The strokes are classified according to the following table:
Enter a character
1. In the standard stroke order, tap the relevant keys to enter
the strokes.
If you are not sure which stroke to use or which category
it belongs to, tap 6 to substitute that stroke, then
continue with the subsequent strokes. A question mark
in the input area represents that stroke.
2. Select the desired character.
Write text
24 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Enter a phrase
1. Tap the relevant keys to enter the first strokes of the first
character.
2. Tap 0 for a separator.
3. Tap the relevant keys to enter the first strokes of the next
character.
4. Repeat step 2 and step 3 if necessary.
5. Select the desired phrase.
Traditional text input
Tap a number key (1-9) repeatedly until the desired character
appears. There are more characters available for a number
key than are visible on the key.
If the next letter is located on the same key as the present
one, wait until the cursor appears (or move the cursor
forward to end the time-out period), and enter the letter.
To insert a space, tap 0. To move the cursor to the next line,
tap 0 three times.
Predictive text input
With predictive text input, you can enter any letter with a
single tap of a key. Predictive text input is based on a built-
in dictionary to which you can add new words.
1. To activate predictive text input for all editors on the
device, tap , and select Activate prediction. You can
also tap , and select Activate predictive text.
2. To write the desired word, tap the keys 2-9. Tap each key
only once for one letter. For example, to write "Nokia"
when the English dictionary is selected, tap 6 for N, 6 for
o, 5 for k, 4 for i, and 2 for a.
The word suggestion changes after each tap of a key.
3. When you finish writing the word correctly, move the
cursor right to confirm it, or tap 0 to add a space.
If the word is not correct, tap * repeatedly to view the
matching words the dictionary has found one by one.
If the ? character is shown after the word, the word is not
in the dictionary. To add a word to the dictionary, select
Spell, enter the word using traditional text input, and
select OK. The word is added to the dictionary. When the
dictionary is full, a new word replaces the oldest added
word.
4. Start writing the next word.
Chinese input with on-screen
keyboard
To use the on-screen keyboard to enter text, tap , and
select Mini QWERTY keyboard or Full screen QWERTY.
Tap the needed input symbols, and select the desired
character.
To set the default input method for entering text with the on-
screen keyboard, select Menu > Settings and Phone >
Touch input > Chinese keyboard input.
Write text
www.nokia.com/support 25
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Touch input settings
Select Menu > Settings and Phone > Touch input.
To configure text input settings for the touch screen, select
from the following:
●Writing language — Define which language-specific
characters in your handwriting are recognised and how
your on-screen keyboard is laid out.
●Writing speed — Adjust the speed at which handwriting
is recognised.
●Guiding line — Show or hide the guiding line in the
writing area. The guiding line helps you write in a straight
line, and it also helps the device recognise your writing.
This option is not available for the Chinese language.
●Pen trail width — Change the thickness of the text
written with the stylus.
●Writing colour — Change the colour of the text written
with the stylus.
6. Messaging
Only devices that have compatible features can receive and
display multimedia messages. The appearance of a message
may vary depending on the receiving device.
Messaging main view
Select Menu > Messaging (network service).
To create a new message, select New message.
Tip: To avoid rewriting messages that you send often,
use texts in the Templates folder in My folders. You can
also create and save your own templates.
Messaging contains the following folders:
● Inbox — Received messages, except e-mail and cell
broadcast messages, are stored here.
● My folders — Organise your messages into folders.
● Mailbox — Connect to your remote mailbox to
retrieve your new e-mail messages, or view your
previously retrieved e-mail messages offline.
● Drafts — Draft messages that have not been sent are
stored here.
● Sent — The last messages that have been sent,
excluding messages sent using Bluetooth connectivity, are
stored here. You can change the number of messages to
save in this folder.
● Outbox — Messages waiting to be sent are
temporarily stored in the outbox, for example, when your
device is outside network coverage.
● Delivery reports — You can request the network to
send you a delivery report of the text messages and
multimedia messages you have sent (network service).
Messaging
26 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Write and send messages
Select Menu > Messaging.
Important: Exercise caution when opening messages.
Messages may contain malicious software or otherwise be
harmful to your device or PC.
Before you can create a multimedia message or write an e-
mail, you must have the correct connection settings defined.
The wireless network may limit the size of MMS messages. If
the inserted picture exceeds this limit the device may make
it smaller so that it can be sent by MMS.
Check the size limit of e-mail messages with your service
provider. If you attempt to send an e-mail message that
exceeds the size limit of the e-mail server, the message is left
in the Outbox folder, and the device attempts to resend it
periodically. Sending an e-mail requires a data connection,
and continuous attempts to resend the e-mail may incur
charges from your service provider. In the Outbox folder, you
can delete such a message or move it to the Drafts folder.
1. To send a message, select New message.
To send an audio or e-mail message, select Options >
Create message, and the relevant option.
2. To select recipients or groups from the contacts list, select
To. To enter the number or e-mail address manually, tap
the To field.
3. In the Subject field, enter the subject of the e-mail. To
change the fields that are visible, select Options >
Message header fields.
4. To write the message, tap the message field.
5. To add an object to a message, select and the relevant
type of content.
The message type may change to multimedia message
based on the inserted content.
6. To capture an image or record a video or sound clip for a
multimedia message, select Options > Insert content
and New image, New video clip, or New sound clip.
7. To add an attachment to an e-mail, select Options >
Insert content and the relevant type of content. E-mail
attachments are indicated by .
8. To send the message, select , or press the call key.
Your device supports text messages beyond the limit for a
single message. Longer messages are sent as two or more
messages. Your service provider may charge accordingly.
Characters with accents or other marks, and characters from
some language options, take up more space, and limit the
number of characters that can be sent in a single message.
You may not be able to send video clips that are saved in the
MP4 file format or that exceed the size limit of the wireless
network in a multimedia message.
Messaging
www.nokia.com/support 27
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
7. Music player
Warning: Listen to music at a moderate level.
Continuous exposure to high volume may damage your
hearing. Do not hold the device near your ear when the
loudspeaker is in use, because the volume may be extremely
loud.
Music player supports file formats such as AAC, AAC+, eAAC+,
MP3, and WMA. Music player does not necessarily support all
features of a file format or all the variations of file formats.
You can also use Music player to listen to podcasts. Podcasting
is the method for delivering audio or video content over the
internet using either RSS or Atom technologies for playback
on mobile devices and computers.
You can transfer music from other compatible devices to your
device.
Play a song or a podcast
To open Music player, select Menu > Music > Music plyr..
You may have to refresh the music and podcast libraries after
you have updated the song or podcast selection in your
device. To add all available items to the library, select
Options > Refresh library.
To play a song or a podcast:
1. Select categories to navigate to the song or podcasts you
want to hear.
2. To play an item, select the item from the list.
To pause playback, tap ; to resume, tap .
To fast-forward or rewind, tap and hold or .
To go to the next item, tap .
To return to the beginning of the
item, tap . To skip to the
previous item, tap again
within 2 seconds after a song or
podcast has started.
To turn random play ( ) on or
off, select Options > Shuffle
play.
To repeat the current item ( ),
all items ( ), or to turn repeat
off, select Options > Repeat.
If you play podcasts, shuffle and
repeat are automatically turned off.
To adjust the volume, press the volume key.
To modify the tone of the music playback, select Options >
Equaliser.
To modify the balance and stereo image or to enhance the
bass, select Options > Settings.
Music player
28 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
To return to the home screen and leave the player playing in
the background, press the end key.
To close the player, select Options > Exit.
Playlists
Select Menu > Music > Music plyr. and Playlists.
To view details of the playlist, select Options > Playlist
details.
Create a playlist
1. Select Options > New playlist.
2. Enter a name for the playlist, and select OK.
3. To add songs now, select Yes; or to add the songs later,
select No.
4. If you select Yes, select artists to find the songs you want
to add to the playlist. Select Add to add items.
To show the song list under an artist title, select
Expand. To hide the song list, select Collapse.
5. When you have made your selections, select Done.
If a compatible memory card is inserted, the playlist is
saved to the memory card.
To add more songs later, when viewing the playlist, select
Options > Add songs.
To add songs, albums, artists, genres, and composers to a
playlist from the different views of the music menu, select an
item and Options > Add to playlist > Saved playlist or
New playlist.
To remove a song from a playlist, select Options >
Remove. This does not delete the song from the device; it
only removes it from the playlist.
To reorder songs in a playlist, select the song you want to
move, and Options > Reorder playlist. To grab a song and
drop it to a new position, select the song in the desired
position and Drop. To finish reordering the playlist, select
Done.
Transfer music from a computer
You can use the following methods to transfer music:
●To view your device on a computer as a mass memory
device where you can transfer any data files, make the
connection with a compatible USB data cable or Bluetooth
connectivity. If you are using a USB cable, select Mass
storage as the connection mode. A compatible memory
card must be inserted in the device.
●To synchronise music with Windows Media Player, connect
a compatible USB data cable and select Media transfer as
the connection mode. A compatible memory card must be
inserted in the device.
To change the default USB connection mode, select Menu >
Settings and Connectivity > USB > USB connection
mode.
Gallery
www.nokia.com/support 29
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
8. Gallery
To store and organise your images, video clips, sound clips,
and streaming links, select Menu > Gallery.
Tip: To access the images and video clips view quickly,
tap the media key ( ) to open the media bar, and
select .
View and organise files
Select Menu > Gallery and from the following:
● Images & videos — View images in the image viewer
and videos in Video centre.
● Songs — Open Music player.
● Sound clips — Listen to sound clips.
● Other media — View presentations.
You can browse, open, and create folders; and mark, copy,
move, and add items to folders.
Files stored on your compatible memory card (if inserted) are
indicated with .
To open a file, select a file from the list. Video clips and files
with the .ram file extension open and play in Video centre,
and music and sound clips in Music player.
To copy or move files to the memory card (if inserted) or
device memory, select a file, Options > Organise > Copy
or Move, and from the available options.
View images and videos
Select Menu > Gallery and Images & videos.
The images, video clips, and folders are displayed in a loop
and ordered by date and time. To browse the files one by one,
swipe left or right. To browse files in groups, swipe up or
down.
To open a file, select a file from the list. To zoom in an image,
use the volume key in your device.
Select Options and from the following:
●Edit — Edit a video clip or an image.
●Use file — To use the image as wallpaper in the home
screen, select Set as wallpaper.
To set the image as a generic call image, select Set as call
image.
To set the image as a call image for a contact, select Assign
to contact.
To set the video clip as a ringing tone, select As ringing
tone.
To assign the video clip as a ringing tone for a contact,
select Assign to contact.
The toolbar helps you select frequently used functions with
images, video clips, and folders.
From the toolbar, select from the following:
Gallery
30 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
● Send — Send the selected image or video clip.
● Edit — Edit the selected image or video clip.
● Delete — Delete the selected image or video clip.
9. Camera
Your device supports an image capture resolution of
2048x1536 pixels. The image resolution in this guide may
appear different.
Activate the camera
To activate the camera, press the capture key.
Image capture
On-screen controls and indicators for still
image capture
The still image viewfinder displays the following:
1 — Capture mode indicator
2 — Zoom slider. To turn the zoom slider on and off, tap the
screen.
3 — Capture icon. Tap to capture an image.
4 — Flash mode. Tap to change settings.
5 — Capture settings. Tap to change settings.
6 — Battery charge level indicator
7 — Image resolution indicator
8 — Image counter (the estimated number of images you can
capture using the current image quality setting and available
memory)
9 — Memory in use. Depending on the setup of your device,
there are the following options: device memory ( ), memory
card ( ), or mass memory ( ).
Capture and recording settings
To open the capture and recording settings view before
capturing an image or recording a video clip, select Menu >
Apps. > Camera and .
The capture and recording settings view provides you with
shortcuts to different items and settings before capturing an
image or recording a video clip.
The capture and recording settings return to the default
settings after you close the camera.
Select from the following:
— Select the scene.
Camera
www.nokia.com/support 31
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
or — Switch between video and image mode.
or — Show or hide the viewfinder grid (images only).
— Activate the self-timer (images only).
— Open Gallery.
Image settings:
— Select a colour effect.
— Adjust the white balance. Select the current lighting
conditions. This allows the camera to reproduce colours more
accurately.
— Adjust the exposure compensation (images only). If
you are shooting a dark subject against a very light
background, such as snow, adjust the exposure to +1 or +2
to compensate for the background brightness. For light
subjects against a dark background, use -1 or -2.
Adjust light sensitivity (images only). Increase the light
sensitivity in low light conditions to avoid too dark images
and blurry images. Increasing the light sensitivity may also
increase the image noise.
Adjust contrast (images only). Adjust the difference
between the lightest and darkest parts of the image.
Adjust sharpness (images only).
The screen display changes to match the settings you define.
The capture settings are shooting-mode specific. Switching
between the modes does not reset the defined settings.
If you select a new scene, the capture settings are replaced
by the selected scene. You can change the capture settings
after selecting a scene if needed. For more information on
the scenes, see the extended user guide on the product
support pages of the Nokia website.
Saving the captured image may take longer if you change the
zoom, lighting, or colour settings.
Capture images
When capturing an image, note the following:
●Use both hands to keep the camera still.
●The quality of a digitally zoomed image is lower than that
of a non-zoomed image.
●The camera goes into battery saving mode if there are no
actions for about a minute. To continue capturing images,
slide the lock switch on the side of the device.
To capture an image:
1. To switch from video mode to image mode, if necessary,
select > .
2. To lock the focus on an object, press the capture key
halfway down (not available in landscape or sport scene
modes). A green locked focus indicator is displayed. If the
focus was not locked, a yellow focus indicator is displayed.
Release the capture key, and press it halfway down again.
You can also capture an image without locking the focus.
3. To capture an image, press the capture key. Do not move
the device before the image is saved and the final image
displayed.
Camera
32 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
To zoom in or out when capturing an image, use the zoom
key in your device.
After capturing an image
After you capture an image, select from the following options
(available only if you have selected Options > Settings >
Show captured image > Yes):
● Send — Send the image in a multimedia or e-mail
message, or through connection methods such as
Bluetooth connectivity.
To send the image to the person you are talking to, select
Send to caller during a call.
● Delete — Delete the image.
● — Open Gallery.
To use the image as wallpaper in the home screen, select
Options > Use image > Set as wallpaper.
To set the image as a default call image to be used for every
call situation, select Options > Use image > Set as call
image.
To assign the image to a contact, Options > Use image >
Assign to contact.
To return to the viewfinder to capture a new image, press the
capture key.
Flash and video light
Keep a safe distance when using the flash. Do not use the
flash on people or animals at close range. Do not cover the
flash while taking a picture.
The camera of your device has an LED flash for low light
conditions.
The camera of your device has a dual LED flash for low light
conditions.
To select the desired flash mode, tap the current flash mode
indicator, which is one of the following: Automatic,
Reduce red, On, and Off.
Avoid touching the flash LEDs when the back cover has been
removed. The LEDs may get hot after prolonged usage.
Video light
To increase light levels when recording video in low light,
select
Camera flash
●Text
●Text
●Text
●Text
●Text
Note: Text
Title: Text
Camera
www.nokia.com/support 33
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Video recording
Record videos
1. To switch from image mode to video mode, if necessary,
select and the video mode .
2. To start recording, press the capture key or tap . A red
record icon is displayed, and a tone sounds.
3. To pause recording at any time, select Pause. To resume,
select Continue. If you pause recording and do not press
any key within one minute, the recording stops.
To zoom in or out of the subject, use the zoom key in your
device.
4. To stop recording, press the capture key. The video clip is
automatically saved in Gallery. The maximum length of a
video clip is approximately 30 seconds with sharing
quality and 90 minutes with other quality settings.
Video recording on-screen controls and
indicators
The video viewfinder displays the following:
1 — Capture mode indicator
2 — Audio mute on indicator
3 — Capture icon. Tap to record video.
4 — Video light on/off.
5 — Recording settings. Tap to change settings.
6 — Battery charge level indicator
7 — Video quality indicator. To change this setting, select
Options > Settings > Video quality.
8 — Video clip file type
9 — Available recording time. When you are recording, the
current video length indicator also shows the elapsed and
remaining time.
10 — The location to which the video clip is saved.
After recording a video clip
After you record a video clip, select from the following
options (available only if you have selected Options >
Settings > Show last captured video > Yes):
● Play — Play the video clip you just recorded.
● Delete — Delete the video clip.
●Send or press the call key — Send the video clip in a
multimedia or e-mail message, or through connection
methods such as Bluetooth connectivity. You may not be
able to send video clips saved in the MPEG4 file format in
a multimedia message.
To send the video clip to the person you are talking to,
select (Send to caller) during a call.
Camera
34 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
To return to the viewfinder to record a new video clip, press
the capture key.
10. Positioning (GPS)
You can use applications such as GPS data to calculate your
location or measure distances. These applications require a
GPS connection.
About GPS
The Global Positioning System (GPS) is operated by the
government of the United States, which is solely responsible
for its accuracy and maintenance. The accuracy of location
data can be affected by adjustments to GPS satellites made
by the United States government and is subject to change
with the United States Department of Defense civil GPS policy
and the Federal Radionavigation Plan. Accuracy can also be
affected by poor satellite geometry. Availability and quality
of GPS signals may be affected by your location, buildings,
natural obstacles, and weather conditions. The GPS receiver
should only be used outdoors to allow reception of GPS
signals.
Any GPS should not be used for precise location
measurement, and you should never rely solely on location
data from the GPS receiver and cellular radio networks for
positioning or navigation.
The trip meter has limited accuracy, and rounding errors may
occur. Accuracy can also be affected by availability and quality
of GPS signals.
Different positioning methods can be enabled or disabled in
positioning settings.
Assisted GPS (A-GPS)
Your device also supports Assisted GPS (A-GPS).
A-GPS is a network service.
Assisted GPS (A-GPS) is used to retrieve assistance data over
a packet data connection, which assists in calculating your
current location when your device is receiving signals from
satellites.
When you activate A-GPS, your device receives useful satellite
information from an assistance data server over the cellular
network. With the help of assisted data, your device can
obtain the GPS position faster.
Your device is preconfigured to use the Nokia A-GPS service,
if no service provider-specific A-GPS settings are available.
The assistance data is retrieved from the Nokia A-GPS service
server only when needed.
You must have an internet access point defined in the device
to retrieve assistance data from the Nokia A-GPS service over
a packet data connection. To define an access point for A-GPS,
select Menu > Apps. > Location and Positioning >
Positioning server > Access point. Only a packet data
Positioning (GPS)
www.nokia.com/support 35
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
internet access point can be used. Your device asks for the
internet access point when GPS is used for the first time.
Hold your device correctly
When using the GPS receiver, ensure you do not cover the
antenna with your hand.
Establishing a GPS connection may take from
a couple of seconds to tens of minutes. Establishing a GPS
connection in the car, in bad weather conditions, or in a
challenging geographical environment may take longer.
The GPS receiver draws its power from the device battery.
Using the GPS receiver may drain the battery faster.
11. Connectivity
At Nokia, we understand how important it is that your mobile
phone or device operates reliably and that your personal
content is saved safely.
Any information from an unknown or unreliable source, via
Bluetooth connectivity, multimedia message, or cable, may
harm your PC, mobile phone, or device. You may protect your
mobile phone or device from damage and keep it secured by
following simple measures:
●Always keep Bluetooth connectivity closed unless you
want your phone or device to be visible to others.
●Always be alert when receiving information from an
unknown or untrustworthy source.
●Do not download or install any applications that may
include software harmful to your phone or device.
●Always download and install applications or content from
trusted or well-known sources, such as Nokia Software
Market, where good protection is provided against viruses
and other harmful software.
Your device offers several options to connect to the internet
or to another compatible device or PC.
Connectivity
36 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
12. Nokia Video Centre
With Nokia Video Centre (network service), you can download
and stream video clips over the air from compatible internet
video services using a packet data connection. You can also
transfer video clips from a compatible PC to your device and
view them in Video centre.
Using packet data access points to download videos may
involve the transmission of large amounts of data through
your service provider's network. Contact your service
provider for information about data transmission charges.
Your device may have predefined services.
Service providers may provide free content or charge a fee.
Check the pricing in the service or from the service provider.
View and download video clips
Connect to video services
1. Select Menu > Apps. > Video ctr..
2. To connect to a service to install video services, select Add
new services and the desired video service from the
service catalogue.
View a video clip
To browse the content of installed video services, select
Video feeds.
The content of some video services is divided into categories.
To browse video clips, select a category. To search for a video
clip in the service, select Video search. Search may not be
available in all services.
To view information about the selected video clip, select
Options > Video details.
Some video clips can be streamed over the air, but others
must be first downloaded to your device. To download a
video clip, select Options > Download. Downloads
continue in the background if you exit the application. The
downloaded video clips are saved in My videos. To stream a
video clip or view a downloaded one, select Options >
Play. When the video clip is playing, to use the control keys
for controlling the player, tap the screen. To adjust the
volume, use the volume key.
Warning: Listen to music at a moderate level.
Continuous exposure to high volume may damage your
hearing.
Schedule downloads
Setting the application to download video clips automatically
may involve the transmission of large amounts of data
through your service provider's network. For information
about data transmission charges, contact your service
provider. To schedule an automatic download for video clips
in a service, select a category and Options > Schedule
downloads. Video centre automatically downloads new
video clips daily at the time you define.
Nokia Video Centre
www.nokia.com/support 37
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
To cancel scheduled downloads for a category, select Manual
download as the download method.
Video feeds
The content of the installed video services is distributed using
Atom or RSS feeds. To view and manage your feeds, select
Video feeds.
Select Options and from the following:
●Feed subscriptions — Check your current feed
subscriptions.
●Refresh feeds — Refresh the content of all feeds.
●Add feed — Subscribe to new feeds. Select Via Video
directory to select a feed from the services in the video
directory, or Add manually to add a video feed address.
●Feed details — View information about a video.
●Manage account — Manage your account options for a
given feed, if available.
●Remove feed — Remove a feed from your subscriptions.
You may not be able to remove some preinstalled feeds.
To view the videos available in a feed, select a feed from the
list.
My videos
My videos is a storage place for all videos in the Video centre
application. You can list downloaded videos and video clips
recorded with the device camera in separate views.
1. To open a folder and view video clips, select the folder.
When a video clip is playing, to use the control keys for
controlling the player, tap the screen.
2. To adjust the volume, press the volume key.
Select Options and from the following:
●Mute or Unmute — Turn sound on or off.
●Resume download — Resume a paused or failed
download.
●Cancel download — Cancel a download.
●Video details — View file details.
●Change aspect ratio — Select the aspect ratio of the
video clip. Select Natural, Stretch, or Zoom.
●Memory status — View the amount of free and used
memory.
To move or copy video clips to a compatible memory card,
select Options > Move and copy > Copy or Move and the
memory card.
Transfer videos from your PC
Transfer your own video clips to Video centre from
compatible devices using a compatible USB data cable. Video
centre will display only the video clips which are in a format
supported by your device.
1. To view your device on a PC as a mass memory device
where you can transfer any data files, make the
connection with a USB data cable.
Nokia Video Centre
38 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2. Select Mass storage as the connection mode. A
compatible memory card needs to be inserted in the
device.
3. Select the video clips you want to copy from your PC.
4. Transfer the video clips to E:\My Videos in the memory
card.
The transferred video clips appear in the My videos folder
in Video centre. Video files in other folders of your device
are not displayed.
Video centre settings
In the Video centre main view, select Options > Settings
and from the following:
●Video service selection — Select the video services that
you want to appear in Video centre. You can also add,
remove, edit, and view the details of a video service. You
cannot edit preinstalled video services.
●Connection settings — To define the network
destination used for the network connection, select
Network connection. To select the connection manually
each time Video centre opens a network connection, select
Always ask.
To set GPRS connection on or off, select Confirm GPRS
usage.
To set roaming on or off, select Confirm roaming.
●Parental control — Set an age limit to videos. The
required password is the same as the device lock code. The
factory setting for the lock code is 12345. In video-on-
demand services, videos which have the same or a higher
age limit than you have set, are hidden.
●Preferred memory — Select whether downloaded
videos are saved in the device memory or on a compatible
memory card.
●Thumbnails — Select whether to download and view
thumbnail images in video feeds.
13. Web browser
The XHTML browser in this device supports the Unicode
encoding format.
If the web page displays unreadable characters while
browsing, select Menu > Internet > Web and Options >
Settings > Page > Default encoding, and a corresponding
encoding.
To browse the web, you need to have an internet access point
defined in your device.
Tip: To access the browser, tap the media key ( ) to
open the media bar, and select .
Browse the web
Select Menu > Internet > Web.
Web browser
www.nokia.com/support 39
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Important: Use only services that you trust and that
offer adequate security and protection against harmful
software.
Important: Only install and use applications and
other software from trusted sources, such as applications
that are Symbian Signed or have passed the Java Verified™
testing.
To browse a web page, in the bookmarks view, select a
bookmark, or enter the address in the field ( ), and select
Go to.
Some web pages may contain material, such as graphics and
sounds, that requires a large amount of memory to view. If
your device runs out of memory while loading such a web
page, the graphics on the page are not shown.
To browse web pages without graphics to save memory,
select Options > Settings > Page > Load content > Text
only.
To enter a new web address you want to visit, select
Options > Go to > New web page.
To refresh the content of the web page, select Options >
Web page options > Reload.
To save the current web page as a bookmark, select
Options > Web page options > Save as bookmark.
To view snapshots of the web pages you have visited during
the current browsing session, select Back (available if
History list is set on in the browser settings and the current
web page is not the first web page you visit). Select the web
page you want.
To open a sublist of commands or actions for the current web
page, select Options > Service options (if supported by the
web page).
To prevent or allow the automatic opening of multiple
windows, select Options > Web page options > Block
pop-ups or Allow pop-ups.
Tip: To take the browser to the background, press the
end key once. To end the connection, press and hold
the end key.
Browser toolbar
The browser toolbar helps you select frequently used
functions of the browser.
From the toolbar, select from the following:
● Expand toolbar — Expand the toolbar to access more
toolbar functions.
● Go to web address — Enter a new web address.
● Show zoom — Zoom in or out on the web page.
To use the expanded toolbar, select Expand toolbar and
from the following:
● Go to feeds — View your current feed subscriptions.
● Full screen — Switch to the full screen view.
● Subsc. feed — View a list of available web feeds on
the current web page, and subscribe to a web feed.
Web browser
40 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
● Settings — Edit the settings.
● Save bkmk. — Save the current web page as a
bookmark.
● Reload — Refresh the web page.
● Overview — View an overview of the current web
page.
● Homepage — Go to the homepage (if defined in the
settings).
● Bookmarks — Open the bookmarks view.
● Keyword — Search on the current web page.
Bookmarks
The bookmarks view opens when you open the Web
application. You can select web addresses from a list or from
a collection of bookmarks in the Recently visited pages
folder.
The toolbar helps you select frequently used functions of the
browser.
On the toolbar, select from the following:
● Add bookmark — Add a new bookmark.
● Go to web address — Enter a new web address.
● Delete — Delete a bookmark.
Select Options and from the following:
●Go to — Enter a new web address, go to the previous web
page, or view saved links to web feeds and blogs.
●Bookmark options — Send and add bookmarks, and set
bookmarks as a homepage.
●Bookmark manager — Edit, move, and delete
bookmarks.
Web also keeps track of the web pages you visit during
browsing. In the Recently visited pages folder, you can view
the list of the visited web pages.
Empty the cache
The information or services you have accessed are stored in
the cache memory of the device.
A cache is a memory location that is used to store data
temporarily. If you have tried to access or have accessed
confidential information requiring passwords, empty the
cache after each use.
To empty the cache, select Options > Clear privacy data >
Cache.
Connection security
If the security indicator ( ) is displayed during a connection,
the data transmission between the device and the internet
gateway or server is encrypted.
The security icon does not indicate that the data transmission
between the gateway and the content server (or the place
where the requested resource is stored) is secure. The service
provider secures the data transmission between the gateway
and the content server.
Security certificates may be required for some services, such
as banking services. You are notified if the identity of the
server is not authentic or if you do not have the correct
Web browser
www.nokia.com/support 41
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
security certificate in your device. For more information,
contact your service provider.
Important: Even if the use of certificates makes the
risks involved in remote connections and software
installation considerably smaller, they must be used correctly
in order to benefit from increased security. The existence of
a certificate does not offer any protection by itself; the
certificate manager must contain correct, authentic, or
trusted certificates for increased security to be available.
Certificates have a restricted lifetime. If "Expired certificate"
or "Certificate not valid yet" is shown, even if the certificate
should be valid, check that the current date and time in your
device are correct.
Before changing any certificate settings, you must make sure
that you really trust the owner of the certificate and that the
certificate really belongs to the listed owner.
14. Green tips
Here are tips on how you can contribute to
protecting the environment.
Save energy
When you have fully charged the battery and disconnected
the charger from the device, unplug the charger from the wall
outlet.
You do not need to charge your battery so often if you do the
following:
●Close and disable applications, services, and connections
when not in use.
●Decrease the brightness of the screen.
●Set the device to enter the power saver mode after the
minimum period of inactivity, if available in your device.
●Disable unnecessary sounds, such as keypad and ringing
tones.
Recycle
Most of the materials in a Nokia phone are recyclable. Check
how to recycle your Nokia products at www.nokia.com/
werecycle, or with a mobile device, www.nokia.mobi/
werecycle.
Recycle packaging and user guides at your local recycling
scheme.
Save paper
This user guide helps you get started with your device. For
more detailed instructions, open the in-device help (in most
applications, select Options > Help). For further support,
see www.nokia.com/support.
Green tips
42 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Learn more
For more information on the environmental attributes of
your device, see www.nokia.com/ecodeclaration.
Green tips
www.nokia.com/support 43
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Accessories
Warning: Use only batteries, chargers, and
accessories approved by Nokia for use with this particular
model. The use of any other types may invalidate any
approval or warranty, and may be dangerous.
For availability of approved accessories, please check with
your dealer. When you disconnect the power cord of any
accessory, grasp and pull the plug, not the cord.
Nokia original accessories
Warning: Use only batteries, chargers, and
accessories approved by Nokia for use with this particular
model. The use of any other types may invalidate any
approval or warranty, and may be dangerous.
For availability of approved accessories, check with your
dealer.
An extensive range of accessories is
available for your device. For more
details, seewww.nokia.com.cn.
All accessories for Nokia devices are
supplied in an elegant sales package.
An accessory bought without a
separate package is not an original
Nokia accessory.
How to buy Nokia original accessories:
1. Go to an authorised retailer for Nokia original accessories.
For information on the nearest authorised retailer for
Nokia accessories, check with a Nokia original accessory
distributor.
* When you are buying an accessory, always ask the dealer
to issue a separate invoice listing the price and model
number, which is helpful in safeguarding your own rights.
2. Visit a Nokia online shop at www.shop.nokia.com.cn.
Practical rules about accessories
●Keep all accessories out of the reach of small children.
●When you disconnect the power cord of any accessory,
grasp and pull the plug, not the cord.
●Check regularly that accessories installed in a vehicle are
mounted and are operating properly.
●Installation of any complex car accessories must be made
by qualified personnel only.
Why use original accessories?
As key components of your handset, batteries and chargers
play a critical role in making sure the handset is operating
properly and safely. As shown by our long-term customer
surveys and after-sales services, handsets fail in many cases
by using unapproved accessories, especially unapproved
batteries and chargers.
44 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Dangers of using unapproved batteries and
chargers
●Short lifetime, with charging and discharging times
noticeably less than those of original batteries.
●Consequent much shorter lifetime of the handset,
unstable power supply that prevents the handset circuit
from functioning properly, which causes lasting damages.
●Poor performance and reliability of the handset,
undermined voice quality and frequent breakdown.
●Potential burning or explosion that endangers consumer's
safety.
Benefits of using Nokia original accessories
●Adequate safety.
●High quality after-sales maintenance and services that are
available to original accessories only.
●Nokia warranty does not apply to handset failures
attributable to the use of non-original Nokia accessories.
False: Handset battery is a simple product that combines a
group of linked cells within a single package.
True: A number of high-tech designs and high quality raw
materials are necessary for a handset battery to provide
stable and lasting performance. A battery manufactured in a
slipshod way differs from an original product on process,
design, and raw material considerably, hence dramatic
difference in performance and safety.
False: All accessories with the Nokia trademark are original
ones.
True: Nokia original accessories are supplied in an elegant
sales package (complying with national package
regulations), and each battery carries a hologram label. It is
recommended that consumers are aware of counterfeit
Nokia accessories on the market. In particular, some dealers
might remove the original battery from the supplied handset,
which violates our distribution policies and infringes on
consumer's rights.
False: Despite low quality, counterfeit battery is much
cheaper and is worthwhile even if it requires frequent
replacement.
True: Unapproved batteries and chargers are not only of
short lifetime and poor performance, but will noticeably
undermine the handset's performance and reduce its
lifetime. It is also deprived of comprehensive after-sales
maintenance and repair. Most important, unapproved
batteries and chargers pose safety threats to consumers.
Losses in these regards far exceed the savings on price. In
fact, with inferior raw materials and irregular designs, some
counterfeit batteries cost less than 1/10 of original products.
Battery
Type Talk time Standby
BL-5J Up to 5/8.8 hours
(WCDMA/GSM)
Up to 400/406
hours (WCDMA/
GSM)
Accessories
www.nokia.com/support 45
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Important: Battery talk and stand-by times are
estimates and only possible under optimal network
conditions. Actual battery talk and standby times depend on
SIM cards, features used, battery age and condition,
temperatures to which battery is exposed, network
conditions, and many other factors, and may be significantly
shorter than those specified above. Ringing tones, hands free
call handling, use in digital mode, and other features will also
consume the battery, and the amount of time a device is used
for calls will affect its stand-by time. Likewise, the amount of
time that the device is turned on and in the standby mode
will affect its talk time.
Battery
Battery and charger information
Your device is powered by a rechargeable battery. The battery
intended for use with this device is BL-5J. Nokia may make
additional battery models available for this device. This
device is intended for use when supplied with power from
the following chargers: AC-8. The exact charger model
number may vary depending on the type of plug. The plug
variant is identified by one of the following: E, EB, X, AR, U, A,
C, or UB. For example, the model numbers for the charger can
be, among others, AC-8C, AC-8U, AC-8X, etc. The charger model
offered to China mainland is AC-8C.
The battery can be charged and discharged hundreds of
times, but it will eventually wear out. When the talk and
standby times are noticeably shorter than normal, replace
the battery. Use only Nokia approved batteries, and recharge
your battery only with Nokia approved chargers designated
for this device. Use of an unapproved battery or charger may
present a risk of fire, explosion, leakage, or other hazard.
If a battery is being used for the first time or if the battery
has not been used for a prolonged period, it may be necessary
to connect the charger, then disconnect and reconnect it to
begin charging the battery. If the battery is completely
discharged, it may take several minutes before the charging
indicator appears on the display or before any calls can be
made.
Always switch the device off and disconnect the charger
before removing the battery.
Unplug the charger from the electrical plug and the device
when not in use. Do not leave a fully charged battery
connected to a charger, since overcharging may shorten its
lifetime. If left unused, a fully charged battery will lose its
charge over time.
Always try to keep the battery between 15°C and 25°C (59°F
and 77°F). Extreme temperatures reduce the capacity and
lifetime of the battery. A device with a hot or cold battery may
not work temporarily. Battery performance is particularly
limited in temperatures well below freezing.
Do not short-circuit the battery. Accidental short-circuiting
can occur when a metallic object such as a coin, clip, or pen
causes direct connection of the positive (+) and negative (-)
Battery
46 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
terminals of the battery. (These look like metal strips on the
battery.) This might happen, for example, when you carry a
spare battery in your pocket or purse. Short-circuiting the
terminals may damage the battery or the connecting object.
Do not dispose of batteries in a fire as they may explode.
Batteries may also explode if damaged. Dispose of batteries
according to local regulations. Please recycle when possible.
Do not dispose as household waste.
Do not dismantle, cut, open, crush, bend, deform, puncture,
or shred cells or batteries. In the event of a battery leak, do
not allow the liquid to come in contact with the skin or eyes.
In the event of such a leak, flush your skin or eyes
immediately with water, or seek medical help.
Do not modify, remanufacture, attempt to insert foreign
objects into the battery, or immerse or expose it to water or
other liquids.
Improper battery use may result in a fire, explosion, or other
hazard. If the device or battery is dropped, especially on a
hard surface, and you believe the battery has been damaged,
take it to a service centre for inspection before continuing to
use it.
Use the battery only for its intended purpose. Never use any
charger or battery that is damaged. Keep your battery out of
the reach of small children.
Important: Battery talk and standby times are
estimates only and depend on signal strength, network
conditions, features used, battery age and condition,
temperatures to which battery is exposed, use in digital
mode, and many other factors. The amount of time a device
is used for calls will affect its standby time. Likewise, the
amount of time that the device is turned on and in the home
screen will affect its talk time.
Nokia battery authentication
guidelines
Always use original Nokia batteries for your safety. To check
that you are getting an original Nokia battery, purchase it
from a Nokia authorised service centre or dealer, and inspect
the hologram label using the following steps:
Successful completion of the steps is not a total assurance of
the authenticity of the battery. If you have any reason to
believe that your battery is not an authentic, original Nokia
battery, you should refrain from using it, and take it to the
nearest Nokia authorised service centre or dealer for
assistance. If authenticity cannot be verified, return the
battery to the place of purchase.
Authenticate hologram
1. When you look at the hologram on
the label, you should see the Nokia
connecting hands symbol from one
angle and the Nokia Original
Enhancements logo when looking
from another angle.
Battery
www.nokia.com/support 47
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2. When you angle the hologram left,
right, down and up, you should see 1,
2, 3 and 4 dots on each side
respectively.
What if your battery is not authentic?
If you cannot confirm that your Nokia battery with the
hologram on the label is an authentic Nokia battery, please
do not use the battery. Take it to the nearest Nokia authorised
service centre or dealer for assistance. The use of a battery
that is not approved by Nokia may be dangerous and may
result in poor performance and damage to your device and
its accessories. It may also invalidate any approval or
warranty applying to the device.
To find out more about original Nokia batteries, see
www.nokia.com/batterycheck
Care and maintenance
Your device is a product of superior design and craftsmanship
and should be treated with care. The following suggestions
will help you protect your warranty coverage.
●Keep the device dry. Precipitation, humidity, and all types
of liquids or moisture can contain minerals that will
corrode electronic circuits. If your device does get wet,
remove the battery, and allow the device to dry completely
before replacing it.
●Use a soft, clean, dry cloth to clean any lenses, such as
camera, proximity sensor, and light sensor lenses.
●Do not use or store the device in dusty, dirty areas. Its
moving parts and electronic components can be damaged.
●Do not store the device in hot areas. High temperatures
can shorten the life of electronic devices, damage
batteries, and warp or melt certain plastics.
●Do not store the device in cold areas. When the device
returns to its normal temperature, moisture can form
inside the device and damage electronic circuit boards.
●Do not attempt to open the device other than as instructed
in this guide.
●Do not drop, knock, or shake the device. Rough handling
can break internal circuit boards and fine mechanics.
●Do not use harsh chemicals, cleaning solvents, or strong
detergents to clean the device.
●Do not paint the device. Paint can clog the moving parts
and prevent proper operation.
●Use only the supplied or an approved replacement
antenna. Unauthorised antennas, modifications, or
attachments could damage the device and may violate
regulations governing radio devices.
Care and maintenance
48 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
●Use chargers indoors.
●Always create a backup of data you want to keep, such as
contacts and calendar notes.
●To reset the device from time to time for optimum
performance, power off the device and remove the
battery.
These suggestions apply equally to your device, battery,
charger, or any accessory. If any device is not working
properly, take it to the nearest authorised service facility for
service.
Recycle
Always return your used electronic products, batteries, and
packaging materials to a dedicated collection point. This way
you help prevent uncontrolled waste disposal and promote
the recycling of materials. More detailed information is
available from the product retailer, local waste authorities,
national producer responsibility organisations, or your local
Nokia representative. Check how to recycle your Nokia
products at www.nokia.com/werecycle, or if browsing on a
mobile device, www.nokia.mobi/werecycle.
China ROHS Table
Toxic or hazardous
Substances and Elements
Part name
Phone Battery Accessories
Lead (Pb) X X X
Mercury (Hg) O O O
Cadmium (Cd) O O O
Hexavalent Chromium
(Cr6+)
O O O
Polybrominated
biphenys(PBB)
O O O
Polybrominated diphenyl
ethers (PBDE)
O O O
O: Indicates that this toxic or hazardous substance contained
in all of the homogeneous materials for this part is below the
limit requirement in SJ/T 11363-2006.
X: Indicates that this toxic or hazardous substance contained
in at least one of the homogeneous materials used for this
part is above the limit requirement in SJ/T 11363-2006.
Notes: The reason for marking "X" is: there is currently no
alternative technologies available.
Additional safety information
www.nokia.com/support 49
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Additional safety information
Small children
Your device and its accessories may contain small parts. Keep
them out of the reach of small children.
Operating environment
This device meets RF exposure guidelines when used either
in the normal use position against the ear or when positioned
at least 1.5 centimetres (5/8 inch) away from the body. When
a carry case, belt clip, or holder is used for body-worn
operation, it should not contain metal and should position
the device the above-stated distance from your body.
To transmit data files or messages, this device requires a
quality connection to the network. In some cases,
transmission of data files or messages may be delayed until
such a connection is available. Ensure the above separation
distance instructions are followed until the transmission is
completed.
Parts of the device are magnetic. Metallic materials may be
attracted to the device. Do not place credit cards or other
magnetic storage media near the device, because
information stored on them may be erased.
Medical devices
Operation of any radio transmitting equipment, including
wireless phones, may interfere with the functionality of
inadequately protected medical devices. Consult a physician
or the manufacturer of the medical device to determine if
they are adequately shielded from external RF energy or if
you have any questions. Switch off your device in health care
facilities when any regulations posted in these areas instruct
you to do so. Hospitals or health care facilities may be using
equipment that could be sensitive to external RF energy.
Implanted medical devices
Manufacturers of medical devices recommend that a
minimum separation of 15.3 centimetres (6 inches) should
be maintained between a wireless device and an implanted
medical device, such as a pacemaker or implanted
cardioverter defibrillator, to avoid potential interference
with the medical device. Persons who have such devices
should:
●Always keep the wireless device more than 15.3
centimetres (6 inches) from the medical device when the
wireless device is turned on.
●Not carry the wireless device in a breast pocket.
●Hold the wireless device to the ear opposite the medical
device to minimise the potential for interference.
●Turn the wireless device off immediately if there is any
reason to suspect that interference is taking place.
●Read and follow the directions from the manufacturer of
their implanted medical device.
Additional safety information
50 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
If you have any questions about using your wireless device
with an implanted medical device, consult your health care
provider.
Hearing aids
Some digital wireless devices may interfere with some
hearing aids. If interference occurs, consult your service
provider.
Vehicles
RF signals may affect improperly installed or inadequately
shielded electronic systems in motor vehicles such as
electronic fuel injection systems, electronic antiskid
(antilock) braking systems, electronic speed control systems,
and air bag systems. For more information, check with the
manufacturer, or its representative, of your vehicle or any
equipment that has been added.
Only qualified personnel should service the device or install
the device in a vehicle. Faulty installation or service may be
dangerous and may invalidate any warranty that may apply
to the device. Check regularly that all wireless device
equipment in your vehicle is mounted and operating
properly. Do not store or carry flammable liquids, gases, or
explosive materials in the same compartment as the device,
its parts, or accessories. For vehicles equipped with an air
bag, remember that air bags inflate with great force. Do not
place objects, including installed or portable wireless
equipment in the area over the air bag or in the air bag
deployment area. If in-vehicle wireless equipment is
improperly installed and the air bag inflates, serious injury
could result.
Using your device while flying in aircraft is prohibited. Switch
off your device before boarding an aircraft. The use of
wireless teledevices in an aircraft may be dangerous to the
operation of the aircraft, disrupt the wireless telephone
network, and may be illegal.
Potentially explosive environments
Switch off your device when in any area with a potentially
explosive atmosphere, and obey all signs and instructions.
Potentially explosive atmospheres include areas where you
would normally be advised to turn off your vehicle engine.
Sparks in such areas could cause an explosion or fire resulting
in bodily injury or even death. Switch off the device at
refuelling points such as near gas pumps at service stations.
Observe restrictions on the use of radio equipment in fuel
depots, storage, and distribution areas; chemical plants; or
where blasting operations are in progress. Areas with a
potentially explosive atmosphere are often, but not always,
clearly marked. They include below deck on boats, chemical
transfer or storage facilities and areas where the air contains
chemicals or particles such as grain, dust, or metal powders.
You should check with the manufacturers of vehicles using
liquefied petroleum gas (such as propane or butane) to
determine if this device can be safely used in their vicinity.
Additional safety information
www.nokia.com/support 51
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Emergency calls
Important: This device operates using radio signals,
wireless networks, landline networks, and user-programmed
functions. If your device supports voice calls over the internet
(internet calls), activate both the internet calls and the
cellular phone. Connections in all conditions cannot be
guaranteed. You should never rely solely on any wireless
device for essential communications like medical
emergencies.
To make an emergency call:
1. If the device is not on, switch it on. Check for adequate
signal strength. Depending on your device, you may also
need to complete the following:
●Insert a SIM card if your device uses one.
●Remove certain call restrictions you have activated in
your device.
●Change your profile from offline profile mode to an
active profile.
●If the screen and keys are locked, slide the lock switch
on the side of the device to unlock them.
2. Press the end key as many times as needed to clear the
display and ready the device for calls.
3. Open the dialler by selecting the dialler icon ( ).
4. Enter the official emergency number for your present
location. Emergency numbers vary by location.
5. Press the call key.
When making an emergency call, give all the necessary
information as accurately as possible. Your wireless device
may be the only means of communication at the scene of an
accident. Do not end the call until given permission to do so.
Certification information (SAR)
This mobile device meets guidelines for exposure to
radio waves.
Your mobile device is a radio transmitter and receiver. It is
designed not to exceed the limits for exposure to radio waves
recommended by international guidelines. These guidelines
were developed by the independent scientific organisation
ICNIRP and include safety margins designed to assure the
protection of all persons, regardless of age and health.
The exposure guidelines for mobile devices employ a unit of
measurement known as the Specific Absorption Rate or SAR.
The SAR limit stated in the ICNIRP guidelines is 2.0 watts/
kilogram (W/kg) averaged over 10 grams of tissue. Tests for
SAR are conducted using standard operating positions with
the device transmitting at its highest certified power level in
all tested frequency bands. The actual SAR level of an
operating device can be below the maximum value because
the device is designed to use only the power required to reach
the network. That amount changes depending on a number
of factors such as how close you are to a network base station.
The highest SAR value under the ICNIRP guidelines for use of
the device at the ear is 0.94 W/kg.
Use of device accessories may result in different SAR values.
SAR values may vary depending on national reporting and
testing requirements and the network band. Additional SAR
Additional safety information
52 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
information may be provided under product information at
www.nokia.com.
Your mobile device is also designed to meet the requirements
for exposure to radio waves established by the Federal
Communications Commission (USA) and Industry Canada.
These requirements set a SAR limit of 1.6 W/kg averaged over
one gram of tissue. The highest SAR value reported under this
standard during product certification for use at the ear is 0.96
W/kg and when properly worn on the body is 0.77 W/kg.
MANUFACTURER’S LIMITED WARRANTY
This Limited Warranty is in addition to, and does not affect
your legal (statutory) rights under your applicable national
laws relating to the sale of consumer products.
Nokia Corporation (“Nokia”) provides this Limited Warranty
to person who has purchased the Nokia product(s) included
in the sales package (“Product”).
Nokia warrants to you that during the warranty period Nokia
or a Nokia authorised service company will in a commercially
reasonable time remedy defects in materials, design and
workmanship free of charge by repairing or, should Nokia in
its absolute discretion deem it necessary, replacing the
Product in accordance with this Limited Warranty (unless
otherwise required by law). This Limited Warranty is only
valid and enforceable in the country where you have
purchased the Product provided that it is intended for sale in
that country.
Warranty period
The warranty period starts at the time of Product's original
purchase by the first end-user. The Product may consist of
several different parts and different parts may be covered by
a different warranty period (hereinafter “Warranty Period”).
The different Warranty Periods are:
a) twelve (12) months for the mobile device and accessories
(whether included in the mobile device sales package or sold
separately) other than the consumable parts and accessories
listed in (b) and (c) below;
b) six (6) months for the following consumable parts and
accessories: batteries, chargers, desk stands, headsets,
cables and covers; and
c) ninety (90) days for the media on which any software is
provided, for example, CD-ROM or memory card
As far as your national laws permit, the Warranty Period will
not be extended or renewed or otherwise affected due to
subsequent resale, repair or replacement of the Product.
However, repaired part(s) will be warranted for the
remainder of the original Warranty Period or for sixty (60)
days from the date of repair, whichever is longer.
How to get warranty service
If you wish to make a claim under the Limited Warranty, you
may call the Nokia call center (where this is available and
MANUFACTURER’S LIMITED WARRANTY
www.nokia.com/support 53
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
please note national rates apply to calls) and/or where
necessary, return your Product or the affected part (if it is not
the entire Product) to a Nokia care centre or Nokia designated
service location. Information about Nokia care centres, Nokia
designated service locations and Nokia call centres can be
found at local Nokia web pages where available.
You must return your Product or the affected part (if it is not
the entire Product) to a Nokia care center or Nokia designated
service location before the expiry of the Warranty Period.
When making a Limited Warranty claim you have to present:
a) the Product (or affected part thereto), b) the legible and
unmodified original proof of purchase, which clearly
indicates the name and address of the seller, the date and
place of purchase, the product type and the IMEI or other
serial number.
This Limited Warranty extends only to the original first end-
user of the Product and is not assignable or transferable to
any subsequent purchaser/end-user.
What is not covered?
1. This Limited Warranty does not cover user manuals or any
third party software, settings, content, data or links, whether
included/downloaded in the Product, whether included
during installment, assembly, shipping or at any other time
in the delivery chain or otherwise and in any way acquired
by you. To the extent permitted by applicable law(s), Nokia
does not warrant that any Nokia software will meet your
requirements, will work in combination with any hardware
or software applications provided by a third party, that the
operation of the software will be uninterrupted or error free
or that any defects in the software are correctable or will be
corrected.
2. This Limited Warranty does not cover a) normal wear and
tear (including, without limitation, wear and tear of camera
lenses, batteries or displays), b) transport costs, c) defects
caused by rough handling (including, without limitation,
defects caused by sharp items, by bending, compressing or
dropping, etc.), d) defects or damage caused by misuse of the
Product, including use that is contrary to the instructions
provided by Nokia (e.g. as set out in the Product's user guide)
and/or e) other acts beyond the reasonable control of Nokia.
3. This Limited Warranty does not cover defects or alleged
defects caused by the fact that the Product was used with, or
connected to, a product, accessories, software and/or service
not manufactured, supplied or authorised by Nokia or was
used otherwise than for its intended use. Defects can be
caused by viruses from your or from a third party's
unauthorised access to services, other accounts, computer
systems or networks. This unauthorised access can take place
through hacking, password-mining or through a variety of
other means.
4. This Limited Warranty does not cover defects caused by the
fact that the battery has been short-circuited or by the fact
that the seals of the battery enclosure or the cells are broken
or show evidence of tampering or by the fact that the battery
has been used in equipment other than those for which it has
been specified.
5. This Limited Warranty does not apply if the Product has
been opened, modified or repaired by anyone other than an
authorised service centre, if it is repaired using unauthorised
MANUFACTURER’S LIMITED WARRANTY
54 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
spare parts or if the Product’s serial number, the mobile
accessory date code or the IMEI number has been removed,
erased, defaced, altered or are illegible in any way and this
shall be determined in the sole discretion of Nokia.
6. This Limited Warranty does not apply if the Product has
been exposed to moisture, to dampness or to extreme
thermal or environmental conditions or to rapid changes in
such conditions, to corrosion, to oxidation, to spillage of food
or liquid or to influence from chemical products.
Other important notices
A third party, independent operator provides the SIM card and
cellular and/or other network or system on which the Product
operates. Therefore, Nokia will not accept responsibility
under this warranty for the operation, availability, coverage,
services or range of the cellular or other network or system.
Before the Product can be repaired or replaced, the operator
may need to unlock any SIM-lock or other lock that may have
been added to lock the product to a specific network or
operator. Accordingly, Nokia does not accept responsibility
for any delays in warranty repairs or for the inability of Nokia
to complete warranty repairs that are caused by the
operator's delay or failure to unlock any SIM-lock or other
lock.
Please remember to make backup copies or keep written
records of all important content and data stored in your
Product, because content and data may be lost during repair
or replacement of the Product. Nokia, in a manner consistent
with the provisions of the section entitled “Limitation of
Nokia's Liability” below, to the extent permitted by
applicable law(s), shall not under any circumstances be liable,
either expressly or implied, for any damages or losses of any
kind whatsoever resulting from loss of, damage to, or
corruption of, content or data during repair or replacement
of the Product.
All parts of the Product or other equipment that Nokia has
replaced shall become the property of Nokia. If the returned
Product is found not to be covered by the terms and
conditions of the Limited Warranty, Nokia and its authorised
service companies reserve the right to charge a handling fee.
When repairing or replacing the Product, Nokia may use
products or parts that are new, equivalent to new or
reconditioned.
Your Product may contain country specific elements,
including software. If the Product has been re-exported from
its original destination country to another country, the
Product may contain country specific elements that are not
considered to be a defect under this Limited Warranty.
Limitation of Nokia's liability
This Limited Warranty is your sole and exclusive remedy
against Nokia and Nokia's sole and exclusive liability in
respect of defects in your Product. However, this Limited
Warranty shall neither exclude nor limit i) any of your legal
(statutory) rights under the applicable national laws or ii) any
of your rights against the seller of the Product.
This Limited Warranty replaces all other Nokia warranties
and liabilities, whether oral, written, (non-mandatory)
statutory, contractual, in tort or otherwise, including,
without limitation, and where permitted by applicable law,
MANUFACTURER’S LIMITED WARRANTY
www.nokia.com/support 55
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
any implied conditions, warranties or other terms as to
satisfactory quality or fitness for purpose. To the extent
permitted by applicable law(s) Nokia does not assume any
liability for loss of or damage to or corruption of data, for any
loss of profit, loss of use of Products or functionality, loss of
business, loss of contracts, loss of revenues or loss of
anticipated savings, increased costs or expenses or for any
indirect loss or damage, consequential loss or damage or
special loss or damage. To the extent permitted by applicable
law, Nokia’s liability shall be limited to the purchase value of
the Product. The above limitations shall not apply to death
or personal injury resulting from Nokia’s proven negligence.
Statutory obligations
This Limited Warranty must be read subject to any statutory
provisions that imply warranties or conditions into this
Limited Warranty that cannot be excluded, restricted or
modified or cannot be excluded, restricted or modified
except to a limited extent. If such statutory provisions apply,
to the extent to which Nokia is able to do so, its liability under
those provisions will be limited, at its option to, in the case
of goods: the replacement of the goods or the supply of
equivalent goods, the repair of the goods, the payment of the
cost of replacing the goods or of acquiring equivalent goods,
or the payment of the cost of having the goods repaired; and
in the case of services: the supplying of the services again or
the payment of the cost of having the services supplied again.
Note: Your Product is a sophisticated electronic device.
Nokia strongly encourages you to familiarise yourself with
the user guide and instructions provided with and for the
Product. Please also note that the Product might contain high
precision displays, camera lenses and other such parts, which
could be scratched or otherwise damaged if not handled very
carefully.
All warranty information, product features and specifications
are subject to change without notice.
Nokia Corporation
Keilalahdentie 2-4
FIN-02150 Espoo
Finland
How to obtain an English User Guide
Nokia understands from consumer feedback in PRC that there
is only limited usage of the English User Guide.
In consideration of this and to help conserve natural
resources, Nokia has selected to not to include the English
User Guide in the Sales Package.
To obtain a User Guide in English, please kindly download it
from: www.nokia.com.cn/englishUG.
The feature descriptions in English User Guide may vary by
market, thus the device features described in the English User
How to obtain an English User Guide
56 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Guide you have obtained may differ from those shown on the
display in English user interface.
How to obtain an English User Guide
www.nokia.com/support 57
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
Index
A
A-GPS (assisted GPS) 35
access codes 16
antennas 18
assisted GPS (A-GPS) 35
audio messages 27
B
bookmarks 41
browser
bookmarks 41
browsing pages 39
cache memory 41
security 41
toolbar 40
C
cache memory 41
calls 21
camera
flash 33
image mode 32
indicators 31
options 33
recording 34
video mode 34
capture settings
in camera 31
D
display rotation 20
double-tap 13
drag 13
G
gallery 30
organising 30
viewing 30
viewing images 30
viewing videos 30
general information 15
GPS (Global Positioning
System) 35
H
headset 20
help application 15
I
internet connection 39
See also
browser
K
keypad lock 12
keys and parts 9
L
location information 35
lock code 16
lock switch 12
locking the keys 12
M
media
music player 28
media bar 14
media key 14
memory
web cache 41
menu 13
messages
folders for 26
MMS (multimedia message
service) 27
multimedia messages 27
music player 28
playlists 29
transferring music 29
N
navigation tools 35
Nokia original accessories 0
Nokia support information 15
58 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
O
offline profile 19
outbox, message 26
P
photos
See
camera
PIN code 16
PIN2 code 16
pinyin input 23
positioning information 35
profiles
offline restrictions 19
proximity sensor 21
PUK codes 16
R
recording settings
in camera 31
recording video clips 34
removing SIM card 20
S
security
web browser 41
security code 16
select 13
sensors 20
sent messages folder 26
settings 31
video centre 39
SIM card 20
inserting 10
SMS (short message service) 27
software updates 16
songs 28
stroke input 24
stylus 12
support resources 15
swipe 13
T
tap 13
text messages
sending 27
U
updates
device software 16
UPIN code 16
UPUK code 16
useful information 15
V
Video Centre 37
video centre
downloading 37
my videos 38
transferring videos 38
video feeds 38
viewing 37
voice calls
See
calls
W
web connection 39
wrist strap 21
Z
zooming 33, 34
Index
www.nokia.com/support 59
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
