Nokia 5330 Mobile TV Edition User Guide
5555555
Issue 1
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
DECLARATION OF CONFORMITY
0434
Hereby, NOKIA CORPORATION declares that this RM-615
product is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC. A copy of the
Declaration of Conformity can be found at www.nokia.com/
phones/declaration_of_conformity/.
© 2009 Nokia. All rights reserved.
Nokia, Nokia Connecting People and Navi are trademarks or
registered trademarks of Nokia Corporation. Nokia tune is a
sound mark of Nokia Corporation. Other product and
company names mentioned herein may be trademarks or
tradenames of their respective owners.
Portions of the Nokia Maps software are ©1996-2009 The
FreeType Project. All rights reserved.
Reproduction, transfer, distribution, or storage of part or all
of the contents in this document in any form without the prior
written permission of Nokia is prohibited. Nokia operates a
policy of continuous development. Nokia reserves the right
to make changes and improvements to any of the products
described in this document without prior notice.
Includes RSA BSAFE cryptographic or security protocol
software from RSA Security.
Java and all Java-based marks are trademarks or registered
trademarks of Sun Microsystems, Inc.
This product is licensed under the MPEG-4 Visual Patent
Portfolio License (i) for personal and noncommercial use in
connection with information which has been encoded in
compliance with the MPEG-4 Visual Standard by a consumer
engaged in a personal and noncommercial activity and (ii) for
use in connection with MPEG-4 video provided by a licensed
video provider. No license is granted or shall be implied for
any other use. Additional information, including that related
to promotional, internal, and commercial uses, may be
obtained from MPEG LA, LLC. See http://www.mpegla.com.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW,
UNDER NO CIRCUMSTANCES SHALL NOKIA OR ANY OF ITS
LICENSORS BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME
OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT
DAMAGES HOWSOEVER CAUSED.
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS".
EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF
ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN
RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS
DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS
DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR
NOTICE.
The availability of particular products and applications and
services for these products may vary by region. Please check
with your Nokia dealer for details and availability of language
options. This device may contain commodities, technology or
software subject to export laws and regulations from the US
and other countries. Diversion contrary to law is prohibited.
FCC / INDUSTRY CANADA NOTICE
Your device may cause TV or radio interference (for example,
when using a telephone in close proximity to receiving
equipment). The FCC/Industry Canada can require you to stop
using your telephone if such interference cannot be eliminated.
If you require assistance, contact your local service facility. This
device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation. Any changes or
modifications not expressly approved by Nokia could void the
user's authority to operate this equipment.
Model number: Nokia 5330-1d
5555555/Issue 1 EN
2
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Contents
Safety 5
1. Get started 6
Keys and parts 6
Insert the SIM card and battery 6
Insert and remove the memory card 7
Charge the battery 8
Antenna 8
Accessories 9
2. Switch it on 9
About your device 9
Network services 10
Access codes 10
Switch the device on and off 11
Standby mode 11
Touch music keys 12
Navigate the menus 13
Lock the keys 13
Functions without a SIM card 13
Flight profile 14
3. Make it your device 14
Basic settings 14
Personalise your phone 15
Connect 17
Network provider services 19
4. Stay in touch 21
Make calls 21
Text and messages 23
Nokia Messaging IM 26
Nokia Messaging Mail 27
5. Image and video 28
Capture images 28
Record video clips 29
Camera and video settings 29
Gallery 29
Print images 30
Memory card 30
6. Entertainment 31
Listen to music 31
Web 33
Games and applications 35
7. Mobile TV 36
About Mobile TV 36
First start-up 36
View and select a program 36
Change audio output 37
Electronic program guide (EPG) 37
Subscribe to a channel or program 37
Mobile TV settings 38
Start-up Mobile TV after changing SIM
card 38
8. Maps 38
Download maps 39
Maps and GPS 39
Extra services 40
9. Organise 40
Manage contacts 40
Business cards 41
Date and time 41
Alarm clock 41
Calendar 42
To-do list 42
Notes 42
Nokia PC Suite 42
Calculator 42
Countdown timer 42
Stopwatch 43
10. Support and updates 43
Support 43
My Nokia 43
Download content 44
Update software using your PC 44
Contents 3
www.nokia.com/support 3
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Software updates over the air 44
Restore factory settings 45
11. Green tips 45
Save energy 45
Recycle 45
Learn more 45
Digital rights management 46
Third-party applications 46
Accessories 46
Battery 46
Battery and charger information 46
Nokia battery authentication
guidelines 47
Take care of your device 47
Recycle 48
Additional safety information 48
Magnets and magnetic fields 48
Small children 48
Operating environment 48
Medical devices 48
Vehicles 48
Potentially explosive environments 49
Emergency calls 49
Certification information (SAR) 49
Index 50
4Contents
4 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Safety
Read these simple guidelines. Not
following them may be dangerous or
illegal. Read the complete user guide for
further information.
SWITCH ON SAFELY
Do not switch the device on
when wireless phone use is
prohibited or when it may
cause interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep
your hands free to operate the
vehicle while driving. Your first
consideration while driving
should be road safety.
INTERFERENCE
All wireless devices may be
susceptible to interference,
which could affect
performance.
SWITCH OFF IN RESTRICTED AREAS
Follow any restrictions. Switch
the device off in aircraft, near
medical equipment, fuel,
chemicals, or blasting areas.
QUALIFIED SERVICE
Only qualified personnel may
install or repair this product.
ACCESSORIES AND BATTERIES
Use only approved accessories
and batteries. Do not connect
incompatible products.
WATER-RESISTANCE
Your device is not water-
resistant. Keep it dry.
Safety 5
www.nokia.com/support 5
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
1. Get started
Get to know your device, insert the
battery, SIM card, and memory card, and
learn some important information about
your device.

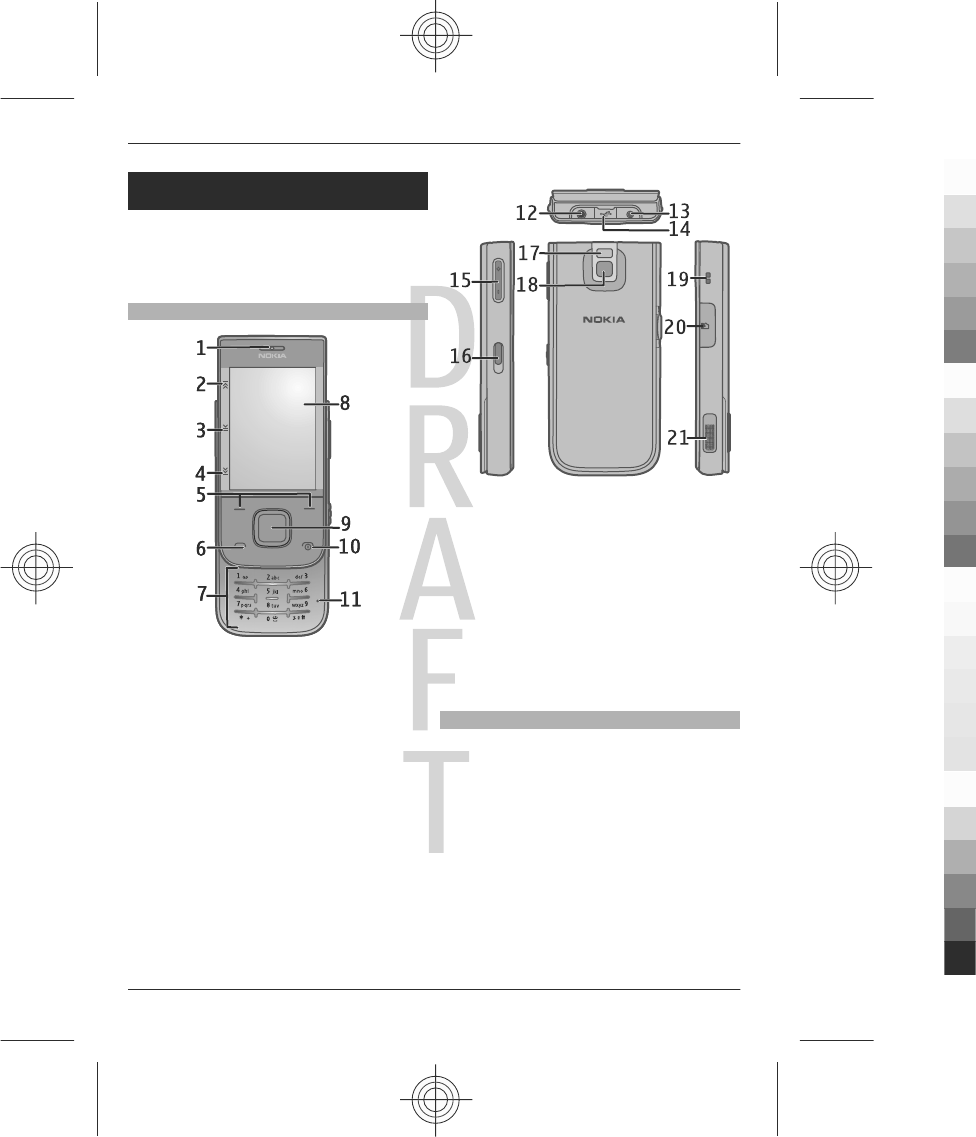

Keys and parts
1Earpiece
2Touch music key (rewind)
3Touch music key (play/pause)
4Touch music key (fast-forward)
5Left and right selection keys
6Call key
7Keypad
8Display
9Navi™ key (scroll key)
10 End/Power key
11 Microphone
12 Nokia AV Connector (3.5 mm)
13 Charger connector
14 Micro USB cable connector
15 Volume key
16 Lock switch
17 Camera flash
18 Camera lens
19 Wrist strap eyelet
20 Memory card slot
21 Loudspeaker
Insert the SIM card and battery
Note: Switch off the power and
disconnect the charger and any other
device before removing the covers. Avoid
touching electronic components while
changing the covers. Always store and use
the device with the covers attached.
The SIM card and its contacts can be easily
damaged by scratches or bending, so be
careful when handling, inserting, or
removing the card.
6Get started
6 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31

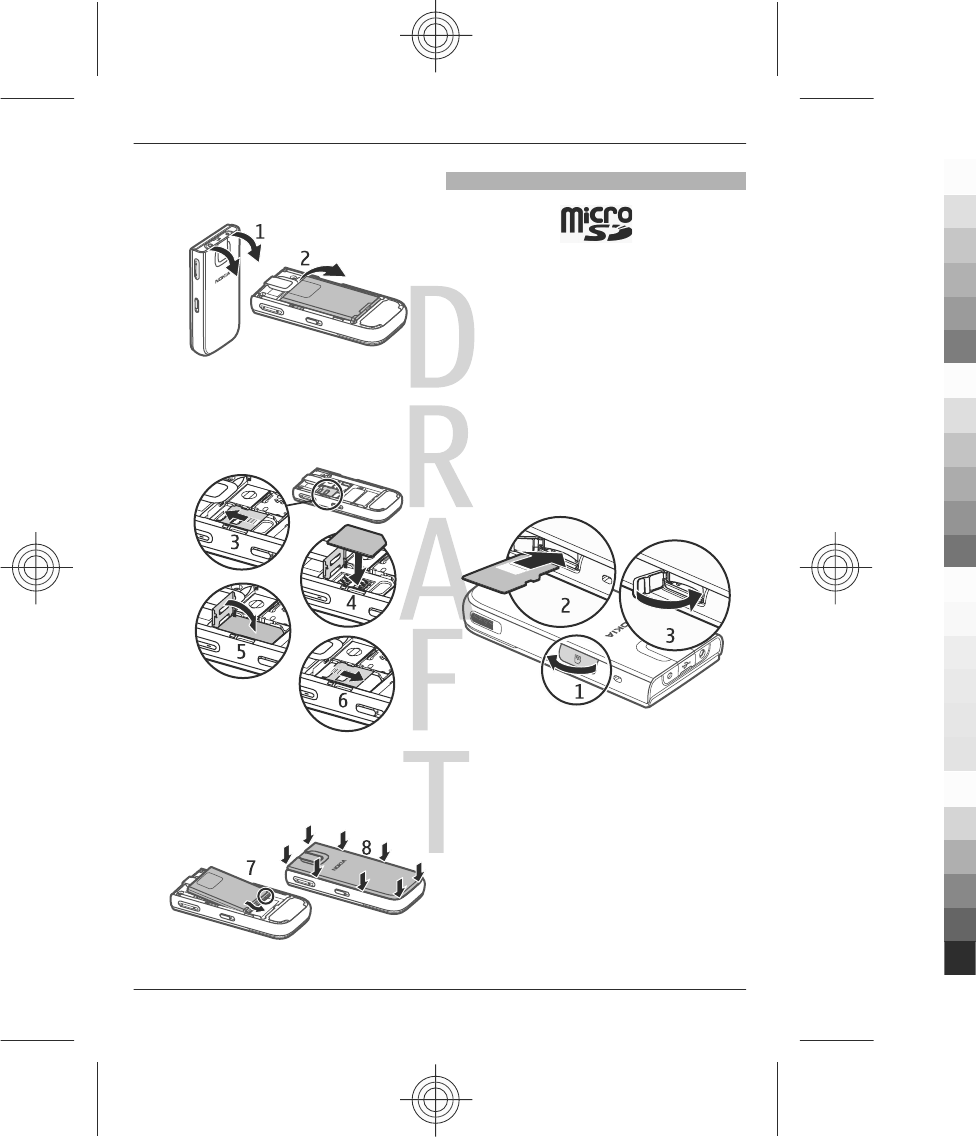

1 Open the back cover, and remove it.
Remove the battery.
2 Open the SIM card holder. Insert the
SIM card into the holder with the
contact surface facing down. Close the
SIM card holder.
3 Line up the battery contacts, and
insert the battery. Replace the back
cover.
Insert and remove the memory card
Use only compatible microSD cards
approved by Nokia for use with this
device. Nokia uses approved industry
standards for memory cards, but some
brands may not be fully compatible with
this device. Incompatible cards may
damage the card and the device and
corrupt data stored on the card.
Your device supports microSD cards with
a capacity of up to 16 GB. The size of a
single file must not exceed 2 GB.
Insert the memory card
1 Open the cover of the memory card
slot.
2 Insert the card into the memory card
slot with the contact surface facing
down, and press until it locks into
place.
3 Close the cover of the memory card
slot.
Remove the memory card
Important: Do not remove the memory
card during an operation when the card is
Get started 7
www.nokia.com/support 7
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
being accessed. Doing so may damage the
memory card and the device, and corrupt
data stored on the card.
You can remove or replace the memory
card without switching the device off.
1 Ensure that no application is currently
accessing the memory card.
2 Open the cover of the memory card
slot.
3 Press the memory card slightly in to
release the lock, and remove the card.
Charge the battery
Your battery has been partially charged at
the factory. If the device indicates a low
charge, do the following:
1 Connect the charger to a wall outlet.
2 Connect the charger to the device.
3 When the device indicates a full
charge, disconnect the charger from
the device, then from the wall outlet.
You can also charge the battery with a USB
cable with power from a computer.
1 Connect the USB cable to a USB port of
a computer and to your device.
2 When the battery is fully charged,
disconnect the USB cable.
You do not need to charge the battery for
a specific length of time, and you can use
the device while it is charging. If the
battery is completely discharged, it may
take several minutes before the charging
indicator appears on the display or before
any calls can be made.
Antenna
Your device may have internal and
external antennas. Avoid touching the
antenna area unnecessarily while the
antenna is transmitting or receiving.
Contact with antennas affects the
communication quality and may cause a
higher power level during operation and
may reduce the battery life.
The figure shows the antenna area
marked in grey.
8Get started
8 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Accessories
Connect a USB cable
Open the cover of the USB connector, and
connect the USB cable to the device.
Headset
Warning:
Continuous exposure to high volume may
damage your hearing. Listen to music at a
moderate level, and do not hold the device
near your ear when the loudspeaker is in
use.
Warning:
When you use the headset, your ability to
hear outside sounds may be affected. Do
not use the headset where it can
endanger your safety.
When connecting any external device or
any headset, other than those approved
by Nokia for use with this device, to the
Nokia AV Connector, pay special attention
to volume levels.
Do not connect products that create an
output signal as this may cause damage
to the device. Do not connect any voltage
source to the Nokia AV Connector.
Strap
1 Remove the back cover.
2 Attach a strap, and tighten it.
3 Replace the back cover.
2. Switch it on
Learn how to switch on your device, and
how to use the basic functions.
About your device
The wireless device described in this guide
is approved for use on the GSM 850, 900,
1800, 1900 MHz and WCDMA 850, 1900,
2100 MHz networks. Contact your service
provider for more information about
networks.
Your device may have preinstalled
bookmarks and links for third-party
internet sites and may allow you to access
third-party sites. These are not affiliated
with Nokia, and Nokia does not endorse
or assume liability for them. If you access
such sites, take precautions for security or
content.
Switch it on 9
www.nokia.com/support 9
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Warning:
To use any features in this device, other
than the alarm clock, the device must be
switched on. Do not switch the device on
when wireless device use may cause
interference or danger.
When using this device, obey all laws and
respect local customs, privacy and
legitimate rights of others, including
copyrights. Copyright protection may
prevent some images, music, and other
content from being copied, modified, or
transferred.
Make back-up copies or keep a written
record of all important information stored
in your device.
When connecting to any other device,
read its user guide for detailed safety
instructions. Do not connect incompatible
products.
The images in this guide may differ from
your device display.
Refer to the user guide for other
important information about your device.
Network services
To use the device you must have service
from a wireless service provider. Some
features are not available on all networks;
other features may require that you make
specific arrangements with your service
provider to use them. Network services
involve transmission of data. Check with
your service provider for details about
fees in your home network and when
roaming on other networks. Your service
provider can explain what charges will
apply.
Your service provider may have requested
that certain features be disabled or not
activated in your device. If so, these
features will not appear on your device
menu. Your device may also have
customized items such as menu names,
menu order, and icons.
Access codes
To set how your phone uses the access
codes and security settings, select
Menu > Settings > Security > Access
codes.
•The security code helps to protect
your phone against unauthorised use.
The preset code is 12345. You can
change the code and set the phone to
request the code. Some operations
require the security code regardless of
the settings, for example if you want
to restore the factory settings. Keep
the code secret and in a safe place
separate from your phone. If you
forget the code and your phone is
locked, your phone will require
service and additional charges may
apply. For more information, contact
a Nokia Care point or your phone
dealer.
•The PIN (UPIN) code, supplied with the
SIM (USIM) card, helps to protect the
card against unauthorised use.
•The PIN2 (UPIN2) code, supplied with
some SIM (USIM) cards, is required to
access certain services.
•PUK (UPUK) and PUK2 (UPUK2) codes
may be supplied with the SIM (USIM)
card. If you enter the PIN code
incorrectly three times in succession,
you are asked for the PUK code. If the
codes are not supplied, contact your
service provider.
10 Switch it on
10 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
•The barring password is required
when using the call barring service to
restrict calls to and from your phone
(network service).
Switch the device on and off
Switch on and off
Press and hold the power key.
Enter the PIN code
If requested, enter the PIN code (displayed
as ****).
Set the time and date
If requested, enter the date, the local time,
and the time zone and the daylight saving
time of your location.
When you switch on your device for the
first time, you may be prompted to get the
configuration settings from your service
provider (network service). For more
information, contact your service
provider.
Standby mode
When the phone is ready for use, and you
have not entered any characters, the
phone is in the standby mode.
Display
7
6
10
1Signal strength of the cellular
network
2Battery charge status
3Indicators
4Clock
5Name of the network or the operator
logo
6Date (only if the Home screen is
deactivated)
7Display
8Function of the left selection key
9Function of the Navi key (scroll key)
10 Function of the right selection key
You may change the function of the left
and right selection key. See " Left and right
selection keys ", p. 16.
Power saving
Your phone has power saver and sleep
mode features to save battery power in
the standby mode when no keys are
pressed. These features may be activated.
See "Display", p. 16.
Home screen
The home screen displays a list of selected
features and information that you can
directly access.
Switch it on 11
www.nokia.com/support 11
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Select Menu > Settings > Display >
Home screen.
Activate the home screen
Select Home screen mode.
Organise and personalise the home
screen
Select Personalise view.
Select a key to activate the home
screen
Select Home screen key.
Navigate in the home screen
Scroll up or down to navigate in the list,
and select Select, View, or Edit. The
arrows indicate that further information
is available.
Stop navigating
Select Exit.
Shortcuts
When your device is in the standby or
home screen mode, you can use the
following shortcuts.
List missed, received, and dialled calls
Press the call key. To make a call, scroll to
the number or name, and press the call
key.
Start the web browser
Press and hold 0.
Call the voice mailbox
Press and hold 1.
Use other keys as shortcuts
See "Dialling shortcuts", p. 22.
Indicators
You have unread messages.
You have unsent, cancelled, or
failed messages.
The keypad is locked.
The device does not ring for
incoming calls or text messages.
An alarm is set.
/ The device is registered to the
GPRS or EGPRS network.
/ A GPRS or EGPRS connection is
open.
/ The GPRS or EGPRS connection is
suspended (on hold).
Bluetooth connectivity is
activated.
A GPS signal is available. (external
GPS antenna necessary).
No GPS signal available. (external
GPS antenna necessary).
If you have two phone lines, the
second line is in use.
All incoming calls are diverted to
another number.
Calls are limited to a closed user
group.
The currently active profile is
timed.
Touch music keys
When listening to the FM radio, or using
the media player, to pause or resume
playback, skip songs, or switch between
saved stations, tap the touch music keys.
The figure shows the three touch-
sensitive areas marked in grey.
12 Switch it on
12 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Activate the touch music keys
Select Menu > Settings > Phone >
Touch music keys.
Control the radio with the touch music
keys
Select Menu > Media > Radio. Use the
touch music keys to pause or resume
playback, and to switch between saved
radio stations.
Control the media player with the
touch music keys
Select Menu > Media > Media player >
Go to Media player. Use the touch music
keys to pause or resume playback, and to
skip songs.
Navigate the menus
The phone offers you an extensive range
of functions that are grouped into menus.
1 To access the menu, select Menu.
2 Scroll through the menu, and select an
option (for example, Settings).
3 If the selected menu contains further
submenus, select one (for example,
Call).
4 Select the setting of your choice.
5 To return to the previous menu level,
select Back.
To exit the menu, select Exit.
To change the menu view, select
Options > Main menu view. Scroll right,
and select from the available options.
To rearrange the menu, select Options >
Organise. Scroll to the menu item to be
moved, and select Move. Scroll to where
you want to move the menu item, and
select OK. To save the change, select
Done > Yes.
Lock the keys
Lock the touch music keys and the keypad
to prevent accidental keypresses.
Lock or unlock the keys
Slide the lock switch on the side of the
device. Alternatively close or open the
slide.
Handle calls when the keys are locked
To answer a call when the keypad is
locked, press the call key. When you end
or reject a call, the keypad locks
automatically.
When the device or keypad is locked, calls
may be possible to the official emergency
number programmed into your device.
Functions without a SIM card
Some functions of your phone may be
used without inserting a SIM card, such as
Organiser functions and games. Some
Switch it on 13
www.nokia.com/support 13
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
functions appear dimmed in the menus
and cannot be used.
Flight profile
Use the Flight profile in radio sensitive
environments to deactivate all radio
frequency functions. You still have access
to offline games, the calendar, and phone
numbers. When the Flight profile is active,
is displayed.
Activate the Flight profile
Select Menu > Settings > Profiles >
Flight > Activate or Personalise.
Deactivate the Flight profile
Select any other profile.
Warning:
With the Flight profile you cannot make or
receive any calls, including emergency
calls, or use other features that require
network coverage. To make calls, you
must first activate the phone function by
changing profiles. If the device has been
locked, enter the lock code.
If you need to make an emergency call
while the device is locked and in the Flight
profile, you may be also able to enter an
official emergency number programmed
in your device in the lock code field and
select 'Call'. The device will confirm that
you are about to exit Flight profile to start
an emergency call.
3. Make it your device
Set up your device, personalise it, and
connect it in several ways.
Basic settings
Phone settings
Select Menu > Settings and Phone.
Select from the following:
Language settings — To set the
language of your device, select Phone
language and a language. To set the
language of your device according to the
information on the SIM card, select Phone
language > Automatic.
Touch music keys — Activate the touch
music keys.
Memory status — View the memory
consumption.
Automatic keyguard — Set the keypad
to lock automatically after a preset time
delay when the device is in the home
screen and no function has been used.
Security keyguard — Set the device to
prompt for the security code to unlock the
keypad.
Voice recognition — Set up voice
commands, or start voice recognition
training.
Flight query — Set the device to prompt
for the flight profile when you switch the
device on. In the flight profile, all radio
connections are closed.
Phone updates — Allow software
updates from your service provider
(network service). The available options
may vary.
Network mode — To use GSM and (when
available) 3G networks, select Dual
mode. This option is not available during
an active call.
Operator selection — Manually select
which network to use.
Help text activation — Set the device to
display help text.
14 Make it your device
14 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Start-up tone — Play a tone when you
switch the device on.
Confirm SIM actions — Access additional
network services from your SIM card. This
option may not be available, depending
on your SIM card.
Security settings
Select Menu > Settings and Security.
When security features that restrict calls
are in use (such as call barring, closed user
group, and fixed dialling), calls may be
possible to the official emergency number
programmed into your device. Call barring
and call diverting cannot be active at the
same time.
Select from the following:
PIN code request or UPIN code
request — Set the device to request for
the PIN or UPIN code every time the device
is switched on. Some SIM cards do not
allow the code request to be deactivated.
Call barring service — Restrict incoming
calls to and outgoing calls from your
device (network service). A barring
password is required.
Fixed dialling — Restrict your outgoing
calls to selected phone numbers if
supported by your SIM card. When fixed
dialling is activated, GPRS connections are
not possible except while sending text
messages over a GPRS connection. In this
case, the recipient’s phone number and
the message centre number must be
included in the fixed dialling list.
Closed user group — Define a group of
people whom you can call and who can
call you (network service).
Security level — To request the security
code whenever a new SIM card is inserted
into the device, select Phone.
Access codes — Change the security
code, PIN code, UPIN code, PIN2 code, or
barring password.
PIN2 code request — Set the device to
request the PIN2 code when using a
specific device feature protected by the
PIN2 code. Some SIM cards do not allow
the code request to be deactivated. This
option may not be available depending on
your SIM card. For details, contact your
service provider.
Code in use — Display and select the type
of PIN code to be used.
Authority certificates or User
certificates — View the list of the
authority or user certificates available on
your device.
Security module sett. — View Secur.
module details, activate Module PIN
request, or change the module PIN and
signing PIN.
Personalise your phone
Give your phone a personal touch with
ringing tones, display backgrounds, and
themes. Add shortcuts for your preferred
features, and attach enhancements.
Profiles
Your phone has various setting groups
called profiles, which you can customise
with ringing tones for different events
and environments.
Select Menu > Settings > Profiles, the
desired profile, and from the following
options:
Activate — to activate the selected
profile
Personalise — to change the profile
settings
Make it your device 15
www.nokia.com/support 15
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Timed — to set the profile to be active for
a certain time. When the time set for the
profile expires, the previous profile that
was not timed becomes active.
Themes
A theme contains elements for
personalising your phone.
Select Menu > Settings > Themes and
from the following options:
Select theme — Open the Themes
folder, and select a theme.
Theme downloads — Open a list of links
to download more themes.
Tones
You can change the tone settings of the
selected active profile.
Select Menu > Settings > Tones. You can
find the same settings in the Profiles
menu.
Lights
Personalise your device with light effects
associated with different functions. Select
Menu > Settings andLights.
Choose a colour
Select Light colours and a colour.
Activate light effects
Select Light effects.
Display
Select Menu > Settings > Display and
from the following:
Wallpaper — to add a background image
for the home screen mode
Home screen — to activate, organise,
and personalise the home screen mode
Home screen font col. — to select the
font colour for the home screen mode
Navigation key icons — to display the
scroll key icons in the home screen mode
Notification details — to display details
in missed call and message notifications
Slide animation — to display an
animation when you open or close the
slide
Screen saver — to create and set a screen
saver
Power saver — to dim the display
automatically, and to display a clock when
the phone is not used for a certain length
of time
Sleep mode — to switch off the display
automatically when the phone is not used
for a certain length of time
Font size — to set the font size for
messaging, contacts, and web pages
Operator logo — to display the operator
logo
Cell info display — to display the cell
identity, if available from the network
My shortcuts
With personal shortcuts, you get quick
access to frequently used functions of
your phone.
Left and right selection keys
To change the function assigned to the left
or right selection key, select Menu >
Settings > My shortcuts > Left
selection key or Right selection key,
and the desired function.
In the home screen mode, if the left
selection key is Go to, to activate a
function, select Go to > Options and from
the following:
16 Make it your device
16 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Select options — to add or remove a
function
Organise — to rearrange the functions
Other shortcuts
Select Menu > Settings > My shortcuts
and from the following:
Navigation key — to assign other
functions from a predefined list to the
navigation key (scroll key)
Home screen key — to select the
movement of the navigation key to
activate the home screen mode
Assign dialling shortcuts
Create shortcuts by assigning phone
numbers to the number keys 3-9.
1 Select Menu > Contacts > Speed
dials, and scroll to a number key.
2 Select Assign, or, if a number has
already been assigned to the key,
select Options > Change.
3 Enter a number or search for a
contact.
Voice commands
You can use voice commands to make
phone calls, launch applications, and
activate profiles.
Select Menu > Settings > Phone.
Voice commands are language-
dependent. To set the language, select
Language settings > Phone language
and the language.
To train the voice recognition of your
device to your voice, select Voice
recognition > Voice recog. training.
To activate a voice command for a
function, select Voice recognition >
Voice commands, a feature, and the
function. indicates that the voice
command is activated.
To activate the voice command, select
Add.
To play the activated voice command,
select Play.
To use voice commands, see "Voice
dialling", p. 22.
To manage voice commands, scroll to a
function, select Options and from the
following:
Edit or Remove — to rename or
deactivate the voice command
Add all or Remove all — to activate or
deactivate voice commands for all
functions in the voice commands list
Connect
Your phone provides several features to
connect to other devices to transmit and
receive data.
Bluetooth wireless technology
Bluetooth technology allows you to
connect your device, using radio waves, to
a compatible Bluetooth device within 10
metres (32 feet).
This device is compliant with Bluetooth
Specification 2.1 + EDR supporting the
following profiles: SIM access, object
push, file transfer, headset, handsfree,
generic access, serial port, generic object
exchange, advanced audio distribution,
audio video remote control, service
discovery application, personal area
networking, phonebook access, and
generic audio/video distribution. To
Make it your device 17
www.nokia.com/support 17
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
ensure interoperability between other
devices supporting Bluetooth technology,
use Nokia approved accessories for this
model. Check with the manufacturers of
other devices to determine their
compatibility with this device.
Features using Bluetooth technology
increase the demand on battery power
and reduce the battery life.
When the wireless device is in the remote
SIM mode, you can only use a compatible
connected accessory, such as a car kit, to
make or receive calls.
Your wireless device will not make any
calls, except to the emergency numbers
programmed into your device, while in
this mode.
To make calls, you must first leave the
remote SIM mode. If the device has been
locked, enter the lock code to unlock it
first.
Open a Bluetooth connection
1 Select Menu > Settings >
Connectivity > Bluetooth.
2 Select My phone's name, and enter a
name for your device.
3 To activate Bluetooth connectivity,
select Bluetooth > On. indicates
that Bluetooth connectivity is active.
4 To connect your device to an audio
accessory, select Conn. to audio
access. and the accessory.
5 To pair your device with any
Bluetooth device in range, select
Paired devices > Add new device.
6 Scroll to a found device, and select
Add.
7Enter a passcode (up to 16 characters)
on your device, and allow the
connection on the other Bluetooth
device.
Operating the device in hidden mode is a
safer way to avoid malicious software. Do
not accept Bluetooth connectivity from
sources you do not trust. Alternatively,
switch off the Bluetooth function. This
does not affect other functions of the
device.
Connect your PC to the internet
You can use Bluetooth technology to
connect your compatible PC to the
internet. Your device must be able to
connect to the internet (network service),
and your PC must support Bluetooth
technology. After connecting to the
network access point (NAP) service of the
device and pairing with your PC, your
device automatically opens a packet data
connection to the internet.
Packet data
General packet radio service (GPRS) is a
network service that allows mobile
phones to send and receive data over an
internet protocol (IP)-based network.
To define how to use the service, select
Menu > Settings > Connectivity >
Packet data > Packet data conn. and
from the following options:
When needed — to establish the packet
data connection when an application
needs it. The connection is closed when
the application is terminated.
Always online — to automatically
connect to a packet data network when
you switch the phone on
You can use your phone as a modem by
connecting it to a compatible PC using
18 Make it your device
18 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Bluetooth technology. For details, see the
Nokia PC Suite documentation.
USB data cable
You can use the USB data cable to transfer
data between the phone and a compatible
PC or a printer supporting PictBridge.
To activate the phone for data transfer or
image printing, connect the data cable
and select the mode:
PC Suite — to use the cable for Nokia PC
Suite
Printing & media — to use the phone
with a PictBridge compatible printer or
with a compatible PC
Data storage — to connect to a PC that
does not have Nokia software and use the
phone as data storage
To change the USB mode, select Menu >
Settings > Connectivity > USB data
cable and the desired USB mode.
Synchronisation and backup
Select Menu > Settings > Sync and
backup and from the following:
Synchronisation — Synchronise your
personal data with the Ovi server. Before
you start a synchronisation, you need to
set up your Nokia account. Select
Connect, and you will be guided through
the process.
Synchronisation — Create a backup of
your personal data to a Nokia server.
Before you start a backup, you need to set
up your My Nokia account. Select
Connect, and you will be guided through
the process.
Phone switch — Synchronise or copy
selected data between your device and
another device using Bluetooth
technology.
Create backup — Create a backup of
selected data.
Restore backup — Select a stored
backup file, and restore it to the device.
Select Options > Details for information
about the selected backup file.
Data transfer — Synchronise or copy
selected data between your device and
another device, PC, or network server
(network service).
Connect a USB device
You can connect a USB storage (for
example, a memory stick) to your device
and browse in the file system and transfer
files.
1 Connect a compatible adapter cable to
the USB port of your device.
2 Connect the USB storage to the
adapter cable.
3 Select Menu > Gallery and the USB
device to browse.
Note: Not all USB storage devices are
supported, depending on their power
consumption.
Nokia PC Suite
With Nokia PC Suite, you can manage your
music and synchronise contacts, calendar
entries, notes, and to-do notes between
your device and a compatible PC or a
remote internet server (network service).
For more information, and to download PC
Suite, visit www.nokia.com/support.
Network provider services
Your network provider provides several
additional services you may want to use.
For some of these services, charges may
apply.
Make it your device 19
www.nokia.com/support 19
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Operator menu
Access a portal to services provided by
your network operator. For more
information, contact your network
operator. The operator can update this
menu with a service message.
SIM services
Your SIM card may provide additional
services. You can access this menu only if
it is supported by your SIM card. The name
and contents of the menu depend on the
available services.
Accessing these services may involve
sending messages or making a phone call
for which you may be charged.
Position log
The network may send you a position
request (network service). To subscribe
and agree upon the delivery of
positioning information, contact your
service provider.
To accept or reject the position request,
select Accept or Reject. If you miss the
request, the phone automatically accepts
or rejects it according to what you have
agreed with your network operator or
service provider.
To view the information on the 10 most
recent privacy notifications and requests,
select Menu > Log > Positioning >
Position log.
Info messages, SIM messages, and
service commands
Info messages
You can receive messages on various
topics from your service provider
(network service). For more information,
contact your service provider.
Select Menu > Messaging > Info
messages and from the available options.
Service commands
Service commands allow you to write and
send service requests (USSD commands)
to your service provider, such as activation
commands for network services.
To write and send the service request,
select Menu > Messaging > Serv.
commands. For details, contact your
service provider.
SIM messages
SIM messages are specific text messages
that are saved to your SIM card. You can
copy or move those messages from the
SIM to the phone memory, but not vice
versa.
To read SIM messages, select Menu >
Messaging > Options > SIM messages.
Configuration settings
You can configure your device with
settings that are required for certain
services. You may receive these settings as
a configuration message from your
service provider.
Select Menu > Settings.
Select Configuration and from the
following:
Default config. sett. — View the service
providers saved in the device, and set a
default service provider.
Act. def. in all apps. — Activate the
default configuration settings for
supported applications.
Preferred access pt. — View the saved
access points.
20 Make it your device
20 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Device manager sett. — Allow or
prevent the device from receiving
software updates. This option may not be
available, depending on your device.
Personal config. sett. — Add manually
new personal accounts for various
services, and activate or delete them. To
add a new personal account, select Add or
Options > Add new. Select the service
type, and enter the required parameters.
To activate a personal account, scroll to
the account, and select Options >
Activate.
4. Stay in touch
Learn how to make calls, write text, send
messages, and use the e-mail
functionality of your device.
Make calls
Make a voice call
Dial a number manually
Enter the phone number, including the
area code, and press the call key.
For international calls, press * twice for
the international prefix (the + character
replaces the international access code),
enter the country code, the area code
without the leading 0, if necessary, and
the phone number.
Redial a number
To access the list of dialled numbers, in the
standby mode, press the call key. Select a
number or name, and press the call key.
Call a contact
Select Menu > Contacts and Names.
Select a contact, and press the call key.
Handle voice calls
To handle calls with the slide, select
Menu > Settings > Call > Slide call
handling.
Answer an incoming call
Press the call key, or open the slide.
End a call
Press the end key, or close the slide.
Mute the ringing tone
Select Silence.
Reject an incoming call
Press the end key.
Adjust the volume in a call
Use the volume keys.
Make a video call
In a video call, the video recorded with the
camera of your device is displayed to the
video call recipient.
To make a video call, you must have a USIM
card and be connected to a WCDMA
network. For availability and subscription
to video call services, contact your service
provider. The video call can be made to a
compatible device or an ISDN client
between two parties. Video calls cannot
be made while another voice, video, or
data call is active.
1 To start a video call, enter the phone
number, including the area code.
2 Select Options > Video call.
3 To end the call, press the end key.
During extended operation such as a
video call, the device may feel warm. In
most cases, this condition is normal. If you
suspect the device is not working
Stay in touch 21
www.nokia.com/support 21
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
properly, take it to the nearest authorised
service facility.
Dialling shortcuts
Assign a phone number to one of the
number keys, 3-9.See "Assign dialling
shortcuts", p. 17.
Use a dialling shortcut to make a call in
one of the following ways:
•Press a number key, then the call key.
•If Menu > Settings > Call > Speed
dialling > On is selected, press and
hold a number key.
Voice dialling
Make a phone call by saying the name that
is saved in Contacts.
As voice commands are language-
dependent, before voice dialling, you
must select Menu > Settings > Phone >
Language settings > Phone language
and your language.
Note: Using voice tags may be difficult in
a noisy environment or during an
emergency, so you should not rely solely
upon voice dialling in all circumstances.
1 In the home screen mode, press and
hold the right selection key. A short
tone sounds, and Speak after the
tone is displayed.
2 Say the name of the contact you want
to dial. If the voice recognition is
successful, a list of proposed matches
is displayed. The phone plays the
voice command of the first match on
the list. If it is not the correct
command, scroll to another entry.
Options during a call
Many of the options that you can use
during a call are network services. For
availability, contact your service provider.
During a call, select Options and from the
available options.
Some of the network options are Hold,
New call, Add to conference, End all
calls, and the following:
Send DTMF — to send tone strings
Swap — to switch between the active call
and the call on hold
Transfer — to connect a call on hold to
an active call and disconnect yourself
Conference — to make a conference call
Private call — to have a private
discussion in a conference call
Voice messages
The voice mailbox is a network service to
which you may need to subscribe. For
more information, contact your service
provider.
Call your voice mailbox
Press and hold 1.
Edit your voice mailbox number
Select Menu > Messaging > Voice
messages > Voice mailbox no..
Video messages
The video mailbox is a network service to
which you may need to subscribe. For
more information, contact your service
provider.
22 Stay in touch
22 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Call your video mailbox
Press and hold 2.
Edit your video mailbox number
Select Menu > Messaging > Video
messages > Voice mailbox no..
Call log
To view the information on your calls,
messages, data, and synchronisation,
select Menu > Log and the desired item.
Note: The actual invoice for calls and
services from your service provider may
vary, depending on network features,
rounding off for billing, taxes, and so
forth.
Call settings
Select Menu > Settings and Call and from
the following:
Call divert — Divert your incoming calls
(network service). You may not be able to
divert your calls if some call barring
functions are active.
Anykey answer — Answer an incoming
call by briefly pressing any key, except the
power key, the left and right selection
keys, or the end key.
Automatic redial — The device redials
the number automatically if a call fails.
The device tries to call the number 10
times.
Video-voice redial — The device
automatically makes a voice call to the
same number to which a video call has
failed.
Voice clarity — Improve speech
intelligibility, especially in noisy
environments.
Speed dialling — Dial the names and
phone numbers assigned to the number
keys (2-9) by pressing and holding the
corresponding number key.
Call waiting — The network notifies you
of an incoming call while you have a call
in progress (network service).
Call duration display — Display the
duration of the call in progress.
Summary after call — Briefly display the
approximate duration after each call.
Send my caller ID — Show your phone
number to the person you are calling
(network service). To use the setting
agreed upon with your service provider,
select Set by network.
Outgoing call line — Select the phone
line for making calls, if your SIM card
supports multiple phone lines (network
service).
Slide call handling — Answer or end a
call by opening or closing the slide.
Text and messages
Write text, and create messages and
notes.
Write text
Text modes
To enter text (for example, when writing
messages) you can use traditional or
predictive text input.
When you write text, press and hold
Options to switch between traditional
text input, indicated by , and predictive
text input, indicated by . Not all
languages are supported by predictive
text input.
The character cases are indicated by ,
, and .
To change the character case, press #. To
change from the letter to number mode,
Stay in touch 23
www.nokia.com/support 23
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
indicated by , press and hold #, and
select Number mode. To change from the
number to the letter mode, press and hold
#.
To set the writing language, select
Options > Writing language.
Traditional text input
Press a number key, 2-9, repeatedly until
the desired character appears. The
available characters depend on the
selected writing language.
If the next letter you want is located on
the same key as the present one, wait until
the cursor appears, and enter the letter.
To access the most common punctuation
marks and special characters, press 1
repeatedly. To access the list of special
characters, press *. To insert a space, press
0.
Predictive text input
Predictive text input is based on a built-in
dictionary to which you can also add new
words.
1 Start writing a word, using the keys
2 to 9. Press each key only once for
one letter.
2 To confirm a word, scroll right or add
a space.
•If the word is not correct, press *
repeatedly, and select the word
from the list.
•If the ? character is displayed after
the word, the word you intended
to write is not in the dictionary.
To add the word to the dictionary,
select Spell. Enter the word using
traditional text input, and select
Save.
•To write compound words, enter
the first part of the word, and
scroll right to confirm it. Write the
last part of the word, and confirm
the word.
3 Start writing the next word.
Text and multimedia messages
You can create a message and optionally
attach, for example, a picture. Your phone
automatically changes a text message to
a multimedia message when a file is
attached.
Text messages
Your device supports text messages
beyond the limit for a single message.
Longer messages are sent as two or more
messages. Your service provider may
charge accordingly. Characters with
accents, other marks, or some language
options take more space, and limit the
number of characters that can be sent in
a single message.
The total number of characters left and
the number of messages needed for
sending are displayed.
To send messages, the correct message
centre number must be stored in your
device. Normally, this number is set by
default through your SIM card. To set the
number manually, select Menu >
Messaging > Message settings > Text
messages > Message centres > Add
centre, and enter a name and the number
from the service provider.
Multimedia messages
A multimedia message can contain text,
pictures, and sound or video clips.
24 Stay in touch
24 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Only devices that have compatible
features can receive and display
multimedia messages. The appearance of
a message may vary depending on the
receiving device.
The wireless network may limit the size of
MMS messages. If the inserted picture
exceeds this limit, the device may make it
smaller so that it can be sent by MMS.
Important: Exercise caution when
opening messages. Messages may contain
malicious software or otherwise be
harmful to your device or PC.
For availability and subscription to the
multimedia messaging service (MMS),
contact your service provider.
Create a text or multimedia message
1 Select Menu > Messaging > Create
message > Message.
2 To add recipients, scroll to the To:
field, and enter the recipient’s
number or e-mail address, or select
Add to select recipients from the
available options. Select Options to
add recipients and subjects and to set
sending options.
3 Scroll to the Text: field, and enter the
message text.
4 To attach content to the message,
scroll to the attachment bar at the
bottom of the display, and select the
desired type of content.
5 To send the message, select Send.
The message type is indicated at the top
of the display and changes automatically
depending on the content of the message.
Service providers may charge differently
depending on the message type. For
details, contact your service provider.
Read a message and reply
Important: Exercise caution when
opening messages. Messages may contain
malicious software or otherwise be
harmful to your device or PC.
You get a notification when you receive a
message. Select View to display the
message. If more than one message was
received, to display a message, select the
message from the Inbox and Open. Use
the scroll key to view all parts of the
message.
To view a multimedia message
automatically, select Play.
To reply to the message, select Reply.
Send and organise messages
To send a message, select Send. The
phone saves the message in the Outbox
folder, and the sending starts.
Note: The message sent icon or text on
your device screen does not indicate that
the message is received at the intended
destination.
If message sending is interrupted, the
phone tries to resend the message a few
times. If these attempts fail, the message
remains in the Outbox folder. To cancel
message sending, in the Outbox folder,
select Options > Cancel sending.
To save the sent messages in the Sent
items folder, select Menu >
Messaging > Message settings >
General settings > Save sent
messages.
Stay in touch 25
www.nokia.com/support 25
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
The phone saves received messages in the
Inbox folder. Organise your messages in
the Saved items folder.
To add, rename, or delete a folder, select
Menu > Messaging > Saved items >
Options.
Flash messages
Flash messages are text messages that are
instantly displayed upon reception.
1 To write a flash message, select
Menu > Messaging > Create
message > Flash message.
2 Enter the recipient’s phone number,
write your message (maximum 70
characters), and select Send.
Nokia Xpress audio messages
Create and send an audio message using
MMS in a convenient way.
1 Select Menu > Messaging > Create
message > Audio message. The
voice recorder opens.
2 Record your message.
3 Enter one or more phone numbers in
the To: field, or select Add to retrieve
a number.
4 To send the message, select Send.
Message settings
Select Menu > Messaging > Message
settings and from the following:
General settings — Save copies of sent
messages in your device, overwrite old
messages if the message memory
becomes full, and set up other preferences
related to messages.
Text messages — Allow delivery reports,
set up message centres for SMS and SMS e-
mail, select the type of character support,
and set up other preferences related to
text messages.
Multimedia messages — Allow delivery
reports, set up the appearance of
multimedia messages, allow the
reception of multimedia messages and
advertisements, and set up other
preferences related to multimedia
messages.
Service messages — Activate service
messages, and set up preferences related
to service messages.
Nokia Messaging IM
With instant messaging (IM) you can chat
with other online users using your device.
You can use your already existing account
with an IM community that is supported
by your device.
If you are not registered to a IM service,
you can create an IM account with a
supported IM service, using your
computer or your device. The menus may
vary depending on the IM service.
IM services
Sign in to an existing IM account
1 Select Menu > Messaging > IMs.
2 Select an IM service.
3 Enter your account ID and password.
4 Follow the instructions on the display.
Create a new Nokia account
To create a Nokia account, which includes
mail and IM services, using your PC, visit
www.ovi.com. To create an account using
your device, do the following:
1 Select Menu > Messaging > E-mail.
2 Follow the instructions on the display.
26 Stay in touch
26 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Use IM services simultaneously
1 To return to the IM main view, select
Home from within any IM service.
2 Select an IM service, and sign in.
3 To switch between IM services, in the
contacts list view, scroll left or right.
Exchange messages
Select Menu > Messaging > IMs.
Send an IM
1 Select an IM service.
2 Select a contact from the contacts list.
Each conversation is on a tab in the
conversation view.
3 Enter your message in the text box at
the bottom of the display.
4 Select Send.
Receiving messages
When a new message arrives in your
current conversation, the message
appears at the end of the chat history.
When a new message arrives for another
conversation, the corresponding
conversation tab flashes. To switch
between conversations, do the following:
1 Scroll up to the conversation tabs.
2 Scroll left or right to open a
conversation.
When a new message arrives from
another community, it is indicated at the
top or bottom corner.
Scroll up, and select Switch or Select.
Notification settings
Even when you are not using the
application, you are notified of new
messages. To modify notification settings,
do the following:
1 In the IM main view, select
Options > IM settings.
2 Select a notification type and Save.
Leave the IM application
When you exit the Instant messaging (IM)
application, you remain signed in to IM
services. Your sessions remain active for a
period of time, according to your service
subscription. When the IM application is
running in the background, you can open
other applications, and return to using IM
without signing in again.
Close the IM window
Go to the IM main view, and select Exit.
Sign out from IM
Select Options > Sign Out.
All conversations are closed.
Nokia Messaging Mail
Access your mail accounts from different
providers with your mobile device to read,
write, and send mail.
Before you can use mail, you must have an
mail account. If you do not have already
an mail account, create it in Ovi. The
menus may vary depending on the mail
provider.
Set up mail
You can sign in to an existing mail account
or set up a new Ovi Mail account.
Select Menu > Messaging > E-mail.
Sign in to your mail account
1 Select your mail service provider.
2 Enter your account ID and password.
Stay in touch 27
www.nokia.com/support 27
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
3 Select Remember password to
disable the password query when you
access your mail account.
4 Select Sign In.
To sign in to an additional mail account,
select Add account.
Set up Ovi Mail
If you do not already have a mail account,
you can create a Nokia account, which
includes the Ovi Mail service.
1 Select Register for Mail on Ovi.
2 Follow the instructions on the display.
Once you have created your new Nokia
account, you can sign in to the Ovi Mail
service and start sending and receiving
mail. You can also use the account to sign
into other Ovi services, such as IM. For
more information, see www.ovi.com.
Read, create, and send mail
Select Menu > Messaging > E-mail and
a mail account.
Read mail and reply
1 Select a mail and Open.
2 Use the scroll key to see the entire
mail.
3 To reply to or forward a mail, select
Options.
View and save attachments
Mails with attachments, for example,
pictures, are marked with a paperclip icon.
Some attachments may not be compatible
with your device, and cannot be displayed
on your device.
1 Expand the attachment list.
2 Select an attachment and View.
3 To save the attachment to your
device, select Save.
Create and send a mail
1 Select Options > Compose.
2 Enter the recipient’s mail address, the
subject, and your message.
3 To attach a file to the mail, select
Options > Attach file.
4 To capture an image to attach to the
mail, select Options > Attach new
image.
5 To send the mail, select Send.
Close the mail application
Select Sign Out.
Access IM from your mail account
Some mail service providers allow you to
access your instant messaging account
directly from your mail account.
To sign in to your provider's instant
messaging service when writing a mail,
select Options and your IM service.
5. Image and video
Capture images
Activate the camera
Select Menu > Media > Camera; or, if in
video mode, scroll left or right.
Zoom in or out
In image mode, scroll up and down, or use
the volume keys.
Capture an image
Your device has an auto focus camera.
Select Capture. Hold the key until the
white frame changes colour to green.
Release the key to capture the image.
28 Image and video
28 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Images are saved in Gallery.
Activate the camera flash
To set the device to use the flash
automatically if the lighting conditions
require it, select Options > Flash >
Automatic. To set the device to always
use the flash, select Flash.
Keep a safe distance when using the flash.
Do not use the flash on people or animals
at close range. Do not cover the flash while
taking a picture.
Display images after capture
Select Options > Settings > Image
preview time and the preview time.
End the image preview manually
Select Back.
Your device supports an image capture
resolution of 1536x2048 pixels.
Record video clips
Activate video mode
Select Menu > Media and Video
recorder, or, if in image mode, scroll left
or right.
Start recording
Select Record.
Pause or resume recording
Select Pause or Continue.
Stop recording
Select Stop.
Video clips are saved in Gallery.
Camera and video settings
Select Menu > Media > Camera.
In image or video mode, select Options
and from the following:
Settings — Modify other camera and
video settings, and select where to save
images and video clips.
Self-timer — Use the self-timer.
Effects — Apply different effects (for
example, greyscale and false colour) to
the captured image.
White balance — Adapt the camera to
the current light conditions.
Landscape format or Portrait
format — Select the orientation of the
camera.
Gallery
Manage images, video clips, music files,
themes, graphics, tones, recordings, and
received files. These files are stored in the
device memory or on a memory card and
may be arranged in folders.
Photos
View images and play video clips with the
Photos application.
Select Menu > Gallery > Photos.
Select from the following:
All photos — View images in a thumbnail
grid. You can sort images by date, name,
or size.
Timeline — View images in the order
they were captured.
Albums — Sort images into albums. You
can create, rename and remove albums. If
you remove an album, the images inside
the album are not deleted from the
memory.
Image and video 29
www.nokia.com/support 29
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Rotate an image
Select Options > Landscape mode or
Portrait mode.
View a slide show
A slide show uses the images of the
currently selected folder or album.
1 Select All photos, Timeline, or
Albums.
2 Select Options > Slide show.
3 Select Start slide show.
Edit images
You can, for example, rotate, flip, crop,
and adjust the brightness, contrast, and
colours of images.
1 Select an image in All photos,
Timeline, or Albums.
2 Select Options > Edit image.
3 Select an editing option, and use the
scroll key to change the settings or
values.
Music and videos
Your device includes a media player for
playing songs and video clips. Music and
video files stored in the music folder in the
device memory or on the memory card are
automatically detected and added to the
video or music library.
Select Menu > Gallery and Music &
videos.
Select from the following:
Videos — List all available video clips.
All songs — List all available songs. You
can sort songs by artist, album, or genre,
for example.
Manage folders and files
To manage folders and files in Gallery,
select Menu > Gallery.
View a list of folders
Select All content.
View a list of files in a folder
Select a folder and Open.
View the folders of the memory card
when moving a file
Scroll to the memory card, and scroll right.
Print images
Your device supports Nokia XpressPrint,
allowing you to print images in the JPEG
file format.
1 Connect your device to a compatible
printer, using a USB data cable, or, if
supported by the printer, Bluetooth
connectivity.
2 Select an image from Gallery and
Options > Print.
Memory card
Use a memory card to store your
multimedia files, such as video clips,
songs, sound files, images, and messaging
data.
Select Menu > Gallery > All content >
Memory card.
Some of the folders in Gallery that contain
content used by your device (for example,
Themes) can be stored on the memory
card.
If your memory card has not been pre-
formatted, you need to format it. When
you format a memory card, all data on the
card is permanently deleted.
30 Image and video
30 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Format the memory card
Select Options > Mem. card options >
Format memory card > Yes. When
formatting is complete, enter a name for
the memory card.
Protect the memory card with a
password
Select Options > Mem. card options >
Set password. The password is stored in
your device, so you only have to enter the
password when attempting to use the
memory card in another device.
Remove the memory card password
Select Options > Mem. card options >
Delete password.
Check the memory consumption
Select Options > Details. The memory
consumption of different data groups,
and the amount of available memory to
install new software, is displayed.
6. Entertainment
Listen to music
Listen to music with the music player or
radio, and record sounds or voice with the
voice recorder. Download music from the
internet, or transfer music from your PC.
Media player
To open the media player, select Menu >
Media > Media player.
Music menu
Access your music and video files stored in
the device memory or on the memory
card, download music or video clips from
the web, or view compatible video
streams from a network server (network
service).
Select Menu > Media > Media player.
Play a media file
Select a file from the available folders and
Play.
Download files from the web
Select Options > Downloads and a
download site.
Update the music library after adding
files
Select Options > Update library.
Create a playlist
1 Select Playlists > Create playlist,
and enter the name of the playlist.
2 Add music or video clips from the
displayed lists.
3 To store the playlist, select Done.
Configure a streaming service
You may receive the streaming settings as
a configuration message from the service
provider. You can also enter the settings
manually.
1 Select Options > Downloads >
Streaming settings >
Configuration.
2 Select a service provider, Default, or
Personal config. for streaming.
3 Select Account and a streaming
service account from the active
configuration settings.
Play songs
To adjust the volume level, press the
volume keys.
Operate the player with the music player
keys or similarly with the virtual keys on
the display.
Entertainment 31
www.nokia.com/support 31
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
To start or pause playing, press .
To skip to the next song, press . To skip
to the beginning of the previous song,
press twice.
To fast-forward the current song, press
and hold . To rewind the current song,
press and hold . Release the key at the
position you want to continue the music
playback.
In the media player menu, you can use the
following shortcuts:
To switch to the music menu, select .
To switch to the current playlist, select
.
To close the media player menu, and to
continue music playback in the
background, press the end key.
To stop the media player, press and hold
the end key.
Change the media player look
Your phone provides several themes to
change the look of the media player.
Select Menu > Media > Media player >
Go to Media player > Options >
Settings > Media player theme and one
of the listed themes. The virtual keys may
change depending on the theme.
Radio
Your device has an integrated FM antenna.
Select Menu > Media > Radio.
Tune in to radio stations
1 To start the search, press and hold the
scroll key left or right. To change the
radio frequency in 0.05 MHz steps,
briefly press the scroll key left or right.
2 To save a station to a memory
location, select Options > Save
station.
3 To enter the name of the radio
station, select Options > Stations >
Options > Rename.
Select Options and from the following:
Search all stations — Search
automatically for the available stations at
your location.
Set frequency — Enter the frequency of
a radio station.
Station directory — Access a website
with a list of radio stations.
Stations — List, rename, or delete saved
stations.
Use the virtual keys on the display
Use the scroll key.
Change stations
Scroll up or down, or press the number key
that corresponds to the number of the
station in the station list.
Adjust the volume
Use the volume keys.
Set the radio to play in the background
Briefly press the end key.
Close the radio
Press and hold the end key.
Radio settings
Select Menu > Media > Radio.
Select Options > Settings and from the
following:
32 Entertainment
32 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
RDS — Display information from the radio
data system, such as the name of the
station.
Auto-frequency — Allow the device to
automatically switch to a frequency with
better reception (available when RDS is
activated).
Play via — Listen using the headset or
the loudspeaker.
Output — Switch between stereo and
mono output.
Radio theme — Select the look of the
radio.
Touch music keys — Activate the touch
music keys.
Voice recorder
Record speech, sound, or an active call,
and save the recordings in Gallery.
Select Menu > Media > Voice recorder.
The recorder cannot be used when a data
call or GPRS connection is active.
To use the graphical keys , , or ,
scroll left or right.
Start recording
Select , or, during a call, select
Options > Record. While recording a call,
all parties to the call hear a faint beeping.
Pause recording
Select .
Stop recording
Select . The recording is saved in the
Recordings folder in Gallery.
To play or send the last recording, to
access the list of recordings, or to select
the memory and the folder to store the
recordings, select Options and the
appropriate option.
Equaliser
Adjust the sound when using the music
player.
Select Menu > Media > Equaliser.
To activate a predefined equaliser set,
scroll to one of the sets, and select
Activate.
Create a new equaliser set
1 Select one of the last two sets in the
list and Options > Edit.
2 Scroll left or right to access the virtual
sliders and up or down to adjust the
slider.
3 To save the settings and create a
name for the set, select Save and
Options > Rename.
Web
You can access various internet services
with your device browser (network
service). The appearance of the internet
pages may vary due to screen size. You
may not be able to see all the details on
the internet pages.
Important: Use only services that you
trust and that offer adequate security and
protection against harmful software.
For the availability of these services,
pricing, and instructions, contact your
service provider.
You may receive the configuration
settings required for browsing as a
configuration message from your service
provider.
Entertainment 33
www.nokia.com/support 33
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
To set up the service, select Menu >
Internet > Web settings >
Configuration sett., a configuration, and
an account.
Connect to a service
To make a connection to the service, select
Menu > Internet > Home; or in the
standby mode, press and hold 0.
To select a bookmark, select Menu >
Internet > Bookmarks.
To select the last visited URL, select
Menu > Internet > Last web addr..
To enter the address of a service, select
Menu > Internet > Go to address. Enter
the address, and select OK.
After you make a connection to the
service, you can start browsing its pages.
The function of the phone keys may vary
in different services. Follow the text
guides on the phone display. For more
information, contact your service
provider.
Web uploads
Open the web page of your online sharing
service to view uploaded images and
videos and to change settings (network
service).
Open an online sharing service
1 Select Menu > Internet > Web
uploads and an online sharing
service.
2 Select from the links offered by the
service.
Change settings of an online sharing
service
1 Select Menu > Internet > Web
uploads and an online sharing
service.
2 Select Options > Settings to open
the settings page of the service.
Appearance settings
While browsing the web, select
Options > Settings and from the
following:
Display — Select the font size, whether
images are shown, and how the text is
displayed.
General — Select whether web addresses
are sent as Unicode (UTF-8), the encoding
type for the contents, and whether
JavaScript™ is enabled.
The available options may vary.
Cache memory
A cache is a memory location that is used
to store data temporarily. If you have tried
to access or have accessed confidential
information requiring passwords, empty
the cache after each use. The information
or services you have accessed are stored
in the cache.
A cookie is data that a site saves in the
cache memory of your phone. Cookies are
saved until you clear the cache memory.
To clear the cache while browsing, select
Options > Tools > Clear the cache.
To allow or prevent the phone from
receiving cookies, select Menu >
Internet > Web settings > Security >
Cookies; or, while browsing, select
Options > Settings > Security >
Cookies.
34 Entertainment
34 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Browser security
Security features may be required for
some services, such as banking services or
online shopping. For such connections
you need security certificates and possibly
a security module, which may be available
on your SIM card. For more information,
contact your service provider.
To view or change the security module
settings, or to view a list of authority or
user certificates downloaded to your
device, select Menu > Settings >
Security > Security module sett.,
Authority certificates, or User
certificates.
Important: Even if the use of certificates
makes the risks involved in remote
connections and software installation
considerably smaller, they must be used
correctly in order to benefit from
increased security. The existence of a
certificate does not offer any protection
by itself; the certificate manager must
contain correct, authentic, or trusted
certificates for increased security to be
available. Certificates have a restricted
lifetime. If "Expired certificate" or
"Certificate not valid yet" is shown, even if
the certificate should be valid, check that
the current date and time in your device
are correct.
Before changing any certificate settings,
you must make sure that you really trust
the owner of the certificate and that the
certificate really belongs to the listed
owner.
Games and applications
You can manage applications and games.
Your phone may have some games or
applications installed. These files are
stored in the phone memory or an
attached memory card and may be
arranged in folders.
Launch an application
Select Menu > Applications > Games,
Collection, or Memory card. Scroll to a
game or an application, and select Open.
To set sounds, lights, and shakes for a
game, select Menu > Applications >
Options > Application settings.
To view application options, select
Menu > Applications > Collection >
Options.
Select from the following:
Update version — Check if a new version
of the application is available for
download from the web (network
service).
Web page — Obtain further information
or additional data for the application from
an internet page (network service), if
available.
Application access — Restrict the
application from accessing the network.
The available options may vary.
Download an application
Your phone supports J2ME™ Java
applications. Ensure that the application
is compatible with your phone before
downloading it.
Important: Only install and use
applications and other software from
trusted sources, such as applications that
are Symbian Signed or have passed the
Java Verified™ testing.
You can download new applications and
games in different ways.
Entertainment 35
www.nokia.com/support 35
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
•Select Menu > Applications >
Options > Downloads > App.
downloads or Game downloads;
the list of available bookmarks is
shown.
•Use the Nokia Application Installer
from PC Suite to download the
applications to your phone.
For the availability of different services
and pricing, contact your service provider.
7. Mobile TV
About Mobile TV
Your device has an integrated Digital
Video Broadcast - Handheld (DVB-H)
receiver, which enables it to receive
digital TV broadcasts. With Mobile TV, you
can access mobile television and radio
services (network service) and watch and
listen to digital TV program.
You can receive calls in the normal way
while watching Mobile TV. When you
answer a call, the Mobile TV application
closes and asks you to restart after ending
the call.
You cannot watch Mobile TV without a SIM
card, or when Flight mode is activated on
your device.
You require a GPRS connection to be able
to use the Mobile TV application. Data
transfer charges may apply. For more
information, contact your service
provider.
If you do not have access to a Mobile TV
service, the operators in your area may
not support Mobile TV services.
Mobile TV services may only be available
upon subscription. For the Mobile TV
network coverage, availability and pricing
of Mobile TV services, and instructions on
accessing the services, contact your
service provider.
In some countries, owners of a television
receiver are required to pay a television
licence fee. For more information, contact
your local authorities.
First start-up
To open Mobile TV, select Menu >
Media > Media. The device scans for
available channels. This may take a few
minutes.
To select a channel, scroll up or down, and
press Menu.
The next time you open Mobile TV, the last
selected program guide and the last
watched TV channel are shown. If the
device can not find any TV channels, there
may not be TV coverage available.
To search for available channels, select
Options > Options.
View and select a program
You may have to subscribe to a channel or
a program before you can view it. See
"Subscribe to a channel or
program", p. 37.
To view a channel in the program guide,
scroll up or down.
To choose a channel, select Menu, and
wait for the channel to load. Alternatively,
press the number keys to enter a channel
number.
To change the channel, scroll left or right.
Alternatively, press or and .
To change the order of the channels, press
Options > Organiser.
36 Mobile TV
36 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
To adjust the volume, use the volume
keys. To mute or unmute the sound, select
#.
For your safety, the Mobile TV application
always starts with a low volume level.
Change audio output
To switch the audio output between
headset and loudspeaker, select
Options > Loudspeaker or Options.
Electronic program guide (EPG)
To view the Electronic program guide
(EPG), select Menu, or press the right
selection key or left selection key,
dependent on your configuration.
To confirm the EPG, select Menu, or the
left selection key and Program guide,
dependent on your configuation.
To change the program information of a
channel in the EPG, scroll up or down.
To view a currently running program,
select Menu twice. Programs are
arranged according to their start times.
To exit the EPG, press the right selection
key.
Subscribe to a channel or program
Some TV channels may require you to
purchase a subscription. There are 3
different time blocks available:
•Channel packages with a fixed time
block or automatic recurrent
extension
•Channels with a fixed time block or
automatic recurrent extension
•Programs with a fixed time block or
automatic recurrent extension
To purchase a channel or program, you
require a SIM card in your device, and
network coverage availability.
If you wish to check your purchased
subscriptions, select Options >
Options > Options or Options.
To unsubscribe, select Menu. If
unsubscribing is not possible, please
contact your service provider for further
information.
Purchase from channel strip
If you try to access an encrypted channel,
you will get information to start
purchasing.
To view available offers, select Menu.
To choose an item, scroll up or down, and
select Menu.
To purchase an offer, select Menu.
To confirm your purchase, accept the
disclaimer, and follow the instructions
displayed on your screen.
Your device must be connected to an
available network to acquire the rights to
watch the purchased media.
Purchase from EPG
Purchasing occurs in the detailed view of
the EPG.
To choose an item, scroll up or down, and
select Menu.
To purchase programs, channels or
packages, select Menu.
To confirm your purchase, accept the
disclaimer, and follow the instructions
displayed on your screen.
Purchase from the options menu
To choose an item, select Menu.
Mobile TV 37
www.nokia.com/support 37
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
To purchase programs, channels or
packages, select Options > Options >
Options.
To confirm your purchase, accept the
disclaimer, and follow the instructions
displayed on your screen.
Important: Only install and use
applications and other software from
trusted sources, such as applications that
are Symbian Signed or have passed the
Java Verified testing.
Mobile TV settings
Select Options > Settings and define the
following:
{No display_text mapping for
'qtn_mtv_settings_pg.mtv',
locale='en'} — Set the language for
Mobile TV program guides (EPG).
{No display_text mapping for
'qtn_mtv_settings_list_status.mtv',
locale='en'} — Set the automatic audio
language. This option may not be
supported in all programs. If the preferred
language is not available, the default
language is used.
{No display_text mapping for
'qtn_mtv_settings_list_ch_managemen
t.mtv', locale='en'} — Hide or display the
clock.
{No display_text mapping for
'qtn_mtv_settings_parental.mtv',
locale='en'} — Set the level of brightness
of the display.
{No display_text mapping for
'qtn_mtv_settings_reminder.mtv',
locale='en'} — Select the level of
network access for purchasing new
channels.
{No display_text mapping for
'qtn_mtv_settings_allow_3g_connectio
n.mtv', locale='en'} — Enable or disable
the use of music keys.
{No display_text mapping for
'qtn_mtv_settings_allow_3g_connectio
n.mtv', locale='en'} — Set which TV
programs and channels are locked from
viewers under a specified age. A security
code must be entered to use this setting.
Contact your network operator for further
information.
The available options may vary.
Start-up Mobile TV after changing SIM
card
All Mobile TV subscriptions are connected
to the SIM card in your device.
Your device detects when a new SIM card
has been inserted, and asks if you prefer
to reset Mobile TV.
Answer yes, and all TV stations and
subscriptions will be deleted from your
device. Answer no, and Mobile TV will start
as usual.
To get your previous subscriptions back,
insert the original SIM card. Then, select
Extra services > Options.
8. Maps
You can browse maps for different cities
and countries, search for addresses and
points of interest, plan routes from one
location to another, save locations as
landmarks, and send them to compatible
devices.
Almost all digital cartography is
inaccurate and incomplete to some
extent. Never rely solely on the
cartography that you download for use in
this device.
38 Maps
38 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Note: Downloading content such as
maps, satellite images, voice files, guides
or traffic information may involve
transmission of large amounts of data
(network service).
Content such as satellite images, guides,
weather and traffic information and
related services are generated by third
parties independent of Nokia. The content
may be inaccurate and incomplete to
some extent and is subject to availability.
Never rely solely on the aforementioned
content and related services.
Find detailed information about Maps on
www.nokia.com/maps
To use the Maps application, select
Menu > Maps and from the available
options.
Download maps
Your device may contain pre-installed
maps on the memory card. You can
download a new set of maps through the
internet using the Nokia Map Loader PC
software.
Download and install Nokia Map
Loader
1 To download the Nokia Map Loader on
your PC and for further instructions,
visit www.maps.nokia.com.
2 Select Menu > Maps to do an initial
configuration.
Download maps
Before you download new maps for the
first time, ensure that you have a memory
card inserted in the device.
To change the selection of maps on your
memory card, use the Nokia Map Loader
to delete all maps on the memory card and
download a new selection, to ensure that
all maps are from the same release.
Download maps automatically
Select Menu > Maps and Settings >
Network settings > Allow network
usage > Yes or In home network.
Deactivate automatic download
Select No.
Note: Downloading content such as
maps, satellite images, voice files, guides
or traffic information may involve
transmission of large amounts of data
(network service).
Maps and GPS
Your device does not have an internal GPS
antenna. To use applications that require
a GPS connection, use a compatible
external GPS receiver (accessory sold
separately). Pair the GPS receiver with
your device using Bluetooth wireless
technology. For more information, see the
user guide of the GPS receiver.
After pairing your device with an external
GPS receiver, it may take several minutes
for the device to display the current
location.
The Global Positioning System (GPS) is
operated by the government of the United
States, which is solely responsible for its
accuracy and maintenance. The accuracy
of location data can be affected by
adjustments to GPS satellites made by the
United States government and is subject
to change with the United States
Department of Defense civil GPS policy and
the Federal Radionavigation Plan.
Accuracy can also be affected by poor
satellite geometry. Availability and
Maps 39
www.nokia.com/support 39
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
quality of GPS signals may be affected by
your location, buildings, natural
obstacles, and weather conditions. GPS
signals may not be available inside
buildings or underground and may be
impaired by materials such as concrete
and metal.
GPS should not be used for precise
location measurement, and you should
never rely solely on location data from the
GPS receiver and cellular radio networks
for positioning or navigation.
Extra services
You can upgrade Maps to a full navigation
system to be used by car and by foot. You
need a regional licence for the full
navigation system. The car navigation is
fully voice-guided with two- and three-
dimensional map views. The pedestrian
navigation is limited to a speed of 30 km/
h (18.6 miles/h) and provides no voice
guidance. The navigation service is not
available for all countries and regions. For
details, see your local Nokia website.
To use this service, you need a compatible
external GPS receiver that supports
Bluetooth wireless technology.
Purchase a navigation service
Select Menu > Maps and Extra
services > Purchase navigation, and
follow the instructions.
To use navigation with voice guidance,
you must allow the Maps application to
use a network connection.
The navigation licence is connected to
your SIM card. If you insert another SIM
card in your device, you are asked to
purchase a licence when starting
navigation. During the purchase
procedure, you are offered to transfer the
existing navigation licence to the new SIM
card without extra charge.
9. Organise
Let your phone help you to organise your
life.
Manage contacts
Save names, phone numbers, and
addresses as contacts in the device and on
the SIM card.
Select Menu > Contacts.
Select the memory for contacts
The device memory can save contacts with
additional details, such as various phone
numbers and text items. You can also save
an image, a tone, or a video clip for a
limited number of contacts.
The SIM card memory can save names with
one phone number attached to them. The
contacts saved in the SIM card memory are
indicated with .
1 Select Settings > Memory in use to
select the SIM card, the device
memory, or both for your contacts.
2 Select Phone and SIM to recall
contacts from both memories. When
you save contacts, they are saved in
the device memory.
Handle contacts
Search for a contact
Select Menu > Contacts > Names.
Scroll through the list of contacts, or enter
the first characters of the contact's name.
40 Organise
40 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Save a name and phone number
Select Menu > Contacts > Add new.
Add or edit a detail
Select a contact and Details > Options >
Add detail.
Delete a detail
Select a contact and Details. Select a
detail and Options > Delete.
Delete a contact
Select a contact and Options > Delete
contact.
Delete all contacts
Select Menu > Contacts > Del. all
contacts > From phone memory or
From SIM card.
Copy or move contacts between the
device and SIM card memories
Copy single contacts
Select Options > Marking options >
Mark. Mark the contacts you want to copy
or move, and select Options > Copy
marked or Move marked.
Copy all contacts
Select Menu > Contacts > Copy
contacts or Move contacts.
Create a contact group
Arrange contacts into caller groups with
different ringing tones and group images.
1 Select Menu > Contacts > Groups.
2 Select Add or Options > Add new
group to create a new group.
3 Enter the group name, optionally
select an image and a ringing tone,
and select Save.
4 To add contacts to the group, select
the group and View > Add.
Business cards
You can send and receive a person’s
contact information from a compatible
device that supports the vCard standard.
To send a business card, search for the
contact, and select Details > Options >
Send business card.
When you receive a business card, select
Show > Save to save the business card in
the phone memory.
Date and time
To change the clock type, time, time zone,
or date, select Menu > Settings > Date
and time.
When travelling to a different time zone,
select Menu > Settings > Date and
time > Date & time settings > Time
zone:, and scroll left or right to select the
time zone of your location. The time and
date are set according to the time zone
and enable your phone to display the
correct sending time of received text or
multimedia messages.
For example, GMT -5 denotes the time
zone for New York (USA), 5 hours west of
Greenwich, London (UK).
Alarm clock
To sound an alarm at a desired time.
Set the alarm
1 Select Menu > Organiser > Alarm
clock.
2 Activate the alarm, and enter the
alarm time.
Organise 41
www.nokia.com/support 41
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
3 To repeat the alarm on selected days
of the week, select Repeat: > On and
the days.
4 Select the alarm tone.
5 Define the snooze time-out period,
and select Save.
Stop the alarm
To stop the sounding alarm, select Stop.
If you let the alarm sound for a minute or
select Snooze, the alarm stops for the
snooze time-out period, then resumes.
Calendar
Select Menu > Organiser > Calendar.
The current day is framed. If there are any
notes set for the day, the day is displayed
in bold.. To view the day notes, select
View. To view a week, select Options >
Week view. To delete all notes in the
calendar, select Options > Delete
notes > All notes.
To modify date and time settings, select
Options > Settings. To delete old notes
automatically after a specified time, select
Options > Settings > Auto-delete
notes.
Add a calendar note
Scroll to the date, and select Options >
Make a note. Select the note type, and
enter the details in the fields.
To-do list
To create a note for a task that you must
do, select Menu > Organiser > To-do
list.
To create a note if no note is added, select
Add; otherwise, select Options > Add.
Fill in the fields, and select Save.
To view a note, scroll to it, and select
View.
Notes
To write and send notes, select Menu >
Organiser > Notes.
To make a note if no note is added, select
Add; otherwise, select Options > Make a
note. Write the note, and select Save.
Nokia PC Suite
With Nokia PC Suite, you can manage your
music and synchronise contacts, calendar
entries, notes, and to-do notes between
your device and a compatible PC or a
remote internet server (network service).
For more information, and to download PC
Suite, see www.nokia.com/support.
Calculator
Your phone provides a standard, a
scientific, and a loan calculator.
Select Menu > Organiser > Calculator ,
the calculator type, and the operating
instructions.
This calculator has limited accuracy and is
designed for simple calculations.
Countdown timer
Normal timer
1 To activate the timer, select Menu >
Organiser > Countd. timer >
Normal timer, enter a time, and
write a note that is displayed when
the time expires. To change the time,
select Change time.
2 To start the timer, select Start.
3 To stop the timer, select Stop timer.
42 Organise
42 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Interval timer
1 To have an interval timer with up to
10 intervals started, first enter the
intervals.
2 Select Menu > Organiser > Countd.
timer > Interval timer.
3 To start the timer, select Start
timer > Start.
To select how the interval timer should
start the next period, select Menu >
Organiser > Countd. timer >
Settings > Contin. to next period.
Stopwatch
You can measure time, take intermediate
times, or take lap times using the
stopwatch.
Select Menu > Organiser > Stopwatch
and from the following:
Split timing — to take intermediate
times. To reset the time without saving it,
select Options > Reset.
Lap timing — to take lap times
Continue — to view the timing that you
have set in the background. To set the
stopwatch timing in the background,
press the end key.
Show last — to view the most recently
measured time if the stopwatch is not
reset
View times or Delete times — to view or
delete the saved times
To set the stopwatch timing in the
background, press the end key.
10. Support and updates
Nokia helps you in many ways to gain the
most benefit from your device.
Support
When you want to learn more about how
to use your product or you are unsure how
your device should function, see the user
guide or see the support pages at
www.nokia.com/support or your local
Nokia website, or with a mobile device,
www.nokia.mobi/support.
If this does not resolve your issue, do the
following:
•Restart the device: switch off the
device, and remove the battery. After
about a minute, replace the battery,
and switch on the device.
•With the Nokia Software Updater
application, update your device
software regularly for optimum
performance and possible new
features. See www.nokia.com/
softwareupdate, or in Latin America,
www.nokia-latinoamerica.com/nsu.
Remember to back up your device
data before updating the device
software.
•Restore the original factory settings
as explained in the user guide.
If the issue remains unsolved, contact
Nokia for repair options. See
www.nokia.com/repair, or in Latin
America, www.nokia-latinoamerica.com/
centrosdeservicio. Before sending your
device for repair, always back up the data
in your device.
My Nokia
Receive free tips, tricks, and support for
your Nokia phone, plus free trial content,
interactive demonstrations, a
personalised web page, and news about
the latest Nokia products and services.
Support and updates 43
www.nokia.com/support 43
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Get the most out of your Nokia phone and
register at My Nokia today! For more
information and availability in your
region, see www.nokia.com/mynokia.
Download content
You may be able to download new content
(for example, themes) to your phone
(network service).
Important: Use only services that you
trust and that offer adequate security and
protection against harmful software.
For the availability of different services
and pricing, contact your service provider.
Update software using your PC
Nokia Software Updater is a PC application
that enables you to update your device
software. To update your device software,
you need a compatible PC, broadband
internet access, and a compatible USB
data cable to connect your device to the
PC.
To get more information and to download
the Nokia Software Updater application,
go to www.nokia.com/softwareupdate,
or in Latin America, www.nokia-
latinoamerica.com/nsu.
Software updates over the air
Your service provider may send phone
software updates over the air directly to
your phone (network service). This option
may not be available, depending on your
phone.
Downloading software updates may
involve the transmission of large amounts
of data (network service).
Make sure that the device battery has
enough power, or connect the charger
before starting the update.
Warning:
If you install a software update, you
cannot use the device, even to make
emergency calls, until the installation is
completed and the device is restarted. Be
sure to back up data before accepting
installation of an update.
Software update settings
This option may not be available,
depending on your phone.
To allow or disallow software and
configuration updates, select Menu >
Settings > Configuration > Device
manager sett. > Serv. softw. updates.
Request a software update
1 Select Menu > Settings > Phone >
Phone updates to request available
software updates from your service
provider.
2 Select Current softw. details to
display the current software version
and check whether an update is
needed.
3 Select Downl. phone softw. to
download and install a software
update. Follow the instructions on the
display.
4 If the installation was cancelled after
the download, select Install softw.
update to start the installation.
The software update may take several
minutes. If there are problems with the
installation, contact your service provider.
44 Support and updates
44 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Restore factory settings
To restore the phone back to factory
conditions, select Menu > Settings >
Rest. factory sett. and from the
following:
Restore settings only — Reset all
preference settings without deleting any
personal data.
Restore all — Reset all preference
settings and delete all personal data, such
as contacts, messages, media files, and
activation keys.
11. Green tips
Here are tips on how you can contribute
to protecting the environment.
Save energy
When you have fully charged the battery
and disconnected the charger from the
device, unplug the charger from the wall
outlet.
You do not need to charge your battery so
often if you do the following:
•Close and disable applications,
services, and connections when not in
use.
•Decrease the brightness of the screen.
•Set the device to enter the power
saver mode after the minimum period
of inactivity, if available in your
device.
•Disable unnecessary sounds, such as
keypad and ringing tones.
Recycle
Most of the materials in a Nokia phone are
recyclable. Check how to recycle your
Nokia products at www.nokia.com/
werecycle, or with a mobile device,
www.nokia.mobi/werecycle.
Recycle packaging and user guides at your
local recycling scheme.
Learn more
For more information on the
environmental attributes of your device,
see www.nokia.com/ecodeclaration.
Green tips 45
www.nokia.com/support 45
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Digital rights management
Content owners may use different types of digital rights
management (DRM) technologies to protect their intellectual
property, including copyrights. This device uses various types
of DRM software to access DRM-protected content. With this
device you can access content protected with WMDRM 10,
OMA DRM 1.0, OMA DRM 1.0 forward lock, and OMA DRM 2.0. If
certain DRM software fails to protect the content, content
owners may ask that such DRM software's ability to access
new DRM-protected content be revoked. Revocation may also
prevent renewal of such DRM-protected content already in
your device. Revocation of such DRM software does not affect
the use of content protected with other types of DRM or the
use of non-DRM-protected content.
Digital rights management (DRM) protected content comes
with an associated licence that defines your rights to use the
content.
If your device has OMA DRM-protected content, to back up
both the licence and the content, use the backup feature of
Nokia PC Suite.
Other transfer methods may not transfer the licence which
need to be restored with the content for you to be able to
continue the use of OMA DRM-protected content after the
device memory is formatted. You may also need to restore
the licence in case the files on your device get corrupted.
If your device has WMDRM-protected content, both the licence
and the content will be lost if the device memory is formatted.
You may also lose the licence and the content if the files on
your device get corrupted. Losing the licence or the content
may limit your ability to use the same content on your device
again. For more information, contact your service provider.
Some licence may be connected to a specific SIM card, and the
protected content can be accessed only if the SIM card is
inserted in the device.
Third-party applications
The third-party applications provided with your device may
have been created and may be owned by persons or entities
not affiliated with or related to Nokia. Nokia does not own
the copyrights or intellectual property rights to the third-
party applications. As such, Nokia does not take any
responsibility for end-user support, functionality of the
applications, or the information in the applications or these
materials. Nokia does not provide any warranty for the third-
party applications.
BY USING THE APPLICATIONS YOU ACKNOWLEDGE THAT THE
APPLICATIONS ARE PROVIDED AS IS WITHOUT WARRANTY OF
ANY KIND, EXPRESS OR IMPLIED, TO THE MAXIMUM EXTENT
PERMITTED BY APPLICABLE LAW. YOU FURTHER ACKNOWLEDGE
THAT NEITHER NOKIA NOR ITS AFFILIATES MAKE ANY
REPRESENTATIONS OR WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO WARRANTIES OF TITLE,
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR
THAT THE APPLICATIONS WILL NOT INFRINGE ANY THIRD-PARTY
PATENTS, COPYRIGHTS, TRADEMARKS, OR OTHER RIGHTS.
Accessories
Warning:
Use only batteries, chargers, and accessories approved by
Nokia for use with this particular model. The use of any other
types may invalidate any approval or warranty, and may be
dangerous. In particular, use of unapproved chargers or
batteries may present a risk of fire, explosion, leakage, or
other hazard.
For availability of approved accessories, please check with
your dealer. When you disconnect the power cord of any
accessory, grasp and pull the plug, not the cord.
Battery
Battery and charger information
Your device is powered by a rechargeable battery. The battery
intended for use with this device is BL-4U. Nokia may make
additional battery models available for this device. This
device is intended for use when supplied with power from
the following chargers: AC-8. The exact charger model
number may vary depending on the type of plug. The plug
variant is identified by one of the following: E, EB, X, AR, U, A,
C, K, or UB.
The battery can be charged and discharged hundreds of
times, but it will eventually wear out. When the talk and
standby times are noticeably shorter than normal, replace the
battery. Use only Nokia approved batteries, and recharge
your battery only with Nokia approved chargers designated
for this device.
If a battery is being used for the first time or if the battery has
not been used for a prolonged period, it may be necessary to
connect the charger, then disconnect and reconnect it to
begin charging the battery. If the battery is completely
discharged, it may take several minutes before the charging
indicator appears on the display or before any calls can be
made.
Safe removal. Always switch the device off and disconnect the
charger before removing the battery.
Proper charging. Unplug the charger from the electrical plug
and the device when not in use. Do not leave a fully charged
battery connected to a charger, since overcharging may
shorten its lifetime. If left unused, a fully charged battery will
lose its charge over time.
46 Digital rights management
46 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Avoid extreme temperatures. Always try to keep the battery
between 15°C and 25°C (59°F and 77°F). Extreme
temperatures reduce the capacity and lifetime of the battery.
A device with a hot or cold battery may not work temporarily.
Battery performance is particularly limited in temperatures
well below freezing.
Do not short-circuit. Accidental short-circuiting can occur
when a metallic object such as a coin, clip, or pen causes direct
connection of the positive (+) and negative (-) terminals of
the battery. (These look like metal strips on the battery.) This
might happen, for example, when you carry a spare battery
in your pocket or purse. Short-circuiting the terminals may
damage the battery or the connecting object.
Disposal. Do not dispose of batteries in a fire as they may
explode. Dispose of batteries according to local regulations.
Please recycle when possible. Do not dispose as household
waste.
Leak. Do not dismantle, cut, open, crush, bend, puncture, or
shred cells or batteries. In the event of a battery leak, prevent
battery liquid contact with skin or eyes. If this happens, flush
the affected areas immediately with water, or seek medical
help.
Damage. Do not modify, remanufacture, attempt to insert
foreign objects into the battery, or immerse or expose it to
water or other liquids. Batteries may explode if damaged.
Correct use. Use the battery only for its intended purpose.
Improper battery use may result in a fire, explosion, or other
hazard. If the device or battery is dropped, especially on a
hard surface, and you believe the battery has been damaged,
take it to a service centre for inspection before continuing to
use it. Never use any charger or battery that is damaged. Keep
your battery out of the reach of small children.
Nokia battery authentication guidelines
Always use original Nokia batteries for your safety. To check
that you are getting an original Nokia battery, purchase it
from a Nokia authorised service centre or dealer, and inspect
the hologram label using the following steps:
Authenticate hologram
1 When you look at the hologram on the label, you should
see the Nokia connecting hands symbol from one angle
and the Nokia Original Enhancements logo when
looking from another angle.
2 When you angle the hologram left, right, down and up,
you should see 1, 2, 3 and 4 dots on each side
respectively.
Successful completion of the steps is not a total assurance of
the authenticity of the battery. If you cannot confirm
authenticity or if you have any reason to believe that your
Nokia battery with the hologram on the label is not an
authentic Nokia battery, you should refrain from using it, and
take it to the nearest Nokia authorised service centre or
dealer for assistance.
For additional information, refer to the warranty and
reference leaflet included with your Nokia device.
Take care of your device
Handle your device, battery, charger and accessories with
care. The following suggestions help you protect your
warranty coverage.
•Keep the device dry. Precipitation, humidity, and all
types of liquids or moisture can contain minerals that
corrode electronic circuits. If your device gets wet,
remove the battery, and allow the device to dry.
•Do not use or store the device in dusty or dirty areas.
Moving parts and electronic components can be
damaged.
Take care of your device 47
www.nokia.com/support 47
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
•Do not store the device in high temperatures. High
temperatures can shorten the life of the device,
damage the battery, and warp or melt plastics.
•Do not store the device in cold temperatures. When the
device warms to its normal temperature, moisture can
form inside the device and damage electronic circuits.
•Do not attempt to open the device other than as
instructed in this guide.
•Unauthorised modifications may damage the device
and violate regulations governing radio devices.
•Do not drop, knock, or shake the device. Rough
handling can break internal circuit boards and
mechanics.
•Only use a soft, clean, dry cloth to clean the surface of
the device.
•Do not paint the device. Paint can clog the moving parts
and prevent proper operation.
•Switch off the device and remove the battery from time
to time for optimum performance.
•Keep your device away from magnets or magnetic
fields.
Recycle
Always return your used electronic products, batteries, and
packaging materials to dedicated collection points. This way
you help prevent uncontrolled waste disposal and promote
the recycling of materials. Check product environmental
information and how to recycle your Nokia products at
www.nokia.com/werecycle, or nokia.mobi/werecycle.
Additional safety information
Magnets and magnetic fields
Keep your device away from magnets or magnetic fields.
Small children
Your device and its accessories are not toys. They may contain
small parts. Keep them out of the reach of small children.
Operating environment
This device meets RF exposure guidelines in the normal use
position at the ear or at least 1.5 centimetre (5/8 inch)away
from the body. Any carry case, belt clip, or holder for body-
worn operation should not contain metal and should position
the device the above-stated distance from your body.
To send data files or messages requires a quality connection
to the network. Data files or messages may be delayed until
such a connection is available. Follow the separation distance
instructions until the transmission is completed.
Medical devices
Operation of radio transmitting equipment, including
wireless phones, may interfere with the function of
inadequately protected medical devices. Consult a physician
or the manufacturer of the medical device to determine
whether they are adequately shielded from external RF
energy. Switch off your device when regulations posted
instruct you to do so. Hospitals or health care facilities may
use equipment sensitive to external RF energy.
Implanted medical devices
Manufacturers of medical devices recommend a minimum
separation of 15.3 centimetres (6 inches) between a wireless
device and an implanted medical device, such as a pacemaker
or implanted cardioverter defibrillator, to avoid potential
interference with the medical device. Persons who have such
devices should:
•Always keep the wireless device more than 15.3
centimetres (6 inches) from the medical device.
•Not carry the wireless device in a breast pocket.
•Hold the wireless device to the ear opposite the medical
device.
•Turn the wireless device off if there is any reason to
suspect that interference is taking place.
•Follow the manufacturer directions for the implanted
medical device.
If you have any questions about using your wireless device
with an implanted medical device, consult your health care
provider.
Hearing aids
Some digital wireless devices may interfere with some
hearing aids.
Vehicles
RF signals may affect improperly installed or inadequately
shielded electronic systems in motor vehicles such as
electronic fuel injection, electronic antilock braking,
electronic speed control, and air bag systems. For more
information, check with the manufacturer of your vehicle or
its equipment.
Only qualified personnel should service the device or install
the device in a vehicle. Faulty installation or service may be
dangerous and may invalidate your warranty. Check regularly
that all wireless device equipment in your vehicle is mounted
and operating properly. Do not store or carry flammable
liquids, gases, or explosive materials in the same
compartment as the device, its parts, or accessories.
Remember that air bags inflate with great force. Do not place
your device or accessories in the air bag deployment area.
Switch off your device before boarding an aircraft. The use of
wireless teledevices in an aircraft may be dangerous to the
operation of the aircraft and may be illegal.
48 Additional safety information
48 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Potentially explosive environments
Switch off your device in any area with a potentially explosive
atmosphere. Obey all posted instructions. Sparks in such
areas could cause an explosion or fire resulting in bodily
injury or death. Switch off the device at refuelling points such
as near gas pumps at service stations. Observe restrictions in
fuel depots, storage, and distribution areas; chemical plants;
or where blasting operations are in progress. Areas with a
potentially explosive atmosphere are often, but not always,
clearly marked. They include areas where you would be
advised to turn off your vehicle engine, below deck on boats,
chemical transfer or storage facilities and where the air
contains chemicals or particles such as grain, dust, or metal
powders. You should check with the manufacturers of
vehicles using liquefied petroleum gas (such as propane or
butane) to determine if this device can be safely used in their
vicinity.
Emergency calls
Important: This device operates using radio signals,
wireless networks, landline networks, and user-programmed
functions. If your device supports voice calls over the internet
(internet calls), activate both the internet calls and the
cellular phone. The device may attempt to make emergency
calls over both the cellular networks and through your
internet call provider if both are activated. Connections in all
conditions cannot be guaranteed. You should never rely
solely on any wireless device for essential communications
like medical emergencies.
To make an emergency call:
1 If the device is not on, switch it on. Check for adequate
signal strength. Depending on your device, you may
also need to complete the following:
•Insert a SIM card if your device uses one.
•Remove certain call restrictions you have
activated in your device.
•Change your profile from Offline or Flight profile
to an active profile.
2 Press the end key as many times as needed to clear the
display and ready the device for calls.
3 Enter the official emergency number for your present
location. Emergency numbers vary by location.
4 Press the call key.
When making an emergency call, give all the necessary
information as accurately as possible. Your wireless device
may be the only means of communication at the scene of an
accident. Do not end the call until given permission to do so.
Certification information (SAR)
This mobile device meets guidelines for exposure to
radio waves.
Your mobile device is a radio transmitter and receiver. It is
designed not to exceed the limits for exposure to radio waves
recommended by international guidelines. These guidelines
were developed by the independent scientific organisation
ICNIRP and include safety margins designed to assure the
protection of all persons, regardless of age and health.
The exposure guidelines for mobile devices employ a unit of
measurement known as the Specific Absorption Rate or SAR.
The SAR limit stated in the ICNIRP guidelines is 2.0 watts/
kilogram (W/kg) averaged over 10 grams of tissue. Tests for
SAR are conducted using standard operating positions with
the device transmitting at its highest certified power level in
all tested frequency bands. The actual SAR level of an
operating device can be below the maximum value because
the device is designed to use only the power required to reach
the network. That amount changes depending on a number
of factors such as how close you are to a network base station.
The highest SAR value under the ICNIRP guidelines for use of
the device at the ear is 0.89 W/kg.
Use of device accessories may result in different SAR values.
SAR values may vary depending on national reporting and
testing requirements and the network band. Additional SAR
information may be provided under product information at
www.nokia.com.
Your mobile device is also designed to meet the requirements
for exposure to radio waves established by the Federal
Communications Commission (USA) and Industry Canada.
These requirements set a SAR limit of 1.6 W/kg averaged over
one gram of tissue. The highest SAR value reported under this
standard during product certification for use at the ear is 0.96
W/kg and when properly worn on the body is 0.84 W/kg.
Additional safety information 49
www.nokia.com/support 49
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
Index
Symbols/Numerics
3G 14
A
access codes 10
alarm clock 41
anykey answer 23
applications 35
B
backing up data 19
battery 6, 8
browser 33
business cards 41
C
cache memory 34
calculator 42
calendar 42
call divert 23
call log 23
call waiting 23
caller id 23
calls 21
camera
— capturing images 28
camera settings 29
configuration 20
contacts
— groups 41
— saving 40
cookies 34
D
data cable 19
dialling shortcuts 17, 22
digital rights 46
display 11, 16
downloads 44
E
e-mail 27
e-mail, attachments 28
e-mail, creating 28
e-mail, reading and replying to 28
equaliser 33
F
factory settings 45
file management 30
flash messages 26
flight profile 14
font size 16
G
games 35
GPS (global positioning system) 39
H
handsfree 22
headset 9
help application 14
home screen 11, 16
I
IM 26
IM (instant messaging) 26, 27, 28
images 28, 29
See also
camera
in-call timer 23
indicators 11, 12
info messages 20
instant messaging 26
internet 33
K
keyguard 14
keypad lock 13
keys 6
L
language settings 14
50 Index
50 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
lights 16
location information 20
lock switch 13
locking the keys 13
loudspeaker 22
M
mail 27
mail setup 27
Maps 38, 39, 40
media player 30, 31
memory 30
memory card 7
message centre number 24
message sending 25
message settings 26
messages 25
microSD card 7
mobile TV 36, 37, 38
— program guides 37
— settings 38
mobile tv
— program guides 36
— recording programs 36
— settings 36
— watching programs 36
music player 31
My Nokia 43
N
navigation 13
navigation tools 40
Nokia support information 43
notes 42
number mode 23
O
offline mode 13
online sharing 34
operator menu 20
P
parts 6
PC Suite 19, 42
photographs 28
See also
camera
PictBridge 19
PIN code 10
position log 20
power saver 16
power saving 11
predictive text input 24
printing 30
profiles 15
PUK codes 10
R
radio 32
recorder 33
redial 23
restoring data 19
S
screen saver 16
scrolling 13
security code 10
security settings 15
service commands 20
settings
— mobile TV 38
sharing 34
shortcuts 12, 16
SIM
— services 20
SIM card 6, 13
SIM messages 20
sleep mode 16
software update 44
software updates 14, 44
speed dialling 17, 22, 23
stopwatch 43
strap 9
support resources 43
Index 51
www.nokia.com/support 51
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
synchronisation 19
T
text modes 23
themes 16
tones 15, 16
traditional text input 24
tv
See
mobile tv
U
updates 44
UPIN code 10
USB data cable 19
V
video 29
video calls 21
voice clarity 23
voice commands 17
voice dialling 22
voice recognition 17
voice recorder 33
W
wallpaper 16
web 33
write text 23
52 Index
52 www.nokia.com/support
Cyan
Cyan
Magenta
Magenta
Yellow
Yellow
Black
Black
2009-11-24 10:17:31
