Microsoft RM-684 GSM cellular telephone with Bluetooth User Manual Manual
Microsoft Mobile Oy GSM cellular telephone with Bluetooth Manual
Manual
Nokia 5250 User Guide
Issue 1
![](/img.php?id=1307662&img=bg2.png)
Contents
Safety 5
About your device 5
Network services 6
Find help 8
In-device help 8
Support 8
Software updates over the air 8
Update software using your PC 9
Settings 10
Access codes 10
Prolong battery life 10
Free memory 11
Get started 12
Insert the SIM card and battery 12
Insert the memory card 13
Charge the battery 14
Keys and parts 15
Stylus 15
Switch the device on or off 16
Lock the keys and touch screen 16
Home screen 16
Access the menu 18
Touch screen actions 18
Media key 20
Change the ringing tone 20
Nokia support 20
Visit Ovi by Nokia 21
About Ovi Store 21
Your device 21
Phone setup 21
Copy contacts or pictures from your
old device 22
Display indicators 22
Contacts bar 23
Antenna locations 24
Offline profile 24
Shortcuts 24
Volume and loudspeaker control 25
Sensor settings and display
rotation 25
Remote lock 26
Headset 26
Attach a wrist strap 27
Remove the SIM card 27
Remove the memory card 27
Make calls 28
Touch screen during calls 28
Calls 28
During a call 28
Voice mailbox 29
Answer or reject a call 29
Make a conference call 30
Speed dial a phone number 30
Call waiting 31
Voice dialling 31
Log 32
2Contents
![](/img.php?id=1307662&img=bg3.png)
Write text 33

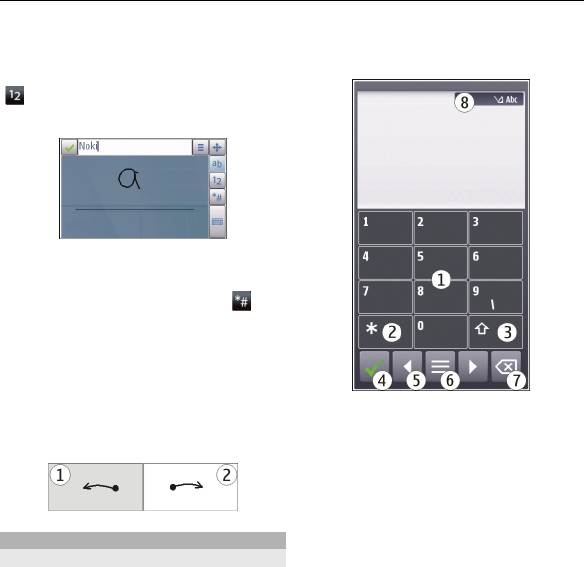

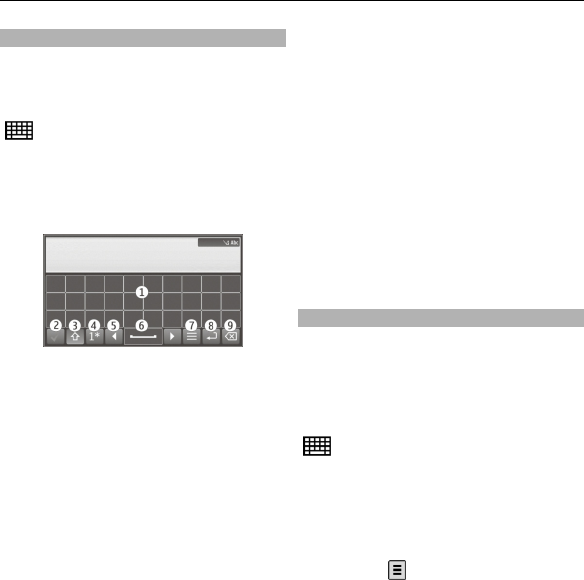

Virtual keyboard 34
Handwriting 34
Alphanumeric keypad 35
Touch input settings 37
Contacts 37
Save and edit names and
numbers 38
Contacts toolbar 38
Manage names and numbers 38
Default numbers and addresses 39
Ringing tones, images, and call text
for contacts 39
Copy contacts 39
SIM services 40
Messaging 41
Messaging main view 41
Write and send messages 41
Messaging inbox 43
Set up e-mail 44
Nokia Messaging 44
Mailbox 45
Mail for Exchange 47
View messages on a SIM card 48
Cell broadcast messages 48
Service commands 48
Messaging settings 48
Ovi Contacts 50
Personalise your device 55
Change the look of your device 55
Profiles 56
Music folder 56
Music player 56
Ovi Music 60
Nokia Podcasting 61
Radio 62
Camera 63
Activate the camera 63
Image capture 63
Video recording 67
Gallery 68
View and organise files 68
View images and videos 69
Organise images and videos 69
Share online 70
About Share online 70
Subscribe to services 70
Manage your accounts 70
Create a post 71
Post files from Gallery 71
Nokia Video Centre 71
View and download video clips 72
Video feeds 72
My videos 73
Transfer videos from your PC 73
Video centre settings 74
Contents 3
![](/img.php?id=1307662&img=bg4.png)
Web browser 74
Browse the web 75
Browser toolbar 75
Navigate pages 76
Web feeds and blogs 76
Widgets 77
Content search 77
Bookmarks 77
Empty the cache 78
Connection security 78
Connectivity 79
Data connections and access
points 79
Network settings 79
Access points 79
Active data connections 82
Synchronisation 82
Bluetooth connectivity 83
USB 87
PC connections 88
Administrative settings 88
Search 89
About Search 89
Start a search 89
Other applications 90
Clock 90
Calendar 91
File manager 91
Application manager 92
RealPlayer 95
Recorder 96
Write a note 97
Make a calculation 97
Converter 97
Dictionary 97
Settings 98
Phone settings 98
Call settings 103
Troubleshooting 105
Green tips 107
Save energy 107
Recycle 107
Product and safety
information 108
Index 115
4Contents
![](/img.php?id=1307662&img=bg5.png)
Safety
Read these simple guidelines. Not
following them may be dangerous or
illegal. Read the complete user guide for
further information.
SWITCH ON SAFELY
Do not switch the device on
when wireless phone use is
prohibited or when it may
cause interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always
keep your hands free to
operate the vehicle while
driving. Your first
consideration while driving
should be road safety.
INTERFERENCE
All wireless devices may be
susceptible to interference,
which could affect
performance.
SWITCH OFF IN RESTRICTED AREAS
Follow any restrictions.
Switch the device off in
aircraft, near medical
equipment, fuel, chemicals,
or blasting areas.
QUALIFIED SERVICE
Only qualified personnel may
install or repair this product.
ACCESSORIES AND BATTERIES
Use only approved
accessories and batteries. Do
not connect incompatible
products.
WATER-RESISTANCE
Your device is not water-
resistant. Keep it dry.
About your device
The wireless device described in this
guide is approved for use on the GSM/
EDGE 850/900/1800/1900 MHz. Contact
your service provider for more
information about networks.
Your device supports several
connectivity methods and like
computers may be exposed to viruses
and other harmful content. Exercise
caution with messages, connectivity
requests, browsing, and downloads.
Only install and use services and
software from trustworthy sources that
offer adequate security and protection,
such as applications that are Symbian
Safety 5
![](/img.php?id=1307662&img=bg6.png)
Signed or have passed the Java
Verified™ testing. Consider installing
antivirus and other security software on
your device and any connected
computer.
Your device may have preinstalled
bookmarks and links for third-party
internet sites and may allow you to
access third-party sites. These are not
affiliated with Nokia, and Nokia does
not endorse or assume liability for
them. If you access such sites, take
precautions for security or content.
Warning:
To use any features in this device, other
than the alarm clock, the device must be
switched on. Do not switch the device
on when wireless device use may cause
interference or danger.
When using this device, obey all laws
and respect local customs, privacy and
legitimate rights of others, including
copyrights. Copyright protection may
prevent some images, music, and other
content from being copied, modified, or
transferred.
Make back-up copies or keep a written
record of all important information
stored in your device.
When connecting to any other device,
read its user guide for detailed safety
instructions. Do not connect
incompatible products.
The images in this guide may differ from
your device display.
Refer to the user guide for other
important information about your
device.
Network services
To use the device you must have service
from a wireless service provider. Some
features are not available on all
networks; other features may require
that you make specific arrangements
with your service provider to use them.
Network services involve transmission
of data. Check with your service provider
for details about fees in your home
network and when roaming on other
networks. Your service provider can
explain what charges will apply. Some
networks may have limitations that
affect how you can use some features of
this device requiring network support
such as support for specific technologies
like WAP 2.0 protocols (HTTP and SSL)
that run on TCP/IP protocols and
language-dependent characters.
6Safety
![](/img.php?id=1307662&img=bg7.png)
Your service provider may have
requested that certain features be
disabled or not activated in your device.
If so, these features will not appear on
your device menu. Your device may also
have customized items such as menu
names, menu order, and icons.
Safety 7
![](/img.php?id=1307662&img=bg8.png)
Find help
In-device help
Your device contains instructions to
help to use the applications in your
device.
To open help texts from the main menu,
select Menu > Help and the application
for which you want to read instructions.
When an application is open, to access
the help text for the current view, select
Options > Help.
When you are reading the instructions,
to change the size of the help text, select
Options > Decrease font size or
Increase font size.
You may find links to related topics at
the end of the help text.
If you select an underlined word, a short
explanation is displayed.
Help texts use the following indicators:
Link to a related help topic.
Link to the application being
discussed.
When you are reading the instructions,
to switch between help texts and the
application that is open in the
background, select Options > Show
open apps. and the desired application.
Support
When you want to learn more about
how to use your product or you are
unsure how your device should
function, go to www.nokia.com/
support, or using a mobile device,
www.nokia.mobi/support. You can also
select Menu > Help in your device.
If this does not resolve your issue, do
one of the following:
•Switch off the device, and remove
the battery. After about a minute,
replace the battery, and switch on
the device.
•Restore the original factory
settings.
•Update your device software.
If your issue remains unsolved, contact
Nokia for repair options. Go to
www.nokia.com/repair. Before sending
your device for repair, always back up
the data in your device.
Software updates over the air
Select Menu > Applications > SW
update.
8Find help
![](/img.php?id=1307662&img=bg9.png)
With Software update (network
service), you can check if there are
updates available for your device
software or applications, and download
them to your device.
Downloading software updates may
involve the transmission of large
amounts of data (network service).
Make sure that the device battery has
enough power, or connect the charger
before starting the update.
Warning:
If you install a software update, you
cannot use the device, even to make
emergency calls, until the installation is
completed and the device is restarted.
Be sure to back up data before accepting
installation of an update.
After updating your device software or
applications using Software update, the
instructions related to the updated
applications in the user guide or the
helps may no longer be up to date.
To download the available updates,
select . To unmark specific updates
that you do not want to download,
select the updates from the list.
To view information on an update,
select the update and .
To view the status of previous updates,
select .
Select Options and from the following:
Update via PC — Update your device
using a PC. This option replaces the Start
update option when updates are only
available using the Nokia Software
Updater PC application.
View update history — View the
status of previous updates.
Settings — Change the settings, such
as the default access point used for
downloading updates.
Disclaimer — View the Nokia licence
agreement.
Update software using your PC
Nokia Software Updater is a PC
application that enables you to update
your device software. To update your
device software, you need a compatible
PC, broadband internet access, and a
compatible USB data cable to connect
your device to the PC.
To get more information and to
download the Nokia Software Updater
Find help 9
![](/img.php?id=1307662&img=bga.png)
application, go to www.nokia.com/
softwareupdate.
Settings
Your device normally has MMS, GPRS,
streaming, and mobile internet settings
automatically configured in the device,
based on your network service provider
information. You may have settings
from your service providers already
installed in your device, or you may
receive or request the settings from the
network service providers as a special
message.
Access codes
If you forget any of the access codes,
contact your service provider.
Personal identification number (PIN)
code — This code protects your SIM card
against unauthorised use. The PIN code
(4 - 8 digits) is usually supplied with the
SIM card. After three consecutive
incorrect PIN code entries, the code is
blocked, and you need the PUK code to
unblock it.
PIN2 code — This code (4 - 8 digits) is
supplied with some SIM cards, and is
required to access some functions in
your device.
Lock code (also known as security
code) — The lock code helps you to
protect your device against
unauthorised use. The preset code is
12345. You can create and change the
code, and set the device to request the
code. Keep the new code secret and in a
safe place separate from your device. If
you forget the code and your device is
locked, your device will require service.
Additional charges may apply, and all
the personal data in your device may be
deleted. For more information, contact
a Nokia Care point or your device dealer.
Personal Unblocking Key (PUK) code and
PUK2 code — These codes (8 digits) are
required to change a blocked PIN code
or PIN2 code, respectively. If the codes
are not supplied with the SIM card,
contact the network service provider
whose SIM card is in your device.
International Mobile Equipment
Identity (IMEI) number — This number
(15 or 17 digits) is used to identify valid
devices on the GSM network. Devices
that are, for example, stolen, can be
blocked from accessing the network.
The IMEI number for your device can be
found under the battery.
Prolong battery life
Many features in your device increase
the demand on battery power and
reduce the battery lifetime. To save
battery power, note the following:
10 Find help
![](/img.php?id=1307662&img=bgb.png)
•Features that use Bluetooth
coonectivity, or allowing such
features to run in the background
while using other features, increase
the demand on battery power.
Deactivate Bluetooth connectivity
when you do not need it.
•If you have selected Packet data
connection > When available in
the connection settings, and there
is no packet data coverage (GPRS),
the device periodically tries to
establish a packet data connection.
To prolong the operating time of
your device, select Packet data
connection > When needed.
•If the signal strength of the cellular
network varies much in your area,
your device must scan for the
available network repeatedly. This
increases the demand on battery
power.
•The backlight of the display
increases the demand on battery
power. In the display settings, you
can adjust the display brightness
and change the time-out period
after which the backlight is
switched off. Select Menu >
Settings and Phone > Display >
Brightness or Light time-out.
•Leaving applications running in the
background increases the demand
on battery power. To access the
applications you are not using,
press and hold the menu key, and
select an application.
Free memory
To view how much space is available for
different data types, select Menu >
Applications > Office > File mgr..
Many features of the device use memory
to store data. The device notifies you if
the memory in different memory
locations is low.
To free device memory, transfer data to
the mass memory or to a compatible
computer.
To remove data you no longer need, use
File manager or open the respective
application. You can remove the
following:
•Messages in the folders in
Messaging and retrieved e-mail
messages in the mailbox
•Saved web pages
•Contact information
•Calendar notes
Find help 11
![](/img.php?id=1307662&img=bgc.png)
•Applications shown in Application
manager that you do not need
•Installation files (.sis or .sisx) of
applications you have installed.
Transfer the installation files to a
compatible computer.
•Images and video clips in Gallery.
Back up the files to a compatible
computer.
Get started

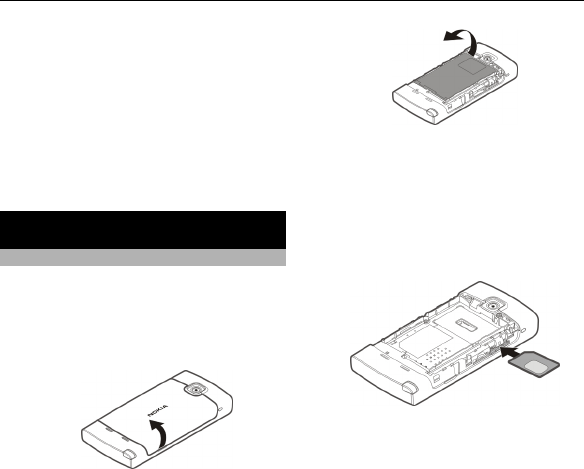

Insert the SIM card and battery
Important: To prevent damage to the
SIM card, always remove the battery
before you insert or remove the card.

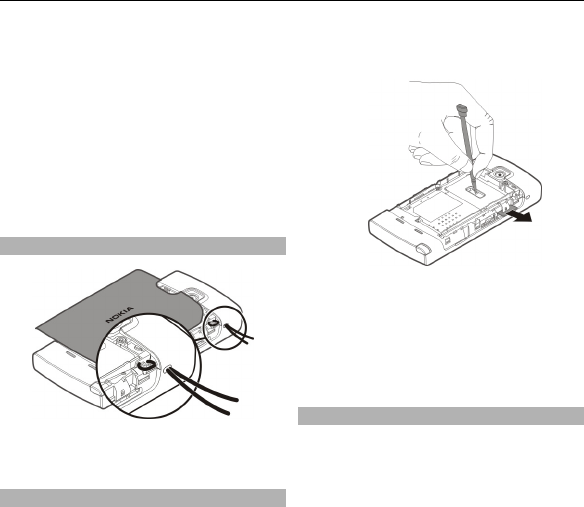

1 Remove the back cover.
2 If the battery is inserted, remove
the battery.
Safe removal. Always switch the
device off and disconnect the
charger before removing the
battery.
3 Insert the SIM card. Make sure the
contact area of the card is facing up.
4 Use the stylus to push the card in
properly. It should align with the
image in the battery compartment
area.
12 Get started
![](/img.php?id=1307662&img=bgd.png)
If the SIM card is not properly in
place, the device can only be used in
the offline profile.
5 Replace the battery.
6 To replace the back cover, direct the
top locking catches toward their
slots, and press down until the
cover locks into place.
Insert the memory card
Use only compatible microSD and
microSDHC cards approved by Nokia for
use with this device. Nokia uses
approved industry standards for
memory cards, but some brands may
not be fully compatible with this device.
Incompatible cards may damage the
card and the device and corrupt data
stored on the card.

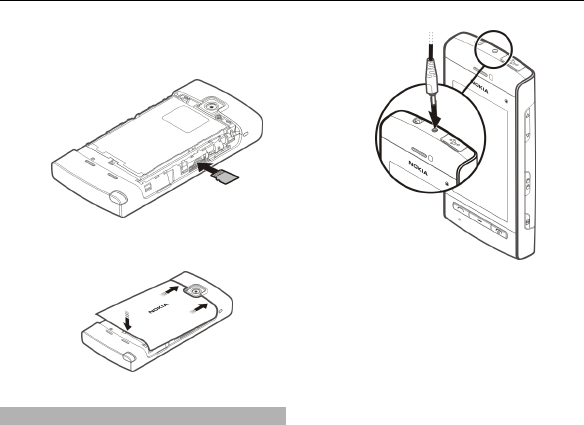

1 Remove the back cover.
2 Insert a compatible memory card in
the memory card slot. Make sure the
contact area of the card is facing up.
Get started 13
![](/img.php?id=1307662&img=bge.png)
Push the card in, until you hear a
click.
3 Replace the back cover.
Charge the battery
Your battery has been partially charged
at the factory. If the device indicates a
low charge, do the following:
1 Connect the charger to a wall outlet.
2 Connect the charger to the device.
3 When the device indicates a full
charge, disconnect the charger from
the device, then from the wall
outlet.
You do not need to charge the battery
for a specific length of time, and you can
use the device while it is charging. If the
battery is completely discharged, it may
take several minutes before the
charging indicator appears on the
display or before any calls can be made.
Tip: Disconnect the charger from the
wall outlet when the charger is not in
use. A charger that is connected to the
outlet consumes power even when it is
not connected to the device.
14 Get started
![](/img.php?id=1307662&img=bgf.png)
Keys and parts
1Nokia AV connector (3.5 mm)
2Charger connector
3Micro USB connector
4Earpiece
5Proximity sensor
6Volume/Zoom key
7Lock switch
8Camera key
9End/Power key
10 Menu key
11 Microphone
12 Call key
13 Touch screen
14 Camera lens
15 Loudspeaker
16 Stylus
17 Wrist strap hole
Do not cover the area above the touch
screen, for example, with protective
film or tape.
Stylus
Get started 15
![](/img.php?id=1307662&img=bg10.png)
Some functions, such as handwriting
recognition, are designed to be used
with a stylus. The pen stylus is located
in the back cover of the device.
Important: Use only a stylus approved
by Nokia for use with this device. Using
any other stylus may invalidate any
warranty applying to the device and
may damage the touch screen. Avoid
scratching the touch screen. Never use
an actual pen or pencil or other sharp
objects to write on the touch screen.
Switch the device on or off
Switch the device on
1 Press and hold the power key.
2 If prompted, enter a PIN code
(provided by your network service
provider, for example, 1234) or lock
code, and select OK. The preset lock
code is 12345. If you forget the code
and your device is locked, your
device will require service and
additional charges may apply. For
more information, contact a Nokia
Care point or your device dealer.
Switch the device off
Press and hold the power key.
Lock the keys and touch screen
To lock or unlock the touch screen and
the keys, slide the lock switch on the
side of the device.
When the touch screen and keys are
locked, the touch screen is switched off
and the keys are inactive.
To change settings for automatic screen
and key locking, select Menu >
Settings and Phone > Phone
mgmt. > Auto. keyguard > Keypad
autolock period.
Home screen
The home screen is your starting point
where you can collect all your important
contacts or application shortcuts.
16 Get started
![](/img.php?id=1307662&img=bg11.png)
Interactive display elements
To open the clock application, select the
clock (1).
To open the calendar, or to change the
profile, select the date or the profile
name (2).
To view or modify connectivity settings
(), or to view missed events, select
the top right corner (3).
To make a phone call, select
Telephone or (4).
To open the contacts list, select
Contacts or (5).
To open the main menu, press the menu
key (6).
Start using the contacts bar
To start using the contacts bar, and to
add your contacts to the home screen,
select > Options > New contact,
and follow the instructions.
Change the home screen theme or
shortcuts
Select Menu > Settings and
Personal > Home screen.
Swipe to unlock
To unlock the device display, press the
power key briefly, and swipe the
display. You can also swipe a locked
display to answer a call, stop a calendar
alarm, or stop or snooze a clock alarm.
Follow the visual cues.
Music keys
When music or the radio is playing in the
background, music keys (play/pause,
skip backward, and skip forward) are
displayed in the home screen.
Get started 17
![](/img.php?id=1307662&img=bg12.png)
Access the menu
To access the menu, press the menu key.
To open an application or folder in the
menu, select the item.
Touch screen actions
Tap and double-tap
To open an application or other element
on the touch screen, you normally tap it
with your finger or the stylus. However,
to open the following items, you must
tap them twice.
•List items in an application, such as
the Drafts folder in the folder list in
Messaging
Tip: When you open a list view, the
first item is already highlighted. To
open the highlighted item, tap it
once.
•Applications and folders in the
menu when using the list view type
•Files in a file list, for example, an
image in the images and videos
view in Gallery.
If you tap a file or similar item once,
it is not opened, it becomes
highlighted. To see the options
available for the item, select
Options or, if available, select an
icon from a toolbar.
Select
In this user documentation, opening
applications or items by tapping them
once or twice is called "selecting". If you
need to select several items in a
sequence, the menu items to select are
separated by arrows.
To select Options > Help, tap Options,
and then tap Help.
Drag
To drag, place your finger or the stylus
on the screen, and slide it across the
screen.
To scroll up or down on a web page,
drag the page with your finger or stylus.
18 Get started
![](/img.php?id=1307662&img=bg13.png)
Swipe
To swipe, slide your finger or the stylus
quickly left or right on the screen.
When viewing an image, to view the
next or previous image, swipe the
image left or right, respectively.
Swipe to unlock the touch screen
To unlock the touch screen without
answering a call, swipe from right to
left. The ringing tone is muted
automatically. To answer the call, press
the call key, or to reject the call, press
the end key.
Swipe to answer a call
To answer an incoming call, swipe from
left to right.
Swipe to stop an alarm
To stop a sounding alarm, swipe from
left to right. To snooze the alarm, swipe
from right to left.
Scroll
To scroll up or down in lists that have a
scroll bar, drag the slider of the scroll
bar.
In some list views, you can scroll by
placing your finger or stylus on a list
item and dragging up or down.
To scroll through contacts, place your
finger or stylus on a contact, and drag
up or down.
Tip: To view a brief description of an
icon, place your finger or stylus on the
icon. Descriptions are not available for
all icons.
Touch screen backlight
To turn the screen backlight on, tap the
screen.
If the touch screen and keys are locked,
tapping the screen does not turn the
screen backlight on.
To unlock the screen and keys, slide the
lock switch.
Get started 19
![](/img.php?id=1307662&img=bg14.png)
Media key
To open applications such as the music
player or browser, select the media key
() to open the media bar, and select
the application.
Tip: Hold your finger or the stylus on the
icon to see the name of the application.
To open the application, raise your
finger or the stylus. Otherwise, slide
your finger or the stylus away from the
icon.
Change the ringing tone
Select Menu > Settings and
Personal > Profiles.
To personalise a profile, go to the
profile, and select Options >
Personalise.
Nokia support
To find the latest version of this guide,
additional information, downloads, and
services related to your Nokia product,
see www.nokia.com/support or your
local Nokia website.
Configuration settings service
To download configuration settings
such as MMS, GPRS, e-mail, and other
services for your phone model, see
www.nokia.com/support.
Nokia PC Suite
To find PC Suite and related information,
see www.nokia.com/support.
Nokia Care services
If you need to contact Nokia Care
services, check the list of local Nokia
Care contact centres at
www.nokia.com/customerservice.
20 Get started
![](/img.php?id=1307662&img=bg15.png)
Maintenance
For maintenance services, find your
nearest Nokia Care point at
www.nokia.com/repair.
Visit Ovi by Nokia
With Ovi by Nokia, you can find
new places and services, and stay in
touch with your friends. You can do, for
example, the following:
•Create a mail account
•Plan trips and view locations on a
map
•Download games, applications,
videos, and ringing tones to your
device
•Purchase music
Some downloadable items are free of
charge, others you may need to pay for.
The available services may vary by
country or region, and not all languages
are supported.
To access Nokia's Ovi services, go to
www.ovi.com, and register your own
Nokia account.
For more information, go to
www.ovi.com/support.
About Ovi Store
With Ovi Store, you can download
mobile games, applications, videos,
pictures, themes, and ringing tones to
your device. Some items are free of
charge; others you need to pay for with
your credit card or in your phone bill.
The availability of payment methods
depends on your country of residence
and your network service provider. Ovi
Store offers content that is compatible
with your mobile device and relevant to
your tastes and location.
Your device
Phone setup
When you switch on your device for the
first time, the Phone setup application
is displayed.
To access the Phone setup application
later, select Menu > Applications >
Phone setup.
To transfer data to your device from a
compatible Nokia device, select
Switch.
The available options may vary.
Your device 21
![](/img.php?id=1307662&img=bg16.png)
Copy contacts or pictures from your
old device
Want to copy important information
from your previous compatible Nokia
device and start using your new device
quickly? Use the Phone switch
application to copy, for example,
contacts, calendar entries, and pictures
to your new device, free of charge.
Select Menu > Applications > Phone
setup and Data transfer.
If your old Nokia device does not have
the Phone switch application, your new
device sends it in a message. Open the
message in the old device, and follow
the instructions.
1 Select the device you want to
connect to, and pair the devices.
Bluetooth needs to be activated.
2 If the other device requires a
passcode, enter the passcode. The
passcode, which you can define
yourself, must be entered in both
devices. The passcode in some
devices is fixed. For details, see the
user guide of the device.
The passcode is valid only for the
current connection.
3 Select the content and OK.
Display indicators
The device is being used in a
GSM network (network service).
You have one or more unread
messages in the Inbox folder in
Messaging.
You have received new e-mail
in the remote mailbox.
There are messages waiting to
be sent in the Outbox folder.
You have missed calls.
The ringing type is set to Silent,
and the message and e-mail
alert tones are turned off.
A timed profile is active.
The touch screen and keys are
locked.
A clock alarm is active.
22 Your device
![](/img.php?id=1307662&img=bg17.png)
All calls to the device are
diverted to another number
(network service).
A compatible headset is
connected to the device.
A compatible text phone is
connected to the device.
A data call is active (network
service).
A GPRS packet data connection
is active (network service).
indicates that the connection is
on hold and that a connection
is available.
A packet data connection is
active in a part of the network
that supports EGPRS (network
service). indicates that the
connection is on hold and
that a connection is available.
The icons indicate that EGPRS is
available in the network, but
your device is not necessarily
using an EGPRS connection to
transfer data.
Bluetooth connectivity is on.
Data is being transmitted using
Bluetooth connectivity. When
the indicator is blinking, your
device is trying to connect with
another device.
A USB connection is active.
Synchronisation is in
progress.
Contacts bar
To add a contact to the home screen, in
the home screen, select >
Options > New contact, and follow
the instructions.
To communicate with a contact, select
the contact and from the following:
— Call the contact.
— Send a message to the contact.
— Add a link to an Ovi contact. If you
want to chat to an Ovi contact, select the
contact. The icon changes to . To start
chatting, select the icon.
— Refresh the contact's web feeds.
To view past communication events
with a contact, select the contact. To
view the details of a communication
event, select the event.
To close the view, select Options >
Exit.
Your device 23
![](/img.php?id=1307662&img=bg18.png)
Antenna locations
Your device may have internal and
external antennas. Avoid touching the
antenna area unnecessarily while the
antenna is transmitting or receiving.
Contact with antennas affects the
communication quality and may cause
a higher power level during operation
and may reduce the battery life.
Cellular antenna Bluetooth
antenna
Offline profile
The offline profile lets you use the
device without connecting to the
wireless cellular network. When the
offline profile is active, you can use your
device without a SIM card.
Activate the offline profile
Press the power key briefly, and select
Offline.
When you activate the offline profile,
the connection to the cellular network
is closed. All radio frequency signals to
and from the device to the cellular
network are prevented. If you try to
send messages using the cellular
network, they are placed in the Outbox
folder to be sent later.
Important: In the Offline profile you
cannot make or receive any calls, or use
other features that require cellular
network coverage. Calls may still be
possible to the official emergency
number programmed into your device.
To make calls, you must first activate the
phone function by changing profiles. If
the device has been locked, enter the
lock code.
Shortcuts
To switch between open applications,
press and hold the menu key.
Leaving applications running in the
background increases the demand on
battery power and reduces the battery
life.
24 Your device
![](/img.php?id=1307662&img=bg19.png)
To start a web connection (network
service), in the dialler, tap and hold 0.
To access applications available in the
media bar, such as the music player and
web browser, in any view, press the
media key.
To change the profile, press the power
key, and select a profile.
To call your voice mailbox (network
service), in the dialler, tap and hold 1.
To open a list of last dialled numbers, in
the home screen, press the call key.
To use voice commands, in the home
screen, press and hold the call key.
Volume and loudspeaker control
Adjust the volume of a phone call or
sound clip
Use the volume keys.
The built-in loudspeaker allows you to
speak and listen from a short distance
without having to hold the device to
your ear.
Use the loudspeaker during a call
Select Activate loudsp..
Turn off the loudspeaker
Select Activate handset.
Warning:
Continuous exposure to high volume
may damage your hearing. Listen to
music at a moderate level, and do not
hold the device near your ear when the
loudspeaker is in use.
Sensor settings and display rotation
When you activate the sensors in your
device, you can control certain functions
by turning the device.
Your device 25
![](/img.php?id=1307662&img=bg1a.png)
Select Menu > Settings and Phone >
Sensor settings.
Select from the following:
Sensors — Activate the sensors.
Turning control — Select Silencing
calls and Snoozing alarms to mute
calls and snooze alarms by turning your
device so that the display faces down.
Select Auto-rotate display to rotate
the display content automatically when
you turn the device on its left side or
back to a vertical position. Some
applications and features may not
support rotating the display content.
Remote lock
You can lock your device remotely using
a predefined text message.
Enable remote locking
1 Select Menu > Settings and
Phone > Phone mgmt. >
Security > Phone and SIM card >
Remote phone locking >
Enabled.
2 Enter the text message content
(5-20 characters), verify it, and
enter the lock code.
Lock your device remotely
Write the predefined text message, and
send it to your device. To unlock your
device, you need the lock code.
Headset
You can connect a compatible headset
or compatible headphones to your
device. You may need to select the cable
mode.
Warning:
When you use the headset, your ability
to hear outside sounds may be affected.
Do not use the headset where it can
endanger your safety.
26 Your device
![](/img.php?id=1307662&img=bg1b.png)
Do not connect products that create an
output signal as this may cause damage
to the device. Do not connect any
voltage source to the Nokia AV
Connector.
When connecting any external device or
any headset, other than those approved
by Nokia for use with this device, to the
Nokia AV Connector, pay special
attention to volume levels.
Attach a wrist strap
Tip: You can use the stylus to catch the
loop.
Remove the SIM card
1 Remove the back cover and the
battery, if inserted.
2 Place the tip of the stylus in the
opening in the battery
compartment, and push the SIM
card sideways, to slide it out of the
slot. Pull the SIM card out.
3 Replace the battery and the back
cover.
After removing and replacing the
battery, you might need to set the time
and date again in your device.
Remove the memory card
1 If the device is switched on, before
you remove the card, press the
power key, and select Remove
memory card.
2When Remove memory card?
Some applications will be
closed. is displayed, select Yes.
3When Remove memory card and
press 'OK' is displayed, remove the
back cover.
Your device 27
![](/img.php?id=1307662&img=bg1c.png)
4 Push the card in, until you hear a
click.
5 Pull out the memory card. If the
device is switched on, select OK.
Make calls
Touch screen during calls
Your device has a proximity sensor. To
extend battery life and prevent
accidental selections, the touch screen
is disabled automatically during calls,
when you place the device next to your
ear.
Do not cover the proximity sensor, for
example, with protective film or tape.
Calls
1 In the home screen, select
Telephone to open the dialler, and
enter the phone number, including
the area code. To remove a number,
select C.
For international calls, select * twice
for the + character (which replaces
the international access code), and
enter the country code, area code
(omit the leading zero if necessary),
and phone number.
2 To make the call, press the call key.
3 To end the call (or to cancel the call
attempt), press the end key.
Pressing the end key always ends a
call, even if another application is
active.
To make a call from the contacts list,
select Menu > Contacts.
Go to the desired name. Or, select the
search field, enter the first letters or
characters of the name, and go to the
name.
To call the contact, press the call key. If
you have saved several numbers for a
contact, select the desired number from
the list, and press the call key.
During a call
To mute or unmute the microphone,
select or .
To put a call on hold or activate the held
call, select or .
To switch back to the handset, select
.
28 Make calls
![](/img.php?id=1307662&img=bg1d.png)
To end the call, select .
To switch between the active and held
calls, select Options > Swap.
Tip: When you have only one active
voice call, to put the call on hold, press
the call key. To activate the held call,
press the call key again.
To send DTMF tone strings (for example,
a password), select Options > Send
DTMF.
Enter the DTMF string or search for it in
the contacts list.
To enter a wait character (w) or a pause
character (p), press * repeatedly.
To send the tone, select OK. You can add
DTMF tones to the phone number or
DTMF field in contact details.
To end an active call and replace it by
answering the waiting call, select
Options > Replace.
To end all your calls, select Options >
End all calls.
Many of the options that you can use
during a voice call are network services.
Voice mailbox
To call your voice mailbox (network
service), in the home screen, select
Telephone, and select and hold 1.
1 To change the phone number of
your voice mailbox, select Menu >
Settings and Calling > Call
mailbox, a mailbox, and
Options > Change number.
2 Enter the number (obtained from
your network service provider), and
select OK.
Answer or reject a call
To answer a call, press the call key.
To mute the ringing tone of an incoming
call, select .
To answer the call when the touch
screen is locked, swipe Answer from
left to right.
You can send a text message without
rejecting the call, informing the caller
that you cannot answer the call. To send
the reply message, select Send msg.,
edit the message text, and press the call
key.
Make calls 29
![](/img.php?id=1307662&img=bg1e.png)
If you do not want to answer a call, press
the end key. If you activate the Call
divert > Voice calls > If busy function
in phone settings to divert calls,
rejecting an incoming call also diverts
the call.
To unlock the touch screen, swipe
Unlock from right to left, and answer or
reject the call.
To activate the text message option and
write a standard reply message, select
Menu > Settings and Calling > Call >
Reject call with message, and
Message text.
Make a conference call
Your device supports conference calls
between a maximum of six participants,
including yourself.
1 Make a call to the first participant.
2 To make a call to another
participant, select Options > New
call. The first call is put on hold.
3 When the new call is answered, to
join the first participant in the
conference call, select .
To add a new person to the call,
make a call to another participant,
and add the new call to the
conference call.
To have a private conversation with
one of the participants, select .
Go to the participant, and select
. The conference call is put on
hold on your device. The other
participants can still continue the
conference call.
To return to the conference call,
select .
To drop a participant, select , go
to the participant, and select .
4 To end the active conference call,
press the end key.
Speed dial a phone number
To activate speed dialling, select
Menu > Settings and Calling > Call >
Speed dialling.
1 To assign a phone number to one of
the number keys, select Menu >
Settings and Calling > Speed
dialling.
2 Go to the key to which you want to
assign the phone number, and
select Options > Assign.
1 is reserved for the voice mailbox.
30 Make calls
![](/img.php?id=1307662&img=bg1f.png)
To call in the home screen, select
Telephone and the assigned key, and
press the call key.
To call in the home screen when speed
dialling is active, select Telephone, and
select and hold the assigned key.
Call waiting
You can answer a call when you have
another call in progress.
To activate call waiting (network
service), select Menu > Settings and
Calling > Call > Call waiting.
1 To answer the waiting call, press
the call key. The first call is put on
hold.
2 To switch between the two calls,
select Options > Swap.
3 To end the active call, press the end
key.
4 To end both calls, select Options >
End all calls.
Voice dialling
Your device automatically creates a
voice tag for the contacts. To listen to
the synthesised voice tag, select a
contact and Options > Voice tag
details. Scroll to a contact detail, and
select Options > Play voice tag.
Make a call with a voice tag
Note: Using voice tags may be difficult
in a noisy environment or during an
emergency, so you should not rely solely
upon voice dialling in all circumstances.
When you use voice dialling, the
loudspeaker is in use. Hold the device at
a short distance away when you say the
voice tag.
1 To start voice dialling, in the home
screen, press and hold the call key.
If a compatible headset with the
headset key is attached, press and
hold the headset key to start voice
dialling.
2 A short tone sounds, and Speak
now is displayed. Say clearly the
name that is saved for the contact.
3 The device plays a synthesised voice
tag for the recognised contact in the
selected device language, and
displays the name and number. To
cancel the voice dialling, select
Quit.
If several numbers are saved for a name,
you can say also the name and the
Make calls 31
![](/img.php?id=1307662&img=bg20.png)
number type, such as mobile or
telephone.
Log
The Log application stores information
about the communication history of the
device. The device registers missed and
received calls only if the network
supports these functions, and the device
is switched on and within the network
service area.
Recent calls
Select Menu > Log and Recent calls.
To view missed, received, and dialled
calls, select Missed calls, Received
calls or Dialled numbers.
Tip: To open the dialled numbers list in
the home screen, press the call key.
On the toolbar, select from the
following:
Call — Call the desired contact.
Create message — Send a
message to the desired contact.
Open Contacts — Open the contacts
list.
Select Options and from the following:
Save to Contacts — Save the
highlighted phone number from a
recent calls list to your contacts.
Clear list — Clear the selected recent
calls list.
Delete — Clear a highlighted event in
the selected list.
Settings — Select Log duration and
the length of time that the
communication information is saved in
the log. If you select No log, no
information is saved in the log.
Packet data
Select Menu > Log.
To check the amount of data sent or
received during packet data
connections, select Packet data > All
sent dataor All received data.
To clear both sent and received
information, select Options > Clear
counters. You need the lock code to
clear the information.
Call duration
Select Menu > Log.
32 Make calls
![](/img.php?id=1307662&img=bg21.png)
To view the approximate duration of
your last call, and dialled and received
calls, select Call duration.
Monitor all communication events
Select Menu > Log.
To open the general log where you can
monitor all voice calls, text messages, or
data connections registered by the
device, select the general log tab
.
Subevents, such as a text message sent
in more than one part and packet data
connections, are logged as one
communication event. Connections to
your mailbox, multimedia message
centre, or web pages are shown as
packet data connections.
To view how much data was transferred
and how long a certain packet data
connection lasted, scroll to an incoming
or outgoing event indicated by GPRS,
and select Options > View.
To copy a phone number from the log to
the clipboard, and paste it into a text
message, for example, select
Options > Use number > Copy.
To filter the log, select Options >
Filter and a filter.
To set the log duration, select
Options > Settings > Log duration. If
you select No log, all the log contents,
recent calls register, and messaging
delivery reports are permanently
deleted.
Write text
You can enter letters, numbers, and
special characters in several different
ways. The on-screen keyboards allow
you to enter characters by tapping them
with your fingers or the stylus.
Handwriting recognition allows you to
write characters directly onto the screen
using the stylus as a pen. Handwriting
recognition may not be available for all
languages.
Tap any text input field to enter letters,
numbers, and special characters.
Your device can complete words based
on the built-in dictionary for the
selected text input language. The device
also learns new words from your input.
Write text 33
![](/img.php?id=1307662&img=bg22.png)
Virtual keyboard
You can use the virtual keyboard in
landscape mode.
To activate the virtual keyboard, select
> Full screen QWERTY.
When using the virtual keyboard in full
screen mode, you can select keys with
your fingers.
1Close - Close the virtual keyboard.
2Input menu - Open the touch input
options menu to access commands
such as Writing language.
3Virtual keyboard
4Shift and caps lock - To enter an
uppercase character when writing
in lowercase, or vice versa, select
the key before entering the
character. To activate the caps lock,
select the key twice. A line under the
key indicates that the caps lock is
activated.
5Letters
6Numbers and special characters
7Character accents
8Space bar
9Move - Move the cursor.
10 Backspace
11 Enter - Move the cursor to the next
row or text input field. Additional
functions are based on the current
context (for example, in the web
address field of the web browser, it
acts as the Go icon).
12 Input mode - Select the input
method. When you tap an item, the
current input method view closes,
and the selected one opens.
Handwriting
The input methods and languages
supported by the handwriting
recognition vary by region and may not
be available for all languages.
To activate handwriting mode, select
> Handwriting.
Write legible, upright characters on the
text input area, and leave a space
between each character.
To teach the device your handwriting
style, select > Handwriting
training.
34 Write text
![](/img.php?id=1307662&img=bg23.png)
To enter letters and numbers (default
mode), write words as you would
normally. To select number mode, select
. To enter non-Latin characters, select
the corresponding icon, if available.
To enter special characters, write them
as you would normally, or select and
the desired character.
To delete characters or move the cursor
back, swipe backwards (see Figure 1).
To insert a space, swipe forwards (see
Figure 2).
Alphanumeric keypad
Virtual keypad
With the virtual keypad (Alphanumeric
keypad), you can enter characters like
you would with a traditional physical
keypad with numbers on the keys.
1Close - Closes the virtual keypad
(Alphanumeric keypad).
2Input menu - Opens the touch input
menu, which includes commands
such as Activate predictive text
and Writing language.
3Text input indicator - Opens a pop-
up window, in which you can
activate or deactivate predictive
text input modes, change the
character case, and switch between
letter and number modes.
Write text 35
![](/img.php?id=1307662&img=bg24.png)
4Input mode - Opens a pop-up
window, in which you can select the
input mode. When you tap an item,
the current input method view
closes, and the selected one opens.
The availability of input modes may
vary depending on whether the
automatic input mode (sensor
settings) is activated or not.
5Arrow keys - Scroll left or right.
6Backspace
7Numbers
8Star - Opens a special characters
table.
9Shift - Changes the character case,
activates or deactivates predictive
text input modes, and switches
between letter and number modes.
Traditional text input
Tap a number key (1-9) repeatedly until
the desired character appears. There are
more characters available for a number
key than are visible on the key.
If the next letter is located on the same
key as the present one, wait until the
cursor appears (or move the cursor
forward to end the time-out period),
and enter the letter.
To insert a space, tap 0. To move the
cursor to the next line, tap 0 three times.
Predictive text input
With predictive text input, you can enter
any word with a single key selection.
Predictive text input is based on a built-
in dictionary to which you can add new
words. Predictive text input is not
available for all languages.
1 To activate predictive text input for
all editors on the device, select
> Activate prediction. You
can also select > Activate
predictive text.
2 To write the desired word, use the
keys 2-9. Select each key only once
for one letter. For example, to write
"Nokia" when the English dictionary
is selected, select 6 for N, 6 for o, 5
for k, 4 for i, and 2 for a.
The word suggestion changes after
each key selection.
3 When you finish writing the word
correctly, move the cursor right to
confirm it, or select 0 to add a space.
If the word is not correct, select *
repeatedly to view the matching
words the dictionary has found one
by one.
36 Write text
![](/img.php?id=1307662&img=bg25.png)
If the ? character is displayed after
the word, the word is not in the
dictionary. To add a word to the
dictionary, select Spell, enter the
word using traditional text input,
and select OK. The word is added to
the dictionary. When the dictionary
is full, a new word replaces the
oldest added word.
4 Start writing the next word.
Switch between text modes
To deactivate predictive text input for
all editors in your device, select
> Deactivate prediction, or
quickly double-tap #. Alternatively, you
can select > Predictive text > Off.
Touch input settings
Select Menu > Settings and Phone >
Touch input.
To modify text input settings for the
touch screen, select from the following:
Handwriting training — Open the
handwriting training application. Train
the device to recognise your
handwriting better. This option is not
available in all languages.
Writing language — Define which
language-specific characters in your
handwriting are recognised and how
the virtual keyboard is laid out.
Writing speed — Select the writing
speed.
Guiding line — Display or hide the
guiding line in the writing area. The
guiding line helps you write in a straight
line, and it also helps the device
recognise your writing.
Pen trail width — Select the pen trail
width for the text written with the
stylus.
Writing colour — Select the colour of
the text written with the stylus.
Adaptive search — Activate adaptive
search.
Touch screen calibration — Calibrate
the touch screen.
Contacts
You can save and update contact
information, such as phone numbers,
home addresses, or e-mail addresses of
your contacts. You can add a personal
ringing tone or a thumbnail image to a
contact. You can also create contact
groups, which allow you to send text
messages or e-mail to many recipients
at the same time.
Contacts 37
![](/img.php?id=1307662&img=bg26.png)
To open the contacts list, in the home
screen, depending on the home screen
theme, select Contacts or .
Save and edit names and numbers
1 To add a new contact to the
contacts list, tap .
2 Tap a field to enter the information
in the field. To close the text input,
select . Fill in the fields that you
want, and select Done.
To edit contacts, select a contact and
Options > Edit.
Contacts toolbar
On the contacts list toolbar, select from
the following:
Call — Call the desired contact.
Create message — Send a
message to the desired contact.
New contact — Create a new
contact.
Manage names and numbers
To copy or delete a contact, or to send a
contact as a business card to another
device, tap and hold a contact, and
select Copy, Delete, or Send business
card.
To delete several contacts at the same
time, select Options > Mark/Unmark
to mark the desired contacts, and to
delete, select Options > Delete.
To listen to the voice tag assigned to a
contact, select the contact and
Options > Voice tag details >
Options > Play voice tag.
Before using voice tags, note the
following:
•Voice tags are not language-
dependent. They are dependent on
the speaker's voice.
•You must say the name exactly as
you said it when you recorded it.
•Voice tags are sensitive to
background noise. Record voice
tags and use them in a quiet
environment.
•Very short names are not accepted.
Use long names, and avoid similar
names for different numbers.
Note: Using voice tags may be difficult
in a noisy environment or during an
emergency, so you should not rely solely
upon voice dialling in all circumstances.
38 Contacts
![](/img.php?id=1307662&img=bg27.png)
Default numbers and addresses
You can assign default numbers or
addresses to a contact. If a contact has
several numbers or addresses, you can
easily call or send a message to a certain
number or address. The default number
is also used in voice dialling.
1 In the contacts list, select a contact.
2 Select Options > Defaults.
3 Select a default to which you want
to add a number or an address, and
select Assign.
4 Select a number or an address you
want to set as a default.
5 To exit the Defaults view and save
the changes, tap outside the view.
Ringing tones, images, and call text
for contacts
You can define a ringing tone for a
contact or group, and an image and a
call text for a contact. When the contact
calls you, the device plays the selected
ringing tone and shows the call text or
image (if the caller’s phone number is
sent with the call and your device
recognises it).
To define a ringing tone for a contact or
a contact group, select the contact or
contact group and Options > Ringing
tone, and a ringing tone.
To define a call text for a contact, select
the contact and Options > Add call
alert text. Tap the text field to enter the
call text, and select .
To add an image for a contact saved in
the device memory, select the contact,
Options > Add image, and an image
from Gallery.
To remove the ringing tone, select
Default tone from the list of ringing
tones.
To view, change or remove the image
from a contact, select the contact,
Options > Image, and the desired
option.
Copy contacts
When you open the contacts list for the
first time, the device asks if you want to
copy names and numbers from the SIM
card to your device.
To start copying, select OK.
Contacts 39
![](/img.php?id=1307662&img=bg28.png)
If you do not want to copy the contacts
from the SIM card to your device, select
Cancel. The device asks if you want to
view the SIM card contacts in the
contacts directory. To view the contacts,
select OK. The contacts list opens, and
the names stored on your SIM card are
indicated with .
SIM services
For availability and information on
using SIM card services, contact your SIM
card vendor. This may be the network
service provider or other vendor.
SIM contacts
To set the names and numbers stored
on the SIM card to be shown on the
contacts list, select Options >
Settings > Contacts to display > SIM
memory. You can add and edit SIM
contacts, or call them.
The numbers you save in the contacts
list may not be automatically saved to
your SIM card. To save numbers to the
SIM card, select a contact and
Options > Copy > SIM memory.
To select whether the new contacts you
enter are saved to your device or your
SIM card, select Options > Settings >
Default saving memory > Phone
memory or SIM memory.
Fixed dialling
Select Menu > Contacts and
Options > SIM numbers > Fixed dial
contacts.
With the fixed dialling service, you can
restrict calls from your device to certain
phone numbers. Not all SIM cards
support the fixed dialling service. For
more information, contact your service
provider.
When security features that restrict calls
are in use (such as call barring, closed
user group, and fixed dialling), calls may
be possible to the official emergency
number programmed into your device.
Call barring and call diverting cannot be
active at the same time.
You need your PIN2 code to activate and
deactivate fixed dialling or edit your
fixed dialling contacts. Contact your
service provider for your PIN2 code.
Select Options and from the following:
Activate fixed dialling — Activate the
fixed dialing.
40 Contacts
![](/img.php?id=1307662&img=bg29.png)
Deactivate fixed dialling
— Deactivate the fixed dialing.
New SIM contact — Enter the contact
name and phone number to which calls
are allowed.
Add from Contacts — Copy a contact
from the list of contacts to the fixed
dialling list.
To send text messages to the SIM
contacts while the fixed dialling service
is active, you need to add the text
message centre number to the fixed
dialling list.
Messaging
Messaging main view
Select Menu > Messaging (network
service).
To create a new message, select New
message.
Tip: To avoid rewriting messages that
you send often, use texts in the
Templates folder in My folders. You can
also create and save your own
templates.
Messaging contains the following
folders:
Inbox — Received messages,
except e-mail and cell broadcast
messages, are stored here.
My folders — Organise your
messages into folders.
Mailbox — Connect to your remote
mailbox to retrieve your new e-mail
messages, or view your previously
retrieved e-mail messages offline.
Drafts — Draft messages that have
not been sent are stored here.
Sent — The last messages that have
been sent, excluding messages sent
using Bluetooth connectivity, are stored
here. You can change the number of
messages to save in this folder.
Outbox — Messages waiting to be
sent are temporarily stored in the
outbox, for example, when your device
is outside network coverage.
Delivery reports — You can request
the network to send you a delivery
report of the text messages and
multimedia messages you have sent
(network service).
Write and send messages
Select Menu > Messaging.
Important: Exercise caution when
opening messages. Messages may
Messaging 41
![](/img.php?id=1307662&img=bg2a.png)
contain malicious software or
otherwise be harmful to your device or
PC.
Before you can create a multimedia
message or write a mail, you must have
the correct connection settings defined.
The wireless network may limit the size
of MMS messages. If the inserted picture
exceeds this limit, the device may make
it smaller so that it can be sent by MMS.
Only devices that have compatible
features can receive and display
multimedia messages. The appearance
of a message may vary depending on
the receiving device.
Check the size limit of mail messages
with your service provider. If you
attempt to send a mail message that
exceeds the size limit of the mail server,
the message is left in the Outbox folder,
and the device attempts to resend it
periodically. Sending a mail requires a
data connection, and continuous
attempts to resend the mail may incur
charges from your service provider. In
the Outbox folder, you can delete such a
message or move it to the Drafts folder.
Messaging requires network services.
Send a text or multimedia message
Select New message.
Send an audio or mail message
Select Options > Create message, and
the relevant option.
Select recipients or groups from the
contacts list
Select from the toolbar.
Enter the number or mail address
manually
Tap the To field.
Enter the subject of the mail or
multimedia message
Enter it in the Subject field, . If the
Subject field is not visible, select
Options > Message header fields to
change the fields that are visible.
Write the message
Tap the message field.
Add an object to a message or mail
Select and the relevant type of
content.
The message type may change to
multimedia message based on the
inserted content.
42 Messaging
![](/img.php?id=1307662&img=bg2b.png)
Send the message or mail
Select , or press the call key.
Your device supports text messages
beyond the limit for a single message.
Longer messages are sent as two or
more messages. Your service provider
may charge accordingly. Characters
with accents, other marks, or some
language options take more space, and
limit the number of characters that can
be sent in a single message.
Messaging inbox
Receive messages
Select Menu > Messaging and Inbox.
In the Inbox folder, indicates an
unread text message, an unread
multimedia message, an unread
audio message, and data received
through Bluetooth connectivity.
When you receive a message, and 1
new message are displayed in the
home screen. To open the message,
select Show. To open a message in the
Inbox folder, select the message. To
reply to a received message, select
Options > Reply.
Multimedia messages
Important: Exercise caution when
opening messages. Messages may
contain malicious software or
otherwise be harmful to your device or
PC.
You may receive a notification that a
multimedia message is waiting in the
multimedia message centre. To start a
packet data connection to retrieve the
message to your device, select
Options > Retrieve.
When you open a multimedia message
(), you may see an image and a
message. is shown if sound is
included, or if video is included. To
play the sound or the video, select the
indicator.
To see the media objects that have been
included in the multimedia message,
select Options > Objects.
If the message includes a multimedia
presentation, is displayed. To play
the presentation, select the indicator.
Data, settings, and web service
messages
Your device can receive many kinds of
messages that contain data, such as
Messaging 43
![](/img.php?id=1307662&img=bg2c.png)
business cards, ringing tones, operator
logos, calendar entries, and e-mail
notifications. You may also receive
settings from your service provider in a
configuration message.
To save the data from the message,
select Options and the corresponding
option.
Web service messages are notifications
(for example, news headlines) and may
contain a text message or a link. For
availability and subscription, contact
your service provider.
Set up e-mail
To set up e-mail, select Menu >
Messaging and Mailbox.
You can set up several e-mail accounts,
for example, a personal e-mail account
and a corporate e-mail account.
To set up e-mail from your home screen,
select the relevant plug-in.
Alternatively, to set up an e-mail
account, select Menu >
Applications > Sett. wizard.
Nokia Messaging
The Nokia Messaging service
automatically transfers e-mail from
your existing e-mail address to your
device. You can read, respond to, and
organise your e-mails on the go. The
Nokia Messaging service works with a
number of internet e-mail providers
that are often used for personal e-mail,
such as Google e-mail services.
The Nokia Messaging service may be
chargeable. For information on possible
costs, contact your service provider or
the Nokia Messaging service.
The Nokia Messaging service must be
supported by your network and may not
be available in all regions.
Nokia Messaging is currently provided
on a trial basis.
Install the Nokia messaging
application
1 Select Menu > Applications >
Sett. wizard.
2 When the Settings wizard is opened
for the first time, you are asked to
define the e-mail settings after the
operator settings. If you have used
the Settings wizard before, select E-
mail setup.
3 In the e-mail setup, read the
information on the display, and
select Start > Nokia E-mail.
44 Messaging
![](/img.php?id=1307662&img=bg2d.png)
4 Accept the installation of the Nokia
Messaging application.
5 Enter your e-mail account details.
The Nokia Messaging application is
installed in Menu > Applications.
For more information, see
www.email.nokia.com.
Mailbox
Define e-mail settings
To use e-mail, you must have defined a
valid internet access point (IAP) in the
device and have defined your e-mail
settings correctly.
You must have a separate e-mail
account. Follow the instructions given
by your remote mailbox and internet
service provider (ISP).
If you select Messaging > Mailbox and
have not set up your e-mail account, you
are prompted to do so. To start creating
the e-mail settings with the mailbox
guide, select Start.
When you create a new mailbox, the
name you give to the mailbox replaces
Mailbox in the Messaging main view.
You can have up to six mailboxes.
Open the mailbox
Select Menu > Messaging and a
mailbox.
When you open the mailbox, the device
asks if you want to connect to the
mailbox.
To connect to your mailbox and retrieve
new e-mail headers or messages, select
Yes. When you view messages online,
you are continuously connected to a
remote mailbox using a data
connection.
To view previously retrieved e-mail
messages offline, select No.
To create a new e-mail message, select
Options > Create message > E-mail.
When you are online, to end the data
connection to the remote mailbox,
select Options > Disconnect
Retrieve e-mail messages
Select Menu > Messaging and a
mailbox.
If you are offline, select Options >
Connect to open a connection to the
remote mailbox.
Messaging 45
![](/img.php?id=1307662&img=bg2e.png)
Important: Exercise caution when
opening messages. Messages may
contain malicious software or
otherwise be harmful to your device or
PC.
1 When you have an open connection
to a remote mailbox, select
Options > Retrieve e-mail >
New to retrieve all new messages,
Selected to retrieve only selected
messages, or All to retrieve all
messages from the mailbox.
To stop retrieving messages, select
Cancel.
2 To close the connection and view
the e-mail messages offline, select
Options > Disconnect.
3 To open an e-mail message, select
the message. If the e-mail message
has not been retrieved and you are
offline, you are asked if you want to
retrieve this message from the
mailbox.
To view e-mail attachments, open the
message, and select the attachment
field indicated by . If the attachment
has not been retrieved to the device,
select Options > Retrieve.
To retrieve e-mail messages
automatically, select Options > E-mail
settings > Automatic retrieval.
Setting the device to retrieve e-mail
automatically may involve the
transmission of large amounts of data
through your service provider's
network. Contact your service provider
for information about data
transmission charges.
Delete e-mail messages
Select Menu > Messaging and a
mailbox.
To delete the contents of an e-mail
message from the device while still
retaining it in the remote mailbox,
select Options > Delete > Phone
only.
The device mirrors the e-mail headers in
the remote mailbox. Although you
delete the message content, the e-mail
header stays in your device. If you want
to remove the header as well, you must
be connected to the server when
deleting the message from your device
and the remote mailbox. It there is no
connection to the server, the header is
deleted when you make a connection
46 Messaging
![](/img.php?id=1307662&img=bg2f.png)
from your device to the remote mailbox
again to update the status.
To delete an e-mail from the device and
the remote mailbox, select Options >
Delete > Phone and server.
To cancel deleting an e-mail that has
been marked to be deleted from the
device and server during the next
connection ( ), select Options >
Restore.
Disconnect from the mailbox
When you are online, to end the data
connection to the remote mailbox,
select Options > Disconnect.
Mail for Exchange
With Mail for Exchange, you can receive
your work e-mail to your device. You can
read and reply to your e-mails, view and
edit compatible attachments, view
calendar information, receive and reply
to meeting requests, schedule
meetings, and view, add, and edit
contact information.
Mail for Exchange
Use of the Mail for Exchange
application is limited to over-the-air
synchronisation of PIM information
between the Nokia device and the
authorised Microsoft Exchange server.
Mail for Exchange can be set up only if
your company has Microsoft Exchange
Server. In addition, your company's IT
administrator must have activated Mail
for Exchange for your account.
Before starting to set up Mail for
Exchange, ensure that you have the
following:
•A corporate e-mail ID
•Your office network user name
•Your office network password
•Your network domain name
(contact your company's IT
department)
•Your Mail for Exchange server name
(contact your company's IT
department)
Depending on your company's Mail for
Exchange server configuration, you may
need to enter other information in
addition to those listed. If you do not
know the correct information, contact
your company's IT department.
With Mail for Exchange, the use of the
lock code may be mandatory. The
default lock code of your device is
Messaging 47
![](/img.php?id=1307662&img=bg30.png)
12345, but your company's IT
administrator may have set a different
one for you to use.
You can access and modify the Mail for
Exchange profile and settings in the
Messaging settings.
View messages on a SIM card
Select Menu > Messaging and
Options > SIM messages.
Before you can view SIM messages, you
must copy them to a folder in your
device.
1 Select Options > Mark/Unmark >
Mark or Mark all to mark messages.
2 Select Options > Copy. A list of
folders opens.
3 To start copying, select a folder. To
view the messages, open the folder.
Cell broadcast messages
Select Menu > Messaging and
Options > Cell broadcast.
Cell broadcast (network service) allows
you to receive messages on various
topics, such as weather or traffic
conditions, from your service provider.
For available topics and relevant topic
numbers, contact your service provider.
This service may not be available for all
regions.
Service commands
Select Menu > Messaging and
Options > Service commands.
With service commands (network
service) you can enter and send service
requests (also known as USSD
commands), such as activation
commands for network services, to your
service provider. This service may not be
available for all regions.
Messaging settings
The settings may be preconfigured in
your device, or you may receive them in
a message. To enter settings manually,
fill in all fields marked with Must be
defined or an asterisk.
Some or all message centres or access
points may be preset for your device by
your service provider, and you may not
be able to change, create, edit, or
remove them.
Text message settings
Select Menu > Messaging and
Options > Settings > Text message.
Select from the following:
48 Messaging
![](/img.php?id=1307662&img=bg31.png)
Message centres — View a list of all
text message centres that have been
defined.
Message centre in use — Select which
message centre to use to deliver text
messages.
Character encoding — To use
character conversion to another
encoding system when available, select
Reduced support.
Receive report — Select whether the
network sends delivery reports on your
messages (network service).
Message validity — Select how long
the message centre resends your
message if the first attempt fails
(network service). If the message
cannot be sent within the validity
period, the message is deleted from the
message centre.
Message sent as — To learn if your
message centre is able to convert text
messages into these other formats,
contact your service provider.
Preferred connection — Select the
connection to use.
Reply via same centre — Select
whether you want the reply message to
be sent using the same text message
centre number (network service).
Multimedia message settings
Select Menu > Messaging and
Options > Settings > Multimedia
message.
Select from the following:
Image size — Define the size of the
image in a multimedia message.
MMS creation mode — If you select
Guided, the device informs you if you
try to send a message that may not be
supported by the recipient. If you select
Restricted, the device prevents you
from sending messages that may not be
supported. To include content in your
messages without notifications, select
Free.
Access point in use — Select which
access point is used as the preferred
connection.
Multimedia retrieval — Select how
you want to receive messages, if
available. To receive messages
automatically in your home network,
select Auto in home netw.. Outside
your home network, you receive a
notification that there is a message to
retrieve in the multimedia message
centre. If you select Always
automatic, your device automatically
makes an active packet data connection
to retrieve the message both in and
outside your home network. Select
Messaging 49
![](/img.php?id=1307662&img=bg32.png)
Manual to retrieve multimedia
messages from the message centre
manually, or Off to prevent receipt of
any multimedia messages. Automatic
retrieval may not be supported in all
regions.
Allow anonymous msgs. — Reject
messages from anonymous senders.
Receive adverts — Receive
multimedia message advertisements
(network service).
Receive reports — Display the status
of sent messages in the log (network
service).
Deny report sending — Prevent your
device from sending delivery reports of
received messages.
Message validity — Select for how
long the message centre resends your
message if the first attempt fails
(network service). If the message
cannot be sent within this time period,
the message is deleted from the
message centre.
The device requires network support to
indicate that a sent message has been
received or read. Depending on the
network and other circumstances, this
information may not always be reliable.
E-mail settings
Manage mailboxes
Select Menu > Messaging and
Options > Settings > E-mail.
To select which mailbox you want to use
to send and receive e-mail, select
Mailbox in use and a mailbox.
To remove a mailbox and its messages
from your device, select Mailboxes, tap
the mailbox to be removed if it is not
already highlighted, and select
Options > Delete.
To create a new mailbox, select
Mailboxes > Options > New
mailbox. The name you give to the new
mailbox replaces Mailbox in the
Messaging main view. You can have up
to six mailboxes.
Select Mailboxes and a mailbox to
change the connection settings, user
settings, retrieval settings, and
automatic retrieval settings.
Ovi Contacts
About Ovi Contacts
With Ovi Contacts, you can stay
connected to your friends and family,
and discover new friends in the Ovi
50 Messaging
![](/img.php?id=1307662&img=bg33.png)
community. You can share your location
with your friends, and follow what they
are up to. You can also back up contacts
from your device to Ovi.
To use Ovi Contacts, go to
www.ovi.com.
Start using Ovi Contacts
Select Contacts, and open the Ovi tab.
The Ovi Contacts service is part of Ovi,
and uses the same account information.
If you are new to Ovi and its services, to
start using the Ovi Contacts application,
you must register to Ovi by creating a
Nokia account.
Create a Nokia account
1 Select Ovi Chat, and when
prompted, connect to the internet.
2 Enter the required information.
3 In the My profile view, enter your
profile information. Your first and
last name are mandatory details.
4 Select Done.
If you have already registered to Ovi
using your PC or mobile device, you can
start using Ovi Contacts with the same
account details.
Sign in to Ovi Contacts and activate
the service
Select Ovi Chat, and enter your user
name and password.
If you have not yet provided your profile
information for Ovi Contacts, do so, and
select Done. Your first and last name are
mandatory details.
Connect to the service
Select Menu > Contacts, and open the
Ovi tab.
Connect to Ovi Contacts
Select Go online and the connection
method.
Cancel the connection
Select Options > Cancel connecting.
A packet data connection may generate
additional data transmission charges.
For pricing details, contact your
network service provider.
Select Go online > Options and from
the following:
Select — Select the item.
Go online — Connect to the service if
you are offline.
Messaging 51
![](/img.php?id=1307662&img=bg34.png)
My profile — Edit your profile
information.
Recommend to friend — Invite a
contact to join Ovi Contacts. The
invitation is sent as a text message.
Settings — Modify the Ovi Contacts
settings.
The available options may vary.
Create and edit your profile
Edit your profile information
Select My profile.
View the profiles of your Ovi Contacts
friends
Select a friend and Options > Profile.
Your profile information is visible to
your Ovi Contacts friends. Only the
following profile details are displayed
to other Ovi Contacts users, for example
during a search: first name and last
name. To change your privacy settings,
access Ovi on your PC, and sign in to your
Nokia account.
Change your profile image
Select the profile image, Select
existing image, and the new image.
You can also edit or remove the current
profile image or capture a new one.
Change your availability
By default, your availability is set to
Available. To change your availability,
select the icon.
Tell your friends what you are doing
at the moment
Select What are you doing?, and enter
text in the field.
Show your friends what music you
are currently listening to
Select Now playing. To do this, you
must allow your now playing
information to be shared in the
presence settings.
Edit your contact information
Select a field, and enter text.
In the My profile view, select Options
and from the following:
Edit text — Cut, copy, or paste text.
Change — Change your status (when
the status field is selected).
Undo changes — Undo the changes
you made in the profile view.
The available options may vary.
52 Messaging
![](/img.php?id=1307662&img=bg35.png)
Find and add friends
Select Options > Invite friend.
Search for a friend
Enter the name of the friend in the
Search friends field, and select the
search icon. You cannot search for
friends based on their mobile number or
e-mail address.
Browse the search results
Select Next results or Previous
results.
Start a new search
Select New search.
If the friends you searched for could not
be found, they are not registered Ovi
members, or they have chosen to be
invisible in searches. When prompted,
send a text message to your friends to
invite them to join Ovi Contacts.
Send an invitation to join Ovi
Contacts
Select Select service: and the service
you know your friend uses. Enter your
friend’s user name, and select the send
icon.
Select Options and from the following:
Select — Select an item.
Open — Open an item.
Invite as friend — Send an invitation
to the contact.
Show profile — View the profile of the
contact.
Renew invitation — Resend an
invitation to join Ovi Contacts to a
pending friend.
Search — Search for the contact whose
name or other related keyword you
entered in the Search friends field.
Edit text — Cut, copy, or paste text.
The available options may vary.
Chat with your friends
Start a chat with a friend
Select the friend.
Send a chat message
Enter the text in the message field, and
select the send icon.
In the chat view, select Options and
from the following:
Send — Send the message.
Add smiley — Insert a smiley.
Messaging 53
![](/img.php?id=1307662&img=bg36.png)
Send my location — Send your
location details to your chat partner (if
supported by both devices).
Profile — View the details of a friend.
My profile — Select your presence
status or profile image, personalise your
message, or change your details.
Edit text — Copy or paste text.
End chat — End the active chat.
Exit — End all active chats, and close
the application.
The available options may vary.
To receive location information from
your friend, you must have the Maps
application. To send and receive
location information, both the Maps and
Positioning applications are needed.
View the location of your friend
Select Show on map.
Return to the Ovi Contacts main view
without ending the chat
Select Back.
Add, call, or copy phone numbers
from a chat
Go to a phone number in a chat, and
select Options and the appropriate
option.
Ovi Contacts settings
Select Options > Settings and from the
following:
Account — Access your account details,
and define your visibility to others in a
search.
Personalisation — Modify the settings
related to the startup and tones of the
Ovi Contacts application, and set your
device to automatically accept friend
invitations.
Connection — Select the network
connection to use, and activate roaming
warnings.
Exit — End all active chats, and close
the application.
Nokia account settings
Select Options > Settings > Account.
Edit your account details
Select My account.
Define your visibility in searches
Select My account > Visibility in
search. You must be online to change
your visibility.
Personalisation settings
Select Options > Settings >
Personalisation.
54 Messaging
![](/img.php?id=1307662&img=bg37.png)
Select from the following:
Login on start-up — Sign in
automatically to Ovi Contacts when you
switch on your mobile device.
Auto-accept friend invit. — Accept
friend requests automatically without
notification.
Auto-accept voice msgs. — Allow
voice message to be accepted
automatically.
Message tone — Select a tone for new
messages.
Friend online tone — Select the tone
that sounds when a friend comes
online.
Icon on Home screen — Add the Ovi
Contacts shortcut icon to your device
home screen.
Connection settings
Select Options > Settings >
Connection.
Modify connection settings
Select Network connection and the
desired connection. To use the default
connection defined in your device
connection settings, select Default
connection.
Set the device to notify you when
your home network is not available
To receive a warning when your device
is trying to connect to another network,
select Roaming warning > On.
Personalise your device
You can personalise your device by
changing the home screen, tones, or
themes.
Change the look of your device
Select Menu > Settings and
Personal > Themes.
You can use themes to change the look
of the display, such as wallpaper and
main menu layout.
To change the theme that is used for all
the applications in your device, select
General. To preview a theme before
activating it, scroll to the theme, and
wait for a few seconds. To activate the
theme, select Options > Set. The active
theme is indicated by .
To change the layout of the main menu,
select Menu.
Personalise your device 55
![](/img.php?id=1307662&img=bg38.png)
To change the look of the home screen,
select Home scr. theme.
To have a wallpaper image or a slide
show of changing images as the
background in the home screen, select
Wallpaper > Image or Slide show.
To change the image displayed in the
home screen when a call is received,
select Call image.
Profiles
Select Menu > Settings and
Personal > Profiles.
You can use profiles to set and
customise the ringing tones, message
alert tones, and other tones for different
events, environments, or caller groups.
The name of the selected profile is
displayed at the top of the home screen.
If the General profile is in use, only the
date is displayed.
To change a profile, scroll to the profile,
and select Options > Activate.
To personalise a profile, scroll to the
profile, and select Options >
Personalise. Select the setting you
want to change.
To set the profile to be active until a
certain time within the next 24 hours,
scroll to the profile, select Options >
Timed, and set the time. When the time
expires, the profile changes back to the
previously active non-timed profile.
When the profile is timed, is
displayed in the home screen. The
Offline profile cannot be timed.
To create a new profile, select
Options > Create new.
Music folder
Music player
Music player supports file formats such
as AAC, AAC+, eAAC+, MP3, and WMA.
Music player does not necessarily
support all features of a file format or all
the variations of file formats.
You can also use Music player to listen
to podcasts. Podcasting is a method for
delivering audio or video content over
the internet using either RSS or Atom
technologies for playback on mobile
devices and computers.
56 Music folder
![](/img.php?id=1307662&img=bg39.png)
Play a song or a podcast
To open Music player, select Menu >
Music > Music player.
You may have to refresh the music and
podcast libraries after you have updated
the song or podcast selection in your
device. To add all available items to the
library, select Options > Refresh
library.
To play a song or a podcast:
1 Select categories to navigate to the
song or podcasts you want to hear.
2 To play an item, select the item from
the list.
To pause playback, tap ; to resume,
tap .
To fast-forward or rewind, tap and hold
or .
To go to the next item, tap . To return
to the beginning of the item, tap . To
skip to the previous item, tap again
within 2 seconds after a song or podcast
has started.
To turn random play ( ) on or off,
select Options > Shuffle play.
Music folder 57
![](/img.php?id=1307662&img=bg3a.png)
To repeat the current item ( ), all
items ( ), or to turn repeat off, select
Options > Repeat.
If you play podcasts, shuffle and repeat
are automatically turned off.
To adjust the volume, press the volume
key.
To modify the tone of the music
playback, select Options > Equaliser.
To modify the balance and stereo image
or to enhance the bass, select
Options > Settings.
To return to the home screen and leave
the player playing in the background,
press the end key.
To close the player, select Options >
Exit.
Playlists
Select Menu > Music > Music player
and Playlists.
To view details of the playlist, select
Options > Playlist details.
Create a playlist
1 Select Options > New playlist.
2 Enter a name for the playlist, and
select OK.
3 To add songs now, select Yes; or to
add the songs later, select No.
4 If you select Yes, select artists to
find the songs you want to add to
the playlist. Select Add to add items.
To show the song list under an artist
title, select Expand. To hide the
song list, select Collapse.
5 When you have made your
selections, select Done.
The playlist is saved to the mass
memory of your device.
To add more songs later, when viewing
the playlist, select Options > Add
songs.
To add songs, albums, artists, genres,
and composers to a playlist from the
different views of the music menu,
select an item and Options > Add to
playlist > Saved playlist or New
playlist.
To remove a song from a playlist, select
Options > Remove.
58 Music folder
![](/img.php?id=1307662&img=bg3b.png)
This does not delete the song from the
device; it only removes it from the
playlist.
To reorder songs in a playlist, select the
song you want to move, and Options >
Reorder playlist.
To grab a song and drop it to a new
position, select the song in the desired
position and Drop.
To finish reordering the playlist, select
Done.
Podcasts
Select Menu > Music > Music player
and Podcasts.
The podcast menu displays the podcasts
available in the device.
Podcast episodes have three states:
never played, partially played, and
completely played. If an episode is
partially played, it plays from the last
playback position the next time it is
played. If an episode has never been
played or completely played, it plays
from the beginning.
Transfer music from a computer
You can use the following methods to
transfer music:
•To install Nokia Ovi Player to
manage and organise your music
files, download the PC software
from www.ovi.com, and follow the
instructions.
•To view your device on a computer
as a mass memory device where
you can transfer any data files,
make the connection with a
compatible USB data cable or
Bluetooth connectivity. If you are
using a USB data cable, select Mass
storage as the connection mode.
•To synchronise music with
Windows Media Player, connect a
compatible USB data cable, and
select Media transfer as the
connection mode.
To change the default USB connection
mode, select Menu > Settings and
Connectivity > USB > USB connection
mode.
Nokia Ovi Player
With Nokia Ovi Player, you can
download music from Ovi Music,
transfer music to your device from your
Music folder 59
![](/img.php?id=1307662&img=bg3c.png)
computer, and manage and organise
your music files. To download Nokia Ovi
Player, go to www.ovi.com.
You need an internet connection to
download music.
Download, transfer, and manage
music between your computer and
mobile device
1 Open Nokia Ovi Player on your
computer. If you want to download
music, register or sign in.
2 Connect your device to the
computer with a compatible USB
data cable.
3 To select the connection mode on
your device, select Media transfer.
Ovi Music
With Ovi Music (network service), you
can search, browse, and download
music to your device.
The Ovi Music service will eventually
replace the Music store.
Select Menu > Music > Music store.
To download music, you first need to
register for the service.
Downloading music may involve
additional costs and the transmission of
large amounts of data (network
service). For information about data
transmission charges, contact your
network service provider.
Tip: It may be faster to download music
to your PC first, and then use a
compatible USB data cable to copy it to
your device.
To access Ovi Music, you must have a
valid internet access point in the device.
You may be asked to select the access
point to use when connecting to Ovi
Music.
Select the access point
Select Default access point.
The availability and appearance of Ovi
Music settings may vary. The settings
may also be predefined and you may not
be able to modify them. When browsing
Ovi Music, you may be able to modify the
settings.
Modify Ovi Music settings
Select Options > Settings.
Ovi Music is not available for all
countries or regions.
60 Music folder
![](/img.php?id=1307662&img=bg3d.png)
Nokia Podcasting
With the Nokia Podcasting application
(network service), you can search,
discover, subscribe to, and download
podcasts over the air, and play, manage,
and share audio and video podcasts
with your device.
Podcasting settings
To open Nokia Podcasting, select
Menu > Music > Podcasting.
Before using Nokia Podcasting, define
your connection and download
settings.
Check with your service provider for
terms and data service fees before using
different connection methods. For
example, a flat rate data plan can allow
large data transfers for one monthly fee.
Connection settings
To edit the connection settings, select
Options > Settings > Connection and
from the following:
Default access point — Select the
access point to define your connection
to the internet.
Search service URL — Define the
podcast search service URL to be used in
searches.
Download settings
To edit the download settings, select
Options > Settings > Download and
from the following:
Save to — Define the location where
you want to save your podcasts. For
optimal use of storage space, mass
memory is recommended.
Update interval — Define how often
podcasts are updated.
Next update date — Define the date
of the next automatic update.
Next update time — Define the time
of the next automatic update.
Automatic updates only occur if a
specific default access point is selected
and Nokia Podcasting is running. If
Nokia Podcasting is not running, the
automatic updates are not activated.
Download limit (%) — Define the
percentage of memory that is reserved
for podcast downloads.
If limit exceeds — Define what to do
if the downloads exceed the download
limit.
Setting the application to retrieve
podcasts automatically may involve the
transmission of large amounts of data
through your service provider’s
network. Contact your service provider
Music folder 61
![](/img.php?id=1307662&img=bg3e.png)
for information about data
transmission charges.
To restore the default settings, select
Options > Restore default in the
settings view.
Downloads
After you have subscribed to a podcast,
from directories, search, or by entering
a web address, you can manage,
download, and play episodes in
Podcasts.
To see the podcasts you have subscribed
to, select Podcasting > Podcasts.
To see individual episode titles (an
episode is a particular media file of a
podcast), select the podcast title.
To start a download, select the episode
title.
To download or to continue to
download selected or marked episodes,
select Options > Download. You can
download multiple episodes at the
same time.
To play a portion of a podcast during
download or after partial downloading,
select the podcast and Options > Play
preview.
Fully downloaded podcasts can be
found in the Podcasts folder, but are not
shown until the library is refreshed.
Radio
Listen to the radio
Select Menu > Music > Radio.
The FM radio depends on an antenna
other than the wireless device antenna.
A compatible headset or accessory
needs to be attached to the device for
the FM radio to function properly.
When you open the application for the
first time, you can choose to have the
local stations tuned automatically.
To listen to the next or the previous
station, select or .
To mute the radio, select .
Select Options and from the following:
Stations — View saved radio stations.
Tune stations — Search for radio
stations.
Save — Save the radio station.
62 Music folder
![](/img.php?id=1307662&img=bg3f.png)
Activate loudspeaker or Deactivate
loudspeaker — Turn the loudspeaker
on or off.
Alternative frequencies — Select
whether you want the radio to
automatically search for a better RDS
frequency for the station if the
frequency level becomes low.
Play in background — Return to the
home screen with the radio playing in
the background.
Manage radio stations
Select Menu > Music > Radio.
To listen to saved stations, select
Options > Stations, and select a
station from the list.
To remove or rename a station, select
Options > Stations > Options >
Delete or Rename.
To set the desired frequency manually,
select Options > Tune stations >
Options > Manual tuning.
Camera
Your device supports an image capture
resolution of 1600x1200 pixels. The
image resolution in this guide may
appear different.
Activate the camera
To activate the camera, press the
capture key.
Image capture
Still image controls and indicators
The still image viewfinder displays the
following:
1Mode indicator
2Zoom slider. To activate or
deactivate the zoom slider, tap the
screen.
3Capture icon
4Capture settings
5Battery charge level indicator
6Image resolution indicator
7Image counter (the estimated
number of images you can capture
using the current image quality
setting and available memory)
Camera 63
![](/img.php?id=1307662&img=bg40.png)
8Memory in use. Depending on the
setup of your device, there are the
following options: device memory
(), memory card ( ), or mass
memory ( ).
9Scene modes
Capture and recording settings
To open the capture and recording
settings view before capturing an
image or recording a video clip, select
Menu > Applications > Camera and
.
The capture and recording settings view
provides you with shortcuts to different
items and settings before capturing an
image or recording a video clip.
The capture and recording settings
return to the default settings after you
close the camera.
Select from the following:
— Select the scene.
or
—
Switch between video and
image mode.
or — Show or hide the
viewfinder grid (images
only).
— Activate the self-timer
(images only).
— Activate sequence mode
(images only).
— Open Gallery.
Image settings:
— Select a colour effect.
— Adjust the white balance. Select
the current lighting conditions.
This allows the camera to
reproduce colours more
accurately.
— Adjust the exposure
compensation (images only). If
you are shooting a dark subject
against a very light
background, such as snow,
adjust the exposure to +1 or +2
to compensate for the
background brightness. For
light subjects against a dark
background, use -1 or -2.
— Adjust light sensitivity (images
only). Increase the light
sensitivity in low light
conditions to avoid too dark
images and blurry images.
Increasing the light sensitivity
may also increase the image
noise.
— Adjust contrast (images only).
Adjust the difference between
the lightest and darkest parts of
the image.
64 Camera
![](/img.php?id=1307662&img=bg41.png)
— Adjust sharpness (images only).
The screen display changes to match the
settings you define.
The capture settings are shooting-mode
specific. Switching between the modes
does not reset the defined settings.
If you select a new scene, the capture
settings are replaced by the selected
scene. You can change the capture
settings after selecting a scene if
needed.
Saving the captured image may take
longer if you change the zoom, lighting,
or colour settings.
Capture images
When capturing an image, note the
following:
•Use both hands to keep the camera
still.
•The quality of a digitally zoomed
image is lower than that of a non-
zoomed image.
•The camera goes into battery saving
mode if there are no actions for
about a minute. To continue
capturing images, select Continue.
1 To switch from video mode to
image mode, if necessary, select
> .
2 To capture an image, press the
capture key. Do not move the device
before the image is saved and the
final image displayed.
To zoom in or out when capturing an
image, use the zoom slider.
To leave the camera open in the
background and use other applications,
press the menu key. To return to the
camera, press and hold the capture key.
After capturing an image
After you capture an image, select from
the following options (available only if
you have selected Options >
Settings > Show captured image >
Yes):
— Send the image in a multimedia
or e-mail message, or through
connection methods such as Bluetooth
connectivity.
— Upload the image to a compatible
online album.
Delete — Delete the image.
Camera 65
![](/img.php?id=1307662&img=bg42.png)
To use the image as wallpaper in the
home screen, select Options > Use
image > Set as wallpaper.
To set the image as a default call image
to be used for every call situation, select
Options > Use image > Set as call
image.
To assign the image to a contact,
Options > Use image > Assign to
contact.
To return to the viewfinder to capture a
new image, press the capture key.
Scenes
A scene helps you to find the right colour
and lighting settings for the current
environment. The settings of each scene
have been set according to a certain
style or environment.
The default scene in image mode is
Automatic, and in video mode
Automatic (both indicated with ).
To change the scene, select > Scene
modes and a scene.
To make your own scene suitable for a
certain environment, scroll to User
defined , and select Change. In the
user defined scene you can adjust
different lighting and colour settings.
To copy the settings of another scene,
select Based on scene mode and the
desired scene. To save the changes and
return to the scenes list, select Back. To
activate your own scene, select User
defined > Select.
You in the image — self-timer
Use the self-timer to delay the capture
so that you can include yourself in the
image.
To set the self-timer delay, select >
, and the delay needed before the
image is captured.
To activate the self-timer, select
Activate. The stopwatch icon on the
screen blinks and the remaining time is
displayed when the timer is running.
The camera captures the image after the
selected delay elapses.
To switch off the self-timer, select >
> .
Tip: Select 2 seconds to keep your hand
steady when capturing an image.
66 Camera
![](/img.php?id=1307662&img=bg43.png)
Capture images in a sequence
Select Menu > Applications >
Camera.
To start capturing images in a quick
sequence, select Menu >
Applications > Camera and >
Sequence. To close the settings
window, tap the screen above the
window. Press and hold the capture key.
The device captures images until you
release the key or until the memory runs
out. If you press the capture key briefly,
the device captures 18 images in a
sequence.
The captured images are displayed in a
grid. To view an image, select the
image. To return to the sequence mode
viewfinder, press the capture key.
You can also use sequence mode with
the self-timer.
To deactivate sequence mode, select
> Single shot.
Video recording
Record videos
1 To switch from image mode to
video mode, if necessary, select
and the video mode .
2 To start recording, press the capture
key or tap . A red record icon is
displayed, and a tone sounds.
3 To pause recording at any time,
select Pause. To resume, select
Continue. If you pause recording
and do not press any key within one
minute, the recording stops.
To zoom in or out of the subject, use
the zoom key in your device.
4 To stop recording, press the capture
key. The video clip is automatically
saved in Gallery. The maximum
length of a video clip is
approximately 30 seconds with
sharing quality and 90 minutes with
other quality settings.
Video recording controls and
indicators
The video viewfinder displays the
following:
1Mode indicator
2Audio mute indicator
Camera 67
![](/img.php?id=1307662&img=bg44.png)
3Record icon
4Recording settings
5Battery charge level indicator
6Video quality indicator. To modify
this setting, select Options >
Settings > Video quality.
7Video clip file type
8Available recording time. When you
are recording, the current video
length indicator also shows the
elapsed and remaining time.
9The location to which the video clip
is saved
10 Scene modes
After recording a video clip
After you record a video clip, select from
the following options (available only if
you have selected Options >
Settings > Show last captured
video > Yes):
Play — Play the video clip you just
recorded.
— Upload the image to a compatible
online album.
Delete — Delete the video clip.
To return to the viewfinder to record a
new video clip, press the capture key.
Gallery
To store and organise your images,
video clips, sound clips, and streaming
links, select Menu > Gallery.
Tip: To access the images and video
clips view quickly, tap the media key
() to open the media bar, and select
.
View and organise files
Select Menu > Gallery and from the
following:
Images & videos — View images in
the image viewer and videos in Video
centre.
Songs — Open Music player.
Sound clips — Listen to sound clips.
Other media — View
presentations.
You can browse, open, and create
folders; and mark, copy, move, and add
items to folders.
To open a file, select a file from the list.
Video clips and files with the .ram file
extension open and play in Video centre,
and music and sound clips in Music
player.
68 Gallery
![](/img.php?id=1307662&img=bg45.png)
View images and videos
Select Menu > Gallery and Images &
videos.
The images, video clips, and folders are
displayed in a loop and ordered by date
and time. To browse the files one by
one, swipe left or right. To browse files
in groups, swipe up or down.
To open a file, select a file from the list.
To zoom in an image, use the volume
key in your device.
To print your images on a compatible
printer, select Options > Print.
Select Options and from the following:
Edit — Edit a video clip or an image.
Use file — To use the image as
wallpaper in the home screen, select Set
as wallpaper.
To set the image as a generic call image,
select Set as call image.
To set the image as a call image for a
contact, select Assign to contact.
To set the video clip as a ringing tone,
select As ringing tone.
To assign the video clip as a ringing tone
for a contact, select Assign to contact.
The toolbar helps you select frequently
used functions with images, video clips,
and folders.
From the toolbar, select from the
following:
Send — Send the selected image
or video clip.
Edit — Edit the selected image or
video clip.
Delete — Delete the selected image
or video clip.
Organise images and videos
Select Menu > Gallery and Images &
videos > Options and from the
following:
Folder options — To move files to
folders, select Move to folder. To create
a new folder, select New folder.
Organise — To copy files to folders,
select Copy. To move files to folders,
select Move.
View by — View files by date, title, or
size.
Gallery 69
![](/img.php?id=1307662&img=bg46.png)
Share online
About Share online
Select Menu > Internet > Share
online.
With Share online (network service),
you can post your images, video clips,
and sound clips from your device to
compatible online sharing services,
such as albums and blogs. You can also
view and send comments to the posts in
these services, and download content to
your compatible Nokia device.
The supported content types and the
availability of the Share online service
may vary.
Subscribe to services
Select Menu > Internet > Share
online.
To subscribe to an online sharing
service, go to the service provider's
website, and check that your Nokia
device is compatible with the service.
Create an account as instructed on the
website. You receive a user name and
password needed to set up your device
with the account.
1 To activate a service, open the Share
online application in your device,
select a service and Options >
Activate.
2 Allow the device to create a network
connection. If you are prompted for
an internet access point, select one
from the list.
3 Sign in to your account as instructed
on the service provider’s website.
For the availability and cost of the third
party services and data transfer costs,
contact your service provider or the
relevant third party.
Manage your accounts
To view your accounts, select
Options > Settings > My accounts.
To create a new account, select
Options > Add new account.
To change your user name or password
for an account, select the account and
Options > Open.
To set the account as the default when
sending posts from your device, select
Options > Set as default.
70 Share online
![](/img.php?id=1307662&img=bg47.png)
To remove an account, select the
account and Options > Delete.
Create a post
Select Menu > Internet > Share
online.
To post media files to a service, go to a
service, and select Options > New
upload. If the online sharing service
provides channels for posting files,
select the desired channel.
To add an image, video clip, or sound
clip to the post, select Options >
Insert.
Enter a title or description for the post,
if available.
To add tags to the post, select Tags:.
To enable the posting of location
information contained in the file, select
Location:.
To send the post to the service, select
Options > Upload.
Post files from Gallery
You can post your files from Gallery to
an online sharing service.
1 Select Menu > Gallery and the files
you want to post.
2 Select Options > Send > Upload
and the desired account.
3 Edit your post as required.
4 Select Options > Upload.
Nokia Video Centre
With Nokia Video Centre (network
service), you can download and stream
video clips over the air from compatible
internet video services using a packet
data connection. You can also transfer
video clips from a compatible PC to your
device and view them in Video centre.
Using packet data access points to
download videos may involve the
transmission of large amounts of data
through your service provider's
network. Contact your service provider
for information about data
transmission charges.
Your device may have predefined
services.
Service providers may provide free
content or charge a fee. Check the
pricing in the service or from the service
provider.
Nokia Video Centre 71
![](/img.php?id=1307662&img=bg48.png)
View and download video clips
Connect to video services
1 Select Menu > Applications >
Video centre.
2 To connect to a service to install
video services, select Add new
services and the desired video
service from the service catalogue.
View a video clip
To browse the content of installed video
services, select Video feeds.
The content of some video services is
divided into categories. To browse
video clips, select a category.
To search for a video clip in the service,
select Video search. Search may not be
available in all services.
To view information about the selected
video clip, select Options > Video
details.
Some video clips can be streamed over
the air, but others must be first
downloaded to your device. To
download a video clip, select
Options > Download. Downloads
continue in the background if you exit
the application. The downloaded video
clips are saved in My videos.
To stream a video clip or view a
downloaded one, select Options >
Play.
To adjust the volume, use the volume
key.
Warning:
Continuous exposure to high volume
may damage your hearing. Listen to
music at a moderate level, and do not
hold the device near your ear when the
loudspeaker is in use.
Schedule downloads
To schedule an automatic download for
video clips in a service, select a category
and Options > Schedule downloads.
Video centre automatically downloads
new video clips daily at the time you
define.
To cancel scheduled downloads for a
category, select Manual download as
the download method.
Video feeds
Select Menu > Applications > Video
centre.
72 Nokia Video Centre
![](/img.php?id=1307662&img=bg49.png)
The content of the installed video
services is distributed using RSS feeds.
To view and manage your feeds, select
Video feeds.
Select Options and from the following:
Feed subscriptions — Check your
current feed subscriptions.
Feed details — View information
about a video.
Add feed — Subscribe to new feeds.
Select Via Video directory to select a
feed from the services in the video
directory.
Refresh feeds — Refresh the content
of all feeds.
Manage account — Manage your
account options for a particular feed, if
available.
To view the videos available in a feed,
select a feed from the list.
My videos
My videos is a storage place for all
videos. You can list downloaded videos
and video clips recorded with the device
camera in separate views.
To adjust the volume, press the volume
key.
Select Options and from the following:
Resume download — Resume a
paused or failed download.
Cancel download — Cancel a
download.
Video details — View information
about a video clip.
Find — Find a video clip. Enter a search
text that matches the file name.
Memory status — View the amount of
free and used memory.
Sort by — Sort video clips. Select the
desired category.
Move and copy — Move or copy video
clips. Select Copy or Move and the
desired location.
Transfer videos from your PC
Transfer your own video clips from
compatible devices using a compatible
USB data cable. Only video clips which
are in a format supported by your device
are shown.
1 To view your device on a PC as a
mass memory device where you can
transfer any data files, connect
using a USB data cable.
2 Select Mass storage as the
connection mode.
Nokia Video Centre 73
![](/img.php?id=1307662&img=bg4a.png)
3 Select the video clips you want to
copy from your PC.
4 Transfer the video clips to E:\My
Videos in the mass memory of your
device, or to F:\My Videos in a
compatible memory card, if
available.
The transferred video clips appear
in the My videos folder.
Video centre settings
In the Video centre main view, select
Options > Settings and from the
following:
Video service selection — Select the
video services that you want to appear
in Video centre. You can also add,
remove, edit, and view the details of a
video service. You cannot edit
preinstalled video services.
Connection settings — To define the
network destination used for the
network connection, select Network
connection. To select the connection
manually each time Video centre opens
a network connection, select Always
ask.
To set GPRS connection on or off, select
Confirm GPRS usage.
To set roaming on or off, select Confirm
roaming.
Parental control — Set an age limit to
videos. The required password is the
same as the device lock code. The
factory setting for the lock code is
12345. In video-on-demand services,
videos which have the same or a higher
age limit than you have set, are hidden.
Preferred memory — Select whether
downloaded videos are saved in the
device memory or in the mass memory.
Thumbnails — Select whether to
download and view thumbnail images
in video feeds.
Web browser
With the web browser, you can view
hypertext markup language (HTML)
pages on the web as originally designed
(network service). You can also browse
web pages that are designed specifically
for mobile devices, and use extensible
hypertext markup language (XHTML), or
the wireless markup language (WML).
To browse the web, you need to have an
internet access point defined in your
device.
Tip: To open the browser, select the
media key ( ) to open the media bar,
and select .
74 Web browser
![](/img.php?id=1307662&img=bg4b.png)
Browse the web
Select Menu > Internet > Web.
To browse the web, select Go to web
address from the toolbar, and enter a
web address.
By default, the browser is in full screen
mode. To exit full screen mode, double-
tap the arrow icon in the bottom right
corner.
Some web pages may contain material,
such as graphics and sounds, that
requires a large amount of memory to
view. If your device runs out of memory
while loading such a web page, the
graphics on the page are not shown.
To browse web pages with graphics
disabled, to save memory and increase
the page loading speed, select
Options > Settings > Page > Load
content > Text only.
To enter a web address, select
Options > Go to > New web page.
To refresh the content of the web page,
select Options > Web page options >
Reload.
To save the current web page as a
bookmark, select Options > Web page
options > Save as bookmark.
To view snapshots of the web pages you
have visited during the current
browsing session, select Back (available
if History list is activated in the browser
settings and the current web page is not
the first web page you visit).
To prevent or allow the automatic
opening of multiple windows, select
Options > Web page options > Block
pop-ups or Allow pop-ups.
To zoom in on a web page, double-tap
the display.
Tip: To minimise the browser without
exiting the application or connection,
press the end key once.
Browser toolbar
The browser toolbar helps you select
frequently used functions of the
browser.
From the toolbar, select from the
following:
Web browser 75
![](/img.php?id=1307662&img=bg4c.png)
Expand toolbar — Expand the
toolbar to access more toolbar
functions.
Go to web address — Enter a new
web address.
Show zoom — Zoom in or out on
the web page.
To use the expanded toolbar, select
Expand toolbar and from the
following:
Go to feeds — View your current
feed subscriptions.
Full screen — Switch to the full
screen view.
Subsc. feeds — View a list of
available web feeds on the current web
page, and subscribe to a web feed.
Settings — Edit the settings.
Save bkmrk. — Save the current
web page as a bookmark.
Reload — Refresh the web page.
Overview — View an overview of the
current web page.
Homepage — Go to the homepage
(if defined in the settings).
Bookmarks — Open the bookmarks
view.
Find keywd. — Search on the
current web page.
Navigate pages
When you are browsing a web page that
contains a large amount of information,
you can use Page overview to view what
kind of information the web page
contains.
To see an overview of the current web
page, open the toolbar, and select
> .
Web feeds and blogs
Web feeds are XML files on web pages
that are used to share, for example, the
latest news headlines or blogs. Blogs or
weblogs are web diaries. It is common
to find web feeds on web, blog, and wiki
pages.
The web browser application
automatically detects if a web page
contains web feeds.
To subscribe to a web feed, select a feed
and Options > Subscribe to web
feeds.
76 Web browser
![](/img.php?id=1307662&img=bg4d.png)
To update a web feed, select a feed and
Options > Refresh. You can also
update web feeds from the Contacts bar.
To define how web feeds are updated,
select Options > Settings > Web
feeds.
Widgets
Your device supports widgets. Widgets
are small, downloadable web
applications that deliver multimedia,
news feeds, and other information, such
as weather reports, to your device.
Installed widgets appear as separate
applications in the Applications folder.
To find and download widgets, visit the
Ovi Store at store.ovi.com.
The default access point for widgets is
the same as in the web browser. When
active in the background, some widgets
may update information automatically
to your device.
Using widgets may involve the
transmission of large amounts of data
through your service provider's
network. For information about data
transmission charges, contact your
service provider.
Content search
Select Menu > Internet > Web.
To search for text within the current
web page, select Options > Find
keyword.
To go to the next match, from the
toolbar, select Find next.
To go to the previous match, from the
toolbar, select Find previous.
Bookmarks
Select Menu > Internet > Web.
Select Options > Go to > Bookmarks.
You can select web addresses from a list
or from a collection of bookmarks in the
Recently visited pages folder.
The toolbar helps you select frequently
used functions of the browser.
From the toolbar, select from the
following:
Add bookmark — Add a new
bookmark.
Go to web address — Enter a new
web address.
Delete — Delete a bookmark.
Web browser 77
![](/img.php?id=1307662&img=bg4e.png)
To go to a new web page, select
Options > Go to > New web page.
To send and add bookmarks, or to set a
bookmark as the homepage, select
Options > Bookmark options.
To edit, move, or delete bookmarks,
select Options > Bookmark
manager.
Empty the cache
The information or services you have
accessed are stored in the cache
memory of the device.
A cache is a memory location that is
used to store data temporarily. If you
have tried to access or have accessed
confidential information requiring
passwords, empty the cache after each
use.
To empty the cache, select Options >
Clear privacy data > Cache.
Connection security
If the security indicator ( ) is displayed
during a connection, the data
transmission between the device and
the internet gateway or server is
encrypted.
The security icon does not indicate that
the data transmission between the
gateway and the content server (where
the data is stored) is secure. The service
provider secures the data transmission
between the gateway and the content
server.
Security certificates may be required for
some services, such as banking services.
You are notified if the identity of the
server is not authentic or if you do not
have the correct security certificate in
your device. For more information,
contact your service provider.
Important: Even if the use of
certificates makes the risks involved in
remote connections and software
installation considerably smaller, they
must be used correctly in order to
benefit from increased security. The
existence of a certificate does not offer
any protection by itself; the certificate
manager must contain correct,
authentic, or trusted certificates for
increased security to be available.
Certificates have a restricted lifetime. If
"Expired certificate" or "Certificate not
valid yet" is shown, even if the
certificate should be valid, check that
the current date and time in your device
are correct.
78 Web browser
![](/img.php?id=1307662&img=bg4f.png)
Before changing any certificate settings,
you must make sure that you really trust
the owner of the certificate and that the
certificate really belongs to the listed
owner.
Connectivity
Your device offers several options to
connect to the internet or to another
compatible device or PC.
Data connections and access points
Your device supports packet data
connections (network service), such as
GPRS in the GSM network.
To establish a data connection, an
access point is required. You can define
different kinds of access points, such as
the following:
•MMS access point to send and
receive multimedia messages
•Internet access point (IAP) to send
and receive e-mail and connect to
the internet
Check the type of access point you need
with your service provider for the
service you want to access. For
availability and subscription to packet
data connection services, contact your
service provider.
Network settings
Select Menu > Settings and
Connectivity > Network.
Select from the following:
Operator selection — Select
Automatic to set the device to search
for and select one of the available
networks, or Manual to manually select
the network from a list. If the
connection to the manually selected
network is lost, the device sounds an
error tone and asks you to reselect a
network. The selected network must
have a roaming agreement with your
home network.
Cell info display — Set the device to
indicate when it is used in a cellular
network based on microcellular
network (MCN) technology and to
activate cell info reception.
Access points
Create a new access point
Select Menu > Settings and
Connectivity > Destinations.
You may receive access point settings in
a message from a service provider.
Some or all access points may be preset
for your device by your service provider,
and you may not be able to change,
create, edit, or remove them.
Connectivity 79
![](/img.php?id=1307662&img=bg50.png)
When you open one of the access point
groups ( , , , ), you can see the
access point types:
indicates a protected access
point
indicates a packet data access
point
To create a new access point, select
Access point.
The device asks to check for available
connections. After the search,
connections that are already available
are shown and can be shared by a new
access point.
If you skip this step, you are asked to
select a connection method and to
define the settings needed.
To edit the settings of an access point,
open one of the access point groups,
and select an access point. Follow the
instructions from your service provider.
Connection name — Enter a name for
the connection.
Data bearer — Select the data
connection type.
Depending on the data connection you
select, only certain setting fields are
available. Fill in all fields marked with
Must be defined or with a red *. Other
fields can be left empty, unless your
service provider has instructed
otherwise.
To use a data connection, your service
provider must support this feature, and
if necessary, activate it for your SIM card.
Create access point groups
Select Menu > Settings and
Connectivity > Destinations.
Some applications allow you to use
access point groups for network
connections.
To avoid selecting a single access point
every time the device makes a network
connection, you can create a group that
contains various access points to
connect to that network and define the
order in which the access points are
used.
To create a new access point group,
select Options > Manage > New
destination.
To add access points to an access point
group, select the group and Options >
New access point. To copy an existing
access point from another group, select
80 Connectivity
![](/img.php?id=1307662&img=bg51.png)
the group, tap the relevant access point
if it is not already highlighted, and select
Options > Organise > Copy to other
dest..
To change the priority of an access point
within the group, select Options >
Organise > Change priority.
Packet data access points
Select Menu > Settings and
Connectivity > Destinations >
Access point, and follow the
instructions on the screen.
To edit a packet data access point, open
one of the access point groups, and
select an access point marked with .
Follow the instructions from your
service provider.
Select from the following:
Access point name — You obtain the
access point name from your service
provider.
User name — The user name may be
needed to make a data connection, and
is usually provided by your service
provider.
Prompt password — If you must enter
the password every time you log in to a
server, or if you do not want to save your
password in the device, select Yes.
Password — A password may be
needed to make a data connection and
is usually provided by your service
provider.
Authentication — Select Secure to
always send your password encrypted
or Normal to send your password
encrypted when possible.
Homepage — Depending on the access
point you are setting up, enter the web
address or the address of the
multimedia message centre.
Use access point — Select After
confirmation if you want the device to
ask for confirmation before the
connection using this access point is
created, or Automatically if you want
the device to connect to the destination
using this access point automatically.
Select Options > Advanced settings
and from the following:
Network type — Select the internet
protocol type to transfer data to and
from your device. The other settings
depend on the selected network type.
Phone IP address (for IPv4
only) — Enter the IP address of your
device.
Connectivity 81
![](/img.php?id=1307662&img=bg52.png)
DNS addresses — Enter the IP
addresses of the primary and secondary
DNS servers, if required by your service
provider. To obtain these addresses,
contact your internet service provider.
Proxy server address — Enter the
address of the proxy server.
Proxy port number — Enter the port
number of the proxy server.
Active data connections
Select Menu > Settings and
Connectivity > Connection mgr..
In the active data connections view, you
can see open data connections:
data calls
packet data connections
To end a connection, select Options >
Disconnect.
To end all open connections, select
Options > Disconnect all.
To view the details of a connection,
select Options > Details.
Synchronisation
Select Menu > Settings and
Connectivity > Data transfer > Sync.
The Synchronisation application
enables you to synchronise your notes,
calendar entries, text and multimedia
messages, browser bookmarks, or
contacts with various compatible
applications on a compatible computer
or on the internet.
You may receive synchronisation
settings in a special message from your
service provider.
A synchronisation profile contains the
necessary settings for synchronisation.
When you open the application, the
default or previously used
synchronisation profile is displayed. To
modify the profile, tap a
synchronisation item to include it in the
profile or to leave it out.
To manage synchronisation profiles,
select Options
and the desired option.
To synchronise data, select Options >
Synchronise.
To cancel synchronisation before it
finishes, select Cancel.
82 Connectivity
![](/img.php?id=1307662&img=bg53.png)
Bluetooth connectivity
About Bluetooth connectivity
With Bluetooth connectivity, you can
make a wireless connection to other
compatible devices, such as mobile
devices, computers, headsets, and car
kits.
You can use the connection to send
images, video and sound clips, and
notes, transfer files from your
compatible PC, and print images with a
compatible printer.
Since devices with Bluetooth wireless
technology communicate using radio
waves, they do not need to be in direct
line-of-sight. However, they must be
within 10 metres (33 feet) of each other,
although the connection may be subject
to interference from obstructions such
as walls or from other electronic
devices.
This device is compliant with Bluetooth
Specification 2.0 + EDR supporting the
following profiles: advanced audio
distribution, audio/video remote
control, basic imaging, device
identification, dial-up networking, file
transfer, generic audio/video
distribution, hands-free, headset,
object push, phone book access, SIM
access, and stereo audio streaming. To
ensure interoperability between other
devices supporting Bluetooth
technology, use Nokia approved
accessories for this model. Check with
the manufacturers of other devices to
determine their compatibility with this
device.
Features using Bluetooth technology
increase the demand on battery power
and reduce the battery life.
When the device is locked, only
connections to authorised devices are
possible.
Settings
Select Menu > Settings and
Connectivity > Bluetooth.
When you open the application for the
first time, you are asked to define a
name for your device. You can change
the name later.
Select from the following:
Bluetooth — Turn Bluetooth
connectivity on or off.
My phone's visibility — To allow your
device to be found by other devices with
Bluetooth wireless technology, select
Shown to all. To set a time period after
which the visibility is set from shown to
hidden, select Set visibility period. To
Connectivity 83
![](/img.php?id=1307662&img=bg54.png)
hide your device from other devices,
select Hidden.
My phone's name — Edit the name
shown to other devices with Bluetooth
wireless technology.
Remote SIM mode — Enable or disable
another device, such as a compatible car
kit accessory, to use the SIM card in your
device to connect to the network.
Security tips
Select Menu > Settings and
Connectivity > Bluetooth.
When you are not using Bluetooth
connectivity, to control who can find
your device and connect to it, select
Bluetooth > Off or My phone's
visibility > Hidden. Deactivating
Bluetooth connectivity does not affect
other functions of the device.
Do not pair with or accept connection
requests from an unknown device. This
helps to protect your device from
harmful content. Operating the device
in hidden mode is a safer way to avoid
malicious software.
Send data using Bluetooth
connectivity
Several Bluetooth connections can be
active at a time. For example, if you are
connected to a compatible headset, you
can also transfer files to another
compatible device at the same time.
1 Open the application where the
item you want to send is stored.
2 Tap an item, and select Options >
Send > Via Bluetooth.
Devices with Bluetooth wireless
technology that are within range
are displayed. Device icons are as
follows:
computer
phone
audio or video device
other device
To interrupt the search, select
Stop.
3 Select the device with which you
want to connect.
4 If the other device requires pairing
before data can be transmitted, a
tone sounds, and you are asked to
enter a passcode. The same
passcode must be entered in both
devices.
84 Connectivity
![](/img.php?id=1307662&img=bg55.png)
When the connection is established,
Sending data is displayed.
Tip: When searching for devices, some
devices may show only the unique
address (device address). To find the
unique address of your device, enter
*#2820#.
Pair devices
Select Menu > Settings and
Connectivity > Bluetooth.
To pair with compatible devices and
view your paired devices, open the
Paired devices tab.
Before pairing, create your own
passcode (1 to 16 digits), and agree with
the owner of the other device to use the
same code. Devices that do not have a
user interface have a factory-set
passcode. The passcode is used only
once.
1To pair with a device, select
Options > New paired device.
Devices that are within range are
displayed.
2 Select the device, and enter the
passcode. The same passcode must
be entered on the other device, as
well.
3 Some audio accessories connect
automatically to your device after
pairing. Otherwise, to connect to an
accessory, select Options >
Connect to audio device.
Paired devices are indicated by in the
device search.
To set a device as authorised or
unauthorised, select from the
following:
Set as authorised — Connections
between your device and the
authorised device can be made without
your knowledge. You will not be asked
for authorisation or acceptance
separately. Use this status only for your
own devices, such as your compatible
headset or PC, or devices that belong to
someone you trust. indicates
authorised devices in the paired devices
view.
Set as unauthorised — Connection
requests from this device must be
accepted separately every time.
To cancel a pairing with a device, select
Options > Delete.
To cancel all pairings, select Options >
Delete all.
Connectivity 85
![](/img.php?id=1307662&img=bg56.png)
Receive data using Bluetooth
connectivity
When you receive data through
Bluetooth connectivity, a tone sounds,
and you are asked if you want to accept
the message. If you accept, is
displayed, and the item is placed in the
Inbox folder in Messaging. Messages
received through Bluetooth
connectivity are indicated by .
Block devices
Select Menu > Settings and
Connectivity > Bluetooth.
To block a device from establishing a
Bluetooth connection to your device,
open the Paired devices tab.
Tap a device you want to block, if it is
not already highlighted, and select
Options > Block.
To unblock a device, open the Blocked
devices tab, tap a device, if it is not
already highlighted, and select
Options > Delete.
To unblock all blocked devices, select
Options > Delete all.
If you reject a pairing request from
another device, you are asked if you
want to block all future connection
requests from this device. If you accept
the query, the remote device is added to
the list of blocked devices.
Remote SIM mode
Select Menu > Settings and
Connectivity > Bluetooth.
Before the remote SIM mode can be
activated, the two devices must be
paired and the pairing initiated from
the other device. When pairing, use a
16-digit passcode, and set the other
device as authorised.
To use the remote SIM mode with a
compatible car kit accessory, activate
Bluetooth connectivity, and enable the
use of the remote SIM mode with your
device.
Activate the remote SIM mode from the
other device.
When the remote SIM mode is on in your
device, Remote SIM mode is displayed
in the home screen. The connection to
the wireless network is turned off, as
indicated by in the signal strength
indicator area, and you cannot use SIM
card services or features requiring
cellular network coverage.
86 Connectivity
![](/img.php?id=1307662&img=bg57.png)
When the wireless device is in the
remote SIM mode, you can only use a
compatible connected accessory, such
as a car kit, to make or receive calls. Your
wireless device will not make any calls
while in this mode, except to the
emergency numbers programmed into
your device. To make calls from your
device, you must leave the remote SIM
mode. If the device is locked, enter the
lock code to unlock it.
To leave the remote SIM mode, press the
power key, and select Exit remote SIM
mode.
USB
Select Menu > Settings and
Connectivity > USB.
To have the device ask the purpose of
the connection each time a compatible
data cable is connected, select Ask on
connection > Yes.
If the Ask on connection option is
deactivated or you want to change the
mode during an active connection,
select USB connection mode and from
the following:
PC Suite — Use Nokia PC applications
such as Nokia Ovi Suite, and Nokia
Software Updater.
Use Nokia PC applications such as Nokia
PC suite, and Nokia Software Updater.
Connectivity 87
![](/img.php?id=1307662&img=bg58.png)
Mass storage — Transfer data
between your device and a compatible
PC.
Image transfer — Print images with a
compatible printer.
Media transfer — Synchronise music
with Nokia Ovi Player or Windows Media
Player.
PC connections
You can use your mobile device with a
variety of compatible PC connectivity
and data communications applications.
With Nokia Ovi Suite you can, for
example, transfer files and images
between your device and a compatible
computer.
To use Ovi Suite with USB connection
mode, select PC Suite mode.
For more information about Ovi Suite,
see the support area at www.ovi.com.
Administrative settings
Select Menu > Settings and
Connectivity > Admin. settings.
To set the online time for the data call
connection, select Data call. The data
call settings affect all access points that
use a GSM data call.
Packet data settings
Select Menu > Settings and
Connectivity > Admin. settings >
Packet data.
The packet data settings affect all access
points using a packet data connection.
Select from the following:
Packet data connection — If you
select When available and you are in a
network that supports packet data, the
device registers to the packet data
network. Starting an active packet data
connection (for example, to send and
receive e-mail) is quicker than if the
device establishes a packet data
connection when needed. If there is no
packet data coverage, the device
periodically tries to establish a packet
data connection. If you select When
needed, the device uses a packet data
connection only if you start an
application or action that needs it.
Access point — The access point name
is needed to use your device as a packet
data modem to a compatible computer.
SIP settings
Select Menu > Settings and
Connectivity > Admin. settings > SIP
settings.
88 Connectivity
![](/img.php?id=1307662&img=bg59.png)
Session Initiation Protocol (SIP) settings
are needed for certain network services
using SIP. You may receive the settings
in a special text message from your
service provider. You can view, delete,
or create these setting profiles in SIP
settings.
Access point name control
Select Menu > Settings and
Connectivity > Admin. settings >
APN control.
With the access point name control
service, you can restrict packet data
connections and allow your device to
use only certain packet data access
points.
This setting is only available if your SIM
card supports the access point control
service.
To turn the control service on or off, or
to change the allowed access points,
select Options and the corresponding
option. To change the options, you need
your PIN2 code. Contact your service
provider for the code.
Search
About Search
Select Menu > Internet > Search.
Search (network service) enables you to
use various internet-based search
services to find, for example, websites
and images. The content and
availability of the services may vary.
Start a search
Select Menu > Internet > Search.
To search the contents of your mobile
device, enter search terms in the search
field, or browse the content categories.
While you enter the search terms, the
results are organised into categories.
The most recently accessed results
appear at the top of the result list, if they
match your search terms.
To search for web pages on the internet,
select Search the Internet, a search
provider, and enter your search terms in
the search field. The search provider you
selected is set as your default internet
search provider.
If a default search provider is already
set, select it to start a search, or select
Search 89
![](/img.php?id=1307662&img=bg5a.png)
More search services to use another
search provider.
To change the default service provider,
select Options > Select service.
To change the country or region setting
to find more search providers, select
Options > Settings > Country or
region.
Other applications
Clock
Set time and date
Select Menu > Applications > Clock.
Select Options > Settings and from the
following:
Time — Set the time.
Date — Set the date.
Automatic time update — Set the
network to automatically update the
time, date, and time zone information
for your device (network service).
Alarm clock
Select Menu > Applications > Clock.
Set a new alarm
1 Select New alarm.
2 Set the alarm time.
3 Select Repeat to set whether and
when the alarm is repeated.
4 Select Done.
View your alarms
Select Alarms. indicates an active
alarm. indicates a repeated alarm.
Remove an alarm
Select Alarms, go to the alarm, and
select Options > Remove alarm.
Stop the alarm
Select Stop. If your device is switched
off when an alarm expires, your device
switches itself on and starts sounding
the alarm tone.
Set the alarm to snooze
Select Snooze.
Define the snooze time
Select Options > Settings > Alarm
snooze time.
Change the alarm tone
Select Options > Settings > Clock
alarm tone.
World clock
With the world clock, you can view the
current time in different locations.
90 Other applications
![](/img.php?id=1307662&img=bg5b.png)
Select Menu > Applications > Clock.
View the time
Select World clock.
Add locations to the list
Select Options > Add location.
Set your current location
Go to a location, and select Options >
Set as current location. The time in
your device is changed according to the
selected location. Ensure that the time
is correct and matches your time zone.
Calendar
To open the calendar, select Menu >
Calendar.
Calendar views
To switch between the month, week,
day, and to-do note views, select
Options > Change view and the
desired view.
To change the starting day of the week
or the view that is displayed when you
open the calendar, or to modify
calendar alarm settings, select
Options > Settings.
To go to a certain date, select
Options > Go to date.
Calendar toolbar
Select Menu > Calendar.
From the calendar toolbar, select from
the following:
Next view — Select the month view.
Next view — Select the week view.
Next view — Select the day view.
Next view — Select the to-do view.
New meeting — Add a new
meeting reminder.
New to-do note — Add a new to-do
note.
File manager
About File manager
Select Menu > Applications >
Office > File mgr..
With File manager, you can browse,
manage, and open files on your device
or a compatible external drive.
Find and organise files
Select Menu > Applications >
Office > File mgr..
Other applications 91
![](/img.php?id=1307662&img=bg5c.png)
Search for a file
Select Options > Find. Enter search text
that matches the file name.
Move and copy files and folders
Select Options > Organise and the
desired option.
Sort files
Select Options > Sort by and the
desired category.
Format the mass memory
1 Select Menu > Applications >
Office > File mgr..
2 Select Options > Format mass
memory. Do not format the mass
memory using PC software because
it may cause degraded
performance.
When the mass memory is reformatted,
all data in the memory is permanently
deleted. Back up data you want to keep
before formatting the mass memory.
You can use Nokia PC Suite to back up
data to a compatible computer. Digital
rights management (DRM) technologies
may prevent some backup data from
being restored. For more information
about DRM used for your content,
contact your service provider.
When the mass memory is reformatted,
all data in the memory is permanently
deleted. Back up data you want to keep
before formatting the mass memory.
You can use Nokia Ovi Suite to back up
data to a compatible computer. Digital
rights management (DRM) technologies
may prevent some backup data from
being restored. For more information
about DRM used for your content,
contact your service provider.
Formatting does not guarantee that all
confidential data stored in the device
mass memory is permanently
destroyed. Standard formatting only
marks the formatted area as available
space and deletes the address to find
the files again. The recovery of
formatted or even overwritten data
may still be possible with special
recovery tools and software.
Application manager
About Application manager
Select Menu > Settings and
Application mgr..
With Application manager, you can see
the software packages installed in your
device. You can view details of installed
applications, remove applications, and
define installation settings.
92 Other applications
![](/img.php?id=1307662&img=bg5d.png)
You can install the following types of
applications and software:
•JME applications based on Java™
technology with .jad or .jar file
extensions
•Other applications and software
suitable for the Symbian operating
system with .sis or .sisx file
extensions
•Widgets with the .wgz file
extension
Only install software that is compatible
with your device.
Install applications
You can transfer installation files to your
device from a compatible computer,
download them during browsing, or
receive them in a multimedia message,
as an e-mail attachment, or using other
connectivity methods, such as
Bluetooth connectivity.
You can use Nokia Application Installer
in Nokia PC Suite to install an application
to your device.
You can use Nokia Application Installer
in Nokia Ovi Suite to install an
application to your device.
Select Menu > Settings and
Application mgr..
The installation files are located in the
Installation files folder, and the
installed applications in the Installed
apps. folder.
Icons indicate the following:
SIS or SISX application
Java application
Widget
Application installed in the
mass memory
Important: Only install and use
applications and other software from
trusted sources, such as applications
that are Symbian Signed or have passed
the Java Verified™ testing.
Before installing an application, check
the following:
•View the application type, version
number, and the supplier or
manufacturer of the application.
Select Options > View details.
•View the security certificate details
of the application. Select Details: >
Certificates: > View details.
Control the use of digital certificates
in Certificate management.
Other applications 93
![](/img.php?id=1307662&img=bg5e.png)
If you install a file that contains an
update or repair to an existing
application, you can only restore the
original application if you have the
original installation file or a full backup
copy of the removed software package.
To restore the original application,
remove the application, and install the
application again from the original
installation file or the backup copy.
The JAR file is required for installing Java
applications. If it is missing, the device
may ask you to download it. If there is
no access point defined for the
application, you are asked to select one.
Install an application
1 Locate the installation file in the
Installation files folder in
Application manager, or search for
it in File manager or your Inbox in
Messaging.
2 In Application manager, select the
application you want to install and
Options > Install. In other
applications, select the installation
file to start the installation.
During installation, the device
shows information about the
progress of the installation. If you
install an application without a
digital signature or certification,
the device displays a warning.
Continue installation only if you are
sure of the origin and contents of
the application.
Open an installed application
Select the application in the menu. If the
application does not have a default
folder defined, it is installed in the
Installed apps. folder in the main menu.
See which software packages are
installed or removed
Select Options > View log.
Important: Your device can only
support one antivirus application.
Having more than one application with
antivirus functionality could affect
performance and operation or cause the
device to stop functioning.
Remove applications
You can remove applications that you
have installed, for example, to increase
the amount of available memory.
Select Menu > Settings.
1 Select Application mgr..
2 Select Installed apps. >
Options > Uninstall.
3 Select Yes.
94 Other applications
![](/img.php?id=1307662&img=bg5f.png)
If you remove an application, you can
only reinstall it if you have the original
software package or a full backup of the
removed software package. If you
remove a software package, you may no
longer be able to open documents
created with that software.
If another software package depends on
the software package that you
removed, the other software package
may stop working. See the
documentation of the installed
software package for details.
Application manager settings
Select Menu > Settings and
Application mgr..
Select Installation settings and from
the following:
Software installation — Allow or deny
installation of Symbian software that
does not have a verified digital
signature.
Online certificate check — Check
online certificates before installing an
application.
Default web address — Set the default
web address used to check online
certificates.
RealPlayer
With RealPlayer, you can play video clips
or stream media files over the air
without saving them to the device first.
RealPlayer does not necessarily support
all file formats or all the variations of file
formats.
Select Menu > Applications >
RealPlayer.
RealPlayer toolbar
Select Menu > Applications >
RealPlayer.
In the Video clips, Streaming links, and
Recently played views, the following
toolbar icons may be available:
Send — Send a video clip or
streaming link.
Play — Play a video clip or video
stream.
Delete — Delete a video clip or
streaming link.
Remove — Remove a file from the
recently played list.
Play a video clip
Select Menu > Applications >
RealPlayer.
Other applications 95
![](/img.php?id=1307662&img=bg60.png)
Play a video clip
Select Video clips and a video clip.
List recently played files
In the main view, select Recently
played.
Go to a video clip, and select Options
and from the following:
Use video clip — Assign a video clip to
a contact or set it as a ringing tone.
Mark/Unmark — Mark or unmark an
item, to send or delete multiple items at
the same time.
View details — View details, such as
format, resolution, and duration.
Settings — Edit settings for video
playback and streaming.
Stream content over the air
Select Menu > Applications >
RealPlayer.
Streaming content over the air is a
network service. Select Streaming
links and a link. You can also receive a
streaming link in a text or multimedia
message, or open a link on a web page.
Before live content begins streaming,
your device connects to the site and
starts loading the content. The content
is not saved in your device.
In RealPlayer, you can only open RTSP
links. However, RealPlayer can also play
a RAM file if you open a HTTP link to it in
a browser.
Recorder
You can use the recorder to record
voice memos and telephone
conversations. You can also send sound
clips to your friends.
Select Menu > Music > Recorder.
Record a sound clip
Select .
Stop recording a sound clip
Select .
Listen to the sound clip
Select .
Send a sound clip as a message
Select Options > Send.
Record a telephone conversation
Open the recorder during a voice call,
and select . Both parties hear a tone
at regular intervals during recording.
96 Other applications
![](/img.php?id=1307662&img=bg61.png)
Select the recording quality or where
to save sound clips
Select Options > Settings.
The recorder cannot be used when a
data call or GPRS connection is active.
Write a note
1 Select Menu > Applications >
Office > Notes.
2 Select Options > New note.
3 Enter text in the note field.
4 Select .
Make a calculation
Select Menu > Applications >
Office > Calculator.
1 Enter the first number of the
calculation.
2 Select a function, such as add or
subtract.
3 Enter the second number of the
calculation.
4 Select =.
Save or retrieve the result of a
calculation
Select Options > Memory > Save or
Recall.
Converter
With Converter, you can convert
measures from one unit to another.
The converter has limited accuracy, and
rounding errors may occur.
Select Menu > Applications >
Office > Converter.
Dictionary
Select Menu > Applications >
Office > Dictionary.
To translate words from one language
to another, enter text in the search field.
As you enter text, suggestions of words
to translate are displayed. To translate
a word, select the word from the list.
All languages may not be supported.
Select Options and from the following:
Listen — Listen to the selected word.
History — Find previously translated
words from the current session.
Languages — Change the source or
target language, download languages
from the internet, or remove a language
from the dictionary. You cannot remove
the English language from the
Other applications 97
![](/img.php?id=1307662&img=bg62.png)
dictionary. You can have two additional
languages installed, besides English.
Settings
Some settings may be preset for the
device by your service provider, and you
may not be able to change them.
Phone settings
Date and time settings
Select Menu > Settings and Phone >
Date and time.
Select from the following:
Time — Enter the current time.
Time zone — Select your location.
Date — Enter the current date.
Date format — Select the date format.
Date separator — Select the symbol
that separates days, months, and years.
Time format — Select the time format.
Time separator — Select the symbol
that separates hours and minutes.
Clock type — Select the clock type.
Clock alarm tone — Select the tone for
the alarm clock.
Alarm snooze time — Adjust the
snooze time.
Workdays — Select your working days.
You can then set an alarm only for
working day mornings, for example.
Automatic time update — Set the
device to update the time, date, and
time zone automatically. This network
service may not be available on all
networks.
Change language
You can change the device language and
the language in which you write your
messages and mails. You can also
activate predictive text input.
Select Menu > Settings and Phone >
Language.
Change the device language
Select Phone language.
Change the writing language
Select Writing language.
Activate predictive text input
Select Predictive text.
Display settings
Select Menu > Settings and Phone >
Display.
Select from the following:
98 Settings
![](/img.php?id=1307662&img=bg63.png)
Brightness — Adjust the brightness of
your device display.
Font size — Select the size of text and
icons on the display.
Welcome note / logo — Set a note or
image to be displayed when you switch
on the device.
Light time-out — Set how long the
light stays on when you stop using the
device.
Voice commands
Activate voice commands
Press and hold the call key in the home
screen, and say a command. The voice
command is the name of the application
or profile displayed in the list.
To view the list of voice commands,
select Menu > Settings and Phone >
Voice commands.
Select Options and from the following:
Change command — Edit the voice
commands.
Playback — Listen to the synthesised
voice tag.
Remove voice command — Remove a
voice command that you added
manually.
Settings — Adjust the settings.
Voice command tutorial — Open the
tutorial for voice commands.
Accessory settings
Select Menu > Settings and Phone >
Accessories.
Some accessory connectors indicate
which type of accessory is connected to
the device.
Select an accessory and from the
following:
Default profile — Set the profile you
want activated each time you connect a
certain compatible accessory to your
device.
Automatic answer — Set the device to
answer an incoming call automatically
after 5 seconds. If the ringing type is set
to Beep once or Silent, automatic
answer is disabled.
Lights — Set the lights to remain on
after the time-out.
The available settings depend on the
type of accessory.
Application settings
Select Menu > Settings and Phone >
Application sett..
Settings 99
![](/img.php?id=1307662&img=bg64.png)
In application settings, you can edit the
settings of some of the applications in
your device.
To edit the settings, you can also select
Options > Settings in each
application.
Device updates
With Device updates, you can connect to
a server and receive configuration
settings for your device, create new
server profiles, view existing software
version and device information, or view
and manage existing server profiles.
Select Menu > Settings and Phone >
Phone mgmt. > Device updates.
If software updates over the air are
supported by your network, you may
also be able to request updates through
the device.
You may receive server profiles and
different configuration settings from
your service providers and company
information management department.
These configuration settings may
include connection and other settings
used by different applications in your
device.
Receive configuration settings
1 Select Options > Server profiles.
2 Go to a profile, and select
Options > Start configuration.
Create a server profile
Select Options > Server profiles >
Options > New server profile.
Delete a server profile
Select Options > Delete.
Security settings
Phone and SIM
Select Menu > Settings and Phone >
Phone mgmt. > Security > Phone
and SIM card.
Select from the following:
PIN code request — When active, the
code is requested each time the device
is switched on. Deactivating the PIN
code request may not be allowed by
some SIM cards.
PIN code andPIN2 code — Change the
PIN and PIN2 code. These codes can only
include numbers. Avoid using access
codes similar to the emergency
numbers to prevent accidental dialling
of the emergency number. If you forget
the PIN or PIN2 code, contact your
service provider. If you forget the lock
code, contact a Nokia Care point or your
service provider.
100 Settings
![](/img.php?id=1307662&img=bg65.png)
Lock code — The lock code is used to
unlock the device. To avoid
unauthorised use of your device,
change the lock code. The preset code is
12345. The new code can be 4-255
characters long. Alphanumeric
characters and both uppercase and
lowercase characters can be used. The
device notifies you if the lock code is not
properly formatted. Keep the new code
secret and separate from your device.
Phone autolock period — To avoid
unauthorised use, you can set a time-
out after which the device automatically
locks. A locked device cannot be used
until the correct lock code is entered. To
turn off autolock, select None.
Lock if SIM card changed — Set the
device to ask for the lock code when an
unknown SIM card is inserted into your
device. The device maintains a list of SIM
cards that are recognised as the owner’s
cards.
Remote phone locking — Enable or
disable remote lock.
Closed user group — Specify a group
of people to whom you can call and who
can call you (network service).
Confirm SIM services — Set the device
to display confirmation messages when
you are using a SIM card service
(network service).
Manage certificates
Digital certificates protect your content
when transferring confidential
information. Certificates should be used
when connecting to an online bank or
another site, or to a remote server for
actions that involve transferring
confidential information.
Certificates should also be used when
you want to reduce the risk of viruses or
other malicious software and be sure of
the authenticity of software when
downloading and installing software.
Select Menu > Settings and Phone >
Phone mgmt. > Security >
Certificate management and select
the desired certificate type.
Digital certificates do not guarantee
safety; they are used to verify the origin
of software.
Important: Even if the use of
certificates makes the risks involved in
remote connections and software
installation considerably smaller, they
must be used correctly in order to
benefit from increased security. The
existence of a certificate does not offer
any protection by itself; the certificate
manager must contain correct,
authentic, or trusted certificates for
Settings 101
![](/img.php?id=1307662&img=bg66.png)
increased security to be available.
Certificates have a restricted lifetime. If
"Expired certificate" or "Certificate not
valid yet" is shown, even if the
certificate should be valid, check that
the current date and time in your device
are correct.
Security module
The security module provides security
services for different applications.
Select Menu > Settings and Phone >
Phone mgmt. > Security > Security
module and the desired security
module.
View security module details
Select Options > Security details.
Restore original settings
You may want to reset some of the
settings to their original values. All
active calls and connections must be
ended.
Select Menu > Settings and Phone >
Phone mgmt. > Factory settings. To
restore the settings, you need to enter
the lock code.
After resetting, the device may take a
longer time to switch on. Documents
and files are unaffected.
Protected content
Digital rights management (DRM)
protected content, for example some
media files, such as images, music, or
video clips, comes with an associated
licence that defines your rights to use
the content.
You can view the details and status of
the licences, and reactivate and remove
licences.
Manage digital rights licences
Select Menu > Settings > Phone >
Phone mgmt. > Security > Protected
content.
Digital rights management
Content owners may use different types
of digital rights management (DRM)
technologies to protect their
intellectual property, including
copyrights. This device uses various
types of DRM software to access DRM-
protected content. With this device you
can access content protected with
WMDRM 10, OMA DRM 1.0, and OMA DRM
2.0. If certain DRM software fails to
protect the content, content owners
102 Settings
![](/img.php?id=1307662&img=bg67.png)
may ask that such DRM software's ability
to access new DRM-protected content
be revoked. Revocation may also
prevent renewal of such DRM-protected
content already in your device.
Revocation of such DRM software does
not affect the use of content protected
with other types of DRM or the use of
non-DRM-protected content.
Digital rights management (DRM)
protected content comes with an
associated licence that defines your
rights to use the content.
If your device has OMA DRM-protected
content, to back up both the activation
keys and the content, use the backup
feature of Nokia PC Suite. If your device
has OMA DRM-protected content, to back
up both the activation keys and the
content, use the backup feature of Nokia
Ovi Suite.
If your device has WMDRM-protected
content, both the licence and the
content will be lost if the device memory
is formatted. You may also lose the
licence and the content if the files on
your device get corrupted. Losing the
licence or the content may limit your
ability to use the same content on your
device again. For more information,
contact your service provider.
Some licence may be connected to a
specific SIM card, and the protected
content can be accessed only if the SIM
card is inserted in the device.
Call settings
Call settings
Select Menu > Settings. Select
Calling > Call and from the following:
Send my caller ID — Sele ct Yes to show
your phone number to the person you
are calling. To use the setting agreed
upon with your service provider, select
Set by network) (network service).
Call waiting — Activate your device to
notify you of incoming calls while you
are in a call (network service), or check
whether the function is activated.
Reject call with message — Activate
rejecting a call with a text message to
inform the caller why you could not
answer the call.
Message text — Write the standard
text message that is sent when you
reject a call.
Automatic redial — Set your device to
make a maximum of 10 attempts to
connect the call after an unsuccessful
call attempt. To stop automatic
redialling, press the end key.
Show call duration — Set the length
of a call to be displayed during the call.
Settings 103
![](/img.php?id=1307662&img=bg68.png)
Summary after call — Set the length
of a call to be displayed after the call.
Speed dialling — Activate speed
dialling.
Anykey answer — Activate anykey
answer.
Call divert
Select Menu > Settings and Calling >
Call divert.
Call divert allows you to divert incoming
calls to your voice mailbox or another
phone number. For details, contact your
service provider.
1 Select the type of calls to divert and
a diverting option. For example, to
divert all voice calls, select Voice
calls > All voice calls.
2 To activate call divert, select
Activate.
3 To divert calls to your voice mailbox,
select To voice mailbox.
4 To divert calls to another phone
number, select To other number,
and enter the number, or select
Find to retrieve a number saved in
the contacts list.
Several diverting options can be active
at the same time. When all calls are
diverted, is displayed in the
home screen.
Call barring
Call barring (network service) allows
you to restrict the calls that you make or
receive with the device. For example,
you can restrict all outgoing
international calls or incoming calls
when you are abroad. To change the
settings, you need the barring password
from your service provider.
Select Menu > Settings and Calling >
Call barring.
When security features that restrict calls
are in use (such as call barring, closed
user group, and fixed dialling), calls may
be possible to the official emergency
number programmed into your device.
Call barring and call diverting cannot be
active at the same time.
Voice call barring
Select the desired barring option and
Activate, Deactivate, or Check status.
Call barring affects all calls, including
data calls.
104 Settings
![](/img.php?id=1307662&img=bg69.png)
Troubleshooting
To view frequently asked questions
about your device, see the product
support pages at www.nokia.com/
support.
Q: What is my password for the lock,
PIN, or PUK codes?
A: The default lock code is 12345. If you
forget the lock code, contact your device
dealer. If you forget a PIN or PUK code,
or if you have not received such a code,
contact your network service provider.
For information about passwords,
contact your access point provider, for
example, a commercial internet service
provider (ISP) or network service
provider.
Q: How do I close an application that
is not responding?
A: Press and hold the menu key.
Select and hold the application icon, and
select #Exit.
Q: Why do images look smudgy?
A: Ensure that the camera lens
protection windows are clean.
Q: Why do missing, discoloured, or
bright dots appear on the screen
every time I switch on my device?
A: This is a characteristic of this type of
display. Some displays may contain
pixels or dots that remain on or off. This
is normal, not a fault.
Q: Why can’t I find my friend’s device
while using Bluetooth connectivity?
A: Check that both devices are
compatible, have activated Bluetooth
connectivity, and are not in hidden
mode. Check also that the distance
between the two devices is not over 10
metres (33 feet) and that there are no
walls or other obstructions between the
devices.
Q: Why can’t I end a Bluetooth
connection?
A: If another device is connected to your
device, you can end the connection from
Troubleshooting 105
![](/img.php?id=1307662&img=bg6a.png)
the other device or deactivate Bluetooth
connectivity in your device. Select
Menu > Settings and Connectivity >
Bluetooth > Bluetooth > Off.
Q: What do I do if the memory is full?
A: Delete items from the memory. If Not
enough memory to perform
operation. Delete some data first. or
Memory low. Delete some data from
phone memory. is displayed when you
are deleting several items at the same
time, delete items one by one,
beginning with the smallest items.
Q: Why can’t I select a contact for my
message?
A: The contact card does not have a
phone number, address, or e-mail
address. Select Menu > Contacts and
the relevant contact, and edit the
contact card.
Q: How can I end the data connection
when the device starts a data
connection again and again?
A: The device may be trying to retrieve
a multimedia message from the
multimedia message centre. To stop the
device from making a data connection,
select Menu > Messaging and
Options > Settings > Multimedia
message > Multimedia retrieval.
Select Manual to have the multimedia
messaging centre save messages to be
retrieved later, or Off to ignore all
incoming multimedia messages. If you
select Manual, you receive a
notification when you have a new
message in the multimedia message
centre. If you select Off, the device does
not make any network connections
related to multimedia messaging.
To set the device to use a packet data
connection only if you start an
application or action that needs it,
select Menu > Settings and
Connectivity > Admin. settings >
Packet data > Packet data
connection > When needed.
If this does not help, switch the device
off and then on again.
Q: Can I use my Nokia device as a fax
modem with a compatible PC?
A: You cannot use your device as a fax
modem. However, with call diverting
(network service), you can divert
incoming fax calls to a fax number.
106 Troubleshooting
![](/img.php?id=1307662&img=bg6b.png)
Q: How do I calibrate the screen?
A: The screen is calibrated at the factory.
If it is necessary to recalibrate the
screen, select Menu > Settings and
Phone > Touch input > Touch screen
calibration. Follow the instructions.
Q: Why do I get the error message
Expired certificate or Certificate not
valid yet when I am installing a
downloaded application?
A: If Expired certificate or Certificate
not valid yet is displayed, even if the
certificate should be valid, check that
the current date and time in your device
are correct. You may have skipped the
setting of date and time when starting
the device for the first time, or the
mobile network may have failed to
update these settings to your device. To
resolve this, select Menu > Settings
and Phone > Phone mgmt. > Factory
settings. Restore the factory settings,
and when the device restarts, set the
correct date and time.
Green tips
Save energy
You do not need to charge your battery
so often if you do the following (if
available for your device):
•Close applications and data
connections, for example, your
Bluetooth connection, when not in
use.
•Decrease the brightness of the
screen.
•Set your device to enter power saver
mode after the minimum period of
inactivity, if available in your device.
•Deactivate unnecessary sounds,
such as key tones.
Recycle
All materials of this device can be
recovered as materials and energy. For
information on how to recycle your old
Nokia products, go to www.nokia.com/
werecycle, or using a mobile device,
www.nokia.mobi/werecycle.
Green tips 107
![](/img.php?id=1307662&img=bg6c.png)
Recycle packaging and user guides at
your local recycling scheme.
The crossed-out wheeled-bin symbol on
your product, battery, literature, or
packaging reminds you that all
electrical and electronic products,
batteries, and accumulators must be
taken to separate collection at the end
of their working life. This requirement
applies in the European Union. Do not
dispose of these products as unsorted
municipal waste. For more information
on the environmental attributes of your
device, see www.nokia.com/
ecodeclaration.
Product and safety information
Accessories
Warning:
Use only batteries, chargers, and accessories approved by
Nokia for use with this particular model. The use of any
other types may invalidate any approval or warranty, and
may be dangerous. In particular, use of unapproved
chargers or batteries may present a risk of fire, explosion,
leakage, or other hazard.
For availability of approved accessories, please check with
your dealer. When you disconnect the power cord of any
accessory, grasp and pull the plug, not the cord.
Battery
Battery and charger information
Your device is powered by a rechargeable battery. The
battery intended for use with this device is BL-4U. Nokia
may make additional battery models available for this
device. This device is intended for use when supplied with
power from the following chargers: AC-3. The exact
charger model number may vary depending on the type
of plug. The plug variant is identified by one of the
following: E, EB, X, AR, U, A, C, K, or UB.
The battery can be charged and discharged hundreds of
times, but it will eventually wear out. When the talk and
standby times are noticeably shorter than normal, replace
the battery. Use only Nokia approved batteries, and
recharge your battery only with Nokia approved chargers
designated for this device.
If a battery is being used for the first time or if the battery
has not been used for a prolonged period, it may be
necessary to connect the charger, then disconnect and
reconnect it to begin charging the battery. If the battery
is completely discharged, it may take several minutes
before the charging indicator appears on the display or
before any calls can be made.
Safe removal. Always switch the device off and disconnect
the charger before removing the battery.
Proper charging. Unplug the charger from the electrical
plug and the device when not in use. Do not leave a fully
charged battery connected to a charger, since
overcharging may shorten its lifetime. If left unused, a fully
charged battery will lose its charge over time.
Avoid extreme temperatures. Always try to keep the
battery between 15°C and 25°C (59°F and 77°F). Extreme
temperatures reduce the capacity and lifetime of the
battery. A device with a hot or cold battery may not work
temporarily. Battery performance is particularly limited in
temperatures well below freezing.
108 Product and safety information
![](/img.php?id=1307662&img=bg6d.png)
Do not short-circuit. Accidental short-circuiting can occur
when a metallic object such as a coin, clip, or pen causes
direct connection of the positive (+) and negative (-)
terminals of the battery. (These look like metal strips on
the battery.) This might happen, for example, when you
carry a spare battery in your pocket or purse. Short-
circuiting the terminals may damage the battery or the
connecting object.
Disposal. Do not dispose of batteries in a fire as they may
explode. Dispose of batteries according to local
regulations. Please recycle when possible. Do not dispose
as household waste.
Leak. Do not dismantle, cut, open, crush, bend, puncture,
or shred cells or batteries. In the event of a battery leak,
prevent battery liquid contact with skin or eyes. If this
happens, flush the affected areas immediately with water,
or seek medical help.
Damage. Do not modify, remanufacture, attempt to insert
foreign objects into the battery, or immerse or expose it
to water or other liquids. Batteries may explode if
damaged.
Correct use. Use the battery only for its intended purpose.
Improper battery use may result in a fire, explosion, or
other hazard. If the dev ice or b attery is d ropped, es peciall y
on a hard surface, and you believe the battery has been
damaged, take it to a service centre for inspection before
continuing to use it. Never use any charger or battery that
is damaged. Keep your battery out of the reach of small
children.
Nokia battery authentication guidelines
Always use original Nokia batteries for your safety. To help
ensure that you are getting an original Nokia battery,
purchase it from a Nokia authorised service centre or
dealer, and check the hologram label.
Authenticate hologram
1 Look at the hologram. You should see the Nokia
connecting hands symbol from one angle and the
Nokia Original Accessories logo from the other
angle.
2 Angle the hologram left, right, down, and up. You
should see 1, 2, 3 and 4 dots on each side
respectively.
However, this is not a total assurance of the authenticity
of the battery. If you cannot confirm authenticity or if you
have any reason to believe that your Nokia battery with
the hologram on the label is not an authentic Nokia
battery, stop using the battery and take it to the nearest
Nokia authorised service centre or dealer.
To find out more about original Nokia batteries, go to
www.nokia.com/battery.
Product and safety information 109
![](/img.php?id=1307662&img=bg6e.png)
Taking care of your device
Your device is a product of superior design and
craftsmanship and should be treated with care. The
following suggestions will help you protect your warranty
coverage.
•Keep the device dry. Precipitation, humidity, and all
types of liquids or moisture can contain minerals
that will corrode electronic circuits. If your device
does get wet, remove the battery, and allow the
device to dry completely before replacing it.
•Do not use or store the device in dusty, dirty areas.
Its moving parts and electronic components can be
damaged.
•Do not store the device in high or cold temperature.
High temperatures can shorten the life of electronic
devices, damage batteries, and warp or melt certain
plastics. When the device warms to its normal
temperature from a cold temperature, moisture can
form inside the device and damage electronic circuit
boards.
•Do not attempt to open the device other than as
instructed in this guide.
•Do not drop, knock, or shake the device. Rough
handling can break internal circuit boards and fine
mechanics.
•Do not use harsh chemicals, cleaning solvents, or
strong detergents to clean the device. Only use a
soft, clean, dry cloth to clean the surface of the
device.
•Do not paint the device. Paint can clog the moving
parts and prevent proper operation.
•Use only the supplied or an approved replacement
antenna. Unauthorised antennas, modifications, or
attachments could damage the device and may
violate regulations governing radio devices.
•Use chargers indoors.
•Backup all data you want to keep, such as contacts
and calendar notes.
•To reset the device from time to time for optimum
performance, power off the device and remove the
battery.
These suggestions apply equally to your device, battery,
charger, or any accessory.
Recycle
Always return your used electronic products, batteries,
and packaging materials to dedicated collection points.
This way you help prevent uncontrolled waste disposal
and promote the recycling of materials. Check product
environmental information and how to recycle your Nokia
products at www.nokia.com/werecycle, or nokia.mobi/
werecycle.
Additional safety information
Small children
Your device and its accessories are not toys. They may
contain small parts. Keep them out of the reach of small
children.
Operating environment
This device meets RF exposure guidelines in the normal
use position at the ear or at least 1.5 centimetres (5/8
inch) away from the body. Any carry case, belt clip, or
holder for body-worn operation should not contain metal
and should position the device the above-stated distance
from your body.
To send data files or messages requires a quality
connection to the network. Data files or messages may be
delayed until such a connection is available. Follow the
separation distance instructions until the transmission is
completed.
Parts of the device are magnetic. Metallic materials may
be attracted to the device. Do not place credit cards or
other magnetic storage media near the device, because
information stored on them may be erased.
110 Product and safety information
![](/img.php?id=1307662&img=bg6f.png)
During extended operation such as an active high speed
data connection, the device may feel warm. In most cases,
this condition is normal. If you suspect the device is not
working properly, take it to the nearest authorised service
facility.
Medical devices
Operation of radio transmitting equipment, including
wireless phones, may interfere with the function of
inadequately protected medical devices. Consult a
physician or the manufacturer of the medical device to
determine whether they are adequately shielded from
external RF energy. Switch off your device when
regulations posted instruct you to do so. Hospitals or
health care facilities may use equipment sensitive to
external RF energy.
Implanted medical devices
Manufacturers of medical devices recommend a minimum
separation of 15.3 centimetres (6 inches) between a
wireless device and an implanted medical device, such as
a pacemaker or implanted cardioverter defibrillator, to
avoid potential interference with the medical device.
Persons who have such devices should:
•Always keep the wireless device more than 15.3
centimetres (6 inches) from the medical device.
•Not carry the wireless device in a breast pocket.
•Hold the wireless device to the ear opposite the
medical device.
•Turn the wireless device off if there is any reason to
suspect that interference is taking place.
•Follow the manufacturer directions for the
implanted medical device.
If you have any questions about using your wireless device
with an implanted medical device, consult your health
care provider.
Hearing aids
Some digital wireless devices may interfere with some
hearing aids.
Vehicles
RF signals may affect improperly installed or inadequately
shielded electronic systems in motor vehicles such as
electronic fuel injection, electronic antilock braking,
electronic speed control, and air bag systems. For more
information, check with the manufacturer of your vehicle
or its equipment.
Only qualified personnel should service the device or
install the device in a vehicle. Faulty installation or service
may be dangerous and may invalidate your warranty.
Check regularly that all wireless device equipment in your
vehicle is mounted and operating properly. Do not store
or carry flammable liquids, gases, or explosive materials
in the same compartment as the device, its parts, or
accessories. Remember that air bags inflate with great
force. Do not place your device or accessories in the air bag
deployment area.
Switch off your device before boarding an aircraft. The use
of wireless teledevices in an aircraft may be dangerous to
the operation of the aircraft and may be illegal.
Potentially explosive environments
Switch off your device in any area with a potentially
explosive atmosphere. Obey all posted instructions. Sparks
in such areas could cause an explosion or fire resulting in
bodily injury or death. Switch off the device at refuelling
points such as near gas pumps at service stations. Observe
restrictions in fuel depots, storage, and distribution areas;
chemical plants; or where blasting operations are in
progress. Areas with a potentially explosive atmosphere
are often, but not always, clearly marked. They include
areas where you would be advised to turn off your vehicle
engine, below deck on boats, chemical transfer or storage
facilities and where the air contains chemicals or particles
such as grain, dust, or metal powders. You should check
with the manufacturers of vehicles using liquefied
Product and safety information 111
![](/img.php?id=1307662&img=bg70.png)
petroleum gas (such as propane or butane) to determine
if this device can be safely used in their vicinity.
Emergency calls
Important: This device operates using radio signals,
wireless networks, landline networks, and user-
programmed functions. If your device supports voice calls
over the internet (internet calls), activate both the internet
calls and the cellular phone. The device will attempt to
make emergency calls over both the cellular networks and
through your internet call provider if both are activated.
Connections in all conditions cannot be guaranteed. You
should never rely solely on any wireless device for
essential communications like medical emergencies.
To make an emergency call:
1 If the device is not on, switch it on. Check for
adequate signal strength. Depending on your
device, you may also need to complete the
following:
•Insert a SIM card if your device uses one.
•Remove certain call restrictions you have
activated in your device.
•Change your profile from offline profile mode
to an active profile.
•If the screen and keys are locked, slide the lock
switch on the side of the device to unlock
them.
2 Press the end key as many times as needed to clear
the display and ready the device for calls.
3 To open the dialler, select Telephone or .
4 Enter the official emergency number for your
present location. Emergency numbers vary by
location.
5 Press the call key.
When making an emergency call, give all the necessary
information as accurately as possible. Your wireless device
may be the only means of communication at the scene of
an accident. Do not end the call until given permission to
do so.
Certification information (SAR)
This mobile device meets guidelines for exposure to
radio waves.
Your mobile device is a radio transmitter and receiver. It
is designed not to exceed the limits for exposure to radio
waves recommended by international guidelines. These
guidelines were developed by the independent scientific
organisation ICNIRP and include safety margins designed
to assure the protection of all persons, regardless of age
and health.
The exposure guidelines for mobile devices employ a unit
of measurement known as the Specific Absorption Rate or
SAR. The SAR limit stated in the ICNIRP guidelines is 2.0
watts/kilogram (W/kg) averaged over 10 grams of tissue.
Tests for SAR are conducted using standard operating
positions with the device transmitting at its highest
certified power level in all tested frequency bands. The
actual SAR level of an operating device can be below the
maximum value because the device is designed to use only
the power required to reach the network. That amount
changes depending on a number of factors such as how
close you are to a network base station.
The highest SAR value under the ICNIRP guidelines for use
of the device at the ear is 1.04 W/kg.
Use of device accessories may result in different SAR
values. SAR values may vary depending on national
reporting and testing requirements and the network
band. Additional SAR information may be provided under
product information at www.nokia.com.
Your mobile device is also designed to meet the
requirements for exposure to radio waves established by
the Federal Communications Commission (USA) and
Industry Canada. These requirements set a SAR limit of 1.6
W/kg averaged over one gram of tissue. The highest SAR
112 Product and safety information
![](/img.php?id=1307662&img=bg71.png)
value reported under this standard during product
certification for use at the ear is 1.06 W/kg and when
properly worn on the body is 0.79 W/kg.
Copyright and other notices
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this RM-684
product is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC. A
copy of the Declaration of Conformity can be found at
http://www.nokia.com/phones/
declaration_of_conformity/.
© 2010 Nokia. All rights reserved.
Nokia, Nokia Connecting People, Nokia Care, and Ovi are
trademarks or registered trademarks of Nokia
Corporation. Nokia tune is a sound mark of Nokia
Corporation. Other product and company names
mentioned herein may be trademarks or tradenames of
their respective owners.
Reproduction, transfer, distribution, or storage of part or
all of the contents in this document in any form without
the prior written permission of Nokia is prohibited. Nokia
operates a policy of continuous development. Nokia
reserves the right to make changes and improvements to
any of the products described in this document without
prior notice.
Java and all Java-based marks are trademarks or registered
trademarks of Sun Microsystems, Inc.
This product is licensed under the MPEG-4 Visual Patent
Portfolio License (i) for personal and noncommercial use
in connection with information which has been encoded
in compliance with the MPEG-4 Visual Standard by a
consumer engaged in a personal and noncommercial
activity and (ii) for use in connection with MPEG-4 video
provided by a licensed video provider. No license is
granted or shall be implied for any other use. Additional
information, including that related to promotional,
internal, and commercial uses, may be obtained from
MPEG LA, LLC. See http://www.mpegla.com.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW,
UNDER NO CIRCUMSTANCES SHALL NOKIA OR ANY OF ITS
LICENSORS BE RESPONSIBLE FOR ANY LOSS OF DATA OR
INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR
INDIRECT DAMAGES HOWSOEVER CAUSED.
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS".
EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES
OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE MADE IN RELATION TO THE ACCURACY,
RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA
RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR
WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.
Reverse engineering of software in the device is
prohibited to the extent permitted by applicable law.
Insofar as this user guide contains any limitations on
Nokia's representations, warranties, damages and
liabilities, such limitations shall likewise limit any
representations, warranties, damages and liabilities of
Nokia's licensors.
The availability of particular products and applications
and services for these products may vary by region. Please
check with your Nokia dealer for details and availability of
language options. This device may contain commodities,
technology or software subject to export laws and
Copyright and other notices 113
![](/img.php?id=1307662&img=bg72.png)
regulations from the US and other countries. Diversion
contrary to law is prohibited.
FCC NOTICE
Your device may cause TV or radio interference (for
example, when using a telephone in close proximity to
receiving equipment). The FCC can require you to stop
using your telephone if such interference cannot be
eliminated. If you require assistance, contact your local
service facility. This device complies with part 15 of the FCC
rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation. Any changes or modifications not expressly
approved by Nokia could void the user's authority to
operate this equipment.
Some operations and features are SIM card and/or
network dependent, MMS dependent, or dependent on the
compatibility of devices and the content formats
supported. Some services are subject to a separate charge.
Your device may have preinstalled bookmarks and links for
third-party internet sites. You may also access other third-
party sites through your device. Third-party sites are not
affiliated with Nokia, and Nokia does not endorse or
assume liability for them. If you choose to access such
sites, you should take precautions for security or content.
/Issue 1 EN
114 Copyright and other notices
![](/img.php?id=1307662&img=bg73.png)
Index
A
access codes 10
access points 79
— groups 80
accessories 99
accounts 54
alarm
— calendar note 91
alarm clock 90
answering calls 29
antennas 24
application settings 99
applications 92, 94
attachments 43, 46
audio messages 41
B
backing up device memory 91
barring calls 104
battery
— inserting 12
— saving power 10
blogs 76
Bluetooth 83, 84
Bluetooth connectivity
— blocking devices 86
— device address 85
— device visibility 84
— pairing devices 85
— receiving data 86
— sending data 84
— settings 83
— turning on/off 83
bookmarks 77
browser
— bookmarks 77
— browsing pages 75, 76
— cache memory 78
— searching content 77
— security 78
— toolbar 75
— widgets 77
C
cable connection 87
cache memory 78
Calculator 97
calendar 91
calendar alarm 91
call log 33
call waiting 31
calls 28
— answering 29
— conference 30
— dialled 32
— duration of 32
— missed 32
— options during 28
— received 32
Index 115
![](/img.php?id=1307662&img=bg74.png)
— redialling 103
— rejecting 29
— restricting
See
fixed dialling
— settings 103
camera
— assigning images to contacts 65
— image mode 65
— indicators 63, 67
— options 65
— recording 68
— scenes 66
— self-timer 66
— sending images 65
— sequence mode 67
— video mode 67
capture settings
— in camera 64
cell broadcast messages 48
certificates 101
chat services (IM) 53
clock 90
computer connections 88
See also
data connections
conference calls 30
contacts 38
— copying 22, 39
— defaults 39
— deleting 38
— editing 38
— images in 38
— overview 37
— ringing tones 39
— saving 38
— sending 38
— synchronising 82
— voice tags 38
contacts bar 23
copying content 22
copyright protection 102
D
data connections 82
— cable 87
— PC connectivity 88
— synchronisation 82
date and time 98
declining calls
See
rejecting calls
device
— updating 100
dialled numbers 32
dictionary 97
dismissing calls 29
display settings 25, 98
DRM (digital rights
management) 102
duration of calls 32
E
e-mail 44, 47
e-mail messages 45
end all calls option 31
116 Index
![](/img.php?id=1307662&img=bg75.png)
F
factory settings, restoring 102
feeds, news 76
file management 91, 92
file manager 91
fixed dialling 40
G
gallery 68
— organising 68
— viewing 68
— viewing images 69
— viewing videos 69
general information 8
H
headset 26
help application 8
home screen 16
I
IM (instant messaging) 53
inbox
— message 43
inbox, message 43
indicators and icons 22
installing applications 93
internet connection 74
See also
browser
J
Java applications 92
K
keypad lock 16
keys and parts 15
L
language settings 98
licences 102
lock code 10, 16
lock switch 16
locking
— remotely 26
locking the keys 16
loudspeaker 25
M
Mail for Exchange 47
mailbox
— e-mail 45
— voice 29
mass memory 92
media
— music player 56
— RealPlayer 95
media bar 20
media key 20
memory
— clearing 11
— web cache 78
Index 117
![](/img.php?id=1307662&img=bg76.png)
memory card 13, 27
menu 18
messages
— e-mail 45
— folders for 41
— icon for incoming 43
— multimedia 43
— settings 48
— voice 29
Mini Map 76
MMS (multimedia message
service) 41, 43, 49
multimedia messages 41, 43, 49
music player 56
— playlists 58
muting sound 29
N
network settings 79
news feeds 76
Nokia account 51, 54
Nokia Care 20
Nokia Ovi Player 59
Nokia support information 8
Notes 97
O
offline profile 24
outbox, message 41
Ovi by Nokia 21
Ovi Contacts 50, 51
— adding friends 53
— availability status 52
— connection settings 55
— personalisation 54
— profiles 52
— searching 53
— sharing your location 52
Ovi Music 60
Ovi Store 21
P
packet data connection
— access point settings 81
— counters 32
— settings 88
page overview 76
personalisation 55
Phone setup 21
Phone switch 22
photos
See
camera
pictures
— copying 22
PIN code 10, 16
PIN2 code 10
podcasting
— downloads 62
— settings 61
powering device on/off 16
presentations, multimedia 43
118 Index
![](/img.php?id=1307662&img=bg77.png)
profiles 56
— offline restrictions 24
— personalisation 56
proximity sensor 28
proxy settings 82
PUK codes 10
R
radio
— listening 62
— stations 63
RealPlayer 95, 96
recorder 96
recording settings
— in camera 64
recording video clips 67
rejecting calls 29
remote locking 26
remote mailbox 45
remote SIM mode 86
restoring settings 102
ringing tones 56
roaming 79
S
scenes
— image and video 66
searching 89
security
— certificates 101
— web browser 78
security code 10
security module 102
self-timer
— camera 66
sensor settings 25
sent messages folder 41
service commands 48
service messages 43
settings 64, 98
— access point name control 89
— access points 79, 80
— accessories 99
— application manager 95
— applications 99
— Bluetooth connectivity 83
— call divert 104
— calls 103
— certificates 101
— date and time 98
— display 98
— language 98
— messages 49
— network 79
— packet data 88
— packet data access points 81
— podcasting 61
— SIP 88
— video centre 74
Share online 70
— accounts 70
— activating services 70
Index 119
![](/img.php?id=1307662&img=bg78.png)
— creating posts 71
— posting 71
— subscribing 70
sharing media files online 70
shooting modes
— camera 66
SIM card
— inserting 12
— messages 48
— removing 27
SIM card security 100
SIP 88
SMS (short message service) 41
software
— updating 8
software applications 92
software updates 9
songs 56
speakerphone 25
speed dialling 30
streaming 95, 96
stylus 15
support 8
switching device on/off 16
synchronisation of data 82
T
text input 34, 36, 37
text messages
— receiving and reading 43
— replying to 43
— sending 41
— settings 48
— SIM messages 48
themes 55
tones 56
touch screen 18, 28, 35, 37
transferring content 22
transferring music 59
troubleshooting 105
turning device on/off 16
U
updates 9
— device 100
uploading media files 70
USB cable connection 87
useful information 8
V
video
— my videos 73
— playing video clips 73
— transferring video clips 73
Video Centre 71
video centre
— downloading 72
— video feeds 72
— viewing 72
video clips
— playing 95
120 Index
