Microsoft RM-686 CDMA cellular phone w/BT User Manual RM 686 FCC
Microsoft Mobile Oy CDMA cellular phone w/BT RM 686 FCC
Manual
![](/img.php?id=1308774&img=bg1.png)
RM-686 User Guide
DRAFT
![](/img.php?id=1308774&img=bg2.png)
© 2010 Nokia. All rights reserved.
Nokia, Nokia Connecting People, and Navi are trademarks or registered trademarks of Nokia
Corporation. Nokia tune is a sound mark of Nokia Corporation. Other product and company
names mentioned herein may be trademarks or tradenames of their respective owners.
Reproduction, transfer, distribution, or storage of part or all of the contents in this document in
any form without the prior written permission of Nokia is prohibited.
Includes RSA BSAFE cryptographic or security protocol software from RSA Security.
This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for
personal and noncommercial use in connection with information which has been
encoded in compliance with the MPEG-4 Visual Standard by a consumer engaged in a personal
and noncommercial activity and (ii) for use in connection with MPEG-4 video provided by a
licensed video provider. No license is granted or shall be implied for any other use. Additional
information, including that related to promotional, internal, and commercial uses, may be
obtained from MPEG LA, LLC. See <http://www.mpegla.com>.
Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and
improvements to any of the products described in this document without prior notice.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO CIRCUMSTANCES
SHALL NOKIA OR ANY OF ITS LICENSORS BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME
OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER
CAUSED.
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS" EXCEPT AS REQUIRED BY
APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS
OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW
IT AT ANY TIME WITHOUT PRIOR NOTICE.
Reverse engineering of any software in the Nokia device is prohibited to the extent permitted
by applicable law. Insofar as this user guide contains any limitations on Nokia’s representations
DRAFT
warranties, damages and liabilities, such limitations shall likewise limit any representations,
warranties, damages and liabilities of Nokia’s licensors.
The availability of particular products and applications for these products may vary by region.
Please check with your Nokia dealer for details, and availability of language options.
Export controls
This device may contain commodities, technology, or software subject to export laws and
regulations from the US and other countries. Diversion contrary to law is prohibited.
The third-party applications provided with your device may have been created and may be
owned by persons or entities not affiliated with or related to Nokia. Nokia does not own the
copyright or intellectual property rights to the third-party applications. As such, Nokia does not
take any responsibility for end-user support, functionality of the applications, or the
information in the applications or these materials. Nokia does not provide any warranty for the
third-party applications.
BY USING THE APPLICATIONS YOU ACKNOWLEDGE THAT THE APPLICATIONS ARE PROVIDED AS
IS WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, TO THE MAXIMUM EXTENT
PERMITTED BY APPLICABLE LAW. YOU FURTHER ACKNOWLEDGE THAT NEITHER NOKIA NOR ITS
AFFILIATES MAKE ANY REPRESENTATIONS OR WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
BUT NOT LIMITED TO WARRANTIES OF TITLE, MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, OR THAT THE APPLICATIONS WILL NOT INFRINGE ANY THIRD-PARTY
PATENTS, COPYRIGHTS, TRADEMARKS, OR OTHER RIGHTS.
FCC NOTICE
Your device may cause TV or radio interference (for example, when using a telephone in close
proximity to receiving equipment). The FCC can require you to stop using your telephone if such
interference cannot be eliminated. If you require assistance, contact your local service facility.
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation. Any
changes or modifications not expressly approved by Nokia could void the user’s authority to
operate this equipment.
xxxxxxx/Issue 1
DRAFT
![](/img.php?id=1308774&img=bg4.png)
4
Contents
SAFETY.................................................. 6
1. Get started .......................... 9
Keys and parts......................................... 9
Insert the UIM card and battery..... 10
Insert the memory card..................... 11
Charge the battery ............................. 11
Switch your device on or off ........... 12
Set the time zone, date and time... 12
Stylus...................................................... 13
Access codes......................................... 13
Lock the keys and touch screen...... 14
Touch screen actions ......................... 14
Normal operating position ............... 16
Nokia support on the web................ 16
Green tips.............................................. 16
2. Your device........................ 18
Home screen......................................... 18
Flight profile......................................... 19
3. Call functions..................... 20
Proximity sensor.................................. 20
Make or answer a call ....................... 20
Loudspeaker.......................................... 20
In-call voice recording ...................... 21
4. Write text.......................... 22
Handwriting.......................................... 23
Virtual keypad ...................................... 24
Traditional keypad............................... 25
5. Menu functions ................ 30
Messaging............................................. 30
Contacts................................................. 34
Log........................................................... 35
Operator menu..................................... 36
Settings.................................................. 36
Gallery .................................................... 45
Media...................................................... 46
Organiser ............................................... 49
Games..................................................... 50
Applications.......................................... 51
E-book Player ....................................... 52
Voice command ................................... 52
QQ............................................................ 53
6. Accessories ......................... 54
7. Battery and charger
information 57
Battery information............................ 59
Nokia battery authentication guidelines
60
Care and maintenance........... 62
DRAFT
![](/img.php?id=1308774&img=bg6.png)
SAFETY
6
SAFETY
Read these simple guidelines. Not following them may be dangerous or illegal.
Read the complete user guide for further information.
SWITCH ON SAFELY
Do not switch the device on when wireless phone use is prohibited or
when it may cause interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle
while driving. Your first consideration while driving should be road
safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could
affect performance.
SWITCH OFF IN RESTRICTED AREAS
Follow any restrictions. Switch the device off in aircraft, near medical
equipment, fuel, chemicals, or blasting areas.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
ACCESSORIES AND BATTERIES
Use only approved accessories and batteries. Do not connect
incompatible products.
WATER-RESISTANCE
Your device is not water-resistant. Keep it dry.
DRAFT
![](/img.php?id=1308774&img=bg7.png)
SAFETY
7
■About your device
The wireless device (RM-686) described in this guide is approved for use on the
CDMA 800 MHz network. Contact your service provider for more information
about networks.
When using the features in this device, obey all laws and respect local customs,
privacy and legitimate rights of others, including copyrights.
Copyright protection may prevent some images, music, and other content from
being copied, modified or transferred.
Your device may have preinstalled bookmarks and links for third-party internet
sites. You may also access other third-party sites through your device. Third-party
sites are not affiliated with Nokia, and Nokia does not endorse or assume liability
for them. If you choose to access such sites, you should take precautions for
security or content.
Warning: To use any features in this device, other than the alarm clock,
the device must be switched on. Do not switch the device on when
wireless device use may cause interference or danger.
Remember to make back-up copies or keep a written record of all important
information stored in your device.
When connecting to any other device, read its user guide for detailed safety
instructions. Do not connect incompatible products.
■Network services
To use the device you must have service from a wireless service provider. Many of
the features require special network features. These features are not available on
all networks; other networks may require that you make specific arrangements
with your service provider before you can use the network services. Using network
services involves transmission of data. Check with your service provider for details
DRAFT
SAFETY
8
about fees in your home network and when roaming in other networks. Your
service provider can give you instructions and explain what charges will apply.
Some networks may have limitations that affect how you can use network services.
For instance, some networks may not support all language-dependent characters
and services.
Your service provider may have requested that certain features be disabled or not
activated in your device. If so, these features will not appear on your device menu.
Your device may also have a special configuration such as changes in menu names,
menu order, and icons. Contact your service provider for more information.
This device supports WAP 2.0 protocols (HTTP and SSL) that run on TCP/IP
protocols. Some features of this device, such as sending e-mail, browsing websites,
or downloading files require network support for these technologies.
DRAFT
![](/img.php?id=1308774&img=bg9.png)
Get started
9
1. Get started

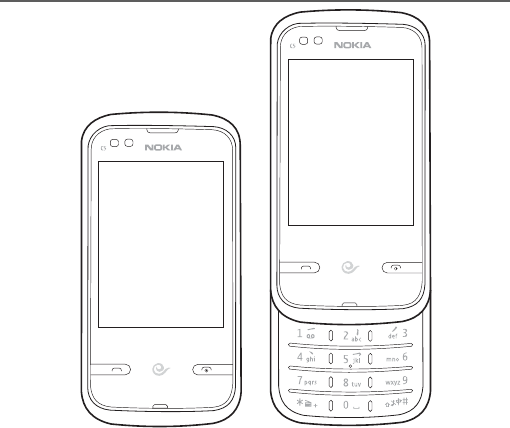

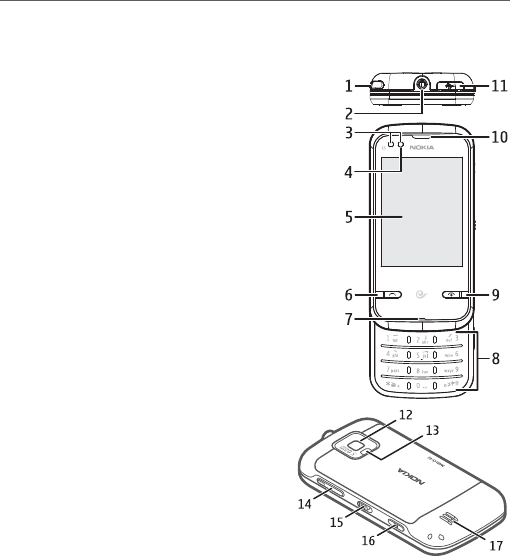

■Keys and parts
1. Stylus
2. Nokia AV connector (3.5mm)
3. Proximity sensor
4. Light sensor
5. Display
6. Call key
7. Microphone
8. Keypad
9. Power/End key
10.Earpiece
11. Charger/Micro USB connector
12.Camera lens
13.Flash
14.Volume keys
15.Lock switch
16.Capture key
17.Speaker
DRAFT
![](/img.php?id=1308774&img=bga.png)
Get started
10
Do not cover the area above the touch screen, for
example, with protective film or tape.

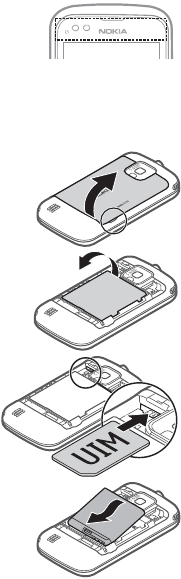

■Insert the UIM card and battery
Always switch the device off and disconnect the charger before removing
the battery.
1. With the back of the device facing you,
lift up the back cover with your nail from
the right side of your device.
2. Insert your finger into the finger grip, and
lift the battery from its compartment.
3. Make sure that the contact area is facing
down, and insert the UIM card into the
card slot.
4. Align the battery contacts with those on
the device, and press down on the other
end of the battery.
DRAFT
![](/img.php?id=1308774&img=bgb.png)
Get started
11
5. Insert the tabs at the top of the cover into
the slots in the device, and press down on
the other end of the back cover.
■Insert the memory card
Use only compatible microSD cards approved by Nokia for use with this
device. Your device supports microSD cards that have a capacity of up to
16 GB. Nokia uses approved industry standards for memory cards, but
some brands may not be fully compatible with this device. Incompatible
cards may damage the card and the device and corrupt data stored on the
card.
1. Remove the back cover.
2. Make sure that the contact area is facing
down, and insert the microSD card into the
card slot.
3. Replace the back cover.
Important: Do not remove the memory card in the middle of an
operation when the card is being accessed. Removing the card in
the middle of an operation may damage the memory card as well
as the device, and data stored on the card may be corrupted.
■Charge the battery
Your battery has been partially charged at the factory. If the device
indicates a low charge, do the following:
DRAFT
![](/img.php?id=1308774&img=bgc.png)
Get started
12
1. Connect the charger to a wall outlet.
2. Connect the charger to the device.
3. When the device indicates a full charge,
disconnect the charger from the device, then from the wall outlet.
You do not need to charge the battery for a specific length of time, and
you can use the device while it is charging. If the battery is completely
discharged, it may take several minutes before the charging indicator
appears on the display or before any calls can be made. You can also use
USB data cable for charging.
Warning: Use only batteries, chargers, and accessories approved
by Nokia for use with this particular model. The use of any other
types may invalidate any approval or warranty, and may be
dangerous.
■Switch your device on or off
Press and hold the power key.
■Set the time zone, date and time
When you switch on your device for the first time, you are asked to set the
time and date. Fill in the fields, and select Save.
To access date and time settings later, see "Date and time", p. 37.
DRAFT
![](/img.php?id=1308774&img=bgd.png)
Get started
13
■Stylus
Some functions, such as handwriting recognition, are
designed to be used with a stylus. The pen stylus is located
at the left side of the device.
Important: Use only a stylus approved by Nokia for use
with this device. Using any other stylus may invalidate any warranty
applying to the device and may damage the touch screen. Avoid
scratching the touch screen. Never use an actual pen or pencil or other
sharp objects to write on the touch screen.
■Access codes
The access code helps to protect your phone against unauthorized use.
The default lock code is 1234. You can change the code, and set the device
to request the code. Keep the new code secret and in a safe place separate
from your device. If you forget the code and your device is locked, your
device will require services. Additional charges may apply, and all the
personal data in your device may be deleted. For more information,
contact a Nokia Care point or your device dealer.
To define the security settings for your device, select Menu > Settings >
Security.
DRAFT
![](/img.php?id=1308774&img=bge.png)
Get started
14
■Lock the keys and touch screen
The keyguard locks the keys and the touch screen to prevent accidental
presses.
To lock or unlock the keys and the touch screen, slide the lock switch on
the side of the device.
To lock the keys and the touch screen automatically when no keys are
pressed for a certain length of time, in the home screen, select Menu >
Settings > Phone > Automatic keyguard > On, and enter the desired
delay time.
■Touch screen actions
Use the touch screen with your finger or with a stylus (if available).
Tap and double-tap
To open an application or other element on the touch screen, you
normally tap it with your finger or the stylus. To zoom a web page while
surfing on the internet, you must tap it twice.
Select
In this user documentation, opening applications or items by tapping
them once is called "selecting". If you need to select several items in a
sequence, the display texts to select are separated by arrows. For example,
to select Menu > Settings, tap Menu, and then tap Settings.
DRAFT
![](/img.php?id=1308774&img=bgf.png)
Get started
15
Drag
To drag, place your finger or the stylus on the screen, and slide it across
the screen. For example, To scroll up or down on a web page, drag the
page with your finger or stylus.
Swipe
To swipe, slide your finger or the stylus quickly left or right on the screen.
For example, when viewing an image, to view the next or previous image,
swipe the image left or right, respectively.
Flick
To flick, place your finger on the screen, slide it quickly across the screen,
then quickly lift your finger. The content of the screen will continue
scrolling with the speed and direction it had at the moment of release. To
select an item from a scrolling list and to stop the movement, tap the
item.
Touch screen light
The touch screen light is turned off after a period of inactivity. To turn the
screen light on, tap it.
If the touch screen and keys are locked, tapping the screen does not turn
the screen light on. To unlock the screen and keys, slide the lock switch.
DRAFT
![](/img.php?id=1308774&img=bg10.png)
Get started
16
■Normal operating position
Your device has an internal antenna. Use the device
only in its normal operating position.
Note: Your device may have internal and
external antennas. As with any radio transmitting device, avoid
touching the antenna area unnecessarily while the antenna is
transmitting or receiving. Contact with such an antenna affects
the communication quality and may cause the device to operate
at a higher power level than otherwise needed and may reduce
the battery life.
■Nokia support on the web
Check www.nokia.com/support or your local Nokia website for the latest
guide, additional information, downloads, and services related to your
Nokia product.
■Green tips
Save energy
You do not need to charge your battery so often if you do the following (if
available for your device):
DRAFT
![](/img.php?id=1308774&img=bg11.png)
Get started
17
• Close applications and data connections, for example, your Bluetooth
connection, when not in use.
• Decrease the brightness of the screen.
• Set the device to enter the power saver mode after the minimum
period of inactivity if available in your device.
• Deactivate unnecessary sounds, such as key tones.
Recycle
All materials of this device can be recovered as materials and energy. For
information on how to recycle your old Nokia products, go to
www.nokia.com.cn/werecycle, or using a mobile device nokia.mobi/
werecycle.
Recycle packaging and user guides at your local recycling scheme.
For more information on the environmental attributes of your device, go
to www.nokia.com/ecodeclaration.
DRAFT
![](/img.php?id=1308774&img=bg12.png)
Your device
18
2. Your device
■Home screen
Home screen is your starting point where you can collect your important
contacts or application shortcuts.
Interactive display elements
1. Clock — To open the alarm clock, tap the
clock.
2. Calendar — To open the calendar
application, tap the date.
3. Contacts bar — To add or use the contact,
tap the corresponding icon.
4. Music player — To run the music player, tap
the corresponding icon.
5. Shortcuts — To access a certain application,
tap the corresonding icon.
6. Go to — Press the left selection key to quickly access a certain feature.
7. Menu — Press the middle selection key to access the main menu.
8. Web — Press the right selection key to access mobile internet service.
DRAFT
![](/img.php?id=1308774&img=bg13.png)
Your device
19
Start using contacts bar
To start using the contacts bar and add your contacts to the home screen,
in the home screen, select and the desired contact from contacts list.
Activate and personalise the home screen
To switch the home screen on, select Menu > Settings > Display > Home
Screen > Home screen mode > On.
To customise the home screen view, select Menu > Settings > Display >
Home Screen > Personalise view.
■Flight profile
Use the flight profile in radio sensitive environments - on board aircraft or
in hospital. The flight profile lets you access to such applications as offline
games, calendar, media player and more without connecting to the
wireless network.
Warning: With the flight profile you cannot make or receive any
calls, including emergency calls, or use other features that
require network coverage. To make calls, you must first activate
the device function by changing profiles. If the device has been
locked, enter the lock code. If you need to make an emergency
call while the device is locked and in the flight profile, you may be
also able to enter an official emergency number programmed in
your device in the lock code field and select ’Call’. The device will
confirm that you are about to exit flight profile to start an
emergency call.
DRAFT
![](/img.php?id=1308774&img=bg14.png)
Call functions
20
3. Call functions
■Proximity sensor
Your device has a proximity sensor. To prevent accidental selections, the
touch screen is disabled automatically during calls when you place the
device next to your ear.
■Make or answer a call
1. In the home screen, enter the phone number, including the country
code and area code, if necessary.
2. Press the call key.
3. To end the call or to cancel the call attempt, press the end key.
To answer a call, press the call key. To reject an incoming call, press the
end key.
■Loudspeaker
Warning: Do not hold the device near your ear when the
loudspeaker is in use because the volume may be extremely loud.
To activate the loudspeaker during a call, select Loudsp.. To deactivate the
loudspeaker, select Normal.
DRAFT
![](/img.php?id=1308774&img=bg15.png)
Call functions
21
■In-call voice recording
To recording a phone call, during the call, select Options > Record call
and the record icon . To stop recording, select the stop icon . The file
is saved in the Recordings folder in Gallery.
DRAFT
![](/img.php?id=1308774&img=bg16.png)
Write text
22
4. Write text
The input methods described in this section may not be applicable to
third-party applications, for example, dictionary.
When the slide is open, you can enter texts with traditional keypad or
handwriting mode. When the slide is closed, you can enter texts with
virtual keypad or handwriting mode. You may tap the text input field to
activate the method used last time. To switch from traditional or virtual
keypad to handwriting mode, select . To switch from handwriting
mode to traditional or virtual keypad, select .
This phone supports simplified Chinese and English input methods. To
switch writing languages or input methods, when writing text, do one of
the following:
• For handwriting mode, select > Writing language > 123, ABC or
Chinese.
• For virtual keypad, tap # repeatedly till the desired input method is
displayed.
• For traditional keypad, to switch writing language, press and hold #,
and select Writing language and the desired language; to change
input method, press # repeatedly till the desired input method is
displayed.
Not all the methods may be available in all circumstances. Always check
the indicator to see which input method is in use.
DRAFT
![](/img.php?id=1308774&img=bg17.png)
Write text
23
■Handwriting
Write legible, upright characters on the text input area. Only one
character can be recognised at a time. To configure text input settings for
the touch screen, see "Touch input", p. 37.
1. Input method indicator
2. Text input area
3. Close handwriting mode
4. Traditional/Visual keypad input
5. Input menu
6. Backspace
7. Symbol key
To move the cursor, tap the desired position on
the screen.
To clear the character before the cursor, tap . To enter a symbol, tap
and select the desired special character.
To insert a space, insert a line feed, clear the character, or repeat the
charater before the cursor, follow the gestures in the below table.
Name Example
Insert a space
Insert a line feed
DRAFT
![](/img.php?id=1308774&img=bg18.png)
Write text
24
■Virtual keypad
With the virtual keypad, you can enter characters like you would with a
traditional physical keypad.
1. Text input area
2. Alphanumeric keypad
3. Handwriting mode
4. Input menu
5. Text input indicator
6. Symbol key
7. Arrow keys
8. Backspace or Cancel key
9. Close virtual keypad
To move the cursor to a certain position, tap the desired position directly
or use the arrow keys. To clear a character, move the cursor right behind it,
and tap the backspace key.
To set predictive input on or off, select > Prediction on or Prediction
off.
Clear the character
Repeat the character
Name Example
DRAFT
![](/img.php?id=1308774&img=bg19.png)
Write text
25
■Traditional keypad
Pinyin input method
The pinyin symbols are printed on the number keys. You only need to press
a key once, regardless of the position of the symbol on the number key.
The phone makes logical combinations of the pinyin symbols.
To input a character using the pinyin input method:
1. Press the number key once for each pinyin symbol you want to input
(use "v" for "u").
2. Press 1 repeatedly until you get the desired tone mark.
3. If necessary, press * repeatedly to highlight the desired pinyin
combination.
4. Scroll to the desired Chinese character, and select OK.
Stroke input method
The strokes constituting Chinese characters have been divided into five
categories: horizontal, vertical, left-falling, dot, and turning. Each
category corresponds to a number key from 1 to 5, respectively.
DRAFT
![](/img.php?id=1308774&img=bg1a.png)
Write text
26
The strokes are classified according to the following table:
To use the stroke input method:
1. In the standard stroke order, press the number keys to input the
strokes.
Tip: if you are not sure which stroke to use or which category it
belongs to, press 6 to substitute that stroke, then continue with
the subsequent strokes. A question mark appears in the input
area to represent that stroke.
2. Scroll to the desired Chinese character, and select OK.
Phrase input
You may input a phrase of no more than seven Chinese characters at a
time.
DRAFT
Write text
27
1. Press the relevant number keys to enter the syllable or pinyin initial, or
first strokes for the first character of the phrase.
2. Press 0 to enter a separator; or, if in the pinyin mode, press 1
repeatedly to enter the tone mark of the character you want.
3. Enter the syllable or pinyin initial, or first strokes of the next Chinese
character.
4. Repeat step 2 and 3, if necessary, to enter the syllables or pinyin
initials, or first strokes of all the characters in the phrase.
5. If in the pinyin mode, press * repeatedly, if necessary, to highlight the
pinyin combination you want.
6. Scroll through the candidate list to the desired phrase, and select OK.
Not all phrases are stored in your phone. To create a phrase of no more
than seven characters, when no input symbol or prediction list is
displayed, select Options > User phrases > Add. When the database
becomes full, the new phrase replaces the phrase that has not been
accessed for the longest time.
Use a separator to separate pinyin strings for syllables of different
characters or the strokes of different characters.
When you enter a separator, the phone predicts characters or character
strings that can form a phrase with the possible candidates of the
combination of pinyin or stroke strings and separators, if any, that you
have entered.
DRAFT
![](/img.php?id=1308774&img=bg1c.png)
Write text
28
Set predictive English input on or off
When writing in English, press and hold #, and select Prediction on or
Prediction off.
Traditional English input
Press a number key (2 to 9) repeatedly until the desired character is
displayed.
If the next letter is located on the same key as the present one, wait until
the cursor appears, or scroll right, and enter the letter.
Not all characters available under a number key are printed on the key.
The available characters depend on the selected Writing language.
The most common punctuation marks and special characters are available
under the number key 1. To access the list of special characters, press *.
Predictive English input
Predictive English input is based on a built-in dictionary to which you can
also add new words.
1. Start writing a word using the keys 2-9. Press each key only once for
one letter.
2. To confirm a word, scroll right or add a space.
If the word is not correct, press * repeatedly until the desired word is
displayed, and confirm it.
If the ? character is displayed after the word, the word you intended
to write is not in the dictionary. To add the word to the dictionary,
DRAFT
![](/img.php?id=1308774&img=bg1d.png)
Write text
29
select Spell. Enter the word using traditional text input, and select
Save.
To write compound words, enter the first part of the word, and scroll
right to confirm it. Write the second part of the word, and confirm the
word.
3. Start writing the next word.
Tips for writing text
The following functions may also be available for writing text:
• To insert a number when no input symbol is displayed, press and hold
the desired number key.
• To insert a space when there is no candidate or prediction list
displayed, press 0.
• To enter a special character after you have finished entering a word or
character, press *.
• To end the Chinese character prediction, select Back, or press the
relevant keys to start entering new text.
DRAFT
![](/img.php?id=1308774&img=bg1e.png)
Menu functions
30
5. Menu functions
The device functions are grouped into menus. Not all menu functions or
option items are described here.
In the home screen, select Menu, and tap the desired menu item. To exit
the current menu level, select Exit or Back. To return to the home screen,
press the end key.
To provide a visual representation of your current position in the menu
structure, a scroll bar may be displayed on the right side of the screen.
■Messaging
You can only use messaging services supported by your network or service
provider.
Write and send a text message
1. Select Menu > Messaging > Text messages > Create message.
2. Enter the recipient’s phone number in the To field. To retrieve a phone
number from the recently used recipient list or contacts list, select
Add > Recently used or Contacts, and the recipient. To send to a
contact group, select Add > Contact groups and the desired group.
3. Write the message in the Message field, and select Send.
DRAFT
![](/img.php?id=1308774&img=bg1f.png)
Menu functions
31
Write and send a multimedia message
Only devices that have compatible features can receive and display
multimedia messages. The appearance of a message may vary depending
on the receiving device.
The wireless network may limit the size of MMS messages. If the inserted
picture exceeds this limit, the device may make it smaller so that it can be
sent by MMS.
1. Select Menu > Messaging > Multim. Messages > Create message.
2. Select Options > Add object, a multimedia folder, and a file.
3. To add more files, select Options > Add another object.
4. In the To field, enter the phone number or blog site address. To retrieve
a phone number from the recently used recipient list or contacts list,
select Add > Recently used or Contacts, and the recipient. To send to a
contact group, select Add > Contact groups and the desired group. To
send to a blog site, select Add > Blog site and the desired site.
5. Enter the text for the message, and select Send.
Read and reply to a message
When you receive a message, a notification and are displayed.
1. To read the message, select Show, or to dismiss the notification, select
Exit.
2. Select Reply and the desired option.
3. Enter your reply, and select Send.
DRAFT
![](/img.php?id=1308774&img=bg20.png)
Menu functions
32
Text message settings
Select Menu > Messaging > Text messages > Message settings.
Select Sending options and from the following:
•Priority — Send text messages with normal priority or as urgent.
•Delivery reports — Receive confirmation when your message is
delivered.
•Message validity — Set the period of validity of a messaging request.
Select Other settings and from the following:
•Save rcvd. text msgs. — Select where to store received messages.
•Save sent messages — Save sent messages to the Sent items folder.
•Queue if no digital — Save the messages in the Outbox that can be
sent later when the digital service is available.
Select Memory status to view available and used memory.
Multimedia messages settings
Select Menu > Messaging > Multim. Messages > Message settings and
from the following:
•Delivery reports — Receive message delivery reports.
•Default slide timing — Set the default timing for slides in multimedia
messages.
•Allow MMS receptn. — Receive multimedia messages.
DRAFT
![](/img.php?id=1308774&img=bg21.png)
Menu functions
33
•Incoming MMS msgs. — Select to retrieve incoming multimedia
messages automatically, manually, or not at all.
•Allow adverts — Block or allow advertisements sent as multimedia
messages.
•Delivery report reject — Stop your device sending delivery reports of
received messages.
•Message validity — Set the period of validity of a messaging request.
•Access points — Select access points for MMS.
Voice messages
The voice mailbox is a network service to which you may need to
subscribe. For more information, contact your service provider.
To listen to your voice messages, select Menu > Messaging > Voice
messages > Listen to voice msgs., or, in the home screen, press and hold
1.
Groups
With groups, you can send a message to several people at the same time.
To add a new group, select Menu > Messaging > Groups > Add (if the list
is empty) or Options > Add new group to create another group. Enter the
details of the group, and select Save.
DRAFT
![](/img.php?id=1308774&img=bg22.png)
Menu functions
34
Browser messages
With Browser (network service), you can access web services offered and
updated by service providers.
Select Menu > Messaging > Browser msgs..
Important: Exercise caution when opening messages. Messages
may contain malicious software or otherwise be harmful to your
device or PC.
■Contacts
Save and edit names and numbers
To add a new contact, select Menu > Contacts > Names > Add (if the
contacts list is empty) or Options > Add new contact. Enter the name and
the phone number, and select Save.
To add details, set a speed dial, or add to a group, select Menu > Contacts
> Names, the desired contact, Details > Options, and the desired option.
Search for a contact
Select Menu > Contacts > Names > Search, and enter the first
characters, or letters of the name you are searching for.
When doing search, to change the input method, press #.
DRAFT
![](/img.php?id=1308774&img=bg23.png)
Menu functions
35
Personal information management (PIM)
You can back up contacts in your device to China Telecom’s PIM website
and restore from the website when needed (network service).
Select Menu > Contacts > PIM.
Groups
For detail information, please refer to "Groups", p. 33.
Speed dials
To activate or deactivate speed dialling, see "Call", p. 40.
To assign a phone number to a speed dialling slot, select Menu > Contacts
> Speed dials, an empty speed dialling slot, and Assign. Enter the phone
number you want to assign to the slot, or select Search to retrieve the
number from your contacts list.
■Log
To view the information of your calls, messages, data, and positioning,
select Menu > Log and the approperiate option.
Note: The actual time invoiced for calls by your network service
provider may vary, depending on network features, rounding off
for billing, and so forth.
DRAFT
![](/img.php?id=1308774&img=bg24.png)
Menu functions
36
■Operator menu
China Telecom provides you some network services, such as esurfing, Best
Tone, and more. For availability of the services, pricing, tariffs, and
instructions, contact your service provider.
■Settings
Profiles
You can use profiles to set and customise the ringing tones, message alert
tones, and other tones for different events or caller groups.
To activate or customise a profile or set a time limit for a profile, select
Menu > Settings > Profiles, a profile, and Activate, Personalise, or Timed.
Themes
You can use themes to change the look of the display.
To change the theme for your device, select Menu > Settings > Themes, a
theme.
Tones
Tone settings only apply to the currently selected profile.
Select Menu > Settings > Tones and the appropriate option.
DRAFT
![](/img.php?id=1308774&img=bg25.png)
Menu functions
37
Display
Select Menu > Settings > Display and from the following:
•Backlight time-out — Set the length of time after which the backlight
is switched off.
•Home screen — Activate and personalise the home screen.
Touch input
Select Menu > Settings > Touch input and from the following:
•Screen calibration — The screen is calibrated at the factory. If it is
necessary to recalibrate the screen, follow the instruction.
•Vibration feedback — Set the vibration strength.
•Handwriting settings — Set the writing language, handwriting
recognition speed and the colour of texts writen.
Date and time
To change the time, time zone, or date settings, select Menu > Settings >
Date and time > Date and time, Date and time format or Auto-update
of time (network service).
My shortcuts
With personal shortcuts you get quick access to often used functions of
the device.
DRAFT
![](/img.php?id=1308774&img=bg26.png)
Menu functions
38
To select a function from the list for the key you want to assign the
shortcut to, select Menu > Settings > My shortcuts, the key, and the
function.
Connectivity
At Nokia, we understand how important it is that your mobile phone or
device operates reliably and that your personal content is saved safely.
Any information from an unknown or unreliable source, via Bluetooth
connectivity, multimedia message, or data cable, may harm your PC,
mobile phone, or device. You may protect your mobile phone or device
from damage and keep it secured by following simple measures:
• Always keep Bluetooth connectivity deactivated unless you want your
phone or device to be visible to others.
• Always be alert when receiving information from an unknown or
untrustworthy source.
• Do not download or install any applications that may include software
harmful to your phone or device.
• Always download and install applications or content from trusted or
well known sources, such as Nokia Software Market, where good
protection is provided against viruses and other harmful software.
Your device offers several options to connect to the internet or to another
compatible device or PC.
Bluetooth connection
DRAFT
Menu functions
39
This device is compliant with Bluetooth Specification 2.1 with EDR and
supports the following profiles: Advance Audio Distribution Profile, A/V
Remote Control, Basic Printing Profile, Dial-up Networking, File Transfer
Profile, Generic A/V Dist. Profile, Hands Free Profile, Headset Profile,
Object Push Profile, and Phone Book Access Profile. To ensure
interoperability between other devices supporting Bluetooth technology,
use Nokia approved accessories for this model. Check with the
manufacturers of other devices to determine their compatibility with this
device.
Select Menu > Settings > Connectivity > Bluetooth and from the
following:
•Bluetooth — Activate Bluetooth connectivity.
•Conn. to audio acc. — Connect an audio device using Bluetooth
technology.
•Paired devices — Pair your device with a Bluetooth device in range.
•Active devices — Check which Bluetooth connection is currently
active.
•My phone's visibility or My phone's name — Define how your device
is shown to other Bluetooth devices.
Features using Bluetooth technology increase the demand on battery
power and reduce the battery life.
USB data cable
You can transfer data between your device and a compatible PC using a
CA-101 USB data cable.
DRAFT
![](/img.php?id=1308774&img=bg28.png)
Menu functions
40
You may find Nokia PC Suite and related information at product support
pages on the Nokia website.
Important: To make a phone call, disconnect the USB data cable.
To transfer data, connect the data USB cable, and select Menu >
Settings > Connectivity > USB data cable and from the following:
•Ask on conn. — Set the device to ask which mode to use, each time the
cable is connected.
•PC Suite — Use the data cable connection for Nokia PC Suite.
•Data storage — Connect to a PC that does not have Nokia software
and use your device for data storage (If a compatible memory card is
inserted).
•Media transfer — Synchronise music and video files between your
device and a compatible PC with Windows Media Player.
Call
Select Menu > Settings > Call and from the following:
•Anykey answer — Answer an incoming call by pressing any key, except
the end key or left or right selection key.
•Slide call handling — Set to answer a call by opening the slide and end
a call by closing the slide.
•Automatic redial — Automatically redial the number if the network is
busy.
•Speed dialling — Activate speed dialling.
DRAFT
![](/img.php?id=1308774&img=bg29.png)
Menu functions
41
•Calling card — Save up to four calling card numbers in your device, to
use for long distance calls.
•Abbreviated dialling — Program a 5-6 digit prefix for commonly used
phone numbers.
•Preferred carrier — Select the preferred long distance carrier.
•International prefix — Make calls using the + sign as the international
prefix. The device replaces the + sign in a saved phone number when
making a call.
•Data/fax calls — Set your device to send or receive data calls when
connected to a device such as a PDA or PC (network service).
•Call summary — Display the call duration when you end a call.
•Show call time displ. — Display the duration of the current call.
•Ringtone no caller ID — Sound a ringtone for calls where there is no
caller ID.
•Location info sharing — Share the location information of the device
(network service).
•Message response — Send a text message when a call is rejected.
Phone
Select Menu > Settings > Phone and from the following:
•Language settings — To set the display language of your device, select
Phone language. To set a language for voice commands, select
Recogn. language.
DRAFT
![](/img.php?id=1308774&img=bg2a.png)
Menu functions
42
•Automatic keyguard — Set the keypad to lock automatically after a
preset length of time.
•DTMF tones — Dual-tone multifrequency (DTMF) is used by the
telephone system to recognise the keys pressed when dialling (for
example, telephone banking and help desk). Activate DTMF tones and
set the tone duration.
•Phone updates — Update the device with the latest software available
(network service).
Warning: If you install a software update, you cannot use the
device, even to make emergency calls, until the installation is
completed and the device is restarted. Be sure to back up data
before accepting installation of an update.
If software updates over the air are supported by your network, you
may also be able to request updates through the device.
Downloading software updates may involve the transmission of large
amounts of data through your service provider's network. Contact your
service provider for information about data transmission charges.
Make sure that the device battery has enough power, or connect the
charger before starting the update.
•Confirm UIM actions — Set the UIM service actions visible.
•Flight query — Set the device to ask if you want to activate the flight
profile, every time you switch the device on.
•BREW EFS enable — Allow BREW EFS downloads (network service).
DRAFT
![](/img.php?id=1308774&img=bg2b.png)
Menu functions
43
•Wap Pull Position — Allow, reject or ask confirmation for WAP pull
(network service).
Voice commands
To activate voice commands, in the home screen, select Menu > Voice
command and say a command.
Note: Using voice tags may be difficult in a noisy environment or
during an emergency, so you should not rely solely upon voice
dialling in all circumstances.
To view the list of applications or profiles that can be activated with a
voice command, select Menu > Settings > Voice commands. You can
modify the list by marking or unmarking certain items.
Voice commands are language-dependent. To set the language, see
"Language settings" under "Phone", p. 41.
Accessories
Select Menu > Settings > Enhancements, an accessory, and an option,
depending on the accessory.
Security
To set the security settings for your device, select Menu > Settings >
Security and the appropriate option.
Some of the settings may require the lock code. The default lock code is
1234.
DRAFT
![](/img.php?id=1308774&img=bg2c.png)
Menu functions
44
Network
The Network menu allows you to customise how your device chooses
which network to operate in while you are within or away from your
primary or home network. Your device is set to search for the most
effective network. To set which network to use when the device cannot
find a preferred network, select Menu > Settings > Network > Set mode
and a mode.
Network services
To view the network services available on your device, select Menu >
Settings > Network services. For more information, contact your service
provider.
Phone details
To view the user, version, system, or icon information of your device,
select Menu > Settings > Phone details and the appropriate option.
Blog site
Blog site defines the web address where you can upload your images or
video clips.
To add a blog site, select Menu > Settings > Blog site > Options > Add
new site, enter the details of the site, and select Save.
DRAFT
![](/img.php?id=1308774&img=bg2d.png)
Menu functions
45
Restore factory settings
Select Menu > Settings > Rest. factory sett. and from the following:
•Restore settings only — Reset some menu settings.
•Restore all — Restore all settings and delete personal data.
■Gallery
Copyright protections may prevent some images, music (including ringing
tones), and other content from being copied, modified, transferred or
forwarded.
Manage multimedia files and received files. These files are stored in the
phone memory or on a memory card, and may be arranged in folders.
Content owners may use different types of digital rights management
(DRM) technologies to protect their intellectual property, including
copyrights. This device uses various types of DRM software to access
DRM-protected content. With this device you can access content
protected with OMA DRM 1.0. If certain DRM software fails to protect the
content, content owners may ask that such DRM software's ability to
access new DRM-protected content be revoked. Revocation may also
prevent renewal of such DRM-protected content already in your device.
Revocation of such DRM software does not affect the use of content
protected with other types of DRM or the use of non-DRM-protected
content.
Digital rights management (DRM) protected content comes with an
associated activation key that defines your rights to use the content.
DRAFT
![](/img.php?id=1308774&img=bg2e.png)
Menu functions
46
To view the list of folders, select Menu > Gallery.
■Media
Camera and Video
You can capture images and record video clips with the built-in 5.0 -
megapixel camera.
To capture an image or record a video clip, in the home screen, select
Menu > Media > Camera or Video, and select Capture or Record.
The image captured is saved in the Image folder of Gallery in the JPEG
format. The video clip recorded is saved in the Video clips folder of Gallery
in the 3GP format.
To adjust the camera zoom level, press the volume keys up or down.
To capture another image or record another video clip, select Back. To
send the image or video clip, select Send and the desired sending method.
Media player
The media player supports the following audio formats: MIDI, MP3, AAC,
QCELP, AMR-NB, WMA, AAC+, and eAAC+; and the following video
formats: MPEG4, H.263, and H.264.
Warning: Listen to music at a moderate level. Continuous
exposure to high volume may damage your hearing. Do not hold
the device near your ear when the loudspeaker is in use, because
the volume may be extremely loud.
DRAFT
![](/img.php?id=1308774&img=bg2f.png)
Menu functions
47
To play an audio or video playback, select Menu > Media > Media player,
a multimedia folder, and the desired playback.
To adjust the volume level, use the volume keys of the device.
Operate the music player with the virtual keys on the display.
To pause playback, tap ; to resume, tap . To fast-forward or rewind,
tap and hold or . To go to the next item, tap . To return to the
beginning of the item, tap . To skip to the previous item, tap twice.
To set an automatic switch-off timer within 24 hours, select Options >
Auto off timer, enter the time, and select OK.
You may have to refresh the music library after you have updated the
song selection in your device. To add all available items to the library,
select Menu > Media > Media player > Options > Update library.
To close the media player, press and hold the end key.
Radio
The FM radio depends on an antenna other than the wireless device
antenna. A compatible headset or accessory must be attached to the
device for the FM radio to function properly.
Warning: Listen to music at a moderate level. Continuous
exposure to high volume may damage your hearing.
To listen to the radio, select Menu > Media > Radio.
To search for a station, tap and hold or . To go to the previous or
next saved station, tap or .
DRAFT
![](/img.php?id=1308774&img=bg30.png)
Menu functions
48
To access more options while listening to the radio, select Options and
from the following:
•Switch off — Turn off the radio.
•Search all stations — Automatically search for all available stations at
your location.
•Save station — Name and save current frequency, if different from any
saved station, as a new radio station.
•Stations — View or select from the list of saved radio stations.
•Set frequency — Enter the frequency of the desired radio station.
•Auto off timer — Set an automatic switch-off timer within 24 hours.
•Loudspeaker or Headset — Listen to the radio using the loudspeaker or
headset.
•Settings — Set FM broadcasting as mono or stereo, select to
automatically search for a better RDS frequency for the station if the
frequency level becomes low, and more.
Voice recorder
Record speech, sound, or an active call, and save them in Gallery.
To start recording, select Menu > Media > Voice recorder and the record
icon . To pause recording, select the pause icon . To stop recording,
select the stop icon .
DRAFT
![](/img.php?id=1308774&img=bg31.png)
Menu functions
49
Equaliser
The equaliser enhances the sound quality when using the music player.
To use a preset setting when playing music, select Menu > Media >
Equaliser, an equaliser set, and Activate.
■Organiser
Alarm clock
Select Menu > Organiser > Alarm Clock.
To set the alarm, enter the alarm time, and select and Save.
To set your device to alart you on selected days of the week, select
Settings, set Repeat as On, and select days under Repeat days.
To select the alarm tone or set the radio as the alarm tone, select Settings
> Alarm tone. If you select the radio as an alarm tone, connect the
headset to the device.
To set the length of the snooze period, select Snooze time-out and enter
the time.
When the alarm sounds, to postpone the alarm, select Snooze; to
deactivate the alarm, select Stop.
Calendar
To open the calendar, select Menu > Organiser > Calendar.
DRAFT
Menu functions
50
To switch between month, week, and to-do note view, select Options >
Month view, Week view, or Go to to-do list.
To go to a specific date in the calendar view, select Options > Go to date.
To access more options while viewing the calendar, select Options.
Lunar calendar
To use the lunar calendar, the device language must be Chinese.
To view lunar details of the highlighted day, in the month view, select
Options > Lunar calendar.
To search for a lunar festival, in the lunar day view, select Lunar festival,
enter the Gregorian year of the Spring festival, and select the desired
lunar festival.
In the lunar day view, select Options and from the following:
•Solar item — Search for a solar item.
•Gregorian to lunar — Convert a Gregorian date to a lunar date.
•Lunar to gregorian — Convert a lunar date to a Gregorian date.
■Games
To play a game in your device, select Menu > Games.
DRAFT
![](/img.php?id=1308774&img=bg33.png)
Menu functions
51
■Applications
Communication assistant
Communication assistant allows you to block and retrieve unwanted
messages or calls.
Select Menu > Applications > Communication Asst..
E-mail mailbox
E-mail mailbox (network service) allows you to set up your e-mail
account and read e-mail messages on your device.
Select Menu > Applications > E-mail mailbox.
Important: Exercise caution when opening messages. Messages
may contain malicious software or otherwise be harmful to your
device or PC.
Dictionary
In Dictionary, you can look up a Chinese word for English translation, and
look up an English word for Chinese translation.
1. Select Menu > Applications > Dictionary.
2. Switch to the desired text input mode if necessary.
3. Enter the Chinese or English word.
4. To view the translation, select the word from list of displayed matches.
DRAFT
![](/img.php?id=1308774&img=bg34.png)
Menu functions
52
To view the translation of the previous or next word in the displayed list of
matches, scroll left or right.
QQ Farm
QQ farm (network service) helps user to maintain contact with family
members or friends.
Select Menu > Applications > QQ Farm.
Expense Manager
To record all your incomes and expenses, select Menu > Applications >
Expense Manager.
■E-book Player
To read or listen to e-books in the TXT format, select Menu > E-book
Player.
■Voice command
To activate voice command, on the home screen, select Menu > Voice
command. A short tone sounds, and "Say a command" is displayed. Select
from the following:
•Call <Name or #> — Say "Call" and a name or a phone number from
the contacts list to make a call.
•Send Text <Name or #> — Say "Send text" and a name or a phone
number from the contacts list to send a text message.
DRAFT
Menu functions
53
•Send MMS <Name or #> — Say "Send MMS" and a name or a phone
number from the contacts list to send an MMS.
•Lookup <Name> — Say "Lookup" and the name from the contacts list
to retrieve and display information about a contact.
•Go To <Menu> — Say "Go to" and the application name to activate
certain device function. For the list of functions that can be activated
with a voice command, see "Voice commands", p. 43.
•Check <Item> — Say "Check" and the specific status item or say
"Check status" to hear all the status information for your device.
To learn how to use the voice command, select Tutorial.
■QQ
QQ (network service) allows you to converse with other people using
instant messages. To check more information about signing up and costs
of QQ service, contact your service provider.
Select Menu > QQ.
DRAFT
![](/img.php?id=1308774&img=bg36.png)
Accessories
54
6. Accessories
For availability of approved accessories, please check with your dealer.
An extensive range of accessories is available for your device.
For more details, see www.nokia.com.cn.
All accessories for Nokia devices are supplied in an elegant
sales package. An accessory bought without a separate
package is not an original Nokia accessory.
How to buy Nokia original accessories:
1. Go to an authorised retailer for Nokia original accessories.
For information on the nearest authorised retailer for Nokia
accessories, check with a Nokia original accessory distributor.
* When you are buying an accessory, always ask the dealer to issue a
separate invoice listing the price and model number, which is helpful
in safeguarding your own rights.
2. Visit a Nokia online shop at www.shop.nokia.com.cn.
Practical rules about accessories
• Keep all accessories out of the reach of small children.
• When you disconnect the power cord of any accessory, grasp and pull
the plug, not the cord.
• Check regularly that accessories installed in a vehicle are mounted and
are operating properly.
DRAFT
Accessories
55
• Installation of any complex car accessories must be made by qualified
personnel only.
Why use original accessories?
As key components of your handset, batteries and chargers play a critical
role in making sure the handset is operating properly and safely. As shown
by our long-term customer surveys and after-sales services, handsets fail
in many cases by using unapproved accessories, especially unapproved
batteries and chargers.
Dangers of using unapproved batteries and chargers
• Short lifetime, with charging and discharging times noticeably less
than those of original batteries.
• Consequent much shorter lifetime of the handset, unstable power
supply that prevents the handset circuit from functioning properly,
which causes lasting damages.
• Poor performance and reliability of the handset, undermined voice
quality and frequent breakdown.
• Potential burning or explosion that endangers consumer's safety.
Benefits of using Nokia original accessories
• Adequate safety.
• High quality after-sales maintenance and services that are available to
original accessories only.
• Nokia warranty does not apply to handset failures attributable to the
use of non-original Nokia accessories.
DRAFT
Accessories
56
False: Handset battery is a simple product that combines a group of linked
cells within a single package.
True: A number of high-tech designs and high quality raw materials are
necessary for a handset battery to provide stable and lasting performance.
A battery manufactured in a slipshod way differs from an original product
on process, design, and raw material considerably, hence dramatic
difference in performance and safety.
False: All accessories with the Nokia trademark are original ones.
True: Nokia original accessories are supplied in an elegant sales package
(complying with national package regulations), and each battery carries a
hologram label. It is recommended that consumers are aware of
counterfeit Nokia accessories on the market. In particular, some dealers
might remove the original battery from the supplied handset, which
violates our distribution policies and infringes on consumer's rights.
False: Despite low quality, counterfeit battery is much cheaper and is
worthwhile even if it requires frequent replacement.
True: Unapproved batteries and chargers are not only of short lifetime and
poor performance, but will noticeably undermine the handset's
performance and reduce its lifetime. It is also deprived of comprehensive
after-sales maintenance and repair. Most important, unapproved
batteries and chargers pose safety threats to consumers. Losses in these
regards far exceed the savings on price. In fact, with inferior raw materials
and irregular designs, some counterfeit batteries cost less than 1/10 of
original products.
DRAFT
![](/img.php?id=1308774&img=bg39.png)
Battery and charger information
57
7. Battery and charger information
Your device is powered by a rechargeable battery. The battery intended for
use with this device is BL-5F Li-lon battery. This device is intended for use
when supplied with power from the following charger: AC-8C. The exact
charger model number may vary depending on the type of plug. The plug
variant is identified by one of the following: E, EB, X, AR, U, A,C or UB.
The battery can be charged and discharged hundreds of times, but it will
eventually wear out. When the talk and standby times are noticeably
shorter than normal, replace the battery. Use only Nokia approved
batteries, and recharge your battery only with Nokia approved chargers
designated for this device. Use of an unapproved battery or charger may
present a risk of fire, explosion, leakage, or other hazard.
If a battery is being used for the first time or if the battery has not been
used for a prolonged period, it may be necessary to connect the charger,
then disconnect and reconnect it to begin charging the battery. If the
battery is completely discharged, it may take several minutes before the
charging indicator appears on the display or before any calls can be made.
Always switch the device off and disconnect the charger before removing
the battery.
Unplug the charger from the electrical plug and the device when not in
use. Do not leave a fully charged battery connected to a charger, since
overcharging may shorten its lifetime. If left unused, a fully charged
battery will lose its charge over time.
DRAFT
Battery and charger information
58
Always try to keep the battery between 15°C and 25°C (59°F and 77°F).
Extreme temperatures reduce the capacity and lifetime of the battery. A
device with a hot or cold battery may not work temporarily. Battery
performance is particularly limited in temperatures well below freezing.
Do not short-circuit the battery. Accidental short-circuiting can occur
when a metallic object such as a coin, clip, or pen causes direct
connection of the positive (+) and negative (-) terminals of the battery.
(These look like metal strips on the battery.) This might happen, for
example, when you carry a spare battery in your pocket or purse. Short-
circuiting the terminals may damage the battery or the connecting object.
Do not dispose of batteries in a fire as they may explode. Batteries may
also explode if damaged. Dispose of batteries according to local
regulations. Please recycle when possible. Do not dispose as household
waste.
Do not dismantle, cut, open, crush, bend, deform, puncture, or shred cells
or batteries. In the event of a battery leak, do not allow the liquid to come
in contact with the skin or eyes. In the event of such a leak, flush your skin
or eyes immediately with water, or seek medical help.
Do not modify, remanufacture, attempt to insert foreign objects into the
battery, or immerse or expose it to water or other liquids.
Improper battery use may result in a fire, explosion, or other hazard. If the
device or battery is dropped, especially on a hard surface, and you believe
the battery has been damaged, take it to a service centre for inspection
before continuing to use it.
DRAFT
![](/img.php?id=1308774&img=bg3b.png)
Battery and charger information
59
Use the battery only for its intended purpose. Never use any charger or
battery that is damaged. Keep your battery out of the reach of small
children.
■Battery information
This section provides information about battery charging times with the
travel charger (AC-8C), and talk and standby times. The information in
this section is subject to change. For more information, contact your
service provider.
Important: Battery talk and standby times are estimates only
and depend on signal strength, network conditions, features
used, battery age and condition, temperatures to which battery
is exposed, use in digital mode, and many other factors. The
amount of time a device is used for calls will affect its standby
time. Likewise, the amount of time that the device is turned on
and in the home screen will affect its talk time.
Charging times
The charging time depends on the charger used. Charging a BL-5F battery
with the AC-8C charger takes approximately 3.5 hours while the device is
in the home screen.
DRAFT
![](/img.php?id=1308774&img=bg3c.png)
Battery and charger information
60
Talk and standby times
■Nokia battery authentication guidelines
Always use original Nokia batteries for your safety. To check that you are
getting an original Nokia battery, purchase it from a Nokia authorised
service centre or dealer, and inspect the hologram label using the
following steps:
Authenticate hologram
1. When you look at the hologram on the label, you
should see the Nokia connecting hands symbol from
one angle and the Nokia Original Accessories logo
when looking from another angle.
2. When you angle the hologram left, right, down, and
up, you should see 1, 2, 3 and 4 dots on each side
respectively.
Successful completion of the steps is not a total
assurance of the authenticity of the battery. If you have
any reason to believe that your battery is not an authentic, original Nokia
battery, you should refrain from using it, and take it to the nearest
Battery Type Talk time Standby time
BL-5F Up to 4 hours Up to 13 days
DRAFT
Battery and charger information
61
authorised Nokia service centre or dealer for assistance. If authenticity
cannot be verified, return the battery to the place of purchase.
What if your battery is not authentic?
If you cannot confirm that your Nokia battery with the hologram on the
label is an authentic Nokia battery, please do not use the battery. Take it
to the nearest authorised Nokia service centre or dealer for assistance.
The use of a battery that is not approved by Nokia may be dangerous and
may result in poor performance and damage to your device and its
accessories. It may also invalidate any approval or warranty applying to
the device.
To find out more about original Nokia batteries, visit www.nokia.com/
batterycheck.
DRAFT
![](/img.php?id=1308774&img=bg3e.png)
Care and maintenance
62
Care and maintenance
Your device is a product of superior design and craftsmanship and should be
treated with care. The following suggestions will help you protect your warranty
coverage.
• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture
can contain minerals that will corrode electronic circuits. If your device does
get wet, remove the battery, and allow the device to dry completely before
replacing it.
• Do not use or store the device in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic
circuit boards.
• Do not attempt to open the device other than as instructed in this guide.
• Do not drop, knock, or shake the device. Rough handling can break internal
circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the
device.
• Do not paint the device. Paint can clog the moving parts and prevent proper
operation.
• Use a soft, clean, dry cloth to clean any lenses, such as camera, proximity
sensor, and light sensor lenses.
DRAFT
![](/img.php?id=1308774&img=bg3f.png)
Care and maintenance
63
• Use only the supplied or an approved replacement antenna. Unauthorised
antennas, modifications, or attachments could damage the device and may
violate regulations governing radio devices.
• Use chargers indoors.
• Always create a backup of data you want to keep, such as contacts and
calendar notes.
• To reset the device from time to time for optimum performance, power off the
device and remove the battery.
These suggestions apply equally to your device, battery, charger, or any accessory. If
any device is not working properly, take it to the nearest authorised service facility
for service.
Chinese RoHS table
DRAFT
![](/img.php?id=1308774&img=bg40.png)
Additional safety information
64
Additional safety information
■Small children
Your device and its accessories may contain small parts. Keep them out of the reach
of small children.
■Operating environment
This device meets RF exposure guidelines when used either in the normal use
position against the ear or when positioned at least 1.5 centimetres (5/8 inch)
away from the body. When a carry case, belt clip, or holder is used for body-worn
operation, it should not contain metal and should position the device the above-
stated distance from your body.
To transmit data files or messages, this device requires a quality connection to the
network. In some cases, transmission of data files or messages may be delayed until
such a connection is available. Ensure the above separation distance instructions
are followed until the transmission is completed.
Parts of the device are magnetic. Metallic materials may be attracted to the device.
Do not place credit cards or other magnetic storage media near the device, because
information stored on them may be erased.
■Medical devices
Operation of any radio transmitting equipment, including wireless phones, may
interfere with the functionality of inadequately protected medical devices. Consult
a physician or the manufacturer of the medical device to determine if they are
adequately shielded from external RF energy or if you have any questions. Switch
off your device in health care facilities when any regulations posted in these areas
DRAFT
![](/img.php?id=1308774&img=bg41.png)
Additional safety information
65
instruct you to do so. Hospitals or health care facilities may be using equipment
that could be sensitive to external RF energy.
Implanted medical devices
Manufacturers of medical devices recommend that a minimum separation of 15.3
centimetres (6 inches) should be maintained between a wireless device and an
implanted medical device, such as a (cardiac) pacemaker, implanted cardioverter
defibrillator, implanted cochlea (bionic ear), etc., to avoid potential interference
with the medical device. Persons who have such devices should:
• Always keep the wireless device more than 15.3 centimetres (6 inches) from the
medical device when the wireless device is turned on.
• Not carry the wireless device in a breast pocket.
• Hold the wireless device to the ear opposite the medical device to minimise the
potential for interference.
• Turn the wireless device off immediately if there is any reason to suspect that
interference is taking place.
• Read and follow the directions from the manufacturer of their implanted
medical device.
If you have any questions about using your wireless device with an implanted
medical device, consult your health care provider.
Hearing aids
Some digital wireless devices may interfere with some hearing aids. If interference
occurs, consult your service provider.
Warning: For hearing aid compatibility, you must turn off the Bluetooth.
DRAFT
Additional safety information
66
■Vehicles
RF signals may affect improperly installed or inadequately shielded electronic
systems in motor vehicles such as electronic fuel injection systems, electronic
antiskid (antilock) braking systems, electronic speed control systems, and air bag
systems. For more information, check with the manufacturer, or its representative,
of your vehicle or any equipment that has been added.
Only qualified personnel should service the device or install the device in a vehicle.
Faulty installation or service may be dangerous and may invalidate any warranty
that may apply to the device. Check regularly that all wireless device equipment in
your vehicle is mounted and operating properly. Do not store or carry flammable
liquids, gases, or explosive materials in the same compartment as the device, its
parts, or accessories. For vehicles equipped with an air bag, remember that air bags
inflate with great force. Do not place objects, including installed or portable
wireless equipment in the area over the air bag or in the air bag deployment area. If
in-vehicle wireless equipment is improperly installed and the air bag inflates,
serious injury could result.
Using your device while flying in aircraft is prohibited. Switch off your device
before boarding an aircraft. The use of wireless teledevices in an aircraft may be
dangerous to the operation of the aircraft, disrupt the wireless telephone network,
and may be illegal.
■Potentially explosive environments
Switch off your device when in any area with a potentially explosive atmosphere,
and obey all signs and instructions. Potentially explosive atmospheres include
areas where you would normally be advised to turn off your vehicle engine. Sparks
in such areas could cause an explosion or fire resulting in bodily injury or even
death. Switch off the device at refuelling points such as near gas pumps at service
stations. Observe restrictions on the use of radio equipment in fuel depots, storage,
and distribution areas; chemical plants; or where blasting operations are in
DRAFT
![](/img.php?id=1308774&img=bg43.png)
Additional safety information
67
progress. Areas with a potentially explosive atmosphere are often, but not always,
clearly marked. They include below deck on boats, chemical transfer or storage
facilities and areas where the air contains chemicals or particles such as grain,
dust, or metal powders. You should check with the manufacturers of vehicles using
liquefied petroleum gas (such as propane or butane) to determine if this device can
be safely used in their vicinity.
■Emergency calls
Important: This device operates using radio signals, wireless networks,
landline networks, and user-programmed functions. if your device
supports voice calls over the internet (internet calls), activate both the
internet calls and the cellular phone. The device will attempt to make
emergency calls over both the cellular networks and through your
internet call provider if both are activated. Connections in all conditions
cannot be guaranteed. You should never rely solely on any wireless device
for essential communications like medical emergencies.
To make an emergency call:
1. If the device is not on, switch it on. Check for adequate signal strength.
Depending on your device, you may also need to complete the following:
Insert a UIM card if your device uses one.
Remove certain call restrictions you have activated in your device.
Change your profile from offline or flight profile mode to an active profile.
2. Press the end key as many times as needed to clear the display and ready the
device for calls.
3. Enter the official emergency number for your present location. Emergency
numbers vary by location.
4. Press the call key.
DRAFT
Additional safety information
68
When making an emergency call, give all the necessary information as accurately
as possible. Your wireless device may be the only means of communication at the
scene of an accident. Do not end the call until given permission to do so.
■Certification information (SAR)
This mobile device meets guidelines for exposure to radio waves.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed
the limits for exposure to radio waves recommended by international guidelines.
These guidelines were developed by the independent scientific organization ICNIRP
and include safety margins designed to assure the protection of all persons,
regardless of age and health.
The exposure guidelines for mobile devices employ a unit of measurement known
as the Specific Absorption Rate or SAR. The SAR limit stated in the ICNIRP
guidelines is 2.0 watts/kilogram (W/kg) averaged over 10 grams of tissue. Tests for
SAR are conducted using standard operating positions with the device transmitting
at its highest certified power level in all tested frequency bands. The actual SAR
level of an operating device can be below the maximum value because the device is
designed to use only the power required to reach the network. That amount
changes depending on a number of factors such as how close you are to a network
base station. The highest SAR value under the ICNIRP guidelines for use of the
device at the ear is 0.70 W/kg, which is in compliance with the requirement from
the National Standard GB 21288-2007.
Use of device accessories may result in different SAR values. SAR values may vary
depending on national reporting and testing requirements and the network band.
Additional SAR information may be provided under product information at
www.nokia.com.
Your mobile device is also designed to meet the requirements for exposure to radio
waves established by the Federal Communications Commission (USA) and Industry
DRAFT
Additional safety information
69
Canada. These requirements set a SAR limit of 1.6 W/kg averaged over one gram of
tissue. The highest SAR value reported under this standard during product
certification for use at the ear is 0.95 W/kg and when properly worn on the body is
1.14 W/kg.
DRAFT
![](/img.php?id=1308774&img=bg46.png)
70
Index
A
access code 13
accessories 43, 54
alarm clock 49
antenna 16
B
battery
charging 11
inserting 10
battery and charger information 57
blog site 44
Bluetooth connectivity 38
C
calendar 49
calls
log for 35
making 20
settings 40
camera
capturing images 46
connectivity 38
contacts 34
D
date and time 37
dictionary 51
display settings 37
E
equaliser 49
G
games 50
H
hearing aids 65
K
keyguard 14
L
language setting 41
loudspeaker 20
lunar calendar 50
M
media 46
media player 46
messages
e-mail 51
minibrowser 34
multimedia 31
reading and replying to 31
settings 32
voice 33
writing and sending 30
DRAFT
71
N
network settings 44
O
organiser 49
P
phone details 44
phone settings 41
profiles 36
Q
QQ 53
R
radio 47
restoring factory settings 45
S
security settings 43
settings menu 36
speed dialling 35
switching device on/off 12
T
text input
pinyin input method 25
predictive English input 28
stroke input method 25
traditional English input 28
themes 36, 44
tones 36
V
video clips
recording 46
voice commands 43
voice recorder 48
DRAFT
