Nokia C2–02 User Guide

5555555

Issue 1

Cyan

Magenta

Yellow

Black

Contents

Safety 5

Get started 7

Keys and parts 7

Insert a SIM card and

battery 8

Insert a memory card 12

Charge the battery 13

Attach a strap 15

Switch the device on or

off 15

GSM antenna 16

Basic use 17

Access codes 17

Lock the keys and

screen 19

Touch screen actions 19

Swipe to open an

application or activate a

feature 22

Indicators 22

Copy contacts or pictures

from your old device 23

Change the volume of a

call, song, or video 25

Calls 25

Make a call 25

Call the last dialled

number 26

View your missed

calls 26

Contacts 27

Save a name and phone

number 27

Write text 28

Switch between text

input modes 28

Write using traditional

text input 29

Use predictive text

input 30

2 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Messaging 31

Send a message 31

View a conversation 32

Listen to voice

messages 33

Personalise your

device 33

About the home

screen 33

Personalise the home

screen 34

Personalise your device

tones 35

Time management 37

Change the time and

date 37

Set an alarm 37

Add an appointment 38

Connectivity 38

Bluetooth 38

USB data cable 40

Music and audio 41

FM radio 41

Media player 44

Pictures and videos 45

Take a picture 45

Record a video 46

Send a picture or

video 46

Web 47

About Ovi Browser 47

Browse the web 48

Clear your browsing

history 50

Keep in touch with

your online friends 50

About Communities 50

Mail and chat 51

About Mail 51

Send a mail 52

www.nokia.com/support 3

Cyan

Magenta

Yellow

Black

Read and reply to

mail 52

About Chat 53

Chat with your

friends 53

Ovi Maps 54

About Maps 54

View your current

location on the map 56

Find a place 56

Share your location or a

place 57

Nokia's Ovi services 58

Availability and costs of

Nokia's Ovi services 58

Access Nokia's Ovi

services 58

Find help 58

Support 58

My Nokia 59

Keep your device up to

date 60

Protect the

environment 66

Save energy 66

Recycle 66

Product and safety

information 67

Index 79

4 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Safety

Read these simple guidelines. Not following them may be

dangerous or illegal. Read the complete user guide for

further information.

SWITCH OFF IN RESTRICTED AREAS

Switch the device off when mobile phone use is

not allowed or when it may cause interference

or danger, for example, in aircraft, near medical

equipment, fuel, chemicals, or blasting areas.

ROAD SAFETY COMES FIRST

Obey all local laws. Always keep your hands free

to operate the vehicle while driving. Your first

consideration while driving should be road

safety.

INTERFERENCE

All wireless devices may be susceptible to

interference, which could affect performance.

Safety 5

www.nokia.com/support 5

Cyan

Magenta

Yellow

Black

QUALIFIED SERVICE

Only qualified personnel may install or repair

this product.

KEEP YOUR DEVICE DRY

Your device is not water-resistant. Keep it dry.

PROTECT YOUR HEARING

Listen to a headset at a moderate level, and do

not hold the device near your ear when the

loudspeaker is in use.

6Safety

6 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Get started

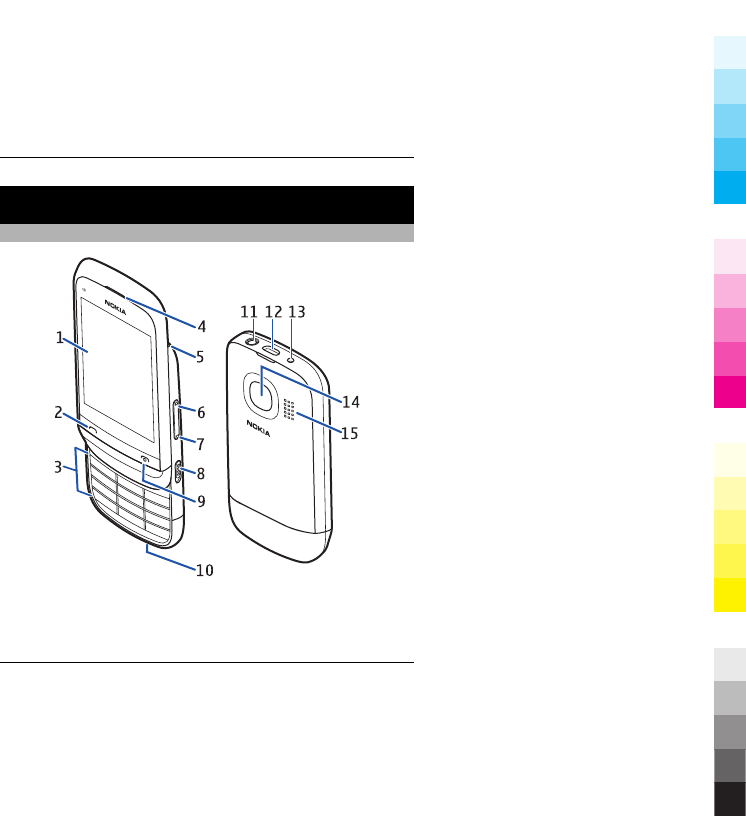

Keys and parts

1Display

2Call key

Get started 7

www.nokia.com/support 7

Cyan

Magenta

Yellow

Black

3Keypad

4Earpiece

5Wrist strap hole

6Volume up/Zoom key

7Volume down/Zoom key

8Key lock switch

9End/Power key

10 Microphone

11 Nokia AV Connector (3.5 mm)

12 Micro USB connector

13 Charger connector

14 Camera lens

15 Loudspeaker

Insert a SIM card and battery

Note: Switch the device off and disconnect the

charger and any other device before removing any covers.

Avoid touching electronic components while changing any

covers. Always store and use the device with any covers

attached.

8Get started

8 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Important: Do not use a mini-UICC SIM card, also

known as a micro-SIM card, a micro-SIM card with an

adapter, or a SIM card that has a mini-UICC cutout (see

figure) in this device. A micro SIM card is smaller than the

standard SIM card. This device does not support the use of

micro-SIM cards and use of incompatible SIM cards may

damage the card or the device, and may corrupt data

stored on the card.

Important: To prevent damage to the SIM card,

always remove the battery before you insert or remove the

card.

This device is intended for use with a BL-5C battery. Always

use original Nokia batteries.

The SIM card and its contacts can be easily damaged by

scratches or bending, so be careful when handling,

inserting, or removing the card.

Get started 9

www.nokia.com/support 9

Cyan

Magenta

Yellow

Black

1 Place your finger in the recess at the top of the device,

and carefully lift and remove the back cover (1). If the

battery is inserted, lift it out (2).

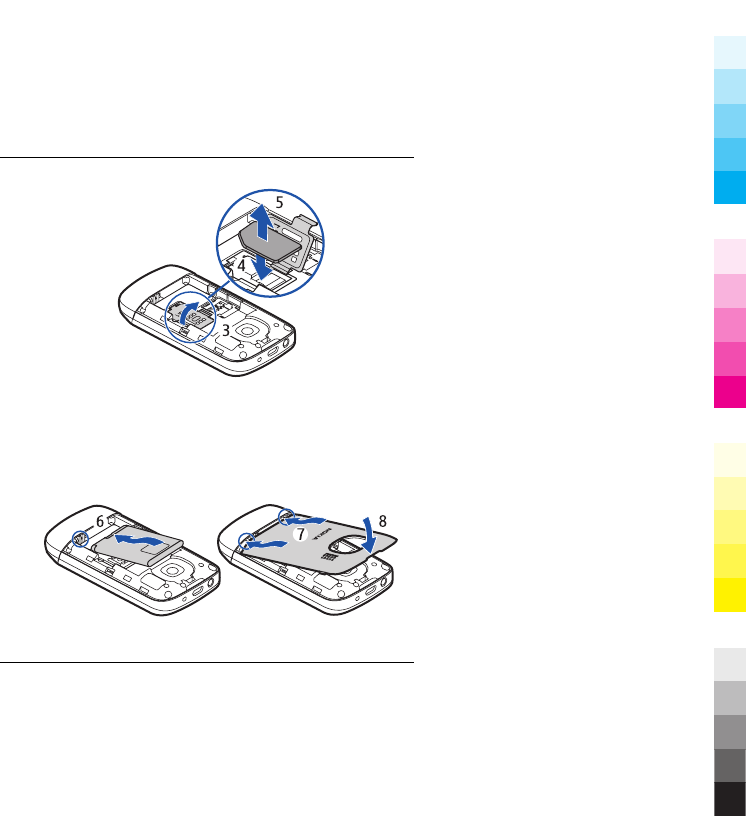

2 Open the SIM card holder (3), and insert or remove the

SIM card (4 or 5). Make sure the contact area of the card

is facing down.

10 Get started

10 www.nokia.com/support

Cyan

Magenta

Yellow

Black

3 Line up the contacts of the battery and the battery

compartment, and insert the battery (6). To replace the

back cover, direct the bottom locking catches toward

their slots (7), and press down until the cover locks into

place (8).

Get started 11

www.nokia.com/support 11

Cyan

Magenta

Yellow

Black

Insert a memory card

Use only compatible memory cards approved by Nokia for

use with this device. Incompatible cards may damage the

card and the device and corrupt data stored on the card.

Your device supports memory cards with a capacity of up

to 32 GB.

1 Switch the device off, and remove the back cover and

battery.

12 Get started

12 www.nokia.com/support

Cyan

Magenta

Yellow

Black

2 To release the memory card holder, slide the holder in

the direction indicated by the arrow on the holder.

Open the memory card holder (1).

3 Insert a compatible memory card. Make sure the

contact area of the card is facing down (2).

4 Close the memory card holder (3).

5 To lock the memory card holder, slide the holder to its

original position (4).

Remove the memory card

1 Switch the device off.

2 Remove the back cover and battery.

3 To release the memory card holder, slide the holder in

the direction indicated by the arrow on the holder.

Open the memory card holder, and remove the

memory card.

Charge the battery

Your battery has been partially charged at the factory, but

you may need to recharge it before you can switch on your

device for the first time. If the device indicates a low

charge, do the following:

Get started 13

www.nokia.com/support 13

Cyan

Magenta

Yellow

Black

1 Connect the charger to a wall outlet.

2 Connect the charger to the device.

3 When the device indicates a full charge, disconnect the

charger from the device, then from the wall outlet.

You do not need to charge the battery for a specific length

of time, and you can use the device while it is charging.

If the battery is completely discharged, it may take several

minutes before the charging indicator appears on the

display or before any calls can be made.

If the battery has not been used for a long time, to begin

charging, you may need to connect the charger, then

disconnect and reconnect it.

14 Get started

14 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Attach a strap

Switch the device on or off

Press and hold the power key .

Get started 15

www.nokia.com/support 15

Cyan

Magenta

Yellow

Black

You may be prompted to get the configuration settings

from your service provider (network service). For more

information, contact your service provider.

GSM antenna

The figure shows the GSM antenna area marked in grey.

Avoid touching the antenna area unnecessarily while the

antenna is transmitting or receiving. Contact with

antennas affects the communication quality and may

16 Get started

16 www.nokia.com/support

Cyan

Magenta

Yellow

Black

cause a higher power level during operation and may

reduce the battery life.

Basic use

Access codes

Select Menu > Settings > Security > Access codes.

PIN or PIN2

code

(4-8 digits)

These protect your SIM card against

unauthorised use or are required to access

some features.

If not supplied with the card or you forget

the codes, contact your service provider.

You can set your device to ask for the PIN

code when you switch it on.

If you enter the code incorrectly three

times in a row, you need to unblock the

code with the PUK or PUK2 code.

The module PIN is required to access the

information in the security module of your

SIM card. The signing PIN may be required

for the digital signature.

Basic use 17

www.nokia.com/support 17

Cyan

Magenta

Yellow

Black

PUK or PUK2

code

(8 digits)

These are required to unblock a PIN or

PIN2 code.

If not supplied with your SIM card, contact

your service provider.

Security code

(5–10 digits)

This protects your device against

unauthorised use.

You can set your device to ask for the

security code that you define. The default

security code is 12345.

Keep the code secret and in a safe place,

separate from your device.

If you forget the code and your device is

locked, your device will require service.

Additional charges may apply, and all the

personal data in your device may be

deleted.

For more information, contact a Nokia

Care Point or your device dealer.

Barring

password

This is required for call barring services.

18 Basic use

18 www.nokia.com/support

Cyan

Magenta

Yellow

Black

(4 digits) For more information, contact your service

provider.

Lock the keys and screen

To avoid accidentally making a call when your device is in

your pocket or bag, lock the keys and screen of your device.

Slide the key lock switch.

Unlock the keys and screen

Slide the key lock switch.

Tip: If the key lock switch is out of reach, to unlock the

device, press the end key, and select Unlock.

Touch screen actions

To interact with the touch screen user interface, tap or tap

and hold the touch screen.

Open an application or other screen element

Tap the application or element.

Basic use 19

www.nokia.com/support 19

Cyan

Magenta

Yellow

Black

Access item-specific options

Tap and hold the item. A pop-up menu with available

options opens.

Scroll in a list or menu

Place your finger on the screen, slide it quickly up or down

the screen, and then lift your finger. The content of the

screen scrolls with the speed and direction it had at the

moment of release. To select an item from a scrolling list

and to stop the movement, tap the item.

20 Basic use

20 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Swipe

Place a finger on the screen, and steadily slide your finger

in the desired direction.

Basic use 21

www.nokia.com/support 21

Cyan

Magenta

Yellow

Black

For example, when you are viewing a picture, to view the

next picture, swipe left. To quickly browse through your

pictures, swipe the screen quickly, and then scroll left or

right through the thumbnails.

Swipe to open an application or activate a feature

You can open applications or activate features when you

swipe left or right on the home screen.

Assign a function or feature to a swipe action

Select Menu > Settings > My shortcuts > Swipe

gesture, and select the swipe direction and desired

function or feature.

Indicators

You have unread messages.

You have unsent, cancelled, or failed

messages.

The keypad is locked.

The device does not ring for incoming calls or

text messages.

An alarm is set.

22 Basic use

22 www.nokia.com/support

Cyan

Magenta

Yellow

Black

or The device is registered to the GPRS or EGPRS

network.

or A GPRS or EGPRS connection is open.

or The GPRS or EGPRS connection is suspended

(on hold).

Bluetooth is activated.

All incoming calls are diverted to another

number.

Calls are limited to a closed user group.

The currently active profile is timed.

A headset is connected to the device.

The device is connected to another device,

using a USB data cable.

Copy contacts or pictures from your old device

Want to copy your content from your previous compatible

Nokia device and start using your new device quickly? You

can copy, for example, contacts, calendar entries, and

pictures to your new device, free of charge.

Basic use 23

www.nokia.com/support 23

Cyan

Magenta

Yellow

Black

1 Activate Bluetooth in both devices.

Select Menu > Settings > Connectivity >

Bluetooth.

2 Connect the devices.

3 Select Menu > Settings > Sync & backup.

4 Select Phone switch > Copy to this.

5 Select the content to copy and Done.

6 Select your previous device from the list.

7 If the other device requires a passcode, enter the

passcode. The passcode, which you can define

yourself, must be entered in both devices. The

24 Basic use

24 www.nokia.com/support

Cyan

Magenta

Yellow

Black

passcode in some devices is fixed. For details, see the

user guide of the device.

The passcode is valid only for the current connection.

8 If prompted, allow connection and copying requests.

Change the volume of a call, song, or video

Use the volume keys.

The built-in loudspeaker allows you to speak and listen

from a short distance without having to hold the device to

your ear.

Activate the loudspeaker during a call

Select Loudsp..

Calls

Make a call

1 Open the slide.

2 On the home screen, enter the phone number.

To delete a number, select Clear.

For international calls, select * twice for the + character

(which replaces the international access code), and

Calls 25

www.nokia.com/support 25

Cyan

Magenta

Yellow

Black

enter the country code, area code (omit the leading

zero if necessary), and phone number.The + character

as a replacement for the international access code may

not work in all regions. In this case, enter the

international access code directly.

3 Press the call key.

4 To end the call, press the end key.

Tip: If the slide is closed and is displayed on the home

screen, to use the virtual keypad to enter the phone

number, select .

Call the last dialled number

Trying to call someone, but they are not answering? It is

easy to call them again.

1 On the home screen, press the call key.

2 Go to the number, and press the call key.

View your missed calls

Want to see who made the call you missed?

On the home screen, select View. The caller's name is

displayed, if stored in the contacts list.

26 Calls

26 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Missed and received calls are logged only if supported by

the network, and the device is switched on and within the

network service area.

Call back the contact or number

Go to the contact or number, and press the call key.

View the missed calls later

Select Menu > Contacts > Log and Missed calls.

Contacts

Save a name and phone number

Select Menu > Contacts.

Select Add new.

If prompted, select where to save the contact.

Add or edit the details of a contact

1 Select Names and a contact.

2 Select Options > Add detail.

Tip: To add a ringtone or picture for a contact, select the

contact and Options > Add detail > Multimedia.

Contacts 27

www.nokia.com/support 27

Cyan

Magenta

Yellow

Black

Write text

Switch between text input modes

When writing text, you can use traditional or

predictive text input.

, , and indicate the character cases.

indicates that number mode is activated.

Switch between text input methods

Select Options > Prediction. Not all languages are

supported by predictive text input.

Switch between character cases

Select #.

Switch between the letter and number modes

Select and hold #.

Set the writing language

Select Options > Writing language.

28 Write text

28 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Write using traditional text input

1 Press a number key (2-9) repeatedly, until the desired

character is displayed.

2 Insert the next character. If it is located on the same

key, wait until the cursor is displayed, or move the

cursor forward.

The available characters depend on the selected writing

language.

Move the cursor

Select or , or tap where you want to place the cursor.

Insert a common punctuation mark

Press 1 repeatedly.

Insert a special character

Select and the desired character.

Insert a space

Press 0.

Write text 29

www.nokia.com/support 29

Cyan

Magenta

Yellow

Black

Use predictive text input

Write using predictive text input

The built-in dictionary suggests words as you select the

number keys.

1 Select each number key (2–9) once for each character.

2 To find the desired word, select * repeatedly.

3 To confirm the word, select .

Add a missing word to the dictionary

If ? is displayed when you enter a word using predictive

text input, the word is not in the dictionary. You can add it

to the built-in dictionary.

1 Select Spell.

2 Write the word using traditional text input.

3 Select Save.

Write a compound word

1 Write the first part of the word. To confirm the word,

move the cursor forward.

2 Write the next part of the word, and confirm again.

30 Write text

30 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Messaging

Send a message

Keep in touch with your family and friends with text and

multimedia messages. You can attach your pictures,

videos, and business cards to your message.

Select Menu > Messaging.

1 Select Create message.

2 To add an attachment , select Options > Insert

object.

3 Write your message, and select Continue.

4 To enter a phone number or mail address manually,

select Number or mail. Enter a phone number, or

select Mail, and enter a mail address.

5 Select Send.

Tip: To insert a special character or smiley, select

Options > Insert symbol.

Sending a message with an attachment may be more

expensive than sending a normal text message. For more

information, contact your service provider.

Messaging 31

www.nokia.com/support 31

Cyan

Magenta

Yellow

Black

You can send text messages that are longer than the

character limit for a single message. Longer messages are

sent as two or more messages. Your service provider may

charge accordingly.

Characters with accents, other marks, or some language

options, take more space, and limit the number of

characters that can be sent in a single message.

If the item you inserted in a multimedia message is too

large for the network, the device may automatically reduce

the size.

Only compatible devices can receive and display

multimedia messages. Messages may look different in

different devices.

View a conversation

You can see the messages you have sent to and received

from a particular contact from a single view, and continue

the conversation from that view.

Select Menu > Messaging.

32 Messaging

32 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Read a message in a conversation

Select Conversations, a conversation, and a message.

Switch to the traditional Inbox view

Select Options > Inbox view.

Listen to voice messages

When you can't answer, you can divert calls to your voice

mailbox and listen to your messages later.

You may need a voice mailbox subscription. For more

information on this network service, contact your service

provider.

1 Select Menu > Messaging > Voice messages and

Voice mailbox no..

2 Enter your voice mailbox number, and select OK.

3 To call your voice mailbox, on the home screen, press

and hold 1.

Personalise your device

About the home screen

In the home screen, you can:

Personalise your device 33

www.nokia.com/support 33

Cyan

Magenta

Yellow

Black

•See notifications of missed calls and received

messages

•Open your favourite applications

•Control applications, such as the radio

•Add shortcuts for different features, such as writing a

message

•View your favourite contacts, and quickly call, chat, or

send messages to them

Personalise the home screen

Want to see your favourite landscape or pictures of your

family in the background of the home screen? You can

change this wallpaper, and rearrange items on the home

screen, to personalise it to your liking.

Select Menu > Settings and Display.

Change the wallpaper

Select Wallpaper and a picture.

Tip: Download more wallpapers from Nokia's Ovi Store. To

learn more about Ovi Store, go to www.ovi.com.

34 Personalise your device

34 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Add content to the home screen

Select Home screen > Personalise view.

Tip: To increase the font size in the Messaging and Contacts

applications, when browsing the web, or in the main

menu, select Font size.

Personalise your device tones

You can personalise the ringtones and key and warning

tones for each profile.

Select Menu > Settings and Tones.

Change the ringtone

Select Ringing tone: and a ringtone.

Tip: Download more ringtones from Nokia's Ovi Store. To

learn more about Ovi Store, go to www.ovi.com.

After selecting a ringtone, you can mark a section of the

ringtone, and set the section as your ringtone. The original

ringtone or sound clip is not copied or modified. Preset

ringtones cannot be modified, and not all formats of

ringtones are supported.

Personalise your device 35

www.nokia.com/support 35

Cyan

Magenta

Yellow

Black

Mark the section to use

1 Select a ringtone. When prompted, select Yes.

2 Drag the start marker to the start point.

3 Drag the end marker to the end point.

When a marker is moved to a new point, the selection

plays.

4 To manually play the selection, select Play.

5 Select Done.

Tip: To fine-tune the start and end points of the selection,

select or , and select and hold or .

36 Personalise your device

36 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Change the volume of the keypad tones

Select Keypad tones:, and drag the volume bar.

Time management

Change the time and date

Select Menu > Settings and Date and time.

Change the time zone when travelling

1 Select Date & time settings > Time zone:.

2 Select the time zone of your location.

3 Select Save.

The time and date are set according to the time zone. This

makes sure that your device displays the correct sending

time of received text or multimedia messages.

For example, GMT -5 denotes the time zone for New York

(USA), 5 hours west of Greenwich, London (UK).

Set an alarm

You can use your device as an alarm clock.

Select Menu > Applications > Alarm clock.

Time management 37

www.nokia.com/support 37

Cyan

Magenta

Yellow

Black

1 Set the alarm time.

2 Select to set the alarm.

3 To set the alarm to sound, for example, at the same

time every day, select Settings > Alarm repeat >

On and the days.

Add an appointment

Save your important appointments to your calendar as

meeting entries.

Select Menu > Calendar.

1 Go to the desired date, and select Options > Add new

entry.

2 Select the entry type field Meeting, and fill in the fields.

Connectivity

Bluetooth

About Bluetooth connectivity

Select Menu > Settings > Connectivity > Bluetooth.

Use Bluetooth to connect wirelessly to compatible devices,

such as other mobile devices, computers, headsets, and car

kits.

38 Connectivity

38 www.nokia.com/support

Cyan

Magenta

Yellow

Black

You can also send items from your device, copy files from

your compatible PC, and print using a compatible printer.

Bluetooth uses radio waves to connect, and devices must

be within 10 metres (33 feet) of each other. Obstructions,

such as walls or other electronic devices, can cause

interference.

Send a picture or other content to another device

using Bluetooth

Use Bluetooth to send pictures, videos, business cards, and

other content created by you to your computer or a friend's

compatible device.

Connectivity 39

www.nokia.com/support 39

Cyan

Magenta

Yellow

Black

1 Select and hold the item to send, and from the pop-up

menu, select Send > Via Bluetooth.

2 Select the device to connect to. If the desired device is

not displayed, select New search, to search for it.

Bluetooth devices within range are displayed.

3 If the other device requires a passcode, enter the

passcode. The passcode, which you can define

yourself, must be entered in both devices. The

passcode in some devices is fixed. For details, see the

user guide of the device.

The passcode is valid only for the current connection.

The available options may vary.

USB data cable

Copy content between your device and a computer

You can use a USB data cable to copy your pictures and

other content between your device and a compatible

computer.

1 Use a compatible USB cable to connect your device to

a computer.

2 Select from the following modes:

40 Connectivity

40 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Nokia Ovi Suite — Nokia Ovi Suite is installed on your

computer.

Media transfer — Nokia Ovi Suite is not installed on

your computer. If you want to connect your device to

a home entertainment system or printer, use this

mode.

Mass storage — Nokia Ovi Suite is not installed on

your computer. The device is displayed as a portable

device on your computer. If you want to connect your

device to other devices, such as a home or car stereo,

use this mode.

3 To copy the content, use the file manager of the

computer.

To copy your contacts, music files, videos, or pictures,

use Nokia Ovi Suite.

Music and audio

FM radio

About the FM radio

Select Menu > Music > Radio.

You can listen to FM radio stations using your device - just

plug in a headset, and select a station!

Music and audio 41

www.nokia.com/support 41

Cyan

Magenta

Yellow

Black

To listen to the radio, you need to attach a compatible

headset to the device. The headset acts as an antenna.

It is not possible to listen to the radio through a Bluetooth

headset.

Listen to the radio

Select Menu > Music > Radio.

Change the volume

Use the volume keys.

Close the radio

Press and hold the end key.

42 Music and audio

42 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Set the radio to play in the background

Select Options > Play in backgr..

Close the radio when it is playing in the background

Press and hold the end key.

Find and save radio stations

Search for your favourite radio stations, and save them, so

you can easily listen to them later.

Select Menu > Music > Radio.

Search for the next available station

Select and hold or .

Save a station

Select Options > Save station.

Automatically search for radio stations

Select Options > Search all stat.. For best results, search

when outdoors or near a window.

Music and audio 43

www.nokia.com/support 43

Cyan

Magenta

Yellow

Black

Switch to a saved station

Select or .

Rename a station

1 Select Options > Stations.

2 Select and hold the station, and from the pop-up menu,

select Rename.

Tip: To access a station directly from the saved station list,

press the number key that corresponds to the number of

the station.

Media player

Play a song

Play music stored in the device memory or on the memory

card.

Select Menu > Music > My music and All songs.

1 Select a song.

2 To pause playing, select ; to resume, select .

44 Music and audio

44 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Play a video

Play videos stored in the device memory or on the memory

card.

Select Menu > Music > My music and Videos.

1 Select a video.

2To pause playback, select ; to resume, select .

Pictures and videos

Take a picture

1 Select Menu > Photos > Camera.

2 To zoom in or out, use the volume keys.

3 Select .

The pictures are saved in Menu > Photos > My

photos.

Close the camera

Press the end key.

Pictures and videos 45

www.nokia.com/support 45

Cyan

Magenta

Yellow

Black

Record a video

Besides taking pictures with your device, you can also

capture your special moments as videos.

Select Menu > Photos > Video camera.

1 To switch from image mode to video mode, if

necessary, select > Video cam..

2 To start recording, select .

To zoom in or out, use the volume keys.

3 To stop the recording, select .

Videos are saved in Menu > Photos > My videos.

Close the camera

Press the end key.

Send a picture or video

Want to share your pictures and videos with friends and

family? Send a multimedia message or send a picture using

Bluetooth.

Select Menu > Applications > Gallery.

46 Pictures and videos

46 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Send a picture

1 Select the folder containing the picture.

2 Select and hold the picture to send.

To send more than one picture, select Options >

Mark, and mark the desired pictures.

3 Select Send or Send marked and the desired sending

method.

Send a video

1 Select the folder containing the video.

2 Select Options > Mark, and mark the video. You can

mark several videos to send.

3 Select Options > Send marked and the desired

sending method.

Web

About Ovi Browser

Select Menu > Internet.

Catch up on the news and visit your favourite websites. You

can use Ovi Browser to view web pages on the internet.

Web 47

www.nokia.com/support 47

Cyan

Magenta

Yellow

Black

Ovi Browser compresses and optimises web content for

your device, so you can browse the web more quickly and

save on data costs.

If Ovi Browser is not pre-loaded in your device, download

it from Nokia's Ovi Store. For more information about Ovi

Store, go to www.ovi.com.

To browse the web, you must have an internet access point

configured in your device and be connected to a network.

For availability, pricing, and instructions, contact your

service provider.

You may receive the configuration settings required for

browsing as a configuration message from your service

provider.

Browse the web

Select Menu > Internet.

View your browsing history, featured sites, or your

bookmarks

To switch between the History, Featured, and Favourites

tabs, swipe left or right.

48 Web

48 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Go to a website

Select the address bar, and enter the address.

Move on the web page

Drag the page with your finger.

Zoom in

Select the desired section of the web page.

Zoom out

Double-tap the screen.

Search the internet

Select the search field, and enter a search word. If

prompted, select your default search engine.

Return to a previously visited web page

Open the History tab, and select the web page.

Tip: You can download web apps from Nokia's Ovi Store.

When you first open a web app, it is added as a bookmark.

To learn more about Ovi Store, go to www.ovi.com.

Web 49

www.nokia.com/support 49

Cyan

Magenta

Yellow

Black

Clear your browsing history

Select Menu > Internet.

Open the History tab, and select > Clear history.

Clear stored cookies or text saved in web forms

Select > Tools > Settings > Clear cookies or Clear

auto-fill.

Keep in touch with your online friends

About Communities

Select Menu > Applications > Apps and games >

Communities, and sign in to your relevant social

networking services.

With the Communities application, you can enhance your

social networking experience. The application may not be

available in all regions. When signed in to social

networking services, such as Facebook or Twitter, you can

do the following:

•See your friends' status updates

•Post your own status update

50 Keep in touch with your online friends

50 www.nokia.com/support

Cyan

Magenta

Yellow

Black

•Instantly share pictures you take with the camera

Only those features that are supported by the social

networking service are available.

Using social networking services requires network

support. This may involve the transmission of large

amounts of data and related data traffic costs. For

information about data transmission charges, contact your

service provider.

The social networking services are third party services and

not provided by Nokia. Check the privacy settings of the

social networking service you are using as you may share

information with a large group of people. The terms of use

of the social networking service apply to sharing

information on that service. Familiarise yourself with the

Mail and chat

About Mail

Select Menu > Messaging > Mail.

You can use your mobile device to read and send mail from

your mail accounts from different mail service providers.

Mail and chat 51

www.nokia.com/support 51

Cyan

Magenta

Yellow

Black

If you do not already have a mail account, you can create

a Nokia account, which includes Nokia's Ovi Mail service.

For more information, go to www.ovi.com. With your

Nokia account, you can access all of Nokia's Ovi services.

Send a mail

Select Menu > Messaging > Mail and a mail account.

1 Select Options > Compose New.

2 Enter the recipient’s mail address and the subject, and

write your message.

3 To attach a file, for example, a picture, select

Options > Attach > Attach file.

4 To take a picture to attach to the mail, select

Options > Attach > Attach new image.

5 Select Send.

Read and reply to mail

Select Menu > Messaging > Mail and a mail account.

1 Select a mail.

2 To reply to or forward a mail, select Options.

52 Mail and chat

52 www.nokia.com/support

Cyan

Magenta

Yellow

Black

About Chat

Select Menu > Messaging > Chat.

With Chat (network service), you can exchange instant

messages with your friends. If you do not have a chat

account, you can create a Nokia account, and use Nokia's

Ovi Chat.

You can leave the Chat application running in the

background while you use other features of your device,

and still be notified of new instant messages.

Using the service or downloading content may cause

transfer of large amounts of data, which may result in data

traffic costs.

Chat with your friends

Select Menu > Messaging > Chat.

You can sign in to and chat in several services at the same

time. You must separately sign in to each service.

You can have ongoing conversations with several contacts

at the same time.

Mail and chat 53

www.nokia.com/support 53

Cyan

Magenta

Yellow

Black

1 If several chat services are available, select the desired

service.

2 Sign in to the service.

3 In your contacts list, select the contact you want to chat

with.

4 Write your message in the text box at the bottom of

the display.

5 Select Send.

Ovi Maps

About Maps

Your device comes with the Maps application, and may

have a memory card with preloaded maps for your country.

Insert the memory card into the device before using Maps.

Select Menu > Maps.

You can browse maps of different cities in your country.

You can also:

•View your current location

•Plan a route to a nearby place

•Search for a place or specific address, and save it

54 Ovi Maps

54 www.nokia.com/support

Cyan

Magenta

Yellow

Black

•Send your location or a place to a friend in a text

message

When you browse to an area which is not covered by the

maps already downloaded on the memory card, a map for

the area is automatically downloaded through the

internet. Downloading maps may involve transmission of

large amounts of data through your service provider's

network. For information about data transmission

charges, contact your service provider.

You can also use the Nokia Ovi Suite application to

download maps. To download and install Nokia Ovi Suite

on your compatible computer, go to www.ovi.com.

Network access may be required to find your current

location. You may be prompted to select an internet access

point.

Some services may not be available in all countries, and

may be provided only in selected languages.

Almost all digital cartography is inaccurate and incomplete

to some extent. Never rely solely on the cartography that

you download for use in this device.

Ovi Maps 55

www.nokia.com/support 55

Cyan

Magenta

Yellow

Black

View your current location on the map

Select Menu > Maps and My position.

Update your current location

Select Options > Update position.

Save your current location

Select Options > Save as favourite.

Find a place

Select Menu > Maps.

1 Select Search.

2 Enter the name of the place or address.

3 Select Go. A list of matching places or addresses is

displayed.

Refine your search

1 Select Advanced > Find place or Find address.

2 Define more details for your search, and follow the

instructions.

Tip: To search from the entire category of places, leave all

name fields blank.

56 Ovi Maps

56 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Tip: If you can't find the place you are looking for, try to

search from an online database. Select Search online

for. Additional charges may apply. For details, contact your

service provider.

Share your location or a place

You can send your current location or a place on the map

to a friend in a text message.

Select Menu > Maps.

1 Select My position or a place on the map and

Options > Send this place.

2 Write your message. The address and a link to the

location are automatically added.

3 Enter the recipient's phone number, or select Search

and a contact.

4 Select Send.

When your friend receives the message containing the

address details and link, to view the place on the map in

the device web browser, they can select the link.

Ovi Maps 57

www.nokia.com/support 57

Cyan

Magenta

Yellow

Black

Nokia's Ovi services

Availability and costs of Nokia's Ovi services

The availability of Nokia's Ovi services may vary by region.

Using the services or downloading content may cause

transfer of large amounts of data, which may result in data

traffic costs. For information about data transmission

charges, contact your network service provider.

To learn more about Ovi, go to www.ovi.com.

Access Nokia's Ovi services

Select Menu > Applications > Apps and games and the

desired Ovi service.

Using some of the services or downloading content may

cause transfer of large amounts of data, which may result

in data traffic costs.

Find help

Support

When you want to learn more about how to use your

product or you are unsure how your device should

58 Nokia's Ovi services

58 www.nokia.com/support

Cyan

Magenta

Yellow

Black

function, go to www.nokia.com/support, or using a mobile

device, nokia.mobi/support.

If this does not resolve your issue, do one of the following:

•Reboot your device. Switch off the device, and remove

the battery. After about a minute, replace the battery,

and switch on the device.

•Restore the original factory settings

•Update your device software

If your issue remains unsolved, contact Nokia for repair

options. Go to www.nokia.com/repair, or in Latin America,

www.nokia-latinoamerica.com/centrosdeservicio. Before

sending your device for repair, always back up your device

data.

For additional product support information, see the

warranty and reference leaflet included with your Nokia

device.

My Nokia

Select Menu > Applications > Apps and games > Tips

and offers.

Find help 59

www.nokia.com/support 59

Cyan

Magenta

Yellow

Black

My Nokia is a free service that regularly sends you text

messages containing tips, tricks, and support for your

Nokia device. It also allows you to browse the My Nokia site

where you can find details about Nokia devices and

download tones, graphics, games, and applications.

To use the My Nokia service, it must be available in your

country and supported by your service provider. You must

when you send messages to sign up or unsubscribe. For

terms and conditions, see the documentation supplied

with your device, or go to www.nokia.com/mynokia.

Keep your device up to date

Update device software using your device

Want to improve the performance of your device and get

application updates and great new features? Update the

software regularly to get the most out of your device. You

can also set your device to automatically check for updates.

60 Find help

60 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Warning:

If you install a software update, you cannot use the device,

even to make emergency calls, until the installation is

completed and the device is restarted. If you install a

software update, you cannot use the device until the

installation is completed and the device is restarted.

Using the service or downloading content may cause

transfer of large amounts of data, which may result in data

traffic costs.

Make sure that the device battery has enough power, or

connect the charger before starting the update.

Select Menu > Settings.

Find help 61

www.nokia.com/support 61

Cyan

Magenta

Yellow

Black

1 Select Device > Device updates.

2 To display the current software version and check

whether an update is available, select Current sw

details.

3 To download and install a software update, select

Downl. device sw. Follow the displayed instructions.

62 Find help

62 www.nokia.com/support

Cyan

Magenta

Yellow

Black

4 If the installation was cancelled after the download,

select Install sw update.

The software update may take several minutes. If there are

problems with the installation, contact your service

provider.

Check for software updates automatically

Select Automatic SW update, and define how often to

check for new software updates.

Your service provider may send device software updates

over the air directly to your device. For more information

on this network service, contact your service provider.

Update device software using your PC

You can use the Nokia Ovi Suite PC application to update

your device software. You need a compatible PC, a high-

speed internet connection, and a compatible USB data

cable to connect your device to the PC.

To get more information and to download the Nokia Ovi

Suite application, go to www.ovi.com/suite.

Find help 63

www.nokia.com/support 63

Cyan

Magenta

Yellow

Black

Restore original settings

If your device is not working properly, you can reset some

settings to their original values.

1 End all calls and connections.

2 Select Menu > Settings and Rest. fact. sett. >

Settings only.

3 Enter the security code.

This does not affect documents or files stored on your

device.

After restoring the original settings, your device switches

off and then on again. This may take longer than usual.

Organise files

You can move, copy, delete, or create new files and folders

in your device memory or on the memory card. If you

organise your files into their own folders, it might help you

find the files in future.

Select Menu > Applications > Gallery.

64 Find help

64 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Create a new folder

In the folder where you want to create a sub-folder, select

Options > Add folder.

Copy or move a file to a folder

Select and hold the file, and from the pop-up menu, select

the appropriate option.

Tip: You can also play music or videos, or view pictures in

Gallery.

Back up your pictures and other content to a memory

card

Want to make sure you will not lose any important files?

You can back up your device memory to a compatible

memory card.

Select Menu > Settings > Sync & backup.

Select Create backup.

Restore a backup

Select Restore backup.

Find help 65

www.nokia.com/support 65

Cyan

Magenta

Yellow

Black

Protect the environment

Save energy

You do not need to charge your battery so often if you do

the following:

•Close applications and data connections, for example,

your Bluetooth connection, when not in use.

•Deactivate unnecessary sounds, such as touch screen

and key tones.

Recycle

When this device has reached the end of its working life,

all of its materials can be recovered as materials and

energy. To guarantee the correct disposal and reuse, Nokia

co-operates with its partners through a program called

We:recycle. For information on how to recycle your old

Nokia products and where to find collection sites, go to

www.nokia.com/werecycle, or using a mobile device,

nokia.mobi/werecycle, or call the Nokia Contact Center.

66 Protect the environment

66 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Recycle packaging and user guides at your local recycling

scheme.

For more information on the environmental attributes of

your device, go to www.nokia.com/ecodeclaration.

Product and safety information

Network services and costs

Your device is approved for use on the (E)GSM 850, 1900 MHz networks. To use the

device, you need a subscription with a service provider.

Using network services and downloading content to your device requires a network

connection and may result in data traffic costs. Some product features require support

from the network, and you may need to subscribe to them.

Take care of your device

Handle your device, battery, charger and accessories with care. The following

suggestions help you protect your warranty coverage.

•Keep the device dry. Precipitation, humidity, and all types of liquids or moisture

can contain minerals that corrode electronic circuits. If your device gets wet,

remove the battery, and allow the device to dry.

•Do not use or store the device in dusty or dirty areas. Moving parts and electronic

components can be damaged.

•Do not store the device in high temperatures. High temperatures can shorten

the life of the device, damage the battery, and warp or melt plastics.

Product and safety information 67

www.nokia.com/support 67

Cyan

Magenta

Yellow

Black

•Do not store the device in cold temperatures. When the device warms to its

normal temperature, moisture can form inside the device and damage

electronic circuits.

•Do not attempt to open the device other than as instructed in the user guide.

•Unauthorised modifications may damage the device and violate regulations

governing radio devices.

•Do not drop, knock, or shake the device. Rough handling can break internal

circuit boards and mechanics.

•Only use a soft, clean, dry cloth to clean the surface of the device.

•Do not paint the device. Paint can clog the moving parts and prevent proper

operation.

•Switch off the device and remove the battery from time to time for optimum

performance.

•Keep your device away from magnets or magnetic fields.

•To keep your important data safe, store it in at least two separate places, such

as your device, memory card, or computer, or write down important

information.

Recycle

Always return your used electronic products, batteries, and packaging materials to

dedicated collection points. This way you help prevent uncontrolled waste disposal

and promote the recycling of materials. Check product environmental information

and how to recycle your Nokia products at www.nokia.com/werecycle, or with a

mobile device, http://nokia.mobi/werecycle.

About Digital Rights Management

When using this device, obey all laws and respect local customs, privacy and

legitimate rights of others, including copyrights. Copyright protection may prevent

you from copying, modifying, or transferring images, music, and other content.

68 Product and safety information

68 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Content owners may use different types of digital rights management (DRM)

technologies to protect their intellectual property, including copyrights. This device

uses various types of DRM software to access DRM-protected content. With this device

you can access content protected with WMDRM 10 and OMA DRM 1.0. If certain DRM

software fails to protect the content, content owners may ask that such DRM

software's ability to access new DRM-protected content be revoked. Revocation may

also prevent renewal of such DRM-protected content already in your device.

Revocation of such DRM software does not affect the use of content protected with

other types of DRM or the use of non-DRM-protected content.

Digital rights management (DRM) protected content comes with an associated licence

that defines your rights to use the content.

If your device has OMA DRM-protected content, to back up both the licences and the

content, use the backup feature of Nokia Ovi Suite.

Other transfer methods may not transfer the licences which need to be restored with

the content for you to be able to continue the use of OMA DRM-protected content after

the device memory is formatted. You may also need to restore the licences in case

the files on your device get corrupted.

If your device has WMDRM-protected content, both the licences and the content will

be lost if the device memory is formatted. You may also lose the licences and the

content if the files on your device get corrupted. Losing the licences or the content

may limit your ability to use the same content on your device again. For more

information, contact your service provider.

Some licences may be connected to a specific SIM card, and the protected content can

be accessed only if the SIM card is inserted in the device.

Product and safety information 69

www.nokia.com/support 69

Cyan

Magenta

Yellow

Black

Batteries and chargers

Battery and charger information

Your device is intended for use with a BL-5C rechargeable battery. Nokia may make

additional battery models available for this device. Always use original Nokia

batteries.

This device is intended for use when supplied with power from the following

chargers: AC-3. The exact Nokia charger model number may vary depending on the

plug type, identified by E, X, AR, U, A, C, K, or B.

The battery can be charged and discharged hundreds of times, but it will eventually

wear out. When the talk and standby times are noticeably shorter than normal,

replace the battery.

Battery safety

Always switch the device off and disconnect the charger before removing the battery.

When you unplug a charger or an accessory, hold and pull the plug, not the cord.

When your charger is not in use, unplug it from the electrical plug and the device. Do

not leave a fully charged battery connected to a charger, as overcharging may shorten

the battery’s lifetime. If left unused, a fully charged battery will lose its charge over

time.

Always keep the battery between 15°C and 25°C (59°F and 77°F). Extreme

temperatures reduce the capacity and lifetime of the battery. A device with a hot or

cold battery may not work temporarily.

Accidental short-circuiting can happen when a metallic object touches the metal strips

on the battery, for example, if you carry a spare battery in your pocket. Short-circuiting

may damage the battery or the connecting object.

70 Product and safety information

70 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Do not dispose of batteries in a fire as they may explode. Dispose of batteries

according to local regulations. Recycle when possible. Do not dispose as household

waste.

Do not dismantle, cut, open, crush, bend, puncture, or shred cells or batteries. If a

battery leaks, do not let battery liquid touch skin or eyes. If this happens, immediately

flush the affected areas with water, or seek medical help.

Do not modify, remanufacture, attempt to insert foreign objects into the battery, or

immerse or expose it to water or other liquids. Batteries may explode if damaged.

Use the battery and charger for their intended purposes only. Improper use, or use of

unapproved batteries or incompatible chargers may present a risk of fire, explosion,

or other hazard, and may invalidate any approval or warranty. If you believe the

battery or charger is damaged, take it to a service centre for inspection before

continuing to use it. Never use a damaged battery or charger. Only use the charger

indoors.

Additional safety information

Make an emergency call

1 Make sure the device is switched on.

2 Check for adequate signal strength. You may also need to do the following:

•Insert a SIM card.

•Deactivate call restrictions you have activated for your device, such as call

barring, fixed dialling, or closed user group.

•Make sure the offline or flight profile is not activated.

•If the device screen and keys are locked, unlock them.

3 Press the end key repeatedly, until the home screen is displayed.

4Select Call.

Product and safety information 71

www.nokia.com/support 71

Cyan

Magenta

Yellow

Black

5 Enter the official emergency number for your present location. Emergency call

numbers vary by location.

6 Press the call key.

7 Give the necessary information as accurately as possible. Do not end the call

until given permission to do so.

Important: Activate bo th ce llu lar an d i nt er net calls, if your device s up ports

internet calls. The device may attempt to make emergency calls both through cellular

networks and through your internet call service provider. Connections in all

conditions cannot be guaranteed. Never rely solely on any wireless device for essential

communications like medical emergencies.

Small children

Your device and its accessories are not toys. They may contain small parts. Keep them

out of the reach of small children.

Medical devices

Operation of radio transmitting equipment, including wireless phones, may interfere

with the function of inadequately protected medical devices. Consult a physician or

the manufacturer of the medical device to determine whether they are adequately

shielded from external RF energy. Switch off your device when regulations posted

instruct you to do so, for example, in hospitals.

Implanted medical devices

Manufacturers of medical devices recommend a minimum separation of 15.3

centimetres (6 inches) between a wireless device and an implanted medical device,

such as a pacemaker or implanted cardioverter defibrillator, to avoid potential

interference with the medical device. Persons who have such devices should:

72 Product and safety information

72 www.nokia.com/support

Cyan

Magenta

Yellow

Black

•Always keep the wireless device more than 15.3 centimetres (6 inches) from

the medical device.

•Not carry the wireless device in a breast pocket.

•Hold the wireless device to the ear opposite the medical device.

•Turn the wireless device off if there is any reason to suspect that interference

is taking place.

•Follow the manufacturer directions for the implanted medical device.

If you have any questions about using your wireless device with an implanted medical

device, consult your health care provider.

Accessibility solutions

Nokia is committed to making mobile phones easy to use for all individuals, including

those with disabilities. For more information, visit the Nokia website at

www.nokiaaccessibility.com.

Hearing

Warning:

When you use the headset, your ability to hear outside sounds may be affected. Do

not use the headset where it can endanger your safety.

Some wireless devices may interfere with some hearing aids.

Protect your device from harmful content

Your device may be exposed to viruses and other harmful content. Take the following

precautions:

Product and safety information 73

www.nokia.com/support 73

Cyan

Magenta

Yellow

Black

•Be cautious when opening messages. They may contain malicious software or

otherwise be harmful to your device or computer.

•Be cautious when accepting connectivity requests, browsing the internet, or

downloading content. Do not accept Bluetooth connections from sources you

do not trust.

•Only install and use services and software from sources that you trust and that

offer adequate security and protection.

•Install antivirus and other security software on your device and any connected

computer. Only use one antivirus application at a time. Using more may affect

performance and operation of the device and/or computer.

•If you access preinstalled bookmarks and links to third party internet sites, take

the appropriate precautions. Nokia does not endorse or assume liability for such

sites.

Operating environment

This device meets RF exposure guidelines in the normal use position at the ear or at

least 1.5 centimetres (5/8 inch) away from the body. Any carry case, belt clip, or holder

for body-worn operation should not contain metal and should position the device the

above-stated distance from your body.

To send data files or messages requires a quality connection to the network. Data files

or messages may be delayed until such a connection is available. Follow the

separation distance instructions until the transmission is completed.

Vehicles

Radio signals may affect improperly installed or inadequately shielded electronic

systems in motor vehicles such as electronic fuel injection, electronic antilock braking,

electronic speed control, and air bag systems. For more information, check with the

manufacturer of your vehicle or its equipment.

74 Product and safety information

74 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Only qualified personnel should install the device in a vehicle. Faulty installation or

service may be dangerous and may invalidate your warranty. Check regularly that all

wireless device equipment in your vehicle is mounted and operating properly. Do not

store or carry flammable liquids, gases, or explosive materials in the same

compartment as the device, its parts, or accessories. Remember that air bags inflate

with great force. Do not place your device or accessories in the air bag deployment

area.

Switch off your device before boarding an aircraft. The use of wireless devices in an

aircraft may be dangerous to the operation of the aircraft and may be illegal.

Potentially explosive environments

Switch off your device in any area with a potentially explosive atmosphere. Obey all

posted instructions. Sparks in such areas could cause an explosion or fire resulting in

bodily injury or death. Switch off the device at refuelling points such as near gas

pumps at service stations. Observe restrictions in fuel depots, storage, and

distribution areas; chemical plants; or where blasting operations are in progress.

Areas with a potentially explosive atmosphere are often, but not always, clearly

marked. They include areas where you would be advised to turn off your vehicle

engine, below deck on boats, chemical transfer or storage facilities and where the air

contains chemicals or particles such as grain, dust, or metal powders. You should

check with the manufacturers of vehicles using liquefied petroleum gas (such as

propane or butane) to determine if this device can be safely used in their vicinity.

Certification information (SAR)

This mobile device meets guidelines for exposure to radio waves.

Your mobile device is a radio transmitter and receiver. It is designed not to exceed

the limits for exposure to radio waves recommended by international guidelines.

These guidelines were developed by the independent scientific organisation ICNIRP

and include safety margins designed to assure the protection of all persons,

regardless of age and health.

Product and safety information 75

www.nokia.com/support 75

Cyan

Magenta

Yellow

Black

The exposure guidelines for mobile devices employ a unit of measurement known as

the Specific Absorption Rate or SAR. The SAR limit stated in the ICNIRP guidelines is

2.0 watts/kilogram (W/kg) averaged over 10 grams of tissue. Tests for SAR are

conducted using standard operating positions with the device transmitting at its

highest certified power level in all tested frequency bands. The actual SAR level of an

operating device can be below the maximum value because the device is designed

to use only the power required to reach the network. That amount changes depending

on a number of factors such as how close you are to a network base station.

The highest SAR value under the ICNIRP guidelines for use of the device at the ear is

0.46 W/kg.

Use of device accessories may result in different SAR values. SAR values may vary

depending on national reporting and testing requirements and the network band.

Additional SAR information may be provided under product information at

www.nokia.com.

Your mobile device is also designed to meet the requirements for exposure to radio

waves established by the Federal Communications Commission (USA) and Industry

Canada. These requirements set a SAR limit of 1.6 W/kg averaged over one gram of

tissue. The highest SAR value reported under this standard during product

certification for use at the ear is 0.68 W/kg and when properly worn on the body is

0.55 W/kg.

76 Product and safety information

76 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Nokia, Nokia Connecting People, Ovi,

and WE: logo are trademarks or

registered trademarks of Nokia

Corporation. Nokia tune is a sound mark

of Nokia Corporation. Other product and

company names mentioned herein may

be trademarks or tradenames of their

respective owners.

Reproduction, transfer, distribution, or

storage of part or all of the contents in

this document in any form without the

prior written permission of Nokia is

prohibited. Nokia operates a policy of

continuous development. Nokia

reserves the right to make changes and

improvements to any of the products

described in this document without

prior notice.

Includes RSA BSAFE cryptographic or

security protocol software from RSA

Security.

Java and all Java-based marks are

trademarks or registered trademarks of

Sun Microsystems, Inc.

Portions of the Nokia Maps software are

rights reserved.

The Bluetooth word mark and logos are

owned by the Bluetooth SIG, Inc. and

any use of such marks by Nokia is under

license.

To the maximum extent permitted by

applicable law, under no circumstances

shall Nokia or any of its licensors be

responsible for any loss of data or

income or any special, incidental,

consequential or indirect damages

howsoever caused.

The contents of this document are

provided "as is". Except as required by

applicable law, no warranties of any

kind, either express or implied,

including, but not limited to, the implied

Cyan

Magenta

Yellow

Black

warranties of merchantability and

fitness for a particular purpose, are

made in relation to the accuracy,

reliability or contents of this document.

Nokia reserves the right to revise this

document or withdraw it at any time

without prior notice.

The availability of products, features,

applications and services may vary by

region. For more information, contact

your Nokia dealer or your service

provider. This device may contain

commodities, technology or software

subject to export laws and regulations

from the US and other countries.

Diversion contrary to law is prohibited.

The availability of Ovi services may vary

by region.

FCC/INDUSTRY CANADA NOTICE

Your device may cause TV or radio

interference (for example, when using a

telephone in close proximity to

receiving equipment). The FCC or

Industry Canada can require you to stop

using your telephone if such

interference cannot be eliminated. If

you require assistance, contact your

local service facility. This device

complies with part 15 of the FCC rules.

Operation is subject to the following

two conditions: (1) This device may not

cause harmful interference, and (2) this

device must accept any interference

received, including interference that

may cause undesired operation. Any

changes or modifications not expressly

approved by Nokia could void the user's

authority to operate this equipment.

Some operations and features are SIM

card and/or network dependent, MMS

dependent, or dependent on the

compatibility of devices and the content

formats supported. Some services are

subject to a separate charge.

5555555/Issue 1 EN

Cyan

Magenta

Yellow

Black

Index

access codes 17

alarm clock 37

alarms 37

antennas 16

backing up data 65

battery 8, 70

— charging 13

Bluetooth 38, 39

browser

See

web browser

business cards 39

cable connection 40

Calendar 38

calendar 39

calls

— emergency 71

— log 26

— making 25, 26

camera

— recording videos 46

— sending pictures and

videos 46

— taking pictures 45

charging the battery 70

chat services (IM) 53

clock 37

connectivity 38

contacts

— adding 27

— copying 23

— saving 27

conversations 32

copying content 23, 40

data connections

— Bluetooth 38

date and time 37

device

— switching on/off 15

Index 79

www.nokia.com/support 79

Cyan

Magenta

Yellow

Black

dictionary 30

e-mail 51

emergency calls 71

factory settings,

restoring 64

file management 64

FM radio 41, 42, 43

home screen 22, 33, 34

IM (instant

messaging) 53

inbox, messages 32

indicators 22

internet

See

web browser

keyguard 19

keys and parts 7

locking

— keys 19

— screen 19

loudspeaker 25

mail 51

— creating 52

— reading and replying

to 52

— sending 52

mailbox

— voice 33

Maps 54

— current location 56

— searching 56

— sharing 57

meeting entries 38

memory card 12

80 Index

80 www.nokia.com/support

Cyan

Magenta

Yellow

Black

messages 32

— sending 31

MMS (multimedia message

service) 31

multimedia

messages 31

music 44

My Nokia 59

Nokia Messaging

— chat services

(IM) 53

Nokia support

information 58

Nokia's Ovi services 58

Ovi Browser 47

Ovi by Nokia 58

Ovi Maps 54

passwords 17

personalising your

device 34, 35

Phone switch 23

pictures

— copying 23, 40

— sending 39, 46

— taking 45

PIN codes 17

powering device on/

off 15

predictive text input 28,

profiles

— personalising 35

PUK codes 17

radio 41, 42, 43

recording

— videos 46

recycling 66

restoring data 65

restoring settings 64

ringtones 35

Index 81

www.nokia.com/support 81

Cyan

Magenta

Yellow

Black

searching

— radio stations 43

security code 17

settings

— restoring 64

SIM card 8

SMS (short message

service) 31

social networks 50

software updates 60, 63

strap 15

support 58

switching device on/

off 15

taking pictures

See

camera

text input 28, 29, 30

text messages 31

themes 34

time and date 37

tones

— personalising 35

touch screen 19

transferring content 23,

turning device on/off 15

updates

— device software 60,

USB connection 40

videos

— copying 23, 40

— playing 45

— recording 46

— sending 39, 46

voice messages 33

volume 25

82 Index

82 www.nokia.com/support

Cyan

Magenta

Yellow

Black

web browser 47

— browsing pages 48

— cookies 50

Index 83

www.nokia.com/support 83

Cyan

Magenta

Yellow

Black

Microsoft RM-693 GSM 850/1900 Cellular Telephone with BT User Manual Manual

Microsoft Mobile Oy GSM 850/1900 Cellular Telephone with BT Manual

Manual

Navigation menu

Namespaces

Views

Navigation
