Nokia C5–03 User Guide

Issue 1

Contents

Safety 6

Battery removing 7

Find help 8

In-device help 8

Accessibility solutions 8

Support 9

Software updates over the air 9

Update device software using your

PC 10

Settings 11

Access codes 11

Prolong battery life 12

Increase available memory 13

Get started 14

Insert the SIM card and battery 14

Insert the memory card 18

Remove the memory card 20

Charge the battery 20

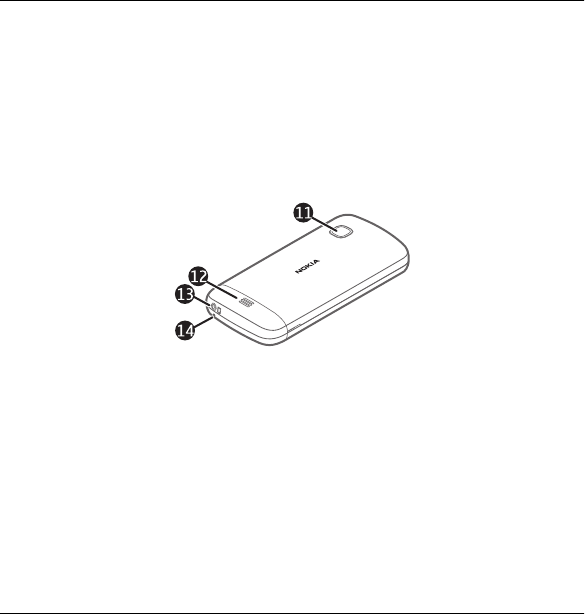

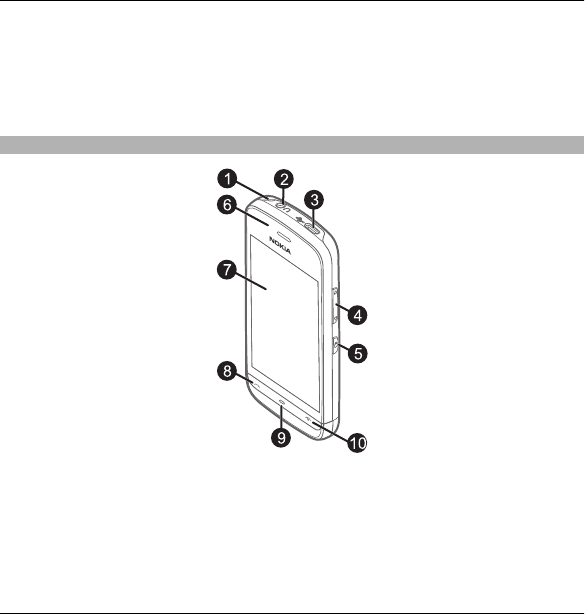

Keys and parts 22

Switch the device on 24

Lock the keys and touch screen 24

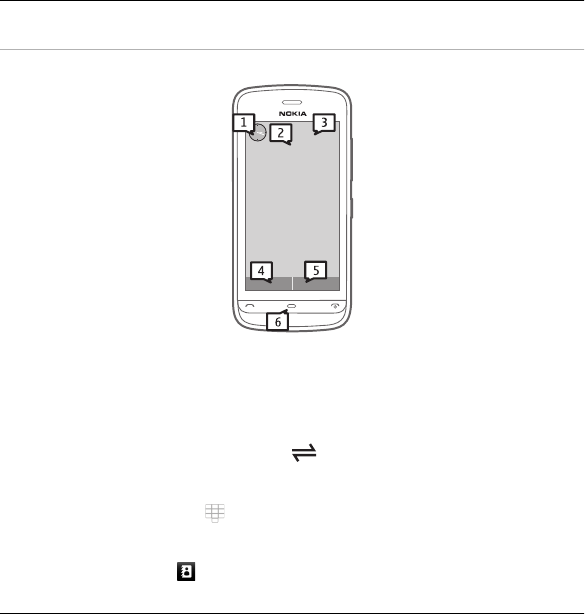

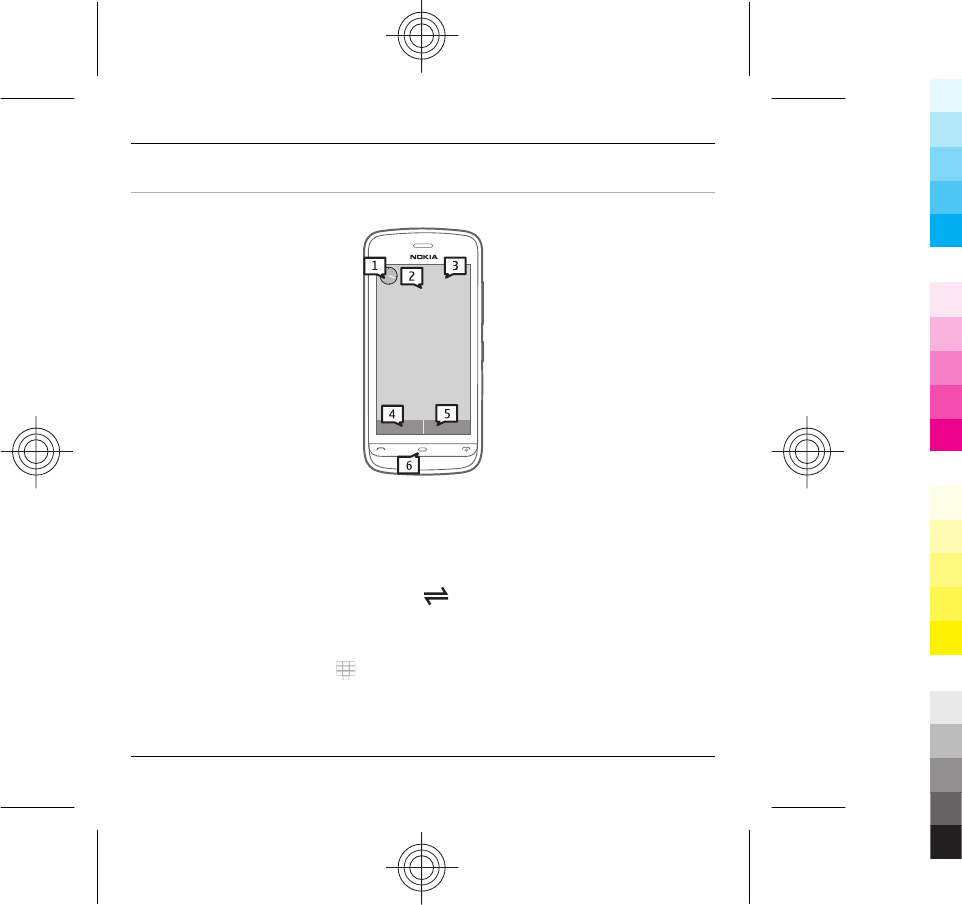

Home screen 25

Access the menu 27

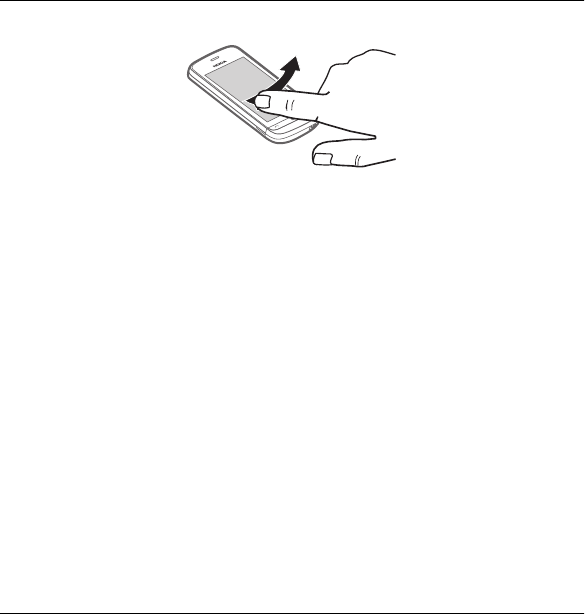

Touch screen actions 27

Change the ringing tone 30

Ovi by Nokia 30

About Ovi Store 30

Your device 31

Device setup 31

Settings wizard 31

Transfer content for the first time 32

Display indicators 32

Contacts bar 35

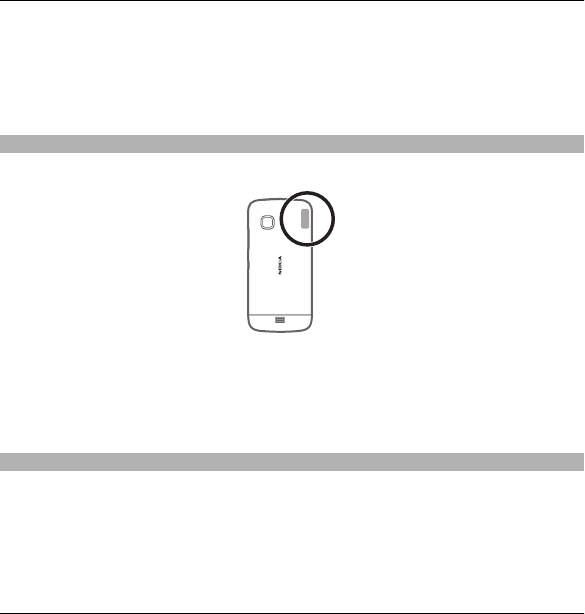

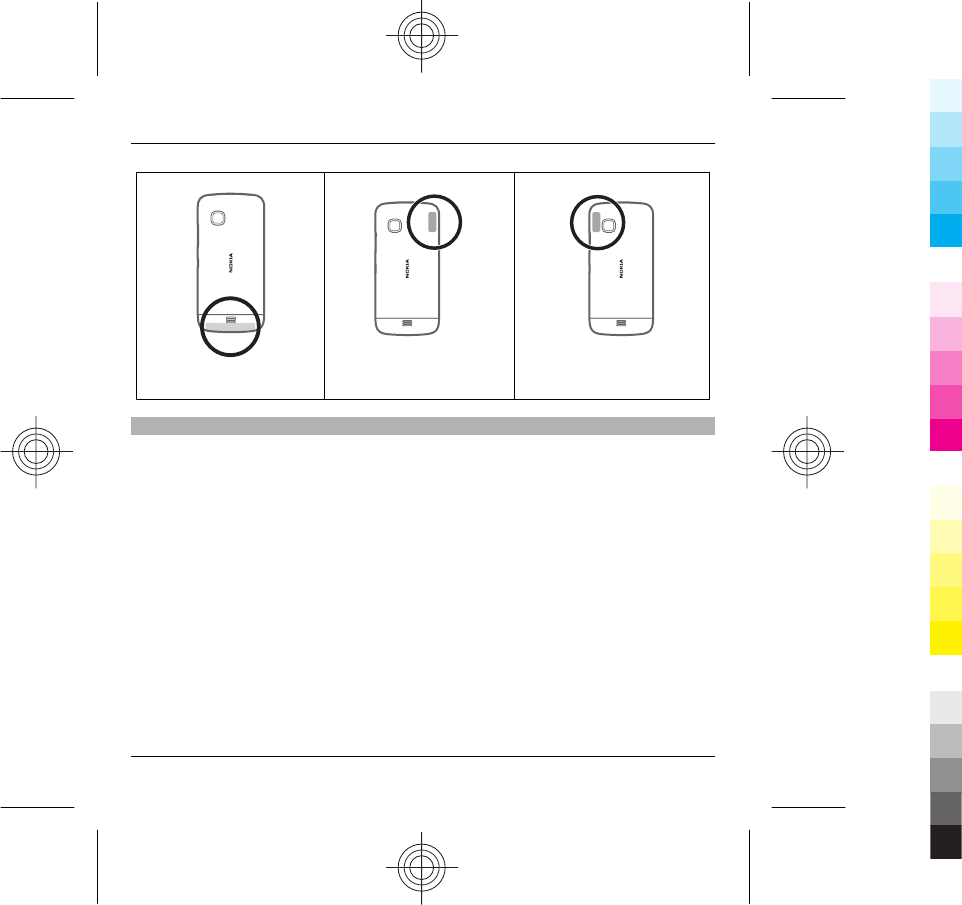

Antenna locations 36

Offline profile 36

Shortcuts 37

Volume and loudspeaker control 38

Sensor settings and display rotation 38

Remote lock 39

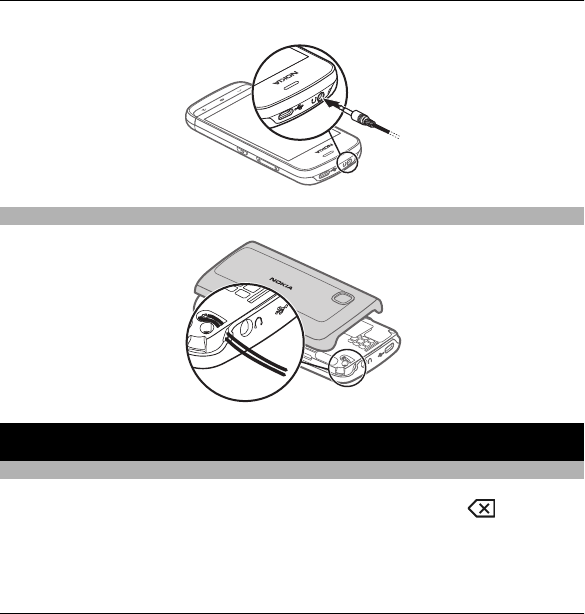

Headset 39

Attach a wrist strap 40

Make calls 40

Calls 40

During a call 41

Voice mailbox 42

Answer or reject a call 43

Make a conference call 44

Speed dial a phone number 44

Call waiting 45

Voice dialling 46

Log 47

Write text 49

2Contents

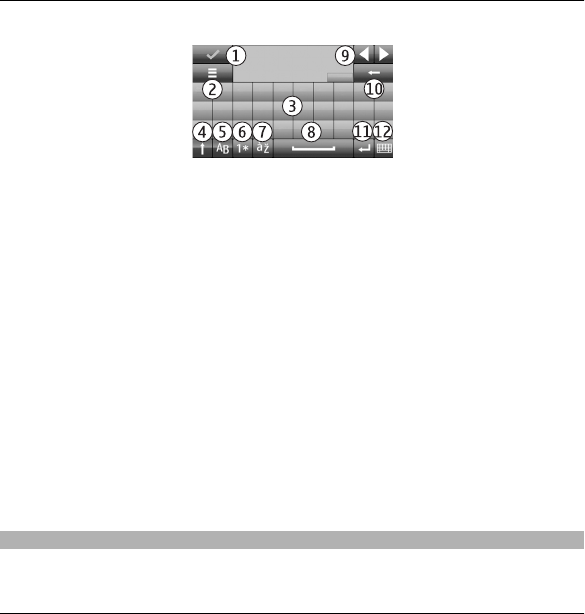

Virtual keyboard 49

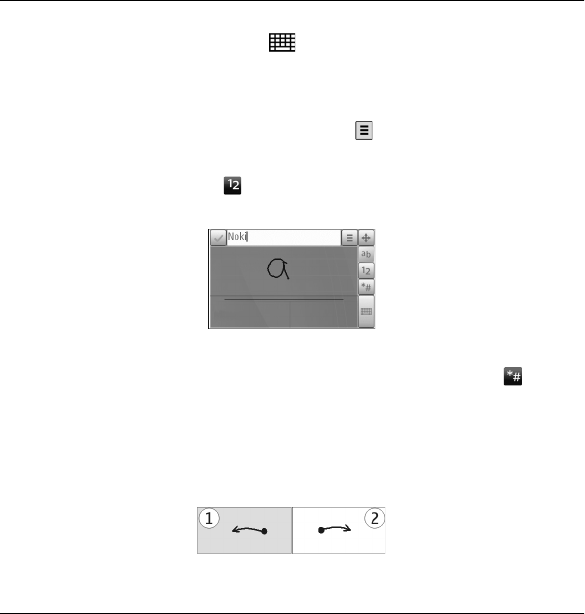

Handwriting 50

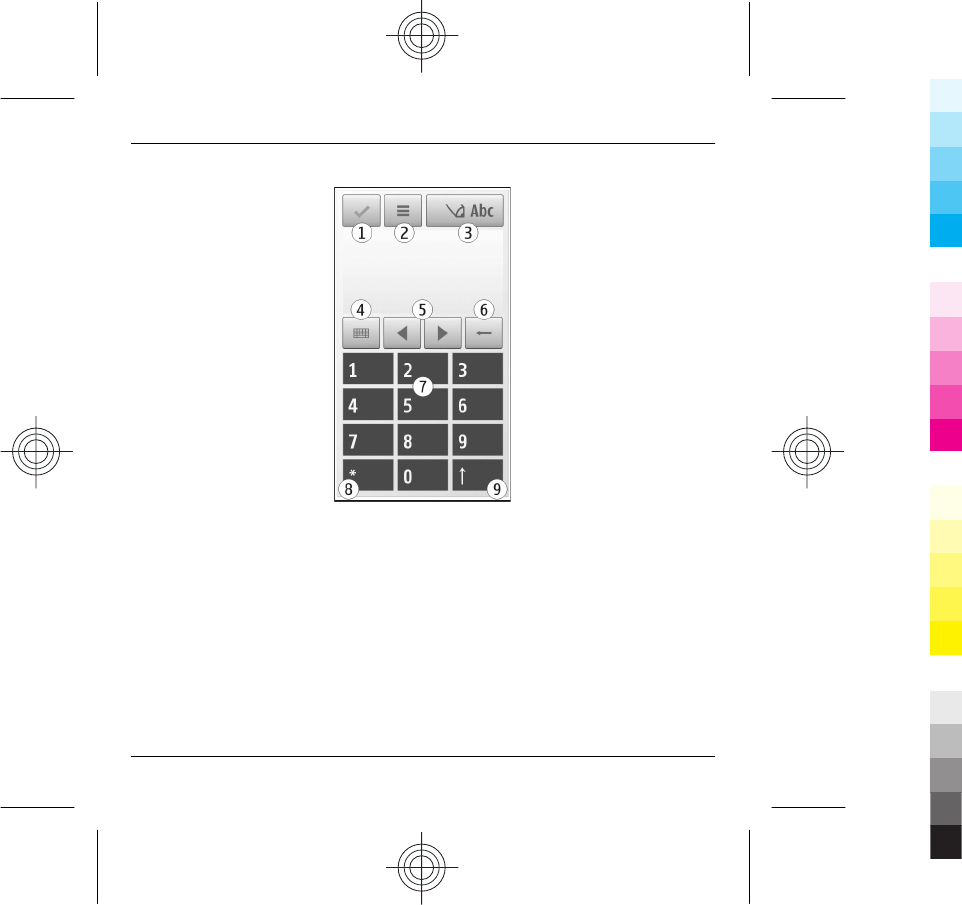

Enter text with the virtual keypad 52

Touch input settings 54

Contacts 55

Save phone numbers and mail

addresses 55

Manage names and numbers 55

Assign default numbers and

addresses 56

Ringing tones, images, and call text

for contacts 56

Copy contacts 57

SIM services 58

Messaging 59

Messaging main view 59

Write and send messages 60

Messaging inbox 62

Set up e-mail 64

E-mail service 64

Mailbox 65

Mail for Exchange 68

View messages on a SIM card 69

Service commands 70

Messaging settings 70

Personalise your device 73

Change the look of your device 73

Profiles 74

Music folder 74

Music player 74

Ovi Music 77

Nokia Podcasting 78

Radio 80

Camera 81

Activate the camera 81

Image capture 82

Video recording 85

Gallery 86

View and organise files 86

View images and videos 87

Organise images and video clips 88

Share online 88

About Share online 88

Subscribe to services 89

Manage your accounts 89

Create a post 90

Post files from Gallery 90

Nokia Video Centre 91

View and download video clips 91

Video feeds 93

My videos 93

Transfer video clips from your PC 94

Contents 3

Video centre settings 94

Web browser 95

Browse the web 95

Add a bookmark 96

Subscribe to a web feed 96

Discover nearby events 97

Positioning (GPS) 98

About GPS 98

About assisted GPS (A-GPS) 98

Hold your device correctly 99

Tips on creating a GPS connection 99

Position requests 101

Landmarks 101

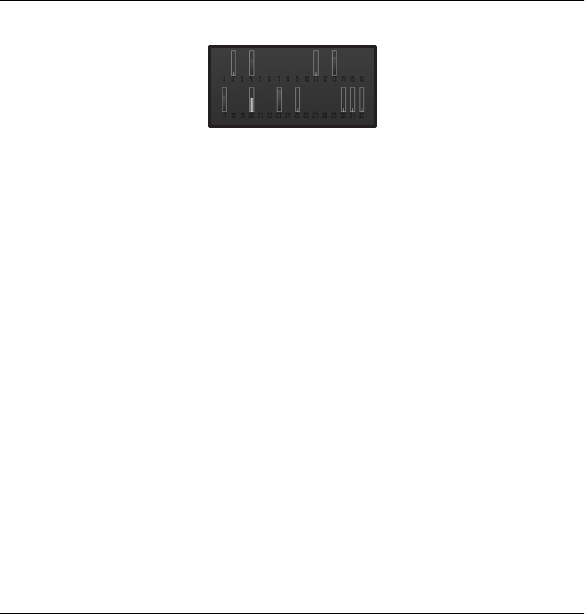

GPS data 102

Positioning settings 102

Maps 104

Maps overview 104

View your location and the map 104

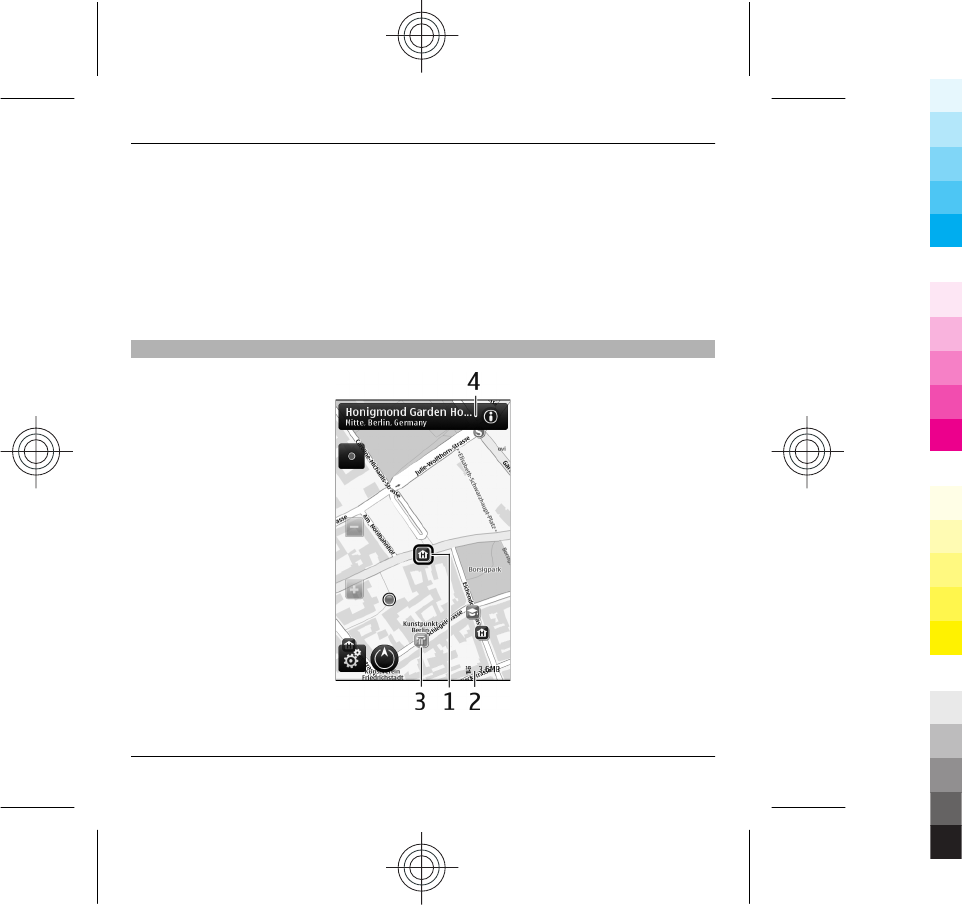

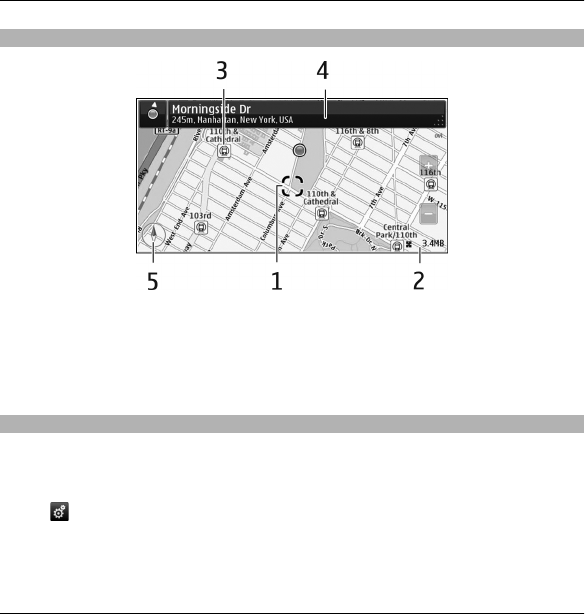

Map view 106

Change the look of the map 106

Download and update maps 107

About positioning methods 108

Find a location 109

View location details 110

Save or view a place or route 110

Send a place to a friend 111

Check in 112

Synchronise your Favourites 113

Get voice guidance 114

Use the compass 115

Drive to your destination 116

Navigation view 117

Get traffic and safety information 118

Walk to your destination 118

Plan a route 119

Connectivity 121

Data connections and access points 121

Network settings 122

Wi-Fi/WLAN connection 123

Access points 127

Close a network connection 131

Synchronisation 131

Synchronise data with Ovi Sync 132

Bluetooth connectivity 133

Transfer data using a USB cable 138

PC connections 139

Administrative settings 139

Search 141

About Search 141

Start a search 141

Other applications 142

Clock 142

Calendar 144

File manager 144

4Contents

Application manager 146

RealPlayer 150

Recorder 151

Write a note 152

Make a calculation 152

Converter 153

Dictionary 153

Settings 154

Phone settings 154

Call settings 161

Protect the environment 164

Save energy 164

Recycle 164

Product and safety information 165

Contents 5

Safety

Read these simple guidelines. Not following them may be dangerous or illegal. Read

the complete user guide for further information.

SWITCH OFF IN RESTRICTED AREAS

Switch the device off when mobile phone use is not allowed or when it

may cause interference or danger, for example, in aircraft, near medical

equipment, fuel, chemicals, or blasting areas.

ROAD SAFETY COMES FIRST

Obey all local laws. Always keep your hands free to operate the vehicle

while driving. Your first consideration while driving should be road

safety.

INTERFERENCE

All wireless devices may be susceptible to interference, which could affect

performance.

QUALIFIED SERVICE

Only qualified personnel may install or repair this product.

KEEP YOUR DEVICE DRY

Your device is not water-resistant. Keep it dry.

6Safety

PROTECT YOUR HEARING

Listen to a headset at a moderate level, and do not hold the device near

your ear when the loudspeaker is in use.

Battery removing

Switch the device off and disconnect the charger before removing the battery.

Safety 7

Find help

In-device help

Your device contains instructions to help to use the applications in your device.

To open help texts from the main menu, select Menu > Applications > Help and

the application for which you want to read instructions.

When an application is open, to access the help text for the current view, select

Options > Help.

When you are reading the instructions, to change the size of the help text, select

Options > Decrease font size or Increase font size.

You may find links to related topics at the end of the help text.

If you select an underlined word, a short explanation is displayed.

Help texts use the following indicators:

Link to a related help topic.

Link to the application being discussed.

When you are reading the instructions, to switch between help texts and the

application that is open in the background, select Options > Show open apps. and

the desired application.

Accessibility solutions

Nokia is committed to making mobile phones easy to use for all individuals,

including those with disabilities. For more information, visit the Nokia website at

www.nokiaaccessibility.com.

8Find help

Support

When you want to learn more about how to use your product or you are unsure

how your phone should function, read the user guide in your phone. Select Menu >

Applications > Help.

If this does not resolve your issue, do one of the following:

•Reboot your phone. Switch off the phone, and remove the battery. After about

a minute, replace the battery, and switch on the phone.

•Update your phone software

•Restore the original factory settings

If your issue remains unsolved, contact Nokia for repair options. Go to

www.nokia.com/repair, or in Latin America, www.nokia-latinoamerica.com/

centrosdeservicio. Before sending your phone for repair, always back up your data.

For additional product support information, see the warranty and reference leaflet

included with your Nokia device.

Software updates over the air

Select Menu > Applications > Tools > SW update.

With Software update (network service), you can check if there are updates available

for your device software or applications, and download them to your device.

Warning:

If you install a software update, you cannot use the device, even to make emergency

calls, until the installation is completed and the device is restarted.

Find help 9

After updating your device software or applications using Software update, the

instructions related to the updated applications in the user guide or the helps may

no longer be up to date.

To download the available updates, select . To unmark specific updates that you

do not want to download, select the updates from the list.

To view information on an update, select the update and .

To view the status of previous updates, select .

Select Options and from the following:

Update via PC — Update your device using a PC. This option replaces the Start

update option when updates are only available using the Nokia Software Updater

PC application.

View update history — View the status of previous updates.

Settings — Modify the settings, such as the default access point used for

downloading updates.

Disclaimer — View the Nokia licence agreement.

Update device software using your PC

You can use the Nokia Ovi Suite PC application to update your device software. You

need a compatible PC, a high-speed internet connection, and a compatible USB data

cable to connect your device to the PC.

To get more information and to download the Nokia Ovi Suite application, go to

www.ovi.com/suite.

10 Find help

Settings

Your device normally has MMS, GPRS, streaming, and mobile internet settings

automatically configured in the device, based on your network service provider

information. You may have settings from your service providers already installed in

your device, or you may receive or request the settings from the network service

providers as a special message.

Access codes

PIN code — This code protects your SIM card against unauthorised use. The PIN code

(4 - 8 digits) is usually supplied with the SIM card.

PIN2 code — This code (4 - 8 digits) is supplied with some SIM cards, and is required

to access some functions in your device.

If you forget an access code, contact the network service provider whose SIM card

is in your device. After three consecutive incorrect PIN or PIN2 code entries, the code

is blocked, and you need the PUK or PUK2 code to unblock it.

PUK code and PUK2 code — These codes (8 digits) are required to change a blocked

PIN code or PIN2 code, respectively. If the codes are not supplied with the SIM card,

contact the network service provider whose SIM card is in your device.

IMEI number — This number (15 digits) is used to identify valid devices in the GSM

network. Devices that are, for example, stolen, can be blocked from accessing the

network. The IMEI number for your device can be found under the battery.

Lock code (also known as security code) — The lock code helps you to protect your

device against unauthorised use. You can create and change the code, and set the

device to request the code. Keep the new code secret and in a safe place separate

from your device. If you forget the code and your device is locked, your device will

require service. Additional charges may apply, and all the personal data in your

device may be deleted. For more information, contact a Nokia Care Point or your

device dealer.

Find help 11

Prolong battery life

Many features in your device increase the demand on battery power and reduce the

battery lifetime. To save battery power, note the following:

•Features that use Bluetooth connectivity, or allowing such features to run in

the background while using other features, increase the demand on battery

power. Deactivate Bluetooth connectivity when you do not need it.

•Features that use a wireless LAN (WLAN), or allowing such features to run in the

background while using other features, increase the demand on battery power.

WLAN connectivity is deactivated when you are not trying to connect, not

connected to an access point, or not scanning for available networks. To further

reduce battery consumption, you can specify that your device does not scan, or

scans less often, for available networks in the background.

•If you have selected Packet data connection > When available in the

connection settings, and there is no packet data coverage (GPRS), the device

periodically tries to establish a packet data connection. To prolong the

operating time of your device, select Packet data connection > When

needed.

•The Maps application downloads new map information when you move to new

areas on the map, which increases the demand on battery power. You can

prevent the automatic download of new maps.

•If the signal strength of the cellular network varies much in your area, your

device must scan for the available network repeatedly. This increases the

demand on battery power.

If the network mode is set to dual mode in the network settings, the device

searches for the 3G network. To set the device to use only the GSM network,

select Menu > Settings and Connectivity > Network > Network mode >

GSM.

•The backlight of the display increases the demand on battery power. In the

display settings, you can adjust the display brightness and change the time-out

12 Find help

period after which the backlight is switched off. Select Menu > Settings and

Phone > Display > Brightness or Light time-out.

•Leaving applications running in the background increases the demand on

battery power. To access the applications you are not using, press and hold the

menu key, and select an application.

Increase available memory

Do you need more available device memory for new applications and content?

View how much space is available for different data types

Select Menu > Applications > Office > File mgr..

Many features of the device use memory to store data. The device notifies you if the

memory in different memory locations is low.

Increase available memory

Transfer data to a compatible memory card (if available) or to a compatible

computer.

To remove data you no longer need, use File manager or open the respective

application. You can remove the following:

•Messages in the folders in Messaging and retrieved e-mail messages in the

mailbox

•Saved web pages

•Contact information

•Calendar notes

•Applications shown in Application manager that you do not need

Find help 13

•Installation files (.sis or .sisx) of applications you have installed. Transfer the

installation files to a compatible computer.

•Images and video clips in Gallery. Back up the files to a compatible computer.

Get started

Insert the SIM card and battery

Safe removal. Always switch the device off and disconnect the charger before

removing the battery.

Important: Do not use a mini-UICC SIM card, also known as a micro-SIM card,

a micro-SIM card with an adapter, or a SIM card that has a mini-UICC cutout (see

figure) in this device. A micro SIM card is smaller than the standard SIM card. This

device does not support the use of micro-SIM cards and use of incompatible SIM

cards may damage the card or the device, and may corrupt data stored on the card.

A SIM card may be already inserted in the device. If not, do the following:

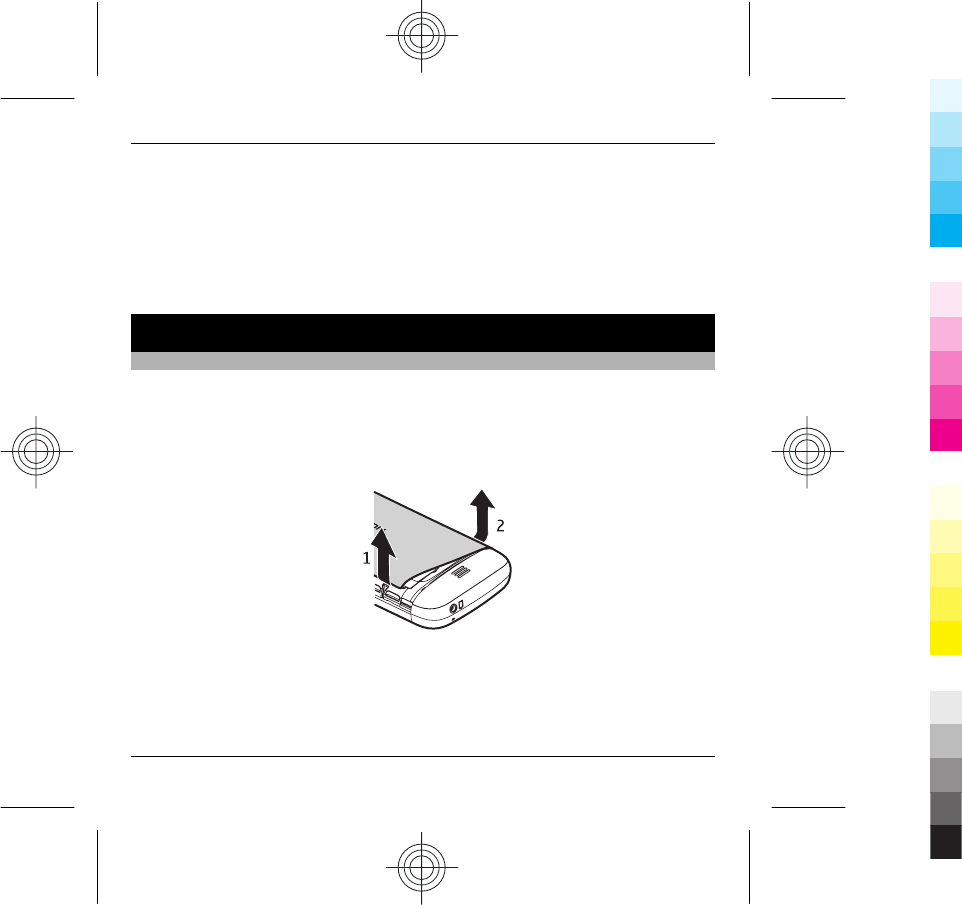

1 Remove the back cover.

14 Get started

2 Remove the battery, if inserted.

3 Slide the SIM card holder, to unlock it.

Get started 15

4 Lift the SIM card holder up.

5 Make sure the contact area of the SIM card is facing toward the device, and slide

the SIM card into the SIM card holder.

16 Get started

6 Lower the SIM card holder into place. Slide the SIM card holder, to lock it.

7 Line up the battery contacts, and insert the battery.

8 To replace the cover, direct the top locking catches toward their slots, and press

down until the cover locks into place.

Get started 17

If the SIM card is not properly in place, the device can only be used in the offline

profile.

Insert the memory card

Use only compatible memory cards approved by Nokia for use with this device.

Incompatible cards may damage the card and the device and corrupt data stored

on the card.

1 Remove the back cover.

18 Get started

2 Make sure the contact area of a compatible memory card is facing down, and

insert it into the memory card slot.

3 Push the card in, until you hear a click.

4 Replace the back cover.

Get started 19

Remove the memory card

Important: Do not remove the memory card when an application is using

it. Doing so may damage the memory card and the device, and corrupt data stored

on the card.

1 If the device is switched on, before you remove the card, press the power key,

and select Remove memory card.

2When Remove memory card? Some applications will be closed. is

displayed, select Yes.

3When Remove memory card and press 'OK' is displayed, remove the back

cover of the device, and push the card in, until you hear a click.

4 Pull out the memory card, and replace the back cover. If the device is switched

on, select OK.

Charge the battery

Your battery has been partially charged at the factory, but you may need to recharge

it before you can switch on your device for the first time. If the device indicates a

low charge, do the following:

1 Connect the charger to a wall outlet.

20 Get started

2 Connect the charger to the device.

3 When the device indicates a full charge, disconnect the charger from the device,

then from the wall outlet.

You do not need to charge the battery for a specific length of time, and you can use

the device while it is charging. If the battery is completely discharged, it may take

several minutes before the charging indicator appears on the display or before any

calls can be made.

Tip: Disconnect the charger from the wall outlet when the charger is not in use. A

charger that is connected to the outlet consumes power even when it is not

connected to the device.

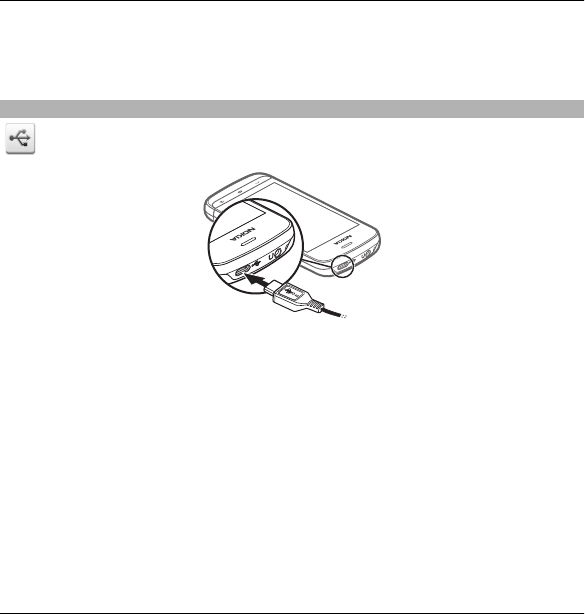

USB charging

You can use USB charging when a wall outlet is not available. Data can be transferred

while charging the device. The efficiency of USB charging power varies significantly,

and it may take a long time for charging to start and the device to start functioning.

1 Use a compatible USB data cable to connect your device to a compatible USB

device.

Get started 21

Depending on the type of the device that is used for charging, it may take a

while for charging to start.

2 If the device is switched on, select the appropriate USB mode.

Only connect your device to products that have USB-IF logo.

Keys and parts

1Wrist strap hole

2Nokia AV connector (3.5 mm)

3Micro USB connector

4Volume/Zoom key

5Lock key

6Earpiece

22 Get started

7Touch screen

8Call key

9Menu key

10 End/power key

11 Camera lens

12 Loudspeaker

13 Charger connector

14 Microphone

Get started 23

Switch the device on

1 Press and hold the power key.

2 If the device asks for a PIN code or lock code, enter it, and select OK. To delete

a number, select . The factory setting for the lock code is 12345.

3 Select your location. If you accidentally select the wrong location, select Back.

4 Enter the date and time. When using the 12-hour time format, to switch

between a.m. and p.m., select any number.

Lock the keys and touch screen

To lock the touch screen and the keys, press the lock key on the side of the device.

To unlock, press the lock key on the side of the device, and select the unlock icon

on the screen.

24 Get started

When the touch screen and keys are locked, the touch screen is switched off and

the keys are inactive.

The screen and keys may be locked automatically after a period of inactivity.

To change the settings for automatic screen and key locking, select Menu >

Settings and Phone > Phone mgmt. > Auto. keyguard > Keypad autolock

period.

Home screen

The home screen is your starting point where you can collect all your important

contacts or application shortcuts.

Get started 25

Interactive display elements

To open the clock application, tap the clock (1).

To open calendar or change profiles in the home screen, tap the date or the profile

name (2).

To view or modify connectivity settings ( ), to see the available wireless LANs if

WLAN scanning is enabled, or to view missed events, tap the top right corner (3).

To make a phone call, select (4), or, if the contacts bar is active, select

Telephone.

To open Contacts, select (5), or, if the contacts bar is active, select Contacts.

26 Get started

To open the main menu, press the menu key (6).

Start using the contacts bar

To add a contact to the contacts bar, in the home screen, select and a contact,

and follow the displayed instructions.

Contacts need to be saved in the phone memory.

To add a new contact to your contacts list, select > Options > New contact,

and follow the displayed instructions.

Contacts added from the contacts bar are always saved to the phone memory.

Change the home screen theme

To change the home screen theme or the shortcuts, select Menu > Settings and

Personal > Home screen.

Access the menu

To access the menu, press the menu key.

To open an application or folder in the menu, select the item.

Touch screen actions

Open an application or other screen element

Tap the application or element once.

Get started 27

To view the options available for the opened item, select Options or, if available,

select an icon from a toolbar.

Access functions quickly

Tap and hold the item. A pop-up menu with available options opens. For example,

to send an image, tap and hold the image, and from the pop-up menu, select the

appropriate option.

Tip: To see the options available for an opened item, such as an image or a video

clip, tap the screen.

Select

In this user documentation, opening applications or items by tapping them is called

"selecting". If you need to select several items in a sequence, the menu items to

select are separated by arrows.

For example, to select Options > Help, tap Options, and then tap Help.

Drag an item

Tap and hold the item, and slide your finger across the screen. The item follows your

finger.

To scroll up or down on a web page, drag the page with your finger.

Swipe

Place a finger on the screen, and steadily slide your finger in the desired direction.

28 Get started

When viewing an image, to view the next or previous image, swipe the image left

or right, respectively.

Scroll

To scroll up or down in lists that have a scroll bar, drag the slider of the scroll bar.

Place your finger on the screen, slide it quickly up or down the screen, then lift your

finger. The content of the screen scrolls with the speed and direction it had at the

moment of release. To select an item from a scrolling list and to stop the movement,

tap the item.

Tip: To view a brief description of an icon, place your finger on the icon. Descriptions

are not available for all icons.

Touch screen backlight

The touch screen backlight is turned off after a period of inactivity. To turn the screen

backlight on, tap the screen.

If the touch screen and keys are locked, tapping the screen does not turn the screen

backlight on.

Get started 29

Change the ringing tone

Select Menu > Settings and Personal > Profiles.

You can use profiles to set and customise the ringing tones, message alert tones,

and other tones for different events, environments, or caller groups.

To personalise a profile, go to the profile, and select Personalise.

Ovi by Nokia

With Ovi by Nokia, you can find new places and services, and stay in touch

with your friends. You can do, for example, the following:

•Download games, applications, videos, and ringing tones to your device

•Find your way with free walk and drive navigation, plan trips, and view locations

on a map

•Get a free Ovi Mail account

•Buy music

Some items are free of charge, others you may need to pay for.

The available services may also vary by country or region, and not all languages are

supported.

To access Nokia's Ovi services, go to www.ovi.com, and register your own Nokia

account.

For more help and information, go to www.ovi.com.

About Ovi Store

With Ovi Store, you can download mobile games, applications, videos, pictures,

themes, and ringing tones to your device. Some items are free of charge; others you

30 Get started

need to pay for with your credit card or in your phone bill. The availability of

payment methods depends on your country of residence and your network service

provider. Ovi Store offers content that is compatible with your mobile device and

relevant to your tastes and location.

Your device

Device setup

With the Phone setup application, you can do the following, for example:

•Define the regional settings, such as the language of the device.

•Transfer data from your old device.

•Personalise your device.

•Set up your mail accounts.

•Sign up for the My Nokia service to receive free tips, tricks, and support for your

Nokia device. You will also receive notifications when new software updates

are available for your device.

•Activate Ovi services.

When you switch on your device for the first time, the Phone setup application

opens. To open the application later, select Menu > Applications > Tools >

Phone setup.

Settings wizard

With Settings wizard, you can define e-mail and connection settings. The availability

of the items in Settings wizard depends on the features of the device, SIM card,

service provider, and the data in the Settings wizard database.

Select Menu > Applications > Tools > Sett. wizard.

Your device 31

To get the best results when using Settings wizard, keep your SIM card inserted in

the device. If the SIM card is not inserted, follow the instructions on the display.

Select from the following:

Operator — Define the operator-specific settings, such as MMS, internet, WAP, and

streaming settings.

E-mail setup — Configure a POP, IMAP, or Mail for Exchange account.

The settings available for editing may vary.

Transfer content for the first time

1 Select Menu > Applications > Tools > Switch.

2 Select the connection type you want to use to transfer the data, and connect

the devices. Both devices must support the selected connection type.

If you select Bluetooth connectivity as the connection type, you may need to

pair the devices.

3 On your device, select the content you want to transfer from the other device.

When the transfer has started, you can cancel it and continue later.

Content is transferred from the memory of the other device to the corresponding

location in your device. The transfer time depends on the amount of data to be

transferred.

Display indicators

General indicators

The touch screen and keys are locked.

The device alerts silently for incoming calls or messages.

32 Your device

You have set a clock alarm.

You are using a timed profile.

Call indicators

Someone has tried to call you.

You have set your device to divert incoming calls to another

number (network service).

Your device is ready for an internet call.

You have an ongoing data call (network service).

Messaging indicators

You have unread messages. If the indicator is blinking, the SIM card

memory for messages may be full.

You have received new mail.

You have messages waiting to be sent in the Outbox folder.

Network indicators

Your device is connected to a GSM network (network service).

Your device is connected to a 3G network (network service).

Your device 33

High-speed downlink packet access (HSDPA) / high-speed uplink

packet access (HSUPA) (network service) in the 3G network is

activated.

You have a GPRS packet data connection (network service).

indicates that the connection is on hold and that a connection

is being established.

You have an EGPRS packet data connection (network service).

indicates that the connection is on hold and that a connection

is being established.

You have a 3G packet data connection (network service).

indicates that the connection is suspended and that a

connection is being established.

You have a high-speed downlink packet access (HSDPA) connection

(network service). indicates that the connection is suspended

and that a connection is being established.

A WLAN connection is available (network service). indicates

that the connection is encrypted and that the connection is not

encrypted.

Connectivity indicators

Bluetooth is active. indicates that your device is sending data.

If the indicator is blinking, your device is trying to connect to

another device.

34 Your device

You have connected a USB cable to your device.

GPS is active.

The device is synchronising.

You have connected a compatible headset to the device.

Contacts bar

To add a contact to the home screen, in the home screen, select > Options >

New contact, and follow the instructions.

To communicate with a contact, select the contact and from the following:

— Call the contact.

— Send a message to the contact.

— Refresh the contact's web feeds.

To view past communication events with a contact, select the contact. To view the

details of a communication event, select the event.

To close the view, select Options > Exit.

Your device 35

Antenna locations

Avoid touching the antenna area unnecessarily while the antenna is transmitting

or receiving. Contact with antennas affects the communication quality and may

cause a higher power level during operation and may reduce the battery life.

Cellular antenna

GPS antenna Bluetooth and WLAN

antenna

Offline profile

The offline profile lets you use the device without connecting to the wireless cellular

network. When the offline profile is active, you can use your device without a SIM

card.

Activate the offline profile

Press the power key briefly, and select Offline.

When you activate the offline profile, the connection to the cellular network is

closed. All radio frequency signals to and from the device to the cellular network

are prevented. If you try to send messages using the cellular network, they are

placed in the Outbox folder to be sent later.

36 Your device

Important: In the offline profile you cannot make or receive any calls, or

use other features that require cellular network coverage. You may be able to call

the official emergency number programmed into your device.To make calls, you

must first change to another profile.

When you have activated the offline profile, you can still use a wireless LAN (WLAN),

for example, to read your e-mail or browse on the internet. You can also use

Bluetooth connectivity while in the offline profile. Remember to comply with any

applicable safety requirements when establishing and using WLAN or Bluetooth

connections.

Shortcuts

To switch between open applications, press and hold the menu key.

Leaving applications running in the background increases the demand on battery

power and reduces the battery life.

To change the profile, press the power key, and select a profile.

To call your voice mailbox (network service), in the dialler, tap and hold 1.

To open a list of last dialled numbers, in the home screen, press the call key.

To use voice commands, in the home screen, press and hold the call key.

Your device 37

Volume and loudspeaker control

Adjust the volume of a phone call or sound clip

Use the volume keys.

The built-in loudspeaker allows you to speak and listen from a short distance

without having to hold the device to your ear.

Use the loudspeaker during a call

Select Activate loudsp..

Turn off the loudspeaker

Select Activate handset.

Sensor settings and display rotation

When you activate the sensors in your device, you can control certain functions by

turning the device.

Select Menu > Settings and Phone > Sensor settings.

Select from the following:

Sensors — Activate the sensors.

38 Your device

Turning control — Select Silencing calls and Snoozing alarms to mute calls and

snooze alarms by turning your device so that the display faces down. Select Auto-

rotate display to rotate the display content automatically when you turn the device

on its left side or back to a vertical position. Some applications and features may

not support rotating the display content.

Remote lock

You can lock your device remotely using a predefined text message. You can also

lock the memory card remotely.

Enable remote locking

1 Select Menu > Settings and Phone > Phone mgmt. > Security > Phone and

SIM card > Remote phone locking > Enabled.

2 Enter the text message content (5-20 characters), verify it, and enter the lock

code.

Lock your device remotely

Write the predefined text message, and send it to your devic e. To u nloc k you r dev ice,

you need the lock code.

Headset

You can connect a compatible headset or compatible headphones to your device.

You may need to select the cable mode.

Your device 39

Attach a wrist strap

Make calls

Calls

1 In the home screen, select Telephone to open the dialler, and enter the phone

number, including the area code. To remove a number, select .

For international calls, select * twice for the + character (which replaces the

international access code), and enter the country code, area code (omit the

leading zero if necessary), and phone number. The + character as a replacement

40 Make calls

for the international access code may not work in all regions. In this case, enter

the international access code directly.

2 To make the call, press the call key.

3 To end the call (or to cancel the call attempt), press the end key.

Pressing the end key always ends a call, even if another application is active.

To make a call from the contacts list, select Menu > Contacts.

Go to the desired name. Or, select the search field, enter the first letters or characters

of the name, and go to the name.

To call the contact, press the call key. If you have saved several numbers for a contact,

select the desired number from the list, and press the call key.

During a call

To use the following options, first press the lock key to unlock the device.

Mute or unmute the microphone

Select or .

Put an active voice call on hold

Select or .

Activate the loudspeaker

Select . If you have attached a compatible headset with Bluetooth connectivity,

to route the sound to the headset, select Options > Activate BT handsfree.

Switch back to the handset

Select .

Make calls 41

End a call

Select .

Switch between active and held calls

Select Options > Swap.

Tip: To put an active call on hold, press the call key. To activate the held call, press

the call key again.

Send DTMF tone strings

1 Select Options > Send DTMF.

2 Enter the DTMF string or search for it from the contacts list.

3 To enter a wait character (w) or a pause character (p), press * repeatedly.

4 To send the tone, select the tone. You can add DTMF tones to the phone number

or DTMF field in contact details.

End an active call and replace it with another incoming call

Select Options > Replace.

End all calls

Select Options > End all calls.

Many of the options that you can use during a voice call are network services.

Voice mailbox

To call your voice mailbox (network service), in the home screen, select

Telephone, and select and hold 1.

42 Make calls

1 To change the phone number of your voice mailbox, select Menu > Settings

and Calling > Call mailbox, and a mailbox. Select and hold the current number.

2 Enter the number (obtained from your network service provider), and select

OK.

Answer or reject a call

Answer a call

Press the call key.

Mute the ringing tone of an incoming call

Select .

Send a reject call text message

Select Send msg., edit the message text, and press the call key. With the reply

message you can inform the caller that you cannot answer the call.

Reject a call

Press the end key. If you activate the Call divert > Voice calls > If busy function

in phone settings, rejecting an incoming call also diverts the call.

Activate the reject call text message feature

Select Menu > Settings and Calling > Call > Reject call with message > Yes.

Write a standard reject call text message

Select Menu > Settings and Calling > Call > Message text, and write the

message.

Make calls 43

Make a conference call

Your device supports conference calls between a maximum of six participants,

including yourself.

1 Make a call to the first participant.

2 To make a call to another participant, select Options > New call. The first call

is put on hold.

3 When the new call is answered, to add the first participant to the conference

call, select .

Add a new participant to a conference call

Make a call to another participant, and add the new call to the conference call.

Have a private conversation with a conference call participant

Select .

Go to the participant, and select . The conference call is put on hold on your

device. The other participants continue the conference call.

To return to the conference call, select .

Drop a participant from a conference call

Select , go to the participant, and select .

End an active conference call

Press the end key.

Speed dial a phone number

To activate speed dialling, select Menu > Settings and Calling > Call > Speed

dialling.

44 Make calls

1 To assign a phone number to one of the number keys, select Menu > Settings

and Calling > Speed dialling.

2 Select and hold the key to which you want to assign the phone number, and

from the pop-up menu, select Assign and the desired phone number from the

contacts list.

1 is reserved for the voice mailbox.

To call in the home screen, select Telephone and the assigned key, and press the

call key.

To call in the home screen when speed dialling is active, select Telephone, and

select and hold the assigned key.

Call waiting

With call waiting (network service), you can answer a call when you have another

call in progress.

Activate call waiting

Select Menu > Settings and Calling > Call > Call waiting.

Answer a waiting call

Press the call key. The first call is put on hold.

Swap between an active call and a call on hold

Select Options > Swap.

Connect the call on hold to the active call

Select Options > Transfer. You disconnect yourself from the calls.

Make calls 45

End an active call

Press the end key.

End both calls

Select Options > End all calls.

Voice dialling

Your device automatically creates a voice tag for contacts.

Listen to a voice tag for a contact

1 Select a contact and Options > Voice tag details.

2 Go to a contact detail, and select Options > Play voice tag.

Make a call with a voice tag

Note: Using voice tags may be difficult in a noisy environment or during an

emergency, so you should not rely solely upon voice dialling in all circumstances.

When you use voice dialling, the loudspeaker is in use. Hold the device at a short

distance away when you say the voice tag.

1 To start voice dialling, in the home screen, press and hold the call key. If a

compatible headset with the headset key is attached, press and hold the

headset key to start voice dialling.

2 A short tone sounds, and Speak now is displayed. Say clearly the name that is

saved for the contact.

3 The device plays a synthesised voice tag for the recognised contact in the

selected device language, and displays the name and number. To cancel the

voice dialling, select Quit.

46 Make calls

If several numbers are saved for a name, you can say also the name and the number

type, such as mobile or telephone.

Log

The Log application stores information about the communication history of the

device. The device registers missed and received calls only if the network supports

these functions, and the device is switched on and within the network service area.

Recent calls

You can view information about your recent calls.

Select Menu > Applications > Log and Recent calls.

View missed, received, and dialled calls

Select Missed calls, Received calls, or Dialled numbers.

Tip: To open the dialled numbers list in the home screen, press the call key.

Select Options and from the following:

Save to Contacts — Save a phone number from a recent calls list to your contacts.

Clear list — Clear the selected recent calls list.

Settings — Select Log duration and the length of time that the communication

information is saved in the log. If you select No log, no information is saved in the

log.

Packet data

Select Menu > Applications > Log.

You may be charged for your packet data connections by the amount of data sent

and received.

Make calls 47

Check the amount of data sent or received during packet data connections

Select Data counter > All sent data or All received data.

Clear both sent and received information

Select Data counter > Options > Clear counters. You need the lock code to clear

the information.

Call duration

You can view the approximate duration of your last call, dialled and received calls,

and all calls.

Select Menu > Applications > Log and Call duration.

Monitor all communication events

In the general log, you can view information on communication events, such as

voice calls, text messages, or data and wireless LAN (WLAN) connections registered

by your device.

Select Menu > Applications > Log.

Open the general log

Open the general log tab .

Subevents, such as a text message sent in more than one part and packet data

connections, are logged as one communication event. Connections to your mailbox,

multimedia messaging centre, or web pages are shown as packet data connections.

View the packet data connection details

Go to an incoming or outgoing packet data connection event indicated with GPRS,

and select the connection event.

48 Make calls

Copy a phone number from the log

Select and hold the number, and from the pop-up menu, select Use number >

Copy. You can, for example, paste the phone number to a text message.

Filter the log

Select Options > Filter and a filter.

Define the log duration

Select Options > Settings > Log duration. If you select No log, all the log

contents, recent calls register, and messaging delivery reports are permanently

deleted.

Write text

The on-screen keyboards allow you to enter characters by tapping them with your

fingers.

Tap any text input field to enter letters, numbers, and special characters.

Your device can complete words based on the built-in dictionary for the selected

text input language. The device also learns new words from your input.

Virtual keyboard

You can use the virtual keyboard in landscape mode.

To activate the virtual keyboard, select > Full screen QWERTY.

When using the virtual keyboard in full screen mode, you can select keys with your

fingers.

Write text 49

1Close - Close the virtual keyboard.

2Input menu - Open the touch input options menu to access commands such as

Writing language.

3Virtual keyboard

4Shift and caps lock - To enter an uppercase character when writing in lowercase,

or vice versa, select the key before entering the character. To activate the caps

lock, select the key twice. A line under the key indicates that the caps lock is

activated.

5Letters

6Numbers and special characters

7Character accents

8Space bar

9Move - Move the cursor.

10 Backspace

11 Enter - Move the cursor to the next row or text input field. Additional functions

are based on the current context (for example, in the web address field of the

web browser, it acts as the Go icon).

12 Input mode - Select the input method. When you tap an item, the current input

method view closes, and the selected one opens.

Handwriting

The input methods and languages supported by the handwriting recognition vary

by region and may not be available for all languages.

50 Write text

To activate handwriting mode, select > Handwriting.

Write legible, upright characters on the text input area, and leave a space between

each character.

To teach the device your handwriting style, select > Handwriting training.

To enter letters and numbers (default mode), write words as you would normally.

To select number mode, select . To enter non-Latin characters, select the

corresponding icon, if available.

To enter special characters, write them as you would normally, or select and the

desired character.

To delete characters or move the cursor back, swipe backwards (see Figure 1).

To insert a space, swipe forwards (see Figure 2).

Write text 51

Enter text with the virtual keypad

Virtual keypad

With the virtual keypad (Alphanumeric keypad), you can enter characters like you

would with a traditional physical keypad with numbers on the keys.

1Close - Closes the virtual keypad (Alphanumeric keypad).

2Input menu - Opens the touch input menu, which includes commands such as

Activate predictive text and Writing language.

3Text input indicator - Opens a pop-up window, in which you can activate or

deactivate predictive text input modes, change the character case, and switch

between letter and number modes.

4Input mode - Opens a pop-up window, in which you can select the input mode.

When you tap an item, the current input method view closes, and the selected

52 Write text

one opens. The availability of input modes may vary depending on whether the

automatic input mode (sensor settings) is activated or not.

5Arrow keys - Scroll left or right.

6Backspace

7Numbers

8Star - Opens a special characters table.

9Shift - Changes the character case, activates or deactivates predictive text input

modes, and switches between letter and number modes.

Traditional text input

Tap a number key (1-9) repeatedly until the desired character appears. There are

more characters available for a number key than are visible on the key.

If the next letter is located on the same key as the present one, wait until the cursor

appears (or move the cursor forward to end the time-out period), and enter the

letter.

To insert a space, tap 0. To move the cursor to the next line, tap 0 three times.

Predictive text input

With predictive text input, you can enter any word with a single key selection.

Predictive text input is based on a built-in dictionary to which you can add new

words. Predictive text input is not available for all languages.

1 To activate predictive text input for all editors on the device, select >

Activate prediction. You can also select > Activate predictive text.

2 To write the desired word, use the keys 2-9. Select each key only once for one

letter. For example, to write "Nokia" when the English dictionary is selected,

select 6 for N, 6 for o, 5 for k, 4 for i, and 2 for a.

Write text 53

The word suggestion changes after each key selection.

3 When you finish writing the word correctly, move the cursor right to confirm

it, or select 0 to add a space.

If the word is not correct, select * repeatedly to view the matching words the

dictionary has found one by one.

If the ? character is displayed after the word, the word is not in the dictionary.

To add a word to the dictionary, select Spell, enter the word using traditional

text input, and select OK. The word is added to the dictionary. When the

dictionary is full, a new word replaces the oldest added word.

4 Start writing the next word.

Touch input settings

Select Menu > Settings and Phone > Touch input.

To modify text input settings for the touch screen, select from the following:

Handwriting training — Open the handwriting training application. Train the

device to recognise your handwriting better. This option is not available in all

languages.

Writing language — Define which language-specific characters in your

handwriting are recognised and how the virtual keyboard is laid out.

Writing speed — Select the writing speed.

Guiding line — Display or hide the guiding line in the writing area. The guiding

line helps you write in a straight line, and it also helps the device recognise your

writing.

Pen trail width — Select the pen trail width for the text written with the stylus.

Writing colour — Select the colour of the text written with the stylus.

Adaptive search — Activate adaptive search.

Touch screen calibration — Calibrate the touch screen.

54 Write text

Contacts

You can save and update contact information, such as phone numbers, home

addresses, or e-mail addresses of your contacts. You can add a personal ringing tone

or a thumbnail image to a contact. You can also create contact groups, which allow

you to send text messages or e-mail to many recipients at the same time.

To open the contacts list, in the home screen, depending on the home screen theme,

select Contacts or .

Save phone numbers and mail addresses

You can save your friends' phone numbers, mail addresses, and other information

to your contacts list.

Select Menu > Contacts.

Add a contact to the contacts list

1 Select Options > New contact.

2 Select a field, and enter the details. To close the text input, select .

Edit contact information

Select a contact and Options > Edit.

Add details about a contact

Select a contact and Options > Edit > Options > Add detail.

Manage names and numbers

To send a contact as a business card to another device, select and hold the contact,

and from the pop-up menu, select Send as business card.

Contacts 55

To delete contacts, select Options > Mark/Unmark to mark the desired contacts,

and to delete, select Options > Delete.

To listen to the voice tag assigned to a contact, select the contact and Options >

Voice tag details > Options > Play voice tag.

When entering contacts or editing voice commands, do not use very short or similar

names for different contacts or commands.

Note: Using voice tags may be difficult in a noisy environment or during an

emergency, so you should not rely solely upon voice dialling in all circumstances.

Assign default numbers and addresses

If a contact has several numbers or addresses, a default number or address makes

it easier for you to call or send a message to the contact. The default number is also

used in voice dialling.

1 Select Menu > Contacts.

2 Select a contact and Options > Defaults.

3 Select a default to which you want to add a number or an address.

4 Select a number or an address you want to set as a default.

5 To exit the Defaults view and save the changes, tap outside the view.

Ringing tones, images, and call text for contacts

You can define a ringing tone for a contact or contact group, and an image and call

text for a contact. When the contact calls you, the device plays the selected ringing

tone and shows the call text or image (if the caller’s phone number is sent with the

call and your device recognises it).

Select Menu > Contacts.

56 Contacts

Add more fields to a contact details view

Select the contact and Options > Edit > Options > Add detail.

Define a ringing tone for a contact or contact group

Select the contact or contact group and Options > Ringing tone, and select a

ringing tone.

Remove the ringing tone from a contact

Select Default tone from the list of ringing tones.

Add an image for a contact

Select a contact saved in the device memory and Options > Add image, and select

an image from Gallery.

Define a call text for a contact

Select the contact and Options > Add call alert text. Enter the call text, and select

View, change or remove the image from a contact

Select a contact and Options > Image, and the desired option.

Copy contacts

When you open the contacts list for the first time, the device asks if you want to

copy names and numbers from the SIM card to your device.

To start copying, select Yes.

If you do not want to copy the contacts from the SIM card to your device, select

No. The device asks if you want to view the SIM card contacts in the contacts

Contacts 57

directory. To view the contacts, select Yes. The contacts list opens, and the names

stored on your SIM card are indicated with .

SIM services

For availability and information on using SIM card services, contact your SIM card

vendor. This may be the network service provider or other vendor.

SIM contacts

The number of contacts that can be stored on the SIM card is limited.

Display contacts stored on the SIM card in the contacts list

Select Options > Settings > Contacts to display > SIM memory.

The numbers you save in the contacts list may not be automatically saved to your

SIM card.

Copy contacts to the SIM card

Go to a contact, and select Options > Copy > SIM memory.

Select the default memory where to save the new contacts

Select Options > Settings > Default saving memory > Phone memory or SIM

memory.

Contacts stored in the device memory can contain more than one phone number

and an image.

58 Contacts

Fixed dialling

With the fixed dialling service, you can restrict calls from your device to certain

phone numbers. Not all SIM cards support the fixed dialling service. For more

information, contact your service provider.

Select Menu > Contacts and Options > SIM numbers > Fixed dial contacts.

You need your PIN2 code to activate and deactivate fixed dialling or edit your fixed

dialling contacts. Contact your service provider for your PIN2 code.

Select Options and from the following:

Activate fixed dialling or Deactivate fixed dialling — Activate or deactivate fixed

dialling.

New SIM contact — Enter the contact name and phone number to which calls are

allowed.

Add from Contacts — Copy a contact from the contacts list to the fixed dialling

list.

To send text messages to the SIM contacts while the fixed dialling service is active,

you need to add the text message centre number to the fixed dialling list.

Messaging

Messaging main view

Select Menu > Messaging (network service).

Create a new message

Select New message.

Messaging 59

Tip: To avoid rewriting messages that you send often, use saved messages in the

Templates folder in My folders. You can also create and save your own templates.

Messaging contains the following folders:

Inbox — Received messages, except e-mail and cell broadcast messages.

My folders — Organise your messages into folders.

Mailbox — Connect to your remote mailbox to retrieve your new e-mail

messages, or view your previously retrieved e-mail messages offline.

Drafts — Draft messages that have not been sent.

Sent — The last messages that have been sent, excluding messages sent using

Bluetooth connectivity. You can define the number of messages that can be saved

in this folder.

Outbox — Messages waiting to be sent are temporarily stored in the Outbox,

for example, when your device is outside network coverage.

Delivery reports — Request the network to send you a delivery report of the

text messages and multimedia messages you have sent (network service).

Write and send messages

Select Menu > Messaging.

Before you can create a multimedia message or write a mail, you must have the

correct connection settings defined.

If the item you inserted in a multimedia message is too large for the network, the

device may automatically reduce the size.

60 Messaging

Only compatible devices can receive and display multimedia messages. Messages

may look different in different devices.

Check the size limit of mail messages with your service provider. If you attempt to

send a mail message that exceeds the size limit of the mail server, the message is

left in the Outbox folder, and the device attempts to resend it periodically. Sending

a mail requires a data connection, and continuous attempts to resend the mail may

incur charges from your service provider. In the Outbox folder, you can delete such

a message or move it to the Drafts folder.

Messaging requires network services.

Send a text or multimedia message

Select New message.

Send an audio or mail message

Select Options > Create message, and the relevant option.

Select recipients or groups from the contacts list

Select from the toolbar.

Enter the number or mail address manually

Tap the To field.

Enter the subject of the mail or multimedia message

Enter it in the Subject field, . If the Subject field is not visible, select Options >

Message header fields to change the fields that are visible.

Write the message

Tap the message field.

Messaging 61

Add an object to a message or mail

Select and the relevant type of content.

The message type may change to multimedia message based on the inserted

content.

Send the message or mail

Select , or press the call key.

You can send text messages that are longer than the character limit for a single

message. Longer messages are sent as two or more messages. Your service provider

may charge accordingly.

Characters with accents, other marks, or some language options, take more space,

and limit the number of characters that can be sent in a single message.

Messaging inbox

Receive messages

Select Menu > Messaging and Inbox.

An unread text message

An unread multimedia message

An unread audio message

Data received through Bluetooth connectivity

When you receive a message, and 1 new message are displayed in the home

screen.

Open a message from the home screen

Select Show.

62 Messaging

Open a message in the Inbox folder

Select the message.

Reply to a received message

Select Options > Reply.

Multimedia messages

Select Menu > Messaging.

Retrieve multimedia messages

Select Options > Retrieve. A packet data connection is opened to retrieve the

message to your device. You may receive a notification that a multimedia message

is waiting in the multimedia message centre.

When you open a multimedia message ( ), you may see an image and a message.

indicates that a sound clip is included. indicates that a video clip is included.

Play the sound or video clip

Select the indicator.

View the media objects that have been included in a multimedia message

Select Options > Objects.

If the message includes a multimedia presentation, is displayed.

Messaging 63

Play the presentation

Select the indicator.

Data, settings, and web service messages

Your device can receive many kinds of messages that contain data, such as business

cards, ringing tones, operator logos, calendar entries, and e-mail notifications. You

may also receive settings from your service provider in a configuration message.

Save the data in a message

Select Options and the corresponding option.

Web service messages are notifications (for example, news headlines), and may

contain a text message or a link. For availability and subscription, contact your

service provider.

Set up e-mail

To set up e-mail, select Menu > Messaging and Mailbox.

You can set up several e-mail accounts, for example, a personal e-mail account and

a corporate e-mail account.

To set up e-mail from your home screen, select the relevant plug-in. Alternatively,

to set up an e-mail account, select Menu > Applications > Tools > Sett. wizard.

E-mail service

The e-mail service on your Nokia device automatically transfers e-mail from your

existing e-mail address to your device. You can read, respond to, and organise your

e-mails on the go. The service works with a number of internet e-mail providers

that are often used for personal e-mail. Data charges may be applicable when using

the service. For information on possible costs, contact your service provider

64 Messaging

Set up e-mail on your Nokia device

1 Select Menu > Applications > Tools > Sett. wizard.

2 When the Settings wizard is opened for the first time, you are asked to define

the e-mail settings after the service provider settings. If you have used the

Settings wizard before, select E-mail setup.

3 Accept the terms and conditions to activate the e-mail service.

For more information, see nokia.com/messaging.

Mailbox

Define e-mail settings

Select Menu > Messaging and Mailbox.

To use e-mail, you must have defined a valid internet access point (IAP) in your

device and have defined your e-mail settings correctly.

You must have a separate e-mail account. Follow the instructions given by your

remote mailbox and internet service provider (ISP).

If you select Messaging > Mailbox, and have not set up your e-mail account, you

are prompted to do so. To start defining the e-mail settings with the mailbox guide,

select Start.

When you create a new mailbox, the name you give to the mailbox replaces Mailbox

in the Messaging main view. You can have up to six mailboxes.

Open the mailbox

Select Menu > Messaging and a mailbox.

When you open the mailbox, the device asks if you want to connect to the mailbox.

Messaging 65

Connect to your mailbox and retrieve new e-mail headers or messages

Select Yes. When you view messages online, you are continuously connected to a

remote mailbox using a data connection.

View previously retrieved e-mail messages offline

Select No.

Create a new e-mail message

Select Options > Create message > E-mail.

Close the data connection to the remote mailbox

Select Options > Disconnect.

Retrieve e-mail messages

Select Menu > Messaging and a mailbox.

If you are offline, select Options > Connect to open a connection to the remote

mailbox.

Retrieve messages when you have an open connection to a remote mailbox

Select Options > Retrieve e-mail > New to retrieve all new messages, Selected

to retrieve only selected messages, or All to retrieve all messages from the mailbox.

To stop retrieving messages, select Cancel.

Close the connection and view the e-mail messages offline

Select Options > Disconnect.

66 Messaging

Open an e-mail message offline

To open an e-mail message, select the message. If the e-mail message has not been

retrieved and you are offline, you are asked if you want to retrieve this message

from the mailbox.

View e-mail attachments

Open the message, and select the attachment field indicated with . If the

attachment has not been retrieved to the device, select Options > Save.

Retrieve e-mail messages automatically

Select Options > E-mail settings > Automatic retrieval.

Setting the device to retrieve e-mail automatically may involve the transmission of

large amounts of data through your service provider's network. Contact your service

provider for information about data transmission charges.

Delete e-mail messages

Select Menu > Messaging and a mailbox.

Delete the content of an e-mail from the device only

Select and hold the e-mail, and from the pop-up menu, select Delete > Phone

only. The e-mail is not deleted from the remote mailbox.

The device mirrors the e-mail headers in the remote mailbox. If you delete the

message content, the e-mail header stays in your device. If you want to remove the

header as well, you must be connected to the server when deleting the message

from your device and the remote mailbox. It there is no connection to the server,

the header is deleted when you make a connection from your device to the remote

mailbox again to update the status.

Messaging 67

Delete an e-mail from the device and the remote mailbox

Select and hold the e-mail, and from the pop-up menu, select Delete > Phone and

server.

Cancel deleting an e-mail that has been marked to be deleted from the device

and server

Select Options > Restore.

Disconnect from the mailbox

When you are online, to end the data connection to the remote mailbox, select

Options > Disconnect.

Mail for Exchange

With Mail for Exchange, you can receive your work e-mail to your device. You can

read and reply to your e-mails, view and edit compatible attachments, view

calendar information, receive and reply to meeting requests, schedule meetings,

and view, add, and edit contact information.

Use of the Mail for Exchange is limited to over-the-air synchronisation of PIM

information between the Nokia device and the authorised Microsoft Exchange

server.

Mail for Exchange can be set up only if your company has Microsoft Exchange Server.

In addition, your company's IT administrator must have activated Mail for Exchange

for your account.

Before starting to set up Mail for Exchange, ensure that you have the following:

•A corporate e-mail ID

68 Messaging

•Your office network user name

•Your office network password

•Your network domain name (contact your company's IT department)

•Your Mail for Exchange server name (contact your company's IT department)

Depending on your company's Mail for Exchange server configuration, you may need

to enter other information in addition to those listed. If you do not know the correct

information, contact your company's IT department.

With Mail for Exchange, the use of the lock code may be mandatory. The default lock

code of your device is 12345, but your company's IT administrator may have set a

different one for you to use.

To access and modify the Mail for Exchange profile and settings, select Menu >

Settings > Phone > Application sett. > Messaging.

View messages on a SIM card

You can view messages that are stored on a SIM card.

Select Menu > Messaging and Options > SIM messages.

Before you can view SIM messages, you must copy them to a folder in your device.

1 Mark the messages. Select Options > Mark/Unmark > Mark or Mark all.

2 Open a list of folders. Select Options > Copy.

3 Select a folder to copy.

4 To view the messages, open the folder .

Messaging 69

Service commands

With service commands (network service) you can enter and send service requests

(also known as USSD commands), such as activation commands for network

services, to your service provider. This service may not be available for all regions.

Select Menu > Messaging and Options > Service commands.

Messaging settings

The settings may be preconfigured in your device, or you may receive them in a

message. To enter settings manually, fill in all fields marked with Must be defined

or an asterisk.

Some or all message centres or access points may be preset for your device by your

service provider, and you may not be able to change, create, edit, or remove them.

Text message settings

Select Menu > Messaging and Options > Settings > Text message.

Select from the following:

Message centres — View a list of all text message centres that have been defined.

Message centre in use — Select which message centre to use to deliver text

messages.

Character encoding — To use character conversion to another encoding system

when available, select Reduced support.

Receive report — Request the network to send you a delivery report of the text

messages you have sent (network service).

Message validity — Select for how long the message centre resends your message

if the first attempt fails (network service). If the message cannot be sent within this

time period, the message is deleted from the message centre.

70 Messaging

Message sent as — To find out if your message centre is able to convert text

messages into these other formats, contact your service provider.

Preferred connection — Select the connection to use.

Reply via same centre — Reply to messages using the same text message centre

number (network service).

Multimedia message settings

Select Menu > Messaging and Options > Settings > Multimedia message.

Select from the following:

Image size — Define the size of the image in a multimedia message.

MMS creation mode — If you select Guided, the device informs you if you try to

send a message that may not be supported by the recipient. If you select

Restricted, the device prevents you from sending messages that may not be

supported. To include content in your messages without notifications, select Free.

Access point in use — Select which access point is used as the preferred

connection.

Multimedia retrieval — Select how you want to receive messages, if available. To

receive messages automatically in your home network, select Auto in home

netw.. Outside your home network, you receive a notification that there is a

message to retrieve in the multimedia message centre. If you select Always

automatic, your device automatically makes an active packet data connection to

retrieve the message both in and outside your home network. Select Manual to

retrieve multimedia messages from the message centre manually, or Off to prevent

receipt of any multimedia messages. Automatic retrieval may not be supported in

all regions.

Allow anonymous msgs. — Reject messages from anonymous senders.

Receive adverts — Receive multimedia message advertisements (network

service).

Messaging 71

Receive reports — Display the status of sent messages in the log (network service).

Deny report sending — Prevent your device from sending delivery reports of

received messages.

Message validity — Select for how long the message centre resends your message

if the first attempt fails (network service). If the message cannot be sent within this

time period, the message is deleted from the message centre.

The device requires network support to indicate that a sent message has been

received or read. Depending on the network and other circumstances, this

information may not always be reliable.

Manage mailboxes

Select Menu > Messaging and Options > Settings > E-mail.

Select which mailbox you want to use to send and receive e-mail

Select Mailbox in use and a mailbox.

Remove a mailbox and its messages from your device

1 Select Mailboxes.

2 Select and hold the desired mailbox, and from the pop-up menu, select

Delete.

Create a new mailbox

Select Mailboxes > Options > New mailbox. The name you give to the new

mailbox replaces Mailbox in the Messaging main view. You can have up to six

mailboxes.

72 Messaging

Modify the connection settings, user settings, retrieval settings, and

automatic retrieval settings

Select Mailboxes and a mailbox.

Personalise your device

You can personalise your device by changing the home screen, tones, or themes.

Change the look of your device

You can use themes to change the look of the display, such as background image

and main menu layout.

Select Menu > Settings and Personal > Themes.

Activate a theme

Select General and the theme, and wait for a few seconds.

Change the layout of the main menu

Select Menu.

Change the look of the home screen

Select Home scr. theme.

Set an image or a slideshow as the background in the home screen

Select Wallpaper > Image or Slide show.

Change the image displayed in the home screen when a call is received

Select Call image.

Personalise your device 73

Profiles

You can use profiles to set and customise the ringing tones, message alert tones,

and other tones for different events, environments, or caller groups. The name of

the selected profile is displayed in the home screen. If the general profile is in use,

only the date is displayed.

Select Menu > Settings and Personal > Profiles.

Music folder

Music player

Music player supports file formats such as AAC, AAC+, eAAC+, MP3, and WMA. Music

player does not necessarily support all features of a file format or all the variations

of file formats.

You can also use Music player to listen to podcasts. Podcasting is a method for

delivering audio or video content over the internet using either RSS or Atom

technologies for playback on mobile devices and computers.

Listen to music at a moderate level. Continuous exposure to high volume may

damage your hearing.

Play music

Select Menu > Music > Music player.

Browse songs

Select the desired view. You can browse songs by artist, album, genre, or composer.

Play a song

Select the song.

74 Music folder

Tip: To listen to the songs in a random order, select Shuffle play.

Pause and resume playback

To pause playback, select ; to resume, select .

Fast-forward or rewind a song

Select and hold or .

Tip: When listening to music, you can return to the home screen and leave the Music

player application playing in the background.

Create a playlist

Want to listen to different music for different moods? With playlists, you can create

selections of songs to play in a specific order.

Select Menu > Music > Music player.

1 Select Playlists.

2 Select Options > New playlist.

Music folder 75

3 Enter a name for the playlist, and select OK.

4 Select the songs to add to the playlist, in the order you want them to play.

If a compatible memory card is inserted, the playlist is saved to the memory card.

Add a song to a playlist

Select and hold the song, and from the pop-up menu, select Add to playlist.

Remove a song from playlist

In the playlist view, select and hold the song, and from the pop-up menu, select

Remove.

This does not delete the song from the device; it only removes it from the playlist.

Play a playlist

Select Playlists and the playlist.

Tip: Music player automatically creates a playlist for the most played songs, recently

played songs, and recently added songs.

Podcasts

Select Menu > Music > Music player and Podcasts.

Podcast episodes have three states: never played, partially played, and completely

played. If the state is partially played, the episode plays from the last playback

position the next time it is played. If the state is never played or completely played,

the episode plays from the beginning.

76 Music folder

Nokia Ovi Player

With Nokia Ovi Player, you can download music from Ovi Music, transfer your music

to your device from your computer, and manage and organise your music files. To

download Nokia Ovi Player, go to www.ovi.com.

You need an internet connection to download music.

Download, transfer, and manage music between your computer and mobile

device

1 Open Nokia Ovi Player on your computer. If you want to download music,

2 Connect your device to the computer with a compatible USB data cable.

3 To select the connection mode on your device, select Media transfer.

Ovi Music

With Ovi Music (network service), you can search, browse, purchase, and download

music to your device.

The Ovi Music service will eventually replace the Music store.

Select Menu > Music > Ovi Music.

To download music, you first need to register for the service.

Downloading music may involve additional costs and the transmission of large

amounts of data (network service). For information about data transmission

charges, contact your network service provider.

To access Ovi Music, you must have a valid internet access point in the device. You

may be asked to select the access point to use when connecting to Ovi Music.

Music folder 77

Select the access point

Select Default access point.

The availability and appearance of Ovi Music settings may vary. The settings may

also be predefined and you may not be able to modify them. When browsing Ovi

Music, you may be able to modify the settings.

Modify Ovi Music settings

Select Options > Settings.

Ovi Music is not available for all countries or regions.

Nokia Podcasting

With the Nokia Podcasting application (network service), you can search, discover,

subscribe to, and download podcasts over the air, and play, manage, and share

audio and video podcasts with your device.

Podcasting settings

Select Menu > Music > Podcasting.

To start using Podcasting, define your connection and download settings.

Connection settings

Select Options > Settings > Connection and from the following:

Default access point — Select the access point to use to connect to the internet.

Search service URL — Define the podcast search service web address, to use to

search for podcasts.

78 Music folder

Download settings

Select Options > Settings > Download and from the following:

Save to — Define where to save podcasts.

Update interval — Define how often podcasts are updated.

Next update time — Define the time of the next automatic update.

Automatic updates only occur if a specific default access point is selected and the

Podcasting application is open.

Download limit (%) — Define the percentage of memory that is reserved for

podcast downloads.

If limit exceeds — Define what to do if the download limit is exceeded.

Setting the application to retrieve podcasts automatically may involve the

transmission of large amounts of data through your service provider’s network. For

information on data transmission charges, contact your service provider.

Restore default settings

Select Options > Restore default.

Download podcasts

After you have subscribed to a podcast, you can download, play, and manage the

podcast episodes.

Select Menu > Music > Podcasting.

View a list of subscribed podcasts

Select Podcasts.

Music folder 79

View individual episode titles

Select the podcast title.

An episode is a particular media file of a podcast.

Start a download

Select the episode title.

You can download multiple episodes at the same time.

Start playing a podcast before the download is complete

Go to a podcast, and select Options > Play preview.

Successfully downloaded podcasts are stored in the Podcasts folder, but may not

be displayed immediately.

Radio

Listen to the radio

Select Menu > Music > Radio.

When you open the application for the first time, you can choose to have the local

stations tuned automatically.

To listen to the next or the previous station, select or .

To mute the radio, select .

Select Options and from the following:

Stations — View saved radio stations.

Tune stations — Search for radio stations.

80 Music folder

Save — Save the radio station.

Activate loudspeaker or Deactivate loudspeaker — Turn the loudspeaker on or

off.

Alternative frequencies — Select whether you want the radio to automatically

search for a better RDS frequency for the station if the frequency level becomes low.

Play in background — Return to the home screen with the radio playing in the

background.

Manage radio stations

Select Menu > Music > Radio.

To listen to saved stations, select Options > Stations, and select a station from the

list.

To remove or rename a station, select and hold the station, and from the pop-up

menu, select Deleteor Rename.

To set the desired frequency manually, select Options > Tune stations >

Options > Manual tuning.

Camera

Your device supports an image capture resolution of 2592 x 1944 pixels. The image

resolution in this guide may appear different.

Activate the camera

To activate the camera, select Menu > Applications > Camera.

Camera 81

Image capture

Capture an image

Select Menu > Applications > Camera.

When capturing an image, note the following:

•Use both hands to keep the camera steady.

•The quality of a digitally zoomed image is lower than that of a non-zoomed

image.

•The camera goes into battery saving mode after about a minute of inactivity.

To switch from video mode to image mode, if necessary, select > .

Zoom in or out when capturing an image

Use the zoom slider.

After capturing an image

After you capture an image, select from the following options (available only if you

have selected Options > Settings > Show captured image > Yes):

— Send the image in a multimedia or e-mail message, or through connection

methods such as Bluetooth connectivity.

To send the image to the person you are talking to, select during a call.

— Upload the image to a compatible online album.

Delete — Delete the image.

Use the image as wallpaper in the home screen

Select Options > Use image > Set as wallpaper.

82 Camera

Set the image as a default call image

Select Options > Use image > Set as call image.

Assign the image to a contact

Select Options > Use image > Assign to contact.

Return to the viewfinder, to capture a new image

Select Back.

Scenes

A scene helps you to find the right colour and lighting settings for the current

environment. The settings of each scene have been set according to a certain style

or environment.

The default scene in image and video modes is indicated with (Automatic).

Change the scene

Select > Scene modes and a scene.

Create your own scene suitable for a certain environment

Select User defined > Change. In the user defined scene, you can modify different

lighting and colour settings.

Copy the settings of another scene

Select Based on scene mode and the desired scene. To save the changes and return

to the scenes list, select Back.

Activate your own scene

Select User defined > Select.

Camera 83

Location information

You can automatically add capture location information to the file details of the

captured material.

Select Menu > Applications > Camera.

To add location information to all captured material, select Options > Settings >

Show GPS info > On.

It may take several minutes to obtain the coordinates of your location. The

availability and quality of GPS signals may be affected by your location, buildings,

natural obstacles, and weather conditions. If you share a file that includes location

information, also the location information is shared, and your location may be

visible to third parties viewing the file. The device requires network services to

acquire location information.

Location information indicators:

— Location information unavailable. GPS stays on in the background for several

minutes. If a satellite connection is found and the indicator changes to within

that time, all the images captured and video clips recorded during that time are

tagged based on the received GPS positioning information.

— Location information is available. Location information is added to the file

details.

Location information can be added to an image or a video clip if location coordinates

are found via the network. It may take several minutes to receive the coordinates.

The best conditions are obtained in open areas away from high buildings.

84 Camera

If you share your image or video clip which has location information attached to it,

the location information is also shared and your location may be visible to third

parties that can view the image or the video clip.

You may disable the geotagging service in camera settings.

Self-timer

Use the self-timer to delay the capture, so that you can include yourself in the image.

Set the self-timer delay

Select > and the delay desired before the image is captured.

Activate the self-timer

Select Activate. The stopwatch icon on the screen blinks and the remaining time is

displayed when the timer is running. The camera captures the image after the

selected delay elapses.

Deactivate the self-timer

Select > .

Tip: To keep your hand steady when capturing an image, try using a delay of 2

seconds.

Video recording

Record a video clip

Select Menu > Applications > Camera.

1 To switch from image mode to video mode, if necessary, select > .

2 To pause recording, select Pause. To resume, select Continue. If you pause

recording and do not press any key within one minute, the recording stops.

Camera 85

To zoom in or out, use the zoom keys.

3 To stop recording, select Stop. The video clip is automatically saved in Gallery.

After recording a video clip

After you record a video clip, select from the following (available only if you have

selected Options > Settings > Show last captured video > Yes):

Play — Play the video clip you just recorded.

— Upload the image to a compatible online album.

Delete — Delete the video clip.

To return to the viewfinder to record a new video clip, select Back.

Gallery

To store and organise your images, video clips, sound clips, and streaming links,

select Menu > Gallery.

View and organise files

Select Menu > Gallery.

Select from the following:

Images & videos — View images in the image viewer and video clips in Video

centre.

Songs — Open Music player.

Sound clips — Listen to sound clips.

Other media — View presentations.

86 Gallery

indicates files stored on your compatible memory card (if inserted).

Open a file

Select a file from the list. Video clips and files with the .ram file extension open and

play in Video centre, and music and sound clips in Music player.

Copy or move files

To copy or move files to the memory card (if inserted) or device memory, select a

file, Options > Organise > Copy or Move, and the appropriate option.

View images and videos

Select Menu > Gallery and Images & videos.

By default, the images, video clips, and folders are organised by date and time.

To open a file, select a file from the list. To zoom in an image, use the volume key.

To edit a video clip or an image, select Options > Edit.

Select an image, Options > Use image, and from the following:

Set as wallpaper — Use the image as wallpaper in the home screen.

Set as call image — Set the image as a generic call image.

Assign to contact — Set the image as a call image for a contact.

Select a video clip, Options > Use video clip, and from the following:

Assign to contact — Assign the video clip as a ringing tone for a contact.

As ringing tone — Set the video clip as a ringing tone.

Gallery 87

The toolbar helps you select frequently used functions with images, video clips, and

folders.

From the toolbar, select from the following:

Send — Send your image or video clip.

Delete — Delete an image or a video clip.

Organise images and video clips

Select Menu > Gallery.

Create a new folder

Select Images & videos > Options > Folder options > New folder.

Move a file

Select the file and Options > Folder options > Move to folder.

Share online

About Share online

Select Menu > Applications > Share online.

With Share online (network service), you can post your images, video clips, and

sound clips from your device to compatible online sharing services, such as albums

and blogs. You can also view and send comments to the posts in these services, and

download content to your compatible Nokia device.

The supported content types and the availability of the Share online service may

vary.

88 Share online

Subscribe to services

Select Menu > Applications > Share online.

To subscribe to an online sharing service, go to the service provider's website, and

check that your Nokia device is compatible with the service. Create an account as

instructed on the website. You receive a user name and password needed to set up

your device with the account.

1 To activate a service, open the Share online application in your device, select a

service and Options > Activate.

2 Allow the device to create a network connection. If you are prompted for an

internet access point, select one from the list.

3 Sign in to your account as instructed on the service provider’s website.

For the availability and cost of the third party services and data transfer costs,

contact your service provider or the relevant third party.

Manage your accounts

To view your accounts, select Options > Settings > My accounts.

To create a new account, select Options > Add new account.

To change the user name or password for an account, select and hold the account

name, and from the pop-up menu, select Edit.

To set an account as the default when sending posts from your device, select and

hold the account name, and from the pop-up menu, select Set as default.

Share online 89

To remove an account, select and hold the account name, and from the pop-up

menu, select Delete.

Create a post

Select Menu > Applications > Share online.

To post your images or video clips to a service, select and hold the service, and from

the pop-up menu, select New upload. If the online sharing service provides

channels for posting files, select the desired channel.

To add your image, video clip, or sound clip to the post, select Options > Add.

Enter a title or description for the post, if available.

To add tags to the post, select Tags:.

To enable the posting of location information contained in the file, select

Location:.

To send the post to the service, select Options > Upload.

Post files from Gallery

You can post your images and video clips from Gallery to an online sharing service.

1 Select Menu > Gallery and your images and video clips to post.

2 Select Options > Send > Upload and the desired account.

3 Edit your post as required.

4 Select Options > Upload.

90 Share online

Nokia Video Centre

With Nokia Video Centre (network service), you can download and stream video

clips over the air from compatible internet video services using a packet data or

WLAN connection. You can also transfer your video clips from a compatible PC to

your device and view them in Video centre.

Using packet data access points to download videos may involve the transmission

of large amounts of data through your service provider's network. Contact your

service provider for information about data transmission charges.

Your device may have predefined services.

Service providers may provide free content or charge a fee. Check the pricing in the

service or from the service provider.

View and download video clips

Connect to video services

1 Select Menu > Applications > Video centre.

2 To connect to a service to install video services, select Add new services and

the desired video service from the service catalogue.

View a video clip

To browse the content of installed video services, select Video feeds.

The content of some video services is divided into categories. To browse video clips,

select a category.

To search for a video clip in the service, select Video search. Search may not be

available in all services.

Nokia Video Centre 91

Some video clips can be streamed over the air, but others must be first downloaded

to your device. To download a video clip, select Options > Download. Downloads

continue in the background if you exit the application. The downloaded video clips

are saved in My videos.

To stream a video clip or view a downloaded one, select Options > Play.

When the video clip is playing, to use the control keys for controlling the player, tap

the screen.

To adjust the volume, use the volume key.

Select Options and from the following:

Resume download — Resume a paused or failed download.

Cancel download — Cancel a download.

Preview — Preview a video clip. This option is available if supported by the service.

Feed details — View information about a video clip.

Refresh list — Refresh the list of video clips.

Open link in browser — Open a link in the web browser.

Schedule downloads

Setting the application to download video clips automatically may involve the

transmission of large amounts of data through your service provider's network. For

information about data transmission charges, contact your service provider.

To schedule an automatic download for video clips in a service, select Options >

Schedule downloads.

Video centre automatically downloads new video clips daily at the time you define.

92 Nokia Video Centre

To cancel scheduled downloads, select Manual download as the download

method.

Video feeds

Select Menu > Applications > Video centre.

The content of the installed video services is distributed using RSS feeds. To view

and manage your feeds, select Video feeds.

Select Options and from the following:

Feed subscriptions — Check your current feed subscriptions.

Feed details — View information about a video.

Add feed — Subscribe to new feeds. Select Via Video directory to select a feed

from the services in the video directory.

Refresh feeds — Refresh the content of all feeds.

Manage account — Manage your account options for a particular feed, if available.

To view the videos available in a feed, select a feed from the list.

My videos

My videos is a storage place for all video clips in the Video centre application. You

can list downloaded video clips and video clips recorded with the device camera in

separate views.

1 To open a folder and view video clips, select the folder. When a video clip is

playing, to use the control keys for controlling the player, tap the screen.

2 To adjust the volume, press the volume key.

Nokia Video Centre 93

Select Options and from the following:

Resume download — Resume a paused or failed download.

Cancel download — Cancel a download.

Video details — View information about a video clip.

Find — Find a video clip. Enter a search term that matches the file name.

Memory status — View the amount of free and used memory.

Sort by — Sort video clips. Select the desired category.

Move and copy — Move or copy video clips. Select Copy or Move and the desired

location.

Transfer video clips from your PC

Transfer your own video clips from compatible devices using a compatible USB data

cable. Only video clips which are in a format supported by your device are displayed.

1 To view your device on a PC as a mass memory device where you can transfer

any data files, connect using a compatible USB data cable.

2 Select Mass storage as the connection mode. A compatible memory card needs

to be inserted in the device.

3 Select the video clips you want to copy from your PC.

4 Transfer the video clips to E:\My Videos on the memory card.

The transferred video clips appear in the My videos folder.

Video centre settings

In the Video centre main view, select Options > Settings and from the following:

Video service selection — Select the video services that you want to appear in

Video centre. You can also add, remove, edit, and view the details of a video service.

You cannot edit preinstalled video services.

94 Nokia Video Centre

Connection settings — To define the network destination used for the network

connection, select Network connection. To select the connection manually each

time Video centre opens a network connection, select Always ask.

To set GPRS connection on or off, select Confirm GPRS usage.

To set roaming on or off, select Confirm roaming.

Parental control — Set an age limit to videos. The required password is the same

as the device lock code. The factory setting for the lock code is 12345. In video-on-

demand services, videos which have the same or a higher age limit than you have

set, are hidden.

Preferred memory — Select whether downloaded videos are saved in the device

memory or on a compatible memory card.

Thumbnails — Select whether to download and view thumbnail images in video

feeds.

Web browser

With the web browser, you can view hypertext markup language (HTML) pages on

the web as originally designed (network service). You can also browse web pages

that are designed specifically for mobile devices, and use extensible hypertext

markup language (XHTML), or the wireless markup language (WML).

To browse the web, you need to have an internet access point defined in your device.

Browse the web

Select Menu > Web.

Web browser 95

Tip: If you do not have a flat-rate data plan from your service provider, to save data

costs in your phone bill, you can use a wireless local area network (WLAN) to connect

to the internet.

Go to a web page

From the toolbar, select , and enter a web address.

A cache is a memory location that is used to store data temporarily. If you have, or

have tried to, access confidential information or a secure service, requiring

passwords, clear the cache after each use.

Empty the cache

Select Options > Clear privacy data > Cache.

Add a bookmark

If you visit the same websites all the time, add them to your Bookmarks view, so

you can easily access them.

Select Menu > Web.

While browsing, select > .

Go to a bookmarked website while browsing

Select and a bookmark.

Subscribe to a web feed

You don't have to visit your favourite websites regularly to keep up with what's new

on them. You can subscribe to web feeds and get links to latest content

automatically.

96 Web browser

Select Menu > Web.

Web feeds on web pages are usually indicated with . They are used to share,

for example, the latest news headlines or blog entries.

Subscribe to a feed

Go to a blog or web page that contains a web feed, and select Options > Add

feed.

Manually update a feed

In the Web feeds view, select the feed.

Set a feed to automatically update

In the Web feeds view, select and hold the feed, and from the pop-up menu, select

Edit > Automatic updates.

Discover nearby events

Are you looking for interesting things to do near your current location? With Here

and now, you can get information about, for example, the weather, events, cinema

times, or restaurants nearby.

Select Menu > Web.

1 Select Here and now.

2 Browse the available services, and for more information, select the service.

Some services may not be available in all countries, and may be provided only in

selected languages. The services may be network dependent. For more information,

contact your network service provider.

Web browser 97

Using the service or downloading content may cause transfer of large amounts of

data, which may result in data traffic costs.

Positioning (GPS)

You can use applications such as GPS data to calculate your location or measure

distances. These applications require a GPS connection.

About GPS

The availability and quality of GPS signals may be affected by your location, satellite

positions, buildings, natural obstacles, weather conditions and adjustments to GPS

satellites made by the United States government. GPS signals may not be available

inside buildings or underground.

Do not use GPS for precise location measurement, and never rely solely on the

location information provided by GPS and cellular networks.

The coordinates in the GPS are expressed using the international WGS-84 coordinate

system. The availability of the coordinates may vary by region.

About assisted GPS (A-GPS)

Your device supports A-GPS (network service). When you activate A-GPS, your device

receives useful satellite information from an assistance data server over the cellular

network. With the help of assisted data, your device can obtain the GPS position

faster.

Your device is preconfigured to use the Nokia A-GPS service, if no service provider-

specific A-GPS settings are available. The assistance data is retrieved from the Nokia

A-GPS service server only when needed.

You must have an internet access point defined in the device to retrieve assistance

data from the Nokia A-GPS service over a packet data connection.

98 Positioning (GPS)

Define an access point for A-GPS

Select Menu > Applications > Location and Positioning > Positioning server >

Access point. Only a packet data internet access point can be used for this service.

Your device asks for the internet access point when GPS is used for the first time.

Hold your device correctly

When using the GPS receiver, ensure you do not cover the antenna with your hand.

Establishing a GPS connection may take from a couple of seconds to several minutes.

Establishing a GPS connection in a vehicle may take longer.

The GPS receiver draws its power from the device battery. Using the GPS receiver

may drain the battery faster.

Tips on creating a GPS connection

Check the satellite signal status

Select Menu > Applications > Location and GPS data > Options > Satellite

status.

Positioning (GPS) 99

If your device has found satellites, a bar for each satellite is shown in the satellite

info view. The longer the bar, the stronger the satellite signal. When your device

has received enough data from the satellite signal to calculate your location, the

bar colour changes.

Initially your device must receive signals from at least four satellites to be able to

calculate your location. When the initial calculation has been made, it may be

possible to continue calculating your location with three satellites. However, the

accuracy is generally better when more satellites are found.

To view the positions of found satellites, select Chg. view.

If no satellite signal can be found, consider the following:

•If you are indoors, go outdoors to receive a better signal.

•If you are outdoors, move to a more open space.

•If the weather conditions are bad, the signal strength may be affected.

•Some vehicles have tinted (athermic) windows, which may block the satellite

signals.

Ensure you do not cover the antenna with your hand.

100 Positioning (GPS)

Establishing a GPS connection may take from a couple of seconds to several minutes.

Establishing a GPS connection in a vehicle may take longer.

The GPS receiver draws its power from the device battery. Using GPS may drain the

battery faster.

Position requests

You may receive a request from a network service to receive your position

information. Service providers may offer information about local topics, such as

weather or traffic conditions, based on the location of your device.

When you receive a position request, the service that is making the request is

displayed. Select Accept to allow your position information to be sent or Reject to

deny the request.

Landmarks

With Landmarks, you can save the position information of locations in your

device. You can sort the saved locations into different categories, such as business,

and add details to them. You can use your saved landmarks in compatible

applications.

Positioning (GPS) 101

Select Menu > Applications > Location and Landmarks.

Select Options and from the following:

New landmark — Create a new landmark. To request position information of your

current location, select Current position. To enter the position information

manually, select Enter manually.

Edit — Edit a saved landmark (for example, add a street address).

Add to category — Add a landmark to a category. Select each category to which

you want to add the landmark.

Send — Send one or several landmarks to a compatible device.

Create a new landmark category

On the categories tab, select Options > Edit categories.

GPS data

GPS data is designed to provide route guidance information to a selected

destination and traveling information, such as the approximate distance to the

destination and approximate duration of travel. You can also view position

information about your current location.

Select Menu > Applications > Location and GPS data.

Positioning settings

Positioning settings define the methods, server, and notation settings used in

positioning.

Select Menu > Applications > Location and Positioning.

102 Positioning (GPS)

Define positioning methods

Use only the integrated GPS receiver of your device

Select Integrated GPS.

Use Assisted GPS (A-GPS) to receive assistance data from a positioning server

Select Assisted GPS.

Use information from the cellular network (network service)

Select Network based.

Define positioning server

Define an access point and positioning server for network-assisted

positioning

Select Positioning server.

This is used for assisted GPS or network-based positioning. The positioning server

may be preset by your service provider, and you may not be able to edit the settings.

Define notation settings

Select the measurement system to use for speeds and distances

Select Measurement system > Metric or Imperial.

Define in which format the coordinate information is displayed in your device

Select Coordinate format and the desired format.

Positioning (GPS) 103

Maps

Maps overview

Select Menu > Maps.

Welcome to Maps.

Maps shows you what is nearby, helps you plan your route, and guides you where

you want to go.

•Find cities, streets, and services.

•Find your way with turn-by-turn directions.

•Synchronise your favourite locations and routes between your mobile device

and the Ovi Maps internet service.

•Check weather forecasts and other local information, if available.

Some services may not be available in all countries, and may be provided only in

selected languages. The services may be network dependent. For more information,

contact your network service provider.

Using the service or downloading content may cause transfer of large amounts of

data, which may result in data traffic costs.

Almost all digital cartography is inaccurate and incomplete to some extent. Never

rely solely on the cartography that you download for use in this device.

View your location and the map

See your current location on the map, and browse maps of different cities and

countries.

Select Menu > Maps and My position.

104 Maps

indicates your current position, if available. When searching for your position,

blinks. If your position is not available, indicates your last known position.

If accurate positioning is not available, a red halo around the positioning icon

indicates the general area you might be in. In densely populated areas, the accuracy

of the estimate increases, and the red halo is smaller than in lightly populated areas.

Browse the map

Drag the map with your finger. By default, the map is oriented north.

View your current or last known location

Select .

Zoom in or out

Select + or -.

Tip: To zoom, you can also place two fingers on the map, and slide your fingers

apart to zoom in or together to zoom out. Not all devices support this feature.

If you browse to an area not covered by the street maps that are stored on your

device, and you have an active data connection, new street maps are automatically

downloaded.

To prevent downloading new street maps automatically, in the main menu, select

> Internet > Connection > Offline.

Map coverage varies by country and region.

Maps 105

Map view

1Selected location

2Indicator area

3Point of interest (for example, a railway station or a museum)

4Information area

5Compass

Change the look of the map

View the map in different modes, to easily identify where you are.

Select Menu > Maps and My position.

Select and from the following:

Map view — In the standard map view, details such as location names or motorway

numbers, are easy to read.

Satellite view — For a detailed view, use satellite images.

106 Maps

Terrain view — View at a glance the ground type, for example, when you are

travelling off-road.

3D view — For a more realistic view, change the perspective of the map.

Landmarks — Display prominent buildings and attractions on the map.

Night mode — Dim the colours of the map. When travelling at night, the map is

easier to read in this mode.

Transit lines — View selected public transport services, such as metro and tram

routes.

The available options and features may vary by region. The unavailable options are

dimmed.

Download and update maps

To avoid mobile data transfer costs, download the latest street maps and voice

guidance files to your computer, and then transfer and save them to your device.

Use the Nokia Ovi Suite application to download the latest street maps and voice

guidance files to your compatible computer. To download and install Nokia Ovi

Suite, go to www.ovi.com.

Tip: Save new street maps to your device before a journey, so you can browse the

maps without an internet connection when travelling abroad.

If you have an older version of the Maps application installed on your device, when

you update to the latest version, the country or region maps are deleted. Before

using Nokia Ovi Suite to download new country or region maps, open and close the

Maps application.

Make sure you have the latest version of Nokia Ovi Suite installed on your computer.

Maps 107

About positioning methods

Maps displays your location on the map using GPS, A-GPS, WLAN, or network (cell

ID) based positioning.

The global positioning system (GPS) is a satellite-based navigation system used for

calculating your location. Assisted GPS (A-GPS) is a network service that sends you

GPS data, improving the speed and accuracy of the positioning.

WLAN positioning improves position accuracy when GPS signals are not available,

especially when you are indoors or between tall buildings.

With network (cell ID) based positioning, the position is determined through the

antenna system your mobile device is currently connected to.

When you use Maps for the first time, you are prompted to define the internet access

point to use to download map information, use A-GPS, or connect to a WLAN.

To avoid network service costs, you can disable A-GPS, WLAN, and network (cell ID)

based positioning in your device positioning settings, but calculating your location

may take much longer. For more information about positioning settings, see the

user guide of your device.

The availability and quality of GPS signals may be affected by your location, satellite

positions, buildings, natural obstacles, weather conditions and adjustments to GPS

satellites made by the United States government. GPS signals may not be available

inside buildings or underground.

Do not use GPS for precise location measurement, and never rely solely on the

location information provided by GPS and cellular networks.

The trip meter may not be accurate, depending on the availability and quality of

your GPS connection.

108 Maps

Depending on the available positioning methods, the accuracy of positioning may

vary from a few metres to several kilometres.

Find a location

Maps helps you find specific locations and businesses.

Select Menu > Maps and Search.

1 Enter search words, such as a street address or place name.

2 Select .

3 Select an item from the list of proposed matches.

The location is displayed on the map.

Return to the list of proposed matches

Select Search.

Tip: In the search view, you can also select from the list of your previous search

words.

Search for different types of nearby places

Select Categories and a category, such as shopping, accommodation, or transport.

If no search results are found, make sure the spelling of your search words is correct.

Problems with your internet connection may also affect results when searching

online.

If you have maps of the searched area stored on your device, you can also get search

results without an active internet connection, to avoid data transfer costs, but the

search results may be limited.

Maps 109

View location details

Find more information about a specific location or place, such as a hotel or

restaurant, if available.

The available options may vary by region. To view all the available place details,

you need an active internet connection.

Select Menu > Maps and Search.

View the details of a place

Search for a place. Select the place and its information area.

Rate a place

Search for a place. Select the place, its information area, Rate, and the star rating.

For example, to rate a place as being 3 out of 5 stars, select the third star.

When you find a place that does not exist or contains inappropriate information or

incorrect details, such as the wrong contact information or location, it is

recommended that you report it to Nokia.

Report incorrect place information

Select the place, its information area, Report, and the appropriate option.

Save or view a place or route

Save an address, place of interest, or route, so it can be quickly used later.

Select Menu > Maps.

Save a place

1 Select My position.

110 Maps

2 Tap the location. To search for an address or place, select Search.

3 Tap the location's information area.

4 Select Save.

Save a route

1 Select My position.

2 Tap the location. To search for an address or place, select Search.

3 Tap the location's information area.

4 To add another route point, select Navigate > Add to route.

5 Select Add new route point and the appropriate option.

6 Select Show route > Options > Save route.

View a saved place

In the main view, select Favourites > Places, the place, and Show on map.

View a saved route

In the main view, select Favourites > Routes and the route.

Send a place to a friend

When you want to show your friends where a place is on the map, you can send the

place to them.

Select Menu > Maps and My position.

To vi ew t he plac e on th e map, your friends don't need to have a Nokia mobile device,

but an active internet connection is required.

1 Select a place and its information area.

2 Select Share > Share via SMS or Share via Email.

Maps 111

A mail or text message containing a link to the location on the map is sent to your

friend.

Check in

With the Check in feature, you can keep a private record of where you have been.

Keep your social networking friends and contacts up to date with what you are

doing, and share your location on your favourite social networking services.

Select Menu > Maps and Check in.

To check in, you need a Nokia account. To share your location, you also need a social

networking service account. The supported social networking services vary by

country or region.

1 Sign in to your Nokia account, or, if you do not yet have one, create the account.

2 It is possible to share your location on the social networking services that you

use. When you use Check in for the first time, you can set your account

credentials for the services that you use. To later set up accounts, select .

3 Select your current location.

4 Write your status update.

You can post only to selected services that you have set up. To exclude a service,

select the service logo. To exclude all the services, keeping your location and

status update private, clear the and post on check box.

5 Select Check in.

You may also be able to attach a picture to your post, depending on the social

networking service.

View your Check in history

Select .

112 Maps

Checking in and sharing your location requires an internet connection. This may

involve the transmission of large amounts of data and related data traffic costs.

The terms of use of the social networking service apply to sharing your location on

that service. Familiarise yourself with the terms of use and the privacy practices of

that service.

Before sharing your location to others, always consider carefully with whom you

are sharing it. Check the privacy settings of the social networking service you are

using, as you might share your location with a large group of people.

Synchronise your Favourites

Plan a trip on your computer at the Ovi Maps website, synchronise the saved places

and routes with your mobile device, and access the plan on the go.

To synchronise places or routes between your mobile device and the Ovi Maps

internet service, you need to be signed in to your Nokia account.

Synchronise saved places and routes

Select Favourites > Synchronise with Ovi. If you do not have a Nokia account, you

are prompted to create one.

You can set your device to synchronise your Favourites automatically when you

open or close the Maps application.

Synchronise Favourites automatically

Select > Synchronisation > Synchronisation > At start-up and shut-d..

Synchronising requires an active internet connection, and may involve the

transmission of large amounts of data through your service provider’s network. For

information about data transmission charges, contact your service provider.

Maps 113

To use the Ovi Maps internet service, go to www.ovi.com.

Get voice guidance

Voice guidance, if available for your language, helps you find your way to a

destination, leaving you free to enjoy the journey.

Select Menu > Maps and Drive or Walk.

When you use drive or walk navigation for the first time, you are asked to select the

language of the voice guidance, and download the appropriate files.

If you select a language that includes street names, also the street names are said

aloud. Voice guidance may not be available for your language.

Change the voice guidance language

In the main view, select and Navigation > Drive guidance or Walk guidance

and the appropriate option.

Deactivate voice guidance

In the main view, select and Navigation > Drive guidance or Walk guidance

and None.

Repeat the voice guidance for car navigation

In the navigation view, select Options > Repeat.

Adjust the volume of the voice guidance for car navigation

In the navigation view, select Options > Volume.

114 Maps

Use the compass

When the compass is activated, both the arrow of the compass and the map rotate

automatically in the direction to which the top of your device is pointing.

Select Menu > Maps and My position.

Activate the compass

Select .

Deactivate the compass

Select again. The map is oriented north.

The compass is active when it is green. If the compass needs calibration, the

compass is red.

Calibrate the compass

Rotate the device around all axes in a continuous movement until the compass turns

green.

Maps 115

The compass has limited accuracy. Electromagnetic fields, metal objects, or other

external circumstances may also affect the accuracy of the compass. The compass

should always be properly calibrated.

Drive to your destination

When you need turn-by-turn directions while driving, Maps helps you get to your

destination.

Select Menu > Maps and Drive.

Drive to a destination

Select Set destination and the appropriate option.

Drive to your home

Select Drive home.

You can start driving without a set destination. The map follows your location, and

traffic information is automatically displayed, if available. To set the destination

later, select Destination.

By default, the map rotates to your driving direction.

Orient the map to north

Select . To rotate the map back to your driving direction, select .

When you select Drive home or Walk home for the first time, you are prompted

to define your home location.

Change your home location

1 In the main view, select .

116 Maps

2 Select Navigation > Home Location > Redefine.

3 Select the appropriate option.

Change views during navigation

Swipe left to select 2D view, 3D view, Arrow view, or Route overview.

Obey all local laws. Always keep your hands free to operate the vehicle while driving.

Your first consideration while driving should be road safety.

Navigation view

1Route

2Your location and direction

3Information bar (speed, distance, time)

Maps 117

Get traffic and safety information

Enhance your driving experience with real-time information about traffic events,

lane assistance, and speed limit warnings, if available for your country or region.

Select Menu > Maps and Drive.

View traffic events on the map

During drive navigation, select Options > Traffic info. The events are displayed as

triangles and lines.

Update traffic information

Select Options > Traffic info > Update traffic info.

When planning a route, you can set the device to avoid traffic events, such as traffic

jams or roadworks.

Avoid traffic events

In the main view, select > Navigation > Reroute due to traffic.

The location of speed cameras may be shown on your route during navigation, if

this feature is enabled. Some jurisdictions prohibit or regulate the use of speed

camera location data. Nokia is not responsible for the accuracy, or the consequences

of using speed camera location data.

Walk to your destination

When you need directions to follow a route on foot, Maps guides you over squares,

and through parks, pedestrian zones, and even shopping centres.

Select Menu > Maps and Walk.

118 Maps

Walk to a destination

Select Set destination and the appropriate option.

Walk to your home

Select Walk home.

You can start walking without a set destination.

By default, the map is oriented to north.

Rotate the map to your walking direction

Select . To rotate the map back to north, select .

When you select Drive home or Walk home for the first time, you are prompted

to define your home location.

Change your home location

1 In the main view, select .

2 Select Navigation > Home Location > Redefine.

3 Select the appropriate option.

Plan a route

Plan your journey, and create your route and view it on the map before setting off.

Select Menu > Maps and My position.

Create a route

1 Tap the location of your starting point. To search for an address or place, select

Search.

Maps 119

2 Tap the location's information area.

3 Select Add to route.

4 To add another route point, select Add new route point and the appropriate

option.

Change the order of the route points

1 Select a route point.

2 Select Move.

3 Tap the place where you want to move the route point to.

Edit the location of a route point

Tap the route point, and select Edit and the appropriate option.

View the route on the map

Select Show route.

Navigate to the destination

Select Show route > Options > Start driving or Start walking.

Change the settings for a route

The route settings affect the navigation guidance and the way the route is displayed

on the map.

1 In the route planner view, open the Settings tab. To get to the route planner

view from the navigation view, select Options > Route points or Route points

list.

2 Set the transportation mode to Drive or Walk. If you select Walk, one-way

streets are regarded as normal streets, and walkways and routes through, for

example, parks and shopping centres, can be used.

120 Maps

3 Select the desired option.

Select the walking mode

Open the Settings tab, set the transportation mode to Walk, and select Preferred

route > Streets or Straight line. Straight line is useful on off-road terrain as it

indicates the walking direction.

Use the faster or shorter driving route

Open the Settings tab, set the transportation mode to Drive, and select Route

selection > Faster route or Shorter route.

Use the optimised driving route

Open the Settings tab, set the transportation mode to Drive, and select Route

selection > Optimised. The optimised driving route combines the advantages of

both the shorter and the faster routes.

You can also choose to allow or avoid using, for example, motorways, toll roads, or

ferries.

Connectivity

Your device offers several options to connect to the internet or to another

compatible device or PC.

Data connections and access points

Your device supports packet data connections (network service), such as GPRS in

the GSM network. When you use your device in GSM and 3G networks, multiple data

connections can be active at the same time, and access points can share a data

connection. In the 3G network, data connections remain active during voice calls.

Connectivity 121

You can also use a WLAN data connection. Only one connection in one wireless LAN

can be active at a time, but several applications can use the same internet access

point.

To establish a data connection, an access point is required. You can define different

kinds of access points, such as the following:

•MMS access point to send and receive multimedia messages

•Internet access point (IAP) to send and receive e-mail and connect to the

internet

Check the type of access point you need with your service provider for the service

you want to access. For availability and subscription to packet data connection

services, contact your service provider.

Network settings

Select Menu > Settings and Connectivity > Network.

Your device can automatically switch between GSM and UMTS networks. GSM

networks are indicated with . UMTS networks are indicated with .

Select from the following:

Network mode — Select which network to use. If you select Dual mode, the device

uses the GSM or UMTS network automatically, according to the network parameters

and the roaming agreements between the wireless service providers. For details

and roaming costs, contact your network service provider. This option is shown only

if supported by the wireless service provider.

A roaming agreement is an agreement between two or more service providers to

enable the users of one service provider to use the services of other service

providers.

122 Connectivity

Operator selection — Select Automatic to set the device to search for and select

one of the available networks, or Manual to manually select the network from a

list. If the connection to the manually selected network is lost, the device sounds

an error tone and asks you to reselect a network. The selected network must have

a roaming agreement with your home network.

Cell info display — Set the device to indicate when it is used in a cellular network

based on microcellular network (MCN) technology and to activate cell info reception.

Wi-Fi/WLAN connection

Your device can detect and connect to wireless local area networks (WLAN). Using

a WLAN, you can connect your device to the internet and compatible devices that

have WLAN support.

About WLAN

To use a wireless LAN (WLAN) connection, it must be available in the location, and

your device must be connected to the WLAN. Some WLANs are protected, and you

need an access key from the service provider to connect to them.

Note: Using WLAN may be restricted in some countries. For example, in

France, you are only allowed to use WLAN indoors. For more information, contact

your local authorities.

Features that use WLAN, or that are allowed to run in the background while using

other features, increase the demand on battery power and reduce the battery life.

Your device supports the following WLAN features:

•IEEE 802.11b/g and WAPI standards

•Operation at 2.4 GHz

Connectivity 123

•Wired equivalent privacy (WEP) with keys up to 128 bits, Wi-Fi protected access

(WPA), and 802.1x authentication methods. These functions can be used only

if they are supported by the network.

WLAN connections

To use a wireless LAN (WLAN) connection, you must create an internet access point

(IAP) for WLAN. Use the access point for applications that need to connect to the

internet.

A WLAN connection is established when you create a data connection using a WLAN

internet access point. The active WLAN connection ends when you end the data

connection.

You can use WLAN during a voice call or when packet data is active. You can only be

connected to one WLAN access point device at a time, but several applications can

use the same internet access point.

When the device is in the offline profile, you can still use WLAN (if available).

Remember to comply with any applicable safety requirements when establishing

and using a WLAN connection.

Tip: To check the unique media access control (MAC) address that identifies your

device, open the dialler and enter *#62209526#.

WLAN wizard

Select Menu > Settings and Connectivity > Wireless LAN.

The WLAN wizard helps you to connect to a wireless LAN (WLAN) and manage your

WLAN connections.

124 Connectivity

If the search finds WLANs, to create an internet access point (IAP) for a connection

and start the web browser using this IAP, select the connection, and from the pop-

up menu, select Start web browsing.

If you select a secured WLAN, you are asked to enter the relevant password. To

connect to a hidden network, you must enter the correct network name (service set

identifier, SSID).

If you already have the web browser running using the currently active WLAN

connection, to return to the web browser, select Continue web browsing.

To end the active connection, select the connection, and from the pop-up menu,

select Disconnect WLAN.

WLAN internet access points

Select Menu > Settings and Connectivity > Wireless LAN.

Filter out WLANs from the list of found networks

Select Options > Filter WLAN networks. The selected networks are not displayed

the next time the WLAN wizard searches for WLANs.

View the details of a network

Select the network, and from the pop-up menu, select Details. If you select an active

connection, the connection details are displayed.

Operating modes

There are two operating modes in WLAN: infrastructure and ad hoc.

Connectivity 125

The infrastructure operating mode allows two kinds of communication: wireless

devices are connected to each other through a WLAN access point device, or wireless

devices are connected to a wired LAN through a WLAN access point device.

In the ad hoc operating mode, devices can send and receive data directly with each

other.

Wireless LAN settings

In the wireless LAN (WLAN) settings, you can define whether the WLAN indicator is

displayed when a network is available and how often the network is scanned. You

can also define whether and how the internet connectivity test is performed, and

view advanced WLAN settings.

Select Menu > Settings and Connectivity > Wireless LAN > Options >

Settings.

Display when a WLAN is available

Select Show WLAN availability > Yes.

Set how often the device searches for available WLAN

Select Show WLAN availability > Yes and Scan for networks.

Define internet capability test settings

Select Internet connectivity test and whether to run the test automatically or after

confirmation, or to never run the test. If the connectivity test is successful, the access

point is saved to the internet destinations list.

View advanced settings

Select Options > Advanced settings.

It is recommended that you do not modify the advanced WLAN settings.

126 Connectivity

Access points

Create a new access point

Select Menu > Settings and Connectivity > Destinations.

You may receive access point settings in a message from a service provider. Some

or all access points may be preset for your device by your service provider, and you

may not be able to change, create, edit, or remove them.

1 Select Access point.

2 The device asks to check for available connections. After the search, connections

that are already available are shown and can be shared by a new access point.

If you skip this step, you are asked to select a connection method and to define

the settings needed.

To view access points stored in your device, select an access point group. The

different access point groups are the following:

Internet access points

Multimedia messaging access points

WAP access points

Uncategorised access points

The different access point types are indicated with the following:

Protected access point

Packet data access point

Wireless LAN (WLAN) access point

Connectivity 127

Manage access point groups

To avoid selecting a single access point every time the device makes a network

connection, you can create a group that contains various access points to connect

to that network and define the order in which the access points are used. For

example, you can add wireless LAN (WLAN) and packet data access points to an

internet access point group, and use the group for browsing the web. If you give

WLAN the highest priority, the device connects to the internet through WLAN, if

available, and through a packet data connection if not.

Select Menu > Settings and Connectivity > Destinations.

Create a new access point group

Select Options > New destination.

Add access points to an access point group

Select the group and Options > New access point.

Copy an existing access point from another group

Select the group, and select and hold the access point to copy, and from the pop-

up menu, select Copy to other dest..

Change the priority of an access point within a group

Select and hold the access point, and from the pop-up menu, select Change

priority.

Packet data access point settings

Select Menu > Settings and Connectivity > Destinations > Access point, and

follow the instructions.

128 Connectivity

Edit a packet data access point

Select an access point group and access point marked with . Follow the

instructions from your service provider.

Select from the following:

Access point name — The access point name is provided by your service provider.

User name — The user name may be needed to make a data connection, and is

usually provided by your service provider.

Prompt password — If you must enter the password every time you log in to a

server, or if you do not want to save your password in the device, select Yes.

Password — A password may be needed to make a data connection, and is usually

provided by your service provider.

Authentication — To always send your password encrypted, select Secure. To

send your password encrypted when possible, select Normal.

Homepage — Depending on the access point you are setting up, enter the web

address or the address of the multimedia message centre.

Use access point — Set the device to connect to the destination using this access

point after confirmation or automatically.

Modify advanced packet data access point settings

Select Options > Advanced settings.

Select from the following:

Network type — Select the internet protocol type to transfer data to and from

your device. The other settings depend on the selected network type.

Phone IP address (for IPv4 only) — Enter the IP address of your device.

Connectivity 129

DNS addresses — Enter the IP addresses of the primary and secondary DNS servers,

if required by your service provider. To obtain these addresses, contact your internet

service provider.

Proxy server address — Enter the address of the proxy server.

Proxy port number — Enter the port number of the proxy server.

WLAN access point settings

Select Menu > Settings and Connectivity > Destinations > Access point, and

follow the instructions.

Edit a wireless LAN (WLAN) access point

Select an access point group and access point marked with . Follow the

instructions from your WLAN service provider.

Select from the following:

WLAN network name — Select Enter manually or Search for networks. If you

select an existing network, the WLAN network mode and WLAN security mode are

determined by the settings of its access point device.

Network status — Define whether the network name is displayed.

WLAN network mode — Select Ad-hoc to create an ad hoc network and to allow

devices to send and receive data directly; a WLAN access point device is not needed.

In an ad hoc network, all devices must use the same WLAN network name.

WLAN security mode — Select the encryption used: WEP, 802.1x, orWPA/WPA2

(802.1x and WPA/WPA2 are not available for ad hoc networks). If you select Open

network, no encryption is used. The WEP, 802.1x and WPA functions can be used

only if the network supports them.

Homepage — Enter the web address of the starting page.

130 Connectivity

Use access point — Set the device to create a connection using this access point

automatically or after confirmation.

The available options may vary.

Close a network connection

If several applications are using an internet connection, you can use the Connection

manager application to close some or all network connections.

Select Menu > Settings and Connectivity > Connection mgr..

In the active data connections view, you can see your current network connections.

indicates a packet data connection, and indicates a wireless local area

network (WLAN) connection.

View details for a connection

Select and hold the connection, and from the pop-up menu, select Details.

Details, such as the amount of transferred data and connection duration, are

displayed.

Close a connection

Select and hold the connection, and from the pop-up menu, select Disconnect.

Synchronisation

With the Sync application, you can synchronise your notes, messages, contacts, and

other information with a remote server.

Select Menu > Settings > Connectivity > Data transfer.

You may receive synchronisation settings as a configuration message from your

service provider.

Connectivity 131

A synchronisation profile contains the necessary settings for synchronisation. When

you open the application, the default or previously used synchronisation profile is

displayed.

Include or exclude content types

Select a content type.

Synchronise data

Select Options > Synchronise.

Create a new synchronisation profile

Select Options > New sync profile.

Manage synchronisation profiles

Select Options and the desired option.

Synchronise data with Ovi Sync

Select Menu > Applications > Tools > Ovi sync.

When you open the application for the first time, the synchronisation wizard helps

you define the settings and select the content to synchronise.

Select from the following:

Sync settings — Define the synchronisation settings.

Retrieve backup — Restore contacts, calendar entries, and notes to your device

from Ovi. Updates performed since the previous sync are preserved.

Unsubscribe Ovi sync — Deactivate Ovi sync.

The available options may vary.

132 Connectivity

Bluetooth connectivity

About Bluetooth connectivity

With Bluetooth connectivity, you can make a wireless connection to other

compatible devices, such as mobile devices, computers, headsets, and car kits.

You can use the connection to send items from your device, transfer files from your

compatible PC, and print files with a compatible printer.

Select Menu > Settings and Connectivity > Bluetooth.

Since devices with Bluetooth wireless technology communicate using radio waves,

they do not need to be in direct line-of-sight. However, they must be within 10

metres (33 feet) of each other, although the connection may be subject to

interference from obstructions such as walls or from other electronic devices.

This device is compliant with Bluetooth Specification 2.0 + EDR supporting the

following profiles: Advanced Audio Distribution, Audio/Video Remote Control, Basic

Imaging, Basic Printing, Device ID, Dial-up Networking, File Transfer, Generic Audio/

Video Distribution, Generic Access, Generic Object Exchange, Handsfree, (Human

Interface Device) Headset, Object Push, Phone Book Access, Serial Port, and SIM

Access. To ensure interoperability between other devices supporting Bluetooth

technology, use Nokia approved accessories for this model. Check with the

manufacturers of other devices to determine their compatibility with this device.

When the device is locked, only connections to authorised devices are possible.

Bluetooth settings

Select Menu > Settings and Connectivity > Bluetooth.

Select from the following:

Bluetooth — Activate Bluetooth connectivity.

Connectivity 133

My phone's visibility — To allow your device to be visible to other Bluetooth

devices, select Shown to all. To set a length of time, after which the visibility is set

from shown to hidden, select Set visibility period. To hide your device from other

devices, select Hidden.

My phone's name — Edit the name of your device. The name is shown to other

Bluetooth devices.

Remote SIM mode — Allow another device, such as a compatible car kit accessory,

to use the SIM card in your device to connect to the network.

Security tips

Select Menu > Settings and Connectivity > Bluetooth.

When you are not using Bluetooth connectivity, to control who can find your device

and connect to it, select Bluetooth > Off or My phone's visibility > Hidden.

Deactivating the Bluetooth function does not affect other functions in your device.

Do not pair with or accept connection requests from an unknown device. This helps

to protect your device from harmful content. Operating the device in hidden mode

is a safer way to avoid malicious software.

Send data using Bluetooth connectivity

You can have several Bluetooth connections active at a time. For example, if you are

connected to a compatible headset, you can also transfer files to another compatible

device.

1 Open the application where the item you want to send is stored.

2 Go to an item, and select Options > Send > Via Bluetooth.

Devices with Bluetooth wireless technology that are within range are displayed.

Device icons are as follows:

134 Connectivity

computer

phone

audio or video device

other device

To interrupt the search, select Cancel.

3 Select the device with which you want to connect.

4 If the other device requires pairing before data can be transmitted, a tone

sounds, and you are asked to enter a passcode. The same passcode must be

entered in both devices.

When the connection is established, Sending data is displayed.

Tip: When searching for devices, some devices may show only the unique address

(device address). To find the unique address of your device, in the dialler, enter

*#2820#.

Pair devices

You can pair your device with a compatible device to make subsequent Bluetooth

connections between the devices quicker. Before pairing, create your own passcode

(1 to 16 digits), and agree with the owner of the other device to use the same code.

Devices that do not have a user interface have a factory-set passcode. The passcode

is used only once.

Select Menu > Settings and Connectivity > Bluetooth.

1 Open the Paired devices tab.

2 Select Options > New paired device. Devices that are within range are

displayed.

3 Select the device.

4 Enter the passcode on both devices.

Connectivity 135

indicates a paired device in the device search view.

Connect to an accessory after pairing

Select the audio device, and from the pop-up menu, select Connect to audio

device. Some audio accessories connect automatically to your device after pairing.

Set a device as authorised

Select Set as authorised. Connections between your device and the authorised

device can be made without your knowledge. Use this only for your own devices,

such as your compatible headset or PC, or devices that belong to someone you trust.

indicates authorised devices in the paired devices view.

Cancel a pairing with a device

Select the device, and from the pop-up menu, select Delete.

Cancel all pairings

Select Options > Delete all.

Receive data using Bluetooth connectivity

When you receive data using Bluetooth connectivity, a tone sounds, and the device

asks you if you want to accept the message. If you accept, is displayed, and

you can find an informative message about the data in the Inbox folder in

Messaging. Messages received using Bluetooth connectivity are indicated with .

Block a device

You can prevent devices from creating a Bluetooth connection to your device.

Select Menu > Settings and Connectivity > Bluetooth.

136 Connectivity

Open the Paired devices tab, select and hold the device you want to block, and from

the pop-up menu, select Block.

Remove a device from the blocked devices list

Open the Blocked devices tab, select and hold the device you want to remove from

the list, and from the pop-up menu, select Delete.

If you reject a pairing request from another device, you are asked if you want to

add the device to the list of blocked devices.

Remote SIM mode

With remote SIM mode, you can use a compatible car kit accessory. Before remote

SIM mode can be activated, the two devices must be paired and the pairing initiated

from the other device. When pairing, use a 16-digit passcode, and set the other

device as authorised.

Select Menu > Settings and Connectivity > Bluetooth.

Activate remote SIM mode

1 Activate Bluetooth connectivity. Select Bluetooth.

2 Activate remote SIM mode in your device. Select Remote SIM mode.

3 Activate remote SIM mode in the other device.

When remote SIM mode is activated, Remote SIM mode is displayed in the home

screen. The connection to the wireless network is closed, and you cannot use SIM

card services or features that require cellular network coverage.

When your device is in remote SIM mode, you can only make or receive calls using

the connected accessory. Your device can only make calls to the emergency numbers

programmed into your device.

Connectivity 137

Deactivate remote SIM mode

Press the power key, and select Exit remote SIM mode.

Transfer data using a USB cable

Select Menu > Settings and Connectivity > USB.

Select the USB mode every time a compatible data cable is connected

Select Ask on connection > Yes.

If the Ask on connection option is not active, or you want to change the USB mode

during an active connection, select USB connection mode and from the following:

Ovi Suite — Use Nokia PC applications such as Nokia Ovi Suite or Nokia Software

Updater.

Mass storage — Transfer data between your device and a compatible PC.

Image transfer — Print images using a compatible printer.

Media transfer — Synchronise music with Nokia Music or Windows Media Player.

138 Connectivity

PC connections

You can use your mobile device with a variety of compatible PC connectivity and

data communications applications. With Nokia Ovi Suite you can, for example,

transfer files and images between your device and a compatible computer.

To use Ovi Suite with USB connection mode, select Ovi Suite.

For more information about Ovi Suite, see the support area at www.ovi.com.

Administrative settings

Set the online time for the data call connection

Select Menu > Settings and Connectivity > Admin. settings > Data call.

The data call settings affect all access points that use a GSM data call.

Packet data settings

Select Menu > Settings and Connectivity > Admin. settings > Packet data.

The packet data settings affect all access points using a packet data connection.

Open a packet data connection whenever the network is available

Select Packet data connection > When available.

It is quicker, for example, to send an e-mail, if the connection is always open. If

there is no network coverage, the device periodically tries to open a packet data

connection.

Open a packet data connection only when needed

Select Packet data connection > When needed.

Every time you, for example, send an e-mail, the connection needs to be opened

first.

Connectivity 139

Use HSDPA (network service) in UMTS networks

Select High speed packet access.

You can use your device as a modem for your computer, to access the internet over

a packet data connection.

Define the access point to use when using your device as a modem

Select Access point.

SIP settings

Session Initiation Protocol (SIP) settings are needed for certain network services

using SIP. You may receive the settings in a special text message from your service

provider. You can view, delete, or create these setting profiles in SIP settings.

Select Menu > Settings and Connectivity > Admin. settings > SIP settings.

Access point name control

With the access point name control service, you can restrict packet data connections

and allow your device to use only certain packet data access points.

Select Menu > Settings and Connectivity > Admin. settings > APN control.

This setting is only available if your SIM card supports the access point control

service.

Activate the service, or set the allowed access points

Select Options and the appropriate option.

To modify the settings, you need to enter your PIN2 code. The code is provided by

your service provider.

140 Connectivity

About Search

Select Menu > Applications > Search.

With Search you can find people, messages, music, and other content on your device,

or search the internet (network service). The content and availability of the services

may vary.

Start a search

Select Menu > Applications > Search.

To search the contents of your mobile device, enter search terms in the search field,

or browse the content categories. While you enter the search terms, the results are

organised into categories. The most recently accessed results appear at the top of

the result list, if they match your search terms.

To search for web pages on the internet, select Search the Internet and a search

provider, and enter your search terms in the search field. The search provider you

selected is set as your default internet search provider.

If a default search provider is already set, select it to start a search, or select More

search services to use another search provider.

To change the default search provider, select Options > Settings > Search

services.

To change the country or region setting, to find more search providers, select

Options > Settings > Country or region.

Search 141

Other applications

Clock

Set time and date

Select Menu > Applications > Clock.

Select Options > Settings and from the following:

Time — Set the time.

Date — Set the date.

Automatic time update — Set the network to automatically update the time, date,

and time zone information for your device (network service).

Alarm clock

Select Menu > Applications > Clock.

Set a new alarm

1 Select New alarm.

2 Set the alarm time.

3 Select Repeat to set whether and when the alarm is repeated.

4 Select Done.

View your alarms

Select Alarms. indicates an active alarm. indicates a repeated alarm.

Remove an alarm

Select Alarms and the alarm, and from the pop-up menu, select Remove alarm.

142 Other applications

Stop the alarm

Select Stop. If your device is switched off when an alarm expires, your device

switches itself on and starts sounding the alarm tone.

Set the alarm to snooze

Select Snooze.

Define the snooze time

Select Options > Settings > Alarm snooze time.

Change the alarm tone

Select Options > Settings > Clock alarm tone.

World clock

With the world clock, you can view the current time in different locations.

Select Menu > Applications > Clock.

View the time

Select World clock.

Add locations to the list

Select Options > Add location.

Set your current location

Select the location, and from the pop-up menu, select Set as current location. The

time in your device is changed according to the selected location. Ensure that the

time is correct and matches your time zone.

Other applications 143

Calendar

To open the calendar, select Menu > Calendar.

Calendar views

To switch between the month, week, day, and to-do note views, select Options >

Change view and the desired view.

To change the starting day of the week or the view that is displayed when you open

the calendar, or to modify calendar alarm settings, select Options > Settings.

To go to a certain date, select Options > Go to date.

Calendar toolbar

Select Menu > Calendar.

From the calendar toolbar, select from the following:

Next view — Select the month view.

Next view — Select the week view.

Next view — Select the day view.

Next view — Select the to-do view.

New meeting — Add a new meeting reminder.

New to-do note — Add a new to-do note.

File manager

About File manager

Select Menu > Applications > Office > File mgr..

144 Other applications

With File manager, you can browse, manage, and open files on your device or a

compatible external drive.

Find and organise files

Select Menu > Applications > Office > File mgr..

Search for a file

Select Options > Find. Enter search text that matches the file name.

Move and copy files and folders

Select Options > Organise and the desired option.

Sort files

Select Options > Sort by and the desired category.

Edit the memory card

You can format a memory card to erase the data on it, or you can protect the data

on the memory card with a password.

Select Menu > Applications > Office > File mgr..

Rename or format a memory card

Select the memory card, Options > Memory card options, and the desired option.

Password protect a memory card

Select the memory card and Options > Memory card password.

These options are available only if a compatible memory card is inserted in the

device.

Other applications 145

Back up files

Select Menu > Applications > Office > File mgr. and Backup.

It is recommended that you back up the device memory regularly to a compatible

computer or memory card.

Tip: If you have DRM-protected content, use Nokia Ovi Suite to back up both the

licences and the content to your computer.

Application manager

About Application manager

Select Menu > Settings and Application mgr..

With Application manager you can view details of installed applications, remove

applications, and define installation settings.

You can install the following types of applications:

•J2ME applications, based on Java™ technology, that have the .jad or .jar file

extension

•Applications, compatible with the Symbian operating system, that have the .sis

or .sisx file extension

•Widgets that have the .wgz file extension

Only install applications that are compatible with your device.

Install applications

You can transfer installation files to your device from a compatible computer,

download them during browsing, or receive them in a multimedia message, as an

e-mail attachment, or using other connectivity methods, such as Bluetooth

connectivity.

146 Other applications

You can use Nokia Application Installer in Nokia Ovi Suite to install an application

to your device.

Select Menu > Settings and Application mgr..

The installation files are located in the Installation files folder, and the installed

applications in the Installed apps. folder.

Icons indicate the following:

SIS or SISX application

Java application

Widget

Application installed on the memory card

Before installing an application, check the following:

•View the application type, version number, and the supplier or manufacturer

of the application. Select the application.

•View the security certificate details of the application. Select Certificates: >

View details.

If you install a file that contains an update or repair to an existing application, you

can only restore the original application if you have the original installation file or

a full backup copy of the removed software package. To restore the original

application, remove the application, and install the application again from the

original installation file or the backup copy.

Other applications 147

The JAR file is required for installing Java applications. If it is missing, the device

may ask you to download it. If there is no access point defined for the application,

you are asked to select one.

Install an application

1 Locate the installation file in the Installation files folder in Application manager,

or search for it in File manager or your Inbox in Messaging.

2 In Application manager, select and hold the application you want to install, and

from the pop-up menu, select Install. In other applications, select the

installation file to start the installation.

During installation, the device shows information about the progress of the

installation. If you install an application without a digital signature or

certification, the device displays a warning. Continue installation only if you are

sure of the origin and contents of the application.

Open an installed application

Select the application in the menu. If the application does not have a default folder

defined, it is installed in the Installed apps. folder in the main menu.

See which software packages are installed or removed

Select Options > View log.

Remove an application from your device

You can remove installed applications that you no longer need or use, to increase

the amount of available memory.

Select Menu > Settings and Application mgr..

1 Select Installed apps..

148 Other applications

2 Select and hold the application to remove, and from the pop-up menu, select

Uninstall.

If you remove an application, you can only reinstall it if you have the original

installation file or a full backup of the removed application. You may not be able to

open files created with a removed application.

If an installed application depends on a removed application, the installed

application may stop working. For details, see the user documentation of the

installed application.

After you install applications to a compatible memory card, installation files

(.sis, .sisx) re main in the devi ce m emo ry. The files may use large amounts of memory

and prevent you from storing other files. To maintain sufficient memory, use Nokia

Ovi Suite to back up installation files to a compatible PC, then use the file manager

to remove the installation files from the device memory. If the .sis file is a message

attachment, delete the message from the Messaging inbox.

Application manager settings

Select Menu > Settings and Application mgr..

Select Installation settings and from the following:

Software installation — Allow or deny installation of Symbian software that does

not have a verified digital signature.

Online certificate check — Check online certificates before installing an

application.

Default web address — Set the default web address used to check online

certificates.

Other applications 149

RealPlayer

With RealPlayer, you can play video clips or stream media files over the air without

saving them to the device first.

RealPlayer does not necessarily support all file formats or all the variations of file

formats.

Select Menu > Applications > RealPlayer.

RealPlayer toolbar

Select Menu > Applications > RealPlayer.

In the Video clips, Streaming links, and Recently played views, the following toolbar

icons may be available:

Send — Send a video clip or streaming link.

Play — Play a video clip or video stream.

Delete — Delete a video clip or streaming link.

Remove — Remove a file from the recently played list.

Play a video clip

Select Menu > Applications > RealPlayer.

Play a video clip

Select Video clips and a video clip.

List recently played files

In the main view, select Recently played.

150 Other applications

Go to a video clip, and select Options and from the following:

Use video clip — Assign a video clip to a contact or set it as a ringing tone.

Mark/Unmark — Mark or unmark an item, to send or delete multiple items at the

same time.

View details — View details, such as format, resolution, and duration.

Settings — Edit settings for video playback and streaming.

Stream content over the air

Select Menu > Applications > RealPlayer.

Streaming content over the air is a network service. Select Streaming links and a

link. You can also receive a streaming link in a text or multimedia message, or open

a link on a web page.

Before live content begins streaming, your device connects to the site and starts

loading the content. The content is not saved in your device.

In RealPlayer, you can only open RTSP links. However, RealPlayer can also play a RAM

file if you open a HTTP link to it in a browser.

Recorder

You can use the recorder to record voice memos and telephone conversations.

You can also send sound clips to your friends.

Select Menu > Applications > Office > Recorder.

Record a sound clip

Select .

Other applications 151

Stop recording a sound clip

Select .

Listen to the sound clip

Select .

Send a sound clip as a message

Select Options > Send.

Record a telephone conversation

Open the recorder during a voice call, and select . Both parties hear a tone at

regular intervals during recording.

Select the recording quality or where to save sound clips

Select Options > Settings.

You cannot use the recorder during a data call or when a GPRS connection is open.

Write a note

1 Select Menu > Applications > Office > Notes.

2 Select Options > New note.

3 Enter text in the note field.

4 Select .

Make a calculation

1 Select Menu > Applications > Office > Calculator.

2 Enter the first number of the calculation.

3 Select a function, such as add or subtract.

152 Other applications

4 Enter the second number of the calculation.

5 Select =.

Converter

With Converter, you can convert measures from one unit to another.

The converter has limited accuracy, and rounding errors may occur.

Select Menu > Applications > Office > Converter.

Dictionary

Select Menu > Applications > Office > Dictionary.

To translate words from one language to another, enter text in the search field. As

you enter text, suggestions of words to translate are displayed. To translate a word,

select the word from the list.

All languages may not be supported.

Select Options and from the following:

Listen — Listen to the selected word.

History — Find previously translated words from the current session.

Languages — Change the source or target language, download languages from

the internet, or remove a language from the dictionary. You cannot remove the

English language from the dictionary. You can have two additional languages

installed, besides English.

Other applications 153

Settings

Some settings may be preset for the device by your service provider, and you may

not be able to change them.

Phone settings

Date and time settings

Select Menu > Settings and Phone > Date and time.

Select from the following:

Time — Enter the current time.

Time zone — Select your location.

Date — Enter the current date.

Date format — Select the date format.

Date separator — Select the symbol that separates days, months, and years.

Time format — Select the time format.

Time separator — Select the symbol that separates hours and minutes.

Clock type — Select the clock type.

Clock alarm tone — Select the tone for the alarm clock.

Alarm snooze time — Adjust the snooze time.

Workdays — Select your working days. You can then set an alarm only for working

day mornings, for example.

Automatic time update — Set the device to update the time, date, and time zone

automatically. This network service may not be available on all networks.

Change language

You can change the device language and the language in which you write your

messages and mails. You can also activate predictive text input.

154 Settings

Select Menu > Settings and Phone > Language.

Change the device language

Select Phone language.

Change the writing language

Select Writing language.

Activate predictive text input

Select Predictive text.

Display settings

Select Menu > Settings and Phone > Display.

Select from the following:

Brightness — Adjust the brightness of your device display.

Font size — Select the size of text and icons on the display.

Welcome note / logo — Set a note or image to be displayed when you switch on

the device.

Light time-out — Set how long the light stays on when you stop using the device.

Voice commands

Activate voice commands

Press and hold the call key in the home screen, and say a command. The voice

command is the name of the application or profile displayed in the list.

To view the list of voice commands, select Menu > Settings and Phone > Voice

commands.

Settings 155

Select Options and from the following:

Settings — Adjust the settings.

Voice command tutorial — Open the tutorial for voice commands.

Change or play a command

Select and hold the command, and from the pop-up menu, select Change command

or Playback.

Delete a command

Select and hold the application or profile the command is assigned to, and from the

pop-up menu, select Remove.

Accessory settings

Select Menu > Settings and Phone > Accessories.

Some accessory connectors indicate which type of accessory is connected to the

device.

Select an accessory and from the following:

Default profile — Set the profile you want activated each time you connect a

certain compatible accessory to your device.

Automatic answer — Set the device to answer an incoming call automatically

after 5 seconds. If the ringing type is set to Beep once or Silent, automatic answer

is disabled.

Lights — Set the lights to remain on after the time-out.

The available settings depend on the type of accessory.

Application settings

Select Menu > Settings and Phone > Application sett..

156 Settings

In application settings, you can edit the settings of some of the applications in your

device.

To edit the settings, you can also select Options > Settings in each application.

Device updates

With Device updates, you can connect to a server and receive configuration settings

for your device, create new server profiles, view existing software version and

device information, or view and manage existing server profiles.

Select Menu > Settings and Phone > Phone mgmt. > Device updates.

You may receive server profiles and different configuration settings from your

service providers and company information management department. These

configuration settings may include connection and other settings used by different

applications in your device.

Receive configuration settings

1 Select Options > Server profiles.

2 Select and hold the profile, and from the pop-up menu, select Start

configuration.

Create a server profile

Select Options > Server profiles > Options > New server profile.

Delete a server profile

Select and hold the profile, and from the pop-up menu, select Delete.

Settings 157

Security settings

Phone and SIM

Select Menu > Settings and Phone > Phone mgmt. > Security > Phone and SIM

card.

Select from the following:

PIN code request — When active, the code is requested each time the device is

switched on. Deactivating the PIN code request may not be allowed by some SIM

cards.

PIN code andPIN2 code — Change the PIN and PIN2 code. These codes can only

include numbers. Avoid using access codes similar to the emergency numbers to

prevent accidental dialling of the emergency number. If you forget the PIN or PIN2

code, contact your service provider. If you forget the lock code, contact a Nokia Care

point or your service provider.

Lock code — The lock code is used to unlock the device. To avoid unauthorised use

of your device, change the lock code. The preset code is 12345. The new code can

be 4-255 characters long. Alphanumeric characters and both uppercase and

lowercase characters can be used. The device notifies you if the lock code is not

properly formatted. Keep the new code secret and separate from your device.

Phone autolock period — To avoid unauthorised use, you can set a time-out after

which the device automatically locks. A locked device cannot be used until the

correct lock code is entered. To turn off autolock, select None.

Lock if SIM card changed — Set the device to ask for the lock code when an

unknown SIM card is inserted into your device. The device maintains a list of SIM

cards that are recognised as the owner’s cards.

Remote phone locking — Enable or disable remote lock.

Closed user group — Specify a group of people to whom you can call and who can

call you (network service).

158 Settings

Confirm SIM services — Set the device to display confirmation messages when

you are using a SIM card service (network service).

Manage certificates

Digital certificates protect your content when transferring confidential information.

Certificates should be used when connecting to an online bank or another site, or

to a remote server for actions that involve transferring confidential information.

Certificates should also be used when you want to reduce the risk of viruses or other

malicious software and be sure of the authenticity of software when downloading

and installing software.

Select Menu > Settings and Phone > Phone mgmt. > Security > Certificate

management and select the desired certificate type.

Digital certificates do not guarantee safety; they are used to verify the origin of

software.

Important: The existence of a certificate considerably reduces risks

involved in remote connections and software installation. To benefit from increased

security, certificates must be used correctly, and they must be correct, authentic, or

trusted. Certificates have a restricted lifetime. If they are expired or invalid, check

that the current date and time in your device are correct.

Security module

The security module provides security services for different applications.

Select Menu > Settings and Phone > Phone mgmt. > Security > Security

module and the desired security module.

Settings 159

View security module details

Select Options > Security details.

Restore original settings

You may want to reset some of the settings to their original values. All active calls

and connections must be ended.

Select Menu > Settings and Phone > Phone mgmt. > Factory settings. To

restore the settings, you need to enter the lock code.

After resetting, the device may take a longer time to switch on. Documents and files

are unaffected.

Protected content

Digital rights management (DRM) protected content, for example some media files,

such as images, music, or video clips, comes with an associated licence that defines

your rights to use the content.

You can view the details and status of the licences, and reactivate and remove

licences.

Manage digital rights licences

Select Menu > Settings > Phone > Phone mgmt. > Security > Protected

content.

Digital rights management

Content owners may use different types of digital rights management (DRM)

technologies to protect their intellectual property, including copyrights. This device

uses various types of DRM software to access DRM-protected content. With this

160 Settings

device you can access content protected with WMDRM 10, OMA DRM 1.0, and OMA

DRM 2.0. If certain DRM software fails to protect the content, content owners may

ask that such DRM software's ability to access new DRM-protected content be

revoked. Revocation may also prevent renewal of such DRM-protected content

already in your device. Revocation of such DRM software does not affect the use of

content protected with other types of DRM or the use of non-DRM-protected content.

Notification lights

Select Menu > Settings and Phone > Notification lights.

To turn the standby breathing light on or off, select Standby br. light.

When the standby breathing light is turned on, the menu key lights up periodically.

To turn the notification light on or off, select Notification light.

When the notification light is turned on, the menu key lights up for a period you

define to notify of missed events, such as missed calls or unread messages.

Call settings

With call settings, you can define call specific settings in your device.

Select Menu > Settings and Calling > Call.

Select from the following:

Send my caller ID — Select Yes to show your phone number to the person you are

calling. To use the setting agreed upon with your service provider, select Set by

network) (network service).

Settings 161

Send my internet call ID — Select Yes to show your internet call ID to the person

you are calling.

Call waiting — Set your device to notify you of incoming calls while you are in a

call (network service), or check whether the feature is activated.

Internet call waiting — Set your device to notify you of a new incoming internet

call while you are in a call.

Internet call alert — To set your device to alert for incoming internet calls, select

On. If you select Off, you receive only a notification if you missed a call.

Reject call with message — Send a text message when you reject a call, informing

the caller why you could not answer the call.

Message text — Write the standard text message that is sent when you reject a

call.

Automatic redial — Set your device to make a maximum of 10 attempts to connect

the call after an unsuccessful call attempt. To stop automatic redialling, press the

end key.

Show call duration — Display the length of a call during a call.

Summary after call — Display the length of a call after a call ends.

Speed dialling — Activate speed dialling.

Anykey answer — Activate anykey answer.

The available options may vary.

Call divert

You can divert incoming calls to your voice mailbox or another phone number. For

details, contact your service provider.

Select Menu > Settings and Calling > Call divert.

162 Settings

Divert all voice calls to your voice mailbox or another phone number

1 Select Voice calls > All voice calls.

2 To activate call divert, select Activate.

3 To divert calls to your voice mailbox, select To voice mailbox.

4 To divert calls to another phone number, select To other number, and enter

the number, or select Find to retrieve a number saved in the contacts list.

Several diverting options can be active at the same time. In the home screen,

indicates that all calls are diverted.

Call barring

With call barring (network service), you can restrict the calls that you make or

receive with the device. For example, you can restrict all outgoing international calls

or incoming calls when you are abroad. To modify the settings, you need the barring

password from your service provider.

Select Menu > Settings and Calling > Call barring.

Bar voice calls or check the barring status

Select the desired barring option and Activate or Check status. Call barring affects

all calls, including data calls.

Bar anonymous internet calls

Select Anonymous call barring.

Settings 163

Protect the environment

Save energy

You do not need to charge your battery so often if you do the following:

•

•Deactivate unnecessary sounds, such as touch screen and key tones.

Recycle

When this device has reached the end of its working life, all of its materials can be

recovered as materials and energy. To guarantee the correct disposal and reuse,

Nokia co-operates with its partners through a program called We:recycle.For

information on how to recycle your old Nokia products and where to find collection

sites, go to www.nokia.com/werecycle, or using a mobile device, nokia.mobi/

werecycle, or call the Nokia Contact Center.

Recycle packaging and user guides at your local recycling scheme.

For more information on the environmental attributes of your device, go to

www.nokia.com/ecodeclaration.

164 Protect the environment

Product and safety information

Accessories

Warning:

Use only batteries, chargers, and accessories approved by Nokia for use with this particular model. The use of any other

types may invalidate any approval or warranty, and may be dangerous. In particular, use of unapproved chargers or

batteries may present a risk of fire, explosion, leakage, or other hazard.

For availability of approved accessories, please check with your dealer. When you disconnect the power cord of any

accessory, grasp and pull the plug, not the cord.

Network services and costs

Your device is approved for use on the WCDMA 2100/1900/900 and GSM/EDGE 850/900/1800/1900 MHz networks. To use

the device, you need a subscription with a service provider.

Using network services and downloading content to your device requires a network connection and may result in data

traffic costs. Some product features require support from the network, and you may need to subscribe to them.

Take care of your device

Handle your device, battery, charger and accessories with care. The following suggestions help you protect your warranty

coverage.

•Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that corrode

electronic circuits. If your device gets wet, remove the battery, and allow the device to dry.

•Do not use or store the device in dusty or dirty areas. Moving parts and electronic components can be damaged.

•Do not store the device in high temperatures. High temperatures can shorten the life of the device, damage the

battery, and warp or melt plastics.

•Do not store the device in cold temperatures. When the device warms to its normal temperature, moisture can form

inside the device and damage electronic circuits.

•Do not attempt to open the device other than as instructed in the user guide.

•Unauthorised modifications may damage the device and violate regulations governing radio devices.

•Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and mechanics.

•Only use a soft, clean, dry cloth to clean the surface of the device.

Product and safety information 165

•Do not paint the device. Paint can clog the moving parts and prevent proper operation.

•Switch off the device and remove the battery from time to time for optimum performance.

•Keep your device away from magnets or magnetic fields.

•To keep your important data safe, store it in at least two separate places, such as your device, memory card, or

computer, or write down important information.

During extended operation, the device may feel warm. In most cases, this condition is normal. If you suspect the device

is not working properly, take it to the nearest authorised service facility.

Recycle

Always return your used electronic products, batteries, and packaging materials to dedicated collection points. This way

you help prevent uncontrolled waste disposal and promote the recycling of materials. Check product environmental

information and how to recycle your Nokia products at www.nokia.com/werecycle, or with a mobile device, nokia.mobi/

werecycle.

About Digital Rights Management

When using this device, obey all laws and respect local customs, privacy and legitimate rights of others, including

copyrights. Copyright protection may prevent you from copying, modifying, or transferring images, music, and other

content.

Content owners may use different types of digital rights management (DRM) technologies to protect their intellectual

property, including copyrights. This device uses various types of DRM software to access DRM-protected content. With this

device you can access content protected with WMDRM 10 and OMA DRM 2.0. If certain DRM software fails to protect the

content, content owners may ask that such DRM software's ability to access new DRM-protected content be revoked.

Revocation may also prevent renewal of such DRM-protected content already in your device. Revocation of such DRM

software does not affect the use of content protected with other types of DRM or the use of non-DRM-protected content.

Digital rights management (DRM) protected content comes with an associated licence that defines your rights to use the

content.

If your device has OMA DRM-protected content, to back up both the licences and the content, use the backup feature of

Nokia Ovi Suite.

Other transfer methods may not transfer the licences which need to be restored with the content for you to be able to

continue the use of OMA DRM-protected content after the device memory is formatted. You may also need to restore the

licences in case the files on your device get corrupted.

If your device has WMDRM-protected content, both the licences and the content will be lost if the device memory is

formatted. You may also lose the licences and the content if the files on your device get corrupted. Losing the licences or

166 Product and safety information

the content may limit your ability to use the same content on your device again. For more information, contact your

service provider.

Some licences may be connected to a specific SIM card, and the protected content can be accessed only if the SIM card is

inserted in the device.

Batteries and chargers

Battery and charger information

This device is intended for use with a BL-4U rechargeable battery. Nokia may make additional battery models available

for this device. Always use original Nokia batteries.

This device is intended for use when supplied with power from the following chargers: AC-8. The exact charger model

number may vary depending on the type of plug. The plug variant is identified by one of the following: E, X, AR, U, A, C,

K, or B.

The battery can be charged and discharged hundreds of times, but it will eventually wear out. When the talk and standby

times are noticeably shorter than normal, you need to replace the battery.

Battery safety

Always switch the device off and disconnect the charger before removing the battery. When you unplug a charger or an

accessory, hold and pull the plug, not the cord.

When your charger is not in use, unplug it from the electrical plug and the device. Do not leave a fully charged battery

connected to a charger, as overcharging may shorten the battery’s lifetime. If left unused, a fully charged battery will

lose its charge over time.

Always keep the battery between 15°C and 25°C (59°F and 77°F). Extreme temperatures reduce the capacity and lifetime

of the battery. A device with a hot or cold battery may not work temporarily.

Accidental short-circuiting can happen when a metallic object touches the metal strips on the battery, for example, if you

carry a spare battery in your pocket. Short-circuiting may damage the battery or the connecting object.

Do not dispose of batteries in a fire as they may explode. Dispose of batteries according to local regulations. Recycle when

possible. Do not dispose as household waste.

Do not dismantle, cut, open, crush, bend, puncture, or shred cells or batteries. If a battery leaks, do not let battery liquid

touch skin or eyes. If this happens, immediately flush the affected areas with water, or seek medical help.

Do not modify, remanufacture, attempt to insert foreign objects into the battery, or immerse or expose it to water or

other liquids. Batteries may explode if damaged.

Product and safety information 167

Use the battery and charger for their intended purposes only. Improper use, or use of unapproved batteries or chargers

may present a risk of fire, explosion, or other hazard, and may invalidate any approval or warranty. If you believe the

battery or charger is damaged, take it to a service centre for inspection before continuing to use it. Never use a damaged

battery or charger. Only use the charger indoors.

Nokia battery authentication guidelines

Always use original Nokia batteries for your safety. To help ensure that you are getting an original Nokia battery, purchase

it from a Nokia authorised service centre or dealer, and check the hologram label.

Authenticate hologram

1 Look at the hologram. You should see the Nokia connecting hands symbol from one angle and the Nokia Original

Accessories logo from the other angle.

2 Angle the hologram left, right, down, and up. You should see 1, 2, 3 and 4 dots on each side respectively.

168 Product and safety information

However, this is not a total assurance of the authenticity of the battery. If you cannot confirm authenticity or if you have

any reason to believe that your Nokia battery with the hologram on the label is not an authentic Nokia battery, stop using

the battery and take it to the nearest Nokia authorised service centre or dealer.

For additional information, refer to the warranty and reference leaflet included with your Nokia device.

Additional safety information

Emergency calls

Make an emergency call

1 Ensure the device is switched on.

2 Check for adequate signal strength. You may also need to do the following:

•Insert a SIM card.

•Remove call restrictions you have activated for your device, such as call barring, fixed dialling, or closed user

group.

•Ensure your device is not in an offline or flight profile.

•If the device screen and keys are locked, unlock them.

3 To clear the display, press the end key as many times as needed.

4Select Telephone.

5 Enter the official emergency number for your present location. Emergency call numbers vary by location.

6 Press the call key.

7 Give the necessary information as accurately as possible. Do not end the call until given permission to do so.

Important: Activate both cellular and internet calls, if your device supports internet calls. The device may

attempt to make emergency calls both through cellular networks and through your internet call service provider.

Connections in all conditions cannot be guaranteed. Never rely solely on any wireless device for essential communications

like medical emergencies.

Small children

Your device, its battery and accessories are not toys. They may contain small parts. Keep them out of the reach of small

children.

Medical devices

Operation of radio transmitting equipment, including wireless phones, may interfere with the function of inadequately

protected medical devices. Consult a physician or the manufacturer of the medical device to determine whether they are

Product and safety information 169

adequately shielded from external RF energy. Switch off your device when regulations posted instruct you to do so, for

example, in hospitals.

Implanted medical devices

Manufacturers of medical devices recommend a minimum separation of 15.3 centimetres (6 inches) between a wireless

device and an implanted medical device, such as a pacemaker or implanted cardioverter defibrillator, to avoid potential

interference with the medical device. Persons who have such devices should:

•Always keep the wireless device more than 15.3 centimetres (6 inches) from the medical device.

•Not carry the wireless device in a breast pocket.

•Hold the wireless device to the ear opposite the medical device.

•Turn the wireless device off if there is any reason to suspect that interference is taking place.

•Follow the manufacturer directions for the implanted medical device.

If you have any questions about using your wireless device with an implanted medical device, consult your health care

provider.

Hearing

Warning:

When you use the headset, your ability to hear outside sounds may be affected. Do not use the headset where it can

endanger your safety.

Some wireless devices may interfere with some hearing aids.

Nickel

The surface of this device is nickel-free.

Protect your device from harmful content

Your device may be exposed to viruses and other harmful content. Take the following precautions:

•Be cautious when opening messages. They may contain malicious software or otherwise be harmful to your device

or computer.

•Be cautious when accepting connectivity requests, browsing the internet, or downloading content. Do not accept

Bluetooth connections from sources you do not trust.

170 Product and safety information

•Only install and use services and software from sources that you trust and that offer adequate security and

protection.

•Install antivirus and other security software on your device and any connected computer. Only use one antivirus

application at a time. Using more may affect performance and operation of the device and/or computer.

•If you access preinstalled bookmarks and links to third party internet sites, take the appropriate precautions. Nokia

does not endorse or assume liability for such sites.

Operating environment

This device meets RF exposure guidelines in the normal use position at the ear or at least 1.5 centimetres (5/8 inch) away

from the body. Any carry case, belt clip, or holder for body-worn operation should not contain metal and should position

the device the above-stated distance from your body.

To send data files or messages requires a quality connection to the network. Data files or messages may be delayed until

such a connection is available. Follow the separation distance instructions until the transmission is completed.

Vehicles

Radio signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles such as

electronic fuel injection, electronic antilock braking, electronic speed control, and air bag systems. For more information,

check with the manufacturer of your vehicle or its equipment.

Only qualified personnel should install the device in a vehicle. Faulty installation or service may be dangerous and may

invalidate your warranty. Check regularly that all wireless device equipment in your vehicle is mounted and operating

properly. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the device,

its parts, or accessories. Remember that air bags inflate with great force. Do not place your device or accessories in the

air bag deployment area.

Switch off your device before boarding an aircraft. The use of wireless devices in an aircraft may be dangerous to the

operation of the aircraft and may be illegal.

Potentially explosive environments

Switch off your device in any area with a potentially explosive atmosphere. Obey all posted instructions. Sparks in such

areas could cause an explosion or fire resulting in bodily injury or death. Switch off the device at refuelling points such

as near gas pumps at service stations. Observe restrictions in fuel depots, storage, and distribution areas; chemical plants;

or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always,

clearly marked. They include areas where you would be advised to turn off your vehicle engine, below deck on boats,

chemical transfer or storage facilities and where the air contains chemicals or particles such as grain, dust, or metal

powders. You should check with the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane)

to determine if this device can be safely used in their vicinity.

Product and safety information 171

Certification information (SAR)

This mobile device meets guidelines for exposure to radio waves.

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves

recommended by international guidelines. These guidelines were developed by the independent scientific organisation

ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health.

The exposure guidelines for mobile devices employ a unit of measurement known as the Specific Absorption Rate or SAR.

The SAR limit stated in the ICNIRP guidelines is 2.0 watts/kilogram (W/kg) averaged over 10 grams of tissue. Tests for SAR

are conducted using standard operating positions with the device transmitting at its highest certified power level in all

tested frequency bands. The actual SAR level of an operating device can be below the maximum value because the device

is designed to use only the power required to reach the network. That amount changes depending on a number of factors

such as how close you are to a network base station.

The highest SAR value under the ICNIRP guidelines for use of the device at the ear is 1.36 W/kg.

Use of device accessories may result in different SAR values. SAR values may vary depending on national reporting and

testing requirements and the network band. Additional SAR information may be provided under product information at

www.nokia.com.

Your mobile device is also designed to meet the requirements for exposure to radio waves established by the Federal

Communications Commission (USA) and Industry Canada. These requirements set a SAR limit of 1.6 W/kg averaged over

one gram of tissue. The highest SAR value reported under this standard during product certification for use at the ear is

1.40 W/kg and when properly worn on the body is 0.89 W/kg.

DECLARATION OF CONFORMITY

Hereby, NOKIA CORPORATION declares that this RM-697 product is in compliance with the essential requirements and other

relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.nokia.com/

phones/declaration_of_conformity/.

172 Copyright and other notices

Nokia and Nokia Connecting People are trademarks or registered trademarks of Nokia Corporation. Nokia tune is a sound

mark of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of

their respective owners.

Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without the

prior written permission of Nokia is prohibited. Nokia operates a policy of continuous development. Nokia reserves the

right to make changes and improvements to any of the products described in this document without prior notice.

Java and all Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc.

This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and noncommercial use in

connection with information which has been encoded in compliance with the MPEG-4 Visual Standard by a consumer

engaged in a personal and noncommercial activity and (ii) for use in connection with MPEG-4 video provided by a licensed

video provider. No license is granted or shall be implied for any other use. Additional information, including that related

to promotional, internal, and commercial uses, may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

To the maximum extent permitted by applicable law, under no circumstances shall Nokia or any of its licensors be

responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either

express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular

purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise

this document or withdraw it at any time without prior notice.

Reverse engineering of software in the device is prohibited to the extent permitted by applicable law. Insofar as this user

guide contains any limitations on Nokia's representations, warranties, damages and liabilities, such limitations shall

likewise limit any representations, warranties, damages and liabilities of Nokia's licensors.

The availability of products, features, applications and services may vary by region. For more information, contact your

Nokia dealer or your service provider. This device may contain commodities, technology or software subject to export

laws and regulations from the US and other countries. Diversion contrary to law is prohibited.

Nokia does not provide a warranty for or take any responsibility for the functionality, content, or end-user support of

third-party applications provided with your device. By using an application, you acknowledge that the application is

provided as is. Nokia does not make any representations, provide a warranty, or take any responsibility for the

functionality, content, or end-user support of third-party applications provided with your device.

The availability of Ovi services may vary by region.

FCC NOTICE

Your device may cause TV or radio interference (for example, when using a telephone in close proximity to receiving

equipment). The FCC can require you to stop using your telephone if such interference cannot be eliminated. If you require

assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation. Any changes or modifications not

expressly approved by Nokia could void the user's authority to operate this equipment.

Some operations and features are SIM card and/or network dependent, MMS dependent, or dependent on the

compatibility of devices and the content formats supported. Some services are subject to a separate charge.

/Issue 1 EN

Microsoft RM-697 GSM/WCDMA cellular telephone with Bluetooth and WLAN User Manual manual

Microsoft Mobile Oy GSM/WCDMA cellular telephone with Bluetooth and WLAN manual

Contents

manual

Navigation menu

Namespaces

Views

Navigation
