Nokia X1-00 User Guide

5555555

Issue 1

Cyan

Magenta

Yellow

Black

Contents

Safety 3

Get started 5

Insert the SIM card and

battery 5

Insert or remove a

memory card 7

Charge the battery 9

Switch on or off 10

Your phone 11

Keys and parts 11

Make and answer a

call 13

Text input 14

Message 15

Contacts 16

Multi-phonebook 17

Listen to music 18

FM Radio 19

Flashlight 21

Support 21

Protect the

environment 22

Save energy 22

Recycle 23

Product and safety

information 23

Index 33

2 www.nokia.com/support

Cyan

Magenta

Yellow

Black

Safety

Read these simple guidelines. Not following them may be

dangerous or illegal. Read the complete user guide for

further information.

SWITCH OFF IN RESTRICTED AREAS

Switch the device off when mobile phone use is

not allowed or when it may cause interference

or danger, for example, in aircraft, near medical

equipment, fuel, chemicals, or blasting areas.

ROAD SAFETY COMES FIRST

Obey all local laws. Always keep your hands free

to operate the vehicle while driving. Your first

consideration while driving should be road

safety.

INTERFERENCE

All wireless devices may be susceptible to

interference, which could affect performance.

QUALIFIED SERVICE

Only qualified personnel may install or repair

this product.

Cyan

Magenta

Yellow

Black

BATTERIES AND OTHER ACCESSORIES

Use only batteries, chargers and other

accessories approved by Nokia for use with this

device. Do not connect incompatible products.

KEEP YOUR DEVICE DRY

Your device is not water-resistant. Keep it dry.

PROTECT YOUR HEARING

Listen to a headset at a moderate level, and do

not hold the device near your ear when the

loudspeaker is in use.

Cyan

Magenta

Yellow

Black

Get started

Insert the SIM card and battery

Important: Do not use a mini-UICC SIM card, also

known as a micro-SIM card, a micro-SIM card with an

adapter, or a SIM card that has a mini-UICC cutout (see

figure) in this device. A micro SIM card is smaller than the

standard SIM card. This device does not support the use of

micro-SIM cards and use of incompatible SIM cards may

damage the card or the device, and may corrupt data

stored on the card.

The SIM card and its contacts can be easily damaged by

scratches or bending, so be careful when handling,

inserting, or removing the card.

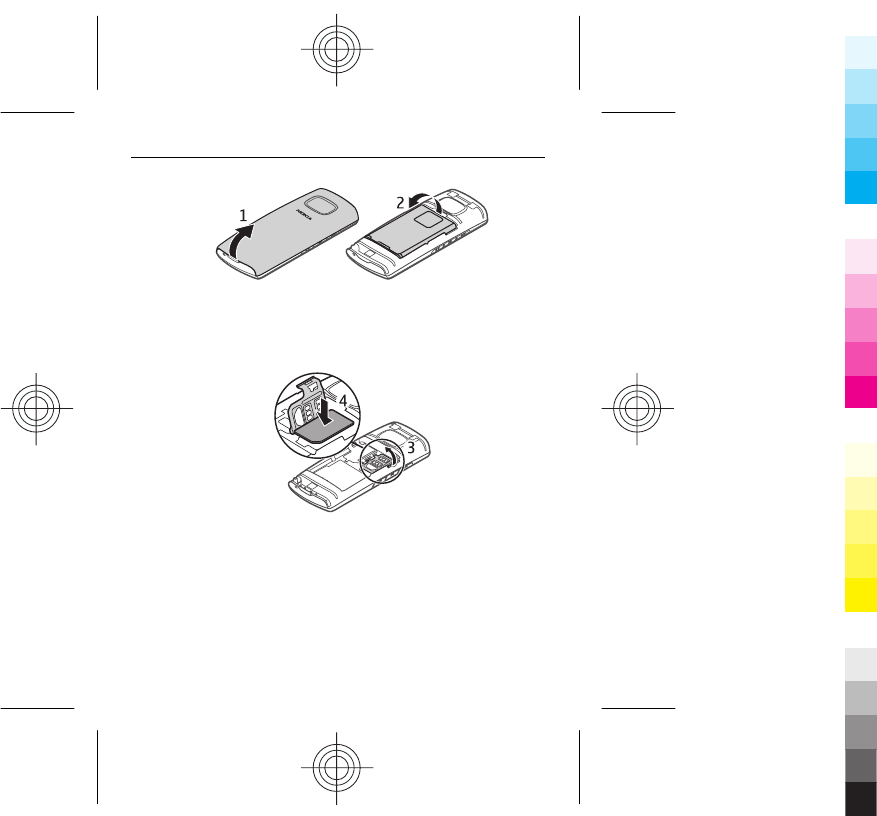

1 Place your finger in the recess at the bottom of the

device, and carefully lift and remove the back cover (1).

2 If the battery is inserted, lift the battery out (2).

Cyan

Magenta

Yellow

Black

3 Open the SIM card holder (3). Make sure the contact

area is facing down, and insert the SIM card (4). Close

the holder.

4 Line up the contacts of the battery and the battery

compartment, and insert the battery (5). To replace the

back cover, direct the top locking catches toward their

slots (6), and press down until the cover locks into

place (7).

Cyan

Magenta

Yellow

Black

This phone is intended for use with the BL-5J battery.

Insert or remove a memory card

Use only compatible memory cards approved by Nokia for

use with this device. Incompatible cards may damage the

card and the device and corrupt data stored on the card.

Your device supports microSD cards with a capacity of up

to 16 GB.

Cyan

Magenta

Yellow

Black

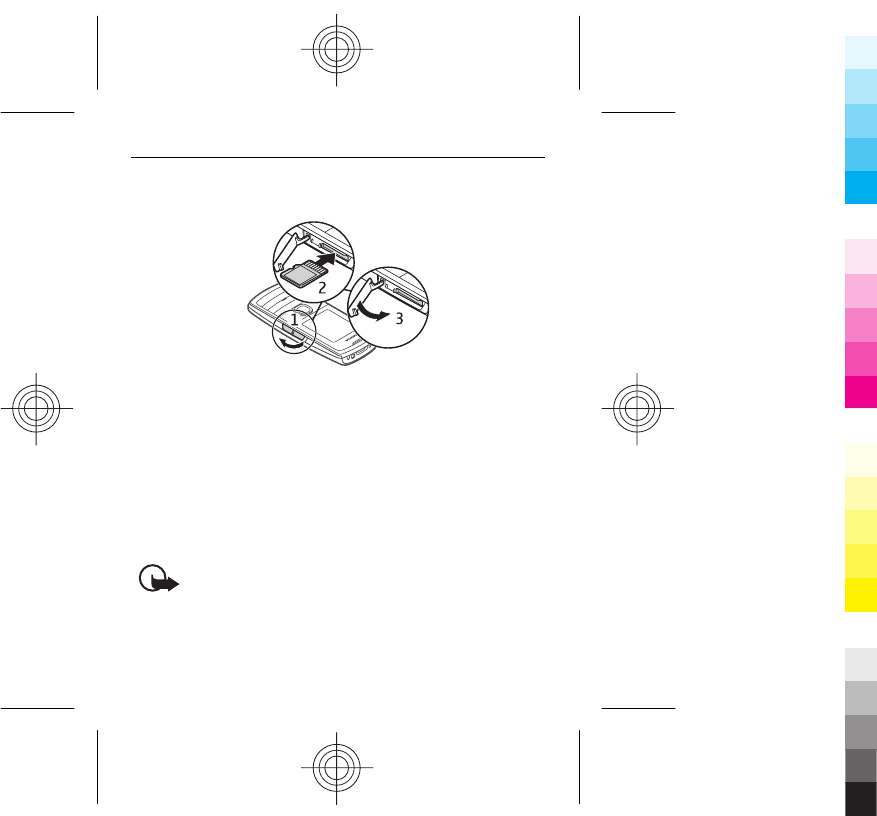

Insert a memory card

1 Open the cover of the memory card slot.

2 Insert the memory card. Push the card in, until it locks

into place. Make sure the contact area is facing up.

3 Close the slot cover.

You can remove or replace the memory card without

switching the device off.

Remove the memory card

Important: Do not remove the memory card when

an application is using it. Doing so may damage the

memory card and the device, and corrupt data stored on

the card.

1 Open the cover of the memory card slot.

Cyan

Magenta

Yellow

Black

2 Push the card in gently, until it is released, and pull the

card out.

3 Close the slot cover.

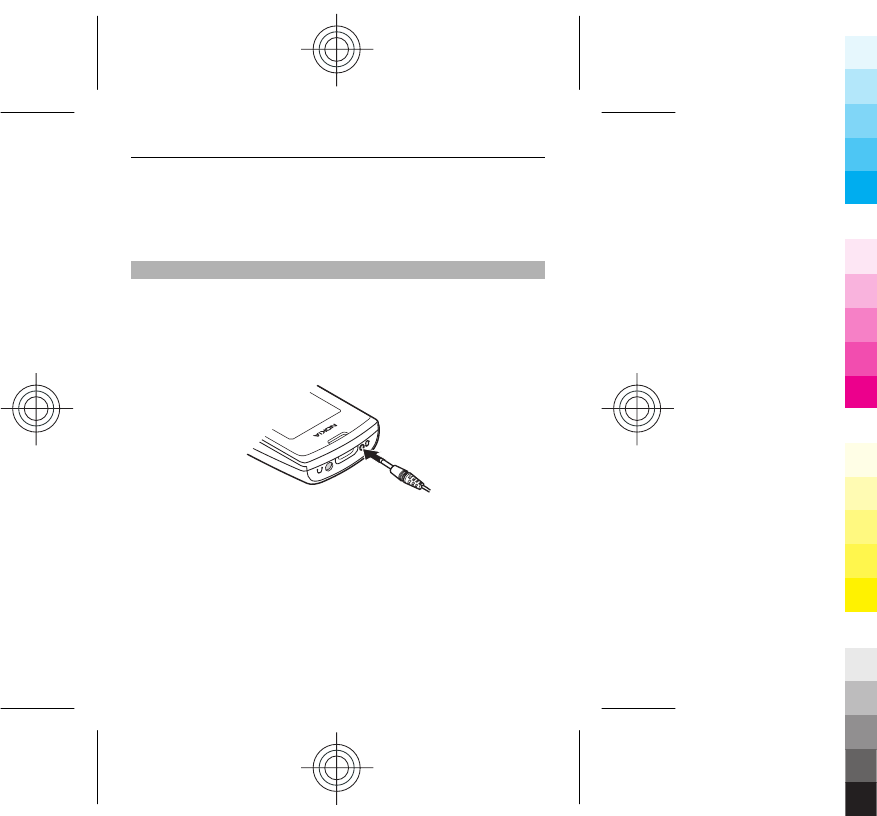

Charge the battery

Your battery has been partially charged at the factory, but

you may need to recharge it before you can switch on your

device for the first time.

If the device indicates a low charge, do the following:

1 Connect the charger to a wall outlet.

2 Connect the charger to the device.

3 When the device indicates a full charge, disconnect the

charger from the device, then from the wall outlet.

Tip: To save energy, unplug the charger when the battery

is fully charged.

Cyan

Magenta

Yellow

Black

You do not need to charge the battery for a specific length

of time, and you can use the device while it is charging.

If the battery is completely discharged, it may take several

minutes before the charging indicator appears on the

display or before any calls can be made.

If the battery has not been used for a long time, to begin

charging, you may need to connect the charger, then

disconnect and reconnect it.

It may take longer than expected before the device is fully

charged, due to the large capacity of the BL-5J battery.

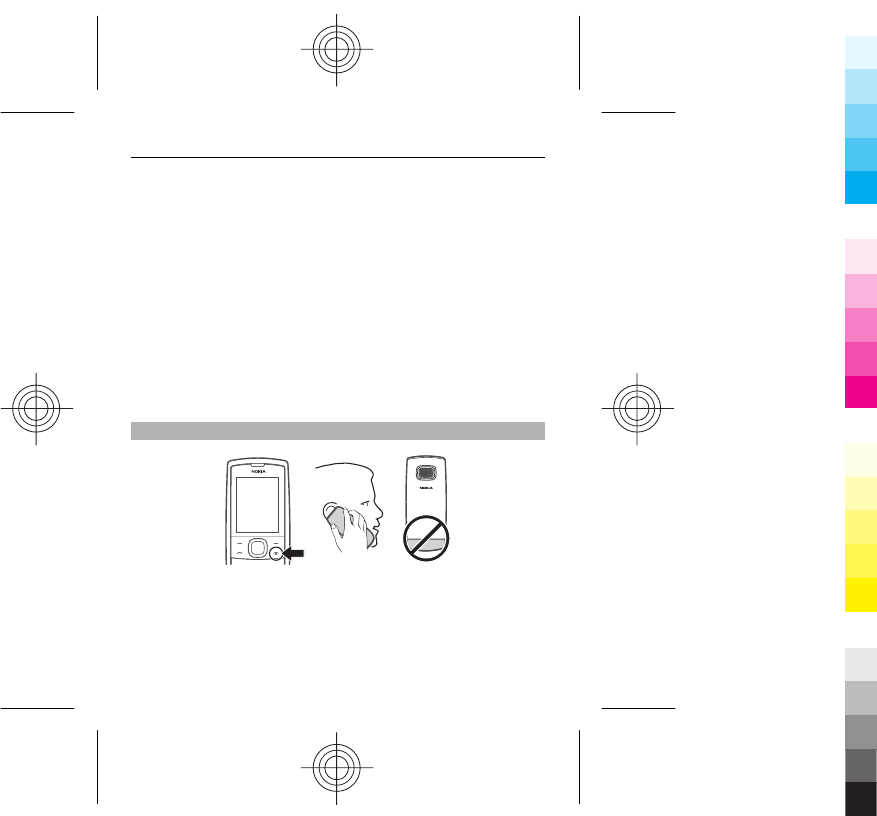

Switch on or off

Press and hold the end key.

Use the phone only in its normal operating position.

Avoid touching the antenna area unnecessarily while the

antenna is transmitting or receiving. Contact with

Cyan

Magenta

Yellow

Black

antennas affects the communication quality and may

cause a higher power level during operation and may

reduce the battery life.

Your phone

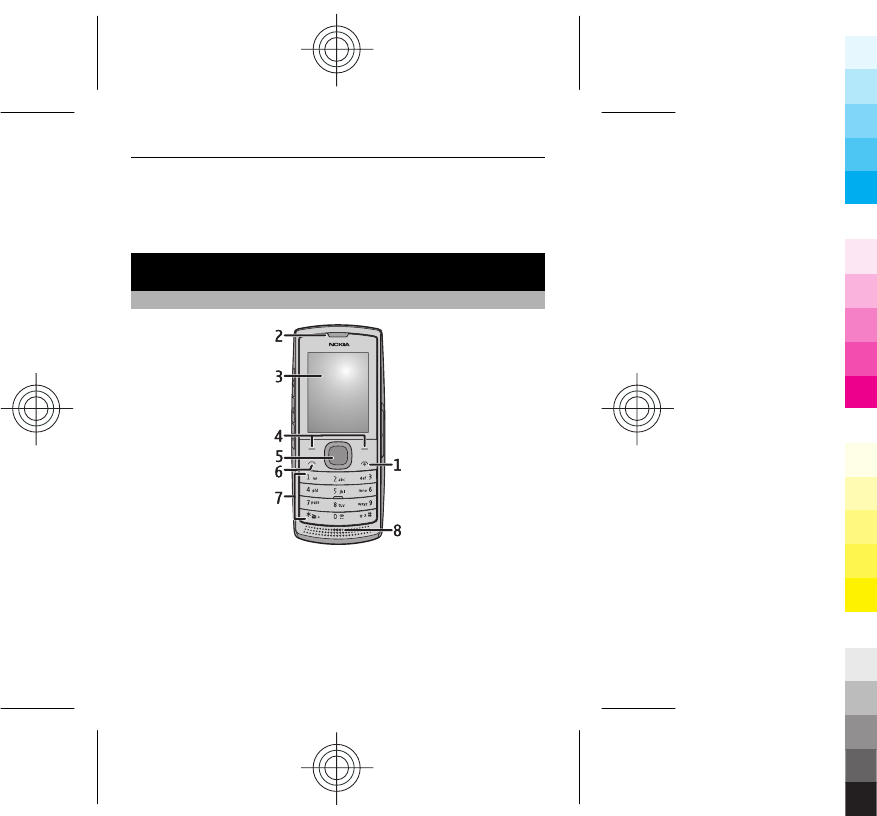

Keys and parts

1End/Power key

2Earpiece

3Display

4Selection keys

5Navi™ key (scroll key)

6Call key

Cyan

Magenta

Yellow

Black

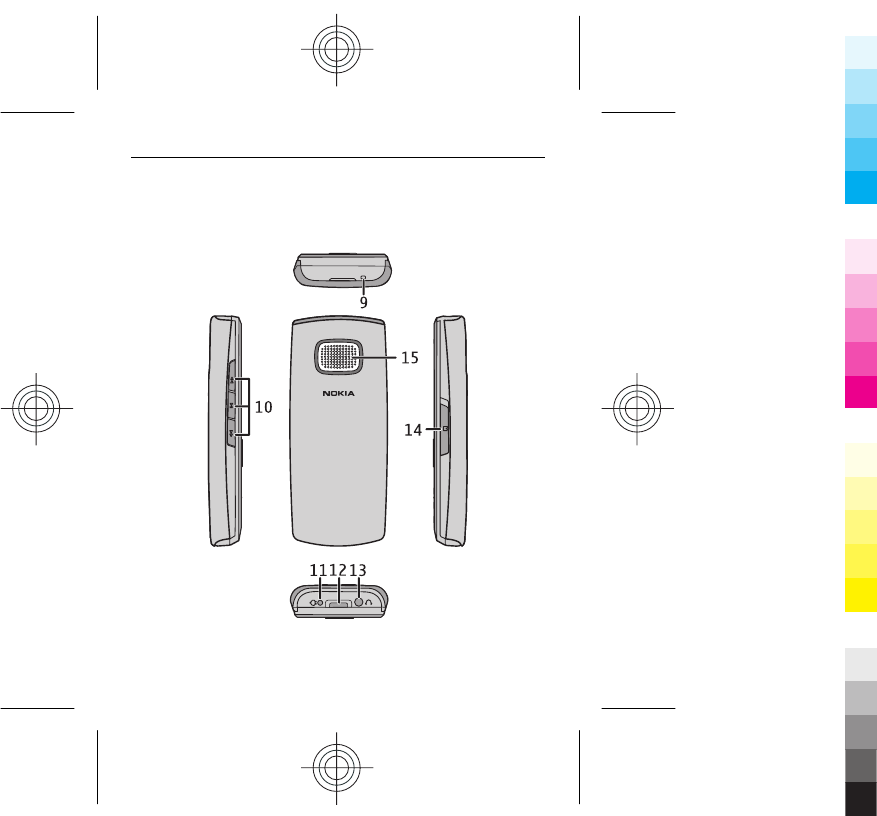

7Keypad

8Microphone

9Wrist strap hole

10 Music keys

Cyan

Magenta

Yellow

Black

11 Charger connector

12 Flashlight

13 Headset connector/Nokia AV Connector (3.5 mm)

14 Memory card slot

15 Loudspeaker

Make and answer a call

Make a call

Enter the phone number, including the country code and

area code, if necessary, and press the call key.

Answer a call

Press the call key.

End or reject a call

Press the end key.

Use the loudspeaker or earpiece

During a call, select Loudsp. or Hands..

Adjust the volume

During a call, scroll left or right to adjust the volume of the

earpiece or headset.

Cyan

Magenta

Yellow

Black

Text input

Write text

To enter text, you can use traditional or predictive text

input. Not all languages are supported by predictive text

input.

Use traditional text input

Press a key repeatedly until the desired letter is displayed.

Activate predictive text input

Select Options > Dictionary and the desired language.

Deactivate predictive text input

Select Options > Dictionary > Dictionary off.

When using predictive text input, press each key once for

a single letter. If the desired word is displayed, press 0, and

start writing the next word. If ? is displayed after the word,

the word is not in the dictionary.

Change a word

Press * repeatedly until the desired word is displayed.

Add a word

Select Spell, enter the word using traditional text input,

and select OK.

Cyan

Magenta

Yellow

Black

Add a space

Press 0.

Change text input method

Press # repeatedly, and check the indicator at the top of

the display.

Add a number

Press and hold the desired number key.

Add a special character

Press * when using traditional text input; press and hold

* when using predictive text input.

Clear a whole message

Select Options > Clear text.

You can undo the clearing of a whole message, but only

right after you have selected Clear text.

Undo clearing of a whole message

Select Options > Undo clear.

Message

The message services can only be used if they are

supported by your service provider.

Cyan

Magenta

Yellow

Black

You can send text messages that are longer than the

character limit for a single message. Longer messages are

sent as two or more messages. Your service provider may

charge accordingly.

Characters with accents, other marks, or some language

options, take more space, and limit the number of

characters that can be sent in a single message.

Write and send a message

1 Select Menu > Messages > Create message.

2 Write the message. The message length indicator

shows how many characters you can enter in the

message.

3 Select Options > Send, enter the recipient's phone

number or select it from the contacts list, and select

OK.

Delete messages

Select Menu > Messages > Delete messages > All

read or the desired folder.

Contacts

You can save names and phone numbers in the phone and

SIM card memory. The contacts list can contain up to 500

contacts, stored in the phone memory.

Cyan

Magenta

Yellow

Black

Search for a contact

Scroll down in the standby mode, enter the first characters

or letters of the name, and scroll to the desired contact.

Save contacts to the contacts list

Select Menu > Contacts > Add contact.

Copy contacts between the phone and SIM card

memory

Select Menu > Contacts > Copy.

Multi-phonebook

Your phone supports up to five separate phonebooks for

multiple users. When the multi-phonebook is activated,

only the contacts in the active phonebook are visible.

A contact can belong to one or several phonebooks. The

contacts in Shared contacts are accessible from all

phonebooks.

Select Menu > Contacts > Settings > Multi-

Phonebook and the appropriate options.

Activate the multi-phonebook

Select Phonebook style > Multi-Phonebook.

Cyan

Magenta

Yellow

Black

Activate a phonebook

Select Current phonebook and the desired phonebook or

Shared contacts.

Assign a contact to one or more phonebooks

Select Manage contacts and the desired contact.

Rename a phonebook

Select Rename phonebooks and the desired phonebook.

Listen to music

You can listen to your MP3 music files with the music player.

Select Menu > Music > Mp3 Music player.

To play music, you need to store the music files on a

memory card.

Start or pause playback

Press .

Skip to the previous song

Press .

Skip to the next song

Press .

Cyan

Magenta

Yellow

Black

Change the volume

Scroll left or right.

Set the music player to play in the background

Press the end key.

Close the music player when it is playing in the

background

Press and hold the end key.

FM Radio

Listen to the radio

Enjoy your favourite FM radio stations on the go!

1 Attach a compatible headset to the device.

2 Select Menu > Music > Radio.

Change the volume

Scroll left or right.

Listen using the headset or the loudspeaker

Select Options > Loudspeaker or Options > Headset.

Close the radio

Select Options > Switch off.

Cyan

Magenta

Yellow

Black

Set the radio to play in the background

Press the end key.

Close the radio when it is playing in the background

Press and hold the end key.

Find and save a radio station

Search for your favourite radio stations, and save them, so

you can easily listen to them later.

Select Menu > Music > Radio.

1 Select Options > Auto tuning, and scroll up or down.

2 To enter a frequency manually, select Options > Set

frequency.

3 To save the found station, select Options > Save

channel.

Rename a station

Go to the station, and select Options > Rename.

Delete a station

Go to the station, and select Options > Delete channel.

Cyan

Magenta

Yellow

Black

Set the clock radio

Want to wake up to the sound of the radio?

Select Menu > Music > Radio.

You need to have saved at least one radio station.

1 Select Options > Clock radio.

2 Set the wake up time.

3 Select OK.

Flashlight

Turn the flashlight on

Scroll up twice in the standby mode, or select Menu >

Extras > Flashlight > On.

Turn the flashlight off

Scroll up once in the standby mode, or select Menu >

Extras > Flashlight > Off.

Do not point the flashlight at anyone's eye.

Support

When you want to learn more about how to use your

product or you are unsure how your device should

Cyan

Magenta

Yellow

Black

function, go to www.nokia.com/support, or using a mobile

device, nokia.mobi/support.

If this does not resolve your issue, do one of the following:

•Reboot your device. Switch off the device, and remove

the battery. After about a minute, replace the battery,

and switch on the device.

•Restore the original factory settings.

If your issue remains unsolved, contact Nokia for repair

options. Go to www.nokia.com/repair, or in Latin America,

www.nokia-latinoamerica.com/centrosdeservicio. Before

sending your device for repair, always back up your device

data.

Protect the environment

Save energy

You do not need to charge your battery so often if you do

the following:

•Close applications and data connections when not in

use.

•Deactivate unnecessary sounds, such as key tones.

Cyan

Magenta

Yellow

Black

Recycle

When this device has reached the end of its working life,

all of its materials can be recovered as materials and

energy. To guarantee the correct disposal and reuse, Nokia

co-operates with its partners through a program called

We:recycle. For information on how to recycle your old

Nokia products and where to find collection sites, go to

www.nokia.com/werecycle, or using a mobile device,

nokia.mobi/werecycle, or call the Nokia Contact Center.

Recycle packaging and user guides at your local recycling

scheme.

For more information on the environmental attributes of

your device, go to www.nokia.com/ecodeclaration.

Product and safety information

Network services and costs

Your device is approved for use on the GSM 850 and 1900 MHz networks. To use the

device, you need a subscription with a service provider.

Cyan

Magenta

Yellow

Black

Using network services and downloading content to your device may result in data

traffic costs. Some product features require support from the network, and you may

need to subscribe to them.

Take care of your device

Handle your device, battery, charger and accessories with care. The following

suggestions help you protect your warranty coverage.

•Keep the device dry. Precipitation, humidity, and all types of liquids or moisture

can contain minerals that corrode electronic circuits. If your device gets wet,

remove the battery, and allow the device to dry.

•Do not use or store the device in dusty or dirty areas. Moving parts and electronic

components can be damaged.

•Do not store the device in high temperatures. High temperatures can shorten

the life of the device, damage the battery, and warp or melt plastics.

•Do not store the device in cold temperatures. When the device warms to its

normal temperature, moisture can form inside the device and damage

electronic circuits.

•Do not attempt to open the device other than as instructed in the user guide.

•Unauthorised modifications may damage the device and violate regulations

governing radio devices.

•Do not drop, knock, or shake the device. Rough handling can break internal

circuit boards and mechanics.

•Only use a soft, clean, dry cloth to clean the surface of the device.

•Do not paint the device. Paint can clog the moving parts and prevent proper

operation.

•Switch off the device and remove the battery from time to time for optimum

performance.

•Keep your device away from magnets or magnetic fields.

Cyan

Magenta

Yellow

Black

•To keep your important data safe, store it in at least two separate places, such

as your device, memory card, or computer, or write down important

information.

Recycle

Always return your used electronic products, batteries, and packaging materials to

dedicated collection points. This way you help prevent uncontrolled waste disposal

and promote the recycling of materials. Check product environmental information

and how to recycle your Nokia products at www.nokia.com/werecycle, or with a

mobile device, http://nokia.mobi/werecycle.

Batteries and chargers

Battery and charger information

This device is intended for use with a BL-5J rechargeable battery. Nokia may make

additional battery models available for this device. Always use original Nokia

batteries.

This device is intended for use when supplied with power from the following

chargers: AC-3. The exact charger model number may vary depending on the type of

plug. The plug variant is identified by one of the following: E, X, AR, U, A, C, K, or B.

The battery can be charged and discharged hundreds of times, but it will eventually

wear out. When the talk and standby times are noticeably shorter than normal, you

need to replace the battery.

Battery safety

Always switch the device off and disconnect the charger before removing the battery.

When you unplug a charger or an accessory, hold and pull the plug, not the cord.

When your charger is not in use, unplug it from the electrical plug and the device. Do

not leave a fully charged battery connected to a charger, as overcharging may shorten

the battery’s lifetime. If left unused, a fully charged battery will lose its charge over

time.

Cyan

Magenta

Yellow

Black

Always keep the battery between 15°C and 25°C (59°F and 77°F). Extreme

temperatures reduce the capacity and lifetime of the battery. A device with a hot or

cold battery may not work temporarily.

Accidental short-circuiting can happen when a metallic object touches the metal strips

on the battery, for example, if you carry a spare battery in your pocket. Short-circuiting

may damage the battery or the connecting object.

Do not dispose of batteries in a fire as they may explode. Dispose of batteries

according to local regulations. Recycle when possible. Do not dispose as household

waste.

Do not dismantle, cut, open, crush, bend, puncture, or shred cells or batteries. If a

battery leaks, do not let battery liquid touch skin or eyes. If this happens, immediately

flush the affected areas with water, or seek medical help.

Do not modify, remanufacture, attempt to insert foreign objects into the battery, or

immerse or expose it to water or other liquids. Batteries may explode if damaged.

Use the battery and charger for their intended purposes only. Improper use, or use of

unapproved batteries or chargers may present a risk of fire, explosion, or other

hazard, and may invalidate any approval or warranty. If you believe the battery or

charger is damaged, take it to a service centre for inspection before continuing to use

it. Never use a damaged battery or charger. Only use the charger indoors.

Additional safety information

Emergency calls

Make an emergency call

1 Ensure the device is switched on.

2 Check for adequate signal strength. You may also need to do the following:

•Insert a SIM card.

•Remove call restrictions you have activated for your device, such as call

barring, fixed dialling, or closed user group.

Cyan

Magenta

Yellow

Black

•Ensure your device is not in an offline or flight profile.

3 To clear the display, press the end key as many times as needed.

4 Enter the official emergency number for your present location. Emergency call

numbers vary by location.

5 Press the call key.

6 Give the necessary information as accurately as possible. Do not end the call

until given permission to do so.

Important: Act ivate bo th ce ll ul ar and in te rn et c al ls , if your device supports

internet calls. The device may attempt to make emergency calls both through cellular

networks and through your internet call service provider. Connections in all

conditions cannot be guaranteed. Never rely solely on any wireless device for essential

communications like medical emergencies.

Small children

Your device, its battery and accessories are not toys. They may contain small parts.

Keep them out of the reach of small children.

Medical devices

Operation of radio transmitting equipment, including wireless phones, may interfere

with the function of inadequately protected medical devices. Consult a physician or

the manufacturer of the medical device to determine whether they are adequately

shielded from external RF energy. Switch off your device when regulations posted

instruct you to do so, for example, in hospitals.

Implanted medical devices

Manufacturers of medical devices recommend a minimum separation of 15.3

centimetres (6 inches) between a wireless device and an implanted medical device,

such as a pacemaker or implanted cardioverter defibrillator, to avoid potential

interference with the medical device. Persons who have such devices should:

Cyan

Magenta

Yellow

Black

•Always keep the wireless device more than 15.3 centimetres (6 inches) from

the medical device.

•Not carry the wireless device in a breast pocket.

•Hold the wireless device to the ear opposite the medical device.

•Turn the wireless device off if there is any reason to suspect that interference

is taking place.

•Follow the manufacturer directions for the implanted medical device.

If you have any questions about using your wireless device with an implanted medical

device, consult your health care provider.

Accessibility solutions

Nokia is committed to making mobile phones easy to use for all individuals, including

those with disabilities. For more information, visit the Nokia website at

www.nokiaaccessibility.com.

Hearing

Warning:

When you use the headset, your ability to hear outside sounds may be affected. Do

not use the headset where it can endanger your safety.

Some wireless devices may interfere with some hearing aids.

Operating environment

This device meets RF exposure guidelines in the normal use position at the ear or at

least 1.0 centimetre (3/8 inch) away from the body. Any carry case, belt clip, or holder

for body-worn operation should not contain metal and should position the device the

above-stated distance from your body.

Cyan

Magenta

Yellow

Black

To send data files or messages requires a quality connection to the network. Data files

or messages may be delayed until such a connection is available. Follow the

separation distance instructions until the transmission is completed.

Vehicles

Radio signals may affect improperly installed or inadequately shielded electronic

systems in motor vehicles such as electronic fuel injection, electronic antilock braking,

electronic speed control, and air bag systems. For more information, check with the

manufacturer of your vehicle or its equipment.

Only qualified personnel should install the device in a vehicle. Faulty installation or

service may be dangerous and may invalidate your warranty. Check regularly that all

wireless device equipment in your vehicle is mounted and operating properly. Do not

store or carry flammable liquids, gases, or explosive materials in the same

compartment as the device, its parts, or accessories. Remember that air bags inflate

with great force. Do not place your device or accessories in the air bag deployment

area.

Switch off your device before boarding an aircraft. The use of wireless devices in an

aircraft may be dangerous to the operation of the aircraft and may be illegal.

Potentially explosive environments

Switch off your device in any area with a potentially explosive atmosphere. Obey all

posted instructions. Sparks in such areas could cause an explosion or fire resulting in

bodily injury or death. Switch off the device at refuelling points such as near gas

pumps at service stations. Observe restrictions in fuel depots, storage, and

distribution areas; chemical plants; or where blasting operations are in progress.

Areas with a potentially explosive atmosphere are often, but not always, clearly

marked. They include areas where you would be advised to turn off your vehicle

engine, below deck on boats, chemical transfer or storage facilities and where the air

contains chemicals or particles such as grain, dust, or metal powders. You should

check with the manufacturers of vehicles using liquefied petroleum gas (such as

propane or butane) to determine if this device can be safely used in their vicinity.

Cyan

Magenta

Yellow

Black

Certification information (SAR)

This mobile device meets guidelines for exposure to radio waves.

Your mobile device is a radio transmitter and receiver. It is designed not to exceed

the limits for exposure to radio waves recommended by international guidelines.

These guidelines were developed by the independent scientific organisation ICNIRP

and include safety margins designed to assure the protection of all persons,

regardless of age and health.

The exposure guidelines for mobile devices employ a unit of measurement known as

the Specific Absorption Rate or SAR. The SAR limit stated in the ICNIRP guidelines is

2.0 watts/kilogram (W/kg) averaged over 10 grams of tissue. Tests for SAR are

conducted using standard operating positions with the device transmitting at its

highest certified power level in all tested frequency bands. The actual SAR level of an

operating device can be below the maximum value because the device is designed

to use only the power required to reach the network. That amount changes depending

on a number of factors such as how close you are to a network base station.

The highest SAR value under the ICNIRP guidelines for use of the device at the ear is

0.72 W/kg.

Use of device accessories may result in different SAR values. SAR values may vary

depending on national reporting and testing requirements and the network band.

Additional SAR information may be provided under product information at

www.nokia.com.

Your mobile device is also designed to meet the requirements for exposure to radio

waves established by the Federal Communications Commission (USA) and Industry

Canada. These requirements set a SAR limit of 1.6 W/kg averaged over one gram of

tissue. The highest SAR value reported under this standard during product

certification for use at the ear is 1.01/kg and when properly worn on the body is 0.61

W/kg.

Cyan

Magenta

Yellow

Black

Nokia, Nokia Connecting People, and X1–00 are trademarks or registered trademarks

of Nokia Corporation. Nokia tune is a sound mark of Nokia Corporation. Other product

and company names mentioned herein may be trademarks or tradenames of their

respective owners.

Reproduction, transfer, distribution, or storage of part or all of the contents in this

document in any form without the prior written permission of Nokia is prohibited.

Nokia operates a policy of continuous development. Nokia reserves the right to make

changes and improvements to any of the products described in this document

without prior notice.

To the maximum extent permitted by applicable law, under no circumstances shall

Nokia or any of its licensors be responsible for any loss of data or income or any special,

incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable

law, no warranties of any kind, either express or implied, including, but not limited

to, the implied warranties of merchantability and fitness for a particular purpose, are

made in relation to the accuracy, reliability or contents of this document. Nokia

reserves the right to revise this document or withdraw it at any time without prior

notice.

The availability of products, features, applications and services may vary by region.

For more information, contact your Nokia dealer or your service provider. This device

may contain commodities, technology or software subject to export laws and

regulations from the US and other countries. Diversion contrary to law is prohibited.

FCC/INDUSTRY CANADA NOTICE

Your device may cause TV or radio interference (for example, when using a telephone

in close proximity to receiving equipment). The FCC or Industry Canada can require

you to stop using your telephone if such interference cannot be eliminated. If you

Cyan

Magenta

Yellow

Black

require assistance, contact your local service facility. This device complies with part

15 of the FCC rules. Operation is subject to the following two conditions: (1) This device

may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation. Any changes or

modifications not expressly approved by Nokia could void the user's authority to

operate this equipment.

5555555/Issue 1 EN

Cyan

Magenta

Yellow

Black

Index

alarm 21

battery 5

— charging 9

clock radio 21

flashlight 21

FM radio 19, 20

keys and parts 11

memory card 7

music 18

Nokia support

information 21

powering device on/

off 10

radio 19, 20, 21

recycling 22

searching

— radio stations 20

SIM card 5

support 21

switching device on/

off 10

Text input 14

text input 14

turning device on/off 10

Cyan

Magenta

Yellow

Black

Microsoft RM-733 GSM 850/1900 Cellular Telephone User Manual Manual

Microsoft Mobile Oy GSM 850/1900 Cellular Telephone Manual

Manual

Navigation menu

Namespaces

Views

Navigation
