User guide Nokia 6101
RM-76
Issue 1 EU (FCC)
DECLARATION OF CONFORMITY
We, NOKIA CORPORATION declare under our sole responsibility that the product RM-76 is in
conformity with the provisions of the following Council Directive: 1999/5/EC.
A copy of the Declaration of Conformity can be found from
http://www.nokia.com/phones/declaration_of_conformity/.
The crossed-out wheeled bin means that within the European Union the product
must be taken to separate collection at the product end-of life. This applies to
your device but also to any enhancements marked with this symbol. Do not
dispose of these products as unsorted municipal waste.
Copyright © 2005 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document
in any form without the prior written permission of Nokia is prohibited.
Nokia, Nokia Connecting People, Xpress-on and Pop-Port are trademarks or registered
trademarks of Nokia Corporation. Other product and company names mentioned herein may
be trademarks or tradenames of their respective owners.
Nokia tune is a sound mark of Nokia Corporation.
US Patent No 5818437 and other pending patents. T9 text input software Copyright (C)
1997-2005. Tegic Communications, Inc. All rights reserved.
Includes RSA BSAFE cryptographic or security protocol software from RSA Security.
Java is a trademark of Sun Microsystems, Inc.
Nokia operates a policy of continuous development. Nokia reserves the right to make
changes and improvements to any of the products described in this document without prior
notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any
special, incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided "as is". Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region. Please check with the Nokia dealer
nearest to you.
This device may contain commodities, technology or software subject to export laws and
regulations from the US and other countries. Diversion contrary to law is prohibited.
XXXXXXX/Issue 1
UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR
INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES
HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS." EXCEPT
AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO
THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE
RIGHT TOREVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.
FCC/INDUSTRY CANADA NOTICE
Your phone may cause TV or radio interference (for example, when using a telephone in close
proximity to receiving equipment). The FCC or Industry Canada can require you to stop using
your telephone if such interference cannot be eliminated. If you require assistance, contact
your local service facility.
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
4
Contents
For your safety.......................... 7
General information.............. 10
Overview of functions........................ 10
Access codes......................................... 10
Security code .................................... 10
PIN codes........................................... 10
PUK codes.......................................... 11
Barring password............................. 11
Configuration settings service ........ 11
Download content and applications 12
Nokia support on the Web ............... 12
1. Get started ......................... 13
Open the fold ....................................... 13
Install the SIM card and
the battery ............................................ 13
Charge the battery.............................. 14
Switch the phone on and off........... 15
Plug and play service...................... 15
Normal operating position ............... 15
Wrist strap ............................................ 15
2. Your phone......................... 16

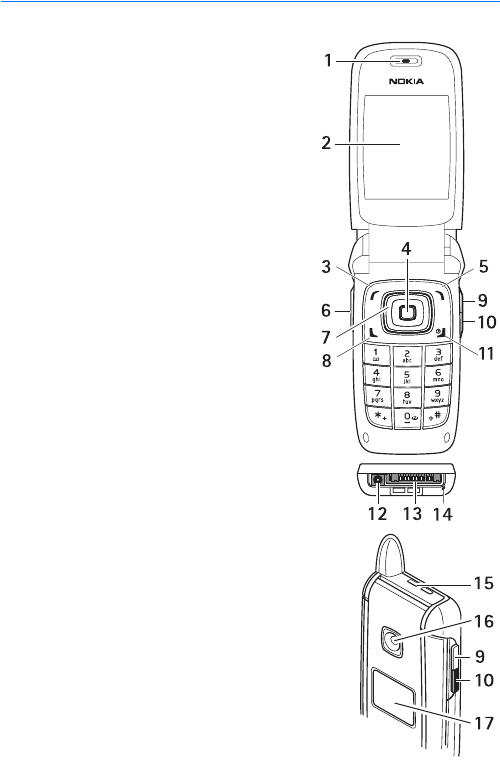

Keys and parts...................................... 16
Standby mode ...................................... 17
Mini display....................................... 17
Main display...................................... 17
Personal shortcut list ..................... 17
Shortcuts in the standby mode ... 18
Power saving..................................... 18
Indicators........................................... 18
Keypad lock (keyguard) ..................... 19
3. Call functions..................... 20
Make a call ........................................... 20
Speed dialing .................................... 20
Answer or reject a call....................... 20
Call waiting....................................... 21
Options during a call.......................... 21
4. Write text ........................... 22
Settings.................................................. 22
Predictive text input .......................... 22
Write compound words ................. 23
Traditional text input......................... 23
5. Navigate the menus........... 24
6. Messages............................. 25
Text messages (SMS) ......................... 25
Write and send a SMS message.. 26
Read and reply to a
SMS message.................................... 26
Templates........................................... 27
Multimedia messages (MMS).......... 27
Write and send a multimedia
message.............................................. 27
Read and reply to a multimedia
message.............................................. 29
Memory full.......................................... 29
Folders.................................................... 30
Postcards ............................................... 30
Send a postcard ............................... 31
Flash messages .................................... 31
Write a flash message.................... 31
Receive a flash message................ 31
Nokia Xpress audio messaging........ 31
Create and send an audio
message.............................................. 32
Receive an audio message............ 32
Instant messaging (IM) ..................... 32
Access the instant messaging
menu ................................................... 33
Connect to the instant messaging
service................................................. 33
Start an instant messaging
session ................................................ 33
Accept or reject an invitation...... 34
Read a received instant message 35
5
Participate in a conversation........ 35
Edit your availability status .......... 35
Contacts for instant messaging... 36
Block and unblock messages ........ 36
Groups ................................................. 36
E-mail application............................... 37
Write and send an e-mail.............. 37
Download e-mail.............................. 38
Read and reply to e-mail............... 38
Inbox and other folders.................. 38
Delete e-mail messages ................. 39
Voice messages .................................... 39
Info messages....................................... 39
Service commands .............................. 39
Delete messages .................................. 39
Message settings ................................. 40
Text and SMS e-mail....................... 40
Multimedia......................................... 40
E-mail .................................................. 41
Other settings ................................... 42
Message counter ................................. 42
7. Contacts.............................. 43
Search for a contact........................... 43
Save names and phone numbers .... 43
Save numbers, items, or an image.. 43
Copy contacts....................................... 44
Edit contact details............................. 44
Delete contacts or contact details . 44
Business cards ...................................... 45
My presence.......................................... 45
Subscribed names................................ 46
Add contacts to the subscribed
names .................................................. 46
View the subscribed names........... 46
Unsubscribe a contact.................... 47
Settings .................................................. 47
Groups..................................................... 47
Voice dialing ......................................... 48
Add and manage voice tags.......... 48
Make a call with a voice tag ........ 49
Speed dials ............................................ 49
Info, service, and my numbers......... 49
8. Call register......................... 50
Recent calls lists .................................. 50
Counters and timers ........................... 50
9. Settings.............................. 51
Profiles.................................................... 51
Themes.................................................... 51
Tones ....................................................... 51
My shortcuts......................................... 52
Main display.......................................... 52
Mini display........................................... 53
Time and date ....................................... 53
Call........................................................... 54
Phone ...................................................... 54
Connectivity.......................................... 55
Infrared ............................................... 55
Packet data (EGPRS) ....................... 56
Enhancements ...................................... 57
Configuration ....................................... 58
Security .................................................. 59
Restore factory settings .................... 59
10. Operator menu................. 60
11. Gallery .............................. 61
12. Media................................ 62
Camera ................................................... 62
Take a photo...................................... 62
Record a video clip .......................... 62
Radio ....................................................... 62
Save radio channels ........................ 63
Listen to the radio ........................... 63
Recorder ................................................. 64
Record sound..................................... 64
List of recordings ............................. 64
13. Organiser .......................... 65
Alarm clock ........................................... 65
Stop the alarm .................................. 65
Calendar................................................. 65
Make a calendar note..................... 66
A note alarm...................................... 66
To-do list................................................ 66
6
Notes ...................................................... 67
Synchronization................................... 67
Synchronize from your phone...... 67
Synchronization settings............... 68
Synchronize from a
compatible PC .................................. 68
Calculator.............................................. 69
Stopwatch............................................. 69
Countdown timer ................................ 70
14. Applications .................... 71
Games..................................................... 71
Launch a game ................................. 71
Game downloads ............................. 71
Game settings................................... 71
Collection .............................................. 71
Launch an application.................... 71
Other application options ............. 72
Download an application .............. 72
15. Push to talk..................... 74
Push to talk menu............................... 74
Connect to and disconnect PTT....... 75
Make and receive a PTT call............. 75
Make a dial out PTT call ................ 75
Make a group call............................ 76
Make a one-to-one call................. 76
Receive a PTT call ............................ 77
Callback requests ................................ 77
Send a callback request................. 77
Respond to a callback request..... 78
Save the callback request sender 78
Add a one-to-one contact ............... 78
Create and set up groups.................. 79
PTT settings........................................... 80
16. Web.................................. 82
Set up browsing .................................. 82
Connect to a service .......................... 82
Browse pages ....................................... 83
Browse with phone keys................ 83
Options while browsing................. 83
Direct calling .................................... 84
Appearance settings........................... 84
Cookies................................................... 85
Scripts over secure connection....... 85
Bookmarks............................................. 85
Receive a bookmark........................ 85
Download files ..................................... 86
Service inbox........................................ 86
Service inbox settings .................... 86
Cache memory..................................... 87
Positioning information .................... 87
Browser security.................................. 88
Security module............................... 88
Certificates........................................ 89
Digital signature .............................. 89
17. SIM services..................... 91
18. PC connectivity................ 92
PC Suite ................................................. 92
Packet data, HSCSD, and CSD ......... 92
Data communication applications. 92
19. Battery information ........ 93
Charging and discharging ................ 93
Nokia battery authentication
guidelines .............................................. 93
20. Technical Information..... 96
CARE AND MAINTENANCE ... 97
Additional safety information 98
APPENDIX............................. 102
For your safety
7
For your safety
Read these simple guidelines. Not following them may be dangerous or illegal.
Read the complete user guide for further information.
SWITCH ON SAFELY
Do not switch the phone on when wireless phone use is prohibited or
when it may cause interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the
vehicle while driving. Your first consideration while driving should be
road safety.
INTERFERENCE
All wireless phones may get interference, which could affect
performance.
SWITCH OFF IN HOSPITALS
Follow any restrictions. Switch the phone off near medical
equipment.
SWITCH OFF IN AIRCRAFT
Follow any restrictions. Wireless devices can cause interference in
aircraft.
SWITCH OFF WHEN REFUELLING
Don't use the phone at a refuelling point. Don't use near fuel or
chemicals.
SWITCH OFF NEAR BLASTING
Follow any restrictions. Don't use the phone where blasting is in
progress.
USE SENSIBLY
Use only in the normal position as explained in the product
documentation. Don't touch the antenna unnecessarily.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
ENHANCEMENTS AND BATTERIES
Use only approved enhancements and batteries. Do not connect
incompatible products.
For your safety
8
WATER-RESISTANCE
Your phone is not water-resistant. Keep it dry.
BACK-UP COPIES
Remember to make back-up copies or keep a written record of all
important information stored in your phone.
CONNECTING TO OTHER DEVICES
When connecting to any other device, read its user guide for detailed
safety instructions. Do not connect incompatible products.
EMERGENCY CALLS
Ensure the phone is switched on and in service. Press the end key as
many times as needed to clear the display and return to the start
screen. Enter the emergency number, then press the call key. Give
your location. Do not end the call until given permission to do so.
■About your device
The wireless device described in this guide is approved for use on the EGSM 900
and GSM 1800 and 1900 networks. Contact your service provider for more
information about networks.
When using the features in this device, obey all laws and respect the privacy and
legitimate rights of others.
Warning: To use any features in this device, other than the alarm clock,
the device must be switched on. Do not switch the device on when
wireless device use may cause interference or danger.
■Network services
To use the phone you must have service from a wireless service provider. Many of
the features in this device depend on features in the wireless network to
function. These network services may not be available on all networks or you may
have to make specific arrangements with your service provider before you can
utilize network services. Your service provider may need to give you additional
instructions for their use and explain what charges will apply. Some networks
may have limitations that affect how you can use network services. For instance,
some networks may not support all language-dependent characters and services.
Your service provider may have requested that certain features be disabled or not
activated in your device. If so, they will not appear on your device menu. Your
device may also have been specially configured for your network provider. This
For your safety
9
configuration may include changes in menu names, menu order and icons.
Contact your service provider for more information.
This device supports WAP 2.0 protocols (HTTP and SSL) that run on TCP/IP
protocols. Some features of this device, such as text messages, multimedia
messages, audio messages, instant messaging service, e-mail, presence enhanced
contacts, mobile Internet services, content and application download, and
synchronization with a remote Internet server, require network support for these
technologies.
■Shared memory
The phone has two memories. The following features may share the first memory:
contacts, text messages, multimedia messages (but no attachments), instant
messaging, groups, voice commands, calendar, and to-do notes. The second
shared memory is used by files stored in Gallery, attachments of multimedia
messages, e-mail, and JavaTM applications. Use of one or more of these features
may reduce the memory available for the remaining features sharing memory.
For example, saving many Java applications may use all of the available memory.
Your device may display a message that the memory is full when you try to use a
shared memory feature. In this case, delete some of the information or entries
stored in the shared memory features before continuing. Some of the features,
such as text messages, may have a certain amount of memory specially allotted
to them in addition to the memory shared with other features.
■Enhancements
A few practical rules about accessories and enhancements are as follows:
• Keep all accessories and enhancements out of the reach of small children.
• When you disconnect the power cord of any accessory or enhancement, grasp
and pull the plug, not the cord.
• Check regularly that enhancements installed in a vehicle are mounted and
are operating properly.
• Installation of any complex car enhancements must be made by qualified
personnel only.
General information
10
General information
■Overview of functions
Your phone provides many functions that are practical for daily use,
such as a calendar, a clock, an alarm clock, a radio, and a built-in
camera. Your phone also supports the following functions:
• Enhanced data rates for GSM evolution (EDGE), see “Packet data
(EGPRS),” p. 56
• Extensible hypertext markup language (XHTML), see “Web,” p. 82
• Audio messaging, see “Nokia Xpress audio messaging,” p. 31
• Instant messaging, see “Instant messaging (IM),” p. 32
• e-mail application, see “E-mail application,” p. 37
• Push to talk, see “Push to talk,” p. 74
• Presence-enhanced contacts, see “My presence,” p. 45
• Java 2 Platform, Micro Edition (J2METM), see “Applications,” p. 71
■Access codes
Security code
The security code (5 to 10 digits) helps to protect your phone against
unauthorized use. The preset code is 12345. To change the code, and to
set the phone to request the code, see “Security,” p. 59.
PIN codes
The personal identification number (PIN) code and the universal
personal identification number (UPIN) code (4 to 8 digits) help to
protect your SIM card against unauthorized use. See “Security,” p. 59.
The PIN2 code (4 to 8 digits) may be supplied with the SIM card and is
required for some functions.
The module PIN is required to access the information in the security
module. See “Security module,” p. 88.
General information
11
The signing PIN is required for the digital signature. See “Digital
signature,” p. 89.
PUK codes
The personal unblocking key (PUK) code and the universal personal
unblocking key (UPUK) code (8 digits) is required to change a blocked
PIN code and UPIN code, respectively. The PUK2 code (8 digits) is
required to change a blocked PIN2 code. If the codes are not supplied
with the SIM card, contact your local service provider for the codes.
Barring password
The barring password (4 digits) is required when using the Call barring
service. See “Security,” p. 59.
■Configuration settings service
To use some of the network services, such as mobile Internet services,
MMS, Nokia Xpress audio messaging, or remote Internet server
synchronization, your phone needs the correct configuration settings.
You may be able to receive the settings directly as a configuration
message. After receiving the settings you need to save them on your
phone. The service provider may provide a PIN that is needed to save the
settings. For more information on availability, contact your network
operator, service provider, nearest authorized Nokia dealer, or visit the
support area on the Nokia Web site, <www.nokia.com/support>.
When you have received a configuration message Configuration sett.
received is displayed.
To save the settings, select Show > Save. If the phone requests Enter
settings' PIN:, enter the PIN code for the settings, and select OK. To
receive the PIN code, contact the service provider that supplies the
settings. If no settings are saved yet, these settings are saved and set as
default configuration settings. Otherwise, the phone asks Activate saved
configuration settings?.
To discard the received settings, select Exit or Show > Discard.
To edit the settings, see “Configuration,” p. 58.
General information
12
■Download content and applications
You may be able to download new content (for example, themes) to the
phone (network service). Select the download function (for example, in
the Gallery menu). To access the download function, see the respective
menu descriptions. For the availability of different services, pricing, and
tariffs, contact your service provider.
Important: Use only services that you trust and that offer adequate
security and protection against harmful software.
■Nokia support on the Web
Check <www.nokia.com/support> or your local Nokia Web site for the
latest version of this guide, additional information, downloads, and
services related to your Nokia product.
Get started
13
1. Get started
■Open the fold
When you open the fold of the phone,
it opens up to approximately 155
degrees. Do not try to force the fold
open more.
■Install the SIM card and the battery
Always switch the device off and disconnect the charger before removing the
battery.
Keep all SIM cards out of the reach of small children. For availability and
information on using SIM card services, contact your SIM card vendor. This may
be the service provider, network operator, or other vendor.
This device is intended for use with BL-4C battery.
The SIM card and its contacts can easily be damaged by scratches or
bending, so be careful when handling, inserting, or removing the card.
To remove the back cover of the phone press the
release buttons (1), and slide the back cover to
remove it from the phone (2).
Remove the battery as
shown(3). Release the SIM card
holder (4).
Get started
14
Insert the SIM card (5). Make sure that the SIM
card is properly inserted, and that the golden
contact area on the card is facing downwards.
Close the SIM card holder (6) and press it until it
snaps into position.
Replace the battery (7).
Observe the battery
contacts. Always use original
Nokia batteries. See “Nokia
battery authentication
guidelines,” p. 93.
Slide the back cover into its
place (8, 9).
■Charge the battery
Warning: Use only batteries, chargers, and enhancements approved by
Nokia for use with this particular model. The use of any other types may
invalidate any approval or warranty, and may be dangerous.
Check the model number of any charger before use with this device. This device is
intended for use when supplied with power from an AC-3, AC-4, and DC-4
charger, and from AC-1, ACP-7, ACP-12, and LCH-12 charger when used with the
charger adapter CA-44 delivered with your phone.
For availability of approved enhancements, please check with your dealer.
1. Connect the charger to a wall socket.
2. Connect the lead from the charger to the
socket on the bottom of your phone.
If the battery is completely discharged, it
may take a few minutes before the charging
indicator appears on the display or before
any calls can be made.
The charging time depends on the charger and the battery used. For
example, charging a BL-4C battery with the AC-3 charger takes
approximately 2 hours and 12 minutes while the phone is in the standby
mode.
Get started
15
■Switch the phone on and off
Warning: Do not switch the phone on when wireless phone use is
prohibited or when it may cause interference or danger.
Press and hold the end key.
If the phone asks for a PIN or a UPIN code, enter the code (displayed as
****), and select OK.
Plug and play service
When you switch on your phone for the first time, and the phone is in
the standby mode, you are asked to get the configuration settings from
your service provider (network service). Confirm or decline the query.
See "Connect to service provider support ," p. 58, and “Configuration
settings service,” p. 11.
■Normal operating position
Use the phone only in its normal operating
position.
Your device has an external antenna.
Note: As with any other radio transmitting
device, do not touch the antenna
unnecessarily when the device is switched on.
Contact with the antenna affects call quality
and may cause the device to operate at a
higher power level than otherwise needed.
Avoiding contact with the antenna area when
operating the device optimizes the antenna performance and the battery life.
■Wrist strap
Remove the back cover and the battery.
Insert the strap as shown in the picture.
Replace the battery and the back cover.
Your phone
16
2. Your phone
■Keys and parts
• Earpiece (1)
• Main display (2)
• Left selection key (3)
Middle selection key (4)
Right selection key (5)
The function of these keys depends on
the guiding text shown on the display
above the keys.
• Volume key (6)
• 4-way navigation key (7)
Scroll up, down, left, and right.
• Call key (8)
• Push to talk (PTT) key, and camera
release key (9)
• Infrared (IR) port (10)
• End key and power key (11)
• Charger connector (12)
• Pop-PortTM connector (13)
• Microphone (14)
• Loudspeaker (15)
• Camera lens (16)
• Mini display (17)
Your phone
17
■Standby mode
When the phone is ready for use, and you have not entered any
characters, the phone is in the standby mode.
Mini display
When the fold is closed, the mini display may show the following:
• The signal strength of the cellular network at your current location
and the battery charge level
• The name of the network, or if the phone is not in service, it is
indicated by a text note
• The time and date, the active profile, and the alarm clock or calendar
note alerts
When you have an incoming call, the caller’s name or number is shown
if it is identified.
Main display
• Name of the network or the operator
logo (1)
• Signal strength of the cellular network at
your current location (2)
• Battery charge level (3)
• Left selection key is Go to (4).
• Middle selection key is Menu (5)
• Right selection key is Names (6) or another
shortcut to a function that you selected.
See “My shortcuts,” p. 52. Operator variants may have an operator-
specific name to access an operator-specific Web site.
Personal shortcut list
The left selection key is Go to.
To view the functions in the personal shortcut list, select Go to. To
activate a function select it.
Your phone
18
To view a list with available functions, select Go to > Options > Select
options. To add a function to the shortcut list, select Mark. To remove a
function from the list, select Unmark.
To rearrange the functions on your personal shortcut list, select Go to >
Options > Organise. Select the desired function and Move and the place
where you want to move the function.
Shortcuts in the standby mode
• To access the list of dialed numbers, press the call key once. Scroll to
the number or name that you want; and to call the number, press the
call key.
• To open the web browser, press and hold 0.
• To call your voice mailbox, press and hold 1.
• Use the navigation key as a shortcut. See “My shortcuts,” p. 52.
Power saving
A digital clock view overwrites the display when no
function of the phone has been used for a certain
period of time. To activate the power saver, see
Power saver in “Main display,” p. 52, and “Mini
display,” p. 53. To deactivate the screen saver, open
the fold, or press any key.
Indicators
You received one or several text or picture messages. See “Read
and reply to a SMS message,” p. 26.
You received one or several multimedia messages. See “Read
and reply to a multimedia message,” p. 29.
The phone registered a missed call. See “Call register,” p. 50.
The keypad is locked. See “Keypad lock (keyguard),” p. 19.
Your phone
19
The phone does not ring for an incoming call or text message
when Incoming call alert and Message alert tone are set to Off.
See “Tones,” p. 51.
The alarm clock is set to On. See “Alarm clock,” p. 65.
When the packet data connection mode Always online is
selected and the packet data service is available, the indicator is
shown. See “Packet data (EGPRS),” p. 56.
A packet data connection is established. See “Packet data
(EGPRS),” p. 56 and “Browse pages,” p. 83.
The packet data connection is suspended (on hold), for example,
if there is an incoming or outgoing call during a packet data
dial-up connection.
When the infrared connection is activated, the indicator is
shown continuously.
■Keypad lock (keyguard)
To prevent the keys from being accidentally pressed, select Menu, and
press * within 3.5 seconds to lock the keypad.
To unlock the keypad, select Unlock, and press *. If the Security keyguard
is set On, enter the security code if requested.
To answer a call when the keyguard is on, press the call key. When you
end or reject the call, the keypad automatically locks.
For Automatic keyguard and Security keyguard, see “Phone,” p. 54.
When the keyguard is on, calls still may be possible to the official emergency
number programmed into your device.
Call functions
20
3. Call functions
■Make a call
1. Enter the phone number, including the area code.
For international calls, press * twice for the international prefix (the
+ character replaces the international access code) and then enter
the country code, the area code without the leading 0, if necessary,
and the phone number.
2. To call the number, press the call key.
3. To end the call or to cancel the call attempt, press the end key, or
close the phone.
To make a call using names, search for a name or phone number in
Contacts, see “Search for a contact,” p. 43. Press the call key to call the
number.
To access the list of up to 20 numbers you last called or attempted to
call, press the call key once in the standby mode. To call the number,
select a number or name, and press the call key.
Speed dialing
Assign a phone number to one of the speed-dialing keys, 2 to 9. See
“Speed dials,” p. 49. Call the number in either of the following ways:
• Press a speed-dialing key, and then press the call key.
•If Speed dialling is set to On, press and hold a speed-dialing key until
the call begins. See Speed dialling in “Call,” p. 54.
■Answer or reject a call
To answer an incoming call, press the call key, or open the phone. To end
the call, press the end key, or close the phone.
To reject an incoming call, press the end key, or if the phone is open,
close the phone. To reject an incoming call when the phone is closed,
open the phone, and press the end key within 1.5 seconds.
Call functions
21
To mute the ringing tone, press one of the volume keys, or select Silence.
Tip: If the Divert if busy function is activated to divert the calls
(for example, to your voice mailbox) rejecting an incoming call
also diverts the call. See “Call,” p. 54.
If a compatible headset supplied with the headset key is connected to
the phone, to answer and end a call, press the headset key.
Call waiting
To answer the waiting call during an active call, press the call key. The
first call is put on hold. To end the active call, press the end key.
To activate the Call waiting function, see “Call,” p. 54.
■Options during a call
Many of the options that you can use during a call are network services.
For availability, contact your network operator or service provider.
During a call, select Options and from the following options:
Call options are Mute or Unmute, Contacts, Menu, Record, Lock keypad,
Audio enhancing, Loudspeaker or Handset.
Network services options are Answer and Reject, Hold or Unhold, New
call, Add to conference, End call, End all calls, and the following:
Send DTMF — to send tone strings
Swap — to switch between the active call and the call on hold
Transfer — to connect a call on hold to an active call and disconnect
yourself
Conference — to make a conference call that allows up to five persons to
take part in a conference call
Private call —to discuss privately in a conference call
Warning: Do not hold the device near your ear when the loudspeaker
is in use, because the volume may be extremely loud.
Write text
22
4. Write text
You can enter text (for example, when writing messages) using
traditional or predictive text input. When using traditional text input,
press a number key, 1 to 9, repeatedly until the desired character
appears. In predictive text input you can enter a letter with a single
keypress.
When you are writing text, predictive text input is indicated by
and traditional text input by at the top left of the display. ,
, or appear next to the text input indicator, indicating the
character case.
To change the character case and the text input mode, press #.
indicates number mode. To change from the letter to number mode,
press and hold #, and select Number mode.
■Settings
To set the writing language, select Options > Writing language.
Predictive text input is only available for the languages listed.
Select Options > Dictionary on to set the predictive text input or
Dictionary off to set traditional text input.
■Predictive text input
Predictive text input is based on a built-in dictionary to which you can
also add new words.
1. Start writing a word using the 2 to 9 keys. Press each key only once
for a single letter. The word changes after each keypress.
2. When you have finished writing the word and it is correct, to confirm
it, press 0 to add a space, or press any of the navigation keys. Press a
navigation key to move the cursor.
If the word is not correct, press * repeatedly, or select Options >
Matches. When the word that you want appears, confirm it.
Write text
23
If ? is displayed after the word, the word you intended to write is not
in the dictionary. To add the word to the dictionary, select Spell.
Enter the word (traditional text input is used), and select Save.
3. Start writing the next word.
Write compound words
Enter the first part of the word, and press the navigation key right to
confirm it. Write the last part of the word, and confirm the word.
■Traditional text input
Press a number key, 1 to 9, repeatedly until the desired character
appears. Not all characters available under a number key are printed on
the key. The characters available depend on the writing language. See
“Settings,” p. 22.
If the next letter you want is located on the same key as the present one,
wait until the cursor appears, or press any of the navigation keys and
enter the letter.
The most common punctuation marks and special characters are
available under the 1 key.
Navigate the menus
24
5. Navigate the menus
The phone offers you an extensive range of functions, which are
grouped into menus.
1. To access the menu, select Menu. To change the menu view, select
Options > Main menu view > List or Grid.
2. Scroll through the menu, and select a submenu (for example,
Settings).
3. If the menu contains submenus, select the one that you want (for
example, Call).
4. If the selected menu contains further submenus, select the one that
you want (for example, Anykey answer).
5. Select the setting of your choice.
6. To return to the previous menu level, select Back. To exit the menu,
select Exit.
Messages
25
6. Messages
The message services can only be used if they are supported
by your network or your service provider.
Note: When sending messages, your phone may display the words
Message sent. This is an indication that the message has been sent by
your device to the message centre number programmed into your
device. This is not an indication that the message has been received at
the intended destination. For more details about messaging services,
check with your service provider.
Important: Exercise caution opening messages. Messages may contain
malicious software or otherwise be harmful to your device or PC.
Only devices that have compatible features can receive and display
messages. The appearance of a message may vary depending on the
receiving device.
■Text messages (SMS)
Using the short message service (SMS) you can send and receive
multipart messages made of several ordinary text messages (network
service) that can contain pictures.
Before you can send any text, picture, or e-mail message, you must save
your message center number. See “Message settings,” p. 40.
To check SMS e-mail service availability and to subscribe to the service,
contact your service provider.
Your device supports the sending of text messages beyond the character limit for
a single message. Longer messages will be sent as a series of two or more
messages. Your service provider may charge accordingly. Characters that use
accents or other marks, and characters from some language options like Chinese,
take up more space limiting the number of characters that can be sent in a single
message.
At the top of the display, you can see the message length indicator that
tracks the number of characters available. For example, 10/2 means that
you can still add 10 characters for the text to be sent as two messages.
Messages
26
Write and send a SMS message
1. Select Menu > Messages > Create message > Text message.
2. Enter a message. See “Write text,” p. 22. To insert text templates or a
picture into the message, see “Templates,” p. 27. Each picture
message comprises several text messages. Sending one picture or
multipart message may cost more than sending one text message.
3. To send the message, select Send > Recently used, To phone number,
To many, or To e-mail address. To send a message using a predefined
message profile, select Via sending profile. For the message profile,
see “Text and SMS e-mail,” p. 40. Select or enter a phone number or
e-mail address, or select a profile.
Read and reply to a SMS message
is shown when you received an SMS message or an SMS e-mail. The
blinking indicates that the message memory is full. Before you can
receive new messages, delete some of your old messages in the Inbox
folder.
1. To view a new message, select Show. To view it later, select Exit.
To read the message later, select Menu > Messages > Inbox. If more
than one message is received, select the message that you want to
read. indicates an unread message.
2. While reading a message, select Options and delete or forward the
message; edit the message as a text message or an SMS e-mail,
rename the message you are reading or move it to another folder; or
view or extract message details. You can also copy text from the
beginning of the message to your phone calendar as a reminder note.
To save the picture in the Templates folder when reading a picture
message, select Save picture.
3. To reply as a message, select Reply > Text message, Multimedia msg.
or Flash message. Enter the reply message. When replying to an
e-mail, first confirm or edit the e-mail address and subject.
4. To send the message to the displayed number, select Send > OK.
Messages
27
Templates
Your phone has text templates and picture templates that you
can use in text, picture, or SMS e-mail messages.
To access the template list, select Menu > Messages > Saved items >
Text messages > Templates.
■Multimedia messages (MMS)
A multimedia message can contain text, sound, a picture, a calendar
note, a business card, or a video clip. If the message is too large, the
phone may not be able to receive it. Some networks allow text messages
that include an Internet address where you can view the multimedia
message.
You cannot receive multimedia messages during a call, a game, another
Java application, or an active browsing session over GSM data. Because
delivery of multimedia messages can fail for various reasons, do not rely
solely upon them for essential communications.
Write and send a multimedia message
To set the settings for multimedia messaging, see “Multimedia,” p. 40.
To check availability and to subscribe to the multimedia messaging
service, contact your service provider.
1. Select Menu > Messages > Create message > Multimedia msg..
2. Enter a message. See “Write text,” p. 22.
To insert a file, select Options > Insert and from the following
options:
Image, Sound clip or Video clip — to insert a file from Gallery
New image opens the Camera — to take a new image to be added to
the message
New sound clip opens the Recorder — to make a new record to be
added to the message
Business card or Calendar note — to insert a business card or a
calendar note in the message.
Messages
28
Slide — to insert a slide to the message. Your phone supports
multimedia messages that contain several pages (slides). Each slide
can contain text, one image, a calendar note, a business card, and
one sound clip. To open a desired slide if the message contains
several slides, select Options > Previous slide, Next slide, or Slide list.
To set the interval between the slides, select Options > Slide timing.
To move the text component to the top or bottom of the message,
select Options > Place text first or Place text last.
The following options may also be available: Delete to delete an
image, slide, or sound clip from the message, Clear text, Preview, or
Save message. In More options the following options may be
available: Insert contact, Insert number, Message details, and Edit
subject.
3. To send the message, select Send > Recently used, To phone number,
To e-mail address, or To many.
4. Select the contact from the list, or enter the recipient’s phone
number or e-mail address, or search for it in Contacts. Select OK. The
message is moved to the Outbox folder for sending.
While the multimedia message is being sent, the animated indicator
is displayed and you can use other functions on the phone. If the
sending fails, the phone tries to resend it a few times. If this fails, the
message remains in the Outbox folder, and you can try to resend it
later.
If you select Save sent messages > Yes, the sent message is saved in
the Sent items folder. See “Multimedia,” p. 40. When the message is
sent, it is not an indication that the message has been received at the
intended destination.
Copyright protections may prevent some images, ringing tones, and other
content from being copied, modified, transferred or forwarded.
Messages
29
Read and reply to a multimedia message
The default setting of the multimedia message service is generally on.
Important: Exercise caution when opening messages. Multimedia
message objects may contain malicious software or otherwise be
harmful to your device or PC.
When your phone receives a multimedia message, the animated is
displayed. When the message has been received, and the text
Multimedia message received are shown.
1. To read the message, select Show. To view it later, select Exit.
To read the message later, select Menu > Messages > Inbox. In the
list of messages, indicates an unread message. Select the
message that you want to view.
2. The function of the middle selection key changes according to the
currently displayed attachment in the message.
To view the whole message if the received message contains a
presentation, a sound clip, or view a video clip, select Play.
To zoom in on an image, select Zoom. To view a business card or
calendar note or to open a theme object, select Open.
3. To reply to the message, select Options > Reply > Text message,
Multimedia msg., or Flash message. Enter the reply message, and
select Send. You can send the reply message only to the person who
sent you the original message.
Select Options to access available options.
■Memory full
When you have received a new text message and the message memory
is full, blinks and Text msgs. memory full. Delete msgs. is shown.
Select No, and delete some messages from a folder. To discard the
waiting message, select Exit > Yes.
When you have a new multimedia message waiting and the memory for
the messages is full, blinks and Multimedia memory full. View
waiting msg. is shown. To view the waiting message, select Show.
Messages
30
Before you can save the waiting message, delete old messages to free
memory space. To save the message, select Save.
To discard the waiting message, select Exit > Yes. If you select No, you
can view the message.
■Folders
The phone saves received text and multimedia messages in the Inbox
folder.
Multimedia messages that have not yet been sent are moved to the
Outbox folder.
If you have selected Message settings > Text messages > Save sent
messages > Yes, and Message settings > Multimedia msgs. > Save sent
messages > Yes, the sent messages are saved in the Sent items folder.
To save the text message that you are writing and wish to send later in
the Saved items folder, select Options > Save message > Saved text
msgs.. For multimedia messages, select the option Save message.
indicates unsent messages.
To organize your text messages, you can move some of them to My
folders or add new folders for your messages. Select Messages > Saved
items > Text messages > My folders.
To add a folder, select Options > Add folder. If you have not saved any
folders, select Add.
To delete or rename a folder, scroll to the desired folder, and select
Options > Delete folder or Rename folder.
■Postcards
With the postcard messaging service you can create and send post cards
that may contain an image and a greeting text. The postcard is sent to
the service provider via multimedia messaging. The service provider
prints the post card and send it to the postal address given with the
message. Multimedia messaging service must be activated before this
service can be used.
Messages
31
Before you can use the postcard service you must subscribe to the service. To
check the availability, and costs, and to subscribe to the service, contact your
network operator or service provider.
Send a postcard
Select Menu > Messages > Create message > Postcard. Scroll to the
editor fields, and select Write to enter the name and the postal address
of the recipient; then write your greeting text. Select Insert > Open
Gallery to insert an image from Gallery or New image to insert a recent
photo. Select Options to see the options available. To send the postcard,
select the graphical key, or select Options > Send.
■Flash messages
Flash messages are text messages that are instantly displayed upon
reception.
Write a flash message
Select Menu > Messages > Create message > Flash message. Write your
message. The maximum length of a flash message is 70 characters. To
insert a blinking text into the message, select Insert blink char. from the
options list to set a marker. The text after the marker blinks until a
second marker is inserted.
Receive a flash message
A received flash message is not automatically saved. To read the
message, select Read. To extract phone numbers, e-mail addresses, and
Web site addresses from the current message, select Options > Use
detail. To save the message, select Save and the folder in which you
want to save the message.
■Nokia Xpress audio messaging
With this menu, use the multimedia message service to create and send
a voice message in a convenient way. Multimedia messaging service
must be activated before this service can be used.
Messages
32
Create and send an audio message
1. Select Menu > Messages > Create message > Audio message. The
recorder opens. To use the recorder, see “Recorder,” p. 64.
2. When the message is ready to send, select Options > Play to check
the message before sending, Replace sound clip to repeat the
recording, Save message, Save sound clip to save the recording in
Gallery, Edit subject to insert a subject to the message, Message
details to view the message details, or Loudspeaker or Handset.
3. To send the message, select Send > Recently used, To phone number,
To e-mail address, or To many. Depending on your operator, more
options may be available.
4. Select the contact from the list, enter the recipient’s phone number
or e-mail address, or search for it in Contacts. Select OK, and the
message is moved to the Outbox folder for sending.
Receive an audio message
When your phone is receiving an audio message, 1 audio message
received is shown. Select Play to open the message or select Show >
Play if there are more than one message received. Select Options to see
the options available. To listen to the message later, select Exit.
To save the message, select Options > Save and the folder in which you
want to save the message.
■Instant messaging (IM)
Instant messaging (network service) is a way to send short, simple text
messages to online users.
Before you can use instant messaging, you must subscribe to the
service. To check the availability and costs, and to subscribe to the
service, contact your network operator or service provider, from whom
you also receive your unique ID, password, and settings.
To set the required settings for the instant messaging service, see
Connect. settings in “Access the instant messaging menu,” p. 33. The
Messages
33
icons and texts on the display may vary, depending on the instant
messaging service.
Depending on the network, the active instant messaging conversation
may consume the phone battery faster, and you may need to connect
the phone to a charger.
Access the instant messaging menu
To access the menu while still offline, select Menu > Messages >
Instant messages. If more than one set of connection settings for the
instant messaging service is available, select the desired one. If there is
only one set defined, it is selected automatically.
The following options are shown:
Login — to connect to the instant messaging service
Saved convers. — to view, erase or rename the instant messaging
conversations that you have saved during the instant messaging session
Connect. settings — to edit the settings needed for messaging and
presence connection
Connect to the instant messaging service
To connect to the instant messaging service, enter the Instant messages
menu, activate an instant messaging service, and select Login. When the
phone has successfully connected, Logged in is displayed.
To disconnect from the instant messaging service, select Logout.
Start an instant messaging session
Open the Instant messages menu, and connect to the service. Start the
service in different ways.
•Select Conversations to view the list of new and read instant
messages or invitations for instant messaging during the active
instant messaging session. Scroll to the message or invitation that
you want, and select Open to read the message.
indicates the new and read group messages. indicates
the new and the read instant messages.
Messages
34
indicates the invitations.
The icons and texts on the display may vary, depending on the
instant messaging service.
•IM contacts ito view the contacts that you have added. Scroll to the
contact with whom you would like to chat and select Chat or Open if
a new contact is shown in the list. To add contacts see “Contacts for
instant messaging,” p. 36.
indicates the online and the offline contacts in the phone
contacts memory. indicates a blocked contact. indicates a
contact that has been sent a new message.
•Groups > Public groups to display the list of bookmarks to public
groups provided by the network operator or service provider. To start
a instant messaging session with a group, scroll to a group, and
select Join. Enter your screen name that you want to use in the
conversation. When you have successfully joined the group
conversation, you can start a group conversation. To create a private
group, see “Groups,” p. 36.
•Search > Users or Groups to search for other instant messaging users
or public groups on the network by phone number, screen name,
e-mail address, or name. If you select Groups, you can search for a
group by a member in the group or by group name, topic, or ID.
To start the conversation when you have found the user or the group
that you want, select Options > Chat or Join group.
Start a conversation from Contacts, see “View the subscribed
names,” p. 46.
Accept or reject an invitation
In the standby mode, when you are connected to the instant messaging
service and you receive a new invitation, New invitation received is
displayed. To read it, select Read. If more than one invitation is received,
scroll to the invitation you want, and select Open. To join the private
group conversation, select Accept, and enter the screen name; or to
reject or delete the invitation, select Options > Reject or Delete.
Messages
35
Read a received instant message
In the standby mode, when you are connected to the instant messaging
service, and you receive a new message that is not a message associated
with an active conversation, New instant message is displayed. To read
it, select Read. If you receive more than one message, scroll to the
message, and select Open.
New messages received during an active conversation are held in
Instant messages > Conversations. If you receive a message from
someone who is not in IM contacts, the sender ID is displayed. To save a
new contact that is not in the phone memory, select Options > Save
contact.
Participate in a conversation
To join or start an instant messaging session, select Write. Write your
message, and select Send or press the call key to send it. Select
Optionsto access available options: View conversation, Save contact,
Group members, Block contact, End conversation.
Edit your availability status
1. Open the Instant messages menu, and connect to the instant
messaging service.
2. To view and edit your own availability information, or screen name,
select My settings.
3. To allow all the other instant messaging users to see you when you
are online, select Availability > Available for all.
To allow only the contacts on your instant messaging contact list to
see you when you are online, select Availability > Avail. for contacts.
To appear as being offline, select Availability > Appear offline.
When you are connected to the instant messaging service, indicates
that you are online, and indicates that you are not visible to others.
Messages
36
Contacts for instant messaging
To add contacts to the instant messaging contacts list, connect to the
instant messaging service, and select IM contacts. To add a contact to
the list, select Options > Add contact, or if you have no contacts added,
select Add. Select Enter ID manually, Search from serv., Copy from server,
or By mobile number.
Scroll to a contact, and to start a conversation, select Chat or Options >
Contact info, Block contact or Unblock contact, Add contact, Remove
contact, Change list, Copy to server, or Availability alerts.
Block and unblock messages
To block messages, connect to the instant messaging service, and select
Conversations > IM contacts; or join or start a conversation. Scroll to
the contact from whom you want to block incoming messages, select
Options > Block contact > OK.
To unblock the messages, connect to the instant messaging service, and
select Blocked list. Scroll to the contact from whom you want to unblock
the messages, and select Unblock.
Groups
You can create your own private groups for an instant messaging
conversation, or use the public groups provided by the service provider.
The private groups exist only during an instant messaging conversation.
The groups are saved on the server of the service provider. If the server
you are logged on to does not support group services, all group-related
menus are dimmed.
Public groups
Groups — You can bookmark public groups that your service provider
may maintain. Connect to the instant messaging service, and select
Public groups. Scroll to a group with which you want to chat, and select
Join. If you are not in the group, enter your screen name as your
nickname for the group. To delete a group from your group list, select
Options > Delete group.
Messages
37
To search for a group, select Groups > Public groups > Search groups.
You can search for a group by a member in the group, by group name,
topic, or ID.
Create a private group
Connect to the instant messaging service, and select Groups > Create
group. Enter the name for the group and the screen name that you want
to use. Mark the private group members in the contacts list, and write
an invitation.
■E-mail application
The e-mail application allows you to access your compatible e-mail
account from your phone when you are not in the office or at home. This
e-mail application is different from the SMS and MMS e-mail function.
Your phone supports POP3 and IMAP4 e-mail servers. Before you can
send and retrieve any e-mail, you may need to do the following:
• Obtain a new e-mail account or use the current one. For availability
of your e-mail account contact your e-mail service provider.
• For the settings required for e-mail, contact your e-mail service
provider. You may receive the e-mail configuration settings as a
configuration message. See “Configuration settings service,” p. 11.
You can also enter the settings manually. See “Configuration,” p. 58.
To activate the e-mail settings, select Menu > Messages > Message
settings > E-mail messages. See “E-mail,” p. 41.
This application does not support keypad tones.
Write and send an e-mail
1. Select Menu > Messages > E-mail > Create e-mail.
2. Enter the recipient’s e-mail address, a subject, and the e-mail
message.
To attach a file to the e-mail, select Options > Attach and the file in
Gallery.
3. Select Send > Send now.
Messages
38
Download e-mail
1. To access the e-mail application, select Menu > Messages > E-mail.
2. To download e-mail messages that have been sent to your e-mail
account, select Retrieve.
To download new e-mail messages and to send e-mail that has been
saved in the Outbox folder, select Options > Retrieve and send.
To download first the headings of the new e-mail messages that
have been sent to your e-mail account, select Options > Check new
e-mail. Then, to download the selected e-mail, mark the desired
ones, and select Options > Retrieve.
3. Select the new message in Inbox. To view it later, select Back.
indicates an unread message.
Read and reply to e-mail
Important: Excercise caution when opening messages. E-mail
messages may contain malicious software or otherwise be harmful to
your device or PC.
Select Menu > Messages > E-mail > Inbox and select the desired
message. While reading the message, select Options to view the
available options.
To reply to an e-mail, select Reply > Original text or Empty screen. To
reply to many, select Options > Reply to all. Confirm or edit the e-mail
address and subject; then write your reply. To send the message, select
Send > Send now.
Inbox and other folders
Your phone saves e-mail that you have downloaded from your e-mail
account in Inbox folder. Other folders contains the following folders:
Drafts for saving unfinished e-mail, Archive for organizing and saving
your e-mail, Outbox for saving e-mail that has not been sent, and Sent
items for saving e-mail that has been sent.
To manage the folders and their e-mail content, select Options >
Manage folder.
Messages
39
Delete e-mail messages
Select Menu > Messages > E-mail > Options > Manage folder and the
desired folder. Mark the messages that you want to delete. To delete
them, select Options > Delete.
Deleting an e-mail from your phone does not delete it from the e-mail
server. To set the phone to delete the e-mail also from the e-mail server,
select Menu > Messages > E-mail > Options > Extra settings > Leave
copy: > Delete retr. msgs.
■Voice messages
The voice mailbox is a network service and you may need to subscribe to
it. For details, contact your service provider.
To call your voice mailbox, select Menu > Messages > Voice messages >
Listen to voice messages. To enter, search for, or edit your voice mailbox
number, select Voice mailbox number.
If supported by the network, indicates that there are new voice
messages. Select Listen to call your voice mailbox number.
■Info messages
Select Menu > Messages > Info messages. With the Info messages
network service, you can receive messages on various topics from your
service provider. To check availability, topics, and the relevant topic
numbers, contact your service provider.
■Service commands
Select Menu > Messages > Service commands. Write and send service
requests (also known as USSD commands) to your service provider, such
as activation commands for network services.
■Delete messages
To delete all messages from a folder, select Menu > Messages > Delete
messages and the folder from which you want to delete the messages.
Messages
40
Select Yes, and if the folder contains unread messages, the phone asks
whether you want to delete them also. Select Yes again.
■Message settings
Text and SMS e-mail
The message settings affect the sending, receiving, and viewing of
messages.
Select Menu > Messages > Message settings > Text messages, and from
the following options:
Sending profile — If more than one message profile set is supported by
your SIM card, select the set you want to change.
The following options may be available: Message centre number
(delivered from your service provider), Messages sent via, Message
validity, Default recipient number (text messages) or E-mail server
(e-mail), Delivery reports, Use packet data, Reply via same centre
(network service) and Rename sending profile.
Save sent messages > Yes — Set the phone to save the sent text
messages in the Sent items folder.
Automatic resending > On — The phone automatically attempts to
resend a text message, if the sending has failed.
Multimedia
The message settings affect the sending, receiving, and viewing of
multimedia messages.
Select Menu > Messages > Message settings > Multimedia msgs. and
from the following options:
Save sent messages > Yes — to set the phone to save sent multimedia
messages in the Sent items folder
Delivery reports — to ask the network to send delivery reports about your
messages (network service)
Scale image down — to define the image size when you insert an image
to a multimedia message
Messages
41
Default slide timing — to define the default time between slides in
multimedia messages
Allow multimedia reception > Yes or No — to receive or to block the
multimedia message. If you select In home network, you cannot receive
multimedia messages when outside your home network.
Incoming multimedia messages > Retrieve, Retrieve manually, or Reject
— to allow the reception of multimedia messages automatically,
manually after being prompted, or to reject the reception
Configuration settings > Configuration — Only the configurations that
support multimedia messaging are shown. Select a service provider,
Default, or Personal config. for multimedia messaging. Select Account
and select a multimedia messaging service account contained in the
active configuration settings.
Allow adverts — to receive or reject advertisements. This setting is not
shown if Allow multimedia reception is set to No.
E-mail
The settings affect the sending, receiving, and viewing of e-mail.
You may receive the configuration settings for the e-mail application as
a configuration message. See “Configuration settings service,” p. 11.
You can also enter the settings manually. See “Configuration,” p. 58.
To activate the settings for the e-mail application, select Menu >
Messages > Message settings > E-mail messages and from the
following options:
Configuration — Select the set that you would like to activate.
Account — Select an account provided by the service provider.
My name — Enter your name or nickname.
E-mail address — Enter e-mail address.
Include signature — You can define a signature that is automatically
added to the end of your e-mail when you write your message.
Reply-to address — Enter the e-mail address to which you want the
replies to be sent.
Messages
42
SMTP user name — Enter the name that you want to use for outgoing
mail.
SMTP password — Enter the password that you want to use for outgoing
mail.
Display terminal window — Select Yes to perform manual user
authentication for intranet connections.
Incoming server type — Select either POP3 or IMAP4, depending on the
type of e-mail system that you are using. If both types are supported,
select IMAP4.
Incoming mail settings — Select available options for POP3 or IMAP4.
Other settings
To select other settings for messages, select Menu > Messages >
Message settings > Other settings. To change the font size for reading
and writing messages, select Font size. To replace character-based
smileys with graphical ones select Graphical smileys > Yes.
■Message counter
Select Menu > Messages > Message counter for approximate
information on your recent communications.
Contacts
43
7. Contacts
You can save names and phone numbers (Contacts) in the
phone memory and in the SIM card memory.
The phone memory may save contacts with numbers and text items. You
can also save an image for a certain number of names.
Names and numbers saved in the SIM card memory, are indicated by
.
■Search for a contact
Select Menu > Contacts > Names > Options > Search. Scroll through
the list of contacts or enter the first letter of the name for which you are
searching.
■Save names and phone numbers
Names and numbers are saved in the used memory. Select Menu >
Contacts > Names > Options > Add new contact. Enter the name and
the phone number.
■Save numbers, items, or an image
In the phone memory for contacts, you can save different types of phone
numbers and short text items per name.
The first number you save is automatically set as the default number. It
is indicated with a frame around the number type indicator (for
example, ). When you select a name (for example, to make a call),
the default number is used unless you select another number.
1. Make sure that the memory in use is either Phone or Phone and SIM.
2. Scroll to the name to which you want to add a new number or text
item, and select Details > Options > Add detail.
3. To add a number, select Number and one of the number types.
To add another detail select a text type or an image from Gallery.
Contacts
44
To search for an ID from the server of your service provider if you
have connected to the presence service, select User ID > Search. See
“My presence,” p. 45. If only one ID is found, it is automatically
saved. Otherwise, to save the ID, select Options > Save. To enter the
ID, select Enter ID manually.
To change the number type, scroll to the desired number, and select
Options > Change type. To set the selected number as the default
number, select Set as default.
4. Enter the number or text item; to save it, select OK.
5. To return to the standby mode, select Back > Exit.
■Copy contacts
Search for the contact you want to copy, and select Options > Copy.
You can copy names and phone numbers from the phone contact
memory to the SIM card memory, or vice versa. The SIM card memory
can save names with one phone number attached to them.
■Edit contact details
1. Search for the contact you want to edit, select Details, and scroll to
the desired name, number, text item, or image.
2. To edit a name, number, or text item, or to change an image, select
Options > Edit name, Edit number, Edit detail, or Change image.
You cannot edit an ID when it is on the IM contacts or Subscribed
names list.
■Delete contacts or contact details
To delete all the contacts and the details attached to them from the
phone or SIM card memory, select Menu > Contacts > Delete all
contacts > From phone mem. or From SIM card. Confirm with the
security code.
To delete a contact, search for the desired contact, and select Options >
Delete contact.
Contacts
45
To delete a number, text item, or an image attached to the contact,
search for the contact, and select Details. Scroll to the desired detail,
and select Options > Delete > Delete number, Delete detail, or Delete
image. Deleting an image from contacts does not delete it from Gallery.
■Business cards
You can send and receive a person’s contact information from a
compatible device that supports the vCard standard as a business card.
To send a business card, search for the contact whose information you
want to send, and select Options > Send bus. card > Via multimedia, Via
text message, or Via infrared.
When you have received a business card, select Show > Save to save the
business card in the phone memory. To discard the business card, select
Exit > Yes.
■My presence
With the presence service (network service) you can share your presence
status with other users with compatible devices and access to the
service. Presence status includes your availability, status message, and
personal logo. Other users who have access to the service and who
request your information are able to see your status. The requested
information is shown in Subscribed names in the viewers’ Contacts
menu. You can personalize the information that you want to share with
others and control who can see your status.
Before you can use presence, you must subscribe to the service. To check
the availability, and costs, and to subscribe to the service, contact your
network operator or service provider, from whom you also receive your
unique ID, password, and the settings for the service. See
“Configuration,” p. 58.
While you are connected to the presence service, you can use the other
functions of the phone; the presence service is active in the background.
If you disconnect from the service, your presence status is shown for a
certain amount of time to viewers, depending on the service provider.
Contacts
46
Select Menu > Contacts > My presence and select from the following
options:
Connect to 'My presence' service or Disconnect from service — to
connect to or disconnect from the service.
View my presence — to view the status in Private pres. and Public
presence.
Edit my presence — to change your presence status. Select My
availability, My presence message, My presence logo, or Show to.
My viewers > Current viewers, Private list, or Blocked list
Settings > Show current presence in idle, Synchronise with profiles,
Connection type, or Presence settings
■Subscribed names
You can create a list of contacts whose presence status information you
want to be aware of. You can view the information if it is allowed by the
contacts and the network. To view these subscribed names, scroll
through the contacts or use the Subscribed names menu.
Make sure that the memory in use is either Phone or Phone and SIM.
To connect to the Presence service, select Menu > Contacts > My
presence > Connect to 'My presence' service.
Add contacts to the subscribed names
1. Select Menu > Contacts > Subscribed names.
2. If you have no contacts on your list, select Add. Otherwise, select
Options > Subscribe new. The list of your contacts is shown.
3. Select a contact from the list and if the contact has an user ID saved,
the contact is added to the subscribed names list.
View the subscribed names
To view the presence information, see “Search for a contact,” p. 43.
1. Select Menu > Contacts > Subscribed names.
Contacts
47
The status information of the first contact on the subscribed names
list is displayed. The information that the person wants to give to the
others may include text and some of the following icons:
, , or indicates that the person is available, discreet, or not
available.
indicates that the person’s presence information is not available.
2. Select Details to view the details of the selected contact; or select
Options > Subscribe new, Chat, Send message, Send bus. card, or
Unsubscribe.
Unsubscribe a contact
To unsubscribe a contact from the Contacts list, select the contact and
Details > the user ID > Options > Unsubscribe > OK.
To unsubscribe, use the Subscribed names menu. See “View the
subscribed names,” p. 46.
■Settings
Select Menu > Contacts > Settings and from the following options:
Memory in use — to select SIM card or phone memory for your contacts
Contacts view — to select how the names and numbers in contacts are
displayed
Memory status — to view the free and used memory capacity
■Groups
Select Menu > Contacts > Groups to arrange the names and phone
numbers saved in the memory into caller groups with different ringing
tones and group images.
Contacts
48
■Voice dialing
You can make a phone call by saying a voice tag that has been added to
a phone number. Any spoken words, such as a name, can be a voice tag.
The number of voice tags you can create is limited.
Before using voice tags, note that:
• Voice tags are not language-dependent. They are dependent on the speaker's
voice.
• You must say the name exactly as you said it when you recorded it.
• Voice tags are sensitive to background noise. Record voice tags and use them
in a quiet environment.
• Very short names are not accepted. Use long names and avoid similar names
for different numbers.
Note: Using voice tags may be difficult in a noisy environment or during
an emergency, so you should not rely solely upon voice dialling in all
circumstances.
Add and manage voice tags
Save or copy the contacts to the phone memory for which you want to
add a voice tag. You can also add voice tags to the names in the SIM
card, but if you replace your SIM card with a new one, you must first
delete the old voice tags before you can add new ones.
1. Search for the contact to which you want to add a voice tag.
2. Select Details, scroll to the desired phone number, and select
Options > Add voice tag.
3. Select Start, and say clearly the words you want to record as a voice
tag. After recording, the phone plays the recorded tag.
appears behind the phone number with a voice tag in Contacts.
To check the voice tags, select Menu > Contacts > Voice tags. Scroll to
the contact with the voice tag that you want, and select an option to
listen to, delete, or change the recorded voice tag.
Contacts
49
Make a call with a voice tag
If the phone has an application running that is sending or receiving data
using a GPRS connection, you must end the application before voice
dialing.
1. In the standby mode, press and hold the volume down key. A short
tone is heard, and Speak now is displayed.
2. Say the voice tag clearly. The phone plays the recognized voice tag,
and dials the phone number of the voice tag after 1.5 seconds.
If you are using a compatible headset with the headset key, press and
hold the headset key to start the voice dialing.
■Speed dials
To assign a number to a speed-dialing key, select Menu > Contacts >
Speed dials, and scroll to the speed-dialing number that you want.
Select Assign, or if a number has already been assigned to the key, select
Options > Change. Select Search, the name, then the number you want
to assign. If the Speed dialling function is off, the phone asks whether
you want to activate it. See also Speed dialling in “Call,” p. 54.
To make a call using the speed-dialing keys, see “Speed dialing,” p. 20.
■Info, service, and my numbers
Select Menu > Contacts and from the following functions:
Info numbers — to call the information numbers of your service provider
if the numbers are included on your SIM card (network service)
Service numbers — to call the service numbers of your service provider if
the numbers are included on your SIM card (network service)
My numbers — to view the phone numbers assigned to your SIM card, if
the numbers are included on your SIM card
Call register
50
8. Call register
The phone registers the phone numbers of identified
missed, received, and dialed calls; the message recipients; and the
approximate length of your calls.
The phone registers if it is switched on and within the network’s service
area, and the network supports these functions.
■Recent calls lists
When you select Options in the Missed calls, Received calls, Dialled
numbers, or Message Recipients menu, you can view the time of the
call; edit, view, or call the registered phone number; add it to the
memory; or delete it from the list. You can also send a text message. To
delete the recent calls lists, select Delete recent calls.
■Counters and timers
Note: The actual invoice for calls and services from your service
provider may vary, depending upon network features, rounding-off for
billing, taxes and so forth.
Some timers, including the life timer, may be reset during service or
software upgrades.
Select Menu > Call register > Call duration, Packet data counter, or
Packet data conn. timer for approximate information on your recent
communications.
Settings
51
9. Settings
■Profiles
Your phone has various setting groups, called profiles, for which you can
customize the phone tones for different events and environments.
Select Menu > Settings > Profiles. Scroll to a profile, and select it.
To activate the selected profile, select Activate.
To set the profile to be active until a certain time up to 24 hours, select
Timed and set the time the profile setting shall end. When the time set
for the profile expires, the previous profile that was not timed, becomes
active.
To personalize the profile, select Personalise. Select the setting you want
to change, and make the changes. To change your presence status
information, select My presence > My availability or My presence
message. The My presence menu is available if you set Synchronise with
profiles to On. See “My presence,” p. 45.
■Themes
A theme contains many elements for personalizing your phone, such as
wallpaper, screen saver, color scheme, and a ringing tone.
Select Menu > Settings > Themes and select from the following
options:
Select theme — to set a theme in your phone. A list of folders in Gallery
opens. Open the Themes folder, and select a theme.
Theme downloads — to open a list of links to download more themes.
See “Download files,” p. 86.
■Tones
You can change the settings of the selected active profile.
Select Menu > Settings > Tones. Select and change Incoming call alert,
Ringing tone, Ringing volume, Vibrating alert, Push to talk settings,
Settings
52
Message alert tone, Instant message alert tone, Keypad tones, and
Warning tones. You can find the same settings in the Profiles menu. See
“Profiles,” p. 51.
To set the phone to ring only for calls from phone numbers that belong
to a selected caller group, select Alert for. Scroll to the caller group you
want or All calls, and select Mark.
■My shortcuts
With personal shortcuts, you get quick access to often used functions of
the phone. To manage the shortcuts, select Menu > Settings > My
shortcuts and from the following options:
Right selection key — to select a function from the list for the right
selection key. See also “Standby mode,” p. 17. This menu may not be
shown, depending on your service provider.
Navigation key — to select shortcut functions for the navigation key.
Scroll to the desired navigation key, select Change and a function from
the list. To remove a shortcut function from the key, select (empty). To
reassign a function for the key, select Assign. This menu may not be
shown, depending on your service provider.
Voice commands — to activate phone functions by saying a voice tag.
Select a folder, scroll to a function to which you want to add a voice tag,
and select Add. indicates a voice tag. To add a voice command, see
“Add and manage voice tags,” p. 48. To activate a voice command, see
“Make a call with a voice tag,” p. 49.
■Main display
Select Menu > Settings > Main display and from the following options:
Wallpaper — to add the background image to the main display in
standby mode. To select, activate, or deactivate the wallpaper, select
Select wallpaper > On or Off. Select Select slide set and a folder in the
Gallery to use the images in the folder as a slide set. To download more
images for wallpaper, select Graphic downloads.
Screen saver > On — to activate the screen saver for the main display. To
set the time after which the screen saver is activated, select Time-out.
Settings
53
To select a graphic for the screen saver, select Image and choose an
image or a graphic from the Gallery. Select Select slide set and a folder
in the Gallery to use the images in the folder as a slide set. To download
more images for the screen saver, select Graphic downloads.
Power saver > On — to save some battery power. A digital clock is
displayed when no function of the phone is used for a certain time.
Colour schemes — to change the color in some display components, for
example, menu background color and signal and battery bar colors.
Idle state font colour — to select the color for the texts on the display in
the standby mode.
Operator logo — to set your phone to display or hide the operator logo.
The menu is dimmed, if you have not saved the operator logo. For more
information on availability of an operator logo, contact your network
operator or service provider.
■Mini display
Select Menu > Settings > Mini display settings. You can change the
settings for Wallpaper, Screen saver, Power saver, and Colour schemes.
■Time and date
Select Menu > Settings > Time and date and from the following
options:
Clock — to set the phone to show the clock in the standby mode, adjust
the clock, and select the time zone and the time format
Date — to set the phone to show the date in the standby mode, set the
date, and select the date format and date separator
Auto-update of date & time (network service) — to set the phone to
automatically update the time and date according to the current time
zone
Settings
54
■Call
Select Menu > Settings > Call and from the following options:
Automatic volume control — to set the phone to automatically adjust
the speaker volume according to the background noise
Call divert (network service) — to divert your incoming calls. You may
not be able to divert your call, if some call barring functions are active.
See Call barring service in “Security,” p. 59.
Anykey answer > On — to answer an incoming call, briefly press any key,
except the end key and the left and right selection keys.
Answer when fold is opened > On — to answer an incoming call, open
the phone.
Automatic redial > On — to set your phone to make a maximum of 10
attempts to connect the call after an unsuccessful call attempt
Speed dialling > On — to activate speed dialling. To set up speed dialling,
see ’“Speed dials,”’ p. 49. To dial, press and hold the corresponding
number key.
Call waiting > Activate — to set the network to notify you of an
incoming call while you have a call in progress (network service). See
“Call waiting,” p. 21.
Summary after call > On — to briefly display the approximate duration
and cost (network service) of the call after each call
Send my caller ID (network service) > Yes, No, or Set by network
Line for outgoing calls (network service) — to select the phone line 1 or 2
to make calls, if supported by your SIM card
■Phone
Select Menu > Settings > Phone and from the following options:
Phone language — to set the display and writing language
Memory status — to view the free memory and the used memory in
Gallery, Messages, and Applications
Automatic keyguard — to set the keypad of your phone to lock
automatically after a preset time delay when the phone is in the standby
Settings
55
mode and no function of the phone has been used. Select On, and you
can set the time from 5 seconds to 60 minutes.
Security keyguard — to set the phone to ask for the security code when
you unlock the keyguard. Enter the security code, and select On.
When the keyguard is on, calls still may be possible to the official emergency
number programmed into your device.
Cell info display > On — to receive information from the network
operator depending on the network cell used (network service)
Welcome note — to enter a welcome note to be shown briefly when the
phone is switched on
Operator selection > Automatic — to set the phone automatically to
select one of the cellular networks available in your area. With Manual,
you can select a network that has a roaming agreement with your home
network operator.
Confirm SIM service actions — see “SIM services,” p. 91.
Help text activation — to select whether the phone shows help texts
Start-up tone — to select whether the phone plays a start-up tone when
the phone is switched on
■Connectivity
You can connect your phone to compatible devices using an infrared
connection. You can also define the settings for packet data dial-up
connections.
Infrared
You can set up the phone to send and receive data through its infrared
(IR) port. To use an IR connection, the device with which you want to
establish a connection must be IrDA compliant. You can send or receive
data to or from a compatible phone or data device (for example, a
computer) through the IR port of your phone.
Do not point the IR (infrared) beam at anyone's eyes or allow it to interfere with
other IR devices. Infrared devices are Class 1 laser products.
Settings
56
When sending or receiving data, ensure that the IR ports of the sending
and receiving devices are pointing at each other and that there are no
obstructions between the devices.
To activate the IR port of your phone to receive data using IR, select
Menu > Settings > Connectivity > Infrared.
To deactivate the IR connection, select Menu > Settings >
Connectivity > Infrared. When the phone displays Deactivate infrared?,
select Yes.
If data transfer is not started within 2 minutes after the activation of
the IR port, the connection is cancelled and must be started again.
IR connection indicator
When is shown continuously, the IR connection is activated, and
your phone is ready to send or receive data through its IR port.
When blinks, your phone is trying to connect to the other device, or
a connection has been lost.
Packet data (EGPRS)
Enhanced general packet radio service (EGPRS), packet data, is a
network service which allows mobile phones to send and receive data
over an Internet protocol (IP)-based network. It enables wireless access
to data networks such as the Internet.
The applications that may use packet data are MMS, browsing sessions,
e-mail, remote SyncML, Java application downloading, and the PC
dial-up.
To define how to use the service, select Menu > Settings >
Connectivity > Packet data > Packet data connection.
Select When needed to set the packet data connection to be established
when an application needs it. The connection will be closed when the
application is terminated.
Select Always online to set the phone to automatically connect to an
packet data network when it is switched on.
indicates a packet data connection.
Settings
57
Modem settings
You can connect the phone using an IR or a data cable (CA-42)
connection to a compatible PC, and use the phone as a modem to enable
packet data connectivity from the PC.
To define the settings for connections from the PC, select Menu >
Settings > Connectivity > Packet data > Packet data settings > Active
access point, activate the access point you want to use, and select Edit
active access point. Select Alias for access point, and enter a nick name
for the currently selected access point. Select Packet data access point,
and enter the access point name (APN) to establish a connection to an
EGPRS network.
You can also set the dial-up service settings (access point name) on your
PC using the Nokia Modem Options software. See “PC Suite,” p. 92. If
you have set the settings both on the PC and on your phone, the PC
settings are used.
■Enhancements
This menu is shown only if the phone is or has been connected to a
compatible mobile enhancement.
Select Menu > Settings > Enhancements. You can select an
enhancement menu if the corresponding enhancement is, or has been,
connected to the phone. Depending on the enhancement, select from
the following options:
Default profile — to select the profile that you want to be automatically
activated when you connect to the selected enhancement
Automatic answer — to set the phone to answer an incoming call
automatically after 5 seconds. If Incoming call alert is set to Beep once
or Off, automatic answer is off.
Lights — to set the lights permanently On. Select Automatic to set the
lights on for 15 seconds after a key press
Text phone > Use text phone > Yes — to use the text phone settings
instead of headset or loopset settings
Settings
58
■Configuration
You can configure your phone with settings that are required for certain
services to function correctly. The services are browser, multimedia
messaging, remote Internet server synchronization, presence, and
e-mail application. Get the settings from your SIM card, from a service
provider as a configuration message, or enter your personal settings
manually. You can store configuration settings from up to 20 service
providers in the phone and manage them within this menu.
To save the configuration settings received by a configuration message
from a service provider, see “Configuration settings service,” p. 11.
Select Menu > Settings > Configuration and from the following
options:
Default configuration settings — to view the service providers saved in
the phone. Scroll to a service provider, and select Details to view the
applications that the configuration settings of this service provider
support. To set the configuration settings of the service provider as
default settings, select Options > Set as default. To delete configuration
settings, select Delete.
Activate default in all applications — to activate the default
configuration settings for supported applications
Preferred access point — to view the saved access points. Scroll to an
access point, and select Options > Details to view the name of the
service provider, data bearer, and packet data access point or GSM
dial-up number.
Connect to service provider support — to download the configuration
settings from your service provider
Personal configuration settings — to add new personal accounts for
various services manually, and to activate or delete them. To add a new
personal account if you have not added any, select Add new; otherwise,
select Options > Add new. Select the service type, and select and enter
each of the required parameters. The parameters differ according to the
selected service type. To delete or activate a personal account, scroll to
it, and select Options > Delete or Activate.
Settings
59
■Security
When security features that restrict calls are in use (such as call barring, closed
user group and fixed dialing) calls still may be possible to the official emergency
number programmed into your device.
Select Menu > Settings > Security and from the following options:
PIN code request — to set the phone to ask for your PIN or UPIN code
every time the phone is switched on. Some SIM cards do not allow the
code request to be turned off.
Call barring service (network service) — to restrict incoming calls to and
outgoing calls from your phone. A barring password is required.
Fixed dialling — to restrict your outgoing calls to selected phone
numbers if this function is supported by your SIM card
Closed user group (network service) — to specify a group of people
whom you can call and who can call you
Security level > Phone — the phone asks for the security code whenever
a new SIM card is inserted into the phone. Select Memory and the phone
asks for the security code when SIM card memory is selected and you
want to change the memory in use.
Access codes — to set the PIN code or UPIN code in use, or to change the
security code, PIN code, UPIN code, PIN2 code, and barring password
Code in use — to select whether the PIN code or UPIN code should be
active
Pin2 code request — to select whether PIN2 code is required when using
a specific phone feature which is covered by the PIN2 code
■Restore factory settings
To reset some of the menu settings to their original values, select
Menu > Settings > Restore factory sett.. Enter the security code. The
data you have entered or downloaded are not deleted, for example, the
names and phone numbers saved in Contacts.
Operator menu
60
10. Operator menu
This menu lets you access a portal to services provided by your network
operator. The name and the icon depend on the operator. For more
information contact your network operator. If this menu is not shown
the following menu numbers change accordingly.
The operator can update this menu with a service message. For more
information, see “Service inbox,” p. 86.
Gallery
61
11. Gallery
In this menu you can manage graphics, images, recordings,
video clips, themes, and tones. These files are arranged in folders.
Your phone supports an activation key system to protect acquired
content. Always check the delivery terms of any content and activation
key before acquiring them, as they may be subject to a fee.
Copyright protections may prevent some images, ringing tones, and other
content from being copied, modified, transferred, or forwarded.
The files stored in Gallery use a memory that may have a capacity of
approximately 3 MB.
1. Select Menu > Gallery.
2. Scroll to the desired folder. To view a list of files in the folder, select
Open > Options and one of the available options.
3. Scroll to the file you want to view, and select Open > Options and
one of the available functions.
Send — to send the selected file using MMS or IR
Delete all — to delete all the files and folders in the selected folder
Edit image — to insert text, a frame or clip-art into the selected
picture, or to crop the image
Open in sequence — to view the files in the folder one by one
Zoom — to increase the size of the image
Mute audio (Unmute audio) — to mute (unmute) the sound file
Set contrast — to adjust the contrast level of the image
Activate content — to update the activation key of the selected file.
The option is only shown if the activation key updating is supported
by the file.
Activation key list — to view the list of all available activation keys.
You can delete the activation keys (for example, delete the expired
ones).
Media
62
12. Media
Copyright protections may prevent some images, ringing tones,
and other content from being copied, modified, transferred or forwarded.
■Camera
You can take photos or record video clips with the built-in camera. The
camera produces pictures in JPEG format and video clips in 3GP format.
When taking and using images or video clips, obey all laws and respect local
customs as well as privacy and legitimate rights of others.
Take a photo
Select Menu > Media > Camera > Capture or press the camera release
key. The phone saves the photo in Gallery > Images. To take another
photo, select Back; to send the photo as a multimedia message, select
Send. To view the options, select Options.
To take a self-portrait, close the fold and use the mini display as a view
finder. Press the camera release key.
Record a video clip
Select Menu > Media > Camera. To select the video mode, scroll left or
right, or select Options > Video; select Record or press the camera
release key. To pause the recording, select Pause; to resume the
recording, select Continue. To stop the recording, select Stop. The phone
saves the recording in Gallery > Video clips. To view the options, select
Options.
■Radio
The FM radio depends on an antenna other than the wireless devices antenna. A
compatible headset or enhancement needs to be attached to the device for the
FM radio to function properly.
Media
63
Warning: Listen to music at a moderate level. Continuous exposure to
high volume may damage your hearing. Do not hold the device near
your ear when the loudspeaker is in use, because the volume may be
extremely loud.
Select Menu > Media > Radio. To use the graphical keys , , ,
or on the display, scroll left or right to the desired key, and select it.
To change the volume, press the volume keys.
Save radio channels
1. To start the channel search, select and hold or . To change
the radio frequency in 0.05 MHz steps, briefly press or .
2. To save the channel to a memory location, 1 to 9, press and hold the
corresponding number key. To save the channel in the memory
location from 10 to 20, press briefly 1 or 2, and press and hold the
desired number key, 0 to 9.
3. Enter the name of the channel, and select OK.
Listen to the radio
Select Menu > Media > Radio. To scroll to the desired channel, select
or or press the headset key To select a radio channel location,
briefly press the corresponding number keys.
Select Options and from the following options:
Switch off — to turn off the radio
Save channel — to save a new channel, and enter the channels name
Channels — to select the list of saved channels. To delete or rename a
channel, scroll to the desired channel, and select Options > Delete
channel or Rename.
Mono output or Stereo output — to listen to the radio in monophonic
sound or in stereo
Loudspeaker or Headset — to listen to the radio using the loudspeaker or
headset. Keep the headset connected to the phone. The lead of the
headset functions as the radio antenna.
Set frequency — to enter the frequency of the desired radio channel
Media
64
You can normally make a call or answer an incoming call while listening
to the radio. During the call, the volume of the radio is muted.
When an application using a packet data or HSCSD connection is
sending or receiving data, it may interfere with the radio.
■Recorder
You can record pieces of speech, sound, or an active call for 5 minutes.
The recorder cannot be used when a data call or packet data connection is active.
Record sound
1. Select Menu > Media > Recorder.
To use the graphical keys, , , or , on the display, scroll left or
right to the desired key, and select it.
2. To start the recording, select . To start the recording during a call,
select Options > Record. While recording a call, all parties to the call
hear a faint beeping sound about every 5 seconds. When recording a
call, hold the phone in the normal position near to your ear.
3. To end the recording, select . The recording is saved in Gallery >
Recordings.
4. To listen to the latest recording, select Options > Play last recorded.
5. To send the last recording using a multimedia message or IR, select
Options > Send last recorded.
List of recordings
Select Menu > Media > Recorder > Options > Recordings list. The list of
folders in the Gallery is shown. Open Recordings to see the list with
recordings. Select Options to select options for files in the Gallery. See
“Gallery,” p. 61.
Organiser
65
13. Organiser
■Alarm clock
You can set the phone to alarm at a desired time. Select Menu >
Organiser > Alarm clock.
To set the alarm, select Alarm time, and enter the alarm time. To change
the alarm time when the alarm time is set, select On. To set the phone to
alert you on selected days of the week, select Repeat alarm.
To select the alarm tone or set a radio channel as the alarm tone, select
Alarm tone. If you select the radio as an alarm tone, connect the headset
to the phone. The phone uses the last channel you listened to as the
alarm, and the alarm plays through the loudspeaker. If you remove the
headset or switch off the phone, the default alarm tone replaces the
radio.
To set a snooze time-out, select Snooze time-out.
Stop the alarm
The phone sounds an alert tone, and flashes Alarm! and the current time
on the display, even if the phone was switched off. To stop the alarm,
select Stop or open the phone. If you let the phone continue to sound
the alarm for a minute or select Snooze, the alarm stops for the selected
snooze time-out and then resumes.
If the alarm time is reached while the device is switched off, the device switches
itself on and starts sounding the alarm tone. If you select Stop, the device asks
whether you want to activate the device for calls. Select No to switch off the
device or Yes to make and receive calls. Do not select Yes when wireless phone
use may cause interference or danger.
■Calendar
Select Menu >Organiser > Calendar.
The current day is indicated by a frame. If there are any notes set for the
day, the day is in bold type. To view the day notes, select View. To view a
Organiser
66
week, select Options > Week view. To delete all notes in the calendar,
select the month or week view, and select Options > Delete all notes.
Other options for the day view may be Make a note, Delete, Edit, Move,
or Repeat a note; Copy a note to another day; Send note as text message
or multimedia message, with IR, or to the calendar of another
compatible phone. In Settings you can set the date and time settings. In
Auto-delete notes you can set the phone to delete old notes
automatically after a specified time.
Make a calendar note
Select Menu > Organiser > Calendar. Scroll to the date you want, and
select Options > Make a note and one of the following note types:
Meeting, Call, Birthday, Memo, or Reminder.
A note alarm
The phone beeps and displays the note. With a call note on the
display, to call the displayed number, press the call key. To stop the
alarm and to view the note, select View. To stop the alarm for
approximately 10 minutes, select Snooze. To stop the alarm without
viewing the note, select Exit.
■To-do list
To save notes for tasks that you must do, select Menu > Organiser > To-
do list.
To create a note if no note is added, select Add note; otherwise, select
Options > Add. Write the note, and select Save. Select the priority, the
deadline, and the alarm type for the note.
To view a note, scroll to it, and select View.
You can also select an option to delete the selected note and delete all
the notes that you have marked as done. You can sort the notes by
priority or by deadline, send a note to another phone as a text message
or a multimedia message, save a note as a calendar note, or access the
calendar.
Organiser
67
While viewing a note, you can also select an option to edit the deadline
or priority for the note or mark the note as done.
■Notes
To use this application for writing and sending notes, select Menu >
Organiser > Notes. To create a note if no note is added, select Add note;
otherwise, select Options > Make a note. Write a note, and select Save.
Other options for notes include deleting, and editing a note. While
editing a note, you can also exit the text editor without saving the
changes. You can send the note to compatible devices using a text
message, a multimedia message, or IR. If the note is too long to send as
a text message, the phone asks you to delete the appropriate number of
characters from your note.
■Synchronization
Synchronization allows you to save your calendar and Contacts data on
a remote Internet server (network service) or on a compatible PC. If you
have saved data on the remote Internet server, to synchronize your
phone, start the synchronization from your phone. To synchronize the
data in the phone contacts, calendar, and notes to correspond with the
data of your compatible PC, start the synchronization from the PC. The
contact data in your SIM card is not synchronized.
Answering an incoming call during synchronization ends the
synchronization, and you must restart it.
Synchronize from your phone
Before synchronizing from your phone, you must do the following:
• Subscribe to a synchronization service. For details, contact your
service provider.
• Retrieve the synchronization settings from your service provider. See
“Synchronization settings,” p. 68.
To start the synchronization from your phone, do the following:
Organiser
68
1. Select the configuration settings you need for the synchronization.
See “Synchronization settings,” p. 68.
2. Select Menu > Organiser > Sync > Server sync > Data to be
synchronised. Mark the data to be synchronized.
3. Select Menu > Organiser > Sync > Server sync > Synchronise. The
marked data of the active set is synchronized after confirmation.
Synchronizing for the first time or after an interrupted synchronization
may take up to 30 minutes to complete, if the contacts or calendar are
full.
Synchronization settings
You may receive the configuration settings required for synchronization
as a configuration message from the network operator or service
provider. To manage the configuration settings, see “Configuration,”
p. 58.
1. Select Menu > Organiser > Sync > Server sync > Sync settings and
from the following options:
Configuration — Only the configurations that support the
synchronization are shown. Select a service provider, Default, or
Personal config. for synchronization.
Account— Select a synchronization service account contained in the
active configuration settings.
2. Select PC sync settings to enter the settings for server alerted
synchronization. Set the User name and Password.
The user name and password must be the same in the phone and in
the PC.
Synchronize from a compatible PC
To synchronize Contacts, Calendar, and Notes from a compatible PC, use
an IR, or data cable connection. You also need Nokia PC Suite software
of your phone installed on the PC. Start the synchronization from the PC
using Nokia PC Suite.
Organiser
69
■Calculator
The calculator in your phone adds, subtracts, multiplies, divides,
calculates the square and the square root and converts currency values.
Note: This calculator has limited accuracy and is designed for simple
calculations.
Select Menu > Organiser > Calculator. When 0 is displayed on the
screen, enter the first number in the calculation. Press the # key for a
decimal point. Select Options >Add, Subtract, Multiply, Divide, Square,
Square root, or Change sign. Enter the second number. For a total, select
Equals. Repeat this sequence as many times as it is necessary. To start a
new calculation, first select and hold Clear.
To perform a currency conversion, select Menu > Organiser >
Calculator. To save the exchange rate, select Options > Exchange rate.
Select either of the displayed options. Enter the exchange rate, press the
# key for a decimal point, and select OK. The exchange rate remains in
the memory until you replace it with another one. To perform the
currency conversion, enter the amount to be converted, and select
Options > In domestic or In foreign.
Note: When you change base currency, you must enter the new rates
because all previously set exchange rates are set to zero.
■Stopwatch
To measure time, take intermediate times, or take lap times, use the
stopwatch. During timing, the other functions of the phone can be used.
To set the stopwatch timing in the background, press the end key.
Using the stopwatch or allowing it to run in the background when using other
features increases the demand on battery power and reduces the battery life.
Select Menu > Organiser > Stopwatch and from the following options:
Split timing — to take intermediate times. To start the time observation,
select Start. Select Split every time that you want to take an
intermediate time. To stop the time observation, select Stop. To save the
measured time, select Save. To start the time observation again, select
Options > Start. The new time is added to the previous time. To reset the
Organiser
70
time without saving it, select Reset. To set the stopwatch timing in the
background, press the end key.
Lap timing — to take lap times. To set the stopwatch timing in the
background, press the end key.
Continue — to view the timing that you have set in the background
Show last — to view the most recently measured time if the stopwatch is
not reset
View times or Delete times — to view or delete the saved times
■Countdown timer
Select Menu > Organiser > Timer. Enter the alarm time in hours,
minutes, and seconds, and select OK. If you wish, write your own note
text that is displayed when the time expires. To start the countdown
timer, select Start. To change the countdown time, select Change time.
To stop the timer, select Stop timer.
If the alarm time is reached when the phone is in the standby mode, the
phone sounds a tone and flashes the note text if it is set or Countdown
time up. To stop the alarm, press any key. If no key is pressed, the alarm
automatically stops within 30 seconds. To stop the alarm and to delete
the note text, select Exit. To restart the countdown timer, select Restart.
Applications
71
14. Applications
■Games
Your phone software includes some games.
Launch a game
Select Menu > Applications > Games. Scroll to the desired game, and
select Open.
For options related to a game, see “Other application options,” p. 72.
Game downloads
Select Menu > Applications > Options > Downloads > Game
downloads. The list of available bookmarks is shown. Select More
bookmarks to access the list of bookmarks in the Web menu. See
“Bookmarks,” p. 85.
Important: Only install and use applications and other software from
sources that offer adequate security and protection against harmful
software.
Game settings
To set sounds, lights, and shakes for the game, select Menu >
Applications > Options > App. settings.
■Collection
Your phone software includes some Java applications specially designed
for this Nokia phone.
Launch an application
Select Menu > Applications > Collection. Scroll to an application, and
select Open; or press the call key.
Applications
72
Other application options
Delete — to delete the application or application set from the phone
Details — to view additional information about the application
Update version — to check if a new version of the application is available
for download from Web (network service)
Web page — to provide further information or additional data for the
application from an Internet page. This feature must be supported by
the network. It is only shown if an Internet address has been provided
with the application.
App. access — to restrict the application from accessing the network.
Different categories are shown. Select in each category, if available, one
of the following permission: Ask every time to set the phone to always
ask for network access, Ask first time only to set the phone to ask for
network access only on the first attempt, Always allowed to allow the
network access, or Not allowed to not allow the network access.
Download an application
Your phone supports J2METM Java applications. Make sure that the
application is compatible with your phone before downloading it.
Important: Only install and use applications and other software from
sources that offer adequate security and protection against harmful
software.
You can download new Java applications in different ways.
Select Menu > Applications > Options > Downloads > App. downloads.
The list of available bookmarks is shown. Select More bookmarks to
access the list of bookmarks in the Web menu. Select the appropriate
bookmark to connect to the desired page. For the availability of
different services, pricing, and tariffs, contact your service provider.
Select Menu > Web > Downloads. Download an appropriate application
or game. See “Download files,” p. 86.
Use the game download function. See “Game downloads,” p. 71.
Use the Nokia Application Installer in PC Suite to download the
applications to your phone.
Applications
73
Your device may have some bookmarks loaded for sites not affiliated with Nokia.
Nokia does not warrant or endorse these sites. If you choose to access them, you
should take the same precautions, for security or content, as you would with any
Internet site.
When downloading an application, it may be saved in the Games menu
instead of the Applications menu.
Push to talk
74
15. Push to talk
Push to talk (PTT) over cellular is a two-way radio service
available over a GSM/GPRS cellular network (network service). PTT
provides direct voice communication. To connect to, press the PTT key.
You can use PTT to have a conversation with one person or with a group
of people having compatible devices. When your call is connected, the
person or group you are calling does not have to answer the phone. The
participants should confirm the reception of any communications where
appropriate, as there is no other confirmation whether the recipients
have heard the call.
To check availability and costs, and to subscribe to the service, contact
your network operator or service provider. Roaming services may be
more limited than for normal calls.
Before you can use the PTT service, you must define the required PTT
service settings. See “PTT settings,” p. 80.
While you are connected to the PTT service, you can use the other
functions of the phone. The PTT over cellular service is not connected to
traditional voice communication, and therefore many of the services
available for traditional voice calls (for example, voice mailbox) are not
available for PTT over cellular communications.
■Push to talk menu
Select Menu > Push to talk.
• To connect to or disconnect from the PTT service, select Switch PTT
on or Switch PTT off.
• To view the received callback requests, select Callback inbox.
• To view the list of PTT groups, select Group list.
• To view the list of contacts to which you have added the PTT address
received from the service provider, select Contacts list.
• To add a new PTT group to the phone, select Add group.
• To set the PTT settings for use, select PTT settings.
Push to talk
75
• To set the required settings for the PTT connection, select Config.
settings.
• To open the browser and to connect to the PTT network portal
provided by the service provider, select Web.
■Connect to and disconnect PTT
To connect to the PTT service, select Menu > Push to talk > Switch PTT
on. indicates the PTT connection. indicates that the service is
temporarily unavailable. The phone automatically tries to reconnect to
the service until you disconnect from the PTT service. If you have added
groups to the phone, you are automatically joined to the active (Default
or Listened) groups, and the name of the default group is displayed in
the standby mode.
To disconnect from the PTT service, select Switch PTT off.
■Make and receive a PTT call
Set the phone to use the loudspeaker or earpiece for PTT
communication.
Warning: Do not hold the device near your ear when the loudspeaker is
in use, because the volume may be extremely loud.
When connected to the PTT service, you can make or receive dial out
calls, group calls or one-to-one calls. One-to-one calls are calls you
make to only one person.
Make a dial out PTT call
For a dial-out PTT call you can select multiple PTT contacts from the
contact list. The recipients get an incoming call and need to accept the
call in order to participate. A dial out call creates a temporary group and
the participants join this group only for the duration of the call. After
the call the temporary dial out group is deleted.
Select Menu > Push to talk > Contacts list and mark the desired
contacts for the dial-out call.
Push to talk
76
The icon behind the contact in the list denotes current login status: ,
, or indicate that the person is either available, discreet, or not
available, indicates that the login status is not available. The login
status is only available for subscribed contacts. See “Subscribed names,”
p. 46.
Press the PTT key briefly to start the dial-out call. The marked contacts
are called by the PTT service, and the joining contacts are shown on the
display. Press and hold the PTT key to talk to the joined contacts. Release
the PTT key to hear the response.
Press the end-key to terminate the dial-out call.
Make a group call
To make a call to the default group, press the PTT key. A tone sounds,
indicating that the access is granted, and the phone displays your
nickname and group name.
To make a call to a non-default group, select Group list in the PTT menu,
scroll to the desired group, and press the PTT key.
Press and hold the PTT key the entire time you are talking, and hold the
phone in front of you so that you can see the display. When you have
finished, release the PTT key. Talking is allowed on a first-come, first-
served basis. When someone stops talking, the first person to press the
PTT key can talk next.
Make a one-to-one call
• To start a one-to-one call from the list of contacts to which you have
added the PTT address, select Contacts list. Scroll to a contact, and
press the PTT key.
You can also select the contact from Contacts.
• To start a one-to-one call from the list of PTT groups, select Group
list, and scroll to the desired group. Select Options > Active
members, scroll to the desired contact, and press the PTT key.
Push to talk
77
• To start a one-to-one call from the list of callback requests you have
received, select Callback inbox. Scroll to the desired nickname, and
press the PTT key.
Receive a PTT call
A short tone notifies you of an incoming group and one-to-one call.
When receiving a group call, the group name and the nickname of the
caller are displayed. When receiving a one-to-one call from a person
whose information you have saved in Contacts, the saved name is
displayed if identified; otherwise, only the nickname of the caller is
displayed.
You can either accept or reject an incoming one-to-one call if you have
set the phone to first notify you of the one-to-one calls.
If you press the PTT key to try to respond to a group while another
member is talking, you hear a queuing tone, and Queuing is displayed as
long as you press the PTT key. Press and hold the PTT key, and wait for
the other person to finish; then you can talk.
■Callback requests
If you make a one-to-one call and do not get a response, you can send a
request for the person to call you back.
When someone sends you a callback request, Callback request received
is displayed in the standby mode. When you receive a callback request
from someone who is not in your contacts list, you can save the name to
your Contacts.
Send a callback request
You can send a callback request in the following ways:
• To send a callback request from the contacts list in the Push to talk
menu, select Contacts list. Scroll to a contact, and select Options >
Send callback.
Push to talk
78
• To send a callback request from Contacts, search for the desired
contact, select Options > Contact details, scroll to the PTT address,
and select Options > Send callback.
• To send a callback request from the group list in the PTT menu, select
Group list, and scroll to the desired group. Select Options > Active
members, scroll to the desired contact, and select Options > Send
callback.
• To send a callback request from the callback request list in the Push
to talk menu, select Callback inbox. Scroll to a contact, and select
Options > Send callback.
Respond to a callback request
1. To open the Callback inbox, select View. The list of nicknames of the
persons who have sent you callback requests is shown.
2. To make a one-to-one call, press the PTT key.
3. To send a call request back to the sender, select Options > Send
callback.
To delete the request, select Delete.
Save the callback request sender
1. To open the Callback inbox, select View. The list of nicknames of the
persons who have sent you callback requests is shown.
2. To view the sender's PTT address, select Options > View PTT address.
To save a new contact or to add the PTT address to a contact, select
Options > Save as or Add to contact.
■Add a one-to-one contact
You can save the names of persons to whom you often make one-to-one
calls in the following ways:
• To add a PTT address to a name in Contacts, search for the desired
contact, and select Options > Add detail > PTT address.
Push to talk
79
• To add a contact to the PTT contacts list, select Menu > Push to
talk > Contacts list > Options > Add contact.
• To add a contact from the group list, connect to the Push to talk
service, select Group list, and scroll to the desired group. Select
Options > Active members. Scroll to the member whose contact
information you want to save, and select Options. To add a new
contact, select Save as. To add a PTT address to a name in Contacts,
select Add to contact.
■Create and set up groups
When you call a group, all members joined to the group hear the call
simultaneously.
Each member in the group is identified by a nickname, which is shown
as a caller identification. Group members can choose a nickname for
themselves in each group.
Groups are registered with a URL address. One user registers the group
URL in the network by joining the group session the first time.
There are three types of PTT groups:
• Provisioned groups are closed groups that allow only selected
participants provisioned by the service provider to join.
• Ad hoc groups are groups that the users can create. You can create
your own group, and invite members to the group.
• Ad hoc pro groups are groups you can create from members in a
provisioned group. For example, a business can have a closed group
and separate groups created for certain business functions.
Add a group
1. Select Menu > Push to talk > Add group > Guided.
2. To set the security level for the group, select Public group or Private
group.
If you select Private group, the phone automatically creates a
scrambled part to the group address that the members cannot view
when they receive the invitation to the group. Only the person who
creates the private group can invite more members to the group.
Push to talk
80
3. Enter the name for the group, and select OK.
4. Select Default, Listened, or Inactive. The phone indicates that the
group is saved and its status. Default and Listened are active groups.
When you press the PTT key to make a group call, the default group is
called if you have not scrolled to any other group or contact.
5. To send an invitation to the group, select Yes when the phone
requests it. You can send the invitation using a text message or IR.
The members you invite to the public groups can also invite more
members to the group.
Receive an invitation
1. When you receive a text message invitation to a group, Group
invitation received: is displayed.
2. To view the nickname of the person who sent the invitation and the
group address if the group is not a private group, select View.
3. To add the group to your phone, select Save. To set the status for the
group, select Default, Listened, or Inactive.
To reject the invitation, select Exit > Yes, or select View > Discard > Yes.
■PTT settings
There are two kinds of PTT settings: settings for connecting to the
service and settings for use.
You may receive the settings for connecting to the service from your
network operator or service provider. See “Configuration settings
service,” p. 11. You can enter the settings manually. See
“Configuration,” p. 58.
To select the settings for connecting to the service, select Menu > Push
to talk > Config. settings and from the following options:
Configuration — to select a service provider, Default, or Personal config.
for PTT service. Only the configurations that support the PTT service are
shown.
Account — to select a PTT service account contained in the active
configuration settings
Push to talk
81
PTT user name, Default nickname, PTT password, Domain, and Server
address
To edit the PTT settings for use, select Menu > Push to talk > PTT
settings.
To select the phone to allow the reception of incoming one-to-one calls,
select 1 to 1 calls > On. To make but not receive one-to-one calls, select
Off. The service provider may offer some services that override these
settings. To set the phone to first notify you of incoming one-to-one
calls with a ringing tone, select Notify.
To activate the listened groups, select Listened groups > On.
To set the phone to automatically connect to the PTT service when you
switch the phone on, select PTT status in startup > Yes.
To hide your PTT address from group and one-to-one calls, select Send
my PTT address > No.
Web
82
16. Web
You can access various mobile Internet services with your
phone browser.
Important: Use only services that you trust and that offer adequate
security and protection against harmful software.
Check the availability of these services, pricing, tariffs, and instructions
with your service provider.
With the phone browser you can view the services that use wireless
markup language (WML) or extensible hypertext markup language
(XHTML) on their pages. Appearance may vary due to screen size. You
may not be able to view all details of the Internet pages.
■Set up browsing
You may receive the configuration settings required for browsing as a
configuration message from the network operator or service provider
that offers the service that you want to use. See “Configuration settings
service,” p. 11. You can also enter all the configuration settings
manually. See “Configuration,” p. 58.
■Connect to a service
First, verify that the correct configuration settings of the service that
you want to use are activated.
1. To select the settings for connecting to the service, select Menu >
Web > Settings > Configuration settings.
2. Select Configuration. Only the configurations that support browsing
service are shown. Select a service provider, Default, or Personal
config. for browsing. See “Set up browsing,” p. 82.
Select Account and a browsing service account contained in the
active configuration settings.
Select Display terminal window > Yes to perform manual user
authentication for intranet connections.
Web
83
Secondly, make a connection to the service in one of the following ways:
•Select Menu > Web > Home; or in the standby mode, press and
hold 0.
• To select a bookmark of the service, select Menu > Web >
Bookmarks.
• To select the last URL, select Menu > Web > Last web address.
• To enter the address of the service, select Menu > Web > Go to
address, enter the address of the service, and select OK.
■Browse pages
After you make a connection to the service, you can start browsing its
pages. The function of the phone keys may vary in different services.
Follow the text guides on the phone display. For more information,
contact your service provider.
If packet data is selected as the data bearer, is shown on the top left
of the display during browsing. If you receive a call or a text message, or
make a call during a packet data connection, is shown on the top
right of the display to indicate that the packet data connection is
suspended (on hold). After a call the phone tries to reconnect the packet
data connection.
Browse with phone keys
Use the navigation keys to browse through the page.
To select a highlighted item, press the call key, or select Select.
To enter letters and numbers, press the keys, 0 to 9. To enter special
characters, press *.
Options while browsing
Nokia.com, Home, Shortcuts, Add bookmark, Bookmarks, Page options,
History, Downloads, Other options, Reload, and Quit may be available.
The service provider may also offer other options.
A cache is a memory location that is used to store data temporarily. If you have
tried to access or have accessed confidential information requiring passwords,
Web
84
empty the cache after each use. The information or services you have accessed is
stored in the cache.
To empty the cache, see “Cache memory,” p. 87.
Direct calling
The browser supports functions that you can access while browsing. You
can make a phone call, send DTMF tones while a voice call is in progress,
and save a name and a phone number from a page.
■Appearance settings
While browsing, select Options > Other options > Appear. settings; or in
the standby mode, select Menu > Web > Settings > Appearance
settings and from the following options:
Text wrapping > On — to set the text to continue on the next line on the
display. If you select Off, the text is abbreviated.
Font size > Extra small, Small, or Medium — to set the font size
Show images > No — to hide pictures on the page. This can speed up the
browsing of pages that contain a lot of pictures.
Alerts > Alert for unsecure connection > Yes — to set the phone to alert
when an encrypted connection changes to unencrypted during
browsing.
Alerts > Alert for unsecure items > Yes — to set the phone to alert when
an encrypted page contains an unsecure item. These alerts do not
guarantee a secure connection. For more information, see “Browser
security,” p. 88.
Character encoding > Content encoding — to select the encoding for the
browser page content
Character encoding > Unicode (UTF-8) web addresses > On — to set the
phone to send a URL as a UTF-8 encoding. You may need this setting
when you access a Web page created in foreign language.
Web
85
■Cookies
A cookie is data that a site saves in the cache memory of your phone.
Cookies are saved until you clear the cache memory. See “Cache
memory,” p. 87.
While browsing, select Options > Other options > Security > Cookie
settings; or in the standby mode, select Menu > Web > Settings >
Security settings > Cookies. To allow or prevent the phone from
receiving cookies, select Allow or Reject.
■Scripts over secure connection
You can select whether to allow the running of scripts from a secure
page. The phone supports WML scripts.
1. While browsing, select Options > Other options > Security settings >
Script settings; or in the standby mode, select Menu > Web >
Settings > Security settings > Scripts over secure connection.
2. To allow the scripts, select Allow.
■Bookmarks
You can save page addresses as bookmarks in the phone memory.
1. While browsing, select Options > Bookmarks; or in the standby
mode, select Menu > Web > Bookmarks.
2. Scroll to a bookmark, and select it; or press the call key to make a
connection to the page associated with the bookmark.
3. Select Options to view, edit, delete, or send the bookmark; create a
new bookmark; or save the bookmark to a folder.
Your device may have some bookmarks loaded for sites not affiliated with Nokia.
Nokia does not warrant or endorse these sites. If you choose to access them, you
should take the same precautions, for security or content, as you would with any
Internet site.
Receive a bookmark
When you have received a bookmark that is sent as a bookmark, 1
bookmark received is displayed. To save the bookmark, select Show >
Web
86
Save. To view or delete the bookmark, select Options > View or Delete.
To discard the bookmark directly after you have received the bookmark,
select Exit > OK.
■Download files
To download more tones, images, games, or applications to your phone
(network service), select Menu > Web > Downloads > Tone downloads,
Graphic downloads, Game downloads, Video downloads, Theme
downloads, or App. downloads.
Important: Only install and use applications and other software from
sources that offer adequate security and protection against harmful
software.
To save all downloaded files automatically in Gallery, select Menu >
Web > Settings > Downloading settings > Automatic saving > On.
■Service inbox
The phone is able to receive service messages (pushed messages) sent by
your service provider (network service). Service messages are
notifications of, for example, news headlines, and they may contain a
text message or an address of a service.
To access the Service inbox in the standby mode, when you have
received a service message, select Show. If you select Exit, the message
is moved to the Service inbox. To access the Service inbox later, select
Menu > Web > Service inbox.
To access the Service inbox while browsing, select Options > Other
options > Service inbox. Scroll to the message you want, and to activate
the browser and download the marked content, select Retrieve. To
display detailed information on the service notification or to delete the
message, select Options > Details or Delete.
Service inbox settings
Select Menu > Web > Settings > Service inbox settings.
To set whether you want to receive service message, select Service
messages > On or Off.
Web
87
To set the phone to receive service messages only from content authors
approved by the service provider, select Message filter > On. To view the
list of the approved content authors, select Trusted channels.
To set the phone to automatically activate the browser from the standby
mode when the phone has received a service message, select Automatic
connection > On. If you select Off, the phone activates the browser only
after you select Retrieve when the phone has received a service
message.
■Cache memory
A cache is a memory location that is used to store data temporarily. If you have
tried to access or have accessed confidential information requiring passwords,
empty the cache after each use. The information or services you have accessed is
stored in the cache.
To empty the cache, while browsing, select Options > Other options >
Clear the cache; in the standby mode, select Menu > Web > Clear the
cache.
■Positioning information
The network may send you a location request. You can ensure that the
network delivers location information of your phone only if you approve
it (network service). Contact your network operator or service provider
to subscribe and to agree upon the delivery of location information.
To accept or reject the location request, select Accept or Reject. If you
miss the request, the phone automatically accepts or rejects it
according to what you have agreed with your network operator or
service provider. The phone displays 1 missed position request. To view
the missed location request, select Show.
To view the information on the 10 most recent privacy notifications and
requests or to delete them, select Menu > Web > Positioning > Position
log > Open folder or Delete all.
Web
88
■Browser security
Security features may be required for some services, such as online
banking or shopping. For such connections you need security
certificates and possibly a security module, which may be available on
your SIM card. For more information, contact your service provider.
Security module
The security module improves security services for applications
requiring a browser connection, and allows you to use a digital
signature. The security module may contain certificates as well as
private and public keys. The certificates are saved in the security module
by the service provider.
Select Menu > Web > Settings > Security settings > Security module
settings and from the following options:
Security module details — to show the security module title, status,
manufacturer, and serial number
Module PIN request — to set the phone to ask for the module PIN when
using services provided by the security module. Enter the code, and
select On. To disable the module PIN request, select Off.
Change module PIN — to change the module PIN, if allowed by the
security module. Enter the current module PIN code, then enter the new
code twice.
Change signing PIN — to change the signing PIN code for the digital
signature. Select the signing PIN you want to change. Enter the current
PIN code, then enter the new code twice.
See also “Access codes,” p. 10.
Web
89
Certificates
Important: Note that even if the use of certificates makes the risks
involved in remote connections and software installation considerably
smaller, they must be used correctly in order to benefit from increased
security. The existence of a certificate does not offer any protection by
itself; the certificate manager must contain correct, authentic, or
trusted certificates for increased security to be available. Certificates
have a restricted lifetime. If Expired certificate or Certificate not valid
yet is shown even if the certificate should be valid, check that the
current date and time in your device are correct.
Before changing any certificate settings, you must make sure that you
really trust the owner of the certificate and that the certificate really
belongs to the listed owner.
There are three kinds of certificates: server certificates, authority
certificates, and user certificates. You may receive these certificates
from your service provider. Authority certificates and user certificates
may also be saved in the security module by the service provider.
To view the list of the authority or user certificates downloaded into
your phone, select Menu > Web > Settings > Security settings >
Authority certificates or User certificates.
The security indicator is displayed during a connection, if the data
transmission between the phone and the content server is encrypted.
The security icon does not indicate that the data transmission between the
gateway and the content server (or place where the requested resource is stored)
is secure. The service provider secures the data transmission between the
gateway and the content server.
Digital signature
You can make digital signatures with your phone if your SIM card has a
security module. Using the digital signature can be the same as signing
your name to a paper bill, contract, or other document.
To make a digital signature, select a link on a page, for example, the title
of the book you want to buy and its price. The text to sign, which may
include the amount and date, is shown.
Web
90
Check that the header text is Read and that the digital signature icon
is shown.
If the digital signature icon does not appear, there is a security breach,
and you should not enter any personal data such as your signing PIN.
To sign the text, read all of the text first, and select Sign.
The text may not fit within a single screen. Therefore, make sure to scroll
through and read all of the text before signing.
Select the user certificate you want to use. Enter the signing PIN (see
“Access codes,” p. 10), and select OK. The digital signature icon
disappears, and the service may display a confirmation of your purchase.
SIM services
91
17. SIM services
Your SIM card may provide additional services that you can access. This
menu is shown only if it is supported by your SIM card. The name and
contents of the menu depend on the SIM card.
For availability and information on using SIM card services, contact your SIM
card vendor. This may be the service provider, network operator, or other vendor.
To set the phone to show you the confirmation messages sent between
your phone and the network when you are using the SIM services, select
Menu > Settings > Phone > Confirm SIM service actions >Yes.
Accessing these services may involve sending messages or making a
phone call for which you may be charged.
PC connectivity
92
18. PC connectivity
You can send and receive email, and access the Internet when your
phone is connected to a compatible PC through an infrared or a data
cable (CA-42) connection. You can use your phone with a variety of PC
connectivity and data communications applications.
■PC Suite
With PC Suite you can synchronize Contacts, calendar and to-do notes,
and notes between your phone, and the compatible PC, or a remote
Internet server (network service).
You may find more information about PC suite, for example,
downloadable files in the support area on the Nokia Web site at
<www.nokia.com/support>.
■Packet data, HSCSD, and CSD
With your phone you can use the packet data, high-speed circuit
switched data (HSCSD), and circuit switched data (CSD, GSM data).
For availability and subscription to data services, contact your network
operator or service provider.
The use of HSCSD services consumes the phone battery faster than
normal voice or data calls. You may need to connect the phone to a
charger for the duration of data transfer.
See “Packet data (EGPRS),” p. 56.
■Data communication applications
For information on using a data communication application, refer to the
documentation provided with it. Making or answering phone calls
during a computer connection is not recommended, as it might disrupt
the operation. For better performance during data calls, place the phone
on a stationary surface with the keypad facing down. Do not move the
phone by holding it in your hand during a data call.
Battery information
93
19. Battery information
■Charging and discharging
Your device is powered by a rechargeable battery. The full performance of a new
battery is achieved only after two or three complete charge and discharge cycles.
The battery can be charged and discharged hundreds of times but it will
eventually wear out. When the talk and standby times are noticeably shorter
than normal, replace the battery. Use only Nokia approved batteries, and
recharge your battery only with Nokia approved chargers designated for this
device.
Unplug the charger from the electrical plug and the device when not in use. Do
not leave fully charged battery connected to a charger, since overcharging may
shorten its lifetime. If left unused, a fully charged battery will lose its charge over
time.
Use the battery only for its intended purpose. Never use any charger or battery
that is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a
metallic object such as a coin, clip, or pen causes direct connection of the
positive (+) and negative (-) terminals of the battery. (These look like metal strips
on the battery.) This might happen, for example, when you carry a spare battery
in your pocket or purse. Short-circuiting the terminals may damage the battery
or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or
winter conditions, will reduce the capacity and lifetime of the battery and its
ability to charge. Always try to keep the battery between 15°C and 25°C (59°F
and 77°F). A device with a hot or cold battery may not work temporarily, even
when the battery is fully charged. Battery performance is particularly limited in
temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may also
explode if damaged. Dispose of batteries according to local regulations. Please
recycle when possible. Do not dispose as household waste.
■Nokia battery authentication guidelines
Always use original Nokia batteries for your safety. To check that you are getting
an original Nokia battery, purchase it from an authorized Nokia dealer, look for
Battery information
94
the Nokia Original Enhancements logo on the packaging and inspect the
hologram label using the following steps:
Successful completion of the four steps is not a total assurance of the
authenticity of the battery. If you have any reason to believe that your battery is
not an authentic original Nokia battery, you should refrain from using it and take
it to the nearest authorized Nokia service point or dealer for assistance. Your
authorized Nokia service point or dealer will inspect the battery for authenticity.
If authenticity cannot be verified, return the battery to the place of purchase.
Authenticate hologram
1. When looking at the hologram label, you should see
the Nokia connecting hands symbol from one angle and
the Nokia Original Enhancements logo when looking
from another angle.
2. When you angle the hologram left, right, down, and
up, you should see 1, 2, 3, and 4 dots on each side
respectively.
3. Scratch the side of the label to reveal a 20-digit code,
for example, 12345678919876543210. Turn the battery
so that the numbers are facing upwards. The 20-digit
code reads starting from the number at the top row
followed by the bottom row.
4. Confirm that the 20-digit code is valid by following
the instructions at www.nokia.com/batterycheck.
To create a text message, enter the 20-digit code, for
example, 12345678919876543210, and send to
+44 7786 200276.
National and international operator charges will apply.
You should receive a message indicating whether the
code can be authenticated.
Battery information
95
What if your battery is not authentic?
If you cannot confirm that your Nokia battery with the hologram on the label is
an authentic Nokia battery, please do not use the battery. Take it to the nearest
authorized Nokia service point or dealer for assistance. The use of a battery that
is not approved by the manufacturer may be dangerous and may result in poor
performance and damage to your device and its enhancements. It may also
invalidate any approval or warranty applying to the device.
To find out more about original Nokia batteries, visit www.nokia.com/battery.
Technical Information
96
20. Technical Information
Weight 95 grams (3.35 ounces) incl. BL-4C battery
Battery 760 mAh Li-Ion Battery
Networks Wireless networks GSM 900,
1800 and 1900
Size Volume: 4.7 cubic inches (77 ccm)
Length: 3.3 in (85 mm)
Width: 1.8 in (45 mm)
Thickness: 0.9 in (24 mm)
Frequency range (Rx) GSM 900: 925 - 960 MHz
GSM1800: 1805 - 1880 MHz
GSM1900: 1930 - 1990 MHz
Frequency range (Tx) GSM 900: 880 - 915 MHz
GSM 1800: 1710 - 1785 MHz
GSM 1900: 1850 - 1910 MHz
Tx output power 2 W (max)
Battery voltage 3.7 V DC
Memory size 16 MB flash memory
3 MB RAM
Operating temperature 59 °F to 77 °F
(15 °C to 25 °C)
CARE AND MAINTENANCE
97
CARE AND MAINTENANCE
Your device is a product of superior design and craftsmanship and should be
treated with care. The suggestions below will help you protect your warranty
coverage.
• Keep the device dry. Precipitation, humidity and all types of liquids or
moisture can contain minerals that will corrode electronic circuits. If your
device does get wet, remove the battery and allow the device to dry
completely before replacing it.
• Do not use or store the device in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic
circuit boards.
• Do not attempt to open the device other than as instructed in this guide.
• Do not drop, knock, or shake the device. Rough handling can break internal
circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
the device.
• Do not paint the device. Paint can clog the moving parts and prevent proper
operation.
• Use a soft, clean, dry cloth to clean any lenses (such as camera, proximity
sensor, and light sensor lenses).
• Use only the supplied or an approved replacement antenna. Unauthorized
antennas, modifications, or attachments could damage the device and may
violate regulations governing radio devices.
• Use chargers indoors.
• Always create a backup of data you want to keep (such as contacts and
calendar notes) before sending your device to a service facility.
All of the above suggestions apply equally to your device, battery, charger, or any
enhancement. If any device is not working properly, take it to the nearest
authorized service facility for service.
Additional safety information
98
Additional safety information
Your device and its enhancements may contain small parts. Keep them out of the
reach of small children.
■Operating environment
Remember to follow any special regulations in force in any area and always
switch off your device when its use is prohibited or when it may cause
interference or danger. Use the device only in its normal operating positions. This
device meets RF exposure guidelines when used either in the normal use position
against the ear or when positioned at least 2.2cm (7/8 in) away from the body.
When a carry case, belt clip or holder is used for body-worn operation, it should
not contain metal and should position the device the above-stated distance from
your body. In order to transmit data files or messages, this device requires a good
quality connection to the network. In some cases, transmission of data files or
messages may be delayed until such a connection is available. Ensure the above
separation distance instructions are followed until the transmission is
Parts of the device are magnetic. Metallic materials may be attracted to the
device. Do not place credit cards or other magnetic storage media near the
device, because information stored on them may be erased
■Medical devices
Operation of any radio transmitting equipment, including wireless phones, may
interfere with the functionality of inadequately protected medical devices.
Consult a physician or the manufacturer of the medical device to determine if
they are adequately shielded from external RF energy or if you have any
questions. Switch off your device in health care facilities when any regulations
posted in these areas instruct you to do so. Hospitals or health care facilities may
be using equipment that could be sensitive to external RF energy.
Pacemakers
Pacemaker manufacturers recommend that a minimum separation of 6 inches
(15.3 cm) be maintained between a wireless phone and a pacemaker to avoid
potential interference with the pacemaker. These recommendations are
consistent with the independent research by and recommendations of Wireless
Technology Research. Persons with pacemakers should:
• always keep the device more than 6 inches (15.3 cm) from their pacemaker
when the device is switched on;
Additional safety information
99
• not carry the device in a breast pocket; and
• hold the device to the ear opposite the pacemaker to minimize the potential
for interference.
If you have any reason to suspect that interference is taking place, switch off
your device immediately.
Hearing aids
Some digital wireless devices may interfere with some hearing aids. If
interference occurs, consult your service provider.
■Vehicles
RF signals may affect improperly installed or inadequately shielded electronic
systems in motor vehicles such as electronic fuel injection systems, electronic
antiskid (antilock) braking systems, electronic speed control systems, air bag
systems. For more information, check with the manufacturer or its representative
of your vehicle or any equipment that has been added.
Only qualified personnel should service the device, or install the device in a
vehicle. Faulty installation or service may be dangerous and may invalidate any
warranty that may apply to the device. Check regularly that all wireless device
equipment in your vehicle is mounted and operating properly. Do not store or
carry flammable liquids, gases, or explosive materials in the same compartment
as the device, its parts, or enhancements. For vehicles equipped with an air bag,
remember that air bags inflate with great force. Do not place objects, including
installed or portable wireless equipment in the area over the air bag or in the air
bag deployment area. If in-vehicle wireless equipment is improperly installed and
the air bag inflates, serious injury could result.
■Airplanes
Using your device while flying in aircraft is prohibited. Switch off your device
before boarding an aircraft. The use of wireless teledevices in an aircraft may be
dangerous to the operation of the aircraft, disrupt the wireless telephone
network, and may be illegal.
Additional safety information
100
■Potentially explosive environments
Switch off your device when in any area with a potentially explosive atmosphere
and obey all signs and instructions. Potentially explosive atmospheres include
areas where you would normally be advised to turn off your vehicle engine.
Sparks in such areas could cause an explosion or fire resulting in bodily injury or
even death. Switch off the device at refuelling points such as near gas pumps at
service stations. Observe restrictions on the use of radio equipment in fuel
depots, storage, and distribution areas, chemical plants or where blasting
operations are in progress. Areas with a potentially explosive atmosphere are
often but not always clearly marked. They include below deck on boats, chemical
transfer or storage facilities, vehicles using liquefied petroleum gas (such as
propane or butane), and areas where the air contains chemicals or particles such
as grain, dust, or metal powders.
■Emergency calls
Important: Wireless phones, including this device, operate using radio
signals, wireless networks, landline networks, and user-programmed
functions. Because of this, connections in all conditions cannot be
guaranteed. You should never rely solely on any wireless device for
essential communications like medical emergencies.
To make an emergency call:
1. If the device is not on, switch it on. Check for adequate signal strength.
Some networks may require that a valid SIM card is properly inserted in the
device.
2. Press the end key as many times as needed to clear the display and ready the
device for calls.
3. Enter the official emergency number for your present location. Emergency
numbers vary by location.
4. Press the call key.
If certain features are in use, you may first need to turn those features off before
you can make an emergency call. If the device is in offline or flight mode you
must change the profile to activate the phone function before you can make an
emergency call. Consult this guide or your service provider for more information.
When making an emergency call, give all the necessary information as accurately
as possible. Your wireless device may be the only means of communication at the
scene of an accident. Do not end the call until given permission to do so.
Additional safety information
101
■Certification information (SAR)
THIS MODEL PHONE MEETS GUIDELINES FOR EXPOSURE TO RADIO WAVES.
Your mobile device is a radio transmitter and receiver. It is designed and
manufactured not to exceed the limits for exposure to radio frequency (RF)
energy recommended by international guidelines (ICNIRP). These limits establish
permitted levels of RF energy for the general population. The guidelines are based
on standards that were developed by independent scientific organizations
through periodic and thorough evaluation of scientific studies. The standards and
guidelines include a substantial safety margin designed to assure the safety of
the public, regardless of age and health and to account for any variations in
measurements.
The exposure guidelines for mobile devices employ a unit of measurement known
as the Specific Absorption Rate or SAR. The SAR limit stated in the international
guidelines is 2.0 watts/kilogram (W/kg) averaged over ten grams of tissue. Tests
for SAR are conducted using standard operating positions with the device
transmitting at its highest certified power level in all tested frequency bands. The
actual SAR level of an operating device can be well below the maximum value
because the device is designed to use only the power required to reach the
network. That amount changes depending on a number of factors such as how
close you are to a network base station. The highest SAR value when tested
according to international testing procedures for use at the ear is 0.82 W/kg.
SAR values may vary depending on national reporting and testing requirements
and the network band. Use of device accessories and enhancements may result in
different SAR values. Additional SAR information may be provided under product
information at www.nokia.com.
USA and Canada: The SAR limit of USA (FCC) and Canada (IC) is 1.6 W/kg
averaged over one gram of tissue. This device model has also been tested against
this SAR limit. The highest SAR value reported under this standard during product
certification for use at the ear is 0.79 W/kg and when properly worn on the body
is 0.59 W/kg. Information about this device can be found on the FCC's website at
http://www.fcc.gov/oet/fccid by searching the equipment authorization system
using FCC ID: PPIRM-76.
APPENDIX
102
APPENDIX
■A message from the CTIA
© 2001 Cellular Telecommunications & Internet Association. All Rights Reserved.
1250 Connecticut Avenue, NW Suite 800, Washington, DC 20036. Phone: (202)
785-0081
Safety is the most important call you will ever make.
A Guide to Safe and Responsible Wireless Phone Use
Tens of millions of people in the U.S. today take advantage of the unique
combination of convenience, safety and value delivered by the wireless
telephone. Quite simply, the wireless phone gives people the powerful ability to
communicate by voice--almost anywhere, anytime--with the boss, with a client,
with the kids, with emergency personnel or even with the police. Each year,
Americans make billions of calls from their wireless phones, and the numbers are
rapidly growing.
But an important responsibility accompanies those benefits, one that every
wireless phone user must uphold. When driving a car, driving is your first
responsibility. A wireless phone can be an invaluable tool, but good judgment
must be exercised at all times while driving a motor vehicle--whether on the
phone or not.
The basic lessons are ones we all learned as teenagers. Driving requires alertness,
caution and courtesy. It requires a heavy dose of basic common sense---keep
your head up, keep your eyes on the road, check your mirrors frequently and
watch out for other drivers. It requires obeying all traffic signs and signals and
staying within the speed limit. It means using seatbelts and requiring other
passengers to do the same.
But with wireless phone use, driving safely means a little more. This brochure is a
call to wireless phone users everywhere to make safety their first priority when
behind the wheel of a car. Wireless telecommunications is keeping us in touch,
simplifying our lives, protecting us in emergencies and providing opportunities to
help others in need.
When it comes to the use of wireless phones, safety is your most important call.
Wireless phone "Safety Tips"
1. Get to know your wireless phone and its features such as speed dial and
redial. Carefully read your instruction manual and learn to take advantage of
valuable features most phones offer, including automatic redial and memory.
APPENDIX
103
Also, work to memorize the phone keypad so you can use the speed dial
function without taking your attention off the road.
2. When available, use a hands free device. A number of hands free wireless
phone accessories are readily available today. Whether you choose an
installed mounted device for your wireless phone or a speaker phone
accessory, take advantage of these devices if available to you.
3. Position your wireless phone within easy reach. Make sure you place your
wireless phone within easy reach and where you can grab it without
removing your eyes from the road. If you get an incoming call at an
inconvenient time, if possible, let your voice mail answer it for you.
4. .Suspend conversations during hazardous driving conditions or situations. Let
the person you are speaking with know you are driving; if necessary, suspend
the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow
and ice can be hazardous, but so is heavy traffic. As a driver, your first
responsibility is to pay attention to the road.
5. Do not take notes or look up phone numbers while driving. If you are reading
an address book or business card, or writing a “to do” list while driving a car,
you are not watching where you are going. It’s common sense. Don’t get
caught in a dangerous situation because you are reading or writing and not
paying attention to the road or nearby vehicles.
6. Dial sensibly and assess the traffic; if possible, place calls when you are not
moving or before pulling into traffic. Try to plan your calls before you begin
your trip or attempt to coincide your calls with times you may be stopped at a
stop sign, red light or otherwise stationary. But if you need to dial while
driving, follow this simple tip--dial only a few numbers, check the road and
your mirrors, then continue.
7. Do not engage in stressful or emotional conversations that may be
distracting. Stressful or emotional conversations and driving do not mix--
they are distracting and even dangerous when you are behind the wheel of a
car. Make people you are talking with aware you are driving and if necessary,
suspend conversations which have the potential to divert your attention from
the road.
8. Use your wireless phone to help others in emergencies. Your wireless phone
provides you a perfect opportunity to be a “Good Samaritan” in your
community. If you see an auto accident, crime in progress or other serious
emergency where lives are in danger, call 9-1-1 or other local emergency
number, as you would want others to do for you.
APPENDIX
104
9. Use your wireless phone to call for help. Your wireless phone is one of the
greatest tools you can own to protect yourself and your family in dangerous
situations--with your phone at your side, help is only three numbers away.
Dial 9-1-1 or other local emergency number in the case of fire, traffic
accident, road hazard or medical emergency. Remember, it is a free call on
your wireless phone!
10. Use your wireless phone to help others in emergencies. Your wireless phone
provides you a perfect opportunity to be a “Good Samaritan” in your
community. If you see an auto accident, crime in progress or other serious
emergency where lives are in danger, call 9-1-1 or other local emergency
number, as you would want others to do for you.
11. Call roadside assistance or a special wireless non-emergency assistance
number when necessary. Certain situations you encounter while driving may
require attention, but are not urgent enough to merit a call for emergency
services. But you still can use your wireless phone to lend a hand. If you see a
broken-down vehicle posing no serious hazard, a broken traffic signal, a
minor traffic accident where no one appears injured or a vehicle you know to
be stolen, call roadside assistance or other special non-emergency wireless
number.
Careless, distracted individuals and people driving irresponsibly represent a
hazard to everyone on the road. Since 1984, the Cellular Telecommunications
Industry Association and the wireless industry have conducted educational
outreach to inform wireless phone users of their responsibilities as safe drivers
and good citizens. As we approach a new century, more and more of us will take
advantage of the benefits of wireless telephones. And, as we take to the roads,
we all have a responsibility to drive safely.
The wireless industry reminds you to use your phone safely when driving.
For more information, please call 1-888-901-SAFE.
For updates: http://www.wow-com.com/consumer/issues/driving/
articles.cfm?ID=85
APPENDIX
105
■A message from the U.S. Food and Drug Administration to
all users of mobile phones
© July 18, 2001 For updates: http://www.fda.gov/cdrh/phones.
Consumer Update on Wireless Phones
U.S. Food and Drug Administration
1. Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health problems are
associated with using wireless phones. There is no proof, however, that wireless
phones are absolutely safe. Wireless phones emit low levels of radiofrequency
energy (RF) in the microwave range while being used. They also emit very low
levels of RF when in the stand-by mode. Whereas high levels of RF can produce
health effects (by heating tissue), exposure to low level RF that does not produce
heating effects causes no known adverse health effects. Many studies of low
level RF exposures have not found any biological effects. Some studies have
suggested that some biological effects may occur, but such findings have not
been confirmed by additional research. In some cases, other researchers have had
difficulty in reproducing those studies, or in determining the reasons for
inconsistent results.
2. What is FDA's role concerning the safety of wireless phones?
• Support needed research into possible biological effects of RF of the type
emitted by wireless phones;
• Design wireless phones in a way that minimizes any RF exposure to the user
that is not necessary for device function; and
Under the law, FDA does not review the safety of radiation-emitting consumer
products such as wireless phones before they can be sold, as it does with new
drugs or medical devices. However, the agency has authority to take action if
wireless phones are shown to emit radiofrequency energy (RF) at a level that is
hazardous to the user. In such a case, FDA could require the manufacturers of
wireless phones to notify users of the health hazard and to repair, replace or
recall the phones so that the hazard no longer exists.
FDA belongs to an interagency working group of the federal agencies that have
responsibility for different aspects of RF safety to ensure coordinated efforts at
the federal level. The following agencies belong to this working group:
• National Institute for Occupational Safety and Health
• Environmental Protection Agency
• Federal Communications Commission
• Occupational Safety and Health Administration
APPENDIX
106
• National Telecommunications and Information Administration
The National Institutes of Health participates in some interagency working group
activities, as well.
FDA shares regulatory responsibilities for wireless phones with the Federal
Communications Commission (FCC). All phones that are sold in the United States
must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA
and other health agencies for safety questions about wireless phones.
FCC also regulates the base stations that the wireless phone networks rely upon.
While these base stations operate at higher power than do the wireless phones
themselves, the RF exposures that people get from these base stations are
typically thousands of times lower than those they can get from wireless phones.
Base stations are thus not the subject of the safety questions discussed in this
document.
3. What kinds of phones are the subject of this update?
The term wireless phone refers here to hand-held wireless phones with built-in
antennas, often called cell mobile or PCS phones. These types of wireless phones
can expose the user to measurable radiofrequency energy (RF) because of the
short distance between the phone and the user’s head. These RF exposures are
limited by Federal Communications Commission safety guidelines that were
developed with the advice of FDA and other federal health and safety agencies.
When the phone is located at greater distances from the user, the exposure to RF
is drastically lower because a person's RF exposure decreases rapidly with
increasing distance from the source. The so-called cordless phones; which have a
base unit connected to the telephone wiring in a house, typically operate at far
lower power levels, and thus produce RF exposures far below the FCC safety
limits.
4. What are the results of the research done already?
The research done thus far has produced conflicting results, and many studies
have suffered from flaws in their research methods. Animal experiments
investigating the effects of radiofrequency energy (RF) exposures characteristic
of wireless phones have yielded conflicting results that often cannot be repeated
in other laboratories. A few animal studies, however, have suggested that low
levels of RF could accelerate the development of cancer in laboratory animals.
However, many of the studies that showed increased tumor development used
animals that had been genetically engineered or treated with cancer-causing
chemicals so as to be pre-disposed to develop cancer in the absence of RF
exposure. Other studies exposed the animals to RF for up to 22 hours per day.
These conditions are not similar to the conditions under which people use
APPENDIX
107
wireless phones, so we don’t know with certainty what the results of such studies
mean for human health.
5. What research is needed to decide whether RF exposure from wireless
phones poses a health risk?
A combination of laboratory studies and epidemiological studies of people
actually using wireless phones would provide some of the data that are needed.
Lifetime animal exposure studies could be completed in a few years. However,
very large numbers of animals would be needed to provide reliable proof of a
cancer promoting effect if one exists. Epidemiological studies can provide data
that is directly applicable to human populations, but 10 or more years follow-up
may be needed to provide answers about some health effects, such as cancer.
This is because the interval between the time of exposure to a cancer-causing
agent and the time tumors develop - if they do - may be many, many years. The
interpretation of epidemiological studies is hampered by difficulties in measuring
actual RF exposure during day-to-day use of wireless phones. Many factors
affect this measurement, such as the angle at which the phone is held, or which
model of phone is used.
6. What is FDA doing to find out more about the possible health effects of
wireless phone RF?
FDA is working with the U.S. National Toxicology Program and with groups of
investigators around the world to ensure that high priority animal studies are
conducted to address important questions about the effects of exposure to
radiofrequency energy (RF).
FDA has been a leading participant in the World Health Organization
International Electromagnetic Fields (EMF) Project since its inception in 1996. An
influential result of this work has been the development of a detailed agenda of
research needs that has driven the establishment of new research programs
around the world. The Project has also helped develop a series of public
information documents on EMF issues.
FDA and the Cellular Telecommunications & Internet Association (CTIA) have a
formal Cooperative Research and Development Agreement (CRADA) to do
research on wireless phone safety. FDA provides the scientific oversight,
obtaining input from experts in government, industry, and academic
organizations. CTIAfunded research is conducted through contracts to
independent investigators. The initial research will include both laboratory
studies and studies of wireless phone users. The CRADA will also include a broad
assessment of additional research needs in the context of the latest research
developments around the world.
APPENDIX
108
7. How can I find out how much radiofrequency energy exposure I can get by
using my wireless phone?
All phones sold in the United States must comply with Federal Communications
Commission (FCC) guidelines that limit radiofrequency energy (RF) exposures.
FCC established these guidelines in consultation with FDA and the other federal
health and safety agencies. The FCC limit for RF exposure from wireless
telephones is set at a Specific Absorption Rate (SAR) of 1.6 watts per kilogram
(1.6 W/kg). The FCC limit is consistent with the safety standards developed by the
Institute of Electrical and Electronic Engineering (IEEE) and the National Council
on
Radiation Protection and Measurement. The exposure limit takes into
consideration the body’s ability to remove heat from the tissues that absorb
energy from the wireless phone and is set well below levels known to have
effects. Manufacturers of wireless phones must report the RF exposure level for
each model of phone to the FCC. The FCC website (http://www.fcc.gov/oet/
rfsafety) gives directions for locating the FCC identification number on your
phone so you can find your phone’s RF exposure level in the online listing.
8. What has FDA done to measure the radiofrequency energy coming from
wireless phones?
The Institute of Electrical and Electronic Engineers (IEEE) is developing a
technical standard for measuring the radiofrequency energy (RF) exposure from
wireless phones and other wireless handsets with the participation and
leadership of FDA scientists and engineers. The standard, Recommended Practice
for Determining the Spatial-Peak Specific Absorption Rate (SAR) in the Human
Body Due to Wireless Communications Devices: Experimental Techniques, sets
forth the first consistent test methodology for measuring the rate at which RF is
deposited in the heads of wireless phone users. The test method uses a tissue-
simulating model of the human
head. Standardized SAR test methodology is expected to greatly improve the
consistency of measurements made at different laboratories on the same phone.
SAR is the measurement of the amount of energy absorbed in tissue, either by the
whole body or a small part of the body. It is measured in watts/kg (or milliwatts/
g) of matter. This measurement is used to determine whether a wireless phone
complies with safety guidelines.
9. What steps can I take to reduce my exposure to radiofrequency energy from
my wireless phone?
If there is a risk from these products--and at this point we do not know that there
is--it is probably very small. But if you are concerned about avoiding even
potential risks, you can take a few simple steps to minimize your exposure to
APPENDIX
109
radiofrequency energy (RF). Since time is a key factor in how much exposure a
person receives, reducing the amount of time spent using a wireless phone will
reduce RF exposure.
If you must conduct extended conversations by wireless phone every day, you
could place more distance between your body and the source of the RF, since the
exposure level drops off dramatically with distance. For example, you could use a
headset and carry the wireless phone away from your body or use a wireless
phone connected to a remote antenna.
Again, the scientific data do not demonstrate that wireless phones are harmful.
But if you are concerned about the RF exposure from these products, you can use
measures like those described above to reduce your RF exposure from wireless
phone use.
10. What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless phones,
including children and teenagers. If you want to take steps to lower exposure to
radiofrequency energy (RF), the measures described above would apply to
children and teenagers using wireless phones. Reducing the time of wireless
phone use and increasing the distance between the user and the RF source will
reduce RF exposure.Some groups sponsored by other national governments have
advised that children be discouraged from using wireless phones at all. For
example, the government in the United Kingdom distributed leaflets containing
such a recommendation in December 2000. They noted that no evidence exists
that using a wireless phone causes brain tumors or other ill effects. Their
recommendation to limit wireless phone use by children was strictly
precautionary; it was not based on scientific evidence that any health hazard
exists.
11. What about wireless phone interference with medical equipment?
Radiofrequency energy (RF) from wireless phones can interact with some
electronic devices. For this reason, FDA helped develop a detailed test method to
measure electromagnetic interference (EMI) of implanted cardiac pacemakers
and defibrillators from wireless telephones. This test method is now part of a
standard sponsored by the Association for the Advancement of Medical
instrumentation (AAMI). The final draft, a joint effort by FDA, medical device
manufacturers, and many other groups, was completed in late 2000. This
standard will allows manufacturers to ensure that cardiac pacemakers and
defibrillators are safe from wireless phone EMI. FDA has tested hearing aids for
interference from handheld wireless phones and helped develop a voluntary
standard sponsored by the Institute of Electrical and Electronic Engineers (IEEE).
This standard specifies test methods and performance requirements for hearing
APPENDIX
110
aids and wireless phones so that no interference occurs when a person uses a
compatible phone and a accompanied hearing aid at the same time. This
standard was approved by the IEEE in 2000.
FDA continues to monitor the use of wireless phones for possible interactions
with other medical devices. Should harmful interference be found to occur, FDA
will conduct testing to assess the interference and work to resolve the problem.
12. Where can I find additional information?
For additional information, please refer to the following resources:
• FDA web page on wireless phones
http://www.fda.gov/cdrh/phones/index.html
• Federal Communications Commission (FCC) RF Safety Program
http://www.fcc.gov/oet/rfsafety
• International Commission on Non-Ionizing Radiation Protection
http://www.icnirp.de
• World Health Organization (WHO) International EMF Project
http://www.who.int/emf
• National Radiological Protection Board (UK)
http://www.nrpb.org.uk/
July 18, 2001
For updates: http://www.fda.gov/cdrh/phones
