RM-801 User Guide
Issue 1
Contents
Safety 4
Get started 6
Keys and parts 6
Back, start, and search keys 7
Insert the SIM card 8
Charge your phone 9
Antenna locations 12
Switch the phone on or off 13
Create your accounts 13
Windows Live ID 14
Nokia account 15
Copy contacts from your old phone 15
Lock or unlock the keys and screen 16
Headset 17
Change the volume 17
Access codes 18
Set your phone to sync with your
computer 19
Basics 20
About the start screen 20
Touch screen actions 20
Use your phone when it's locked 22
Switch between open apps 23
Personalise your phone 23
Write text 25
Search your phone and the web 27
Control your phone with your voice 27
Indicators on the status bar 28
Use your phone offline 28
Prolong battery life 29
Calls 31
Call a contact 31
Call the last dialled number 31
Call your voice mailbox 31
Divert calls to your voice mailbox or
another phone number 31
Make a conference call 32
Silence an incoming call 33
Use your voice to call a contact 33
Contacts & social networking
services 34
Contacts 34
Social networks 37
Internet 40
Internet connections 40
Internet 42
Messaging & mail 44
Messages 44
Mail 46
Camera 49
About the camera 49
Take a picture 49
Take a close-up picture 50
Take a picture in the dark 50
Take a picture of a moving object 50
Camera tips 50
Record a video 51
Save location information to your
pictures and videos 51
Send a picture 51
Share your pictures and videos 52
Your pictures 53
About the Pictures hub 53
View pictures 53
Mark a picture as a favourite 54
Upload pictures and videos to the
web 54
Change the background in the
Pictures hub 55
2
© 2011 Nokia. All rights reserved.
Create an album 55
Copy your pictures between your
phone and PC 55
Entertainment 56
Music and videos 56
Nokia Music 58
Marketplace 59
Games 61
Maps & navigation 63
Positioning and location services 63
Bing Maps 64
Drive 68
Office 71
Clock 71
Calendar 72
Microsoft Office Mobile 73
Use the calculator 77
Connectivity & phone management 79
Bluetooth 79
USB data cable 80
Keep your phone software and
applications up to date 80
Back up, sync, and restore your
phone 81
Free up phone memory 82
Remove an application from your
phone 82
Security 83
Support 84
Product and safety information 84
Index 91
3
© 2011 Nokia. All rights reserved.
Safety
Read these simple guidelines. Not following them may be dangerous or illegal. For
further information, read the complete user guide.
SWITCH OFF IN RESTRICTED AREAS
Switch the device off when mobile phone use is not allowed or when it may
cause interference or danger, for example, in aircraft, in hospitals or near
medical equipment, fuel, chemicals, or blasting areas. Obey all instructions
in restricted areas.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle while
driving. Your first consideration while driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect
performance.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
BATTERIES, CHARGERS, AND OTHER ACCESSORIES
Use only batteries, chargers, and other accessories approved by Nokia for
use with this device. Do not connect incompatible products.
KEEP YOUR DEVICE DRY
Your device is not water-resistant. Keep it dry.
4
© 2011 Nokia. All rights reserved.
GLASS PARTS
The device screen is made of glass. This glass can break if the device is
dropped on a hard surface or receives a substantial impact. If the glass
breaks, do not touch the glass parts of the device or attempt to remove
the broken glass from the device. Stop using the device until the glass is
replaced by qualified service personnel.
PROTECT YOUR HEARING
Listen to a headset at a moderate level, and do not hold the device near
your ear when the loudspeaker is in use.
5
© 2011 Nokia. All rights reserved.
Get started
Keys and parts
1Connector for headphones and loudspeakers (3.5 mm)
2Micro-USB connector. Also used to charge the battery.
3Micro-SIM card holder
4Volume key
5Power key/Key lock button
6Camera key
7Back key
8Start key
9Search key
6
© 2011 Nokia. All rights reserved.
10 Camera flash
11 Camera lens
12 Microphone
13 Loudspeaker
If there is protective tape on the camera lens, remove the tape.
Back, start, and search keys
The back, start, and search keys help you to navigate your phone.
Back key
Return to the previous screen
Press . Your phone remembers all the apps and websites you have visited since the
last time your screen was locked.
Switch between open apps
Press and hold , swipe left or right, and select the desired app.
Start key
Go to the start screen
Press .
Control your phone with your voice
Press and hold , and say a voice command.
7
© 2011 Nokia. All rights reserved.
Search key
Search the web
Press .

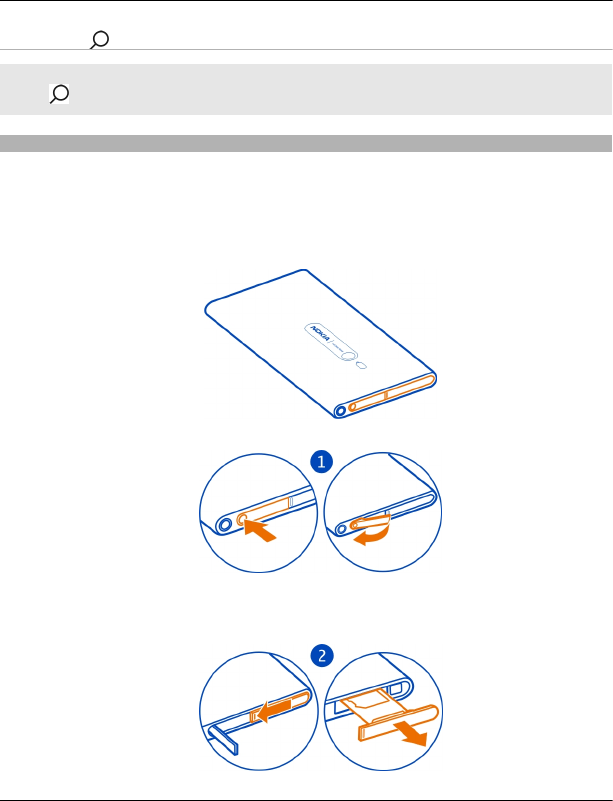

Insert the SIM card
Your phone uses a micro-SIM card, also known as a mini-UICC card.
Do not attach any stickers to your SIM card.
1 You must first open the cover of the micro-USB connector. Press the left end of
the cover, and carefully pull the cover away from the phone.
2 To unlock the SIM card holder, press and slide the holder to the left. Carefully pull
out the holder.
8
© 2011 Nokia. All rights reserved.

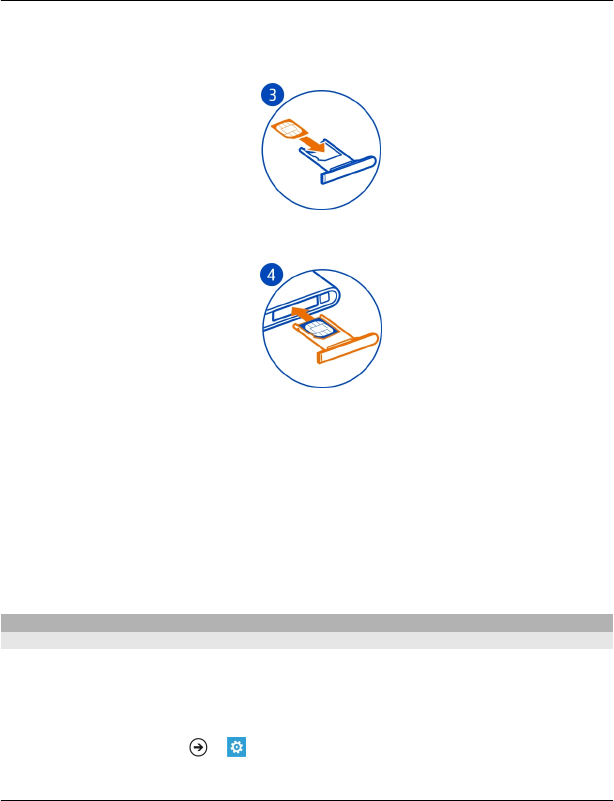

3 Make sure the contact area is facing up, and insert the SIM card into the SIM card
holder.
4 Insert the SIM card holder back into the phone, and slide the holder to the right.
5 Close the cover of the micro-USB connector.
Remove the SIM card
1 Switch the phone off.
2 Open the cover of the micro-USB connector.
3 Unlock the SIM card holder, and carefully pull out the holder.
4 Pull the card out of the holder.
If you later change your network service provider, for instructions, go to
www.nokia.com/support.
Charge your phone
About the battery
Your phone has an internal, nonremovable, rechargeable battery. Use only Nokia
approved chargers designated for this phone. You can also use a compatible USB data
cable to charge your phone.
You can set your phone to automatically switch power save mode on when the battery
charge level is low. Select > and battery saver > Always turn on Battery Saver
when battery is low.
9
© 2011 Nokia. All rights reserved.
When power save mode is switched on, you may not be able to change the settings
of certain apps.
Do not attempt to remove the battery from the device. To replace the battery, take
the device to your nearest authorised service facility.
Authorised retail points may also offer a battery replacement service.
Important: Only qualified personnel or an authorised service facility should
replace the battery. Unauthorised battery replacement may invalidate your warranty.
Charge the battery
Your battery has been partially charged at the factory, but you may need to recharge
it before you can switch on your phone for the first time.
You do not need to charge the battery for a specific length of time, and you can use
the phone while it is charging.
If the phone indicates a low charge, do the following:

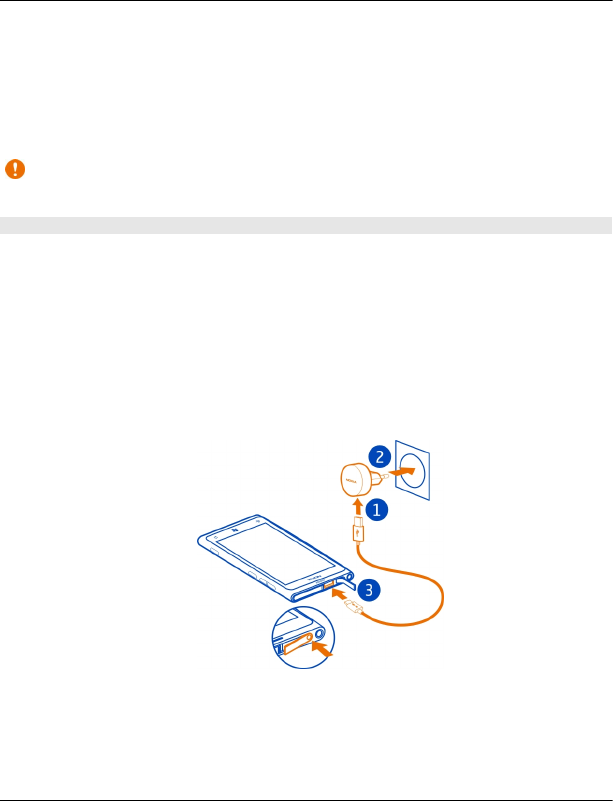

Charge from a wall outlet
1 First connect the USB cable to the charger, and the charger to the wall outlet,
then connect the USB cable to your phone.
2 When the battery is full, disconnect the charger from the phone, and then from
the wall outlet.
10
© 2011 Nokia. All rights reserved.
To avoid breaking the charger connector, be careful when connecting or
disconnecting the charger cable.

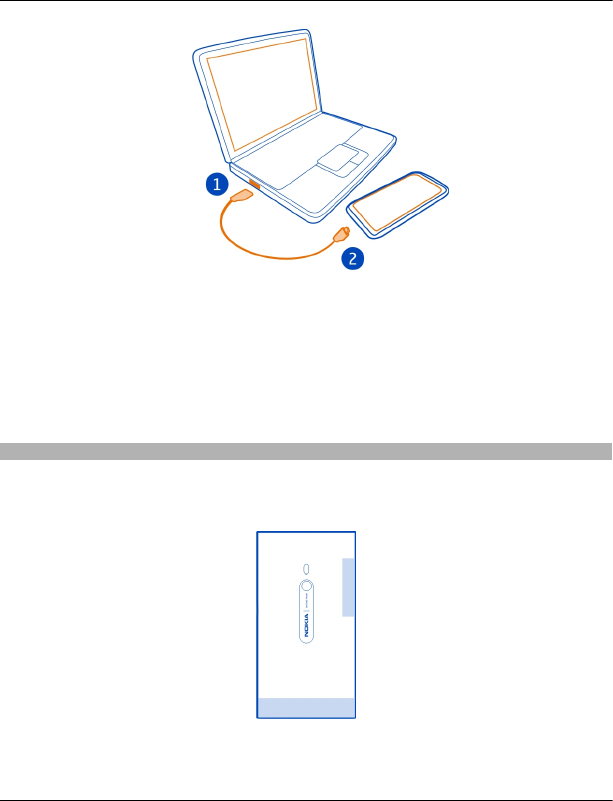

Charge from a computer
You can use USB charging when a wall outlet is not available. Data can be transferred
while charging the device. The efficiency of USB charging power varies significantly,
and it may take a long time for charging to start and the device to start functioning.
1 First connect the USB cable to the computer, then to your phone.
11
© 2011 Nokia. All rights reserved.
2 When the battery is full, first disconnect the USB cable from your phone, then
from the computer.
If the battery is completely discharged, it may take several minutes before the
charging indicator is displayed or before any calls can be made.
If the battery has not been used for a long time, to begin charging, you may need to
connect the charger, then disconnect and reconnect it.
Antenna locations
Avoid touching the antenna area while the antenna is in use. Contact with antennas
affects the communication quality and may reduce battery life due to higher power
level during operation.
The antenna area is highlighted.
12
© 2011 Nokia. All rights reserved.
Switch the phone on or off
Switch the phone on
Press and hold the power key, until the phone vibrates.
Switch the phone off
Press and hold the power key, and drag the lock screen down.

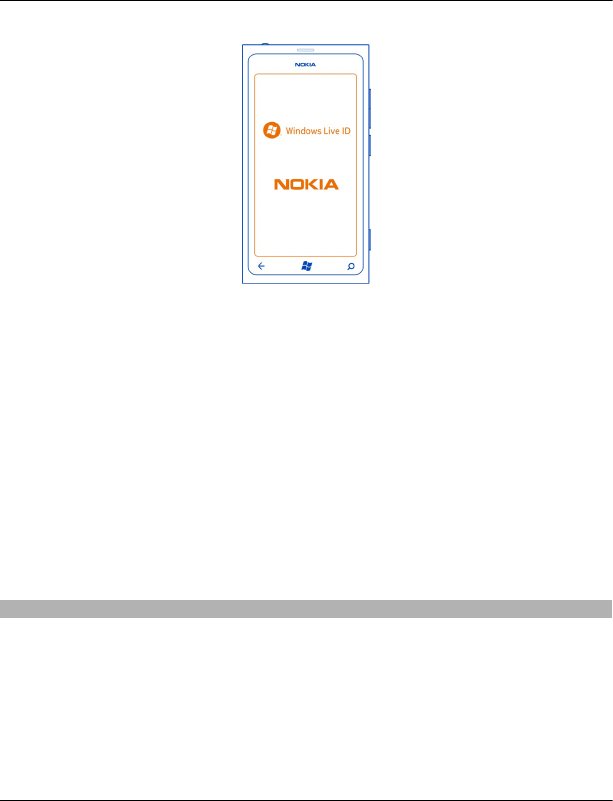

Create your accounts
Your phone guides you through the initial setup when you insert your SIM card and
switch your phone on for the first time. To access all Windows Live and Nokia services,
create your Windows Live ID and Nokia account.
13
© 2011 Nokia. All rights reserved.
To create a Windows Live ID and Nokia account, you need an internet connection. For
information about possible data costs, contact your network service provider. If you
can't connect to the internet, you can create the accounts later.
If you already have a Windows Live ID or Nokia account, sign in with your existing
username and password.
Tip: Forgotten your password? You can request it to be sent to you in a mail or text
message.
To create a Windows Live ID later, connect your phone to your PC, and open the Zune
PC app, and you are prompted to create an account.
To create a Nokia account later, use your phone to access a Nokia service, and you
are prompted to create an account.
To make an emergency call during the initial setup, select emergency call.
Windows Live ID
With a Windows Live ID, you can access all Windows Live and Zune services with a
single username and password on your computer or phone. You can also use the same
username and password to access Xbox Live services on your Xbox.
With your Windows Live ID, you can, for example:
Download content from Marketplace
Back up your contacts in Windows Live
Upload, store, and share pictures and documents on SkyDrive
14
© 2011 Nokia. All rights reserved.
Keep track of and lock your lost phone with Find My Phone
Get your gaming achievements on your phone, and add to them when you play
games on your phone
To learn more about Windows Live ID and Windows Live services, go to
www.live.com.
Nokia account
When you switch your phone on for the first time, your phone guides you through
creating a Nokia account.
With your Nokia account, you can, for example:
Access all Nokia services with a single username and password, both on your
phone and a compatible computer
Download content from Nokia services
Save details about your phone model and contact information. You can also add
your payment card details.
To learn more about the Nokia account and Nokia services, go to www.nokia.com/
support.
To create a Nokia account later, use your phone to access a Nokia service, and you
are prompted to create an account.

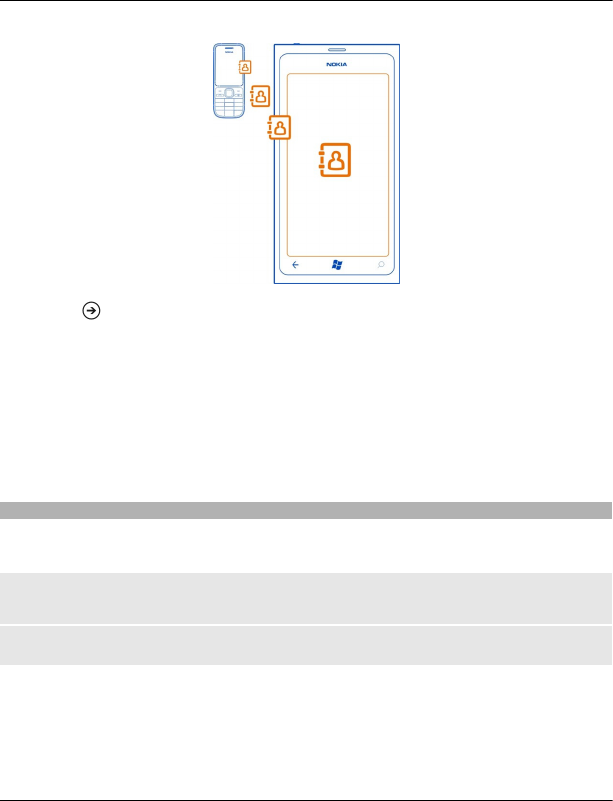

Copy contacts from your old phone
Have your nearest and dearest instantly at your fingertips. Use the Contacts Transfer
app to easily copy your contacts from your old phone.
Your old phone needs to support Bluetooth.
15
© 2011 Nokia. All rights reserved.
1Select > Contacts Transfer.
2 Make sure Bluetooth is activated on both phones, and the phones are set to be
visible to other devices.
3 On your new phone, select your old phone from the list of found devices.
4 Follow the instructions displayed on both phones.
Copying contacts may not be possible in all languages.
If you have previously backed up your contacts in Windows Live, you can also import
them to your phone straight from the service.
Lock or unlock the keys and screen
To avoid accidentally making a call when your phone is in your pocket or bag, lock the
keys and screen of your phone.
Lock the keys and screen
Press the power key.
Unlock the keys and screen
Press the power key, and drag the lock screen up.
16
© 2011 Nokia. All rights reserved.
Set the keys and screen to lock automatically
Select > and lock+wallpaper > Screen times out after, and select the length
of time after which the keys and screen are locked automatically.
Headset
You can connect a compatible headset or compatible headphones to your phone.
Do not connect products that create an output signal, as this may damage the device.
Do not connect any voltage source to the audio connector. If you connect an external
device or headset, other than those approved by Nokia for use with this device, to
the audio connector, pay special attention to volume levels.
Change the volume
Use the volume keys.
17
© 2011 Nokia. All rights reserved.
The built-in loudspeaker allows you to speak and listen from a short distance without
having to hold the phone to your ear.
Switch the loudspeaker on or off during a call
Select and or .
Access codes
PIN or PIN2 code
(4-8 digits)
These protect your SIM card against unauthorised use or are
required to access some features.
You can set your phone to ask for the PIN code when you switch
it on.
If not supplied with your SIM card or you forget the codes,
contact your service provider.
If you enter the code incorrectly three times in a row, you need
to unblock the code with the PUK or PUK2 code.
PUK or PUK2 code
(8 digits)
These are required to unblock a PIN or PIN2 code.
If not supplied with your SIM card, contact your service
provider.
IMEI number
(15 digits)
This is used to identify valid phones in the network. The
number can also be used to block, for example, stolen
phones.The IMEI code may also be needed for Nokia Care.
To view your IMEI number, dial *#06#.
Lock code (security
code)
(min. 4 digits)
This helps you protect your phone against unauthorised use.
You can set your phone to ask for the lock code that you
define.
Keep the code secret and in a safe place, separate from your
phone.
If you forget the code and your phone is locked, your phone
will require service. Additional charges may apply, and all the
personal data in your phone may be deleted.
18
© 2011 Nokia. All rights reserved.
For more information, contact a Nokia Care Point or your
phone dealer.

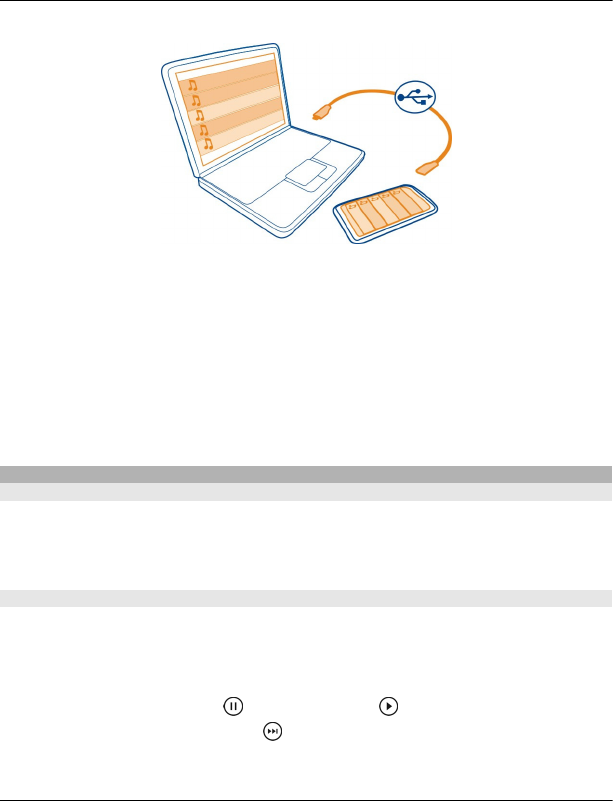

Set your phone to sync with your computer
With the Zune PC app, you can sync music, videos, and pictures between your phone
and your compatible computer. You can also back up and update your phone with the
latest software, to improve performance and get new features.
To download and install the latest version on your PC, or to learn more about Zune,
go to www.zune.net.
Tip: If you're using an Apple Mac, download Windows Phone 7 Connector for Mac from
www.windowsphone.com.
If you have previously used another app, such as Nokia Ovi Suite, to sync your files
between your phone and computer, you can set Zune to sync files to the same folders
you have used earlier, and have your favourites easily synced to your new phone.
19
© 2011 Nokia. All rights reserved.
Basics
About the start screen
Your start screen contains tiles that you can select to open apps or call contacts. Live
tiles show you what's going on and what you've missed.
The animated live tiles show notifications of missed calls and received messages, the
latest news and weather forecasts, feeds from web TV channels, your friends' online
statuses, and more.
The start screen is yours to personalise. Pin contacts, apps, music, pictures, feeds,
mailboxes, and other favourites, so they're always with you. When you pin contacts,
their updates are displayed on the tile, and you can call them directly from the start
screen.
Tip: To quickly open the apps menu, swipe left on the start screen.
Touch screen actions
To use your phone, tap or tap and hold the touch screen.
Important: Avoid scratching the touch screen. Never use an actual pen, pencil, or
other sharp object on the touch screen.
Open an app or other screen element
Tap the app or element.
Tap and hold to open a menu with further options
Place your finger on an item, until the menu opens.
20
© 2011 Nokia. All rights reserved.
Example: To edit or delete a calendar appointment, tap and hold the appointment,
and select the appropriate option.
Tap and hold to drag an item
Place your finger on the item for a second or two, and slide your finger across the
screen.

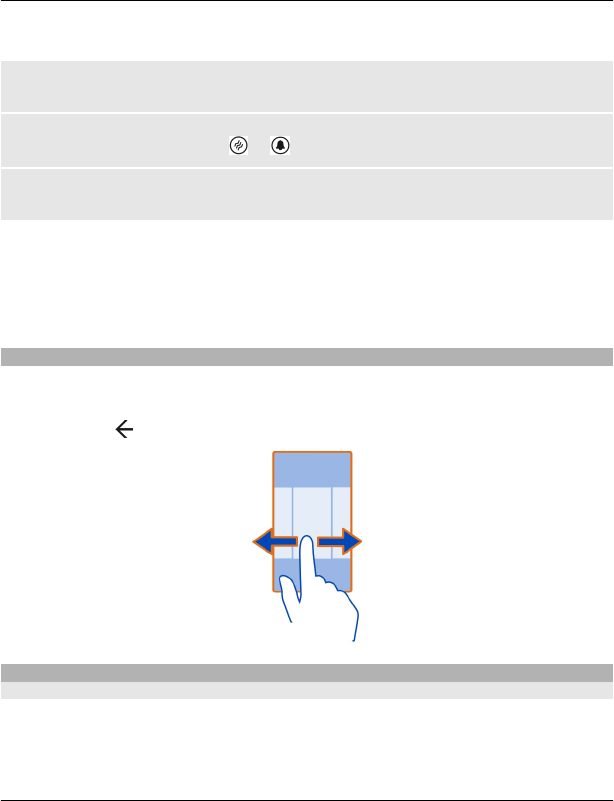

Swipe
Place a finger on the screen, and steadily slide your finger in the desired direction.
21
© 2011 Nokia. All rights reserved.
Example: Swipe left or right between the start screen and the apps menu, or between
different views in the hubs. To quickly scroll through a long list or menu, slide your
finger quickly in a flicking motion up or down the screen, then lift your finger. To stop
the scrolling, tap the screen.
Zoom in or out
Place two fingers on an item, such as a map, picture, or web page, and slide your
fingers apart or together.
Use your phone when it's locked
You can use certain features of your phone when it is locked, without having to enter
the security code.
You can, for example:
Make an emergency call
Change how your phone notifies you about incoming calls
Answer or reject an incoming call
Pause or resume playing music, or skip to another song
22
© 2011 Nokia. All rights reserved.
To wake up your phone, press the power key.
Make an emergency call
Swipe up on the lock screen, and select emergency call.
Change how incoming calls are notified
Press a volume key, and select or .
Pause or resume music, or skip to another song
Use the music player controls displayed at the top of the screen.
You can also see:
The date and time
Your next calendar event
Missed calls or messages
Switch between open apps
You can see which apps and tasks are open in the background, and switch between
them.
Press and hold , swipe left or right, and select the desired app.
Personalise your phone
Personalise the start screen
Would you like to have only the content you need on the start screen? Move or remove
tiles, and pin contacts, apps, and websites to the start screen.
23
© 2011 Nokia. All rights reserved.
You can also pin music and pictures, your latest mail, favourite contacts, and more.
When you pin a contact, their feed updates are displayed on the tile, and you can call
them directly from the start screen.
Pin a contact
In the People hub, select and hold the contact, and select pin to Start.
Pin an app
In the apps menu, select and hold the app, and select pin to Start.
Pin a website
At the website, select > pin to start.
Move a tile
Select and hold the tile, drag it to the new location, and press .
Remove a tile from the start screen
Select and hold the tile, and select .
Change your theme
You can change the colours, to match your taste and mood.
Select > and theme > Background or Accent colour.
Tip: You can save battery power if you use a darker background.
Change the background pictures
Want to view your favourite landscape or pictures of your family more often? You can
change the background picture of the lock screen and the Pictures hub and live tile.
Change the lock screen wallpaper
1Select > and lock+wallpaper > change wallpaper.
2 Select a picture, adjust it to get the best possible fit, and select .
Change the background of the Pictures hub and live tile
1 In the Pictures hub, select > choose background.
2 Select a picture, adjust it to get the best possible fit, and select .
Tip: If you like variety, select shuffle background, and the phone will shuffle through
your pictures.
24
© 2011 Nokia. All rights reserved.
Personalise your ringtone and other tones
You can personalise your phone tones.
Select > and ringtones+sounds.
Select the type of ringtone or alert you want to change, and select the sound.
Tip: You can use the Zune PC app to create ringtones from your favourite songs.
Silence your phone
When you switch silent mode on, all ringtones and alert tones are muted. Use this
when you are, for example, at the cinema or in a meeting.
Press a volume key, and select ring . Silent mode is switched on. If you have set
your phone to vibrate, vibrate mode is switched on.
Set your phone to vibrate
Select > and ringtones+sounds, and switch Vibrate to On .
Write text
Use the virtual keyboard
To open the virtual keyboard, select a text input field. You can use the virtual keyboard
when holding your phone upright or on its side.
1Character keys
2Shift key
3Numbers and symbols key
4Space key
5Language key. Only available when more than one writing language has been
selected.
25
© 2011 Nokia. All rights reserved.
6Enter key
7Backspace key
The keyboard layout can vary in different apps.
Switch between upper and lower case characters
Select the shift key before inserting the character. To switch caps lock mode on,
select the key twice. To return to normal mode, select the shift key again.
Insert a number or a special character
Select the numbers and symbols key. Some of the special character keys can bring
up more symbols. To see more related symbols, select and hold a special character.
Tip: To quickly insert a number or a commonly used special character, select the
numbers and symbols key, and slide your finger to the character without lifting.
Add an accent to a character
Select and hold the character, and select the accented character.
Delete a character
Select the backspace key.
Switch between the writing languages
Select the language key.
Move the cursor
Tap and hold the screen near the text, until a cursor is displayed. Without lifting your
finger, drag the cursor to the desired location.
To move the cursor to the next row or text input field, select the enter key. The
function of the enter key can change in different apps. For example, in the web
address field of the web browser, it acts as the Go icon.
Add more writing languages
You can add several writing languages for your keyboard and switch between the
languages when writing.
Select > and keyboard, and select the languages you want to write in.
26
© 2011 Nokia. All rights reserved.
Switch between the languages when writing
Select the language key.
Search your phone and the web
Explore your phone, the web, and the outside world. With Bing search, you can use
the virtual keyboard or your voice to enter your search words. You can also use your
phone camera to scan things, such as barcodes and book and DVD covers, and get
further information on what your phone recognises.
Search the web
1Press .
2 Enter your search word in the search field, and select from the proposed matches.
3 Select .
4 To specify your search results, select local or images.
Use voice search
1Press .
2 Select in the search field.
3Say Find or Search for and your search word.
Search inside an app
1 In an app, such as Messaging or Marketplace, select .
2 Enter your search word in the search field, and select from the proposed matches.
3 Select .
Use vision search
1Press .
2 Select , and scan text, QR codes, or barcodes.
Tip: To translate or search for text on the web, select scan text.
Control your phone with your voice
Got your hands full, but need to use your phone? You can use your voice to make a
call, send a text message, search the web, or open an application.
This feature may not be available in all languages.
1Press and hold .
27
© 2011 Nokia. All rights reserved.
2 Say a voice command.
Example: To check your schedule, say open Calendar.
Tip: For more examples, say Help.
Indicators on the status bar
The status bar at the top of the screen tells you the current time, battery and signal
strength, and much more.
Tip: To see hidden icons, tap the status bar.
Signal strength
A GPRS data connection (network service) is open.
An EDGE data connection (network service) is open.
Your phone is connected to a 3G network (network service).
An HSDPA/HSUPA data connection (network service) is open.
A Wi-Fi connection is available.
A Wi-Fi connection is active.
A Bluetooth device is connected to your phone.
Your calls are diverted to another number or your voice mailbox.
There is no SIM card in your phone.
Your SIM card is locked.
Your phone is roaming and not on your home mobile network.
Silent mode is switched on.
Flight mode is switched on.
Vibrate mode is switched on.
Battery power level
Battery saver mode is switched on.
The battery is charging.
The icons may vary depending on your region or network service provider.
Use your phone offline
In places where you do not want to make or receive calls, you may still access your
music, videos, and offline games if you switch flight mode on.
Select > , and switch flight mode to On .
When flight mode is switched on, your connection to the mobile network is closed. All
radio frequency signals between the phone and the mobile network are prevented.
28
© 2011 Nokia. All rights reserved.
When flight mode is switched on, you can still connect to a Wi-Fi network to, for
example, read your mail or browse the internet. You can also use Bluetooth.
Switch the phone off when mobile phone use is not allowed or when it may cause
interference or danger. Remember to comply with any applicable safety
requirements.
Prolong battery life
If it seems you're always looking for a charger, there are steps you can take to reduce
the power consumption of your phone. The key is to find the balance between getting
the most out of your phone while getting the battery life you need.
Always charge the battery fully.
Close the apps you're not using.
Example: The camera viewfinder can be a power drain, so after you've finished
taking pictures, press .
Switch battery saver mode on.
Tip: To check the battery status, and switch battery saver mode on, select >
and battery saver.
Save battery with sound and screen options
Mute unnecessary sounds, such as key press sounds.
Use wired headphones, rather than the loudspeaker.
Set the phone screen to switch off after a short time
Select > and lock+wallpaper > Screen times out after.
Use a dark theme
Select > and theme > Background > Dark.
Lower the screen brightness
Select > , switch brightness to Off , and select the desired level.
Use network connections selectively
If you are listening to music or otherwise using your phone, but do not want to
make or receive calls, switch flight mode on.
Rather than streaming music wirelessly, use the Zune PC app to copy your
favourite music to your phone.
29
© 2011 Nokia. All rights reserved.
Set your phone to check for new mail less frequently.
Switch Bluetooth on only when needed.
Use a Wi-Fi connection to connect to the internet, rather than a mobile data (GPRS
or 3G) connection.
Stop your phone scanning for available Wi-Fi networks. Select > , and switch
WiFi to Off .
30
© 2011 Nokia. All rights reserved.
Calls
Call a contact
On the start screen, select > and the contact and the number.
Search for a contact
On the start screen, select > , and start entering the contact's name.
Call the last dialled number
Trying to call someone, but they are not answering? It is easy to call them again. In
the call history view, you can see information about the calls you have made and
received.
On the start screen, select .
Select next to the name or phone number.
Call your voice mailbox
You can divert your incoming calls to your voice mailbox. Callers can also leave you a
message if you do not answer. Voice mailbox is a network service.
1 Select > .
2 When your phone asks for the voicemail password, enter it.
3 You can listen or reply to voicemails, delete them, or record a greeting message.
Follow the audible instructions.
Change the phone number of your voice mailbox
1 Select > > call settings and the voicemail number.
2 Enter the new number, and select save.
If the voice mailbox number is automatically set by your network service provider,
you do not need to change the number.
Divert calls to your voice mailbox or another phone number
If you cannot answer your calls, you can divert incoming calls to your voice mailbox
or another phone number. Remember to set up your voice mailbox before diverting
your calls there.
To divert an incoming call to your voice mailbox, select IGNORE.
31
© 2011 Nokia. All rights reserved.
Divert calls to another phone number
1 On the start screen, select > > call settings > Call forwarding.
2 Enter the phone number in the Forward calls to field, and select save.
To check if call divert is being used, indicated with , tap the top of the screen.
Call divert is a network service. For details, contact your network service provider.
Make a conference call
Your phone supports conference calls between two or more people. The maximum
number of participants varies by the network operator. Conference call is a network
service.
1 Make a call to the first participant.
2 To make a call to another participant, select , and make the call.
3 When the new call is answered, to start the conference call, select .
Add a new participant to a conference call
Make a call to another participant, and to add the new call to the conference call,
select .
Have a private conversation with a conference call participant
Select and the person's name or phone number. The conference call is put on hold
on your phone. The other participants continue the conference call.
To return to the conference call, select .
End an active conference call
Select END CALL.
32
© 2011 Nokia. All rights reserved.
Silence an incoming call
When a call arrives, press the volume key.
Use your voice to call a contact
You can use your voice to make calls with your phone.
Press and hold .
Say Call and the contact's name.
To cancel making the call, press .
Tip: You can use your voice to make a phone call also through a Bluetooth headset.
33
© 2011 Nokia. All rights reserved.
Contacts & social networking services
Contacts
About the People hub
You can save and organise your friends' phone numbers, addresses, and other
contact information in the People hub. You can also get in touch with your friends
through social networking services.
The social networking services are third party services and not provided by Nokia.
Check the privacy settings of the social networking service you are using as you may
share information with a large group of people. The terms of use of the social
networking service apply to sharing information on that service. Familiarise yourself
with the terms of use and the privacy practices of that service.
Using services or downloading content may cause transfer of large amounts of data,
which may result in data traffic costs.
Create, edit, or delete a contact
You can save your friends' phone numbers, addresses, and other information to the
People hub.
Select People, and swipe to all.
Add a new contact
1Select > new contact.
2 If you have signed in to several accounts, select the account to which the contact
is linked.
3 Select a contact detail, fill in the fields, and select .
4 When you have added the details, select .
Edit a contact
1 Select the contact and .
2 If the contact has several accounts linked in the contact card, select an account.
3 Select a contact detail, edit the fields, and select .
Delete a contact
1 Select the contact and > delete.
2 If the contact has several accounts linked in the contact card, select an account
and delete.
34
© 2011 Nokia. All rights reserved.
The contact is deleted both from your phone and, with some exceptions, from
the online service where it's stored.
Save a number from a received call or message
Have you received a call or message from a person whose phone number is not yet
saved in the People hub? You can easily save the number in a new or existing contact
list entry.
Save a number from a call
1 On the start screen, select .
2 In the call history list, select a phone number and .
3 Select , edit the phone number and phone number type, and select .
4 Edit other contact details, including the name, and select .
Save a number from a message
1 On the start screen, select .
2 In the conversations list, select a conversation.
3 At the top of the conversation screen, select the phone number and .
4 Select , edit the phone number and phone number type, and select .
5 Edit other contact details, including the name, and select .
Search for a contact
Is the People hub overflowing? Rather than scrolling through your entire contacts list,
you can search, jump to a letter of the alphabet, or use a voice command to call or
send a message to a contact.
Select People, and swipe to all.
Select , and start writing a name. The list filters as you write.
Jump to a letter of the alphabet
First select any letter, then the desired letter, and you jump to that point in your
contacts list.
Reduce the number of visible contacts
Select > settings > filter my contact list, and select or clear the appropriate
check boxes.
35
© 2011 Nokia. All rights reserved.
Use a voice command
1 In any view, press and hold .
2Say Call or Text and the contact's name.
Tip: Pin your most important contacts or contact groups to the start screen. Select
and hold a contact, and select pin to Start.
Create, edit, or delete a contact group
When you have created contact groups, you can send a message to several people at
the same time. For example, you can assign the members of your family to one group
and reach them more easily with a single message.
Select People, and swipe to all.
Add a new contact group
1Select > new group.
2 Enter a name for the group, and select .
3Select add a contact and a contact.
4Select .
Edit a contact group
Select the group and .
Rename a group
Select the group name, and enter the new name.
Add a new contact
Select add a contact and a contact.
Remove a contact
Select the contact and remove from group > Remove.
Change the preferred contact information for a contact
Select the contact and the information you want to change, and when you're done,
select .
Delete a contact group
Select the group and > delete > delete.
36
© 2011 Nokia. All rights reserved.
Link contacts
Do you have contact information for the same person from different social
networking services or mail accounts as separate contact entries? You can link
multiple contacts so that their information is in a single contact card.
Select People, and swipe to all.
Link two or more contacts
1 Select the main contact you want to link to, and select .
2 Select choose a contact and the contact to be linked.
Unlink a contact
1 Select the main contact and .
2 Select the contact to be unlinked and unlink.
Copy contacts from a SIM card to your phone
If you have contacts stored on your SIM card, you can copy them to your phone. You
can add more details to contacts that are stored on your phone, such as alternative
phone numbers, addresses, or a picture.
Select People.
Select > settings > import SIM contacts.
Social networks
Set up an account
Set up your social networking service accounts.
Select > and email+accounts.
Select add an account and the name of the service, and follow the displayed
instructions.
Change your profile picture
When you set up a Facebook or Windows Live account on your phone, your profile
picture from one of these social networking services also becomes the picture in your
contact card on your phone. If you change your picture on your phone, you can update
your Facebook and Windows Live profiles at the same time.
Select People, and swipe to all.
1 Select your own contact card and your picture.
37
© 2011 Nokia. All rights reserved.
2 Select your picture again, and in the Pictures hub, select a new picture.
3 Drag the picture around to adjust the cropping, and select .
4 To set where to update your picture, select Post to, select or clear the check
boxes, and select .
5Select .
See your friends' status updates
After you set up social networking services on your phone, you can follow your friends'
status updates in the People hub.
Select People, and swipe to what's new.
Post your status
If you feel like reaching out to your friends, let them know what's on your mind. Post
your status to the social networking services that you use.
Select People, and swipe to all.
1 Select your own contact card and post a message.
2 Write your message.
3In the Post to field, select the check box next to each account to post to, and
select .
4Select .
Write on your friend's wall
In Facebook, you can contact your friends by writing on their Facebook wall or by
commenting on their status updates.
Select People.
1Swipe to all.
2 Select a Facebook friend's profile and write on wall.
3 Write your message, and select .
Comment on a friend's post
1Swipe to what's new. Recent posts from your friends are displayed.
2 On the post, select .
3 Write your comment, and select .
38
© 2011 Nokia. All rights reserved.
Upload a picture to a service
After you take a picture, upload it to the web so all your friends can see what you're
up to. You can also set up your phone to upload pictures automatically to social
networking services.
Select Pictures.
1 Browse your photo albums for the picture you want to share.
2 Select and hold the picture, and select share....
3 Select the sharing method. You can send it in a text message or mail, or upload
it to social networking services.
4 Add a picture caption if you want, and select .
39
© 2011 Nokia. All rights reserved.
Internet
Internet connections
Define how your phone connects to the internet
Does your network service provider charge you a fixed fee for data transfer, or on a
pay as you use basis? To use the optimal connection method, change the Wi-Fi and
mobile data settings.
Select > .
Use a Wi-Fi connection only
Select WiFi and the desired connection.
Using a Wi-Fi connection is generally faster and less expensive than using a mobile
data connection.
Use a mobile data connection
1Select mobile network.
2Switch Data connection to On , and select the desired connection.
Use a mobile data connection when roaming
Select mobile network > Data roaming options > roam.
Data roaming means using your phone to receive data over networks that your
network service provider doesn't own or operate.
Connecting to the internet when roaming, especially when abroad, can raise data
costs substantially.
To use the fastest available mobile connection, switch 3G connection to On .
If the signal strength for a 3G network in your area is low, searching for or trying to
stay connected to it can use more battery power.
Mobile data access points are usually sent to you by your network service provider.
You can manually add access points.
Manually add a mobile data access point
1Select mobile network > add APN.
2 Enter the APN address in the APN field.
3 Enter the username and password for your mobile data account.
40
© 2011 Nokia. All rights reserved.
4 If the APN uses a proxy server, enter the address and port number in the
appropriate fields.
If you later change your network service provider, for instructions on how to get the
internet settings, go to www.nokia.com/support.
About Wi-Fi connections
Select > and WiFi.
Tip: Your phone periodically checks for and notifies of available connections. The
notification appears briefly at the top of the screen. To manage your Wi-Fi
connections, select the notification.
Important: Use encryption to increase the security of your Wi-Fi connection. Using
encryption reduces the risk of others accessing your data.
Connect to a Wi-Fi network
Connecting to a Wi-Fi network is a handy way of accessing the internet. When out and
about, you can connect to Wi-Fi networks in public places, such as a library or internet
café.
Select > and WiFi.
1Make sure WiFi NETWORKS is switched to On .
2 Select the desired Wi-Fi connection.
Connect to a hidden Wi-Fi
1Make sure WiFi NETWORKS is switched to On .
2 Select advanced > .
3 Enter the network name, and select add.
Close the Wi-Fi connection
Switch WiFi NETWORKS to Off .
Close a network connection
If an application in the background is using an internet connection, you can close the
connection without closing the application.
Select > .
41
© 2011 Nokia. All rights reserved.
Close all mobile data connections
1Select mobile network.
2Switch Data connection to Off .
Close all Wi-Fi connections
1Select WiFi.
2Switch WiFi NETWORKS to Off .
Close all network connections
1Select flight mode.
2Switch flight mode to On .
Internet
About the web browser
Select .
Catch up on the news, and visit your favourite websites. You can use Internet Explorer
9 Mobile in your phone to view web pages on the internet.
To browse the web, you must be connected to the internet.
Browse the web
Select .
Tip: If you do not have a flat-rate data plan from your network service provider, to
save data costs in your phone bill, you can use a Wi-Fi network to connect to the
internet.
Go to a website
Select the address bar, enter a web address, and select .
Search the internet
Select the address bar, and enter a search word.
Zoom in or out
Place two fingers on the screen, and slide your fingers apart or together.
Tip: To quickly zoom in on a section of a web page, double-tap the screen. To zoom
out, double-tap the screen again.
42
© 2011 Nokia. All rights reserved.
You can open up to 6 browser tabs at the same time and switch between them.
Open a new tab
Select > tabs > .
Switch between tabs
Select > tabs and a tab.
Close a tab
Select .
Send a web link
Select > share page and the sharing method.
A cache is a memory location that is used to store data temporarily. If you have, or
have tried to, access confidential information or a secure service, requiring
passwords, clear the cache after each use.
Empty the cache
Select > settings > delete history.
Add a website to your favourites
If you visit the same websites all the time, add them to your favourites, so you can
easily access them.
Select .
While browsing, select > add to favourites.
Go to a favourite website
Select > favourites and a website.
Tip: You can also pin your favourite websites to the start screen. While browsing the
website, select > pin to start.
43
© 2011 Nokia. All rights reserved.
Messaging & mail
Messages
About Messaging
On the start screen, select .
You can send and receive different kinds of messages:
Text messages
Multimedia messages that contain your pictures or videos
Instant messages (network service)
Messages and chats between you and a particular contact are arranged into
conversations.
When you want to get in touch with a contact, your phone can help you pick the best
method. If the contact is signed in to a chat service, you can send an instant message.
Otherwise, a text message can be sent instead.
If you make contact groups containing, for example, family or colleagues, you can
send a message to a group.
You can send text messages that are longer than the character limit for a single
message. Longer messages are sent as two or more messages. Your service provider
may charge accordingly.
Characters with accents, other marks, or some language options, take more space,
limiting the number of characters that can be sent in a single message.
Using services or downloading content may cause transfer of large amounts of data,
which may result in data traffic costs.
Send a message
With text and multimedia messages, you can quickly contact your friends and family.
In a multimedia message, you can attach your videos, pictures, and sound clips.
Select .
1Swipe to threads, and select .
2Select and a contact. You can add more than one recipient.
3 Select the message field, and write your message.
4 To add an attachment, select and the file.
44
© 2011 Nokia. All rights reserved.
5 To send the message, select .
Reply to a message
1 Select the conversation containing the message.
2 Select the message field, write your reply, and select .
Forward a message
1 Select the conversation containing the message.
2 Select and hold the message, and select forward.
3 Select the recipients.
4 Select the message field and .
Sending a message with an attachment may be more expensive than sending a normal
text message. For more information, contact your service provider.
If the item you insert in a multimedia message is too large for the network, the device
may automatically reduce the size.
Only compatible devices can receive and display multimedia messages. Messages
may look different in different devices.
Send a message to a group of people
Would you like to send a message to all your family members? If you have assigned
them to a group, you can send a text message or mail to all of them at the same time.
Select People.
Select the group and text or send email, and write and send your message.
Chat with your friends
On the start screen, select .
Before starting to chat, set up a chat service. Follow the displayed instructions.
1 Select the desired chat service.
2 Sign in to the service.
3 In the People hub, select the contact you want to chat with. You can also chat with
a group of people.
4 Write your message, and select .
45
© 2011 Nokia. All rights reserved.
View a conversation
You can see the messages you have sent to and received from a particular contact in
a single conversation thread, and continue the conversation from that thread. The
thread can contain text messages, multimedia messages, and instant messages.
On the start screen, select and the conversation.
Reply to a message in a conversation
Select the message field, write your reply, and send the message.
Delete a conversation
Select threads, select and hold the conversation, and select delete.
When you send a new message, it is added to the current conversation. If no
conversation exists, a new conversation is started.
When you open a received message from the start screen, the message opens in the
conversation.
Mail
About Mail
On the start screen, select a mailbox.
You can use your phone to read and reply to mail when you are on the go. You can
also combine mailboxes, so you can see all your mail in a unified inbox.
Mails are organised into conversations.
Add a mailbox
You can add several mailboxes to your phone.
Select > > email+accounts.
1Select add an account and an account.
2 Enter your username and password in the appropriate fields.
3Select sign in.
Delete a mailbox
Select and hold the mailbox, and select delete.
46
© 2011 Nokia. All rights reserved.
View several mailboxes in a unified inbox
If you have more than one mail account, you can choose which inboxes you want to
link together in a unified inbox. The unified inbox lets you see all your mail at a glance.
Link inboxes
1 On the start screen, select a mailbox.
2 Select > link inboxes.
3In the other inboxes list, select the inboxes you want to link to the first one.
4 Select rename linked inbox, enter a new name, and select done. The new unified
inbox is pinned to the start screen.
Unlink inboxes
1 On the start screen, select a unified inbox.
2 Select > link inboxes.
3In the this inbox list, select the inboxes you want to unlink and unlink.
Read a received mail
You can use your phone to read and reply to mail.
On the start screen, select a mailbox.
In the inbox, select the mail.
Tip: To zoom in or out, place two fingers on the screen, and slide them together or
apart.
Open or save an attachment
Select the attachment and the appropriate option. If there is more than one
attachment, you can save them all at once.
Reply to the mail
Select .
47
© 2011 Nokia. All rights reserved.
To reply to the sender only, select reply. To reply to the sender and all other
recipients, select reply all.
Forward the mail
Select forward.
Delete a mail
Open the mail, and select .
Delete several mails at once
In the inbox, tap to the left of a mail you want to delete. Select the check boxes that
appear next to the mails, and select .
Tip: If a mail contains a web address, to open the address in the phone web browser,
select the address.
Send a mail
You can use your phone to write and send mail, and attach files to your mail.
On the start screen, select a mailbox.
1Select .
2 To add a recipient from the People hub, select in the To: field.
3 To remove a recipient, select their name or mail address, and select Remove.
4 Enter a subject in the Subject:field.
5 Write your mail.
6 To attach a file, select .
7To send the mail, select .
Open mail from the start screen
You can have several mailboxes pinned to the start screen. For example, dedicate a
tile for business mail and another for free time. You can also combine several
mailboxes into one tile.
From the tiles, you can see if you've received new mail and the number of unread
mails. To read your mail, select the tile.
48
© 2011 Nokia. All rights reserved.
Camera
About the camera
Press and hold the camera key.
Why carry a separate camera if your phone has all you need for capturing memories?
With your phone camera, you can easily take pictures or record videos.
You can later view the pictures and videos on your phone, and send pictures to your
family and friends. It's also easy to share your pictures on the internet.
Before using the camera, remove the protective tape from the lens.
Take a picture
Press and hold the camera key.
1 To zoom in or out, select + or in .
2 To focus, press and hold the camera key halfway down. The focus is locked when
the white rectangle stops blinking.
Tip: When the focus is locked, you can keep the camera key pressed halfway down,
and recompose the picture.
3 To take the picture, press the camera key fully down.
Do not move the phone before the picture is saved and the final picture displayed.
To view the picture you just took, swipe right. Pictures are saved to your Camera Roll
in the Pictures hub.
Take a picture without using the camera key
1 To focus on a specific object or area, tap the object or area on the screen.
2 Hold the camera still, until the white square stops blinking.
49
© 2011 Nokia. All rights reserved.
Take a close-up picture
It can be tricky to get small objects, such as insects or flowers, in focus. You need to
move the camera closer to the object. To take sharp and precise pictures of even the
tiniest details, use close-up mode.
Press and hold the camera key.
Switch close-up mode on
Select > Scenes > Macro.
Take a picture in the dark
Want to take better pictures even in dim light? Use night mode.
Press and hold the camera key.
Switch night mode on
Select > Scenes > Night.
Take a picture of a moving object
Are you at a sports event and want to capture the action with your phone? Use sports
mode to take a sharper picture of moving people.
Press and hold the camera key.
Switch sports mode on
Select > Scenes > Sports.
Camera tips
Here are some tips to help you get the most out of the phone camera.
Use both hands to keep the camera steady.
To zoom in or out, select + or in .
When you zoom in, the image quality may decrease.
After about a minute of inactivity, battery saving mode switches on. To use the
camera again, press the power key, and drag the lock screen up.
To switch between taking pictures and recording videos, select or .
50
© 2011 Nokia. All rights reserved.
To change camera settings, such as flash, scene modes, and resolution, select
and the setting.
Keep a safe distance when using the flash. Do not use the flash on people or animals
at close range. Do not cover the flash while taking a picture.
Record a video
Besides taking pictures with your phone, you can also capture your special moments
as videos.
Press and hold the camera key.
1 To switch from image mode to video mode, select .
2 To start recording, press the camera key. The timer starts to run.
3 To stop recording, press the camera key. The timer stops.
To view the video, swipe right. The video is automatically saved to your Camera
Roll in the Pictures hub.
Save location information to your pictures and videos
If you want to remember exactly where you were when you took a particular picture
or video, you can set your phone to automatically record the location.
Switch location recording on
1 Select > .
2Swipe to applications, and select pictures+camera.
3Switch Include location information in pictures you take to On .
If you want location information to be included in your pictures when you upload
them to a sharing service, such as Facebook or SkyDrive, switch Keep location
information on uploaded pictures to On .
Send a picture
You can send pictures in a multimedia message or mail.
Select and .
1 If sending a multimedia message, enter the recipient’s name or phone number in
the To: field. If sending a mail, enter the recipient's mail address.
2 Write a message if you like.
3 Select , and select an album and a picture.
51
© 2011 Nokia. All rights reserved.
4Select .
Tip: You can also take a picture as you write your message. Select > , take a
picture, and select accept.
Tip: You can use the Zune software to send a video. After recording a video on your
phone, use a compatible USB data cable to connect your phone to your PC, copy the
video to your PC using Zune, and send it from your PC.
Share your pictures and videos
After taking a picture or recording a video you can upload it to a sharing service, such
as Facebook or SkyDrive.
Press and hold the camera key.
Share your picture
1 Take a picture.
2 Swipe right, tap and hold the picture, and select share....
3 Select the sharing service, enter a caption if you like, and select .
Share your video
1 Record a video.
2 Swipe right, tap and hold the video, and select share....
3 Select the sharing service, enter a caption if you like, and select .
Not all sharing services support all file formats or videos recorded in high quality.
52
© 2011 Nokia. All rights reserved.
Your pictures
About the Pictures hub
Select Pictures.
The pictures you have taken or videos you have recorded with your phone are saved
to the Pictures hub, where you can browse and view them.
To manage your media files more effectively, mark your favourites, or organise them
into albums.
View pictures
Select Pictures.
Browse pictures
Select Camera Roll.
View a picture
Tap the picture.
To view the next picture, swipe left. To view the previous picture, swipe right.
Zoom in or out
Place two fingers on the screen, and slide your fingers together or apart.
Tip: To quickly zoom in or zoom back out, tap the picture twice.
View the available options
Tap and hold the picture.
Pictures can be sent to you in a mail or multimedia message. To view these pictures
later, save them to the Pictures hub.
53
© 2011 Nokia. All rights reserved.
Save a picture to the Pictures hub
In the mail or multimedia message, select the picture and > save to phone.
You can view the saved picture in the Pictures hub. Select albums > Saved Pictures.
Mark a picture as a favourite
Would you like to find your best shots quickly and easily? Mark them as favourites,
and you can see them all in the favourites view in the Pictures hub.
Select Pictures.
1Select albums, and browse to the picture.
2 Tap and hold the picture, and select add to favourites.
Tip: You can also mark a picture as a favourite right after taking it. Just swipe right,
tap and hold the picture, and select add to favourites.
View your favourites
Swipe to favourites.
Upload pictures and videos to the web
Want to upload your pictures and videos to a social networking service for your friends
and family to see? You can do that directly from the Pictures hub, or set your phone
to automatically upload pictures to SkyDrive.
Select Pictures.
1 Select a picture or video to upload.
2 Tap and hold the picture or video, and select share... and the service.
3 Enter a caption if you like, and select or .
Tip: To make sharing easier, you can set Facebook or SkyDrive as your quick share
account. The quick share account is displayed in the menu when you start sharing.
To set the quick share account, select > , swipe to applications, and select
pictures+camera > Quick Share Account and the account.
You can also set your phone to automatically upload your pictures to SkyDrive.
54
© 2011 Nokia. All rights reserved.
Set up automatic upload
Select > , swipe to applications, and select pictures+camera > Automatically
upload to SkyDrive.
Change the background in the Pictures hub
Have a superb shot that makes you feel good every time you look at it? Set it as the
background of the Pictures hub.
Select Pictures.
1 Select > choose background.
2 Select the picture and .
Tip: You can also set your phone to periodically change the picture automatically.
Select > shuffle background.
Create an album
To easily find pictures of an occasion, a person, or a trip, for example, organise your
pictures into albums according to subject.
Use the Zune PC app or Windows Phone 7 Connector for Mac on your computer.
When you delete an album from the phone, also the pictures in that album are deleted.
If you have copied the album to your computer, the album and the pictures in it remain
on your computer.
Delete an album
1 Select Pictures and albums.
2 Select and hold an album, and select delete.
You cannot delete online albums from your phone.
Copy your pictures between your phone and PC
Have you taken pictures with your phone that you want to copy to your computer?
Using the Zune software and a compatible USB data cable, you can copy your pictures
between your phone and a compatible computer.
Use a compatible USB data cable to connect your phone to a computer, and use the
Zune app on your computer to copy the pictures.
55
© 2011 Nokia. All rights reserved.
Entertainment
Music and videos
About Zune player
Select .
You can use the Zune player to watch videos and listen to the radio, music, and
podcasts while on the move.
Play music, videos, and podcasts
Select .
1Select music, videos, or podcasts.
2 To browse by category, swipe left or right.
3 Select the file you want to play.
Pause and resume playback
To pause playback, select ; to resume, select .
Fast-forward or rewind
Select and hold or .
Tip: To play songs and videos in a random order, select .
Tip: You can also use the Zune PC app to make playlists of your favourite music and
videos, and copy them to your phone.
Listen to the radio
Enjoy your favourite FM radio stations on the go.
Connect a compatible headset, and select and radio. The headset acts as an
antenna.
56
© 2011 Nokia. All rights reserved.
Go to the next or previous station
Swipe left or right.
Tip: If you use a shorter swiping motion, you can skip to stations that have a stronger
signal.
Switch between speakers and headset
Select and hold the station number, and select switch to speaker or switch to
headset.
Save a radio station as a favourite
Save your favourite radio stations so you can easily listen to them later.
Select and radio.
To save the station that you are listening to, select .
View the list of saved stations
Select .
Remove a station from favourites
Select .
Copy music and videos from your PC
Do you have media on your PC that you want to listen to or watch on your phone? Use
the Zune PC app to copy music and videos to your phone, and to manage and
synchronise your media collection.
57
© 2011 Nokia. All rights reserved.
1 Use a compatible USB data cable to connect your phone to a compatible
computer.
2 On your computer, open Zune. For more information, see the Zune help.
Some music files can be protected by digital rights management (DRM) and cannot
be played on more than one phone.
Tip: You can also use Zune to make playlists of your favourite music and videos, and
copy them to your phone.
Download the latest version of Zune from www.zune.net.
Nokia Music
About Nokia Music
With Nokia Music on Windows phone, you can download songs to your phone and your
compatible computer.
To start discovering music, select Nokia Music.
Stream music
With Nokia Music, you can stream music to discover new genres and artists.
Select Nokia Music > mix radio.
1 Select the type of music you want to listen.
2 To pause the radio, select ; to resume, select .
3 To skip to the next song, select .
There may be some limitation on how many songs you can skip.
58
© 2011 Nokia. All rights reserved.
This service may not be available in all countries or regions.
Find gigs
With Nokia Music, you can find out about artists playing near where you are.
Select Nokia Music > gigs.
When you use the service for the first time, you have to allow it to use your location
information.
This service may not be available in all countries or regions.
Marketplace
About Marketplace
Select .
Do you want to personalise your phone with more applications? Or download games,
also free of charge? Browse the Marketplace to find the latest content that is
designed specifically for your phone.
You can download:
Games
Applications
Videos
Wallpapers
Ringtones
You can also:
Get content that is relevant to your tastes and location
Share recommendations with your friends
To download from Marketplace, you need to sign in to your phone with your Windows
Live ID.
When you sign in, you are offered content compatible with your phone.
You can search for and download content directly on your phone, or browse
Marketplace on your compatible computer and send links to content to your phone
in text messages.
59
© 2011 Nokia. All rights reserved.
Tip: Download music directly on your phone from Zune Marketplace. You can also use
your compatible computer to browse, for example, music and videos in Zune, and
copy the items to your phone.
Some items are free of charge; others you need to pay for with your credit card or on
your phone bill. The availability of payment methods depends on your country of
residence and your network service provider.
Search Marketplace
Check out the latest and most downloaded apps or games, and items recommended
for you and your phone. Browse different categories, and search within them.
Select .
Swipe to a category, and select .
When you view an item, related items are also displayed.
Tip: To see what others have to say about an item, select the item. You can also see
a description, the price, and the size of the download.
Tip: Did you find something in Marketplace that you know your friends would be
interested in? You can send them a link. Select the item and share.
Download a game, application, or other item
Download free games, apps, or videos, or buy more content for your phone. From
Marketplace, you can find content designed specifically for your phone.
Select , and sign in with your Windows Live ID.
1 Select the item.
2 If the item has a price, select buy. If the item is free, select install.
3 By default, purchases are added to your phone bill, if available. To pay with your
credit card, on the Confirm purchase screen, select Change payment method >
Add a credit card.
4 Follow the displayed instructions.
5 When the download is complete, you can open or view the item, or continue
browsing for more content. The content type determines where the item is stored
in your phone: music, videos, and podcasts can be found in the Music+Videos hub,
games can be found in the Games hub, and apps can be found in the apps menu.
60
© 2011 Nokia. All rights reserved.
Tip: Use a Wi-Fi connection to download larger files, such as games, applications, or
videos.
For more information on an item, contact the publisher of the item.
View your download queue
While an item is downloading, you can continue to browse for other content and add
items to your download queue.
Select .
The download notification at the bottom of the main view indicates the number of
items being downloaded. To view your download queue, select the notification.
One item is downloaded at a time, and pending items wait in your download queue.
Tip: If you need to, for example, temporarily close your Wi-Fi connection, select and
hold the downloading item, and select pause. To resume downloading, select
resume. Pause pending items individually.
If a download fails, you can re-download the item.
Write a review for an app
Do you want to share your opinion on an app with other Marketplace users? Review
and rate the app.
You can post one review per app that you download.
1 In the apps menu, select and hold the app, and select rate and review.
2 Write your review, and rate the app.
Tip: You can rate and review your games in the same way. Select Games.
Games
Download games
Get games on your phone wherever you are.
On the start screen, select Games.
1 Browse the selection, and select the game you want.
2 To try an app, select try and install.
3 To buy an app, select buy, and select whether to pay with a credit card or on your
phone bill.
61
© 2011 Nokia. All rights reserved.
Play a game
Gaming on your phone is a truly social experience. Xbox LIVE, Microsoft's gaming
service, lets you play games with your friends and use your gamer profile to keep
track of game scores and achievements. You can do this online, on your Xbox console,
and on your phone through the Games hub.
Select Games.
To play Xbox LIVE games, you need an Xbox LIVE account. If you don't yet have an
account, you can create one. Xbox LIVE is not available in all areas.
Swipe to collection, and select a game. If it is an Xbox LIVE game, sign in to Xbox LIVE.
Before you can play a game, you need to install it on your phone.
If you want to find new games, you can try and buy from Marketplace. Marketplace is
not available in all areas.
Get more games
Swipe to collection, scroll to the bottom, and select get more games.
Tip: If you play a game a lot, to pin it to your start screen, in the collection view, select
and hold the game, and select pin to Start.
Accept an invitation to play a game
1 Sign in to Xbox LIVE.
2Swipe to requests, and select the invitation.
3 If you don't have the game, but it is available in your area in Marketplace, you can
either download a trial version or buy it right away.
Resume playing a game
When you return to a game, there may be a resume icon in the game itself. Otherwise,
tap the screen.
62
© 2011 Nokia. All rights reserved.
Maps & navigation
Positioning and location services
About positioning methods
Your phone displays your location using GPS, A-GPS, Wi-Fi, or cellular positioning.
The Global Positioning System (GPS) is a satellite-based navigation system used for
calculating your location. Assisted GPS (A-GPS) is a network service that sends you
GPS data, improving the speed of the positioning.
Wi-Fi positioning improves position accuracy when GPS signals are not available,
especially when you are indoors or between tall buildings.
With cellular positioning, the position is determined through the cellular network
antenna your phone is currently connected to.
To save on data costs, you can switch A-GPS off in your phone positioning settings,
but calculating your location may take much longer.
You can also switch Wi-Fi and cellular positioning off in your phone settings. However,
this prevents you from using positioning-related applications, such as Bing Maps.
Depending on the available positioning methods, the accuracy of positioning may
vary from a few metres to several kilometres.
The availability and quality of GPS signals may be affected by your location, satellite
positions, buildings, natural obstacles, weather conditions, and adjustments to GPS
satellites made by the United States government. GPS signals may not be available
inside buildings or underground.
Do not use GPS for precise location measurement, and never rely solely on the
location information provided by GPS and cellular networks.
Switch location services on
Applications can use your location information to offer you a wider variety of services.
Maps shows you your location and provides directions, and the camera can save your
location to the pictures you take. In addition, Local Scout can tell you about
businesses, places of interest, and events available nearby.
Select > .
Select location, and switch Location services to On .
63
© 2011 Nokia. All rights reserved.
Bing Maps
About Bing Maps
Select > Maps.
Bing Maps shows you where you are and what is nearby, and guides you where you
want to go.
You can:
Find cities, streets, and places of interest
Mark, save, and share your favourite places
Find your way with turn-by-turn directions
To use Bing Maps you need to connect to the internet over a mobile data or Wi-Fi
connection.
Some features of Bing Maps may not be available in your country or region.
View your location and browse the map
See your current location on the map, browse maps of different cities and countries,
and use the aerial view for a more realistic view of the map.
View your current location
Select .
Browse the map
Drag the map with your finger. By default, the map is oriented north.
Zoom in or out
To zoom in, double-tap the map, or place two fingers on the map and slide them apart.
To zoom out, slide your fingers together.
To keep on zooming in, continue double-tapping. At the maximum zoom level, the
aerial view is used.
To view the map with more realistic satellite imagery, use the aerial view.
Switch the aerial view on
Select > aerial view on.
To return to the standard map view, select aerial view off
64
© 2011 Nokia. All rights reserved.
Map coverage varies by country and region.
Search for a location
Maps helps you find specific locations, places of interest, and businesses.
Select > Maps and
1 Enter the search word, such as a street address, business type, or place name in
the search field.
2 Select an item from the list of proposed matches, and select .
The location is displayed on the map.
If no search results are found, make sure the spelling of your search words is
correct.
3 To return to the search results, select > search results.
Tip: To view the details of a found place, you can also select its marker on the map.
You can check where to go, what to do, and what businesses are available near your
current or selected location.
Search for nearby places and events
1 Select .
Maps lists nearby places and events, sorted into categories.
2 To see the location of the place or event on the map, tap the small map at the
top of the display.
To return to the nearby view, select .
3 To view details, select the place or event on the list.
Local Scout may not be available in your country or region.
Check nearby events and places with Local Scout
Want to see what's going on in a given neighbourhood, and explore the world around
you? With Local Scout, you can check for nearby restaurants and bars, events and
attractions, and shops.
The Local Scout service is available in Australia, France, United Kingdom, and the
United States.
Select .
65
© 2011 Nokia. All rights reserved.
Tip: To use Local Scout for an area other that your current location, open Maps, search
for the area or place, and select .
Swipe to the following categories:
eat+drink — Restaurants, bars, and other places to eat and drink in the
neighbourhood.
see+do — Places to go and things to do nearby.
shop — Different types of nearby shops.
highlights — Places and events with the highest review ratings. To view the reviews,
select the place or event and reviews.
To sort or filter the results, select the link below the category title.
Share the address of a place or event
Select the item from the list and .
Save an event or item to your favourites
Select the item or event and .
Your favourites are also displayed in the Local Scout highlights view.
View the details of a location
Find more information about a specific location or place, such as a hotel or restaurant.
Select > Maps.
1 Search for a place.
2 Select the location marker on the map, and select the name tag.
A details page opens, showing contact information and a rating and reviews. The
available options may vary by region and place.
Tip: At the bottom of the details page, you can pin the place to the start screen, send
the place to a friend, or save the place to your favourites.
Mark a location with a pushpin
If you want to get directions to a place but don’t know the exact formal address, add
a pushpin to the place on the map. Pushpins can act as reminders of places you want
to visit, or you can mark meeting places that you want to share with friends.
Select > Maps.
66
© 2011 Nokia. All rights reserved.
On the map, tap and hold the location.
If you open the details page of a pushpin, you can easily get directions to it , share
the location with friends , or pin it to the start screen .
Open the details page
Select the pushpin.
Walk to a destination
When you need to get to your destination on foot, Maps guides you with displayed
turn-by-turn directions.
Select > Maps.
Select .
Use your current location as the starting point, or enter an address or business name
in the Start field.
Enter the end point in the End field, and select .
Select .
Tip: To highlight a location on the map, select the relevant step in the directions list.
Save a favourite place
Save an address or a place of interest, so you can use it later.
Select > Maps.
1 Search or browse for a place.
2 Select the location marker of the place on the map. If the place does not have a
marker, tap and hold the location, and a pushpin is added.
3 On the details page, select .
View saved places
Select > favourite places.
View the details page of a saved place
In the list of saved places, select the place.
67
© 2011 Nokia. All rights reserved.
View a saved place on the map
On the details page, select the address.
Delete a saved place
On the details page, select .
Send a place to a friend
When you want to tell your friends where to meet, you can send them the address
directly from Maps.
Select > Maps.
1 On the map, select the marker of the location.
2 On the details page, select .
3 To send in a text message, select Messaging. To send in a mail, select a mail
account.
Tip: To share the address of a place that does not have a marker on the map, tap and
hold the location. A pushpin is added.
Drive
Drive to your destination
When you need clear turn-by-turn directions optimised for use while driving, Drive
helps you get to your destination.
Select > Nokia Drive.
When you open Drive for the first time, your phone asks you if you want to download
street maps for your current location and a navigation voice that matches your phone
language settings. If you download the maps using your home Wi-Fi connection
before you leave for your trip, you will save on data costs while travelling.
1Select > Set destination, and search for your destination.
2 Select your destination and DRIVE TO > START.
3 To stop the navigation, select > Stop navigation.
You can also start driving without a set destination. The map follows your location.
By default, the map rotates to your driving direction. The compass always points
north.
68
© 2011 Nokia. All rights reserved.
Tip: To view the map in full screen mode, tap the map.
Obey all local laws. Always keep your hands free to operate the vehicle while driving.
Your first consideration while driving should be road safety.
Get voice guidance
Voice guidance, if available for your language, helps you find your way to a destination,
leaving you free to enjoy the journey.
Select > Nokia Drive.
1 Select > Settings > Navigation voice.
2 Select a language, or to not use voice guidance, select None.
You can also download new navigation voices.
Download navigation voices
Select > Settings > Navigation voice > Download new and a voice.
Download or remove Drive maps
To save on data costs when travelling, save new street maps to your phone before
your journey. If you're running low on space in your phone, you can remove some
maps.
Select > Nokia Drive and > Settings > Manage maps.
Download a map
1 Select .
2 Select a continent, a country, and an area if applicable, and select Install.
To cancel the download, select .
Remove a map
Select the map, and on the map details page, select .
Remove all maps
Select > delete all maps > OK.
Using services or downloading content may cause transfer of large amounts of data,
which may result in data traffic costs.
69
© 2011 Nokia. All rights reserved.
Change the look of the Drive view
Would you like to see a more realistic 3D map, or are you using Drive at night, when
it's dark? With the different map modes, you can see the information you need clearly
at all times.
Select > Nokia Drive.
Change the map type
Select > 2D or 3D.
To see the map clearly also when it is dark, you can use night mode.
Switch night mode on
Select > Settings > Map colours.
To get a bigger and better view of your surroundings on the map, use the full screen
map.
View the map in full screen mode
Tap the map. To display the information area, press .
Tip: By default, Drive shows prominent buildings and attractions on the map. If you
don't want to see them, select > Settings, and switch Landmarks to OFF
.
Give feedback on Drive
Tell us your opinion on Drive, and take part in improving the application.
Select > Nokia Drive.
To give feedback, you need to have an active internet connection.
1Select > Feedback.
2 Select how likely you are to recommend Maps to other people. You can also give
your reasons.
The feedback is anonymous.
3Select SEND.
70
© 2011 Nokia. All rights reserved.
Office
Clock
Set an alarm
Want to wake up to your favourite song in the morning? You can use your phone as
an alarm clock.
Select > Alarms.
1 Select .
2 Fill in the fields, and select .
Temporarily switch an alarm off
Switch the alarm to Off .
Delete an alarm
Select the alarm and .
Your phone must be switched on for the alarm to sound.
Update the time and date automatically
You can set your phone to update the time, date, and time zone automatically.
Automatic update is a network service.
Select > and date+time > Set automatically > On.
Set the time and date
1 Select > and date+time, and switch Set automatically to Off .
2 Edit the time and date.
Snooze an alarm
Don't want to get up just yet? When an alarm sounds, you can snooze the alarm. This
pauses the alarm for a predefined length of time.
When the alarm sounds, select snooze.
Change the time zone when travelling
You can set the clock to the local time when travelling abroad.
Select > and date+time > Time zone and a location.
71
© 2011 Nokia. All rights reserved.
Calendar
Add an appointment
Select > Calendar.
1Swipe to day or agenda, and select .
2 Fill in the fields.
3 To add a reminder, select more details > Reminder.
4Select .
Edit or delete an appointment
Select and hold the appointment, and select edit or delete.
View your schedule
You can browse your calendar events in different views.
Select > Calendar.
To switch between the calendar views, swipe left or right.
View a whole month
In the day or agenda view, select . To go to the next or previous month, use a short
swiping motion up or down on the calendar. To jump to a specific month, select the
month at the top of the screen.
View a specific day
In the day or agenda view, select and the day.
Use multiple calendars
When you set up mail accounts on your phone, you can see the calendars from all
your services in one place.
Select > Calendar.
Show or hide a calendar
Select > settings, and switch the calendar to on or off .
When a calendar is hidden, the calendar events and reminders are not displayed in
different calendar views.
72
© 2011 Nokia. All rights reserved.
Tip: You can change the colour for each calendar. Select > settings, and select
the current colour and then the new colour.
Add a task to your to-do list
Do you have important tasks to handle at work, library books to return, or maybe an
event you want to attend? You can add tasks (to-dos) to your calendar. If you have a
particular deadline, set a reminder.
Select > Calendar, and swipe to to-do.
1 Select , and fill in the fields.
2 To add a reminder, switch Reminder to On .
3 Select .
Mark a task as completed
Select and hold the task, and select complete.
Edit or delete a task
Select and hold the task, and select edit or delete.
Microsoft Office Mobile
About Microsoft Office Mobile
Select > Office.
Microsoft Office Mobile is your office away from the office. Wherever you are, you
can create and edit Word documents and Excel workbooks, open and view PowerPoint
slide shows, create notes with OneNote, and share documents with SharePoint. You
can also save your documents to Windows SkyDrive.
Microsoft Office Mobile consists of the following:
Microsoft Word Mobile
Microsoft Excel Mobile
Microsoft PowerPoint Mobile
Microsoft OneNote Mobile
Microsoft SharePoint Workspace Mobile
Windows SkyDrive
73
© 2011 Nokia. All rights reserved.
Read Microsoft Office documents
In the Office hub, you can view Microsoft Office documents, such as Word documents,
Excel workbooks, or PowerPoint presentations.
Select > Office.
1Swipe to documents.
2 Select a Word, Excel, or PowerPoint file.
Create and edit a Word document
Polish your documents on the road with Microsoft Word Mobile. You can create new
documents, edit existing ones, and share your work on a Sharepoint site.
Select > Office, and swipe to documents.
Create a new document
1Select .
2 Select a blank Word file or a template.
3 Write your text.
4 To save your document, select > save.
Edit a document
1Select a Word document.
2 To edit the text, select .
3 To save your document, select > save.
Change the text format and colour
1Select .
2 Select a word. To select several words, drag the arrows at each end to expand the
selection.
3Select and the formatting you want to use.
Add a comment
Select > .
Search for text in the document
Select .
74
© 2011 Nokia. All rights reserved.
Tip: To access an important document quickly, you can pin it to the start screen. In
the Office hub, select and hold the document, and select pin to start.
Create and edit an Excel workbook
No need to travel to the office to check the latest figures. With Microsoft Excel Mobile,
you can create new workbooks, edit existing ones, and share your work on a
Sharepoint site.
Select > Office, and swipe to documents.
Create a new workbook
1 Select .
2 Select a blank Excel file or a template.
3 Select a cell, and enter values or text.
4 To save your workbook, select > save.
Edit a workbook
1 Select an Excel file.
2 To move to another worksheet, select and a worksheet.
3 To save your workbook, select > save.
Add a comment to a cell
Select .
Apply a filter to cells
Select > filter.
Change the cell and text format
Select > format cell....
Find data from a workbook
Select .
Send a workbook in a mail
Select the Excel file and > share....
75
© 2011 Nokia. All rights reserved.
Write a note
Notes on paper are easy to lose. Instead of jotting them down on paper, you can write
your notes with Microsoft OneNote Mobile. This way, you always have your notes with
you.
You can also sync your notes to Windows Live SkyDrive and view and edit them with
OneNote on your phone, on your computer, or online in a web browser.
Select > Office, and swipe to notes.
1Select .
2 Write your note.
3 To format the text, select > format.
4 To add a picture, select .
5 To record a sound clip, select .
6 To save the changes, press .
If you have a Windows Live ID set up on your phone, your changes will be saved
and synced to your default Personal (Web) notebook on Windows Live SkyDrive.
Otherwise, your changes will be saved on your phone.
Send a note in a mail
Select the note and .
Tip: To access an important note quickly, you can pin it to the start screen. In the
Office hub, select and hold the note, and select pin to start.
View and edit a PowerPoint presentation
Add the finishing touches to your presentation en route to your meeting, with
Microsoft PowerPoint Mobile.
Select > Office, and swipe to documents.
1 Select a PowerPoint file, and turn your phone on its side, so it is in landscape
mode.
2 To browse between slides, swipe left or right.
3 To go to a specific slide, select and the name of the slide.
4 To add a note to a slide, select .
5 To edit a slide, select .
76
© 2011 Nokia. All rights reserved.
6 To save your presentation, select > save.
Send a presentation in a mail
Select the PowerPoint file and > share....
Watch a PowerPoint broadcast
You can attend a meeting on the go and watch a PowerPoint presentation broadcast
over the internet on your phone.
Open the mail containing the link to the broadcast presentation, and select the link.
Share documents with SharePoint Workspace Mobile
Work on shared Microsoft Office documents, and collaborate on projects, schedules,
and ideas. With Microsoft SharePoint Workspace Mobile, you can browse, send, edit,
and synchronise your documents online.
Select > Office, and swipe to locations.
1 Select SharePoint, enter the web address for a SharePoint site, and select .
2 When you select a document, a copy is downloaded to your phone.
3 View or edit the document, and save your changes.
4 To return to SharePoint Workspace Mobile, press .
Tip: To keep an offline copy of a document on your phone, select and hold the
document, and select always stay offline.
Store a file to Windows Live Skydrive
Store, access, and share your Microsoft Office files on Windows Live SkyDrive.
SkyDrive password-protects your files, so you control who has access to them.
Select > Office, and swipe to documents.
To upload files, you need to be signed in to your Windows Live account.
Select a file and > share.
Use the calculator
Select > Calculator.
To use the basic calculator, hold your phone upright. To use the scientific calculator,
turn your phone on its side.
77
© 2011 Nokia. All rights reserved.
1 Enter the first number of the calculation.
2 Select a function, such as add or subtract.
3 Enter the second number of the calculation.
4Select =.
This feature is designed for personal use. Accuracy may be limited.
78
© 2011 Nokia. All rights reserved.
Connectivity & phone management
Bluetooth
About Bluetooth connectivity
Select > and Bluetooth.
You can connect wirelessly to other compatible devices, such as phones, computers,
headsets, and car kits.
Since devices with Bluetooth wireless technology communicate using radio waves,
they do not need to be in direct line-of-sight. However, they must be within 10 metres
(33 feet) of each other, although the connection may be subject to interference from
obstructions such as walls or from other electronic devices.
Paired devices can connect to your phone when Bluetooth is switched on. Other
devices can detect your phone only if the Bluetooth settings view is open.
Do not pair with or accept connection requests from an unknown device. This helps
to protect your phone from harmful content.
When your phone is locked, only connections to authorised devices are possible.
Connect to a wireless headset
With a wireless headset, you can answer a call even if your phone is not directly at
hand, and you can have your hands free, for example, to continue working at your
computer during a call. Wireless headsets are available separately.
Select > and Bluetooth.
1Switch Searching and discoverable to On .
79
© 2011 Nokia. All rights reserved.
Make sure that the accessory you want to pair is on.
2 To pair your phone and the headset, select the headset from the list.
3 You may need to enter a passcode. For details, see the user guide of the headset.
4Select done.
USB data cable
Copy a picture or other content between your phone and a computer
You can use a USB data cable to copy pictures, videos, music, and other content
created by you between your phone and a computer.
1 Use a compatible USB data cable to connect your phone to a compatible
computer.
The phone is displayed as a portable device on your computer.
2 Use the file manager of the computer to copy the content.
Keep your phone software and applications up to date
About phone software and application updates
With phone software updates and application updates, you can get new features and
enhanced functions for your phone. Updating the software may also improve your
phone performance.
Warning:
If you install a software update, you cannot use the device, even to make emergency
calls, until the installation is completed and the device is restarted.
After the update, the instructions in the user guide may no longer be up to date. You
may find the updated user guide at www.nokia.com/support.
Update your phone software
Use the Zune PC app to update your phone software for new features and improved
performance.
You need:
The Zune app
A compatible computer
A high-speed internet connection
A compatible USB data cable
80
© 2011 Nokia. All rights reserved.
To download and install Zune to your PC, go to www.zune.net.
Tip: If you're using an Apple Mac, use Windows Phone 7 Connector for Mac.
Before starting the update, make sure your phone has enough battery power.
1 Use the USB data cable to connect your phone to your computer.
2 If Zune doesn't open automatically, open it.
3 Wait while Zune checks for available updates, and follow the instructions
displayed on your computer.
Tip: If your receive an error message during the update, make a note of the error
code, and search at support.microsoft.com to see what went wrong.
Your phone is automatically backed up during the software update. You can also sync
your phone to your computer with Zune or Windows Phone 7 Connector for Mac
without updating your phone software.
Set your phone to notify you about available updates
Select > and phone update > Notify me when new updates are found.
Back up, sync, and restore your phone
Your phone is automatically backed up during the software update, when you update
the phone using the primary computer (the computer you first connected your phone
to with the USB data cable). If you use a different computer to update your phone
software, no backup is created. You can change your primary computer in the Zune
settings.
The backup includes the following:
System settings
Account settings
Pictures
Music
Videos
Documents
Your downloaded apps may not be included in the backup, but you can re-download
them from the Marketplace, free of charge. Data transmission costs may apply. For
more information, contact your network service provider.
81
© 2011 Nokia. All rights reserved.
To back up your content, you can also sync your phone to your computer with Zune
or Windows Phone 7 Connector for Mac without updating your phone software.
Syncing does not back up your system settings or your apps. You can also set your
phone to sync your contacts to Outlook, so you can restore them to your phone from
your computer.
Restore a backup to your phone
Use a USB data cable to connect your phone to your primary computer, and use Zune
to restore your backed up content and the earlier version of your phone software.
Free up phone memory
Do you need to increase the available phone memory, so you can install more
applications or add more content?
You can delete the following if no longer needed:
Text, multimedia, and mail messages
Contact entries and details
Applications
Music, pictures, or videos
Copy content you want to keep to a compatible computer.
Remove an application from your phone
You can remove installed applications that you no longer want to keep or use, to
increase the amount of available memory.
1 On the start screen, select .
2 Select and hold the application to remove, and select uninstall. You may not be
able to remove some applications.
If you remove an application, you can reinstall it without purchasing it again, as long
as it is available in Marketplace.
If an installed application depends on a removed application, the installed application
may stop working. For details, see the user documentation of the installed
application.
82
© 2011 Nokia. All rights reserved.
Security
Set your phone to lock automatically
Want to protect your phone against unauthorised use? Define a security code, and
set your phone to lock itself automatically when you're not using it.
1 Select > and lock+wallpaper.
2Switch password to On , and enter a security code (at least 4 digits).
Keep the security code secret and in a safe place separate from your phone. If
you forget the security code, and cannot recover it, or you enter the wrong code
too many times, your phone will require service. Additional charges may apply,
and all the personal data in your phone may be deleted. For more information,
contact a Nokia Care point or your phone dealer.
3 Select Require a password after, and define the length of time after which the
phone is locked automatically.
Unlock your phone
1 Press the power key, and drag the lock screen up.
2 Enter the security code.
Find your lost phone
Misplaced your phone, or afraid it is stolen? Use Find My Phone to locate your phone,
and lock or delete all data from it remotely.
Go to windowsphone.live.com, sign in with the same Windows Live ID as on your
phone, and select Find My Phone.
You can:
Locate your phone on a map
Make your phone ring, even if silent mode is switched on
Lock your phone, and set it to show a message, so it can be returned to you
Delete all data from your phone remotely
The available options may vary.
83
© 2011 Nokia. All rights reserved.
Support
When you want to learn more about how to use your product or you are unsure how
your phone should function, read the user guide thoroughly.
You may also be interested in the Nokia Support Video channel in YouTube.
If this does not resolve your issue, do one of the following:
Reboot your phone. Press and hold the power key for about 10 seconds. The
phone switches off. To switch your phone on again, press the power key.
Update your phone software
Restore the original factory settings
If your issue remains unsolved, contact Nokia for repair options. Go to
www.nokia.com/repair. Before sending your phone for repair, always back up your
data, as all personal data in your phone may be deleted.
Product and safety information
Network services and costs
Your device is approved for use on the WCDMA 900, 1900, 2100 and GSM/EDGE 850, 900, 1800, 1900 MHz networks.
To use the device, you need a subscription with a service provider.
Using network services and downloading content to your device requires a network connection and may result in data traffic
costs. Some product features require support from the network, and you may need to subscribe to them.
Take care of your device
Handle your device, battery, charger and accessories with care. The following suggestions help you protect your warranty
coverage.
Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that corrode
electronic circuits. If your device gets wet, allow the device to dry.
Do not use or store the device in dusty or dirty areas. Moving parts and electronic components can be damaged.
Do not store the device in high temperatures. High temperatures can shorten the life of the device, damage the
battery, and warp or melt plastics.
Do not store the device in cold temperatures. When the device warms to its normal temperature, moisture can form
inside the device and damage electronic circuits.
Do not attempt to open the device other than as instructed in the user guide.
Unauthorised modifications may damage the device and violate regulations governing radio devices.
Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and mechanics.
Only use a soft, clean, dry cloth to clean the surface of the device.
Do not paint the device. Paint can clog moving parts and prevent proper operation.
Keep your device away from magnets or magnetic fields.
84
© 2011 Nokia. All rights reserved.
To keep your important data safe, store it in at least two separate places, such as your device, memory card, or
computer, or write down important information.
During extended operation, the device may feel warm. In most cases, this is normal. If you suspect the device is not working
properly, take it to the nearest authorised service facility.
Recycle
Always return your used electronic products, batteries, and packaging materials to dedicated collection points. This way
you help prevent uncontrolled waste disposal and promote the recycling of materials. Check how to recycle your Nokia
products at www.nokia.com/recycling.
About Digital Rights Management
When using this device, obey all laws and respect local customs, privacy and legitimate rights of others, including copyrights.
Copyright protection may prevent you from copying, modifying, or transferring pictures, music, and other content.
Content owners may use different types of digital rights management (DRM) technologies to protect their intellectual
property, including copyrights. This device uses various types of DRM software to access DRM-protected content. With this
device you can access content protected with WMDRM 10. If certain DRM software fails to protect the content, content
owners may ask that such DRM software's ability to access new DRM-protected content be revoked. Revocation may also
prevent renewal of such DRM-protected content already in your device. Revocation of such DRM software does not affect
the use of content protected with other types of DRM or the use of non-DRM-protected content.
Digital rights management (DRM) protected content comes with an associated licence that defines your rights to use the
content.
If your device has WMDRM-protected content, both the licences and the content are lost if the device memory is formatted.
You may also lose the licences and the content if the files on your device become corrupted. Losing the licences or the
content may limit your ability to use the same content on your device again. For more information, contact your service
provider.
Batteries and chargers
Battery and charger information
Your device has an internal, non-removable, rechargeable battery. Do not attempt to remove the battery, as you may
damage the device. To replace the battery, take the device to the nearest authorised service facility.
This device is intended for use when supplied with power from the following chargers: AC-16. The exact Nokia charger model
number may vary depending on the plug type, identified by E, X, AR, U, A, C, K, or B.
The battery can be charged and discharged hundreds of times, but it will eventually wear out. When the talk and standby
times are noticeably shorter than normal, to replace the battery, take the device to the nearest authorised service facility.
Battery safety
Note: The battery in your device is non-removable, so refer to the battery-related statements as applicable to your
device.
When you unplug a charger or an accessory, hold and pull the plug, not the cord.
When your charger is not in use, unplug it from the electrical plug and the device. Do not leave a fully charged battery
connected to a charger, as overcharging may shorten the battery’s lifetime. If left unused, a fully charged battery will lose
its charge over time.
85
© 2011 Nokia. All rights reserved.
Always keep the battery between 15°C and 25°C (59°F and 77°F). Extreme temperatures reduce the capacity and lifetime
of the battery. A device with a hot or cold battery may not work temporarily.
Accidental short-circuiting can happen when a metallic object touches the metal strips on the battery. Short-circuiting may
damage the battery or the connecting object.
Do not dispose of batteries in a fire as they may explode. Dispose of batteries according to local regulations. Recycle when
possible. Do not dispose as household waste.
Do not dismantle, cut, open, crush, bend, puncture, or shred cells or batteries. If a battery leaks, do not let battery liquid
touch skin or eyes. If this happens, immediately flush the affected areas with water, or seek medical help.
Do not modify, remanufacture, attempt to insert foreign objects into the battery, or immerse or expose it to water or other
liquids. Batteries may explode if damaged.
Use the battery and charger for their intended purposes only. Improper use, or use of unapproved batteries or incompatible
chargers may present a risk of fire, explosion, or other hazard, and may invalidate any approval or warranty. If you believe
the battery or charger is damaged, take it to a service centre for inspection before continuing to use it. Never use a damaged
battery or charger. Only use the charger indoors.
Additional safety information
Make an emergency call
1 Make sure the phone is switched on.
2 Check for adequate signal strength. You may also need to do the following:
Insert a SIM card.
Deactivate call restrictions you have activated for your phone, such as call barring, fixed dialling, or closed user
group.
Make sure flight mode is not switched on.
If the phone screen and keys are locked, unlock them.
3Press
.
4 Select .
5 Select .
6 Enter the official emergency number for your present location. Emergency call numbers vary by location.
7 Select call.
8 Give the necessary information as accurately as possible. Do not end the call until given permission to do so.
Important: Activate both cellular and internet calls, if your phone supports internet calls. The phone may attempt to
make emergency calls both through cellular networks and through your internet call service provider. Connections in all
conditions cannot be guaranteed. Never rely solely on any wireless phone for essential communications like medical
emergencies.
Small children
Your device and its accessories are not toys. They may contain small parts. Keep them out of the reach of small children.
86
© 2011 Nokia. All rights reserved.
Medical devices
Operation of radio transmitting equipment, including wireless phones, may interfere with the function of inadequately
protected medical devices. Consult a physician or the manufacturer of the medical device to determine whether they are
adequately shielded from external radio frequency energy.
Implanted medical devices
Manufacturers of medical devices recommend a minimum separation of 15.3 centimetres (6 inches) between a wireless
device and an implanted medical device, such as a pacemaker or implanted cardioverter defibrillator, to avoid potential
interference with the medical device. Persons who have such devices should:
Always keep the wireless device more than 15.3 centimetres (6 inches) from the medical device.
Not carry the wireless device in a breast pocket.
Hold the wireless device to the ear opposite the medical device.
Turn the wireless device off if there is any reason to suspect that interference is taking place.
Follow the manufacturer directions for the implanted medical device.
If you have any questions about using your wireless device with an implanted medical device, consult your health care
provider.
Hearing
Warning:
When you use the headset, your ability to hear outside sounds may be affected. Do not use the headset where it can endanger
your safety.
Some wireless devices may interfere with some hearing aids.
Nickel
Note: The surface of this device does not contain nickel in the platings. The surface of this device contains stainless
steel.
Protect your device from harmful content
Your device may be exposed to viruses and other harmful content. Take the following precautions:
Be cautious when opening messages. They may contain malicious software or otherwise be harmful to your device or
computer.
Be cautious when accepting connectivity requests, browsing the internet, or downloading content. Do not accept
Bluetooth connections from sources you do not trust.
Install antivirus and other security software on your device and any connected computer. Only use one antivirus
application at a time. Using more may affect performance and operation of the device and/or computer.
If you access preinstalled bookmarks and links to third party internet sites, take the appropriate precautions. Nokia
does not endorse or assume liability for such sites.
Operating environment
This device meets radio frequency exposure guidelines in the normal use position at the ear or at least 1.5 centimetres (5/8
inch) away from the body. Any carry case, belt clip, or holder for body-worn operation should not contain metal and should
position the device the above-stated distance from your body.
87
© 2011 Nokia. All rights reserved.
To send data files or messages requires a quality connection to the network. Data files or messages may be delayed until
such a connection is available. Follow the separation distance instructions until the transmission is completed.
Vehicles
Radio signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles such as
electronic fuel injection, electronic antilock braking, electronic speed control, and air bag systems. For more information,
check with the manufacturer of your vehicle or its equipment.
Only qualified personnel should install the device in a vehicle. Faulty installation or service may be dangerous and may
invalidate your warranty. Check regularly that all wireless device equipment in your vehicle is mounted and operating
properly. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the device, its
parts, or accessories. Remember that air bags inflate with great force. Do not place your device or accessories in the air
bag deployment area.
Potentially explosive environments
Switch off your device in any area with a potentially explosive atmosphere, for example near gas pumps at service stations.
Sparks in such areas could cause an explosion or fire resulting in bodily injury or death. Observe restrictions in fuel service
stations, storage, and distribution areas; chemical plants; or where blasting operations are in progress. Areas with a
potentially explosive atmosphere are often, but not always, clearly marked. They include areas where you would be advised
to turn off your vehicle engine, below deck on boats, chemical transfer or storage facilities and where the air contains
chemicals or particles such as grain, dust, or metal powders. You should check with the manufacturers of vehicles using
liquefied petroleum gas (such as propane or butane) to determine if this device can be safely used in their vicinity.
Certification information (SAR)
This mobile device meets guidelines for exposure to radio waves.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves
recommended by international guidelines. These guidelines were developed by the independent scientific organisation
ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health.
The exposure guidelines for mobile devices employ a unit of measurement known as the Specific Absorption Rate or SAR.
The SAR limit stated in the ICNIRP guidelines is 2.0 watts/kilogram (W/kg) averaged over 10 grams of tissue. Tests for SAR
are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested
frequency bands. The actual SAR level of an operating device can be below the maximum value because the device is designed
to use only the power required to reach the network. That amount changes depending on a number of factors such as how
close you are to a network base station.
The highest SAR value under the ICNIRP guidelines for use of the device at the ear is 0.94 W/kg.
Use of device accessories may result in different SAR values. SAR values may vary depending on national reporting and
testing requirements and the network band. Additional SAR information may be provided under product information at
www.nokia.com.
Your mobile device is also designed to meet the requirements for exposure to radio waves established by the Federal
Communications Commission (USA) and Industry Canada. These requirements set a SAR limit of 1.6 W/kg averaged over
one gram of tissue. The highest SAR value reported under this standard during product certification for use at the ear is
1.27 W/kg and when properly worn on the body is 1.08 W/kg.
88
© 2011 Nokia. All rights reserved.
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this RM-801
product is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC. A
copy of the Declaration of Conformity can be found at
http://www.nokia.com/phones/
declaration_of_conformity/.
© 2011 Nokia. All rights reserved.
Nokia, Nokia Care, and Nokia Connecting People are
trademarks or registered trademarks of Nokia Corporation.
Nokia tune is a sound mark of Nokia Corporation. Other
product and company names mentioned herein may be
trademarks or tradenames of their respective owners.
Reproduction, transfer, distribution, or storage of part or
all of the contents in this document in any form without the
prior written permission of Nokia is prohibited. Nokia
operates a policy of continuous development. Nokia
reserves the right to make changes and improvements to
any of the products described in this document without
prior notice.
The Bluetooth word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by Nokia is
under license.
This product is licensed under the MPEG-4 Visual Patent
Portfolio License (i) for personal and noncommercial use in
connection with information which has been encoded in
compliance with the MPEG-4 Visual Standard by a consumer
engaged in a personal and noncommercial activity and (ii)
for use in connection with MPEG-4 video provided by a
licensed video provider. No license is granted or shall be
implied for any other use. Additional information, including
that related to promotional, internal, and commercial uses,
may be obtained from MPEG LA, LLC. See http://
www.mpegla.com.
© 2011 Microsoft Corporation. All rights reserved.
Microsoft, Windows, the Windows logo, Xbox LIVE, Bing, and
Microsoft Office are trademarks of the Microsoft group of
companies.
To the maximum extent permitted by applicable law, under
no circumstances shall Nokia or any of its licensors be
responsible for any loss of data or income or any special,
incidental, consequential or indirect damages howsoever
caused.
The contents of this document are provided "as is". Except
as required by applicable law, no warranties of any kind,
either express or implied, including, but not limited to, the
implied warranties of merchantability and fitness for a
particular purpose, are made in relation to the accuracy,
reliability or contents of this document. Nokia reserves the
right to revise this document or withdraw it at any time
without prior notice.
Reverse engineering of software in the device is prohibited
to the extent permitted by applicable law. Insofar as this
user guide contains any limitations on Nokia's
representations, warranties, damages and liabilities, such
limitations shall likewise limit any representations,
warranties, damages and liabilities of Nokia's licensors.
The availability of products, features, applications and
services may vary by region. For more information, contact
your Nokia dealer or your service provider. This device may
contain commodities, technology or software subject to
export laws and regulations from the US and other
countries. Diversion contrary to law is prohibited.
Nokia does not provide a warranty for or take any
responsibility for the functionality, content, or end-user
support of third-party applications provided with your
device. By using an application, you acknowledge that the
application is provided as is. Nokia does not make any
representations, provide a warranty, or take any
responsibility for the functionality, content, or end-user
support of third-party applications provided with your
device.
The software in this device includes software licensed by
Nokia from Microsoft Corporation or its affiliates. To access
the Windows Phone software license terms, select >
Settings > about. Please read the terms. Please note that
using the software, you accept the terms. If you do not
accept the terms, do not use the device or software. Instead
contact Nokia or the party from which you purchased the
device to determine its return policy.
The FCC ID is printed inside the SIM card slot. To view the
ID, remove the SIM card holder.
FCC NOTICE
Your device may cause TV or radio interference (for
example, when using a telephone in close proximity to
receiving equipment). The FCC can require you to stop using
89
your telephone if such interference cannot be eliminated.
If you require assistance, contact your local service facility.
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation. Any
changes or modifications not expressly approved by Nokia
could void the user's authority to operate this equipment.
/Issue 1 EN
90
Index
Symbols/Numbers
76
3G 40
A
access codes 18
accounts 13
alarm clock 71
alarms 71
antennas 12
applications 59, 82
appointments 72
apps 23
B
background image 55
backing up content 81
battery 9, 85
charging 10
saving power 29
Bing Maps 64
current location 64
finding locations 65
Local Scout 65
location details 66
map view 64
marking locations 66
navigating 67
positioning 63
saving places 67
search locations 65
sharing locations 68
walking 67
Bluetooth 79
bookmarks 43
browser
See
web browser
C
cable connection 80
cache memory 42
calculator 77
calendar 72, 73
calls 33
conference 32
diverting 31
emergency 86
forwarding 31
last dialled 31
making 31, 33
camera 49
location information 51
recording videos 51
sending pictures 51
sharing pictures 52
sharing videos 52
taking pictures 49, 50
charging the battery 10, 85
chat services (IM) 44, 45
clock 71
connectivity 41
contacts 34, 35, 37
adding 34, 36
copying 15
deleting 34, 36
editing 34, 36
groups 36, 45
in social networks 37
pictures 37
saving 34, 35, 36
copying content 57, 80
D
data connections 41
Bluetooth 79
91
© 2011 Nokia. All rights reserved.
date and time 71
delete data
remotely 83
device lock 83
diverting calls 31
downloads 59, 60, 61
Drive
changing views 70
downloading maps 69
feedback 70
map view 70
navigating 68
removing maps 69
routes 68
voice guidance 69
E
e-mail 46
emergency calls 86
F
favourites 43
flight mode 28
FM radio 56, 57
forwarding calls 31
G
games 62
buying 61
downloading 61
GPS (global positioning system) 63
H
headset 17, 79
home screen 48
See
start screen
I
icons 28
IM (instant messaging) 44, 45
IMEI number 18
indicators 28
internet
See
web browser
internet connection 40
internet radio 56
K
keyboard 25
keyguard 16
keys and parts 6, 7
L
Local Scout
checking events 65
finding locations 65
locate phone 83
location information 51, 63
lock code 18, 83
lock screen 22
locking
keys 16
phone 83
remotely 83
screen 16
loudspeaker 17
M
mail 46, 47, 48
attachments 48
creating 48
mailbox 46
reading and replying to 47
sending 48
setup 46
mailbox
voice 31
92
© 2011 Nokia. All rights reserved.
Maps 64
current location 64
finding locations 65
location details 66
map view 64
marking locations 66
navigating 67
positioning 63
saving places 67
search location 65
sharing locations 68
walking 67
Marketplace 59
browsing 60
buying 60
downloads 60, 61
reviews 61
searching 60
media
radio 56
memory
clearing 82
messages
conversations 46
sending 44, 45
messaging 44
Microsoft Office 74
Microsoft Office Mobile 73
MMS (multimedia message service) 44
multimedia messages 44
multitasking 23
music 56, 57
N
navigation tools 63
Nokia account 13, 15
Nokia Music 58, 59
Nokia services 15
Nokia support information 84
O
office applications 73, 74
Excel 75
OneNote 76
PowerPoint 76
PowerPoint broadcast 77
SharePoint 77
Windows Live SkyDrive 77
Word 74
P
People hub 34
personalising your phone 23, 24, 25
phone
switching on/off 13
phone lock 83
phonebook
See
contacts
pictures 54
copying 55, 80
location information 51
organising 55
sending 51
sharing 39, 52, 54
taking 49, 50
viewing 53
PIN codes 18
podcasts 56
positioning information 63
power save 29
powering on/off 13
profiles
personalising 25
PUK codes 18
R
radio 56, 57
recording
videos 51
93
© 2011 Nokia. All rights reserved.
remote locking 83
restoring content 81
ringtones 25
S
searching 27
radio stations 56, 57
security code 18, 83
settings
access points 40
SharePoint 77
sharing, online 39, 52, 54
shortcuts 23, 35
silent mode 25
SIM card 8, 37
SMS (short message service) 44
social networks 34, 37, 38, 39
software updates 80
speakerphone 17
start screen 20, 23, 48
status updates 38
support 84
switching on/off 13
synchronisation 81
T
taking pictures
See
camera
tasks 73
text input 25, 26
text messages 44
themes 24
time and date 71
to-dos 73
tones
personalising 25
touch screen 20, 25
transferring content 15, 57, 80
turning on/off 13
U
updates
applications 80
phone software 80
USB charging 10
USB connection 80
V
videos 56
copying 80
location information 51
recording 51
sharing 52
watching 53
virtual keyboard 25
voice commands 27
volume control 17
W
wallpaper 24
web browser 42
bookmarks 43
browsing pages 42
cache memory 42
favourites 43
web connection 40
Wi-Fi 40, 41
Windows Live ID 13, 14
Z
Zune PC app 19, 55, 57, 80, 81
Zune player 56
94
© 2011 Nokia. All rights reserved.

Navigation menu
