Microsoft RM-807 GSM/WCDMA cellular phone w/BT, WLAN, FMTx and NFC User Manual Manual
Microsoft Mobile Oy GSM/WCDMA cellular phone w/BT, WLAN, FMTx and NFC Manual
Manual
Nokia 808 PureView User Guide
Issue 1
Contents
Safety 5
Get started 7
Keys and parts 7
Insert the SIM card 7
Insert a memory card 9
Charge the battery 11
Switch the phone on or off 12
Lock or unlock the keys and screen 13
Change the volume of a call, song, or
video 13
Nokia account 14
Copy contacts or photos from your
old phone 14
Antennas 15
Headset 15
About NFC 16
Activate NFC 17
Connect to a Bluetooth accessory
using NFC 17
Switch the flashlight on or off 17
Attach a wrist strap or lanyard 17
Use the user guide in your phone 18
Basic use 18
Use the toolbar 18
Touch screen actions 18
Use shortcuts 21
Switch between open applications 21
Write text 22
Display indicators 25
Set your phone to blink for missed
calls or messages 27
Flashlight 27
Search your phone and the internet 28
Use your phone offline 28
Prolong battery life 28
Restore original settings 30
Camera and photos 30
About the camera 30
Change the shooting mode 31
Take photos 32
Record videos 33
Save location info to your photos and
videos 35
Send a photo or video 35
Send a photo or other content to
another phone that supports NFC 36
Share a photo or video directly from
the camera 37
Set where to save photos and videos 38
Photos 38
Personalisation and Nokia Store 43
Profiles 43
Change your theme 45
Home screen 45
Organise your apps 48
Nokia Store 48
Telephone 51
Use your T-coil hearing aid with your
phone 51
Call a phone number 51
Switch the loudspeaker on during a
call 51
Search for a contact from the dialler 52
Turn to silence your phone 52
Call a contact 53
Answer a waiting call 53
Make a video call 54
Answer a video call 54
Decline a video call 55
Make a conference call 55
Call the numbers you use the most 56
Use your voice to call a contact 56
Call the last dialled number 57
Record a phone conversation 57
View your missed calls 57
Call your voice mailbox 58
2Contents
Forward calls to your voice mailbox or
another phone number 58
Prevent making or receiving calls 59
Allow calls only to certain numbers 59
Contacts 60
About Contacts 60
Save phone numbers and mail
addresses 60
Save a number from a received call or
message 60
Contact your most important people
quickly 61
Add your important contacts to the
home screen 61
Add a photo for a contact 62
Set a ringtone for a contact 62
Create a contact group 62
Send a message to a group of
people 62
Send your contact information using
My Card 63
Copy contacts from the SIM card to
your phone 63
Back up your contacts to Nokia
services 63
Social networks 64
About Social 64
See your friends' status updates in
one view 64
Post your status to social networking
services 65
Link your online friends to your
contacts list 65
See your friends' status updates on
the home screen 65
Upload a photo or video to a service 65
Share your location in your status
update 66
Contact a friend from a social
networking service 66
Add an event to your phone calendar 67
Messages 67
About Messaging 67
Send a message 67
Read a received message 68
Send an audio message 69
Change the writing language 69
Mail 69
About Mail 69
Add a mailbox 70
Read a received mail 70
Send a mail 71
Respond to a meeting request 72
Open mail from the home screen 72
Internet 73
About the web browser 73
Browse the web 73
Add a bookmark 74
Subscribe to a web feed 74
Allow a website to use your location
info 74
Access an online service using NFC 75
Entertainment 75
Music player 75
About Nokia Music 77
Record sounds 78
Play music through a radio 78
FM radio 79
Play a game with a friend using NFC 81
Pay with your phone 81
Videos 82
Watch Web TV 83
Connect to a high definition system 84
Stream content wirelessly 85
Maps 87
About Maps apps 87
Navigate to your destination 88
Contents 3
Find and view locations 92
Save and share places 96
Report incorrect map information 98
Clock and calendar 99
Clock 99
Calendar 101
Office 103
Quickoffice 103
Read PDF documents 105
Use the calculator 105
Write a note 106
Translate words 106
Open or create zip files 107
Connectivity 107
Internet connections 107
Keep track of your data traffic 108
Wi-Fi 108
VPN connections 110
Close a network connection 110
Bluetooth 111
USB data cable 114
Phone management 116
Keep your phone software and
applications up to date 116
Manage files 117
Free up phone memory 119
Manage applications 120
Synchronise content 120
Copy contacts or pictures between
phones 122
Protect your phone 122
Prepare your phone for recycling 124
Find more help 124
Support 124
Access codes 125
Protect the environment 126
Save energy 126
Recycle 126
Product and safety information 126
Index 133
4Contents
Safety
Read these simple guidelines. Not following them may be dangerous or illegal. For
further information, read the complete user guide.
SWITCH OFF IN RESTRICTED AREAS
Switch the device off when mobile phone use is not allowed or when it may
cause interference or danger, for example, in aircraft, in hospitals or near
medical equipment, fuel, chemicals, or blasting areas. Obey all instructions
in restricted areas.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle while
driving. Your first consideration while driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect
performance.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
BATTERIES, CHARGERS, AND OTHER ACCESSORIES
Use only batteries, chargers, and other accessories approved by Nokia for
use with this device. Third-party chargers that comply with the IEC/EN
62684 standard, and that can connect to your device micro USB connector,
may be compatible.Do not connect incompatible products.
KEEP YOUR DEVICE DRY
Your device is not water-resistant. Keep it dry.
GLASS PARTS
The device screen is made of glass. This glass can break if the device is
dropped on a hard surface or receives a substantial impact. If the glass
breaks, do not touch the glass parts of the device or attempt to remove
the broken glass from the device. Stop using the device until the glass is
replaced by qualified service personnel.
Safety 5
PROTECT YOUR HEARING
Listen to a headset at a moderate level, and do not hold the device near
your ear when the loudspeaker is in use.
6Safety
Get started
Keys and parts
1HDMI™ Micro Connector
2Micro-USB connector. Used also to charge the battery.
3Headset connector (Nokia AV connector)
4Lanyard/Wrist strap hole
5Call key
6Menu key
7End/Power key . Used also to close the camera.
8Volume/Zoom keys
9Lock key
10 Camera key
If there is protective tape on the camera lens, remove the tape.
Insert the SIM card
Important: This device is designed to be used with a mini-UICC SIM card, also
known as a micro-SIM card only. A micro-SIM card is smaller than the standard SIM
card. Use of incompatible SIM cards may damage the card or the device, and may
corrupt data stored on the card.
Do not attach any stickers to your SIM.
Get started 7

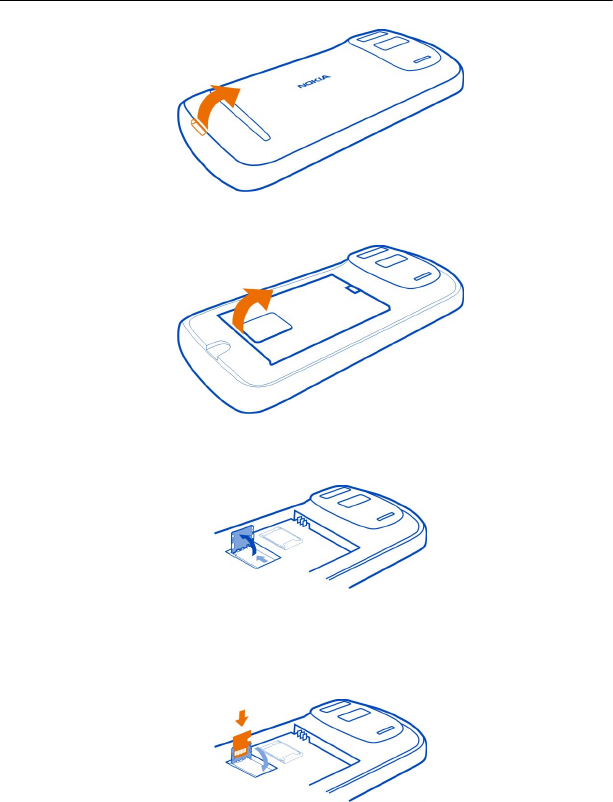

1 Make sure the phone is switched off.
2 Place your fingernail in the gap on the bottom edge of the back cover, then
carefully lift and remove the cover.
3 If the battery is in the phone, lift it out.
4 Slide the SIM holder to unlock it. Use your fingernail to lift the SIM holder.
5 Make sure the contact area would face down, put the SIM into the holder and
lower the holder.
8 Get started
6 Slide the SIM holder to lock it.
7 Line up the battery contacts, push the battery in, then replace the back cover.
Remove the SIM
1 Switch the phone off.
2 Remove the back cover.
3 If the battery is in the phone, lift it out.
4 Open the SIM holder, then pull the card out.
Insert a memory card
Memory cards are available separately.
Use only compatible MicroSD and MicroSDHC cards approved by Nokia for use with
this device. Incompatible cards may damage the card and the device and corrupt data
stored on the card.
1 Make sure the phone is switched off.
2 Place your fingernail in the gap on the bottom edge of the back cover, then
carefully lift and remove the cover.
Get started 9
3 If the battery is in the phone, lift it out.
4 Slide the memory card holder to unlock it. Use your fingernail to lift the memory
card holder.
5 Make sure the contact area would face down, put the memory card into the holder
and lower the holder.
Memory cards are available separately. For Full HD (1080p) videos, a Class 6
memory card is recommended.
10 Get started
6 Slide the memory card holder to lock it.
7 Line up the battery contacts, push the battery in, then replace the back cover.
Remove the memory card
1 Switch the phone off.
2 Remove the back cover.
3 If the battery is in the phone, lift it out.
4 Open the memory card holder, then pull the card out.
Charge the battery
Your battery has been partially charged at the factory, but you may need to recharge
it before you can switch on your phone for the first time.
1 If your phone needs recharging, do the following:
2 When the battery is full, do the following:
Get started 11
You can use USB charging when a wall outlet is not available. Data can be transferred
while charging the device. The efficiency of USB charging power varies significantly,
and it may take a long time for charging to start and the device to start functioning.
You do not need to charge the battery for a specific length of time, and you can use
the phone while it is charging.
If the battery is completely discharged, it may take several minutes before the
charging indicator is displayed or before any calls can be made.
If the battery has not been used for a long time, to begin charging, you may need to
connect the charger, then disconnect and reconnect it.
Switch the phone on or off
Switch on
Press and hold the power key until the phone vibrates.
Switch off
Press and hold the power key .
12 Get started
Lock or unlock the keys and screen
To avoid accidentally making a call when your phone is in your pocket or bag, lock the
keys and screen of your phone.
Slide the lock key.
Tip: To unlock, you can also press the menu key, then select Unlock.
Set the keys and screen to lock automatically
1 Select > Settings and Phone > Display > Screen/keylock time-out.
2 Define the length of time after which the keys and screen are locked
automatically.
Change the volume of a call, song, or video
Use the volume keys.
You can adjust the volume during a call or when an application is active.
The built-in loudspeaker allows you to speak and listen from a short distance without
having to hold the phone to your ear.
Activate or deactivate the loudspeaker during a call
Select or .
Get started 13
Nokia account
When you switch your phone on for the first time, your phone guides you through
creating a Nokia account.
You can:
•Access all Nokia services with a single username and password, both on your
phone and a compatible computer
•Download content from Nokia services
•Save details about your phone model and contact information. You can also add
your payment card details.
•Save your important walking and driving routes to Nokia Maps
To learn more about the Nokia account and Nokia services, go to www.nokia.com/
support.
To create a Nokia account later, go to account.nokia.com.
Copy contacts or photos from your old phone
Want to copy important info from your previous Nokia phone and start using your
new phone quickly? Use the Phone switch app to copy, for example, your contacts,
calendar entries, and photos to your new phone, free of charge.
Your previous phone needs to support Bluetooth.
1Select > Settings > Connectivity > Data transfer > Phone switch.
2 Select your old phone from the list, then pair the phones. Bluetooth needs to be
on in both phones.
3 If the other phone requires a passcode, type in the passcode in both phones.
The passcode is for the current connection only, and you can define it yourself.
The passcode in some phones is fixed. For details, see the user guide of the other
phone.
14 Get started
4 Select what you want to copy, then select OK.
If your old Nokia phone doesn't have the Phone switch app, your new phone sends it
in a message using Bluetooth. To install the app, open the message in your old phone,
then follow the instructions shown on the phone.
Tip: You can also use the Phone switch app to copy content from other phones later.
Antennas
Avoid touching the antenna area while the antenna is in use. Contact with antennas
affects the communication quality and may reduce battery life due to higher power
level during operation.
The antenna area is highlighted.
Headset
You can plug a compatible headset or compatible headphones to your phone.
Get started 15
Do not connect products that create an output signal, as this may damage the device.
Do not connect any voltage source to the Nokia AV connector. If you connect an
external device or headset, other than those approved by Nokia for use with this
device, to the Nokia AV connector, pay special attention to volume levels.
About NFC
Near Field Communication (NFC) makes connecting and sharing easy and fun. Nokia
phones and accessories that support NFC are connected wirelessly when you touch
them together.
With NFC, you can:
•Share your own content between two compatible phones that support NFC.
•Connect to compatible Bluetooth accessories that support NFC, such as a
headset or a wireless loudspeaker.
•Pay with your phone, if supported by your network service provider.
•Touch tags to get more content for your phone or to access online services.
•Play multi-player games against other owners of compatible phones that support
NFC.
The NFC area is on the back of your phone, below the camera. Touch other phones,
accessories, or readers with the NFC area.
You can use NFC when the phone screen is on. You may be able to pay or use your
phone as a ticket even when your phone is locked, depending on your service provider.
For more info, watch the NFC tutorial videos on your phone.
16 Get started
Tip: You can download more content supported by NFC from Nokia Store.
Activate NFC
Select > Settings and Connectivity > NFC > NFC > On.
Connect to a Bluetooth accessory using NFC
Touch the NFC area of the accessory with the NFC area of your phone, and select
Yes.
Disconnect the accessory
Touch the NFC area of the accessory again.
For more information, see the user guide of the accessory.
Switch the flashlight on or off
Need to find your way in the dark? Use the camera flash as a flashlight.
Slide and hold the key lock switch for 2 seconds.
You can switch the flashlight on even when the keys and the screen or the phone is
locked.
Do not shine the flashlight in anyone's eyes.
Attach a wrist strap or lanyard
1 Remove the back cover.
2 Push the loop through the hole, then put it over the hook.
Get started 17
Use the user guide in your phone
Your phone has a built-in user guide. It's always with you, available when needed.
Select > User guide.
Search the user guide
When the user guide is open, select > Search, then write a letter or a word in the
search field.
Open an application from the user guide
Select the application link in a topic.
To switch back to the user guide, press and hold the menu key, swipe left or right,
then select the user guide.
Links to related topics may be at the end of instructions.
Basic use
Use the toolbar
The toolbar at the bottom of the display helps you browse your phone easily.
Open the main menu.
Make a call.
Return to the previous view.
Search for applications.
Open the options menu.
Touch screen actions
To use your phone, tap or tap and hold the touch screen.
18 Basic use
Important: Avoid scratching the touch screen. Never use an actual pen, pencil, or
other sharp object on the touch screen.
Open an app or item
Tap the app or item.
Tap and hold to see more options
Place your finger on an item until the menu opens.
Example: To send a contact card or delete an alarm, tap and hold the contact or alarm,
then select the option you want.
Drag an item
Tap and hold the item, then slide your finger across the screen.
Example: You can drag items on the home screen, or when arranging the main menu.
Basic use 19
Swipe
Place your finger on the screen, then slide it in the direction you want.
Example: To switch to another home screen, swipe left or right.
To quickly scroll through a long list or menu, slide your finger quickly up or down the
screen, then lift your finger. To stop the scrolling, tap the screen.
Zoom in or out
Place two fingers on an item, such as a map, photo, or web page, then slide your
fingers apart or together.
Tip: You can also tap the item twice.
20 Basic use
Use shortcuts
You don't have to navigate long paths to, for example, open or close an internet
connection, or to silence your phone. You can access these settings directly in the
status menu, no matter what application or view you're in.
Swipe down from the notification area.
In the status menu, you can do the following:
•View notifications of missed calls or unread messages
•Silence your phone
•Modify the connectivity settings
•View available Wi-Fi connections, and connect to a Wi-Fi network
•Manage Bluetooth connections
Tip: When listening to music, you can quickly access the music player from the status
area.
Switch between open applications
You can see which applications and tasks are open in the background, and switch
between them.
Press and hold the menu key, swipe left or right, and select the desired application.
Basic use 21
Applications running in the background increase the demand on battery power and
use memory. To close an application that you are not using, select .
Tip: To close all open applications, select and hold the task switcher, and from the
pop-up menu, select Close all.
Write text
Enter text with the virtual keyboard
Use the virtual keyboard
To activate the virtual keyboard, select a text input field. You may use the virtual
keyboard both in landscape and portrait mode.
Virtual keyboard in portrait mode may not be available in all writing languages.
1Virtual keyboard
2Close key - Close the virtual keyboard.
3Shift and caps lock key - To enter an upper case character when writing in lower
case, or vice versa, select the key before entering the character. To activate caps
lock mode, select the key twice.
22 Basic use
4Character range - Select the desired character range, such as numbers or special
characters.
5Arrow keys - Move the cursor left or right.
6Space bar - Insert a space.
7Input menu - Activate predictive text input, or change the writing language.
8Enter key - Move the cursor to the next row or text input field. Additional functions
are based on the current context. For example, in the web address field of the
web browser, it acts as the Go icon.
9Backspace key - Delete a character.
Switch between the virtual keyboard and keypad in portrait mode
Select > Alphanumeric keypad or Qwerty keyboard.
Add an accent to a character
Select and hold the character.
Switch predictive text on in the on-screen keyboard
Predictive text input is not available in all languages.
1 When writing, select > Input options > Activate prediction.
2 Start writing a word.
3 To see suggestions for possible words, select the word you're writing. When the
correct word is shown, select the word.
4 If the word is not in the dictionary, the phone suggests an alternative word from
the dictionary. To add the new word to the dictionary, select the word you have
written.
Switch predictive text off
When writing, select > Input options > Deactivate prediction.
Enter text with the virtual keypad
Use the virtual keypad
If you prefer to use the alphanumeric keypad when writing in portrait mode, you can
switch from the virtual keyboard to the virtual keypad.
1 Select a text input field.
2 Select > Alphanumeric keypad.
Basic use 23
1Number keys
2* - Enter a special character, or when predictive text input mode is activated and
the word underlined, cycle through the word candidates.
3Close key - Close the virtual keypad.
4Arrow keys - Move the cursor left or right.
5Input menu - Activate predictive text input, change the writing language, or switch
to the virtual keyboard.
6Backspace key - Delete a character.
7Shift key - Change the character case. To activate or deactivate predictive text
input mode, quickly select the key twice. To switch between the letter and number
modes, select and hold the key.
8Text input indicator (if available) - Indicates the character case, and if letter or
number mode or predictive text input mode is activated.
Switch traditional text input on in the on-screen keypad
Select # twice quickly.
Type in a character
1 Select a number key (1-9) repeatedly, until the character you want is shown. There
are more characters available than are shown on the key.
2 If the next letter is on the same key, wait until the cursor is shown or move the
cursor forward, then select the key again.
Type in a space
Select 0.
24 Basic use
Activate predictive text input with the virtual keypad
Predictive text input is based on a built-in dictionary to which you can add new words.
Predictive text input is not available for all languages.
1 Select > Activate predictive text.
2 To write the desired word, use the keys 2-9. Select each key once for each letter.
For example, to write Nokia when the English dictionary is selected, select 6 for
N, 6 for o, 5 for k, 4 for i, and 2 for a.
The word suggestion changes after each key selection.
3 If the word is not correct, select * repeatedly, until the correct match is displayed.
If the word is not in the dictionary, select Spell, and enter the word using
traditional text input mode, and select OK.
If ? is displayed after the word, the word is not in the dictionary. To add a word
to the dictionary, select *, enter the word using traditional text input mode, and
select OK.
4 To insert a space, select 0. To insert a common punctuation mark, select 1, and
then select * repeatedly, until the correct punctuation mark is displayed.
5 Start writing the next word.
Deactivate predictive text input
Select # twice quickly.
Define the writing language
Select > Settings and Phone > Touch input > Writing language.
Change the language when writing
Select > Writing language.
The available options may vary.
Display indicators
General display indicators
Basic use 25
The touch screen and keys are locked.
Someone has tried to call you.
You have unread messages.
If the message indicator is blinking, your Inbox folder may be full.
You have a missed calendar event.
An alarm is set.
Messages are waiting to be sent in the Outbox folder.
Incoming calls are forwarded to another number (network service).
A data call is active (network service).
Connectivity indicators
Bluetooth is active.
If the indicator is blinking, your phone is trying to connect to another device.
Your phone is sending data over Bluetooth.
A USB cable is connected to your phone.
An HDMI cable is connected to your phone.
The phone is synchronising.
The FM transmitter is active.
The FM transmitter is transmitting.
A compatible headset is connected to your phone.
A compatible car kit is connected to your phone.
26 Basic use
Network indicators
Your phone is connected to a GSM network (network service).
Your phone is connected to a 3G network (network service).
A GPRS data connection (network service) is opening or closing.
A Wi-Fi connection is open.
A GPRS data connection is open.
A GPRS data connection is on hold.
An EGPRS data connection (network service) is opening or closing.
An EGPRS data connection is open.
An EGPRS data connection is on hold.
A 3G data connection (network service) is opening or closing.
A 3G data connection is open.
A 3G data connection is on hold.
An HSPA connection (network service) is opening or closing.
An HSPA data connection is open.
An HSPA connection is on hold.
Set your phone to blink for missed calls or messages
When the phone notification light blinks, you have missed a call or a message has
arrived.
Select > Settings and Phone > Notification lights > Notification light.
Flashlight
The camera flash can be used as a flashlight. To switch the flashlight on or off, slide
and hold the key lock switch for two seconds.
Do not shine the flashlight in anyone's eyes.
Basic use 27
Search your phone and the internet
Explore your phone and the internet. You can search for mail, contacts, photos,
music, or apps stored on your phone and on the internet.
Select > Search.
1 Start writing a search word, then select from the proposed matches.
2 To search on the internet, select the internet search link at the end of the search
results. You need an active internet connection.
Tip: You can add a search widget to the home screen. Tap and hold an empty area of
the home screen, then select Add widget and the search widget from the list.
Use your phone offline
In places where you do not want to make or receive calls, you may still access your
music, videos, and offline games if you switch to the offline profile.
Press the power key , then select Turn offline mode on.
When the offline profile is switched on, your connection to the mobile network is
closed. All radio frequency signals between the phone and the mobile network are
prevented. If you try to send a message, it is placed in the Outbox folder, and is sent
only when you switch to another profile.
You can also use your phone without a SIM. Switch the phone off, and remove the
SIM. When you switch back on, the offline profile is switched on.
Important: In the offline profile you cannot make or receive any calls, or use other
features that require cellular network coverage. You may be able to call the official
emergency number programmed into your device.To make calls, you must first
change to another profile.
When the offline profile is switched on, you can still connect to a Wi-Fi network to, for
example, read your mail or browse the internet. You can also use Bluetooth.
If NFC is switched on, it is on also in the offline profile. To switch NFC off, select >
Settings and Connectivity > NFC, then switch NFC to Off.
Switch the phone off when mobile phone use is not allowed or when it may cause
interference or danger. Remember to comply with any applicable safety
requirements.
Prolong battery life
If it seems you're always looking for a charger, there are steps you can take to reduce
the power consumption of your phone.
28 Basic use
•Always charge the battery fully.
•When power saving mode is on, phone settings, such as Network mode and the
screen saver, are optimised.
Switch power saving mode on
Press the power key , then select Turn power saving on. To switch power saving
mode off, press the power key , then select Turn power saving off.
Close the apps you are not using
Press and hold the menu key, swipe until the app you want to close is shown, then
select .
Sounds, themes, and effects
•Mute unnecessary tones, such as key tones.
•Use wired headphones, rather than the loudspeaker.
•Change the length of the time-out period after which the phone screen switches
off.
Set the length of the time-out period
Select > Settings and Phone > Display > Light time-out.
Switch to a dark theme and wallpaper
Select > Settings and Themes > General.
To change the wallpaper, on the home screen, select > Change wallpaper.
Lower the brightness of the screen
Select > Settings and Phone > Display > Brightness.
Switch the Big clock screen saver off
Select > Settings and Themes > Screen saver > None.
Network use
•If you are listening to music or otherwise using your phone, but do not want to
make or receive calls, switch to the offline profile.
•Set your phone to check for new mail less frequently.
•Use a Wi-Fi connection to connect to the internet, rather than a mobile data (GPRS
or 3G) connection.
•If your phone is set to use both GSM and 3G networks (dual mode), the phone
uses more power when searching for the 3G network.
Basic use 29
Set your phone to use only the GSM network
Swipe down from the notification area, then select the mobile network and Network
mode > GSM.
Switch Bluetooth off when not needed
Swipe down from the notification area, then select .
Stop your phone scanning for available Wi-Fi networks
Swipe down from the notification area, then select .
Open a mobile data (3G or GPRS) connection only when needed
To close the mobile data connection, swipe down from the notification area, then
select .
Restore original settings
If your phone is not working properly, you can reset some settings to their original
values.
1 End all active calls and connections.
2Select > Settings and Phone > Phone management > Factory settings >
Restore.
3 If prompted, enter the security code.
This does not affect documents or files stored on your phone.
After restoring the original settings, the phone switches off, and then on again. This
may take longer than usual.
Camera and photos
About the camera
To open the camera, press the camera key.
Why carry a separate camera if your phone has all you need for capturing memories
and much more? With your phone camera, you can capture superior quality photos
and videos in sharing-friendly file sizes.
The back camera on your phone uses the revolutionary PureView Pro imaging
technology. Nokia’s PureView Pro combines an extremely high resolution sensor with
high performance Carl Zeiss™ optics. These together provide unprecedented low
light performance and superior photo and video quality in compact file sizes for
sharing. With PureView Pro, you can also zoom and crop your photos in a completely
30 Camera and photos
new way. Your camera has three shooting modes and a variety of settings to suit every
mood.
You can also use your phone to view or edit photos and videos, share them on the
internet, or send them to compatible devices.
Tip: You can take photos even when your phone screen and keys are locked. Press
the camera key for 1 second to grab your photos on the fly.
Change the shooting mode
Want to take good photos and videos without the hassle of adjusting the settings for
different conditions? Or would you like to create your own personal settings profiles
to meet your needs? Or perhaps something in between? You can easily change the
shooting mode to your liking.
There are three shooting modes to select from:
— Automatic — Let the camera decide what are the best settings.
— Scenes — Select from some ready-made settings tailored for different conditions.
— Creative — Go fully manual.
Change the shooting mode
Select and a shooting mode. If necessary, tap the right side of the screen to leave
the settings.
Camera and photos 31
Take photos
Take a photo
1 Press the camera key halfway down to lock the focus on an object (not available
in landscape or sports modes). A green locked focus indicator is shown. If the
focus is not locked, a red focus indicator is shown. Release the camera key, make
sure the object is within the brackets, and press the camera key halfway down
again to lock the focus. You can also take a photo without locking the focus.
2 Press the camera key fully down. Do not move the phone before the photo is
saved and the camera is ready for a new photo.
The photos are saved in Gallery. To quickly view the photo you've taken, select the
camera roll in the bottom right corner of the screen. To view the previous photo or
video, swipe right.
Close the camera
Press the end key briefly.
Photo tips
To open the camera, press the camera key.
•Use both hands to keep the camera steady.
•If you don't use the camera for about a minute, it goes to sleep. To wake the
camera up, press the camera key briefly.
To get the best photos, the way you like it, take your pick – the camera offers you
three different shooting modes:
•If you prefer to let the camera decide what are the best settings, use Automatic
mode. All you need to do is to point and shoot.
•Scenes mode offers you some ready-made scenes for various situations.
Example: Landscape mode: to get distant scenery in focus. Close-up mode: when
taking photos of small details. Snow mode: for very white environments. Spotlight
32 Camera and photos
mode: at concerts where the performer is under spotlights, in front of a dark
background.
•Creative mode lets you define the camera settings yourself and save the different
settings profiles for easy use later on.
To change the shooting mode, select . If necessary, tap the right side of the screen
to leave the settings.
Keep a safe distance when using the flash. Do not use the flash on people or animals
at close range. Do not cover the flash while taking a photo.
Take a close-up photo
It can be tricky to get small objects, such as insects or flowers, in focus. You need to
move the camera closer to the object. To take sharp and precise photos of even the
tiniest details, use close-up mode.
1 To open the camera, press the camera key.
2 Make sure you are in the Scenes shooting mode. To switch the mode, select >
Scenes.
3 Select .
Take a photo in the dark
To take photos even in dim light, switch to night mode.
1 To open the camera, press the camera key.
2 Make sure you are in the Scenes shooting mode. To switch the mode, select >
Scenes.
3 Select . To use the flash, select .
Take a photo of a moving object
Are you at a sports event and want to capture the action with your phone? Use sports
mode to take sharper photos of moving people.
1 To open the camera, press the camera key.
2 Make sure you are in the Scenes shooting mode. To switch the mode, select >
Scenes.
3 Select .
Record videos
Record a video
Besides taking photos with your phone, you can also capture your special moments
as videos.
Camera and photos 33
To open the camera, press the camera key.
1 To switch from photo mode to video mode, if necessary, select .
2 To start recording, press the camera key.
3 To zoom in, place a finger on the screen, and slide it up. When the frame includes
the area you want to zoom in to, lift your finger. To zoom out a bit, place a finger
on the screen, and slide it down. To fully zoom out, slide your finger past the
bottom edge of the screen.
You can also use the volume keys to zoom – you may find it easier to change the
zoom level.
4 To stop recording, press the camera key.
The videos are saved in Gallery. To quickly view the video you've recorded, select the
camera roll in the bottom right corner of the screen. To view the previous photo or
video, swipe right.
Tip: You can send your video in a multimedia or mail message. To limit the video size
for sending, before recording, select > Creative > Resolution, then select a small
enough size, such as 360p.
Video tips
To open the camera, press the camera key.
•For best results, close any open apps before recording.
34 Camera and photos
•Record to your phone mass memory, if possible.
•If recording videos to a memory card, for best performance, use a compatible,
fast, high-quality microSD card. For 360p and 720p videos, the recommended
microSD card class is 4 (32 Mbit/s (4 MB/s)) or higher. For Full HD (1080p) videos,
a class 6 (80 Mbit/s (10 MB/s)) memory card is recommended.
Before first use, back up any important content on the card, then use the phone
to format the card, even if the card has previously been formatted or used in a
Nokia phone. Formatting deletes all content on the card.
If the memory card gets slower over time, back up any important content on the
card, then use the phone to format the card.
Save location info to your photos and videos
Do you want to know exactly where you were when you took a particular photo or
video? Or would you rather not include this info in your photos or videos? Change the
location recording settings in your phone.
Switch location recording on or off
1 Select > Settings and Privacy.
2Switch Save location info in Camera to Yes or No.
Location information can be attached to a photo or video, if your location can be
determined using GPS or network methods. If you share a photo or video that contains
location information, the location information may be visible to those who view the
photo or video. You can deactivate geotagging in the camera settings.
It may take several minutes to obtain the coordinates of your location.
The availability and quality of GPS signals may be affected by your location, satellite
positions, buildings, natural obstacles, weather conditions, and adjustments to GPS
satellites made by the United States government. GPS signals may not be available
inside buildings or underground.
Do not use GPS for precise location measurement, and never rely solely on the
location information provided by GPS and cellular networks.
Send a photo or video
A picture can say more than words. Send a photo or video of that special moment or
important info you need to get across in a multimedia or mail message, or using
Bluetooth.
Send in a multimedia or mail message
1 Take a photo or record a video.
Camera and photos 35
2 Select the camera roll, tap the screen to show the toolbar, then select >
Send.
3Select Via message or Via mail.
4 To add a contact as a recipient, select To. You can also write the recipient's name,
phone number, or address in the To field.
5Select .
It can be slow and cost more to send large photo and video files. To limit the size for
sending, before taking a photo or recording a video, select > Creative >
Resolution, then select a small enough size, such as 2 MP or 360p.
Send using Bluetooth
1 Take a photo or record a video.
2 Select the camera roll, tap the screen to show the toolbar, then select >
Send > Via Bluetooth.
3 Select the phone or device to connect to, or search for more devices.
If the other phone or device asks for a passcode, type in the passcode.
Tip: You can also send photos and videos from Gallery. Select a photo or video, tap
the screen to show the toolbar, then select > Send.
Send a photo or other content to another phone that supports NFC
You can share your own photos, videos, contacts, and My Card when you touch
another compatible phone that supports NFC.
Share a photo
1 Select the photo in Gallery.
2 Touch the NFC area of the other phone with the NFC area of your phone. The
photo is sent using Bluetooth.
36 Camera and photos
The location of the NFC area may vary. For more info, see the user guide of the other
phone.
Share a photo or video directly from the camera
Want to share the best shots with your friends? Upload your photo or video to a social
networking service right after taking it.
1 To open the camera, press the camera key.
2 After taking a photo or recording a video, select the camera roll, tap the screen
to show the toolbar, then select > Share..
Tip: You can also share directly to Facebook. Select the camera roll, tap the screen
to show the toolbar, then select .
When you share your photo or video for the first time, you may need to sign in to
the social networking service. You only have to sign in the first time you share
something.
3 Add a comment if you like, then select Share.
Not all social networking services support all file formats or videos recorded in high
quality.
Tip: You can also share your photos and videos with another phone that supports
NFC. To share, after taking a photo or recording a video, touch the other phone with
the NFC area of your phone.
Camera and photos 37
Using services or downloading content may cause transfer of large amounts of data,
which may result in data traffic costs.
Set where to save photos and videos
If there is a memory card in your phone, you can set where to save the photos you
take and videos you record.
1Select > Settings.
2Select Application settings > Camera > Memory in use and an option.
Photos
About Gallery
Select > Gallery.
Watch the videos you have recorded, or browse and view the photos you have taken.
You can also view the photos and videos on a compatible TV.
View photos and videos
Select > Gallery.
Browse photos
Swipe up or down.
View a photo
Select the photo.
To view the following photo, swipe from right to left. To view the previous photo,
swipe from left to right.
Zoom in
Place two fingers on the screen, then slide your fingers apart. To zoom out, slide your
fingers together.
38 Camera and photos
Tip: To quickly zoom in or zoom back out, double-tap the screen.
View the toolbar
Tap the screen.
Play a video
Select the video. Videos are marked with .
Photos and videos can be sent to you in a mail or multimedia message. To later view
these photos and videos, save them to Gallery.
Save a photo or video to Gallery
1 In the multimedia message, select the photo or video.
2 Tap the screen, then select > Save.
Edit or add a tag
Photos and videos are automatically tagged according to the time they were taken.
You can edit or delete these tags, or add new ones yourself.
Select > Gallery.
Edit or delete a tag
Select and hold the tag, then select Rename tag or Delete tag.
Add a tag
Select and hold the photo you want to have as the first photo in the new tag group,
then select Add tag.
Camera and photos 39
Tip: To have your phone automatically add location tags to photos and videos, switch
location recording on in the camera.
Edit a photo you have taken
You can do quick edits, such as crop, resize, fix contrast, and add effects to the photos
you have taken.
1Select > Gallery and the photo.
2 Tap the photo to show the toolbar, then select > Edit.
3 From the toolbar, select , , or .
4 To save the edited photo, select . The edited photo does not replace the
original photo.
Tip: To quickly crop a photo, select the photo in Gallery, tap the screen to show the
toolbar, then select . Place your finger on the screen, drag to crop the area, then
select Crop.
Edit a video you have recorded
Cut and trim your videos down to the essentials.
1Select > Gallery and a video.
2Select > Edit.
3 Drag the start and end frames to mark the length of your video.
4 To preview your video, select .
5 To save your video, select .
Share a photo or video from Gallery
Want to upload your photos or videos to a social networking service for your friends
and family to see? You can do that directly from Gallery.
1Select > Gallery.
2 Select a photo or video.
3 Tap the screen to show the toolbar, then select .
4 Add a comment if you like, then select Share.
When you share your photo or video for the first time, you may need to sign in to
the social networking service. You only have to sign in the first time you share
something.
Tip: You can also share your photos and videos with another phone that supports
NFC. To share, select a photo or video, then touch the other phone with the NFC area
of your phone.
40 Camera and photos
View photos and videos on a TV
You can view photos and videos on a compatible TV, making it easier for you to show
them to your family and friends.
If your TV supports HDMI, you can use a compatible HDMI Micro Connector cable
(available separately) to connect your phone to your HD TV.
View photos and videos on your HD TV
Connect your phone to the TV
Connect the HDMI Micro Connector cable to the HDMI Micro Connector of your phone.
Connect the other end of the cable to the HDMI connector of the TV.
If you don't see anything on the TV screen, check the TV is using the correct HDMI
input.
Move about on the TV screen
Select the arrow icons on your phone screen. To select something, select the OK icon.
View a photo or play a video
Select Videos or Photos, go to the photo or video, then select OK.
Go to the previous or next photo
Select the back or forward arrow.
Rotate the selected photo
Select the up or down arrow.
Start a photo slide show
When viewing a photo, select OK.
Camera and photos 41
Pause or resume a video
Select OK.
Rewind or fast-forward a video
Select the back or forward arrow.
View photos and videos on your standard definition TV
You need to use a Nokia Video Connectivity Cable (available separately), and may need
to change the TV-out settings and aspect ratio.
To change the TV-out settings, select > Settings and Phone > Accessories > TV-
Out.
1 Connect a Nokia Video Connectivity Cable to the video input of a compatible TV.
The colour of the plugs must match the colour of the sockets.
2 Connect the other end of the Nokia Video Connectivity Cable to the Nokia AV
connector of your phone. You may need to select TV-Out cable as the connection
type.
3 Select the photo or video on your phone.
Do not connect products that create an output signal, as this may damage the device.
Do not connect any voltage source to the Nokia AV connector. If you connect an
external device or headset, other than those approved by Nokia for use with this
device, to the Nokia AV connector, pay special attention to volume levels.
Sync your photos and videos between your phone and computer
Did you take photos or record videos with your phone that you'd like to watch on your
computer? Using a USB cable, you can easily sync your photos and videos between
your phone and a computer.
1 Connect your phone to a compatible computer with a compatible USB cable.
42 Camera and photos
If syncing between a memory card in your phone and a computer, make sure the
memory card is in your phone.
2 Open Nokia Suite on your computer, then follow the instructions shown in Nokia
Suite.
Back up your photos
Want to make sure that you will not lose any important photos? You can use Nokia
Suite to back up your photos to your computer.
1 Connect your phone to a compatible computer with a compatible USB cable.
If copying between a memory card in your phone and a computer, make sure the
memory card is in your phone.
2 Open Nokia Suite on your computer, then follow the instructions shown in Nokia
Suite on how to sync Gallery.
Personalisation and Nokia Store
Profiles
About profiles
Select > Settings > Profiles.
Waiting for a call but can't let your phone ring? Your phone has various settings groups
called profiles, which you can personalise for different events and environments. You
can also create your own profiles.
You can personalise the profiles in the following ways:
•Change the ringtone and message alert tones.
•Change the volume of the ringtone and key tones.
•Mute key tones and notification tones.
•Activate vibration alerts.
•Set the phone to say the name of the contact who is calling.
Tip: Want quick access to the profiles? Add a profile widget to the home screen.
Personalise your ringtone and other tones
You can personalise your phone tones for each profile.
Select > Settings > Profiles.
Select the profile, Personalise, and the desired option.
Personalisation and Nokia Store 43
Tip: To download more ringtones from Nokia Store, select Download sounds. For
more information, go to www.nokia.com/support.
Tip: To set your favourite song from the music player as your ringtone, select
Songs.
Silence your phone
When the silent profile is switched on, all ringtones and alert tones are muted. Switch
to this profile when you are, for example, at the cinema or in a meeting.
Swipe down from the notification area, then select Silent.
Change your profile for meetings
Set your phone to discreetly beep once instead of ringing, when you're in a meeting.
1Select > Settings > Profiles.
2Select Meeting > Activate.
Tip: Want quick access to the profiles? Add a profile widget to the home screen.
Set a timed profile
You can activate a profile until a set time, after which the previously used profile is
activated.
Select > Settings > Profiles.
1 Select the desired profile, and select Timed.
2 Set the time that you want the timed profile to expire at.
Use your phone offline
In places where you do not want to make or receive calls, you may still access your
music, videos, and offline games if you switch to the offline profile.
Press the power key , then select Turn offline mode on.
When the offline profile is switched on, your connection to the mobile network is
closed. All radio frequency signals between the phone and the mobile network are
prevented. If you try to send a message, it is placed in the Outbox folder, and is sent
only when you switch to another profile.
You can also use your phone without a SIM. Switch the phone off, and remove the
SIM. When you switch back on, the offline profile is switched on.
Important: In the offline profile you cannot make or receive any calls, or use other
features that require cellular network coverage. You may be able to call the official
44 Personalisation and Nokia Store
emergency number programmed into your device.To make calls, you must first
change to another profile.
When the offline profile is switched on, you can still connect to a Wi-Fi network to, for
example, read your mail or browse the internet. You can also use Bluetooth.
If NFC is switched on, it is on also in the offline profile. To switch NFC off, select >
Settings and Connectivity > NFC, then switch NFC to Off.
Switch the phone off when mobile phone use is not allowed or when it may cause
interference or danger. Remember to comply with any applicable safety
requirements.
Create a new profile
How can you make your phone meet your needs at work or college or home? You can
create new profiles for different situations, and give them appropriate names.
Select > Settings > Profiles.
Select > Create new, and define your profile settings.
Tip: You can set a ringtone specifically for your profile. Select Ringtone.
Change your theme
Themes can freshen up your phone – change the look and colour scheme.
1 Select > Settings > Themes.
2 Select General and a theme.
Tip: To download more themes from Nokia Store, select Download themes. To learn
more about Nokia Store, go to www.nokia.com/support.
Home screen
About the home screen
On the home screen, you can:
•See notifications or indicators of missed calls and received messages
•Open your favourite apps
•Control apps, such as the music player
•Add shortcuts for different features, such as writing a message
•View your favourite contacts, and quickly call or send messages to them
You can have more than one home screen – try separating your work and private life
onto their own home screens.
Personalisation and Nokia Store 45
Your home screen is interactive. To quickly check your calendar, select the date. To
set an alarm, select the clock.
Personalise the home screen
Want to see your favourite landscape or pictures of your family in the background of
the home screen? You can change the wallpaper, and rearrange items on each home
screen individually, to personalise them to your liking.
Change the wallpaper
Tap and hold an empty area on the home screen, then select Change wallpaper.
Tip: Download more background images from Nokia Store. For more information, go
to www.nokia.com/support.
Rearrange items on the home screen
Tap and hold an item, then drag it to a new location.
Tip: You can drag and drop items between different home screens.
Add a new home screen
Select > Add another home screen.
Add a widget to the home screen
Interested in today's weather or what's currently in the news? You can add mini-
applications (widgets) to your home screen, and see your most relevant information
at a glance.
Tap and hold an empty area on the home screen, and from the pop-up menu, select
Add widget and a widget.
46 Personalisation and Nokia Store
A widget can enhance the related application, and may also change the way the
application works.
Tip: You can download more widgets from Nokia Store.
Using services or downloading content may cause transfer of large amounts of data,
which may result in data traffic costs.
Some home screen widgets may connect to the internet automatically. To prevent
this, close the mobile data connection. Swipe down from the notification area, and
select .
Remove a widget from the home screen
Select and hold the widget, and select .
Add a shortcut to the home screen
Did you know that you can create shortcuts to your most used applications and
features? You can add shortcuts to applications or actions, such as writing a message.
Tap and hold an empty area on the home screen, and from the pop-up menu, select
Add shortcut and the application or action.
Switch between home screens
You can have more than one home screen. For example, create separate home
screens for work and private life, and personalise them to have different content.
To switch to another home screen, swipe left or right.
indicates your current home screen.
Personalisation and Nokia Store 47
Add your important contacts to the home screen
Add your most important contacts to the home screen, so you can quickly call or send
messages to them.
Select > Contacts.
Select a contact that is stored in your phone memory and > Add to Home
screen.
Call a contact
On the home screen, select the contact, and press the call key. If the contact has
more than one number, select the desired number.
Send a message to a contact
On the home screen, select the contact and Message.
Remove a contact from the home screen
On the home screen, select and hold the contact, and select .
The contact is removed from the home screen, but remains in your contacts list.
Organise your apps
Want to find your most used apps more quickly? In the main menu, you can organise
your apps into folders, hiding your least used apps.
Select .
Create a new folder
Select > New folder.
Move an app to a folder
Select and hold the app, then select Move to folder and the new folder.
Tip: To drag and drop apps and folders, in the menu, tap and hold the screen, then
select Arrange.
Nokia Store
About Nokia Store
Select > STORE, then sign in to your Nokia account.
Did you know that you can personalise your phone with more apps? Or download
games, also free of charge? Browse the Nokia Store to find the latest content that is
designed specifically for your phone.
48 Personalisation and Nokia Store
You can download:
•Games
•Apps
•Videos
•Themes and wallpapers
•Ringtones
You can also get content that is relevant to your tastes and location.
To download from Nokia Store, you need a Nokia account.
When you sign in, you are offered content compatible with your phone.
You can search for and download content directly on your phone, or browse Nokia
Store on your compatible computer and send links to content to your phone as a text
message.
Some items are free of charge; others you need to pay for with your credit card or on
your phone bill.
The availability of payment methods depends on your country of residence and your
network service provider.
To learn more about Nokia Store, go to www.nokia.com/support.
Search Nokia Store
Check out the latest and most downloaded apps or games, and items recommended
for you and your phone. You can browse the different categories, or search for a
specific item.
1 Select > STORE, then sign in to your Nokia account.
2 Select .
3 Write search words in the search field, then select .
When you view an item, related items are also shown.
Tip: To see what others have to say about an item, take a look at the reviews. You can
also see a description, the price, and the size of the download.
Download a game, app, or other item
Download free games, apps, or videos, or buy more content to your phone. From
Nokia Store, you can find content designed specifically for your phone.
1 Select > STORE, then sign in to your Nokia account.
Personalisation and Nokia Store 49
2 Select the item.
3 If the item has a price, select Buy. If the item is free, select Download.
4 You can pay with a credit card, or, if available, on your phone bill.
To save your card details to your Nokia account, select Add.
5Select Pay.
6 To confirm, type in your Nokia account username and password, then select
Continue to start downloading.
When the download is complete, you can open or view the item. You can continue
browsing for more content while downloading.
The content type determines where the item is stored in your phone. To change the
default location, select > Installation preferences and where you want to store
items.
Tip: Use a Wi-Fi connection to download larger files, such as games, apps, or videos.
Tip: To avoid typing in your payment card details over and over when buying items
from Nokia Store, save your details to your Nokia account. You can add more than
one payment card, and choose which one to use when buying.
The availability of payment methods depends on your country of residence and your
network service provider.
For more info on an item, contact the publisher of the item.
View your downloads
While an item is downloading, you can continue to browse for other content and add
items to your download queue.
1Select > STORE, then sign in to your Nokia account.
2Select
.
You can see the status of currently downloading items in the New downloads section.
One item is downloaded at a time, and pending items wait in your download queue.
Previously downloaded items are shown in the Download history section.
Tip: If you need to, for example, temporarily close your Wi-Fi connection, select the
downloading item, then in the details view, select Pause. To resume downloading,
select Resume. Pause pending items individually.
If a download fails, you can re-download the item.
50 Personalisation and Nokia Store
Rate and review an item
Do you want to share your opinion on an item with other Nokia Store users? Rate the
item, and write your own review.
You can post one review per item that you have downloaded.
1 Select the item and Review.
2 Rate the item and write your review, then select Submit.
If you want to edit your review, select Edit review.
3 To publish your review, select Submit.
Help us keep Nokia Store clean, and report if you find inappropriate content. Select
Report abuse and the reason. Give additional details, if needed.
Telephone
Use your T-coil hearing aid with your phone
If you have a telecoil-equipped hearing aid, you may be able to use your hearing aid
with your phone, to get clearer sound during a call.
1 Switch your telecoil-equipped hearing aid to T mode.
2On your phone, select > Settings and Phone > Accessories > T-coil hearing
aid mode.
A telecoil cannot be used when the offline profile is activated, when a headset or other
audio accessory is connected to your phone, or when you are using the loudspeaker.
For more information about accessibility, go to www.nokiaaccessibility.com.
Call a phone number
1 On the home screen, select , then type in the phone number.
To delete a number, select .
To type in the + character, used for international calls, select * twice. The +
character as a replacement for the international access code may not work in all
regions. In this case, type in the international access code directly.
2 Press the call key.
3 To end the call, press the end key.
Switch the loudspeaker on during a call
To allow others in the room to join in with a call, switch the built-in loudspeaker on.
Select .
Telephone 51
When you make or receive a video call, the loudspeaker is automatically switched on.
Switch the loudspeaker off
Select .
Search for a contact from the dialler
On the home screen, select , then start writing the contact's first or second name.
You can also search by company name. Select each number key once for each letter.
For example, to search for Nokia, select 6, 6, 5, 4, then 2.
Call the found contact
Select the contact.
Send a message to the contact
Select and hold the contact, and from the contact card, select Message.
Make a video call to the contact
Select and hold the contact, and from the contact card, select Video call.
Turn to silence your phone
If your phone rings in a situation where you do not want to be disturbed, you can turn
the phone to silence the ringtone.
Switch the turn to silence feature on
Select > Settings and Phone > Sensor settings > Silence calls > On.
52 Telephone
When your phone rings, turn your phone face down.
Call a contact
1 Select > Contacts.
2 To search for a contact, select , then write the first letters or characters of the
first or second name in the search field.
3 Select the contact.
4 In the contact card, select Voice call.
5 If the contact has more than one phone number, select the number you want to
call.
Answer a waiting call
You can answer a call when you're already in another call. Call waiting is a network
service.
Press the call key. The first call is put on hold.
Switch on or off, or check the status of the service
Select > Settings and Calling > Call > Call waiting > Activate, Deactivate, or
Check status.
Swap between an active call and a call on hold
Select > Swap.
Connect the call on hold to the active call
Select > Transfer. You disconnect yourself from the calls.
End an active call
Press the end key.
End both calls
Select > End all calls.
Telephone 53
Make a video call
Do you have friends or family that you don't see in person very often? For a face-to-
face chat, why not make a video call to them?
Video calls are a network service, and to make a video call, you need to be in a 3G
network.
For info on availability and costs, contact your network service provider.
Video calls can only be made between two parties. Video calls cannot be made while
another voice or video call is active.
Make a video call to a contact
1Select > Contacts and the contact.
2 In the contact card, select Video call.
The front camera is used by default for video calls. Starting a video call may take
a while.
The video call is active when you see two videos, and hear the sound through the
loudspeaker. If the call recipient does not want to send video, you only hear the
voice of the caller, and may see an image or a blank screen.
3 To end the video call, press the end key.
Make a video call to a phone number
1 On the home screen, select , then type in the phone number.
2Select > Video call.
Answer a video call
When a video call arrives, is shown.
1 Press the call key.
2 To start sending live video, select Yes.
54 Telephone
When you answer the video call, the loudspeaker is automatically switched on.
If you do not start sending video, you only hear the voice of the caller. A grey screen
replaces your own video.
Start sending live video during a video call
Select > Enable > Sending video.
Replace the grey screen with a photo
1 Select > Settings and Calling > Call > Image in video call.
2 Select User defined and the photo.
Decline a video call
When a video call arrives, is shown.
Press the end key.
Make a conference call
You can have a conference call with up to six people, including yourself. Conference
calls are a network service.
Video conference calls are not supported.
1 Make a call to the first person.
2 To make a call to another person, select . Type in the phone number, or to
search for a contact, select . The first call is put on hold.
3 When the new call is answered, select > Conference.
Add another person to a conference call
Call the person, then select .
Telephone 55
Have a private conversation with one person in the conference call
Select > Show participants. Go to the person, then select . The conference call
is put on hold on your phone. The other people continue the conference call.
To return to the conference call, select > Conference. Or, if there are more than
three people in the call, select .
Drop someone from a conference call you have started
Select > Show participants. Go to the person, then select .
End an active conference call
Press the end key.
Call the numbers you use the most
You can quickly call your friends and family when you assign your most-used phone
numbers to the number keys of your phone.
Select > Settings and Calling > Speed dialling.
Assign a phone number to a number key
1 Select the number key to which you want to assign the phone number.
1 ( ) is reserved for the voice mailbox.
2 Select the contact from your contacts list.
Remove or change a phone number assigned to a number key
Select and hold the assigned key, and from the pop-up menu, select Remove or
Change.
Make a call
On the home screen, select , and select and hold the assigned number key.
Use your voice to call a contact
You can use your voice to make calls or control your phone.
Voice commands are not dependent on the speaker’s voice. Commands are
automatically created by your phone.
When adding contacts or editing voice commands, do not use very short or similar
names for different contacts or commands.
56 Telephone
Note: Using voice tags may be difficult in a noisy environment or during an
emergency, so you should not rely solely upon voice dialling in all circumstances.
When you use voice dialling, the loudspeaker is in use. Hold the phone a short distance
away when you say the voice command.
1 On the home screen, press and hold the call key. If a compatible headset with the
headset key is attached, press and hold the headset key.
2 A short tone sounds, and Speak now is shown. Say clearly the name that is saved
for the contact.
3 The phone plays a synthesised voice command for the recognised contact in the
selected phone language, and shows the name and number. To cancel the voice
dialling, select Quit.
Listen to a voice command for a contact
1 Select a contact and > Voice tag details.
2 Select a contact detail.
If several numbers are saved for a name, you can say also the name and the number
type, such as mobile or telephone.
Call the last dialled number
Trying to call someone, but they are not answering? It's easy to call them again. In
the call log, you can see info about the calls you have made and received.
On the home screen, press the call key, then select the number or contact.
Record a phone conversation
You can record your phone conversations.
1 During a voice call, select > Go to Home screen, and select > Recorder.
2 To start recording, select .
3 To stop recording, select . The sound clip is automatically saved to the Sound
files folder in the Files application.
Both parties hear a tone at regular intervals during the recording.
You cannot use the recorder during a data call or when a GPRS connection is open.
View your missed calls
On the home screen, you can see when you have missed calls. The number of all
missed events, including missed calls and received messages, is shown.
Telephone 57
To view the phone number, swipe down from the notification area, then select the
missed calls notification. The caller's name is shown if stored in the contacts list.
Call back the contact or number
Select the contact or number.
View the missed calls list later
On the home screen, press the call key, then open the missed calls tab .
Call your voice mailbox
You can forward calls to your voice mailbox, where callers can leave you a message if
you don't answer. Voice mailbox is a network service.
On the home screen, select , then select and hold 1.
Change the phone number of your voice mailbox
1Select > Settings and Calling > Call mailbox.
2 Select and hold the mailbox, then select Change number.
3 Type in the number (ask your network service provider for it), then select OK.
Forward calls to your voice mailbox or another phone number
If you cannot answer your calls, you can forward incoming calls.
Select > Settings and Calling > Call forwarding > Voice calls.
Call forwarding is a network service. For details, contact your network service
provider.
Forward voice calls when unanswered
Select If not answered > Activate > To voice mailbox.
Forward voice calls when you are currently in a call
Select If busy > Activate > To voice mailbox.
More than one forwarding option can be used at the same time.
Forward all voice calls to another phone number
1Select All voice calls > Activate > To other number.
2 Type in the number. To use a number saved in your contacts list, select Find.
Call barring and call forwarding cannot be used at the same time.
58 Telephone
Prevent making or receiving calls
Sometimes you may want to restrict the calls that can be made or received with your
phone. You can, for example, restrict all outgoing international calls or incoming calls
when you are abroad.
Select > Settings and Calling > Call barring.
Call barring is a network service.
To change the settings, you need the barring password from your network service
provider.
Prevent making calls
1 To prevent making any calls or international calls, select Outgoing calls or
International calls. To prevent making international calls, but allow calls to your
home country, select International calls except to home country.
2 Select Activate. Call barring affects all calls, including data calls.
Prevent receiving calls
1 To prevent receiving any calls or international calls when you are abroad, select
Incoming calls or Incoming calls when roaming.
2 Select Activate.
Call barring and call forwarding cannot be used at the same time.
Allow calls only to certain numbers
You can allow calls only to family members or other key phone numbers, and block
all other phone numbers.
Select > Contacts and > SIM numbers > Fixed dialling numbers.
Not all SIMs support the fixed dialling service. You need your PIN2 code from your
service provider.
Switch fixed dialling on
Select > Activate fixed dialling, then type in the PIN2 code.
Select the people to whom calls are allowed
1 Select > New SIM contact.
2 Type in the PIN2 code.
3 Write the contact name and phone number to which calls are allowed, then select
.
Telephone 59
To add a contact from the contacts list to the fixed dialling list, select > Add
from Contacts and a contact.
To send a text message to a SIM contact while the fixed dialling service is active, you
need to add the text message centre number to the fixed dialling list.
Contacts
About Contacts
Select > Contacts.
You can save and organise your friends' phone numbers, addresses, and other
contact information. If you want to keep in touch with your most important contacts
easily, you can set them as favourites.
Save phone numbers and mail addresses
You can save your friends' phone numbers, mail addresses, and other information to
your contacts list.
Select > Contacts.
Add a contact to the contacts list
1Select .
2 Select a contact detail, fill in the field, and select .
3 When you have added the details, select .
Edit contact information
1 Select a contact and .
2 Select a contact detail, modify the information, and select .
3 When you have edited all the necessary details, select .
Add more details to a contact card
Select a contact, > , and the desired contact detail.
Save a number from a received call or message
Have you received a call or a message from a person whose phone number is not yet
saved in the contacts list? You can easily save the number in a new or existing contact
list entry.
Save a number from a received call
1 On the home screen, press the call key.
60 Contacts
2 Open the Received calls tab .
3 Select and hold a phone number, and from the pop-up menu, select Save to
Contacts.
4 Select whether you want to create a new contact list entry or update an existing
one.
Save a number from a received message
1 Select > Messaging.
2 In the Conversations list, select and hold a message, and from the pop-up menu,
select Save to Contacts.
3 Select whether you want to create a new contact list entry or update an existing
one.
Contact your most important people quickly
You can set your most important contacts as favourites. Your favourites are at the
top of the Contacts list, so you can contact them quickly.
Select > Contacts.
Set a contact as a favourite
Select and hold a contact, and from the pop-up menu, select Add to favourites.
Remove a contact from favourites
Select and hold a contact, and from the pop-up menu, select Remove from
favourites. The contact is not deleted from your standard contacts list.
Add your important contacts to the home screen
Add your most important contacts to the home screen, so you can quickly call or send
messages to them.
Select > Contacts.
Select a contact that is stored in your phone memory and > Add to Home
screen.
Call a contact
On the home screen, select the contact, and press the call key. If the contact has
more than one number, select the desired number.
Send a message to a contact
On the home screen, select the contact and Message.
Contacts 61
Remove a contact from the home screen
On the home screen, select and hold the contact, and select .
The contact is removed from the home screen, but remains in your contacts list.
Add a photo for a contact
Want to see quickly who is calling you? Add a photo for a specific contact.
Select > Contacts.
1 Select a contact.
2Select
next to the contact's name, then select Add image.
3 Select a photo from Gallery.
Change or remove a photo
Select the photo, and from the pop-up menu, selectChange image or Remove
image.
Set a ringtone for a contact
Want to be able to hear that a particular person is calling you? You can set a ringtone
specifically for that person.
Select > Contacts.
1 Select a contact and .
2Select Ringtone and a ringtone.
Create a contact group
If you add your family members or friends to a contact group, you can easily send a
message to all of them at the same time.
1Select > Contacts.
2Open the tab, then select .
3 Write a name for the group, then select OK.
4On the tab, select the group and > Add members.
5 Mark the contacts you want to add to the group, then select .
Send a message to a group of people
Would you like to send a message to all your family members quickly? If you have
assigned them to a group, you can send a message to all of them at the same time.
62 Contacts
Select > Contacts.
1Open the tab.
2 Select and hold a group title, and from the pop-up menu, select Create
message.
Send your contact information using My Card
My card is your electronic business card. With My card, you can send your contact
information to others.
Select > Contacts.
Send your contact information as a business card
1 Select and hold My card, and from the pop-up menu, select Send as contact
card.
2 Select the sending method.
Edit your contact information in My Card
1 Select My card.
2 Select and the detail to edit.
3 To add more details, select .
Copy contacts from the SIM card to your phone
If you have contacts stored on your SIM card, you can copy them to your phone. You
can add more details to contacts that are stored on your phone, such as alternative
phone numbers, addresses, or a picture.
Select > Contacts.
Select > SIM numbers > Copy all to phone.
Back up your contacts to Nokia services
If you back up your contacts to Nokia services, you can easily copy your contacts to
a new phone. If your phone is stolen or damaged, you can still access your contacts
list online.
Select > Contacts.
Select > Nokia Sync > Sync now.
If you allow automatic syncing, all the changes you make in the contacts list are
automatically backed up to Nokia services.
Contacts 63
You need a Nokia account to use Nokia services. You are asked to create an account,
if you access a Nokia service using your phone.
If you use Nokia Sync to automatically sync your contacts, do not allow contact
syncing with any other service as there may be conflicts. Nokia Sync for contacts is
not available if you sync contacts in Mail for Exchange.
Social networks
About Social
Select > Social, then sign in to the social networking services that you use.
To power up your social networking experience, use the Social app. When signed in
to social networking services through the Social app, you can do the following:
•See your friends' status updates from multiple services in one view
•Post your own status update to multiple services at the same time
•Share photos you take with the camera
•Share videos you record with your phone
•Link your online friends' profiles to their contact info in your phone
•Add your location info to your status update
•Add events from the service calendar to your phone calendar
Only those features that are supported by the social networking service are available.
Using social networking services requires network support. This may involve the
transmission of large amounts of data and related data traffic costs. For information
about data transmission charges, contact your network service provider.
The social networking services are third party services and not provided by Nokia.
Check the privacy settings of the social networking service you are using as you may
share information with a large group of people. The terms of use of the social
networking service apply to sharing information on that service. Familiarise yourself
with the terms of use and the privacy practices of that service.
See your friends' status updates in one view
When you are signed in to social networking services through the Social app, you can
see your friends' status updates from all those services in a single view. You do not
have to switch between different apps to see what everyone is up to.
1Select > Social.
2 Select a service, then sign in.
3Select > My Accounts > Add social network.
64 Social networks
4 Select another service, then sign in.
5 Select > All Activity.
All the feeds from the services you have added are automatically included in the
view.
Post your status to social networking services
With the Social app, you can post your status update to social networking services.
1 Select > Social, then sign in to the social networking services that you use.
2 Select > All Activity.
3 Write your status update in the text field.
Link your online friends to your contacts list
You can link your online friends' profiles from social networking services to their
contact info in your phone. After linking, you can view their contact info directly from
the Social app, and see their latest status updates in your contacts list.
1 Select > Social.
2 Select an online friend's profile picture and Link Profile to Contact.
3 From your contacts list, select the contact to which to link the profile.
See your friends' status updates on the home screen
With the Social widget, you can see your online friends' status updates directly on the
home screen when you're signed in to social networking services through the Social
app.
Add the Social widget to the home screen
Select and hold an empty area on the home screen, then select Add widget >
Social.
Open the Social app from the home screen
On the home screen, select the Social widget. If you're signed in, the status updates
view opens. If you're not signed in, the sign-in view opens.
Upload a photo or video to a service
Use the Social app to upload your photos or videos to social networking services.
1 Select > Social, then sign in to a social networking service.
2 Select .
3 Select whether to upload a photo or video.
4 To mark the items to upload, select the items.
Social networks 65
The maximum file size is 4 MB for photos and 10 MB for videos.
5 If uploading a single photo, you can add a caption and a tag with a comment to a
particular section of the photo.
To upload a video, the feature needs to be supported by the social networking
service, and you need to use a Wi-Fi connection.
6Select .
Take a photo and upload it
1Select .
2 Select the option for uploading a photo from the camera.
3 Take a photo.
4 Add a caption and a tag with a comment to a particular section of the photo.
Share your location in your status update
With the Social app, you can let your friends know where you are, so they can find
you.
1Select > Social.
2 Select the text input field at the top of the view.
3 Add your location. The phone uses GPS to determine your current location, and
searches for landmarks near you.
4 If several landmarks are found, select one from the list.
Location sharing is available only if it is supported by the service.
Important: Before sharing your location, always consider carefully with whom you
are sharing. Check the privacy settings of the social networking service you are using,
as you might share your location with a large group of people.
The applicable terms of use of the social networking service may apply to sharing
your location to the service. Familiarise yourself with the terms of use and the privacy
practices of the service, and use appropriate consideration before disclosing your
location data to others or viewing the location of others.
Contact a friend from a social networking service
When commenting your friend's status is not enough, you can call or send a message
to the friend.
1Select > Social.
2 Select a friend's profile picture, then select the communication method.
66 Social networks
This feature is available if you have linked your online friends to their contact info in
your phone, or if your friends have added their own contact info to their details in the
service.
The available communication methods vary. To call or send a text message to a friend,
the feature needs to be supported by the service.
Add an event to your phone calendar
When responding to invitations to events in a social networking service, you can add
the events to your phone calendar, so you can view upcoming events even if you are
not online.
Select > Social and a service, and sign in.
1 Select an invitation to an event.
2 Add the event to your phone calendar.
This feature is available only if supported by the service.
Messages
About Messaging
Select > Messaging.
You can send and receive various kinds of messages:
•Text messages
•Audio messages
•Multimedia messages that contain pictures and videos
•Group messages
Messaging requires network support.
Send a message
Keep in touch with your family and friends through text and multimedia messages.
1 Select > Messaging and .
2 To add a contact as a recipient, select To. You can also type in a phone number.
3 Write your message in the text box, then select .
Tip: To include an attachment, such as a photo or video, select .
4 Select .
Messages 67
Tip: To send a message to a contact from your contacts list, select and hold a contact,
then select Send message.
Sending a message with an attachment may be more expensive than sending a normal
text message. For more information, contact your service provider.
You can send text messages that are longer than the character limit for a single
message. Longer messages are sent as two or more messages. Your service provider
may charge accordingly.
Characters with accents, other marks, or some language options, take more space,
limiting the number of characters that can be sent in a single message.
If a text message is very long, it may be converted to a multimedia message. If you
want to send the message as a text message, select > Sending options >
Message type > Text.
If you send a text message to one or more recipients, and the contact information of
one of the recipients is a mail address instead of a phone number, the text message
is converted to a multimedia message.
If the item you insert in a multimedia message is too large for the network, the device
may automatically reduce the size.
Only compatible devices can receive and display multimedia messages. Messages
may look different in different devices.
Read a received message
When someone sends you a message, a notification is shown on the home screen.
You can open the message directly from the home screen.
Select Show to open the message, or if the screen is locked, swipe right over the
notification.
Messages are combined into conversations, containing all the messages to and from
a contact in a single view. To read a conversation, select it from the list in the
Conversations view.
Reply to the message
1 With the message open, select .
2 Write your reply, then select > .
Tip: To reply to a message when in the Conversations view, select Tap to write.
Forward the message
1 With the message open, select > Forward.
68 Messages
2 To add a contact as a recipient, select To. You can also type in a phone number.
3 Edit the message if needed, then select > .
Save an attached photo or other file
1 In the conversation, select the message containing the file.
2 Select and hold the file, then select Save and a memory. Files are saved to their
respective apps, such as Gallery.
Read the message later
1 Select > Messaging.
2 Select the conversation containing the message.
3 Select the message.
Send an audio message
You can record a sound clip, such as a birthday song, and send it to your friend as an
audio message.
1 Select > Messaging.
2 Select .
3 To add a contact as a recipient, select To, a contact and . You can also type in
a phone number.
4 To add a sound clip as an attachment, select > and the sound clip.
To record a new sound clip, select > , then record the new clip.
5 Select .
Change the writing language
You can change the language in which you write your messages and mails.
1 Select > Settings and Phone > Language.
2 Select Writing language.
Mail
About Mail
Select > Mail.
You can automatically transfer mail from your existing mail address to your phone,
and read, respond to, and organise your mail on the go. You can add several mailboxes
to your phone and access them directly from your home screen.
Mail 69
Sending or receiving mail on your phone may be chargeable. For information on
possible costs, contact your service provider.
Mail is a network service, and may not be available in all regions.
Add a mailbox
Do you use more than one mail address? You can have several mailboxes in your
phone. Mail is a network service.
Select > Mail.
When you open the Mail app for the first time, your phone asks you to create a mailbox.
If you accept, follow the instructions shown on the phone.
If you want to use your business mail with your phone, set up the mail using Exchange
ActiveSync. For the setup, you need the name of your Microsoft Exchange Server and
network domain. For more info, contact your Mail for Exchange administrator.
Add a mailbox later
You can also create a mailbox later. Select Mail > New mailbox, then follow the
instructions shown on the phone.
Tip: If you add a mail widget to your home screen, you can easily access your mail
directly from the home screen.
Delete a mailbox
Select and hold the mailbox, then select Delete mailbox.
Read a received mail
You can use your phone to read and reply to mail.
Select > Mail.
Select the mailbox and the mail.
Tip: To quickly read new mail, add a mail widget to your home screen.
Tip: To zoom in or out, place two fingers on the screen, then slide them together or
apart.
70 Mail
Open or save an attachment
Select the attachment and Open or Save. If there is more than one attachment, you
can save them all at once.
Reply to the mail
1 Select > .
2 Write your reply, then select .
3 Select .
Forward the mail
1 Select > .
2 Type in the mail address. To add a recipient from your contacts list, select .
3 Edit the message, if you want, then select .
4 Select .
Tip: If your mail contains a web address and you would like to open the address in the
phone browser, select the address.
Read the next or previous mail in the mailbox
Use the arrow icons.
Send a mail
Would you like to send a mail while on the go? With your phone, you can read and send
mail, even when not sitting at your desk.
Select > Mail and a mailbox.
Mail 71
1Select .
2 Type in the mail address. To add a recipient from your contacts list, select . To
add a Bcc field, select > > Other recipient fields > Show Bcc field.
3 Write the subject and your message, then select .
Tip: To add an attachment, select .
4Select .
Respond to a meeting request
You can open and save or accept meeting requests. When you save or accept a
meeting request, it appears in your calendar.
Meeting requests are handled in the Exchange ActiveSync mailbox.
Select > Mail and the Exchange ActiveSync mailbox.
Open the meeting request, and save it to your calendar or, if available, select
Accept, Decline, or Tentative.
Check your availability
Select > View calendar.
To edit, reply, or forward an accepted meeting request, open the request in your
calendar.
The available options may vary.
Open mail from the home screen
You can have several mail widgets on your home screen, depending on your phone.
Each mail widget contains one mailbox, showing the three latest received mails. You
can open the mails directly from the widget. means that new mail has arrived.
Tip: To see more mails, scroll down.
Add a mail widget to the home screen
On the home screen, tap and hold an empty area, then select Add widget and the mail
widget. If you have more than one mailbox, select which one to use.
Tip: For a more compact widget, showing only the mailbox name and when new
mail has arrived, select Add widget > Mail, new arrival.
72 Mail
Internet
About the web browser
Select > Web.
Catch up on the news, and visit your favourite websites. You can use your phone web
browser to view web pages on the internet.
To browse the web, you must be connected to the internet.
Browse the web
Select > Web.
Tip: If you don't have a flat-rate data plan from your network service provider, to save
data costs in your phone bill, you can use a Wi-Fi network to connect to the internet.
Go to a website
Write a web address in the address bar, then select .
Search the internet
Write your search word in the address bar, then select the search word below the
address bar.
Zoom in or out
Place two fingers on the screen, then slide your fingers together or apart.
Send a web link
Tap and hold a web page, then select Send and how you want to send the link.
Open a new browser window
Select > .
Switch between browser windows
1 Select .
2 Swipe left or right, then select a window.
A cache is a memory location that is used to store data temporarily. If you have, or
have tried to, access confidential information or a secure service, requiring
passwords, clear the cache after each use.
Empty the cache
Select > Settings > Privacy > Clear privacy data > Cache.
Internet 73
Add a bookmark
If you visit the same websites all the time, add them to your Bookmarks view, so you
can easily access them.
Select > Web.
While browsing, tap and hold the web page, then select Add bookmark.
Go to a bookmarked website while browsing
Select > and a bookmark.
Subscribe to a web feed
You don't have to visit your favourite websites regularly to keep up with what's new
on them. You can subscribe to web feeds and get links to latest content automatically.
Select > Web.
Web feeds on web pages are usually marked with . They are used to share, for
example, the latest news headlines or blog entries.
1 Go to a blog or web page that contains a web feed.
2 Tap and hold the web page, then select Add feed.
Update a feed
In the Web feeds view, select and hold the feed, then select Refresh.
Set a feed to automatically update
In the Web feeds view, select and hold the feed, then select Edit > Automatic
updates.
Allow a website to use your location info
Select > Web.
Websites may ask to access your current location info to, for example, personalise
the info they show you. If you allow a website to use your location info, your location
may be visible to others, depending on the website. Read the privacy policy of the
website.
If asked, select Allow once or Always allow.
Remove access to location info from a website
1Select > Settings > Privacy > Location permissions.
2 Tap and hold a website, then select Delete.
74 Internet
Remove access to location info from all websites
Select > Settings > Privacy > Clear privacy data > Location permissions.
Access an online service using NFC
When you touch an NFC tag that contains a web address with the NFC area of your
phone, the website opens in your phone web browser.
Tip: NFC tags can also contain information such as a phone number or business card.
When you see a phone number in an advertisement that supports NFC, to call the
number, touch the tag.
Entertainment
Music player
About the music player
Select > Music player.
You can use your phone's music player to listen to music and podcasts while on the
move.
Play music
Select > Music player.
1 Select and the desired view. You can browse songs by song, genre, or album.
2 Select a song or album.
Tip: To listen to the songs in a random order, select .
Entertainment 75
Pause and resume playback
To pause playback, select ; to resume, select .
Fast-forward or rewind a song
Select and hold or .
Play a song on repeat
Select .
Tip: When listening to music, you can return to the home screen, leaving the music
playing in the background.
Create a playlist
Want to listen to different music for different moods? With playlists, you can create
selections of songs to play in a specific order.
Select > Music player.
1 Select and hold a song, album, or genre, then select Add to playlist.
2 Write a name for the playlist.
Play a playlist
Select > Playlists and a playlist.
Remove a song from playlist
In the playlist view, select and hold the song, then select Remove.
76 Entertainment
This does not delete the song from the phone; it only removes it from the playlist.
Tip: Music player automatically creates a playlist for the most played songs, recently
played songs, and recently added songs.
Sync music between your phone and PC
Do you have music on your PC that you want to listen on your phone? Nokia Suite is
the fastest way to copy music to your phone, and you can use it to manage and sync
your music collection.
1 Connect your phone to a compatible computer with a compatible USB cable.
2 On your phone, swipe down from the notification area, then select USB > Nokia
Suite.
3 On your computer, open Nokia Suite. Make sure you have the latest version of
Nokia Suite.
4 Drag and drop your music to your phone. For more information, see the Nokia
Suite help.
5In Music player, select > Music library > Refresh.
Download the latest version of Nokia Suite from www.nokia.com/support.
Some music files can be protected by digital rights management (DRM) and cannot
be played on more than one device.
About Nokia Music
Select > Nokia Music.
With Nokia Music, you can buy and download songs to your phone and your computer.
Browse Nokia Music, and discover new music and old favourites.
Different services and options are available, depending on your country of residence.
Entertainment 77
To download music, you need to create a free Nokia account.
You can create a Nokia account, join Nokia Music, and sign in to your account using
any of the following:
•Your phone
•A compatible web browser
•Nokia Suite
If you already have a Nokia account, you can use that account for Nokia Music.
If you have any credit or downloads, or you have subscribed to unlimited downloading
with your Nokia account, do not close the account. If you do, all these will be lost.
Record sounds
Select > Recorder.
Record a sound clip
Select .
Stop recording
Select . The sound clip is automatically saved to the Sound files folder in the Files
application.
Send a recorded sound clip as an audio message
Select > Send.
Play music through a radio
About the FM transmitter
Select > Pl. via Radio.
You can play music stored in your phone through any compatible FM radio, such as a
car radio or a home stereo system.
The operating distance of the FM transmitter is about 2 metres (6 feet). Obstructions,
such as walls, other electronic devices, or public radio stations may cause
interference to the transmission. The operating frequency of the FM transmitter
varies by region.
The FM transmitter may cause interference to nearby FM radios operating on the
same frequency. To avoid interference, always search for a free FM frequency on the
receiving radio before activating the FM transmitter.
78 Entertainment
The FM transmitter cannot be used at the same time as the FM radio of your phone.
Note: Using FM transmitter may be restricted in some countries. For more
information, contact your local authorities and go to www.nokia.com/
fmtransmitter.
Play a song through a radio
Do you want to listen to music at a higher volume, or through better quality hi-fi stereo
speakers? You can play music through an FM radio.
1 Tune the receiving radio to a free frequency.
2 Select > Music player.
3 Select a song or a playlist.
4 Select > Play via Radio.
5 Enter the frequency to which you tuned the receiving radio. For example, if the
frequency 107.8 MHz is free in your area and you tune your FM radio to that
frequency, also tune the FM transmitter to 107.8 MHz.
To adjust the volume, use the volume function in the receiving radio. Make sure your
phone volume is not muted.
Tip: To easily activate or deactivate the FM transmitter, add the Play via Radio widget
to your homescreen.
This application is provided for personal use of legally obtained content only.
FM radio
About the FM radio
Select > FM radio.
You can listen to FM radio stations using your phone. Just plug in a headset, and select
a station.
To listen to the radio, you need to connect a compatible headset to the device. The
headset acts as an antenna.
Entertainment 79
It is not possible to listen to the radio through a Bluetooth headset.
You can listen to the radio even when offline mode is activated in your phone and you
do not have cellular network coverage. The quality of the radio broadcast depends
on the FM radio signal coverage at your location.
You can make or answer a call while listening to the radio. The radio is automatically
muted during an active call.
Find and save radio stations
Search for your favourite radio stations, and save them, so you can easily listen to
them later.
Select > FM radio.
The first time you use the FM radio, the app automatically searches for available radio
stations. If no stations are found, you can set a frequency manually. You can also use
the automatic scanning feature later.
Set a frequency manually
1Select > > Tune stations manually.
2 To set the frequency, select the up or down arrows. The supported frequency
range is 88.1–107.9 MHz.
Scan for all available stations
Select > .
Listen to the radio
Enjoy your favourite FM radio stations on the go!
Select > FM radio.
80 Entertainment
Go to the next or previous station
Select or .
View all available stations
Select .
Scan for another available station
Select and hold or .
Tip: To easily access the radio, add the radio widget to the home screen.
Reorder the list of saved stations
You can reorder the list of saved stations, so that your favourites are at the top.
Select > FM radio.
The stations you have saved are listed in the Station list view.
Move a station on the list
1 From the toolbar, select .
2 Select and hold the station title, and from the pop-up menu, select Move.
3 Select the new place on the list.
Play a game with a friend using NFC
Want to have fun playing games with a friend? If you and a friend both have a
compatible phone that supports NFC, you can play games against each other.
1 Open a game that supports NFC.
2 Follow the in-game instructions.
Pay with your phone
Forgot your wallet or purse at home? Not a problem – you can pay with your phone
or use it as a ticket, if supported by your network service provider.
To find out which services are available in your area, contact your network service
provider. You need a SIM that supports NFC. The services are tied to your SIM.
Get started
1 To activate the service, contact your network service provider.
2 Select > Settings.
3 Select Connectivity > NFC > Cards > On.
Entertainment 81
Set your phone to ask before allowing any card transactions
Select Ask before using cards > Yes.
Note: If this setting is off, your phone doesn't ask for confirmation before allowing
card transactions, not even when your phone or keys and screen are locked.
Pay with your phone
1 Touch the reader with the NFC area of your phone.
2 To allow the card transaction, select Yes. After the confirmation, you have a short
time to make the payment.
3 Touch the reader again. Your service provider may ask you to confirm the
payment.
Using your service provider's compatible Near Field Communication (NFC) payment
or ticketing services with this phone requires a service subscription with your service
provider and the installation of your service provider’s application. Payment and
ticketing applications and services are provided by third parties. Nokia does not
provide any warranty or take any responsibility for any such applications and services
including end user support, functionality or any monetary transactions or loss of
monetary value. Back up your phone and contact your service provider before
providing your phone for repair or maintenance to ensure the availability of the
payment or ticketing services after repair or maintenance. For any questions about
payment or ticketing applications and services, contact your service provider.
Videos
About Videos
Select > Videos.
You can browse, download, and watch videos on your phone when out and about.
Tip: Get new videos from Nokia Store. For more information, go to www.nokia.com/
support.
Using services or downloading content may cause transfer of large amounts of data,
which may result in data traffic costs.
Play a video
Select > Videos.
To browse your video collection, open the tab. To browse the videos you have
recorded, select > Gallery.
82 Entertainment
To browse video services, open the tab.
If you connect your phone to an HD TV, you can watch videos on the big screen.
Watch a video
Select a video to play. To use the video player controls, tap the screen.
Watch a video with surround sound
Connect compatible headphones to your phone, then select to switch the Dolby™
Headphone feature on.
Pause or resume playback
Select or .
Fast-forward or rewind
Select and hold or .
Copy your videos between your phone and computer
Have you recorded videos with your phone that you want to watch on your computer?
Or do you want to copy your videos from your phone to your computer? Use a
compatible USB data cable to copy your videos between your phone and a computer.
1 Use a compatible USB data cable to connect your phone to a computer.
If copying between a memory card in your phone and a computer, make sure the
memory card is inserted.
2 Open Nokia Suite on your computer, and follow the displayed instructions.
Watch Web TV
You can keep up with the news and catch up on the latest episodes of your favourite
TV series.
Select and a Web TV service.
To stream content over the air, you need to use a 3G, 3.5G, or Wi-Fi connection. Using
Web TV services may involve the transmission of large amounts of data. For
information about data transmission charges, contact your network service provider.
The selection of pre-installed Web TV services depends on the country and network
service provider. The content of the Web TV services varies by service.
1 To browse Web TV content, swipe the screen.
2 To start playback, select the thumbnail image.
3 To show or hide the controls during playback, tap the screen.
Entertainment 83
4 To change the volume, use the volume keys.
Add a Web TV widget to your home screen
Tap and hold an empty area of the home screen, and select Add widget and the
desired Web TV service.
Connect to a high definition system
Connect to your home theatre
Enjoy high definition videos with Dolby Digital Plus 5.1 multichannel audio for an
immersive surround sound experience.
1 Connect your phone to your compatible home theatre with an HDMI
™
Micro
Connector cable (available separately).
The home theatre needs to support the HDMI 1.4 standard and be able to pass
through video to your TV over HDMI.
2 Set the home theatre to use the respective HDMI input. For more info, see the
user guide of your home theatre.
The phone turns into a remote control.
3Select Videos, then select a video.
The maximum supported video resolution is 1080p, and your phone does not support
files that are larger than 4 GB.
Example: An MP4 or MKV video that has the following properties:
•Video: AVC 1916kbps, 24fps, High Profile Level 3.1, 3 ref. frames
•Audio: Dolby Digital Plus E-AC-3, 384kbps, 6 channels
84 Entertainment
Connect to your HD TV
You can use an HDMI Micro Connector cable (available separately) to connect your
phone to a TV or compatible home theatre. Photos and videos keep their original
video and audio quality.
1 Connect an HDMI Micro Connector cable to the HDMI Micro Connector of your
phone.
2 Connect the HDMI Micro Connector cable to the HDMI connector of a TV.
The phone turns into a remote control.
3 Select the correct HDMI input on the TV. For more info, see the user guide of the
TV.
4 Select Photos or Videos.
If you select Photos, all your photos are shown on the TV.
Tip: When you view your photos, you can have music playing in the background.
Stream content wirelessly
About DLNA play
Select > DLNA play.
Would you like to see the photos or videos in your phone on another device, such as
your TV? Or listen to the music on your phone through your home stereo? With DLNA
play, you can stream your media content to your DLNA devices wirelessly.
You need the following:
•A Wi-Fi network. For best results, your wireless router should be connected to
your DLNA device over a cable connection.
•Wi-Fi on in your phone, and the phone has to be connected to the same Wi-Fi
network that your DLNA device is on.
Entertainment 85
There are different types of DLNA devices. If you can connect to the device on your
phone and can control the streaming, the device is a renderer. If you can view the
media on your phone from your device, the device is a player. To find out what kind
of DLNA device you have, you can also check the device user guide.
For more info on how to set up the Wi-Fi connection, go to www.nokia.com/support.
Stream content
You can stream photos and videos on your phone to another device that supports
DLNA, such as a TV.
Use your phone to stream content to your DLNA device
1Select > DLNA play and your DLNA device.
If your phone can't detect any devices, there might not be any renderer DLNA
devices in your Wi-Fi network. Check if you can use your DLNA device to see the
content on your phone.
2 To stream photos, select Photos. To stream videos, select Videos. To stream
music, select Music.
3 Select the photo, video, or song.
The connection to your DLNA device opens automatically. When content is being
pushed to your DLNA device, is shown.
You can also zoom a photo, or stream just a part of a photo.
Stream a part of a photo
1 Select the photo, place two fingers on the screen, then slide them apart or
together to crop the area.
Tip: To move the cropped area, tap and hold the area, then drag it.
2 To start streaming the cropped area, lift your finger.
86 Entertainment
The photo is pushed to your DLNA device after 3 seconds. To start immediately,
tap the area.
Use your DLNA device to stream content saved on your phone
1 Select > Settings and Connectivity > DLNA server > DLNA server > On.
2 Use your DLNA device to detect your phone, then view the content on your phone
through the DLNA device.
Tip: To quickly access the DLNA server, add the DLNA server widget to your home
screen. To add, tap and hold an empty area on a home screen, then select Add widget
and the widget.
Maps
About Maps apps
Maps shows you what is nearby and guides you where you want to go. Maps also
provides you with weather forecasts and links to the latest travel guides.
•Find cities, streets, and services using Maps.
•Sync your favourite locations and routes between your phone and the Nokia Maps
web service.
•Store and share your location in social networks using Check in.
•Find your way with turn-by-turn directions using Drive.
•Check the current weather and a forecast for the coming days, if available, using
Weather.
•Get linked to the latest information on what's there to see and do, where to spend
the night, or how to book a room using Guides.
Coordinate information may not be available in all regions.
Maps 87
Some services may not be available in all countries, and may be provided only in
selected languages. The services may be network dependent. For more information,
contact your network service provider.
Using services or downloading content may cause transfer of large amounts of data,
which may result in data traffic costs.
Contents of digital maps may sometimes be inaccurate and incomplete. Never rely
solely on the content or the service for essential communications, such as in
emergencies.
Some content is generated by third parties and not Nokia. The content may be
inaccurate and is subject to availability.
Navigate to your destination
Drive to your destination
When you need turn-by-turn directions while driving, Drive helps you get to your
destination.
Select > Drive.
Drive to a destination
Select Set destination and an option.
Start driving without a set destination
Select Just drive. The map follows your location.
Drive to your home
Select Drive home.
When you select Drive home for the first time, you are asked to give your home
location.
88 Maps
Change your home location
Select > Settings > Home Location > Redefine.
Obey all local laws. Always keep your hands free to operate the vehicle while driving.
Your first consideration while driving should be road safety.
Change the voice guidance language for driving
Voice guidance helps you find your way to a destination, leaving you free to enjoy the
journey.
Select > Drive.
Select > Settings > Voice guidance and a language.
Voice guidance may not be available for your language.
Switch voice guidance off
Select > Settings > Voice guidance > None.
Change the look of the Drive view
Would you like to see a more realistic 3D map, or are you using Drive at night, when
it's dark? With the different map modes, you can see the info you need clearly at all
times.
Select > Drive.
View the map in 3D
Select > . To go back to 2D mode, select the icon again.
To see the map clearly also when it is dark, you can activate night mode.
Activate night mode
Select > > Colours > Night mode.
By default, the map rotates to your driving direction.
Orient the map to north
Select . To rotate the map back to your driving direction, select again.
Select your preferred route
Drive can choose the route that best suits your needs and preferences.
Maps 89
1Select > Drive.
2Select > > Route settings.
3Select Route selection > Faster route or Shorter route.
4 To combine the advantages of both the shorter and the faster routes, select
Route selection > Optimised.
You can also choose to allow or avoid using, for example, motorways, toll roads, or
ferries.
Get traffic and safety info
Enhance your driving experience with real-time info about traffic events, lane
assistance, and speed limit warnings.
Select > Drive.
Show traffic events on the map
During drive navigation, select > Traffic. The events are shown as triangles and
lines.
You can set your phone to notify you when you exceed the speed limit.
Get speed limit warnings
1Select > > Alerts.
2In the Speed limit alert status field, select On.
3 To set by how much you can go over the speed limit before being warned, select
Speed limit < 80 km/h or Speed limit > 80 km/h.
You can set Drive to avoid traffic events, such as traffic jams or roadworks in route
planning and guidance. Drive checks the route regularly during navigation, updating
the guidance automatically.
Avoid traffic events
Select > > Route settings > Avoid traffic.
The availability of traffic information may vary according to the region and country.
The location of speed cameras may be shown on your route during navigation, if this
feature is enabled. Some jurisdictions prohibit or regulate the use of speed camera
location data. Nokia is not responsible for the accuracy, or the consequences of using
speed camera location data.
90 Maps
Walk to your destination
When you need directions to follow a route on foot, Maps guides you over squares,
and through parks, pedestrian zones, and even shopping centres.
Select > Maps.
1 Select a place and its info area at the top of the screen.
2 Select Navigate > Walk here.
By default, the map is oriented to north.
Rotate the map to your walking direction
Select . To rotate the map back to north, select again.
You can also select what type of route you want walk navigation to follow.
Select the walking mode
1 Select > Settings > Maps & Walk > Route settings.
2 Select Preferred route > Streets or Straight line.
Straight line is useful on off-road terrain as it shows the walking direction.
While walking, you can check the dashboard for info, such as how far you have walked
and what your average speed has been.
Check the tripmeter from the dashboard
In the walk navigation view, select > Dashboard.
Reset the tripmeter
Select > Reset. To reset all counters, select > Reset all.
The trip meter may not be accurate, depending on the availability and quality of your
GPS connection.
Change the voice guidance language for walking
You can easily change the language for voice guidance, or switch it off completely.
Select > Maps.
Select > Settings > Maps & Walk > Voice guidance and a language.
Voice guidance may not be available for your language.
Maps 91
Switch voice guidance off
Select > Settings > Maps & Walk > Voice guidance > None.
Find and view locations
See where you are on a map
If you need to get your bearings, check where you are on a map. You can also explore
different cities and countries.
Select > Maps.
shows where you are. When searching for your location, blinks. If Maps can't
find you, shows your last known location.
If accurate positioning is not possible, a red halo around the location icon shows the
general area you might be in. In densely populated areas, the accuracy of the estimate
is better, and the red halo is not as wide.
Browse the map
Drag the map with your finger. By default, the map is oriented north. If you want the
map to rotate so that it shows the direction you're facing, select .
See your current or last known location
Select .
Zoom in or out
Select + or -.
Tip: You can also place two fingers on the map, then slide your fingers apart to zoom
in or together to zoom out. Not all phones support this feature.
If you browse to an area not covered by the street maps that are stored on your phone,
and you are connected to the internet, new street maps are automatically
downloaded.
Prevent downloading new street maps automatically
1Select > Settings > General.
2Select Connection > Offline.
Map coverage varies by country and region.
Find a location
Maps helps you find specific locations and businesses.
92 Maps
Select > Maps and .
1 Enter search words, such as a street address or place name.
2 Select an item from the list of proposed matches.
The location is displayed on the map.
Return to the list of proposed matches
Select .
Tip: In the search view, you can also select from the list of your previous search words.
Search for different types of nearby places
Select and a category, such as transport, accommodation, or shopping.
Tip: You can use the details page of a found location to easily navigate to the place,
to view its contact information, or to save or share the location. Select the place, and
the place is shown on the map. To view the details page, select the information area
at the top of the screen.
If no search results are found, make sure the spelling of your search words is correct.
Problems with your internet connection may also affect results when searching
online.
If you have maps of the searched area stored on your phone, to avoid data transfer
costs, you can also get search results without an active internet connection, but the
search results may be limited.
Download and update maps
Save new street maps to your phone before a journey, so you can browse the maps
without an internet connection when travelling.
Select > Maps, and > Map Loader.
To download and update maps on your phone, you need an active Wi-Fi connection.
Download new maps
1 Select Add new maps.
2 Select a continent and a country, then select Download.
Update maps
Select Check for updates.
Maps 93
Remove a map
Select and hold a country, then confirm that you want to remove the map.
Tip: You can also use the Nokia Suite PC app to download the latest street maps and
voice guidance files, and copy them to your phone. To download and install Nokia
Suite, go to www.nokia.com/support.
When you install a newer version of the Maps app on your phone, the country or region
maps are deleted. Before using Nokia Suite to download new maps, open and close
the Maps app, and make sure you have the latest version of Nokia Suite installed on
your computer.
Change the look of the map
You can change the look of the map so that you can see just the info you need.
Select > Maps.
Show prominent buildings and attractions
Select > Landmarks.
Show public transport routes
Select > Transit lines.
The available features may vary by region.
Guides
Are you planning a trip or visiting a new city? Want to know what's there to see and
do, or where you could spend the night or have dinner? Guides gets you connected
to travel guides, booking services, and event listings for the latest detailed
information.
Select > Guides.
Open a service or guide
Select the title.
To return to the main page, select Guides.
The service may not be available in your country.
Weather
Is it going to rain in the afternoon? How warm will it be on Saturday? Use Weather to
check the current conditions or a forecast for the coming days.
94 Maps
Select > Weather.
Browse the detailed forecast
To browse forwards or backwards in time, drag the time slider at the bottom of the
view.
View a five-day forecast
Select . To go back to the detailed forecast view, select .
The service may not be available in your country.
About positioning methods
Maps shows your location on the map using GPS, A-GPS, Wi-Fi, or network (cell ID)
based positioning.
A-GPS and other enhancements to GPS may require transferring small amounts of
data over the cellular network.
GPS The global positioning system (GPS) is a navigation system that
uses satellites to work out where you are.
A-GPS The Assisted GPS (A-GPS) network service retrieves location
information using the cellular network, and assists GPS in
calculating your current location.
Your phone is set up to use the Nokia A-GPS service, unless your
network service provider has its own A-GPS settings. To get the
assistance data to your phone, you need to be able to connect to
the internet. Your phone gets the data from the service only when
needed.
Wi-Fi Wi-Fi positioning improves positioning accuracy when GPS signals
are not available, especially when you are indoors or between tall
buildings.
Cell ID With network (cell ID) based positioning, Maps locates you
through the cellular system your phone is currently connected to.
The availability and quality of GPS signals may be affected by your location, satellite
positions, buildings, natural obstacles, weather conditions, and adjustments to GPS
satellites made by the United States government. GPS signals may not be available
inside buildings or underground.
Do not use GPS for precise location measurement, and never rely solely on the
location information provided by GPS and cellular networks.
Maps 95
Depending on the available positioning methods, the accuracy of positioning may
vary from a few metres to several kilometres.
Switch positioning methods off
To save on data costs, especially when abroad, you can switch off assisted GPS (A-
GPS), Wi-Fi, or network (cell ID) positioning.
1Select > Settings.
2Select Application settings > Positioning > Find my location > Positioning
methods, and switch off the positioning methods you don't want to use.
Working out your location may take much longer, the location can be more inaccurate,
and the GPS receiver can lose your location more frequently.
Save and share places
Save or view a place
To aid your travel planning, you can search for places, such as hotels, attractions, or
petrol stations, and save them to your phone.
Select > Maps.
Save a place
1 To search for an address or place, select .
2 Select the place's info area at the top of the screen.
3 On the details page, select .
View a saved place
In the main view, select > > Places and the place.
Group the places into a collection, for example, when planning a trip.
Add a saved place to a collection
1Select Places.
2 Select and hold the place, then select Organise collections.
3Select New collection or an existing collection, then select .
Sync your Favourites
Plan a trip on your computer at the Nokia Maps website, sync the saved places with
your phone, and access the plan on the go.
1 Make sure you're signed in to your Nokia account.
2Select > Maps.
96 Maps
3 Select > > . If you do not have a Nokia account, you are asked to create
one.
Syncing requires an internet connection, and may involve the transmission of large
amounts of data through your service provider’s network. For info about data
transmission charges, contact your network service provider.
To use the Nokia Maps web service, go to maps.nokia.com.
Send a place to a friend
When you want to show your friends where a place is on the map, you can send the
place to them.
Select > Maps.
To view the place on the map, your friends don't need to have a Nokia phone, but an
internet connection is required.
1 Select a place and its information area at the top of the screen.
2 Select Share > Share via SMS or Share via Email.
A mail or text message containing a link to the location on the map is sent to your
friend.
Check in
With the Check in feature, you can keep a private record of where you have been.
Keep your social networking friends and contacts up to date with what you are doing,
and share your location on your favourite social networking services.
Select > Check in.
To check in, you need an active internet connection and a Nokia account. To share
your location, you also need a social networking service account. The supported social
networking services vary by country or region.
1 Sign in to your Nokia account, or, if you do not yet have one, create the account.
2 It is possible to share your location on the social networking services that you
use. When you use Check in for the first time, you can set your account credentials
for the services that you use.
3 Select your current location.
4 Write your status update.
You can post only to selected services that you have set up. To exclude a service,
select the service logo. To exclude all the services, keeping your location and
Maps 97
status update private, clear the check box marked with and post on. To set up a
new service account, select .
5Select Check in.
You may also be able to attach a picture to your post, depending on the social
networking service.
Tip: You can also check in a location directly from Maps, from a location's details page.
In Maps, select the location on the map and the information area at the top of the
screen. On the details page, select Share.
View your Check in history
Select .
Checking in and sharing your location requires an internet connection. This may
involve the transmission of large amounts of data and related data traffic costs.
The social networking services are third-party services and not provided by Nokia.
Check the privacy settings of the social networking service you are using as you may
share information with a large group of people. The terms of use of the social
networking service apply to sharing information on that service. Familiarise yourself
with the terms of use and the privacy practices of that service.
Important: Before sharing your location, always consider carefully with whom you
are sharing. Check the privacy settings of the social networking service you are using,
as you might share your location with a large group of people.
Report incorrect map information
If you notice that information on the map is incorrect or missing, report it to Nokia.
Select a place from the map, its information area at the top of the screen, and
Report.
The service may not be available for your country or region. Reporting incorrect or
missing information requires an internet connection.
You can report issues, such as:
•Missing or incorrect street names
•Streets that are blocked or unsuitable for walking on
•Incorrect restrictions or speed limits
You can add further details when reporting.
98 Maps
Clock and calendar
Clock
About the clock
Select > Clock.
Tip: To open the clock, you can also select the clock on the home screen.
Set and manage alarms, and check local times in different countries and cities.
Set the time and date
On the home screen, select the clock.
Select > Settings > Time or Date.
Set an alarm
You can use your phone as an alarm clock.
On the home screen, select the clock.
1 Select .
2 Set the alarm time, and enter a description.
3 To set the alarm to sound, for example, at the same time every day, select
Repeat.
Remove an alarm
Select and hold the alarm, and from the pop-up menu, select Delete alarm.
Snooze an alarm
When an alarm sounds, you can snooze the alarm. This pauses the alarm for a defined
length of time.
When the alarm sounds, select Snooze.
Set the length of the snooze time
1 On the home screen, select the clock.
2 Select > Settings > Alarm snooze time, and set the length of time.
Tip: You can snooze alarms also by turning your phone face down.
Clock and calendar 99
Update the time and date automatically
You can set your phone to update the time, date, and time zone automatically.
Automatic update is a network service.
On the home screen, select the clock.
Select > Settings > Automatic time update > On.
Change the time zone when travelling
You can set the clock to the local time when travelling abroad or view the time in
different locations.
On the home screen, select the clock.
Open the world clock tab .
Add a location
Select and a location. You can add up to 15 locations. For countries with multiple
time zones, you can add several locations.
Set your current location
Select and hold a location, and from the pop-up menu, select Set as current
location.
The time in your phone is changed according to the selected location. Make sure the
time is correct.
Tip: Want to remove a location quickly? Select and hold the location, and from the
pop-up menu, select Remove.
Check the time in different cities
To view the time in different locations, add them to your world clock tab. You can also
add pictures for the locations, for example, a picture of your friend who lives in the
city in question, or a view from your favourite tourist attraction.
100 Clock and calendar
On the home screen, select the clock.
Open the world clock tab .
Add a location
Select and a location. You can add up to 15 locations. For countries with multiple
time zones, you can add several locations.
Add a picture for a location
Select and hold the location, and from the pop-up menu, select Change image and a
picture.
Calendar
About the calendar
Select > Calendar.
With your phone calendar, you can keep your schedules organised.
Tip: Want quick access to your calendar? Add a calendar widget to the home screen.
Browse your calendar in different views
Want to see all your calendar events for a particular day? You can browse your
calendar events in different views.
1 Select > Calendar.
2 Select and a view.
Tip: To go to the previous or next day or month, in the appropriate view, swipe left
or right.
Add a calendar event
1 Select > Calendar.
2 Select . The calendar event type is meeting by default.
3 Fill in the fields.
4 To repeat the calendar event at regular intervals, select and the time interval.
Select Repeat until, then type in the end date.
5 Select Save.
Tip: You can also add a calendar event in the day view. Select and hold the starting
time, and drag the arrows to set the duration.
Clock and calendar 101
Use separate calendars for work and free time
You can have more than one calendar. Create one for work and another for your free
time.
Select > Calendar.
Create a new calendar
1Select > Calendars > .
2 Write a name, then set a colour code for the calendar.
3 Set the visibility for the calendar. When a calendar is hidden, the calendar events
and reminders are not shown in different calendar views or on the home screen.
4Select Save.
Modify the settings for a calendar
1 In the Calendars view, select the desired calendar.
2 Change the name, colour, and visibility.
3Select Save.
Add an entry to a particular calendar
1 When adding a calendar event, select and the calendar.
2 Fill in the fields, then select Save.
Colour codes show which calendar an event belongs to.
Add a task to your to-do list
Do you have important tasks to handle at work, library books to return, or maybe an
event you want to attend? You can add tasks (to-do notes) to your calendar. If you
have a particular deadline, set a reminder.
1Select > Calendar.
2Select .
3 Select the event type field , then select To-do as the event type.
102 Clock and calendar
4 Fill in the fields.
5 To add a reminder for the task, select .
6 Select Save.
Remember a birthday
You can add a reminder for birthdays and other special dates. The reminders are
repeated annually.
1 Select > Calendar.
2 Select .
3 Select the event type field , then select Anniversary as the event type.
4 Fill in the fields.
5 Select Save.
Send a meeting request
You can create meeting requests, and send them to the participants.
Before you can create and send a new meeting request, you need to set up a mailbox.
1 Select > Calendar.
2 Open an event, then select > Send > Via mail.
3 Add the meeting participants as recipients of the request mail.
4 To send the request, select .
Add the location to a calendar event
Do you have an appointment in a place you have never visited? You can add the
location info to your calendar event.
1 Select > Calendar.
2 Select .
3 Select Enter location, then select the location in the Maps app. You can also
manually write the location in the text field.
4 Select Save.
Office
Quickoffice
About Quickoffice
Select > Quickoffice.
Office 103
Quickoffice consists of the following:
•Quickword for viewing and editing Microsoft Word documents
•Quicksheet for viewing and editing Microsoft Excel worksheets
•Quickpoint for viewing and editing Microsoft PowerPoint presentations
The office applications support common features of Microsoft Word, PowerPoint, and
Excel (Microsoft Office 2000, XP, and 2003). Not all file formats are supported.
Read Microsoft Word, Excel, and PowerPoint documents
You can view Microsoft Office documents, such as Word documents, Excel
worksheets, or PowerPoint presentations.
Select > Quickoffice.
Open a file
Select Browse files and the memory where the file is stored, browse to the correct
folder, and select the file.
Sort files
Select > Sort by.
Create or edit a document
With Quickoffice, you can create and edit Microsoft Word documents.
Select > Quickoffice.
Create a document
Select New document.
Edit a document
Write or edit text
Tap where you want to start, and write or delete text.
Format text
To change the font and paragraph properties, select > Format.
Create or edit a workbook
With Quickoffice, you can create and edit Microsoft Excel workbooks.
Select > Quickoffice.
104 Office
Create a workbook
Select New document.
Edit a workbook
Edit a cell
Select the cell and > Edit cell. To insert a function, in the editing view, select >
Insert function.
Create or edit a presentation
With Quickoffice, you can create and edit Microsoft PowerPoint presentations.
Select > Quickoffice.
Create a presentation
Select New document.
Edit a presentation
Add a slide
Select > Slide options > Insert new slide.
Insert a textbox, picture, shape, or table
Select > Insert.
Edit text
Select a textbox and > Edit textbox.
Read PDF documents
Select > Adobe Reader.
Open a file
Select Browse files and the memory where the file is stored. Browse to the correct
folder, and select the file.
Use the calculator
Select > Calculator.
Office 105
1 Enter the first number of the calculation.
2 Select a function, such as add or subtract.
3 Enter the second number of the calculation.
4Select =.
Save or retrieve the result of a calculation
Select > Memory > Save or Recall.
Write a note
Notes on paper are easy to lose. Instead of writing them down, you can save your
notes and lists on your phone, so you always have them with you. You can also send
your notes to friends and family.
Select > Notes.
1Select Create note.
2 Write your note in the note field and select .
Send a note
Open the note, and select > Send and the sending method.
Translate words
You can translate words from one language to another.
Select > Dictionary.
1 Write a word in the search field. Suggestions of words to translate are shown.
2 Select the word from the list.
3 To listen to the pronunciation, select > Listen
Change the source or target language
Select > Languages > Source or Target.
Download more languages from the internet
Select > Languages > Download languages.
English is preinstalled, and you can add two additional languages. Not all languages
may be supported.
106 Office
Open or create zip files
You can open and extract files from zip files. You can also create new zip files,
to store and compress files.
Select > Zip.
Connectivity
Internet connections
Define how your phone connects to the internet
Your phone automatically checks for and connects to an available known network
when a network connection is needed. Selection is based on the connection settings,
unless there are application-specific settings applied.
Select > Settings and Connectivity > Settings.
Use a mobile data connection
Select Mobile data > On.
Use a mobile data connection when abroad
Select Allow mobile data usage > Anywhere.
Using a mobile data connection to connect to the internet when abroad can raise data
transfer costs substantially.
You can also set the phone to use a mobile data connection only when in your home
network or home country.
Use a Wi-Fi connection only
Select Mobile data > Off.
An access point can be a mobile data connection or a Wi-Fi connection.
You can collect access points in a destination list, and rearrange the priority order
within the list.
Example: If a Wi-Fi access point is ranked above a mobile data access point in a
destination list, the phone will always try to first connect to the Wi-Fi access point,
only connecting to the mobile data access point if the Wi-Fi network is not available.
Add a new access point to a destination list
Select Network destinations > Access point.
Connectivity 107
Change the priority of an access point in the internet destination list
1Select Network destinations > Internet.
2 Select and hold an access point, and from the pop-up menu, select Change
priority.
3 Tap the position in the list to move the access point to.
Keep track of your data traffic
To avoid surprises with mobile data costs, you can set your phone to notify you or
close the mobile data connection when you have transferred a certain amount of data
using your mobile data connection.
1Select > Settings.
2Select Connectivity > Mobile data tracker > Data allowance.
3Select Define in megabytes or Define in gigabytes, then type in the limit in the
field.
4Select When allowance reached, then select Show warning or Switch mobile data
off.
The limit is phone-specific. If you use your SIM in another phone, you need to set the
limits in that phone.
Your network service provider may count mobile data use differently than your phone
does. For info about data costs, contact your network service provider.
Wi-Fi
About Wi-Fi connections
Select > Settings and Connectivity > Wi-Fi.
Tip: You can also manage your connections in the status menu. Swipe down from the
top of the screen, then select Wi-Fi. If Wi-Fi is not shown, select .
108 Connectivity
Tip: You can add a Wi-Fi widget to the home screen. To quickly switch the Wi-Fi
feature on or off, select the switch in the widget. To open the Wi-Fi app, select in
the widget. The Wi-Fi feature needs to be switched on.
The Wi-Fi app shows a list of available networks and helps you connect to a Wi-Fi
network.
Important: Use encryption to increase the security of your Wi-Fi connection. Using
encryption reduces the risk of others accessing your data.
Note: Using Wi-Fi may be restricted in some countries. For example, in France, you
are only allowed to use Wi-Fi indoors. After 1 July 2012, the restriction on outdoor
usage of Wi-Fi in France is withdrawn by the EU. For more information, contact your
local authorities.
Connect to a Wi-Fi network at home
To help save data costs, connect to your home Wi-Fi network when you are at home
and want to browse the web on your phone.
1 To open the status menu, swipe down from the top of the screen. If Wi-Fi is not
shown, select .
2 Select Wi-Fi and your home Wi-Fi network. If your home Wi-Fi is secured, type in
the passcode. If your home Wi-Fi is hidden, select Other (hidden network), then
write the network name (service set identifier, SSID).
Close the Wi-Fi connection
Swipe down from the top of the screen, then select .
Connectivity 109
Connect to a Wi-Fi network on the move
Connecting to a Wi-Fi network is a handy way of accessing the internet when not at
home. Connect to public Wi-Fi networks in public places, such as a library or internet
café.
1 To open the status menu, swipe down from the top of the screen. If Wi-Fi is not
shown, select .
2Select Wi-Fi and the connection you want to use.
Close the Wi-Fi connection
Swipe down from the top of the screen, then select .
VPN connections
Select > Settings and Connectivity > Settings > VPN.
You need a virtual private network (VPN) connection to, for example, browse your
company intranet or access your work mail remotely.
VPN policies define how data is encrypted and how your company authenticates your
phone. To configure the VPN client, certificates, and policies, contact your company's
IT department. After installing a policy, a VPN connection method is automatically
added to an intranet destination.
For more info, search for mobile VPN at www.nokia.com/support.
Important: The existence of a certificate considerably reduces risks involved in
remote connections and software installation. To benefit from increased security,
certificates must be used correctly, and they must be correct, authentic, or trusted.
Certificates have a restricted lifetime. If they have expired or are invalid, check that
the current date and time in your device are correct.
Before modifying any certificate settings, you must trust the owner of the certificate
and that the certificate does belong to the listed owner.
Close a network connection
If several apps are using an internet connection, you can use the Connection mgr app
to close some or all network connections.
Select > Settings and Connectivity > Connection manager.
In the active data connections view, you can see your current network connections.
is a mobile data connection, and is a Wi-Fi connection.
Select and hold the connection, then select Disconnect.
110 Connectivity
View details for a connection
Select the connection.
Details, such as the amount of transferred data and connection duration, are shown.
Tip: In most views, to see what connections are active, swipe down from the
notification area.
Bluetooth
About Bluetooth
Select > Settings > Connectivity > Bluetooth.
You can connect wirelessly to other compatible devices, such as phones, computers,
headsets, and car kits.
You can use the connection to send items from your phone, copy files from your
compatible PC, and print files with a compatible printer.
Since devices with Bluetooth wireless technology communicate using radio waves,
they do not need to be in direct line-of-sight. However, they must be within 10 metres
(33 feet) of each other, although the connection may be subject to interference from
obstructions such as walls or from other electronic devices.
When your phone is locked, only connections to authorised devices are possible.
Tip: You can also manage your Bluetooth connections in the status menu. To open
the status menu, swipe down from the notification area, then select Bluetooth. If
Bluetooth is not displayed, select .
Tip: You can add a Bluetooth widget to the home screen. To quickly switch Bluetooth
on or off, select the widget.
Connectivity 111
Operating the device in hidden mode is a safer way to avoid malicious software. Do
not accept Bluetooth connection requests from sources you do not trust. You can
also switch the Bluetooth function off when you are not using it.
Connect to a wireless headset
With a wireless headset you can answer a call even if your phone is not directly at
hand, and you can have your hands free, for example, to continue working at your
computer during a call. Wireless headsets are available separately.
Select > Settings > Connectivity > Bluetooth.
1 To activate Bluetooth, select Bluetooth > On.
2 Switch the headset on.
3 Open the Paired devices tab .
4 Select the headset.
If the headset is not displayed in the list, to search for it, select > New paired
device.
5 You may need to enter a passcode. For details, see the user guide of the headset.
Send a picture or other content to another device using Bluetooth
You can use Bluetooth to send pictures, videos, business cards, calendar entries, and
other content to your friend's compatible devices and to your computer.
You can have several Bluetooth connections active at a time. For example, if you are
connected to a compatible headset, you can also send files to another compatible
device at the same time.
1 Select and hold the item, for example, a picture. From the pop-up menu, select
Send > Via Bluetooth.
2 Select the device to connect to. If the desired device is not displayed, to search
for it, select More devices. When searching, Bluetooth devices within range are
displayed.
3 If the other device requires a passcode, enter the passcode. The passcode, which
you can define yourself, must be entered in both devices. The passcode in some
devices is fixed. For details, see the user guide of the other device.
The passcode is valid only for the current connection.
Connect to a car kit using remote SIM mode
With remote SIM mode, a compatible car kit can use the SIM card of your phone.
Select > Settings > Connectivity > Bluetooth.
112 Connectivity
Before remote SIM mode can be activated, your phone and accessory must be paired.
Initiate the pairing from the car kit accessory.
1 To activate Bluetooth, select Bluetooth > On.
2 To activate remote SIM mode, select Remote SIM mode > On.
3 Activate Bluetooth in the car kit accessory.
When remote SIM mode is activated, Remote SIM mode is displayed on the home
screen. The connection to the wireless network is closed, and you cannot use SIM
card services or features that require cellular network coverage.
To make or receive calls when in remote SIM mode, you need to have a compatible
accessory, such as a car kit, connected to your device.
Your device will only allow emergency calls in this mode.
Deactivate remote SIM mode
Press the power key, and select Exit remote SIM mode.
Block a device
You can prevent devices from creating a Bluetooth connection to your phone.
Select > Settings > Connectivity > Bluetooth.
Open the Paired devices tab , select and hold the device you want to block, and
from the pop-up menu, select Block.
Remove a device from the blocked devices list
Open the Blocked devices tab , select and hold the device you want to remove from
the list, and from the pop-up menu, select Delete.
If you reject a pairing request from another device, you are asked if you want to add
the device to the list of blocked devices.
Protect your phone
When Bluetooth is activated in your phone, you can control who can find and connect
to your phone.
Select > Settings > Connectivity > Bluetooth.
Prevent others from detecting your phone
Select My phone's visibility > Hidden.
Connectivity 113
When your phone is hidden, others cannot detect it. However, paired devices can still
connect to your phone.
Switch Bluetooth off
Select Bluetooth > Off.
Tip: To quickly switch Bluetooth off, swipe down from the top of the screen, then
select .
Do not pair with or accept connection requests from an unknown device. This helps
to protect your phone from harmful content.
USB data cable
Copy a picture or other content between your phone and computer
You can use a USB data cable to back up and copy pictures, videos, and other content
between your phone and your computer.
1 To make sure that Media transfer is set as the USB mode, select > Settings
and Connectivity > USB > Media transfer.
2 Use a compatible USB data cable to connect your phone to your compatible
computer.
The phone is displayed as a portable device on your computer. If Media transfer
mode does not work on your computer, use Mass storage mode instead.
3 Use the file manager of the computer to copy the content.
Change the USB mode
For best results when copying content or synchronising your phone with your
computer, activate the appropriate USB mode when using a USB data cable to connect
to various devices.
1 Use a compatible USB cable to connect your phone to your computer.
2 On your phone, swipe down from the notification area.
3Select USB and from the following:
Nokia Suite — Connect your phone to a compatible computer that has Nokia Suite
installed. In this mode, you can synchronise your phone with Nokia Suite and use other
Nokia Suite features.
This mode is activated automatically when you open the Nokia Suite application.
Mass storage — Connect your phone to a compatible computer that does not
have Nokia Suite installed. Your phone is recognised as a USB flash memory. You can
also connect your phone to other devices, such as a home or car stereo, to which you
can connect a USB drive.
114 Connectivity
While connected to a computer in this mode, you may not be able to use some of the
phone applications.
The memory card and mass memory in your phone cannot be accessed by the other
device.
Media transfer — Connect your phone to a compatible computer that does not
have Nokia Suite installed. Music protected by digital rights management (DRM) must
be transferred in this mode. Some home entertainment systems and printers can also
be used in this mode.
Use phone as modem — Connect your phone to a compatible computer, and use
the phone as a wireless modem. The computer connects to the internet automatically.
Connect a USB mass storage device
You can use a USB On-The-Go (OTG) adapter to connect your phone to a compatible
USB memory stick or hard drive. For example, you can save your photos on a USB
memory stick without needing to connect to a PC.
Connect a memory stick
1 Connect the micro-USB end of the USB OTG adapter (available separately) to the
micro-USB connector in your phone.
2 Connect a memory stick to the USB OTG adapter.
The Files application opens, and the memory stick is shown as a mass memory.
Copy a file
In Files, select and hold the file you want to copy, then select the option you want and
the memory and folder you want to copy to.
If you connect a hard drive that requires more power than your phone can supply, an
error message is shown. You need to connect an external power source to the hard
drive.
Connectivity 115
Phone management
Keep your phone software and applications up to date
About phone software and app updates
Stay in step with the beat – update your phone software and apps to get new and
enhanced features for your phone. Updating the software may also improve your
phone performance.
It is recommended that you back up your personal data before updating your phone
software.
Warning:
If you install a software update, you cannot use the device, even to make emergency
calls, until the installation is completed and the device is restarted.
Using services or downloading content may cause transfer of large amounts of data,
which may result in data traffic costs.
Before starting the update, connect a charger or make sure the device battery has
enough power.
After the update, the instructions in the user guide may no longer be up to date. You
may find the updated user guide at www.nokia.com/support.
Update phone software and apps using your phone
You can check for updates for your phone software or apps, and download and
install them to your phone wirelessly (network service). You can also set your phone
to automatically check for updates and notify you when important or recommended
updates are available.
Select > SW update.
You may need to restart your phone to finish the update.
116 Phone management
View update details
Select and hold an update.
Install all updates
Select .
Select which updates to install
Select > Mark updates and the updates you want to install. All updates are
selected by default.
Set your phone to automatically check for updates
Select > Settings > Auto-check for updates.
Update phone software using your PC
You can use the Nokia Suite PC app to update your phone software. You need a
compatible PC, a high-speed internet connection, and a compatible USB cable to
connect your phone to the PC.
To get more info and to download the Nokia Suite app, go to www.nokia.com/
support.
Manage files
About the file manager
Select > Files.
You can browse, manage, and open files on your phone. You can also view and manage
files on a compatible inserted memory card.
View the files stored in your phone
Select > Files and the desired memory.
The files and folders at the top level of that memory location are displayed.
View the contents of a folder
Select the folder.
Organise files
You can create new folders, to help organise your files. This can make it easier to back
up or upload your content. Within folders, you can copy, move, or delete files and
subfolders.
Select > Files.
Phone management 117
Create a new folder
In the folder where you want to create a subfolder, select > New folder.
Copy a file to a folder
Select and hold the file, and from the pop-up menu, select the appropriate option.
Delete a file from a folder
Select and hold the file, and from the pop-up menu, select the appropriate option.
Copy, move, or delete several files at the same time
1Select > Mark multiple items.
2 Select the files.
3Select and the appropriate option.
Back up files
Want to make sure that you will not lose any important files? You can create backups
of the phone memory.
Select > Files and Backup and restore.
It is recommended that you back up the phone memory regularly.
Tip: Use Nokia Suite to back up your content to a compatible computer. If your phone
is stolen or damaged, you still have all your important files available.
Format the mass memory
Want to delete all content from your phone mass memory? You can format the mass
memory.
Back up all content you want to keep before formatting the mass memory. All content
on it is permanently deleted.
118 Phone management
1 Select > Files.
2 Select and hold the mass memory, then select Format.
Do not format the mass memory using PC software, because it may cause degraded
performance.
You can use Nokia Suite to back up your content to a compatible computer. Digital
rights management (DRM) technologies may prevent some backup content from
being restored. For more info about DRM used for your content, contact your service
provider.
Format a memory card
Want to delete all content from your memory card? When you format a memory card,
all the data on it is deleted.
1 Select > Files.
2 Select and hold the memory card, and from the pop-up menu, select Format.
Password protect your memory card
Want to protect the memory card against unauthorised use? You can set a password
to protect the data.
1 Select > Files.
2 Select and hold the memory card, and from the pop-up menu, select Set
password.
3 Enter a password.
Keep the password secret and in a safe place, separate from the memory card.
Free up phone memory
Do you need to increase the available phone memory, so you can install more apps
or add more content?
You can delete the following if no longer needed:
•Text, multimedia, and mail messages
•Contact entries and details
•Apps
•Installation files (.sis or .sisx) for installed apps
•Music, photos, or videos
Copy content you want to keep to the mass memory, to a compatible memory card
(if available), or to a compatible computer.
Phone management 119
Manage applications
About applications
Select > Settings and Installations.
You can view details of installed applications, remove applications, and define
installation settings.
You can install the following types of applications:
•Java™ ME applications that have the .jad or .jar file extension
•Applications, compatible with the Symbian operating system, that have the .sis
or .sisx file extension
•Widgets that have the .wgz file extension
Only install applications that are compatible with your phone.
Remove an app from your phone
You can remove installed apps that you no longer want to keep or use, to increase
the amount of available memory.
Select > Settings and Installations.
1Select Already installed.
2 Select and hold the app to remove, then select Remove.
If you remove an app, you can only reinstall it if you have the original installation file
or a full backup of the removed app. You may not be able to open files created with
a removed app.
If an installed app depends on a removed app, the installed app may stop working.
For details, see the user documentation of the installed app.
The installation files may use large amounts of memory and prevent you from storing
other files. Use Nokia Suite to back up your installation files to a compatible computer,
then use the file manager to remove the files from your phone memory.
Synchronise content
About Sync
Select > Settings > Connectivity > Data transfer > Sync.
Would you like to have your calendar, notes, and other content backed up and at hand,
whether you are sitting by your computer or on the go with your phone? You can
synchronise your contacts, notes, and other content between your phone and a
remote server. After synchronising, you have a backup of your important data on the
server.
120 Phone management
Sync content between your phone and a remote server
Sync important content between your phone and a remote server to make a copy you
can access from anywhere.
Select > Settings and Connectivity > Data transfer > Sync.
You may receive sync settings as a configuration message from your network service
provider. The sync settings are saved as a sync profile. When you open the app, the
default or last used sync profile is shown.
Include or exclude content types
Select a content type.
Sync the content
Select > Sync now.
Tip: To sync content between your phone and Nokia services, use the Nokia Sync app.
About Nokia Sync
Select > Nokia Sync.
You can sync contacts, calendar events, and notes between your phone and Nokia
services. This way you always have a backup of your important content. To use Nokia
Sync, you need a Nokia account. If you don't have an account, access a Nokia service
– you are asked if you want to create one.
If you use Nokia Sync to automatically sync your contacts with Nokia services, do not
allow syncing with any other service, such as Mail for Exchange, as there may be
conflicts.
Phone management 121
Copy contacts or pictures between phones
You can synchronise and copy contacts, pictures, and other content between two
compatible Nokia phones, free of charge, using Bluetooth.
Select > Settings > Connectivity > Data transfer > Phone switch.
1 Select from the following:
— Copy content from another phone.
— Copy content to another phone.
— Synchronise content between two phones.
2 Select the phone you want to connect to, and pair the phones. Bluetooth needs
to be activated in both phones.
3 If the other phone requires a passcode, enter the passcode. The passcode, which
you can define yourself, must be entered in both phones. The passcode in some
phones is fixed. For details, see the user guide of the other phone.
The passcode is valid only for the current connection.
4 Select the content and OK.
Protect your phone
Set your phone to lock automatically
Want to protect your phone against unauthorised use? Create a security code, and
set your phone to lock itself automatically when you're not using it.
1Select > Settings > Phone > Phone management and Security settings >
Phone and SIM card.
2Select Phone autolock period > User defined, then set how long before the
phone locks itself.
3 Create a security code using at least 4 characters. You can use numbers, symbols,
and upper and lower case letters.
Tip: To type in letters or symbols, press and hold #.
Keep the security code secret and in a safe place separate from your phone. If you
forget the security code and your phone is locked, your phone will require service.
Additional charges may apply, and all the personal data in your phone may be deleted.
For more info, contact Nokia Care or your phone dealer.
Lock your phone manually
On the home screen, press the power key , select Lock phone, then type in the
security code.
122 Phone management
Unlock your phone
Slide the lock key, type in the security code, then select OK.
If the lock key is out of reach, press the menu key, then select Unlock.
Lock your phone remotely
Forgot your phone at work and want to lock it to prevent unauthorised use? You can
lock your phone remotely using a predefined text message. You can also lock the
memory card remotely.
Enable remote locking
1 Select > Settings > Phone > Phone management and Security settings >
Phone and SIM card > Remote phone locking > Enabled.
2 Enter the text message content. It can be 5-20 characters, and both upper and
lower case letters can be used.
3 Enter the same text again to verify it.
4 Enter the lock code.
Send the lock message
To lock the phone remotely, write the predefined text, and send it to your phone as
a text message.
To unlock your phone, you need the lock code.
Encrypt your data
Want to protect your data against unauthorised use? You can encrypt data on your
phone using an encryption key.
Select > Settings > Phone > Phone management > Security settings >
Encryption.
It may take several minutes to encrypt or decrypt your data. During the encryption
process, do not:
•Use your phone unless you have to
•Switch your phone off
•Remove the battery
If you haven't set your phone to lock itself automatically when not in use, you are
prompted to do so when you encrypt your data for the first time.
Phone management 123
Encrypt the phone memory
Select Encryption on.
Decrypt the phone memory
Select Encryption off.
Prepare your phone for recycling
If you buy a new phone, or otherwise want to dispose of your phone, Nokia
recommends that you recycle your phone. Beforehand, remove all personal
information and content from your phone.
Remove all content
1 Back up the content you want to keep to a compatible memory card or to a
compatible computer.
2 Close all active connections and calls.
3Select > Settings and Phone > Phone management > Factory settings >
Delete data and restore.
4 If prompted, enter the security code.
5 Your phone switches off and then on again. Check carefully that all your personal
content, such as contacts, pictures, music, videos, notes, messages, mails,
presentations, games and other installed applications have been removed.
Content and information stored on the memory card or SIM card is not removed.
Remember to remove your memory and SIM card from the phone.
Find more help
Support
When you want to learn more about how to use your phone, or if you're unsure how
your phone should work, read the user guide in your phone. Select > User guide.
If you have an issue, do the following:
•Reboot your phone. Switch off the phone, and remove the battery. After about a
minute, replace the battery, and switch on the phone.
•Update your phone software
•Restore the original factory settings
If your issue remains unsolved, contact Nokia for repair options. Before sending your
phone for repair, always back up your data, as all personal data in your phone may be
deleted.
124 Find more help
For additional product support information, see the warranty and reference leaflet
included with your Nokia device.
Access codes
PIN or PIN2 code
(4-8 digits)
These protect your SIM against unauthorised use or are
required to access some features.
You can set your phone to ask for the PIN code when you switch
it on.
If not supplied with your card or you forget the codes, contact
your service provider.
If you type in the code incorrectly three times in a row, you
need to unblock the code with the PUK or PUK2 code.
PUK or PUK2 code
(8 digits)
These are required to unblock a PIN or PIN2 code.
If not supplied with your SIM, contact your service provider.
IMEI number
(15 digits)
This is used to identify valid phones in the network. The
number can also be used to block, for example, stolen phones.
You may also need to give the number to Nokia Care services.
To view your IMEI number, dial *#06#.
Lock code (security
code)
(min. 4 digits or
characters)
This helps you protect your phone against unauthorised use.
You can set your phone to ask for the lock code that you
define.
Keep the code secret and in a safe place, separate from your
phone.
If you forget the code and your phone is locked, your phone
will require service. Additional charges may apply, and all the
personal data in your phone may be deleted.
For more information, contact Nokia Care or your phone
dealer.
The personal unblocking key (PUK) code and the universal personal unblocking key
(UPUK) code (8 digits) are required to change a blocked PIN code and UPIN code,
respectively. The PUK2 code (8 digits) is required to change a blocked PIN2 code.
Access codes 125
These codes are not supplied with the SIM card. Contact your local service provider
for the codes.
Protect the environment
Save energy
You do not need to charge your battery so often if you do the following:
•Close applications and data connections, such as your Wi-Fi or Bluetooth
connection, when not in use.
•Decrease the brightness of the screen.
•Set your phone to enter power saver mode after the minimum period of inactivity.
•Deactivate unnecessary sounds, such as touch screen and key tones.
Recycle
When this phone has reached the end of its working life, all of its materials can be
recovered as materials and energy. To guarantee the correct disposal and reuse,
Nokia co-operates with its partners through a program called We:recycle. For
information on how to recycle your old Nokia products and where to find collection
sites, go to www.nokia.com/werecycle, or call the Nokia Care contact centre.
Recycle packaging and user guides at your local recycling scheme.
For more information on the environmental attributes of your phone, go to
www.nokia.com/ecoprofile.
Product and safety information
Network services and costs
Your device is approved for use on the WCDMA 850, 900, 1700, 1900, 2100 and GSM/EDGE 850, 900, 1800, 1900 MHz
networks. To use the device, you need a subscription with a service provider.
Using network services and downloading content to your device requires a network connection and may result in data traffic
costs. Some product features require support from the network, and you may need to subscribe to them.
Take care of your device
Handle your device, battery, charger and accessories with care. The following suggestions help you protect your warranty
coverage.
126 Protect the environment
•Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that corrode
electronic circuits. If your device gets wet, remove the battery, and allow the device to dry.
•Do not use or store the device in dusty or dirty areas. Moving parts and electronic components can be damaged.
•Do not store the device in high temperatures. High temperatures can shorten the life of the device, damage the
battery, and warp or melt plastics.
•Do not store the device in cold temperatures. When the device warms to its normal temperature, moisture can form
inside the device and damage electronic circuits.
•Do not attempt to open the device other than as instructed in the user guide.
•Unauthorised modifications may damage the device and violate regulations governing radio devices.
•Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and mechanics.
•Only use a soft, clean, dry cloth to clean the surface of the device.
•Do not paint the device. Paint can clog moving parts and prevent proper operation.
•Switch off the device and remove the battery from time to time for optimum performance.
•Keep your device away from magnets or magnetic fields.
•To keep your important data safe, store it in at least two separate places, such as your device, memory card, or
computer, or write down important information.
During extended operation, the device may feel warm. In most cases, this is normal. If you suspect the device is not working
properly, take it to the nearest authorised service facility.
Recycle
Always return your used electronic products, batteries, and packaging materials to dedicated collection points. This way
you help prevent uncontrolled waste disposal and promote the recycling of materials. Check how to recycle your Nokia
products at www.nokia.com/recycling.
About Digital Rights Management
When using this device, obey all laws and respect local customs, privacy and legitimate rights of others, including copyrights.
Copyright protection may prevent you from copying, modifying, or transferring pictures, music, and other content.
Content owners may use different types of digital rights management (DRM) technologies to protect their intellectual
property, including copyrights. This device uses various types of DRM software to access DRM-protected content. With this
device you can access content protected with WMDRM 10, OMA DRM 1.0 and OMA DRM 2.0. If certain DRM software fails
to protect the content, content owners may ask that such DRM software's ability to access new DRM-protected content be
revoked. Revocation may also prevent renewal of such DRM-protected content already in your device. Revocation of such
DRM software does not affect the use of content protected with other types of DRM or the use of non-DRM-protected
content.
Digital rights management (DRM) protected content comes with an associated licence that defines your rights to use the
content.
If your device has OMA DRM-protected content, to back up both the licences and the content, use the backup feature of
Nokia Suite.
Other transfer methods may not transfer the licences which need to be restored with the content for you to be able to
continue the use of OMA DRM-protected content after the device memory is formatted. You may also need to restore the
licences if the files on your device become corrupted.
If your device has WMDRM-protected content, both the licences and the content are lost if the device memory is formatted.
You may also lose the licences and the content if the files on your device become corrupted. Losing the licences or the
content may limit your ability to use the same content on your device again. For more information, contact your service
provider.
Product and safety information 127
Some licences may be connected to a specific SIM card, and the protected content can be accessed only if the SIM card is
inserted in the device.
Batteries and chargers
Battery and charger information
Your device is intended for use with a BV-4D rechargeable battery. Nokia may make additional battery models available for
this device. Always use original Nokia batteries.
This device is intended for use when supplied with power from the following chargers: AC-50. The exact Nokia charger model
number may vary depending on the plug type, identified by E, X, AR, U, A, C, K, B, or N.
Third-party chargers that comply with the IEC/EN 62684 standard, and that can connect to your device micro USB connector,
may be compatible.
The battery can be charged and discharged hundreds of times, but it will eventually wear out. When the talk and standby
times are noticeably shorter than normal, replace the battery.
Battery safety
Always switch the device off and disconnect the charger before removing the battery. When you unplug a charger or an
accessory, hold and pull the plug, not the cord.
When your charger is not in use, unplug it from the electrical plug and the device. Do not leave a fully charged battery
connected to a charger, as overcharging may shorten the battery’s lifetime. If left unused, a fully charged battery will lose
its charge over time.
Always keep the battery between 15°C and 25°C (59°F and 77°F). Extreme temperatures reduce the capacity and lifetime
of the battery. A device with a hot or cold battery may not work temporarily.
Accidental short-circuiting can happen when a metallic object touches the metal strips on the battery, for example, if you
carry a spare battery in your pocket. Short-circuiting may damage the battery or the connecting object.
Do not dispose of batteries in a fire as they may explode. Dispose of batteries according to local regulations. Recycle when
possible. Do not dispose as household waste.
Do not dismantle, cut, open, crush, bend, puncture, or shred cells or batteries. If a battery leaks, do not let battery liquid
touch skin or eyes. If this happens, immediately flush the affected areas with water, or seek medical help.
Do not modify, remanufacture, attempt to insert foreign objects into the battery, or immerse or expose it to water or other
liquids. Batteries may explode if damaged.
Use the battery and charger for their intended purposes only. Improper use, or use of unapproved batteries or incompatible
chargers may present a risk of fire, explosion, or other hazard, and may invalidate any approval or warranty. If you believe
the battery or charger is damaged, take it to a service centre for inspection before continuing to use it. Never use a damaged
battery or charger. Only use the charger indoors.
Additional safety information
Make an emergency call
1 Make sure the device is switched on.
2 Check for adequate signal strength. You may also need to do the following:
•Insert a SIM card.
•Deactivate call restrictions you have activated for your device, such as call barring, fixed dialling, or closed user
group.
•Make sure the offline or flight profile is not activated.
128 Product and safety information
•If the device screen and keys are locked, unlock them.
3 Press the end key repeatedly, until the home screen is displayed.
4 To open the dialler, select .
5 Enter the official emergency number for your present location. Emergency call numbers vary by location.
6Press the call key.
7 Give the necessary information as accurately as possible. Do not end the call until given permission to do so.
When you switch your device on for the first time, you are asked to create your Nokia account. To make an emergency call
during the account setup, press the call key.
Important: Activate both cellular and internet calls, if your device supports internet calls. The device may attempt to
make emergency calls both through cellular networks and through your internet call service provider. Connections in all
conditions cannot be guaranteed. Never rely solely on any wireless device for essential communications like medical
emergencies.
Small children
Your device and its accessories are not toys. They may contain small parts. Keep them out of the reach of small children.
Medical devices
Operation of radio transmitting equipment, including wireless phones, may interfere with the function of inadequately
protected medical devices. Consult a physician or the manufacturer of the medical device to determine whether they are
adequately shielded from external radio frequency energy.
Implanted medical devices
Manufacturers of medical devices recommend a minimum separation of 15.3 centimetres (6 inches) between a wireless
device and an implanted medical device, such as a pacemaker or implanted cardioverter defibrillator, to avoid potential
interference with the medical device. Persons who have such devices should:
•Always keep the wireless device more than 15.3 centimetres (6 inches) from the medical device.
•Not carry the wireless device in a breast pocket.
•Hold the wireless device to the ear opposite the medical device.
•Turn the wireless device off if there is any reason to suspect that interference is taking place.
•Follow the manufacturer directions for the implanted medical device.
If you have any questions about using your wireless device with an implanted medical device, consult your health care
provider.
Accessibility solutions
Nokia is committed to making mobile phones easy to use for all individuals, including those with disabilities. For more
information, visit the Nokia website at www.nokiaaccessibility.com.
Hearing
Warning:
When you use the headset, your ability to hear outside sounds may be affected. Do not use the headset where it can endanger
your safety.
Some wireless devices may interfere with some hearing aids.
Product and safety information 129
Nickel
Note: The surface of this device does not contain nickel in the platings. The surface of this device contains stainless
steel.
Protect your device from harmful content
Your device may be exposed to viruses and other harmful content. Take the following precautions:
•Be cautious when opening messages. They may contain malicious software or otherwise be harmful to your device or
computer.
•Be cautious when accepting connectivity requests, browsing the internet, or downloading content. Do not accept
Bluetooth connections from sources you do not trust.
•Only install and use services and software from sources that you trust and that offer adequate security and protection.
•Install antivirus and other security software on your device and any connected computer. Only use one antivirus
application at a time. Using more may affect performance and operation of the device and/or computer.
•If you access preinstalled bookmarks and links to third party internet sites, take the appropriate precautions. Nokia
does not endorse or assume liability for such sites.
Operating environment
This device meets radio frequency exposure guidelines in the normal use position at the ear or at least 1.5 centimetres (5/8
inch) away from the body. Any carry case, belt clip, or holder for body-worn operation should not contain metal and should
position the device the above-stated distance from your body.
To send data files or messages requires a quality connection to the network. Data files or messages may be delayed until
such a connection is available. Follow the separation distance instructions until the transmission is completed.
Vehicles
Radio signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles such as
electronic fuel injection, electronic antilock braking, electronic speed control, and air bag systems. For more information,
check with the manufacturer of your vehicle or its equipment.
Only qualified personnel should install the device in a vehicle. Faulty installation or service may be dangerous and may
invalidate your warranty. Check regularly that all wireless device equipment in your vehicle is mounted and operating
properly. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the device, its
parts, or accessories. Remember that air bags inflate with great force. Do not place your device or accessories in the air
bag deployment area.
Potentially explosive environments
Switch off your device in any area with a potentially explosive atmosphere, for example near gas pumps at service stations.
Sparks in such areas could cause an explosion or fire resulting in bodily injury or death. Observe restrictions in fuel service
stations, storage, and distribution areas; chemical plants; or where blasting operations are in progress. Areas with a
potentially explosive atmosphere are often, but not always, clearly marked. They include areas where you would be advised
to turn off your vehicle engine, below deck on boats, chemical transfer or storage facilities and where the air contains
chemicals or particles such as grain, dust, or metal powders. You should check with the manufacturers of vehicles using
liquefied petroleum gas (such as propane or butane) to determine if this device can be safely used in their vicinity.
Certification information (SAR)
This mobile device meets guidelines for exposure to radio waves.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves
recommended by international guidelines. These guidelines were developed by the independent scientific organisation
ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health.
130 Product and safety information
The exposure guidelines for mobile devices employ a unit of measurement known as the Specific Absorption Rate or SAR.
The SAR limit stated in the ICNIRP guidelines is 2.0 watts/kilogram (W/kg) averaged over 10 grams of tissue. Tests for SAR
are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested
frequency bands. The actual SAR level of an operating device can be below the maximum value because the device is designed
to use only the power required to reach the network. That amount changes depending on a number of factors such as how
close you are to a network base station.
The highest SAR value under the ICNIRP guidelines for use of the device at the ear is 1.23 W/kg.
Use of device accessories may result in different SAR values. SAR values may vary depending on national reporting and
testing requirements and the network band. Additional SAR information may be provided under product information at
www.nokia.com.
Your mobile device is also designed to meet the requirements for exposure to radio waves established by the Federal
Communications Commission (USA) and Industry Canada. These requirements set a SAR limit of 1.6 W/kg averaged over
one gram of tissue. The highest SAR value reported under this standard during product certification for use at the ear is
1.21 W/kg and when properly worn on the body is 1.46 W/kg.
Copyright and other notices
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this RM-807 product is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.nokia.com/
global/declaration.
For products placed on the market before 1 July 2012, the alert symbol is applicable to indicate the restrictions on use in
France for the WLAN functionality. In accordance with EU Decision 2009/812/EC, after 1 July 2012, the alert symbol is no
longer applicable for the WLAN functionality within this product and, hence, can be disregarded even if it is still present on
the product.
© 2012 Nokia. All rights reserved.
Nokia, Nokia Connecting People, and Nokia Original Accessories logo are trademarks or registered trademarks of Nokia
Corporation. Nokia tune is a sound mark of Nokia Corporation. Other product and company names mentioned herein may
be trademarks or tradenames of their respective owners.
Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without the prior
written permission of Nokia is prohibited. Nokia operates a policy of continuous development. Nokia reserves the right to
make changes and improvements to any of the products described in this document without prior notice.
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing
LLC in the United States and other countries.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Copyright and other notices 131
Oracle and Java are registered trademarks of Oracle and/or its affiliates.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Nokia is under license.
This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and noncommercial use in
connection with information which has been encoded in compliance with the MPEG-4 Visual Standard by a consumer engaged
in a personal and noncommercial activity and (ii) for use in connection with MPEG-4 video provided by a licensed video
provider. No license is granted or shall be implied for any other use. Additional information, including that related to
promotional, internal, and commercial uses, may be obtained from MPEG LA, LLC. See http://www.mpegla.com.
To the maximum extent permitted by applicable law, under no circumstances shall Nokia or any of its licensors be responsible
for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either
express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular
purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise
this document or withdraw it at any time without prior notice.
Reverse engineering of software in the device is prohibited to the extent permitted by applicable law. Insofar as this user
guide contains any limitations on Nokia's representations, warranties, damages and liabilities, such limitations shall likewise
limit any representations, warranties, damages and liabilities of Nokia's licensors.
The availability of products, features, applications and services may vary by region. For more information, contact your
Nokia dealer or your service provider. This device may contain commodities, technology or software subject to export laws
and regulations from the US and other countries. Diversion contrary to law is prohibited.
Nokia does not provide a warranty for or take any responsibility for the functionality, content, or end-user support of third-
party applications provided with your device. By using an application, you acknowledge that the application is provided as
is. Nokia does not make any representations, provide a warranty, or take any responsibility for the functionality, content,
or end-user support of third-party applications provided with your device.
The availability of Nokia services may vary by region.
FCC/INDUSTRY CANADA NOTICE
This device complies with part 15 of the FCC rules and Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation. Your device may cause TV or radio
interference (for example, when using a device in close proximity to receiving equipment). If you require assistance, contact
your local service facility.Any changes or modifications not expressly approved by Nokia could void the user's authority to
operate this equipment.
Some operations and features are SIM card and/or network dependent, MMS dependent, or dependent on the compatibility
of devices and the content formats supported. Some services are subject to a separate charge.
/Issue 1 EN
132 Copyright and other notices
Index
A
access codes 125
accessories 51
alarm clock 99
anniversaries 103
antennas 15
applications 21, 120
apps 48, 116, 120
audio messages 67, 69
B
backing up content 43, 118
barring calls 59
battery 7, 128
— charging 11
— saving power 28
Big screen 41
birthdays 103
blocking
— devices 113
blogs 74
Bluetooth 111, 112, 113
bookmarks 74
browser
See
web browser
business cards 63, 112
C
cable connection 42, 114
cache memory 73
calculator 105
calendar 67, 101, 102, 103
call waiting 53
calls 57
— conference 55
— emergency 128
— forwarding 58
— last dialled 57
— making 51, 53
— restricting 59
— video calls 54
camera 30
— location info 35
— recording videos 33
— sending photos 35
— sharing photos 37
— sharing videos 37
— taking photos 31, 32, 33
charging the battery 11, 128
clock 99, 100
connectivity 110
contacts 60, 63
— adding 60
— copying 14, 122
— editing 60
— favourites 61
— groups 62
— in social networks 65, 66
— photos 62
— ringtones 62
— saving 60
— searching 52
— sending 36, 63, 112
— sync 63, 121
— widgets 48, 61
copying content14, 42, 77, 83, 114, 122
D
data connections 110
— Bluetooth 111
— costs 108
— packet data 108
date and time 99, 100
decryption 123
device lock 122, 123
dictionary 106
DLNA 85, 86
downloads 48, 49, 50
— themes 45
Index 133
Drive
— changing views 89
— driving routes 88, 89
— map view 89
— navigating 88
— planning routes 89
— voice guidance 89
E
e-mail
See
mail
emergency calls 128
encryption 123
environmental tips 126
F
factory settings, restoring 30
favourites 61
feeds, news 74
file management 117, 118, 119
flashlight 17, 27
FM radio 79, 80, 81
FM transmitter 78, 79
forwarding calls 58
G
GPS (global positioning system) 95, 96
Guides 94
H
HDMI 41, 84, 85
headset 15
hearing aids 51
help 18
home screen 21, 45, 46, 47, 48, 61, 72
I
icons 25, 26, 27
IMEI number 125
inbox, messages 68
indicators 25, 26, 27
installing applications 120
internet
See
web browser
internet connection 107
J
Java applications 120
K
key lock 13
keyboard 22
keyguard 13
keypad 23
keys and parts 7
L
language settings 69
location info 35, 66, 74, 103
location information 95, 96
lock code 122, 125
locking
— keys 13
— phone 122, 123
— remotely 123
— screen 13
loudspeaker 13, 51
M
mail 69, 72
— attachments 71
— creating 71
— mailbox 70
— reading and replying to 70
— sending 71
— setup 70
— widgets 72
mailbox
— voice 58
Maps 87
— browsing 92
— changing views 94
134 Index
— Check in 97
— downloading maps 93
— driving routes 88
— Favourites 96
— finding locations 92
— guides 94
— navigating 88, 89, 91
— positioning 95
— reporting 98
— saving places 96
— sharing locations 97
— sync 96
— traffic information 90
— viewing saved places 96
— voice guidance 91
— walking routes 91
— weather 94
mass memory 118
meeting requests 72
meetings 101, 103
memory 117, 124
— clearing 119
memory card 9, 119
menus 48
messages 67, 68
— audio 69
— sending 67
MMS (multimedia message service) 67
multimedia messages 67
multitasking 21
music 75, 77, 78, 79, 86
— playlists 76
My Card 63
N
news feeds 74
NFC 16, 36, 81
NFC (Near Field Communication) 17, 75
Nokia account 14
Nokia Music 77
Nokia services 14, 63
Nokia Store 48
— browsing 49
— buying 49
— downloading 49
— downloads 50
— reviewing 51
— searching 49
Nokia Suite 77
Nokia support information 124
Nokia Sync 121
notes 106
notification light 27
O
office applications 103, 104, 105
offline profile 28, 44
P
personalising your phone 43, 45, 46,
47, 48
phone lock 122, 123
Phone switch 14, 122
phonebook
See
contacts
photos 43
— copying 14, 42
— editing 40
— HDMI 41, 85
— location info 35
— saving 38
— sending 35, 36
— sharing 37, 40, 65
— tagging 39
— taking 32, 33
— viewing 38, 86
— viewing on a TV 41, 85, 86
pictures
— copying 114, 122
— sending 112
PIN codes 125
playlists 76
Index 135
positioning info 66
positioning information 95, 96
powering on/off 12
predictive text input 23
profiles 43, 44
— creating 45
— offline 28, 44
— personalising 43, 45
PUK codes 125
Q
Quickoffice 103, 104, 105
R
radio 79, 80, 81
recording
— calls 57
— sounds 78
— videos 33
recycling 126
remote lock 122
remote locking 123
restoring settings 30
ringtones 43, 52, 62
S
searching 28
— contacts 52
— radio stations 80
security code 122, 125
sensor settings 52
settings
— access points 107
— accessories 51
— language 69
— restoring 30
sharing, online 37, 40, 65, 66
shortcuts 18, 21, 47, 48, 61
silent profile 44
SIM card 7, 63
— inserting 7
SMS (short message service) 67
social networks 64, 65, 66, 67
software 120
software updates 116, 117
speakerphone 13
speed dialling 56
status updates 65, 66
support 18, 124
switching on/off 12
sync 63, 121
synchronisation 120
T
tasks 102
text input 22, 23, 24, 25
text messages 67
themes 45
time and date 99, 100
tones
— personalising 43
touch screen 18, 22, 23
transferring content 14, 42, 77, 83,
114, 122
turning on/off 12
TV
— Big screen 41
— viewing photos and videos on 41, 85
— watching programmes 83
U
updates
— apps 116
— phone software 116, 117
USB charging 11
USB connection 42, 114, 115
user guide 18
V
video calls 54, 55
video editor 40
136 Index
videos 82
— copying 14, 42, 83, 114, 122
— HDMI 41, 84, 85
— location info 35
— playing 82
— recording 33, 34
— saving 38
— sending 35, 36, 112
— sharing 37, 40, 65
— watching 38, 86
— watching on a TV 41, 84, 85, 86
virtual keyboard 22
virtual keypad 23
voice calls
See
calls
voice commands 56
volume control 13
VPN (virtual private network) 110
W
wallpaper 46
Weather 94
web browser 73, 74
— bookmarks 74
— browsing pages 73
— cache memory 73
web connection 107
web feeds 74
Wi-Fi 108, 109, 110
widgets 46, 48, 61, 72, 83
world clock 100
wrist strap 17
Z
zip files 107
Index 137
