1. User Guide
2. Manual

User Guide

5555555 Issue 1 EN

Cyan

Magenta

Yellow

Black

Contents

Get started..........................................................................5

Your dual SIM phone...............................................................................................5

Keys and parts........................................................................................................6

Insert a SIM card and battery ................................................................................8

Insert a second SIM card........................................................................................9

Insert or remove a memory card.........................................................................10

Charge the battery...............................................................................................11

Switch on..............................................................................................................11

Copy content from your old phone.....................................................................13

Set which SIM card to use....................................................................................14

Lock the keys and screen ....................................................................................15

Change the volume..............................................................................................15

Phone basics.....................................................................16

Switch between home screens............................................................................16

Explore your phone..............................................................................................17

Add a shortcut to My screen................................................................................19

Change the wallpaper...........................................................................................20

Change your ringtone..........................................................................................21

About Nokia Store.............................................................22

Calls...................................................................................23

Make a call ...........................................................................................................23

Contacts............................................................................24

Cyan

Magenta

Yellow

Black

Save a name and phone number.........................................................................24

Write text..........................................................................25

Use the on-screen keypad...................................................................................25

Use the on-screen keypad...................................................................................26

Use predictive text...............................................................................................27

Messaging..........................................................................28

Send a message...................................................................................................28

Write using the on-screen keyboard...................................................................29

Mail ...................................................................................30

Send a mail...........................................................................................................30

Photos and videos.............................................................31

Take a photo.........................................................................................................31

Record a video......................................................................................................32

Web....................................................................................33

Browse the web....................................................................................................33

Add a bookmark...................................................................................................35

Connectivity......................................................................36

Connect to a wireless headset............................................................................36

Maps..................................................................................37

Search for a place................................................................................................37

Cyan

Magenta

Yellow

Black

Support and updates........................................................38

Troubleshooting...................................................................................................38

Back up content to a memory card.....................................................................40

About phone software updates ..........................................................................41

Update phone software using your PC................................................................42

Update phone software using your phone.........................................................43

Restore original settings......................................................................................44

Access codes........................................................................................................45

Product and safety information.......................................47

Cyan

Magenta

Yellow

Black

Get started

Your dual SIM phone

You can have two SIM cards in your phone.

Some benefits of a dual SIM phone

• Have two phone numbers, but carry one phone – use a work and

personal SIM at the same time.

• It doesn't matter which number people call – both SIMs are active.

• Save money – use the best network service provider for a situation.

• Stay in touch – avoid differences in network coverage between

service providers.

Both SIM cards are available at the same time when the device is not

being used, but while one SIM card is active, for example, making a

call, the other is unavailable.

If you only have one SIM card, put the card into the SIM1 card holder.

Some features and services may only be available when using the SIM

card in the SIM1 card holder. If there is a SIM card only in the SIM2

card holder, you can only make emergency calls.

Availability of SIMs

• When you set one SIM to be used for outgoing calls, sending text

or multimedia messages, or uploading and downloading data, the

other SIM can still receive calls or text and multimedia messages.

• When one SIM is having a call, sending or receiving text or

multimedia messages, or uploading or downloading data, the other

is not available.

Cyan

Magenta

Yellow

Black

Keys and parts

1Charger connector 6End/Power key

2Micro-USB connector 7Microphone

3Headset connector (Nokia AV

connector 3.5 mm)

8Call key

4Volume keys 9Screen

5Lock key 10 Earpiece

Cyan

Magenta

Yellow

Black

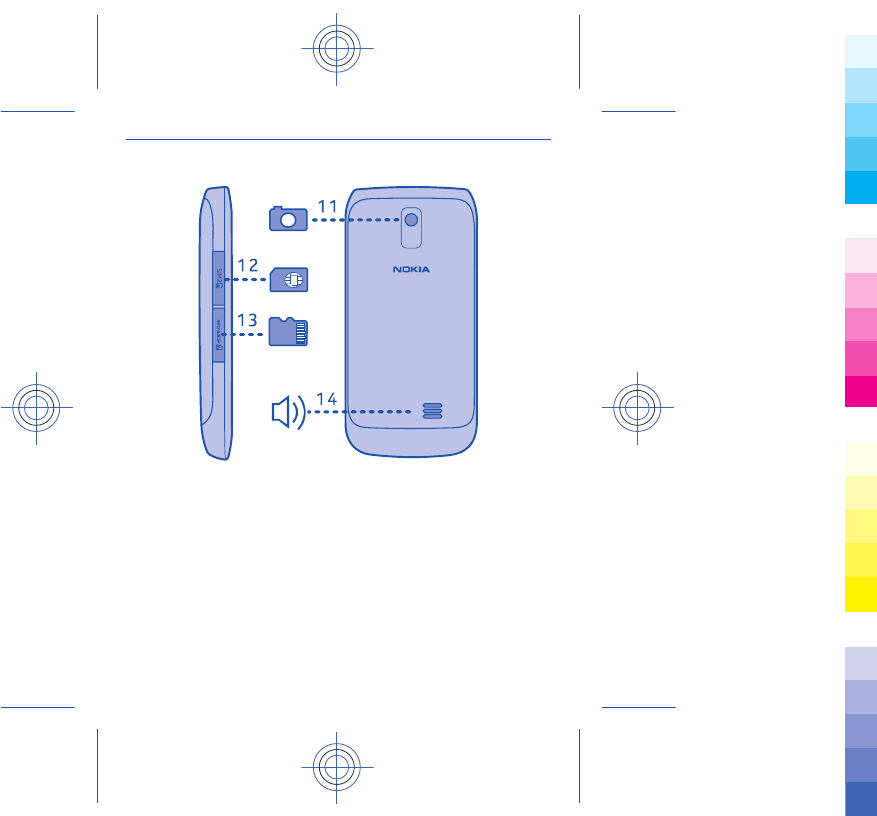

11 Camera lens. Before using the

camera, remove the

protective tape from the lens.

13 Memory card slot

12 SIM card slot (SIM 2) 14 Loudspeaker

Cyan

Magenta

Yellow

Black

Insert a SIM card and battery

Switch the phone off, and remove the

back cover.

If the battery is in the phone, lift it

out.

Slide the SIM under the holder with

the contact area face down.

Line up the battery contacts, and

push the battery in.

Replace the back cover.

To remove the SIM, press the tongue

down, and slide the SIM out.

Cyan

Magenta

Yellow

Black

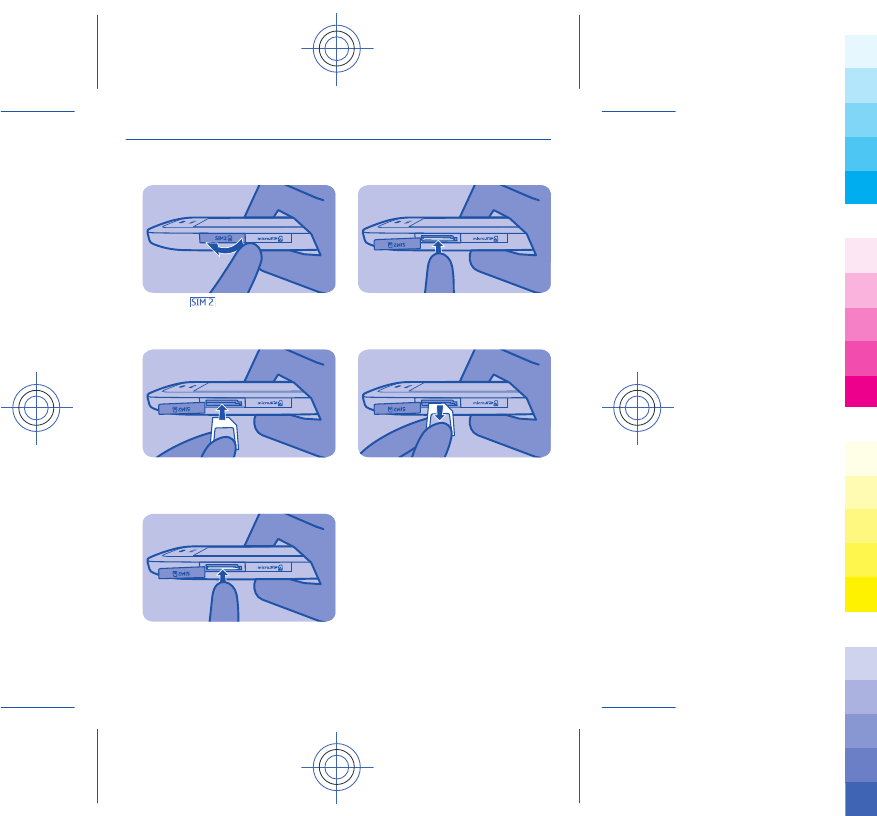

Insert a second SIM card

Open the SIM cover.

Put the SIM in with the contact area

face up.

Push the card in until it locks into

place. Close the cover.

To remove the SIM, push the SIM in

until it's free.

Pull the SIM out.

Cyan

Magenta

Yellow

Black

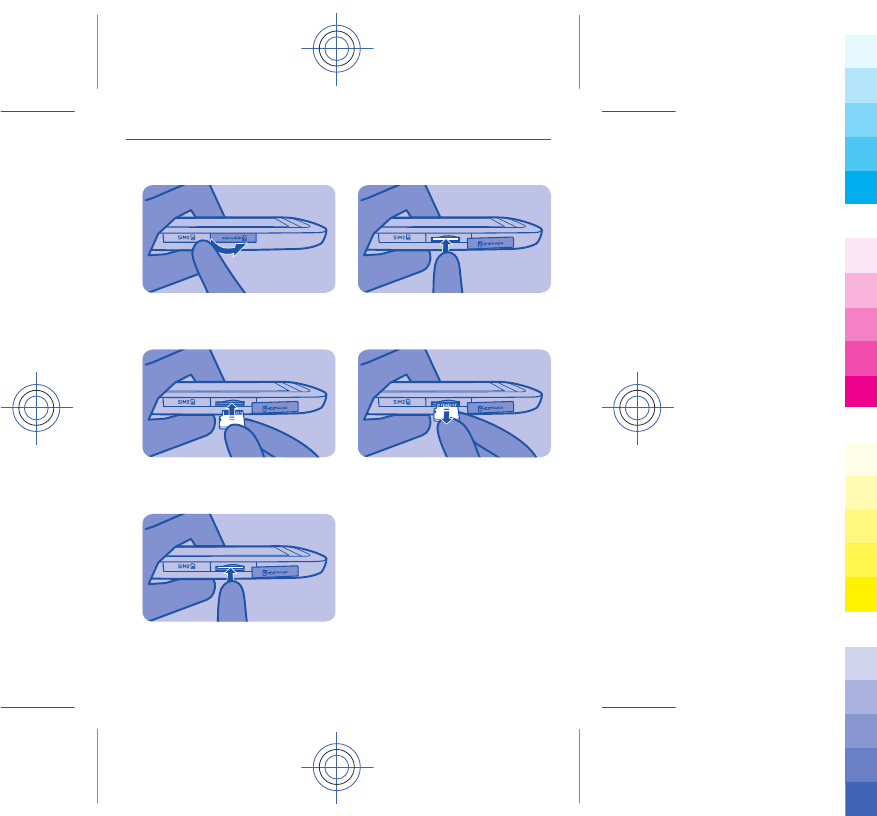

Insert or remove a memory card

Open the memory card slot cover.

Put the memory card in with the

contact area face up.

Push the card in until it locks into

place. Close the cover.

To remove the memory card, push

the card in until it's free.

Pull the memory card out.

Cyan

Magenta

Yellow

Black

Charge the battery

Plug the charger into a wall outlet.

Connect the charger to the phone.

See 1, 2 in "Feature specific

instructions".

Battery full? Unplug from the phone,

then from the wall outlet.

Switch on

Press and hold the power key.

time:

10:03

time zone:

GMT London

daylight saving:

+0 hours

date

31-10-2011

date & time

Select the date field, and set the date.

time:

10:03

time zone:

GMT London

daylight saving:

+0 hours

date

31-10-2011

date & time

Select the time field, and set the time.

Cyan

Magenta

Yellow

Black

time:

10:03

time zone:

GMT London

daylight saving:

+0 hours

date

31-10-2011

date & time

Select the time zone, and select if

daylight saving time is used.

time:

10:03

time zone:

GMT London

daylight saving:

+0 hours

date

31-10-2011

date & time

Select .

Tip: To switch the phone off, press

and hold the power key.

Cyan

Magenta

Yellow

Black

Copy content from your old phone

Easily get your contacts, calendar, and other stuff to your new phone.

1. Switch Bluetooth on in both phones.

2. On your new phone, select settings and sync & backup > phone

switch.

3. Select copy to this and what you want to copy, then select .

4. Select your old phone from the list of found devices.

5. Follow the instructions shown on both phones.

Cyan

Magenta

Yellow

Black

Set which SIM card to use

You can set the default SIM card to use to make a call, send a

message, or connect to the internet. If you name your SIMs, you can

see at a glance which is, for example, for work and which is for

personal use.

Select SIM manager.

Select from the following:

or — Use the SIM in either the internal SIM holder or the

external SIM slot as the default SIM.

— When a SIM is needed, you are asked which SIM to use.

— Set which SIM to use in different cases. For example, you can

use one SIM to make calls, but another to connect to the internet. To

change the settings, select personalise.

Rename a SIM card

Select the SIM you want to rename, then write the new name.

Tip: To quickly change between SIMs and modes, swipe down from

the top of the screen, then tap the SIM area.

Cyan

Magenta

Yellow

Black

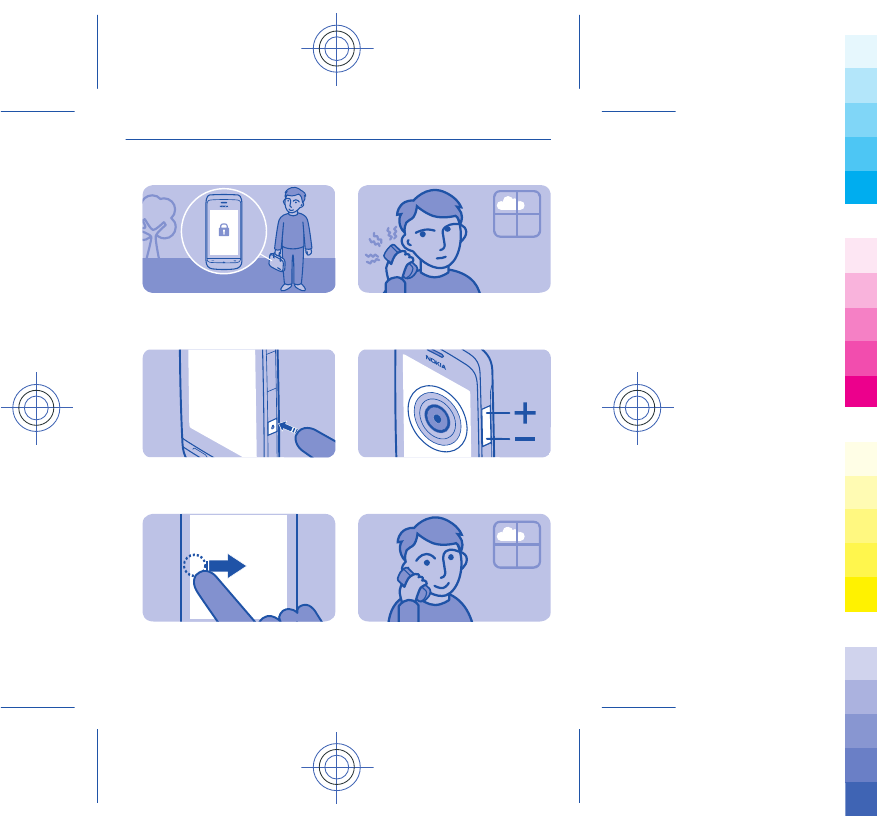

Lock the keys and screen

Lock the keys and screen when not

using your phone.

To lock, press the key lock button.

To unlock, press the key lock button,

then swipe left or right.

Change the volume

Is the volume too loud during a call or

when listening to the radio?

Use the volume keys.

Better.

Cyan

Magenta

Yellow

Black

Phone basics

10:03

tues day

123

456

789

Switch between home screens

Your phone has three home screens, one for apps, one for your

favourite shortcuts, and one for your most used app, such as the

dialler.

Swipe left or right.

• My screen is the place where you can add your favourite contacts

and shortcuts.

• On the apps screen, you can open apps, and organise them to your

liking.

• On the dialler screen, you can make calls. In place of the dialler,

you can also have the music player or radio.

Tip: To personalise the dialler screen, tap and hold My screen, swipe

to the dialler screen, and select the app you want.

Cyan

Magenta

Yellow

Black

Explore your phone

Tap an app or other item to open it.

10:03

tuesday

Tap and hold an item to see more

options.

To swipe, steadily slide your finger to

the desired direction.

To scroll, slide your finger quickly up

or down, then lift your finger.

To zoom, slide two fingers apart or

together on the screen.

To go back to the previous view,

select .

Cyan

Magenta

Yellow

Black

To go back to the home screen, select

To view notifications, swipe down

from the top of the screen. See 3.

Cyan

Magenta

Yellow

Black

10:03

tuesda y

10:03

tuesd ay

Add a shortcut to My screen

Want to open your favourite apps straight from My screen? Add

shortcuts to your most used features.

1. Tap and hold My screen, and select shortcut.

2. Select an item, such as a widget or action, and select .

Remove a shortcut

Tap and hold My screen, and select on the shortcut you want to

remove.

Tip: Try tapping different areas on My screen. You can, for example,

change the date and time, set alarms, or add to your calendar also

from My screen.

Cyan

Magenta

Yellow

Black

10:03

tuesda y

10:03

tuesd ay

Change the wallpaper

Want to see a favourite landscape or your family photos in the

background of the lock screen? You can change the wallpaper to

personalise the lock screen to your liking.

1. Select settings and wallpaper.

2. Select a folder and a photo.

Tip: You can also take a photo on your phone, and use that.

Cyan

Magenta

Yellow

Black

Change your ringtone

You can set a different ringtone for each profile.

1. Select settings > tone profiles and a profile.

2. Select ringtone.

3. Select a ringtone from open files or your downloaded tones. The

ringtone plays so you can see if you like it.

4. When you've found a ringtone you like, select YES.

Tip: Download more ringtones from Nokia Store. To learn more about

Nokia Store, go to www.nokia.com/support.

Tip: You can also change the message alert tone. Select msg. alert

tone and a tone.

Cyan

Magenta

Yellow

Black

About Nokia Store

Download mobile games, apps, videos, themes, wallpapers, and

ringtones to your phone from Nokia Store.

Select store.

Many items are free of charge; some you need to pay for with your

credit card or on your phone bill. The availability of payment methods

depends on your country of residence and your network service

provider. To learn more about Nokia Store, go to www.nokia.com/

support.

Cyan

Magenta

Yellow

Black

Calls

Make a call

1. Select phone, or swipe left to open the dialler.

2. Type in the phone number.

The + character may not work in all regions. In this case, type in the

international access code directly.

3. Press .

4. If asked, select the SIM to use.

5. To end the call, press .

Answer a call

Press .

When you receive a call, your phone shows you which SIM is used.

Decline a call

Press .

Cyan

Magenta

Yellow

Black

Contacts

Save a name and phone number

Add new contacts to your phone.

Select contacts.

Select , then write the name, number, and other details.

If asked, select where to save the contact.

Edit the details of a contact

Select a contact and , then edit the details.

Add more details

Select > add detail and a detail.

Cyan

Magenta

Yellow

Black

Write text

Use the on-screen keypad

To open the traditional alphanumeric keypad, turn the phone to

portrait mode.

1Close key 6Input options key - Switch

predictive text input on or off,

change the writing language,

or switch to the on-screen

keyboard.

2Character keys 7Symbol key - Type in a special

character.

Cyan

Magenta

Yellow

Black

3Smiley key - This may not be

available in all languages.

8Character/number mode key

- Switch between characters

and numbers.

4Space key 9Backspace key - Delete a

character.

5Shift key - Change the

character case. This may not

be available in all languages.

Close the keypad

Swipe down on the keypad. You can also select and hold the close

key.

Switch back to using the keyboard

Turn the phone to landscape mode.

Use the on-screen keypad

To open the on-screen keypad when writing text, turn the phone to

portrait mode.

Type in a character

1. Select a character key repeatedly until the character is shown.

There are more characters available than are shown on the key.

2. If the next letter is on the same key, wait until the cursor is shown,

then select the key again.

Type in a space

Select .

Move the cursor to the next line

Select three times.

Cyan

Magenta

Yellow

Black

Type in a number

Select , then select the number.

Type in a special character

Select the sym key, then select the special character.

Use predictive text

Predictive text is not available in all languages.

1. Select > prediction > .

2. Start writing a word. Your phone suggests possible words as you

write. When the correct word is shown, select the word.

3. If the word is not in the dictionary, select the pop-up and , and

add the new word to the dictionary.

When using predictive text, you can set your phone to complete and

type in words for you automatically.

Use word completion

Select > word completion > .

Cyan

Magenta

Yellow

Black

Messaging

Send a message

Keep in touch with your family and friends through messages.

1. Select messaging and .

2. To add a contact as a recipient, select . You can also type in a

phone number.

3. Write your message in the text box.

Tip: To include an attachment, such as a photo or video, select >

insert content.

4. Select .

If asked, select which SIM to use.

Sending a message with an attachment, such as a photo or video,

may be more expensive than sending a normal text message. For

more info, contact your network service provider.

See 4, 5, 6.

Cyan

Magenta

Yellow

Black

Write using the on-screen keyboard

When writing text, select > input type, then select the language

and full keyboard.

Add an accent to a character

Select and hold the character. This may not be available in all

languages.

Switch between character cases

Select .

Type in a space

Select .

Move the cursor to the next line

Select .

Delete a character

Select .

Cyan

Magenta

Yellow

Black

Mail

Mike

Hello Anna!

Anna

Hi Mike!

Send a mail

Would you like to send a mail while on the go? With your phone, you

can read and send mail, even when not sitting at your desk.

1. Select mail and a mail account.

2. Select .

3. To add a recipient, select , or manually write the address in the

To: field.

4. Write the subject and your message.

Tip: To include an attachment, such as a photo, select .

5. Select .

Cyan

Magenta

Yellow

Black

Photos and videos

Take a photo

1. To open the camera, select camera.

2. To zoom in or out, use the volume keys.

3. Select .

Photos are saved in gallery.

Close the camera

Select .

Cyan

Magenta

Yellow

Black

Record a video

Besides taking photos with your phone, you can also capture your

special moments as videos.

To open the video camera, select video.

1. To start recording, select .

2. To zoom in or out, use the volume keys.

3. To stop recording, select .

Videos are saved in gallery.

Close the camera

Select .

Cyan

Magenta

Yellow

Black

Web

Paris

Browse the web

Catch up on the news, and visit your favourite websites on the go.

Select internet.

Go to a website

Write the web address in the address bar.

Move on the web page

Drag the page with your finger.

Zoom in

Tap the section of the web page you want to see better.

Zoom out

Double-tap the screen.

Tip: To zoom in or out, you can also place two fingers on the screen,

and slide your fingers apart or together.

Search the internet

Write a search word in the address bar. If asked, select your default

search engine.

Go back to a previously visited web page

Select > history and the web page.

Cyan

Magenta

Yellow

Black

Tip: To show the address bar and toolbar when browsing, select .

Tip: You can download web apps from Nokia Store. When you first

open a web app, it is added as a bookmark. For more info, go to

www.nokia.com/support.

Cyan

Magenta

Yellow

Black

Paris

www.nokia.com

travel

Add a bookmark

If you visit the same websites all the time, add them as bookmarks,

so you can easily access them.

Select internet.

While browsing, select > add to favourites.

Go to a bookmarked website

Select and a bookmark.

Cyan

Magenta

Yellow

Black

Connectivity

Connect to a wireless headset

Want to keep working at your computer during a call? Use a wireless

headset. You can also answer a call, even if your phone's not directly

at hand.

Select settings > connectivity > Bluetooth.

1. Make sure Bluetooth is on.

2. Switch the headset on.

3. To search for your headset, select .

4. Select the headset.

5. You may need to type in a passcode (such as 1234).

Cyan

Magenta

Yellow

Black

Maps

Search for a place

You can search for locations, such as street addresses, and places,

such as restaurants.

1. Select maps.

2. Select to see the toolbar, then select .

3. Write the name of the place or the address.

Cyan

Magenta

Yellow

Black

Support and updates

Troubleshooting

If you have an issue, do the following:

• Switch the phone off, and remove the battery. After about a

minute, put the battery back in, and switch the phone on again.

• Update your phone software: Select settings and phone > device

updates.

• Restore the original factory settings: End all calls and connections,

and select settings and restore factory sett. > settings only.

If your issue remains unsolved, contact Nokia for repair options at

www.nokia.com/support. Before sending your phone for repair, back

up your data, as all personal data in your phone may be deleted.

You can also go to www.nokia.com/support where you can find:

• Troubleshooting info

• News on apps and downloads

• Longer version of this user guide

• Software update info

• Details about features and technologies, and the compatibility of

devices and accessories

Cyan

Magenta

Yellow

Black

For additional product support info, see the warranty and reference

leaflet included with your Nokia device.

Cyan

Magenta

Yellow

Black

settings

contacts

messages

bookmarks

calendar

files

apps and games

Back up content to a memory card

Want to make sure you won't lose any important files? You can back

up your phone memory to a compatible memory card.

Select settings > sync & backup.

1. Select create backup.

2. Select what you want to back up, then select .

Restore a backup

Select restore backup and what you want to restore, then select

Cyan

Magenta

Yellow

Black

About phone software updates

Stay in step with the beat – update your phone software to get new

and enhanced features for your phone. Updating the software may

also improve your phone performance.

It is recommended that you back up your personal data before

updating your phone software.

Warning:

If you install a software update, you cannot use the device, even to make emergency

calls, until the installation is completed and the device is restarted.

Using services or downloading content may cause transfer of large

amounts of data, which may result in data traffic costs.

Before starting the update, connect a charger or make sure the

device battery has enough power.

After the update, the instructions in the user guide may no longer be

up to date. You may find the updated user guide at www.nokia.com/

support.

Cyan

Magenta

Yellow

Black

Update phone software using your PC

Update your phone software with the Nokia Suite PC app. You can

also back up the photos and other stuff in your phone to your

computer.

You need a compatible PC, a high-speed internet connection, and a

compatible USB cable to connect your phone to the PC.

To get more info and to download the app, go to www.nokia.com/

support.

See 7.

Cyan

Magenta

Yellow

Black

Update phone software using your phone

You can update your phone software wirelessly. You can also set your

phone to automatically check for updates.

You can only update your software when using the SIM in the internal

SIM holder.

Select settings and phone > device updates.

1. To check if there is an update, select current sw details.

2. To download and install an update, select downl. phone sw, then

follow the instructions shown on the phone.

The update may take several minutes. If you encounter problems,

contact your network service provider.

Check for updates automatically

Select auto SW update, then set how often to check.

Your network service provider may send updates over the air directly

to your phone. For more info on this network service, contact your

network service provider.

Cyan

Magenta

Yellow

Black

Restore original settings

If your phone is not working properly, you can reset some settings

to their original values.

1. End all calls and connections.

2. Select settings and restore factory sett. > settings only.

3. Type in the security code.

This does not affect documents or files stored on your phone.

After restoring the original settings, your phone switches off and

then on again. This may take longer than usual.

Cyan

Magenta

Yellow

Black

Access codes

PIN or PIN2

code

(4-8 digits)

These protect your SIM against unauthorised use

or are required to access some features.

You can set your phone to ask for the PIN code

when you switch it on.

If not supplied with your card or you forget the

codes, contact your service provider.

If you type in the code incorrectly three times in a

row, you need to unblock the code with the PUK

or PUK2 code.

PUK or PUK2

code

(8 digits)

These are required to unblock a PIN or PIN2 code.

If not supplied with your SIM, contact your service

provider.

See 8.

IMEI number

(15 digits)

This is used to identify valid phones in the

network. The number can also be used to block,

for example, stolen phones. You may also need to

give the number to Nokia Care services.

To view your IMEI number, dial *#06#.

Lock code

(security code)

(min. 5 digits)

This helps you protect your phone against

unauthorised use.

You can set your phone to ask for the lock code

that you define. The default lock code is 12345.

Cyan

Magenta

Yellow

Black

Keep the code secret and in a safe place, separate

from your phone.

If you forget the code and your phone is locked,

your phone will require service. Additional charges

may apply, and all the personal data in your phone

may be deleted.

For more information, contact Nokia Care or your

phone dealer.

The personal unblocking key (PUK) code and the universal personal

unblocking key (UPUK) code (8 digits) are required to change a

blocked PIN code and UPIN code, respectively. The PUK2 code (8

digits) is required to change a blocked PIN2 code. These codes are

not supplied with the SIM card. Contact your local service provider

for the codes.

Cyan

Magenta

Yellow

Black

Product and safety information

Safety

Read these simple guidelines. Not

following them may be dangerous or

illegal. For further info, read the

complete user guide.

SWITCH OFF IN

RESTRICTED AREAS

Switch the device off when

mobile phone use is not allowed or

when it may cause interference or

danger, for example, in aircraft, in

hospitals or near medical equipment,

fuel, chemicals, or blasting areas.

Obey all instructions in restricted

areas.

ROAD SAFETY COMES

FIRST

Obey all local laws. Always

keep your hands free to operate the

vehicle while driving. Your first

consideration while driving should be

road safety.

INTERFERENCE

All wireless devices may be

susceptible to interference,

which could affect performance.

QUALIFIED SERVICE

Only qualified personnel may

install or repair this product.

KEEP YOUR DEVICE DRY

Your device is not water-

resistant. Keep it dry.

PROTECT YOUR

HEARING

To prevent possible hearing

damage, do not listen at high volume

levels for long periods. Exercise

caution when holding your device near

your ear while the loudspeaker is in

use.

Feature specific instructions

Remember to comply with any

applicable safety requirements.

Use only compatible memory cards

approved by Nokia for use with this

device. Incompatible cards may

damage the card and the device and

corrupt data stored on the card.

Important: This device is

designed to be used with a standard

SIM card (see figure) only. Use of

incompatible SIM cards may damage

the card or the device, and may

corrupt data stored on the card.

Please consult your mobile operator

for the use of a SIM card that has a

mini-UICC cutout.

Cyan

Magenta

Yellow

Black

If you only have one SIM card, put the

card into the SIM1 card holder. Some

features and services may only be

available when using the SIM card in

the SIM1 card holder. If there is a SIM

card only in the SIM2 card holder, you

can only make emergency calls.

Both SIM cards are available at the

same time when the device is not

being used, but while one SIM card is

active, for example, making a call, the

other is unavailable.

1 If the battery has not been used

for a long time, to begin charging, you

may need to connect the charger,

then unplug and reconnect it.

2 If the battery is completely

discharged, it may take several

minutes before the charging indicator

is displayed or before any calls can be

made.

Avoid touching the antenna area while

the antenna is in use. Contact with

antennas affects the communication

quality and may reduce battery life

due to higher power level during

operation.

3 Important: Avoid scratching

the touch screen. Never use an actual

pen, pencil, or other sharp object on

the touch screen.

To enter the + character, used for

international calls, select * twice.

This may not be possible in all regions.

In this case, enter the international

access code directly.

The + character may not work in all

regions. In this case, enter the

international access code directly.

Warning: When the flight profile is

activated, you cannot make or receive

any calls, including emergency calls,

or use other features that require

network coverage. To make a call,

activate another profile.

Missed and received calls are logged

only if supported by the network, and

the phone is switched on and within

the network service area.

You can only use speed dials for the

contacts stored on your phone or on

the SIM card in the internal SIM1 card

holder.

Using services or downloading

content may cause transfer of large

Cyan

Magenta

Yellow

Black

amounts of data, which may result in

data traffic costs.

4 You can send text messages that

are longer than the character limit for

a single message. Longer messages

are sent as two or more messages.

Your service provider may charge

accordingly.

Characters with accents, other marks,

or some language options, take more

space, limiting the number of

characters that can be sent in a single

message.

5 If the item you insert in a

multimedia message is too large for

the network, the device may

automatically reduce the size.

6 Only compatible devices can

receive and show multimedia

messages. Messages may look

different in different devices.

Sending a message with an

attachment may be more expensive

than sending a normal text message.

For more information, contact your

service provider.

Operating the device in hidden mode

is a safer way to avoid malicious

software. Do not accept Bluetooth

connection requests from sources

you do not trust. You can also switch

the Bluetooth function off when you

are not using it.

7 You can only use Nokia Suite with

the SIM card in the internal SIM card

holder.

8 The personal unblocking key

(PUK) code and the universal personal

unblocking key (UPUK) code (8 digits)

are required to change a blocked PIN

code and UPIN code, respectively. The

PUK2 code (8 digits) is required to

change a blocked PIN2 code. These

codes are not supplied with the SIM

card. Contact your local service

provider for the codes.

Network services and costs

Your device is approved for use on the

EGSM 850 and 1900 MHz networks.

To use the device, you need a

subscription with a service provider.

Using network services and

downloading content to your device

requires a network connection and

may result in data traffic costs. Some

product features require support

from the network, and you may need

to subscribe to them.

Take care of your device

Handle your device, battery, charger

and accessories with care. The

Cyan

Magenta

Yellow

Black

following suggestions help you

protect your warranty coverage.

• Keep the device dry.

Precipitation, humidity, and all

types of liquids or moisture can

contain minerals that corrode

electronic circuits. If your device

gets wet, remove the battery,

and allow the device to dry.

• Do not use or store the device in

dusty or dirty areas. Moving

parts and electronic

components can be damaged.

• Do not store the device in high

temperatures. High

temperatures can shorten the

life of the device, damage the

battery, and warp or melt

plastics.

• Do not store the device in cold

temperatures. When the device

warms to its normal

temperature, moisture can

form inside the device and

damage electronic circuits.

• Do not attempt to open the

device other than as instructed

in the user guide.

• Unauthorised modifications

may damage the device and

violate regulations governing

radio devices.

• Do not drop, knock, or shake the

device. Rough handling can

break internal circuit boards and

mechanics.

• Only use a soft, clean, dry cloth

to clean the surface of the

device.

• Do not paint the device. Paint

can clog moving parts and

prevent proper operation.

• Switch off the device and

remove the battery from time to

time for optimum performance.

• Keep your device away from

magnets or magnetic fields.

• To keep your important data

safe, store it in at least two

separate places, such as your

device, memory card, or

computer, or write down

important information.

Recycle

Always return your used electronic

products, batteries, and packaging

materials to dedicated collection

points. This way you help prevent

uncontrolled waste disposal and

promote the recycling of materials.

Cyan

Magenta

Yellow

Black

Check how to recycle your Nokia

products at www.nokia.com/

recycling.

About Digital Rights

Management

When using this device, obey all laws

and respect local customs, privacy

and legitimate rights of others,

including copyrights. Copyright

protection may prevent you from

copying, modifying, or transferring

pictures, music, and other content.

Content owners may use different

types of digital rights management

(DRM) technologies to protect their

intellectual property, including

copyrights. This device uses various

types of DRM software to access

DRM-protected content. With this

device you can access content

protected with OMA DRM 2.0. If

certain DRM software fails to protect

the content, content owners may ask

that such DRM software's ability to

access new DRM-protected content

be revoked. Revocation may also

prevent renewal of such DRM-

protected content already in your

device. Revocation of such DRM

software does not affect the use of

content protected with other types of

DRM or the use of non-DRM-

protected content.

Digital rights management (DRM)

protected content comes with an

associated licence that defines your

rights to use the content.

If your device has OMA DRM-

protected content, to back up both

the licences and the content, use the

backup feature of Nokia Suite.

Other transfer methods may not

transfer the licences which need to be

restored with the content for you to

be able to continue the use of OMA

DRM-protected content after the

device memory is formatted. You may

also need to restore the licences if the

files on your device become

corrupted.

Tips and Offers

To help you take maximum advantage

of your phone and services, you

receive free customised text

messages from Nokia. The messages

contain tips and tricks and support.

To stop receiving the messages,

select settings > Nokia account > Tips

and Offers.

To provide the service described

above, your mobile phone number,

Cyan

Magenta

Yellow

Black

the serial number of your phone, and

some identifiers of the mobile

subscription are sent to Nokia when

you use the phone for the first time.

Some or all information may also be

sent to Nokia when updating

software. This information may be

used as specified in the privacy policy,

available at www.nokia.com.

Batteries and chargers

Battery and charger

information

Your device is intended for use with a

BL-4U rechargeable battery. Nokia

may make additional battery models

available for this device. Always use

original Nokia batteries.

This device is intended for use when

supplied with power from the

following chargers: AC-11. The exact

Nokia charger model number may

vary depending on the plug type,

identified by E, X, AR, U, A, C, K, B, or

The battery can be charged and

discharged hundreds of times, but it

will eventually wear out. When the talk

and standby times are noticeably

shorter than normal, replace the

battery.

Battery safety

Always switch the device off and

disconnect the charger before

removing the battery. When you

unplug a charger or an accessory, hold

and pull the plug, not the cord.

When your charger is not in use,

unplug it from the electrical plug and

the device. Do not leave a fully

charged battery connected to a

charger, as overcharging may shorten

the battery’s lifetime. If left unused, a

fully charged battery will lose its

charge over time.

Always keep the battery between

15°C and 25°C (59°F and 77°F).

Extreme temperatures reduce the

capacity and lifetime of the battery. A

device with a hot or cold battery may

not work temporarily.

Accidental short-circuiting can

happen when a metallic object

touches the metal strips on the

battery, for example, if you carry a

spare battery in your pocket. Short-

circuiting may damage the battery or

the connecting object.

Do not dispose of batteries in a fire as

they may explode. Dispose of

batteries according to local

Cyan

Magenta

Yellow

Black

regulations. Recycle when possible.

Do not dispose as household waste.

Do not dismantle, cut, open, crush,

bend, puncture, or shred cells or

batteries. If a battery leaks, do not let

battery liquid touch skin or eyes. If

this happens, immediately flush the

affected areas with water, or seek

medical help.

Do not modify, remanufacture,

attempt to insert foreign objects into

the battery, or immerse or expose it

to water or other liquids. Batteries

may explode if damaged.

Use the battery and charger for their

intended purposes only. Improper

use, or use of unapproved batteries or

incompatible chargers may present a

risk of fire, explosion, or other hazard,

and may invalidate any approval or

warranty. If you believe the battery or

charger is damaged, take it to a

service centre for inspection before

continuing to use it. Never use a

damaged battery or charger. Only use

the charger indoors.

Additional safety information

Make an emergency call

1Make sure the device is switched

on.

2Check for adequate signal

strength. You may also need to

do the following:

•Insert a SIM card.

• Deactivate call restrictions

you have activated for your

device, such as call barring,

fixed dialling, or closed user

group.

• Make sure the flight profile is

not activated.

• If the device screen and keys

are locked, unlock them.

3Press the end key repeatedly,

until the home screen is

displayed.

4To open the dialler, select .

5Enter the official emergency

number for your present

location. Emergency call

numbers vary by location.

6Press the call key.

7Give the necessary information

as accurately as possible. Do

not end the call until given

permission to do so.

Important: Activate both cellular

and internet calls, if your device

supports internet calls. The device

Cyan

Magenta

Yellow

Black

may attempt to make emergency calls

both through cellular networks and

through your internet call service

provider. Connections in all conditions

cannot be guaranteed. Never rely

solely on any wireless device for

essential communications like

medical emergencies.

Small children

Your device and its accessories are

not toys. They may contain small

parts. Keep them out of the reach of

small children.

Medical devices

Operation of radio transmitting

equipment, including wireless

phones, may interfere with the

function of inadequately protected

medical devices. Consult a physician

or the manufacturer of the medical

device to determine whether they are

adequately shielded from external

radio frequency energy.

Implanted medical devices

Manufacturers of medical devices

recommend a minimum separation of

15.3 centimetres (6 inches) between a

wireless device and an implanted

medical device, such as a pacemaker

or implanted cardioverter

defibrillator, to avoid potential

interference with the medical device.

Persons who have such devices

should:

• Always keep the wireless device

more than 15.3 centimetres (6

inches) from the medical device.

• Not carry the wireless device in

a breast pocket.

• Hold the wireless device to the

ear opposite the medical device.

• Turn the wireless device off if

there is any reason to suspect

that interference is taking

place.

• Follow the manufacturer

directions for the implanted

medical device.

If you have any questions about using

your wireless device with an implanted

medical device, consult your health

care provider.

Accessibility solutions

Nokia is committed to making mobile

phones easy to use for all individuals,

including those with disabilities. For

more information, visit the Nokia

website at

www.nokiaaccessibility.com.

Cyan

Magenta

Yellow

Black

Hearing

Warning: When you use the

headset, your ability to hear outside

sounds may be affected. Do not use

the headset where it can endanger

your safety.

Some wireless devices may interfere

with some hearing aids.

Operating environment

This device meets radio frequency

exposure guidelines in the normal use

position at the ear or at least 1.5

centimetres (5/8 inch) away from the

body. Any carry case, belt clip, or

holder for body-worn operation

should not contain metal and should

position the device the above-stated

distance from your body.

To send data files or messages

requires a quality connection to the

network. Data files or messages may

be delayed until such a connection is

available. Follow the separation

distance instructions until the

transmission is completed.

Vehicles

Radio signals may affect improperly

installed or inadequately shielded

electronic systems in motor vehicles

such as electronic fuel injection,

electronic antilock braking, electronic

speed control, and air bag systems.

For more info, check with the

manufacturer of your vehicle or its

equipment.

Only qualified personnel should install

the device in a vehicle. Faulty

installation or service may be

dangerous and may invalidate your

warranty. Check regularly that all

wireless device equipment in your

vehicle is mounted and operating

properly. Do not store or carry

flammable liquids, gases, or explosive

materials in the same compartment

as the device, its parts, or accessories.

Remember that air bags inflate with

great force. Do not place your device

or accessories in the air bag

deployment area.

Potentially explosive

environments

Switch off your device in any area with

a potentially explosive atmosphere,

for example near gas pumps at service

stations. Sparks in such areas could

cause an explosion or fire resulting in

bodily injury or death. Observe

restrictions in fuel service stations,

storage, and distribution areas;

chemical plants; or where blasting

operations are in progress. Areas with

a potentially explosive atmosphere

Cyan

Magenta

Yellow

Black

are often, but not always, clearly

marked. They include areas where you

would be advised to turn off your

vehicle engine, below deck on boats,

chemical transfer or storage facilities

and where the air contains chemicals

or particles such as grain, dust, or

metal powders. You should check with

the manufacturers of vehicles using

liquefied petroleum gas (such as

propane or butane) to determine if

this device can be safely used in their

vicinity.

Certification information (SAR)

This mobile device meets guidelines

for exposure to radio waves.

Your mobile device is a radio

transmitter and receiver. It is

designed not to exceed the limits for

exposure to radio waves

recommended by international

guidelines. These guidelines were

developed by the independent

scientific organisation ICNIRP and

include safety margins designed to

assure the protection of all persons,

regardless of age and health.

The exposure guidelines for mobile

devices employ a unit of

measurement known as the Specific

Absorption Rate or SAR. The SAR limit

stated in the ICNIRP guidelines is 2.0

watts/kilogram (W/kg) averaged over

10 grams of tissue. Tests for SAR are

conducted using standard operating

positions with the device transmitting

at its highest certified power level in

all tested frequency bands. The actual

SAR level of an operating device can

be below the maximum value because

the device is designed to use only the

power required to reach the network.

That amount changes depending on a

number of factors such as how close

you are to a network base station.

The highest SAR value under the

ICNIRP guidelines for use of the device

at the ear is 0.63 W/kg (RM-852).

Use of device accessories may result

in different SAR values. SAR values

may vary depending on national

reporting and testing requirements

and the network band. Additional SAR

information may be provided under

product information at

www.nokia.com.

Your mobile device is also designed to

meet the requirements for exposure

to radio waves established by the

Federal Communications Commission

(USA) and Industry Canada. These

requirements set a SAR limit of 1.6 W/

kg averaged over one gram of tissue.

The highest SAR value reported under

Cyan

Magenta

Yellow

Black

this standard during product

certification for use at the ear is 0.89

W/kg (RM-852) and when properly

worn on the body is 0.80 W/kg

(RM-852).

Nokia, and Nokia Connecting People

are trademarks or registered

trademarks of Nokia Corporation.

Nokia tune is a sound mark of Nokia

Corporation. Other product and

company names mentioned herein

may be trademarks or tradenames of

their respective owners.

Reproduction, transfer, distribution,

or storage of part or all of the

contents in this document in any form

without the prior written permission

of Nokia is prohibited. Nokia operates

a policy of continuous development.

Nokia reserves the right to make

changes and improvements to any of

the products described in this

document without prior notice.

Includes RSA BSAFE

cryptographic or security protocol

software from RSA Security.

Oracle and Java are

registered trademarks of Oracle and/

or its affiliates.

The Bluetooth word mark and logos

are owned by the Bluetooth SIG, Inc.

and any use of such marks by Nokia is

under license.

This product is licensed under the

MPEG-4 Visual Patent Portfolio

License (i) for personal and

noncommercial use in connection

with information which has been

encoded in compliance with the

MPEG-4 Visual Standard by a

consumer engaged in a personal and

noncommercial activity and (ii) for use

in connection with MPEG-4 video

provided by a licensed video provider.

No license is granted or shall be

implied for any other use. Additional

information, including that related to

promotional, internal, and

commercial uses, may be obtained

from MPEG LA, LLC. See http://

www.mpegla.com.

Cyan

Magenta

Yellow

Black

To the maximum extent permitted by

applicable law, under no

circumstances shall Nokia or any of its

licensors be responsible for any loss

of data or income or any special,

incidental, consequential or indirect

damages howsoever caused.

The contents of this document are

provided "as is". Except as required by

applicable law, no warranties of any

kind, either express or implied,

including, but not limited to, the

implied warranties of merchantability

and fitness for a particular purpose,

are made in relation to the accuracy,

reliability or contents of this

document. Nokia reserves the right to

revise this document or withdraw it at

any time without prior notice.

The availability of products, features,

applications and services may vary by

region. For more information, contact

your Nokia dealer or your service

provider. This device may contain

commodities, technology or software

subject to export laws and regulations

from the US and other countries.

Diversion contrary to law is

prohibited.

Nokia does not provide a warranty for

or take any responsibility for the

functionality, content, or end-user

support of third-party applications

provided with your device. By using an

application, you acknowledge that the

application is provided as is. Nokia

does not make any representations,

provide a warranty, or take any

responsibility for the functionality,

content, or end-user support of third-

party applications provided with your

device.

FCC/INDUSTRY CANADA

NOTICE

This device complies with part 15 of

the FCC rules and Industry Canada

licence-exempt RSS standard(s).

Operation is subject to the following

two conditions: (1) This device may

not cause harmful interference, and

(2) this device must accept any

interference received, including

interference that may cause

undesired operation. Your device may

cause TV or radio interference (for

example, when using a device in close

proximity to receiving equipment). If

you require assistance, contact your

local service facility.Any changes or

modifications not expressly approved

by Nokia could void the user's

authority to operate this equipment.

5555555 Issue 1 EN

Cyan

Magenta

Yellow

Black

Microsoft RM-852 GSM cellular phone w/BT User Manual User Guide

Microsoft Mobile Oy GSM cellular phone w/BT User Guide

Contents

User Guide

Navigation menu

Namespaces

Views

Navigation
