User Guide
![](/img.php?id=2055568&img=bg1.png)
User Guide
Issue draft-2013-08-19 EN
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg2.png)
Contents
Safety 4
Get started 5
Keys and parts 5
Insert SIM and battery 5
Insert a second SIM card (dual SIM only) 7
Insert a memory card 7
Charge the battery 8
Set which SIM card to use 8
Copy contacts from your old phone 9
Basics 10
Display indicators 10
Touch screen actions 10
Switch between views 12
Check your activity 12
Change settings quickly 13
Prolong battery life 13
Reorganise the apps menu 14
Personalise the lock screen 14
Change your ringtone 15
Add a full keyboard or phone keypad 15
Add a writing language 15
Keys on the keyboard 15
Write using the keyboard 16
Keys on the keypad 16
Write using the keypad 17
Use predictive text 17
Nokia Store 18
People & messaging 19
Make or answer a call 19
Save a name and phone number 20
Add social info to contacts 20
Update your status 20
Send a message 21
Set up your mail account 21
Send a mail 22
Chat with your friends 23
Check your voice mail 23
Camera 25
Take a photo 25
Record a video 25
Share your photo or video 26
Maps & navigation 27
Find nearby places 27
Internet 28
Browse the web 28
Add a website to your favourites 28
Entertainment 30
Play a song 30
Listen to the radio 30
Office 31
Change the time and date 31
Set an alarm 31
Add a calendar entry 31
Phone management & connectivity 33
Share your content using Slam 33
Connect to a Wi-Fi network 33
Copy content between your phone and
computer 34
Update your phone software 34
Use your phone in flight mode 34
User Guide
© 2013 Nokia. All rights reserved.
2
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg4.png)
Safety
We invite you to read the instructions on this guide before using the device.
SWITCH OFF IN RESTRICTED AREAS
Switch the device off when mobile phone use is not allowed or when it may cause interference
or danger, for example, in aircraft, in hospitals or near medical equipment, fuel, chemicals, or
blasting areas. Obey all instructions in restricted areas.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first
consideration while driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect performance.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
BATTERIES, CHARGERS, AND OTHER ACCESSORIES
Use only batteries, chargers, and other accessories approved by Nokia for use with this device.
Do not connect incompatible products.
KEEP YOUR DEVICE DRY
Your device is not water-resistant. Keep it dry.
PROTECT YOUR HEARING
To prevent possible hearing damage, do not listen at high volume levels for long periods.
Exercise caution when holding your device near your ear while the loudspeaker is in use.
SAR
This device meets RF exposure guidelines when used either in the normal use position against the
ear or when positioned at least 1.5 centimetres (5/8 inch) away from the body. The specific maximum
SAR values can be found in the Certification Information (SAR) section of this user guide. For more
info, go to www.sar-tick.com.
When a carry case, belt clip or other form of device holder is used for body-worn operation, it should
not contain metal and should provide at least the above-stated separation distance from the body.
Note that mobile devices may be transmitting even if you are not making a voice call.
© 2013 Nokia. All rights reserved.
4
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg5.png)
Get started
Get to grips with the basics, and have your phone up and running in no time.

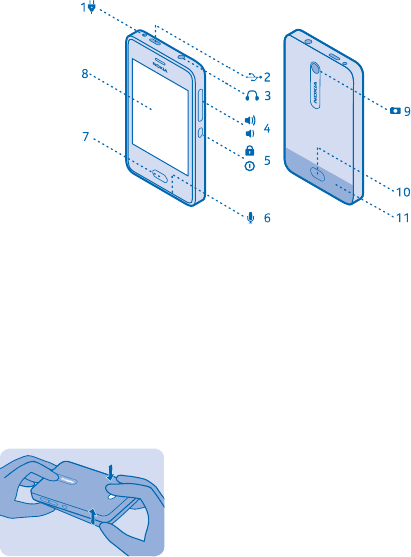

Keys and parts
Explore the keys and parts of your new phone.
1 Charger connector
2Micro-USB connector
3 Headset connector (3.5 mm AHJ)
4 Volume/Zoom keys
5 Lock/Power key
6Microphone
7 Back key
8 Touch screen
9 Camera lens
10 Back cover release button
11 Antenna area
Do not connect products that create an output
signal, as this may damage the device. Do not
connect any voltage source to the audio connector. If you connect an external device or headset,
other than those approved for use with this device, to the audio connector, pay special attention to
volume levels.
Avoid touching the antenna area while the antenna is in use. Contact with antennas affects the
communication quality and may reduce battery life due to higher power level during operation.
Some of the accessories mentioned in this user guide may be sold separately.
Insert SIM and battery
Read on to learn how to insert a SIM card and the battery.
1. Press the release button at the back of the phone, and carefully lift and remove the back cover.
1
2
2. If the battery is in the phone, lift it out.
© 2013 Nokia. All rights reserved.
5
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg6.png)
3. Open the SIM holder, and place the SIM in the holder. Make sure the contact area is face down.
4. Line up the battery contacts, and put the battery in.
5. Replace the back cover.
6. To switch on, press and hold the power key until the phone vibrates.
Note: Switch the device off and disconnect the charger and any other device before removing
any covers. Avoid touching electronic components while changing any covers. Always store and
use the device with any covers attached.
Important: This device is designed to be used with a mini-UICC SIM card, also known as a micro-
SIM card only. A micro-SIM card is smaller than the standard SIM card. Use of incompatible SIM
cards, or use of SIM card adapters, may damage the card or the device, and may corrupt data
stored on the card.
© 2013 Nokia. All rights reserved.
6
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg7.png)
Insert a second SIM card (dual SIM only)
You can easily add a second SIM card (SIM2) without removing the battery.
1. Press the release button at the back of the phone, and carefully lift and remove the back cover.
1
2
2. Push the SIM in with the contact area face down until it locks into place.
3. To remove the SIM, push the card in until it's released, then pull it out.
Insert a memory card
Read on to learn how to insert a memory card into your phone.
Use only compatible memory cards approved for use with this device. Incompatible cards may
damage the card and the device and corrupt data stored on the card.
1. Remove the back cover.
1
2
2. Push the card in with the contact area face down until it locks into place.
© 2013 Nokia. All rights reserved.
7
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg8.png)
3. To remove the card, push the card in until it's released.
Important: Do not remove the memory card when an app is using it. Doing so may damage the
memory card and the device and corrupt data stored on the card.
Charge the battery
Your battery has been partially charged at the factory, but you may need to recharge it before you
can use your phone.
1. Plug the charger into a wall outlet.
2. Connect the charger to the phone. When done, unplug the charger from the phone, then from the
wall outlet.
If the battery is completely discharged, it may take several minutes before the charging indicator is
displayed or before any calls can be made.
Set which SIM card to use
By default, your phone asks you which SIM to use for the connection. You can also set the default
SIM for calls or messaging. If you name your SIMs, you can see at a glance which is, for example, for
work or personal use.
Tap > Dual SIM.
1. Switch Always ask to Off.
2. Select which SIM to use for which connection.
Availability of SIMs
© 2013 Nokia. All rights reserved.
8
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg9.png)
• If you only have one SIM, put it into the SIM1 holder. Some features may only be available with the
SIM in the SIM1 holder.
• When you set one SIM to be used for outgoing calls or messages, or for data connections, the
other SIM can still receive calls or messages.
• When one SIM is having an active connection, the other SIM is not available.
Rename SIM
Tap SIM settings, and type in the new name under the card you want to name.
Copy contacts from your old phone
Get all your contacts to your new phone in one go.
Your old phone must have Bluetooth, and the contacts must be stored in the phone memory, not on
the SIM.
1. On both your new and old phone, switch Bluetooth on, and make sure both phones are visible to
others.
2. On your new phone, tap > Import contacts > Another device.
Tip: If you already have contacts on your phone, swipe up from the bottom of the screen, and
tap Import contacts > Another device.
3. Move the phones close to each other. When the phones are connected using Bluetooth, the
contacts transfer starts.
If your contacts are written in a language that is not supported by your new phone, the contact info
may not show correctly.
© 2013 Nokia. All rights reserved.
9
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bga.png)
Basics
Learn how to get the most out of your new phone.
Display indicators
The display indicators on your phone tell you the current time, battery and signal strength, and much
more.
An alarm is set.
The silent profile is on.
Battery power level
You have new notifications. Swipe down from the top of the screen to see the details.
Wi-Fi is on.
Signal strength
Flight mode is on.
Bluetooth is on.
The type of mobile network you're currently connected to may be shown with a single letter, a
combination of letters, or a combination of letters and numbers. For example, , depending on
your network service provider.
The icons may vary depending on your region or network service provider.

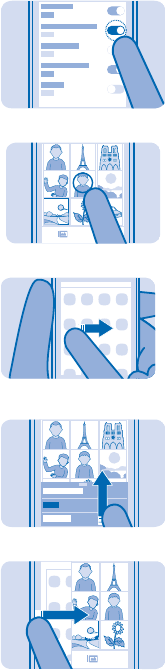

Touch screen actions
Explore your phone with a tap or swipe.
1. To open an app or other item, tap the app or item.
Important: Avoid scratching the touch screen.
2. To switch a setting on or off, tap the switch.
© 2013 Nokia. All rights reserved.
10
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bgb.png)
3. To see more options, tap and hold an item.
4. To swipe, for example, to another home screen, steadily slide your finger left or right.
5. To see more options, swipe up from the bottom of the screen if you can see three lines there.
6. To close an app and go back to the home screen, swipe in from the left or right of the screen.
7. To see notifications and change settings, swipe down from the top of the screen. To close the
menu, swipe up, or tap an empty area outside the menu.
© 2013 Nokia. All rights reserved.
11
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bgc.png)
8. To scroll through a long list or menu, slide your finger quickly up or down, and lift your finger.
9. To zoom, slide two fingers apart or together on an item.
Tip: For more info on touch screen actions, tap > Nokia Care > Tutorial.
Switch between views
Your phone has 2 home screens: one for keeping up with your activities, and another one for apps.
Swipe left or right to switch between home screens.
Choose your view according to your needs:
• Easily see what you've been doing lately, and check what's happening next in your calendar.
• In the apps menu you can open apps and shortcuts, and rearrange them as you like.
Check your activity
Your phone makes it easy for you to always keep up with what's happening.
In the apps menu, swipe left or right to view your activities. Here, you can see the following:
© 2013 Nokia. All rights reserved.
12
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bgd.png)
• Apps you've opened recently, grouped by date
• Your upcoming calendar events. Swipe down at the top of the activity list to see what you've got
planned next.
• Your social networking activities, like status updates and comments
• Your latest messages, missed calls, downloads, recent music, alarms, and more
Tip: You can easily pause or resume the currently-playing song directly from the list.
Tip: If you've set up a social networking account, you can post your status update in this screen
when you're signed in.
Clear your activities
Tap and hold an item, and tap . To clear all activity, tap Clear all.
Control your activities
To decide which activities you want to see, tap > Fastlane.
Change settings quickly
Need to quickly switch your phone to silent mode? Rather than going into the phone menus, in most
views, you can quickly change some settings and check notifications in the menu that opens from
the top of the screen.
1. Swipe down from the top of the screen.
In this screen, you can:
• See your missed calls or unread messages
• Switch your phone to silent mode
•Check for Wi-Fi networks, and connect to them
• Switch Bluetooth on or off
2. To close the menu, press the back key.
Prolong battery life
Get the most out of your phone while getting the battery life you need. There are steps you can take
to save power on your phone.
To save power:
Charge wisely Always charge the battery fully.
Select only the sounds that you need Mute unnecessary sounds, such as key press sounds.
© 2013 Nokia. All rights reserved.
13
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bge.png)
Use wired headphones Use the loudspeaker selectively.
Lower the backlight brightness Tap , and drag the Brightness slider.
Set the backlight to switch off after a
short time Tap > Phone lock, and change the setting for Screen
time-out.
Use network connections selectively • Switch Bluetooth on only when needed.
• To switch off automatic update of a mail account, tap
and an account, and switch Update Inbox to
Manually.
• If you're listening to music or otherwise using your
phone, but don't want to make or receive calls, switch
flight mode on. Tap , and switch Flight mode on .
Reorganise the apps menu
You can organise your apps as you like. Move your favourite apps and shortcuts to the top, or remove
shortcuts. You can also uninstall apps you don't need.
1. Tap and hold an item in the apps menu.
2. Drag and drop the item you want to move to a new location. You can move as many items as you
like.
3. When you're done, tap the apps menu.
Remove a shortcut
Tap and hold the shortcut, and tap .
Uninstall an app
Tap and hold the app, and tap . You may not be able to uninstall some apps.
Personalise the lock screen
Would you like to make your lock screen unique? You can, for example, have your own favourite photo
in the background.
1. To change the wallpaper of the lock screen, tap > Wallpaper for lock screen.
2. Tap the photo you want to use, and tap Set.
Tip: You can also use a photo that you've taken with your phone camera.
Hide notification content on the lock screen
Tap , and switch Lock screen to Off .
© 2013 Nokia. All rights reserved.
14
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bgf.png)
Change your ringtone
Set a different ringtone for each SIM card.
1. Tap > Sounds and vibra.
2. Tap SIM1 ringtone or SIM2 ringtone.
3. Select a ringtone from a list of preloaded tones or from your downloaded music. The ringtone plays
so you can see if you like it.
4. When you've found a ringtone you like, tap Set.
Tip: Download more ringtones from Nokia Store. To learn more about Nokia Store, go to
www.nokia.com/support.
Tip: You can also change the message alert tone. Tap Message tone, and select a tone.
Add a full keyboard or phone keypad
You can use either the full keyboard or phone keypad when writing.
Tap > Writing settings > Add keyboards, and tap the keyboards or keypads you want to use.
Switch between the keyboard and keypad
Swipe left or right on the space key.
This option is available if you have chosen more than one keyboard or keypad.
Add a writing language
Need to write in another language? You can easily switch between several writing languages. In some
countries, the languages have been selected by default.
Tap > Writing settings > Add keyboards and the language.
Switch between languages when writing
Swipe left or right on the space key.
Keys on the keyboard
The layout of the keyboard may vary, depending on the writing language, input mode, and character
range you use.
To start writing, tap a text box.
© 2013 Nokia. All rights reserved.
15
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg10.png)
1Character keys
2Shift key
3 Numbers and symbols key
4Space key
5Enter key
6 Backspace key
Write using the keyboard
With the keyboard, you can write your messages in no time.
To type in a character, tap the key.
Switch between character cases
Tap .
Add an accent to a character
Tap and hold the character, then tap the accented character you want. This may not be available in
all languages.
Switch between number and letter mode
Tap the numbers and symbols key or the letter key.
Type in a special character
Tap the numbers and symbols key, then tap the special character.
Move the cursor to the next row
Tap .
Tip: Tap and hold the text until you see the cursor. Without lifting your finger, drag the cursor
to the place you want.
Delete a character
Tap .
Keys on the keypad
The layout of the keypad may vary, depending on the writing language, input mode, and character
range you use.
To start writing, tap a text box.
1Character keys
2Shift key
3 Space/Language key
4Smiley key
5Enter key
6Symbol key
7Number key
8 Backspace key
1
2
3
4
6
5
1
8
7
6
5
432
© 2013 Nokia. All rights reserved.
16
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg11.png)
Write using the keypad
Writing with the keypad is easy and fun.
Tap a character key repeatedly until the character is shown. There are more characters available than
are shown on the key.
Tip: To see all the characters found on a character key, tap and hold the key.
Switch between character cases
Tap .
Switch between number and letter mode
Tap the number key or the letter key.
Type in a special character
Tap the symbol key, then tap the special character.
Move the cursor to the next row
Tap .
Tip: Tap and hold the text until you see the cursor. Without lifting your finger, drag the cursor
to the place you want.
Delete a character
Tap . If it's a compound character, tap the key repeatedly until the character is removed. Compound
characters are not available in all languages.
Use predictive text
To speed up your writing, your phone can guess what you are starting to write. Predictive text is based
on a built-in dictionary. This feature is not available for all languages.
To switch predictive text on or off, tap > Writing settings and your language keyboard or keypad,
and switch Prediction to On or Off .
Use predictive text when writing
Start writing a word, and when the word you want is shown in the suggestion bar, tap the word.
Tip: To see more suggestions, swipe left on the suggestion bar.
Correct a word
If you notice that you have misspelled a word, tap it, and you see suggestions for correcting the word.
Add a new word to the dictionary
If the word you want isn't in the dictionary, write the word, tap it, and tap the plus sign (+) in the
suggestion bar.
© 2013 Nokia. All rights reserved.
17
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg12.png)
Nokia Store
Download mobile games, apps, themes, wallpapers, and ringtones to your phone from Store.
Select .
Many items are free of charge; some you need to pay for with your credit card or on your phone bill.
The availability of payment methods depends on your country of residence and your network service
provider.
This phone may contain promotional EA games. The promotion is time-limited and may expire. Please
verify the banner on Nokia store for more info. For phones with promotional EA games, the end user
must access the EA games download page through the Gift games icon on the main menu or from
the Gift banner on Nokia store front page in order to download promotional EA games. The
promotional free download may not happen when accessed directly from Nokia store.
To learn more about Store, go to store.nokia.com.
© 2013 Nokia. All rights reserved.
18
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg13.png)
People & messaging
Contact your friends and family, and share your files, such as photos, using your phone. Stay tuned
with the latest updates to your social networking services even when on the go.
Make or answer a call
Learn how to make or answer a call with your new phone.
1. Tap .
2. Type in the phone number.
To type in the + character, used for international calls, tap * twice.
The + character only works from abroad. The + character may not work in all regions. In this case,
enter the international access code directly.
3. Tap . If asked, select which SIM to use.
4. To end the call, tap .
5. When someone calls you, swipe down to answer.
Tip: Is your friend's voice too loud or quiet? Press the volume keys to change the volume.
Swap between calls
Tap .
Decline a call
Swipe up, and tap .
Reply to a call with a text message
When someone calls you, swipe up.
Tip: After silencing the call, you can quickly send a text message. Tap , and write your message.
Call last dialled number
On the activity screen, tap the contact name or phone number you called, and tap .
View your missed calls
If you missed a call, a notification is shown on the lock screen. Swipe over the notification to see the
call info. Tap to call back.
Missed and received calls are logged only if supported by the network, and the phone is switched on
and within the network service area.
Tip: To view missed calls later, tap > > Missed.
© 2013 Nokia. All rights reserved.
19
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg14.png)
Save a name and phone number
Add new contacts to your phone.
1. Tap .
2. Swipe up from the bottom of the screen, and tap Add new contact.
3. Write the name, number, and other details.
Tip: To save a phone number in the dialler, type in the number, and tap .
Edit the details of a contact
Tap the contact, and swipe up from the bottom of the screen. Then tap Edit, and edit the details,
such as the mail address or ringtone.
Add more details
When editing a contact, swipe up from the bottom of the screen, tap Add details, and tap a detail.
Add social info to contacts
Sign in to social networking services to add your friends' info to your phone contacts list.
1. Tap .
2. Swipe up from the bottom of the screen, and tap Accounts.
3. Tap an account, and sign in.
4. Select whether you want to import all or only those that are already in your contacts list.
Info from the account shows up in your contacts list.
Update your status
When you're signed in to your social networking services, you can post your status update on the
home screen showing your activity.
1. In the apps menu, swipe left or right to view your activities.
2. Tap What's on your mind?, or if not available, tap Tap here to get connected.
3. Sign in to a social networking service, and write your status message.
4. Tap .
© 2013 Nokia. All rights reserved.
20
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg15.png)
Send a message
With text and multimedia messages, you can quickly contact your friends and family.
1. Tap > .
2. To add a contact as a recipient, tap , or tap Add recipient to start writing a name or typing in a
phone number. You can add more than one recipient.
3. Write your message in the text box.
Tip: To add a smiley, tap .
4. To add an attachment, such as a photo or video, tap .
Tip: You can also take a new photo while writing your message. Tap > Camera, take a photo,
and tap Done.
5. Tap . If asked, select which SIM to use.
If the item you insert in a multimedia message is too large for the network, the device may
automatically reduce the size.
Only compatible devices can receive and show multimedia messages. Messages may look different
in different devices.
You can send text messages that are longer than the character limit for a single message. Longer
messages are sent as two or more messages. Your service provider may charge accordingly.
Characters with accents, other marks, or some language options, take more space, and limit the
number of characters that can be sent in a single message.
Set up your mail account
Do you use more than one mail address? You can have several mailboxes on your phone.
You must be connected to the internet to add a mailbox.
1. Tap > and a mail account.
2. Write your username and password.
3. Tap Sign in.
© 2013 Nokia. All rights reserved.
21
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg16.png)
Add a mailbox later
Tap , swipe up from the bottom of the screen, and tap Accounts. Then tap and an account, and
sign in.
Switch off the automatic update of the inbox
Tap and an account. Then tap Update Inbox, and change the setting, if needed.
Your phone updates your inbox at certain intervals to show your new mails when they have arrived.
This may cause transfer of large amounts of data, which may result in data traffic costs. To save
costs, you can switch the automatic update feature off and update your inbox manually using a Wi-
Fi connection.
Delete a mailbox
Tap , tap and hold the account, and tap Delete.
Send a mail
Would you like to send a mail while on the go? With your phone, you can read and send mail, even
when not sitting at your desk.
You must be connected to the internet to send and receive mail.
1. Tap and a mail account.
2. Swipe up from the bottom of the screen, and tap Compose email.
3. To add a recipient from your contacts, tap . You can also write the address. You can add more
than one recipient.
4. Write the subject and your message.
Tip: To add a suggested word, tap it. To browse the list, swipe over the suggestions. If you don't
want to use this feature, swipe up from the bottom of the screen, and switch Prediction to Off
.
5. To add an attachment, such as a photo, swipe down to close the keyboard, then swipe up from the
bottom of the screen, and tap Add attachment.
Tip: You can also take a new photo while writing your mail. Swipe down to close the keyboard,
then swipe up from the bottom of the screen, and tap Add attachment > > . Tap the screen
to take a photo, and tap Done.
6. Tap Send.
Read a mail
Tap and a mail account, then tap a message to read it.
Tip: When viewing your inbox, drag down to refresh it.
© 2013 Nokia. All rights reserved.
22
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg17.png)
Chat with your friends
Do you like chatting online with your friends? You can send instant messages with your phone when
you're out on the town.
You must be connected to the internet to chat.
You need a Nokia account to chat. If you don't have one, you can create a new account during setup.
Tap , type in your username and password, and sign in.
If you have added friends to your chat contacts, they are automatically included in your contacts. If
you have no contacts yet, you are asked to invite friends to chat. You can also chat with others than
just your chat contacts.
1. Tap . If you are signed in to several chat services, tap an account.
2. To start a chat, tap a contact. Green colour indicates that your friend is online.
3. Write your message.
Tip: To add a smiley, tap .
4. Tap .
Using services or downloading content may cause the transfer of large amounts of data, which may
result in data costs.
Check your voice mail
Did you let your calls go to voice mail when you couldn't answer? Listen to the messages people have
left you at a convenient time.
To use voice mail, you may need to subscribe to the service. For more info, contact your network
service provider.
Before using your voice mailbox, get your voice mailbox number from your network service provider.
Check your order confirmation or your network service provider's support website.
To set up your voice mail, tap , and tap and hold 1, type in your voice mailbox number, and tap .
Your phone automatically calls your voice mail.
© 2013 Nokia. All rights reserved.
23
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg18.png)
1. To check your voice mail when you just missed a call, swipe down from the top of the screen, and
tap the message notification.
2. Tap Call mailbox to listen to your voicemails?.
Listen to your voice mail later
Tap , and tap and hold 1.
Change your voice mailbox number later
Tap > Calls > Voice mailbox. Then type in your voice mailbox number, and tap . To save the
number, swipe up from the bottom of the screen, and tap Confirm.
© 2013 Nokia. All rights reserved.
24
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg19.png)
Camera
Why carry a separate camera if your phone has all you need for capturing memories? With your phone
camera, you can easily take photos or record videos.
Take a photo
Capture the best moments with your phone camera.
1. To switch the camera on, tap .
2. To zoom in or out, place two fingers on the screen, and slide them apart or together.
3. To access the settings, such as timer, white balance, or photo resolution, tap and hold the screen.
4. To take a photo, tap the screen.
The photos are saved in .
Tip: Need to capture a moment quickly? To switch on the camera when your phone is locked,
swipe the lock screen up.
Tip: When the camera is open, it's easy to switch to video mode or go to Gallery. To switch the
video camera on, swipe left from the centre of the screen. To go to Gallery, swipe right from
the centre of the screen.
Record a video
Besides taking photos, you can also record videos with your phone.
1. To switch the video camera on, tap , and swipe left from the centre of the screen.
2. To zoom in or out, place two fingers on the screen, and slide them apart or together.
3. To start recording, tap the screen.
4. To stop recording, tap the screen.
Videos are saved in .
Tip: You can send your video in a multimedia or mail message. To limit the video size for sending,
in video camera, before recording, tap and hold the screen, and switch Video quality to Low.
© 2013 Nokia. All rights reserved.
25
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg1a.png)
Share your photo or video
Let others admire your great shots. Send them to your friends or share them on a social networking
service.
1. Tap .
2. Tap the photo or video and .
Tip: To share your photo straight to a social networking site, tap the logo of the social network.
3. Select how to share, and follow the instructions shown on the screen.
Tip: You can also share photos or videos directly from the camera, right after taking them. Swipe
right from the centre of the screen to get to Gallery, and tap .
Not all sharing services support all file formats or videos recorded in high quality.
Using services or downloading content may cause the transfer of large amounts of data, which may
result in data costs.
Share a photo straight to a social networking site
To make your sharing even quicker, you can add a logo of your favourite social network site on the
Gallery toolbar. Tap > Sharing, and switch Instant sharing to On .
© 2013 Nokia. All rights reserved.
26
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg1b.png)
Maps & navigation
Explore what’s out there and how to get there.
Find nearby places
Explore the world around you – with Nokia Nearby, you can check for nearby places, such as
restaurants and shopping centres.
1. Tap .
2. To see a list of certain types of places, such as restaurants, tap the category. If you don't see the
category you want in the main view, to see more categories, tap More.
Tip: To see the place on a map, tap the place, and in the place details view, tap see map.
3. To search for a place, tap Search, and write the place name in the search box.
Tip: You can save a place, so you can easily find it later. Tap the place and . To see your saved
places, in the Nokia Nearby main view, tap More > .
Using services or downloading content may cause the transfer of large amounts of data, which may
result in data costs.
If the product contains maps of either of the below countries, the info corresponding to the country
in question applies: Ecuador: INSTITUTO GEOGRÁFICO MILITAR DEL ECUADOR; Authorization N°
IGM-2011-01- PCO-01 (January 25, 2011) Guatemala: Approved by INSTITUTO GEOGRÁFICO NACIONAL
– IGN Resolution No 186-2011.
This service may not be available in all countries or regions, and may be provided only in selected
languages. The service may be network dependent. For more info, contact your network service
provider.
Contents of digital maps may sometimes be inaccurate and incomplete. Never rely solely on the
content or the service for essential communications, such as in emergencies.
Note: Before sharing your location, always consider carefully with whom you are sharing. Check
the privacy settings of the social networking service you are using, as you might share your
location with a large group of people.
© 2013 Nokia. All rights reserved.
27
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg1c.png)
Internet
Learn how to create wireless connections and browse the web while keeping your data costs down.
Browse the web
Catch up on the news, and visit your favourite websites on the go.
Tip: If your network service provider doesn't charge you a fixed fee for data transfer, to save
on data costs, use a Wi-Fi network to connect to the internet.
1. Tap .
2. Write the web address in the address bar, and tap .
Tip: To search the internet, write a search word in the address bar. If asked, select your default
search engine.
Zoom in or out
Place two fingers on the screen, and slide your fingers apart or together.
Tip: To view the page in a single column of larger, readable text and pictures without having to
zoom in, swipe up from the bottom of the screen, tap More > Settings, and switch Column
view to On .
Share a web page
When browsing, swipe up from the bottom of the screen, and tap Share and how you want to share.
Tip: Follow your data usage with the Counters app.
Add a website to your favourites
If you visit the same websites all the time, add them to your favourites so you can easily access them.
1. Tap .
2. While browsing, swipe up from the bottom of the screen, and tap Add to favourites.
Go to a favourite website
Swipe up from the bottom of the screen, tap Favourites and a favourite.
© 2013 Nokia. All rights reserved.
28
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg1d.png)
Tip: You can also pin your favourite websites to the apps menu. While browsing, swipe up from
the bottom of the screen, and tap Add to apps screen.
© 2013 Nokia. All rights reserved.
29
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg1e.png)
Entertainment
Having a spare moment and in need of entertainment? Learn how to listen to the radio on your phone.
Play a song
You can use your phone's music player to listen to music and podcasts while on the move.
1. Tap .
2. Tap Songs, Artists, Playlists, or Albums.
3. Tap a song.
4. To pause or resume playing, tap or .
Skip to the previous or next song
Tap or .
Rewind or fast-forward
Drag the slider.
Play songs in a random order
Tap .
Listen to the radio
You can listen to FM radio stations using your phone – just select a station.
To listen to the radio, you need to connect a compatible headset to the device. The headset acts as
an antenna.
1. Tap .
2. To tune in to the station you want to listen to, use your finger to rotate the wheel left or right.
© 2013 Nokia. All rights reserved.
30
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg1f.png)
Office
Learn how to use the calendar to keep yourself organised.
Change the time and date
You can set your phone clock manually.
Tap > Time and date.
Change the time zone when travelling
Tap Time zone, and tap the time zone of your location. The time and date on your phone are set
according to the time zone.
Set an alarm
You can use your phone as an alarm clock.
1. Tap .
2. Tap .
3. Set the alarm time.
4. To set the alarm to go off at the same time on certain days, swipe up from the bottom of the
screen, tap Repeat, select the days, and tap Done.
5. To set a ringtone for the alarm, swipe up from the bottom of the screen, tap Alarm tone, select
the ringtone, and tap Set.
6. Tap Done.
Tip: You can set multiple alarms. After you've set an alarm, tap to set a new one.
Add a calendar entry
Need to remember an event? Add it to your calendar.
1. Tap .
2. Tap .
© 2013 Nokia. All rights reserved.
31
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg20.png)
3. Edit the event details.
4. If the event is a birthday, set Birthday to On .
5. Tap Save.
Tip: To delete an entry, tap and hold the entry, then tap Delete.
© 2013 Nokia. All rights reserved.
32
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg21.png)
Phone management & connectivity
Take care of your phone and its contents. Learn how to connect to accessories and networks, transfer
files, create backups, lock your phone, and keep the software up to date.
Share your content using Slam
Have a vacation photo you'd like to show your friend? Share things easily with Slam. Just move your
phone close to another phone and content is transferred.
1. Switch Bluetooth on in both phones.
2. Make sure both phones are visible to other phones.
3. Tap, for example, a photo, and > Slam via Bluetooth.
4. Move your phone close to the other phone.
Slam searches for the nearest phone, and sends the item to it.
Operating the device in hidden mode is a safer way to avoid malicious software. Do not accept
Bluetooth connection requests from sources you do not trust. You can also switch the Bluetooth
function off when you are not using it.
Connect to a Wi-Fi network
To help save on data costs, you can use a Wi-Fi network to connect to the internet, whether you're
at home or at a library or internet café.
1. Swipe down from the top of the screen, and tap .
2. Tap Wi-Fi and the network you want.
3. If the connection is secured, type in the password.
Connect to the previously used Wi-Fi network
Swipe down from the top of the screen, and tap .
Add a new network
Swipe down from the top of the screen, tap Wi-Fi, make sure Wi-Fi is on, tap Add new network, and
type in the required info.
© 2013 Nokia. All rights reserved.
33
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg22.png)
Close the Wi-Fi connection
Swipe down from the top of the screen, and tap .
Copy content between your phone and computer
Copy photos, videos, music, and other content created by you (and stored on the memory card)
between your phone and computer.
To copy content from the phone memory, you need to have a memory card inserted in your phone.
1. Connect your phone to a compatible computer with a compatible USB cable.
2. Tap Mass storage.
3. On your computer, open a file manager, such as Windows Explorer, and browse to your phone. You
can see the content stored on the memory card.
4. Drag and drop items between your phone and computer.
Update your phone software
Stay in step with the beat – update your phone software and apps to get new and enhanced features
for your phone.
You can only update your software when using the SIM in the SIM1 holder.
1. When your phone notifies you of an update, swipe down from the top of the screen, and tap the
update notification.
2. To download and install an update, tap Update, and follow the instructions shown on the phone.
The update may take several minutes. If you encounter problems, contact your network service
provider.
After the update, go to www.nokia.com/support to get your new user guide.
Your network service provider may send updates over the air directly to your phone. For more info
on this service, contact your network service provider.
Using services or downloading content may cause the transfer of large amounts of data, which may
result in data costs.
Before starting the update, connect a charger or make sure the device battery has enough power.
Warning: If you install a software update, you cannot use the device, even to make emergency
calls, until the installation is completed and the device is restarted.
Use your phone in flight mode
In places where you're not allowed to connect to the internet with your phone, you can still access
your music, videos, and offline games if you switch flight mode on.
© 2013 Nokia. All rights reserved.
34
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg23.png)
Flight mode closes connections to the mobile network and switches your phone's wireless features
off. Comply with the instructions and safety requirements given by, for example, an airline, and any
applicable laws and regulations. Where allowed, you can connect to a Wi-Fi network to, for example,
browse the internet or switch Bluetooth on in flight mode.
Warning: When the flight profile is activated, you cannot make or receive any calls, including
emergency calls, or use other features that require network coverage. To make a call, switch to
another profile.
1. Tap .
2. Switch Flight mode to On .
Switch flight mode off
Tap , and switch Flight mode to Off .
Access codes
Ever wondered what the different codes on your phone are for?
PIN or PIN2 code
(4-8 digits)
These protect your SIM card against
unauthorised use or are required to access some
features.
You can set your phone to ask for the PIN code
when you switch it on.
If not supplied with your card or you forget the
codes, contact your network service provider.
If you type in the code incorrectly three times in
a row, you need to unblock the code with the PUK
or PUK2 code.
PUK or PUK2 These are required to unblock a PIN or PIN2 code.
If not supplied with your SIM card, contact your
network service provider.
Security code (lock code, password) This helps you protect your phone against
unauthorised use.
You can set your phone to ask for the lock code
that you define.
Keep the code secret and in a safe place,
separate from your phone.
If you forget the code and your phone is locked,
your phone will require service. Additional
charges may apply, and all the personal data in
your phone may be deleted.
For more information, contact Nokia Care or
your phone dealer.
© 2013 Nokia. All rights reserved.
35
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg24.png)
IMEI This is used to identify valid phones in the
network. The number can also be used to block,
for example, stolen phones. You may also need
to give the number to Nokia Care services.
To view your IMEI number, dial *#06#.
© 2013 Nokia. All rights reserved.
36
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg25.png)
Product and safety information
Network services and costs
You can only use your device on the GSM 850, 900, 1800, 1900 MHz networks. You need a subscription with a service provider.
Using some features and downloading content require a network connection and may result in data costs. You may also need
to subscribe to some features.
Emergency calls
1. Make sure the device is switched on.
2. Check for adequate signal strength.
You may also need to do the following:
• Put a SIM card in the device.
• Switch the call restrictions off in your device, such as call barring, fixed dialling, or closed user group.
• Make sure the flight profile is not activated.
• If the device screen and/or keys are locked, unlock them.
3. Press the back key repeatedly, until the home screen is shown.
4. To open the dialler, select
5. Type in the official emergency number for your present location. Emergency call numbers vary by location.
6. Select .
7. Give the necessary info as accurately as possible. Do not end the call until given permission to do so.
When you switch your device on for the first time, you are asked to create your Nokia account. To make an emergency call during
the account setup, press the menu key.
Important: Activate both cellular and internet calls, if your phone supports internet calls. The phone may attempt to make
emergency calls both through cellular networks and through your internet call service provider. Connections in all
conditions cannot be guaranteed. Never rely solely on any wireless phone for essential communications like medical
emergencies.
Take care of your device
Handle your device, battery, charger and accessories with care. The following suggestions help you keep your device operational.
• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that corrode electronic
circuits. If your device gets wet, remove the battery, and let the device dry.
• Do not use or store the device in dusty or dirty areas.
• Do not store the device in high temperatures. High temperatures may damage the device or battery.
• Do not store the device in cold temperatures. When the device warms to its normal temperature, moisture can form inside
the device and damage it.
• Do not open the device other than as instructed in the user guide.
• Unauthorised modifications may damage the device and violate regulations governing radio devices.
• Do not drop, knock, or shake the device. Rough handling can break it.
• Only use a soft, clean, dry cloth to clean the surface of the device.
• Do not paint the device. Paint can prevent proper operation.
• For optimal performance, switch the device off and remove the battery from time to time.
• Keep the device away from magnets or magnetic fields.
• To keep your important data safe, store it in at least two separate places, such as your device, memory card, or computer,
or write down important info.
Recycle
© 2013 Nokia. All rights reserved.
37
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
When this device has reached the end of its working life, all of its materials can be recovered as materials and energy. For info
on how to recycle your old Nokia products and where to find collection sites, go to www.nokia-latinoamerica.com/reciclaje, or
call the Nokia Contact Center.
Recycle packaging and user guides at your local recycling scheme.
When you cooperate and deliver all these materials to one of the available collection sites, you contribute in helping the
environment and help to ensure the health of future generations.
All electrical and electronic products and batteries may contain recycleable metals and other potentially hazardous substances
and must be taken to their respective collection sites at the end of their working life. Under no circumstances should you break
open a battery or other related materials. Do not dispose of these products as unsorted municipal waste, as this may cause
contamination of the environment or risks to human health. All Nokia products are in compliance to the applicable industry
international production standards and to all requirements defined by the competent government agencies. For more info on
the environmental attributes of your device, see www.nokia.com/ecoprofile (in English).
About Digital Rights Management
When using this device, obey all laws and respect local customs, privacy and legitimate rights of others, including copyrights.
Copyright protection may prevent you from copying, modifying, or transferring photos, music, and other content.
Digital rights management (DRM) protected content comes with an associated licence that defines your rights to use the content.
With this device you can access content protected with OMA DRM 1.0. If certain DRM software fails to protect the content, content
owners may ask that such DRM software's ability to access new DRM-protected content be revoked. Revocation may also prevent
renewal of such DRM-protected content already in your device. Revocation of such DRM software does not affect the use of
content protected with other types of DRM or the use of non-DRM-protected content.
Battery and charger info
Use your device only with an original BL-4U rechargeable battery.
Charge your device with AC-11U charger. Charger plug type may vary.
Nokia may make additional battery or charger models available for this device.
Battery and charger safety
Always switch the device off and unplug the charger before removing the battery. To unplug a charger or an accessory, hold and
pull the plug, not the cord.
When your charger is not in use, unplug it. If left unused, a fully charged battery will lose its charge over time.
Always keep the battery between 15°C and 25°C (59°F and 77°F). Extreme temperatures reduce the capacity and lifetime of the
battery. A device with a hot or cold battery may not work temporarily.
Accidental short-circuiting can happen when a metallic object touches the metal strips on the battery. This may damage the
battery or the other object.
Do not dispose of batteries in a fire as they may explode. Obey local regulations. Recycle when possible. Do not dispose as
household waste.
Do not dismantle, cut, crush, bend, puncture, or otherwise damage the battery in any way. If a battery leaks, do not let liquid
touch skin or eyes. If this happens, immediately flush the affected areas with water, or seek medical help. Do not modify, attempt
to insert foreign objects into the battery, or immerse or expose it to water or other liquids. Batteries may explode if damaged.
Use the battery and charger for their intended purposes only. Improper use, or use of unapproved or incompatible batteries or
chargers may present a risk of fire, explosion, or other hazard, and may invalidate any approval or warranty. If you believe the
battery or charger is damaged, take it to a service centre before continuing to use it. Never use a damaged battery or charger.
Only use the charger indoors.
© 2013 Nokia. All rights reserved.
38
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg27.png)
Additional safety information
Small children
Your device and its accessories are not toys. They may contain small parts. Keep them out of the reach of small children.
Medical devices
Operation of radio transmitting equipment, including wireless phones, may interfere with inadequately shielded medical devices'
function. Consult a physician or the medical device's manufacturer to determine if it is adequately shielded from external radio
energy.
Implanted medical devices
To avoid potential interference, manufacturers of implanted medical devices recommend a minimum separation of 15.3
centimetres (6 inches) between a wireless device and the medical device. Persons who have such devices should:
• Always keep the wireless device more than 15.3 centimetres (6 inches) from the medical device.
• Not carry the wireless device in a breast pocket.
• Hold the wireless device to the ear opposite the medical device.
• Switch the wireless device off if there is any reason to suspect that interference is taking place.
• Follow the manufacturer directions for the implanted medical device.
If you have any questions about using your wireless device with an implanted medical device, consult your health care provider.
Accessibility solutions
Nokia is committed to making mobile phones easy to use for all individuals, including those with disabilities. For more information,
visit the Nokia website at www.nokiaaccessibility.com (in English).
Hearing
Warning: When you use the headset, your ability to hear outside sounds may be affected. Do not use the headset where
it can endanger your safety.
Some wireless devices may interfere with some hearing aids.
Nickel
The surface of this device is nickel-free.
Protect your device from harmful content
Your device may be exposed to viruses and other harmful content. Take the following precautions:
• Be cautious when opening messages. They may contain malicious software or otherwise be harmful to your device or
computer.
• Be cautious when accepting connectivity requests, browsing the internet, or downloading content. Do not accept Bluetooth
connections from sources you do not trust.
• Only install and use services and software from sources that you trust and that offer adequate security and protection.
• Install antivirus and other security software on your device and any connected computer. Only use one antivirus app at a
time. Using more may affect performance and operation of the device and/or computer.
• If you access preinstalled bookmarks and links to third party internet sites, take the appropriate precautions. Nokia does
not endorse or assume liability for such sites.
Vehicles
Radio signals may affect improperly installed or inadequately shielded electronic systems in vehicles. For more info, check with
the manufacturer of your vehicle or its equipment.
© 2013 Nokia. All rights reserved.
39
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg28.png)
Only qualified personnel should install the device in a vehicle. Faulty installation may be dangerous and invalidate your warranty.
Check regularly that all wireless device equipment in your vehicle is mounted and operating properly. Do not store or carry
flammable or explosive materials in the same compartment as the device, its parts, or accessories. Do not place your device or
accessories in the air bag deployment area.
Potentially explosive environments
Switch your device off in potentially explosive environments, such as near petrol pumps. Sparks may cause an explosion or fire
resulting in injury or death. Note restrictions in areas with fuel; chemical plants; or where blasting operations are in progress.
Areas with a potentially explosive environment may not be clearly marked. These usually are areas where you are advised to
switch your engine off, below deck on boats, chemical transfer or storage facilities, and where the air contains chemicals or
particles. Check with the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane) if this device can
be safely used in their vicinity.
Certification information (SAR)
This mobile device meets international guidelines for exposure to radio waves.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves (radio
frequency electromagnetic fields), recommended by international guidelines from the independent scientific organization
ICNIRP. These guidelines incorporate substantial safety margins assure the protection of all persons regardless of age and health.
The exposure guidelines are based on the Specific Absorption Rate (SAR), which is an expression of the amount of radio frequency
(RF) power deposited in the head or body when the device is transmitting. The ICNIRP SAR limit for mobile devices is 2.0 W/kg
averaged over 10 grams of tissue.
SAR tests are carried out with the device in standard operating positions, transmitting at its highest certified power level, in all
its frequency bands. The maximum recorded SAR values for this device are:
Maximum SAR value Frequency bands used when Maximum
SAR value was recorded
When held against the head 0.94 W/kg over 10g 4–slot GPRS900+WLAN2450
When operated at a separation distance
of 1.5 centimetres (5/8 inch) from the
body
0.71 W/kg over 10g 4–slot GPRS900+WLAN2450
Your mobile device is also designed to meet Federal Communications Commission (FCC) and Industry Canada SAR requirements.
The limit is 1.6W/kg averaged over 1 gram of tissue. The maximum SAR values are:
Maximum SAR value Frequency bands used when Maximum
SAR value was recorded
When held against the head 0.86 W/kg over 1g GSM1900+WLAN2450
When operated at a separation distance
of 1.5 centimetres (5/8 inch) from the
body
0.62 W/kg over 1g 1–slot GPRS850+WLAN2450
This device meets RF exposure guidelines when used against the head or when positioned at least 1.5 centimetres (5/8 inch)
away from the body. When a carry case, belt clip or other form of device holder is used for body-worn operation, it should not
contain metal and should provide at least the above stated separation distance from the body.
To send data or messages, a good connection to the network is needed. Sending may be delayed until such a connection is
available. Follow the separation distance instructions until the sending is finished.
During general use, the SAR values are usually well below the values stated above. This is because, for purposes of system
efficiency and to minimise interference on the network, the operating power of your mobile is automatically decreased when
full power is not needed for the call. The lower the power output, the lower the SAR value.
© 2013 Nokia. All rights reserved.
40
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg29.png)
Device models may have different versions and more than one value. Component and design changes may occur over time and
some changes could affect SAR values. The latest available SAR information for this and other Nokia device models can be found
at www.nokia.com/sar.
The World Health Organization (WHO) has stated that current scientific information does not indicate the need for any special
precautions when using mobile devices. If you are interested in reducing your exposure, they recommend you limit your usage
or use a hands-free kit to keep the device away from your head and body. For more information and explanations and discussions
on RF exposure, go to the WHO website at www.who.int/peh-emf/en.
Nokia support messages
To help you take maximum advantage of your phone and services, you receive free customised text messages from Nokia. The
messages contain tips and tricks and support.
To stop receiving the messages, select > Nokia account > Get news and offers.
To provide the service described above, your mobile phone number, the serial number of your phone, and some identifiers of
the mobile subscription are sent to Nokia when you use the phone for the first time. Some or all information may also be sent
to Nokia when updating software. This information may be used as specified in the privacy policy, available at www.nokia.com.
Nokia Care
To get warranty and technical support services (including guidance to solve common problems, please contact Nokia at
www.nokia.com/support.
If you cannot access Internet, please contact the retailer where you bought your Nokia device. There you will find guidance on
how to handle your inquiry.
Copyrights and other notices
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this RM-951 product is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at www.nokia.com/global/
declaration/declaration-of-conformity (in English).
The availability of products, features, apps and services may vary by region. For more info, contact your Nokia dealer or your
service provider. This device may contain commodities, technology or software subject to export laws and regulations from the
US and other countries. Diversion contrary to law is prohibited.
The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express
or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made
in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw
it at any time without prior notice.
To the maximum extent permitted by applicable law, under no circumstances shall Nokia or any of its licensors be responsible
for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.
Reproduction, transfer or distribution of part or all of the contents in this document in any form without the prior written
permission of Nokia is prohibited. Nokia operates a policy of continuous development. Nokia reserves the right to make changes
and improvements to any of the products described in this document without prior notice.
Reverse engineering of software in the device is prohibited to the extent permitted by applicable law. Insofar as this user guide
contains any limitations on Nokia's representations, warranties, damages and liabilities, such limitations shall likewise limit any
representations, warranties, damages and liabilities of Nokia's licensors.
Nokia does not provide a warranty for or take any responsibility for the functionality, content, or end-user support of third-party
apps provided with your device. By using an app, you acknowledge that the app is provided as is. Nokia does not make any
representations, provide a warranty, or take any responsibility for the functionality, content, or end-user support of third-party
apps provided with your device.
Downloading of maps, games, music and videos and uploading of images and videos may involve transferring large amounts of
data. Your service provider may charge for the data transmission. The availability of particular products, services and features
may vary by region. Please check with your local Nokia dealer for further details and availability of language options.
© 2013 Nokia. All rights reserved.
41
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
![](/img.php?id=2055568&img=bg2a.png)
FCC/MEXICO NOTICE
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation. Any changes or modifications not expressly approved by Nokia could void the user's authority to operate
this equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
TM & © 2013 Nokia. All rights reserved. Third party products/names may be TMs of their respective owners.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Nokia is under license.
Oracle and Java are registered trademarks of Oracle and/or its affiliates.
This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and noncommercial use in connection
with information which has been encoded in compliance with the MPEG-4 Visual Standard by a consumer engaged in a personal
and noncommercial activity and (ii) for use in connection with MPEG-4 video provided by a licensed video provider. No license is
granted or shall be implied for any other use. Additional information, including that related to promotional, internal, and
commercial uses, may be obtained from MPEG LA, LLC. See www.mpegla.com (in English).
ANATEL
Modelo 501.2 (RM-951).
This product is homologated by Anatel in accordance with the procedures set forth by Resolution No. 242/2000 and meets the
applied technical guidelines, including the Specific Absorption Rate limits for exposure to electrical, magnetic and
electromagnetic radio frequency fields, according to Resolutions No. 303/2002 and No. 533/2009.
www.anatel.gov.br
© 2013 Nokia. All rights reserved.
42
Nokia
Secret
Janna Haapala
Zhang David
19-Aug-2013
© 2013 Nokia
