INTRODUCTION

This handbook describes the operation of the Accessory Telephone system and, together

with the other books in your literature pack, provides all the information that you need to

derive maximum pleasure from owning and driving your new vehicle.

For your convenience, this handbook is divided into sections, each dealing with a different

aspect of the systems. These are listed on the Handbook Contents page and you will find

it worthwhile to take a little time to read each one. The more you understand before you

drive, the greater the satisfaction once you are seated behind the steering wheel.

The specification of each vehicle will vary according to territorial requirements and also

from model to model within the vehicle range. Some of the information published in this

handbook, therefore, may not apply to your particular vehicle.

To include changes made after the handbook is printed, it is sometimes necessary to issue

one or more handbook supplements. When reading this handbook, check the literature

pack for possible supplements.

Any further updates will be posted on the Jaguar internet site and can be accessed at

www.landrover.com in the Owner Information area.

* An asterisk appearing within the handbook text identifies features or items of

equipment that are either optional, or are only fitted to some vehicles in the model

range.

Jaguar operates a policy of constant product improvement and therefore reserves the right

to change specifications without notice at any time. Whilst every effort is made to ensure

complete accuracy of the information in this handbook, the manufacturer or the dealer

thereof can accept no liabilities for inaccuracies or the consequences, except in respect of

personal injury caused by the negligence of the manufacturer or the dealer.

system or transmitted, in any form, electronic, mechanical, photocopying, recording or

other means without prior written permission from the Service Division of Jaguar.

As part of Jaguar’s environmental policy, this publication is printed on paper

made from chlorine-free pulp.

INTRODUCTION...................................................................................................................... 2

PHONE INTRODUCTION ....................................................................................................... 5

Using The Phone In The Vehicle ........................................................................................... 5

GSM Networks................................................................................................................... 5

QUICK OVERVIEW................................................................................................................. 6

Making/Answering And Ending Calls ................................................................................... 6

Answering and ending calls ............................................................................................... 6

Making calls....................................................................................................................... 6

Bluetooth ................................................................................................................................ 6

Supported Features............................................................................................................. 6

Unsupported Features......................................................................................................... 6

‘Pairing’ Your Phone ......................................................................................................... 6

Bluetooth Access Code ...................................................................................................... 6

PHONE DOCKING CRADLE .................................................................................................. 7

Attaching Your Phone........................................................................................................ 7

Removing Your Phone....................................................................................................... 8

Attaching Your Cradle ....................................................................................................... 9

Removing Your Cradle ...................................................................................................... 9

BASIC FUNCTIONS............................................................................................................... 10

Selecting Phone Mode.......................................................................................................... 10

Answering/Rejecting Calls................................................................................................... 10

Answer incoming call....................................................................................................... 10

Reject incoming call......................................................................................................... 10

End call............................................................................................................................. 10

BLUETOOTH OPERATION .................................................................................................. 11

Bluetooth Access Code ........................................................................................................ 11

‘Pairing’ Your Phone To The Vehicle ................................................................................. 11

TELEPHONE VOICE RECOGNITION ................................................................................. 12

Making Yourself Clearly Understood.................................................................................. 12

Defined Voice Commands ................................................................................................... 13

Telephone Commands.......................................................................................................... 13

Telephone Sub-Commands .................................................................................................. 13

Activating The System......................................................................................................... 13

Interrupting Voice Control................................................................................................... 13

General Commands.............................................................................................................. 14

Activating the user help function ..................................................................................... 14

Starting a dialogue............................................................................................................ 15

Saying numbers................................................................................................................ 15

Establishing a connection................................................................................................. 15

Dialling a phone number.................................................................................................. 15

Correcting inputs.............................................................................................................. 16

Deleting inputs ................................................................................................................. 16

Cancelling voice session .................................................................................................. 16

Correcting/Deleting inputs ............................................................................................... 16

Redialling ......................................................................................................................... 16

Storing A Telephone Name/Number................................................................................ 17

Dialling a telephone number in phone directory.............................................................. 18

Dialling from the phone book .......................................................................................... 19

Deleting/Clearing the entire phone directory................................................................... 20

CONFORMITY ....................................................................................................................... 21

Declaration of Conformity ................................................................................................... 21

4 5

7 8 9

Manual Auto TV

Radio TV CD AUX

Touch image for full screen

Ch 52

PHONE INTRODUCTION

Using The Phone In The Vehicle

IMPORTANT

Use of your phone handset while you are driving

is dangerous as it diverts attention from the traffic

situation. In some countries, use of a phone

handset whilst driving is prohibited and in other

countries a hands-free unit must be used. If you

wish to use your phone handset, stop at an

appropriate place where you are not endangering

or inconveniencing other vehicles.

WARNING

Using the telephone near the car:

Do not telephone inside a garage or near an

open car bonnet. The air may contain fuel

vapours and the telephone could produce

sparks and start a fire.

WARNING

Unusual ambient conditions:

Switch off the telephone in areas where high

explosives are being used. High frequency

remote controls could be interfered with and

cause an explosion.

Switch off your telephone in areas with a high

explosion risk. This includes filling stations,

fuel storage areas or chemical factories as

well as places where the air contains fuel

vapour, chemicals or metal dust. The

telephone might possibly produce sparks and

cause a fire or explosion.

WARNING

Medical equipment:

The functioning of cardiac pacemakers or

hearing aids may be impaired when the phone

is in use. Check with a doctor or manufacturer

whether any such devices you or your

passengers are using are sufficiently

protected against high-frequency energy.

Note: The Accessory phone system is designed

to function with a wide variety of docked and

Bluetooth portable phones. As these phones

have a wide range of audio and echo

performance characteristics. It may take a few

seconds for the vehicle system to adapt and

deliver optimal audio performance. In some

cases, it may be necessary to reduce the in-

vehicle volume slightly to fully optimise audio

performance and echo elimination.

GSM Networks

The GSM (Global System for Mobile

communication) standard allows you to use your

phone in many countries and has a uniform

emergency call number (112) irrespective of the

country in which you are driving.

It is possible that telephone reception may be

poor or unavailable in remote regions. This will

usually be due to the inadequate power of the

transmitter and, therefore, to incomplete

coverage. Depending on your location, you may

also be using the transmitters of a network

operator with which your service provider has an

agreement for handling your calls.

QUICK OVERVIEW

Making/Answering And Ending Calls

The preferred method of making, answering or

ending a call, is by using the steering wheel

controls. This method is preferable, as both hands

can be kept on the steering wheel.

The following processes apply after your phone is

connected to the system.

Answering and ending calls

1. To answer an incoming call, press the Voice

recognition button.

2. Press Voice recognition button for greater that 2

seconds to end or reject a call.

Making calls

1. To make a call, press the Telephone/Voice

recognition button and follow commands.

Bluetooth

Supported Features

•Make a call

•Receive a call

•Reject incoming call

•End active call

•Last number redial

Unsupported Features

•SMS (send and receive texts

•Call Stacking - e.g. SMS’s, last called number, call

waiting.

•Phone book

•Last number redial

•Hold/Unhold active call

‘Pairing’ Your Phone

If your mobile phone supports this wireless feature,

it will need to be ‘Paired’ to the vehicle. See

BLUETOOTH OPERATION for further details. The

‘Pairing’ process will also be described in your

mobile phone instructions.

Note: A maximum of 4 mobile phones can be

‘Paired’ to the vehicle.

Note: If more than one ‘Paired’ Bluetooth phone is

in range, then the system will automatically select

the last phone used in Bluetooth mode. (If present).

Note: The last method of connection (Bluetooth or

cradle) to the system will take priority.

Bluetooth Access Code

The four-digit access code required for Bluetooth

‘Pairing’ operation is 0000.

1 2 3

7 8 9

0 C

Quick Overview

PHONE DOCKING CRADLE

Phone Docking Cradle

Attaching Your Phone

1. Lift the top of the cubby box.

2. Insert the base of your phone into the

docking cradle.

3. Push down on the upper part of your

phone, until a ‘click’ is heard from the

cradle.

Note: Your mobile phone will be charged

while ‘Docked’ in the cradle. Dependent

upon phone make/model, charging can

continue for up to 10 minutes after the

ignition has been turned off.

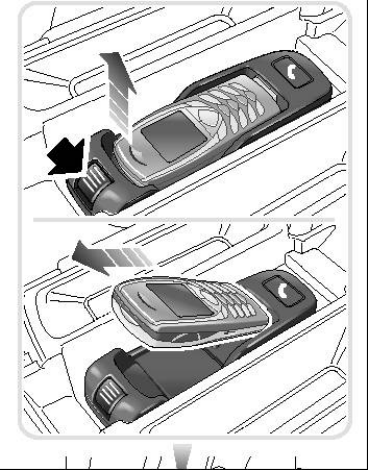

Removing Your Phone

1. Press down the release button at the

front of the docking cradle and lift the

upper part of your phone.

2. Pull your phone forwards to remove

from the cradle.

3. Lower the top of the cubby box.

PHONE CRADLE DOCKING

Attaching Your Cradle

1. Lift the top of the cubby box.

2. Align the connector of the base Plate

and the Cradle.

3. Push down on the cradle over the

connector, until a ‘click’ is heard from the

cradle.

Removing Your Cradle

1. Removes 2 fixings

2. Remove cover

1. Lift top cubby box

3. Press down the release button.

2. Pull your Cradle upwards to remove

from the Base Plate.

3 Re-fit cover.

BASIC FUNCTIONS

Basic Functions

Selecting Phone Mode

Once your phone is docked in the cradle, you can

select the phone system to recognize the cradle by

pressing the ‘Voice recognition button’ until and

audible response is heard.

Receiving Calls

Answering/Rejecting Calls

Answer incoming call

1. When a call is received the audio will mute and

the call can be answered by pressing the Voice

recognition button.

Reject incoming call

1. The call can be rejected, by pressing the Voice

recognition button for greater than 2 seconds.

4 5 6

7 8 9

0 C

End call

1. The call can be ended, by pressing the Voice

recognition button for greater than 2 seconds.

4 5 6

7 8 9

0 C

BLUETOOTH OPERATION

Bluet ooth O peration

Bluetooth Access Code

The four-digit access code required for Bluetooth

‘Pairing’ operation is 0000.

‘Pairing’ Your Phone To The Vehicle

If your mobile phone supports this wireless feature,

it will need to be ‘Paired’ to the vehicle. The

‘Pairing’ process will also be described in your

mobile phone instructions.

1. With the vehicle ignition on, select the ‘Bluetooth’

feature on your mobile phone.

2. Start the ‘Search’ function on your mobile phone.

Note: This search process may vary from one

handset/manufacturer to another. (Consult your

mobile phone instructions for further details).

Note: Typically, when searching for other wireless

devices the search range is 10 metres or less.

3. The text ‘Ford Audio’ will appear on your mobile

phone device list. This should be selected.

Note: ‘Ford Audio’, can be personalized by the

user, (e.g. The vehicle registration number).

4. Your mobile phone display will now prompt you

for the Bluetooth access code. Press the numeric

keys 0000 on your phone.

5. When the code is accepted, the system will allow

you to use the ‘Bluetooth’ mode. The

Note: A maximum of 5 mobile phones can be

‘Paired’ to the vehicle.

Note: If more than one ‘Paired’ Bluetooth phone is

in range, then the system will automatically select

the last phone used in Bluetooth mode. (If present).

Note: The last method of connection (Bluetooth or

cradle) to the system will take priority.

1 2 3

TELEPHONE VOICE RECOGNITION

Telephone Voice Recognition

IMPORTANT

Voice control enables you to activate important

functions of your telephone system, without the

need to operate the controls manually. This

enables you to concentrate fully on driving the

vehicle, you do not need to divert your eyes from

the road ahead in order to check read-outs, and the

voice control system feeds back information to you.

A number of voice commands are available and,

with a little experience, you will find them easy and

convenient to use. Whenever you issue one of the

defined commands with the system active, the

voice control system converts your command into a

control signal for the telephone system. Your inputs

take the form of dialogues or commands. You are

guided through these dialogues by announcements

or questions. Please familiarise yourself with the

functions of your telephone system, before using

voice control.

WARNING

Do not use the voice control for placing

emergency calls. Your voice and tone could be

affected by stressful situations as a result of

which, the process of establishing the

telephone connection could be unnecessarily

delayed

Making Yourself Clearly Understood

The voice control system includes a special hands-

free microphone mounted in the roof lining of your

vehicle, at the front. This microphone filters out

ambient noise. There are nevertheless a few points

to observe in making sure you are properly

understood:

•Speak continuously and at normal volume,

avoiding unnatural emphasis and pauses between

words.

•Do not speak while the voice control system itself

is giving an output. The voice system gives a beep

when it is waiting for a speech input.

•It is possible that noise interference from outside

the vehicle could affect commands so to avoid this

keep doors, windows and the sunroof closed.

•If a command is not understood or your speech

was not heard, the voice system responds with

‘Sorry’, ‘Command not recognised’ or ‘No

speech detected’. Please try again if this happens.

•Avoid causing background noise in the vehicle

while you are speaking and ask your passengers

not to talk while you are issuing voice commands.

•The hands-free microphone is positioned to pick

up the driver’s voice. Other occupants of the

vehicle could be understood with less accuracy and

are, therefore, advised to use the handset when

making a telephone call.

Note: The voice recognition directory is separate

from your phone handset SIM card/

addressbook/phonebook.

TELEPHONE VOICE RECOGNITION

Defined Voice Commands

The voice control system understands predefined

commands, which need to be given exactly word

for word.

You can prompt the system to speak a selection of

these commands by activating the system and

giving the command ‘Phone help’ or ‘Telephone

help’.

Note: For each command below, the term ‘Phone’

or ‘Telephone’ are equally acceptable. These

commands are as follows:

Telephone Commands

•Phone dial number/Dial phone number

•Phone redial/Redial

•Phone dial name/Dial name

•Phone store name

•Phone play directory/Read phone book

•Phone delete directory/Delete phone book

•Phone delete name/Delete phone name

•Phone help

Telephone Sub-Commands

These commands are used in response to a

prompt or question within a dialogue.

•Correction

•Delete

•Cancel

•Store

•Dial

•Yes

•No

•Repeat

•Numbers 0-9

•Double

•Treble/Triple

Activating The System

To switch on voice control, press Voice

recognition switch (arrowed) in the multi-

functional steering wheel:

•Hold the key pressed in (until the acoustic signal is

heard) to activate voice control. (Your Audio will

mute at this point). A brief acoustic signal is heard

indicating that the system is now waiting for a

spoken input.

Before giving a new voice command – except

during a dialogue - always press the steering wheel

voice control key.

Interrupting Voice Control

A command can be interrupted by speaking the

word ‘Cancel’ or by pressing the steering wheel

voice control key until the system un-mutes the

radio. It is only possible to interrupt dialogues, in

which it is possible to speak a text of your choice

e.g. name, by pressing the steering wheel key.

If you receive a telephone call while conducting a

dialogue by voice control, the telephone mode

automatically cuts in.

TELEPHONE VOICE RECOGNITION

General Commands

Note: The voice control commands you should

give are shown inside double pointed brackets

>>...<< and the responses by the voice recognition

system in single pointed brackets >...<.

Activating the user help function

The command

>>Phone help<<

Calls up a list of telephone commands in spoken

form.

Command not recognised

If a command is not recognised by the speech

recognition system, it responds with

>Sorry<.

Please say your command again.

Activating the user help function

You say Voice output

Phone help (Reads out the telephone commands)

TELEPHONE VOICE RECOGNITION

Starting a dialogue

Hold the voice control key in the multi-functional

steering wheel pressed in until the acoustic signal

is heard. Any audio sources in the vehicle are

muted.

The commands

>>Dial telephone number<<

>>Phone dial number<<

Starts the dialogue for entering a telephone

number. You are guided through this process by a

predefined dialogue.

Saying numbers

The system understands single digits from zero

to nine. You use

>>Zero<<

not

>>Oh<<.

Numbers such as ten, eleven, twelve etc. are not

recognised.

To speed up input it is a good idea to group

together between three and five digits into a

continuous string. However, you can also say each

digit individually, or all digits continuously.

Note: Telephone numbers of up to 20 digits are

acknowledged. If a longer number is given, the

following error message will be issued:

>Number too long<.

Establishing a connection

The command

>>Dial<<

Terminates input of the digits and a connection is

established with the telephone number displayed.

Note: To make a foreign phone call say

>>Plus<< followed by the country code.

Dialling a phone number

You say Voice output

Phone dial number Phone dial number

Number please

Zero, one, six, one Zero, one, six, one, continue?

Four, nine, six Four, nine, six, continue?

Zero, nine, nine, eight Zero, nine, nine, eight, continue?

Dial Dialling

TELEPHONE VOICE RECOGNITION

Correcting/Deleting & Cancelling inputs

When you are entering digits into the system, it will

repeat back the numbers given, then asks you to

continue. You may continue entering digits to

complete your number or if you have made a

mistake or if the voice control has misunderstood,

you may say:

>>Correction<<, >>Delete<< or >>Cancel<<.

Correcting inputs

>>Correction<<

To delete the last block of digits after the command

>>Correction<<,

The system repeats the digits that were entered

correctly up to that point.

Deleting inputs

>>Delete<<

Deletes all digits entered.

It is then necessary to enter the digits again from

the very beginning

Cancelling voice session

>>Cancel<<

Terminates voice session.

Correcting/Deleting inputs

You say Voice output

Phone dial number Phone dial number,

Number please

Zero, one, six, one Zero, one, six, one, continue?

Four, nine, six Four, nine, six, continue?

Correction Zero, one, six, one, continue?

Four, nine, five Four, nine, five, continue?

Delete Number please

Redialling

The command

>>Phone redial<< or >>Redial<<

dials the telephone number last used.

Redialling the last number used

You say Voice output

Phone redial Phone redial,

Confirm Yes or No

Yes Dialling

TELEPHONE VOICE RECOGNITION

Storing A Telephone Name/Number

Telephone numbers, which you dial frequently, can

be stored in the Voice Recognition phone directory

in conjunction with the contact’s name.

Storing via voice command

The command

>>Phone store name<<

Calls up the dialogue for storing a name. The

name is entered first, then the number. The

same rules for saying numbers apply as for the

>>Phone dial number<< command.

If possible, keep names acoustically distinct

from one another, for example, “Andrew

Royd” and “David Royle” instead of “Mr

Royd” and “Mr Royle”. This will improve

recognition when you make a call.

Depending on the spoken length of the names

and numbers you have entered, it is possible

to store approximately 20 entries.

Storing via voice command

You say Voice output

Phone store

name Phone store name

Name please

Andrew Royd Andrew Royd

Storing Name

Number Please

Zero, one, six,

one Zero, one, six, one,

continue?

Four, nine, six Four, nine, six, continue?

Zero, nine, nine,

eight Zero, nine, nine, eight,

continue?

Store Number Stored

TELEPHONE VOICE RECOGNITION

USING THE VOICE RECOGNITION PHONE

Microsoft RX-1C Bluetooth Car Kit User Manual Manual

Microsoft Mobile Oy Bluetooth Car Kit Manual

Manual

Navigation menu

Namespaces

Views

Navigation
