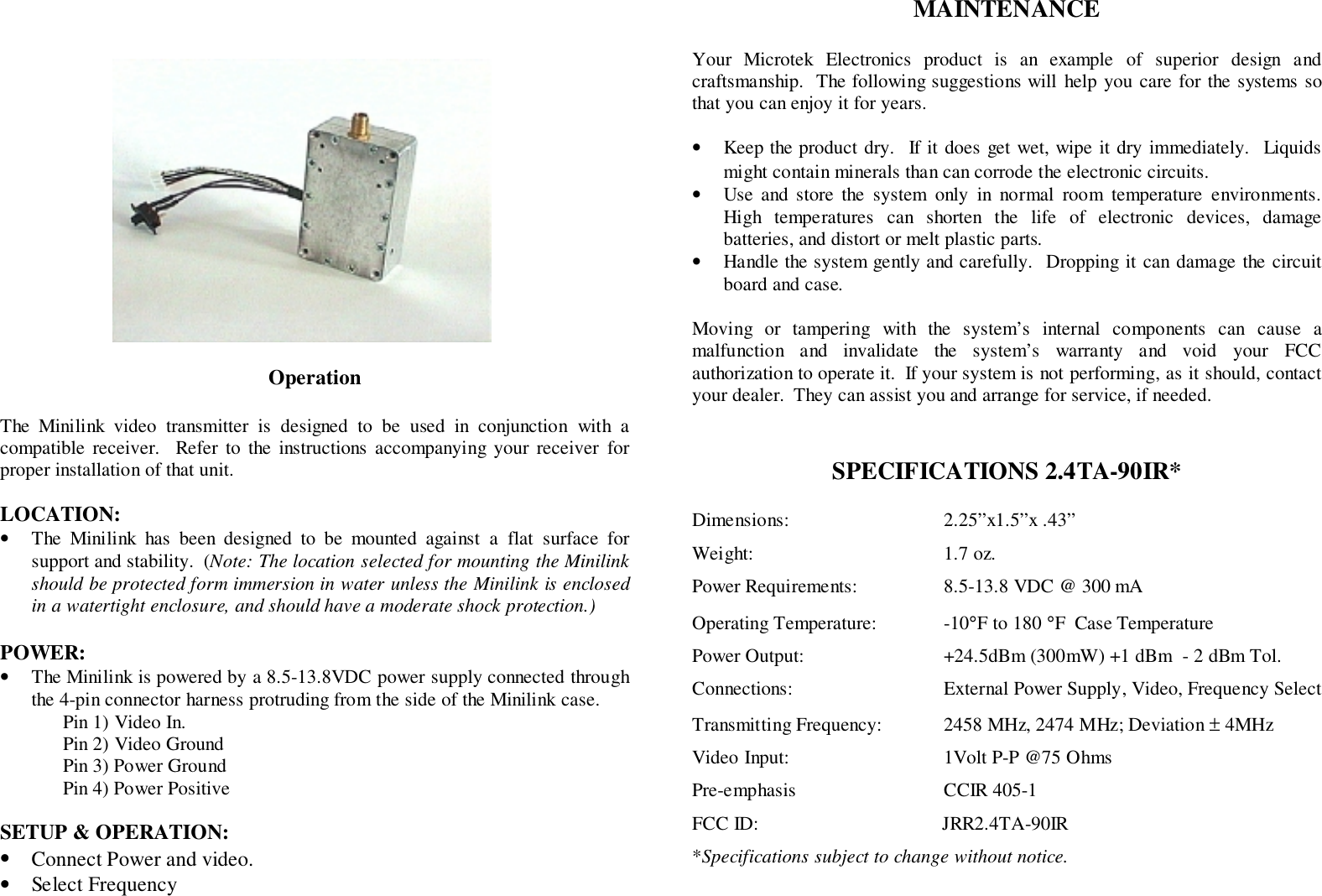

OperationThe Minilink video transmitter is designed to be used in conjunction with acompatible receiver. Refer to the instructions accompanying your receiver forproper installation of that unit.LOCATION:• The Minilink has been designed to be mounted against a flat surface forsupport and stability. (Note: The location selected for mounting the Minilinkshould be protected form immersion in water unless the Minilink is enclosedin a watertight enclosure, and should have a moderate shock protection.)POWER:• The Minilink is powered by a 8.5-13.8VDC power supply connected throughthe 4-pin connector harness protruding from the side of the Minilink case.Pin 1) Video In.Pin 2) Video GroundPin 3) Power GroundPin 4) Power PositiveSETUP & OPERATION:• Connect Power and video.• Select FrequencyMAINTENANCEYour Microtek Electronics product is an example of superior design andcraftsmanship. The following suggestions will help you care for the systems sothat you can enjoy it for years.• Keep the product dry. If it does get wet, wipe it dry immediately. Liquidsmight contain minerals than can corrode the electronic circuits.• Use and store the system only in normal room temperature environments.High temperatures can shorten the life of electronic devices, damagebatteries, and distort or melt plastic parts.• Handle the system gently and carefully. Dropping it can damage the circuitboard and case.Moving or tampering with the system’s internal components can cause amalfunction and invalidate the system’s warranty and void your FCCauthorization to operate it. If your system is not performing, as it should, contactyour dealer. They can assist you and arrange for service, if needed.SPECIFICATIONS 2.4TA-90IR*Dimensions: 2.25”x1.5”x .43”Weight: 1.7 oz.Power Requirements: 8.5-13.8 VDC @ 300 mAOperating Temperature: -10°F to 180 °F Case TemperaturePower Output: +24.5dBm (300mW) +1 dBm - 2 dBm Tol.Connections: External Power Supply, Video, Frequency SelectTransmitting Frequency: 2458 MHz, 2474 MHz; Deviation ± 4MHzVideo Input: 1Volt P-P @75 OhmsPre-emphasis CCIR 405-1FCC ID: JRR2.4TA-90IR*Specifications subject to change without notice.
