Midea Kitchen Appliances AM134AYY Microwave Oven User Manual VG8AM134AYY User manual
Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd Microwave Oven VG8AM134AYY User manual
VG8AM134AYY_User(manual)
SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
INSTRUCTION MANUAL
MODEL:AM134A3M
Microwave Oven
AM134A3N
120V~ 60Hz
1500W
1100W
1. Cu.ft.
Specifications
AM134A3M/AM134A3N
Handling the cord on this press or cords associated
with accessories sold with this product, will expose you
to lead a chemical known to the state of California to
cause cancer, and birth defects or other reproductive
harm. Wash hands after handle.
PRECAUTIONS TO AVOID POSSIBLE
TO EXCESSIVE MICROWAVE
(a) Do not attempt to operate this oven with the door open since this can result in
harmful exposure to microwave energy. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that
the oven door closes properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACE
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions :
Net Weight:
Warning:
1 inch
20.4X17.2X12.4 inch
Approx. 35.3 Lbs
If the apparatus is not maintained in a good state of cleanliness, its surface could
be degraded and affect the lifespan of the apparatus and lead to a dangerous
situation.
ADDENDUM
2.4
EXPOSURE
ENERGY
2
2
SAFETY
1. The oven must be on a leveled surface.
2. The turntable and turntable roller rest must be in the oven during cooking. Place the
cookware gently on the turntable and handle it carefully to avoid possible breakage.
3. Incorrect use of browning dish may cause the turntable to break.
4. Use only the specified bag size when using Direct Access Popcorn.
5. The oven has several built-in safety switches to ensure that the power remains off when
the door is open. Do not tamper with these switches.
6. Do not operate the microwave oven empty. Operating the oven with no food or food that
is extremely low in moisture can cause fire, charring or sparking.
7. Do not cook bacon directly on the turntable. Excessive local heating of the turntable
may cause the turntable to break.
8. Do not heat baby bottles or baby food in the microwave oven. Uneven heating
may occur and could cause physical injury.
9. Do not heat narrow-necked containers, such as syrup bottles.
10. Do not attempt to deep-fry in your microwave oven.
1
1. Do not attempt home canning in this microwave oven, as it is impossible to be sure all
contents of the jar have reached boiling temperature.
12. Do not use this microwave oven for commercial purpose. This microwave oven is made
for household use only.
13. To prevent delayed eruptive boiling of hot liquids and beverages or scalding yourself,
stir liquid before placing the container in the oven and again halfway through cooking
time. Let stand in the oven for a short time and stir again before removing the container.
14. Use carefully when cooking food in the microwave oven to avoid burning due to
excessive cooking.
15. When the appliance is operated in the combination mode, children should only use the
oven under adult supervision due to the temperatures generated.
16. Failure to maintain the oven in a clean condition could lead to deterioration that could
adversely affect the life of the appliance and possibly result in a hazardous situation.
3
IMPORTANT SAFETY INSTRUCTIONS
WARNING
1. Read all instructions before using the
appliance.
2. Read and follow the specific: "PRECAU-
TIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY"
on page 2.
3. As with most cooking appliances, close
supervision is necessary to reduce the risk
of a fire in the oven cavity.
If materials inside the oven ignite:
1. Keep the oven door closed.
2. Turn the oven off, and unplug the
appliance.
3. Disconnect the power cord, shut off
power at the fuse or circuit breaker panel.
4. Do not overcook food. Carefully attend
the appliance when paper, plastic, or
other combustible materials are placed
inside the oven to facilitate cooking.
5. Do not use the oven cavity for storage
purposes. Do not store combustible
items such as bread, cookies, paper
products, etc. inside the oven.
6. Remove wire twist-ties and metal
handles from paper or plastic
containers/bags before placing them in
the oven.
7. This oven must be grounded. Connect
only to properly grounded outlet. See
"GROUNDING INSTRUCTIONS" on
page 5.
8. Install or locate this oven only in
accordance with the installation
instructions provided.
9. Some products such as whole eggs,
water with oil or fat, sealed to explode
and therefore should not be heated in
this oven.
To reduce the risk of fire, electric shock, injury to persons
or exposure to excessive microwave oven energy when
using your appliance, follow basic precautions, including
the following:
10. Use this appliance only for its intended
uses as described in this manual. Do
not use corrosive chemicals or vapors
in this appliance. This oven is
specifically designed to heat or cook
food. It is not designed for industrial or
laboratory use.
11. As with any appliance, close
supervision is necessary when used
by children.
12. Do not operate this oven if it has a
damaged cord or plug, if it is not
working properly or if it has been
damaged or dropped.
13. This appliance should be serviced only
by qualified service technicians.
Contact the nearest authorized service
facility for examination, repair or
adjustment.
14. Do not cover or block any vents on the
oven.
15. Do not store or use this appliance
outdoors.
16. Do not use this oven near water, for
example, near a kitchen sink, in a wet
basement, near a swimming pool, or
similar locations.
17. Do not immerse cord or plug in water.
18. Keep cord away from heated surfaces.
19. Do not let cord hang over edge of
table or counter.
20. When cleaning door and oven
surfaces use only mild, nonabrasive
soaps or detergents applied with a
sponge or soft cloth.
4
i) Do not overheat the liquid.
ii) Stir the liquid both before and halfway through heating it.
iii) Do not use straight-sided containers with narrow necks.
iv) After heating, allow the container to stand in the microwave oven for a short time
before removing the container.
v) Use extreme care when inserting a spoon or other utensil into the container.
WARNING
DANGER
21. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point
without appearing to be boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present. THIS COULD RESULT IN
VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS
DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.
This appliance must be grounded. In the
event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing an escape wire for the
electric current. This appliance is equipped
with a cord having grounding wire with
a grounding plug. The plug must be
Consult a qualified electrician or serviceman if the
grounding instructions are not completely understood
or if doubt exists as to whether the appliance is
properly grounded. If it is necessary to use an
extension cord, use only a 3-wire extension cord that
has a 3-pronged grounding plug, and a 3-slot
receptacle that will accept the plug on the appliance.
1. A short power-supply cord is provided to reduce the
risks resulting from becoming entangled in or
tripping over a longer cord.
2. Longer cord sets or extension cord is provided to
reduce the risks resulting from becoming entangled
in or tripping over a longer cord.
3. If a long cord sets or extension cord is used:
1) The marked electrical rating of the cord set or
extension marked electrical rating of the cord set or
extension cord should be at least as great as the
electrical rating of the appliance.
2) The extension cord must be a grounding-type
3-wire cord.
3) The longer cord should be arranged so that it will
not drape over the countertop or tabletop where it
can be pulled on by children or tripped over
unintentionally.
Electric Shock Hazard
Touching some of the internal
components can cause serious
personal injury or death. Do not
disassemble this appliance.
Electric Shock Hazard
Improper use of the grounding
can result in electric shock. Do
not plug into an outlet until
appliance is properly installed
and grounded.
To Reduce the Risk of Injury to Persons
GROUNDING INSTALLATION
SAVE THESE INSTRUCTIONS
plugged into an outlet that is properly installed
and grounded.
(grounding) plug
Three-pronged
The marked rating of the extension cord shall be
equal to or greater than the electrical rating of the
appliance.
5
CAUTION
Personal Injury Hazard
Tightly-closed utensils
could explode. Closed
containers should be opened
and plastic pouches should be
pierced before cooking.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
UTENSILS See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
6

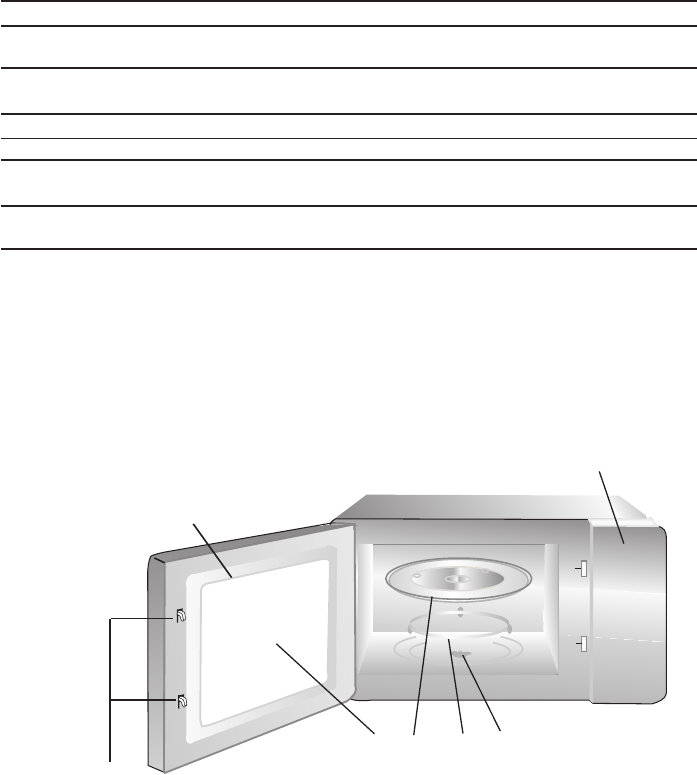

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
F
G
A
C B
ED
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
7

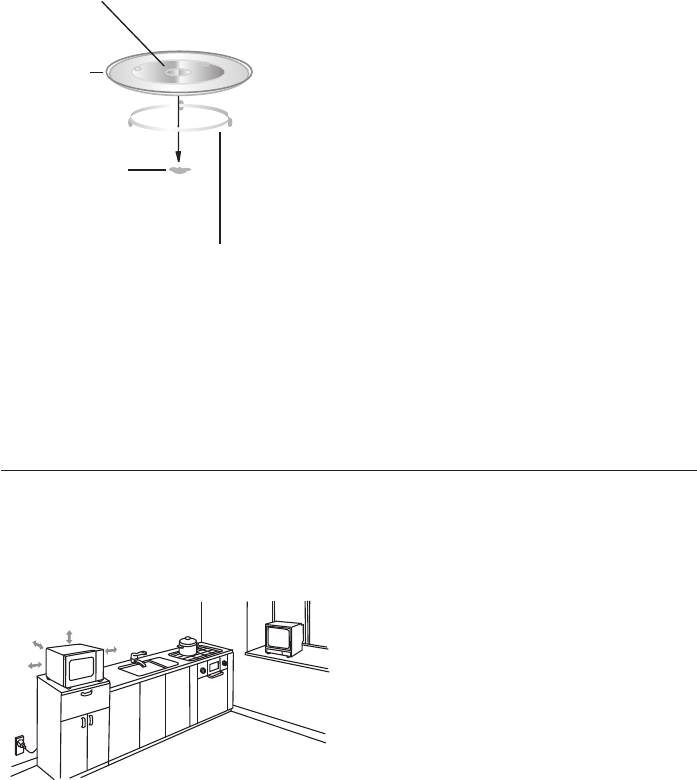

Installation
A minimum clearance of 3.0 inches
(7.5cm) is required between the oven and
any adjacent walls. One side must be open.
(1) Leave a minimum clearance of 12
inches (30cm) above the oven.
(2) Do not remove the legs from the
bottom of the oven.
(3) Blocking the intake and/or outlet openings
can damage the oven.
(4) Place the oven as far away from
radios and TV as possible.
Operation of microwave oven may
cause interference to your radio or TV
reception.
2. Plug your oven into a standard household
outlet. Be sure the voltage and the
frequency is the same as the voltage
and the frequency on the rating label.
WARNING: Do not install oven over a
range cooktop or other heat-producing
appliance. If installed near or over a heat
source, the oven could be damaged and
the warranty would be void.
3.0 inch(7.5cm)
3.0 inch(7.5cm)
12 inch(30cm)
OPEN
Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop Installation
Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the
glass tray
upside down. The glass
tray should never be restricted.
b. Both
glass tray
and
turntable ring assembly
must
always be used during cooking.
c. All food and containers of food are always placed
on the
glass tray
for cooking.
d. If
glass tray
or
turntable ring assembly
cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
1. Select a level surface that provide
enough open space for the intake
and/or outlet vents.
8
Operation Instructions
Press " ", the minute figures will flash.
1) Press " ", "ON" will display. "press start to confirm", "SET CLOCK" will
" to finish clock setting. ":" will flash. "press start to confirm" and
SET CLOCK
light on the display.
2) Press " "
START/INSTANT +30
entering clock setting.
) Turn " " to adjust the hour figures, the input time should be within -- .3 0 23
4) SET CLOCK
) Turn " " to adjust the figures,
5 minute the input time should be within 0--59.
6) Press "
SET CLOCK
""SET will go out. "CLOCK" and current time will light.
Note: 1) If the clock is not set, the time will not count down when powered.
2) After setting the clock, if " " is not pressed, or there is no
will go back to the previous status automatically.
SET CLOCK
operation in 1 minute, the oven
Kitchen Timer ", LED will display 0:00
) Press " ", the clock starts a second increment. The maximum
and "TIMER".
2
START/INSTANT +30
cooking time is 95:00. When it reaches the maximum cooking time, buzzer will sound
three times nd "End" displays., a
A. 1) Press "
Kitchen Timer ", LED will display 0:00 and "TIMER".. 1) Press " B
) Turn " " to
2 setting the timer time, the maximum cooking time is 95:00.
START/INSTANT +30
3) Press " ", the clock starts to count down.
4) When the he buzzer will ring 5 times.countdown finished, t
1. Clock Setting
2. Kitchen Timer
Ten power levels are available.
Power 100% 90% 80% 70% 60% 50% 40% 30% 20% 10%
P100 P 90 P 80 P 70 P 60 P 50 P 40 P 30 P 20 P 10
Display
. Power Level3
9
4. "REHEAT" Function
A. Press " " once:
REHEAT
1) Press " " once, "POWER% 70", "0:30", "TIME", "SEC", "REHEAT" and
REHEAT
will light.
) Turn " " to adjust the
2 power level,"POWER% 100, 90, 80.....10" will
display in order.
) Press " "
START/INSTANT +30
3 to confirm.
) Turn " " to
set the cooking time, "TIME", "0:30" and "SEC" will4
) Press " "
START/INSTANT +30
to 5 start cooking.
display. The input time should be within 0:05-95:00.
. Press " " ce:
REHEAT
B twi
Press " " ce
REHEAT twi1) , "100g", "REHEAT", "AUTO TIME", "0:30", "SEC" and
will display. "INPUT QUANTITY" will flash 3 times and then light.
) Turn " " to adjust the
2 weight, "100g, 200g...500g", "1.0kg...3.0kg" will
display in order.
) Press " "
START/INSTANT +30
to start cooking.3
Press " "
REHEAT
C. three times:
Press " "
REHEAT
1) three times, "REHEAT", "AUTO TIME", "SensorIQ cover but don't
seal food" and "LOW-MED-" will light. "press start" will flash .
) Press " "
START/INSTANT +30
to start cooking.
3 times and then light
2
Press" "
REHEAT times:D. four
Press " " ce
REHEAT twi1) , "1 CUPS", "REHEAT", "AUTO TIME", "0:30", "SEC" and
"LOW-MED-HIGH" will display. "INPUT QUANTITY" and "select food type" will flash
light.
) Turn " " to adjust the
2 weight, "100g, 200g...500g", "1.0kg" will display
in order.
) Turn " " to
3 choose different types of food.
) Press " "
START/INSTANT +30
to start cooking.4
"LOW-MED-HIGH"
"LOW-MED-HIGH"
3 times and then
10
5. "C " FunctionOOK
A. Press " " once:
COOK
1) Press " " once, "POWER% 100", "0:30", "TIME", "SEC" and "LOW-MED-
) Turn " " to adjust the
2 power level,"POWER% 100, 90, 80.....10" will
display in order.
COOK
) Turn " " to
set the cooking time, "TIME", "0:30" and "SEC" will
) Press " "
START/INSTANT +30
to start cooking.
display. The input time should be within 0:05-95:00.
3
4
. Press " " ce:B twi
1) Press " " twice, "SensorIQ cover but don't seal food", "COOK" and "LOW-
"select food type" and "press start" will flash 3 times and then
light. "POTATOES",
) Press " "
START/INSTANT +30
to start cooking.3
Press " " C. three times:
1) Press " " three times, "300g", "REHEAT", "AUTO TIME", "0:30", "SEC" and
"LOW-MED-HIGH" will light. "INPUT QUANTITY" and "select food type" will flash
3 times and then light.
) Press " "
START/INSTANT +30
to start cooking.
) Turn " " to
3 choose different types of food.
COOK
COOK
"SOFT VEG", "HARD VEG", FROZEN VEG", "FROZEN PIZZA",
"FROZEN MEAT",
"CHICKEN", "MEAT", "FISH" will light.
) Turn " " to
choose different types of food.2
COOK
COOK
) Turn " " to adjust the
2 weight, "100g, 200g...500g", "1.0kg" will display in order.
4
Function
A. Press " " once:
1) Press " " once, "POWER% 30", "0:30", "TIME", "SEC" and "LOW"
) Turn " " to adjust the
2 power level,"POWER% 100, 90, 80.....10" will
display in order.
) Turn " " to
set the cooking time, "TIME", "0:30" and "SEC" will
)
Press
"
"
START/INSTANT +30
to start defrosting.
display. The input time should be within 0:05-95:00.
3
4
Defrost
DEFROST
DEFROST
will light. "don't cover food" will flash 3 times and then light.
6.
HIGH" will light.
MED-HIGH" will light.
11
1) Press " ", "SensorIQ cover but don't seal food", "REHEAT", "LOW-
2) Press " ",
. Press " ce:B twi
1) Press " " twice, "don't cover food", "100g", "REHEAT", "LOW-MED-HIGH",
) Press " "
START/INSTANT +30
to start .3
"
DEFROST
DEFROST
"AUTO TIME", "0:30" and "SEC" will light. "INPUT QUANTITY" and "select food type
will flash 3 times and then light.
) Turn " " to adjust the
2 weight, "100g, 200g, 500g", "1.0kg...3.0kg" will
in order.display
defrosting
. Favourite Function
A. Sensor Favourite
REHEAT
MED-" will display. "AUTO TIME" and "Close door press start" will flash 3
times and then light. Press " "
START/INSTANT +30
to start cooking.
Cook Potatoes "SensorIQ cover but don't seal food", "COOK", "LOW-
MED-HIGH" will display. "AUTO TIME" and "Close door press start" will flash
3 times and then light. Press " "
START/INSTANT +30
to start cooking.
", "SensorIQ cover but don't seal food", "REHEAT",
"LOW-MED-" will display. "AUTO TIME" and "Close door press start" will flash
3 times and then light. Press " "
START/INSTANT +30
to start cooking.
3) Press "
Frozen Meals
B. My Favourite
1) Choose cooking type first.
) Turn " " to
2 choose the needed power level.
) Turn " " to
3 adjust the cooking time.
4) Press and hold " " for 2 seconds, buzzer sounds once. "MY
FAVORITE" displays. It indicates that the setting of step 1 to 3 have been
saved.
Press " "
START/INSTANT +30
to start cooking.5)
My Favourite
C. Auto Favourite
7
1) Press " ", "100g", "COOK", "LOW-MED-HIGH", "AUTO TIME" and
"2:30" will display. "INPUT QUANTITY"and "Close door press start" will flash
3 times and then light. Press " "
START/INSTANT +30
to start cooking.
Popcorn
", "1 CUPS", "REHEAT", "LOW-MED-HIGH", "select
Reheat Beverage
food type", "AUTO TIME", "0:30" and "SEC" will display.
times and then light.
Press " "
START/INSTANT +30
to start cooking.
2) Press "
"INPUT QUANTITY"
"Close door press start" will flash
12
", "100g", "MELT", "LOW-", "AUTO TIME", "0:45" and
" " will display. "INPUT QUANTITY"and "Close door press start" will flash
3 times and then light. Press " "
START/INSTANT +30
to start cooking.
3) Press " Melt Chocolate
SEC
", "100g", "SOFTEN", "LOW-", "AUTO TIME",
" will display. "INPUT QUANTITY"and "Close door press start"
will flash 3 times and then light. Press " "
START/INSTANT +30
to start cooking.
SEC
4) Press "Soften Butter or cheese
"0:30" and "
", "100ml", "DEFROST", "LOW-", "AUTO TIME",
" will display. "INPUT QUANTITY"and "Close door press start"
will flash 3 times and then light. Press " "
START/INSTANT +30
to start cooking.
SEC"0: 0" and "
5) Press "Defrost Ground Beef
4
.8. Voice Adjustment
Press " " once to choose high voice, "HIGH" displays. Press
" " repeatly or turn " " to choose the med voice, low voice and off.
BEEF VOL
BEEF VOL
Press " "
START/INSTANT +30
to confirm.
Lock: In waiting state, press " Stop/Clear " for 3 seconds, there will be a long beep denoting
entering the children-lock state and the current time will display if the time has been
set, otherwise, the oven will display " ".
Lock quitting: In locked state, press " Stop/Clear " for 3 seconds, there will be a long "beep"
denoting that the lock is released.
9. Lock-out Function for Children
standby
1
2) " " must be pressed to continue cooking if the door is opened
during cooking.
3) Once the cooking programme has been set , " " is not pressed
in 1 minute. The current time will be displayed. The setting will be cancelled.
4) The buzzer sounds once by efficient press, inefficient press will be no responce.
0. Specification
1) The buzzer will sound three times to remind user when cooking is finished. "End" will
3 times and then light.flash
START/INSTANT +30
START/INSTANT +30
13
Troubleshooting
Check your problem by using the chart below and try the solutions for each problem. If the
microwave oven still does not work properly, contact the nearest authorized service center.
TROUBLE
Oven will not start
POSSIBLE CAUSE POSSIBLE REMEDY
a. Electrical cord for oven is
not plugged in.
b. Door is open.
c. Wrong operation is set.
a. Plug into the outlet.
b. Close the door and try
again.
c. Check instructions.
Arcing or sparking
a. Materials to be avoided in
microwave oven were
used.
b. The oven is operated when
empty.
c. Spilled food remains in the
cavity.
a. Use microwave-safe
cookware only.
b. Do not operate with oven
empty.
c. Clean cavity with wet towel.
Unevenly cooked
foods
a. Materials to be avoided in
microwave oven were
used.
b. Food is not defrosted
completely.
c. Cooking time, power level
is not suitble.
d. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Use correct cooking time,
power level.
d. Turn or stir food.
Overcooked foods Cooking time, power level is
not suitable. Use correct cooking time,
power level.
Undercooked foods
a. Materials to be avoided in
microwave oven were used.
b. Food is not defrosted
completely.
c. Oven ventilation ports are
restricted.
d. Cooking time, power level is
not suitable.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Check to see that oven venti-
lation ports are not restricted.
d. Use correct cooking time,
power level.
Improper defrosting
a. Materials to be avoided in
microwave oven were used.
b. Cooking time, power level is
not suitable.
c. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Use correct cooking time,
power level.
c. Turn or stir food.
Maintenance
14
