Midea Kitchen Appliances ED8525X-Y Microwave Oven User Manual
Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd. Microwave Oven Users Manual
Users Manual
SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your
microwave oven, And keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
1
INSTRUCTION MANUAL
FOR EUROPE MARKET SURFACE PANEL
Model:ED8525X-Y
Microwave Oven
Model:
Power Source:
Power Consumption:
Microwave Output:
Oven Capacity:
Turntable Diameter:
Dimensions(LxWxH):
Weight:
SPECIFICATIONS
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since opendoor
operation can result in harmful exposure to microwave energy.It is
important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or
allow soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important
that the oven door close properly and that there is no damage to the:
(1) DOOR(dent)
(2) HINGES AND LATCHES(broken or loosened)
(3) DOOR SEALS AND SEALING SURFACE
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
2
ED8525X-Y
120V/60Hz
1450W
850W
25L
315mm
610x480x373mm
18.3kg
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

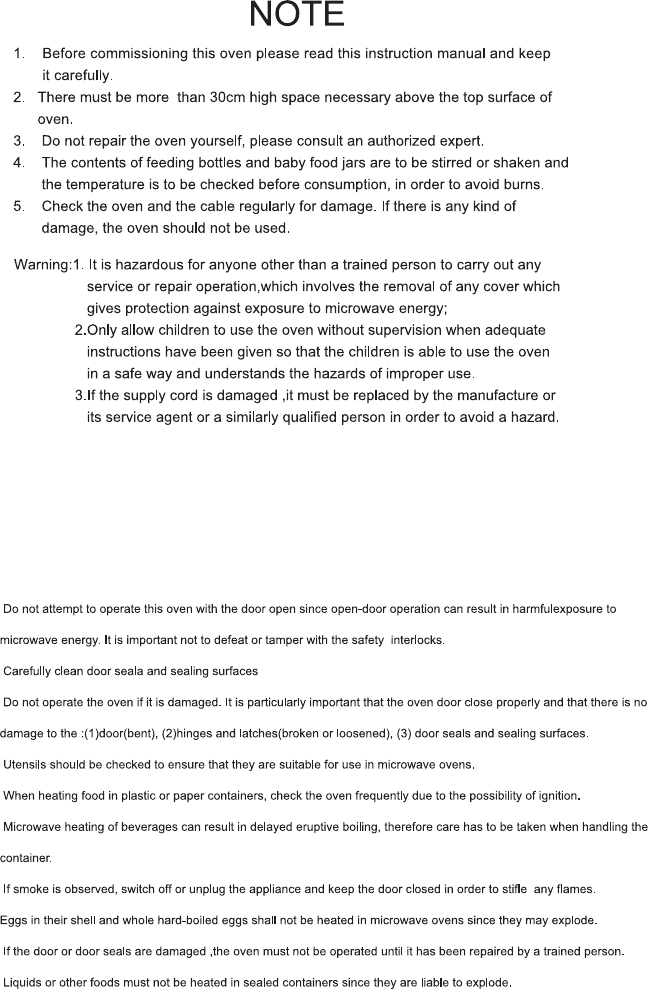

1) WARNING: when the appliance is operated in the combination mode, children
should only use the oven under adult supervision due to the temperatures
generated;
2) WARNING: if the door or door seals are damaged, the oven must not be operated
until it has been repaired by a competent person;
3) WARNING: it is hazardous for anyone other than a competent person to carry out
any service or repair operation that involves the removal of a cover which gives
protection against exposure to microwave energy;
4) WARNING: liquids and other foods must not be heated in sealed containers since
they are liable to explode
5) WARNING: Only allow children to use the oven without supervision when
adequate instructions have been given so that the child is able to use the oven in
a safe way and understands the hazards of improper use;
6) The minimum height of free space necessary above the top surface of the oven.
7) Only use utensils that are suitable for use in microwave ovens.
8) When heating food in plastic or paper containers, keep an eye on the oven due to
the possibility of ignition;
9) If smoke is observed, switch of or unplug the appliance and keep the door closed
in order to stifle any flames;
10) Microwave heating of beverages can result in delayed eruptive boiling, therefore
care must be taken when handling the container;
11) The contents of feeding bottles and baby food jars shall be stirred or shaken and
the temperature checked before consumption, in order to avoid burns;
12) Eggs in their shell and whole hard-boiled eggs should not be heated in
microwave ovens since they may explode, even after microwave heating has
ended;
13) Details for cleaning door seals, cavities and adjacent parts;
14) The oven should be cleaned regularly and any food deposits removed;
15) Failure to maintain the oven in a clean condition could lead to deterioration of the
surface that could adversely affect the life of the appliance and possibly result in
a hazardous situation;
16) If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
3
SAFETY
1. The oven must be on a leveled surface.
2. The turntable and turntable roller rest must be in the oven during cooking. Place the
cookware gently on the turntable and handle it carefully to avoid possible breakage.
3. Incorrect use of browning dish may cause the turntable to break.
4. Use only the specified bag size when using Direct Access Popcorn.
5. The oven has several built-in safety switches to ensure that the power remains off
when the door is open. Do not tamper with these switches.
6. Do not operate the microwave oven empty. Operating the oven with no food or food
that is extremely low in moisture can cause fire, charring or sparking.
7. Do not cook bacon directly on the turntable. Excessive local heating of the turntable
may cause the turntable to break.
8. Do not heat baby bottles or baby food in the microwave oven. Uneven heating
may occur and could cause physical injury.
9. Do not heat narrow-necked containers, such as syrup bottles.
10. Do not attempt to deep-fry in your microwave oven.
11. Do not attempt home canning in this microwave oven as it is impossible to be sure all
contents of the jar have reached boiling temperature.
12. Do not use this microwave oven for commercial purpose. This microwave oven is made
for household use only.
13. To prevent delayed eruptive boiling of hot liquids and beverages or scalding yourself,
stir liquid before placing the container in the oven and again halfway through cooking
time. Let stand in the oven for a short time and stir again before removing the container.
14. Please do notice the food in the microwave oven to avoid burning due to excessive
cooking when cooking food in it.
15. When the appliance is operated in the combination mode, children should only use the
oven under adult supervision due to the temperatures generated.
16. Failure to maintain the oven in a clean condition could lead to deterioration of the
surface that could adversely affect the life of the appliance and possibly result in a
hazardous situation.
4
1. Read all instructions before using the
appliance.
2. Read and follow the specific:" PRECAU-
TIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY".
3. As with most cooking appliances,close
supervision is necessary to reduce the
risk of a fire in the oven cavity.
If a fire should start:
1.Keep the oven door closed
2.Turn the oven off, and unplug the appliance.
3.Disconnect the power at the fuse or circuit
breaker panel.
Keep in mind the following rules at all times:
1.Do not overcook food. Carefully attend the
appliance if paper,plastic,or other combus-
tible materials are placed inside the oven to
facilitate cooking.
2.Do not use the oven cavity for storage pur-
poses. Do not store combustible items su-
ch as bread, cookies, paper products, etc.
inside the oven. If lightning strikes the power
line, the oven may turn on by itself.
3.Remove wire twist-ties and metal handles
from paper or plastic containers/bags before
placing them in the oven.
4.This oven must be grounded. Connect only
to properly grounded outlet. See"GROUN-
DING INSTRUCTIONS".
5. Install or locate this oven only in accordance
with the installation instructions provided.
6. Some products such as whole
eggs, water with oil or fat, sealed
containers and closed glass jars may
explode and therefore should not be
heated in this oven.
7. Use this appliance only for its intended
uses as described in the manual. Do
not use corrosive chemicals or vapors
in this appliance. This oven is specifically
designed to heat or cook food. It is not
designed for industrial or laboratory use.
8. As with any appliance, close supervision
is necessary when used by children.
9. Do not operate this oven if it has a
damaged cord or plug, if it is not working
properly or if it has been damaged or
dropped.
10. This appliance should be serviced
only by qualified service technicians.
Contact the nearest authorised
service facility for examination,repair
or adjustment.
11. Do not cover or block any vents on the
oven.
12. Do not store or use this appliance
outdoors.
13. Do not use this oven near water,near
a kitchen sink, in a wet basement or
near a swimming pool.
14. Do not immerse cord or plug in water.
15. Keep cord away from heated surfaces.
16. Do not let cord hang over edge of table
or counter.
17. When cleaning door and oven surfaces
use only mild, nonabrasive soaps or
detergents applied with a sponge or
soft cloth.
5
Important Safety Instructions
SAFETY
WARNING— To reduce the risk of fire, electric shock, injury to
persons, or exposure to excessive microwave oven
energy when using your appliance, follow
these basic precautions :
SAVE THESE INSTRUCTIONS
DANGER
Electric Shock Hazard Touching
some of the internal components
can cause serious personal injury
or death.Do not disassemble this
appliance.
WARNING
Electric Shock Hazard
Improper use of the grounding
can result in electric shock. Do
not plug into an outlet until
appliance is properly installed
and grounded.
Three-pronged
(grounding) plug
Grounding Installation
Properly polarized and
grounded outlet
This appliance must be grounded. In the event of an elec-
trical short circuit, grounding reduces the risk of electric
shock by providing an escape wire for the electric current.
This appliance is equipped with a cord having a grounding
wire with a grounding plug. The plug must be plugged into
an outlet that is properly installed and grounded.
Consult a qualified electrician or serviceman if the ground-
ing instructions are not completely understood or if doubt
exists as to whether the appliance is properly grounded.
If it is necessary to use an extension cord, use only a 3-
wire extension cord that has a 3-pronged grounding plug,
and a 3-slot receptacle that will accept the plug on the
appliance.
1. A short power-supply cord is provided to reduce the
risks resulting from becoming entangled in or tripping
over a longer cord.
2. Longer cord sets or extension cord is provided to
reduce the risks resulting from becoming entangled
in or tripping over a longer cord.
3. If a long cord sets or extension cord is used: 1)The
marked electrical rating of the cord set or extension
cord should be at least as great as the electrical rating
of the appliance. 2)The extension cord must be a
grounding-type 3-wire cord, and 3)The longer cord
should be arranged so that it will not drape over the
counter top or tabletop where it can be pulled on by
children or tripped over unintentionally.
CAUTION
Personal Injury Hazard
Tightly-closed utensils
could explode. Closed
containers are opened and
plastic pouches pierced
before cooking.
Utensils
See next page for further instructions "Materials you
can use in microwave oven or to be avoided in micro-
wave oven." There may be certain non-metallic utensils
that are not safe to use for microwaving. If in doubt,
you can test the utensil in question following the
procedure below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm,
do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
6
Materials to be avoided in microwave oven
Utensils
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Remarks
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
Metal shields the food from microwave energy. Metal trim may cause
arcing.
May cause arcing and could cause a fire in the oven.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may spilt or
crack.
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat
or poultry to prevent overcooking. Arcing can occur if foil is too close to
oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish Follow manufacturer's instructions. The bottom of browning dish must be at
least 3/16 inch (5mm) above the turntable.Incorrect usage may cause
the turntable to break.
Dinnerware Microwave-safe only. Follow manufacture's instructions. Do not use cracked
or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is nometallic trim. Do
not use cracked or chipped dishes.
Oven cooking Follow manufacture's instructions. Do not close with metal tie. Make slits to
bags allow steam to escape.
Paper plates Use for short –term cooking/warming only. Do not leave oven unattened while
and cups cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a
short-term cooking only.
Parchment Use as a cover to prevent spattering or a wrap for steaming.
paper
Plastic Microwave-safe only. Follow the manufacturer’s instructions.Should be labeled
"Microwave Safe". Some plastic containers soften as the food inside gets hot.
"Boiling bags" and tightly closed plastic bags should be slit, pierced or vented
as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do
not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
7
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Shuts off oven power if door is opened during operation.
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food should be always
placed on the glass tray for cooking.
d. The glass tray rotates clockwise; this is normal.
e. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
centre.
TURNTABLE INSTALLATION
Hub(underside)
Glass tray
Turntable ring assembly
Turntable shaft
F
G
A
CB
E

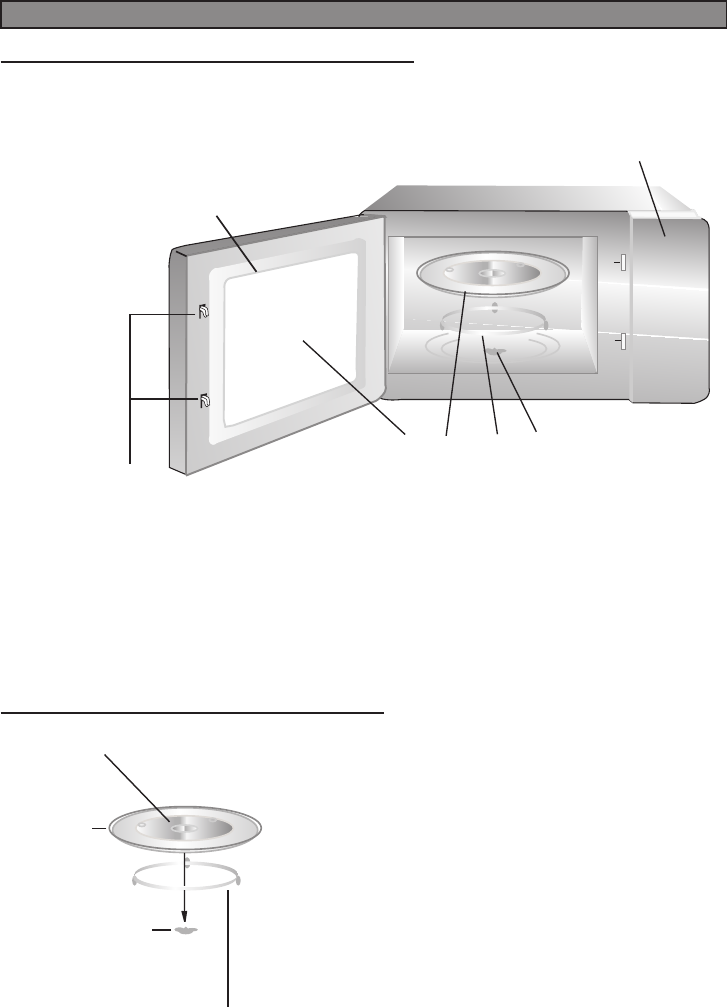

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
8
Installation
Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop
Cabinet: Remove any protective film found
on the cabinet surface.
Do not remove the light brown Mica cover
that is screwed to the oven cavity to
protect the magnetron.
Installation
1. Select a level surface that provide
enough open space for the intake
and/or outlet vents.
A minimum clearance of 3.0 inch
(7.5cm) is required between the oven and
any adjacent wall.One side must be open.
(1) Leave a minimum clearance of 12
inch(30cm) above the oven.
(2) Do not remove the legs from the
bottom
of the oven.
(3) Blocking the intake and/or outlet openings
can damage the oven.
(4)Place the oven as far away from
radios and TVs as possible.Operation
of microwave oven may cause interference
to your radio or TV reception.

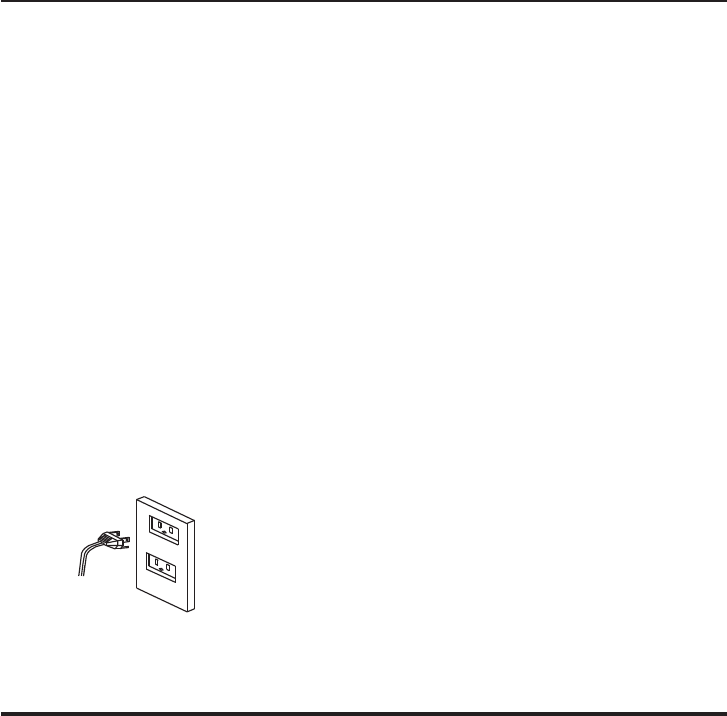

2. Plug your oven into a standard household
outlet. Be sure the voltage and the
frenquce same as the voltage and the
frenquce on the rating label.
WARNING: Do not install oven over a
range cooktop or other heat-producing
appliance. If installed could be damaged
and the warranty would be void.
9
3.0 inch(7.5cm)
3.0 inch(7.5cm)
12 inch(30cm)
OPEN

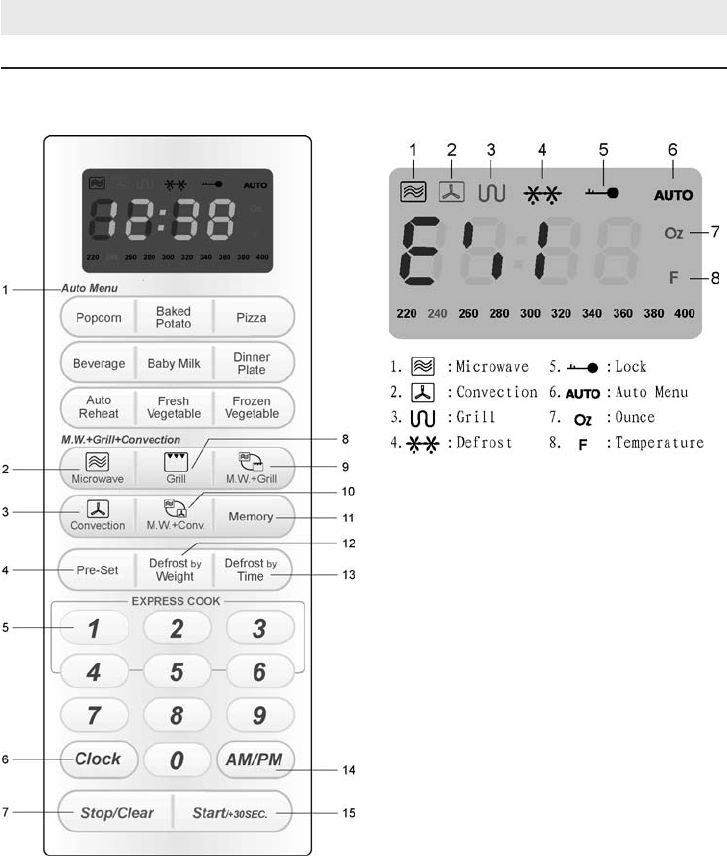

Display Window
(1) Auto Menu
(2) Mcirowave
(3) Convection
(4) Pre-Set
(5) Number keys
(6) Clock:setting time
(7) Stop/Clear: clears all previoussettings
f pressed before cookingstarts. During
cooking: press once to stop oven; twice to
stop and clear all entries.
(8) Grill
(9) M.W.+Grill
(10) M.W.+Conv.
(11) Memory
(12) Defrost By Weight
(13) Defrost By Time
(14) AM/PM
(15) Start/+30SEC.
9
Control Panel and Features
OPERATION

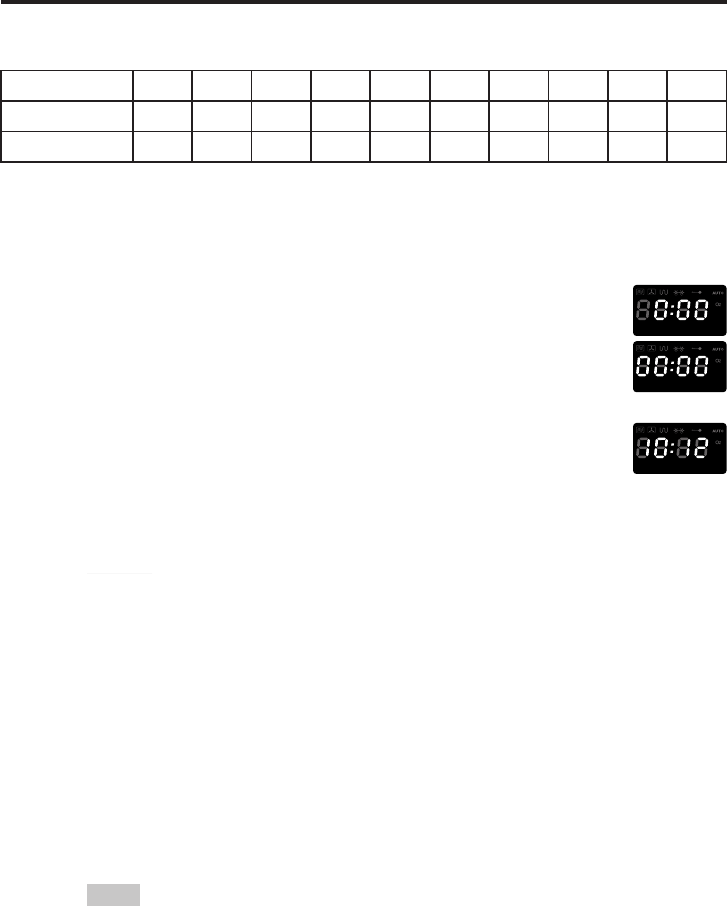

1. Power Level
Ten power levels are available, life cycle T=22 seeds
Level
Power
Life cycle ratio
10
100%
22/22
9
90%
20/22
8
80%
18/22
7
70%
16/22
6
60%
14/22
5
50%
12/22
4
40%
10/22
3
30%
8/22
2
20%
6/22
1
10%
4/22
Remarks: when a power between level 10-8 is chosen, the high level indicator is
lighted and it will flash when in operation.
When a power between level 7-1 is choosen, the low level indicator is
lighted and it will flash when in operation.
2. Clock Setting
When the microwave oven is plugged into a outlet, the oven
will display " 0:00 "
(1) Press " CLOCK ", LED will display " 00:00 " and tens place of hour
flashing, the icon " : " and other " 0 " keeps lighting on.
(2) Press number keys to input tens place of hour with ones place of hour
flashing; Press number keys to input ones place of hour with tens place
of minute flashing;Press number keys to input tens place of minute with
ones place of minute flashing; Press number keys to input ones place of minute.
For example, time is 10:12 now, please press "1,0,1,2" in turn.
(3) Press " AM/PM " to choose AM or PM. Press once to select AM with icon " A " showing;
press twice to select PM with icon " P " showing; press three times to select AM with
icon " A " showing...(default: AM).
(4) Press " Clock " to confirm new clock, setting is finished with icon " : " flashing and clock
keeps lighting on. After showing the clock for 3 seconds, it will show A or P and return to
clock display status in next 3 seconds.
(5) The time setting will be invalid if the inputting time is out of 1:00--12:59 until the right
time is inputted.
NOTE:During the time setting, if " Stop/Clear " key is pressed, it would exit
current setting state and the setting made is incalid.
3. Pre-set Function
(1) Set a certain cooking procedure(one block or two), the setting method and display is
same as relevant cooking procedure.(Defrosting is beyond pre-set cooking).
(2) Press " Clock " to display current time and tens place of houring flashing, the icon " : "
and other " 0 " keep lighting on.
(3) Press number keys to input tens place of hour with ones place of hour flashing;
(4) Press number keys to input ones place of hour with ones place of minute flashing;
(5) Press number keys to input tens place of minute with ones place of minute flashing;
(6) Press number keys to input ones place of minute, and then press " Start/+30SEC. "
10
Operation Instructions
400380360340320300280260240220
F
400380360340320300280260240220
F
400380360340320300280260240220
F
4. Grill cooking
(1) Press " Grill " key, LED will display " G-1 " (final three places displaying ) with the icon
" " lighting on.
(2) Press number keys to input cooking time, the maximum setting time is 99 minutes and
99 seconds.
(3) Press " Start/+30SEC. " to start cooking and the cooking time begins to count dowm
with the icon " " flashing.(In microwave cooking status, the cooking time will increase
30 seconds by each pressing " Start/+30SEC. " , and the firepower keeps unchanged,
the maximum setting time is 99 minutes and 99 seconds)
NOTE:
1.During grill tupe cooking, the temperature LED indicator goes out.
2.Grill control rule: 30 seconds interruption every 120 seconds working.
3.When half of grill time passes, the buzzer will beep twice to alert to turn over the food, if
no operation is conducted in one minute, the device goes on working automatically.(a.
In case the set grill time is shorter than 5 minutes, it does not activate the alerting; b.
If you increase grill time before it works half of grill time, it will add the increased value
into a total value of time; c. If you increase grill time after it works more than half of the
set grill time, it will not activate the alerting when it works to the half of set grill time.)
5. Microwave + Grill combined cooking (indicating microwave heating and
grill heating work by turns)
(1) Press “M.W+GRILL” key one time, LED will display “G-2” (final three places displaying)
with the icons of “ ” and “ ” lighting on.)
3. One block of microwave cooking
(1) Pressing " Microwave " key, LED will display " P100 ", ( " P100 P90 ...... P10
P100 " will be displayed in turns) and meanwhile the icon " " lights on.
(2) Press number keys to input cooking time, the maximum setting time is 99 minutes and
99 seconds.
(3) Press " Start/+30SEC. " to start cooking and the cooking time begins to count dowm
with the icon " " flashing.(During microwave cooking status, the cooking time will
increase 30 seconds by each pressing " Start/+30SEC. ", and the firepower keeps
unchanged, the maximum setting time is 99 minutes and 99 seconds.)
11
key to confirm pre-set cooking, the setting is finished, and return to clock display status
with " : " flashing;
(7) When the pre-set time is reached, two "beep" will be sound and the device starts
cooking procedure. If the oveb door is not closed well, the procedure would pause to wait.
Note: If the clock is not set, it would be unable to activate pre-set cooking. If only the timing
clock is set but the cooking procedure is not set, and then press " Start/+30SEC. "
key, as a result, the device would work as an alarm clock, once the timing time is
coming, the buzzer would make five sounds.
(2) Press number keys to input cooking time, the maximum cooking time, the maximum
setting time is 99 minutes and 99 seconds.
(3) Press " Start/+30SEC. " key to start cooking and the cooking time begins to count
down with the icon " Grill " flashing.
NOTE: In combined status, the " Start/+30SEC. " key is not available.
Press " M.W.+Grill "
Once
Twice
6. Convection cooking
A. Warm-up function activated
1) Press “ Convection ” key, LED will display “ 220 ” (" 220 240 ...... 240 P100 "
will be displayed in turns) and meanwhile the icons of " F "*" "*" " light on.
2) Press “ START/+30SEC ” key to start warm-up. When achieving warm-up temperature,
the device will stop working with 5 times of buzzing, the screen shows the working
temperature and it flashes constantly to alert user to open the oven door and put food
into the oven to cook.
3) Open the oven door and put the food in and then close the door, press number keys to
input the cooking time, the maximum setting time is 99 minutes and 99 seconds.
4) Press “ START/+30SEC. ” key again, the temperature indicator and the icons of
“ ” and “ ” flashing, which indicates the device starts convection cooking.
NOTE: If unable to achieve the setting temperature in 30 minutes, close the heater; it
displays " E-3 " and the temperature status indicator completely flashes.
B. Warm-up function inactivated
1) Press “ Convection ” key, LED will display “ 220 ” (" 220 240 ...... 240 P100 "
will be displayed in turns) and meanwhile the icons of " F "*" "*" " light on.
2) Press number keys to input the cooking time, the maximum setting time is 99 minutes
and 99 seconds.
3) Press “ START/+30SEC. ” key , the temperature indicator and the icons of “ ” and
“ ” flashing, which indicates the device starts convection cooking.
Note: Convection control rule: at the beginning, both of two pipes work, when the
temperature of sensor reaches -4F, pipe B (Grill pipe) cuts off, and pipe A (convection
pipe) continues working, when the temperature of sensor reaches +2F, both pipe A
and pipe B will be cut off unconditionally; after 20 seconds, pipe A will run 230 seconds
unconditionally, and then it depends on the temperature of sensor, when the temperature
of sensor reaches +2F, pipe A cuts off, when the temperature of sensor reaches -2F,
pipe A will restart, and so it cycles.
7. Microwave + Convection combined cooking
1) Press “ M.W+Conv. ” key one time, LED will display “ C-1 ” (final three places
displaying) with the icons of “ ” *“ ” * “ ” light on.)
12
Function Microwave
Power
Display Grill power
Combine step 1 G-2
G-3
36%(12/33) 64%(21/33)
Combine step 2 55%(18/33) 45%(15/33)
2) Press number keys to input cooking time, the maximum setting time is 99 minutes and
99 seconds.
3) Press “ START/+30SEC. ” key to start cooking, and the cooking time will start to count
down with the icons fo " "* “ ”*“ ” flashing.
Note: In Combined state, the “ Start/+30SEC ” key is not available.
There are four kinds of combined cooking ways: show C-1,C-2,C-3,C-4 respectively with
a cycle of 33 seconds.
Combined cooking steps
time for microwave heating:S
time for convection heating:S
Heating cycle:S
8. Two blocks cooking
1) If there is one block for defrosting, the defrosting process must be set to be first block.
The buzzer would beep once and stop to start next block cooking after each block cooking
is over
E.g. set two blocks microwave cooking
1)Press “Microwave” key several times to select the microwave power for first block with
icon ” ” lighting on.
2)Press number keys to input the first block cooking time, the maximum setting time is 99
minutes and 99 seconds.
3)Press “Microwave” key some times to select the microwave power for second block with
icon ” ” lighting on.
4)Press number keys to input the second block cooking time, the maximum setting time is
99 minutes and 99 seconds.
5)Press “Start/+30SEC” key to start cooking, and the cooking time will start to count down
with icon “Microwave” flashing. After the first block cooking is over, the buzzer will beep
once and stop to start the second block cooking.
9*Quick startup
1) In standby state, press number keys 1-6 to start 1-6 minutes cooking with 100%
microwave firepower; during the cooking process, press “START/+30Sec” key to
increase the cooking time, the maximum setting time is 99 minutes 59 seconds.
2) In standby state, press number keys to start 30 seconds cooking with 100% microwave
firepower; the cooking time will increase 30 seconds by each press, the maximum
setting time is 99 minutes 59 seconds.
Note: the time for microwave cooking and auto menu may be increased by pressing
“ Start/+30SEC ”, but it is not available for the time increase in the Auto Defrost mode by
pressing “+30SEC”.
13
C-1 280F C-3 320FC-2 300F C-4 340F
20"
13"
33"
17"
16"
33"
13"
20"
33"
9"
24"
33"
14
10*Defrost By Weight
1) Press “ Weight By Defrost ” key, show “dEF1” with icons “ ” and “ ” lighting on.
2) Press number keys to input the defrosting weight, the icon " Oz ” lighting on, the input
weight scope is 4~100Oz.
3) If the input numbers is out of 4~100, the microwave oven would cause no response
with no beep sounding until inputting valid numbers.
4) Press “ Start/+30SEC. ” key to start defrosting, the time starts to count down with icons
of “ ” and “ ” flashing and icon “Oz” going out.
11*Defrost By Time
1)Press “Defrost by Time” key to show “ dEF2 ” with icons “ ” and “ ” lighting on.
2)Press number keys to input the defrosting time, the setting time scope is 00:01~99:99.
3)If the input numbers is out of the scope, the microwave oven would cause no response
with no beep sounding until inputting valid numbers.
4)The default of microwave firepower is PL3, if you want to change firepower, press
"Microwave" key one time to show “PL3”, press number keys to input desired firepower.
5)Press “ Start/+30SEC. ” key to start defrosting, the time starts to count down with icons
of “ ” and “ ” flashing.
12. Auto Menu
1) Press corresponding menu key to select auto cooking menu with weight icon “Oz” and
“ ” lighting on. Press corresponding menu key for several times to select the menu
weight or portion.
2) Press “ Start/+30SEC. ” key to start cooking, the weight icon "Oz” goes out, the cooking
time starts to count down with icons of “ ” flashing.
Appendix A for auto menu cooking firepower schedule.
Auto Menu Power Level Cooking TimeDisplay
Popcorn
Baked
Potato
Frozen
Vegetable
Auto
Reheat
1.75Oz
3.50Oz
7.00Oz
14.00Oz
21.00Oz
6.00
9.00
12.00
6.00Oz
9.00Oz
12.00Oz
1'40"
2'20"
4'30"
6'50"
8'30"
2'10"
2'50"
4'10"
1'05"
1'40"
2'10"
1.75Oz
3.50Oz
7.00Oz
14.00Oz
21.00Oz
6.00
9.00
12.00
6.00Oz
9.00Oz
12.00Oz
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
Weight
13. Inquiring Function
(1) In clock state, press " AM/PM " the LED will display "AM/PM" for 3 seconds.
During the cooking process, press " Clock ", the digital tube will display clock for three
seconds and then display "AM/PM" for 3 seconds.
(2) In pre-set state, the digital tube displays the clock with " Second " palce flashing
Press " AM/PM " key to activate to display "AM/PM" for 3 seconds. Then press
" Clock " key to call pre-set time, and the digital tube displays flickeringly pre-set time
of 3 seconds and after displaying " AM/PM " for 3 seconds once again, ti will ruturn to
clock status.
(3) During the first block microwave cooking, press " POWER " key to call microwave
firepower, after displaying firepower for 3 seconds, it will retuen to initial status.
(4) Press corresponding keys to call during the second block cooking.
(5) In standbu state without setting block, press and hold " Clock " key for 3 seconds to call
the model, after displaying the model for 3 seconds, it will return to initial status. The
front two places of LED display grill or general mode; grill mode shows EG and general
mode shows E. The following two places of LED display power, 1000W shows A0, 900W
shows 90, 850W shows 85, 800W shows 80, and 700W shows 70.
14. Lock Function for Children
Lock: In waiting state, press " STOP " for 3 seconds, there will be a long "beep" denoting
Auto Menu Power Level Cooking TimeDisplay
Beverage
Baby Milk
Pasta
Fresh
Vegetable
Frozen
Vegetable
1'15"
2'15"
3'00"
1'05"
1'25"
2'00"
16'00"
18'00"
20'00"
3'20"
4'20"
5'30"
3'50"
5'20"
7'30"
200ml
400ml
600ml
6.00Oz
9.00Oz
12.00Oz
1.75Oz
3.50Oz
6.00Oz
6.00Oz
12.00Oz
18.00Oz
6.00Oz
12.00Oz
18.00Oz
100%
100%
100%
100%
100%
80%
80%
80%
100%
100%
100%
100%
100%
100%
100%
200
400
600
6.00
9.00
12.00
1.75Oz
3.50Oz
6.00Oz
6.00
12.00
18.00
6.00
12.0z
18.00
15
Weight
the entering into the children-lock state; meanwhile, LCD will display " "
Lock quitting: In locked state, press "STOP" for 3 seconds, there will be a long "beep"
denoting that lock icon goes out.
15. Fan Pro-longed Protection Function
When the cooking time is equal to or above 5 minutes, the Micro/Grill operation will be
stopped automatically after 15 seconds working and only the fan will be work.
16. Mangnetron protecting function
When the time for microwave (including defrosrting) or combined cooking has worked over/
for 5 minutes continuously, it will stop microwave grilling at the final 15 seconds and allow
the fan working only.
17. Cooking End Reminding Function
When the cooking is over, the buzzer will sound 5 "beep" to alert user the cooking is finished.
18. Other Specifications
(1) In standby state , if the set clock digital tube displays current time, the icon " : " would
flash; otherwise, it shows " 0:00 ".
(2) In setting function state, LED digital tube displays corresponding setting.
(3) In working or pause state, LED digital tube displays remainder cooking time.
(4) During working, if it pauses or opens the oven door, the flashing icons as " " would
light on, after restarting, it will flash constandtly.
(5) After setting a procedure, if there are no any operation in 5 minutes, it would exit setting
status.
(6) Refer to the sample for other details.
19. Protection function
(1) Open/short circuit protection function of temperature sensor: when the sensor is in
open-circuit state, namely, R>3.45M, the device will stop working, and the digital tube shows
" E-1 " with temperature status indicator flashing. When the sensor is in short-circuit state,
namely R<330 , the digital tube shows " E-2 " with temperature status indicator flashing.
(2) During convection working, when it doesn’t achieve the warm-up temperature after the
warm-up time passed 30 minutes, the device will stop working, and “ E-3 ” is displayed with
temperature status indicator flashing.
16
Troubleshooting
Check your problem by using the chart below and try the solutions for each problem. If the
microwave oven still does not work properly, contact the nearest authorized service center.
a. Use microwave-safe
cookware only.
b. Use correct cooking
time, power level.
c. Turn or stir food.
TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY
Oven will not start
a. Electrical cord for oven is
not plugged in.
b. Door is open.
c. Wrong operation is set.
a. Plug into the outlet.
b. Close the door and try
again.
c. Check instruction.
a.Materials to be avoided in
microwave oven are used.
b.The oven is operated when
empty.
c.Spilled food remains in
the cavity.
a. Use microwave-safe
cookware only.
b. Do not operate with
oven empty.
c. Clean cavity with wet towel.
a. Materials to be avoided in
microwave oven are used.
b. Food is not defrosted
completely.
c. Cooking time, power level
is not suitable.
d. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Use correct cooking
time, power level.
d. Turn or stir food.
Cooking time, power level
is not suitable.
Use correct cooking
time, power level.
a. Materials to be avoided in
microwave oven are used.
b. Food is not defrosted completely.
c.Oven ventilation ports are
restricted.
d. Cooking time, power level is
not suitable.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Check to see that oven venti-
lation ports are not restricted.
d. Use correct cooking
time, power level.
a. Materials to be avoided in
microwave oven are used.
b. Cooking time, power level
is not suitable.
c. Food is not turned or stirred.
Arcing or sparking
Unevenly cooked
foods
Overcooked foods
Undercooked foods
Improper defrosting
MAINTENANCE
17
18
Q:When the oven is plugged into a wall outlet for the first time, it does not work
properly. What’s wrong?
A:The microcomputer used in the oven control may temporarily become
scrambled and fail to function as programmed. Unplug the oven from the wall
outlet and then plug it back in. The microcomputer will then reset
for proper functioning.
Q: Why is there noise coming from the turntable when the oven is turned on?
A: This noise occurs when the turntable roller rest and cavity bottom. Frequent
cleaning of these parts should eliminate or reduce the noise.
Q: Why is there noise coming from the oven when using a lower power level?
A: When cooking with power other than 100%, the oven automatically turns on
and off to obtain lower power output. The clicking noise can be heard when
the oven switches on and off. This is normal.
Q: Why is there steam coming out of the air exhaust vent?
A: Steam is produced during cooking. The microwave oven has been made to
vent this steam.
Q: What is wrong when the oven light will not glow?
A:There may be several reasons why the oven light will not glow. The
light bulb has burned out or START has not been pressed.
Q: Why do eggs sometimes pop?
A: The egg yolk may poop because of steam build-up inside the membrane.
Pierce the membrane with a toothpick before cooking it. Never microwave
eggs in the shell since they may explode.
Q: How are boil-overs avoided?
A: Use a larger utensil than usual for cooking. If you open the oven door or
touch STOP/CLEAR, the food will stop boiling.
Cleaning
Wipe the oven inside and outside with a soft cloth and a mild detergent solution. Then rinse
and wipe dry. This should be done on a weekly basis, more often if needed. Never use
cleaning powders or rough pads. Excessive oil splatters on the inside top will be difficult to
remove if left for many days. Wipe splatters with a wet paper towel, especially after cooking
chicken or bacon.
Removable Parts
(1) The turntable may be cleaned at the sink. Be careful not to chip or scratch the
edges as this may cause the turntable to break during use.
(2) The turntable roller rest should be cleaned regularly.
Special Care
For best performance and safety, the inner door panel and the oven front frame should be
free of food .
Questions and Answers
19
4. This product will make disturbance in AV product, if any disturbance is
occurred, use different electrical source jack to supply electricity or use low power
or away from them.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
