RSFEG031EMN_User Manual
SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
MODEL: AG028PYY
Specifications
(a) Do not attempt to operate this oven with the door open since this can result in
harmful exposure to microwave energy. It is important not to defeat or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that
the oven door closes properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACE
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
ENERGY
POSSIBLE
PRECAUTIONS TO AVOID
EXPOSURE TO
EXCESSIVE MICROWAVE
2
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Rated Input Power(Grill):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
Rated Input Power(Pizza):
1500W
1000W
1150W
1400W
315mm
516x426x429.5mm
Approx. 22.5 kg
120V~60Hz
AG028PYY
28L
IMPORTANT SAFETY INSTRUCTIONS
WARNING
1. Read all instructions before using the
appliance.
2. Read and follow the specific: "PRECAU-
TIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY"
found on page 2.
3. As with most cooking appliances, close
supervision is necessary to reduce the risk
of a fire in the oven cavity.
4.To reduce the risk of fire in the oven
cavity:
i). Do not overcook food. Carefully attend
the appliance when paper, plastic, or
other combustible materials are placed
inside the oven to facilitate cooking.
ii).Remove wire twist-ties and metal
handles from paper or plastic
containers/bags before placing them in
the oven.
iii). If materials inside the oven ignite,
keep the oven door closed. Turn the
oven off, and unplug the appliance.
Disconnect the power cord, shut off
power at the fuse or circuit breaker panel.
iv). Do not use the oven cavity for storage
purposes. Do not leave paper products,
cooking utensils, or food in the cavity
when not in use.
5. This oven must be grounded. Connect
only to properly grounded outlet. See
"GROUNDING INSTRUCTIONS" found
on page 4.
6. Install or locate this oven only in
accordance with the installation
instructions provided.
7. Some products such as whole eggs
and sealed containers-for example,
closed glass jars-are able to explode
and should not be heated in the oven.
To reduce the risk of burns, electric shock, fire,injury to
persons or exposure to excessive microwave oven energy
when using your appliance, follow basic safety precautions,
including the following:
8. Use this appliance only for its intended
uses as described in this manual. Do
not use corrosive chemicals or vapors
in this appliance. This oven is
specifically designed to heat or cook
or dry food. It is not designed for
industrial or laboratory use.
9. As with any appliance, close
supervision is necessary when used
by children.
10. Do not operate this oven if it has a
damaged cord or plug, if it is not
working properly or if it has been
damaged or dropped.
11. This appliance should be serviced only
by qualified service technicians.
Contact the nearest authorized service
facility for examination, repair or
adjustment.
12. Do not cover or block any openings on
the oven.
13. Do not store or use this appliance
outdoors.
14. Do not use this oven near water, for
example, near a kitchen sink, in a wet
basement, near a swimming pool, or
similar locations.
15. Do not immerse cord or plug in water.
16. Keep cord away from heated surfaces.
17. Do not let cord hang over edge of
table or counter.
18. When cleaning surfaces of door and
oven that comes together on closing
the door, use only mild, nonabrasive
soaps or detergents applied with a
sponge or soft cloth.
3
. This appliance has no preheating function.19
i) Do not overheat the liquid.
ii) Stir the liquid both before and halfway through heating it.
iii) Do not use straight-sided containers with narrow necks.
iv) After heating, allow the container to stand in the microwave oven for a short time
before removing the container.
v) Use extreme care when inserting a spoon or other utensil into the container.
without appearing to be boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present. THIS COULD RESULT IN
VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS
DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.
This appliance must be grounded. In the event of
an electrical short circuit, grounding reduces the risk
of electric shock by providing an escape wire for the
electric current. This appliance is equipped with a
cord having grounding wire with a grounding plug.
The plug must be plugged into an outlet that is
properly installed and grounded.
Consult a qualified electrician or serviceman if the
grounding instructions are not completely understood
or if doubt exists as to whether the appliance is
properly grounded. If it is necessary to use an
extension cord, use only a 3-wire extension cord that
has a 3-pronged grounding plug, and a 3-slot
receptacle that will accept the plug on the appliance.
GROUNDING INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING
DANGER
Electric Shock Hazard
Touching some of the internal
components can cause serious
personal injury or death. Do not
disassemble this appliance.
Electric Shock Hazard
Improper use of the grounding
can result in electric shock. Do
not plug into an outlet until
appliance is properly installed
and grounded.
(grounding) plug
Three-pronged
The marked rating of the extension cord shall be
equal to or greater than the electrical rating of the
appliance.
4
20. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point
CAUTION
Personal Injury Hazard
Tightly-closed utensils
could explode. Closed
containers should be opened
and plastic pouches should be
pierced before cooking.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
UTENSILS See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
Radio Interference
1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in
or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if cared is exercised in
their use.
3. If a long cord sets or extension cord is used:
1) The marked electrical rating of the cord set or extension marked electrical rating of the cord
set or extension cord should be at least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord; and
3) The longer cord should be arranged so that it will not drape over the countertop or tabletop
where it can be pulled on by children or tripped over unintentionally.
1. Operation of the microwave oven may cause interference to your radio, TV
or similar equipment.
2. When there is interference, it may be reduced or eliminated by taking the
following measures:
1) Clean door and sealing surface of the oven
2) Reorient the receiving antenna of radio or television.
3) Relocate the microwave oven with respect to the receiver.
4) Move the microwave oven away from the receiver.
5) Plug the microwave oven into a different outlet so that microwave oven
and receiver are on different branch circuits.
5
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
6
SETTING UP YOUR OVEN

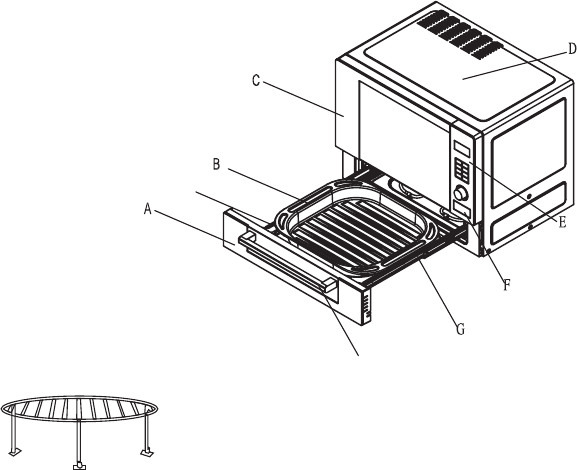

Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Grill Rack( Only for Grill series )
E.Control Panel
A.Pizza Door
B.Pizza Baking Tray
D.Cover
F.Door Button
G.Orbit
C.Door
I.Door Handle
H
I
H.Grill rack(under tray)
7
Installation
A minimum clearance of 3.0 inches
(7.5cm) is required between the oven and
walls. One side must be open.
(1) Leave a minimum clearance of 12
inches (30cm) above the oven.
( ) Do not remove the legs from the
bottom of the oven.
(4) Blocking the intake and/or outlet openings
can damage the oven.
( ) Place the oven as far away from
radios and TV as possible.
Operation of microwave oven may
cause interference to your radio or TV
reception.
2. Plug your oven into a standard household
outlet. Be sure the voltage and the
frequency is the same as the voltage
and the frequency on the rating label.
WARNING: Do not install oven over a
range cooktop or other heat-producing
appliance. If installed near or over a heat
source, the oven could be damaged and
the warranty would be void.
3.0 inch(7.5cm)
12 inch(30cm)
OPEN
Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop Installation
Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.
1. Select a level surface that provide
enough open space for the intake
and/or outlet vents.
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the
glass tray
upside down. The glass
tray should never be restricted.
b. Both
glass tray
and
turntable ring assembly
must
always be used during cooking.
c. All food and containers of food are always placed
on the
glass tray
for cooking.
d. If
glass tray
or
turntable ring assembly
cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
8
The accessible surface
may be hot during
operation.
The rear surface of appliance shall be
placed against a wall.
(2) The appliance can be ed
located
at least 91 m off the floor.
5
3
6m
Operation Instructions
1) Press " " once, the screen display "P100".
2) Turn " " to adjust the hour figures, the input time should be within 0--23.
3) Press " ", the minute figures will flash.
3) Press " " to confirm, and the screen displays "P 80".
4) Turn " " to adjust the cooking time until the oven displays "20:00".
5) Press " " to start cooking .
1. Clock Setting
When the microwave oven is electrified, the LED will display "0:00", buzzer will ring once.
1) Press " " once to select clock function, the hour figures will flash,
4) Turn " " to adjust the minute figures, the input time should be within 0--59.
5) Press " " to finish clock setting. ":" will flash, and the time will light.
Note: the step quantities for the adjustment time of the coding switch are as follow:
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes
2) Press " " once again or turn" " to choose 80% microwave power.
Note: 1) If the clock is not set, it would not function when powered.
2) During the process of clock setting, if you press " ", the oven
will go back to the previous status automatically.
and " " will appear.
2. Microwave Cooking
Press " " the LED will display "P100".Press " " for times
or turn " "to choose the power you want, and "P100", "P80" "P50", "P30" or
"P10" will display for each added press. Then press" " to
confirm, and turn " " to set cooking time from 0:05 to 95:00. Press
" " again to start cooking.
Example: If you want to use 80% microwave power to cook for 20 minutes, you can
operate the oven as the following steps.
Microwave
Start/+30Sec./Confirm
Microwave
Microwave
Clock/ Kitchen Timer
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Stop/Clear
Start/+30Sec./Confirm
Microwave
Clock/ Kitchen Timer
Clock/ Kitchen Timer
9
Order Microwave
Power
Display
1
2
3
4
5
100%
80%
50%
30%
10%
Grill
Power
100%
45%
64%
0%
55%
36%
1
2
3
Microwave
Power
Order Display
1) Press " " once, the screen display "G".
3) Press " " to confirm, and the screen displays "C-1".
4) Turn " " to adjust the cooking time until the oven displays "10:00".
5) Press " " to start cooking .
2) Press " " once again or turn " " to choose combi. 1 mode.
"Microwave" Pad instructions
"Grill/Combi." Pad instructions
P100
P80
P50
P30
P10
G
C-1
C-2
Note:If half the grill time passes, the oven sounds twice, and this is normal. In order
to have a better effect of grilling food, you should turn the food over,
close the door, and then press" " to continue cooking.
If no operation, the oven will continue working.
3. Grill or Combi. Cooking
Press " " the LED will display"G",and press " "for times or
turn the " " to choose the power you want, and "G","C-1" or "C-2" will display
for each added press. Then press " "to confirm, and turn " "
to set cooking time from 0:05 to 95:00. Press " " again to
start cooking.
Grill/Combi.
Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for
10 minutes, you can operate the oven as the following steps.
Grill/Combi.
Grill/Combi.
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Grill/Combi.
Start/+30Sec./Confirm
10
1) Press " " once, and the oven will display "dEF2".
2) Turn " " to select the defrost time. The MAX time is 95 minutes.
1) Press " " once, and the oven will display "dEF1".
2) Turn " " to select the weight of food from 4 to 100 Oz.
3) Press " " to start defrosting.

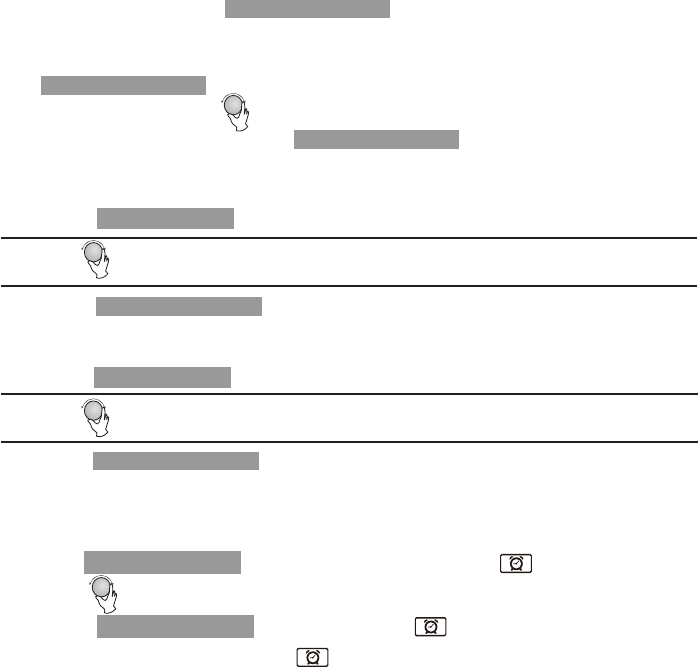

7. Kitchen Timer
(1) Press " " twice, LED will display 00:00, " "will light.
(2) Turn " " to enter the correct time.(The maximum cooking time is 95 minutes.)
(3) Press " " to confirm setting, will flash.
(4) When the kitchen time is reached, will go out. The buzzer will ring 5 times.
If the clock be set (24-hour system), LED will display the current time.
Note: The kitchen Time is differ from 24-hour system,Kitchen Timer is a timer.
1) In waiting state, Press " " to start cooking with 100% power,
each added press will increase 30 seconds cooking time up to 95 minutes.
2) In microwave cooking or time defrost state, each press of
" " can increase 30 seconds of cooking time.
3) In waiting state, turn " " left to set cooking time with 100%
microwave power, then press " " to start cooking.
4. Quick Start
6. Defrost By Time
5. Defrost By Weight
Weight Defrost
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Time Defrost
3) Press " " to start defrosting.The defrost power is P30 , and
it will not be changed.
Start/+30Sec./Confirm
Clock/ Kitchen Timer
Clock/ Kitchen Timer
11
1) Turn " " clockwise till "A-4" display.
Example: If you want to use "Auto Menu" to cook Frozen Vegeteble for 8 Oz.
2) Press " " to confirm.
1) Turn " " right to choose the menu, and "A-1" to "A-6" will display.
2) Press " " to confirm.
3) Turn " " to choose the default weight as the menu chart.
4) Press " " to start cooking.

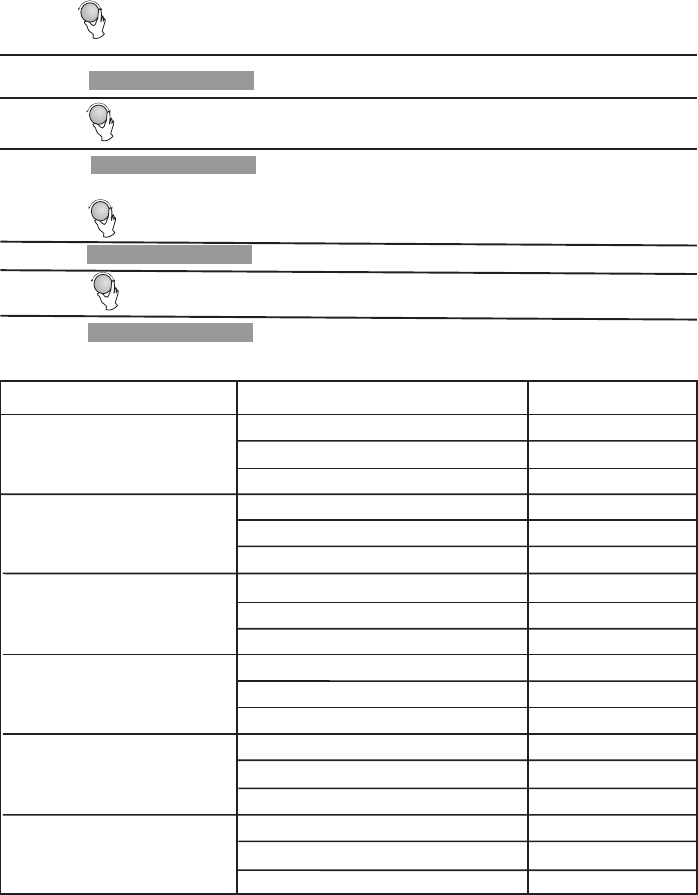

The menu chart:
Menu Weight(g) Display
A-3
A-4
Vegetable
A-1
A-6
A-5
3) Turn " " to select the weight of fish till "8.0" display.
4) Press " " to start cooking.
A-2
8. Auto Menu
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Popcorn
Potato
Pizza
Frozen
Beverage
Dinner Plate
1.75 Oz
3.0 Oz
3.5 Oz
1.75
3.0
3.5
1
2
3
1
2
3
4.0 Oz
8.0 Oz
14.0 Oz
4.0
8.0
14.0
4.0 Oz
8.0 Oz
16.0 Oz
4.0
8.0
16.0
1 cup(120) 1
2
3
2 cups (240)
3 cups (360)
18.0 Oz 18.0
9.0 Oz
12.0 Oz
9.0
12.0
12
7) Press " " to start cooking, and buzzer will sound once for the
first section, defrosting time counts down; buzzer will sound once again entering
the second cooking. when cooking finish, buzzer sounds five times.
1) Press " " once, and the oven will display "dEF2".
2) Turn " " to select the defrost time till "5:00" display.
3) Press " " once, the screen display "P100".
5) Press " " to confirm, and the screen displays "P 80".
6) Turn " " to adjust the cooking time till the oven displays "7:00".
4) Press " " once again or turn " " to choose 80% microwave power.
1) Press " " once, " " will light and the oven display "1".
2) Press " " for times or turn " " to select the slice of pizza.
3) Press " ", buzzer once, the oven start cooking.
There are 4 species of pizza you can choose.
Note:
Pizza function can not work with the microwave or grill at the same time.
" " will flash,
and the cooking time counts down.
4)During cooking, the time can be increased by pressing " " and
the Max. cooking time is 95 minutes.
9. Multi-section cooking
At most 2 sections can be set for cooking. In multi-section cooking, if one section is
defrosting, then defrosting shall be placed in the first section.
frozen pizza 8 inch
frozen baguettes 9 inch
frozen mini pizza 12 inch
The default pizza cooking time chart:
Program The default time Application
1
2
3
4
10. Pizza function
Open the pizza door, put the pizza on the baking tray, then close the door.
Example: If you want to defrost food for 5 minutes and then cook with 80% microwave
power for 7 minutes, operate it as the following:
Microwave
Microwave
Time Defrost
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Pizza
Start/+30Sec./Confirm
Pizza
Start/+30Sec./Confirm
13mins
15mins
20mins
00mins Cook free time(the max time is 95 minutes)
13
11. Inquiring Function
(1) In states of microwave,grill and combination cooking, press " ", "Grill/Combi"
the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back
to the former state;
(2) In cooking state, press " " to inquire the time and the time will
display for 3 seconds.
12. Lock-out Function for Children
Lock: In waiting state, press " " for 3 seconds, there will be a long beep
denoting entering the children-lock state and current time will diplay if the time has
been set, otherwise, the LED will display "0: 00".
Lock quitting: In locked state, press " " for 3 seconds, there will be a long
"beep" denoting that the lock is released.
Microwave
Stop/Clear
Stop/Clear
Clock/ Kitchen Timer
14
Troubleshooting
Check your problem by using the chart below and try the solutions for each problem. If the
microwave oven still does not work properly, contact the nearest authorized service center.
TROUBLE
Oven will not start
POSSIBLE CAUSE POSSIBLE REMEDY
a. Electrical cord for oven is
not plugged in.
b. Door is open.
c. Wrong operation is set.
a. Plug into the outlet.
b. Close the door and try
again.
c. Check instructions.
Arcing or sparking
a. Materials to be avoided in
microwave oven were
used.
b. The oven is operated when
empty.
c. Spilled food remains in the
cavity.
a. Use microwave-safe
cookware only.
b. Do not operate with oven
empty.
c. Clean cavity with wet towel.
Unevenly cooked
foods
a. Materials to be avoided in
microwave oven were
used.
b. Food is not defrosted
completely.
c. Cooking time, power level
is not suitble.
d. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Use correct cooking time,
power level.
d. Turn or stir food.
Overcooked foods Cooking time, power level is
not suitable. Use correct cooking time,
power level.
Undercooked foods
a. Materials to be avoided in
microwave oven were used.
b. Food is not defrosted
completely.
c. Oven ventilation ports are
restricted.
d. Cooking time, power level is
not suitable.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Check to see that oven venti-
lation ports are not restricted.
d. Use correct cooking time,
power level.
Improper defrosting
a. Materials to be avoided in
microwave oven were used.
b. Cooking time, power level is
not suitable.
c. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Use correct cooking time,
power level.
c. Turn or stir food.
Maintenance
15
