SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
Model:EG034DW1
PRECAUTIONS TO AVOID POSSIBLE
MICROWAVE ENERGY
120V~ 60Hz
1500W
Specifications
EG
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions (WxHxD):
Net Weight:
Rated Input Power(Grill): 1400W
Cu.ft.
1 inch
Approx 29.1 Lbs
19.1*16.1*11.3 inch
034DW1
1000W
1.2
2.4
EXPOSURE TO EXCESSIVE
Note:
(1) The maximum volume of the food is 370*370*145 mm. (The height cannot be higher
than 145mm.)
( ) The maximum of the food is 2 weight 5kg.
(a) Do not attempt to operate this oven with the door open since
operation can result in harmful exposure to microwave energy.
It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allows soil or
cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particular important that
the oven door close properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACE
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
open-door
S
ly
2
IMPORTANT SAFETY INSTRUCTIONS
WARNING -
1. Read all instructions before using the
appliance.
2. Read and follow the specific:
EXCESSIVE MICROWAVE ENERGY"
found on page 2.
combustible materials are placed inside the oven to facilitate cooking.
only to properly grounded outlet. See
found on
page 5.
accordance with the provided installation
instructions.
To reduce the risk of burns, electric shock, fire, injury to persons or exposure
to excessive microwave energy:
3. This appliance must be grounded. Connect
"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
"GROUNDING INSTRUCTIONS"
4. Install or locate this appliance only in
5. Some products such as whole eggs and sealed containers - for example, closed glass
jars - are able to explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in the manual. Do not use
corrosive chemicals or vapors in this appliance. This type of oven is specifically
designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
supervision is necessary when used
by children.
7. As with any appliance, close
damaged cord or plug, if it is not
working
properly, or if it has been
damaged or dropped.
8. Do not operate this appliance if it has a
by qualified service personnel.
Contact nearest
authorized service
facility for examination, repair, or
adjustment.
9. This appliance should be serviced only
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors. Do not use this product near water - for
example,
near a kitchen sink, in a wet
basement, near a swimming pool, or
similar location.
1 . Do not immerse cord or plug in water.2
1 . Keep cord away from heated surface.
14. Do not let cord hang over edge of
table or counter.
3
15. When cleaning surfaces of door and oven that comes together on closing the door,
16. To reduce the risk of fire in the oven cavity:
1). Do not overcook food. Carefully attend appliance when paper, plastic, or other
2). Remove wire twist-ties from paper or plastic bag before placing bag in oven.
3). If material inside of the oven ignite, keep oven door closed, turn oven off, and
disconnect the power cord, shut off power at the fuse or circuit breaker panel.
4). Do not use the cavity for storage purposes. Do not leave paper products, cooking
utensils, or food in the cavity when not in use.
point without appearing to be boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present.
17. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling
precautions should be followed, including
When using electrical appliances basic safety
following:the
use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth.
or
3
stand in the microwave oven for a short time
before removing the container. spoon or other utensil into the container.
This appliance must be grounded. In the event of an electrical short circuit, grounding
of electric shock by providing an escape wire for the
appliance is equipped with a cord having a
plugged into an outlet that is properly installed and grounded.
GROUNDING INSTRUCTIONS
THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN
THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
1) Do not overheat the liquid.
2) Stir the liquid both before and halfway through heating it.
3) Do not use straight-sided containers with narrow necks.
4) After heating, allow the container to
5) Use extreme care when inserting a
grounding wire with a grounding plug.
reduces the risk electric current. This
The plug
WARNING - Improper use of the grounding can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not
completely or if doubt exists as to whether the appliance is properly grounded.
extension cord, use only a 3-wire extension cord that has a
The marked rating of the extension cord shall be equal to or greater than the electrical
appliance.
understood,
If it is necessary to use an
3-blade grounded plug, and 3-slot receptacle that will accept the plug on the appliance.
rating of the
Electric Shock Hazard
Touching some of the internal components can cause serious personal injury or death.
disassemble this appliance.
DANGER -
Do not
Electric Shock Hazard
Improper use of the grounding can result in electric shock. Do not plug into an outlet until
appliance is properly installed and grounded.
WARNING -
SA E THESE INSTRUCTIONS
must be
V
18. Oversized food or oversized metal utensils should not be inserted in a microwave/
toaster oven as they may create a fire or risk of electric shock.
19. Do not clean with metal scouring pads. Pieces can burn off the pad and touch
electrical parts involving a risk of electric shock.
20. Do not use paper products when appliance is operated in the toaster mode.
21. Do not store any materials, other than manufacturer's recommended accessories, in
this oven when not in use.
22. Do not cover racks or any other part of the oven with metal foil. This will cause over-
heating of the oven.
4
Personal Injury Hazard
Tightly-closed utensils could explode. Closed containers should be opened and plastic
pierced before cooking.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave
4. Do not exceed 1 minute cooking time.
UTENSILS
See the instructions on "Materials you can use in microwave oven or to be avoided in
There may be certain non-metallic utensils that are not safe to use for microwaving. If
utensil in question following the procedure below.
1. Operation of the microwave oven may cause interference to your radio, TV
or similar
2. When there is interference, it may be reduced or eliminated by taking the
following
1) Clean door and sealing surface of the oven
2) Reorient the receiving antenna of radio or television.
3) Relocate the microwave oven with respect to the receiver.
4) Move the microwave oven away from the receiver.
5) Plug the microwave oven into a different outlet so that microwave oven
are on different branch circuits.
RADIO INTERFERENCE
equipment.
measures:
and receiver
CAUTION -
pouches should be
microwave oven."
in doubt, you can test the
utensil in question.
cooking.
1. A short power supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised
in their use.
3. If a long cord or extension cord is used:
1) The marked electrical rating of the cord set or extension cord should be at least as
great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The longer cord should be arranged so that it will not drape over the counter top or
tabletop where it can be pulled on by children or tripped over unintentionally.
-
5
SAFETY
1. The oven must be on a leveled surface.
2. The turntable and turntable roller rest must be in the oven during cooking. Place the
cookware gently on the turntable and handle it carefully to avoid possible breakage.
3. Incorrect use of browning dish may cause the turntable to break.
4. Use only the specified bag size when using Direct Access Popcorn.
5. The oven has several built-in safety switches to ensure that the power remains off when
the door is open. Do not tamper with these switches.
6. Do not operate the microwave oven empty. Operating the oven with no food or food that
is extremely low in moisture can cause fire, charring or sparking.
7. Do not cook bacon directly on the turntable. Excessive local heating of the turntable
may cause the turntable to break.
8. Do not heat baby bottles or baby food in the microwave oven. Uneven heating
may occur and could cause physical injury.
9. Do not heat narrow-necked containers, such as syrup bottles.
10. Do not attempt to deep-fry in your microwave oven.
1
1. Do not attempt home canning in this microwave oven, as it is impossible to be sure
all contents of the jar have reached boiling temperature.
12. Do not use this microwave oven for commercial purpose. This microwave oven is made
for household use only.
13. To prevent delayed eruptive boiling of hot liquids and beverages or scalding yourself,
stir liquid before placing the container in the oven and again halfway through cooking
time. Let stand in the oven for a short time and stir again before removing the container.
14. Use carefully when cooking food in the microwave oven to avoid burning due to
excessive cooking.
15. When the appliance is operated in the combination mode, children should only use the
oven under adult supervision due to the temperatures generated.
16. Failure to maintain the oven in a clean condition could lead to deterioration that could
adversely affect the life of the appliance and possibly result in a hazardous situation.
6
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer* instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer* instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short*erm cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer* instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
7
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop Installation
Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.
8
(5)
(2) (3) (4) (9) (10)
(6) (7) (11) (12)
(1) (8)
(1) Open
(2) Setup
(3) Auto Menu
(4) Grill/Combo.
(5) Close
(6) Clock/Kitchen timer
(7) Defrost Weight/Time
(8) Number keys
(9) Power
(10) Start/ +30sec.
(11) Time Cook
(12) Stop/C ncel
(3)

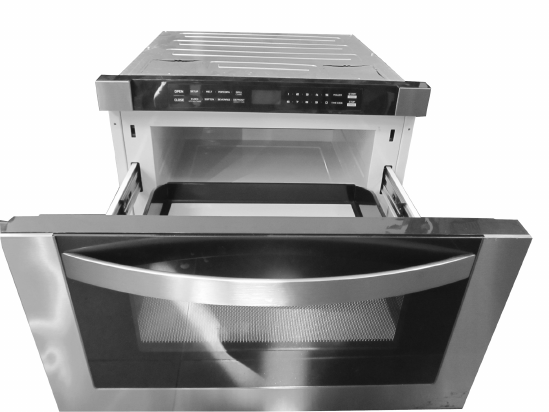

Control Panel and Features
OPERATION
a
9
3. Kitchen Timer
(1) Press "CLOCK/KITCHEN TIMER" button twice,
(2) Press the number
99 seconds.
(3) Press " to confirm setting
(4) When the kitchen time arrives, buzzer will ring 5 times. The oven turns into waiting
state. LCD will display the current time if the clock has been set. Otherwise, LCD will
Note: 1) The kitchen timer is differ from 12-hour system. Kitchen Timer is a timer.
OPERATION
operated.
outlet, buzzer sounds once. LCD displays
1. Power n
n
"WELCOME" for 3 seconds. Then turn into waiting state LCD displays
"00:00".
(1) When the microwave oven is plugged into a
the oven s .
( ) In waiting state, LCD will display the current time if the clock has been set. Otherwise,
"00:00" will display.
2
(
"PLEASE CLOSE" when the drawer is fully opened.
3) Press "OPEN" button to open the drawer, and LCD displays "OPEN". LCD will display
Press "CLOSE" button to close the drawer, and LCD displays "CLOSE". LCD will display
the current time or "00:00" when the drawer is fully closed.
If there are mistakes to open or close the drawer, buzzer will sound five times, and LCD
will display "OPEN OR CLOSE".
O
2. Clock Setting
(1) Press "CLOCK/KITCHEN TIMER" button once, and LCD will display "00:00". The first
hour figure will flash and other "0" will light.
(2) Press the number buttons to enter the correct time. The input should be between
1:00-12:59.
(3) Press "CLOCK/KITCHEN TIMER" to finish the setting. ":" will flash.
Note: In the process of clock setting, if the "STOP/CANCEL" button is pressed or if there
is no operation within 1 minute, the oven will go back to former setting automatically.
LCD will display 00:00. "FUNCTION"
buttons to enter the time. The maximum cooking time is 99 minutes
START/+30SEC." the . The time begins to count down.
display "00:00".
2) In the process of Kitchen Timer operation, any cooking programme cannot be
) 3 "STOP/CANCEL" can be pressed to cancel the Kitchen Timer.
will light.
10
(1) Press "TIME COOK" button, LCD will display "00:00". "FUNCTION" will light.
Press number buttons to input the cooking time. The maximum cooking time is 99
minutes 99 seconds.
Level
Power
10
100%
9
90%
8
80%
7
70%
6
60%
5
50%
4
40%
3
30%
2
20%
1
10%
Display PL100 PL90 PL80 PL70 PL60 PL50 PL40 PL30 PL20 PL10
11 power levels are available.
0%
PL00
0
(2) Press "POWER" button to set the power. The default power level is "PL100".
Press number buttons to select different power levels.
(3) Press "START/+30SEC." to start cooking. Buzzer sounds once. The cooking time
begins to count down. When cooking finished, buzzer sounds five times and "FINISH"
displays.
Note: In the process of ing, if the "STOP/CANCEL" button is pressed or if there is no
operation within 1 minute, the oven will go back to the former setting automatically.
sett
(1) Press "GRILL/COMB ." button once to choose the grill function. LCD displays "GRILL".
5 . Grill Cooking Function
. Cooking Function4 Microwave
O
(2) Press number buttons to enter the grill cooking time between 00:01-99:99.
(3) Press "START/+30SEC." to start cooking. Buzzer sounds once. The cooking time
begins to count down. When cooking finished, buzzer sounds five times and "FINISH"
displays.
Note: Half of the grill cooking times passes, buzzer will sound twice to remind you to turn
the food over.
(1) Press "GRILL/COMB ." button once. LCD displays "GRILL". Press "GRILL/COMBO."
. Combination Cooking Function
O
(2) Press number buttons to enter the cooking time between 00:01-99:99.
(3) Press "START/+30SEC." to start cooking. Buzzer sounds once. The cooking time
begins to count down. When cooking finished, buzzer sounds five times and "FINISH"
displays.
"FUNCTION" will light.
FUNCTION" will light.twice or thice. LCD displays "COMB-1" or "COMB-2". And "
And
6
combination
Function Display Microwave
Power Grill Power
Combi.1 COMB-1 55% 45%
Combi.2 COMB-2 36% 64%
11
(1) Press "DEFROST WEIGHT/TIME" button once. LCD displays "WEIGHT DEFROST".
(2) Press numeber buttons to input the weight to be defrosted.
(1) In waiting state, instant cooking at 100% power level with 30 seconds' cooking time can
be started by pressing "START/+30SEC". Each press on the same button will increase
cooking time by 30 seconds.
Note: "START/+30SEC." cannot be pressed to increase cooking time for defrost by weight
and Auto menu cooking.
7. Fast Starting
(2) During microwave, grill, combination cooking and defrost by time, "START/+30SEC."
can be pressed to increase cooking time. Each press will increase 30 seconds.
8. Weight Defrost Function
"FUNCTION" will light.And
The input weight should be between 0.1-6.0 lbs.
(3) Press "START/+30SEC." to start defrosting. Buzzer sounds once. The defrosting time
begins to count down. When cooking finished, buzzer sounds five times and "FINISH"
displays.
(1) Press "DEFROST WEIGHT/TIME" button twice. LCD displays "TIME DEFROST".
"FUNCTION" will light.And
(3) Press "START/+30SEC." to start defrosting. Buzzer sounds once. The defrosting time
begins to count down. When cooking finished, buzzer sounds five times and "FINISH"
displays.
Note: The defrosting power level is PL30.
9. Time Defrost Function
(2) Press number buttons to enter the ng time between 00:01-99:99.defrosti
(1) Press " " button. LCD displays "1". "AUTO MENU" and " " indicators
(3) Press "START/+30SEC." to start cooking. Buzzer sounds once. The cooking time
begins to count down. When cooking finished, buzzer sounds five times and "FINISH"
displays.
(2)
10. Auto Menu--Beverage
BEVERAGE
Continue to press "BEVERAGE" button, "1" or "2" will display in order.
will light.
12
(1) Press "
(3) Press "START/+30SEC." to start cooking. Buzzer sounds once. "OZ" will go out. The
displays.
(2)
1 . Auto Menu--Popcorn
Continue to press "POPCORN" button, "1.75", "3" or "3.5" will display in order.
POPCORN" button. LCD displays "1.75". "AUTO MENU" and "OZ" indicators
cooking time begins to count down. When cooking finished, buzzer sounds five times
and "FINISH"
1
(1) Press "
(5) Press "START/+30SEC." to start cooking. Buzzer sounds once. "OZ" will go out. The
displays.
(2)
12. Auto Menu--
Continue to press "MELT" button, "BUTTER", "CHOCOLA", "CHEESE" or "MARSHMA"
cooking time begins to count down. When cooking finished, buzzer sounds five times
and "FINISH"
Melt
MELT" button. LCD displays "BUTTER". "AUTO MENU" indicator will light.
will display in order.
(3) Press "START/+30SEC." to confirm the selection.
( Press "MELT" button to select the weight. "OZ" will light .4)
Menu Display
Butter/Margarine BUTTER
1
2
3
Weight
Chocolate
Cheese
Marshmallows
CHOCOLA
CHEESE
MARSHMA
4
8
8
16
5
10
except butter menu
(1) Press "
(5) Press "START/+30SEC." to start cooking. Buzzer sounds once. "OZ" will go out. The
displays.
(2)
1 Auto Menu--
Continue to press "SOFTEN" button, "BUTTER", "ICE-CRE" or "CHEESE" will display
cooking time begins to count down. When cooking finished, buzzer sounds five times
and "FINISH"
in order.
(3) Press "START/+30SEC." to confirm the selection.
( Press " " button to select the weight. "OZ" will light .4) except butter menu
3. Soften
SOFTEN" button. LCD displays "BUTTER". "AUTO MENU" indicator will light.
SOFTEN
will light.
13
Menu Display
Butter BUTTER
1
2
3
Weight
CHEESE
Ice cream ICE-CRE
8
3
8
Cream Cheese
16
32
(1) Press "
(2)
14. Buzzer On/Off
SETUP" button. LCD displays "SOUNDOF".
Press "START/+30SEC." button. The oven will turn to waiting state. Buzzer is turned
off. No beep will sound.
(3) Press "
(
SETUP" button. LCD displays "SOUNDON".
Press "START/+30SEC." button. The oven will turn to waiting state. Buzzer is turned
o . .
4)
n Buzzer will sound normally
Lock: In waiting state, press "STOP/CANCEL" for 2 seconds, the oven will enter into the
children-lock state. LCD will display the current time if the clock has been set.
Lock quitting: In locked state, press "STOP/CANCEL
15. LOCK FUNCTION FOR CHILDREN
Otherwise, "00:00" will display.
" for 2 seconds to release the lock.
(1) In cooking state, press " " button to check the clock. The
current time will display for 3 seconds.
16. INQUIRING FUNCTION
(2) In the microwave, grill, combination cooking state, press "POWER" button to inquire
the microwave power. The current microwave power will display for 3 seconds.
CLOCK/KITCHEN TIMER
14
(2)
( )
(1) The buzzer sounds once by efficient press, inefficient press will be no responce.
In cooking state, "OPEN" cannot be pressed to open the drawer unless "STOP/CANCEL"
button is pressed to pause the cooking. Press "CLOSE" button to close the drawer. Then
"START/+30SEC." button must be pressed to continue cooking.
(3) If the cooking programme has been set ,
The current time will be displayed. The setting will be cancelled.
"START/+30SEC." is not pressed in 1 minute,
1 . OTHER SPECIFICATIONS
4 If the oven door is open, the lamp will light until the oven is power off.ed
7
15
Maintenance
Troubleshooting
Check your problem by using the chart below and try the solutions for each problem. If the
microwave oven still does not work properly, contact the nearest authorized service center.
TROUBLE
Oven will not start
POSSIBLE CAUSE POSSIBLE REMEDY
a. Electrical cord for oven is
not plugged in.
b. Door is open.
c. Wrong operation is set.
a. Plug into the outlet.
b. Close the door and try
again.
c. Check instructions.
Arcing or sparking
a. Materials to be avoided in
microwave oven were
used.
b. The oven is operated when
empty.
c. Spilled food remains in the
cavity.
a. Use microwave-safe
cookware only.
b. Do not operate with oven
empty.
c. Clean cavity with wet towel.
Unevenly cooked
foods
a. Materials to be avoided in
microwave oven were
used.
b. Food is not defrosted
completely.
c. Cooking time, power level
is not suitble.
d. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Use correct cooking time,
power level.
d. Turn or stir food.
Overcooked foods Cooking time, power level is
not suitable. Use correct cooking time,
power level.
Undercooked foods
a. Materials to be avoided in
microwave oven were used.
b. Food is not defrosted
completely.
c. Oven ventilation ports are
restricted.
d. Cooking time, power level is
not suitable.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Check to see that oven venti-
lation ports are not restricted.
d. Use correct cooking time,
power level.
Improper defrosting
a. Materials to be avoided in
microwave oven were used.
b. Cooking time, power level is
not suitable.
c. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Use correct cooking time,
power level.
c. Turn or stir food.
16
