INSTRUCTION MANUAL
MODEL:E M044K9N
Microwave Oven
SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
EM044K9N
120V~60Hz
1550 Watt
1000 Watt
1.6Cu.ft
12.4 inches
29.9X15.0X16.4 inches
Approx.
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY
(a) Do not attempt to operate this oven with the door open since this can result in
harmful exposure to microwave energy. It is important not to defeat or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that
the oven door closes properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACE
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
Specifications
2
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions(LxWxH):
Net Weight: 55.12Lbs
3
WARNING -
1. Read all instructions before using the
appliance.
2. Read and follow the specific:
EXCESSIVE MICROWAVE ENERGY"
found on page 2.
combustible materials are placed inside the oven to facilitate cooking.
only to properly grounded outlet. See
found on
page 5.
accordance with the provided installation
instructions.
To reduce the risk of burns, electric shock, fire, injury to persons or exposure
to excessive microwave energy:
3. This appliance must be grounded. Connect
"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
"GROUNDING INSTRUCTIONS"
4. Install or locate this appliance only in
5. Some products such as whole eggs and sealed containers - for example, closed glass
jars - are able to explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in the manual. Do not use
corrosive chemicals or vapors in this appliance. This type of oven is specifically
designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
supervision is necessary when used
by children.
7. As with any appliance, close
damaged cord or plug, if it is not
working
properly, or if it has been
damaged or dropped.
8. Do not operate this appliance if it has a
by qualified service personnel.
Contact nearest
authorized service
facility for examination, repair, or
adjustment.
9. This appliance should be serviced only
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors. Do not use this product near water - for
example,
near a kitchen sink, in a wet
basement, near a swimming pool, or
similar location.
1 . Do not immerse cord or plug in water.2
1 . Keep cord away from heated surface.
14. Do not let cord hang over edge of
table or counter.
3
15. When cleaning surfaces of door and oven that comes together on closing the door,
16. To reduce the risk of fire in the oven cavity:
1). Do not overcook food. Carefully attend appliance when paper, plastic, or other
2). Remove wire twist-ties from paper or plastic bag before placing bag in oven.
3). If material inside of the oven ignite, keep oven door closed, turn oven off, and
disconnect the power cord, shut off power at the fuse or circuit breaker panel.
4). Do not use the cavity for storage purposes. Do not leave paper products, cooking
utensils, or food in the cavity when not in use.
point without appearing to be boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present.
17. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling
IMPORTANT SAFETY INSTRUCTIONS
precautions should be followed, including
When using electrical appliances basic safety
following:the
use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth.
or
4
stand in the microwave oven for a short time
before removing the container. spoon or other utensil into the container.
This appliance must be grounded. In the event of an electrical short circuit, grounding
of electric shock by providing an escape wire for the
appliance is equipped with a cord having a
plugged into an outlet that is properly installed and grounded.
GROUNDING INSTRUCTIONS
THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN
THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
1) Do not overheat the liquid.
2) Stir the liquid both before and halfway through heating it.
3) Do not use straight-sided containers with narrow necks.
4) After heating, allow the container to
5) Use extreme care when inserting a
grounding wire with a grounding plug.
reduces the risk electric current. This
The plug
WARNING - Improper use of the grounding can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not
completely or if doubt exists as to whether the appliance is properly grounded.
extension cord, use only a 3-wire extension cord that has a
The marked rating of the extension cord shall be equal to or greater than the electrical
appliance.
understood,
If it is necessary to use an
3-blade grounded plug, and 3-slot receptacle that will accept the plug on the appliance.
rating of the
Electric Shock Hazard
Touching some of the internal components can cause serious personal injury or death.
disassemble this appliance.
DANGER -
Do not
Electric Shock Hazard
Improper use of the grounding can result in electric shock. Do not plug into an outlet until
appliance is properly installed and grounded.
WARNING -
1. A short power supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised
in their use.
3. If a long cord or extension cord is used:
1) The marked electrical rating of the cord set or extension cord should be at least as
great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The longer cord should be arranged so that it will not drape over the counter top or
tabletop where it can be pulled on by children or tripped over unintentionally.
SA E THESE INSTRUCTIONS
-
must be
V
5
SAFETY
1. The oven must be on a leveled surface.
2. The turntable and turntable roller rest must be in the oven during cooking. Place the
cookware gently on the turntable and handle it carefully to avoid possible breakage.
3. Incorrect use of browning dish may cause the turntable to break.
4. Use only the specified bag size when using Direct Access Popcorn.
5. The oven has several built-in safety switches to ensure that the power remains off when
the door is open. Do not tamper with these switches.
6. Do not operate the microwave oven empty. Operating the oven with no food or food that
is extremely low in moisture can cause fire, charring or sparking.
7. Do not cook bacon directly on the turntable. Excessive local heating of the turntable
may cause the turntable to break.
8. Do not heat baby bottles or baby food in the microwave oven. Uneven heating
may occur and could cause physical injury.
9. Do not heat narrow-necked containers, such as syrup bottles.
1. Operation of the microwave oven may cause interference to your radio, TV
or similar
2. When there is interference, it may be reduced or eliminated by taking the
following
1) Clean door and sealing surface of the oven
2) Reorient the receiving antenna of radio or television.
3) Relocate the microwave oven with respect to the receiver.
4) Move the microwave oven away from the receiver.
5) Plug the microwave oven into a different outlet so that microwave oven
are on different branch circuits.
RADIO INTERFERENCE
equipment.
measures:
and receiver
10. Do not attempt to deep-fry in your microwave oven.
1
1. Do not attempt home canning in this microwave oven, as it is impossible to be sure
all contents of the jar have reached boiling temperature.
6
Personal Injury Hazard
Tightly-closed utensils could explode. Closed containers should be opened and plastic
pierced before cooking.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave
4. Do not exceed 1 minute cooking time.
UTENSILS
See the instructions on "Materials you can use in microwave oven or to be avoided in
There may be certain non-metallic utensils that are not safe to use for microwaving. If
utensil in question following the procedure below.
CAUTION -
pouches should be
microwave oven."
in doubt, you can test the
utensil in question.
cooking.
12. Do not use this microwave oven for commercial purpose. This microwave oven is made
for household use only.
13. To prevent delayed eruptive boiling of hot liquids and beverages or scalding yourself,
stir liquid before placing the container in the oven and again halfway through cooking
time. Let stand in the oven for a short time and stir again before removing the container.
14. Use carefully when cooking food in the microwave oven to avoid burning due to
excessive cooking.
15. When the appliance is operated in the combination mode, children should only use the
oven under adult supervision due to the temperatures generated.
16. Failure to maintain the oven in a clean condition could lead to deterioration that could
adversely affect the life of the appliance and possibly result in a hazardous situation.
7
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer* instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer* instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short*erm cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer* instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
8
PART NAMES
Microwave features
FRONT VIEW
Bottom View
1Top vent grill
2Display
3Control panel
4Door handle
5Window
6Surface lights (LED)
7Ventilation filters

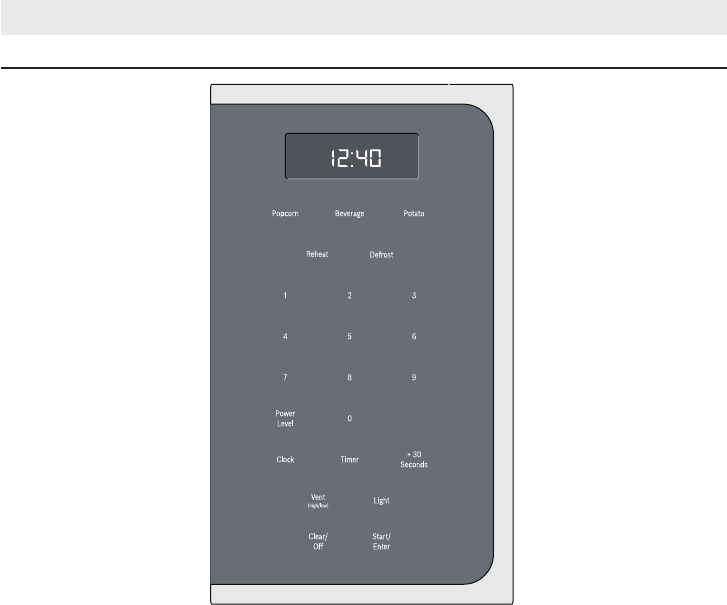

Control Panel and Features
9
OPERATION
Touch keys
You can activate a function by briefly touching the
corresponding touch key. Each time you touch a key a
short beep will sound. A long beep will tell you that you
have made an invalid input.
1 Popcorn Select popcorn packet size
2 Beverage Heat beverage, select beverage size
3 Potato Cook potatoes
4 Reheat Reheat food with automatic settings
5 Defrost Defrost food with automatic settings
6 0 - 9 Use the number keys to enter customized values
7 Power Level Set power level for microwave operation
8 Clock Set time of day
9 Timer Set cook time
10 +30 sec Add 30 seconds to microwave timer
11 Vent (high/low) Turn kitchen ventilation feature on/off
12 Light Turn surface light on/off
13 Clear/Off Clear entered value/turn appliance off
14 Start/Enter Confirm input, start operation
Note: 1).If the power level you choose is 100% power, steps "3" and "4" can be skiped
and go directly to the step " 5 ".
2). After cooking finishing, buzzer sounds five times.
For example: to cook the food with 100% microwave power for 10 minutes and then cook
with 80% microwave power for 15 minutes. Do as following:
1) Press "TIME COOK" to choose microwave cooking;
2) Press "1","0","0","0" to input the cooking time;
3) Press "POWER" to choose 100% microwave power;
4) Press "TIME COOK" to choose microwave cooking;
At most two stages can be input.
1. Clock Setting
1). Press "CLOCK/AM/PM",the unit enters the clock setting states.AM indicator will light.
"0:00" flash to remind you to input the time.
2). Press "CLOCK/AM/PM" again to select AM or PM. The responding AM or PM
indicator lights.
3). Press the number keys and enter the correct time. For example, time is 10:12 now,
please press "1,0,1,2" in turn.
4). Press "CLOCK/AM/PM" key finish setting the clock.
Note: This is a 12 hour clock from 1:00 to 12:59. If the time set is not appropriate,
press "CLOCKAM/PM" will be no used.Buzzer sounds twice and turn back to
waiting states.
10
Operation Instructions
3.Multi-stage Cooking
2. Microwave Cooking
1) Press " TIME COOK" to select microwave cooking. "0:00" flash to remind you to input
the cooking time.
2) Press the number keys to adjust the cooking time you need.
For example, to cook the time for 10 minutes.Please press "1,0,0,0" in turn.
The maximum cooking time is 99 minutes 99 seconds.
3) At the same time, you can choose the power by pressing "POWER".
4) Press the number keys to select the power level.
5) Press "START/PAUSE" to start cooking. Time counts down.
Ten power levels are available.
Level
Power
Display
10
100%
9
90%
8
80%
7
70%
6
60%
5
50%
4
40%
3
30%
2
20%
1
10%
PL10 PL9 PL8 PL7 PL6 PL5 PL4 PL3 PL2 PL1
5) Press "1","5","0","0" to input cooking time;
6) Press "POWER" to select the microwave power;
7) Press "8" to choose 80% microwave power;
8) Press "START" to start cooking.
Note:
a.Microwave cooking can be set as two stages only. Defrost program and auto menu
cannot be set here.
b. When the first stage finish, buzzer sounds once and the second stage begins cooking.
c. During cooking,each added press on "ADD 30 SEC.", 30 seconds can be added too.
The time can be up to 99 minutes and 99 seconds.
11
4. Speedy Cooking
1) In waiting states,press " ADD 30 SEC." to start cooking 100% microwave power for
30 seconds.
2) During cooking states, 30 seconds can be increased for each pressing on
"ADD 30 SEC.". The maximum cooking time is 99 minutes and 99 seconds.
3) Press number keys from 1 to 6 to start cooking with full microwave power for
1-6 minutes.
Note: During speedy cooking, microwave power can be checked and selected.
Press"POWER", the current power displays, then press number keys to choose the
power you need
5. Defrost Cooking
A. Defrost By Weight
1) Press " DEFROST AUTO/TIME" once to choose defrost by weight function.
Defrost indicator will light and "lb" indicator flash;
2) Press number keys from 0 to 9 to input the derfost weight.
For example: the food weight is 1.2 Lbs, then "1","2" will be input.
The maximum cooking weight is 6.0 Lbs.If the weight input is more than 6.0 Lbs,
the unit will turn back to waiting states.
3) Press "START/PAUSE" to start defrosting. "lb" indicator will be off.
B. Defrost By Time
1) Press " DEFROST AUTO/TIME" twice to choose defrost by time function.
Defrost indicator will light;
2) Press number keys from 0 to 9 to input the derfost time.
The maximum time can be input is 99 minutes and 99 seconds.
3) Press "START/PAUSE" to start defrosting.
Note: If half the defrost time passes, the buzzer will sound twice to remind you to
turn the food over.
12
6. Hood Function
1) When the exhaust fan is under off states, press "VENT FAN/H/L/OFF" once to choose
the fan with high speed;
2) Press "VENT FAN/H/L/OFF" twice to choose the fan with low speed;
3) Press "VENT FAN/H/L/OFF" three times to choose the fan to be off.
4) Except lock states, the fan can be adjusted anytime.
7. Oven Lamp
1) Press "SURFACE LIGHT ON/OFF" once to turn on the lamp;
2) Press "SURFACE LIGHT ON/OFF" twice to turn off the lamp.
8. Timer Function
1) Press "TIMER", timer indicator will light;
2) Press number keys to input the cooking time you need.
The maximum cooking time is 99 minutes and 99 seconds.
3) Press "TIMER", time counts down.
Note: During timer states, hood and oven lamp can be activated. Others function will be
no used.
9. Display On/Off Function
1) In wating states,press "0" for 3 seconds,buzzer sounds twice. The oven will enter
to Display Off state.
2) In Display Off state, press any button can turn on the display. The buzzer will ring once.
10.Popcorn Menu
a) Press " POPCORN " repeatedly until the number you wish appears in the display.
"1"SET: approximate 1.75 ounces
2"SET: approximate 3.0 ounces
3"SET: approximate 3.5 ounces
For example, press "POPCORN" once , "1.75" appears in the LED.
b) Press " START/PAUSE " to cook.
15. Lock Function For Children
Lock: In waiting state, press " STOP/CLEAR " for 3 seconds, there will be two beeps
denoting the entering into the children-lock state;
Lock quitting: In locked state, press " STOP/CLEAR " for 3 seconds, there will be two beeps
denoting that lock is released.
14. Inquiring Function
(1) Under microwave cooking states, press "POWER" to check the power level.
(2) During cooking states, press "CLOCK/AM/PM" to check the clock.
13
11.Baked Potato Menu
a) Press " BAKED POTATO " repeatedly until the number you wish appears in the display.
"1"SET: 1 potato
"2"SET: 2 potatoes
"3"SET: 3 potatoes
For example, press "BAKED POTATO" once , "1" appears in the LED.
b) Press " START/PAUSE " to cook.
12.Beverage Menu
a) Press " BEVERAGE " repeatedly until the number you wish appears in the display.
"1"SET: 1 cup
2"SET: 2 cups
3"SET: 3 cups
For example, press "BEVERAGE" once , "1" appears in the LED.
b) Press " START/PAUSE " to cook.
13.Reheat Menu
a) Press " REHEAT " repeatedly until the number you wish appears in the display.
"1"SET: approximate 8 ounces
2"SET: approximate 16 ounces
3"SET: approximate 24 ounces
For example, press "REHEAT" once , "8" appears in the LED.
b) Press " START/PAUSE " to cook.
Troubleshooting
Check your problem by using the chart below and try the solutions for each problem. If the
microwave oven still does not work properly, contact the nearest authorized service center.
a. Use microwave-safe
cookware only.
b. Use correct cooking
time, power level.
c. Turn or stir food.
TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY
Oven will not start
a. Electrical cord for oven is
not plugged in.
b. Door is open.
c. Wrong operation is set.
a. Plug into the outlet.
b. Close the door and try
again.
c. Check instruction.
a.Materials to be avoided in
microwave oven are used.
b.The oven is operated when
empty.
c.Spilled food remains in
the cavity.
a. Use microwave-safe
cookware only.
b. Do not operate with
oven empty.
c. Clean cavity with wet towel.
a. Materials to be avoided in
microwave oven are used.
b. Food is not defrosted
completely.
c. Cooking time, power level
is not suitable.
d. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Use correct cooking
time, power level.
d. Turn or stir food.
Cooking time, power level
is not suitable.
Use correct cooking
time, power level.
a. Materials to be avoided in
microwave oven are used.
b. Food is not defrosted completely.
c.Oven ventilation ports are
restricted.
d. Cooking time, power level is
not suitable.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Check to see that oven venti-
lation ports are not restricted.
d. Use correct cooking
time, power level.
a. Materials to be avoided in
microwave oven are used.
b. Cooking time, power level
is not suitable.
c. Food is not turned or stirred.
Arcing or sparking
Unevenly cooked
foods
Overcooked foods
Undercooked foods
Improper defrosting
MAINTENANCE
14
