Midea Kitchen Appliances EM717CYY Microwave Oven User Manual

Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd. Microwave Oven Users Manual

Users Manual

SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
INSTRUCTION MANUAL
MODEL:EM717CKE
Microwave Oven
120V~ 60Hz
1050W
700W
0.6 Cu.ft.
Specifications
EM717CKE
2
Handling the cord on this press or cords associated
with accessories sold with this product, will expose you
to lead a chemical known to the state of California to
cause cancer, and birth defects or other reproductive
harm. Wash hands after handle.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since this can result in
harmful exposure to microwave energy. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that
the oven door closes properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACE
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions (WxHxD):
Net Weight:
Warning:
8.6 inch
17.0X12.9X10.2 inch
Approx. 21.2 Lbs
If the apparatus is not maintained in a good state of cleanliness, its surface could
be degraded and affect the lifespan of the apparatus and lead to a dangerous
situation.
ADDENDUM
3
SAFETY
1. The oven must be on a leveled surface.
2. The turntable and turntable roller rest must be in the oven during cooking. Place the
cookware gently on the turntable and handle it carefully to avoid possible breakage.
3. Incorrect use of browning dish may cause the turntable to break.
4. Use only the specified bag size when using Direct Access Popcorn.
5. The oven has several built-in safety switches to ensure that the power remains off when
the door is open. Do not tamper with these switches.
6. Do not operate the microwave oven empty. Operating the oven with no food or food that
is extremely low in moisture can cause fire, charring or sparking.
7. Do not cook bacon directly on the turntable. Excessive local heating of the turntable
may cause the turntable to break.
8. Do not heat baby bottles or baby food in the microwave oven. Uneven heating
may occur and could cause physical injury.
9. Do not heat narrow-necked containers, such as syrup bottles.
10. Do not attempt to deep-fry in your microwave oven.
1
1. Do not attempt home canning in this microwave oven, as it is impossible to be sure all
contents of the jar have reached boiling temperature.
12. Do not use this microwave oven for commercial purpose. This microwave oven is made
for household use only.
13. To prevent delayed eruptive boiling of hot liquids and beverages or scalding yourself,
stir liquid before placing the container in the oven and again halfway through cooking
time. Let stand in the oven for a short time and stir again before removing the container.
14. Use carefully when cooking food in the microwave oven to avoid burning due to
excessive cooking.
15. When the appliance is operated in the combination mode, children should only use the
oven under adult supervision due to the temperatures generated.
16. Failure to maintain the oven in a clean condition could lead to deterioration that could
adversely affect the life of the appliance and possibly result in a hazardous situation.
4
IMPORTANT SAFETY INSTRUCTIONS
WARNING
1. Read all instructions before using the
appliance.
2. Read and follow the specific: "PRECAU-
TIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY"
3. As with most cooking appliances, close
supervision is necessary to reduce the risk
of a fire in the oven cavity.
If materials inside the oven ignite:
1. Keep the oven door closed.
2. Turn the oven off, and unplug the
appliance.
3. Disconnect the power cord, shut off
power at the fuse or circuit breaker panel.
4. Do not overcook food. Carefully attend
the appliance when paper, plastic, or
other combustible materials are placed
inside the oven to facilitate cooking.
5. Do not use the oven cavity for storage
purposes. Do not store combustible
items such as bread, cookies, paper
products, etc. inside the oven.
6. Remove wire twist-ties and metal
handles from paper or plastic
containers/bags before placing them in
the oven.
7. This oven must be grounded. Connect
only to properly grounded outlet. See
"GROUN-DING INSTRUCTIONS".
8. Install or locate this oven only in
accordance with the installation
instructions provided.
9. Some products such as whole eggs,
water with oil or fat, sealed to explode
and therefore should not be heated in
this oven.
To reduce the risk of fire, electric shock, injury to persons
or exposure to excessive microwave oven energy when
using your appliance, follow basic precautions, including
the following:
10. Use this appliance only for its intended
uses as described in this manual. Do
not use corrosive chemicals or vapors
in this appliance. This oven is
specifically designed to heat or cook
food. It is not designed for industrial or
laboratory use.
11. As with any appliance, close
supervision is necessary when used
by children.
12. Do not operate this oven if it has a
damaged cord or plug, if it is not
working properly or if it has been
damaged or dropped.
13. This appliance should be serviced only
by qualified service technicians.
Contact the nearest authorized service
facility for examination, repair or
adjustment.
14. Do not cover or block any vents on the
oven.
15. Do not store or use this appliance
outdoors.
16. Do not use this oven near water, for
example, near a kitchen sink, in a wet
basement, near a swimming pool, or
similar locations.
17. Do not immerse cord or plug in water.
18. Keep cord away from heated surfaces.
19. Do not let cord hang over edge of
table or counter.
20. When cleaning door and oven
surfaces use only mild, nonabrasive
soaps or detergents applied with a
sponge or soft cloth.
5
i) Do not overheat the liquid.
ii) Stir the liquid both before and halfway through heating it.
iii) Do not use straight-sided containers with narrow necks.
iv) After heating, allow the container to stand in the microwave oven for a short time
before removing the container.
v) Use extreme care when inserting a spoon or other utensil into the ntainer.
WARNING
DANGER
21. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point
without appearing to be boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present. This could result in very hot
liquids suddenly boiling over when the container is disturbed or a spoon or other utensil
is inserted into the liquid.
This appliance must be grounded. In the
event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing an escape wire
for the electric current. This appliance
is equipped with a cord having grounding
Consult a qualified electrician or serviceman if the
grounding instructions are not completely understood
or if doubt exists as to whether the appliance is
properly grounded. If it is necessary to use an
extension cord, use only a 3-wire extension cord that
has a 3-pronged grounding plug, and a 3-slot
receptacle that will accept the plug on the appliance.
1. A short power-supply cord is provided to reduce the
risks resulting from becoming entangled in or
tripping over a longer cord.
2. Longer cord sets or extension cord is provided to
reduce the risks resulting from becoming entangled
in or tripping over a longer cord.
3. If a long cord sets or extension cord is used:
1) The marked electrical rating of the cord set or
extension marked electrical rating of the cord set or
extension cord should be at least as great as the
electrical rating of the appliance.
2) The extension cord must be a grounding-type
3-wire cord.
3) The longer cord should be arranged so that it will
not drape over the countertop or tabletop where it
can be pulled on by children or tripped over
unintentionally.
Electric Shock Hazard
Touching some of the internal
components can cause serious
personal injury or death. Do not
disassemble this appliance.
Electric Shock Hazard
Improper use of the grounding
can result in electric shock. Do
not plug into an outlet until
appliance is properly installed
and grounded.
To Reduce the Risk of Injury to Persons
Grounding Installation
SAVE THESE INSTRUCTIONS
wire with a grounding plug. The plug must be
plugged into an outlet that is properly installed
and grounded.
(grounding) plug
Three-pronged
6
CAUTION
Personal Injury Hazard
Tightly-closed utensils
could explode. Closed
containers should be opened
and plastic pouches should be
pierced before cooking.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
UTENSILS See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
7
A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
F
G
A
CB
ED
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
8
Installation
A minimum clearance of 3.0 inches
(7.5cm) is required between the oven and
any adjacent walls. One side must be open.
(1) Leave a minimum clearance of 12
inches (30cm) above the oven.
(2) Do not remove the legs from the
bottom of the oven.
(3) Blocking the intake and/or outlet openings
can damage the oven.
(4) Place the oven as far away from
radios and TV as possible.
Operation of microwave oven may
cause interference to your radio or TV
reception.
2. Plug your oven into a standard household
outlet. Be sure the voltage and the
frequency is the same as the voltage
and the frequency on the rating label.
WARNING: Do not install oven over a
range cooktop or other heat-producing
appliance. If installed near or over a heat
source, the oven could be damaged and
the warranty would be void.
3.0 inch(7.5cm)
3.0 inch(7.5cm)
12 inch(30cm)
OPEN
Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop Installation
Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the
glass tray
upside down. The glass
tray should never be restricted.
b. Both
glass tray
and
turntable ring assembly
must
always be used during cooking.
c. All food and containers of food are always placed
on the
glass tray
for cooking.
d. If
glass tray
or
turntable ring assembly
cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
1. Select a level surface that provide
enough open space for the intake
and/or outlet vents.
9

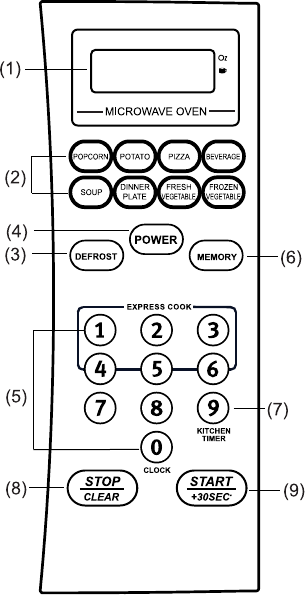

Control Panel and Features
OPERATION
(1) Dispaly Screen
(2) Auto Menu
(3) Defrost
(4) Power
(5) Number Keys
(6) Memory
(7) Kitchen Timer
(8) Stop/Clear: clear all previous settings
pressed before cooking starts. During
cooking: press once to stop oven; twice
to stop and clear all entries.
(9) Start/+30Sec.
1. Clock Setting
When the microwave oven is plugged into a outlet, the oven will display " 0:00 "
(1) Press " 0/CLOCK ", LED will display 00:00.The hour figures will flash;
(2) Press the number keys and enter the correct time. Time input should be 1:00-12:59.
For example, time is 10:12 now, please press "1,0,1,2" in turn.
(3) Press " START/+30SEC. " to aonfirm and finish clock setting. And time will be light.
Note:
(1) If time input is beyond 1:00-12:59, the setting is invalid. You cannot confirm and finish
the setting by pressing "START/+30SEC.".
(2) If you want to reset the clock, please repeat step 1 to step 3. If you forget to press
"START/+30SEC." finally, the previous clock will be display after one minute.
2. Kitchen Timer
(1) Press " 9/KITCHEN TIMER ", LED will display 00:00. The frist "0" will flash;
":" and the other "0" will be lighted.
(2) Press the number keys and enter the correct time.(the maximum cooking time is 99
minutes and 99 seconds)
(3) Press " START/+30SEC. " to confirm setting.
(4) When the kitchen time is reached, the buzzer will ring 5 times and the oven turn back to
waiting states. If the clock be set(12-hour system), LED will display the current time.
Note: Kitchen Timer is a timer.
3. Microwave cook
(1) Keep on pressing " POWER " to choose the microwave power you need.
"PL10","PL9","PL8"....."PL1" will be displayed in order.
(2) Press number keys to input the cooking time; the maximum cooking time is 99 minutes
and 99 seconds.
(3) Press " START/+30SEC. " to start cooking, and the remained cooking time will be
displayed.
Note: In the process of cooking, if the " STOP/CLEAR " button is pressed or if there is no
operation within 1 minute, the oven will go back to the former setting automatically.
10
OPERATION
Ten power levels are available.
Level
Power
10
100%
9
90%
8
80%
7
70%
6
60%
5
50%
4
40%
3
30%
2
20%
1
10%
PL10 PL9 PL8 PL7 PL6 PL5 PL4 PL3 PL2 PL1
Display
6. Time Defrost Function
(1) Press " DEFROST " twice to choose defrost by time function, Screen will display "dEF2".
(2) Press number pads to input defrosting time. The effective time range is 00:01~99:99
Note:(a) If the time input is not within 00:01~99:99, no "beep" will be sound and the
microwave will not work until valid numbers are input.
(b) The default microwave power is power level 3. It cannot be changed.
(3) Press " START/+30SEC. " to start defrosting. The remained cooking time will be
displayed.
5. Defrosting By W.T. Function
(1) Press " DEFROST " once to choose defrost by weight function, "dEF1" is displayed;
(2) Press numerical pads to input weight to be defrosted. Weight ranged should be between
4~100 Oz.
(3) If the weight input is not within 4~100, the input will be invalid. And the microwave will
not work until valid numbers are input .
(4) Press " START/+30SEC. " to start defrosting and the remained cooking time will be
displayed.
(2) In waiting state, instant cooking at 100% power level with 30 seconds' cooking time can
be started by pressing " START/+30SEC. ". Each press on the same button will increase
cooking time by 30 seconds. the maximum cooking time is 99 minutes and 99 seconds.
Note: Each press on " START/+30SEC." can increase the cooking by 30 seconds for the
microwave and Auto menu cooking. However, the operation will not work under
"Weight Defrost" operation.
4. Fast Starting
(1) In waiting state, instant cooking at 100% power level can be started by select a cooking
11
time from 1 to 6 minutes by pressing number pad 1 to 6. Press " START/+30SEC. " to
increase the cooking time; the maximum cooking time is 99 minutes and 99 seconds.
Example: to cook the food with 50% microwave power for 15 minutes:
(1) Press "POWER" six times until "PL5" displays.
(2) Input the cooking time. Press "1","5","0","0" to set the time;
(3) Press "START/+30SEC." to start cooking.
1set
2set
3set
Once
Twice
Thrice
1
2
3
1.75
3.0
3.5
Once
Twice
Thrice
1.75
3.0
3.5
12
7.POPCORN
a) Press " POPCORN " repeatedly until the number you wish appears in the display,
"1.75", " 3.0" and "3.5" will be displayed in order.
For example, press "POPCORN" once : "1.75" displays.
b) Press " START/+30 SEC. " to cook, time counts down.
c) When cooking finish, buzzer sounds five times, then turn back to waiting states.
"0:00" displays. If the clock has been set ,current time will be displayed.
8.POTATO
a)Press " POTATO " repeatedly until the number you wish appears in the display,
"1", " 2 " or "3" will be displayed in order.
"1"SET: 1 potato (approximate 230 gram)
"2"SET: 2 potatoes (approximate 460 gram)
"3"SET: 3 potatoes (approximate 690 gram)
For example, press "POTATO" once : "1" displays.
b) Press " START/+30 SEC. " to cook, time counts down.
c) When cooking finish, buzzer sounds five times, then turn back to waiting states.
Times( Press "Potato") Weight Display
Times( Press "Popcorn") Weight(Oz) Display
a) Press " PIZZA " repeatedly until the number you wish appears in the display.
" 1 "," 2" or "3" will be displayed.
9. PIZZA
1(about 3.0 Oz)
2(about 6.0 Oz)
3(about 9.0 Oz)
Once
Twice
Thrice
1
2
3
Times( Press "Pizza") Weight Display
b) Press " START/+30 SEC." to cook, time counts down.
For example, press"
PIZZA
" twice, "2" appears in the LED.
10.BEVERAGE
a) Press " BEVERAGE " repeatedly until the number you wish appears in the display,
"1", " 2", " 3" will be displayed in order.
You can reheat 1~3 cups of beverage each time (approximate 250 ML).
For example, press "BEVERAGE" twice, "2"appears in the display.
b) Press " START/+30 SEC." to cook,
c) Buzzer sounds five times when cooking finish. Then turn back to waiting states.
13
11.SOUP
a) Press " SOUP " repeatedly until the number you wish appears in the display,
"4.0 ", "8.0" ,"12.0","16.0" will be displayed in order.
For example, press "SOUP" twice, "8.0"appears in the display.
b) Press " START/+30 SEC." to cook,
c) Buzzer sounds five times when cooking finish. Then turn back to waiting states.
4.0 Oz
8.0 Oz
12.0 Oz
16.0 Oz
Once
Twice
Thrice
4 times
4.0
8.0
12.0
16.0
Times( Press "SOUP ") Weight Display
1Mug
2Mugs
3Mugs
Once
Twice
Thrice
1
2
3
Times( Press "BEVERAGE")Weight Display
12. DINNER PLATE
a) Press " DINNER PLATE " repeatedly until the number you wish appears
in the display, "9.0"," 12.0 " and "18.0" will be displayed.
For example, press" DINNER PLATE " twice, "12.0" appears in the display.
b) Press " START/+30 SEC. " to cook, time counts down.
9.0 Oz
12.0 Oz
18.0 Oz
Once
Twice
Thrice
9.0
12.0
18.0
Times( Press "DINNER PLATE") Weight Display
Once
Twice
Thrice
4.0 Oz
8.0 Oz
16.0 Oz
4.0
8.0
16.0
15. LOCK FUNCTION FOR CHILDREN
14
b) Press " START/+30 SEC. " to cook, time counts down.
c) Buzzer sounds five times when cooking finish.
13.FRESH VEGETABLE
a) Press " FRESH VEGETABLE " repeatedly until the number you wish appears in the
display, "4.0","8.0 " and "16.0" will be displayed in order.
For example, press " FRESH VEGETABLE " twice, "8.0" appears in the display.
Once
Twice
Thrice
4.0 Oz
8.0 Oz
16.0 Oz
4.0
8.0
16.0
Times( Press "FRESH VEGETABLE")Weight Display
b) Press " START/+30 SEC. " to cook, time counts down.
c) Buzzer sounds five times when cooking finish.
14.FROZEN VEGETABLE
a) Press " FROZEN VEGETABLE " repeatedly until the number you wish appears in the
display, 4.0","8.0 " and "16.0" will be displayed in order.
For example, press " FROZEN VEGETABLE " twice, "8.0" appears in the display.
Times( Press "FROZEN VEGETABLE")
Weight Display
Lock: In waiting state, press " STOP/CLEAR " for 3 seconds, there will be a long "beep"
denoting the entering the children-lock state; meanwhile, LED will display " "
Lock quitting: In locked state, press " STOP/CLEAR " for 3 seconds, there will be a long "beep"
denoting that lock is released.
16. MEMORY FUNCTION
17. MULTI-STAGE COOKING
This microwave oven can be set with 2 stages cooking at most. If one stage is defrost by
weight, it will placed at the first stage automatically. And only one stage is defrost.
Example: To defrost beef of 20 Oz first and then cook with 80% microwave power for 7 minutes.
1) Press "DEFROST" once to choose defrost by weight function, "dEF1" displays;
2) Press "2","0" in sequence to set weight;
3) Press "POWER" three times to 80% microwave power;
4) Press "7","0","0" in sequence to set cooking time;
5) Press "START/ +30 SEC.." to start cooking.
When defrost procedure finish, the buzzer sounds once, then the second stage begins.
Note: (1) Auto menu can't be set as one of the 2 stages.
(2) Defrost by time can be set as the one of stages.
15
(1)Press "MEMORY" to choose memory 1-3 procedure. The LED will display 1,2,3.
(2) If the procedure has been set, press " START/ +30 SEC." to use it. If not, continue to set
the procedure. Only one or two stages can be set.
(3) After finishing the setting, press "MEMORY" to save the procedure and turn back to the
waiting states.If press " START/ +30 SEC." ,it can save and operate the setting.
Note: Auto menu cooking cannot be set as memory procedure.
Example: to set the following procedure as the second memory, that is memory 2.
to cook the food with 80% microwave power for 3minutes and 20 seconds.
The steps are as follow:
1) In waiting states, press "MEMORY" twice,stop pressing until the screen displays "2".
2) Press "POWER" three times until "PL8" displays.
3) Press number keys "3","2","0" in order to input the cooking time.
4) Press "MEMORY" to save the setting. Buzzer sounds once then turn back to waiting
states. If you press "START/+30SEC." after the above step, the procedure will be
saved as the memory 2 and operated.
5) If the electricity is not cut off, the procedure will be saved all the time. If it is, the procedure
need to reset.
6) If you want to run the saved procedure, in waiting states, press "MEMORY" twice, screen
displays "2", then press "START/+30SEC." to run.
18. INQUIRING FUNCTION
(1) In cooking state, press " 0/CLOCK ", the LED will display clock for three seconds if the
clock has been set;
(2) In the microwave cooking state, press " POWER " to inquire microwave power level, and
the current microwave power will be displayed. After three seconds, the oven will turn back
to the previous state. In multi-stage state, the inquiring way can be done by the
same way as above.
20. OTHER SPECIFICATIONS
(1) In standby state , if the clock has been set, screen displays current time, the " : " would
flash; otherwise, it shows " 0:00 ".
(2) In setting function state, LED displays the related setting.
(3) In working or pause state, LED displays remainded cooking time.
(4) During operation, if the oven pause or the door is opened, "START/+30SEC."must be
pressed to continue running.
When the cooking is over, the buzzer will sound 5 "beep" to alert user the cooking is finished.
19. COOKING END REMINDING FUNCTION
16
Troubleshooting
Check your problem by using the chart below and try the solutions for each problem. If the
microwave oven still does not work properly, contact the nearest authorized service center.
TROUBLE
Oven will not start
POSSIBLE CAUSE POSSIBLE REMEDY
a. Electrical cord for oven is
not plugged in.
b. Door is open.
c. Wrong operation is set.
a. Plug into the outlet.
b. Close the door and try
again.
c. Check instructions.
Arcing or sparking
a. Materials to be avoided in
microwave oven were
used.
b. The oven is operated when
empty.
c. Spilled food remains in the
cavity.
a. Use microwave-safe
cookware only.
b. Do not operate with oven
empty.
c. Clean cavity with wet towel.
Unevenly cooked
foods
a. Materials to be avoided in
microwave oven were
used.
b. Food is not defrosted
completely.
c. Cooking time, power level
is not suitble.
d. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Use correct cooking time,
power level.
d. Turn or stir food.
Overcooked foods Cooking time, power level is
not suitable.
Use correct cooking time,
power level.
Undercooked foods
a. Materials to be avoided in
microwave oven were used.
b. Food is not defrosted
completely.
c. Oven ventilation ports are
restricted.
d. Cooking time, power level is
not suitable.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Check to see that oven venti-
lation ports are not restricted.
d. Use correct cooking time,
power level.
Improper defrosting
a. Materials to be avoided in
microwave oven were used.
b. Cooking time, power level is
not suitable.
c. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Use correct cooking time,
power level.
c. Turn or stir food.
Maintenance
17
NOTE
This device complies with part 18 of the FCC Rules.
1, Before commissioning this oven please read this instruction manual and keep it carefully.
2, There must be more than 30cm high space necessary above the top surface of oven.
3, Do not repair the oven yourself, please consult an authorized expert.
4, The contents of feeding bottles and bay food jars are to be stirred or shaken and the
temperature is to be checked before consumption, in order to avoid burns.
5, Check the oven and the cable regularly for damage. If there is any kind of damage, the oven
should not be used.
Do not attempt to operate this oven with the door open since open- door operation can
result in harmfulexposure to microwave energy. It is important not to defeat or tamper
with the safety interlocks.
Carefully clean door seala and sealing surfaces.
Do not operate the oven if it is damaged. It is particularly important that the oven door
close properly and that there is no damage to the : (1) door(bent). (2) hinges and
latches( broken or loosened). (3) door seals and sealing surfaces.
Utensils sould be checked to ensure that they are suitable for use in microwave ovens.
When heating food in plastic or paper containers, check the oven frequently due to the
possibility of ignition.
Microwave heating of beverages can result in delayed eruptive boiling, therefore care
has to be taken when handling the container.
If smoke is observed, switch off or unplug the appliance and keep the door closed in
order to stifle any flames.
Egg in their shell and whole hard- bolled eggs shall not be heated in microwave ovens
since they may explode.
If the door or door seals are damaged. The oven must not be operated until it has been
repaired by a trained person.
Liquids or other foods must not be heated in sealed containers since they are liable to
explode.
Warning:
1, It is hazardous for anyone other than a trained person to carry out any service or repair
operation, which involves the removal of any cover which gives protection against exposure
to microwave energy.
2, Only allow children to use the oven without supervision when adequate instructions have
been given so that the children is able to use the oven in a safe way and understands the
hazards of improper use.
3, If the supply cord is damaged, it must be replaced by the manufacture of its service agent or
a similarly qualified person in order to avoid a hazard.
4, This product will make disturbance in AV product, if any disturbance is occurred, use
different electrical source jack to supply electricity or use low power or away from them.
Note: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZATED MODIFICATIONS TO THIS
EQUIPMENT .SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.

Navigation menu
