Midea Kitchen Appliances EM7P01YY Microwave Oven User Manual
Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd Microwave Oven
User Manual
SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your
microwave oven,and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
Model: EM7P01GA-P
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY
(a) Do not attempt to operate this oven with the door open since
operation can result in harmful exposure to microwave energy.
It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allows soil or
cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particular important that
the oven door close properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACE
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
open door
S
ly
Specifications
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight: Approx. 9.26kg
1150 W
20L
270 mm
440X332X258mm
EM7P01GA-P
120V~ 60Hz
700 W
2
(f) This product has been tested and found to comply with the limits
for Microwave Oven, pursuant to Part 18 of the FCC Rules.
WARNING -
1. Read all instructions before using the
appliance.
2. Read and follow the specific:
EXCESSIVE MICROWAVE ENERGY"
found on page 2.
combustible materials are placed inside the oven to facilitate cooking.
only to properly grounded outlet. See
found on page
accordance with the provided installation
instructions.
To reduce the risk of burns, electric shock, fire, injury to persons or exposure
to excessive microwave energy:
3. This appliance must be grounded. Connect
"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
"GROUNDING INSTRUCTIONS"
4. Install or locate this appliance only in
5. Some products such as whole eggs and sealed containers - for example, closed glass
jars - are able to explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in the manual. Do not use
corrosive chemicals or vapors in this appliance. This type of oven is specifically
designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
supervision is necessary when used
by children.
7. As with any appliance, close
damaged cord or plug, if it is not
working
properly, or if it has been
damaged or dropped.
8. Do not operate this appliance if it has a
by qualified service personnel.
Contact nearest
authorized service
facility for examination, repair, or
adjustment.
9. This appliance should be serviced only
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors. Do not use this product near water - for
example,
near a kitchen sink, in a wet
basement, near a swimming pool, or
similar location.
1 . Do not immerse cord or plug in water.2
1 . Keep cord away from heated surface.
14. Do not let cord hang over edge of
table or counter.
3
15. When cleaning surfaces of door and oven that comes together on closing the door,
16. To reduce the risk of fire in the oven cavity:
1). Do not overcook food. Carefully attend appliance when paper, plastic, or other
2). Remove wire twist-ties from paper or plastic bag before placing bag in oven.
3). If material inside of the oven ignite, keep oven door closed, turn oven off, and
disconnect the power cord, shut off power at the fuse or circuit breaker panel.
4). Do not use the cavity for storage purposes. Do not leave paper products, cooking
utensils, or food in the cavity when not in use.
point without appearing to be boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present.
17. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling
IMPORTANT SAFETY INSTRUCTIONS
precautions should be followed, including
When using electrical appliances basic safety
following:the
use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth.
or
4.
3
stand in the microwave oven for a short time
before removing the container. spoon or other utensil into the container.
This appliance must be grounded. In the event of an electrical short circuit, grounding
of electric shock by providing an escape wire for the
appliance is equipped with a cord having a
plugged into an outlet that is properly installed and grounded.
GROUNDING INSTRUCTIONS
THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN
THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
1) Do not overheat the liquid.
2) Stir the liquid both before and halfway through heating it.
3) Do not use straight-sided containers with narrow necks.
4) After heating, allow the container to
5) Use extreme care when inserting a
grounding wire with a grounding plug.
reduces the risk electric current. This
The plug
WARNING - Improper use of the grounding can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not
completely or if doubt exists as to whether the appliance is properly grounded.
extension cord, use only a 3-wire extension cord that has a
The marked rating of the extension cord shall be equal to or greater than the electrical
appliance.
understood,
If it is necessary to use an
3-blade grounded plug, and 3-slot receptacle that will accept the plug on the appliance.
rating of the
Electric Shock Hazard
Touching some of the internal components can cause serious personal injury or death.
disassemble this appliance.
DANGER -
Do not
Electric Shock Hazard
Improper use of the grounding can result in electric shock. Do not plug into an outlet until
appliance is properly installed and grounded.
WARNING -
1. A short power supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised
in their use.
3. If a long cord or extension cord is used:
1) The marked electrical rating of the cord set or extension cord should be at least as
great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The longer cord should be arranged so that it will not drape over the counter top or
tabletop where it can be pulled on by children or tripped over unintentionally.
SA E THESE INSTRUCTIONS
-
must be
V
4
1. Operation of the microwave oven may cause interference to your radio, TV
or similar
2. When there is interference, it may be reduced or eliminated by taking the
following
1) Clean door and sealing surface of the oven
2) Reorient the receiving antenna of radio or television.
3) Relocate the microwave oven with respect to the receiver.
4) Move the microwave oven away from the receiver.
5) Plug the microwave oven into a different outlet so that microwave oven
are on different branch circuits.
RADIO INTERFERENCE
equipment.
measures:
and receiver
Personal Injury Hazard
Tightly-closed utensils could explode. Closed containers should be opened and plastic
pierced before cooking.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave
4. Do not exceed 1 minute cooking time.
UTENSILS
See the instructions on "Materials you can use in microwave oven or to be avoided in
There may be certain non-metallic utensils that are not safe to use for microwaving. If
utensil in question following the procedure below.
CAUTION -
pouches should be
microwave oven."
in doubt, you can test the
utensil in question.
cooking.
5
Materials you can use in microwave oven
Utensils Remarks
Follow manufacturer* instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer* instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short*erm cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer* instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
6
A) Control panel
A
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the
glass tray
upside down. The glass
tray should never be restricted.
b. Both
glass tray
and
turntable ring assembly
must
always be used during cooking.
c. All food and containers of food are always placed
on the
glass tray
for cooking.
d. If
glass tray
or
turntable ring assembly
cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
B
C
D
E
F
B) Turntable ring assembly
C) Glass tray
D) Observation window
E) Door assembly
F) Safety interlock system
7
Installation

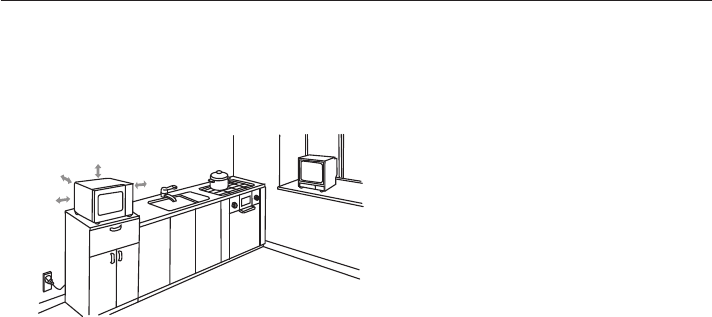

A minimum clearance of 3.0 inches
(7.5cm) is required between the oven and
any adjacent walls. One side must be open.
(1) Leave a minimum clearance of 12
inches (30cm) above the oven.
(2) Do not remove the legs from the
bottom of the oven.
(3) Blocking the intake and/or outlet openings
can damage the oven.
(4) Place the oven as far away from
radios and TV as possible.
Operation of microwave oven may
cause interference to your radio or TV
reception.
2. Plug your oven into a standard household
outlet. Be sure the voltage and the
frequency is the same as the voltage
and the frequency on the rating label.
WARNING: Do not install oven over a
range cooktop or other heat-producing
appliance. If installed near or over a heat
source, the oven could be damaged and
the warranty would be void.
3.0 inch(7.5cm)
3.0 inch(7.5cm)
12 inch(30cm)
OPEN
Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop Installation
Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.
1. Select a level surface that provide
enough open space for the intake
and/or outlet vents.
8
OPERATION
1. Power Level
11 power levels are available.
Level
Power
Display
10
100%
PL10
9
90%
PL9
8
80%
PL8
7
70%
PL7
6
60%
PL6
5
50%
PL5
4
40%
PL4
3
30%
PL3
2
20%
PL2
1
10%
PL1
2. Clock Setting
(1) Press " CLOCK "once, "00:00" will display.
(2) Press the number keys and enter the current time. For example,
time is 12:10 now, please press "1, 2, 1, 0" in turn.
(3) Press " CLOCK " to finish clock setting. ":" will flash and the clock will be lighted.
(4) If the numbers input are not within the range of 1:00--12:59, the setting will be invalid
until valid numbers are input.
3. Kitchen Timer
(1) Press "KITCHEN TIMER " once, the screen will display 00:00, the first hour figure flash.
(2) Press the number keys and enter the timer time. (The maximum cooking time is
99 minutes and 99 seconds.)
(3) Press " START/+30SEC. " to confirm setting.
(4) When the timer time arrives, the buzzer will ring 5 times.
If the clock has been set (12-hour system), the screen will display the current time.
Note: (1) The kitchen time is different from 12-hour system. Kitchen Timer is a timer.
(2) During kitchen timer, any program cannot be set.
4. Microwave cook
(2) Press number keys to input the cooking time; the maximum cooking time is 99
minutes and 99 seconds.
0
0%
PL0
Note: (1) In the process of clock setting, if the " STOP/CANCEL " button is pressed or if
there is no operation within 1 minute, the oven will go back to the former setting
automatically.
(2) If the clock need to be reset, please repeat step 1 to step 3.
(1) Press "TIME COOK" once, the screen will display "00:00".
(3) Press " POWER " once, the screen will display "PL10". The default power is 100% power.
Now you can press number keys to adjust the power level.
(4) Press " START/+30SEC. " to start cooking.
9
Note:(1) In the process of , if the " STOP/CANCEL" button is pressed or if there is
no operation within 1 minute, the oven will go back to the former setting automatically.
remove the odour of the oven.
POWER" can be pressed to change the power you need.
After pressing " POWER",the current power flash for 3 seconds, now you can press number
button to change the power. The oven will work with the selected power for the rest time.
6. Weight Defrost Function
(1) Press " WEIGHT DEFROST "once, the screen will display "dEF1".
(2) Press numerical buttons to input weight to be defrosted.
Input the weight ranged between 4~100 Oz.
(3) Press " START/+30SEC. " to start defrosting and the cooking time remained will be
displayed.
(2) In waiting state, instant cooking at 100% power level with 30 seconds' cooking time can
be started by pressing " START/+30SEC ". Each press on the same button will increase
cooking time by 30 seconds. the maximum cooking time is 99 minutes and 99 seconds.
Note: during microwave cooking and time defrost, time can be added by pressing
"START/+30SEC. " button.
5. Speedy Cooking
(1) In waiting state, instant cooking at 100% power level can be started by select a cooking
time from 1 to 6 minutes by pressing number pads1 to 6. Press " START/+30SEC. " to
increase the cooking time; the maximum cooking time is 99 minutes and 99 seconds.
Example: to cook the food with 50% microwave power for 15 minutes.
a. Press "TIME COOK" once. "00:00" displays.
b.Press "1", "5", "0", "0" in order.
c.Press "POWER" once, then press "5" to select 50% microwave power.
d.Press "START/+30SEC. " to start cooking.
setting
(2) If "PL 0" selected, the oven will work with fan for no power. You can use this level to
(3)During microwave cooking, "
10
7. Time Defrost Function
(1) Press " TIME DEFROST " once, the screen will display "dEF2".
(2) Press number pads to input defrosting time. The effective time range is 0:01~99:99
(3) The default microwave power is power level 3. If you want to change the power level,
press " POWER " once, and the screen will display "PL 3", then press the number pad
of the power level you wanted.
(4) Press " START/+30SEC. " to start defrosting. The remained cooking time will be
displayed.
9. POTATO
POTATO " repeatedly until the number you wish appears in the display,
"1", "2", "3" will display in order.
"1"SET : 1 potato (approximate 230 gram)
"2"SETS: 2 potatoes (approximate 460 gram)
"3"SETS: 3 potatoes (approximate 690 gram)
For example, press " POTATO" once, "1" appears.
" START/+30 SEC. " to cook, buzzer sounds once. When cooking finishes, buzzer
sounds five times and then turn back to waiting state.
8. POPCORN
POPCORN " repeatedly until the number you wish appears in the display,
"1.75", "3.0" ,"3.5" will display in order.
For example, press " POPCORN" once, "1.75" appears.
" START/+30 SEC. " to cook, bu
buzzer will sound fiven times and then turn back to waiting state.
10. FROZEN VEGETABLE
FROZEN VEGETABLE " repeatedly until the number you wish appears in the
display, "4.0", "8.0", "16.0" Oz will display in order.
For example, press " FROZEN VEGETABLE " once, "4.0" appears.
" START/+30 SEC. " to cook, buzzer sounds once. When cooking finishes, buzzer
sounds five times and then turn back to waiting state.
11. BEVERAGE
BEVERAGE " repeatedly until the number you wish appears in the
display, "1", "2", "3" cup will display in order. One cup is about
120ml. For example, press " BEVERAGE" once, "1" appears.
" START/+30 SEC. " to cook, buzzer sounds once. When cooking finish , buzzer
sounds five times and then turn back to waiting state.
.
zzer sounds once. When cooking finishes,
es
Oz
(a) Press "
(b) Press
(a) Press "
(b) Press
(a) Press "
(b) Press
(a) Press "
(b) Press
11
14. MEMORY FUNCTION
13. PIZZA
PIZZA " repeatedly until the number you wish appears in the display,
"4.0", "8.0", "14.0" Oz will display in order.
For example, press " PIZZA" once, "4.0" appears.
" START/+30 SEC. " to cook, buzzer sounds once. When cooking finishes, buzzer
sounds five times and then turn back to waiting state.
12. DINNER PLATE
DINNER PLATE " repeatedly until the number you wish appears in the
display, "9.0", "12.0", "18.0" Oz will display in order.
For example, press "DINNER PLATE" once, " 0" appears.
" START/+30 SEC. " to cook, buzzer sounds once. When cooking finishes, buzzer
sounds five times and then turn back to waiting state.
(1) Press "0/MEMORY" to choose memory 1-3 procedure. The screen will display 1, 2, 3.
(2) If the procedure has been set, press " START/ +30 SEC. " to use it. If not, continue to
set the procedure. Only one or two stages can be set.
(3) After finishing the setting, press " START/ +30 SEC. " once to save the procedure.
If press " START/ +30 SEC. " again, it will start cooking.
Example: To set the following procedure as the second memory, that is memory 2.
To cook the food with 80% microwave power for 3 minutes and 20 seconds.
The steps are as follow:
a. In waiting states, press "0/MEMORY" twice, stop pressing until the screen displays "2".
b.Press "TIME COOK" once, then press "3", "2", "0" in order.
c. Press "POWER" once, "PL10" displays, then press "8" and "PL8" displays.
d. Press "START/ +30 SEC. " to save the setting. Buzzer sounds once and the screen will
display "2". If you press " START/+30SEC. " again, the procedure will be saved as the
memory 2 and operated.
. If you want to run the saved procedure, in waiting state, press "0/MEMORY" twice,
screen displays "2", then press "START/+30SEC." to run.
9.
e
(a) Press "
(b) Press
(a) Press "
(b) Press
12
19. OTHER SPECIFICATIONS
(1) In standby state , if the set clock digital tube displays current time, the icon " : " would
flash; otherwise, it shows " 0:00 ".
(2) In setting function state, the screen displays corresponding setting.
(3) In working or pause state, displays surplus cooking time.
When the cooking is over, the buzzer will sound 5 "beep"s to alert user the cooking is finished.
18. COOKING END REMINDING FUNCTION
17. INQUIRING FUNCTION
(1) In cooking state, press " CLOCK ", the oven will display clock for three seconds.
(2) In the microwave cooking state, press " POWER " to inquire microwave power level, and
the current microwave power will be displayed. After three seconds, the oven will turn back
to the previous state. In multi-stage state, the inquiring way can be done by the
same way as above.
16. LOCK FUNCTION FOR CHILDREN
Lock: In waiting state, press " STOP/CANCEL " for 3 seconds, there will be a long "beep"
denoting the entering into the children-lock state; meanwhile, screen will display " ".
Lock quitting: In locked state, press " STOP/CANCEL " for 3 seconds, there will be a long
"beep" denoting that lock is released.
15. Multi-stage cooking
At most 2 stages can be set for cooking. In multi-stage cooking, if one stage is
defrosting, then defrosting shall be placed at the first stage automatically.
Note: Auto cooking cannot work in the multi-stage cooking.
Example: if you want to cook with 80% microwave power for 5 minutes + 60% microwave
power for 10 minutes. The cooking steps are as following:
(1) Press "TIME COOK" once, then press "5", "0", "0" to set the cooking time;
(2) Press "POWER" once, then press "8" to select 80% microwave power.
(3) Press "TIME COOK" once, then press "1", "0", "0", "0" to set the cooking time;
(4) Press "POWER" once, then press "6" to select 60% microwave power.
(5) Press "START/ +30 SEC. " to start cooking.
the screen
13
Troubleshooting
Check your problem by using the chart below and try the solutions for each problem. If the
microwave oven still does not work properly, contact the nearest authorized service center.
TROUBLE
Oven will not start
POSSIBLE CAUSE POSSIBLE REMEDY
a. Electrical cord for oven is
not plugged in.
b. Door is open.
c. Wrong operation is set.
a. Plug into the outlet.
b. Close the door and try
again.
c. Check instructions.
Arcing or sparking
a. Materials to be avoided in
microwave oven were
used.
b. The oven is operated when
empty.
c. Spilled food remains in the
cavity.
a. Use microwave-safe
cookware only.
b. Do not operate with oven
empty.
c. Clean cavity with wet towel.
Unevenly cooked
foods
a. Materials to be avoided in
microwave oven were
used.
b. Food is not defrosted
completely.
c. Cooking time, power level
is not suit ble.
d. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Use correct cooking time,
power level.
d. Turn or stir food.
Overcooked foods Cooking time, power level is
not suitable. Use correct cooking time,
power level.
Undercooked foods
a. Materials to be avoided in
microwave oven were used.
b. Food is not defrosted
completely.
c. Oven ventilation ports are
restricted.
d. Cooking time, power level is
not suitable.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Check to see that oven venti-
lation ports are not restricted.
d. Use correct cooking time,
power level.
Improper defrosting
a. Materials to be avoided in
microwave oven were used.
b. Cooking time, power level is
not suitable.
c. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Use correct cooking time,
power level.
c. Turn or stir food.
MAINTENANCE
a
