Midea Kitchen Appliances XC028AYY Microwave Oven User Manual VG8XC028AYY

Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd Microwave Oven VG8XC028AYY

VG8XC028AYY_User manual

PUT THESE INSTRUCTIONS IN A SAFE PLACE FOR
REFERENCE
Read these instructions carefully before using your
microwave oven.
If you follow the instructions, your oven will provide you with
many years of good service.
INSTRUCTION MANUAL
Microwave Oven
Model:EC028KD7
Specifications
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Rated Input Power(Grill):
Oven Capacity:
Turntable Diameter:
External Dimensions(LxWxH):
Net Weight:
1. Cu.ft (28 Litre)
12.4 inch (315 mm)
Rated Input Power(Convection):
Handling the cord on this unit or cords associated
with accessories sold with this product, will expose you
to a chemical known to the state of California to
cause cancer, and birth defects or other reproductive
harm. Wash hands after handling.
Warning:
120V~60Hz
1500W
1000W
1150W
1500W
EC028KD7
Approx 45.41 Lbs (20.6 kg)
20.47 X18.7 X 14.76h (520X475X375 mm)
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY
(a) Do not attempt to operate this oven with the door open since
operation can result in harmful exposure to microwave energy.
It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allows soil or
cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particular important that
the oven door close properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACE
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
open-door
S
ly
2
1
SAFETY
1. The oven must be on a leveled surface.
2. The turntable and turntable roller rest must be in the oven during cooking. Place the
cookware gently on the turntable and handle it carefully to avoid possible breakage.
3. Incorrect use of browning dish may cause the turntable to break.
4. Use only the specified bag size when using Direct Access Popcorn.
5. The oven has several built-in safety switches to ensure that the power remains off when
the door is open. Do not tamper with these switches.
6. Do not operate the microwave oven empty. Operating the oven with no food or food that
is extremely low in moisture can cause fire, charring or sparking.
7. Do not cook bacon directly on the turntable. Excessive local heating of the turntable
may cause the turntable to break.
8. Do not heat baby bottles or baby food in the microwave oven. Uneven heating
may occur and could cause physical injury.
9. Do not heat narrow-necked containers, such as syrup bottles.
10. Do not attempt to deep-fry in your microwave oven.
1
1. Do not attempt home canning in this microwave oven, as it is impossible to be sure
all contents of the jar have reached boiling temperature.
12. Do not use this microwave oven for commercial purpose. This microwave oven is made
for household use only.
13. To prevent delayed eruptive boiling of hot liquids and beverages or scalding yourself,
stir liquid before placing the container in the oven and again halfway through cooking
time. Let stand in the oven for a short time and stir again before removing the container.
14. Use carefully when cooking food in the microwave oven to avoid burning due to
excessive cooking.
15. When the appliance is operated in the combination mode, children should only use the
oven under adult supervision due to the temperatures generated.
16. Failure to maintain the oven in a clean condition could lead to deterioration that could
adversely affect the life of the appliance and possibly result in a hazardous situation.
3
WARNING -
1. Read all instructions before using the
appliance.
2. Read and follow the specific:
EXCESSIVE MICROWAVE ENERGY"
found on page 2.
combustible materials are placed inside the oven to facilitate cooking.
only to properly grounded outlet. See
found on
page 5.
accordance with the provided installation
instructions.
To reduce the risk of burns, electric shock, fire, injury to persons or exposure
to excessive microwave energy:
3. This appliance must be grounded. Connect
"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
"GROUNDING INSTRUCTIONS"
4. Install or locate this appliance only in
5. Some products such as whole eggs and sealed containers - for example, closed glass
jars - are able to explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in the manual. Do not use
corrosive chemicals or vapors in this appliance. This type of oven is specifically
designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
supervision is necessary when used
by children.
7. As with any appliance, close
damaged cord or plug, if it is not
working
properly, or if it has been
damaged or dropped.
8. Do not operate this appliance if it has a
by qualified service personnel.
Contact nearest
authorized service
facility for examination, repair, or
adjustment.
9. This appliance should be serviced only
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors. Do not use this product near water - for
example,
near a kitchen sink, in a wet
basement, near a swimming pool, or
similar location.
1 . Do not immerse cord or plug in water.2
1 . Keep cord away from heated surface.
14. Do not let cord hang over edge of
table or counter.
3
15. When cleaning surfaces of door and oven that comes together on closing the door,
16. To reduce the risk of fire in the oven cavity:
1). Do not overcook food. Carefully attend appliance when paper, plastic, or other
2). Remove wire twist-ties from paper or plastic bag before placing bag in oven.
3). If material inside of the oven ignites, keep oven door closed, turn oven off, and
disconnect the power cord, shut off power at the fuse or circuit breaker panel.
4). Do not use the cavity for storage purposes. Do not leave paper products, cooking
utensils, or food in the cavity when not in use.
point without appearing to be boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present.
17. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling
IMPORTANT SAFETY INSTRUCTIONS
precautions should be followed, including
When using electrical appliances basic safety
following:the
use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth.
or
4
stand in the microwave oven for a short time
before removing the container. spoon or other utensil into the container.
This appliance must be grounded. In the event of an electrical short circuit, grounding
of electric shock by providing an escape wire for the
appliance is equipped with a cord having a
plugged into an outlet that is properly installed and grounded.
GROUNDING INSTRUCTIONS
THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN
THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
1) Do not overheat the liquid.
2) Stir the liquid both before and halfway through heating it.
3) Do not use straight-sided containers with narrow necks.
4) After heating, allow the container to
5) Use extreme care when inserting a
grounding wire with a grounding plug.
reduces the risk electric current. This
The plug
WARNING - Improper use of the grounding can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not
completely or if doubt exists as to whether the appliance is properly grounded.
extension cord, use only a 3-wire extension cord that has a
The marked rating of the extension cord shall be equal to or greater than the electrical
appliance.
understood,
If it is necessary to use an
3-blade grounded plug, and 3-slot receptacle that will accept the plug on the appliance.
rating of the
Electric Shock Hazard
Touching some of the internal components can cause serious personal injury or death.
disassemble this appliance.
DANGER -
Do not
Electric Shock Hazard
Improper use of the grounding can result in electric shock. Do not plug into an outlet until
appliance is properly installed and grounded.
WARNING -
1. A short power supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised
in their use.
3. If a long cord or extension cord is used:
1) The marked electrical rating of the cord set or extension cord should be at least as
great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The longer cord should be arranged so that it will not drape over the counter top or
tabletop where it can be pulled on by children or tripped over unintentionally.
SAVE THESE INSTRUCTIONS
-
must be
5
Personal Injury Hazard
Tightly-closed utensils could explode. Closed containers should be opened and plastic
pierced before cooking.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave
4. Do not exceed 1 minute cooking time.
UTENSILS
See the instructions on "Materials you can use in microwave oven or to be avoided in
There may be certain non-metallic utensils that are not safe to use for microwaving. If
utensil in question following the procedure below.
1. Operation of the microwave oven may cause interference to your radio, TV
or similar
2. When there is interference, it may be reduced or eliminated by taking the
following
1) Clean door and sealing surface of the oven
2) Reorient the receiving antenna of radio or television.
3) Relocate the microwave oven with respect to the receiver.
4) Move the microwave oven away from the receiver.
5) Plug the microwave oven into a different outlet so that microwave oven
are on different branch circuits.
RADIO INTERFERENCE
equipment.
measures:
and receiver
CAUTION -
pouches should be
microwave oven."
in doubt, you can test the
utensil in question.
cooking.
6
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer* instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer* instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer* instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
7

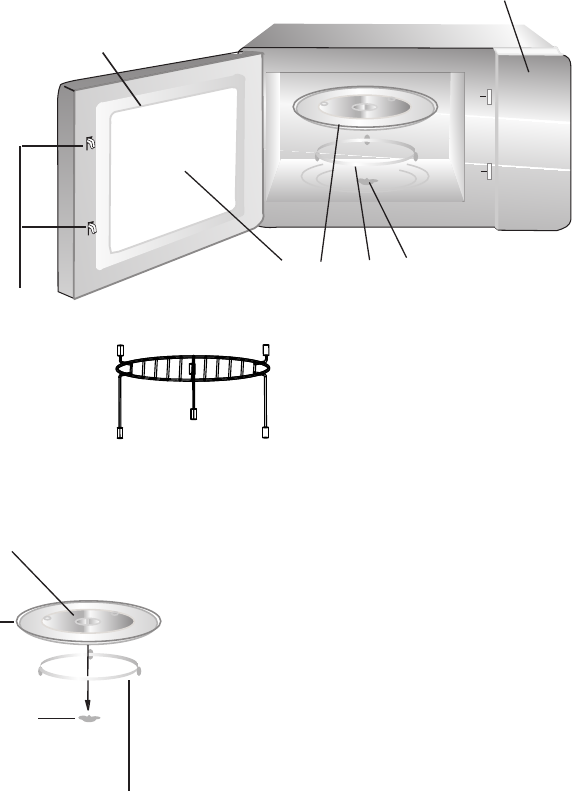

Grill Rack ( Only for Grill series )
A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
F
G
A
C B
ED
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the
glass tray
upside down. The glass
tray should never be restricted.
b. Both
glass tray
and
turntable ring assembly
must
always be used during cooking.
c. All food and containers of food are always placed
on the
glass tray
for cooking.
d. If
glass tray
or
turntable ring assembly
cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
8

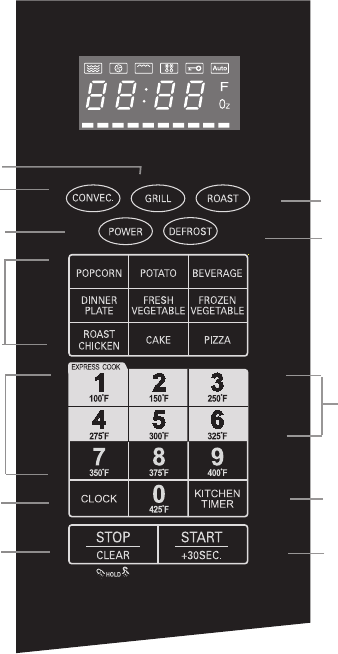

Control Panel and Features
OPERATION
(1) Convection
(2) Grill
(3) Roast
(4) Power
(5) Defrost
(6) Auto Menu:
Popcorn/Potato/Beverage/
Dinner Plate/Fresh Vegetable/
Frozen Vegetable
Convection Menu:
Roast Chicken/Cake/Pizza
(7) Number keys/
Convection Temperature keys
(8) Clock setting
(9) Stop/Clear
(10) Express Cook
(11) Kitchen Timer
(12) Start/+30Sec.
(1)
(6)
(9)
(2)
(4)
(7)
(8)
(10)
(12)
(3)
(5)
(11)
9
When the microwave oven is electrified,the oven will display "0:00", and buzzer will
ring once.
OPERATION INSTRUCTION
The input time should be within 1:00-12:59.
Example: To set 12:12 .
(1) Press the " Clock" button, and the buzzer will ring once.
(2) Press the number keys: "1","2","1","2" in order.
(3) Press " Clock" to finish clock setting. ":" will flash, and the time will light.
Note: 1) If the clock is not set, "0:00" is displayed and the clock will not count.
2) During the process of clock setting, if you press "Stop/Clear", the oven
will go back to the previous status automatically.
2. Kitchen Timer
(1) Press " Kitchen Timer " , "0:00" is dispalyed.
(2) Press the number keys to set the timing within the range of 99 minutes and 99 seconds.
For example:
set kitchen timer as 12 minutes and 12 seconds, please press "1,2,1,2" in turn.
(3) Press " Start/+30SEC." to confirm; time will count down and display.
(4) When time counts to "0", the buzzer will sound 5 times and the oven will turn back to
the normal state.
Note: (1) Kitchen timer is a timer as an alarm clock.
(2) In the timing state, the oven will not start with any program and the oven light will
not light.
3. Microwave Cooking
Select different microwave power level and set cooking time as you wish. There are 10
power levels available for choosing. Keep on pressing "Power" to choose the power.
Level
Power
Display
10
100%
PL10 PL9 PL8 PL7 PL6 PL5 PL4 PL3 PL2 PL1
9
90%
8
80%
7
70%
6
60%
5
50%
4
40%
3
30%
2
20%
1
10%
4) Press " Start/+30SEC." to start cooking, ":" will light and the "Micro."
indicator will flash.
1) Press "Power" once, the oven will display "PL10".
2) Press "Power" twice again to choose 80% power, the oven will display "PL8".
3) Press the number buttons of "1","0","0","0" in order, the oven will display "10:00"
4. Grill/Micro.+Grill Combination Cooking
(1) Press the "Grill" button once to choose the grill function, the oven will display "G-1"
and " Grill " indicator will light.(Press twice or thrice to choose the combination
function with "G-2" or "G-3" displaying)
1.Clock Setting
Example: If you want to use 80% microwave power to cook for 10 minutes, you can
operate the oven as the following steps.
10
(2) Set the cooking time.
Example: Set 12 minutes 50 seconds, press "1", "2", "5", "0" in order.
(3) Press " Start/+30SEC. " to start cooking. The cooking time counts down,
":" will light and " Grill " indicator will flash.
1) Press the "CONVEC." once, the oven will display "100". "F" and " Conv."indicator
will light. (Press the convection temperature key to select the temperature you need.)
2) Press " Start/+30SEC. " button to start preheating.
The temperature figure will flash when the oven reaches the temperature set, and
buzzer will ring twice to remind you to put food into the oven, then close the door.
3) Press the number keys to set cooking time.
4) Press the "Start/+30SEC." button to start cooking.
" Conv." indicator will flash, ":" will light, and cooking time will count down.
Presses Instructions
1
2
3
1) Press the "Convec" once, the oven will display "100". "F" and " Conv."indicator
will light. (Press the convection temperature key to select the temperature you need.)
2) Press the "Convec" button to confirm the temperature.
3) Press the number keys to set cooking time.
4) Press the "Start/+30SEC." button to start cooking.
" Conv." indicator will flash, ":" will light, and cooking time will count down.
Note: "Grill" Pad presses instructions
5. Convection Cooking
B. Convection Cooking(Without preheating function)
There are ten temperatures of convection: 100F,150F,250F,275F,300F,325F,350F,
375F,400F,425F.
A. With preheating convection
Note: If half the grill time passes, the oven sounds twice, and this is normal. It denotes
turning food over in order to have a better effect of grilling food, and you should
turn the food over, close the door, and then press" Start/+30SEC." to continue cooking.
Display
G-1
G-2
G-3
Microwave
36%
55%
Grill
100%
64%
45%
The convection cooking can let you cook the food as a traditional oven. Microwave is not
used. It is recommended that you should preheat the oven to the appropriate temperature
before placing the food in the oven.
Note: a. Cooking time cannot be input until the preheating temperature arrives.
b. If the time is not input in 5 minutes, the oven will stop preheating. The buzzer
sounds five times and turns back to waiting status.
11
Once the temperature arrives, door must be opened and then closed to input the
cooking time.
1) Press "Defrost" once, the oven will display "dEF1"."Micr." ,"Defrost" indicators
will light.
2) Press the number keys to set defrosting weight within the range of 4 to 100 oz,
and "Oz" will light.
3) Press " Start/+30SEC. " button to start defrosting, and "Oz" will disappear.
1) Press "Defrost" twice, the oven will display "dEF2"."Micr." ,"Defrost" indicators
will light.
2) Press the number keys to set defrosting time. The max.time is 99 minutes
99 seconds.
3) Press " Start/+30SEC. " button to start defrosting.
7. Defrost By Weight
8. Defrost By Time
9.Multi-Stage Cooking
If one of the stages is defrosting, then it
should be put in the first stage. The buzzer will ring once after each stage cooking and the
next stage will begin.
Example: cooking with 100% microwave power for 5 minutes and then 70% microwave
power for 10 minutes. The steps are as the following:
1) Press "Power" once, "PL10" is displayed;
2) Press number keys "5","0","0" to adjust the cooking time as you need;
3) Press "Power" four times to choose 70% microwave power, "PL7" is displayed;
4) Press number keys "1","0","0","0" to adjust the cooking time as you need.
5) Press "Start/ +30 SEC." to start cooking.
6. Convection Roast Cooking
1) Press " Roast" once, the oven will display "325F", and the "Micro.", "Conv." indicator
will light.(Press the convection temperature key to select the temperature you need.)
2) Press " Roast" button to confirm the temperature.
3) Press the number keys to set cooking time.
4) Press " Start/+30SEC. " button to start cooking, ":" will light, and cooking time will
count down.
(2) In waiting state, instant cooking at 100% power level with 30 seconds' cooking time can
be started by pressing " Start/ +30 SEC. ". Each press on the same button will
increase
cooking time by 30 seconds. the maximum cooking time is 99 minutes and
(1) In waiting state, instant cooking at 100% power level can be started by selecting cooking
10. Speedy Cooking
time from 1 to 6 minutes by pressing numeral pads1 to 6. Press " Start/ +30 SEC. "
to increase the cooking time 30 seconds by each added pressing;
the maximum cooking time is 99 minutes and 99 seconds.
99 seconds.
Note: Auto menu cooking cannot be set as one of the multi-stage.
A maximum of two stages of cooking can be set.
12
12. Lock-out Function for Children
Lock: In waiting state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep"
denoting entering into the children-lock state and " " indicator will light. LED will display
current time or 0:00.
STOP/CLEAR" for 3 seconds, there will be a long "beep"
denoting that the lock is released, and " " indicator will disapear.
11. Auto Menu Cooking
1) In waiting state, press the button of "Popcorn", "Potato", "Beverage",
"Dinner Plate", "Fresh Vegetable" , "Frozen Vegetable", "Roast Chicken", "Cake"
or "Pizza" to choose the function and weight of food as you need.
2) Press "Start / +30 SEC." to start cooking.
Note: Refers to the next page for auto menu chart.
13. State Inquiry
1). During cooking, press "Convec", "Power","Grill" to check the responding power,
and the power will be dispalyed for 2-3 seconds;
2) During cooking, press "Clock " to check the current time, and the time will be displayed
for 2-3 seconds.
Pay Special Attention:
When cooking with "Microwave","Convection","Grill" , " Roast" or
"Time Defrost" function, the maximum cooking time is 99 minutes and 99
seconds.
Note: In microwave, grill, convection or combination cooking state, 30 seconds' cooking
time can be added by each pressing of "Start/ +30 SEC." button, and it's invalid at the
functon of defrost, mulit-stage or auto menu cooking.
Unlock: In locked state, press "
13
Note: 1) Cake menu is under convection cooking with 325F-preheat function, and you
should preheat first following the auto menu operation, when the oven reaches the
temperature, it will stop working and sound to remind opening the door to put cake in,
then press "Start / +30 SEC." to start cooking.
2) You should use the grill rack when roasting chicken in order to have a
better effect of cooking.
Auto menu Chart
Menu Weight (Oz)Display
Fresh
Vegetable
Popcorn
Beverage
Dinner
Plate
Potato
Cake
Roast
Chicken
Frozen
Vegetable
Pizza
1.75 OZ
3.00 OZ
3.50 OZ
1
2
3
1
2
3
8.00 OZ
12.00 OZ
16.00 OZ
4.00 OZ
8.00 OZ
16.00 OZ
4.00 OZ
8.00 OZ
16.00 OZ
16.00 OZ
24.00 OZ
32.00 OZ
40.00 OZ
48.00 OZ
16.00 OZ
10.00 OZ
22.00 OZ
1.75 OZ
3.00 OZ
3.50 OZ
1 portion
2 portions
3 portions
about 8.80 OZ
about 17.60 OZ
about 26.40 OZ
8.00 OZ
12.00 OZ
16.00 OZ
4.00 OZ
8.00 OZ
16.00 OZ
4.00 OZ
8.00 OZ
16.00 OZ
16.00 OZ
24.00 OZ
32.00 OZ
40.00 OZ
48.00 OZ
16.00 OZ
10.00 OZ
22.00 OZ
14
Troubleshooting
Check your problem by using the chart below and try the solutions for each problem. If the
microwave oven still does not work properly, contact the nearest authorized service center.
TROUBLE
Oven will not start
POSSIBLE CAUSE POSSIBLE REMEDY
a. Electrical cord for oven is
not plugged in.
b. Door is open.
c. Wrong operation is set.
a. Plug into the outlet.
b. Close the door and try
again.
c. Check instructions.
Arcing or sparking
a. Materials to be avoided in
microwave oven were
used.
b. The oven is operated when
empty.
c. Spilled food remains in the
cavity.
a. Use microwave-safe
cookware only.
b. Do not operate with oven
empty.
c. Clean cavity with wet towel.
Unevenly cooked
foods
a. Materials to be avoided in
microwave oven were
used.
b. Food is not defrosted
completely.
c. Cooking time, power level
is not suitble.
d. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Use correct cooking time,
power level.
d. Turn or stir food.
Overcooked foods Cooking time, power level is
not suitable. Use correct cooking time,
power level.
Undercooked foods
a. Materials to be avoided in
microwave oven were used.
b. Food is not defrosted
completely.
c. Oven ventilation ports are
restricted.
d. Cooking time, power level is
not suitable.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Check to see that oven venti-
lation ports are not restricted.
d. Use correct cooking time,
power level.
Improper defrosting
a. Materials to be avoided in
microwave oven were used.
b. Cooking time, power level is
not suitable.
c. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Use correct cooking time,
power level.
c. Turn or stir food.
MAINTENANCE
15
PN.:261800318758

Navigation menu
