User manual

SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
INSTRUCTION MANUAL
MODEL: M059KE 9S
120V~ 60Hz
Specifications
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since this can result in
harmful exposure to microwave energy. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that
the oven door closes properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACE
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
Model:
Rated Voltage:
Oven Capacity:
If the apparatus is not maintained in a good state of cleanliness, its surface could
be degraded and affect the lifespan of the apparatus and lead to a dangerous
situation.
ADDENDUM
1550W
00W
Cu.ft.
2XWVLGH'LPHQVLRQV
&DYLW\'LPHQVLRQV
Output Power(Microwave):
Input Power(Microwave):
2
7
29
/
8"
X 17 X 16 1/
16"
9 /
16"
M059K
1
2.1
23 X 10 X 153/5/
32" 5/32 " 16"
E 9S
0
IMPORTANT SAFETY INSTRUCTIONS
WARNING
1. Read all instructions before using the
appliance.
2. Read and follow the specific: " PRECAU-
TIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY"
found on page 2.
3. As with most cooking appliances, close
supervision is necessary to reduce the risk
of a fire in the oven cavity.
4.To reduce the risk of fire in the oven
cavity:
i). Do not overcook food. Carefully attend
the appliance when paper, plastic, or
other combustible materials are placed
inside the oven to facilitate cooking.
ii).Remove wire twist-ties and metal
handles from paper or plastic
containers/bags before placing them in
the oven.
iii). If materials inside the oven ignite,
keep the oven door closed. Turn the
oven off, and unplug the appliance.
Disconnect the power cord, shut off
power at the fuse or circuit breaker panel.
iv). Do not use the oven cavity for storage
purposes. Do not leave paper products,
cooking utensils, or food in the cavity
when not in use.
5. This oven must be grounded. Connect
only to properly grounded outlet. See
" GROUNDING INSTRUCTIONS" found
on page 4.
6. Install or locate this oven only in
accordance with the installation
instructions provided.
7. Some products such as whole eggs
and sealed containers-for example,
closed glass jars-are able to explode
and should not be heated in the oven.
To reduce the risk of burns, electric shock, fire,injury to
persons or exposure to excessive microwave oven energy
when using your appliance, follow basic safety precautions,
including the following:
8. Use this appliance only for its intended
uses as described in this manual. Do
not use corrosive chemicals or vapors
in this appliance. This oven is
specifically designed to heat or cook
or dry food. It is not designed for
industrial or laboratory use.
9. As with any appliance, close
supervision is necessary when used
by children.
10. Do not operate this oven if it has a
damaged cord or plug, if it is not
working properly or if it has been
damaged or dropped.
11. This appliance should be serviced only
by qualified service technicians.
Contact the nearest authorized service
facility for examination, repair or
adjustment.
12. Do not cover or block any openings on
the oven.
13. Do not store or use this appliance
outdoors.
14. Do not use this oven near water, for
example, near a kitchen sink, in a wet
basement, near a swimming pool, or
similar locations.
15. Do not immerse cord or plug in water.
16. Keep cord away from heated surfaces.
17. Do not let cord hang over edge of
table or counter.
18. When cleaning surfaces of door and
oven that comes together on closing
the door, use only mild, nonabrasive
soaps or detergents applied with a
sponge or soft cloth.
3
i) Do not overheat the liquid.
ii) Stir the liquid both before and halfway through heating it.
iii) Do not use straight-sided containers with narrow necks.
iv) After heating, allow the container to stand in the microwave oven for a short time
before removing the container.
v) Use extreme care when inserting a spoon or other utensil into the container.
19. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point
without appearing to be boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present. THIS COULD RESULT IN
VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS
DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.
This appliance must be grounded. In the event of
an electrical short circuit, grounding reduces the risk
of electric shock by providing an escape wire for the
electric current. This appliance is equipped with a
cord having grounding wire with a grounding plug.
The plug must be plugged into an outlet that is
properly installed and grounded.
Consult a qualified electrician or serviceman if the
grounding instructions are not completely understood
or if doubt exists as to whether the appliance is
properly grounded. If it is necessary to use an
extension cord, use only a 3-wire extension cord that
has a 3-pronged grounding plug, and a 3-slot
receptacle that will accept the plug on the appliance.
GROUNDING INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING
DANGER
Electric Shock Hazard
Touching some of the internal
components can cause serious
personal injury or death. Do not
disassemble this appliance.
Electric Shock Hazard
Improper use of the grounding
can result in electric shock. Do
not plug into an outlet until
appliance is properly installed
and grounded.
(grounding) plug
Three-pronged
The marked rating of the extension cord shall be
equal to or greater than the electrical rating of the
appliance.
4
CAUTION
Personal Injury Hazard
Tightly-closed utensils
could explode. Closed
containers should be opened
and plastic pouches should be
pierced before cooking.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
UTENSILS See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
Radio Interference
1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in
or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if cared is exercised in
their use.
3. If a long cord sets or extension cord is used:
1) The marked electrical rating of the cord set or extension marked electrical rating of the cord
set or extension cord should be at least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord; and
3) The longer cord should be arranged so that it will not drape over the countertop or tabletop
where it can be pulled on by children or tripped over unintentionally.
1. Operation of the microwave oven may cause interference to your radio, TV
or similar equipment.
2. When there is interference, it may be reduced or eliminated by taking the
following measures:
1) Clean door and sealing surface of the oven
2) Reorient the receiving antenna of radio or television.
3) Relocate the microwave oven with respect to the receiver.
4) Move the microwave oven away from the receiver.
5) Plug the microwave oven into a different outlet so that microwave oven
and receiver are on different branch circuits.
5
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
6
7
MICROWAVE OVEN FEATURES
12 3
4
58
910
6
7 7

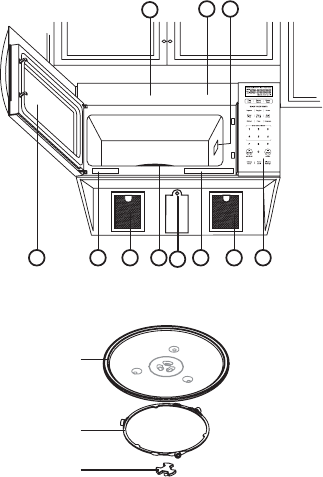

The microwave oven is designed to make
your cooking experience as enjoyable and
productive as possible. To get you up and
running quickly, the following is a list of the
oven's basic features:
1. Metal Shielded Window:
prevents microwaves from escaping.
It is designed as a screen to allow you
to view food as it cooks.
2. Model and Serial Number Plate
3. Cooking Guide label
The shield
4. Vent Top
5. Glass Turntable:
6. Cooktop Light
8. Control Panel: Touch the pads on this panel to
perform all functions.
The turntable reverses rotation each time the
microwave oven door is opened and closed.
This helps cook food evenly. Do not operate the
microwave oven without the turntable in place.
To Install:
 Place the support on the oven cavity bottom.
2. Place the glass turntable on the support. Fit the raised,
curved lines in the center of the turntable bottom
between the three spokes of the hub. The rollers on
WKHVXSSRUWVKRXOGoWinside the turntable bottom
See "Caring for the Filters" section.
ridge.
(behind Vent Top):
NOTE: Not all models come with a charcoal filter.
DO NOT REMOVE.
10. Waveguide Cover:
7. Grease Filters:
See "Caring for the Filters" section.
9. Charcoal Filter:
A. Glass Turntable
C. Hub
B. Support
A
B
C
MANUAL COOKING
8
This section gives instructions for operating each
function. Please read this section carefully.
¬
¬
¬
¬
¬Clock & Settings
Clock & Settings
Clock & Settings
Clock & Settings
Option
Clock
&RQWURO/RFN2Q2II
6RXQG2Q2II
Weight lb/kg
'HPRPRGH2Q2II
Key press
Clock & Settings
To re-enable the clock follow clock instructions.
Using Your Microwave Oven
The clock can be disabled when the microwave is
first plugged in and the STOP key is selected.
CLOCK & SETTING
SETTING CONTROL LOCK ON/OFF

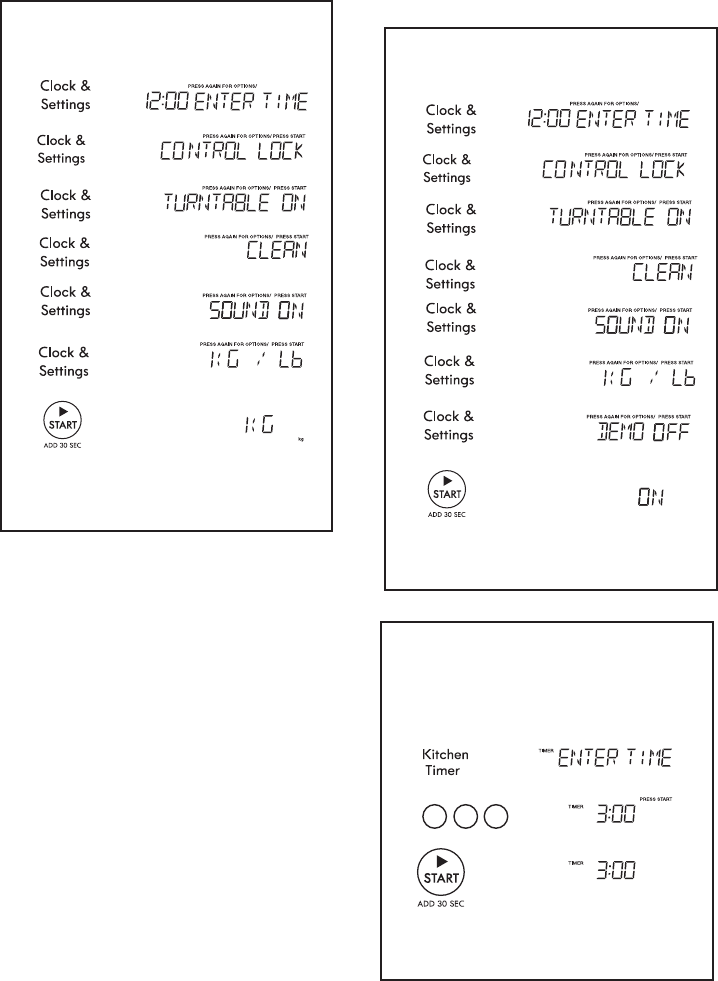

SETTING CLOCK
To turn OFF the Control Lock, touch Clock & Settings
Touch: Display Shows:
1.
.
3
Time of day
then touch
if time of day was set
2.
Clock & Settings
Turntable On/Off
Clock & Settings
Example: To set the clock for 10: .
Touch: Display Shows:
NOTE:
• If you touch STOP while setting the clock, the
display will show the last time of day set or a
1 0
1.
2.
3.
correct time.
blank display if no time of day has been set.
the 8 is an invalid digit and cannot be entered.
Enter the
5 9
59
Clean
For best cooking results, leave the turntable on. It
can be turned off for large dishes.
Touch: Display Shows:
CAUTION: Sometimes the turntable can become
hot to the touch during and after cooking. Do not
run the oven empty without food in it.
Feature 19)
SETTING TURNTABLE ON/OFF (Control Panel
1.
2.
3.
4.
The
microwave oven has settings that allow you to
customize the operation for your convience. Below is
the table showing the various settings. Touch the Clock
& Settings key multiple times to scroll to the desired
setting function.
To turn ON Control Lock touch Clock & Settings
twice.
v
If you begin to enter in an incorrect time (e.g. 2:89)
S
Press Turntable On-Off to turn the turntable on or
off.
9
Example: To turn aud signal on or off.
Touch: Display Shows:
1.
ible
Audible signals are available to guide you when
setting and using your oven.
•A programming tone
touch a pad.
•signal the end of a Kitchen Timer
countdown.
•signal the end of a cooking cycle.
Three tones
Three tones
will sound each time you
2.
TURNING SOUND ON/OFF
3.
4.
5.
6.
USING CLEAN
2.
Touch: Display Shows:
1.
This is a preset timed cycle to boil water creating
steam to soften soils inside the microwave oven.
When the cycle is done remove the water and
wipe the inside of the microwave wit cloth.
h
NOTE: Place two cups of water in the microwave oven.
To get rid of odors inside the oven add some lemon
juice or vinegar into the water.
3.
4.
5.
6.
To enter Clean mode touch Clock & Settings
When the cooking cycle is completed END will be
displayed and the audible signal will sound if the
sound is turned on.
When START is pressed and the previous setting
was ON then it will be set to OFF. If you want to
turn the audible signal back ON you will have to
again press Clock & Settings five times and then START.
four times.
10
Example: To enter Demo mode.
Touch: Display Shows:
SETTING DEMO MODE ON/OFF
Your microwave oven can be used as a kitchen
timer. You can set up to 99 minutes, 99 seconds.
Example: To set for three minutes.
Touch: Display Shows:
NOTE:
Timer count down does not stop even if the
door is open. To cancel the timer, press the “ STOP”
key once.
Timer starts
counting down
1.
2.
3.
03 0
SETTING KITCHEN TIMER (Control Panel Feature 17)
The kitchen timer can be used while the microwave
oven is running.
1.
2.
Example: To toggle weight b etween pounds &
Touch: Display Shows:
kilograms.
SETTING WEIGHT IB/KG
1.
2.
3.
4.
5.
6.
7.
3.
4.
5.
6.
7.
8.
If the display shows kg, pressing the START
button will reset the oven controls to lbs. To return
to kg, you will have to again press Clock & Settings
When START is pressed and the previous setting was
OFF then it will be set to ON. If you want to turn the
demo mode back OFF you will have to again press
Clock & Settings seven times and then START.
six times and then START.
11
Time counting down
This is a time saving pad that will automatically
Touch: Display Shows:
2
start cooking 2 seconds after selected. Numeric key
1 to 6 can be touched for a 1 minute to 6 minute
INTERRUPTING COOKING
You can stop the oven during a cycle by opening
the door. The oven stops heating and the fan turns
o
To restart cooking , close the door and Touch.
If you do not want to continue cooking, open the
door and touch
ff, but the light stays on.
automatic start cooking feature.
Example: To cook for five minutes, 30 seconds at
r.
Touch: Display Shows:
1.
2.
05 3
100% powe
3.
USING ONE TOUCH START

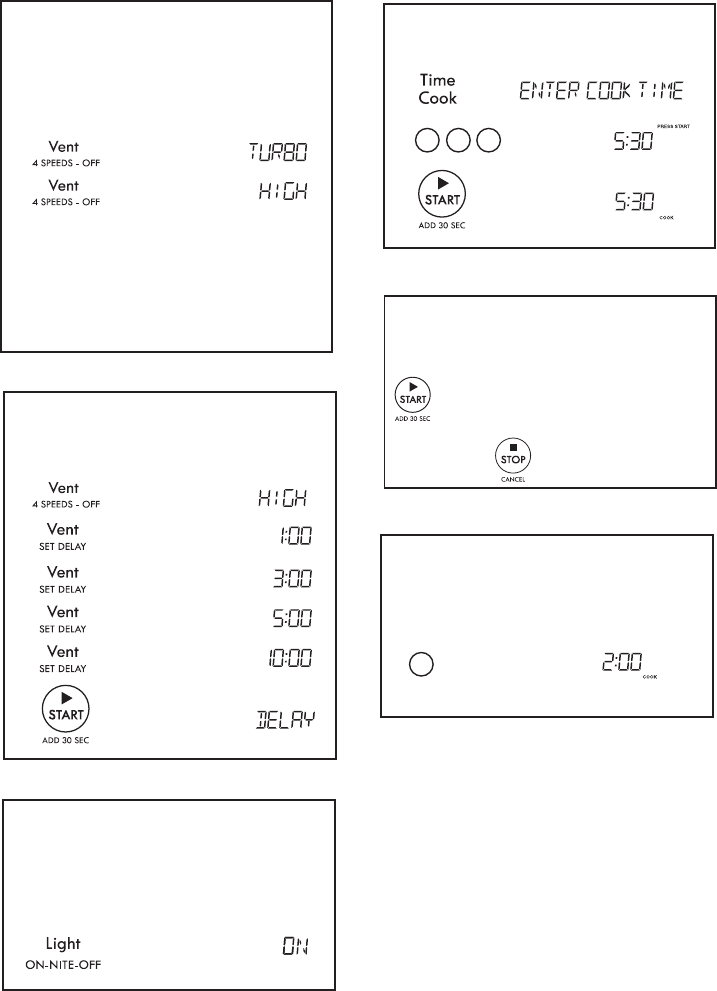

SETTING TIMED COOK
1.
The pad controls the cooktop light. If the light is OFF
Example: To set the light for HIGH from the OFF
Touch: Display Shows:
1.
the first touch of the light pad will turn the light ON
()high , second touch Nite( )low and third touch OFF.
position.
USING COOKTOP LIGHT
Example: To set the vent fan speed to HIGH from
Touch: Display Shows:
7XPRIIIDQZKHQGHVLUHG
NOTE: If the temperature from the range or
cooktop below the oven gets too hot, the vent
fan will automatically turn on to protect the oven.
It may stay on up to an hour to cool the oven.
When this occurs, the Vent pad will not turn the
IDQRII
1.
2.
The pad controls the 4-speed vent fan. If the vent fan
USING VENT FAN
the OFF position.
is OFF the first touch of the Vent pad will turn the fan
on TURBO, second touch HIGH, third touch MEDIUM,
USING VENT DELAY
fourth touch LOW, fifth touch OFF.
Time counting down
Example:
The pad controls the vent delay time.
Set the delay time 10 minutes at HIGH
Touch: Display Shows:
6.
speed from the OFF position.
1.
2.
3.
4.
5.
12
For best results, some recipes call for different
power levels during a cook cycle. You can
program your oven for two power level stages
during the cooking cycle.

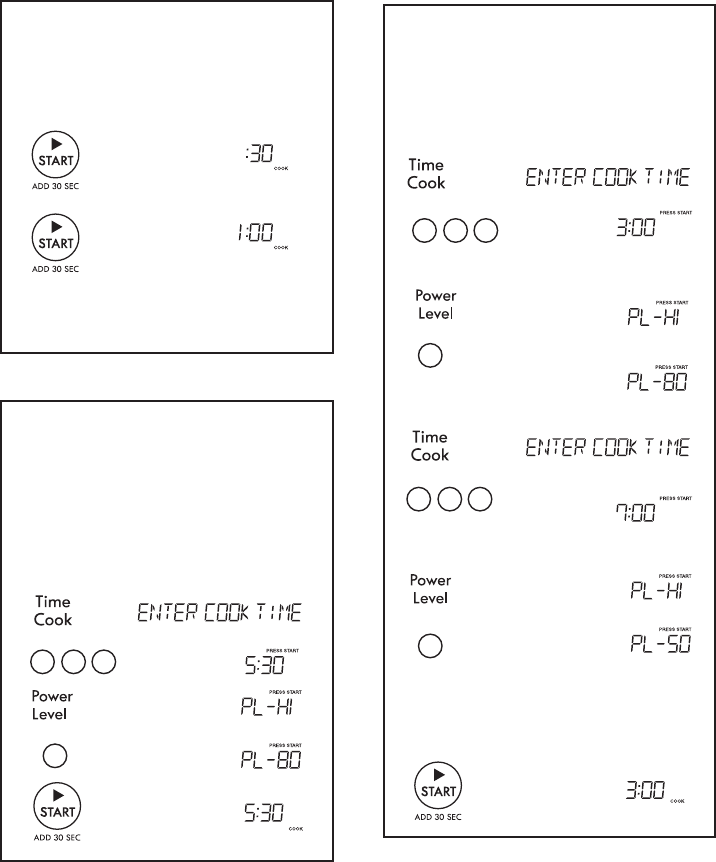

Example: To set a 2-stage cook cycle. The first stage
Touch: Display Shows:
To set an 80% cook
power for the first stage.
To set a 7 minute cook
To set a 50% cook power
for the second stage.
NOTE: You can program a "0" power
second stage for standing time inside
the oven.
To set a 3 minute cook
time for first stage.
1.
2.
3.
4.
5.
6.
7.
8.
9.
03 0
8
07 0
5
SETTING TWO-STAGE COOKING
is a 3 minute cook time at 80% cook power then a
7 minute cook time at 50% cook power.
This feature lets you program a specific cook time
and power. For best results, there are 10 power
level settings in addition to HIGH (100%) power.
Refer to the "Microwave Power Levels" table.
Example: To cook for five minutes, 30 seconds at
80% power.
Touch: Display Shows:
1.
2.
3.
4.
5.
05 3
8
NOTE:
will cook at HIGH (100%) power. automatically
If you do not select a power level, the oven
SETTING TIMED COOKING WITH POWER LEVEL
This is a time-saving pad. It is a simplified feature
that lets you quickly set and start microwave
cooking at 100% power.
Example: To cook for one minute.
Touch: Display Shows:
NOTE:
add 30 seconds up to 99 minutes 9 sec .
Time counting down
1.
2.
Each time you touch ADD 30 SEC, it will
USING ADD 30 SEC.
Time counting down
Time counting down
onds
power for the second stage.
9
13
MICROWAVE POWER LEVELS
For best resultsVRPHUHFLSHVFDOOIRUGLIIHUHQWFRRN
powers. The lower the cook power, the slower the
cooking. Each number from 1 to 9 stands for a
GLIIHUHQWSHUFHQWDJHRIIXOOFRRNSRZHr.
The following table gives the percentage of cook
power each number pad stands for, and the cook
power name usually used.
NOTE: Refer to a reliable cookbook for cooking
times based on the 1100 Watt cook power of
your microwave oven.
COOK POWER LEVEL WHEN TO USE IT
100% of full power High v4XLFNO\KHDWLQJFRQYHQLHQFHIRRGVDQGIRRGV
with high water content, such as soup and
beverages.
v&ooking tender cuts of meat, ground meat or
chicken.
9 = 90% of full power
v
8 = 80% of full power v
7 = 70% of full power Medium-High v&RRNLQJDQGKHDWLQJIRRGVWKDWQHHGD
Cook Power lower than High (for exampleZKROH
fish and meat loaf) or when food is cooking too fast.
v
6 = 60% of full power
v&ooking that requires special care, such as
cheese and egg dishes, pudding, and custards.
v
5 = 50% of full power Medium v&RRNLQJKDm, whole poultry, and pot roasts.
v6immering stews.
4 = 40% of full power
v0elting chocolate.
v
3 = 30% of full power Medium-Low, Defrostv0DQXDOO\GHIURVWLQJSUHFRRked and other foods,
such as breadoVh, meats and poultry.
2 = 20% of full power v6oftening butter, cheese, and ice cream.
1 = 10% of full power Low v
v
0 = 0% of full power None v6WDQGLQJWLPHLQRYHn.
Heating cream soups.
Heating rice, pasta, or casseroles.
Reheating a single serving of food.
Finishing cooking casseroles.
Heating pastries.
Keeping food warm.
Taking chill out of fruit.
Follow recipe or food package instructions if
available.
The table also tells you when to use each cook power.
14
Three defrost sequences are preset in the oven.
The auto defrost feature provides you with the best
defrosting method for frozen foods. The cooking guide
will show you which defrost sequence is recommended
for the food you are defrosting.
For added convenience, the Auto Defrost includes a
built-in beep mechanism that reminds you to check,
turn over, separate, or rearrange the food in order to
get the best defrost results7KUHHGLIIHUHQWGHIURVWLQJ
levels are provided:
vFor best resultsUHPRYHoVhVKHOOoVh, meat, and
poultry from its original closed paper or plastic
package (wrapper). Otherwise, the wrap will hold
steam and juice close to the foods, which can
cause the outer surface of the foods to cook.
vFor best results, roll your ground meat into a ball
before freezing. During the DEFROST cycle, the
microwave will signal when it is time to turn the
meat over6FUDSHRIIDQ\H[FHVVIURVWIURP
the meat and continue defrosting.
v3ODFHIRRGVLQDVKDOORZFRQWDLQHURURQD
microwave roasting rack to catch drippings.
This table shows food type selections and the
weights you can set for each type. For best results,
loosen or remove covering on food.
Weight conversion table
You are probably used to measuring food in pounds
and ounces that are fractions of a pound (for
example, 4 ounces equals 1/4 pound). However,
in order to enter food weight in Auto Defrost, you
must specify pounds and tenths of a pound.
If the weight on the food package is in fractions of a
pound, you can use the following table to convert
Equivalent Weight
OUNCES DECIMAL WEIGHT
1.6 .10
3.2 .20
4.0 .25 One-Quarter Pound
4.8 .30
6.4 .40
8.0 .50 One-Half Pound
9.6 .60
11.2 .70
12.0 .75 Three-Quarters Pound
12.8 .80
14.4 .90
16.0 1.0 One Pound
NOTE:
weight for the best defrosting results.
the weight to decimals.
If between two decimal weights, choose the lower
USING AUTO DEFROST OPERATING TIPS
WEIGHTS YOU
CAN SET
(tenths of a pound)
0.1 to 6.0
0.1 to 6.0
KEY
Defrost
Mea t 0.1 to 6.0
PRESS
Defrost
Defrost
Category
Poultry
Fish
2. POULTRY
3. FISH
Available weight is 0.1-6.0 lbs
1. MEAT

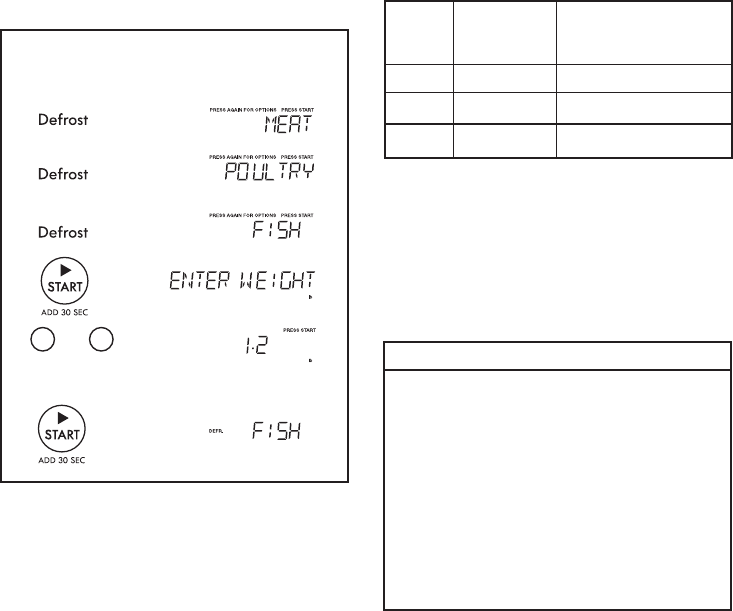

Example: To defrost 1.2 lbs of ground beef.
Touch: Display Shows:
1.
.
1 2
To enter weight
and
2.
3.
4.
5.
6
Time counting down
NOTE:
Remove any portions that have thawed. Return frozen
portions to the oven and touch START to resume the
defrost cycle.
open the door and turn, separate, or rearrange the food.
The oven will beep during the DEFROST cycle. At this time,
15

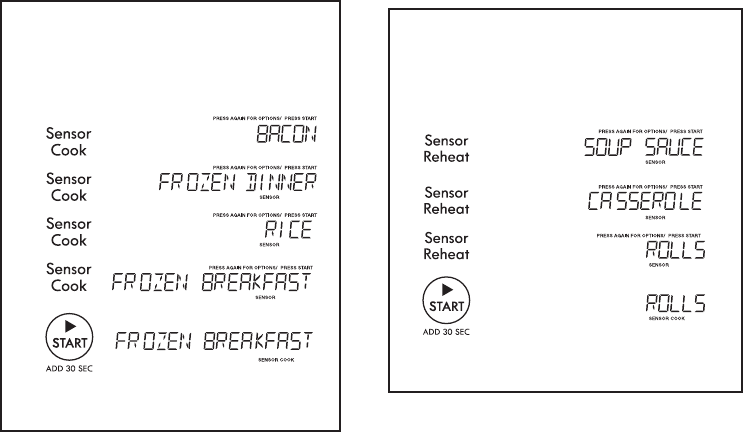

Example: To cook frozen breakfast with sensor.
USING SENSOR COOK
Using SENSOR COOK lets you cook common
microwave-prepared foods without needing to
program times and cook powers.
Example: To reheat rolls with sensor reheat.
Touch: Display Shows:
USING SENSOR REHEAT
Using SENSOR REHEAT lets you reheat common
microwave-prepared foods without selecting cooking
times and power levels.
1.
2.
3.
4.
Touch: Display Shows:
1.
5.
2.
3.
4.
Sensor Cook selections are made by touching the
Sensor Reheat selections are made by touching the
Sensor Cook key multiple times.
Sensor Reheat key multiple times.
SENSOR OPERATING INSTRUCTIONS
Sensor Cook allows you to cook most of your favorite
foods without selecting cooking times and power levels.
The display will indicate Sensing during the initial sensing
period.
The oven automatically determines required cooking time
for each food item. When the internal sensor detects a
certain amount of humidity coming from the food,it will tell
the oven how much longer to heat. The display will show the
remaining heating time. For best results for cooking by
Sensor, follow these recommendations.
1 . Food cooked with the sensor system should be at normal
storage temperature.
3. Match the amount to the size of the container.
Fill containers at least half full for best results.
2 . Always use microwavable containers.
rowavable
plastic wrap, waxed paper, or a lid. Never use tight-
sensing time. When sensing time is over, the oven beeps
and the remaining cooking time will appear in the
display window. At this time you can open the door to
rearrange the food.
4. Be sure the outside of the cooking container and the
inside of the microwave oven are dry before placing
food in the oven. Beads of moisture turning into steam
can mislead the sensor.
sealing plastic covers. They can prevent steam from
escaping and cause food to overcook.
5. Foods should always be covered with mic
6. Do not open the door or touch the STOP key during the
stir, turn, or rearrange the food.
16
USING QUICK TOUCH
Your microwave has preprogrammed selections to
cook food automatically.
The Popcorn quick touch pad lets you pop 3.3,
3.0, 1.75 ounce bags of commercially packaged
microwave popcorn. Pop only one package at
a time. If you are using a microwave popcorn
popper, follow manufacturer's instructions.
Example: To pop a 3.3 oz. popcorn.
Touch: Display Shows:
2.
1.
SETTING POPCORN The Pizza sensor cook quick touch pad lets you reheat
NOTE:
• Place on a plate and paper towel
• Do not cover
Example: To reheat 1 to 4 slices of Pizza.
Touch: Display Shows:
1.
SETTING PIZZA
up to four slices of pizza (based on a 5 ounce slice).
2.
VEGGIES
SETTING
SETTING BEVERAGE
SETTING DINNER PLATE
The dinner plate feature heats a 1 or 2 serving dinner
Display Shows:Touch:
1.
2.
Example: To heat up 1 cup (8 oz.) beverage.
Touch: Display Shows:
2.
1.
The beverage feature heats 1 cup (8oz) cups (16oz) or
beverage
Key press Amount
Beverage x1
Beverage x2 2 cups (16 oz.)
s.
1 cup (8 oz)
3 cups (24oz) sized
, 2
Beverage x3 cup ( ) oz.3 24 s
The V eggies cook quick touch pad lets you cook
ze fresh and frozen vegetable .
Example:
Touch: Display Shows:
1.
different si
To cook two cups of Frozen veggies.
Key
Veggies x1
Veggies x2
Food Amount
Fresh Veggies 1-4 cups
Frozen Veggies 1-4 cups
2.
3.
Time counting down
Time counting down
NOTE: Remove the metal shelf from microwave
oven when cooking popcorn. Do not use regular
paper bags. Do not re-pop unpopped kernals.
Do not pop popcorn in glass cookware.
Key press Amount
Popcorn
Popcorn
Popcorn
3.3
3.0
1.75 1.75 oz (50g)
3.3 oz (94g)
3.0 oz (85g)
Selection
without setting a time or power level.
Touch Beverage key repeatedly to switch between 1
Cup, 2 Cup and 3 Cup selections.
Touch Veggie key repeatedly to switch between
Fresh and Frozen selections.
cups
17

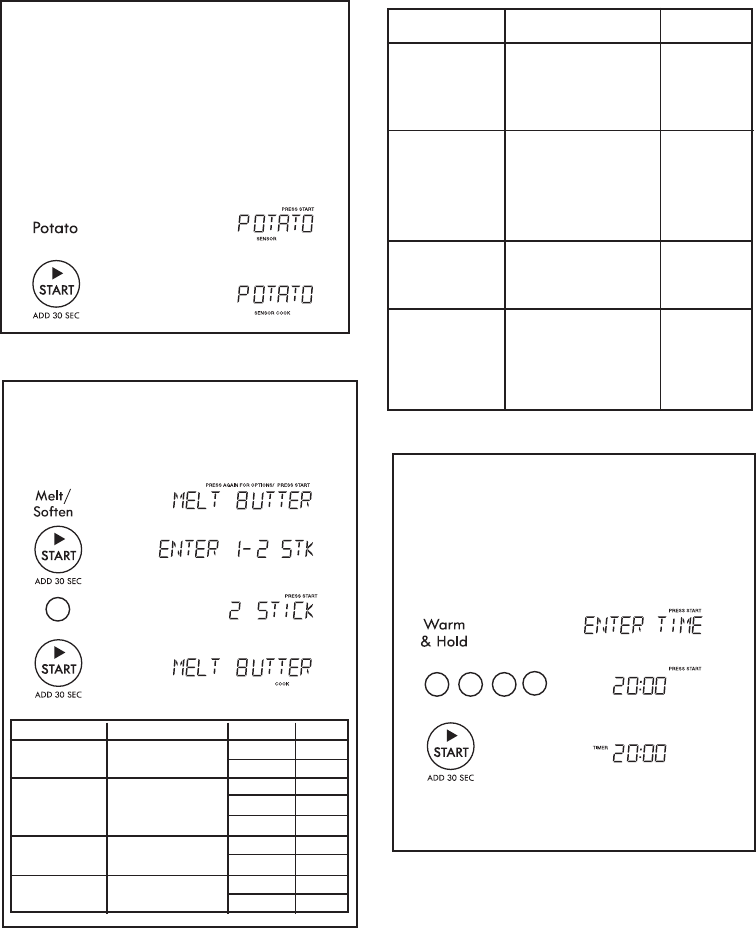

SETTING MELT/SOFTEN
Example:
Touch: Display Shows:
2.
1.
SETTING
WARM & HOLD
To keep warm for 20 minutes.
.
0 0 0
Time counting down
The Potato sensor cook quick touch pad lets you
NOTE:
• Cooking times are based on an average 8
ounce potato. Before baking, pierce potato with
fork several times.
• After baking, let stand for ve minutes.
Example: To 1 4 Potatoes.
Touch: Display Shows:
1.
2.
fi
SETTING POTATO
You can choose from one to four potatoes.
cook potatoes with preset times and cook powers.
cook to baked
3
2
MELT TABLE/SOFTEN
The oven uses low power to melt and soften items.
Touch: Display Shows:
1.
See the following table.
Example:
2.
3.
4.
To melt 2 sticks of Butter.
2
Time counting down
Key
Melt / Soften x4 Soften Cream Cheese 3 oz. 3
8 oz. 8
Melt / Soften x3 Soften Ice Cream Pint 1
1.5 Quart 2
Melt / Soften x2 Melt Chocolate
2 oz. 2
4 oz. 4
8 oz. 8
Food Amount Key
Melt / Soften x1 Melt Butter 2 sticks 2
1 stick 1
DIRECTION
CATEGORY
BUTTER
CHOCOLATE
Unwrap and place
in microwavable
container. No need to
cover butter. Stir at
the end of cooking to
complete melting.
AMOUNT
Chocolate chips or
squares of baking
chocolate may be used.
Unwrap squares and
place in microwavable
container. Stir at the
end of cycle to
complete melting.
ICE CREAM
Place container in oven
lce cream will be soft
enough to make
scooping easier.
Pint, 1.5 Quart.
1 or 2 sticks
2, 4 or 8 oz.
Unwrap and place
in microwavable
container. Cream
CREAM
CHEESE cheese will be at
room temperature
and ready for use
in recipe.
3 or 8 oz.
You can safely keep hot, cooked food warm in your
microwave oven for up to 30 minutes.
You can use Warm & Hold by itself, or to automatically
follow a cooking cycle.
NOTE: If you do not set warm time, just press Warm &
Hold then touch START, you can keep warm up to 90
minutes.
CLEANING AND CARE
18
In order to ensure that your microwave oven looks good and works well for a long time, you
should maintain it properly. For proper care, please follow these instructions carefully.
Wash often with warm, sudsy
For stubborn soil: Boil a cup of water in the oven
Over time, surfaces may stain as a result of food
particles splattering during cooking. This is normal.
and the interior and exterior
water and a sponge or soft
cloth.
Use only mild, nonabrasive
soaps or a mild detergent.
Be sure to keep the areas
clean where the door and
oven frame touch when
closed. Wipe well with
for two to three minutes.
Steam will soften the soil.
To get rid of odors inside the
oven, boil a cup of water with
some lemon juice or vinegar in
it.
Use a
soft cloth with spray glass
cleaner. Apply the spray glass
cleaner to the soft cloth; do not
spray directly on the oven.
NOTE: Abrasive cleansers, steel
wool pads, gritty wash cloths,
some paper towels, etc.,
can damage the control panel

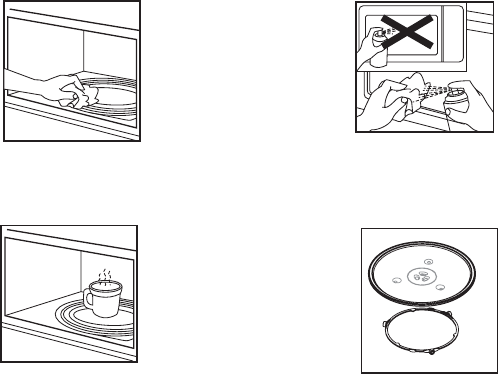

To clean glass turntable and turntable support: Wash
soiled areas, use a mild cleanser
and scouring sponge.
The turntable and turntable
support are dishwasher safe.
support
Glass turntable
For interior surfaces: For exterior surfaces and control panel:
oven surfaces.
Turntable
in mild, sudsy water. For heavily
glass
clean cloth.
NOTE: Use the Clean option in
Clock & Settings for a preset timed
cycle for stubborn soil cleaning.
19
CARING FOR THE FILTERS
1.
3.6RDNJUHDVHoOWHUVLQKRWZDWHUDQGDPLOG
detergent. Scrub and swish to remove
embedded dirt and grease. Rinse well and
shake to dry'RQRWFOHDQoOWHUVZLWK
ammonia, corrosive cleaning agents, such
5. Plug in microwave oven or reconnect power.
Unplug microwave oven or disconnect power.
as lye-based oven cleaners, or place them
in a dishwasher. The filters will turn black or
become damaged.
NOTE: Do not operate the hood without the
JUHDVHoOWHUVLQSODFe.

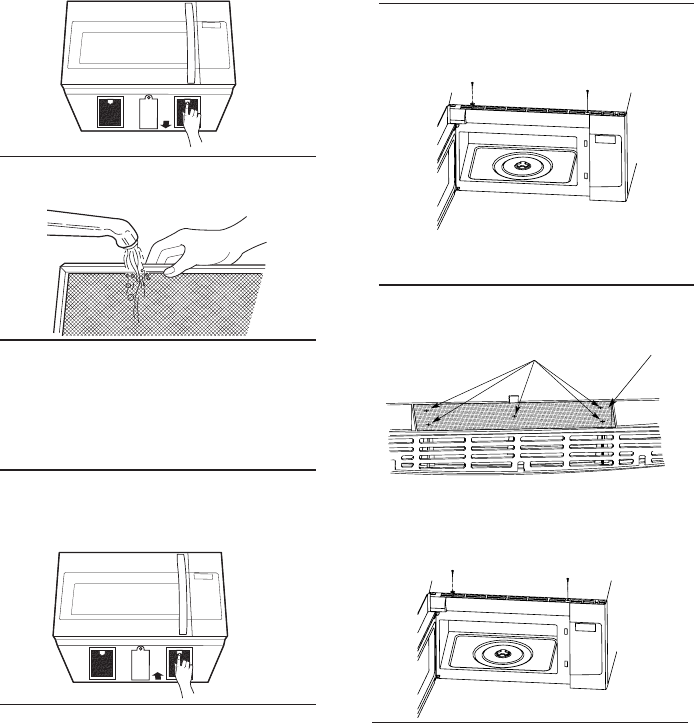

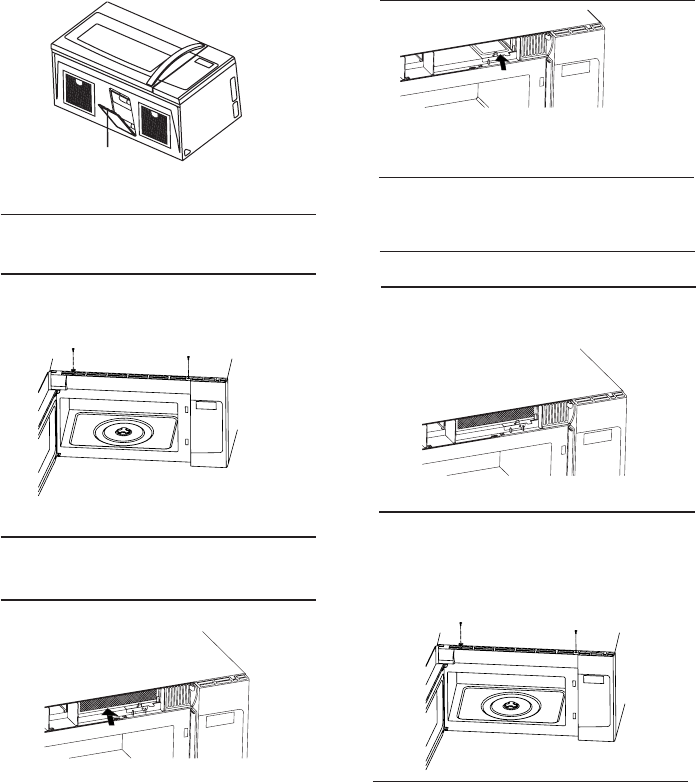

2. Open the microwave door and remove the two
vent mounting screws located on top of the
microwave using a #1 Phillips screwdriver.
#
1. Unplug microwave oven or disconnect power.
3. Slide the vent left and tip forward. Lift out to
remove.
4. Install the charcoal filter. Lay the filter on the back
of the grille with the black mesh face upper.
Tabs Charcoal filter
vent into place. Push the vent top into position
oven or reconnect power.
1#
#
Phillips screwdriver.#
and slide right into place. Replace the two vent
screws located on top of the microwave #
5. Reinstall the vent by sliding the bottom of the
6. Close the microwave door. Plug in microwave
Grease filters (Part No. 5304488377) Charcoal filters (Part No. 5304488379)
7KHJUHDVHoOWHUVVKRXOGEHUHPRYHGDQGFOHDQHGRIWHQDWOHDVWRQFHDPRQWh.
NOTE:
FDQQRWEHFOHDQHGDQGVKRXOGEHUHSODFHGHYHry 6 to 12 months.
smoke and odors. Replacement oOWHUs are available from S . The charcoal filter
Models are shipped for recirculating exhaust (To duct air outside reference the Installation Instructions
book included with your microwave.). Some models have a disposable charcoal filter installed to help remove
mounting
using a #
4. TRUHSODFHJUHDVHoOWHUsVOLGHoOWHULQWKHIUDPH
slot on back side of the opening. PXVKoOWHU
upward and lock into place.
2. To remove grease filters, pull filter latch downward.
The filter will drop out.
evrice centre
20
3. Replace bulb with candelabra-base 0-watt bulb
4.
The oven cavity light
1. Unplug microwave oven or disconnect power.
3. Slide the vent left and tip forward, then lift out to
remove.
Plug in microwave oven or reconnect power.
2. Open the microwave door and remove the two
vent mounting screws located on top of the microwave
using a ## 1#Phillips screwdriver.
#
4./LIWWKHERWWRPRIWKHFKDUFRDOoOWHr6OLGHWKHoOWHU
straight out.
5.
Replace the bulb with a candelabra-base
0-watt bulb
6.
Close the microwave door. Plug in microwave oven 1 0 .
Replace the bulb holder.
7.
L ift up the bulb holder.
or reconnect power.
vent into place. Push the vent top into position
the two vent mounting 1#
#
Phillips screwdriver.#
and slide right until it snaps into place. Replace
screws located on top of #
the microwave using a #
9. Reinstall the vent by sliding the bottom of the
REPLACING THE COOKTOP AND
The cooktop lights
1. Unplug microwave oven or disconnect power.
2. Remove the bulb cover mounting screw for the
OVEN CAVITY LIGHTS
Mounting screw
specific bulb you want to replace.
should rest like the picture shown below.
8. Slide the charcoal filter into p ace. The filterl
4
4
For best performance and for safety reasons, keep the oven
clean inside and outside. Take specialcare to keep the
inner door panel and oven fron frame free offood and grease
build-up.
Never use rough scouring powder or pads on the
microwave. Wipe the microwave oven inside and out with a
soft cloth and and warm(not hot) mild detergent solution.
Then rinse and wipe completely dry.
Wipe spatters immediately with a wet paper towel,
especially after cooking greasy foods like chicken or bacon.
Clean your microwave oven weekly or more often, ifneeded.
Follow these instructions to cleanand care for your
microwave oven:
Cleaning suggestions
Keep the inside (cavity) ofthe oven clean. Food particles
and spilled liquids can stickto the oven walls, causing
the oven to workless efficiently.
Wipe up spills immediately. Use a damp, clean cloth
and mild soap. DO NOT use harsh detergents or
abrasive cleaners.
To help loosen baked-on food particles or liquids, heat 2
cups ofwater (add the juice of 1 lemon ifyou desire to
keep the oven fresh smelling) in a 4 cup measuringglass
at Highpower for 5 minutes or until boiling. Let stand in
oven cavity for 1 or 2 minutes.
Remove the glass turntable trayfromthe oven when
cleaning the oven cavity or tray. To prevent the glass
turntable frombreaking,handle with care and do not put
it in water immediately after cooking. Wash the turntable
trayinwarmsudsy water or in the dishwasher.
Clean the outside surface ofthe microwave with soap
and a cleandamp cloth. Dry with a cleansoft cloth. To
prevent damage to the operating parts of the oven, do not
let water seep into any vents or openings.
Wash the oven door windowwith very mild soapand
water. Be sure to use a soft clean cloth to avoid
scratching.
Ifsteam accumulates inside or outside the oven door,
wipe with a soft cloth. Steam canaccumulate when
operatingthe oven in highhumidity and in no way
indicates microwave leakage.
Never operate the oven without food in the oven cavity;
this candamage the magnetron tube or glass tray. You
may wish to leave a cup of water standing inside the oven
when it is not in use to prevent damage if the oven is
accidentally turned on.
Disconnect t he power cord before cleaning or
leave t he door op en t o deactivat e t he oven du ring cleaning.
Somespatters canberemoved with a paper towel, others
may require a damp cloth. Remove greasy spatters with a
sudsy cloth, then rinse with a damp cloth. Do not use
abrasive cleaners or sharp utensils on oven walls.
To clean the surface ofthe door and the surface of
the oven thatcometogether upon closing, use only
mild, non-abrasive soaps or detergents using a
spongeorsoft cloth. Rinse with a damp cloth and dry.
Never use a commercial oven cleaner on any part
ofyour microwave.
Removable Turntable and Turntable Support
To prevent breakage, do not place the turntable into water
just after cooking. Wash it carefully in warm, sudsy water
or in the dishwasher. The turntable and support can be
broken ifdropped. Remember, do not operate the oven
without the turntable and support in place.
Do not use cleaners containing ammoniaor alcohol
on the microwave oven. Ammonia or alcohol can
damage the appearance ofthe microwave.
Clean the outside ofthe microwave with a sudsy cloth.
Rinse with a damp cloth and then dry. Wipe the window
cleanwith a damp cloth.
How to Clean the Inside
How to Clean the Outside
Walls,Floor, Inside Widow, Metal and Plastic Patrs on the
Door.
Case
21
Disconnect t he power cord before cleaning or
leave t he door op en t o deactivat e t he oven du ring cleaning.
Wipe with a damp cloth. Dry thoroughly. Do not use cleaning
sprays, largeamounts ofsoapand water, abrasives or sharp
objects on the panel—they candamage it. Somepaper towels
canalso scratch the control panel.
It is important to keep the areacleanwhere the door seals
against the microwave. Use only mild, non-abrasive
detergents applied with a clean spongeorsoft cloth. Rinse well.
Ifthe cord becomes soiled, unplugand wash with a damp cloth.
For stubborn spots, sudsy water may be used, but be certain
to rinse with a damp cloth and dry thoroughly before plugging
cord into outlet.
To cleanstainless steel surfaces, use a hot, damp cloth
with a mild detergent suitable for stainless steel surfaces.
Use a clean, hot,damp cloth to remove soap. Dry with a
dry, cleancloth.
Iffood soil remains, try a generalkitchen cleaner, such as
Fantastik®
, Simple Green®or Formula409®
.
For hard-to-clean soil, use a standard stainless-steel
cleaner, such asBon-Ami®or Cameo ®.
Apply cleaner with a damp sponge. Use aclean, hot,
damp cloth to remove cleaner. Dry with a dry, clean cloth.
Always scrub lightly in the direction ofthe grain.
After cleaning, use a stainless-steel polish, such as
tainless Steel Magic ®
, Revere Copper and Stainless Steel
Cleaner ®or Wenol All Purpose Metal Polish®
. Followthe
product instructions for cleaningthe stainless-steel surface.
Control Panel and Door
Door Surface
Power Cord
Stainless Steel
Do not use a steel-wool pad;it will scratch the surface.
22

Navigation menu
