Microwave Oven
49-40633 08-10 GE
Owner’s Manual
GEAppliances.com
Safety Instructions . . . . . . . .2–6
Operating Instructions
Convenience Features . . . . . . 13–15
Microwave Terms . . . . . . . . . . . . . . 18
Oven Features . . . . . . . . . . . . . . . .7, 8
Other Features . . . . . . . . . . . . . 16, 17
Power Levels ....................9
Time Features . . . . . . . . . . . . . . 10–12
Care and Cleaning .........19
Troubleshooting Tips . . . . . . 20
Things That Are Normal . . . . . . . .20
Consumer Support
Consumer Support . . . . . .Back Cover
Product Registration . . . . . . . . .21, 22
Warranty ......................23
Write the model and serial
numbers here:
Model # __________________
Serial # ___________________
You can find them on a label inside the
oven.
JE740
IMPORTANT SAFETY INSTRUCTIONS.
READ ALL INSTRUCTIONS BEFORE USING.
IMPORTANT SAFETY INSTRUCTIONS.
Use this appliance only for its intended purpose as described in this Owner’s Manual.
When using electrical appliances basic safety precautions should be followed, including the following:
n Read and follow the specific precautions in the
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY section above.
n This appliance must be grounded. Connect only
to a properly grounded outlet. See the GROUNDING
INSTRUCTIONS section on page 5.
n Install or locate this appliance only in accordance with the
provided installation instructions.
n Be certain to place the front surface of the door 3" or more
back from the countertop edge to avoid accidental tipping
of the appliance in normal usage.
n This microwave oven is not approved or tested for marine
use.
n Do not mount this appliance over a sink.
n Do not mount the microwave oven over or near any
portion of a heating or cooking appliance.
n Do not store anything directly on top of the microwave
oven surface when the microwave oven is in operation.
n Do not operate this appliance if it has a damaged power
cord or plug, if it is not working properly, or if it has been
damaged or dropped.
n Do not cover or block any openings on the appliance.
n Use this appliance only for its intended use as described
in this manual. Do not use corrosive chemicals or vapors
in this appliance. This microwave oven is specifically
designed to heat, dry or cook food, and is not intended for
laboratory or industrial use.
n Do not store this appliance outdoors. Do not use this
product near water—for example, in a wet basement, near
a swimming pool, near a sink or in similar locations.
n Keep power cord away from heated surfaces.
n Do not immerse power cord or plug in water.
n Do not let power cord hang over edge of table or counter.
n To reduce the risk of fire in the oven cavity:
— Do not overcook food. Carefully attend appliance
when paper, plastic or other combustible materials are
placed inside the oven while cooking.
— Remove wire twist-ties and metal handles from paper or
plastic containers before placing them in the oven.
— Do not use the oven for storage purposes. Do not leave
paper products, cooking utensils or food in the oven when
not in use.
— If materials inside the oven ignite, keep the oven door
closed, turn the oven off and disconnect the power cord,
or shut off power at the fuse or circuit breaker panel.
If the door is opened, the fire may spread.
n See door surface cleaning instructions in the Care and
cleaning of the microwave oven section of this manual.
n This appliance must only be serviced by qualified service
personnel. Contact the nearest authorized service facility
for examination, repair or adjustment.
n As with any appliance, close supervision is necessary
when used by children.
n Do not use the oven to dry newspapers.
SAVE THESE INSTRUCTIONS
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock,
or to prevent property damage, personal injury, or loss of life.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
2
(a) Do Not Attempt to operate this oven with the door
open since open-door operation can result in harmful
exposure to microwave energy. It is important not to
defeat or tamper with the safety interlocks.
(b) Do Not Place any object between the oven front
face and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
(c) Do Not Operate the oven if it is damaged. It is
particularly important that the oven door close properly
and that there is no damage to the:
(1) door (bent),
(2) hinges and latches (broken or loosened),
(3) door seals and sealing surfaces.
(d) The Oven Should Not be adjusted or repaired by
anyone except properly qualified service personnel.
ARCING
If you see arcing, press the CLEAR/OFF pad and correct the problem.
Arcing is the microwave term for sparks in the oven.
Arcing is caused by:
n Metal or foil touching the side of the oven.
n Foil not molded to food (upturned edges act
like antennas).
n Metal, such as twist-ties, poultry pins or gold-
rimmed dishes, in the microwave.
n Recycled paper towels containing small metal
pieces being used in the microwave.
FOODS
n Do not pop popcorn in your microwave oven
unless in a special microwave popcorn accessory
or unless you use popcorn labeled for use in
microwave ovens.
n Some products such as whole eggs and sealed
containers—for example, closed jars—are able
to explode and should not be heated in this
microwave oven. Such use of the microwave oven
could result in injury.
n Do not boil eggs in a microwave oven. Pressure will
build up inside egg yolk and will cause it to burst,
possibly resulting in injury.
n Operating the microwave with no food inside for
more than a minute or two may cause damage
to the oven and could start a fire. It increases the
heat around the magnetron and can shorten
the life of the oven.
n Foods with unbroken outer “skin” such as potatoes,
hot dogs, sausages, tomatoes, apples, chicken
livers and other giblets and egg yolks should be
pierced to allow steam to escape
during cooking.
n Avoid heating baby food in glass jars, even
with the lid off. Make sure all infant food is
thoroughly cooked. Stir food to distribute the
heat evenly. Be careful to prevent scalding when
warming formula. The container may feel cooler
than the formula really is. Always test the formula
before feeding the baby.
n Don’t defrost frozen beverages in narrow-necked
bottles (especially carbonated beverages). Even
if the container is opened, pressure can build up.
This can cause the container to burst, possibly
resulting in injury.
n SUPERHEATED WATER
Liquids, such as water, coffee or tea are able to
be overheated beyond the boiling point without
appearing to be boiling. Visible bubbling or boiling
when the container is removed from the microwave
oven is not always present. THIS COULD RESULT
IN VERY HOT LIQUIDS SUDDENLY BOILING OVER
WHEN THE CONTAINER IS DISTURBED OR A SPOON
OR OTHER UTENSIL IS INSERTED INTO
THE LIQUID.
To reduce the risk of injury to persons:
— Do not overheat the liquid.
— Stir the liquid both before and halfway through
heating it.
— Do not use straight-sided container with narrow
necks.
— After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
— Use extreme care when inserting a spoon or other
utensil into the container.
n Hot foods and steam can cause burns. Be careful
when opening any containers of hot food, including
popcorn bags, cooking pouches and boxes. To
prevent possible injury, direct steam away from
hands and face.
n Do not overcook potatoes. They could dehydrate
and catch fire, causing damage to your oven.
n Cook meat and poultry thoroughly—meat to at
least an INTERNAL temperature of 160°F and
poultry to at least an INTERNAL temperature
of 180°F. Cooking to these temperatures usually
protects against foodborne illness.
WARNING!
3
IMPORTANT SAFETY INSTRUCTIONS.
READ ALL INSTRUCTIONS BEFORE USING. GEAppliances.com
SAVE THESE INSTRUCTIONS
4
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
MICROWAVE-SAFE COOKWARE
Make sure all cookware used in your microwave oven
is suitable for microwaving. Most glass casseroles,
cooking dishes, measuring cups, custard cups, pottery
or china dinnerware which does not have metallic
trim or glaze with a metallic sheen can be used. Some
cookware is labeled “suitable
for microwaving.”
n If you are not sure if a dish is microwave-safe,
use this test: Place in the oven both the dish
you are testing and a glass measuring cup filled
with 1 cup of water—set the measuring cup either
in or next to the dish. Microwave 30–45 seconds
at high. If the dish heats, it should not be used for
microwaving.
If the dish remains cool and only the water in
the cup heats, then the dish is microwave-safe.
n If you use a meat thermometer while cooking,
make sure it is safe for use in microwave ovens.
n Do not use recycled paper products. Recycled
paper towels, napkins and waxed paper can
contain metal flecks which may cause arcing
or ignite. Paper products containing nylon or nylon
filaments should be avoided, as they
may also ignite.
n Some styrofoam trays (like those that meat
is packaged on) have a thin strip of metal
embedded in the bottom. When microwaved,
the metal can burn the floor of the oven or
ignite a paper towel.
n Do not use the microwave to dry newspapers.
n
Not all plastic wrap is suitable for use in microwave
ovens. Check the package for proper use.
n Paper towels, waxed paper and plastic wrap
can be used to cover dishes in order to retain
moisture and prevent spattering. Be sure to
vent plastic wrap so steam can escape.
n Cookware may become hot because of heat
transferred from the heated food. Pot holders may
be needed to handle the cookware.
n “Boilable” cooking pouches and tightly closed
plastic bags should be slit, pierced or vented
as directed by package. If they are not, plastic
could burst during or immediately after cooking,
possibly resulting in injury. Also, plastic storage
containers should be at least partially uncovered
because they form a tight seal. When cooking
with containers tightly covered with plastic wrap,
remove covering carefully and direct steam away
from hands and face.
n Use foil only as directed in this guide. TV dinners
may be microwaved in foil trays less than 3/4"
high; remove the top foil cover and return the tray
to the box. When using foil in the microwave oven,
keep the foil at least 1" away from the sides of the
oven.
n Plastic cookware—Plastic cookware designed for
microwave cooking is very useful, but should be
used carefully. Even microwave-safe plastic may
not be as tolerant of overcooking conditions as
are glass or ceramic materials and may soften or
char if subjected to short periods of overcooking.
In longer exposures to overcooking, the food and
cookware could ignite.
Follow these guidelines:
1 Use microwave-safe plastics only and use
them in strict compliance with the cookware
manufacturer’s recommendations.
2 Do not microwave empty containers.
3 Do not permit children to use plastic cookware
without complete supervision.
WARNING!
SAVE THESE INSTRUCTIONS
ADAPTER PLUGS
Usage situations where appliance’s power cord will be disconnected infrequently.
Because of potential safety hazards under certain conditions,
we strongly recommend against the use of an adapter plug.
However, if you still elect to use an adapter, where local codes
permit, a TEMPORARY CONNECTION may be made to a properly
grounded 2-prong wall receptacle by the use of a UL listed adapter
which is available at most local hardware stores.
The larger slot in the adapter must be aligned with the larger slot in
the wall receptacle to provide proper polarity in the connection of
the power cord.
CAUTION: Attaching the adapter ground terminal to the wall receptacle cover screw does not ground
the appliance unless the cover screw is metal, and not insulated, and the wall receptacle is grounded
through the house wiring.
You should have the circuit checked by a qualified electrician to make sure the receptacle is properly grounded.
When disconnecting the power cord from the adapter, always hold the adapter with one hand. If this
is not done, the adapter ground terminal is very likely to break with repeated use. Should this happen,
DO NOT USE the appliance until a proper ground has again been established.
Usage situations where appliance’s power cord will be disconnected frequently.
Do not use an adapter plug in these situations because frequent disconnection of the power cord places
undue strain on the adapter and leads to eventual failure of the adapter ground terminal. You should
have the 2-prong wall receptacle replaced with a 3-prong (grounding) receptacle by a qualified electrician
before using the appliance.
Ensure proper ground
and firm connection
before use.
TEMPORARY
METHOD
Align large
prongs/slots
(Adapter plugs not
permitted in Canada)
5
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the
electric current.
This appliance is equipped with a power cord having
a grounding wire with a grounding plug. The plug
must be plugged into an outlet that is properly
installed and grounded.
Consult a qualified electrician or service technician if
the GROUNDING INSTRUCTIONS are not completely
understood, or if doubt exists as to whether the
appliance is properly grounded.
If the outlet is a standard 2-prong wall outlet, it is
your personal responsibility and obligation to have
it replaced with a properly grounded 3-prong wall
outlet.
Do not under any circumstances cut or remove the
third (ground) prong from the power cord.
We do not recommend using an extension cord with
this appliance. If the power cord is too short, have a
qualified electrician or service technician install an
outlet near the appliance. (See EXTENSION CORDS
section.)
For best operation, plug this appliance into its
own electrical outlet to prevent flickering of lights,
blowing of fuse or tripping of circuit breaker.
WARNING—Improper use of the grounding plug can result in a risk of electric shock.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS.
READ ALL INSTRUCTIONS BEFORE USING. GEAppliances.com
6
EXTENSION CORDS
A short power supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over
a longer cord.
Extension cords may be used if you are careful in using them.
If an extension cord is used—
1 The marked electrical rating of the extension cord should be at least as great as the electrical rating of the
appliance;
2 The extension cord must be a grounding-type 3-wire cord and it must be plugged into a 3-slot outlet;
3 The extension cord should be arranged so that it will not drape over the countertop or tabletop where it
can be pulled on by children or tripped over unintentionally.
If you use an extension cord, the interior light may flicker and the blower sound may vary when the microwave
oven is on. Cooking times may be longer, too.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
Most pacemakers are shielded from interference from electronic products, including microwaves.
However, patients with pacemakers may wish to consult their physicians if they have concerns.
PACEMAKERS
7
Throughout this manual, features and appearance may vary from your model.
700 Watts
Features of the Oven
Door Latches.
Window with Metal Shield. Screen allows
cooking to be viewed while keeping
microwaves confined in the oven.
Convenience Guide.
Touch Control Panel Display.
Door Latch Release. Press latch release to
open door.
Removable Turntable. Turntable and support
must be in place when using the oven. The
turntable may be removed for cleaning.
Removable Turntable Support. The turntable
support must be in place when using the oven.
NOTE: Rating plate, oven vent(s) and oven light are
located on the inside walls of the microwave oven.
About the features of your microwave oven. GEAppliances.com
You can microwave by time or with the convenience features. Not all features on all models.
Cooking Controls
Time Features
Press Enter
TIME COOK Amount of cooking time
Press number pads
TIME DEFROST Amount of defrosting time
POWER LEVEL
30 SEC Starts immediately!
EXPRESS COOK Starts immediately!
Convenience Features
Press Enter Option
POTATO Enter serving size
POPCORN Enter serving size 3.5 oz or 3 oz
more or less time
BEVERAGE Enter serving size 4 oz, 8 oz or 12 oz
REHEAT Food Type 1-3
AUTO DEFROST Food Weight (0.1-6 lbs)
VEGETABLE Enter serving size
1-4 servings
PIZZA Enter serving size 1-3 Slices
Check the Convenience Guide before you begin.
8
About the features of your microwave oven.
Express Cook
0
1
4
2
5
3
7 8 9
6
Pizza
Potato
Popcorn
Vegetable
Reheat
Beverage
Time
Cook
Clock
Timer
Power
Level Add
30 Sec
Start
Pause
Clear
Off
Time
Defrost
Auto
Defrost
Power level 1 to HI
1-3 servings
1-4 servings
GEAppliances.com
Variable power levels add flexibility to
microwave cooking. The power levels on
the microwave oven can be compared to
the surface units on a range. Each power
level gives you microwave energy a certain
percent of the time. Power level 7 is
microwave energy 70% of the time. Power
level 3 is energy 30% of the time. Most
cooking will be done on HI which gives you
100% power. HI power level will cook faster
but food may need more frequent stirring,
rotating or turning over. A lower setting
will cook more evenly and need less stirring
or rotating of the food. Some foods may have
better flavor, texture or appearance
if one of the lower settings is used. Use a
lower power level when cooking foods
that have a tendency to boil over, such as
scalloped potatoes.
Rest periods (when the microwave energy
cycles off) give time for the food to “equalize”
or transfer heat to the inside
of the food. An example of this is shown with
power level 3—the defrost cycle.
If microwave energy did not cycle off,
the outside of the food would cook before
the inside was defrosted.
Here are some examples of uses for various
power levels:
HI: Fish, bacon, vegetables, boiling liquids.
Med-High 7: Gentle cooking of meat and
poultry; baking casseroles and reheating.
Medium 5: Slow cooking and tenderizing for
stews and less tender cuts of meat.
Low 2 or 3: Defrosting; simmering; delicate
sauces.
Warm 1: Keeping food warm; softening
butter.
Express Cook
0
1
4
2
5
3
789
6
Power
Level
Start
Pause
9
Time
Cook
Changing the Power Level
The power level may be entered or
Time Cook.
1 Press TIME COOK button once.
2 Enter cooking time.
3 Press POWER LEVEL once and then press
the number pad to select power level.
4 Press START.
changed after entering the time for
10
About the time features.
Time Cook
Allows you to microwave for any time up
to 99 minutes and 99 seconds.
HI power level is automatically set, but you
may change it for more flexibility.
1 Press TIME COOK.
2 Enter cooking time.
3 Press START.
You may open the door during Time Cook
to check the food. Close the door and
press START to resume cooking.
Defrosting and Cooking
You can program the oven to automatically
begin Time Cook after defrosting.
1 Press AUTO DEFROST and select food
weight, or press TIME DEFROST and
enter defrosting time.
2
3
4
The oven will begin defrosting. After
defrosting is complete, Time Cook will
count down.
Add 30 Sec
It will add 30 seconds to the time counting down each time the pad is pressed. Each touch
The oven will start immediately when pressed.
Express Cook
0
1
4
2
5
3
789
6
Start
Pause
Time
Cook
Express Cook
This is a quick way to set cooking time fro 1-6 minutes.
1 Press one of the Express Cook pads (from 1-6) for 1-6 minutes of cooking at power level
10. For example, press the 2 pad for 2 minutes of cooking time.
The power level can be changed as time is counting down. Press POWER LEVEL and enter
1-10.
NOTE: Express Cook function pertains to pads 1-6 only.
Express Cook
1
4
2
5
3
6
Add
30 Sec
Press TIME COOK and enter the amount of
cooking time.
Press POWER LEVEL once and then press
the number pad to select power level.
Press START.
will add 30 seconds, up to 99 minutes and 59 seconds.
GEAppliances.com
Food Time Comments
Breads, Cakes
Bread, buns, or rolls (1 piece) 1/4 min.
Sweet rolls (approx. 12 oz.) 2 to 4 min. Rearrange after half the time.
Fish and Seafood
Fillets, frozen (1 lb.) 6 to 9 min.
Shellfish, small pieces
(1 lb.)
3 to 7 min. Place block in casserole. Turn over and break up after half the time.
Fruit
Plastic pouch—1 or 2 1 to 5 min.
(10-oz. package)
Meat
Bacon (1 lb.) 2 to 5 min. Place unopened package in oven. Let stand 5 minutes after defrosting.
Franks (1 lb.) 2 to 5 min. Place unopened package in oven. Microwave just until franks can be separated.
Let stand 5 minutes, if necessary, to complete defrosting.
Ground meat (1 lb.) 4 to 6 min. Turn meat over after first half of time.
Roast: beef, lamb, veal, pork
9 to 13 min.
Use power level 10.
per lb.
Steaks, chops and cutlets 4 to 8 min. Place unwrapped meat in cooking dish. Turn over after first half of time and
per lb. shield warm areas with foil. After second half of time, separate pieces with table
knife. Let stand to complete defrosting.
Poultry
Chicken, broiler-fryer, cut up
14 to 20 min.
Place wrapped chicken in dish. Unwrap and turn over after first half of time. After
(21⁄2 to 3 lbs.)
second half of time, separate pieces and place in cooking dish. Microwave 2 to 4
minutes more, if necessary. Let stand a few minutes to finish defrosting.
Chicken, whole (21⁄2 to 3 lbs.)
20 to 25 min.
Place wrapped chicken in dish. After half the time, unwrap and turn chicken over.
Shield warm areas with foil. To complete defrosting, run cold water in the cavity
until giblets can be removed.
Cornish hen 7 to 13 min. Place unwrapped hen in the oven breast-side-up. Turn over after first half of time.
per lb. Run cool water in the cavity until giblets can be removed.
Turkey breast (4 to 6 lbs.) 3 to 8 min. Place unwrapped breast in microwave-safe dish breast-side-down. After first half
per lb. of time, turn breast-side-up and shield warm areas with foil. Defrost for second
half of time. Let stand 1 to 2 hours in refrigerator to complete defrosting.
Defrosting Guide
Time Defrost
Allows you to defrost for a selected length
of time. See the Defrosting Guide for
suggested times. (Auto Defrost explained in
the About the convenience features section.)
1 Press TIME DEFROST.
2 Enter defrosting time.
3 Press START.
4 Turn the food over after half the time.
5 Press START.
At one half of selected defrosting time, turn
food over and break apart or rearrange
pieces for more even defrosting. Shield any
warm areas with small pieces of foil. The
oven will continue to defrost if you don’t open
the door and turn the food.
A dull thumping noise may be heard during
defrosting. This is normal when oven is not
operating at HI power.
Defrosting Tips
n
Foods frozen in paper or plastic can be
defrosted in the package. Closed packages
should be slit, pierced or vented AFTER
food has partially defrosted. Plastic storage
containers should be partially uncovered.
n Family-size, prepackaged frozen dinners
can be defrosted and microwaved. If the
food is in a foil container, transfer it to a
microwave-safe dish.
n Foods that spoil easily should not be
allowed to sit out for more than one
hour after defrosting. Room temperature
promotes the growth of harmful bacteria.
n For more even defrosting of larger foods,
such as roasts, use Auto Defrost. Be sure
large meats are completely defrosted
before cooking.
n When defrosted, food should be cool
but softened in all areas. If still slightly icy,
return to the microwave very briefly, or let
it stand a few minutes.
Express Cook
0
1
4
2
5
3
789
6
Time
Defrost
Start
Pause
11
About the convenience features.
12
Popcorn
To use the Popcorn feature:
1 Follow package instructions, using
Time Cook if the package is less than 3.0
ounces or larger than 3.5 ounces. Place
the package of popcorn in the center of
the microwave.
2 Press POPCORN once for a 3.5 ounce
package of popcorn,
package.
immediately.
or
Then enter 1 for 3.0 ounce bag or 2 for
3.5 ounce bag.
Popcorn
Use only with prepackaged
microwave popcorn weighing
3.0 to 3.5 ounces.
Reheat
1 Press Reheat pad.
2 Enter the food type 1-3 for one serving
(see Reheat Guide below)
3 Enter the number of servings (1-4). Then
the microwave will start immediately.
You may open the door during cooking
to check the food. Close the door and
press START to resume cooking.
Reheat
Enter Code Food Choice Comments
1Cover with lid
or vented plastic
wrap
2
3
Cooking Guide for REHEAT feature
1
2
the oven starts
.
again for a 3 0
ouncePOPCORN
Press
Press POPCORN once for a 3.5 ounce
package of popcorn,
immediately.
the oven starts
Canned Vegetables
Pasta
Dinner plate
Serving setting
1-4 cans
14 0 oz.
1-3 serving
13
GEAppliances.com
Beverage
To use the Beverage feature:
Press BEVERAGE pad. The microwave
will automatically be set to heat an 8
ounce beverage. The microwave will start
immediately.
If you would like to change the the setting
for the beverage size:
Press BEVERAGE pad.
Press pad for the following
serving size:
The microwave will start immediately.
Drinks heated with the Beverage feature
may be very hot. Remove the container
with care.
or
Press BEVERAGE pad.
Enter 1 for 4.0 ounce, 2 for 8.0 ounce or 3
for 12 ounces.
Beverage
Ounces per Serving
4 ounces
8 ounces
12 ounces
1
2
Pizza
To use the Pizza feature:
1 Press the PIZZA pad.
2 Press the number of servings 1-3.
Pizza
1
2
BEVERAGE
Press BEVERAGE
X1
X3
X2
The microwave will start immediately.
The microwave will start immediately.
About the convenience features.
14
Potato
To use the Potato feature:
1 Press the POTATO pad.
2
To use the Vegetable feature:.
1 Press VEGETABLE pad.
2 Enter the number of servings (1-4).
Potato
Vegetable
The microwave will start immediately.
The microwave will start immediately.
Press the number of servings 1-3.
15
GEAppliances.com
Auto Defrost/Defrost
(on some models)
Use Auto Defrost/Defrost (on some models)
pounds. Use Time Defrost (on some models)
for most other frozen foods.
Auto Defrost automatically sets the defrosting
times and power levels to give even defrosting
results for meats, poultry and fish.
1 Press AUTO DEFROST/DEFROST
2
There is a handy guide located on the inside
front of the oven.
n Remove meat from package and place
on microwave-safe dish.
n When the oven signals, turn the food over.
Remove defrosted meat or shield warm
areas with small pieces of foil.
n After defrosting, most meats need to stand
5 minutes to complete defrosting. Large
roasts should stand for about
30 minutes.
Auto
Defrost
Start
Pause
Then press the number pad to select
between 0.1 to 6.0 Pounds.
Press START.
(Time Defrost is explained in the About the time
features section.)
3
for meat, poultry and fish weighing up to 6
16
About the other features.
Clock
Press to enter the time of day.
1 Press CLOCK.
2
3 Press CLOCK.
Start
Pause
Pause
START/PAUSE allows you to stop cooking without opening the door or clearing the display.
Press START/PAUSE again to restart the oven.
Clear
Off
Child Lock-Out
You may lock the control panel to prevent the microwave from being accidentally
started or used by children.
Express Cook
0
1
4
2
5
3
789
6
Clock
Enter time of day. The time range is 1:00-12:59
To lock or unlock the controls, press and hold CLEAR/OFF for about three seconds
When the control panel is locked, will be lit.
LOC
GEAppliances.com
Timer
This pad performs the following functions:
n It operates as a minute timer.
n It can be used as a hold setting after defrosting.
How to Use as a Minute Timer
The Timer operates without microwave energy.
1 Press TIMER.
2 Enter the amount of time you want to count down.
3 Press . When the time is up, the timer will signal.
17
Timer
TIMER
Microwave terms.
18
Arcing Arcing is the microwave term for sparks in the oven. Arcing is caused by:
n metal or foil touching the side of the oven.
n foil that is not molded to food (upturned edges act like antennas).
n metal such as twist-ties, poultry pins, gold-rimmed dishes.
n recycled paper towels containing small metal pieces.
Covering Covers hold in moisture, allow for more even heating and reduce cooking time. Venting plastic wrap
or covering with wax paper allows excess steam to escape.
Shielding In a regular oven, you shield chicken breasts or baked foods to prevent over-browning. When
microwaving, you use small strips of foil to shield thin parts, such as the tips of wings and legs
on poultry, which would cook before larger parts.
Standing Time When you cook with regular ovens, foods such as roasts or cakes are allowed to stand to finish cooking
or to set. Standing time is especially important in microwave cooking. Note that a microwaved cake
is not placed on a cooling rack.
Venting After covering a dish with plastic wrap, you vent the plastic wrap by turning back one corner so
excess steam can escape.
Term Definition

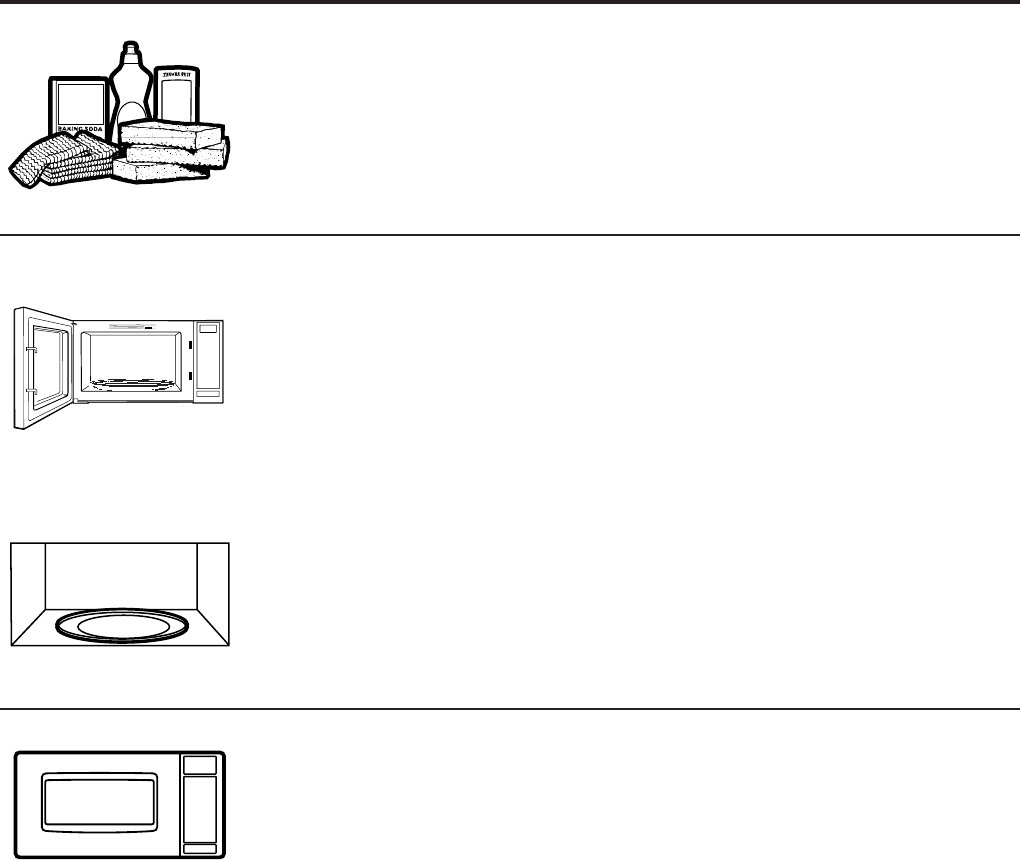

Care and cleaning of the microwave oven. GEAppliances.com
19
Helpful Hints
An occasional thorough wiping with a solution of baking soda and water keeps the
inside fresh.
Unplug the cord before cleaning any part of this oven.
How to Clean the Inside
Walls, Floor, Inside Window, Metal and Plastic Parts on the Door
Some spatters can be removed with a paper towel; others may require a damp cloth. Remove
greasy spatters with a sudsy cloth, then rinse with a damp cloth. Do not use
abrasive cleaners or sharp utensils on oven walls.
To clean the surface of the door and the surface of the oven that come together upon
closing, use only mild, nonabrasive soaps or detergents using a sponge or soft cloth.
Rinse with a damp cloth and dry.
Never use a commercial oven cleaner on any part of your microwave.
Removable Turntable and Turntable Support
To prevent breakage, do not place the turntable into water just after cooking. Wash it carefully
in warm, sudsy water or in the dishwasher. The turntable and support can be broken if
dropped. Remember, do not operate the oven without the turntable and
support in place.
How to Clean the Outside
Do not use cleaners containing ammonia or alcohol on the microwave oven. Ammonia
or alcohol can damage the appearance of the microwave.
Case
Clean the outside of the microwave with a sudsy cloth. Rinse with a damp cloth and then dry.
Wipe the window clean with a damp cloth.
Control Panel and Door
Wipe with a damp cloth. Dry thoroughly. Do not use cleaning sprays, large amounts of soap
and water, abrasives or sharp objects on the panel—they can damage it. Some paper towels
can also scratch the control panel.
Door Surface
It is important to keep the area clean where the door seals against the microwave. Use only
mild, non-abrasive detergents applied with a clean sponge or soft cloth. Rinse well.
Power Cord
If the cord becomes soiled, unplug and wash with a damp cloth. For stubborn spots, sudsy
water may be used, but be certain to rinse with a damp cloth and dry thoroughly before
plugging cord into outlet.
Stainless Steel (on some models)
Do not use a steel-wood pad; it will scratch the surface.
To clean the stainless steel surface, use a hot, damp cloth with a mild detergent suitable
for stainless steel surfaces. Use a clean, hot, damp cloth to remove soap. Dry with a dry, clean
cloth. Always scrub lightly in the direction of the grain.
20
Problem Possible Causes What To Do
Oven will not start A fuse in your home may be • Replace fuse or reset circuit breaker.
blown or the circuit breaker
tripped.
Power surge. • Unplug the microwave oven, then plug it back in.
Plug not fully inserted into wall • Make sure the 3-prong plug on the oven is fully inserted
outlet. into wall outlet.
Door not securely closed. • Open the door and close securely.
Control panel lighted, Door not securely closed. • Open the door and close securely.
yet oven will not start START pad not pressed after • Press START.
entering cooking selection.
Another selection entered • Press CLEAR/OFF.
already in oven and CLEAR/OFF
pad not pressed to cancel it.
CLEAR/OFF was pressed • Reset cooking program and press START.
accidentally.
Microwave oven control The control has been locked. • Press and hold for about three seconds
will not work (When the control panel is to unlock the control.
locked, the lock indicator
will be lit.)
Things That Are Normal With Your Microwave Oven
n Steam or vapor escaping from around
the door.
n Light reflection around door or outer case.
n Dimming oven light and change in
the blower sound at power levels other
than high.
n Dull thumping sound while oven is
operating.
n TV/radio interference might be noticed while
using the microwave. Similar to
the interference caused by other small
appliances, it does not indicate a problem
with the microwave. Plug the microwave
into a different electrical circuit, move the
radio or TV as far away from the microwave
as possible, or check the position and signal
of the TV/radio antenna.
Troubleshooting Tips.
CLEAR/OFF
21
Notes. GEAppliances.com
22
Notes.
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care® technician. To schedule service,
on-line, 24 hours a day, visit us at GEAppliances.com, or call 800.
GE.CARES (800.432.2737). Please have serial and model numbers
available when calling for service.
n Service trips to your home to teach you how to
use the product.
n Improper installation, delivery or maintenance.
n Product not accessible to provide required service.
n Failure of the product or damage to the product if it is
abused, misused (for example, cavity arcing from wire
rack or metal/foil), or used for other than the intended
purpose or used commercially.
n Replacement of house fuses or resetting of circuit
breakers.
n Damage to the product caused by accident, fire, floods
or acts of God.
n Incidental or consequential damage caused by possible
defects with this appliance.
n Damage caused after delivery.
What GE Will Not Cover:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use
within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may
be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service Location for
service. In Alaska, the warranty excludes the service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you
specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights
are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
One Year Any part of the microwave oven which fails due to a defect in materials or workmanship.
From the date of the During this limited one-year warranty, GE will also provide, free of charge, all labor and related
original purchase service to replace the defective part.
For the above limited warranty: To avoid any trip charges, you must take the microwave oven to a General Electric Customer
Care® servicer and pick it up following service. In-home service is also available, but you must pay for the service technician’s
travel costs to your home.
For The Period Of: GE Will Replace:
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
23
GE Microwave Oven Warranty.
EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in
this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or
fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
Printed in China
Consumer Support.
GE Appliances Website GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,
any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals,
order parts, catalogs, or even schedule service on-line. You can also “Ask Our Team of Experts™”
your questions, and so much more…
Schedule Service GEAppliances.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service at
your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business
hours.
Real Life Design Studio GEAppliances.com
GE supports the Universal Design concept—products, services and environments that can be used by
people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and
mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design
ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.
GEAC (800.833.4322).
Extended Warranties GEAppliances.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty
is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours.
GE Consumer Home Services will still be there after your warranty expires.
Parts and Accessories GEAppliances.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes
(VISA, MasterCard, and Discover cards are accepted). Order on-line today, 24 hours every day or
by phone at 800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally
should be referred to qualified service personnel. Caution must be exercised, since improper servicing may
cause unsafe operation.
Contact Us GEAppliances.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details
including your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park
Louisville, KY 40225
Register Your Appliance GEAppliances.com
Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced
communication and prompt service under the terms of your warranty, should the need arise.
You may also mail in the pre-printed registration card included in the packing material.
