Midea Kitchen Appliances XM823HYY Microwave Oven (Counter-top) User Manual
Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd Microwave Oven (Counter-top) Users Manual
Users Manual
SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
INSTRUCTION MANUAL
MODEL:EM823HYY
Microwave Oven
120V~ 60Hz
1250W
800W
0.8 Cu.ft.
Specifications
EM823HYY
2
Handling the cord on this press or cords associated
with accessories sold with this product, will expose you
to lead a chemical known to the state of California to
cause cancer, and birth defects or other reproductive
harm. Wash hands after handle.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since this can result in
harmful exposure to microwave energy. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that
the oven door closes properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACE
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions (WxHxD):
Net Weight:
Warning:
10.6 inch
18.1X14.1X11.0 inch
Approx. 25.1 Lbs
If the apparatus is not maintained in a good state of cleanliness, its surface could
be degraded and affect the lifespan of the apparatus and lead to a dangerous
situation.
ADDENDUM
3
SAFETY
1. The oven must be on a leveled surface.
2. The turntable and turntable roller rest must be in the oven during cooking. Place the
cookware gently on the turntable and handle it carefully to avoid possible breakage.
3. Incorrect use of browning dish may cause the turntable to break.
4. Use only the specified bag size when using Direct Access Popcorn.
5. The oven has several built-in safety switches to ensure that the power remains off when
the door is open. Do not tamper with these switches.
6. Do not operate the microwave oven empty. Operating the oven with no food or food that
is extremely low in moisture can cause fire, charring or sparking.
7. Do not cook bacon directly on the turntable. Excessive local heating of the turntable
may cause the turntable to break.
8. Do not heat baby bottles or baby food in the microwave oven. Uneven heating
may occur and could cause physical injury.
9. Do not heat narrow-necked containers, such as syrup bottles.
10. Do not attempt to deep-fry in your microwave oven.
1
1. Do not attempt home canning in this microwave oven, as it is impossible to be sure all
contents of the jar have reached boiling temperature.
12. Do not use this microwave oven for commercial purpose. This microwave oven is made
for household use only.
13. To prevent delayed eruptive boiling of hot liquids and beverages or scalding yourself,
stir liquid before placing the container in the oven and again halfway through cooking
time. Let stand in the oven for a short time and stir again before removing the container.
14. Use carefully when cooking food in the microwave oven to avoid burning due to
excessive cooking.
15. When the appliance is operated in the combination mode, children should only use the
oven under adult supervision due to the temperatures generated.
16. Failure to maintain the oven in a clean condition could lead to deterioration that could
adversely affect the life of the appliance and possibly result in a hazardous situation.
4
IMPORTANT SAFETY INSTRUCTIONS
WARNING
1. Read all instructions before using the
appliance.
2. Read and follow the specific: "PRECAU-
TIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY"
on page 2.
3. As with most cooking appliances, close
supervision is necessary to reduce the risk
of a fire in the oven cavity.
If materials inside the oven ignite:
1. Keep the oven door closed.
2. Turn the oven off, and unplug the
appliance.
3. Disconnect the power cord, shut off
power at the fuse or circuit breaker panel.
4. Do not overcook food. Carefully attend
the appliance when paper, plastic, or
other combustible materials are placed
inside the oven to facilitate cooking.
5. Do not use the oven cavity for storage
purposes. Do not store combustible
items such as bread, cookies, paper
products, etc. inside the oven.
6. Remove wire twist-ties and metal
handles from paper or plastic
containers/bags before placing them in
the oven.
7. This oven must be grounded. Connect
only to properly grounded outlet. See
"GROUNDING INSTRUCTIONS" on
page 5.
8. Install or locate this oven only in
accordance with the installation
instructions provided.
9. Some products such as whole eggs,
water with oil or fat, sealed to explode
and therefore should not be heated in
this oven.
To reduce the risk of fire, electric shock, injury to persons
or exposure to excessive microwave oven energy when
using your appliance, follow basic precautions, including
the following:
10. Use this appliance only for its intended
uses as described in this manual. Do
not use corrosive chemicals or vapors
in this appliance. This oven is
specifically designed to heat or cook
food. It is not designed for industrial or
laboratory use.
11. As with any appliance, close
supervision is necessary when used
by children.
12. Do not operate this oven if it has a
damaged cord or plug, if it is not
working properly or if it has been
damaged or dropped.
13. This appliance should be serviced only
by qualified service technicians.
Contact the nearest authorized service
facility for examination, repair or
adjustment.
14. Do not cover or block any vents on the
oven.
15. Do not store or use this appliance
outdoors.
16. Do not use this oven near water, for
example, near a kitchen sink, in a wet
basement, near a swimming pool, or
similar locations.
17. Do not immerse cord or plug in water.
18. Keep cord away from heated surfaces.
19. Do not let cord hang over edge of
table or counter.
20. When cleaning door and oven
surfaces use only mild, nonabrasive
soaps or detergents applied with a
sponge or soft cloth.
5
i) Do not overheat the liquid.
ii) Stir the liquid both before and halfway through heating it.
iii) Do not use straight-sided containers with narrow necks.
iv) After heating, allow the container to stand in the microwave oven for a short time
before removing the container.
v) Use extreme care when inserting a spoon or other utensil into the container.
WARNING
DANGER
21. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point
without appearing to be boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present. THIS COULD RESULT IN
VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS
DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.
This appliance must be grounded. In the
event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing an escape wire
for the electric current. This appliance
is equipped with a cord having grounding
Consult a qualified electrician or serviceman if the
grounding instructions are not completely understood
or if doubt exists as to whether the appliance is
properly grounded. If it is necessary to use an
extension cord, use only a 3-wire extension cord that
has a 3-pronged grounding plug, and a 3-slot
receptacle that will accept the plug on the appliance.
1. A short power-supply cord is provided to reduce the
risks resulting from becoming entangled in or
tripping over a longer cord.
2. Longer cord sets or extension cord is provided to
reduce the risks resulting from becoming entangled
in or tripping over a longer cord.
3. If a long cord sets or extension cord is used:
1) The marked electrical rating of the cord set or
extension marked electrical rating of the cord set or
extension cord should be at least as great as the
electrical rating of the appliance.
2) The extension cord must be a grounding-type
3-wire cord.
3) The longer cord should be arranged so that it will
not drape over the countertop or tabletop where it
can be pulled on by children or tripped over
unintentionally.
Electric Shock Hazard
Touching some of the internal
components can cause serious
personal injury or death. Do not
disassemble this appliance.
Electric Shock Hazard
Improper use of the grounding
can result in electric shock. Do
not plug into an outlet until
appliance is properly installed
and grounded.
To Reduce the Risk of Injury to Persons
GROUNDING INSTALLATION
SAVE THESE INSTRUCTIONS
wire with a grounding plug. The plug must be
plugged into an outlet that is properly installed
and grounded.
(grounding) plug
Three-pronged
6
CAUTION
Personal Injury Hazard
Tightly-closed utensils
could explode. Closed
containers should be opened
and plastic pouches should be
pierced before cooking.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
UTENSILS See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
7
A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
F
G
A
CB
ED
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
8
Installation
A minimum clearance of 3.0 inches
(7.5cm) is required between the oven and
any adjacent walls. One side must be open.
(1) Leave a minimum clearance of 12
inches (30cm) above the oven.
(2) Do not remove the legs from the
bottom of the oven.
(3) Blocking the intake and/or outlet openings
can damage the oven.
(4) Place the oven as far away from
radios and TV as possible.
Operation of microwave oven may
cause interference to your radio or TV
reception.
2. Plug your oven into a standard household
outlet. Be sure the voltage and the
frequency is the same as the voltage
and the frequency on the rating label.
WARNING: Do not install oven over a
range cooktop or other heat-producing
appliance. If installed near or over a heat
source, the oven could be damaged and
the warranty would be void.
3.0 inch(7.5cm)
3.0 inch(7.5cm)
12 inch(30cm)
OPEN
Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop Installation
Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the
glass tray
upside down. The glass
tray should never be restricted.
b. Both
glass tray
and
turntable ring assembly
must
always be used during cooking.
c. All food and containers of food are always placed
on the
glass tray
for cooking.
d. If
glass tray
or
turntable ring assembly
cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
1. Select a level surface that provide
enough open space for the intake
and/or outlet vents.
9

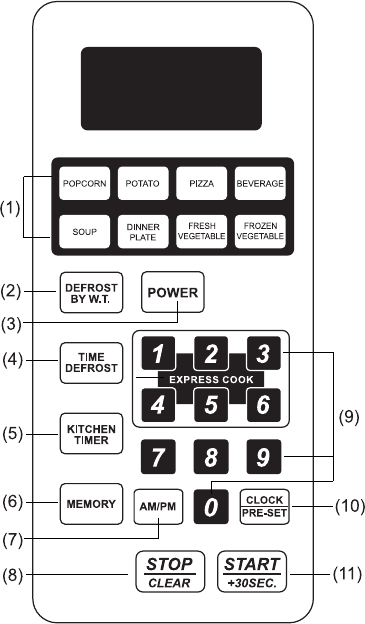

Control Panel and Features
OPERATION
(1) Auto Menu
(2) Defrost By Weight
(3) Power
(4) Time Defrost
(5) Kitchen Timer
(6) Memory
(7) AM/PM
(8) Stop/Clear: clear all previous settings pressed before cooking
starts. During cooking: press once to stop oven; twice to
stop and clear all entries.
(9) Number keys
(10) Clock/Pre-set
(11) Start/+30Sec.
1. Power Level
Ten power levels are available.
Level
Power
10
100%
9
90%
8
80%
7
70%
6
60%
5
50%
4
40%
3
30%
2
20%
1
10%
Remarks: when a power between level 10-8 is chosen, the high level indicator is
lighted and it will flash when in operation.
When a power between level 7-1 is chosen, the low level indicator is
lighted and it will flash when in operation.
2. Clock Setting
When the microwave oven is plugged into a outlet, the oven
will display " 0:00 "
(1) Press " CLOCK/PRE-SET ", LED will display 00:00, clock indicator will be
lighted. The hour figures will flash; ":" and "0" will be lighted.
(2) Press the number keys and enter the correct time. For example,
time is 10:12 now, please press "1,0,1,2" in turn.
(3) Press " AM/PM " to choose AM or PM. AM or PM will be selected in turn
by press the button of " AM/PM " continuously.
(4) Press " CLOCK/PRE-SET " to finish clock setting, and the clock indicator will go out. ":"
will be flashing and the clock will be lighted.
(5) If the numbers input are not within the range of 1:00--12:59, the setting will be invalid
until valid numbers are input.
Note: In the process of clock setting, if the " STOP/CLEAR " button is pressed or if there is
no operation within 1 minute, the oven will go back to the former setting automatically.
3. Kitchen Timer
(1) Press " KITCHEN TIMER ", LED will display 00:00, clock indicator will be lighted.
The frist "0" will flash; ":" and the other "0" will be lighted.
(2) Press the number keys and enter the correct time.(the maximum cooking time is
99 minutes and 99 seconds)
(3) Press " START/+30SEC. " to confirm setting, clock indicator will be lighted.
(4) When the kitchen time is reached, clock indicator will go out. The buzzer will ring 5 times.
If the clock be set(12-hour system), LED will display the current time.
Note: The kitchen Time is differ from 12-hour system,Kitchen Timer is a timer.
4. Microwave cook
(1) Keep on pressing " POWER " to choose microwave power. " "
and " " or " " will be lighted.
(2) Press number keys to input the cooking time; the maximum cooking time is 99
minutes and 99 seconds.
PL10 PL9 PL8 PL7 PL6 PL5 PL4 PL3 PL2 PL1
10
OPERATION
Display
7. Time Defrost Function
(1) Press " TIME DEFROST ", LED will display "dEF2". At the same
time, " ", " " indicators will be lighted.
(2) Press number pads to input defrosting time. The effective time range is 00:01~99:99
(3) If the time input is not within 00:01~99:99, no "beep" will be sound and the microwave
will not work until valid numbers are input.
(4) The default microwave power is power level 3. If you want to change the power level,
press " POWER " once, and the LED will display "PL 3", then press the number pad
of the power level you wanted.
(5) Press " START/+30SEC. " to start defrosting. The remained cooking time will be
displayed. ":", " " and " " indicators will be flashing.
(3) Press " START/+30SEC. " to start cooking, and the remained cooking time will be
displayed. ":", " ", " " or " " indicators will be flashing.
Note: In the process of cooking, if the " STOP/CLEAR " button is pressed or if there is no
operation within 1 minute, the oven will go back to the former setting automatically.
6. Defrosting By WT Function
(1) Press " DEFROST BY W.T. ", LED will display "dEF1"; when at the same
time " ", " " indicators will be lighted.
(2) Press numerical pads to input weight to be defrosted. "Oz" indicator will be lighted.
Input the weight ranged between 4~100 Oz.
(3) If the weight input is not within 4~100, the input will be invalid. No "beep" will be sound
and the microwave will not work until valid numbers are input .
(4) Press " START/+30SEC. " to start defrosting and the remained cooking time will be
displayed. ":", " " and " " indicators will be flashing and the "Oz" indicator
will go out.
(2) In waiting state, instant cooking at 100% power level with 30 seconds' cooking time can
be started by pressing " START/+30SEC ". Each press on the same button will increase
cooking time by 30 seconds. the maximum cooking time is 99 minutes and 59 seconds.
Note: Each press on " START/+30SEC" can increase the cooking by 30 seconds for the
microwave and Auto menu cooking. However, the operation will not work under
"Weight Defrost" operation.
5. Fast Starting
(1) In waiting state, instant cooking at 100% power level can be started by select a cooking
11
time from 1 to 6 minutes by pressing number pads1 to 6. Press " START/+30SEC " to
increase the cooking time; the maximum cooking time is 99 minutes and 59 seconds.
12
8. POPCORN
a) Default mode
b) Cooking-time adjustable mode
9.POTATO
a)Press " POTATO " repeatedly until the number you wish appears in the display,
" ", " " light.
"1"SET: 1 potato (approximate 230 gram)
"2"SET: 2 potatoes (approximate 460 gram)
"3"SET: 3 potatoes (approximate 690 gram)
For example, press "POTATO" once : "1" displays.
b) Press " START/+30 SEC. " to cook, " ", " " are flashing, time counts
down.
1) Press " POPCORN " to select popcorn mode, " "," " and "Oz" are
light. "1.75","3.0","3.5" appears in the display.
2) Press " STRAT/+30SEC. " to start cooking, the buzzer will ring once, "Oz" will go
out, " "," " will flash.
3) When the cooking is over, the buzzer will ring 5 times, LED will display "0:00".
If the clock be setted(12-hour system), LED will display the currently time.
1) Press " POPCORN " to select popcorn mode, " "," " and "Oz" are
light. "1.75","3.0","3.5" appears in the display.
2) Press " MEMORY " , LED will display the cooking time of the weight, the minute
figure is flashing.
3) Press the number keys and enter the time.
4) Press " MEMORY " to save the setting.If straight press " STRAT/+30 SEC. ", the
oven will to cook with the amended cooking time. " "," " will flash.
Users can change the cooking time
e.g.: Users set " POPCORN " time for 3 minutes and 15 seconds
1) Press" POPCORN " button once or twice when the oven is on call ( the screen will
display "1.75" for once press and "3.0" for twice), then press "MEMORY" button,
LED screen will display the default cooking time of current food weight ( which is
not 0:00 ), for example 1'30''. on the screen the first number 1 glints, press nember
button to input 3; the second number 3 glints, press number button to input 1;
the third number 0 glints, press number button to input 5.and then the first
number 3 glints again (It is similar as clock setting ).
2) Press "MEMORY" again to save current setting. If press "STRAT/+30SEC." to
begin cooking directly, the program will save the latest setting of cooking time
automatically.
3) To change the set cooking time, repeat step 1), the screen will firstly display the
saving time ( 3:15 for example ), press number button to reset cooking time, and
the follow step 2).
4) When completed, whenever press " POPCORN " button, screen displays food
weight 1.75 , 3.0 or 3.5, only cooking time follows the saved time setting.
5) To go back to initialization, press " POPCORN " button for more than three
seconds, the buzzer will sound, then go back to initial setting.
1(about 3.0 Oz)
2(about 6.0 Oz)
3(about 9.0 Oz)
Once
Twice
Thrice
1set
2set
3set
Once
Twice
Thrice
4.0 Oz
8.0 Oz
12.0 Oz
16.0 Oz
Once
Twice
Thrice
4 times
13
11.BEVERAGE
a) Press " BEVERAGE " repeatedly until the number you wish appears in the display,
" ", " ", " "light.
You can reheat 1~3 cups of beverage each time (approximate 250 ML).
For example, press "BEVERAGE" twice, "2"appears in the display.
b) Press " START/+30 SEC." to cook,
" ", " " are flashing, time counts down.
a) Press " PIZZA " repeatedly until the number you wish appears in the display, " ",
" " light.
You can reheat 1~3 slices of Pizza each time .
10. PIZZA
Times( Press "Pizza") Weight Display
For example, press"
PIZZA
" twice, "2" appears in the LED.
b) Press " START/+30 SEC." to cook, " "," " are flashing, time counts down.
Times( Press "Potato") Weight Display
12.SOUP
a) Press " SOUP " repeatedly until the number you wish appears in the display,
" ", " " ,"Oz" light.
For example, press "SOUP" twice, "8.0"appears in the display.
b) Press " START/+30 SEC." to cook, " ", " " light, time counts down.
Times( Press "SOUP ") Weight Display
1Mug
2Mugs
3Mugs
Once
Twice
Thrice
Times( Press "BEVERAGE")Weight Display
14
Once
Twice
Thrice
4.0 Oz
8.0 Oz
16.0 Oz
9.0 Oz
12.0 Oz
18.0 Oz
Once
Twice
Thrice
Once
Twice
Thrice
4.0 Oz
8.0 Oz
16.0 Oz
13. DINNER PLATE
a) Press " DINNER PLATE " repeatedly until the number you wish appears
in the display, " ", " " and "Oz" light.
For example, press" DINNER PLATE " twice, "12.0" appears in the display.
b) Press " START/+30 SEC. " to cook, " ", " " are flashing, time counts down.
b) Press " START/+30 SEC. " to cook, "Oz" disappears, " ", " " are
flashing, time counts down.
14.FRESH VEGETABLE
a) Press " FRESH VEGETABLE " repeatedly until the number you wish appears in the
display, " ", " " and "Oz" light.
For example, press " FRESH VEGETABLE " twice, "8.0" appears in the display.
Times( Press "FRESH VEGETABLE")Weight Display
Times( Press "DINNER PLATE") Weight Display
b) Press " START/+30 SEC. " to cook, "Oz" disappears, " ", " " are
flashing, time counts down.
15.FROZEN VEGETABLE
a) Press " FROZEN VEGETABLE " repeatedly until the number you wish appears in the
display, " ", " " and "Oz" light.
For example, press " FROZEN VEGETABLE " twice, "8.0" appears in the display.
Times( Press "FROZEN VEGETABLE")
Weight Display
17. MEMORY FUNCTION
16. PRE-SET FUNCTION
(1) Set the clock first. (Consult the instruction of clock setting.)
(2) Set a certain cooking procedure(one or two blocks), the setting method and display are
same as relevant cooking procedure. (Defrosting is beyond pre-set cooking).
Example: If you want to cook the food with 100% microwave power for 10 minutes.
Do it as following:
a. Press "POWER" once to choose 100% microwave power;
b. Press number keys "1","0","0","0" in order to adjust the cooking time;
c. Be careful! Please do not press " START/ +30 SEC." to start cooking.
(3) Press " CLOCK/PRE-SET " to display current time and hour figure is flashing, the icon
" : " keep lighting on.
(4) Press number keys to input the cooking time.For example: to set the time is 12:12, you
can press the number keys "1","2","1","2" in order.
(5) Press " AM/PM " to choose AM or PM. AM or PM will be selected in turn by pressing
the button of " AM/PM " continuously.
(6) Press "START/ +30 SEC." to confirm the preset procedure.When it is confirmed, the
unit will go back the clock states.
15
(1)Press "MEMORY" to choose memory 1-5 procedure. The LED will display 1,2,3...5.
(2)If the procedure has been set, press " START/ +30 SEC." to use it. If not, continue to set
the procedure. Only one or two stages can be set.
(3) After finishing the setting, press "MEMORY" to save the procedure and turn back to the
waiting states.If press " START/ +30 SEC." ,it can save and operate the setting.
(7) When time arrives, the buzzer will sound twice and the cooking starts.
Example: to set the following procedure as the second memory, that is memory 2.
to cook the food with 80% microwave power for 3minutes and 20 seconds.
The steps are as follow:
a. In waiting states, press "MEMORY" twice,stop pressing until the screen displays "2".
b. Press "POWER" three times until "PL8" displays.
c. Press number keys "3","2","0" in order to input the cooking time.
d. Press "MEMORY" to save the setting. Buzzer sounds once then turn back to waiting
states. If you press "START/+30SEC." after the above step, the procedure will be
saved as the memory 2 and operated.
e. If the electricity is not cut off, the procedure will be saved all the time. If it is, the procedure
need to reset.
f. If you want to run the saved procedure, in waiting states, press "MEMORY" twice, screen
displays "2", then press "START/+30SEC." to run.
21. OTHER SPECIFICATIONS
(1) In standby state , if the set clock digital tube displays current time, the icon " : " would
flash; otherwise, it shows " 0:00 ".
(2) In setting function state, LED displays corresponding setting.
(3) In working or pause state, LED displays surplus cooking time.
When the cooking is over, the buzzer will sound 5 "beep" to alert user the cooking is finished.
21. COOKING END REMINDING FUNCTION
20. LOCK FUNCTION FOR CHILDREN
Lock: In waiting state, press " STOP/CLEAR " for 3 seconds, there will be a long "beep"
denoting the entering into the children-lock state; meanwhile, LED will display " "
Lock quitting: In locked state, press " STOP/CLEAR " for 3 seconds, there will be a long "beep"
denoting that lock is released.
19. INQUIRING FUNCTION
(1) In cooking state, press " CLOCK/PRE-SET ", the LED will display clock for three seconds.
(2) In the microwave cooking state, press " POWER " to inquire microwave power level, and
the current microwave power will be displayed. After three seconds, the oven will turn back
to the previous state. In multi-stage state, the inquiring way can be done by the
same way as above.
16
18. Multi-section cooking
At most 2 sections can be set for cooking. In multi-section cooking, if one section is
defrosting, then defrosting shall be placed in the first section. When the
first stage finish, the buzzer will sound once and the next stage will begin cooking.
Example: if you want to cook with 80% microwave power for 5 minutes + 60% microwave
power for 10 minutes. The cooking steps are as following:
(1) Press "POWER" for times to choose 80% microwave,now "PL8" is displayed;
(2) Press number keys "5","0","0" to set the cooking time;
(3) Press "POWER" for times to choose 60% microwave power, "PL6" is displayed;
(4) Press number keys "1","0","0","0" to set the cooking time;
(5) Press "START/+30SEC." to start cooking.
Troubleshooting
Check your problem by using the chart below and try the solutions for each problem. If the
microwave oven still does not work properly, contact the nearest authorized service center.
TROUBLE
Oven will not start
POSSIBLE CAUSE POSSIBLE REMEDY
a. Electrical cord for oven is
not plugged in.
b. Door is open.
c. Wrong operation is set.
a. Plug into the outlet.
b. Close the door and try
again.
c. Check instructions.
Arcing or sparking
a. Materials to be avoided in
microwave oven were
used.
b. The oven is operated when
empty.
c. Spilled food remains in the
cavity.
a. Use microwave-safe
cookware only.
b. Do not operate with oven
empty.
c. Clean cavity with wet towel.
Unevenly cooked
foods
a. Materials to be avoided in
microwave oven were
used.
b. Food is not defrosted
completely.
c. Cooking time, power level
is not suitble.
d. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Use correct cooking time,
power level.
d. Turn or stir food.
Overcooked foods Cooking time, power level is
not suitable.
Use correct cooking time,
power level.
Undercooked foods
a. Materials to be avoided in
microwave oven were used.
b. Food is not defrosted
completely.
c. Oven ventilation ports are
restricted.
d. Cooking time, power level is
not suitable.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Check to see that oven venti-
lation ports are not restricted.
d. Use correct cooking time,
power level.
Improper defrosting
a. Materials to be avoided in
microwave oven were used.
b. Cooking time, power level is
not suitable.
c. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Use correct cooking time,
power level.
c. Turn or stir food.
Maintenance
17
