Midland Radio GXT5000 22 Channel GMRS/FRS Portable Transceiver User Manual GXT5000 Owner s Manual qxp

Midland Radio Corporation 22 Channel GMRS/FRS Portable Transceiver GXT5000 Owner s Manual qxp

Users Manual

Model GXT5000 Series
Page 3 www.midlandradio.com
TABLE OF CONTENTS 3
Introduction 4
Important Notice, FCC Licensing 5
LCD Display 6
Controls 6
Battery Installation 7
Installing the Belt Clip 7
Charging the Battery Pack 8
Low Battery Level Indicator 8
Operating Your Radio 9 - 15
External Speaker/Microphone Jack 15
Troubleshooting Guide 16
Use and Care 16
Specifications and Frequency Charts 17 - 18
Warranty Information 19
MIDLAND Family Products 20
Accessories 21-22
Accessories Order Form 23
Page 4 www.midlandradio.com
Welcome to the world of Midland electronics
Congratulations on your purchase of a high quality MIDLAND product.
Your 2-way radio represents the state-of-the-art in high-tech
engineering. Designed for GMRS (General Mobile Radio Service)
operation, this compact package is big in performance. It is a quality
piece of electronic equipment, skillfully constructed with the finest
components. The circuitry is all solid-state and mounted on a rugged
printed circuit board. Your two-way radio is designed for reliable and
trouble-free performance for years to come.
Features
- 22 GMRS/FRS Channel
- 121 Privacy Codes (38 CTCSS / 83 DCS)
- Waterproof IP67* Standard
- VOX
- Selectable Call Alert
- Dual Watch
- Time-Out Timer
- Out-of-Range Alert
- Monitor Function
- Roger Beep Tone
- Silent Operation
- Keypad Lock
- Channel Scan Function
- SOS Siren
- Power HI/LO Settings
- Auto Squelch
- Speaker / Microphone Jacks
- Battery Meter / Battery Low Indicator
* Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water
(up to 1 m of submersion for 30 minutes)
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device does not cause harmful interference, and
(2) this radio must accept any interference that may cause undesired operation.
To maintain compliance with FCC’s RF exposure guidelines, for body-worn
operation, this radio has been tested and meets the FCC RF exposure guidelines
when used with Midland Radio Corp. accessories supplied or designated for this
product. Use of other accessories may not ensure compliance with FCC RF
exposure guidelines. (Tested with Headset Model: AVP-1)
Model GXT5000 Series
Page 5 www.midlandradio.com
IMPORTANT NOTICE, FCC LICENSE REQUIRED FOR GMRS OPERATION
The GXT5000 Series operates on GMRS (General Mobile Radio Service)
frequencies which require an FCC (Federal Communications Commission)
license. You must be licensed prior to operating on channels 1 - 7 or 15 - 22,
which comprise the GMRS channels of the GXT5000 Series. Serious penalties
could result for unlicensed use of GMRS channels, in violation of FCC rules, as
stipulated in the Communications Act's Sections 501 and 502 (amended).
You will be issued a call sign by the FCC which should be used for station
identification when operating the radio on GMRS channels. You should also
cooperate by engaging in permissible transmissions only, avoiding channel
interference with other GMRS users, and being prudent with the length of their
transmission time.
To obtain a license or ask questions about the license application, contact the
FCC at 1-888-CALL FCC or go to the FCC's website:
http://www.fcc.gov and request form 605.
Exposure To Radio Frequency Energy
Your Midland radio is designed to comply with the following national and
international standards and guidelines regarding exposure of human being to radio
frequency electromagnetic energy:
- United States Federal Communications Commission, Code of Federal
Regulations: 47 CFR part 2 sub-part J
- American National Standards Institute (ANSI)/Institute of Electrical &
Electronic Engineers (IEEE) C95. 1-1992
- Institute of Electrical and Electronic Engineer (IEEE) C95. 1-1999 Edition
- National Council on Radiation Protection and Measurements (NCRP) of the
United States, Report 86, 1986
- International Commission on Non-lonizing Radiation Protection (ICNIRP)
1998
To control your exposure and ensure compliance with the general population or
uncontrolled environment exposure limits, transmit no more than 50% of the time.
The radio generates measurable RF energy exposure only when transmitting.
Model GXT5000 Series
IMPORTANT: Changes or modifications to this unit not expressly approved by
MIDLAND RADIO CORP. could void your right to operate this unit. Your radio is set
up to transmit a regulated signal on an assigned frequency. It is against the law to
alter or adjust the settings inside the COMMUNICATOR to exceed those
limitations. Any adjustment to your radio must be made by qualified technicians.
Page 6 www.midlandradio.com

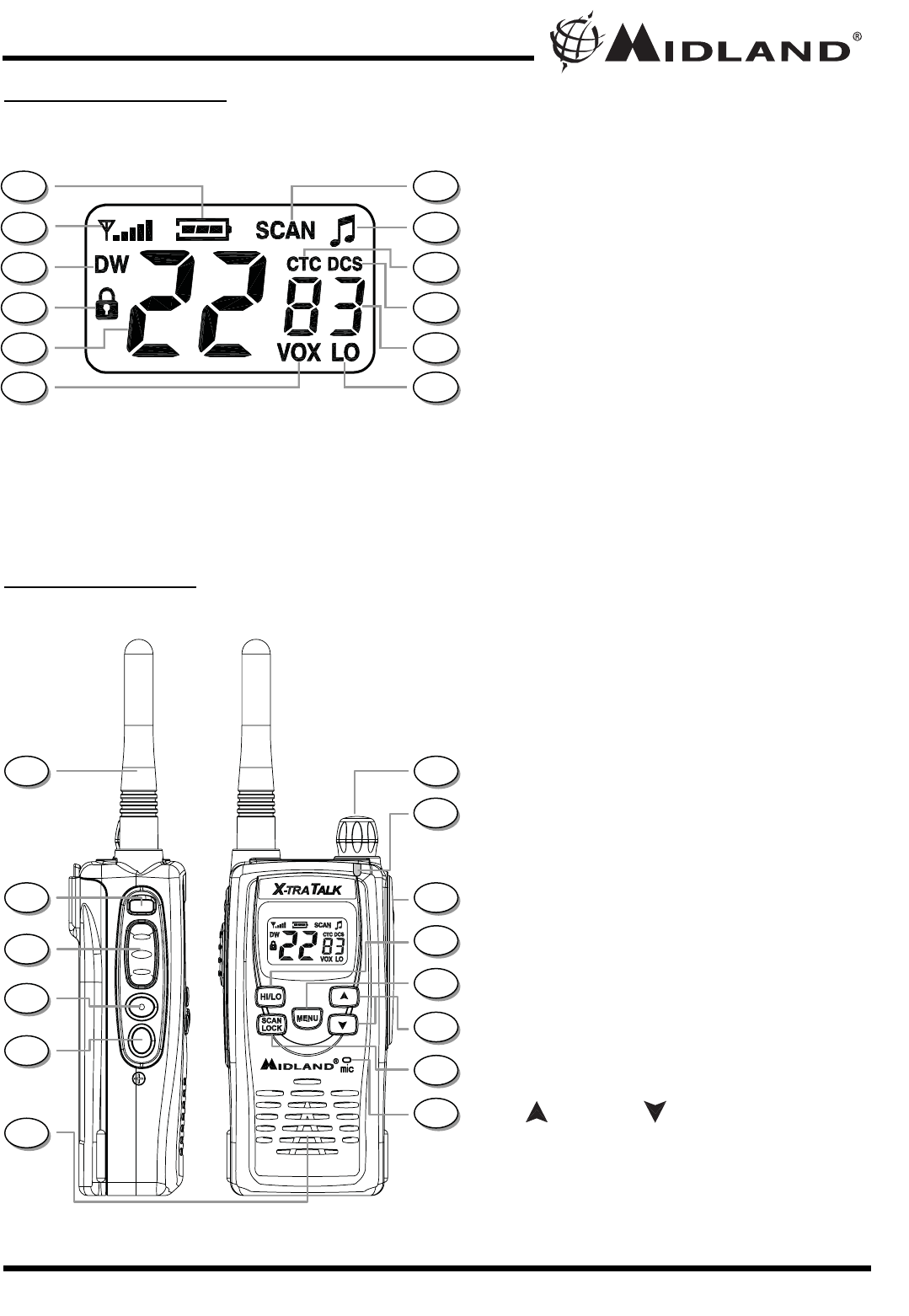

CONTROLS
LCD DISPLA
Y1. BATTERY METER – Indicates the battery level.
2. SIGNAL STRENGTH METER – Indicates the
transmit and receive signal strength.
3. DUAL WATCH ICON – Indicates the Dual
Watch function is on.
4. KEY LOCK ICON – Indicates KEY LOCK
mode is on.
5. CHANNEL NUMBER – Changes from 1~22 on
GMRS/FRS band.
6. VOX ICON – Indicates when VOX mode is
active.
7. CHANNEL SCAN ICON – Indicates when the
Channel Scan function is on.
8. ROGER BEEP ICON – Indicates when the
Roger Beep function is on.
9. CTCSS ICON – Indicates the radio is set with a
CTCSS Privacy Code.
10. DCS ICON – Indicates the radio is set with a
DCS Privacy Code.
11. PRIVACY CODE – Indicates Privacy Code
selected by user (oF~38/oF~83).
12. TRANSMIT POWER LEVEL LO ICON
Indicates TX Power is at Lo setting.
13. ANTENNA
14. SOS Siren Button – Press and hold to turn on
the Siren.
15. PTT Button – Press and hold to transmit voice
communication.
16. MONITOR Button – Press and hold to enter
MONITOR mode.
17. CALL Button – Press to send a CALL Alert
signal.
18. SPEAKER – Built-in speaker.
19. POWER/VOLUME KNOB – Turn clockwise to
turn the power on and increase the volume
level. Turn counter-clockwise to decrease the
volume level and turn the power off.
20. TRANSMIT (TX)/RECEIVE (RX) LED
Indicator – Indicates RED when the radio is in
TX mode. Indicates GREEN when the radio is
receiving the correct Channel and Privacy
Code, or when the Privacy Code is set to OFF.
Indicates ORANGE when the radio is receiving
the correct channel but wrong Privacy Code.
21. EXTERNAL SPEAKER/MIC JACK.
22. TRANSMIT POWER HI/LO Button – Press to
toggle between Transmit Power HI and LO.
23. MENU Button – Press to access
Menu mode.
24. UP and DOWN Button – Press to make
the adjustments in MENU mode.
25. SCAN/LOCK Button – Press to enter SCAN
mode. Press and hold to turn KEY LOCK
on/off.
26. MIC – Built-in microphone.
1
2
3
4
5
6
7
8
9
13
14
15
16
17
22
21
20
19
18
Model GXT5000 Series
10
11
12
23
24
25
26
Page 7 www.midlandradio.com
BATTERY INSTALLATION
Your GXT5000 Series radio can be fitted with the 1100mAh NiMH
battery pack.
To install the battery pack:
1. With the back of the radio facing you, insert the bottom part of the
NiMH battery pack to the bottom of the radio.
2. Push down the NiMH battery pack into the radio until the Battery
Lock Tab locks into place.
To remove the battery pack:
1. Press the Battery Lock Tab downward until the NiMH battery pack
unlocks from the radio.
2. Pull the NiMH battery pack away from the radio.
Model GXT5000 Series

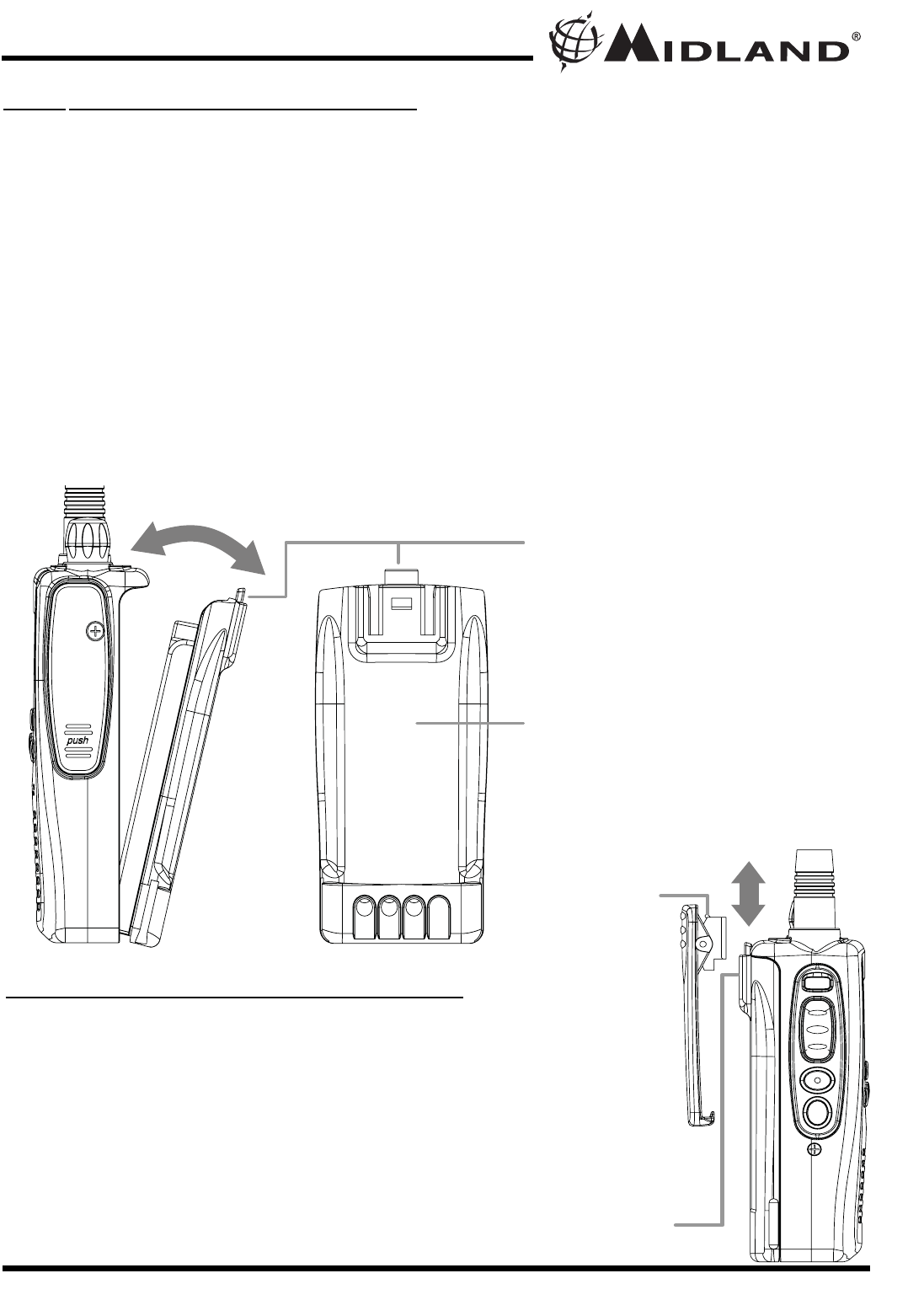

INSTALLING THE BELT CLIP
To install the BELT CLIP, slide the clip down into
the slot on the back of the radio until the BELT
CLIP LATCH clicks. To remove the BELT CLIP,
press the LOCK TAB down , then gently pull the
belt clip up toward the top of the radio.
BATTERY LOCK TAB
1100mAh NiMH Battery Pack
BELT CLIP
LOCK TAB
BELT CLIP
LATCH
Page 8 www.midlandradio.com

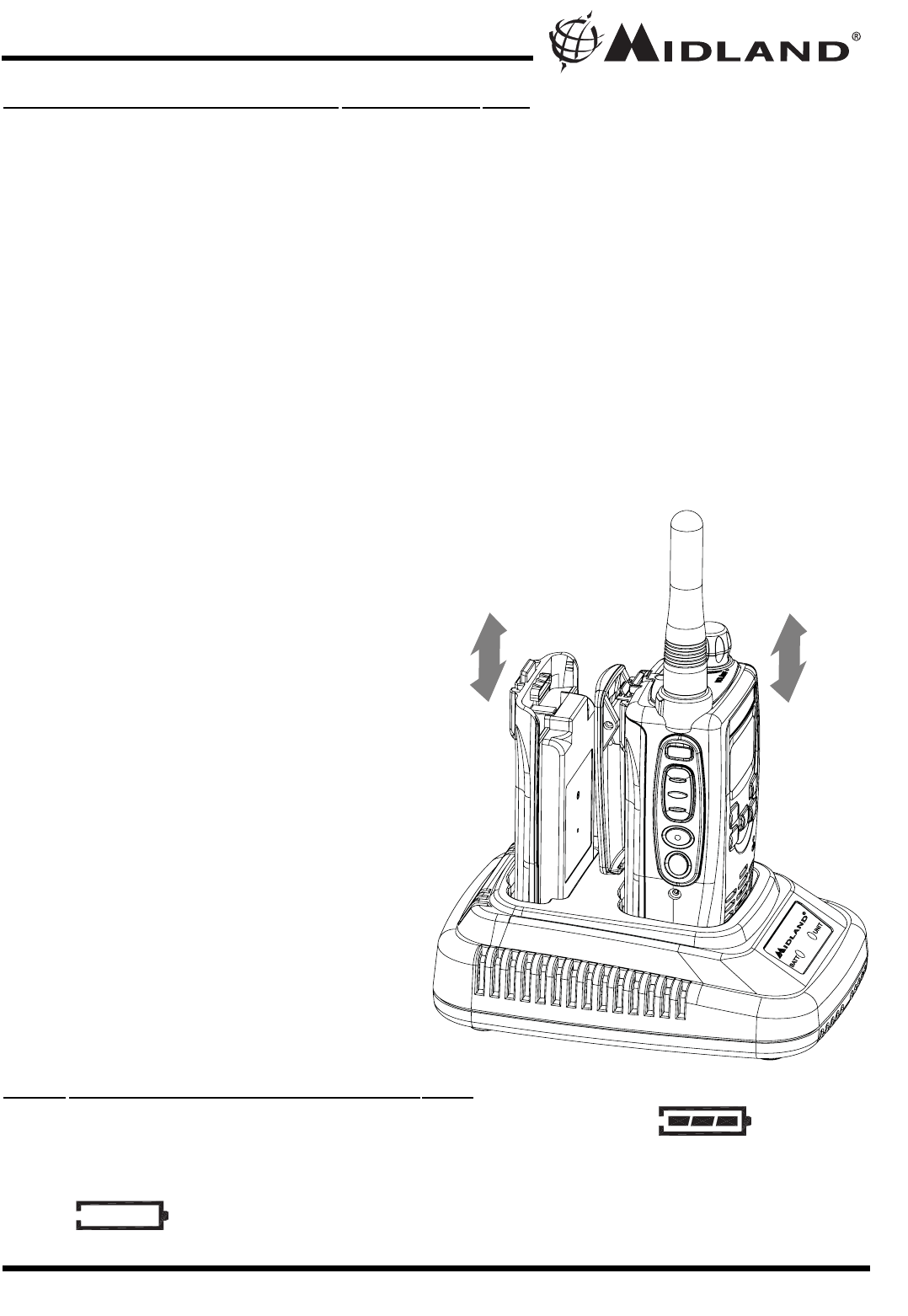

CHARGING THE BATTERY PACK
Your GXT5000 Series can be recharged using the Desktop Charger. The
Desktop Charger can charge both one radio and a separate NiMH battery
pack at the same time.
To charge using a Desktop Charger:
1. Insert the AC adapter plug into the desktop charger jack. Connect the
AC adapter into an AC wall outlet.
2. Place the GXT5000 radio and a separate NiMH battery pack (if needed)
to the appropriate charger slots as shown in the figure. The LED indica-
tor with RED color will light up indicating charging function, and will
change to GREEN color once they are fully charged.
If the NiMH battery pack is new, it is necessary to fully charge it
before using it.The battery provides maximum efficiency after 3~4 full
charge/recharge cycles.
BATTERY LEVEL INDICATOR
Your GXT5000 Series has a BATTERY LEVEL METER that
shows the battery power level. The greater the number of bars visible,
the stronger the battery level. When the battery level is low, the Battery
Shell icon will flash in the display indicating your batteries
should be replaced or recharged.
Model GXT5000 Series
!1. Only use our NiMH battery
pack.
2. Do not attempt to charge any
battery packs other than the
one indicated in the manual.
This may cause leakage and
damage to the radio.
3. For long term storage of the
radio, turn the radio OFF and
remove the batteries from the
radio.
Page 9 www.midlandradio.com
Model GXT5000 Series
POWER ON/OFF AND VOLUME
Rotate the POWER/VOLUME knob clockwise to turn the radio on and
increase the volume level. Rotate the control counter-clockwise to
reduce the volume level and to turn the radio off. During Power On, the
radio will beep 2 times with different tones, the LCD will display all icons
for 1 second and the LCD display will indicate the last channel selected.
CHANNEL SELECTION (GMRS/FRS BAND)
Press the MENU button once, and then the buttons to select one
of the 22 GMRS/FRS channels. To confirm the selection, press the
PTT button or press the MENU button again to move to the next
feature setting.
SETTING PRIVACY CODES
Your GXT5000 Series has 121 Privacy Codes available which can
be used on channels 1~22. The selected Privacy Code may be
different for each channel. To select a Privacy Code for the current
channel press the MENU button twice, and then the buttons to
select one of the 38 CTCSS Codes. Press the MENU button three
times, and the button to select one of the 83 DCS Codes.
The CTCSS or DCS icon will appear on the display to show your
Privacy Code selection. To confirm the selection, press the PTT
button or press MENU button again to move to the next feature
setting.
Note : If you select any CTCSS Privacy Code, any pre-selected
DCS Privacy Code will be cancelled and vice-versa.
Selecting a Privacy Code of "oF" will disable the Privacy
feature. To communicate between two GXT5000 Series
radios, all radios in your group must be set to the same
channel and Privacy Code selections.
TRANSMITTING AND RECEIVING A CALL
To communicate, all radios in your group must be set to the same
channel and Privacy Code.
1. For maximum clarity, hold the radio 2 to 3 inches from your mouth.
2. Press and hold the PTT button and speak in a normal voice into the
microphone. The TX/RX LED Indicator will light up RED while
transmitting. The Signal Strength Meter will also appear and show
the current TX power level setting.
OPERATING YOUR RADIO
/
!
/
/
Page 10 www.midlandradio.com
Model GXT5000 Series
3. To receive a call, release the PTT button. The TX/RX LED Indicator
will light up GREEN when your radio is receiving a transmission
with correct channel and Privacy Code. The TX/RX LED Indicator
will light up ORANGE when your radio is receiving a transmission
with correct channel but wrong Privacy Code.

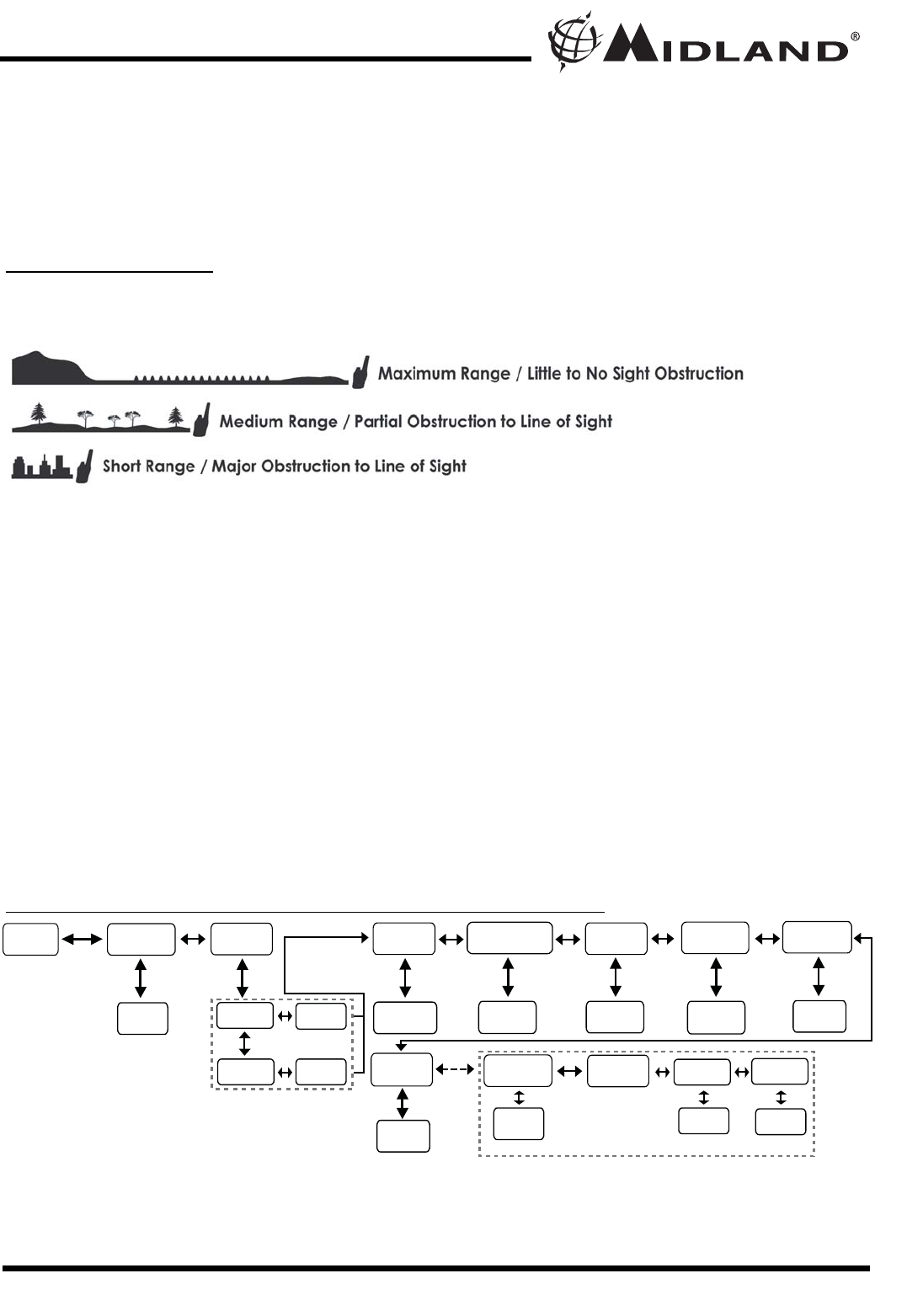

ABOUT RANGE
Your GXT5000 Series radios are designed to give you maximum
range under optimum conditions.
Optimum Conditions are:
lOver water
lOpen rural areas without obstructions
lFlat areas where you can see the other person
To ensure you get maximum range:
lBe sure to use fresh or fully charged batteries - low batteries will
cause low power conditions
lBe sure you are on a GMRS channel - FRS channels are
restricted by the FCC to low power
lBe sure to set your radio to use Hi power.
GXT5000 SERIES QUICK REFERENCE CHART
MENU Channel VOX
1~22
Privacy
Roger Beep
On/Off
Call Tone
oF~5
Time Out
Timer
oF~90
bP
On/Off
oF~5
CTCSS
DCS
oF~38
oF~83
Dual Watch
Channel
oF~22
CTCSS DCS
oF~38 oF~83
*** Only when Out-of-Range is OFF
DUAL WATCH FUNCTION
Dual Watch
Privacy
On/Off
Out-of-
Range
SOS SIREN
To activate the SOS SIREN function, press and hold the SOS SIREN
button for 2 seconds. The display will show “SOS” blinking, and the
radio will send out a loud siren sound. To deactivate the SOS SIREN
function press the PTT button twice.
Warning: The SOS Siren is to be used only in the event of
an emergency. Midland Radio Corporation is not responsible
if there is no response to the SOS Siren.
MONITOR
Pressing and holding the MONITOR button for around 3 second will
let you hear noise so you can adjust the volume level of the radio
when not receiving a signal. This should be used to check activity on
your current channel before transmitting.
Press and hold the MONITOR button for 3 second again to get out
of MONITOR mode.
CALL ALERT
Your GXT5000 Series can transmit a call alert for a fixed length of
time. To send a call alert, press the CALL button. The TX/RX LED
Indicator will light up RED while transmitting a call alert and a tone
can be heard on the speaker for confirmation.
TRANSMIT (TX) POWER LEVEL SELECTION
Your GXT5000 Series has 2 power level settings. To select the power
level on channels 1~7, 15~22 press the TRANSMIT POWER HI/LO
button to toggle between HI and LO power.
When the TX power level is set to HI mode then the Signal Strength
Meter will indicate during transmission.
When the TX power level is set to LO mode then the Signal Strength
Meter will indicate during transmission.
When the Battery Meter drops to 1 bar, the TX Power will
automatically switch from HI to LO level.
Note : You cannot adjust the power setting on the FRS
channels (8~14 ). They are set to Low power per FCC
regulations.
Page 11 www.midlandradio.com
Model GXT5000 Series
!
!
Page 12 www.midlandradio.com
Model GXT5000 Series
SCAN
Your GXT5000 Series can scan all 22 channels for activity. To enter,
quickly press the SCAN/LOCK button. Repeat the same procedure to
exit. Your radio will rapidly scan each of the 22 channels and stop on
any active channel. Your radio will resume scanning after 4 seconds
when the channel is no longer active. The CHANNEL SCAN icon will
also appear on the display.
When you press the PTT button to transmit on an active channel, the
scanning function will stop and remain on the active channel for 5
seconds before resuming scan when PTT button is no longer pressed.
To resume scanning, quickly press the button.
KEYPAD LOCK
To avoid accidentally changing the radio setting, press the SCAN/
LOCK button for 2 seconds. The KEY LOCK icon will appear on the
display. PTT, SOS, MONITOR, and CALL buttons will still be active.
Repeat the same procedure to unlock the keypad.
DISPLA
Y ILLUMINATION
During Power on, the display illumination will activate for approx. 5
seconds. The display illumination can also be activated when the
MENU,TRANSMIT POWER HI/LO, and SCAN/LOCK buttons are
pressed.
VOX (Hands-free Transmission)
Your radio has 5 VOX level settings: (oF/1~5).
To set VOX on, press the MENU button until the display shows “VOX
blinking while on the right of the CHANNEL NUMBER display, an
oF” icon appears. Select “1~5” by pressing the buttons and push
the PTT key, or press MENU button again to move to the next feature
setting.
VOX will be more sensitive on the “1” setting than on the “5” setting.
To turn VOX off, press the MENU button until the display shows “VOX
blinking while on the right of the CHANNEL NUMBER display, a “1~5
icon appears. Select “oF” by pressing the buttons and push the PTT
key, or press MENU button again to move to the next feature setting.
ROGER BEEP (end of transmission) TONE
When the PTT button is released, the radio will beep to confirm to
other users that your transmission has finished.
To turn the ROGER BEEP tone on, press the MENU button until the
icon appear on the display, while on the right an “oF” icon appears.
/
/
/
Page 13 www.midlandradio.com
Model GXT5000 Series
Select “on” by pressing the buttons and push the PTT key, or
press MENU button to move to the next feature setting.
To turn the ROGER BEEP tone off, press the MENU button until the
icon appear on the display, while on the right an “on” icon appears.
Select “oF” by pressing the buttons and push the PTT key, or
press MENU button to move to the next feature setting.
SILENT OPERATION
Your GXT5000 Series has a SILENT OPERATION mode. In this
mode, all “beeps” and “tones” are disabled.
To turn the SILENT OPERATION mode on, press the MENU button
until the display shows an “bP” icon while on the right of the “bP
display, an “on” icon appears. Select “of” by pressing the buttons
and push the PTT key or MENU button.
To turn the SILENT OPERATION mode off, press the MENU button
until the display shows an “bP” icon while on the right of the “bP
display, an “oF” icon appears. Select “on” by pressing the buttons
and push the PTT key or MENU button.
CALL ALERT SELECTION
Your GXT5000 Series has 5 selectable CALL ALERTS. To select,
press the MENU button until a “CA” icon appears and to the right of
the “CA” icon the current CALL ALERT setting is displayed. Then
press the buttons to make the CALL ALERT selections, the radio
will emit a corresponding tone for each selection. To confirm, press the
PTT button or press MENU button to move to the next feature setting.
TIME OUT
TIMER
Your GXT5000 has a TIME OUT TIMER function to limit the time you
can transmit continuously. To select, press the MENU button until a
to” icon appears on the display, and to the right an “oF” icon appear.
Then press the buttons to select the TIME OUT time between “15”,
30”, “45”, “60”, and “90” seconds. To confirm, press the PTT button or
press MENU button to move to the next feature setting.
When TIME OUT TIMER function is on, the radio will automatically
stop transmitting once you reached the selected TIME OUT time and
go to standby or receive mode until you release the PTT button and
press it again to resume transmission.
/
/
/
/
/
/
Page 14 www.midlandradio.com
Model GXT5000 Series
OUT
-OF-RANGE ALERT
Your GXT5000 has a OUT-OF-RANGE ALERT function to indicate
whether two GXT5000 radios are within usable range. To turn on the
OUT-OF-RANGE ALERT function press the MENU button until an
oU” icon appears on the display, and to the right an “oF” icon appear.
Select “on” by pressing the buttons. To confirm, press the PTT
button or press MENU button to move to the next feature setting.
The OUT-RANGE ALERT setting of both the transmitting and
receiving radios must be on for this function to work properly.
When the OUT-OF-RANGE ALERT function is on, the radio will
automatically transmit an OUT-OF-RANGE code every 3 minutes. If
another GXT5000 radio (with OUT-OF-RANGE function on and within
usable range) receives the tone, it will automatically reply by sending
a confirmation code to the transmitting radio. This cycle will continue
every 3 minutes.
If the transmitting radio does not receive a confirmation code (the
receiving GXT5000 radio’s OUT-OF-RANGE function is off and/or
outside its usable range) then the transmitting GXT5000 Series radio
will “beep” every 20 seconds until it receives a correct confirmation
code.
To turn off the OUT-OF-RANGE ALERT function press the MENU
button until an “oU” icon appears on the display, and to the right an
on” icon appear. Select “oF” by pressing the buttons.
To confirm, press the PTT button or press MENU button to move to the
next feature setting.
DUAL WATCH FUNCTION
Your GXT5000 Series has a DUAL WATCH function, to enable user
to scan 2 channels for any activity. The first channel will be the current
channel setting and the second channel will be the selected channel
on the MENU.
To turn the DUAL WATCH on, press the MENU button until the “DW
icon appears blinking on the left of the display, while the “oF” icon
appears on the display. Select the second channel by pressing the
button. Press again the MENU and the button to choose the
CTCSS Privacy Code (oF ~ 38), or press again the MENU and
button to set the DCS Privacy Code (oF~83).
Pls. note that the DUAL WATCH function is only available as a
MENU selection if the OUT-OF-RANGE is turned off.
To confirm, press the PTT button or press MENU.
/
/
/
/
/
Page 15 www.midlandradio.com
The “DW” icon will appear all the same time to signify that the DUAL
WATCH function is on and the radio will start to scan both the current
channel/code-in-use and the selected channel/code. It will stop
scanning on a channel if either is active. Your radio will resume
scanning after 4 seconds when the channel is no longer active.
When you press the PTT button to transmit on an active channel, the
scanning function will stop and remain on the active channel for 5
seconds before resuming scan when PTT button is no longer pressed.
To resume scanning, quickly press the button.
To turn the DUAL WATCH function off, press the SCAN button.
Please note that the DUAL WATCH function is only available
as a MENU selection if the OUT-OF-RANGE is turned off.

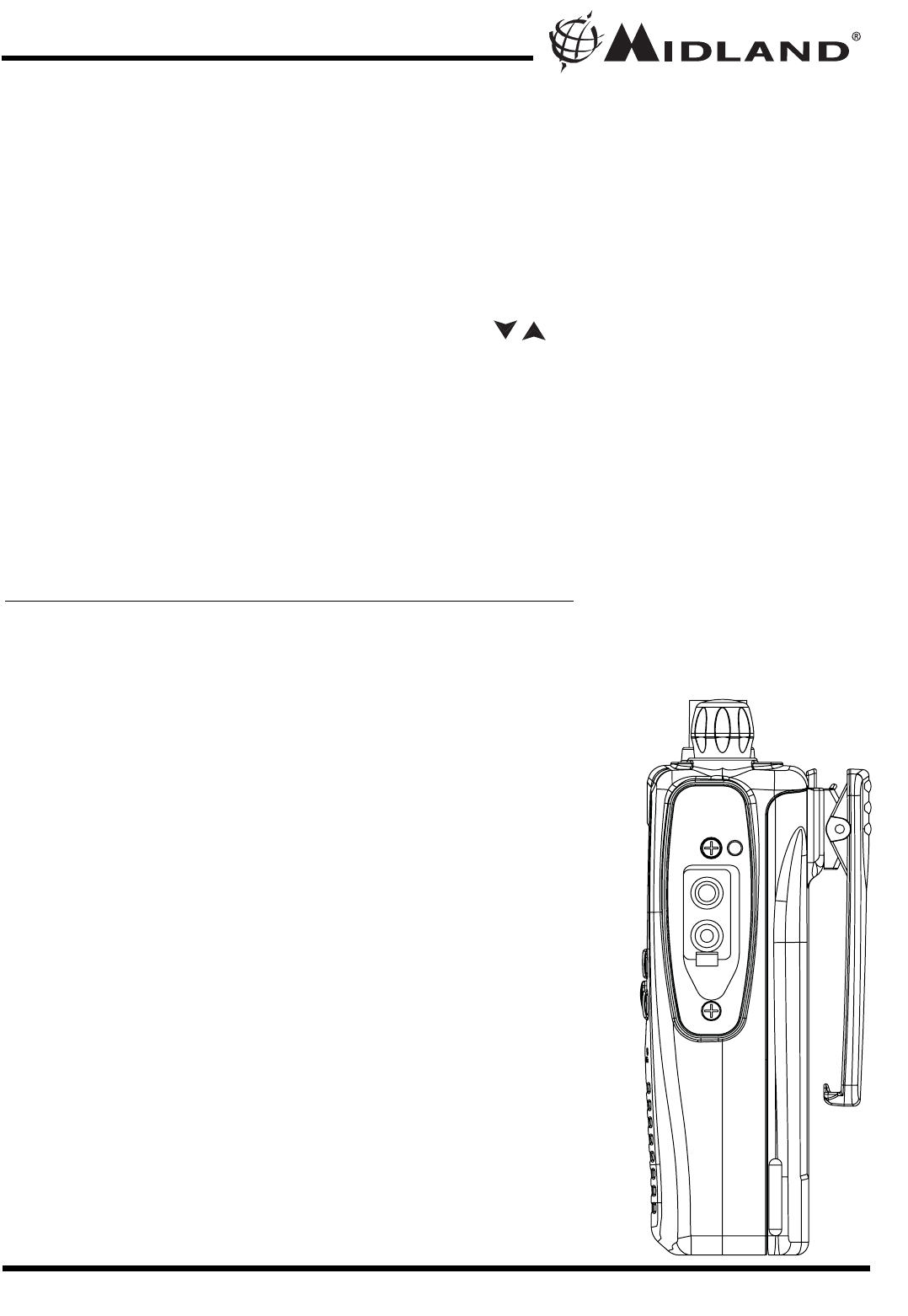

EXTERNAL SPEAKER/MICROPHONE JACK
Your GXT5000 Series can be used with an optional external
speaker/microphone or headset, freeing your hands for other tasks. To
use an optional speaker/microphone or headset:
lCover must first be removed. Loosen the screw
and remove the Cover.
lInsert the plug(s) into the SPK/MIC jacks
lPlace the earbud into your ear, and adjust
the mic into your desired position.
Note : The radio will no longer be water
proof when the accessory jack cover is
removed.
Model GXT5000 Series
/
!
!
Page 16 www.midlandradio.com
PROBLEM SOLUTION
No Power - Check battery installation and/or replace batteries
Cannot Receive
Messages - Confirm the radios have the same channel
and Privacy Code settings.
- Make sure that you are within range of the other
transceivers.
- Buildings and other structures may interfere with
your communication.
(See ABOUT RANGE on Page 10)
Radio is not responding
to button presses - Make sure key lock is not on. See "Keypad Lock"
(Page 12).
- Radio might need to be reset. Turn radio off then
on.
- Ensure accessory microphone is set properly
Display is dim - Recharge or replace batteries.
Charger not functioning - Contacts on the bottom of the radio may require
cleaning.
- Ensure the outlet where the charger is plugged
into is functioning properly.
- Check that the battery pack is installed in the
radio properly.
USE AND CARE
1. Use a soft damp cloth to clean the radio
2. Do not use alcohol or cleaning solutions to clean the radio.
3. Dry the radio with dry lint-free cloth should it get wet.
4. Turn off the radio and remove the batteries during long-term
storage.
If you have a problem which you believe requires service, please
call first and speak with a service technician. Many problems can
be remedied over the phone without returning the unit for
service.
Model GXT5000 Series
TROUBLESHOOTING GUIDE
Page 17 www.midlandradio.com
Model GXT5000 Series
GMRS/FRS FREQUENCY CHART (MHz)
CH. No CH. Freq. CH. No CH. Freq. CH. No CH. Freq.
1 462.5625 9 467.5875 17 462.6000
2 462.5875 10 467.6125 18 462.6250
3 462.6125 11 467.6375 19 462.6500
4 462.6375 12 467.6625 20 462.6750
5 462.6625 13 467.6875 21 462.7000
6 462.6875 14 467.7125 22 462.7250
7 462.7125 15 462.5500
8 467.5625 16 462.5750
* Channels 8~14 are low-power FRS license free channels
GENERAL SPECIFICATION
Channels 22 15 GMRS and 7 FRS channels
Frequency Generation - PLL synthesizer
Frequency range MHz From 462.5500 to 467.7125MHz
Antenna Type “Rubber ducky” in rubber
Rated power supply Vdc From 4.5 to 7.2Vdc
Operating temperature ºC From -25º to +55º
Size (HxLxD with antenna) mm 113 x 54 x 35
Weight (without battery) g 180
TRANSMITTER
Output power (ERP) W 0.5
Type of circuit - FM
Suppression of spurious signals -Compliant with TIA/EIA-603-B
RECEIVER
Sensitivity at 12dB SINAD uV Above 0.25
Audio output power (10% THD) W 1
Spurious signals rejection dB 50
Medium Frequencies MHz First 21.4
kHz Second 450
CONNECTIONS
Connection for external microphone -2.5mm stereo jack
Connector for external speaker -3.5mm mono jack
Page 18 www.midlandradio.com
Model GXT5000 Series
DCS PRIVACY CODE CHART
No. CODE No. CODE No. CODE
1 023 29 174 57 445
2 025 30 205 58 464
3 026 31 223 59 465
4 031 32 226 60 466
5 032 33 243 61 503
6 043 34 244 62 506
7 047 35 245 63 516
8 051 36 251 64 532
9 054 37 261 65 546
10 065 38 263 66 565
11 071 39 265 67 606
12 072 40 271 68 612
13 073 41 306 69 624
14 074 42 311 70 627
15 114 43 315 71 631
16 115 44 331 72 632
17 116 45 343 73 654
18 125 46 346 74 662
19 131 47 351 75 664
20 132 48 364 76 703
21 134 49 365 77 712
22 143 50 371 78 723
23 152 51 411 79 731
24 155 52 412 80 732
25 156 53 413 81 734
26 162 54 423 82 743
27 165 55 431 83 754
28 172 56 432 - -
Note: Privacy codes can be programmed for use on Channels 1~22
CTCSS PRIVACY CODES FREQUENCY CHART (Hz)
Code Freq. Code Freq. Code Freq. Code Freq. Code Freq.
1 67.0 9 91.5 17 118.8 25 156.7 33 210.7
2 71.9 10 94.8 18 123.0 26 162.2 34 218.1
3 74.4 11 97.4 19 127.3 27 167.9 35 225.7
4 77.0 12 100.0 20 131.8 28 173.8 36 233.6
5 79.7 13 103.5 21 136.5 29 179.9 37 241.8
6 82.5 14 107.2 22 141.3 30 186.2 38 250.3
7 85.4 15 110.9 23 146.2 31 192.8
8 88.5 16 114.8 24 151.4 32 203.5
Note: Privacy codes can be programmed for use on Channels 1~22
Page 19 www.midlandradio.com
LIMITED WARRANTY
Midland Radio Corporation will repair or replace, at its option without
charge, any Midland FRS/GMRS transceiver which fails due to a
defect in material or workmanship within Three Years following the
initial consumer purchase. This warranty does not apply to battery
leak or abuse.
Accessories have a 90 day warranty from date of purchase, including
any antennas, chargers, or earphones. This warranty does not include
the cost of labor for removal or re-installation of the product in a
vehicle or other mounting. Performance of any obligation under this
warranty may be obtained by returning the warranted product, prepaid
freight, along with proof of purchase to:
Midland Radio Corporation
Warranty Service Department
5900 Parretta Drive
Kansas City, MO 64120
This warranty gives you specific legal rights, and you may also have
other rights, which vary from state to state.
Note : The above warranty applies only to merchandise purchased in
the United States of America or any of the territories or possessions
thereof, or from a U.S. Military exchange.
Midland Radio Corporation
5900 Parretta Drive
Kansas City, MO 64120
Tel: (816) 241-8500
E-mail: mail@midlandradio.com
URL: www.midlandradio.com
Model GXT5000 Series
Page 20 www.midlandradio.com
Model GXT5000 Series

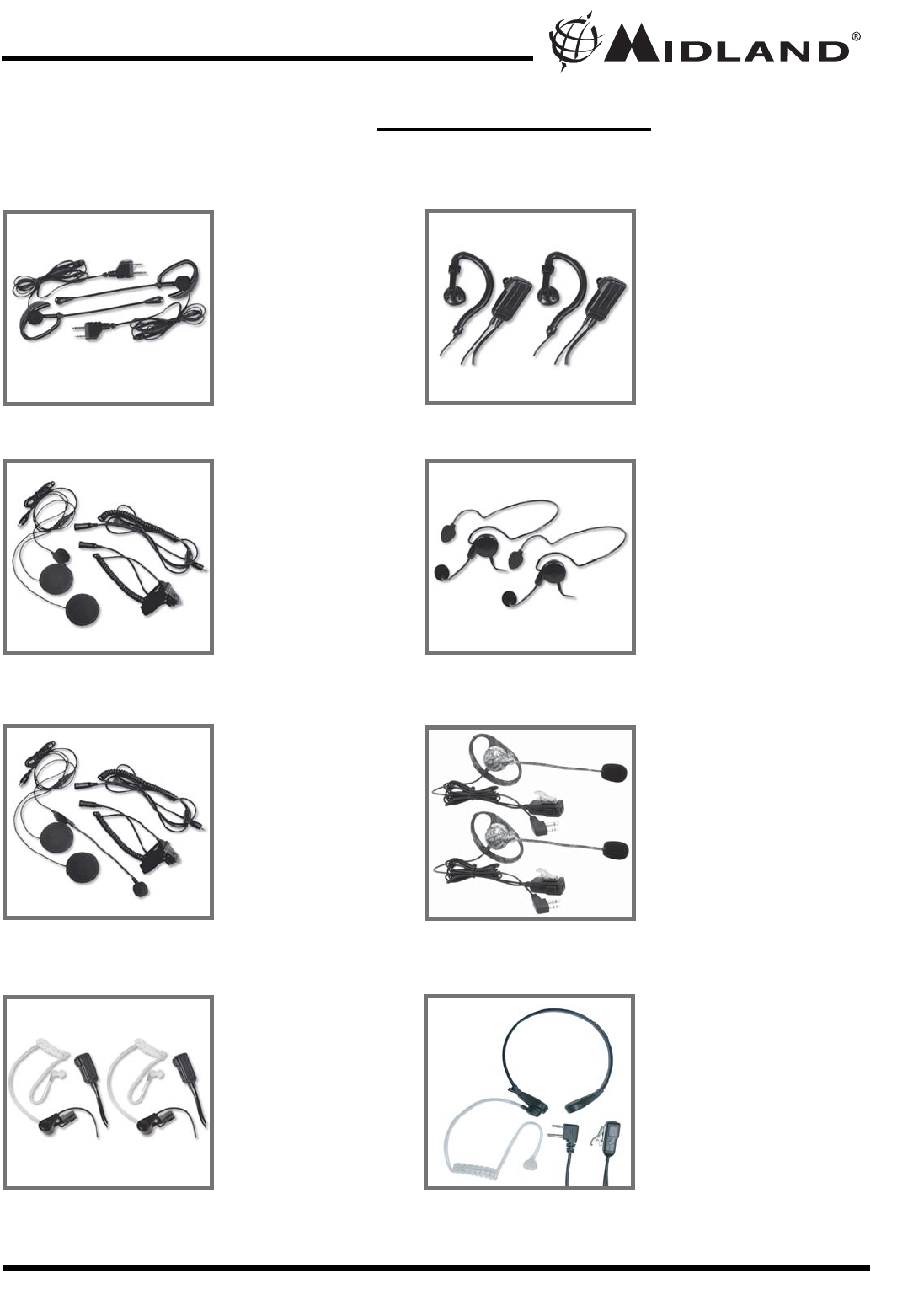

Page 21 www.midlandradio.com
Model GXT5000 Series
ACCESSORIES
Accessories can be purchased at www.midlandradio.com or fill in the form on
the following page and mail it to our address.
AAVVPP-11AAVVPP-HH44
AAVVPP-HH11AAVVPP-HH55
AAVVPP-HH22AAVVPP-HH77
AAVVPP-HH33AAVVPP-HH88
- 1 Open Face
Helmet
Microphone Kit
- $49.99
- 1 Closed Face
Helmet
Microphone Kit
- $49.99
- 2 Over the Ear
Mic. Headsets
w/ PTT
- $19.99
- 2 Surveillance
Headset
- $39.99
- 2 Behind the
Head Headset
- $39.99
- 2 Ear Wrap
Headset
- $39.99
- 2 Mossy Oak
Around the Ear
Headsets with
Boom Mic
- $39.99
- 1 Action Throat
Mic with
Acoustic Ear
Tube
- $39.99
Model GXT5000 Series

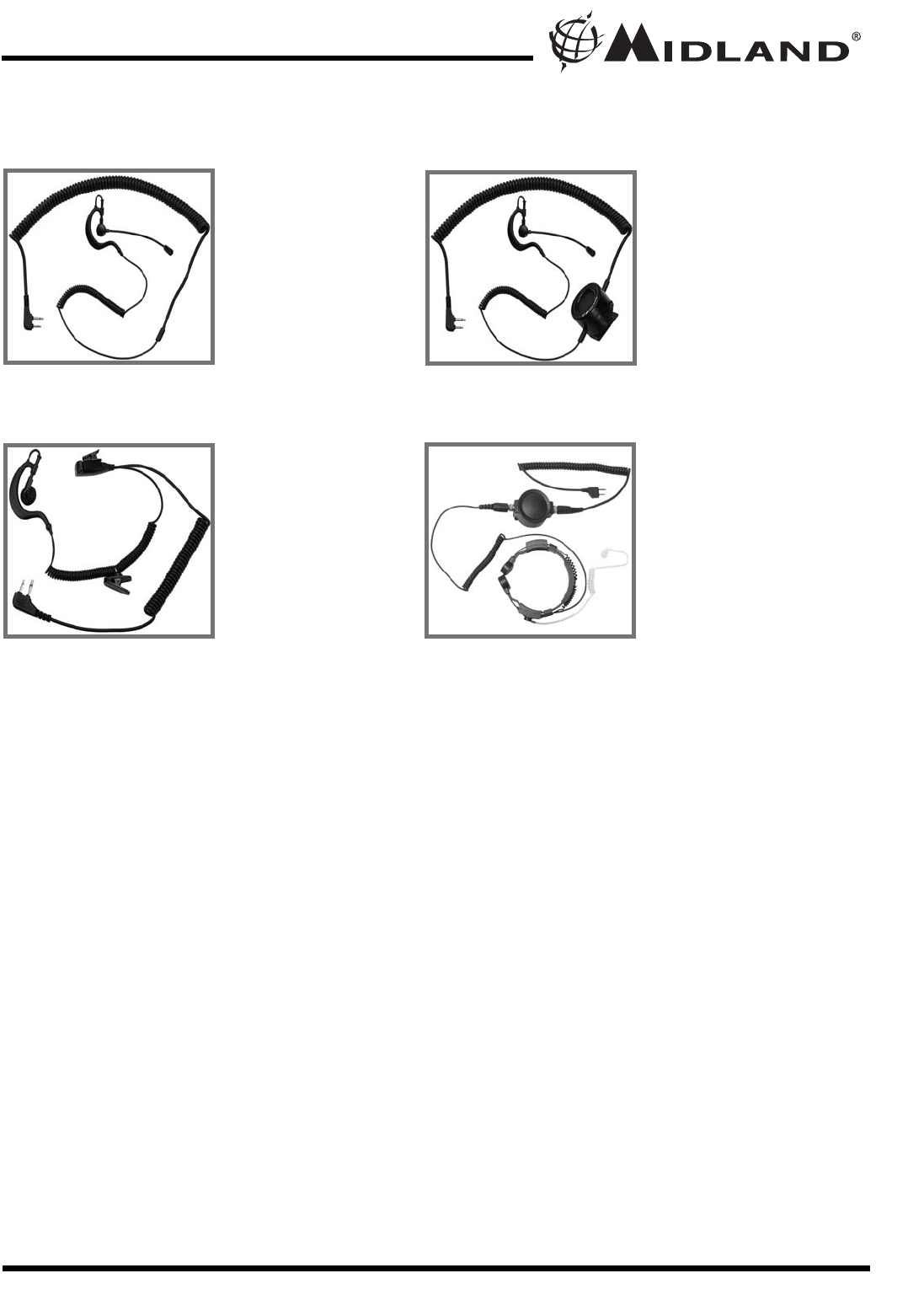

Page 22 www.midlandradio.com
TTHH11TTHH22
TTHH33TTHH44
- Earphone Mic
with Boom
- $39.99
- Earphone Mic
with PTT
- $29.99
- Tactical Action
Boom Mic with
Tactical PTT
- $99.99
- Action Throat
Mic with
Tactical PTT
and Pneumatic
Earphone
- $109.99
TTAACCTTIICCAALL
HHEEAADDSSEETTSS
Model GXT5000 Series
Page 23 www.midlandradio.com
Please send Money Order or fill in Visa/MasterCard information and
mail to the address below. Please DO NOT send cash or checks.
Make Money Order to Midland Radio Corporation.
Name: _____________________________________________________
Address: ___________________________________________________
City: _____________________ State _____Zip Code _____________
Tel: ______________________ email: ___________________________
CC# _____________________ Type: __________ Exp. ____________
ACCESSORIES ORDER FORM
Mail To:
Midland Radio Corporation
Consumer Dept.
5900 Parretta Drive
Kansas City, MO 64120
----------------
Or Call 816.241.8500.
----------------
To order online go to
www.midlandradio.com
Sub-Total ___________
Tax (MO, CO, IL, FL only) ___________
S & H _____ $14.95
(Applies to Domestic U.S. only.
For Hawaii, Alaska, and Puerto
Rico S&H will be $36.25 for 1lb
and $64.25 for 2lbs or more).
Total $___________
Qty Item Price Total
AVP-1 $19.99
AVP-H1 $49.99
AVP-H2 $49.99
AVP-H3 $39.99
AVP-H4 $39.99
AVP-H5 $39.99
AVP-H7 $39.99
AVP-H8 $39.99
TH1 $39.99
TH2 $99.99
TH3 $29.99
TH4 $109.99
MMIIDDLLAANNDD RRAADDIIOO CCOORRPPOORRAATTIIOONN
5900 Parretta Drive
Kansas City, MO 64120
Call 816.241.8500
visit us at http://www.midlandradio.com
Note: Features & Specifications are subject to change without notice.
MIDLAND is not responsible for unintentional errors or omissions on its
packaging.

Navigation menu
