Page 3 www.midlandradio.com
Welcome to the world of Midland electronics
Congratulations on your purchase of a high quality MIDLAND product.
Your 2-way radio represents the state-of-the-art in high-tech
engineering. Designed for GMRS (General Mobile Radio Service)
operation, this compact package is big in performance. It is a quality
piece of electronic equipment, skillfully constructed with the finest
components. The circuitry is all solid-state and mounted on a rugged
printed circuit board. Your two-way radio is designed for reliable and
trouble-free performance for years to come.
Features
- 22 GMRS/FRS Channel
- 38 Privacy Codes (LXT310/350/410/435 Series only)
- eVOX (LXT310/350/410/435 Series only)
- Selectable CALL Tone (LXT410/435 Series only)
- Weather (WX) Band Receiver (LXT310/350/410/435 Series only)
- VIBRATE ALERT (LXT410/435 Series only)
- SCAN Function
- MONITOR Function (LXT310/350/410/435 Series only)
- Roger Beep Tone
- Silent Operation
- Key Pad Lock
- Power High / Power Low Settings
- Speaker / Microphone Jacks
- Battery Low Indicator
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions : (1) this device does not cause harmful
interference, and (2) this radio must accept any interference that may cause
undesired operation.
To maintain compliance with FCC’s RF exposure guidelines, for body-worn
operation, this radio has been tested and meets the FCC RF exposure
guidelines when used with Midland Radio Corp. accessories supplied or
designated for this product. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines. (Tested with Headset Model:
AVP-1)
Model LX210/310/350/410/435 Series
®
Page 4 www.midlandradio.com
IMPORTANT NOTICE, FCC LICENSE REQUIRED FOR GMRS OPERATION
The LXT210/310/350/410/435 Series operates on GMRS (General Mobile Radio
Service) frequencies which require an FCC (Federal Communications
Commission) license. You must be licensed prior to operating on channels 1 - 7
or 15 - 22, which comprise the GMRS channels of the LXT210/310/350/410/435
Series. Serious penalties could result for unlicensed use of GMRS channels, in
violation of FCC rules, as stipulated in the Communications Act's Sections 501
and 502 (amended).
You will be issued a call sign by the FCC which should be used for station
identification when operating the radio on GMRS channels. You should also
cooperate by engaging in permissible transmissions only, avoiding channel
interference with other GMRS users, and being prudent with the length of their
transmission time.
To obtain a license or ask questions about the license application, contact the
FCC at 1-886-CALL FCC or go to the FCC's website:
www.fcc.gov/wtb/prs/genmbl.html
Exposure To Radio Frequency Energy
Your Midland radio is designed to comply with the following national and
international standards and guidelines regarding exposure of human being to radio
frequency electromagnetic energy:
- United States Federal Communications Commission, Code of Federal
Regulations: 47 CFR part 2 sub-part J
- American National Standards Institute (ANSI)/Institute of Electrical &
Electronic Engineers (IEEE) C95. 1-1992
- Institute of Electrical and Electronic Engineer (IEEE) C95. 1-1999 Edition
- National Council on Radiation Protection and Measurements (NCRP) of the
United States, Report 86, 1986
- International Commission on Non-lonizing Radiation Protection (ICNIRP)
1998
To control your exposure and ensure compliance with the general population or
uncontrolled environment exposure limits, transmit no more than 50% of the time.
The radio generates measurable RF energy exposure only when transmitting.
Model LX210/310/350/410/435 Series
IMPORTANT: Changes or modifications to this unit not expressly approved by
MIDLAND RADIO CORP. could void your right to operate this unit. Your radio is set
up to transmit a regulated signal on an assigned frequency. It is against the law to
alter or adjust the settings inside the COMMUNICATOR to exceed those
limitations. Any adjustment to your radio must be made by qualified technicians.
®
Page 5 www.midlandradio.com
CONTROLS

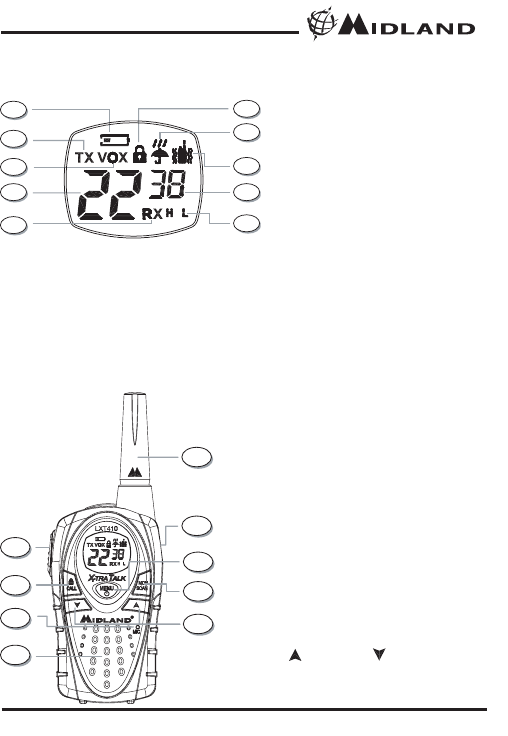

LCD DISPLAY 1. LOW BATTERY ICON – Indicates the
battery level is low.
2. TRANSMIT (TX) ICON – Indicates
radio is transmitting a signal.
3. eVOX (LXT310/350/410/435 Series only)
Indicates when eVOX mode is
active.
4. CHANNEL NUMBER – Changes from
1~22 on GMRS/FRS band (1~10 on
WX band).
5. RECEIVE (RX) ICON – Indicates radio
is receiving a transmission.
6. KEY LOCK ICON – Indicates KEY
LOCK mode is on.
7. WX BAND ICON (LXT310/350/410/435
Series only) – Indicates when the radio
is in Weather Band mode
8. VIBRATE-ALERT ICON (LXT410/435
Series only)– Indicates when the
Vibrate-Alert feature is on
9. PRIVACY CODE (LXT310/350/410/435
Series only)– Indicates Privacy Code
selected by user (oF~38) .
10. TRANSMIT POWER LEVEL ICON
Indicates TX Power setting (H/L)
11. PTT Button – Press and hold to transmit
voice communication.
12. CALL/LOCK Button – Press to send a
CALL tone signal. Press and hold to turn
KEY LOCK on/off.
13. MIC – Built-in microphone.
14. SPEAKER – Built-in speaker.
15. ANTENNA.
16. EXTERNAL SPEAKER/MIC JACK.
17. POWER / MENU Button – Press and
hold for at least 3 seconds to turn the
radio on/off. Press and hold for at least 1
second to go to WX BAND Receiver
mode. Press momentarily to access
Menu mode.
18. MONITOR (LXT410/435 Series only) /SCAN
Button – Press to enter SCAN mode.
Press and hold to enter MONITOR
(LXT410/435 Series only) mode
19. UP and DOWN Button – Make
adjustments in MENU mode.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
19
18
17
16
15
Model LX210/310/350/410/435 Series
®
Page 6 www.midlandradio.com
BATTERY INSTALLATION
Your LXT210/310/350/410/435 Series radio operates with either 4 AA
alkaline batteries or an optional NiMH battery pack. The belt clip
should be removed (see below) to ease installation or removal of the
batteries.
To install the batteries:
1. With the back of the radio facing you, remove the belt clip (see
diagram below) for easy access, then remove the Battery Cover
by pressing down on the top center and sliding it down from the
radio.
2. Insert 4 AA batteries observing the polarity as shown. Installing
the batteries incorrectly will prevent the unit from operating or
may damage the unit.
3. Return the Battery Cover by sliding it up on the radio. Replace the
belt clip, making sure it locks into place.
BATTERY
COMPARTMENT
BATTERY
COMPARTMENT
COVER
One Battery inserted
in this slot
Press here and
push down to open
Model LX210/310/350/410/435 Series
INSTALLING THE BELT CLIP
To install the BELT CLIP, slide the clip down into the slot on the back
of the radio until the BELT CLIP LATCH clicks. To remove the BELT
CLIP, press the LOCK TAB down , then gently pull the belt clip up
toward the top of the radio.
BELT CLIP
LOCK TAB
BELT CLIP
LATCH
®
Page 7 www.midlandradio.com
CHARGING THE OPTIONAL BATTERY PACK
Your LXT210/310/350/410/435 Series is equipped for using an
optional rechargeable NiMH battery pack (not included) which can be
recharged using a desktop charger (not included). Initial charge time
is 24 hours with a charge time of 12 hours thereafter. For maximum
battery life, we recommend charging the battery pack when the low
battery icon comes on. Remove the radios from the charger when the
charge time expires.
To charge using a Desktop Charger:
1. Place the rechargeable battery packs in the radios.
2. Connect the AC adapter into an AC wall outlet.
3. Insert the AC adapter plug (or DC Cigarette Lighter adapter if
charging in vehicle) into the desktop charger jack.
4. Place the units into the desktop charger slot and note that the LED
indicator with RED color will light up, indicating charging function.
In order to ensure that the battery pack is fully charged, it is
recommended that the battery pack be charged for at least 12
hours.
1. Only use our NiMH battery pack.
2. Do not attempt to charge alkaline batteries or any batteries
or battery packs other than the one indicated in the manual.
This may cause leakage and damage to the radio.
3. For long term storage of the radio, turn the radio OFF and
remove the batteries from the radio.
LOW BATTERY LEVEL INDICATOR
Your LXT210/310/350/410/435 Series has a LOW BATTERY ICON
which will only appear on the LCD display if the battery voltage
level is low. At this point, the battery needs to be charged for at least
12hrs.
Model LX210/310/350/410/435 Series
!
POWER ON/OFF AND VOLUME
Press the POWER/MENU button for at least 3 seconds to turn the
radio on/off. During Power On, the radio will beep 3 times with
different tones, the LCD will display a “self-test” message for 1
second and the LCD display will indicate the last channel selected. To
increase/decrease the volume level, press the button during RX
or STANDBY mode.
TRANSMITTING AND RECEIVING A CALL
To communicate, all radios in your group must be set to the same
channel and Privacy Code.
1. For maximum clarity, hold the radio 2 to 3 inches from your mouth.
2. Press and hold the PTT button and speak in a normal voice
into the microphone. The TX icon will appear continuously
on the LCD Display while transmitting.
3. To receive a call, release the PTT button. The RX icon will
appear on the display when your radio is receiving a transmission.
ABOUT RANGE
Your GXT Series radios are designed to give you maximum range
under optimum conditions.
Optimum Conditions are:
lOver water
lOpen rural areas without obstructions
lFlat areas where you can see the other person
To ensure you get maximum range:
lBe sure to use fresh or fully charged batteries - low batteries will
cause low power conditions
lBe sure you are on a GMRS channel - FRS channels are
restricted by the FCC to low power
lBe sure to set your radio to use Hi power.
®
Page 8 www.midlandradio.com
OPERATING YOUR RADIO
Model LX210/310/350/410/435 Series
/
®
Page 9 www.midlandradio.com
LXT210 SERIES QUICK REFERENCE CHART
LXT310/350/410/435 SERIES QUICK REFERENCE CHART
MONITOR (LXT410/435 Series only)
Pressing and holding the MONITOR button for 1 second will let you
hear noise so you can adjust the volume level of the radio when not
receiving a signal. This should be used to check activity on your
current channel before transmitting.
Press and hold the MONITOR button for 1 second again to get out
of MONITOR mode.
SCAN
Your LX210/310/350/410/435 Series can scan all 22 channels for
activity. To enter, quickly press the SCAN button. Repeat the same
procedure to exit. Your radio will rapidly scan each of the 22 channels
and stop on any active channel for 5 seconds before resuming scan.
When you press the PTT button to transmit on an active channel, the
scanning function will stop and remain on the active channel. To
resume scanning, quickly press the SCAN button.
Model LX210/310/350/410/435 Series
MENU Channel eVOX
1~22 oF/1/2
Privacy
oF~38
Roger Beep
On/Off
Power
H/L
Call Tone
1~3
Vibrate
On/Off
WX Channel
1~10
Press Menu
button when
WX Band is ON
Silent Operation
On/Off
GXT410/435
Series only
GXT410/435
Series only
WX Band
On/Off
MENU Channel
1~22
Roger Beep
On/Off
Power
H/L
Silent Operation
On/Off
®
Page 10 www.midlandradio.com
CALL TONE
Your LX210/310/350/410/435 Series can transmit a call tone for a
fixed length of time. To send a call tone, press the CALL button. The
TX icon will appear while transmitting a call tone and a tone can be
heard on the speaker for confirmation.
KEYPAD LOCK
To avoid accidentally changing the radio setting, press the LOCK
button for 4 seconds. The KEY LOCK icon will appear on the display.
PTT and CALL will still be active. Repeat the same procedure to
unlock the keypad.
DISPLAY ILLUMINATION
During Power on, the display illumination will activate for approx. 7
seconds. The display illumination can also be activated when the
MENU button is pressed.
CHANNEL SELECTION (GMRS/FRS BAND)
Press the MENU button once, and then the buttons to select one
of the 22 GMRS/FRS channels. To confirm the selection, press the
PTT button or press the MENU button again to move to the next
feature setting.
/
Model LX210/310/350/410/435 Series
®
Page 11 www.midlandradio.com
SETTING PRIVACY CODES (LXT310/350/410/435 Series only)
Your LX310/350/410/435 Series has 38 Privacy codes available. The
selected Privacy Code may be different for each channel. To select a
Privacy Code for the current channel press the MENU button twice,
and then the buttons to select one of the 38 Privacy Codes.
To confirm the selection, press the PTT button or press MENU button
again to move to the next feature setting.
Note : Selecting a Privacy Code of "oF" will disable the Privacy
feature. To communicate between two LX310/350/410/435 Series
radios, all radios in your group must be set to the same channel
and Privacy Code selections.
TRANSMIT (TX) POWER LEVEL SELECTION :
Your LX210/310/350/410/435 Series has 2 power level settings. To
select the power level on channels 1~7 and 15~22, press the MENU
button three times (two times for LXT210), a “Pr” icon will appear
blinking on the display. Then press the buttons to select TRANS-
MIT POWER LEVEL icon (H: Hi/L: Lo). To confirm, press the PTT
button or press MENU button again to move to the next feature set-
ting. When the PTT button is pressed during Low Battery Level
condition, the TX Power will automatically switch from Hi(H) to
Lo(L) level.
Note : You cannot adjust the power setting on the FRS
channels (8~14). They are set to Low power per FCC
regulations.
eVOX (Hands-free Transmission for LXT310/350/410/435 Series only)
Your LX310/350/410/435 Series has 2 eVOX level settings: (oF/1/2).
To set eVOX, press the MENU button four times. The display shows
VOX” blinking while on the right of the CHANNEL NUMBER display,
an “oF” icon appears. Select “1” or “2” by pressing the buttons
and push the PTT key, or press MENU button again to move to the
next feature setting.
eVOX will be more sensitive on the 2setting than on the 1setting.
To turn eVOX off, press the MENU button four times. The display
shows “VOX” blinking while on the right of the CHANNEL NUMBER
display, a “1” or “2” icon appears. Select “oF” by pressing the
buttons and push the PTT key, or press MENU button again to
move to the next feature setting.
/
Model LX210/310/350/410/435 Series
!
!
/
/
/
VIBRATE ALERT (LXT410/435 Series only)
To turn the VIBRATE ALERT on, press the MENU button five times so
the display will show the VIBRATE-ALERT icon blinking, while on the
right of the CHANNEL NUMBER, an “oF” icon appears. Select on
by pressing the buttons and push the PTT button, or press MENU
button again to move to the next feature setting. The VIBRATE
ALERT icon will remain on the display.
To turn the VIBRATE ALERT off, press the MENU button five times,
so the display will show the VIBRATE ALERT icon blinking, while on
the right of the CHANNEL NUMBER, an “on” icon appears. Select
oF” by pressing the buttons and push the PTT button, or press
MENU button to move to the next feature setting. The VIBRATE
ALERT icon will go off.
ROGER BEEP (end of transmission) TONE
When the PTT button is released, the radio will beep to confirm to
other users that your transmission has finished.
To turn the ROGER BEEP tone on, press the MENU button until the
display shows an “rb” icon while on the right of the “rb” display, an
oF” icon appears. Select “on” by pressing the buttons and push
the PTT key, or press MENU button to move to the next feature
setting.
To turn the ROGER BEEP tone off, press the MENU button until the
display shows an “rb” icon while on the right of the “rb” display, an
on” icon appears. Select “oF” by pressing the buttons and push
the PTT key, or press MENU button to move to the next feature
setting.
®
Page 12 www.midlandradio.com
Model LX210/310/350/410/435 Series
/
/
/
/
®
Page 13 www.midlandradio.com
CALL TONE SELECTION (LXT410/435 Series only)
Your LXT410/435 Series has 3 selectable CALL TONES. To select,
press the MENU button until a “CA” icon appears and to the right of
the “CA” icon the current CALL TONE setting is displayed. Then press
the buttons to make the CALL TONE selections - the radio will
emit a corresponding tone for each selection. To confirm, press the
PTT button or press MENU button to move to the next feature setting.
SILENT OPERATION
Your LXT210/310/350/410/435 Series has a SILENT OPERATION
mode. In this mode, all “beeps” and “tones” are disabled.
To turn the SILENT OPERATION mode on, press the MENU button
until the display shows an “bP” icon while on the right of the “bP
display, an “on” icon appears. Select “of” by pressing the buttons
and push the PTT key or MENU button.
To turn the SILENT OPERATION mode off, press the MENU button
until the display shows an “bP” icon while on the right of the “bP
display, an “oF” icon appears. Select “on” by pressing the buttons
and push the PTT key or MENU button.
WEATHER (WX) BAND RECEIVER (LXT310/350/410/435 Series only)
Your LXT310/350/410/435 Series has a WEATHER (WX) BAND
RECEIVER function, to enable user to receive weather alert/reports
from designated NOAA stations.
To turn the WEATHER (WX) RECEIVER on, press the MENU button
until the WX Band icon appear while in the right an “oF” icon
appears. Select “on” by pressing the buttons and push the MENU
button to confirm. The display will show the current WX Band channel
setting. While on WX Band mode press the MENU button once, and
then the buttons to select one of the 10 GMRS/FRS channels.
To turn the WEATHER (WX) RECEIVER off, press the PTT button.
Model LX210/310/350/410/435 Series
/
/
/
/
/
®
Page 14 www.midlandradio.com

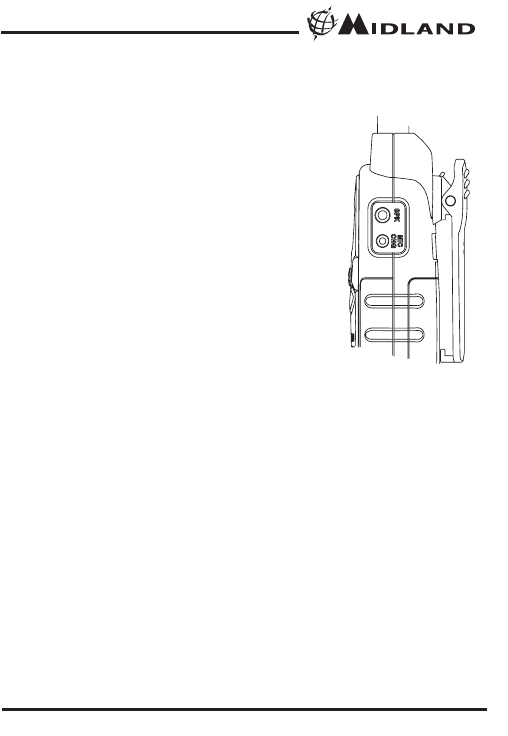

EXTERNAL SPEAKER/MICROPHONE JACK :
Your LXT210/310/350/410/435 Series can be used with an optional
external speaker/microphone or headset, freeing your hands for other
tasks. To use an optional speaker / microphone or headset:
· Insert the plug(s) into the SPK/MIC jacks
· Place the earbud into your ear, and adjust the
mic into your desired position.
Model LX210/310/350/410/435 Series
®
Page 15 www.midlandradio.com
PROBLEM SOLUTION
No Power - Check battery installation and/or replace batteries
Cannot Receive
Messages
- Confirm the radios have the same channel
and Privacy Code settings.
- Make sure that you are within range of the other
transceivers.
- Buildings and other structures may interfere with
your communication.
(See ABOUT RANGE on Page 8)
Radio is not responding
to button presses
- Make sure key lock is not on. See "Keypad Lock"
(Page 10).
- Radio might need to be reset. Turn radio off then
on.
- Ensure accessory microphone is set properly
Display is dim - Recharge or replace batteries.
Charger not functioning - Contacts on the back of the radio may require
cleaning.
- Ensure the outlet where the charger is plugged
into is functioning properly.
- Check that the battery pack are installed in the
radio properly.
USE AND CARE :
1. Use a soft damp cloth to clean the radio
2. Do not use alcohol or cleaning solutions to clean the radio.
3. Do not immerse the radio in water.
4. Dry the radio with dry lint-free cloth should it get wet.
5. Turn off the radio and remove the batteries during long-term
storage.
If you have a problem which you believe requires service, please
call first and speak with a service technician. Many problems can
be remedied over the phone without returning the unit for
service.
Model LX210/310/350/410/435 Series
TROUBLESHOOTING GUIDE
®
Page 16 www.midlandradio.com
SPECIFICATIONS
Channels 22 GMRS/FRS Channels +38 Privacy Codes
10 Weather (WX) Band Channels
Operating Frequency UHF 462.5500 ~ 467.7125 MHz
Power Source 4 AA Alkaline or 6.0V Rechargeable Ni-MH battery pack
GMRS/FRS FREQUENCY CHART (MHz)
CH. No CH. Freq. CH. No CH. Freq. CH. No CH. Freq.
1 462.5625 9 467.5875 17 462.6000
2 462.5875 10 467.6125 18 462.6250
3 462.6125 11 467.6375 19 462.6500
4 462.6375 12 467.6625 20 462.6750
5 462.6625 13 467.6875 21 462.7000
6 462.6875 14 467.7125 22 462.7250
7 462.7125 15 462.5500
8 467.5625 16 462.5750
(GXT310/400/450 Series) WEATHER (WX) RECEIVER FREQUENCY CHART (MHz)
CH. No CH. Freq. CH. No CH. Freq.
1 162.550 6 162.500
2 162.400 7 162.525
3 162.475 8 161.650
4 162.425 9 161.775
5 162.450 10 163.275
PRIVACY CODES FREQUENCY CHART (Hz)
Code Freq. Code Freq. Code Freq. Code Freq. Code Freq.
1 67.0 9 91.5 17 118.8 25 156.7 33 210.7
2 71.9 10 94.8 18 123.0 26 162.2 34 218.1
3 74.4 11 97.4 19 127.3 27 167.9 35 225.7
4 77.0 12 100.0 20 131.8 28 173.8 36 233.6
5 79.7 13 103.5 21 136.5 29 179.9 37 241.8
6 82.5 14 107.2 22 141.3 30 186.2 38 250.3
7 85.4 15 110.9 23 146.2 31 192.8
8 88.5 16 114.8 24 151.4 32 203.5
* Channel 8,9 and 10 are designated Canadian Marine Frequencies
* Channels 8~14 are low-power FRS license free channels
Note: Privacy codes can be programmed for use on any channel
Model LX210/310/350/410/435 Series
®
Page 17 www.midlandradio.com
LIMITED WARRANTY
Midland Radio Corporation will repair or replace, at its option without
charge, any Midland FRS/GMRS transceiver which fails due to a
defect in material or workmanship within Three Years following the
initial consumer purchase. This warranty does not apply to water
damage, battery leak or abuse.
This warranty does not include any carrying cases, earphones, or
antennas, which may be a part of or included with the warranted
product, or the cost of labor for removal or re-installation of the
product in a vehicle or other mounting.
Performance of any obligation under this warranty may be obtained by
returning the warranted product, freight prepaid, along with proof of
purchase to:
Midland Radio Corporation
Warranty Service Department
1120 Clay Street
North Kansas City, MO 64116
This warranty gives you specific legal rights, and you may also have
other rights, which vary from state to state.
Note : The above warranty applies only to merchandise purchased in
the United States of America or any of the territories or possessions
thereof, or from a U.S. Military exchange.
Midland Radio Corporation
1120 Clay Street
North Kansas City, MO 64116
Tel: (816) 241-8500
E-mail: mail@midlandradio.com
URL: www.midlandradio.com
Model LX210/310/350/410/435 Series
®

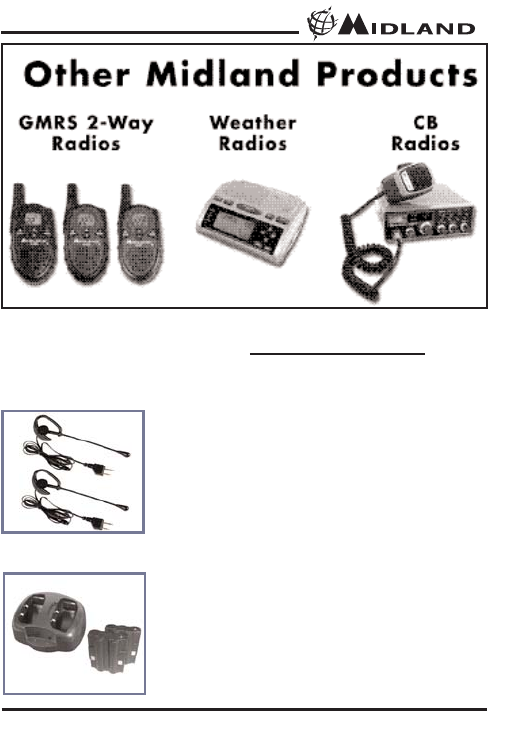

Page 18 www.midlandradio.com
Model LX210/310/350/410/435 Series
ACCESSORIES
Accessories can be purchased at www.midlandradio.com or fill in
the form on the following page and mail it to our address.
AVP-1
AVP-4
- 2 Over the Ear Mic.
Headsets w/ PTT
- $19.95
- 1 Dual Desk Charger
- 2 Rechargeable battery packs
- 1 AC Adapter
- 1 DC Cigarette lighter adapter
- $39.95
®
Model LX210/310/350/410/435 Series
Page 19 www.midlandradio.com
Please send Money Order or fill in Visa/MasterCard information and
mail to the address below. Please DO NOT send cash or checks.
Make Money Order to Midland Radio Corporation.
Name: _____________________________________________________
Address: ___________________________________________________
City: _____________________ State _____Zip Code _____________
Tel: ______________________ email: ___________________________
CC# _____________________ Type: __________ Exp. ____________
ACCESSORIES ORDER FORM
Qty Item Price Total
AVP-1 $19.95
AVP-3 $39.95
Mail To:
Midland Radio Corporation
Consumer. Dept.
1120 Clay St.
N. Kansas City MO 64116
----------------
Or Call 816.241.8500.
----------------
To order online go to
www.midlandradio.com
Sub-Total ___________
Tax (MO, CO, IL, FL only) ___________
S & H (U.S. only) _____ $14.95
Total $___________
®
Page 20 www.midlandradio.com
MIDLAND RADIO CORPORATION
1120 Clay St.
N. Kansas City MO 64116
Call 816.241.8500
visit us at http://www.midlandradio.com
Note: Features & Specifications are subject to change without notice.
MIDLAND is not responsible for unintentional errors or omissions on its
packaging.
Model LX210/310/350/410/435 Series
Rev G

Navigation menu
