Owner’s Manual

Model 1001LWX Owner’s Manual

Page 2 www.midlandradio.com

Table of Contents

able of Contents

Welcome to the World of Midland Electronics

Major 1001LWX Features

How to install your Midland Mobile CB

What’s in the Box

Where to Locate your CB Transceiver

Mechanical Mounting

Power Wiring (Negative Ground Only)

Installation of Microphone Hanger

Antenna:

How to select, position install and tune the right one for you

Antenna Installation

Tuning your Antenna

Factors affecting CB and Weather Scan Range

Noise

1001LWX Front Panel Features and Operation

Back Panel Features and Operation

Transceiver Operation

Technical Specifications

Service

Limited Warranty

Accessories

Accessories Order Form

The Citizens Band Radio Service is under the jurisdiction of

the Federal Communications Commission (FCC). Any adjust-

ments or alterations which would alter the performance of

the transceiver’s original FCC certification, or which would

change the frequency determining method, are strictly

prohibited. Replacement or substitution of crystal, transistors,

ICs, regulator diodes, or any other part of a unique nature,

with parts other than those recommend by Midland, may

cause violations of the technical regulations in Part 95 of the

FCC Rules or in violation of certification requirements in Part

2 of the rules.

Model 1001LWX Owner’s Manual

Page 3 www.midlandradio.com

Welcome to the World of Midland Electronics

Congratulations on your purchase of the Midland 1001LWX CB radio. In the years

ahead, you can expect to find time and again why Midland holds the front running position

among CB users. You will also find that American Original is not just a slogan, but the

heading of a long list of hearable, seeable benefits. As your Midland CB experience unfolds

and grows we hope you will remember that CB radios are only one kind of electronic excel-

lence available under the Midland name.

The 40 channel 1001LWX CB radio represents the state of the art in high tech engi-

neering. The first in the industry with Weather Scan technology, it is able to receive up to

the minute National Weather broadcasts any where you go- keeping you up to date on

severe weather events. The 1001LWX also includes all the important CB features- RF Gain,

Automatic Noise Limiter and a Large Backlit LCD for easy night time viewing. Skillfully con-

structed with the finest components, this radio is designed for reliable and trouble-free per-

formance for years to come. Enjoy!

Major 1001LWX Features

• 40 CB Channels

• 4 Watt Output Power

• Large, Backlit LCD

• Exclusive Weather Scan Technology

• 4 Pin Front Panel Mic Connector

• Squelch

• PA Function

• Automatic Noise Limiter (ANL)

• RF Gain

• Push to talk ergonomically designed microphone

• Includes mounting bracket/hardware and fused DC power cord

How to Install your Midland Mobile CB:

This transceiver may be installed in any 12-volt negative ground-system car or truck. Most

current U.S. and foreign vehicles use a negative system, but some older models and some

newer large trucks may have a positive ground. Check the requirements for your vehicle

before you begin installation. Generally, you have a negative-ground system if the minus

( - ) battery terminal is connected to the motor block. Contact your dealer in the event

you are unable to determine your vehicle’s polarity system.

Model 1001LWX Owner’s Manual

Page 4 www.midlandradio.com

1. 1001LWX Radio

2. Easy removal mounting bracket system.

3. Microphone bracket system.

4. All main-unit and microphone mounting hardware needed for normal

installation.

5. Plug-in microphone with coil cord.

6. FCC part 95, Subpart D.

What’s in the Box:

Where to Locate your CB Transceiver:

Your new Midland CB is designed to be installed under the dash or vertically on a console

of your vehicle. Safety and convenience are the primary considerations in deciding exactly

where to locate your radio.

Caution: Be sure that the unit is located so that it does not interfere with the driver,

supplemental restraint systems (air bags) or impair access to any controls. Connecting

cables must be routed and secured in such a manner as not to interfere with the opera-

tion of the brake, accelerator or other controls. Interference from either the unit or con-

necting cables may contribute to the loss of control of the vehicle.

Mechanical Mounting:

Step 1: Heeding the caution, use the mounting bracket as a template for marking the loca-

tion of screw holes under the dash. Use an awl, nail or other sharp pointed object

to mark the hole locations.

Step 2: Drill a 1/8” hole for each screw hole in the mounting bracket. Attach the bracket to

the dash with the Phillips head sheet metal screws provided.

Extreme care should be exercised when drilling into the dash to avoid damage to

under-dash electronic ignition, cruise control, instrument and / or accessory

wiring.

Step 3: Position the main unit between the bracket arms in line with the retention knobs.

Set the angle for optimum operating comfort and accessibility.

Step 4: Add the rubber washers between the retention knobs and unit for a secure fit.

Step 5: Tighten the retention knobs.

Model 1001LWX Owner’s Manual

Page 5 www.midlandradio.com

Power Wiring (negative ground only):

Step 1: If you have not determined whether your vehicle has a negative or positive

ground, do so now. Then disconnect the negative lead from the battery to prevent

short circuits that can occur during wiring. Do not connect this transceiver to posi-

tive ground electrical systems.

Step 2: With negative ground

A. Connect the positive (RED WIRE) the one with in-line fuse holder to either the

(a) fuse block, (b) cigarette lighter, or (c) directly to the positive post on your

battery. Usually, the fuse block is the most convenient connecting point. It is

also possible to connect to the Accessory terminal on the fuse block or ignition

switch, so that your CB automatically goes off when the ignition goes off.

B. Tightly connect the ground (BLACK WIRE) directly to the vehicle’s metal frame.

A good direct metal-to-metal ground is essential for optimum performance.

Installations using the cigarette lighter socket for power require an extra ground

wire from the radio chassis to the vehicle if the radio is not fastened to a grounded

part of the vehicle.

Installation of Microphone Hanger:

Mounting holes are provided on the microphone hanger bracket. The bracket can be

attached to the vehicle dash, the holes provided on the left side of the radio, or other con-

venient location.

Antenna:

How to select, position, install and tune the right antenna for you:

You can choose from two types of mobile CB antennas: full-length whip and loaded whip -

and a variety of mounts (depending on where you locate your antenna). The dealer who

sold you your Midland CB can advise which type is best for you.

*Where you locate your antenna does make a difference.*

Some general rules for antenna location that can aid CB performance:

1. Put your mount as high on the vehicle as possible.

The higher the proportion of antenna length that is above the roof, the better.

2. If possible, mount the antenna in the center of whatever surface you choose.

3. Keep antenna cables away from noise sources, such as the ignition system, gauges, etc.

4. Make sure you have a solid metal-to-metal ground.

5. Exercise care to prevent cable damage.

Essentially, you have five location choices: the roof, gutter, rear deck, front cowl or rear

bumper. Where you decide to locate your antenna will determine the type of antenna you

install. Consult your Midland CB dealer for advice and guidance, and measure your needs

against the attributes of the various Midland antenna models they carry.

Model 1001LWX Owner’s Manual

Page 6 www.midlandradio.com

Antenna Installation:

Follow the manufacturer’s installation instructions carefully.

Warning: Never operate your CB radio without attaching an antenna or with a broken

antenna cable. This will result in damage to transmitter circuitry.

Safety notice: The antenna used for this radio must be installed to provide a separation

distance of at least 8 in. (20cm) from all persons and must not be co-located or operating

in conjunction with any other antenna or transmitter.

Tuning your Antenna:

Some antennas are factory tuned. However, performance can usually be improved by

slightly lengthening or shortening the antenna using a Standing Wave Radio (SWR) meter.

For the exact procedures to be used, refer to the antenna manufacturer’s installation

manual.

You can buy an SWR meter separately or have your antenna checked by your Midland CB

Dealer’s service department.

Factors affecting CB and Weather Scan Range:

Essentially, they are the same influences that optimize or limit AM and FM broadcast signals

as well as the weather reception range.

Terrain: Hills, valleys and buildings naturally interrupt and shorten CB/weather signals. In

short, anything that is between you and the person you want to talk to can shorten your

CB range. You can expect to maintain maximum transmitting/receiving performance in flat,

open country.

Weather: You can expect that CB/weather range will be reduced – perhaps drastically – in

times of atmospheric disturbance, such as in a thunderstorm or heavy snow. Sunspots too

are known to adversely affect CB performance.

Noise:

A common source of excessive noise is the ignition system. In many vehicles today the

electric fuel pump is another possible source of noise. If you suspect this is true, turn off

the ignition. With the CB in receive mode if the noise is no longer present then this is the

source of the noise. In some cases the noise can be reduced or eliminated by making sure

the CB radio chassis is grounded. This is in addition to the power cord. In extreme cases,

additional grounding of components may be necessary.

Model 1001LWX Owner’s Manual

Page 7 www.midlandradio.com

1001LWX Front Panel Features and Operation

ON/OFF Volume Knob: In the off position your transceiver power is off. Turn this control clockwise to switch on the unit

and adjust the volume.

Microphone Connector: Plug in the supplied microphone to this connector. Received signals will not be heard without the

microphone.

CB/PA Button: When in PA mode, it causes your voice to operate the optional external PA speaker. In CB mode, the

microphone operates the transmitter.

ANL ON/OFF Button: Press this button once to activate the automatic noise limiter. When in ANL mode, ignition noise will

be reduced. Press the button again to deactivate ANL.

Weather(WX) Scan/CB Button: Press this button once to activate the weather scan. The radio will begin scanning and

lock on the first weather channel broadcast signal strong enough to use. If later the signal becomes too weak to use the

unit will automatically resume scanning to find a usable signal. The user can also make the unit scan to another channel

by pressing the microphone PTT button. The unit will rescan channels each time the CB/WX button is used to listen to

weather. When the radio is in weather scan mode, the user cannot use the CB/PA function.

Squelch Control: This control is used to cut off or eliminate receiver background noise in the absence of an incoming sig-

nal. For maximum receiver sensitivity it is desired that the control be adjusted only to the point where the receiver back-

ground noise or background noise is eliminated. Adjust until the receiver noise disappears. This will require the incoming

signal to be slightly stronger than the average receiver noise. Further clockwise rotation will increase the threshold level

which a signal must overcome in order to be heard. Only strong signals will be heard at a maximum clockwise setting

RF Gain: This control is used primarily to optimize reception in strong signal areas. Gain is reduced by counter clockwise

rotation of the control.

Channel Knob: This knob selects any one of the 40 Citizens Band channels. The selected channel is indicated by the LED

readout, directly above the Channel Knob.

Mic Connector

CB/PA Button

ANL ON/OFF

Button

WX Scan/CB

Button

ON/OFF

Volume Knob Squelch Control

Knob

Channel Knob

Easy to Read

Backlit LCD

RF Gain Knob

Model 1001LWX Owner’s Manual

Page 8 www.midlandradio.com

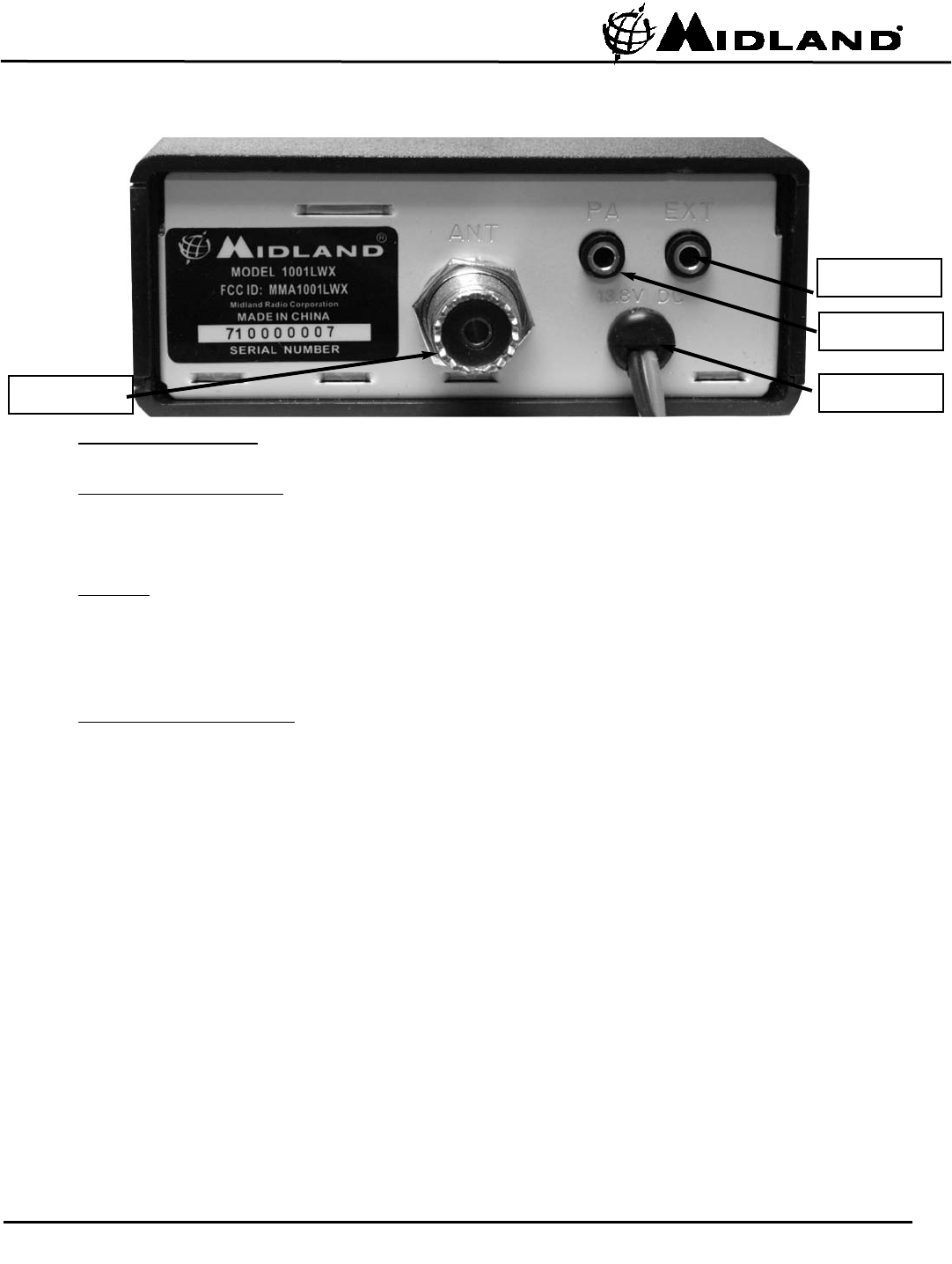

Back Panel Features and Operation

Antenna Connector: Connect a standard 50-ohm CB antenna to this connector.

External Speaker Jack: When a speaker is connected to this jack, the internal speaker is

by-passed. All received signals will be heard through the external speaker. The speaker

connected to the “EXT” jack should be rated at 8 ohms and 5 watts.

PA Jack: An optional PA speaker may be attached to your transceiver through the PA out-

put jack on the back panel. This allows you to communicate with pedestrians or other

vehicles through your CB microphone. The speaker connected to the “PA” jack should be

rated at 8 ohms and 5 watts.

DC 13.8V POWER Cord: Connects to power cord with in line 2 Amp fuse.

How to Operate your Transceiver:

You should become familiar with the controls and complete the preceding installation

instructions before attempting to operate your CB.

1. Rotate the on/off volume control clockwise to turn the unit on.

2. Adjust the squelch control fully counter-clockwise so noise is heard.

3. Adjust the volume for a normal listening level.

4. Rotate the squelch control until the noise just disappears.

5. Select the desired channel by rotating the channel selector.

6. To transmit, press the PTT bar on the side of the microphone. Hold the microphone

2 to 3 inches from your lips and speak in a normal voice.

7. To receive, simply release the PTT bar.

Warning: Do not attempt to make any internal adjustments. Internal adjustments and/or

modifications can lead to illegal operation as defined by the FCC rules and regulations, Part

95. They must be made only by qualified technical personnel. Illegal operation can lead to

serious consequences.

DC 13.8V Power

Cord

PA Jack

External Speaker

Jack

Antenna

Connector

Model 1001LWX Owner’s Manual

Page 9 www.midlandradio.com

Technical Specifications

General

Frequency range ................................................................................26.965-27.405 MHz

Channels ....................................................................................................................40

Modulation type .........................................................................................................AM

Antenna impedance ............................................................................................50 Ohm

Loudspeaker .........................................................................................................8 Ohm

Microphone ........................................................................................1000 ohm..Electret

Power Supply ...........................................................................13.8 VDC negative ground

Size …………………………………………………….......................4-7/8"(W) x 6-1/2"(D) x 1-1/2"(H)

Unit Weight……………………………………………………………………..............................1 lb. 10 oz.

CB Receiver (26.965-27.405 MHz-)

Sensitivity at 10dB S/N...........................................................................................0.8 uV

Selectivity ...............................................................................................45 dB + 10 kHz

Squelch range .........................................................................................0.8 uV-1000 uV

Audio output power ......................................................3.0 W @ 8 Ohm ( 10% distortion)

Distortion at 1000 mV ................................................................................................3%

Audio frequency response ............................................................................400-2400 Hz

Intermediate frequency ...........................................................I ° 10.7 MHz II ° 455 kHz

Spurious response .................................................................................more than 40 dB

Transmitter

RF Output Power ...................................................................................................4.0 W

Frequency Tolerance ...........................................................................................0.005%

Harmonic Suppression ............................................................................More than 60 dB

Modulation ...........................................................................................AM 90% ( ± 5%)

Weather Receiver (162.400-162.550 MHz)

Sensitivity at 12dB S/N...........................................................................................0.4 uV

Spurious response .................................................................................more than 40 dB

Channel Frequency

Channel 1 162. 400

Channel 2 162. 425

Channel 3 162. 450

Channel 4 162. 475

Channel 5 162. 500

Channel 6 162. 525

Channel 7 162. 550

Model 1001LWX Owner’s Manual

Page 10 www.midlandradio.com

Service

If it ever becomes necessary to return your unit for service:

Pack the unit in its original box and packing, improper packing may result in damage

during shipment. Be sure to remove the microphone from the radio before packing.

Include a full description of any problems. Include a daytime telephone number in the

event we need more information.

You do not need to return accessory items (brackets, screws, power cord, antenna, etc.)

unless they may be directly related to the problem.

Include a photocopy of the bill of sale or other proof of purchase showing the date of

sale (credit card statements are not acceptable). This information must be included

before warranty service can be considered.

A flat rate charge of $45 will apply to radios not covered by the Warranty. Master Card,

Visa, Cashier's Check or Money Order will be accepted for payment only. Personal checks

will not be accepted and will delay the repair of your radio until we receive payment by

approved methods.

Midland Radio Corporation

Hereby certifies that this unit has

been designed, manufactured,

FCC type accepted and certified

in accordance with part 95 and

Part 15, Subpart C of the current

FCC rules and regulations as of

the date of manufacture.

Model 1001LWX Owner’s Manual

Page 11 www.midlandradio.com

Limited Warranty

Midland Radio Corporation will repair or replace, at its option without charge this model

1001LWX Citizens Band transceiver that fails due to a defect in material or workmanship

within three years following the initial consumer purchase.

This warranty does not include any accessories, which may be a part of or included with

the warranted product, or the cost of labor for removal or re-installation of the product

in a vehicle or other mounting.

Performance of any obligation under this warranty may be obtained by returning the

warranted product, freight prepaid, along with proof of purchase date, to Midland Radio

Corporation , Warranty Service Department, 5900 Parretta Drive, Kansas City, Missouri

64120, or to any "Midland Authorized Warranty Service Station", or to the place of pur-

chase (if a participating dealer). This warranty gives you specific legal rights and you

may also have other rights which vary from state to state.

Note: The above warranty applies only to merchandise purchased in the United States

of America or any of the territories or possessions thereof, or from a U.S. Military

exchange. For warranty coverage on merchandise purchased elsewhere, consult the

supplemental warranty information included with this product or ask your dealer.

MIDLAND RADIO CORPORATION

5900 Parretta Drive

Kansas City, MO 64120

Phone 816-241-8500

E-mail: mail@midlandradio.com

www.midlandradio.com

Printed in China

Model 1001LWX Owner’s Manual

Page 12 www.midlandradio.com

Accessories

Accessories can be purchased at www.midlandradio.com or fill in the form on the following

page and mail to our address.

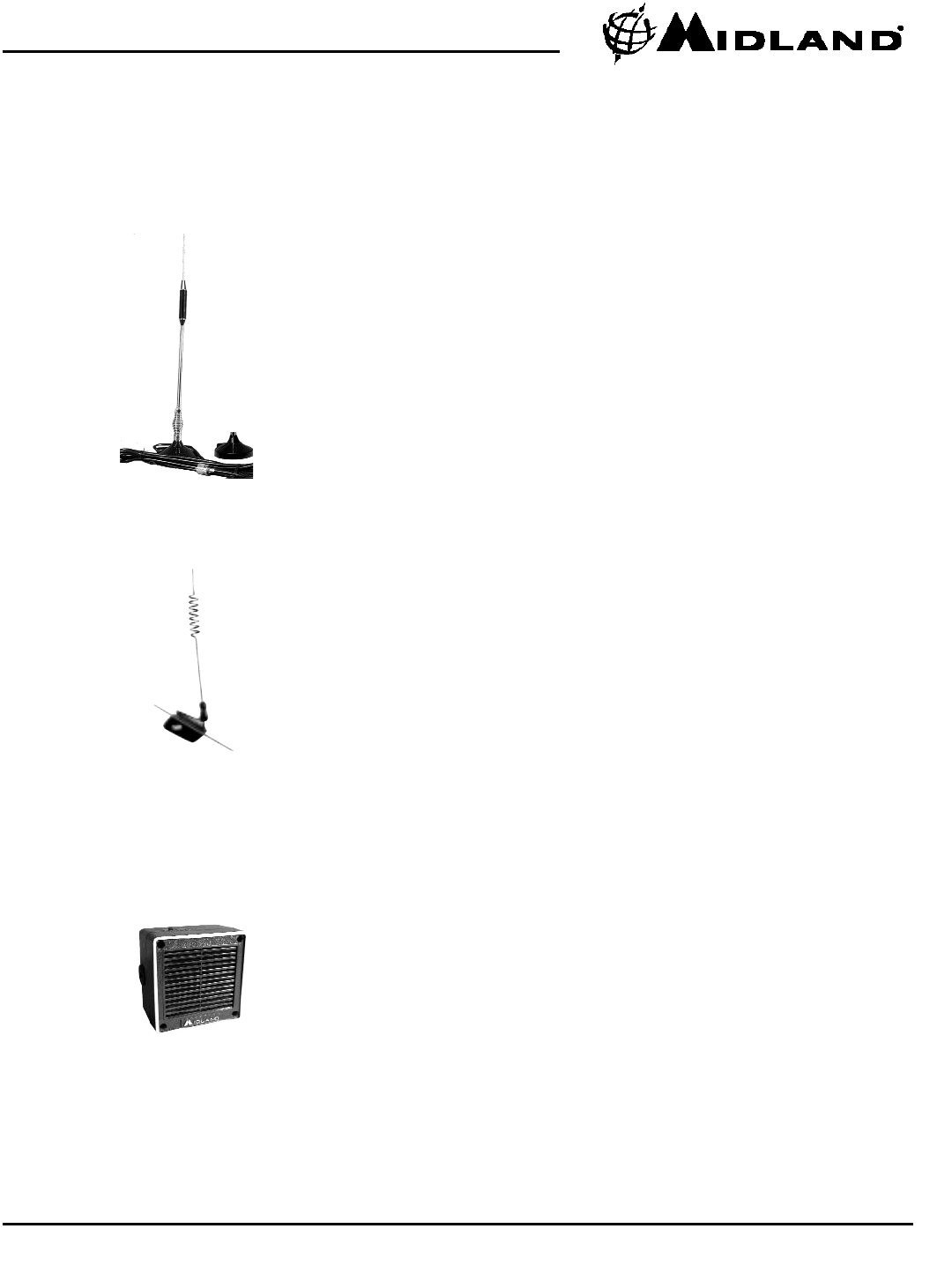

18-2442

CENTER LOAD MAGNETIC MOUNT MOBILE

CB ANTENNA

•

Center loaded with 17-7 stainless steel whip

•

Relief spring for minimizing whip damage

•

Plastic-coated base to prevent rust

•

Prewired, includes cable, connector

•

$17.99

CB EXTENSION SPEAKER

•

3" Dynamic speaker with switchable noise

filter

•

8-ohm

•

Swivel base

•

5-foot cable with plug

•

$19.99

18-258

WINDOW MOUNT 27 MHz CB ANTENNA

•

Special process transfers energy from one side

of glass to the other without the need of

wires.

•

Simple to install

•

Rod is 17-7 stainless steel with new BLACK-

KOTE finish

•

$19.99

21-404C

Page 13 www.midlandradio.com

Model 1001LWX Owner’s Manual

18-2442 $17.99

18-258 $19.99

21-404C $19.99

Midland Radio Cb With Weather Scanradio Scan Technology 1001Lwx Users Manual Manual.qxp

Navigation menu

Versions of this User Manual:

Views

Navigation
