Manual
PL2445 / PL2415
Operating Instructions
ProLine Series
About Topaz3
Topaz3 is the exclusive supplier of Maxon®, Legacy
and TruTalk brand communication products.
Our product line ranges from FCC licensed two-way
radios suitable for Business and Industry (B&I) markets
like farm, government, law enforcement, utility, etc. to
consumer recreational and light-duty business markets.
Product offerings include a variety of UHF and VHF
handheld and mobile radios, repeaters and RF link
modules as well as FRS (Family Radio Service), GMRS
(General Mobile Radio Service) radios, Citizen’s Band
radios and weather monitors.
Available accessory items include carrying cases, spare
batteries, desktop and mobile chargers, ear bud speaker
microphones and more for each radio model.
For additional information on our product line, visit our
website:
www.topaz3.com
Table of Contents
I. FCC RF Exposure Compliance Requirements -
for Occupational Use Only...................... 1
II. Unpacking and Checking Equipment............. 3
III. Getting Started........................................... 4
Charging the NiMH Battery Pack.................. 4
Attaching and Removing the Battery Pack....... 6
Installing the Antenna................................ 7
Installing the Belt Clip................................ 7
Installing the Speaker Mic. Jack Cover............ 7
Attaching the Optional Speaker Mic.............. 8
IV. Radio Control Buttons / Operation Features.... 9
V. Radio Operation........................................ 10
Power On / Transmit................................ 10
VI. CTCSS Tone Signaling............................... 11
VII. Radio Functions........................................ 11
Scan Modes.......................................... 11
Normal Channel Scan........................... 11
Nuisance Delete.................................... 12
Priority Channel Scan............................. 12
Busy Channel Lockout............................. 12
Marked Idle........................................... 13
TX Delay............................................... 13
Time-Out-Timer (TOT).............................. 13
Time-Out-Timer Penalty (TX Inhibit)............. 13
Battery Save........................................... 14
Low Battery Warning............................... 14
Two-Tone Decode.................................. 14
Table of Contents, cont’d
VIII. Licensing, Safety and Service Information... 15
FCC Licensing....................................... 15
Safety Information.................................. 15
Service................................................ 16
IX. Maintenance........................................... 16
X. Software Copyrights................................. 17
XI. Topaz3 / Legacy Product Warranty............. 18
I. FCC RF Exposure Compliance Requirements -
for Occupational Use Only
The Federal Communications Commission (FCC), with
its action in General Docket 93-62, November 7, 1997,
has adopted a safety standard for human exposure to
Radio Frequency (RF) electromagnetic energy emitted
by FCC regulated equipment. Topaz3 / Legacy subscribes
to the same safety standard for the use of its products.
Proper operation of this radio will result in user
exposure far below the Occupational Safety and Health
Act (OSHA) and Federal Communications Commission
limits.
CAUTION - DO NOT transmit for more than 50% of total
radio use time (50% duty cycle). Transmitting
more than 50% of the time can cause FCC
RF exposure compliance requirements to be
exceeded.
•This radio is NOT approved for use by the general
population in an uncontrolled environment. This radio
is restricted to occupational use, work related operations
only where radio operator must have the knowledge to
control the user’s exposure conditions for satisfying the
higher exposure limit allowed for occupational use.
•When transmitting, hold the radio in a vertical position
with its microphone 2 inches (5 cm) away from your
mouth. Keep the antenna at least 2 inches (5 cm) from
your head and body.
•This device has been approved for use, at a maximum
duty factor of 50%, using the specific belt clip tested for
body-worn SAR compliance. Other belt clips or body-
1
I. FCC RF Exposure Compliance Requirements -
for Occupational Use Only, continued
worn accessories may not comply and should be
avoided. ALWAYS use Maxon, Legacy and TruTalk
authorized accessories: antennas, batteries, belt clips,
speaker mics, etc.
•The radio is transmitting when the red LED on the
front of the radio is illuminated. You can cause the radio
to transmit by pressing the P-T-T bar on the radio.
•These are required operating configurations for meeting
FCC RF exposure compliance. Failure to observe these
restrictions mean violation.
2

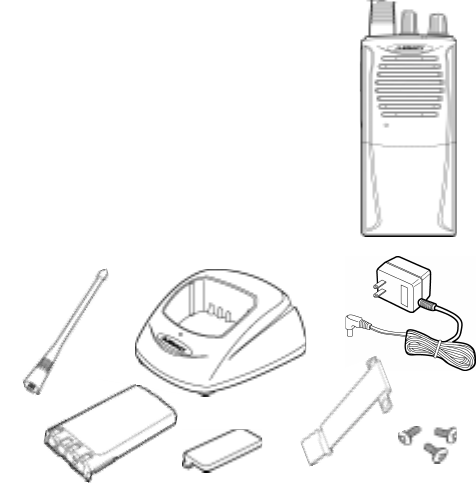

II. Unpacking and Checking Equipment
Carefully unpack the radio and its accessories. Use
the item list below to identify the components included
in the product packaging, to ensure that no items are
discarded in the packing materials.
Radio Body
Antenna
Battery Charger (with plastic spacer
stored in charger base)
AC Adapter
NiMH Battery Pack
Speaker Microphone Jack Cover
Belt Clip
Screw Set
Operating Instructions
If any items are missing or damaged, you should
contact the Topaz3 Customer Service Department.
Dial 1-800-821-7848, Ext. 499 for assistance.
3
III. Getting Started
Charging the NiMH Battery Pack
You will need to charge the battery pack fully before
initial use. For best results from your charging cycle,
follow these tips:
• Ensure the ambient temperature is between 41 and
104° F (5 and 40° C) while charging. Temperatures
outside this range may not fully charge the battery.
• Always switch OFF the transceiver equipped with
a NiMH battery pack before charging. Using the
radio during the charging cycle will hinder correct
charging.
• Do not recharge the battery pack if it is already
fully charged. Doing so may cause the life of the
battery pack to shorten or the battery pack may
be damaged.
• If the battery is stored for 2 months or more, it is a
good idea to complete the charge / discharge cycle
two or three times to allow the battery capacity
to return to normal.
• Never dispose of the battery in fire - it can explode
causing personal injury.
• Never attempt to disassemble the battery or remove
its case material or charging contacts. Do not short
the battery terminals.
4
5
III. Getting Started, continued
Charging the NiMH Battery Pack, continued
NOTE: The first few uses from the battery will not
be at “normal” capacity. After repeating the charge /
discharge cycle two or three times, the battery capacity
will increase to provide full capacity.
1. Plug the AC adapter cable in the adapter jack
located on the rear of the charger, then into
an AC outlet.
2. Slide the NiMH battery pack (or the radio equipped
with a NiMH battery pack) into the charging slot.
3. Ensure that the metal contacts on the battery pack
come in contact with the charging terminals.
4. When charging the NiMH battery pack alone, insert
the provided plastic spacer (stored in charger base)
into the charging well, then insert the battery pack.
5. The charger LED will light to advise that charging
has begun. Charge the standard battery pack for
9 hours. THEN REMOVE THE PACK OR RADIO
FROM THE CHARGER.
IMPORTANT NOTE: The charger DOES NOT
TURN OFF AUTOMATICALLY after the charging
cycle has been completed. Damage to the battery
or reduced battery life may result if charged in
excess of the recommended charging time.
III. Getting Started, continued
Attaching and Removing the Battery Pack
NOTE: After recharging the battery pack, REMOVE IT
FROM THE CHARGER. Charging the battery pack for
more than 5 days may reduce the battery life.
The battery pack life is over when its operating time
decreases even though it is fully and correctly charged.
Replace the pack with the manufacturer’s recommended
model.
Average battery pack life from the supplied 750 mAh
battery is 11+ hours; the optional 1350 mAh battery,
19+ hours. This service time is calculated using 90%
standby, 5% transmit and 5% receive time.
After charging the battery pack as described, you are
ready to install it to the radio body. Simply;
1. Match the four grooves of the battery pack with the
guides on the back of the radio.
2. Slide the battery pack up along the back of the radio
until the release latch locks.
To remove the battery pack, push down on the release
latch and slide the pack downward, and away from the
radio.
6
7
III. Getting Started, continued
Installing the Antenna
Screw the antenna into the connector on the top of the
radio by holding the antenna at its base and turning
it clockwise until seated. Do not overtighten.
The antenna should never be used to carry your radio, or
as a base to clip radio accessories. Misuse of the antenna
can cause damage, and reduce your radio’s performance.
Installing the Belt Clip
We recommend that the belt clip is installed on the
radio. It keeps the radio from coming in contact with
hot surfaces, and away from your body if heat build-up
occurs with excess transmissions.
Use the two supplied screws to install the belt clip. If
a replacement is needed, use a screw designed to the
exact specifications as the original, to prevent acciden-
tal contact with internal circuitry, or possible personal
injury. Never use glue in conjunction with the provided
screws. Some of the glue’s components may crack the
radio back panel, causing radio damage and possible
personal injury.
Installing the Speaker Microphone Jack Cover
If you are not using an accessory, install the provided
cover over the speaker microphone jack using the screw
supplied. This will keep the radio water resistant.
8
III. Getting Started, continued
Attaching the Optional Speaker Microphone
1. Insert the speaker microphone jack into the radio.
2. Use the thumbscrew attachment on the speaker
microphone to make connection to the radio.
NOTE: The radio is not fully water resistant while the
speaker microphone is attached.
9

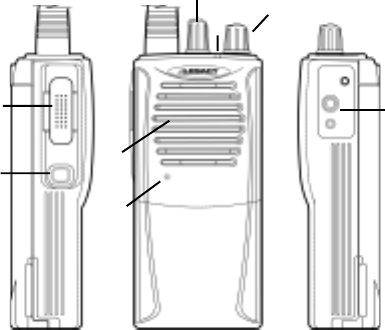

IV. Radio Control Buttons / Operation Features
A) Push-To-Talk (P-T-T) button (left side of radio) Press and
hold while speaking into the radio microphone, release to
listen to incoming messages
B) Monitor button (left side of radio) Press and hold to turn
radio squelch off. Release to turn squelch back on.
C) Microphone (front of radio)
D) Speaker (front of radio)
E) Channel selector knob (top panel of radio)
F) LED Indicator (top panel of radio) Identifies transmit
(red), receive (signal only) orange, (signal + TONE) green,
setup mode (orange), battery low (flashing red)
G) Power / volume control (top panel of radio) Powers radio
on and adjusts radio volume
H) Speaker microphone jack (right side of radio)
H
A
B
C
D
F
G
E
10
V. Radio Operation
Power On / Transmit
Power on the radio by turning the power / volume
control clockwise out of detent. You will hear a
confirmation tone on power-up. To adjust radio
volume, press and hold the monitor button then
rotate the control further clockwise.
Rotate the channel selector knob to choose the desired
channel.
To transmit, place the radio microphone approximately
2” (5 cm) from your mouth. Press and hold the P-T-T
bar while speaking in a normal tone. Release the P-T-T
bar when you are finished speaking; the radio will be
placed into receive mode.
When the battery pack voltage becomes too low for
operation to continue, the LED will blink red and a
tone will sound. The radio will allow only one more
transmission. Change or charge your battery. Refer to
“Low Battery Warning” on page 14.
11
VI. CTCSS Tone Signaling
To help block out unwanted calls to your radio, the
PL2445 and PL2415 can be programmed by your radio
communications Dealer to scan for tones.
VII. Radio Functions
Scan Modes
Scanning is a Dealer programmable feature that allows
you to monitor a number of channels or channels
within a Group. Your Dealer will help you define a
scanning mode and your channel "scan list".
Normal Channel Scan
Once the scan list has been established, initiate
scan by pressing and holding the monitor button
and rotating the channel selector knob to the “scan
enable” channel. The LED will blink green to
confirm radio scanning.
If a conversation is detected on any of the channels
in the scan list, the radio will stop on that channel
and you will be able to hear the conversation. In
normal scan, you will be able to transmit on that
active channel during the programmable scan delay
time. (The scan delay time is the amount of time
the radio will stay on that channel once activity has
ceased. Dealer programmable, 4 - 7 seconds is
typical).
12
VII. Radio Functions, continued
Normal Channel Scan, continued
The radio will resume scanning once the scan delay
time has expired, and will continue to scan until
the channel is changed. The LED will flash green.
In scan mode, if radio power is turned off and on,
the radio will return to the scan mode until a channel
is changed.
Nuisance Delete
During receiving a signal or scan delay time, if the
monitor button is pressed, the current receiving channel
is deleted in scan list and no longer scanned. When
the power is turned off and on, the deleted channel
is restored to the scan list.
Priority Channel Scan
A single channel may be programmed as the "Priority"
channel. The radio will constantly monitor this channel
while scanning and when stopped on an active channel.
If a call is detected on the priority channel, the radio
will automatically move to, and remain on, the priority
channel. Priority channel activity takes precedence over
all other conversations.
Busy Channel Lockout
When the RX signal is being received, the radio’s
transmitter is disabled. Dealer programming makes
this feature active or disabled.
VII. Radio Functions, continued
Marked Idle
When used in conjunction with busy channel lockout,
the transmitter is allowed to operate as long as valid
RX tone is received. Dealer programming makes this
feature active or disabled.
TX Delay
The TX will remain active for approximately 180
seconds even though P-T-T button is released when
using CTCSS tones. This eliminates squelch tail by
sending CTCSS turn-off code (No Tone TX).
Time-Out-Timer (TOT)
The purpose of the time-out-timer is to prevent any
single person from using a channel for an extended
period. The time-out-time can be programmed from
10 seconds to 990 seconds by your radio Dealer.
Time-Out-Timer Penalty (TX Inhibit)
When TOT is applied, transmission will be inhibited
after time-out-time time expires. This TX inhibit time
can be selected and programmed by your Dealer from
1 second to 100 seconds. For instance, when TOT is
set to 3 minutes and TOT penalty is set to 5 seconds,
if you continuously transmit for 3 minutes, the radio
will stop transmitting. A tone will sound with each
P-T-T bar press until the 5-sec. TX inhibit time expires.
13
14
VII. Radio Functions, continued
Time-Out-Timer Penalty (TX Inhibit), continued
Press the P-T-T bar after the TX inhibit time expires
to resume transmitting.
Battery Save
The battery save function decreases the amount of
power used when a signal is not being received and
no operations are being performed (no bars are
being pressed, no controls are being used, etc.)
When the channel is not busy and no operation is
performed, battery save is enabled. When an operation
is performed, or a signal is received, battery save is
disabled.
Low Battery Warning
When the battery power goes below a pre-determined
value, the LED will blink red and a tone sounds. The
radio will then allow only one more transmission. After
that, the transceiver will stop transmitting. Replace
or recharge the battery pack.
Two-Tone Decode
Each channel can be programmed with two-tone decode
by your Dealer. Two-tone selections are: Individual
Call, Group Call and Super Group Call.
15
VIII. Licensing, Safety and Service Information
FCC Licensing
The Federal Communications Commission requires
the operator of this radio be properly licensed under
the applicable Part and / or Parts of the FCC Rules
and Regulations.
Consult with your Topaz3 / Legacy radio communi-
cations Dealer, or contact the nearest FCC Field Office
for information about obtaining a license.
Safety Information
WARNING - DO NOT hold the radio in such a manner
that the antenna is next to, or touching,
exposed parts of the body, especially the
face or eyes, while transmitting.
WARNING - DO NOT allow children to operate trans-
mitter-equipped radio equipment.
CAUTION - DO NOT operate the radio near unshielded
electrical blasting caps or in an explosive
atmosphere, unless it is a type especially
designed and qualified for such use.
CAUTION - DO NOT press and hold the transmit bar
(P-T-T) when not actually wishing to
transmit.
16
IX. Licensing, Safety and Service Information, con’t
Service
Do not tamper with internal radio adjustments.
Damage to the equipment and / or improper operation
may result. There are no serviceable items inside the
radio. It is recommended that you return the radio to
a qualified Topaz3 / Legacy radio communications
Dealer for any service or repairs.
IX. Maintenance
Your Legacy radio is designed to be maintenance-free,
and can be kept in good working condition by:
•Cleaning all external surfaces with a clean cloth,
dampened in a mild solution of dishwasher
detergent diluted in water. Apply the solution
sparingly to avoid any moisture leaking into cracks
and crevices - NEVER submerge the radio. Use a
non-metallic brush if needed to dislodge stubborn
particles. Dry the radio surface thoroughly with a
soft, lint-free cloth.
•DO NOT use solvents or spirits for cleaning - they
may permanently damage the radio.
•Clean the battery and accessory jack contacts with
a lint-free cloth to remove dirt, grease or foreign
materials.
17
X. Software Copyrights
The Topaz3 / Legacy products described in these
operating instructions may include copyrighted
Topaz3 / Legacy software programs stored in semi-
conductor memories or other media. Laws in the
United States and other countries preserve for Topaz3 /
Legacy certain exclusive rights for copyrighted software
programs, including the exclusive right to copy or
reproduce in any form the copyrighted software
program.
Accordingly, the copyrighted Topaz3 / Legacy software
programs contained in the Topaz3 / Legacy product(s)
described in this operating instruction manual may not
be copied or reproduced without the express written
permission of Topaz3, LLC.
Furthermore, the purchase of Topaz3 / Legacy products
shall not be deemed to grant either directly or by
implication, estoppel, or otherwise, any license under
the copyrights, patents or patent applications of Topaz3,
LLC, except for normal non-exclusive, royalty-free
license to use that arises by operation of law in the
sale of a product.
18
XI. Topaz3 / Legacy Product Warranty
Topaz3, LLC (hereinafter referred to as Topaz3), warrants that its Products
and their included accessories will be free from defects in workmanship
and materials under normal use for a period of two (2) years (one (1) year
for included accessories), from the date of purchase by the original end user,
provided that the buyer has complied with the requirements stated herein.
This warranty is offered to the initial end user and is not assignable or
transferrable. Topaz3 is not responsible for any ancillary equipment which
is attached to or used in connection with Topaz3 / Legacy products.
If the Product fails to function under normal use because of manufacturing
defect(s) or workmanship during the warranty period above, it will be
replaced or repaired at Topaz3’s option at no charge when returned to
the place of purchase. The defective unit must be accompanied by proof
of the date of purchase in the form of a sales receipt.
The user is responsible for the payment of any charges or expenses incurred
for the removal of the defective product from the vehicle or other site of
its use, for the transportation of the product to the place of repair, for the
return of the repaired / replacement product to the site of its use and for
the reinstallation of the product.
Topaz3 shall have no obligation to make repairs or to cause replacement
required which results from normal wear and tear or is necessitated in
whole or in part by catastrophe, the fault or negligence of the user,
improper or unauthorized alterations, repairs to the Product, incorrect
wiring, use of the Product in a manner for which it was not designed,
or by causes external to the Product. This warranty is void if the serial
number is altered, defaced or removed.
Topaz3’s sole obligation hereunder shall be to replace or repair the product
covered in this Warranty. Replacement, at Topaz3’s option, may include a
19
XI. Topaz3 / Legacy Product Warranty, con’t
similar or higher-featured product. Repair may include the replacement of
parts or boards with functionally equivalent reconditioned or new parts or
boards. Replaced parts, accessories, batteries or boards are warranted for
the balance of the original time period. All replaced parts, accessories,
batteries or boards become the property of Topaz3, LLC.
THE EXPRESS WARRANTIES CONTAINED HEREIN ARE IN LIEU OF ALL
OTHER WARRANTIES, EITHER EXPRESSED OR IMPLIED OR STATUTORY,
INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANT-
ABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
FOR ANY PRODUCT WHICH DOES NOT COMPLY WITH THE WARRANTY
SPECIFIED, THE SOLE REMEDY WILL BE REPAIR OR REPLACEMENT. IN
NO EVENT WILL TOPAZ3, LLC. BE LIABLE TO THE BUYER OR ITS
CUSTOMERS FOR ANY DAMAGES, INCLUDING ANY SPECIAL, INCIDEN-
TAL, INDIRECT OR CONSEQUENTIAL DAMAGES, OR THE LOSS OF
PROFIT, REVENUE OR DATA ARISING OUT OF THE USE OF OR THE
INABILITY TO USE THE PRODUCT.
This warranty is void for sales and deliveries outside of the U.S.A.
Maxon is a registered tradename of Maxon America, Inc.
Topaz3, LLC
10828 NW Air World Drive
Kansas City, Missouri 64153
www.topaz3.com
Toll free: 800-821-7848
Phone: 816-891-6320 • Fax: 816-891-8815
Printed in Korea P/N: 680-090-2021
Supplier of Maxon, Legacy
and TruTalk Communication Products
®
