Miele & Cie. KG WLAN Module Miele EHS Device Specification

user manual

Miele@home
Manual for
EK038
USA/CDN Market
Version 1.5
Manual for EK038 USA/CDN
Version: 1.5
EK038 ZigBee ® Module
Date: 20/09/2016
Manual_EK038_USA_CDN_1.5.docx
2015 Miele&Cie. KG
Page 2 of 7
Revision History
Date
Version
Author
Department
03.09.2015
1.0 Draft
F. Laube
GTE/SKT
10.06.2016
1.1
F. Laube
GTE/DPS
20.06.2016
1.2
F. Laube
GTE/DPS
14.09.2016
1.3
L. Merkel
GTE/DPS
15.09.2016
1.4
Chr. Bömke
GTE/DPS
20.09.2016
1.5
L. Merkel
GTE/DPS
Reviewed By
Date
Version
Name
Department
09.09.2014
1.0 Draft
G. Borgelt
GTE/TL
15.09.2016
1.4
G. Borgelt
L. Merkel
GTE/TL
GTE/DPS
20.09.2016
1.5
G. Borgelt
GTE/TL
Approvals
Date
Version
Name
Department
Manual for EK038 USA/CDN
Version: 1.5
EK038 ZigBee ® Module
Date: 20/09/2016
Manual_EK038_USA_CDN_1.5.docx
2015 Miele&Cie. KG
Page 3 of 7
Contents
1. General 4
2. Technical data EK038 4
3. Norms / Standards 5
3.1 FCC / IC 5
3.2 Safety 5
3.3 RF-Standard 5
3.4 Photos and Labels 6
4. Regulatory Notice 6
4.1 United States (FCC Notice) 6
4.2 Canada (IC Notice) 7
Manual for EK038 USA/CDN
Version: 1.5
EK038 ZigBee ® Module
Date: 20/09/2016
Manual_EK038_USA_CDN_1.5.docx
2015 Miele&Cie. KG
Page 4 of 7
1. General
The EK038 is a wireless network interface module for Miele domestic appliances like hoods, hobs,
cooling devices or washing machines. The module supports the IEEE 802.15.2 ZigBee ® standard.
The EK038 module is designed to solder on PCB during manufacturing. The Module will only be used
in Miele domestic appliances.

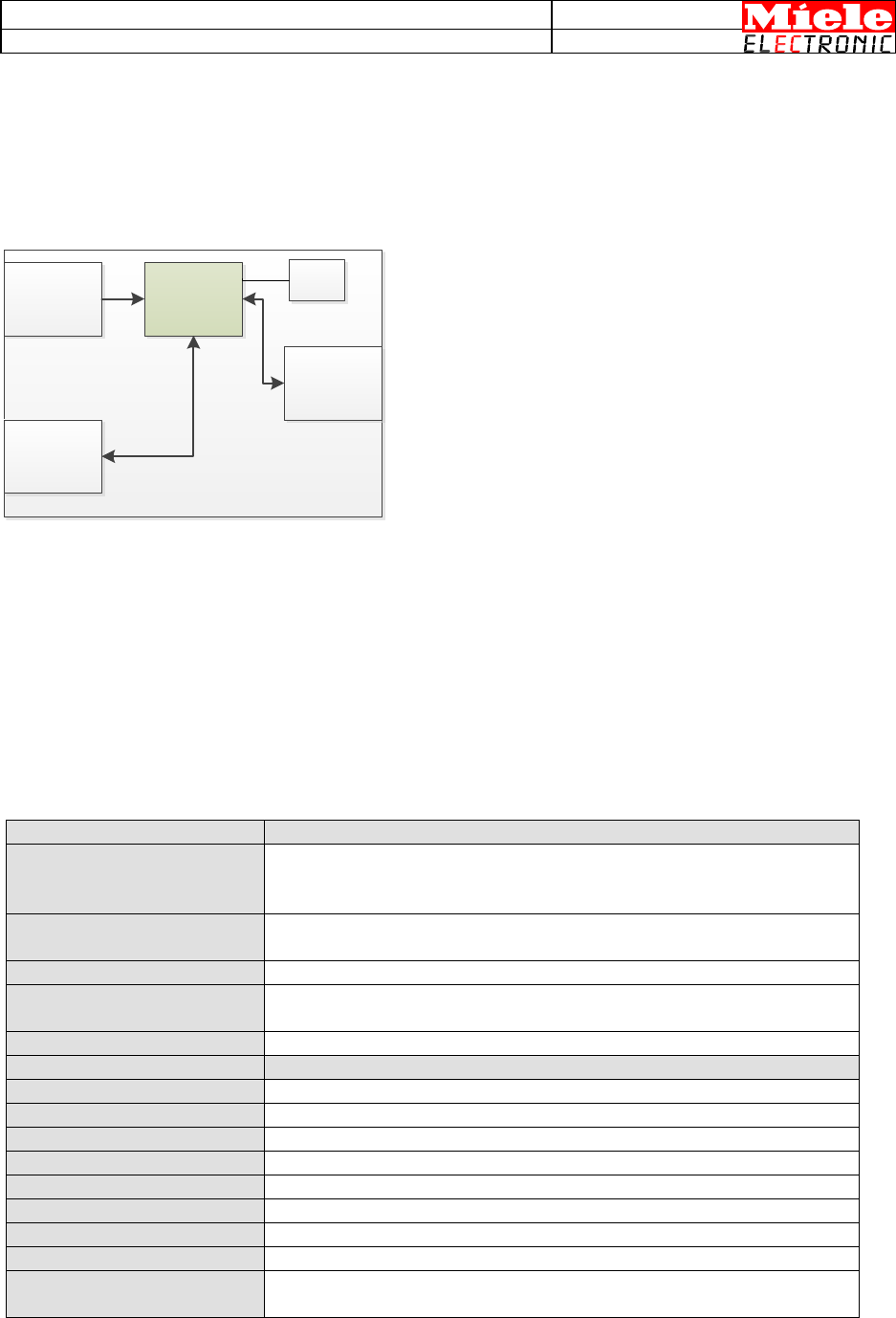

Block Schematic
3,3V
Voltage
Regulator inside
the SoC)
SingleChip
Zigbee
Transceiver
PCB-Antenna
with antenna-
Network
Home appliance
Interface
3,3V
EK038
Crystal
32MHz
Operational Description
The EK038 is based on CC2538 ZigBee SOC Controller and has a board design in stamp form factor.
The Chip controls the IEEE 802.15.4 RF and handles the ZigBee stack. The Chip also handles the
connection to the domestic appliance via a serial link and Miele protocol.
Integration instruction
The EK038 must be integrated under consideration of the technical data. It is not allowed to make any
changes on the module or to use another antenna. The module should be placed in an area with good
RF performance.
2. Technical data EK038
VCC in V
3,15 min.
3,3 typical
3,45 max.
Current in mA
38 typical
60 max.
Ambient temperature in °C
0 – 105
Humidity max
90%
non condensation
Dimension in mm
30/27
wireless
MCU/RF IC
CC2538
Input
double buffered interface (CC2538)
Antenna type
PCB inverted F
Antenna gain
2 dB
Crystal Input Clock
32 MHz
RF Frequency
2.45 GHz
Channels
11 to 26
Channel Frequencies
2,405 GHz – 2,480 GHz
Transmission Power
in mW
<10
Manual for EK038 USA/CDN
Version: 1.5
EK038 ZigBee ® Module
Date: 20/09/2016
Manual_EK038_USA_CDN_1.5.docx
2015 Miele&Cie. KG
Page 5 of 7

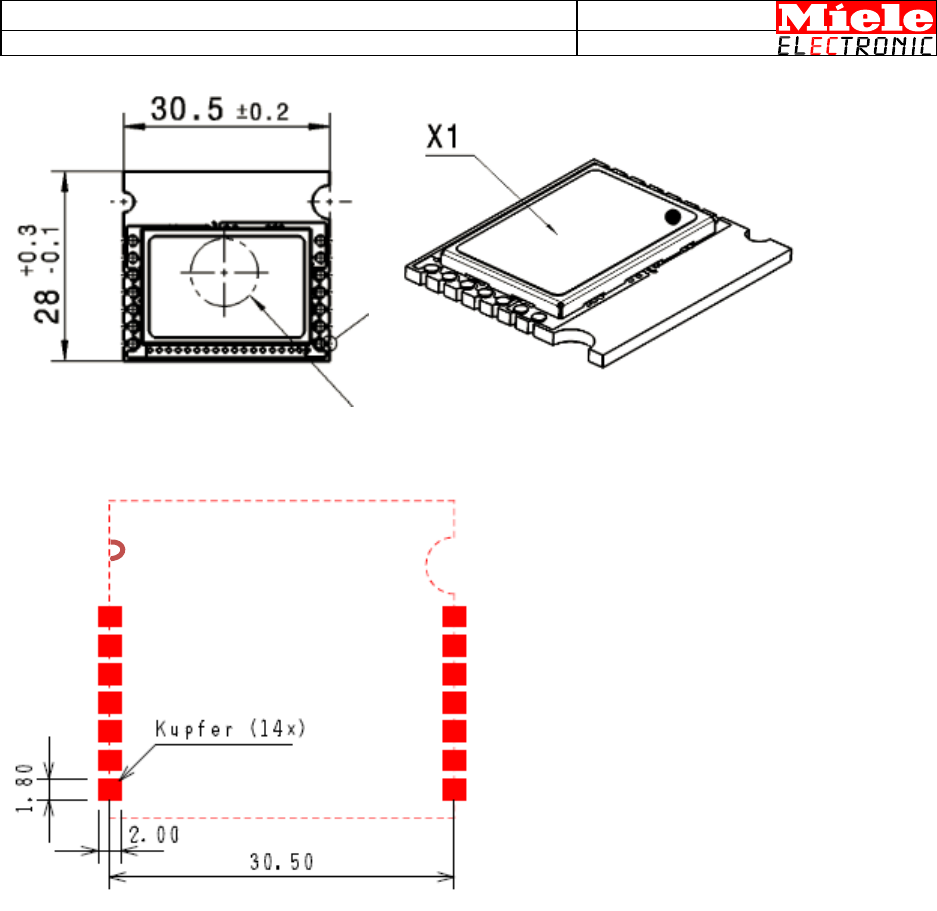

Footprint
3. Norms / Standards
3.1 FCC / IC
FCC Regulation Part 15.109, Part 15.209 and Part 15.247
IC regulations RSS-Gen Issue 4 and RSS-247 Issue 1
3.2 Safety
UL 60730-1A, CAN/CSA E60730-1:02+A1:2007
CSA Certificate 70009686
3.3 RF-Standard
The modules use the RF standard IEEE 802.15.4 ZigBee
Manual for EK038 USA/CDN
Version: 1.5
EK038 ZigBee ® Module
Date: 20/09/2016
Manual_EK038_USA_CDN_1.5.docx
2015 Miele&Cie. KG
Page 6 of 7

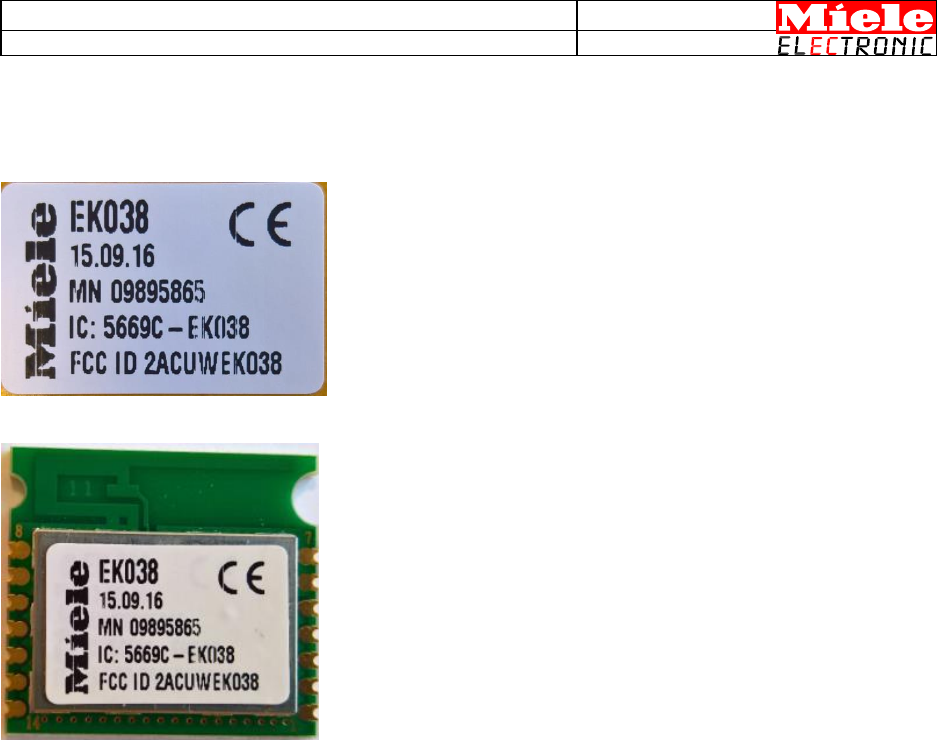

3.4 Photos and Labels
24 mm x 14 mm
EK038 Top View
4. Regulatory Notice and Integration
4.1 United States (FCC Notice)
FCC ID: 2ACUWEK038
In accordance with FCC Part 15, the 2ACUWEK038 is listed as a Modular Transmitter Device.
FCC CAUTION:
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This device complies with Part 15 of FCC Rules. Operation is Subject to following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference that cause undesired
operation.
FCC STATEMENT:
This equipment has been tested and found to comply within the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
Manual for EK038 USA/CDN
Version: 1.5
EK038 ZigBee ® Module
Date: 20/09/2016
Manual_EK038_USA_CDN_1.5.docx
2015 Miele&Cie. KG
Page 7 of 7
• Connect the equipment into an outlet on a different circuit from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help.
USERS MANUAL OF THE END PRODUCT:
The end user has to be informed that any changes or modifications not expressly
approved by the manufacturer could void the user's authority to operate this equipment. If the size of
the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be
available in the user’s manual: This device complies with Part 15 of FCC rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference and (2) this device
must accept any interference received, including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains FCC ID:
2ACUWEK038 ". If the size of the end product is larger than 8x10cm, then the following FCC part
15.19 statement has to also be available on the label: This device complies with Part 15 of FCC
rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference that may
cause undesired operation.
4.2 Canada (IC Notice)
IC: 5669C-EK038
The term “IC” before the radio certification number only signifies that Industry Canada technical
specifications were met. Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
LABEL OF THE END PRODUCT
The final end product must be labeled in a visible area with the following " Contains IC : 5669C-
EK038".
This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit
pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
4.3 Integration
This EK038 Module will only be integrated on our responsibility into Miele appliances/endproducts.
The final products, including the integrated radio module, have to show compliance to the FCC /IC
requirements.
Appropriate measurements (e.g. 15 B compliance) and if applicable additional equipment
authorizations (e.g. Verification, Doc) of the final endproducts will be addressed by Miele & Cie. KG.
