Operating instructions

for condenser tumble dryer

T 9246 C

To avoid the risk of accidents

or damage to the appliance

it is essential to read these

instructions before it is installed

and used for the first time. M.-Nr. 06 731 710

en-GB

Disposal of the packing

material

The transport and protective packing

has been selected from materials which

are environmentally friendly for disposal

and can normally be recycled.

Ensure that any plastic wrappings, bags

etc. are disposed of safely and kept out

of the reach of babies and young

children. Danger of suffocation!

Rather than just throwing these

materials away, please ensure they are

offered for recycling.

Disposal of your old appliance

Electrical and electronic appliances

often contain materials which, if handled

or disposed of incorrectly, could be

potentially hazardous to human health

and to the environment. They are,

however, essential for the correct

functioning of your appliance. Please

do not therefore dispose of your

appliance with your household waste.

Please dispose of it at your local

community waste collection / recycling

centre or contact your Dealer for

advice. Ensure that it presents no

danger to children while being stored

for disposal.

Energy saving tips

To avoid unnecessarily long drying

times and high consumption of energy:

–Make sure that your laundry is

thoroughly spun before drying.

The higher the spin, the greater the

savings that can be made in energy

and time during drying.

–Load according to the optimum

amount of laundry recommended for

the programme being used (see

Programme chart).

Underloading is uneconomical.

Overloading gives a poorer quality of

drying and may cause unnecessary

creasing.

– Make sure the room in which the

dryer is located is well ventilated.

– Make sure the fluff filters are clean

before using the dryer.

– Check the condenser unit from time

to time and clean it when necessary.

Caring for the environment

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Operating the tumble dryer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

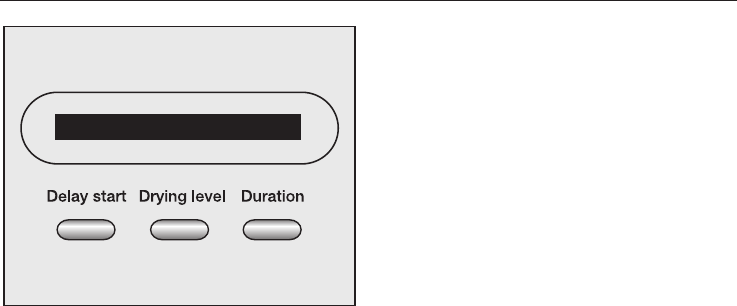

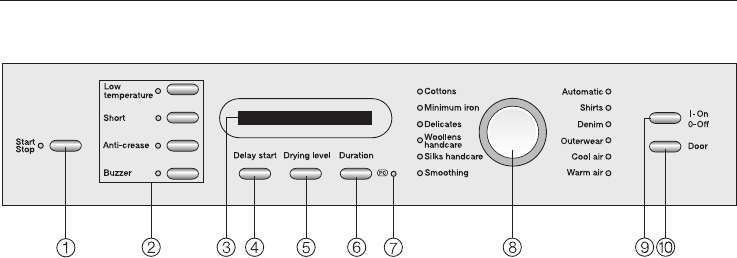

Control panel .....................................................10

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Notes on laundry care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Care symbols .....................................................13

Tips on drying ....................................................13

How to dry correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Brief instructions ..................................................14

Extra options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Low temperature ..................................................17

Short............................................................17

Anti-crease.......................................................17

Buzzer ..........................................................17

Delay start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Changing the programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Once a programme has started.......................................23

- changing the programme ........................................23

- cancelling the programme and then selecting a different programme .....23

- cancelling the programme and then removing the laundry ..............23

Adding or removing laundry after a programme has started.................23

Time remaining ...................................................23

Contents

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Emptying the condensed

water container....................................................24

Cleaning the fluff filters..............................................25

Cleaning them whilst dry .........................................25

Cleaning them with water .........................................26

Cleaning the tumble dryer ...........................................27

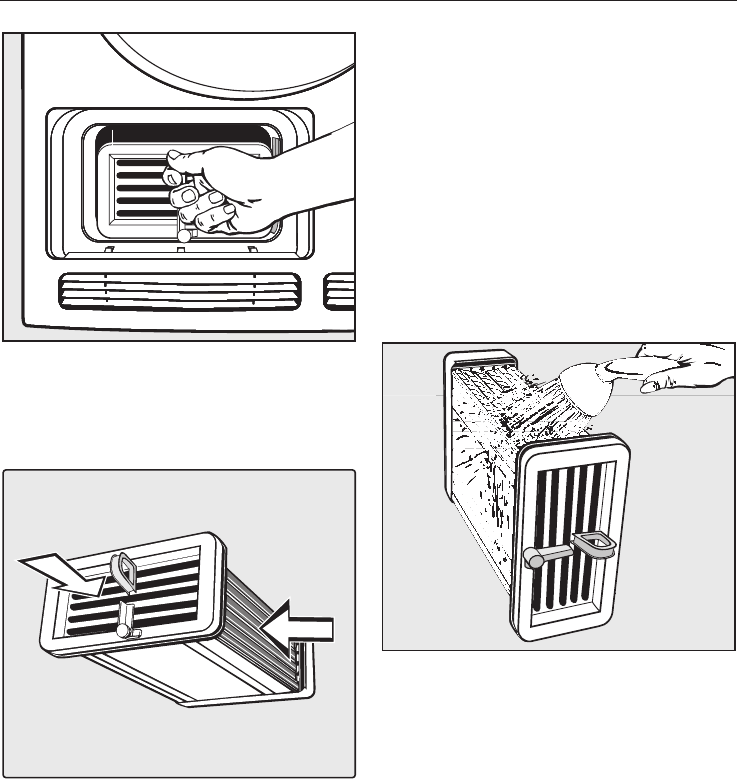

Cleaning the condenser unit .........................................28

Removing the condenser unit......................................28

Checking the condenser unit ......................................29

Cleaning the condenser unit ......................................29

Replacing the condenser unit......................................30

Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Fault messages in the display ........................................31

Other problems ...................................................33

Changing the lamp ................................................36

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Repairs..........................................................37

Future updates (PC)................................................37

Guarantee .......................................................37

Optional accessories ...............................................37

Installation and connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

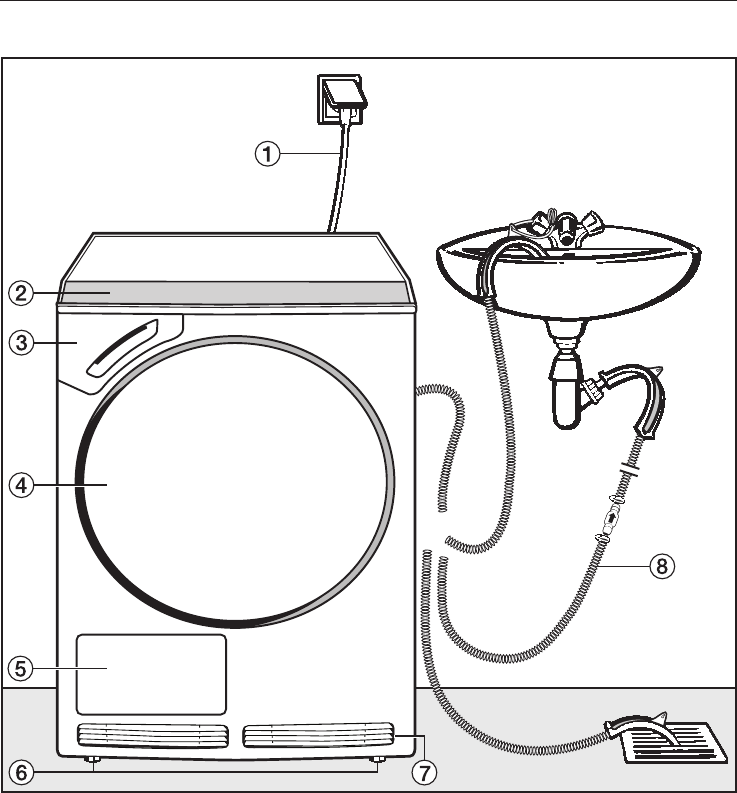

Frontview........................................................38

Rearview........................................................39

Installation site ....................................................39

Transporting the machine to its installation site ........................39

Levelling the machine............................................40

Room ventilation ................................................40

Before moving the machine again

(e.g. when moving house).........................................40

External condensed water outlet ......................................41

Arranging the drain hose .........................................41

External drainage via a sink or gully ................................42

Installation conditions requiring a non-return valve .....................42

Contents

Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Electrical connection U.K. ...........................................44

Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

To access programmable functions ...................................48

Language J......................................................48

Drying level cottons ................................................49

Drying level min. iron ...............................................49

Extended cool down ...............................................49

Airways indicator ..................................................49

Lock code .......................................................50

Buzzer ..........................................................51

Keypad tone......................................................51

Contrast .........................................................51

Brightness .......................................................51

Standby .........................................................51

Memory .........................................................51

Contents

~It is essential to read these

instructions.

This tumble dryer conforms to

current safety requirements.

Inappropriate use can, however, lead

to personal injury and damage to

property.

To avoid the risk of accidents and

damage to the tumble dryer, please

read these instructions carefully

before using it for the first time. They

contain important information on its

safety, installation, use and

maintenance.

Keep these instructions in a safe

place and ensure that new users are

familiar with the content. Pass them

on to any future owner.

Correct application

~This tumble dryer is only intended

for drying fabrics which have been

washed in a water solution, and marked

on the manufacturer's care label as

being suitable for tumble drying.

"Dry cleaning kits" for freshening up

garments in a tumble dryer are

increasingly available on the market. If

using, do so at your own risk, and follow

the instructions provided on the

packaging.

Any other applications may be

dangerous. Miele cannot be held liable

for damage resulting from incorrect or

improper use or operation.

~This appliance is not intended for

use by persons (including children) with

reduced physical, sensory or mental

capabilities, or lack of experience or

knowledge, unless they are supervised

whilst using it or have been shown how

to use it by a person responsible for

their safety.

Safety with children

~Keep children away from the tumble

dryer at all times. It is not a toy! To avoid

the risk of injury do not allow them to

play on or near it or to play with its

controls. Supervise children whilst you

are using it.

~Older children may only use it if its

operation has been clearly explained to

them, and they are able to use it safely,

recognising the dangers of incorrect

use.

Warning and Safety instructions

Technical safety

~Before setting up the tumble dryer,

check it for any externally visible

damage.

Do not install or use a damaged tumble

dryer.

~Before connecting the tumble dryer,

ensure that the connection data on the

data plate (voltage and connected

load) match the mains electricity

supply. If in any doubt, consult a

qualified electrician.

~The electrical safety of this tumble

dryer can only be guaranteed when

continuity is complete between it and

an effective earthing system which

complies with current local and national

safety regulations. It is most important

that this basic safety requirement is

present and regularly tested, and where

there is any doubt the household wiring

system should be inspected by a

qualified electrician. Miele cannot be

held liable for the consequences of an

inadequate earthing system (e.g.

electric shock).

~Do not connect the tumble dryer to

the mains electricity supply by an

extension lead. Extension leads do not

guarantee the required safety of the

tumble dryer (e.g. danger of

overheating).

~Unauthorised repairs could result in

unforeseen dangers for the user, for

which Miele cannot accept liability.

Repairs should only be undertaken by a

Miele approved service technician.

Ensure current is not supplied to the

tumble dryer until after maintenance or

repair work has been carried out.

~Faulty components must only be

replaced by genuine Miele original

spare parts. Only when these parts are

fitted can the safety standards of the

tumble dryer be guaranteed.

~If the connection cable is faulty it

must only be replaced by a Miele

approved service technician to protect

the user from danger.

~In the event of a fault or for cleaning

purposes, the tumble dryer is only

completely isolated from the electricity

supply when:

– it is switched off at the wall socket

and the plug is withdrawn, or

– it is switched off at the mains, or

– the mains fuse is disconnected, or

the screw-out fuse is removed (in

countries where this is applicable).

~This tumble dryer may only be used

in mobile installations such as ships if a

risk assessment of the installation has

been carried out by a suitably qualified

engineer.

~In countries where there are areas

which may be subject to infestation by

cockroaches or other vermin, pay

particular attention to keeping the

tumble dryer and its surroundings in a

clean condition at all times. Any

damage which may be caused by

cockroaches or other vermin will not be

covered by the guarantee.

~Do not make any alterations to the

tumble dryer, unless authorised to do

so by Miele.

Warning and Safety instructions

Correct use

~To prevent the risk of fire, the

following textiles must not be dried in

this tumble dryer:

–items which have not been washed.

–items, such as workwear, which have

not been thoroughly cleaned and

which are still soiled with grease, oil

or other desposits (such as

cosmetics, lotions etc).

If items have not been thoroughly

cleaned there is a danger that these

might ignite when heated, even after

they have been removed from the

dryer at the end of the programme.

– items which have been treated with

inflamable cleaning agents or

contain residues of acetone, alcohol,

benzine, petrol, stain remover,

turpentine, wax, wax remover or other

chemicals (e.g. mops and floor

cloths).

– items which have been splashed with

hair lacquer, hair spray, nail varnish

remover or similar substances.

When washing such heavily soiled

items ensure that you use sufficient

detergent and select a high

temperature. If in doubt, wash the

items several times.

~To prevent the risk of fire, the

following must not be dried in this

tumble dryer:

–fabrics which contain a large

proportion of rubber, foam rubber or

rubber-like materials. For example,

products made from latex foam

rubber, shower caps, waterproof

textiles, rubberised articles and items

of clothing and pillows with foam

rubber filling.

–items which contain padding or

fillings (e.g. pillows, jackets). If these

were damaged the filling could get

out with the risk of igniting in the

dryer.

~In many programmes, the heating

phase is followed by a cooling down

phase to ensure that the items are not

too hot to handle when you remove

them (this also avoids the danger of the

laundry self-igniting). The programme is

not finished until the cooling down

phase is complete.

Ensure that you always wait until the

end of the programme before removing

the laundry.

~Warning: Do not switch the tumble

dryer off before the end of the drying

programme. If this was done and the

laundry was then removed immediately,

it could give off a great amount of heat.

~Fabric conditioner and similar

products must be used according to

the instructions on the manufacturer's

packaging.

Warning and Safety instructions

~The dryer must not be used without

the fluff filters in place or if the fluff filters

are damaged in any way.

~The fluff filters must be cleaned

regularly.

~The dryer must not be used without

the condenser unit in place.

~The fluff filters must be thoroughly

dried after cleaning. Damp or wet filters

could cause operational faults.

~Do not install the tumble dryer in a

room where there is a risk of frost

occurring. At temperatures around

freezing point the tumble dryer may not

be able to operate properly.

There is a risk of damage if the

condensed water is allowed to freeze in

the pump, hoses and / or condensed

water container.

The ambient room temperature should

be between +2°C and +35°C.

~If the water is drained externally

through the drain hose instead of being

collected in the condensed water

container, make sure the drain hose is

securely attached if you hang it in a sink

or basin to avoid the hose slipping and

the water causing damage.

~Condensed water is not drinking

water.

It can cause health problems in both

people and animals.

~Always keep the area around the

tumble dryer free of dust and fluff. Dust

drawn into the tumble dryer can cause

blockages in the condenser unit over

time.

~Do not let anyone sit or lean on the

door, as this can cause the tumble

dryer to tip up.

~Always close the door after use. This

way you will avoid the danger of:

–children climbing onto or into the

dryer or hiding things in it.

–pets or other small animals climbing

into it.

~The tumble dryer must not be hosed

down.

Accessories

~Only use genuine Miele spare parts

and accessories with this appliance.

If non-Miele parts are used, guarantee,

performance and product liability

claims may be invalidated.

Miele cannot be held liable for

damage caused by non-compliance

with these Warning and Safety

instructions.

Warning and Safety instructions

Control panel

aStart/Stop button

For starting the programme selected

and cancelling a programme once it

has started.

The indicator light flashes while a

programme is being selected and

then is on constantly when the

programme has started.

bExtras buttons

Various extra options can be added

to the drying programmes.

cDisplay

See the following pages for more

information.

dDelay start button

For selecting delay start.

eDrying level button

For selecting the drying level.

fDuration button

For selecting the duration for the

Cool air and Warm air programmes.

gPC / Optical interface

This is used by service technicians to

run diagnostic checks on your

machine and can also be used to

update programming data in the

future.

hProgramme selector

The indicator light shows which

programme has been selected.

iI-On/0-Off button

To switch the machine on or off or to

interrupt a programme.

jDoor button

Pressing this button will open the

door even when the machine is

switched off at the mains.

Operating the tumble dryer

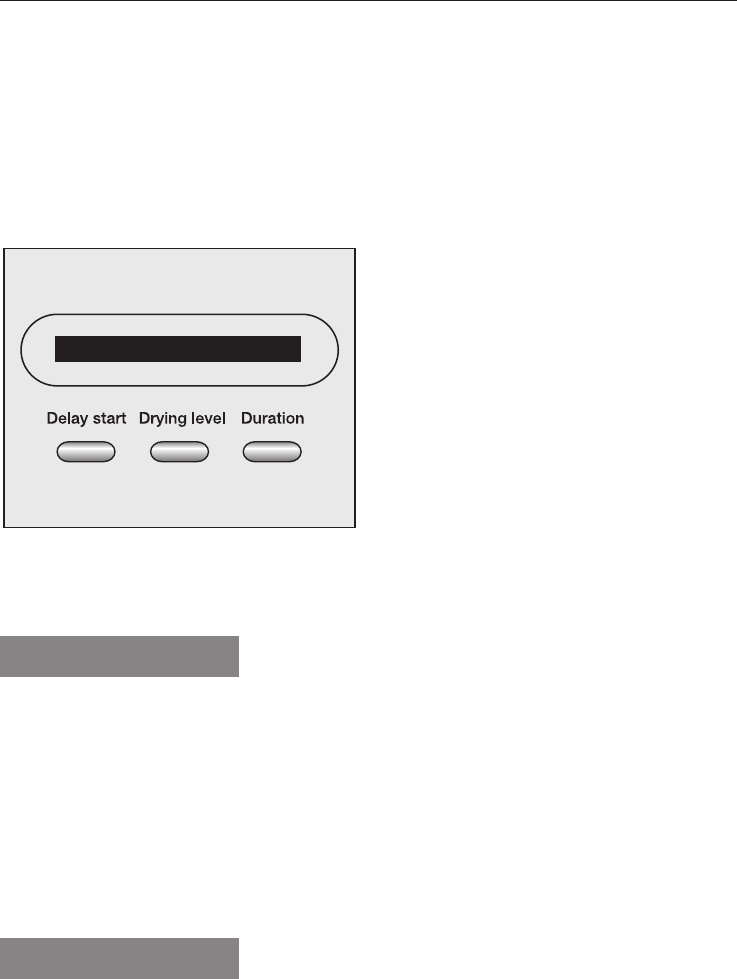

The following are selected via the

display:

– delay start

– drying level

– duration of the Cool air and Warm air

programmes

– programmable functions

The display also shows:

– programme duration

–fault and error messages

Programme duration / Estimated time

remaining

When a programme is selected, the

estimated duration (time remaining) will

appear in the display. Please be aware

that it is only an estimate!

The following factors all affect the

estimated time remaining: residual

moisture content after spinning; type of

fabric; size of load; room temperature;

fluctuations in power supply.

The electronics continually assess

conditions in the machine and adjust

the estimated time remaining for a more

accurate reading. Because of this, the

time displayed can alter during the

course of a programme.

In the same way, the Woollens

handcare, Silks handcare and

Smoothing programmes can finish

earlier than expected if a certain

temperature is reached. This can

happen with particularly fine fabrics,

very small loads or if items were partly

dry beforehand.

Delay start

The delay start time selected will

appear in the display.

After the Start/Stop button has been

pressed, the delay start time will start

counting down.

Once the delay start time has elapsed,

the programme will begin and the

estimated programme duration will

appear in the display.

Programmable functions

The programmable functions can be

used to tailor drying programmes to suit

your individual requirements. In

programming mode, the display will

show the function selected.

Operating the tumble dryer

When the tumble dryer is switched on

for the first time, the welcome screen

will appear.

The welcome screen will not appear

again once a programme lasting longer

than 1 hour has been completed.

The display for setting the language will

appear.

Setting the language

You need to select the language you

require for the display.

You can select a different language

from the one shown.

It is also possible to change the

language at any time via the

programmable functions.

Fenglish

^Turn the programme selector until the

language you require apears in the

display.

^Confirm your selection by pressing

the Start/Stop button.

^You can now load the laundry into the

dryer and select a programme as

described in "How to dry correctly".

Before using for the first time

Care symbols

Before drying check the drying symbol

on the care label. If there are no

symbols, dry at your own risk!

q.........Dryatnormaltemperature

r............Dryatlowtemperature

s...............Donottumble dry

Tips on drying

–Always observe the maximum

recommended loads given in the

"Programme chart". Never overload

the drum.

Overloading can cause unnecessary

wear and tear to the laundry, give a

disappointing drying result and

cause more creasing.

– Do not put soaking wet items into the

tumble dryer. Spin them thoroughly

after washing using the appropriate

spin speed.

–For delicates and fabrics with the

following care label rselect Low

temperature.

–Use the Automatic programme for

drying mixed loads of cottons and

minimum iron fabrics.

–Open jackets so that they can dry

evenly.

–Woollens and wool blends tend to

become matted and shrink if dried in

a tumble dryer. They can, however,

be partially dried using the Woollens

handcare programme.

–Down-filled garments have linings

which have a tendency to shrink,

depending on the quality of the item.

They can be partially dried using the

Smoothing programme.

–Pure linen should only be machine

dried if specified as suitable by the

manufacturer on the care label, as

the surface of the fabric may

otherwise become rough. They can

be partially dried using the

Smoothing programme.

–Loopknit garments (e.g. T-shirts and

underwear) tend to shrink depending

on their quality. Do not over-dry these

textiles. When purchasing these

garments it is advisable to take their

shrinkage properties into account.

– For garments made from very fine

weave fibres, such as shirts or

blouses, only use the Shirts or

Delicates programme to avoid

creasing. If in doubt, reduce the load

or use the Smoothing programme.

–Starched laundry can be dried in the

tumble dryer. To achieve the usual

finish, double the amount of starch

should be used.

–New dark coloured garments should

be washed and dried separately from

light coloured garments to avoid the

danger of colours running and

discolouring other garments or even

plastic components in the appliance.

Dark coloured fibres can also settle

on light coloured garments and vice

versa.

Notes on laundry care

Brief instructions

The headings numbered (A,B,C...)

show the operating sequence and can

be used as a brief guide to using your

dryer.

ASort the laundry

To ensure an even drying result

separate out the washed laundry and

sort it according to:

. . . the drying level required

. . . the type of fibre or weave

. . . size

. . . the moisture content after spinning.

,Make sure that objects e.g.

detergent dispensing balls have

been removed from the laundry.

They could melt, and cause damage

to the dryer or the laundry.

– Check seams and stitching to ensure

that padding and linings are intact.

– Fasten duvet covers and pillow cases

to prevent small items from being

trapped inside them.

–Fasten hooks and eyes etc.

–Tie fabric belts and apron strings.

–Sew in or remove underwiring from

bras.

BTurn on the tumble dryer

^Switch the dryer on by pressing the

I-On/0-Off button in.

The tumble dryer may be switched on

after loading, saving energy as the light

will not come on.

CLoad the tumble dryer

^Press the Door button to open the

door.

^Load the laundry loosely into the

drum.

Do not overload the drum. See the

"Programme chart" for recommended

loads for each programme.

Overloading can cause unnecessary

wear and tear to the laundry and

give a disappointing drying result.

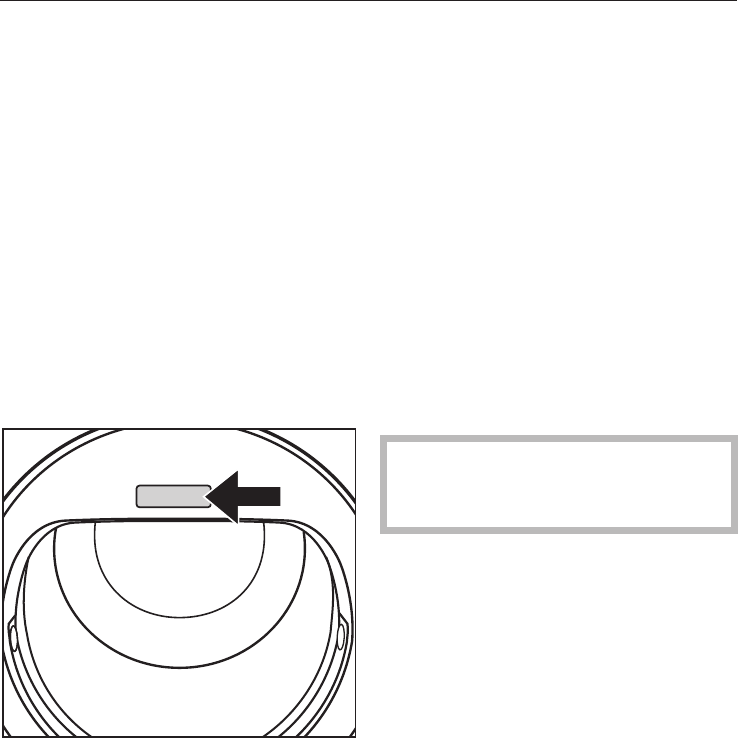

^Before closing the door make sure

the fluff filter is correctly positioned.

Check the laundry is right inside the

drum so that it cannot get trapped or

damaged when the door is shut.

^Shut the door either with a gentle

swing, or lean against it and push it

shut.

How to dry correctly

DSelect a programme

^Select the programme you want.

The indicator light for the programme

selected will light up and the

programme name will appear in the

display.

Programmes with drying levels:

Cottons, Minimum iron, Delicates,

Automatic, Shirts, Denim and

Outerwear

1:29 Normal

^Press the Drying level button

repeatedly until the drying level you

want appears in the display.

Any of the drying levels can be

selected for the Cottons programme. A

more limited range is available when

using other programmes.

Important: Please note that the

programme duration shown in the

display, will vary according to the

programme selected (see "Programme

duration / Estimated time remaining").

You cannot alter the drying level of the

Woollens handcare, Silks handcare and

Smoothing programmes.

Cool air and Warm air programmes

Duration 2:00

^Select the duration (from 15 minutes

up to 2 hours) by pressing the

Duration button.

ESelect any Extra options / Delay

start

Extra options

^Select the extra option you want by

pressing the appropriate button (see

"Extra options" for more details).

Delay start

^Select delay start by pressing the

Delay start button (see "Delay start"

for more details).

How to dry correctly

FStart the programme

The indicator light for the Start/Stop

button will flash when a programme is

being selected. The flashing indicates

that a programme can be started.

^Press the Start/Stop button.

The indicator light for the Start/Stop

button will now light up constantly.

Drying will appear in the display and

the time remaining will start counting

down.

With programmes with drying levels,

e.g. Machine iron,Hand iron etc. the

drying level reached will be shown in

the display later on.

Before the end of a programme

There is a cooling down phase at the

end of the drying sequence: Cooling

down will appear in the display. The

programme will not finish until the

cooling down phase has been

completed.

There is no cooling down phase at the

end of the Woollens handcare, Silks

handcare and Smoothing programmes.

GRemove the laundry when the

programme has finished

Anti-crease (if selected) and Finish will

appear in the display to indicate that

the programme has finished. The

buzzer (if selected) will sound at

intervals.

^Press the Door button to open the

drum door.

^Remove the laundry.

Check that all items have been

removed from the drum. If items are

left in the dryer, they could be

damaged by overdrying when the

dryer is next used.

If the dryer is switched on at the mains

and the door is opened, the drum

lighting will come on. It will go out a few

minutes later to save energy.

^Switch the dryer off by pressing the

l-On/0-Off button.

^Clean the fluff filters.

^Close the door.

^Empty the condensed water

container (unless the dryer has been

connected for external drainage).

How to dry correctly

–It is not possible to select the Short

and Low temperature options at the

same time.

– Not all the extra options are suitable

for use with every programme.

Low temperature

For drying delicates and fabrics with

the rsymbol on the care label at a

lower temperature.

–For all delicate or minimum iron

fabrics with the rsymbol on the

care label (e.g. acrylic garments).

–The programme duration is longer.

–On some programmes Low

temperature is a standard part of the

programme and so cannot be

deselected.

Short

For drying fabrics which can

withstand higher temperatures and

have qon the care label. Do not use

on minimum iron or delicate fabrics.

–Fabrics are dried more quickly.

Anti-crease

Helps prevent creasing, if laundry is

not normally removed immediately

after the end of a programme.

–The drum will turn at intervals for an

hour after the programme has

finished.

Buzzer

A buzzer sounds (at intervals for a

maximum of 1 hr) to let you know the

programme has finished.

– You can change the volume of the

buzzer. See "Programmable

functions".

– The buzzer will always sound when

there is a fault, even if it has been

switched off.

Extra options

With delay start you can choose when

you want the programme to end. The

start of a programme can be delayed

from 30 minutes up to a maximum of 24

hours, allowing you to make use of

night-time economy electricity rates, for

example.

To select delay start

^Select the programme you want and

then press the Delay start button.

The following will appear in the display:

0:30 ]Normal

^Each press on the Delay start button

increases the delay start time:

–in 30 minute steps up to 10 hours,

–in 1 hour steps from 10 hours

upwards.

To begin delay start

^Press the Start/Stop button. The

following will appear in the display:

4:30 ]until Start

After the delay start time has elapsed,

the drying programme will start and the

estimated programme duration will

show in the display.

Cancelling delay start before it has

begun to count down

^Press the Delay start button again

when 24 h is showing in the display.

Cancelling delay start after it has

begun counting down

^Press the Start/Stop button.

The programme will begin.

Changing the programme sequence

While the delay start time is counting

down, you can still ...

... change the drying level.

... increase the delay start time.

... Add or remove laundry:

^Open the door and add or remove

laundry.

^Close the door and press the

Start/Stop button.

The delay start time will continue to

count down.

Delay start

Cottons Max. load: 6 kg*

Extra dry, Normal+, Normal**

Fabric type Single and multi-layered cotton fabrics such as towelling,

jerseywear, T-shirts, underwear.

Note –Select Extra dry for multi-layered and very thick fabrics.

–Do not use Extra dry for jersey fabrics (e.g. T-shirts, underwear),

as they have a tendency to shrink.

Extra options Low temperature (select this option for delicate fabrics with the r

symbol on the care label), Short, Anti-crease

Hand iron r, Hand iron rr**, Machine iron

Fabric type Cottons or linen fabrics, e.g.: table linen, bed linen, starched

laundry.

Note To prevent laundry from drying out, it should be rolled up until you

are ready for ironing.

Extra options Low temperature (select this option for delicate fabrics with the r

symbol on the care label), Short, Anti-crease

Minimum iron Max. load: 3 kg*

Normal+, Normal**, Hand iron r

Fabric type Minimum iron items made of cotton, synthetic or blended fabrics,

e.g.: shirts, blouses, skirts and table cloths.

Extra options Low temperature (select this option for delicate fabrics with the r

symbol on the care label), Short, Anti-crease

* Weight of dry laundry

** Note for test institutes:

Use this programme without selecting any Extra options for testing according to

EN 61121 standard.

Programme chart

Delicates Max. load: 2 kg*

Normal+, Normal

Hand iron r, Hand iron rr, Machine iron

Fabric type Delicate items made of cotton, synthetic or blended fabrics, e.g.:

jumpers, skirts, trousers, table cloths, shirts, blouses and evening

wear with sequins and beading.

Note Laundry remains relatively crease-free for easier ironing.

Extra options Low temperature. (Low temperature cannot be deselected),

Anti-crease

Woollens handcare Max. load: 2 kg*

Fabric type Woollen fabrics

Hinweis –This programme only fluffs up woollen garments. They are not

dried completely by this programme.

– Remove garments as soon as the programme has finished and

leave to finish drying at room temperature.

Extra option Low temperature. (Low temperature cannot be deselected).

Silks handcare Max. load: 1 kg*

Fabric type Silks, e.g. blouses and shirts.

Notes – Smooths out creasing.

– Fabrics are not completely dried in this programme. Remove

garments as soon as the programme has finished and leave to

finish drying at room temperature.

Extra option Low temperature. (Low temperature cannot be deselected),

Anti-crease

Smoothing Max. load: 3 kg*

Fabric type –Cotton and linen fabrics.

–Minimum iron items made of mixed fibres, cottons or synthetics,

e.g.: trousers, jackets, shirts.

Notes –Smooths out creasing caused during the spin cycle in the

washing machine.

–Fabrics are not completely dried in this programme. Remove

garments as soon as the programme has finished and leave to

finish drying at room temperature.

Extra options Low temperature. (Low temperature cannot be deselected),

Anti-crease

* Weight of dry laundry

Programme chart

Automatic Max. load: 3.5 kg*

Normal+, Normal, Hand iron r

Fabric type Mixed loads of garments suitable for the Cottons and Minimum iron

programmes. Sort according to colour.

Extra option Anti-crease

Shirts Max. load: 2 kg*

Normal, Hand iron r

Garment Shirts and blouses.

Extra

options

Low temperature. (Low temperature cannot be deselected),

Anti-crease

Denim Max. load: 3 kg*

Normal, Hand iron r

Fabric type Denim garments, e.g. jeans, jackets, skirts, shirts.

Extra

options

Low temperature. (Low temperature cannot be deselected),

Anti-crease

Outerwear Max. load: 2 kg*

Normal, Hand iron r

Garment Outerwear which is suitable for drying in a tumble dryer.

Extra option Anti-crease

* Weight of dry laundry

Programme chart

Cool air Max. load: 6 kg*

Fabric type Any item which only needs airing.

Extra option Anti-crease

Warm air Max. load: 6 kg*

Fabric type –"Voluminous" and multi-layered fabrics whose layers have

different drying characteristics, e.g. jackets, pillows.

–For drying individual items, e.g. bath towels, bathing costumes,

tea-towels and small loads.

Note –Do not select the longest drying time to start with. Check the

items as you are drying them to find the optimum time.

Tip You can use the Warm air programme to help remove odours from

cotton clothing which has been worn but it still clean (select a

duration of between 1/2 and 1 hour). Items must be suitable for

drying in a tumble dryer. Dampen the garments a little beforehand

or add a fabric conditioner sheet. The Warm air programme will not

be as effective at removing odours from any parts of the garments

which are made of synthetic fibres.

Extra

options

Low temperature (select this option for delicate fabrics with the r

symbol on the care label), Anti-crease.

* Weight of dry laundry

Programme chart

Once a programme has started

- changing the programme

You cannot change to another

programme once a programme has

started (this prevents unintentional

alterations).

If an attempt is made to change a

selection, Option not possible will

appear in the display.

It is still possible to select or deselect

the Buzzer and the Anti-crease extra

option.

You will need to cancel the current

programme before you can select a

new one.

- cancelling the programme and then

selecting a different programme

^Press the Start/Stop button.

The items will be cooled down,

depending on the temperature

reached and how long they have

been dried for.

If you press the Start/Stop button

again during the cooling down

phase, Finish will light up in the

display.

^Switch the dryer off and then on

again.

^Select another programme and start

it.

- cancelling the programme and then

removing the laundry

^Proceed as described in "Adding or

removing laundry after a programme

has started" below.

^Switch the dryer off after closing the

door.

Adding or removing laundry

after a programme has started

^Press the Door button.

^Open the door.

,Danger of burning:

Do not touch the back of the drum

when adding or removing items. The

drum and the items can get very hot.

^Add or remove items as required.

^Close the door.

^Press the Start/Stop button.

Time remaining

The time left shown in the display may

now vary from the actual drying time.

Changing the programme sequence

Emptying the condensed

water container

The condensed water will be collected

in the condensed water container

unless the appliance has been fitted

with a drain hose (see "Installation").

Empty the condensed water

container after every drying

programme.

Please empty the container will appear

in the display if the maximum level of

the condensed water container is

reached.

The message will go out when the dryer

is switched off and then back on again.

,Close the door fully.

Otherwise the door and the front

panel of the condensed water

container could suffer damage when

pulling the container out.

^Pull out the container.

^Hold it at the front and towards the

back and keep it in a horizontal

position when carrying it.

^Empty the container.

^Replace the container in the dryer.

,Condensed water should not be

consumed. It could lead to health

problems for people and animals.

Condensed water can be put to

household use (e.g. used in a steam

iron or humidifier). To ensure that any

residual particles of fluff in the

condensed water are removed before

use, pass it through a fine sieve or

paper filter first.

Cleaning and care

Cleaning the fluff filters

The fluff which is created by the drying

process is collected by the fluff filters in

the door and the door opening. Clean

the filters after each drying

programme*.

Cleaning them whilst dry

Tip: You can also use a vacuum cleaner

to remove the fluff.

^Open the door and pull the fluff filter

(1) out of the door as illustrated.

^Use your fingers to remove the fluff

from the surface of the filter.

^Remove any fluff from the hollow part

of the door opening. You could also

use a cleaning brush which is

available as an optional extra from

your Miele dealer or the Miele Spare

Parts Department, or use a vacuum

cleaner.

^Also clean the door seal (2) with a

damp cloth.

^Once clean, push the filter back into

the door holder until it clicks into

position. Ensure it is facing the

correct way.

^Use your fingers or a vacuum cleaner

to remove the fluff from the two fluff

filters in the door opening.

^Close the door.

* Always check the fluff filters if the

Clean out airways message appears.

Cleaning and care

Cleaning them with water

If there is a great deal of compacted

fluff on any of the filters, they can be

removed and cleaned under hot

running water.

^Open the door and pull the fluff filter

out of the door as described

previously.

The two filters in the door opening can

also be removed if you need to clean

them with water.

^Turn dial aand pull the filter by the

dial out of the door opening as shown

b. Do the same on the other side.

^Rinse all the filters under hot, running

water.

^Then shake the filters until no more

water droplets are visible.

^Dry the filters thoroughly with care.

^Clean the area underneath these

filters, e.g. with a vacuum cleaner.

,Do not replace them if they are

damp or wet. Damp or wet filters

could cause operational faults.

^Push the large filter back into the

door holder until it clicks into position.

Ensure it is facing the correct way.

^Replace the filters in the door

opening by first inserting them at the

bottom and then pressing them into

place at the top.

^Lock both dials.

Cleaning and care

Cleaning the tumble dryer

Disconnect the tumble dryer from

the mains electricity supply.

Miele branded cleaning and

conditioning products are available to

order from your Dealer, the Miele Spare

Parts Department or via the internet on

www.miele-shop.com.

^Clean the housing and control panel

with a slightly damp cloth and a mild

detergent or soapy water.

^The drum and other stainless steel

parts can be cleaned with a suitable

propietary stainless steel cleaner

following the manufacturer's

instructions.

Do not use solvents, abrasive

cleaners, glass cleaners or

all-purpose cleaners. These could

damage plastic sufaces and other

parts. The tumble dryer must never

be hosed down.

^Dry all parts with a soft cloth.

Cleaning and care

Cleaning the condenser unit

Detergent residue, hair and fine fluff

from the dryer can get through the fluff

filters and block the condenser unit.

Dust from the room in which the dryer is

installed can also get into the

condenser unit and cause a blockage.

Check the condenser unit at least

twice a year. Always check it if the

Clean out airways message appears.

If the dryer is used frequently then

check the condenser unit after

approx. 100 drying cycles. Clean it if

necessary.

Removing the condenser unit

^Open the service panel. Hold the

panel securely when doing this.

^Now remove the panel by pulling it

diagonally upwards and place it to

one side.

^Turn the lever on the inner cover

downwards to the vertical position.

^Tilt the cover forwards.

^Remove it by pulling it diagonally

upwards.

^Turn the lever on the condenser unit

upwards to the vertical position.

Cleaning and care

^Pull the condenser unit out of its

housing by the handle.

Checking the condenser unit

^Hold the condenser unit up to the

light as shown.

^Check to see if there is any fluff inside

it.

The arrows in the illustration above

indicate where to look.

If you cannot see any fluff:

^Replace the condenser unit (see

following page).

If you can see some fluff:

^Clean the condenser unit as

described below.

Cleaning the condenser unit

^When rinsing the condenser unit,

make sure you position it as

shown in the next two illustrations.

^Use a shower head or similar to rinse

the unit out as shown.

Cleaning and care

^Then flush the unit through from the

front.

^Check the condenser unit again for

any visible fluff and if necessary flush

it through again until it has all gone.

^Remove any soiling still visible inside

the housing unit by hand using a

damp cloth. Do not try and access

areas you cannot reach by hand!

^Also make sure the rubber seals are

clean.

The rubber seals must not be

removed and must be free of kinks.

Replacing the condenser unit

^With the handle facing upwards, push

the condenser unit back into position

in its housing.

^Turn the lever down to the horizontal

position, making sure that the hook

on the lever clicks into the groove.

When replacing the inner cover after

cleaning, ensure that the rubber seal

fits correctly into the groove.

^Replace the inner cover making sure

the hooks locate correctly. Hold it at

an angle and push it gently

downwards.

^Then turn the lever upwards into the

horizontal position to lock the cover.

^Replace the service panel and press

the upper edge until it clicks into

position.

,It is important to ensure that both

the condenser unit and the cover are

correctly positioned and locked

otherwise water may leak from the

dryer.

Cleaning and care

With the help of the following notes, minor faults in the performance of the

appliance, some of which may result from incorrect operation, can be put right

without contacting the Service Department.

,Repair work to electrical appliances should only be carried out by a suitably

qualified person in strict accordance with current local and national safety

regulations. Repairs and other work by unqualified persons could be

dangerous. The manufacturer cannot be held liable for unauthorised work.

Fault messages in the display

Problem Possible cause Remedy

Adjust the

load

+ the programme is

cancelled, the buzzer

sounds

This is not a fault.

The electronic unit has

recognised that there is

no laundry in the drum

and cancelled the

programme.

Drying individual

garments or items which

are already dry can also

cause the programme to

be cancelled.

Use the Warm air

programme (timed

drying) to dry individual

items.

To delete the fault

message:

– Open the door.

Empty the container

+ the cooling down

phase starts, the buzzer

sounds

The condensed water

container is full or there is

a kink in the drain hose.

– Empty out the

condensed water

container or check the

drain hose.

To delete the fault

message:

–Switch the dryer off and

then back on again.

Problem solving guide

Problem Possible cause Remedy

Clean out airways

appears after the

programme has

finished

The dryer is not working

efficiently or economically.

Possible cause: The fluff

filters are clogged with fluff or

with detergent residues.

–Cleaning the filters is

usually all that is required.

However, if the message

does not go out after you

have cleaned the filters,

then also check all the

possible causes described

under "The drying process

goes on too long or even

switches off".

To delete the fault

message:

–Open the door.

– Switch the dryer off and

then back on again.

You can adjust the setting

which controls when or if the

message Clean out airways

appears.

– "Programmable functions,

Airways indicator".

Clean out airways

+ the programme

is cancelled, the

buzzer sounds

See above for possible

causes and their remedies.

To delete the fault

message:

–Open the door.

–Switch the dryer off and

then back on again.

–Then start the programme

again.

–If the fault message

appears again, contact the

Miele Service Dept.

Technical

fault

+ the programme

is cancelled, the

buzzer sounds

There is a fault. –Switch the dryer off and

then back on again. Try to

start a programme.

–If the fault message

appears again, contact the

Miele Service Dept.

Problem solving guide

Other problems

Problem Possible cause Remedy

The drying

process goes

on too long or

even switches

off.

In some

circumstances,

Clean out

airways still

appears, even

though the

filters are

clean.

Please check all the possible causes and switch the dryer

off and then back on again.

Ventilation to and from the dryer

may be insufficient (e.g.

because it is installed in a small

room). This has caused the

temperature in the room to rise

sharply.

Open a door or window while

the machine is in operation for

increased air flow.

The fluff filters are clogged up

with fluff or were still wet when

they were replaced.

–Remove any fluff.

–The fluff filters must be

completely dry.

The laundry has not been spun

sufficiently.

Make sure that your laundry is

thoroughly spun at the

appropriate spin speed.

The tumble dryer has been

overloaded.

Do not exceed the maximum

load for the programme

selected.

Metallic components, e.g. zips

have prevented the dryer from

registering the correct moisture

level in the laundry.

– Open zips next time.

If the problem occurs again,

dry garments with long zips

using the Warm air

programme (timed drying).

Detergent residues, hair and

fine fibres can block up the

condenser unit.

Check the condenser unit

from time to time and clean it

if necessary.

The vents below the door are

blocked.

Remove any objects that are

blocking the vents.

The laundry is

not sufficiently

dry.

The load consisted of different

fabrics.

–Finish drying using the

Warm air programme.

–Select a different

programme next time.

Problem solving guide

Problem Possible cause Remedy

Water leaks from the

dryer after the

condenser unit has

been cleaned.

–The inner cover of the

condenser unit has not

been locked properly

and/or the condenser

unit has not been

positioned correctly.

–Fluff has collected in

the condenser unit

housing.

–Ensure that the

condenser unit is

positioned correctly

and lock the inner

cover.

–Check the rubber

seals.

–Use a cloth to remove

any visible fluff from the

inside of the condenser

unit housing.

Items made of synthetic

fibres are charged with

static electricity after

drying.

Synthetic fibres tend to

attract static charge.

Static charge can be

reduced by adding a

fabric conditioner to the

final rinse in the washing

programme or a fabric

conditioner sheet to the

load when drying.

There is a build-up of

fluff.

Fluff is principally the

result of friction when

garments are being worn

and washed. Machine

drying hardly causes any

fluff to form and has been

established by research

institutes to have no

appreciable effect on the

lifetime of fabric.

Fluff is collected by the

fluff filters and can be

easily removed (see

"Cleaning and Care").

Problem solving guide

Problem Possible cause Remedy

The programme does

not start and the

display is dark.

No obvious cause. –Is the dryer switched on?

–Is the plug correctly

inserted in the socket and

switched on?

–Is the appliance door

closed properly?

–Has the fuse or circuit

breaker tripped?

The interior drum

lighting does not

come on.

The lighting switches off

automatically (to save

energy).

Switch the dryer off and then

on again.

The lamp needs

changing.

Change the lamp as

described at the end of this

section.

The display is in a

different language.

A different language

has been selected.

Set the language you want.

The flag symbol will guide you.

See "Language" at the end of

this booklet.

The Start/Stop button

indicator light flashes

when a programme is

being selected.

This is not a fault.

The flashing indicates

that a programme can

be started.

After the programme has

started, the flashing will

change to a constant light.

The display is dark.

The Start/Stop button

indicator light flashes

slowly.

The display has

switched off

automatically to save

energy (Standby

mode).

The display will light up when

one of the buttons is pressed.

If the problem

continues there is a

fault.

Contact the Miele Service

Department.

Problem solving guide

Changing the lamp

Disconnect the tumble dryer from

the mains electricity supply.

^Open the door.

You will find the interior lamp cover at

the top of the drum aperture.

^Insert a suitable tool, such as a wide

bladed screwdriver, under the side

edge of the lamp cover as illustrated.

^Apply a little pressure and whilst

doing so turn your wrist in the

direction of the arrow to open the

cover.

The cover will open downwards.

The temperature resistant lamp should

only be ordered from your Miele Dealer

or the Miele Spare Parts Department.

The lamp specification and

maximum wattage is stated on the

data plate and on the lamp cover.

^Replace the lamp.

^To close the cover push it upwards

and press it on the left and right until

you hear it click into position.

,Ensure that it is fitted into

position securely, as any moisture

could cause a short circuit.

Problem solving guide

Repairs

In the event of any faults which you

cannot remedy yourself, or if the

machine is under guarantee, please

contact

–Your Miele dealer, or

–the Miele Service Department

(see back cover for contact details).

When contacting the your Dealer or the

Service Department, please quote the

model and serial number of your

machine, both of which are shown on

the data plate (visible when the door is

opened).

Future updates (PC)

The indicator light marked PC is the

interface used by Miele service

technicians during service work for

testing purposes and for updating the

machine's programme data.

Guarantee

Please see the guarantee card supplied

with your machine.

Optional accessories

Optional accessories for this dryer are

available from your Miele Dealer or from

the Miele Spare Parts Department.

Please note that telephone calls may

be monitored and recorded for

training purposes.

After sales service

Front view

aMains connection cable

bControl panel

cCondensed water container

dDoor

eService panel for condenser unit

fFour height adjustable screw feet

gAir inlet and outlet vent for cooling

the condenser unit

hExternal drainage options (e.g. via

wash basin, wash basin drain outlet

or gully)

Installation and connection

Rear view

aProtruding lid for holding when

moving the machine (see arrows)

bAir inlet vent for cooling the

condenser unit

cMains connection cable

dExternal drainage of the condensed

water

eAccessories for connection to a sink

drain outlet

Installation site

,Make sure the dryer door can be

opened without hindrance after

installation.

,The machine lid must not be

removed.

,The machine must not be built

under.

Transporting the machine to its

installation site

When moving the machine, you can

hold it by the lid where it protrudes to

the rear of the dryer. To manoeuvre the

dryer out of its packing case to its

installation site you will also need to

hold it by the front feet.

Installation and connection

Levelling the machine

The machine must be perfectly level to

ensure safe and proper operation.

^The screw feet can be adjusted to

compensate for any unevenness in

the floor.

,The air inlet and outlet vents on

the front and back of the machine

must not be covered as this would

prevent sufficient ventilation for

cooling the condenser unit.

Room ventilation

The air which is taken in when the

dryer is in operation is blown out of

the vents on the front of the machine

and warms up the air in the room.

It is very important, particulary if the

room is small, to ensure adequate

ventilation. Opening a window, for

example, will allow more air to enter

the room. Otherwise running times

and energy consumption could be

increased.

Before moving the machine again

(e.g. when moving house)

After each use a small quantity of

condensed water will collect in the area

around the pump. This water can run

out if the machine is tipped up when it

is being moved. It is a good idea to run

the Cool air programme for

approximately 1 minute before moving

the machine. Any remaining condensed

water will then be fed into the

condensed water container or out

through the drain hose.

Installation and connection

External condensed water

outlet

General notes

When drying is in progress, condensed

water is pumped into the condensed

water container through the drain hose at

the back of the dryer. The condensed

water can also be drained off directly if

the tumble dryer is installed near a sink,

drain outlet etc. so that the condensed

water container does not have to be

emptied.

Drain hose length ............1.50m

Maximum delivery head .......1.50m

Maximum drain hose length ....4.00 m

,If the on-site water drainage

system is not fitted with a non-return

valve or an appropriate air gap, one

must be fitted to prevent the risk of

back-flow. (See "Installation conditions

requiring a non-return valve").

The following optional accessories are

available:

–an extension hose

–a non-return valve kit for connection

to an external condensed water outlet

(includes an extension hose).

Maximum delivery head with

non-return valve fitted: 1.00 m

Arranging the drain hose

,Do not pull on the drain hose and

do not stretch it or allow it to become

kinked as it could get damaged.

^There will be a small amount of

residual water in the drain hose.

Have a container ready to collect this.

^Pull the hose off its connection (see

arrow).

^Allow any residual water to run into

the container.

^Unwind the hose and pull it carefully

out of the holders.

^Position the hose to the right or left

hand side as necessary.

Leave the hose in the middle holder to

prevent it from becoming kinked

inadvertently.

Installation and connection

External drainage via a sink or gully

^See "Front view" illustration.

,If you want to drain the water off

into a sink you will need to secure

the hose carefully, e.g. by tying it to a

tap to make sure it cannot slip

during use. Otherwise there is a risk

of overflowing water which could

cause damage.

^Use the bow-shaped guide to prevent

the drain hose from becoming

kinked.

Installation conditions requiring a

non-return valve

,If the on-site water drainage

system is not fitted with a non-return

valve or an appropriate air gap, one

must be fitted to prevent the risk of

back-flow. (A non-return valve kit is

available as an optional accessory).

Otherwise water could leak out of

the dryer and cause damage.

A non-return valve is required:

–If the tumble dryer is connected to a

sink drain outlet (see the following

section).

–If the tumble dryer is connected to a

drainage system already in use by

another appliance, e.g. a dishwasher

or washing machine.

Example: Connection to a sink drain

outlet

The drain hose with non-return valve

fitted can be connected directly to a

suitable sink drain outlet.

^Remove the following from the back

of the dryer at the top:

Adapter 1and hose clip 3behind it.

Installation and connection

1 Adapter

2 Nut

3 Hose clip

4 End of the hose

5 Non-return valve

6 Tumble dryer drain hose

^Fit adapter 1to the sink drain outlet

using nut 2.

If this nut has a flat disc in it you

should take the disc out first.

^Attach the end of the hose 4to

adapter 1.

^Use a screwdriver to tighten hose clip

3up close to the nut.

,Non-return valve 5has to be

fitted with the arrow pointing in the

direction of flow (i.e. towards the

sink). Otherwise water will not drain

out of the machine.

^Fit non-return valve 5to the drain

hose on the dryer 6(make sure it is

fitted correctly (see arrow on

non-return valve).

^Secure the non-return valve using

hose clips.

Installation and connection

Electrical connection U.K.

All electrical work should be carried out

by a suitably qualified and competent

person, in strict accordance with

current national and local safety

regulations (BS 7671 in the UK).

Ensure power is not supplied to the

appliance until after installation work

has been carried out.

The appliance is supplied with a mains

cable with moulded plug ready for

connection to a 230-240V mains supply.

Please ensure the connection data

quoted on the data plate match the

household mains supply.

Connection should be made via a

suitable switched socket which is easily

accessible after installation.

For extra safety it is advisable to install

a suitable residual current device

(RCD). Contact a qualified electrician

for advice.

Do not connect via an extension lead.

Extension leads do not guarantee the

required safety of the appliance (e.g.

danger of overheating).

Non-rewireable plugs BS 1363

The fuse cover must be refitted when

changing the fuse, and if the fuse cover

is lost, the plug must not be used until a

suitable replacement is obtained. The

colour of the correct replacement cover

is that of the coloured insert in the base

of the plug, or the colour that is

embossed in words on the base of the

plug (as applicable to the design of

plug fitted).

Replacement fuses should be ASTA

approved to BS 1362 and have the

correct rating. Replacement fuses and

fuse covers may be purchased from

your local electrical supplier.

WARNING: THIS APPLIANCE

MUST BE EARTHED

Electrical connection

Programme Load Final spin speed

in a domestic washing machine

Energy Duration

kg* rpm kWh Minutes

Cottons

Normal

6.0 1000 (60 % residual moisture)**

1200

1400

1600

1800

3.30

3.00

2.85

2.55

2.50

Cottons

Hand iron

6.0 1000 (60 % residual moisture)**

1200

1400

1600

1800

2.65

2.35

2.20

1.85

1.80

Minimum iron Normal 3.0 1200 (40 % residual moisture)** 1.20 37

Minimum iron Hand iron 3.0 1200 1.00 32

Delicates normal 2.0 800 1.40 95

Automatic Normal 3.5 800 2.10 85

Shirts Normal 2.0 600 1.15 41

Denim Normal 3.0 900 2.00 96

Woollens handcare 2.0 1000 0.15 4

Silks handcare 1.0 400 0.15 5

Smoothing 3.0 1000 0.30 8

Outerwear Normal 2.0 800 1.95 105

* Weight of dry laundry

** EN 61121:2005 test programme

All data without a "star" against it was calculated using EN 61121:2005.

Before testing in accordance with EN 61121, drya3kgload of cotton laundry with 70% residual

moisture as per the above standard using the Cottons Normal programme without any extra options.

Consumption data can vary from the nominal values given above depending on the size of the

load, types of textiles, residual moisture levels after spinning, fluctuations in the electricity

supply and any extra options selected.

Consumption data

Height 850 mm

Width 595 mm

Depth 634 mm

Depth with door open 1074 mm

Weight 53 kg

Drum volume 111 litres

Maximum capacity 6 kg dry weight

Capacity of condensed water container approx. 3.5 litres

Hose length 1.50 m

Maximum delivery head 1.50 m

Maximum drain hose length 4.00 m

Length of connection cable 2.00 m

Voltage see data plate

Connected load see data plate

Fuse rating see data plate / plug

Lamp wattage see data plate

Energy consumption see "Consumption data"

Test certificates awarded see data plate

Technical data

Programmable functions

for changing default settings

The programmable functions are

used to alter the tumble dryer´s

electronics to suit changing

requirements.

Programmable functions can be

altered at any time.

To access programmable

functions

The programmable functions are

accessed via the Start/Stop button

and the programme selector.

Before you begin, first ensure that:

–The tumble dryer is switched off.

–The door is closed properly.

APress the Start/Stop button and keep

it pressed in whilst carrying out steps

Bto C.

BPress the I-On/0-Off button in.

Wait until the indicator light for the

Start/Stop button lights up constantly ..

C. . . and then release the Start/Stop

button. The following will appear in

the display:

Language F...

To select a programmable

function

DTurn the programme selector until the

programmable function you require

appears in the display.

EPress the Start/Stop button to confirm

your selection.

To alter a programmable

function

You can see the different options

available for a programmable function

by turning the programme selector.

The option which is currently set will

have a tick Lbeside it.

FTurn the programme selector until the

option you want appears in the

display.

GPress the Start/Stop button to activate

this option.

To come out of programmable

functions

HTurn the programme selector until

Back Aappears in the display.

IPress the Start/Stop button.

Language J

The display can be set to appear in

one of several different languages.

The flag Jafter the word Language

acts as a guide to prevent a language

which will not be understood from being

set.

The language selected is saved to

memory.

Programmable functions

Drying level cottons

Drying level min. iron

You can alter the drying levels for the

Cottons and Minimum iron

programmes.

The bar chart shows you the setting.

Factory default: a medium setting.

–rrr (damper)

The programme duration is shorter.

–r(drier)

The programme duration is longer.

Extended cool down

The cooling down phase which takes

place before the end of a programme

can be lengthened if required. This

makes the garments easier to handle.

Factory default: 0 mins (normal cooling

down period)

You can select an extended cool down

time in 2 minute increments up to a

maximum of 18 minutes.

You cannot extend the cooling down

time for the Warm air, Cool air, Woollens

handcare, Silks handcare or Smoothing

programmes.

Airways indicator

Fluff should be removed after drying.

The Clean out airways message will

remind you to clean the filters when a

certain amount of fluff has collected.

You can decide at what level of fluff

this reminder should be given.

You will have an idea of how often this

should be done after a few drying

programmes.

Off

Clean out airways does not appear

Heavy

Clean out airways only appears when

there is a heavy build-up of fluff

Normal

Factory default

Light

Clean out airways appears when there

is only a small build-up of fluff

Programmable functions

Lock code

A code can be used to lock the

electronics on the dryer to prevent it

being used without your knowledge.

When the code has been activated, you

have to enter a code after switching the

dryer on. Otherwise the dryer cannot be

operated.

Lock code ...

^Press the Start/Stop button.

To activate the lock code

Activate

^Press the Start/Stop button.

The display will now request that a lock

code is entered.

To enter the lock code

The code is 250 and cannot be altered.

O__

^Turn the programme selector until the

first number appears in the display.

^Confirm your selection of the number

by pressing the Start/Stop button.

^Repeat the process until all three

numbers have been entered.

250

^Press the Start/Stop button to confirm

the code.

The following will appear in the display:

Lock code activated

Once the machine is switched off, it can

only be used again if the code is

entered.

To use the dryer when the lock code

is activated

When the machine is switched on

again, the display will request the lock

code.

^Enter code 250 as described above

and confirm the entry.

The dryer is now unlocked and ready

for use.

To deactivate the lock code

^Proceed as for activating the lock

code.

Programmable functions

Buzzer

The buzzer has two volumes.

Normal (Factory default)

The buzzer sounds at the end of a

programme.

Loud

The buzzer sounds at maximum volume

at the end of a programme.

Keypad tone

An audible tone sounds each time a

button is pressed.

Factory default: Off.

Contrast

Brightness

There are ten different display

contrast and display brightness

settings.

The bar chart shows you the setting.

Factory default: a medium setting.

Standby

To save energy, the display goes out

after 10 minutes and the indicator

light for the Start/Stop button will start

flashing slowly.

There are two options:

Standby is activated:

–if a programme is not selected within

10 minutes of the machine being

switched on.

– 10 minutes after a programme has

started.

– 10 minutes after the end of a

programme.

not in current prog.

(Factory default)

– Standby is activated if a programme

is not selected within 10 minutes of

the machine being switched on and

after the end of a programme.

(Standby is not activated after a

programme has started).

Pressing one of the buttons switches

the display back on again.

Memory

The electronics will memorise the

drying level and any extra options

selected for the current drying

programme.

Factory default: Off.

Programmable functions

M.-Nr. 06 731 710 / 04

Alteration rights reserved/2008

Miele 06 731 710 T9246c_gb.vp User Manual To The 9d347ade Ae36 4a8e B97b 06dbae6f5380

Navigation menu

Versions of this User Manual:

Views

Navigation
