Operating and installation instructions
Cooker hoods
DA 200-2, DA 200-2 EXT,
DA 210-2, DA 210-2 EXT,
DA 220-2, DA 220-2 EXT
It is essential to read these
operating instructions before
installing or using the machine,
to avoid the risk of accidents
or damage to the machine.
GiWOZr
M.-Nr. 05 814 390
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Description of the appliance
DA 200-2, DA 200-2 EXT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
DA 210-2, DA 210-2 EXT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
DA 220-2, DA 220-2 EXT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Brief description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

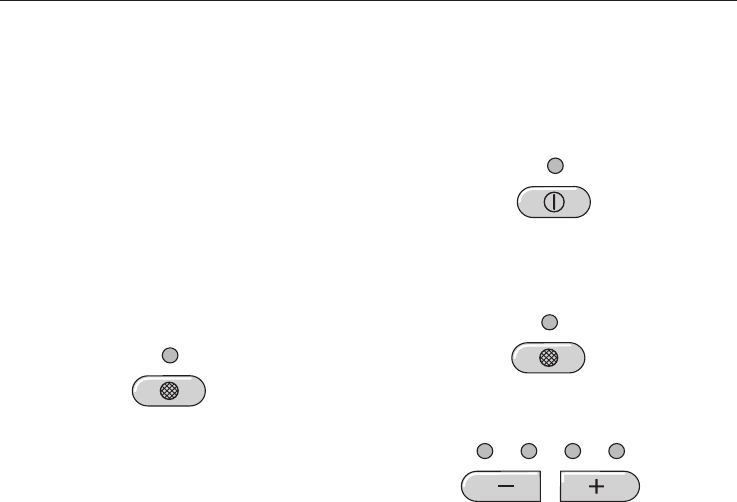

Operation
Main switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
To switch the fan on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Selecting the power level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Run-on option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
To switch the fan off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Switching the lighting on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
To dim the lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
To switch the lighting off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Filter operating hours counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Reading the filter operating hours counter. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Altering the filter operating hours counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cleaning and care
Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Changing a halogen lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

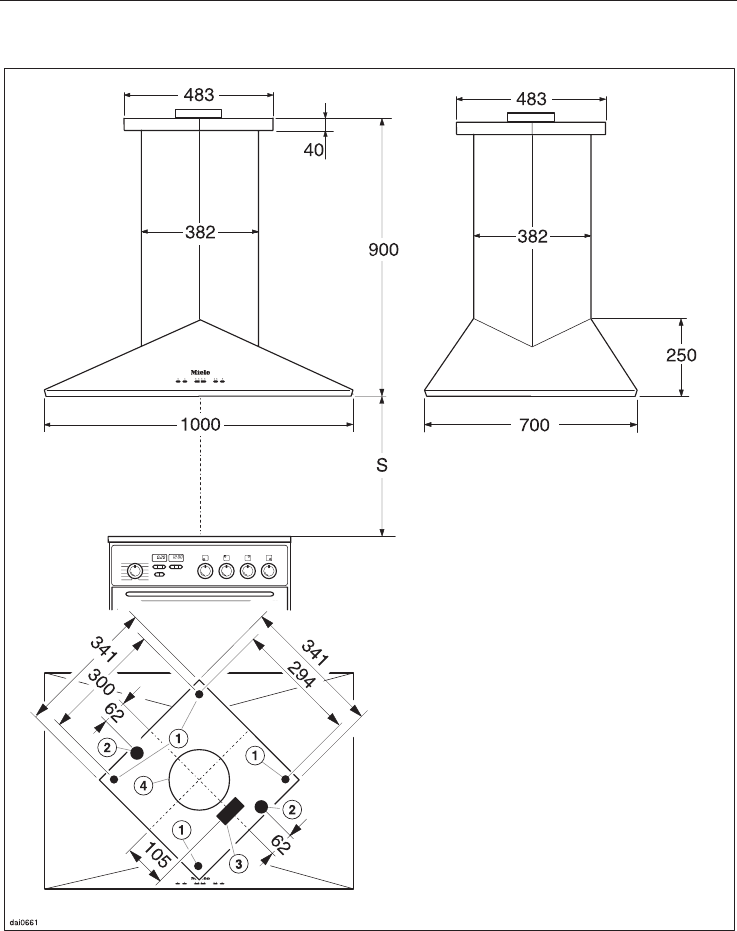

Appliance dimensions
DA 200-2, DA 200-2 EXT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
DA 210-2, DA 210-2 EXT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
DA 220-2, DA 220-2 EXT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

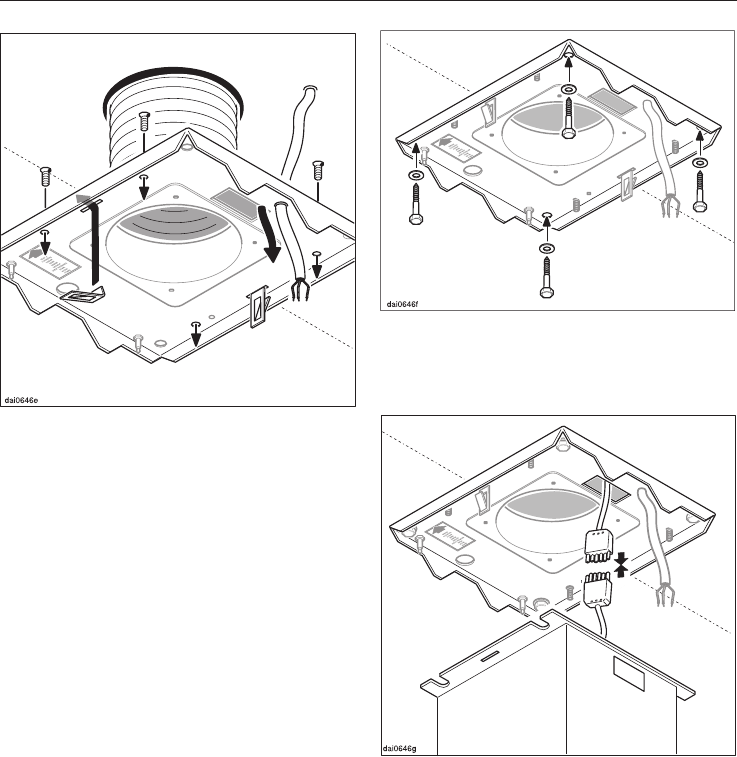

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Connection for air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Condensate trap. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Contents
2
Disposal of the packing material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed safely and kept
out of the reach of babies and young
children. Danger of suffocation!
Rather than just throwing these materi-
als away, please ensure that they are
recycled.
Disposal of your old appliance
Old appliances contain materials which
can be reclaimed or recycled. Please
contact your dealer, your local waste
collection centre or scrap merchant
about potential recycling schemes.
Ensure that the appliance presents no
danger to children while being stored
for disposal.
See the appropriate section in the
Warning and safety instructions.
Caring for the environment
3
This appliance conforms to current
safety requirements. Incorrect use
can however lead to personal injury
and damage to the appliance.
Before installation and before using
for the fist time, read the operating
instructions carefully. They contain
important information on safety, in-
stallation, use and maintenance of
the appliance. This way you will
avoid the risk of accidents and dam-
age to the appliance.
Keep these operating instructions in
a safe place and pass them on to
any future user.
Correct usage
The appliance is intended for do-
mestic use only.
The manufacturer cannot be held liable
for damage caused by improper or in-
correct use of the appliance.
Technical safety
Before connecting the appliance to
the mains supply, make sure that
the voltage and frequency details given
on the data plate correspond with the
on-site electricity supply, otherwise the
appliance could be damaged. Consult
a qualified electrician if in doubt.
The electrical safety of this appli-
ance can only be guaranteed when
continuity is complete between the ap-
pliance and an effective earthing sys-
tem which complies with local and na-
tional regulations. It is most important
that this basic safety requirement is
tested by a qualified electrician. The
manufacturer cannot be held liable for
the consequences of an inadequate
earthing system (e.g. electric shock).
Installation work and repairs may
only be carried out by suitably
qualified and competent persons to en-
sure safety. Repairs and other work by
unqualified persons could be danger-
ous and the manufacturer will not be
held liable.
This equipment is not designed for
maritime use or for use in mobile
installations such as caravans, aircraft
etc. However it may be suitable for
such usage subject to a risk assess-
ment of the installation being carried
out by a suitably qualified engineer.
Warning and Safety instructions
4
The appliance is only completely
isolated from the electricity supply
when:
–it is switched off at the wall socket
and the plug removed (do not pull on
the cable, only on the plug), or
–the fuse from the fused spur connec-
tion unit is withdrawn, or
–the mains fuse is withdrawn, or
–the screw-out fuse is removed in
countries where this is applicable.
Ensure power is not supplied to the
appliance while maintenance or re-
pair work is being carried out.
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
Use
Do not let small children play with
the appliance or its controls or op-
erate it. Supervise its use by the elderly
or infirm.
Never use an open flame beneath
the cooker hood. To avoid the dan-
ger of fire, do not flambé or grill under
the cooker hood. When switched on,
the cooker hood could draw flames into
the filter. Fat particles drawn into the
cooker hood present a fire hazard.
When using the cooker hood over
a gas hob ensure that any burners
in use are always covered by a pan,
otherwise flames could be drawn up by
the suction of the cooker hood, parts of
which could then be damaged.
Always switch the cooker hood on
when using the hob, otherwise
condensation may collect in the hood,
which could cause corrosion.
When cooking with oil or fat, chip
pans and deep fat fryers etc, do
not leave the pans unattended. Never
leave an open grill unattended when
grilling.
Overheated oil and fat can ignite and
could set the cooker hood on fire.
Do not use the cooker hood without
the grease filters in place. This way
you will avoid the risk of grease and dirt
getting into the appliance and hinder-
ing its smooth operation.
The filters should be regularly
cleaned, or changed, as appropri-
ate.
Saturated filters are a fire hazard (see
"Cleaning and care").
Under no circumstances use a
steam-cleaning appliance to clean
this appliance. Pressurised steam
could reach the electrical components
and cause a short circuit.
In countries where there are areas
which may be subject to infestation
by cockroaches and other vermin, pay
particular attention to keeping the appli-
ance and its surroundings in a clean
condition at all times. Any damage
which may be caused by cockroaches
or other vermin will not be covered by
the appliance guarantee.
Warning and Safety instructions
5
Installation
The minimum safety distance be-
tween the top of the cooker / hob
and the bottom of the cooker hood
should be at least:
–550 mm above electric hobs and
cookers,
–650 mm above gas hobs and cookers,
–650 mm above an open grill from our
range
For non-Miele cooking appliances
maintain the safety distance as recom-
mended by the manufacturer in their In-
stallation and Operating instructions. If
more than one appliance is fitted be-
neath the cooker hood and they have
different minimum safety distances to
the cooker hood, select the greater dis-
tance.
Safety regulations prohibit the fit-
ting of a cooker hood over solid
fuel stoves.
All ducting, pipework and fittings
must be of non-flammable material.
These can be obtained from the Miele
Spare Parts department or from build-
ers’ merchants.
The appliance must not be con-
nected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.

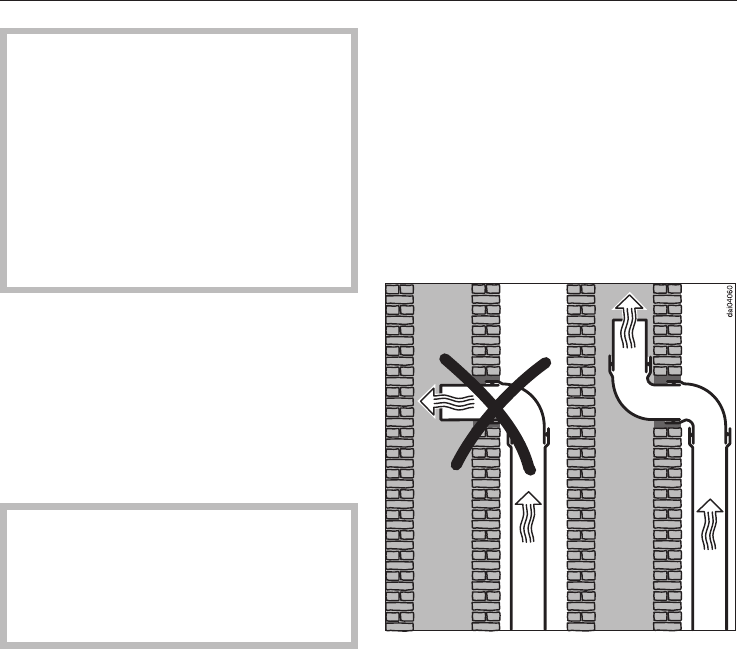

If exhaust air is to be extracted into
a chimney or ventilation duct no
longer used for other purposes, seek
professional advice.
Warning and Safety instructions
6
When using the cooker hood at the
same time as another heating ap-
pliance which depends on the air in the
room (e.g. gas, oil or coal fired heaters,
continuous flow or other water heaters,
gas cooker, gas hob or gas oven), spe-
cial care must be taken as the action of
the cooker hood extracts air from the
room, which these type of heaters need
for combustion.
They could also draw exhaust air back
in from chimneys or ducting in contra-
vention of fire safety regulations.
In order to ensure safe operation, and
to prevent gases given off by the heat-
ing appliances from being drawn back
into the room when the extractor and
the heater are in operation simulta-
neously, an underpressure in the room
of 0.04 mbar (4 pa) is the maximum
permissible.
Ventilation can be maintained by air in-
lets which cannot be blocked, in win-
dows, doors and outside wall vents, or
by other technical measures, such as
ensuring that the extractor can only be
switched on when the heating appli-
ance is switched off or vice-versa.
N.B: The overall ventilation condition of
the dwelling must be taken into ac-
count. If in any doubt, the advice of a
competent builder or, for gas, a "Corgi"
installer must be sought.
Appliances with external fans
For appliances with an external fan
motor fitted (EXT models) the con-
nection of the two units must be made
using the connection cable and the
plug connectors.
Make sure the correct combination of
the two appliances has been selected.
Separate instructions are supplied with
the external fan.
Disposal of your old appliance
Before throwing an old appliance
away it must first be made unus-
able. Ensure that disconnection from
the mains supply is carried out by a
competent person and that the cable is
also removed from the appliance to
prevent misuse.
The manufacturer cannot be held lia-
ble for damage caused by non-com-
pliance with these Warning and
Safety instructions.
Warning and Safety instructions
7

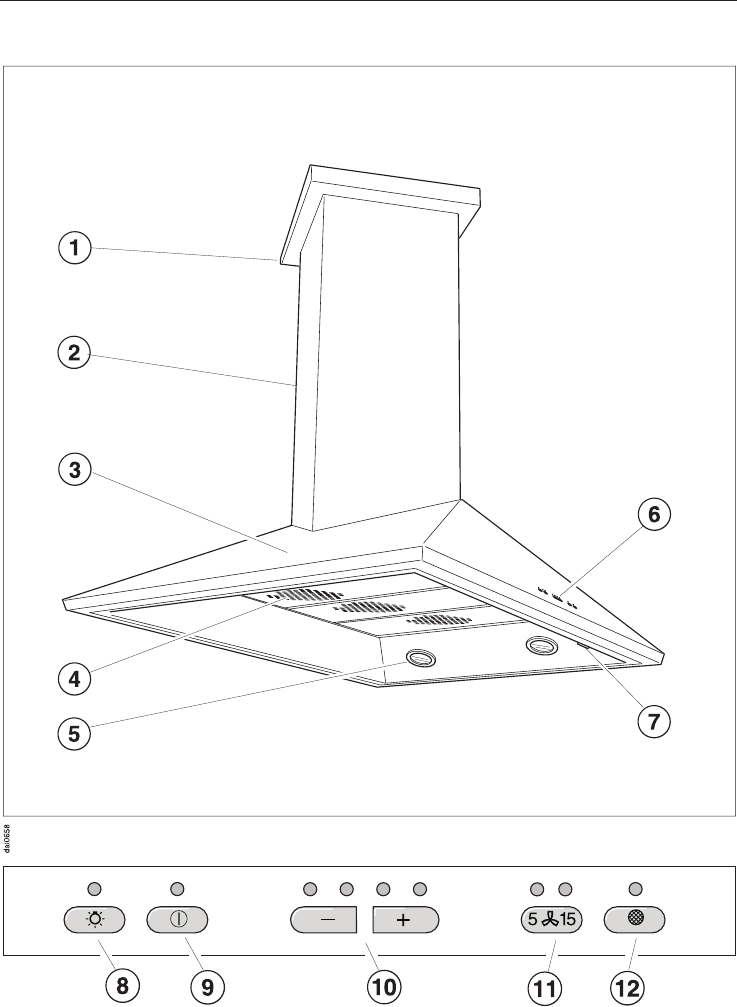

DA 200-2, DA 200-2 EXT

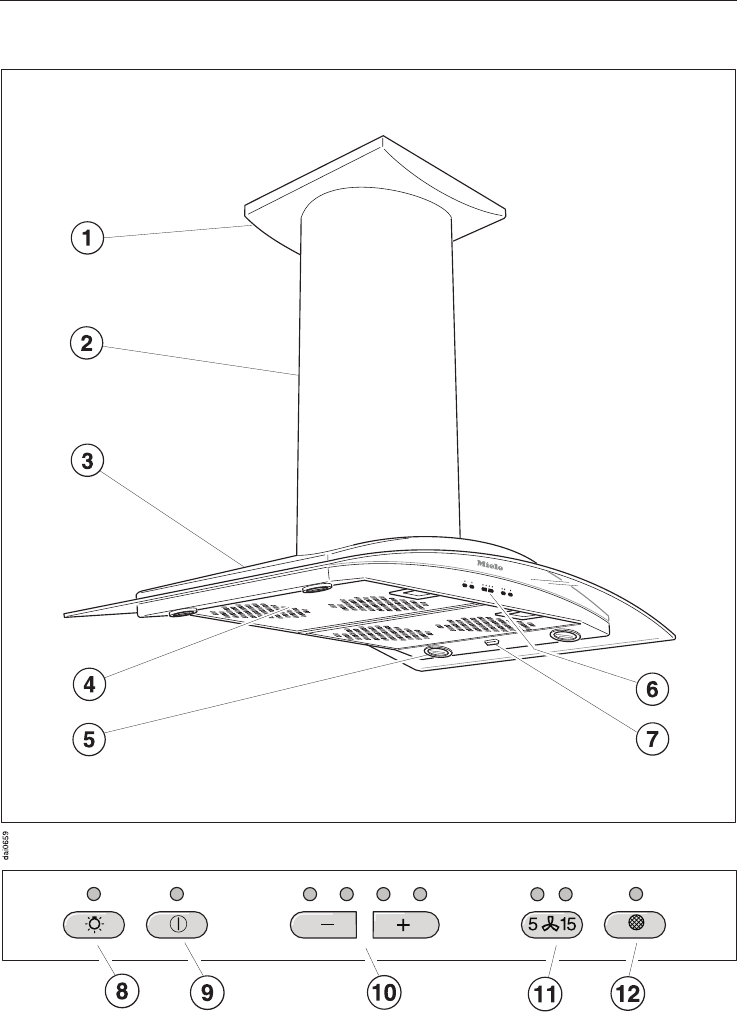

Description of the appliance
8

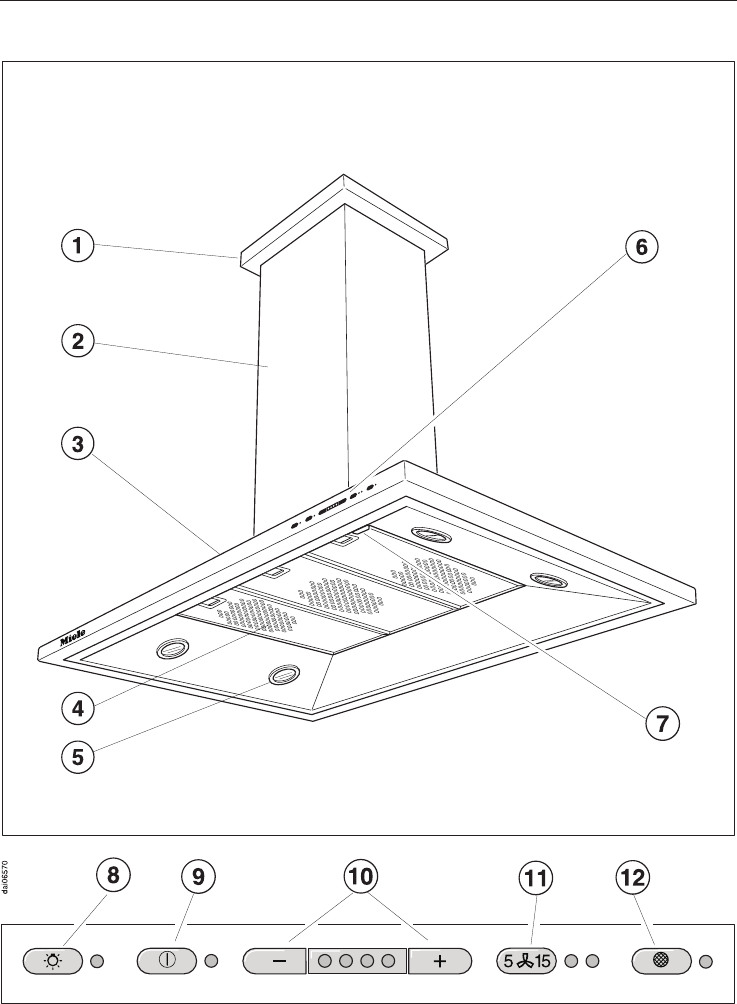

DA 210-2, DA 210-2 EXT
Description of the appliance
9
DA 220-2, DA 220-2 EXT
Description of the appliance
10
aCover plate
bTower
cCanopy
dGrease filters
eHob lighting
fControls
gMain switch
hTouch control for the
Halogen lighting
This control can be used to switch the
lighting on and off and is also a dimmer
switch.
iOn/Off touch control
for the fan
jControls to select the
Fan power level
kTouch control for the
run-on option
This control activates the run-on option.
The fan is switched off automatically af-
ter either 5 or 15 minutes.
lTouch control for the
grease filters
The indicator lamp above the grease fil-
ter touch control lights up when the
grease filters need to be cleaned.
The touch control is used:
– to reset the operating hours counter
after cleaning the grease filters (see
"Cleaning and Care").
– to show how long the grease filter
has been in use (see section on "Op-
eration / Filter operating hours coun-
ter").
– to alter the number of hours counted
by the filter operating hours counter
(see section "Operation / Altering the
filter operating hours counter").
Description of the appliance
11
The cooker hood works with
. . . air extraction:
The air is drawn in and cleaned by the
grease filters and directed outside.
The cooker hood is fitted with a non-re-
turn flap. This flap is closed when the
cooker hood is switched off. No ex-
change of room air and outside air can
take place. When the cooker hood is
switched on, the non-return flap opens
for the cooking vapours to be blown di-
rectly outside.
. . . an external fan:
The EXT models are designed to be
connected to an external fan located
outside the room.
The external fan is connected to the
cooker hood by means of a control ca-
ble and is operated by the controls on
the cooker hood.
Brief description
12
Main switch
Switch the main switch to "I". The fan
and the lighting can now be operated.
If the appliance is not going to be used
for a longer period of time (e.g. whilst
on holiday) switch the appliance off by
turning the main switch to "0".
The next time it is switched on the
cooker hood will operate at the level
previously used.
To switch the fan on
^Press the On/Off touch control.
The fan runs at power level "lI".
The indicator lamp for the touch control
lights up.
Selecting the power level
^Use the –/+controls to select the
power level required.
Touch control += higher setting
Touch control –= lower setting
Depending on the intensity of cooking
vapours, levels "I" to "III" (green indica-
tor lamps) are usually sufficient for nor-
mal cooking.
Intensive setting
When frying or cooking food with a
strong aroma you may wish to select
the Intensive setting (yellow indicator
lamp) for a short period.
Run-on option
If the air still needs to be cleared after
cooking, the cooker hood can be set to
continue running.
The fan is switched off automatically af-
ter either 5 or 15 minutes.
^Press the run-on option touch control
whilst the fan is still running.
Press once = The fan switches off
after 5 minutes.
(left hand indicator lamp)
Press twice = The fan switches off
after 15 minutes.
(right hand indicator lamp)
To switch the run-on option off, press
the run-on option touch control again.
Operation
13
To switch the fan off
^Use the On/Off touch control to
switch the fan off.
The indicator lamp for the control goes
out.
Switching the lighting on
The hob lighting can be switched on
and off independently of the fan.
^Briefly press the lighting touch con-
trol to switch on the hob illumination.
The indicator lamp for the touch control
lights up.
The lighting will come on at maximum
brightness.
To dim the lighting
The brightness of the lighting can be
dimmed.
^With the lighting switched on press
and hold the hob illumination control
in.
The brightness will gradually dim until
you release the control.
^Press the control in again to increase
the brightness to the level required
and then release it.
If you keep the control pressed in the
brightness will continually go brighter
and then dimmer.
To switch the lighting off
^Briefly press the hob illumination
control to switch the lighting off.
The indicator lamp for the control goes
out.
Safety cut-out
Should the cooker hood have been left
switched on, the fan will switch off auto-
matically after 10 hours. The lighting re-
mains on.
^Pressing the On/Off touch control will
switch the fan back on again.
Operation
14
Filter operating hours counter
The number of hours the appliance has
been in operation for is stored in mem-
ory.
The indicator lamp for the grease filter
control will light up after 30 hours of op-
eration. The grease filters must then be
cleaned.
After the grease filters have
beencleaned and put in place, the filter
operating hours counter must be re-set.
^To do this, press the grease filter
touch control for about 3 seconds.
The indicator lamp will go out.
Reading the filter operating hours
counter
To check the percentage of time set al-
ready used:
^Use the On/Off touch control to
switch the fan on.
^Press the grease filter touch control.
One or several of the indicator lamps
for the –/+touch controls will flash.
The number of flashing lamps shows
the percentage of the operating time
which has already been used up.
1 lamp = 25 %
2 lamps = 50 %
3 lamps = 75 %
4 lamps = 100 %
The operating hours completed remain
in memory, even when the machine is
switched off or there is a power cut.
Operation
15
Altering the filter operating hours
counter
The operating hours counter for the
grease filters is set to 30 hours. This
time can be lengthened or shortened.
You can choose from 20, 30, 40 or 50
hours.
–Select a short time if you roast or fry
a lot.
–If you use very little fat for cooking,
select a longer time.
–If, however, you only cook occasion-
ally we recommend that you select a
short time because grease which has
built up gradually over a long period
of time will harden on the grease fil-
ters and make cleaning more diffi-
cult.
^Use the On/Off touch control to
switch the fan off.
^Press the run-on option touch control
and the grease filter touch control at
the same time.
The indicator lamp for the grease filter
touch control and one of the –/+touch
control lamps will flash.
The –/+touch control lamps show the
time which has been set:
1st lamp from the left = 20 hours
2nd lamp from the left = 30 hours
3rd lamp from the left = 40 hours
4th lamp from the left = 50 hours
^Use the –/+touch controls to select
the desired time.
^Confirm the selection by pressing the
grease filter touch control.
If the procedure is not confirmed
within 4 minutes of programming the
steps, the cooker hood will automati-
cally revert to the "old" data.
Operation
16
Before any cleaning or maintenance
work the cooker hood must be dis-
connected from the mains supply.
Ensure that:
– it is switched off at the fused spur
connection unit, or
– the mains fuse is withdrawn, or
– the screw-out fuse is removed (in
countries where this is applicable).
Housing
Warning: The surfaces and control
switches are susceptible to scratches
and abrasion. Please observe the fol-
lowing cleaning instructions.
^All external surfaces and controls can
be cleaned using warm water with a
little washing up liquid applied with a
soft sponge.
^Wipe dry using a soft cloth.
Do not use too much water when
cleaning the controls. Water could
penetrate into the electronics and
cause damage.
^Glass surfaces can be cleaned using
a proprietary cleaning agent for glass.
Avoid:
–cleaning agents containing soda, ac-
ids or chlorides,
–abrasive cleaning agents e.g. pow-
der cleaners or cream cleaners,
–abrasive sponges, e.g. pot scourers or
sponges which have been previously
used with abrasive cleaning agents.
These will damage the surface.
Stainless steel
Stainless steel surfaces can be cleaned
using a proprietary non-abrasive clean-
ing agent designed specifically for use
on stainless steel.
To help prevent resoiling, proprietary
conditioning agents for stainless steel
can also be used.
Apply sparingly with an even pressure.
E-Cloth
A microfibre "E-Cloth" is available from
the Miele UK Spare Parts Department,
Part Number 98013530, which is suit-
able for cleaning surfaces such as
stainless steel, glass, plastic and
chrome.
Stainless steel coloured controls
These controls may suffer discolour-
ation or damage if soiling is left on
them for too long.
Remove any soiling straight away.
Do not use stainless steel cleaning
agents on these types of controls.
If you are unsure about a particular
product or need further advice
please contact your nearest Miele
Sales office. See back page for
address.
Cleaning and care
17
Grease filters
The re-usable metal grease filters in the
appliance remove solid particles from
the kitchen vapours (grease, dust, etc)
preventing soiling of the cooker hood.
The filters should be cleaned regularly
(at least every 3-4 weeks) to avoid a
build up of fat, but always clean imme-
diately the grease filter touch control
lamp comes on.
An over saturated filter is a fire
hazard.
^To take out the grease filters press
the locking clips in towards the mid-
dle of the filter. Holding carefully,
lower and remove the filter.
^Clean the filters
–by hand: with a scrubbing brush in
warm water with a little washing up
liquid.
–in a dishwasher: place the filters
with the short side upright in the
lower basket, ensuring the spray arm
is not obstructed.
Depending on the cleaning agent
used, cleaning the grease filters in a
dishwasher can cause permanent
discolouration to the surface of the
filters.
However, this will not affect the func-
tioning of the grease filters in any
way.
^After cleaning, leave the filters to dry
on an absorbent surface before putt-
ing them back in place.
Cleaning and care
18
^When removing the filters for clean-
ing also clean off any residues of oil
or fat from the now accessible hous-
ing to prevent the risk of these catch-
ing fire.
When replacing the grease filters make
sure the locking clips are visible facing
down towards the hob.
Should the grease filters be put back
upside down:
insert a small screwdriver into the slits
to disengage them. Do not let them
drop on to the hob below.
^After replacing the grease filters,
press the grease filter touch control
for approx. 3 seconds to re-set the
operating hours counter. The indica-
tor lamp will go out.
^If the grease filters are cleaned be-
fore the operating hours counter has
reached its maximum, the grease fil-
ter touch control should be pressed
for approx. 6 seconds to reset the
counter to zero.
Cleaning and care
19
Changing a halogen lamp
Disconnect the cooker hood from
the mains supply. Ensure that:
– it is switched off at the fused spur
connection unit, or
– the mains fuse is withdrawn, or
– the screw-out fuse is removed (in
countries where this is applicable).
Exercise caution when changing
halogen lamps. They get very hot
during use and remain hot for some
time after being switched off.
Do not touch the surface directly
when changing a lamp as grease
particles from your fingers will ad-
here to the surface and damage it.
Please follow manufacturer’s instruc-
tions.
^To change the halogen lamp first re-
move the outer ring a.
^Then detach the circlip btaking care
that the glass cdoes not fall out.
^The halogen lamp dis fitted to a
push-in connection socket. To re-
place, pull out the old lamp and fit a
new one.
^Replace the cover cand press the
circlip bcarefully into the holder.
^Now replace the outer ring a.
Never use the lighting without the
lamp cover cin place as it has a fil-
ter designed to cut out harmful rays.
Cleaning and care
20
In the event of a fault which you cannot
correct yourself, or if the appliance is
under guarantee please contact:
–Your Miele Dealer
or
–The Miele Service Department (see
back cover for address).
When contacting the Service Depart-
ment, please quote the model and serial
number of your appliance. These are
shown on the data plate which is visible
when the grease filter is removed.
Please note that telephone calls may
be monitored and recorded to im-
prove our service.
After sales service
21

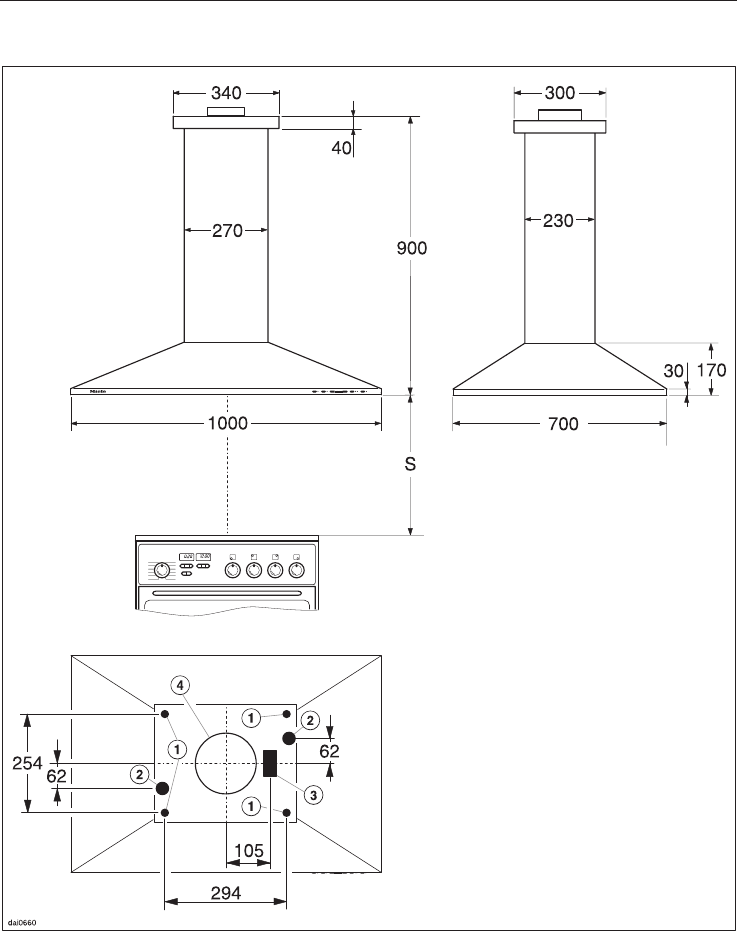

DA 200-2, DA 200-2 EXT
aDrill holes for fixing to the ceiling with C8 mm screws
bAlternative positions for feeding through the mains supply cable
cCut-out for feeding connection cable through to an external fan, min. 65 x 30 mm
dVentilation stub C150 mm
Appliance dimensions
22
DA 210-2, DA 210-2 EXT
aDrill holes for fixing to the ceiling with C8 mm screws
bAlternative positions for feeding through the mains supply cable
cCut-out for feeding connection cable through to an external fan, min. 65 x 30 mm
dVentilation stub C150 mm
Appliance dimensions
23

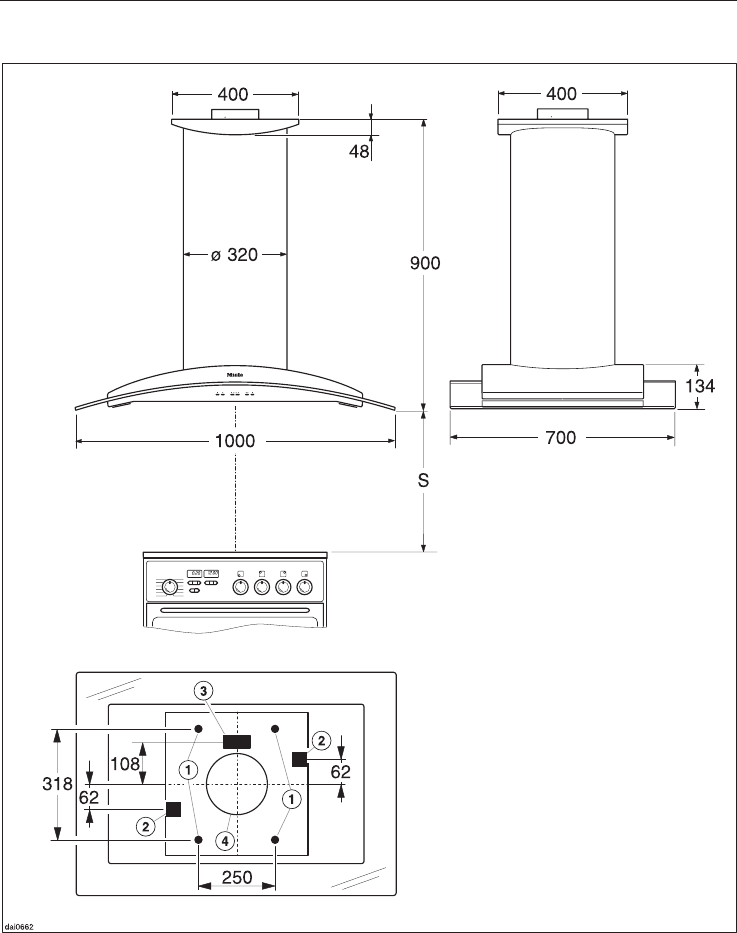

DA 220-2, DA 220-2 EXT
aDrill holes for fixing to the ceiling with C8 mm screws
bAlternative positions for feeding through the mains supply cable
cCut-out for feeding connection cable through to an external fan, min. 65 x 30 mm
dVentilation stub C150 mm
Appliance dimensions
24
Safety regulations prohibit the fitting
of this cooker hood over a solid fuel
stove.
For safety reasons a minimum safe
distance Smust be maintained be-
tween the top of the cooker/hob and
the bottom of the cooker hood of at
least:
– 550 mm above electric
cookers/hobs,
– 650 mm above gas cookers/hobs.
– 650 mm above an open grill from
our range.
A distance of 650 mm may be pref-
erable above electric cookers/hobs
to give more working space.
See "Warning and Safety instructions"
for further information.
Installation

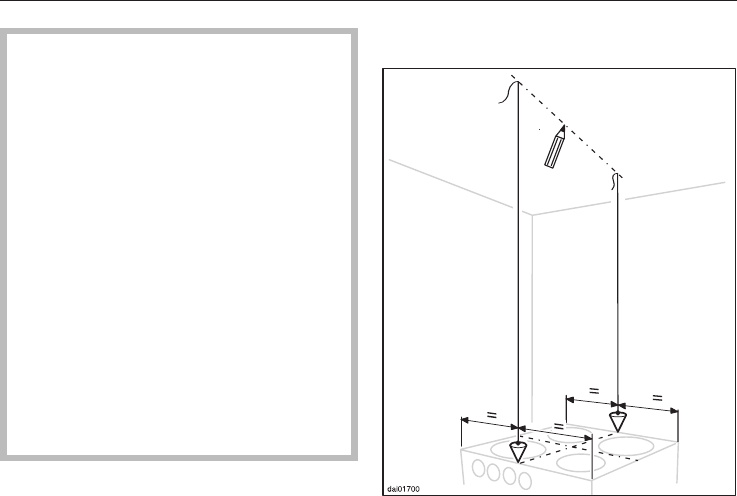

^Mark a line on the ceiling centrally
above the hob.
^First make a hole in the ceiling for the
exhaust duct at the desired position.
The exhaust connection socket has a
Cof 150 mm.
Installation
25
Ceiling plate: DA 200-2, DA 200-2 EXT
Ceiling plate: DA 210-2 / 210-2 EXT
Ceiling plate: DA 220-2 / 220-2 EXT
^Address the ceiling plate and posi-
tion it exactly. The orange coloured
arrow on the ceiling plate must face
to the front of the cooker hood.
Mark the position of the four holes to
be drilled afor securing the ceiling
plate and the position of the hole for
feeding the mains cable bthrough.
Select the cut-out providing the short-
est route for the mains connection
cable bto reach the cooker hood
connector.
^If the cooker hood is to be connected
to an external fan motor, also mark
the position of gap cfor the connec-
tion cable.
^Lay the mains cable and the exhaust
ducting C150 mm in the ceiling
space.
If site conditions are not suitable for
C150 mm ventilation ducting then
C125 mm ventilation ducting can be
used, in which case a suitable reducing
collar is needed which can be pur-
chased from your supplier or from the
Spare Parts Dept., (see "Installation –
Extraction" for further details).
Installation
26
^If the cooker hood is to be connected
to an external fan motor, create the
gap for the connection cable to the
fan motor. Ensure that the diameter is
sufficient to be able to feed through
the 6-pole connector.
In the following instructions only one
type of ceiling plate is shown.
^Drill four 10 mm Choles in the ceil-
ing, and insert S10 plugs into the
holes.
The fixings supplied are for use in
concrete ceilings. For other types of
ceiling, alternative suitable fixings
will be required. Make sure the ceil-
ing is stable enough to take the
cooker hood.
^Secure the ducting to the ceiling
plate using a hose clip.
Installation
27
^Prepare the ceiling plate for fitting. In-
sert the two spring retainers from be-
low into the slots provided in the ceil-
ing plate.
^Pull the mains connection cable
through the ceiling plate.
^Insert the four countersunk screws
M 6 x 20 into the recessed holes from
above. Secure the screws from
above with some adhesive tape to
prevent them from being pushed up-
wards when the nuts are tightened.
^Screw the ceiling plate to the ceiling
with the 8 x 60 mm screws and wash-
ers.
^For appliances connected to an ex-
ternal fan, model designation...EXT:
Make the connection between the
cooker hood and the external fan with
the 6-pole connector.
Then feed the connection cable to-
gether with plug connectors through
the cut out into the ceiling space.
Installation
28
^Assemble the tower. Place the flange
plate of the tower onto the ceiling
plate in such a way that the spring
clips click into the slots securely.
^Screw the flange plate securely to the
ceiling plate with the four M6 nuts
supplied.
^Shorten the electrical connection ca-
ble as much as possible and secure
inside the cooker hood tower with the
cable clips.
Before connecting the appliance
read the safety notes in "Warning
and Safety Instructions" and in the
"Electrical connection" section.
^Finally, push the cover plate upwards
until the spring fixing clips click in se-
curely and the plate sits tightly up
against the ceiling.
^Before using the appliance for the
first time take the grease filter out and
remove the protective foil from the fil-
ter frame. Then replace the filter.
Installation
29
Danger of toxic fumes.
Please heed the "Warning and
Safety instructions" to avoid the dan-
ger of toxic fumes.
The cooker hood should be installed
according to local building regula-
tions. Seek approval from the build-
ing inspector where necessary.
–All ducting, pipework and fittings
must be of non-flammable material.
– The extraction ducting should be as
short and straight as possible.
– To ensure efficient air extraction the
diameter of the exhaust ducting
should not be less than 150 mm.
If exhaust ducting with a diameter of
less than 150 mm or flat ducting
were to be used, the noise level of
the cooker hood would increase and
extraction would be less efficient.
Only reduce the diameter of the
ducting if absolutely necessary, e.g.
where narrower ducting has already
been installed.
–Only use wide radius bends. Tight
bends reduce the air throughput of
the cooker hood.
–Only use smooth pipes or flexible
hoses made from non-flammable ma-
terials for extraction connection.
–Where ducting is horizontal it must
be laid to slope away at at least 1 cm
per metre.
This is to ensure that condensate
cannot drain back into the cooker
hood.
–If the exhaust air is to be ducted into
the open air, the installation of a tele-
scopic wall vent is recommended.
–If the exhaust air is to be ducted into
a vent flue, the ducting must be di-
rected in the flow direction of the
flue.
Connection for air extraction
30
Important:
If the exhaust ducting is to run through
rooms, ceiling space etc. where there
may be great variations in temperature
between the different areas, the prob-
lem of sweating or condensation will
need to be addressed. The exhaust
ducting will need to be suitably insu-
lated.
Condensate trap
In addition to insulating the exhaust
ducting we recommend that a suitable
condensate trap is also installed to col-
lect and evaporate any condensate
which may occur.
When installing a condensate trap
ensure that it is positioned vertically
and if possible directly above the ex-
haust connection.
Cooker hoods designed for use with an
external fan have an integrated con-
densate trap.
Connection for air extraction
31
All electrical work should be under-
taken by a suitably qualified and
competent person in strict accor-
dance with national and local safety
regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous. The manufacturer can
not be held responsible for un-
authorised work.
Ensure power is not supplied to the
appliance while installation or repair
work is being carried out.
U.K., IRL, NZ, ZA: The cooker hood is
supplied for connection to an a.c.
230 V single phase 50 Hz supply.
AUS: The cooker hood is supplied for
connection to an a.c. single phase
240 V, 50 Hz supply.
The voltage, rated load and fusing are
given on the data plate. This is visible
when the grease filters have been re-
moved. Ensure that these match the
household mains supply.
For U.K.: Connection should be made
by a double pole fused spur connection
unit. The On-Off switch should be easily
accessible after the appliance has
been built in.
When switched off there must be an
all-pole contact gap of 3 mm in the
switch (including switch, fuses and re-
lays according to EN 60 335).
If the socket is not accessible after in-
stallation (depending on country) an
additional means of disconnection must
be provided for all poles.
For extra safety it is advisable to install a
residual current device (RCD) with a trip
current of 30 mA (in accordance with
DIN VDE 0664, VDE 0100 Section 739).
Important UK
The wires in the mains lead are col-
oured in accordance with the following
code:
Green/yellow = earth
Blue = neutral
Brown = live
WARNING:
THIS APPLIANCE MUST BE
EARTHED
Electrical connection
32
Rated load
DA 200-2, 210-2, 220-2 . . . . . . . 280 W
Lighting . . . . . . . . . . . . . . . . . . 4 x 20 W
Voltage
UK, IRL, NZ . . . . . . . . . . . . . . . . . 230 V
AUS . . . . . . . . . . . . . . . . . . . . . . . 240 V
Frequency. . . . . . . . . . . . . . . . . ~ 50 Hz
Fuse rating (UK). . . . . . . . . . . . . . . 13 A
Fuse rating (IRL). . . . . . . . . . . . . . . 10 A
AUS, NZ:
Plug rating . . . . . . . . . . . . . . . . . . . 10 A
Test marks . . . . . . . . . . Electrical safety
. . . . . . . . . . . . . . . . . . . . . . C-Tick Mark
Electrically suppressed
according to AS/NZS 1044
Fan performance
Extraction power according to EN 61591
Extraction system C150 mm:
Level I . . . . . . . . . . . . . . . . . . . 230 m3/h
Level II. . . . . . . . . . . . . . . . . . . 350 m3/h
Level III . . . . . . . . . . . . . . . . . . 520 m3/h
Intensive level . . . . . . . . . . . . . 720 m3/h
Extraction system C125 mm:
Level I . . . . . . . . . . . . . . . . . . . 220 m3/h
Level II. . . . . . . . . . . . . . . . . . . 330 m3/h
Level III . . . . . . . . . . . . . . . . . . 500 m3/h
Intensive level . . . . . . . . . . . . . 650 m3/h
unrestricted . . . . . . . . . . . . . . . 750 m3/h
For EXT models the rated load and ex-
traction power will depend on the type
of external fan fitted.
Technical data
33
34
35
Alteration rights reserved / 1703
This paper consists of cellulose which has been bleached without the use of chlorine
M.-Nr. 05 814 390 / V01

Navigation menu
