art.nr. 722.392.20/T91701B
Operating instructions
Gas hob KM 326G
Conversion kit AH 102 C4U
Instructions pour l’utilisation
du dessus de cuisinière au gas KM 326G
Kit de conversion AH 102 C4U
1
* Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
* What to do if you smell gas
– Do not try to light any appliance.
– Do not touch any electrical
switch.
– Do not use any phone in your
building.
– Immediately call your gas supplier
using a neighbour’s phone. Follow
the gas supplier‘s instructions.
– If you cannot reach your gas
supplier, call the fire department.
* Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
Warning
If the information in this
manual is not followed
exactly, a fire or explosion
may result causing damage
to property, personal injury
or death.
USA CDN
CDN
english page 1 - 27
operating instructions gashob KM 326G page 1 - 17
converting instructions converting kit AH 102 C4U page 18 - 27
français page 28 - 55
Instructions pour l’utilisation du dessus
de cuisinière au gas KM 326G page 28 - 45
Mode d'emploi du kit de conversion AH 102 C4U page 46 - 55
1
* Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
* What to do if you smell gas
– Do not try to light any appliance.
– Do not touch any electrical
switch.
– Do not use any phone in your
building.
– Immediately call your gas supplier
using a neighbour’s phone. Follow
the gas supplier‘s instructions.
– If you cannot reach your gas
supplier, call the fire department.
* Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
Warning
If the information in this
manual is not followed
exactly, a fire or explosion
may result causing damage
to property, personal injury
or death.
USA CDN
CDN
english page 1 - 27
operating instructions gashob KM 326G page 1 - 17
converting instructions converting kit AH 102 C4U page 18 - 27
français page 28 - 55
Instructions pour l’utilisation du dessus
de cuisinière au gas KM 326G page 28 - 45
Mode d'emploi du kit de conversion AH 102 C4U page 46 - 55
2 3
Warning and safety instructions
1. Read all the instructions before using your
hob unit.
2. Use the unit only for its intended purpose.
3. Do not use the unit unless all parts are
properly in place according to the
installation and operating instructions.
4. Before servicing, disconnect the power
supply by removing the plug or switching off
the circuit breaker.
5. Never use the unit to warm or heat the
room.
6. When using an electrical socket near the
burners, make sure that the cable of the
appliance does not come into contact with
the burner of the unit.
7. Do not allow children to operate or play with
or near the unit.
8. Keep all play items stored away from the
unit to prevent injury to curious or playful
children.
9. Please remember that, in use, burners and
pot racks become hot; therefore ensure that
children do not touch them.
10. Do not store items on the unit when not in
use.
11. Do not let cooking grease or other
flammable materials accumulate on the unit.
12. Never leave the unit unattended when
cooking with oil or fat. Very hot oil can
cause fire.
13. Allow sufficient time for the unit to cool
before touching or exposing surface areas
to flammable materials.
14. If high settings are used, remain near the
hob in case of spitting grease or pans
boiling over, which may cause smoke.
15. Never use moist pot holders.
16. Use only certain containers suitable for
range-top service. Unsuitable containers
may break due to a sudden temperature
change.
17. Position the handle of the container towards
the centre of the range to minimize burns,
spillage and ignition of flammable materials.
18. Before removing pots and pans, be sure to
turn surface unit to “OFF”.
19. Always heat fat slowly, watching as it heats.
20. Use a deep fat thermometer to prevent
overheating.
21. When frying foods, make sure that the food
is as dry as possible to prevent moisture
from causing hot fat to bubble over.
22. When shallow or deep-fat frying, do not
overfill the pan with oil.
23. Do not use the hob if it is not connected to
the electricity mains or in the event of a
power cut. It is not safe under these
conditions.
Save the instructions.
Leave these instructions with the consumer.

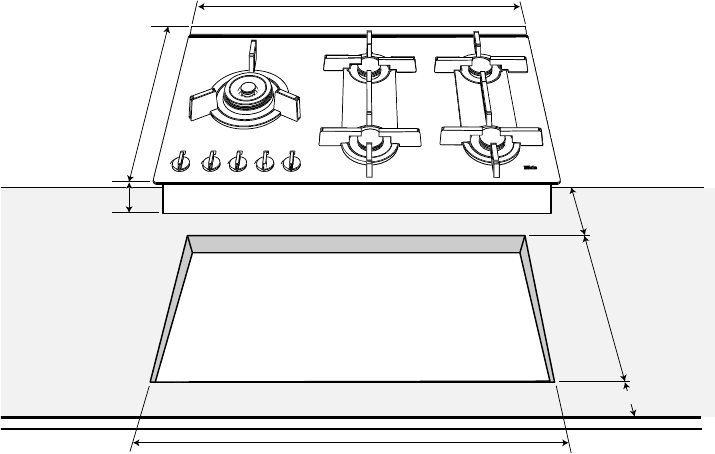

Marking
2-zone wok burner
rear left burner
front left burner
rear right burner
front right burner

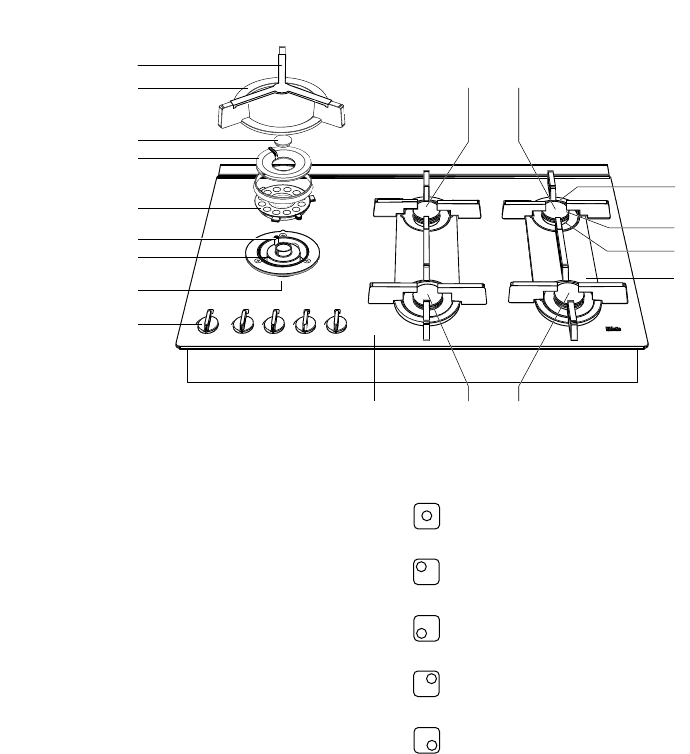

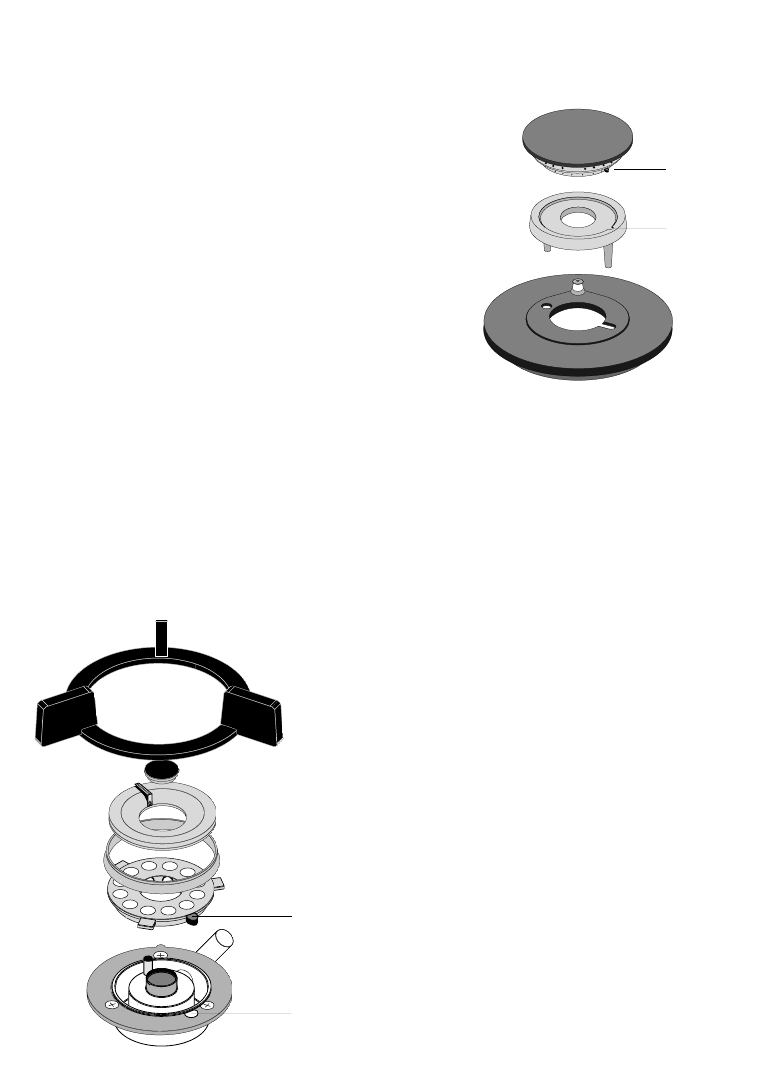

General
1. control knobs with marking and
LED display
2. 2-zone high-speed wok burner
2.1 burner head
2.2 ignition
2.3 safety control
2.4 burner ring
2.5 burner cap
2.6 burner cap
2.7 pan support
2.8 trivet for 2-zone burner
3. super high-speed burner
4. high-speed burner
4.1 burner head
4.2 ignition
4.3 safety control
4.4 burner cap
5 pan support
6. super high-speed burner
7. high-speed burner
8. drip tray of heat resistant ceramic
1
2.
2.1
2.2/2.3
2.4
2.5
2.6
2.7 34
4.1
4.2/4.3
4.4
67
5
8
2.8
2 3
Warning and safety instructions
1. Read all the instructions before using your
hob unit.
2. Use the unit only for its intended purpose.
3. Do not use the unit unless all parts are
properly in place according to the
installation and operating instructions.
4. Before servicing, disconnect the power
supply by removing the plug or switching off
the circuit breaker.
5. Never use the unit to warm or heat the
room.
6. When using an electrical socket near the
burners, make sure that the cable of the
appliance does not come into contact with
the burner of the unit.
7. Do not allow children to operate or play with
or near the unit.
8. Keep all play items stored away from the
unit to prevent injury to curious or playful
children.
9. Please remember that, in use, burners and
pot racks become hot; therefore ensure that
children do not touch them.
10. Do not store items on the unit when not in
use.
11. Do not let cooking grease or other
flammable materials accumulate on the unit.
12. Never leave the unit unattended when
cooking with oil or fat. Very hot oil can
cause fire.
13. Allow sufficient time for the unit to cool
before touching or exposing surface areas
to flammable materials.
14. If high settings are used, remain near the
hob in case of spitting grease or pans
boiling over, which may cause smoke.
15. Never use moist pot holders.
16. Use only certain containers suitable for
range-top service. Unsuitable containers
may break due to a sudden temperature
change.
17. Position the handle of the container towards
the centre of the range to minimize burns,
spillage and ignition of flammable materials.
18. Before removing pots and pans, be sure to
turn surface unit to “OFF”.
19. Always heat fat slowly, watching as it heats.
20. Use a deep fat thermometer to prevent
overheating.
21. When frying foods, make sure that the food
is as dry as possible to prevent moisture
from causing hot fat to bubble over.
22. When shallow or deep-fat frying, do not
overfill the pan with oil.
23. Do not use the hob if it is not connected to
the electricity mains or in the event of a
power cut. It is not safe under these
conditions.
Save the instructions.
Leave these instructions with the consumer.
Marking
2-zone wok burner
rear left burner
front left burner
rear right burner
front right burner
General
1. control knobs with marking and
LED display
2. 2-zone high-speed wok burner
2.1 burner head
2.2 ignition
2.3 safety control
2.4 burner ring
2.5 burner cap
2.6 burner cap
2.7 pan support
2.8 trivet for 2-zone burner
3. super high-speed burner
4. high-speed burner
4.1 burner head
4.2 ignition
4.3 safety control
4.4 burner cap
5 pan support
6. super high-speed burner
7. high-speed burner
8. drip tray of heat resistant ceramic
1
2.
2.1
2.2/2.3
2.4
2.5
2.6
2.7 34
4.1
4.2/4.3
4.4
67
5
8
2.8
4 5
Gas burners
If a burner blows out, the electronic ignition
automatically sparks all burners to relight the
flame.
The flame is lit by means of an electrical ignition
device. When the burner control is pressed and
turned, a high voltage flows into the electrode
by the burner. Sparks are created. A spark
ignites the gas to give a flame.

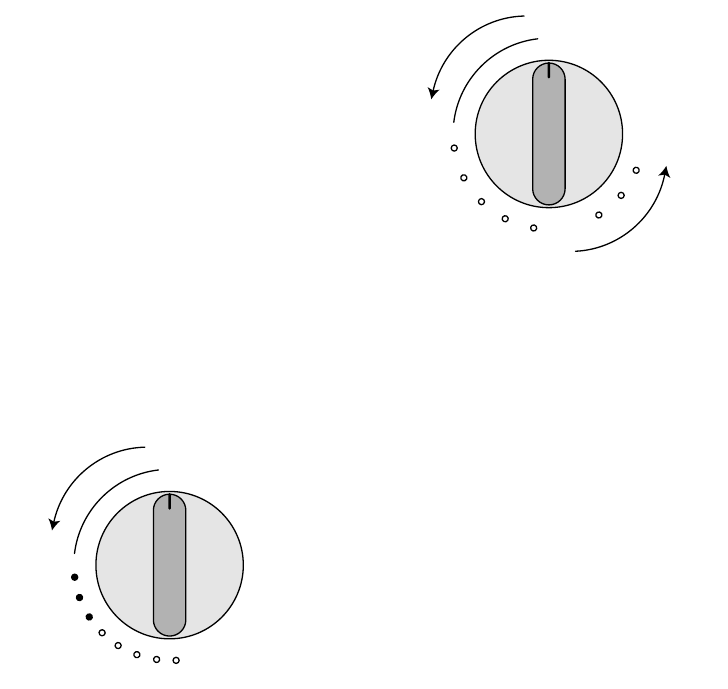

Lighting and adjusting
high-speed and super high-speed burners
A symbol above the control knob indicates
which burner is being operated.
– Push in the burner control knob and turn it to
the “HI” position. Ignition follows.
– Turn the control to the desired setting once
the burner is alight. The LED’s indicate the
position of the control knob.
You may set the knob at any position between
“HI” and “LO”.
2-zone super high-speed wok burner
Outer ring
– Push in the burner control knob and turn it to
the “HI” position. Ignition follows.
– Turn the control to the desired setting once
the burner is alight.
You may set the knob at any position between
“HI” and “LO”.
Inner ring
– Push in the burner control knob and turn it to
the “HI” position. Ignition follows.
– Turn the control to “LO” once the burner is
alight.
– Push in the burner control knob and turn it to
any position between “LO” and “XLO”.
OFF
HI
LO
XLO
Important notes for the user
–Installation and maintenance should only be
carried out by a suitably qualified person
(licensed gas fitter in Canada).
– For safety reasons, this hob should only be
fitted as a built-in appliance.
– Please remember that the hob becomes hot,
not only around the burner, but also the
control panel. Therefore ensure that small
children do not touch the hob when it is being
used.

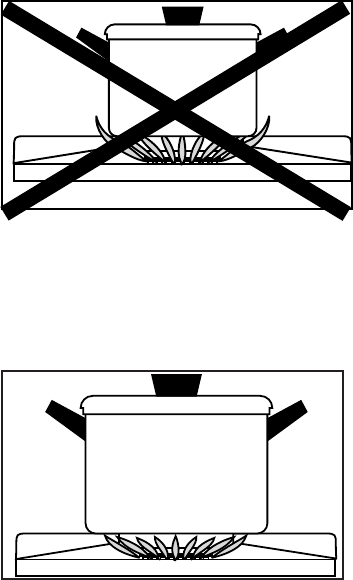

– When cooking or boiling in large pots or pans,
ensure that there is a minimum distance of
2˝ (50 mm) between the pot and a heat-
sensitive worktop.
After combustion, the hot gases flow
outwards under the base of the pot and may
consequently burn the edge of the worktop if
it is too close.
– Make sure there is a minimum distance of
5/8˝ (15 mm) between the pot or pan and the
control panel. Never place a pot on the
control panel.
– When using a cooker hood over the gas hob,
ensure that any burners in use are always
covered with a pot or frying pan. Otherwise,
parts of the cooker hood could be damaged
by the heat and/or flames.

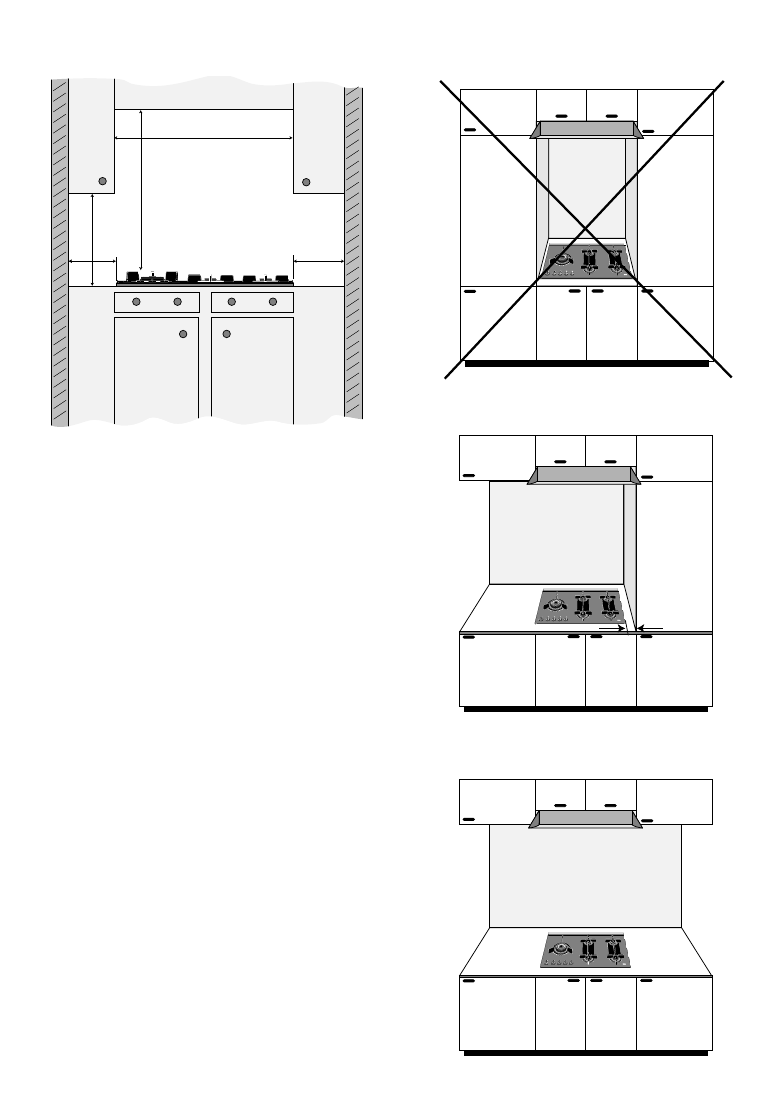

– Note that potential hazards may exist with
overhead cabinets.
– Not to be used for space heating. This
instruction is based on safety considerations.
– When a gas cooking appliance is being used,
heat and moisture are produced in the area
where the appliance is situated. Make sure
that the area is sufficiently ventilated; open
natural ventilation openings or fit a
mechanical ventilator (extractor). When the
hob is used for longer periods, extra
ventilation may be needed, such as an open
window or a higher setting on the ventilator
(extractor).
Advice
–The safe and efficient use of this appliance
requires that it be regularly serviced by a
qualified technician; however, the frequency
of service will depend on usage. Once a year
should suffice.
Before starting check
Remove all packaging materials and labels
before using your hob.
Check:
– that the gas is on at the mains;
– that the plug is in the wall socket;
– that the pan supports are positioned correctly.
4 5
Gas burners
If a burner blows out, the electronic ignition
automatically sparks all burners to relight the
flame.
The flame is lit by means of an electrical ignition
device. When the burner control is pressed and
turned, a high voltage flows into the electrode
by the burner. Sparks are created. A spark
ignites the gas to give a flame.
Lighting and adjusting
high-speed and super high-speed burners
A symbol above the control knob indicates
which burner is being operated.
– Push in the burner control knob and turn it to
the “HI” position. Ignition follows.
– Turn the control to the desired setting once
the burner is alight. The LED’s indicate the
position of the control knob.
You may set the knob at any position between
“HI” and “LO”.
2-zone super high-speed wok burner
Outer ring
– Push in the burner control knob and turn it to
the “HI” position. Ignition follows.
– Turn the control to the desired setting once
the burner is alight.
You may set the knob at any position between
“HI” and “LO”.
Inner ring
– Push in the burner control knob and turn it to
the “HI” position. Ignition follows.
– Turn the control to “LO” once the burner is
alight.
– Push in the burner control knob and turn it to
any position between “LO” and “XLO”.
OFF
HI
LO
OFF
HI
LO
XLO
Important notes for the user
–Installation and maintenance should only be
carried out by a suitably qualified person
(licensed gas fitter in Canada).
– For safety reasons, this hob should only be
fitted as a built-in appliance.
– Please remember that the hob becomes hot,
not only around the burner, but also the
control panel. Therefore ensure that small
children do not touch the hob when it is being
used.
– When cooking or boiling in large pots or pans,
ensure that there is a minimum distance of
2˝ (50 mm) between the pot and a heat-
sensitive worktop.
After combustion, the hot gases flow
outwards under the base of the pot and may
consequently burn the edge of the worktop if
it is too close.
– Make sure there is a minimum distance of
5/8˝ (15 mm) between the pot or pan and the
control panel. Never place a pot on the
control panel.
– When using a cooker hood over the gas hob,
ensure that any burners in use are always
covered with a pot or frying pan. Otherwise,
parts of the cooker hood could be damaged
by the heat and/or flames.
– Note that potential hazards may exist with
overhead cabinets.
– Not to be used for space heating. This
instruction is based on safety considerations.
– When a gas cooking appliance is being used,
heat and moisture are produced in the area
where the appliance is situated. Make sure
that the area is sufficiently ventilated; open
natural ventilation openings or fit a
mechanical ventilator (extractor). When the
hob is used for longer periods, extra
ventilation may be needed, such as an open
window or a higher setting on the ventilator
(extractor).
Advice
–The safe and efficient use of this appliance
requires that it be regularly serviced by a
qualified technician; however, the frequency
of service will depend on usage. Once a year
should suffice.
Before starting check
Remove all packaging materials and labels
before using your hob.
Check:
– that the gas is on at the mains;
– that the plug is in the wall socket;
– that the pan supports are positioned correctly.
6 7
Pans and pots
The heat from the burner is transferred via the
pan base. If the base is thick, the heat will take
longer to reach the contents, but the base will
have a more uniform temperature. Thin and light
pans will cause food to burn more easily.
To use the gas as efficiently as possible, it is
best to use a pan with a large diameter.
The tips of the flames are the hottest. If flames
escape around the sides of the pan, a great deal
of heat is lost.
Keeping the flame beneath the pan saves time
and gas and is the safest way to cook.
Cook with the lid on the pan. This can save on
energy by up to 50%.
Cooking in comfort
frying and pot-roasting
deep-frying and blanching
cooking large quantities
stir-frying
are best done on the super high-speed wok
burner.
stewing and steaming
cooking standard portions
making a roux
are best done on the high-speed burner.
The high-speed burner is ideal for preparing
portions for about 4 people.
making sauces
keeping food hot
cooking through/simmering
are best done on the inner ring of the 2-zone
burner.
At the “LO”position, this burner is large enough
to cook food through.
Wrong
Right
How to use gas burners
Place the pot over the pot support fitted above
the hob.
For small pots with a diameter of less then
7˝ (175 mm), the trivet must be used in
combination with the 2-zone wok burner.
Make sure the trivet is securely fixed to the pot
support.
Push the appropriate control knob, turn it
counter-clockwise to the setting “HI”.
If the burner fails to ignite, check that:
– the burner cap is positioned correctly;
– the burner is clean and dry.
To switch off the gas supply to the burner, turn
the control knob, in a clockwise direction, to the
“OFF” position.
When cooking or boiling in large pots or pans,
ensure that there is a minimum distance of
2˝ (50 mm) between the pot and a heat-sensitive
worktop.
After combustion, the hot gases flow outwards
under the base of the pot and may consequently
burn the edge of the worktop if it is too close.
Make sure there is a minimum distance of
5/8˝ (15 mm) between the pot or pan and the
control panel. Never place a pot on the control
panel.
Right Wrong

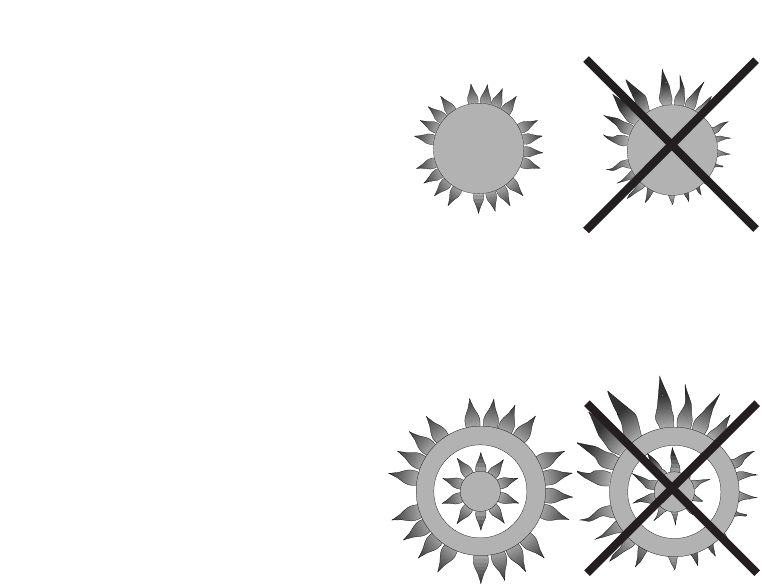

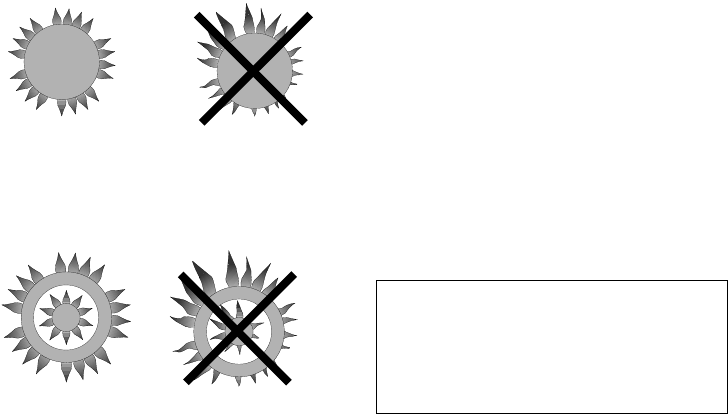

Check to ensure that the burner is burning
correctly. The flames should be blue and
uniform.
Right Wrong
If the flames are not uniform, check to ensure
that the burner cap is properly positioned on the
ring.

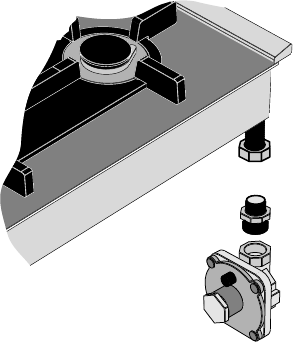

If the flames are irregular and yellow, check to
ensure that a pressure regulator has been
installed. Do not use the appliance and inform
the installer.
6 7
Pans and pots
The heat from the burner is transferred via the
pan base. If the base is thick, the heat will take
longer to reach the contents, but the base will
have a more uniform temperature. Thin and light
pans will cause food to burn more easily.
To use the gas as efficiently as possible, it is
best to use a pan with a large diameter.
The tips of the flames are the hottest. If flames
escape around the sides of the pan, a great deal
of heat is lost.
Keeping the flame beneath the pan saves time
and gas and is the safest way to cook.
Cook with the lid on the pan. This can save on
energy by up to 50%.
Cooking in comfort
frying and pot-roasting
deep-frying and blanching
cooking large quantities
stir-frying
are best done on the super high-speed wok
burner.
stewing and steaming
cooking standard portions
making a roux
are best done on the high-speed burner.
The high-speed burner is ideal for preparing
portions for about 4 people.
making sauces
keeping food hot
cooking through/simmering
are best done on the inner ring of the 2-zone
burner.
At the “LO”position, this burner is large enough
to cook food through.
Wrong
Right
How to use gas burners
Place the pot over the pot support fitted above
the hob.
For small pots with a diameter of less then
7˝ (175 mm), the trivet must be used in
combination with the 2-zone wok burner.
Make sure the trivet is securely fixed to the pot
support.
Push the appropriate control knob, turn it
counter-clockwise to the setting “HI”.
If the burner fails to ignite, check that:
– the burner cap is positioned correctly;
– the burner is clean and dry.
To switch off the gas supply to the burner, turn
the control knob, in a clockwise direction, to the
“OFF” position.
When cooking or boiling in large pots or pans,
ensure that there is a minimum distance of
2˝ (50 mm) between the pot and a heat-sensitive
worktop.
After combustion, the hot gases flow outwards
under the base of the pot and may consequently
burn the edge of the worktop if it is too close.
Make sure there is a minimum distance of
5/8˝ (15 mm) between the pot or pan and the
control panel. Never place a pot on the control
panel.
Right Wrong
Check to ensure that the burner is burning
correctly. The flames should be blue and
uniform.
Right Wrong
If the flames are not uniform, check to ensure
that the burner cap is properly positioned on the
ring.
If the flames are irregular and yellow, check to
ensure that a pressure regulator has been
installed. Do not use the appliance and inform
the installer.
8 9
Disposal of packaging and
appliance
The packaging of the appliance is recyclable. It
is made up of:
– cardboard
– polyethylene film (PE)
– CFC-free polystyrene (PS rigid foam)
Please dispose of these materials in a
responsible way in accordance with the
regulations of your local authority.
Your local authority will also be able to give you
information about disposing of disused
household appliances in a responsible way.
Cleaning and maintenance
(cont.)
After cleaning always dry the burners and the
electrodes, otherwise the flame will not ignite.

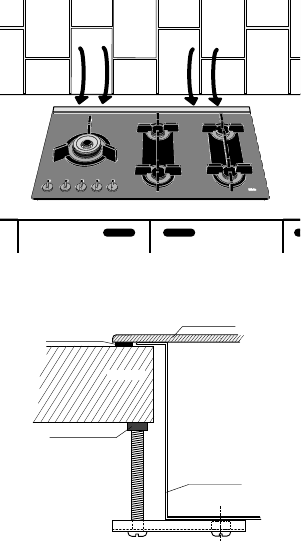

When using a cooker hood over the hob, ensure
that any burners in use are always covered with
a pan. Otherwise flames could be drawn up by
the suction of the cooker hood, parts of which
could then be damaged.
Cleaning and maintenance
Before cleaning, be certain the burners are
turned off and the grates are cool.
In the event of boiling over, clean immediately,
to prevent the substance which has boiled over
from igniting.
Wiping the hob down regularly immediately after
use prevents dirt from burning on and resulting
in stains which are difficult to remove.
For cleaning, use a mixture of water and
detergent or all-purpose cleaner.
Stubborn stains on the appliance can be
removed with a non-abrasive cream or a soft
sponge.
2-zone high-speed wok burner
Super high-speed burner/ high-speed burner
The burners can be taken apart for cleaning and
put back together as the diagram shows.
Do not submerge hot burner caps in cold water.
The quick change in temperature may damage
the enamel.
Important:
The burners must only be lit when they are
correctly fitted together, otherwise the ignition
device could be damaged.
Avoid using too much water when cleaning the
burners. Do not use scouring powder or other
aggressive cleaning agents.
Keep the appliance and vicinity clear and free
from combustible materials, gasoline and other
flammable vapors and liquids.
From time to time, the electrodes should be
wiped with a well wrung-out cloth and dried
with a clean cloth.
tab
indentation
tab
indentation
tab
indentation
8 9
Disposal of packaging and
appliance
The packaging of the appliance is recyclable. It
is made up of:
– cardboard
– polyethylene film (PE)
– CFC-free polystyrene (PS rigid foam)
Please dispose of these materials in a
responsible way in accordance with the
regulations of your local authority.
Your local authority will also be able to give you
information about disposing of disused
household appliances in a responsible way.
Cleaning and maintenance
(cont.)
After cleaning always dry the burners and the
electrodes, otherwise the flame will not ignite.
When using a cooker hood over the hob, ensure
that any burners in use are always covered with
a pan. Otherwise flames could be drawn up by
the suction of the cooker hood, parts of which
could then be damaged.
Cleaning and maintenance
Before cleaning, be certain the burners are
turned off and the grates are cool.
In the event of boiling over, clean immediately,
to prevent the substance which has boiled over
from igniting.
Wiping the hob down regularly immediately after
use prevents dirt from burning on and resulting
in stains which are difficult to remove.
For cleaning, use a mixture of water and
detergent or all-purpose cleaner.
Stubborn stains on the appliance can be
removed with a non-abrasive cream or a soft
sponge.
2-zone high-speed wok burner
Super high-speed burner/ high-speed burner

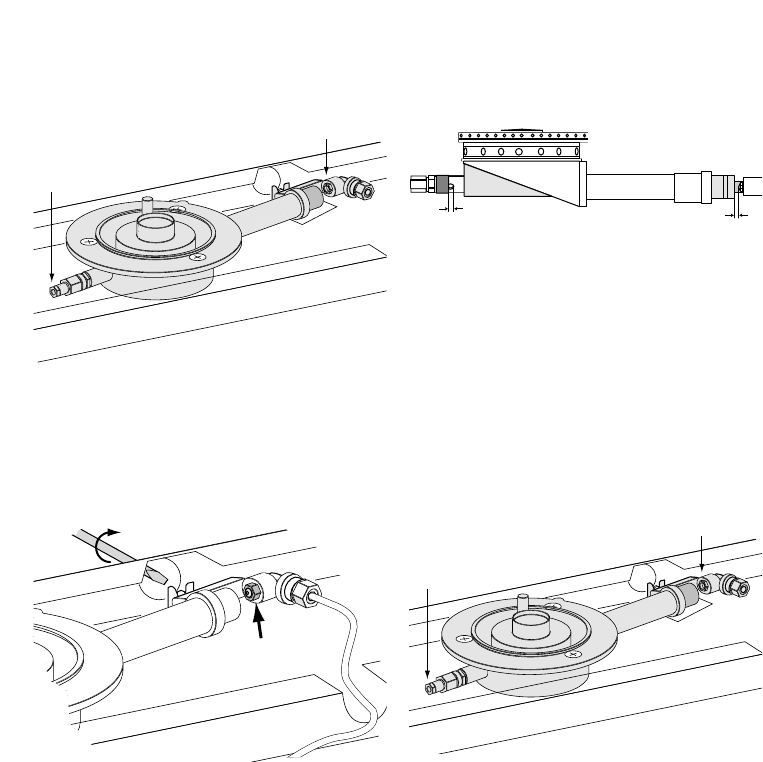

The burners can be taken apart for cleaning and
put back together as the diagram shows.
Do not submerge hot burner caps in cold water.
The quick change in temperature may damage
the enamel.
Important:
The burners must only be lit when they are
correctly fitted together, otherwise the ignition
device could be damaged.
Avoid using too much water when cleaning the
burners. Do not use scouring powder or other
aggressive cleaning agents.
Keep the appliance and vicinity clear and free
from combustible materials, gasoline and other
flammable vapors and liquids.
From time to time, the electrodes should be
wiped with a well wrung-out cloth and dried
with a clean cloth.
tab
indentation
tab
indentation
tab
indentation
10 11
Electrical circuit diagram
Problem
Burner does not burn well
Ignition sparks but burner
does not ignite
Ignition does not spark
Cause
– Burner dirty or moist
– Not suitable for type of gas
– Burner dirty or moist
– Burner cap not aligned
properly
– The appliance has not yet
been plugged in properly
– Ignition is defective
Solution
– Clean and/or dry the burner
– Check identification plate
and if necessary have the
appliance adapted
– Clean and/or dry the burner
– Position the cap properly
onto the ring
– Plug in the appliance
properly
– Phone the Miele Service
Department
If your appliance does not operate as desired,
first check if you can solve the problem yourself
by using the table above. There is often a simple
reason for the problem.
Repairs to the gas and electrical components of
this appliance must only be carried out by a
suitably qualified person (licensed gas fitter in
Canada).
Repairs by unauthorised personnel could be
dangerous and are not covered by the
guarantee.
In the event of any fault on this appliance,
please contact:
– your Miele dealer or
– the Miele Service Department,
the address of which is shown on the back
page.
Please quote the model and serial number of
your appliance. You will find both on the data
plate located on the underside of the appliance.
Troubleshooting
10 11
Electrical circuit diagram
5-point gas re-ignitor
120 Vac/60 Hz/3 VA
spark/sense
re-ignition
earth
N
A
SW1
SW2
SW3
SW4
SW5
S1
S2
S3
S4
S5
120V/60HZ
main connecting board
L
N
TWO ZONE
WOK BURNER
12-leds
com S1 LED com S1 LED
9-leds
com S1 LED
9-leds 9-leds
com S1 LED com S1 LED
9-leds
FRONT RIGHT
BACK RIGHT
BACK LEFT
FRONTLEFT
Problem
Burner does not burn well
Ignition sparks but burner
does not ignite
Ignition does not spark
Cause
– Burner dirty or moist
– Not suitable for type of gas
– Burner dirty or moist
– Burner cap not aligned
properly
– The appliance has not yet
been plugged in properly
– Ignition is defective
Solution
– Clean and/or dry the burner
– Check identification plate
and if necessary have the
appliance adapted
– Clean and/or dry the burner
– Position the cap properly
onto the ring
– Plug in the appliance
properly
– Phone the Miele Service
Department
If your appliance does not operate as desired,
first check if you can solve the problem yourself
by using the table above. There is often a simple
reason for the problem.
Repairs to the gas and electrical components of
this appliance must only be carried out by a
suitably qualified person (licensed gas fitter in
Canada).
Repairs by unauthorised personnel could be
dangerous and are not covered by the
guarantee.
In the event of any fault on this appliance,
please contact:
– your Miele dealer or
– the Miele Service Department,
the address of which is shown on the back
page.
Please quote the model and serial number of
your appliance. You will find both on the data
plate located on the underside of the appliance.
Troubleshooting
12 13
Warning
As shown in the above diagram, the regulator
included must be used when connecting the
Miele hob.
– Any pipe connections must be made using a
thread sealant approved for gas connections.
Failure to correctly install these items could
lead to a gas leak and subsequent explosion.
– Do not use any regulator unless it has been
supplied by Miele Appliances.
Connect the gas supply to the pressure
regulator using a 1/2” gas line connector
between the shut-off valve and the pressure
regulator. Flexible harmonica-type stainless
steel pipe is recommended.
For USA only
The gas connection must be made in
accordance with the local codes, or in absence
of local codes, with the National Fuel Gas Code
ANSI Z 223.1.
Gas pressures for USA
Natural gas
Max. supply pressure: 1/2 psi
Min. supply pressure: 5˝ water column
Liquid propane gas, after converting this
appliance with conversion kit number AH102 C4U.
Max. supply pressure: 1/2 psi
Min. supply pressure: 11˝ water column
Manifold pressure:
– natural gas 4˝ water column
– propane gas 10˝ water column
Gas connection
These appliances must be installed with a
separate shut-off valve and a gas pressure
regulator.
Both shut-off valve and pressure regulator must
be easily accessible to the consumer.
The shut-off valve is solely intended to be used
to shut off the gas supply.
This appliance and its individual shut-off valve
must be disconnected from the gas supply
piping system during any pressure testing of that
system.
The hob comes equipped for natural gas.
You should find out details about the type of gas
and calorific value from your Gas Utility and
compare this information with the type of gas
quoted on the data plate.
Before using the appliance, check the
connection with a soapy solution for leaks.
Never use a flame of any sort. The interior of
this appliance has been tested by the
manufacturer.

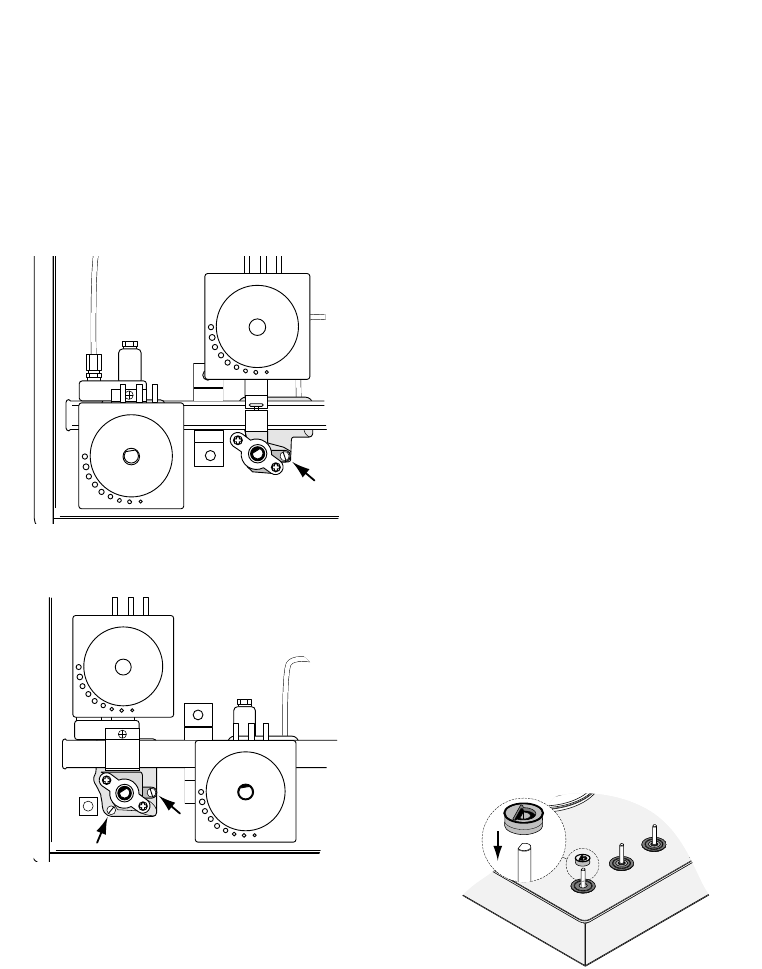

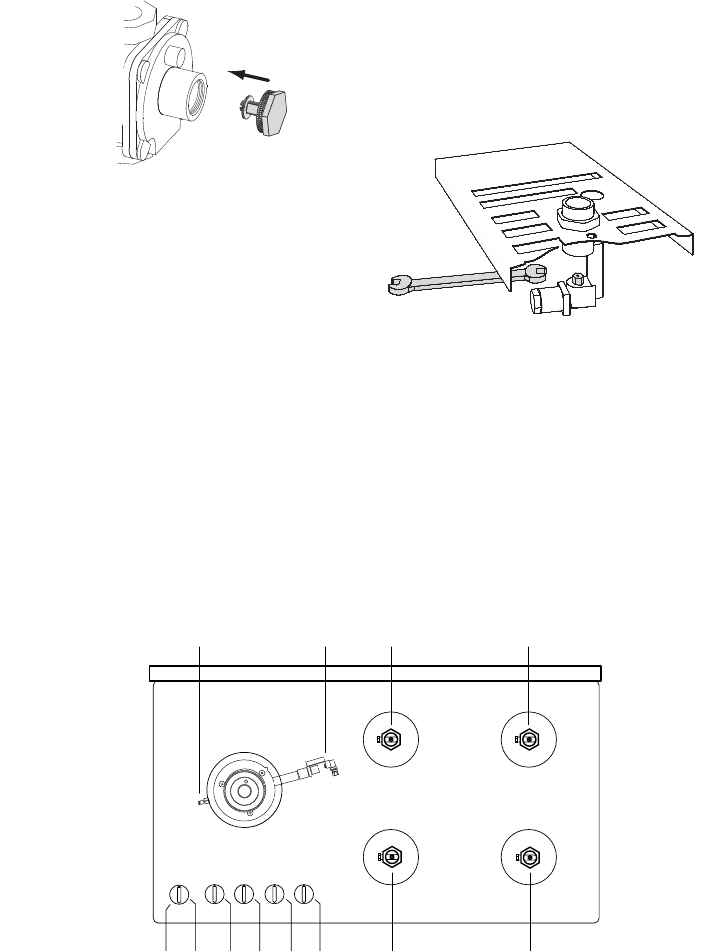

Pressure regulator
A pressure regulator is included with the
appliance.
After installing a gas shut-off valve in an easily
accessible location under the hob, install the
gas pressure regulator to the manifold pipe
using pipe dope on threads of the manifold pipe
(see also next page).
Electrical connection
The automatic ignition and the safety device
require connect ion to an A.C. single phase
120 V, 60 Hz supply. Fuse rating 6 A.
The appliances are factory equipped with a
power supply cord with molded three prong plug
– ready for connection to an electrically
grounded socket which complies with your local
electrical codes or with the National Electrical
Code ANSI/NFPA No. 70 for the USA or
Electrical Code Part I for Canada.
Ensure that the receptacle is positioned so that
it is easily accessible when the appliance is
built in.
Check that the data given on the data plate
under the appliance complies with the mains
voltage.
Warning:
This appliance must be grounded.
Do not cut or remove the grounding prong from
the plug.
12 13
Warning
As shown in the above diagram, the regulator
included must be used when connecting the
Miele hob.
– Any pipe connections must be made using a
thread sealant approved for gas connections.
Failure to correctly install these items could
lead to a gas leak and subsequent explosion.
– Do not use any regulator unless it has been
supplied by Miele Appliances.
Connect the gas supply to the pressure
regulator using a 1/2” gas line connector
between the shut-off valve and the pressure
regulator. Flexible harmonica-type stainless
steel pipe is recommended.
For USA only
The gas connection must be made in
accordance with the local codes, or in absence
of local codes, with the National Fuel Gas Code
ANSI Z 223.1.
Gas pressures for USA
Natural gas
Max. supply pressure: 1/2 psi
Min. supply pressure: 5˝ water column
Liquid propane gas, after converting this
appliance with conversion kit number AH102 C4U.
Max. supply pressure: 1/2 psi
Min. supply pressure: 11˝ water column
Manifold pressure:
– natural gas 4˝ water column
– propane gas 10˝ water column
Gas connection
These appliances must be installed with a
separate shut-off valve and a gas pressure
regulator.
Both shut-off valve and pressure regulator must
be easily accessible to the consumer.
The shut-off valve is solely intended to be used
to shut off the gas supply.
This appliance and its individual shut-off valve
must be disconnected from the gas supply
piping system during any pressure testing of that
system.
The hob comes equipped for natural gas.
You should find out details about the type of gas
and calorific value from your Gas Utility and
compare this information with the type of gas
quoted on the data plate.
Before using the appliance, check the
connection with a soapy solution for leaks.
Never use a flame of any sort. The interior of
this appliance has been tested by the
manufacturer.
Pressure regulator
A pressure regulator is included with the
appliance.
After installing a gas shut-off valve in an easily
accessible location under the hob, install the
gas pressure regulator to the manifold pipe
using pipe dope on threads of the manifold pipe
(see also next page).
Electrical connection
The automatic ignition and the safety device
require connect ion to an A.C. single phase
120 V, 60 Hz supply. Fuse rating 6 A.
The appliances are factory equipped with a
power supply cord with molded three prong plug
– ready for connection to an electrically
grounded socket which complies with your local
electrical codes or with the National Electrical
Code ANSI/NFPA No. 70 for the USA or
Electrical Code Part I for Canada.
Ensure that the receptacle is positioned so that
it is easily accessible when the appliance is
built in.
Check that the data given on the data plate
under the appliance complies with the mains
voltage.
Warning:
This appliance must be grounded.
Do not cut or remove the grounding prong from
the plug.
14 15
There may be a wall at the rear and a wall or tall
units at one side. On the other side, however, no
unit or divider may stand higher than the hob.
Building-in dimensions
Prepare a cut-out in the worktop according to
the dimensions given in the diagram above.
b. The appliance must be isolated from the gas
supply piping system by closing its individual
manual shut-off valve during any pressure
testing of the gas supply piping system at
test pressures equal to or less than 1/2 psi
(3.5 kPa).
Warning
The base of the hob will become hot. The gas
connection used must comply with the relevant
national and local regulations.
Important
When the gas hob has been installed, it is
essential to check the main cable is not in
contact with hot parts of the appliance,
otherwise temperature damage to the cable
could occur.
1) Important
This appliance with the orifices as delivered for
natural gas or LP gas by the manufacturer is
suitable for use till 2000 feet. By installation
above 2000 feet contact your distributor or Miele
USA/Canada and ask for a replacement set with
orifices suitable for your altitude.
Change the orifices as written in the instructions
of the manual.
For Canada only
The gas connection must be made in
accordance with the local codes, or in absence
of local codes, with the current CAN/CA B 149.1
and .2 Inst.
Gas pressures for Canada
Manifold pressure:
– natural gas 4˝ water column
– liquid propane gas 10˝ water column
Nominal rating natural gas 4˝ 1)
Burner high setting low setting
kW Btu/hr kW Btu/hr
high-speed burner 2.7 9200 0.35 1200
super high-speed burner 3.4 12000 0.45 1500
2-zone wok burner 4.0 14000 0.17 580
Nominal rating LP gas 10˝ with conversion kit 1)
Burner high setting low setting
kW Btu/hr kW Btu/hr
high-speed burner 2.0 7000 0.40 1300
super high-speed burner 2.7 9200 0.50 2000
2-zone wok burner 3.3 11200 0.18 600
Important
a. The appliance and its individual shut-off valve
must be disconnected from the gas supply
piping system during any pressure testing of
this system at test pressures in excess of
1/2 psi (3.5 kPa).
14 15
There may be a wall at the rear and a wall or tall
units at one side. On the other side, however, no
unit or divider may stand higher than the hob.
Building-in dimensions
Prepare a cut-out in the worktop according to
the dimensions given in the diagram above.
35 7/16" (900 mm)
20 3/16"
(515 mm)
3"
(75 mm)
19 5/16"
(490 mm)
min. 3" (75 mm)
min. 1 3/4"
(45 mm)
33 7/8" (860 mm)
b. The appliance must be isolated from the gas
supply piping system by closing its individual
manual shut-off valve during any pressure
testing of the gas supply piping system at
test pressures equal to or less than 1/2 psi
(3.5 kPa).
Warning
The base of the hob will become hot. The gas
connection used must comply with the relevant
national and local regulations.
Important
When the gas hob has been installed, it is
essential to check the main cable is not in
contact with hot parts of the appliance,
otherwise temperature damage to the cable
could occur.
1) Important
This appliance with the orifices as delivered for
natural gas or LP gas by the manufacturer is
suitable for use till 2000 feet. By installation
above 2000 feet contact your distributor or Miele
USA/Canada and ask for a replacement set with
orifices suitable for your altitude.
Change the orifices as written in the instructions
of the manual.
For Canada only
The gas connection must be made in
accordance with the local codes, or in absence
of local codes, with the current CAN/CA B 149.1
and .2 Inst.
Gas pressures for Canada
Manifold pressure:
– natural gas 4˝ water column
– liquid propane gas 10˝ water column
Nominal rating natural gas 4˝ 1)
Burner high setting low setting
kW Btu/hr kW Btu/hr
high-speed burner 2.7 9200 0.35 1200
super high-speed burner 3.4 12000 0.45 1500
2-zone wok burner 4.0 14000 0.17 580
Nominal rating LP gas 10˝ with conversion kit 1)
Burner high setting low setting
kW Btu/hr kW Btu/hr
high-speed burner 2.0 7000 0.40 1300
super high-speed burner 2.7 9200 0.50 2000
2-zone wok burner 3.3 11200 0.18 600
Important
a. The appliance and its individual shut-off valve
must be disconnected from the gas supply
piping system during any pressure testing of
this system at test pressures in excess of
1/2 psi (3.5 kPa).
16 17
Building-in
1. Make the cut-out in the work surface. Ensure
that there is sufficient space allowed at the
sides and at the rear.

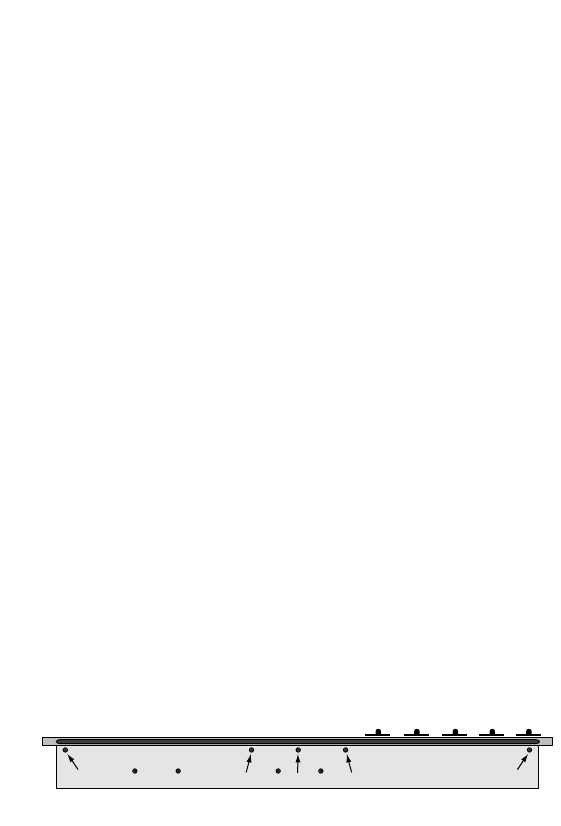

2. Attach the sealing strip to the underside of
the hob and the aeration profile.

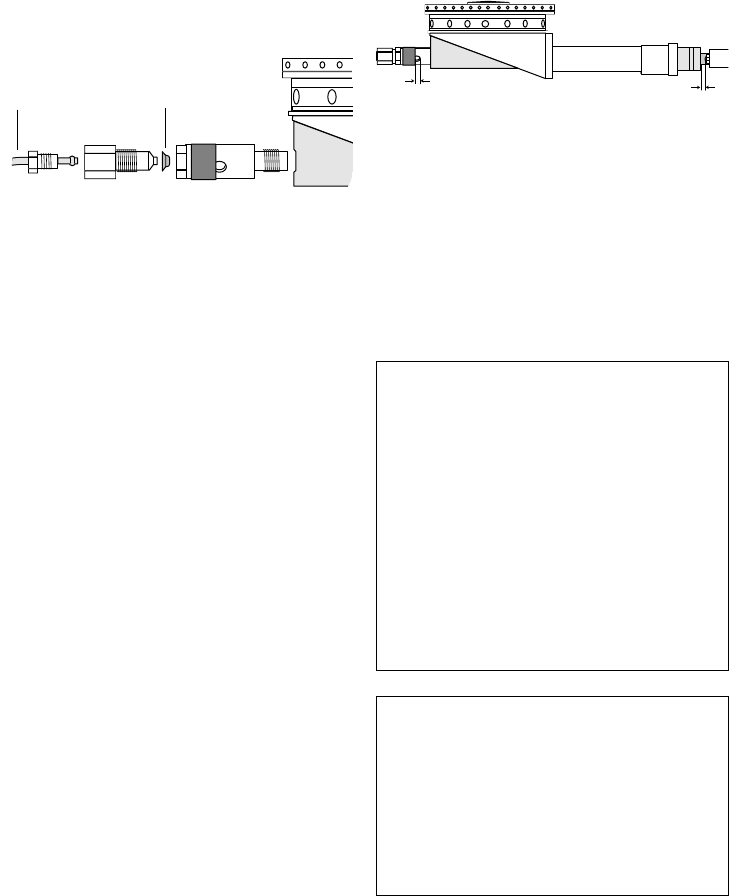

3.*Connect the pressure regulator supplied at
the angle-joint, ensuring that they are
positioned correctly. (See also
“Gas Connection”.)
4. Place the hob in the cut-out. Check that the
air inlets at the back of the hob are clear.
5. Secure the hob in position. The brackets
clamp underneath the work surface.
6. Make the gas connection. Check the gas
connections with a soapy solution.
7. Put the plug in the socket (see "Electrical
Connection").
8. Test to check that the hob is operational.
* Undertray is positioned on work surface.
burner box
glass shield
sealing tape
wooden block
worktop
Clearance above and around the appliance
min 33 1/4" (845 mm)
min 18"
(460 mm)
min 10"
(254 mm)
min 10"
(254 mm)
min 33 1/14"
(845 mm)
For safety reasons, ensure that the following
minimum clearences are provided:
– between adjacent combustible
construction 4” (100 mm).
– between appliance and rear wall 1 3/8”
(30 mm).
– between appliance and the overhead
combustible construction 33 1/4” (845 mm).
– between appliance and front edge of worktop
2 9/16” (65 mm).
– depth of overhead cabinets must not exceed
13” (330 mm).
– between combustible constructions and the
extended cooking surface 18” (460 mm).
Wall strips must be heat-resistant.
min. 10"
(254 mm)
not allowed
not advisable
recommended
16 17
Building-in
1. Make the cut-out in the work surface. Ensure
that there is sufficient space allowed at the
sides and at the rear.
2. Attach the sealing strip to the underside of
the hob and the aeration profile.
3.*Connect the pressure regulator supplied at
the angle-joint, ensuring that they are
positioned correctly. (See also
“Gas Connection”.)
4. Place the hob in the cut-out. Check that the
air inlets at the back of the hob are clear.
5. Secure the hob in position. The brackets
clamp underneath the work surface.
6. Make the gas connection. Check the gas
connections with a soapy solution.
7. Put the plug in the socket (see "Electrical
Connection").
8. Test to check that the hob is operational.
* Undertray is positioned on work surface.
burner box
glass shield
sealing tape
wooden block
worktop
Clearance above and around the appliance
min 33 1/4" (845 mm)
min 18"
(460 mm)
min 10"
(254 mm)
min 10"
(254 mm)
min 33 1/14"
(845 mm)
For safety reasons, ensure that the following
minimum clearences are provided:
– between adjacent combustible
construction 4” (100 mm).
– between appliance and rear wall 1 3/8”
(30 mm).
– between appliance and the overhead
combustible construction 33 1/4” (845 mm).
– between appliance and front edge of worktop
2 9/16” (65 mm).
– depth of overhead cabinets must not exceed
13” (330 mm).
– between combustible constructions and the
extended cooking surface 18” (460 mm).
Wall strips must be heat-resistant.
min. 10"
(254 mm)
not allowed
not advisable
recommended
Safety Instructions
Warning
This conversion kit must be installed by a
qualified service agency.
This conversion kit is for use with Miele gas hob
KM 326G only.
Conversion kit
type number AH 102 C4U
These conversion instructions are to be used
together with the operating and installation
instructions.
Right Wrong
Check to ensure that the burner is burning
correctly. The flames should be blue and uniform.
Right Wrong
If the flames are not uniform, check to ensure that
the burner cap is properly positioned on the ring.
If the flames are irregular and yellow, check to
ensure that a pressure regulator has been
installed. Do not use the appliance and inform
the installer.

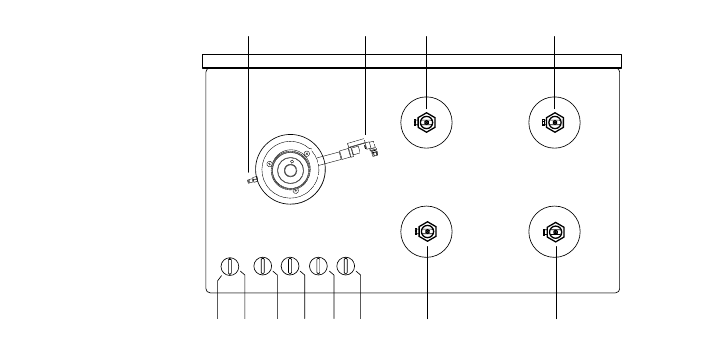

Parts
This conversion kit includes the following parts:
Part ID number Number
Burner cap A 1
Injector wok burner
outer ring 090 1
Injector wok burner inner ring 007 1
Injector super high-speed
burner C 087 2
Injector high-speed burner B 075 2
Low flame screw outer
wok burner 054 1
Low flame screw inner
wok burner 025 1
Low flame screw burner C 040 2
Low flame screw burner B 036 2
Conversion instructions
Data plate LP gas 10” W.C.
Conversion data plate
This appliance is to be converted to Propane
10” W.C. (2.491 kPa) only.
Input ratings LP gas
1918
WARNING
This conversion kit must be
installed by a qualified service
agency in accordance with the
manufacturer's instructions and all
applicable codes and requirements
of the authority having jurisdiction.
If the information in these
instructions is not followed exactly,
a fire, explosion or production of
carbon monoxide may result,
causing property damage, personal
injury or loss of life.
The qualified service agency is
responsible for the proper
installation of this kit.
The installation is not proper and
complete until the operation of the
converted appliance is checked as
specified in the manufacturer's
instructions supplied with the kit.
high speed burner . . . . . . . . . . . . . 7000 Btu/hr
super high speed burner . . . . . . . 9200 Btu/hr
wok burner inner ring . . . . . . . . . . 1125 Btu/hr
wok burner outer ring . . . . . . . . . 11200 Btu/hr
Safety Instructions
Warning
This conversion kit must be installed by a
qualified service agency.
This conversion kit is for use with Miele gas hob
KM 326G only.
Conversion kit
type number AH 102 C4U
These conversion instructions are to be used
together with the operating and installation
instructions.
Right Wrong
Check to ensure that the burner is burning
correctly. The flames should be blue and uniform.
Right Wrong
If the flames are not uniform, check to ensure that
the burner cap is properly positioned on the ring.
If the flames are irregular and yellow, check to
ensure that a pressure regulator has been
installed. Do not use the appliance and inform
the installer.
Parts
This conversion kit includes the following parts:
Part ID number Number
Burner cap A 1
Injector wok burner
outer ring 090 1
Injector wok burner inner ring 007 1
Injector super high-speed
burner C 087 2
Injector high-speed burner B 075 2
Low flame screw outer
wok burner 054 1
Low flame screw inner
wok burner 025 1
Low flame screw burner C 040 2
Low flame screw burner B 036 2
Conversion instructions
Data plate LP gas 10” W.C.
Conversion data plate
This appliance is to be converted to Propane
10” W.C. (2.491 kPa) only.
Input ratings LP gas
1918
WARNING
This conversion kit must be
installed by a qualified service
agency in accordance with the
manufacturer's instructions and all
applicable codes and requirements
of the authority having jurisdiction.
If the information in these
instructions is not followed exactly,
a fire, explosion or production of
carbon monoxide may result,
causing property damage, personal
injury or loss of life.
The qualified service agency is
responsible for the proper
installation of this kit.
The installation is not proper and
complete until the operation of the
converted appliance is checked as
specified in the manufacturer's
instructions supplied with the kit.
high speed burner . . . . . . . . . . . . . 7000 Btu/hr
super high speed burner . . . . . . . 9200 Btu/hr
wok burner inner ring . . . . . . . . . . 1125 Btu/hr
wok burner outer ring . . . . . . . . . 11200 Btu/hr
Remove the three screws securing the dual ring
wok burner. Remove the wok burner base plate.
Lift the ceramic tray from the hob.
Note
Each regulator shaft is equipped with a black
ring. This ring may cling to the rubber seal in the
ceramic tray. Check and remove the rings from
the rubber seals.
For future use
Save the orifices removed from the appliance
for future use. For converting this appliance
back to Natural gas, follow the instructions and
use the numbers in brackets (… ).
Igniter
The relationship between the igniter and the
main burners can't be changed. The relationship
in the case of LP gas and natural gas is identical.
The distance between the igniter and the high
speed burner and super high speed burner is
± 3.5 mm. For the two zone
high speed burner the
distance between the
igniter and the inner ring is
±2.5 mm.
Conversion instructions
Caution
Before proceeding with the conversion, shut off
the gas supply to the appliance prior to
disconnecting the electrical power.
Disassembly
Shut off gas supply, disconnect the manifold
pipe, disconnect the electrical power. Remove
pan supports, burner heads and burner rings.
Remove control knobs.
In the event that the hob is built in, undo the
bracket clamps underneath the work surface.
Lift the hob on to the work surface.
Unscrew the venturis on the high-speed and
super high-speed burners using a 20 mm
wrench. Lift and remove the burner rings and
burner base plates. Disconnect the wires from
the ignition plugs. Keep the wire from dropping
into the undertray by inserting it in one of the
slots in the burner supports.
Remove the top five screws in the back of the
hob undertray.
Pressure regulator conversion
The pressure regulator is located on the gas
supply pipe. Unscrew and remove the brass cap
in the centre of the regulator. This gas regulator
is only adjustable for 4" and 10" gas pressure.
There is a blue plastic pin on the inside of the
cap, marked "NAT" and "LP". Pull this pin from the
cap and insert it the other way round. Snap the
pin into the cap. The pin must be positioned as in
the drawing above. The regulator is now
adjusted for propane gas 10" WC. (For natural
gas 4", turn the pin back.) Screw the cap back on
the regulator. The pressure regulator is equipped
with a separate connection for pressure testing
purposes. Check gas pressure. Permitted
pressures: min. 11" WC (5" WC, natural gas), max.
1/2 psi.
High speed and super high speed burner
conversion
Unscrew and replace injectors on the high-
speed and super high-speed burners. Replace
each injector separately. Refer to illustration
“Locations of injectors and minimum adjustment
screws” for screw locations.
2120
Locations of injectors and minimum adjustment screws
Remove the three screws securing the dual ring
wok burner. Remove the wok burner base plate.
Lift the ceramic tray from the hob.
Note
Each regulator shaft is equipped with a black
ring. This ring may cling to the rubber seal in the
ceramic tray. Check and remove the rings from
the rubber seals.
For future use
Save the orifices removed from the appliance
for future use. For converting this appliance
back to Natural gas, follow the instructions and
use the numbers in brackets (… ).
Igniter
The relationship between the igniter and the
main burners can't be changed. The relationship
in the case of LP gas and natural gas is identical.
The distance between the igniter and the high
speed burner and super high speed burner is
± 3.5 mm. For the two zone
high speed burner the
distance between the
igniter and the inner ring is
±2.5 mm.
Conversion instructions
Caution
Before proceeding with the conversion, shut off
the gas supply to the appliance prior to
disconnecting the electrical power.
Disassembly
Shut off gas supply, disconnect the manifold
pipe, disconnect the electrical power. Remove
pan supports, burner heads and burner rings.
Remove control knobs.
In the event that the hob is built in, undo the
bracket clamps underneath the work surface.
Lift the hob on to the work surface.
Unscrew the venturis on the high-speed and
super high-speed burners using a 20 mm
wrench. Lift and remove the burner rings and
burner base plates. Disconnect the wires from
the ignition plugs. Keep the wire from dropping
into the undertray by inserting it in one of the
slots in the burner supports.
Remove the top five screws in the back of the
hob undertray.
Pressure regulator conversion
The pressure regulator is located on the gas
supply pipe. Unscrew and remove the brass cap
in the centre of the regulator. This gas regulator
is only adjustable for 4" and 10" gas pressure.
There is a blue plastic pin on the inside of the
cap, marked "NAT" and "LP". Pull this pin from the
cap and insert it the other way round. Snap the
pin into the cap. The pin must be positioned as in
the drawing above. The regulator is now
adjusted for propane gas 10" WC. (For natural
gas 4", turn the pin back.) Screw the cap back on
the regulator. The pressure regulator is equipped
with a separate connection for pressure testing
purposes. Check gas pressure. Permitted
pressures: min. 11" WC (5" WC, natural gas), max.
1/2 psi.
High speed and super high speed burner
conversion
Unscrew and replace injectors on the high-
speed and super high-speed burners. Replace
each injector separately. Refer to illustration
“Locations of injectors and minimum adjustment
screws” for screw locations.
2120
(034)
007 (170)
090
(166)
087 (145)
075
087
(166)
075
(145)
054
(100) 025
(042) 036
(055) 040
(060) 036
(055) 040
(060)
(Natural gas)
LP gas
LP gas
(Natural gas)
Locations of injectors and minimum adjustment screws
2322
1. First loosen the 8 mm ring securing the gas
feed pipe. Disconnect the gas pipe. The
actual injector is a thin metal cap mounted
between the two brass fittings attached to
the left of the wok burner body.
Inner ring injector
2. Two 12 mm wrenches are needed to
separate the fittings.
Use one 12 mm wrench to keep the right-
hand fitting in place, while using the other
12 mm wrench to loosen the left-hand fitting.
3. With the left fitting loosened, unscrew the
right-hand fitting from the wok burner body.
4. Holding them vertical, take both fittings
apart. The metal cap with the injector will
remain on top of the lower fitting. Replace
the injector cap with the injector cap marked
007 (034, natural gas) and put the two fittings
back together.
Warning
Make sure that the natural gas injector is
removed from the fitting when the propane gas
injector is installed.
5. Screw the assembled fittings back into the
wok burner body. Carefully tighten both
fittings. Do not overtighten.
6. Reattach the gas pipe and tighten the 8 mm
ring.
Note
Inner ring air slot (A)
Adjust the air slot on the inner ring injector now.
The slot is adjusted by shifting the metal clip
around the right-hand fitting. Move the clip to
obtain a full opening of the hole (A) in the fitting.
Reference table
AB
Wok burner outer ring conversion
Outer ring injector (B)
The wok burner outer ring injector is located on
the right hand side of the wok burner body (B).
1. Unscrew the screw holding the brass tube to
the left of the injector. Access this screw
from the rear. Slide the brass tube to the left,
but do not insert it into the aluminium tube all
the way.
2. Use a 10 mm wrench and unscrew the outer
ring injector. Support the aluminium gas pipe
feeding the injector by holding it down, while
turning the wrench. Unscrew the injector
and replace it with the injector marked 090
(170, natural gas).
Note
Outer ring airslot (B)
Adjust the air slot on the outer ring injector now.
The correct distance for the air slot (B) is 0.083".
Slide the brass tube to the prescribed distance
and tighten the holding screw at the rear of the
tube.
Wok burner inner ring conversion
Inner ring injector (A)
The inner ring injector is located on the left
hand side of the wok burner body (A).
A
B
AB
A
B
LP gas
adjustment
injector screw
high-speed burner 0.75 mm 0.36 mm
0.03” 0.014”
super high-speed burner 0.87 mm 0.40 mm
0.034” 0.016”
wok burner inner ring 0.50 mm 0.25 mm
0.02” 0.01”
wok burner outer ring 0.90 mm 0.54 mm
0.035” 0.021”
natural gas
adjustment
injector screw
high-speed burner 1.45 mm 0.55 mm
super high-speed burner 1.66 mm 0.60 mm
wok burner inner ring 0.60 mm 0.42 mm
wok burner outer ring 1.70 mm 1.00 mm
2322
1. First loosen the 8 mm ring securing the gas
feed pipe. Disconnect the gas pipe. The
actual injector is a thin metal cap mounted
between the two brass fittings attached to
the left of the wok burner body.
Inner ring injector
2. Two 12 mm wrenches are needed to
separate the fittings.
Use one 12 mm wrench to keep the right-
hand fitting in place, while using the other
12 mm wrench to loosen the left-hand fitting.
3. With the left fitting loosened, unscrew the
right-hand fitting from the wok burner body.
4. Holding them vertical, take both fittings
apart. The metal cap with the injector will
remain on top of the lower fitting. Replace
the injector cap with the injector cap marked
007 (034, natural gas) and put the two fittings
back together.
Warning
Make sure that the natural gas injector is
removed from the fitting when the propane gas
injector is installed.
5. Screw the assembled fittings back into the
wok burner body. Carefully tighten both
fittings. Do not overtighten.
6. Reattach the gas pipe and tighten the 8 mm
ring.
Note
Inner ring air slot (A)
Adjust the air slot on the inner ring injector now.
The slot is adjusted by shifting the metal clip
around the right-hand fitting. Move the clip to
obtain a full opening of the hole (A) in the fitting.
Reference table
gaspipe injector
AB
Wok burner outer ring conversion
Outer ring injector (B)
The wok burner outer ring injector is located on
the right hand side of the wok burner body (B).
1. Unscrew the screw holding the brass tube to
the left of the injector. Access this screw
from the rear. Slide the brass tube to the left,
but do not insert it into the aluminium tube all
the way.
2. Use a 10 mm wrench and unscrew the outer
ring injector. Support the aluminium gas pipe
feeding the injector by holding it down, while
turning the wrench. Unscrew the injector
and replace it with the injector marked 090
(170, natural gas).
Note
Outer ring airslot (B)
Adjust the air slot on the outer ring injector now.
The correct distance for the air slot (B) is 0.083".
Slide the brass tube to the prescribed distance
and tighten the holding screw at the rear of the
tube.
Wok burner inner ring conversion
Inner ring injector (A)
The inner ring injector is located on the left
hand side of the wok burner body (A).
A
B
AB
A
B
LP gas
adjustment
injector screw
high-speed burner 0.75 mm 0.36 mm
0.03” 0.014”
super high-speed burner 0.87 mm 0.40 mm
0.034” 0.016”
wok burner inner ring 0.50 mm 0.25 mm
0.02” 0.01”
wok burner outer ring 0.90 mm 0.54 mm
0.035” 0.021”
natural gas
adjustment
injector screw
high-speed burner 1.45 mm 0.55 mm
super high-speed burner 1.66 mm 0.60 mm
wok burner inner ring 0.60 mm 0.42 mm
wok burner outer ring 1.70 mm 1.00 mm
2524
Installing appliance
1. Install the appliance according to the
installation instructions.
2. Attach the moulding at the rear to the
undertray. Put the hob back in the work
surface and fasten the bracket clamps
underneath the work surface.
3. Set the gas pressure regulator to a new
pressure of 10” WC (4" WC, natural gas).
Check pressure (see page 21). Permitted
pressures: minimum 11” WC (5" WC, natural
gas), max. 1/2 psi.
4. Reconnect gas supply, reconnect the manifold
pipe, reconnect the electrical power.
5. Put the burner heads and pan supports in
place. Make sure the burner heads are
mounted the right way. Put the burner head
marked "A" on top of the wok burner.
Testing converted appliance
Note
This appliance has been internally tested for gas
leakages by the manufacturer.
Caution
Check converted hob for gas leaks. Check the
connection with a soapy solution. Never use a
flame of any sort.
Check that the hob functions normally:
Turn on the gas supply and plug in the power
supply cord.
Light each of the burners individually.
When the burner is at low setting, or when the
control knob is turned quickly from 'high' to 'low',
the flame should not go out.
When set at 'high', the gas flame must burn with
the center clearly visible.
Minimum adjustment screws
1. Lift and remove the small black ring if this is
still on the regulator shaft (see note in
"Disassembly").
2. Lift and remove the square black switches.
Do not disconnect the wires from the
switches or the light emitting diodes (LED).
The wok burner is equipped with two minimum
adjustment screws, one for each burner ring.
Note
Make sure you replace both minimum
adjustment screws. Put screw 054 (100, natural
gas) on the left, 025 (042, natural gas) on the
right.
Use a small screwdriver and replace each
screw individually.
3. Put the black switches with the light emitting
diodes back in place.
4. Attach the label 'This control has been
converted for use with propane gas' to the
top of the hob undertray. Attach it as close to
the controls as possible.
5. Fill in the conversion date label and attach
conversion kit identification label close to the
appliance's original identification plate.
Note
This concludes conversion. The hob can now be
reassembled.
Assembly
1. Check that the seals are fitted on the ceramic
tray. Put the ceramic tray on the hob. Make
sure it is correctly positioned on the undertray.
Put the black ring around the regulator shaft
as shown. Press the black rings into the seals.
Put the control knobs back.
2. Put the wok burner base plate back in place.
Fasten the three screws securing the wok
burner base plate.
3. Connect the wires to the ignition plugs. Put
the high-speed and super high-speed burner
base plates and burner rings back. Fasten
the high-speed and super high-speed
venturis using a 20 mm wrench.
Locations of injectors and minimum
adjustment screws
2524
Installing appliance
1. Install the appliance according to the
installation instructions.
2. Attach the moulding at the rear to the
undertray. Put the hob back in the work
surface and fasten the bracket clamps
underneath the work surface.
3. Set the gas pressure regulator to a new
pressure of 10” WC (4" WC, natural gas).
Check pressure (see page 21). Permitted
pressures: minimum 11” WC (5" WC, natural
gas), max. 1/2 psi.
4. Reconnect gas supply, reconnect the manifold
pipe, reconnect the electrical power.
5. Put the burner heads and pan supports in
place. Make sure the burner heads are
mounted the right way. Put the burner head
marked "A" on top of the wok burner.
Testing converted appliance
Note
This appliance has been internally tested for gas
leakages by the manufacturer.
Caution
Check converted hob for gas leaks. Check the
connection with a soapy solution. Never use a
flame of any sort.
Check that the hob functions normally:
Turn on the gas supply and plug in the power
supply cord.
Light each of the burners individually.
When the burner is at low setting, or when the
control knob is turned quickly from 'high' to 'low',
the flame should not go out.
When set at 'high', the gas flame must burn with
the center clearly visible.
Minimum adjustment screws
1. Lift and remove the small black ring if this is
still on the regulator shaft (see note in
"Disassembly").
2. Lift and remove the square black switches.
Do not disconnect the wires from the
switches or the light emitting diodes (LED).
The wok burner is equipped with two minimum
adjustment screws, one for each burner ring.
Note
Make sure you replace both minimum
adjustment screws. Put screw 054 (100, natural
gas) on the left, 025 (042, natural gas) on the
right.
Use a small screwdriver and replace each
screw individually.
3. Put the black switches with the light emitting
diodes back in place.
4. Attach the label 'This control has been
converted for use with propane gas' to the
top of the hob undertray. Attach it as close to
the controls as possible.
5. Fill in the conversion date label and attach
conversion kit identification label close to the
appliance's original identification plate.
Note
This concludes conversion. The hob can now be
reassembled.
Assembly
1. Check that the seals are fitted on the ceramic
tray. Put the ceramic tray on the hob. Make
sure it is correctly positioned on the undertray.
Put the black ring around the regulator shaft
as shown. Press the black rings into the seals.
Put the control knobs back.
2. Put the wok burner base plate back in place.
Fasten the three screws securing the wok
burner base plate.
3. Connect the wires to the ignition plugs. Put
the high-speed and super high-speed burner
base plates and burner rings back. Fasten
the high-speed and super high-speed
venturis using a 20 mm wrench.
(034)
007 (170)
090
(166)
087 (145)
075
087
(166)
075
(145)
054
(100) 025
(042) 036
(055) 040
(060) 036
(055) 040
(060)
(Natural gas)
Propane gas
Propane gas
(Natural gas)
Locations of injectors and minimum
adjustment screws
2726
Technical details
Model number: KM 326G
Gas source: see identification plate
Energy source: 120 V - 60 Hz
Overall wattage, electricity: 3 VA
Total burnerrate
Natural gas 56400 Btu/hr (16.2 kW)
Liquid propane gas 43600 Btu/hr (12.78 kW)
This appliance with the orifices as delivered for
natural gas or LP gas by the manufacturer is
suitable for use till 2000 feet. By installation
above 2000 feet contact your distributor or Miele
USA/Canada and ask for a replacement set with
orifices suitable for your altitude.
Change the orifices as written in the instructions
of the manual.
Where you can find Miele
Miele Appliances, inc.
22 D Worlds Fair drive
Somerset, NJ 08873
Tel. number.: (732) 560-0899
Toll Free: 1-800-843-7231
Fax number: 732-560-9649
Miele Limited
55G East Beaver Creek Rd.
Richmond Hill, Ontario
Canada L4B IE5
Phone: (905) 707-1171
Fax: (905) 707-0177
Warranty and service
The warranty period is effective from the date of purchase of the appliance.
All malfunctions caused by installation errors, improper use or maintenance are excluded from the
guarantee.
Evidence of the date of purchase must be provided upon request, for example through a delivery slip
or sales receipt.
In the event of any fault with this appliance, please contact:
your Miele Dealer, or
the Miele Service Department, the address of which is shown on the back page.
When contacting the Service Department, please quote the Model and Serial numbers of your
appliance. You will find both on the data plate located on the underside of the appliance.
26
Technical details
Model number: KM 326G
Gas source: see identification plate
Energy source: 120 V - 60 Hz
Overall wattage, electricity: 3 VA
Total burnerrate
Natural gas 56400 Btu/hr (16.2 kW)
Liquid propane gas 43600 Btu/hr (12.78 kW)
This appliance with the orifices as delivered for
natural gas or LP gas by the manufacturer is
suitable for use till 2000 feet. By installation
above 2000 feet contact your distributor or Miele
USA/Canada and ask for a replacement set with
orifices suitable for your altitude.
Change the orifices as written in the instructions
of the manual.
.
Warranty and service
The warranty period is effective from the date of purchase of the appliance.
All malfunctions caused by installation errors, improper use or maintenance are excluded from the
guarantee.
Evidence of the date of purchase must be provided upon request, for example through a delivery slip
or sales receipt.
In the event of any fault with this appliance, please contact:
your Miele Dealer, or
the Miele Service Department, the address of which is shown on the back page.
When contacting the Service Department, please quote the Model and Serial numbers of your
appliance. You will find both on the data plate located on the underside of the appliance.
art.nr. 722.392.20/T91701B
Operating instructions
Gas hob KM 326G
Conversion kit AH 102 C4U
Instructions pour l’utilisation
du dessus de cuisinière au gas KM 326G
Kit de conversion AH 102 C4U
art.nr. 722.392.20/T91701B
Operating instructions
Gas hob KM 326G
Conversion kit AH 102 C4U
Instructions pour l’utilisation
du dessus de cuisinière au gas KM 326G
Kit de conversion AH 102 C4U
Alteration rights reserved / 2503
This paper is made from cellulose bleached without the use of chlorine.
01

Navigation menu
