Miele Da 5960W Designer Wall Hood Specification Sheet DA5960W Specifications.PMD

: Miele Miele-Da-5960W-Designer-Wall-Hood-Specification-Sheet-748513 miele-da-5960w-designer-wall-hood-specification-sheet-748513 miele pdf

Open the PDF directly: View PDF .
Page Count: 2

NOTE: Drawing is not to scale.

SPECIFICATION SHEETS 010610

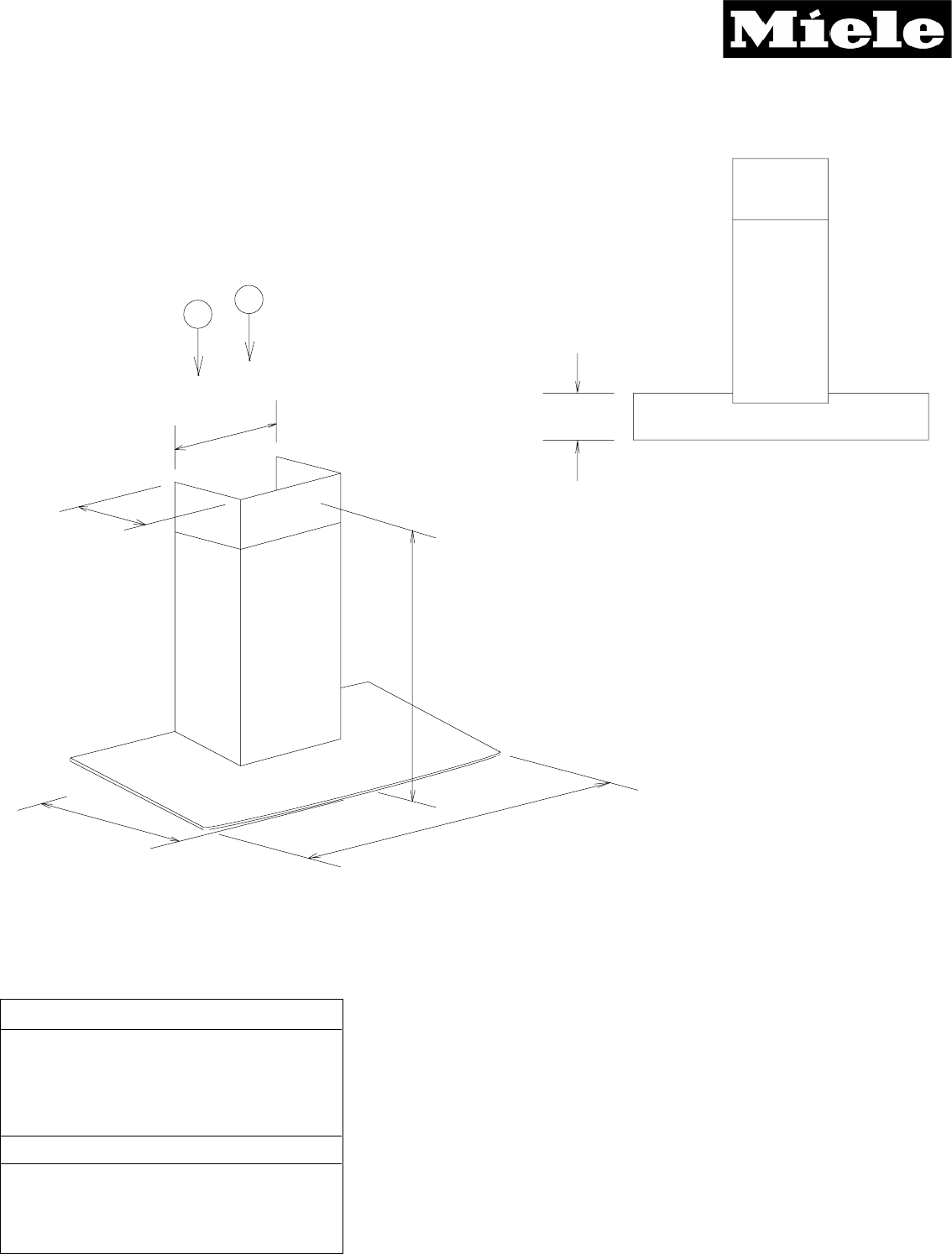

Product Dimensions

Decorator Wall Hood

DA5960W

110 Volt - 15 Amp 3-wire power

supply connects through top or rear of

chimney.

Standard 110 Volt Outlet

23 7/16"

20 1/2"

30 5/16" - 42"

5 1/4"

Notes

• All installations must be done in

accordance with local codes.

• 6" duct connects to blower system inside

chimney.

Location Codes

E -

O -

E

10 5/8"

11 3/8"

Front Perspective

O

NOTE: Drawing is not to scale.

SPECIFICATION SHEETS 010610

Area must be reinforced

with a minimum of

1/2" plywood backing

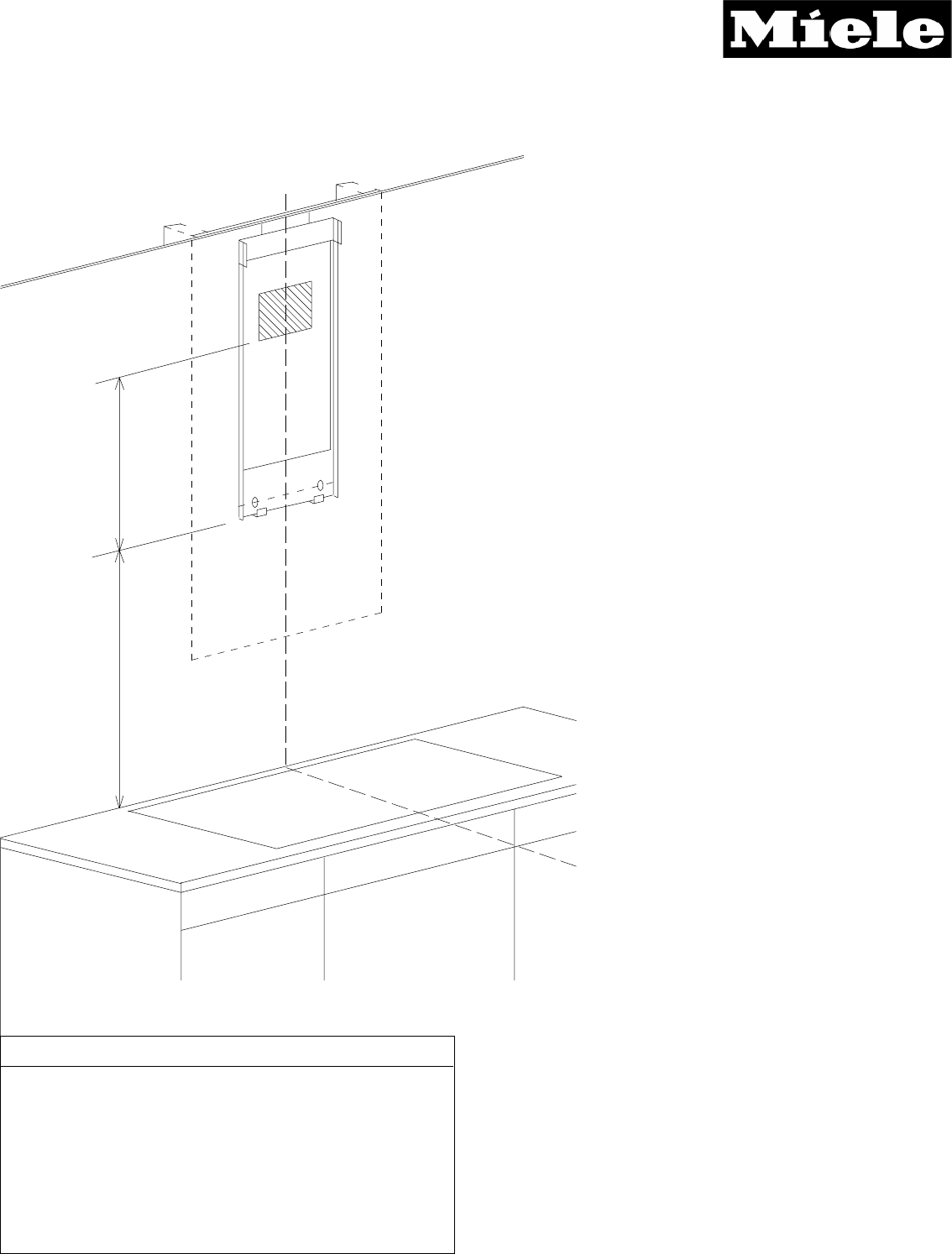

Installation Dimensions

Decorator Wall Hoods

DA5960W

Ceiling Line

Center Line

Structural member

S + 18 7/8" 5 1/2" min

Duct clearance

Notes

• Center unit over cooking surface

• Distance "S" is determined by the cooking surface.

Minimum distance "S" is:

- 24" for electric surfaces

- 24" for gas surfaces based on BTU output

(see hood instructions for details )

• Area behind mounting plates MUST be reinforced using a

minimum of 1/2" plywood. Reinforcing material should be

affixed to structural wall members
