Product and Cut-out Dimensions Page 1 of 3

Diamond G 5915 SCi Integrated Dishwasher

Diamond

G

5915

SCi

Integrated

Dishwasher

Location Codes

C- Cutout 1 3/8” x 1 3/4” (34 mm x 35 mm) for water, drain and electric pass-through.

Adjust according to water and drain location.

D- 5 foot (1.5 meter) flexible drain hose connects lower center rear.

E- 5 foot (1.5 meter)– 120 Volt – 15 Amp 3-wire molded plug power supply connects front terminal or can be

hardwired.

W- 5 foot flexible water intake hose with a 3/8” compression fitting nut connects lower center rear.

Notes

All installations must be done in accordance with local codes.

Drawing is not to scale Specification Sheets OJS 11012011

Product and Cut-out Dimensions Page 2 of 3

Diamond G 5915 SCi Integrated Dishwasher

Width:

23 7/16

”

(598 mm) in all cases

Custom Panel Installations

Some Miele dishwashers do not come equipped with a front panel. These dishwashers are designed to accept a

custom door panel supplied by the cabinet maker. Miele has a unique panel integration system which allows the

dishwasher to align with the surrounding cabinets.

Diamond

G

5915

SCi

Integrated

Dishwasher

Width:

23

7/16

(598

mm)

in

all

cases

Thickness: ¾” (19 mm) in all cases

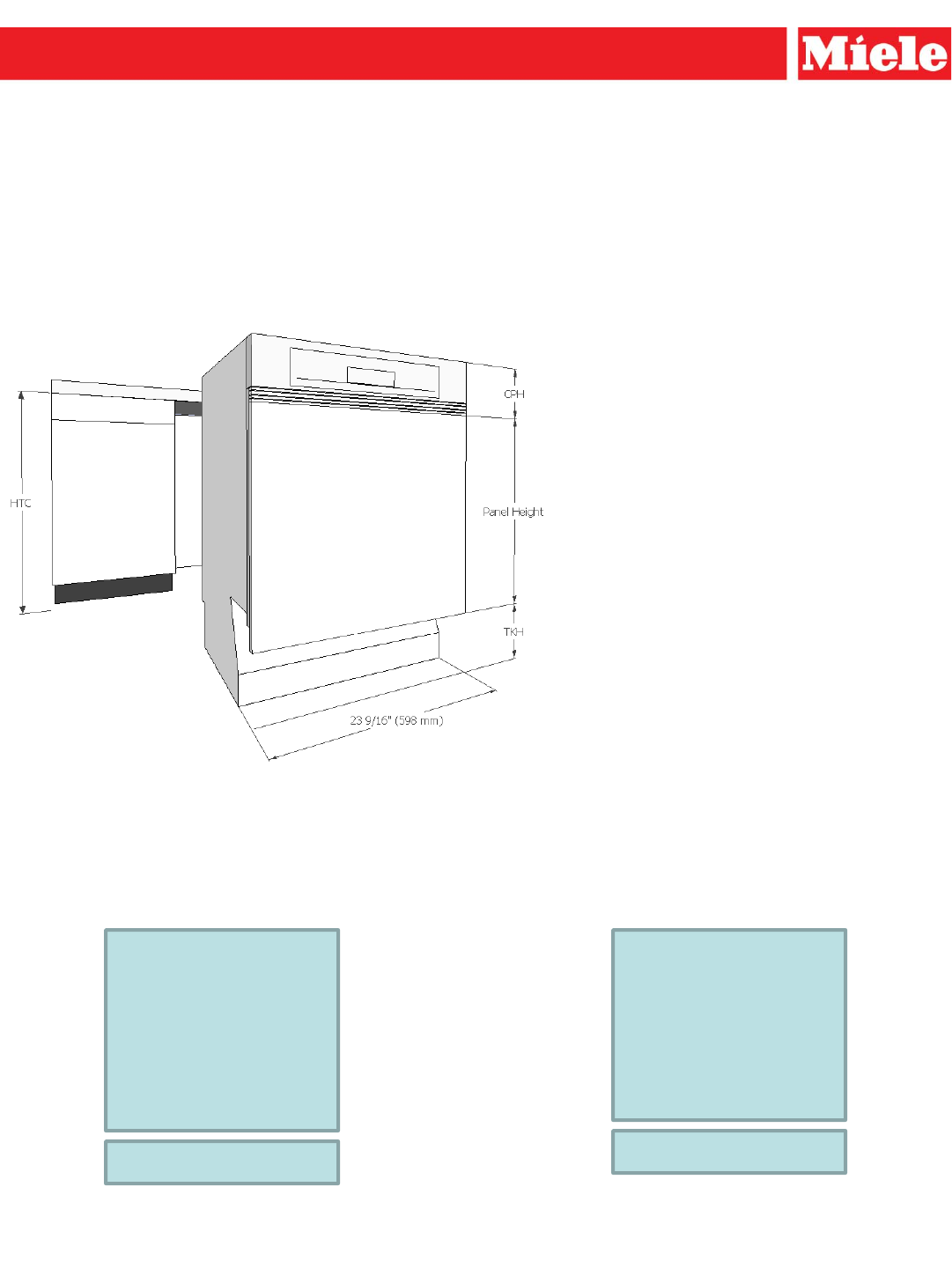

Height: Determined using the following

calculation:

Panel Height = HTC – CPH – TKH

HTC = Height to the underside of countertop

CPH = Control panel height (Note 1)

TKH = Toe kick height

Note:

Control panel height is determined by the

Miele Integrated

Dishwasher

Note:

Control

panel

height

is

determined

by

the

height of the adjoining drawers in the cabinets.

The height is adjustable between 4 5/8” and 5

7/8” (116-150 mm) with spacer strips provided.

Maximum panel height: 27 1/4” (692 mm)

Minimum panel height: 21 1/4” (540 mm)

Maximum panel weight:

23 Pounds (10 4 kg)

GDU Kit Installations

Miele offers pre-fabricated panels for all integrated units called GDU kits. These panels are designed for various

toe-kick heights and include a black plastic toe kick cover.

Maximum

panel

weight:

23

Pounds

(10

.

4

kg)

GDU 60/65-1 4” Toekick GDU 60/60-1 6” Toekick

This GDU accepts a

custom insert:

Height: 25 11/16” (650 mm)

Width 23 1/8” (587 mm)

Thick 1/8” (3 mm)

This GDU accepts a

custom insert:

Height: 23 5/8” (600 mm)

Width 23 1/8” (587 mm)

Thick 1/8” (3 mm)

Drawing is not to scale Specification Sheets OJS 11012011

Exposed toe-kick Exposed toe-kick

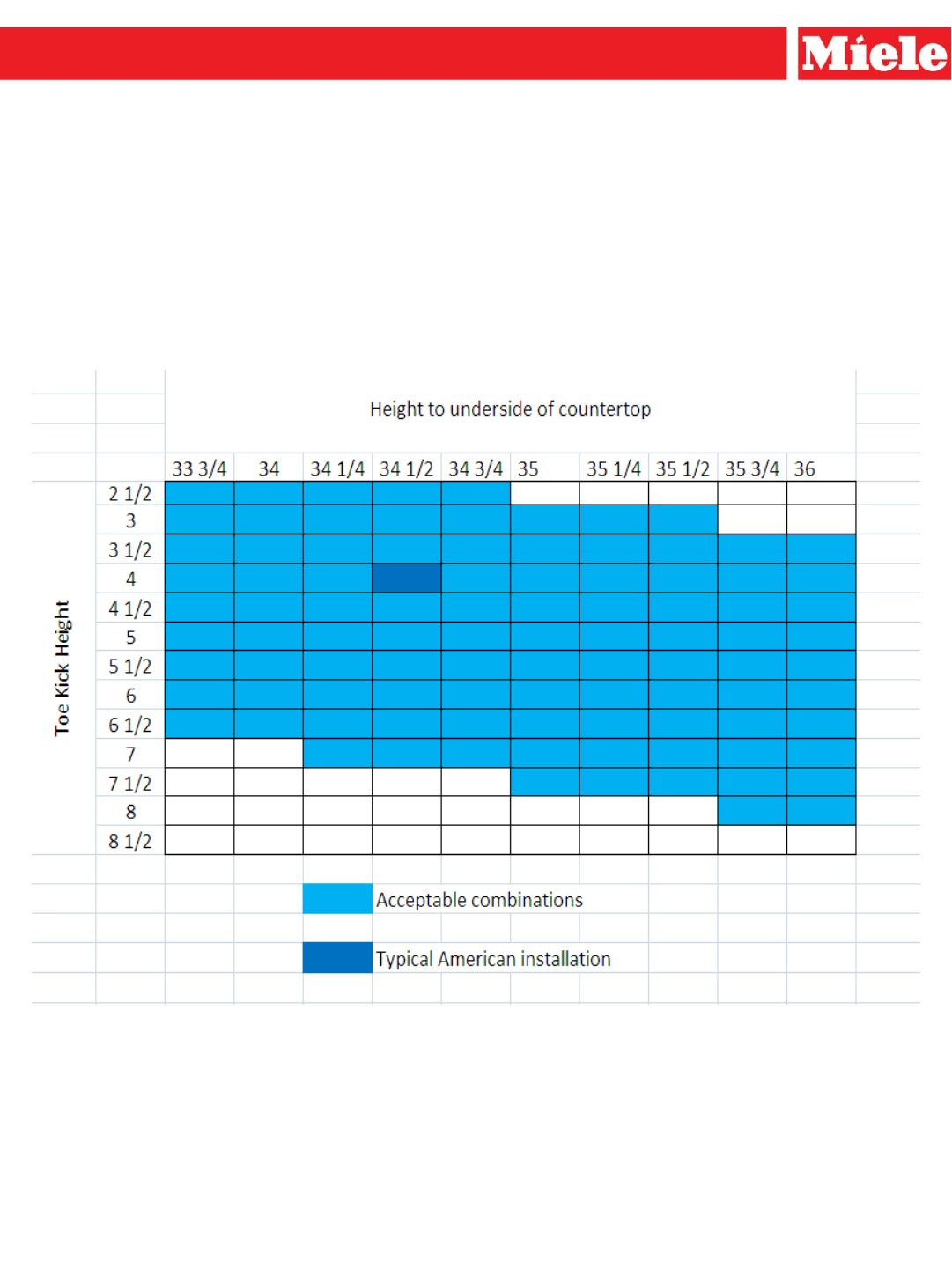

Product and Cut-out Dimensions Page 3 of 3

Diamond G 5915

SCi

Integrated Dishwasher

Diamond

G

5915

SCi

Integrated

Dishwasher

Specification Sheets OJS 11012011
