Futura Series

Slimline Fully Integrated Dishwasher

DIMENSION SLIMLINE G 4760 SCVi

8mieleusa.com

Specication Sheet TRS 04132015

Futura Series

Slimline Fully Integrated Dishwasher

FOREVER BETTER

Futura Series Slimline Fully Intergrated Dishwashers

Page 2 of 5

SPECIFICATIONS

G 4760 SCVi - Item 21476062USA

Overall Unit Width 175/8” (448mm)

Overall Unit Height 321/16” - 342/3” (814 - 880mm)

Overall Unit Depth 227/16” (570mm)

Niche

Cabinet Opening Width 1711/16 ” (450mm)

Minimum Cabinet Opening Height 321/8” (816mm)

Minimum Cabinet Opening Depth 227/16” (570mm)

Plumbing

Water Supply Requirements

May be connected to a cold or hot water

supply up to a maximum of 140°F/60°C.

Must be connected to a shut-off valve with a

3/4” GHT. The water shut-off valve must be

accessible after installation. The water

pressure must be between 4.35 psi (0.3 bar)

and may not exceed 145 psi (10 bar). If the

pressure is higher than 145 psi (10 bar), a

pressure reducing valve must be installed.

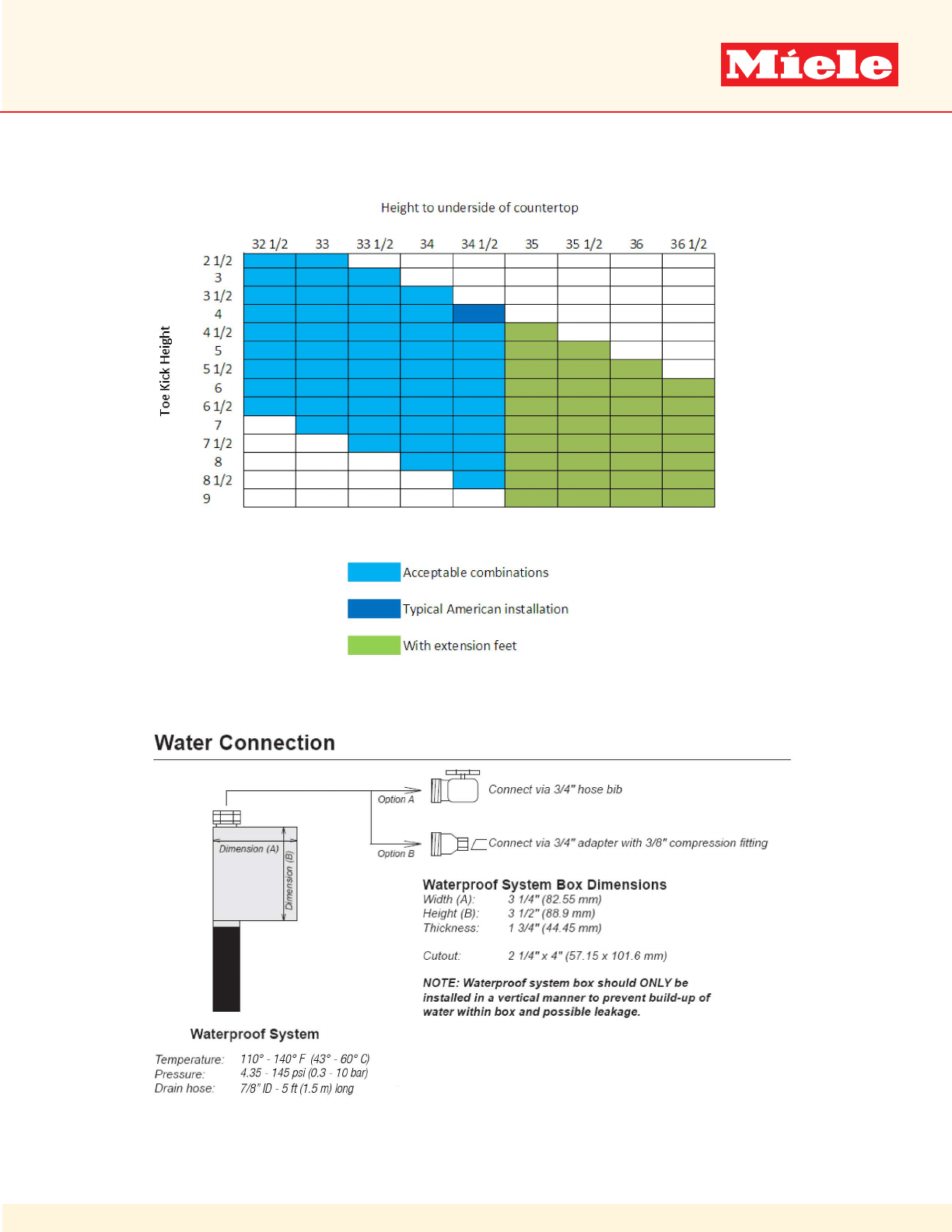

Please see additional information for

mounting of the water proof box.

Water Connection Line 4’ 11” (1.5m) flexible water intake hose is

supplied with a 3/4 GHT connection.

Drain Hose 4’ 11” (1.5m) flexible drain hose is supplied.

Electrical

Electrical Requirements - Volts/Amps 110V / 120V, 60Hz, 15 Amps

Power Cord - Plug and length Yes - NEMA 5-15 plug, 4’ (1.2m),

Convertible to Hardwire

Shipping

Shipping Weight 107 lbs (48.5 kg)

Support

Call Miele 800.843.7231

Miele Website 8www.mieleusa.com

20/20 Link 82020technologies.com

Features:

• Cutlery tray

• Slimline design

• AutoSensor technology

• 6 wash programs

• Perfect GlassCare system

• China & Crystal program

• Water softening unit

• ADA compliant

• 46 dBa

• 10 place settings

Specication Sheet TRS 04132015

Futura Series

Slimline Fully Integrated Dishwasher

FOREVER BETTER

Futura Series Slimline Fully Intergrated Dishwashers

Page 3 of 5

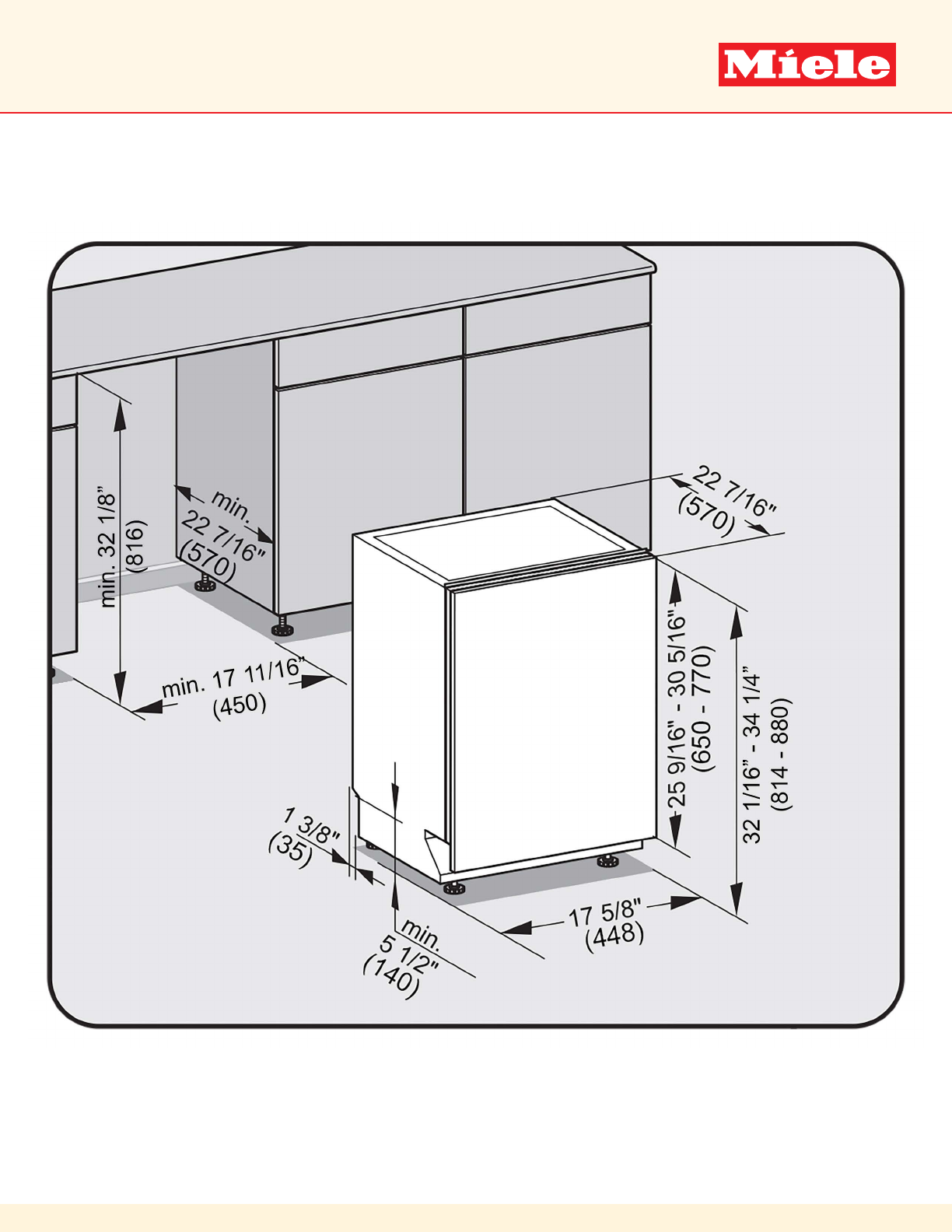

INSTALLATION SPECIFICATIONS

Specication Sheet TRS 04132015

Futura Series Slimline Fully Intergrated Dishwashers

Page 4 of 5

Futura Series

Slimline Fully Integrated Dishwasher

FOREVER BETTER

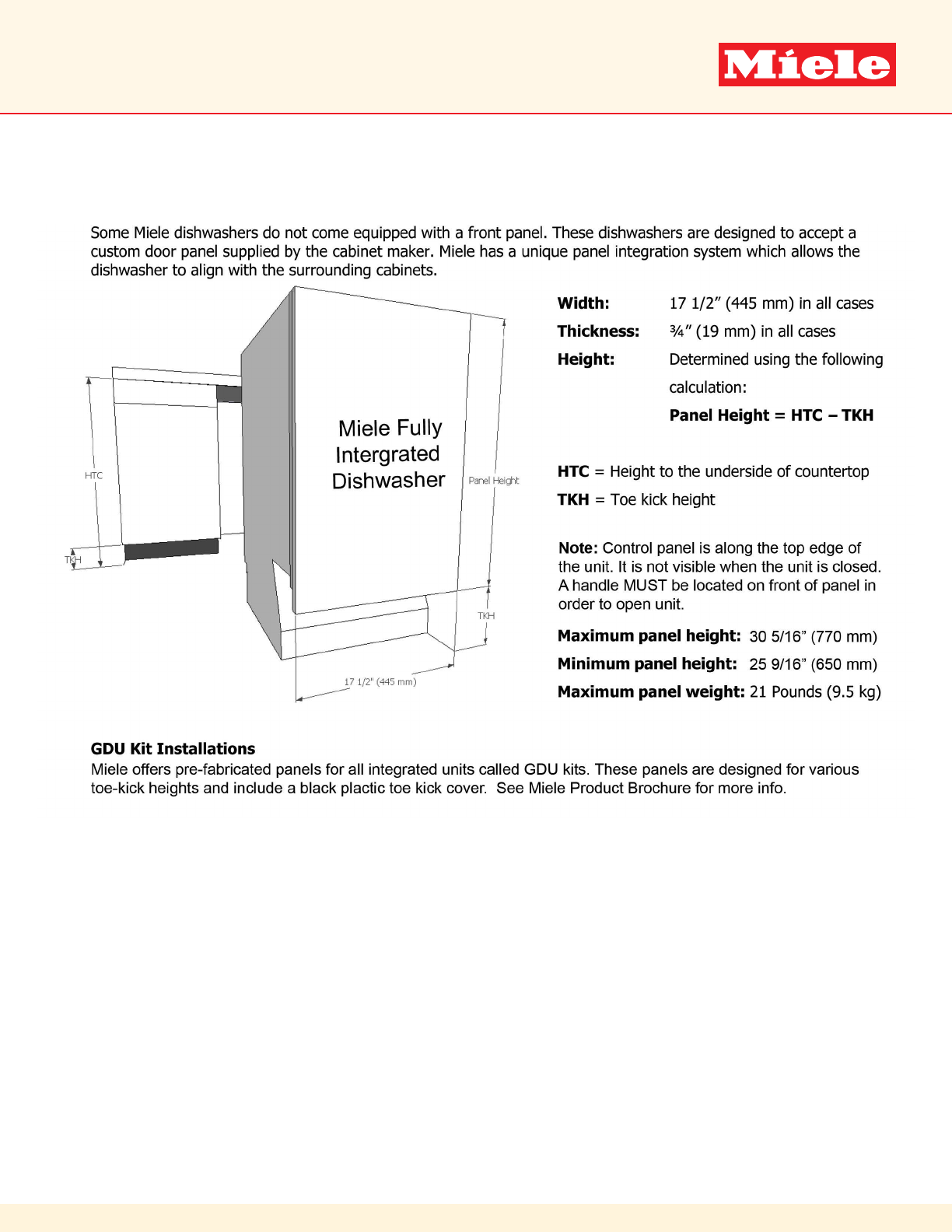

Custom Panel Istallation

Specication Sheet TRS 04132015

Futura Series

Slimline Fully Integrated Dishwasher

FOREVER BETTER

Futura Series Slimline Fully Intergrated Dishwashers

Page 5 of 5

Specication Sheet TRS 04132015
