Operating instructions
for dishwashers
It is essential to read the operating and
installation instructions before
installing, commissioning or using the
machine, to avoid the risk of accidents
or damage to the machine.
G
05 714 411
M.-Nr.
Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Appliance overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Energy saving washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Before using the appliance for the first time you require: . . . . . . . . . . . . . . . . . . . 11
To open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
To close the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Programming the water hardness level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Checking the programmed water hardness level. . . . . . . . . . . . . . . . . . . . . . . 15
Filling the salt reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

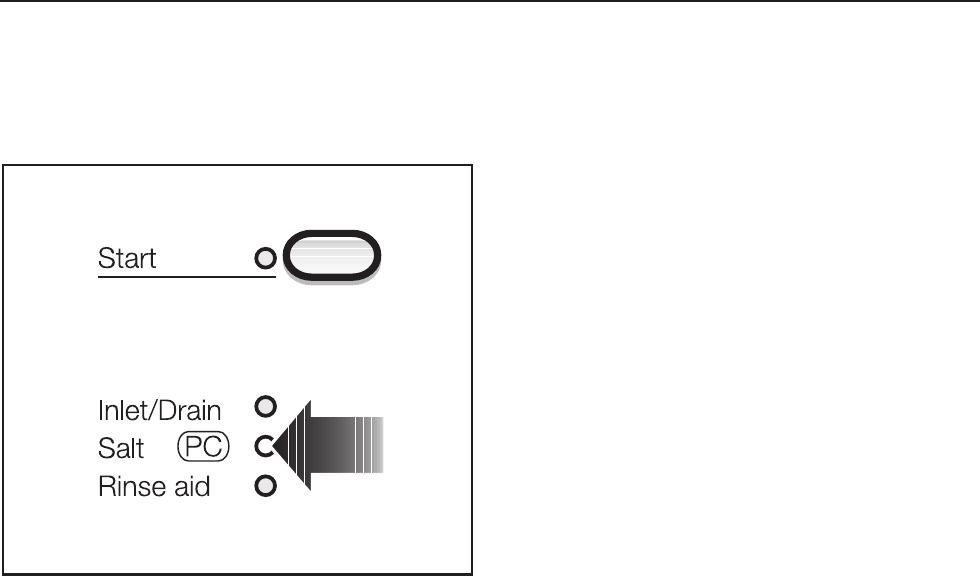

Salt indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Adding rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Rinse aid indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Setting the rinse aid dosage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Loading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Flap up rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Positioning rail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Adjusting the upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Lower basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Hinged spikes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Dishwashers with a cutlery basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Dishwashers with a cutlery tray (SC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Items not suitable for dishwashers: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Contents
2
Operating the dishwasher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Programme selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Programme sequence indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
At the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Switching off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Changing a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Additional option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Drying fan running time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Unloading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

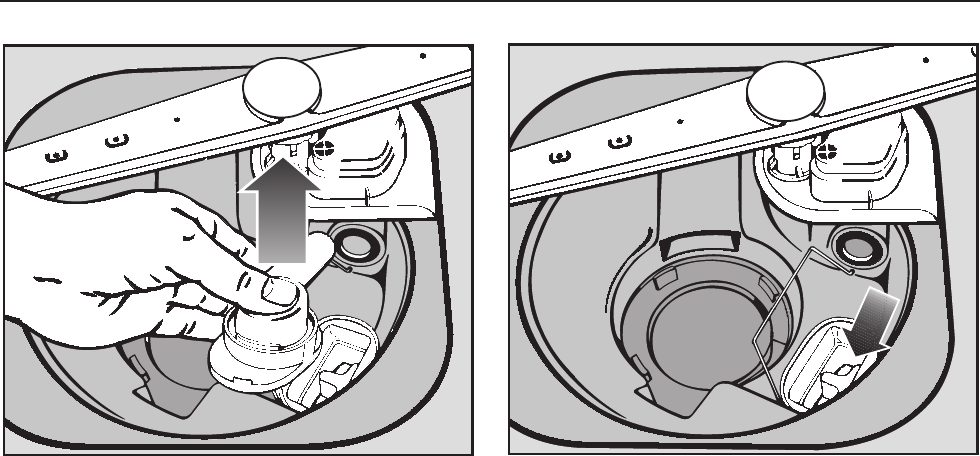

Cleaning the filters in the wash cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Cleaning the spray arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Cleaning the wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Cleaning the door and the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Cleaning the control panel and door front panel. . . . . . . . . . . . . . . . . . . . . . . . . . 41
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Solving problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Cleaning the water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Cleaning the drain pump and non-return valve. . . . . . . . . . . . . . . . . . . . . . . . . . . 53
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Comparison tests. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Model G 6XX (For model number see data plate). . . . . . . . . . . . . . . . . . . . . . . . . 64
Model G 8XX (For model number see data plate). . . . . . . . . . . . . . . . . . . . . . . . . 66
Contents
3
Appliance overview
1 Upper spray arm (not visible)
2 Cutlery tray
(depending on model)
3 Upper basket
4 Water feed for middle spray arm
5 Middle spray arm
6 Lower spray arm
7 Four height adjustable screw feet
8 Filter combination
9 Salt reservoir
10 Dual compartment detergent
dispenser
11 Rinse aid reservoir
(with dosage selector)
12 Data Plate
Description of the appliance
4
Control panel
13 "On/Off" button
14 Programme sequence display
15 "Start" button
16 Programme selector
17 Check/Refill indicators
18 Child safety lock
19 Door release
20 Ventilation outlet for drying fan
This instruction book applies to several different dishwasher models.
The specific dishwasher models below are referred to as follows:
G 646 SC(i) = G 6XX
G 846 SCi = G 8XX
The model numbers G 6XX and G 8XX used in this book refer to the model
designation specified on the data plate of the machine (and not the description
on the control panel).
The data plate is located at the top of the door when open.
Description of the appliance
5
This appliance conforms to current
safety requirements. Inappropriate
use can however lead to personal
injury and damage to property.
Read the operating instructions
carefully before starting to use this
appliance. This way you will prevent
the risk of accidents and damage to
the appliance.
Keep these instructions in a safe
place for future reference, and pass
them on to any future user.
Correct usage
This dishwasher is intended exclu-
sively for cleaning domestic crock-
ery and cutlery in a domestic house-
hold. Using it for purposes other than
those for which it was designed, as well
as any alterations or conversions to the
machine would be unauthorised and
could cause harm. The manufacturer
cannot be held liable for damage re-
sulting from improper or incorrect use
of the appliance.
Delivery
Before setting up the machine
check it for any externally visible
damage. Under no circumstances
should you use a damaged machine. A
damaged machine is dangerous.
Please ensure that the packaging
material is offered for recycling.
Installation
The dishwasher must be installed
and connected in compliance with
the installation instructions.
The electrical socket must be eas-
ily accessible after the dishwasher
has been installed.
In order to ensure stability, built-un-
der and integrated dishwashers
must only be installed under a continu-
ous worktop which is secured to adja-
cent cabinetry.
The dishwasher must not be in-
stalled under a hob. The high radi-
ant temperatures which are sometimes
generated by a hob could damage the
dishwasher.
Do not connect the dishwasher to
the mains supply until it has been
installed.
Check that the voltage, frequency
and fuse rating shown on the data
plate match the household mains sup-
ply.
The electrical safety of this appli-
ance can only be guaranteed when
continuity is complete between the ap-
pliance and an effective earthing sys-
tem. It is most important that this basic
safety requirement is tested and where
there is any doubt, the electrical system
in the house is checked by a qualified
electrician.
The manufacturer cannot be held re-
sponsible for the consequences of an
inadequate earthing system (e.g. elec-
tric shock).
Warning and Safety instructions
6
This equipment is not designed for
maritime use or for use in mobile
installations such as caravans, aircraft
etc. However it may be suitable for
such usage subject to a risk assess-
ment of the installation being carried
out by a suitably qualified engineer.
A damaged machine is dangerous.
Switch off at the mains and call
your Miele supplier or the Miele Service
Department.
The plastic housing of the water
connection contains an electrical
component. The housing must therefore
not be dipped in water.
There are live wires in the water in-
let hose. Never cut the water inlet
hose, even if it is too long.
For safety reasons do not operate
this appliance on an extension ca-
ble. (Danger of overheating).
Daily use
Do not use solvents in the dish-
washer. Danger of explosion.
Water in the dishwasher must not
be used as drinking water. This wa-
ter is not drinking water.
Avoid inhalation of powder deter-
gents. Do not ingest dishwasher
detergent! Dishwasher detergents con-
tain irritant or corrosive ingredients.
They can cause burning in the nose,
mouth and throat if swallowed, or inhibit
breathing. Consult a doctor immediate-
ly if detergent has been swallowed or
inhaled.
Do not sit or lean on the opened
door. This could cause the dish-
washer to tip and be damaged and you
could get injured.
In an appliance with a cutlery bas-
ket (depending on model) cutlery
is cleaned and dried more efficiently if
placed in the basket with the handles
downwards. However, to avoid the risk
of injury place cutlery with sharp points
with the handles upwards.
Only use detergents formulated for
domestic dishwashers. Do not use
washing-up liquid.
Only use rinse aid formulated for
domestic dishwashers.
Only use special coarse grained
dishwasher salt for reactivation.
Do not use other salts such as cooking
salt, agricultural grade or gritting salt.
These may contain insoluble additives
which can impair the functioning of the
water softener.
Plastic items which cannot with-
stand being washed in hot water,
such as disposable plastic containers,
or plastic cutlery and crockery should
not be cleaned in the dishwasher. The
high temperatures in the dishwasher
may cause them to melt or lose shape.
Warning and Safety instructions
7
Take care on dishwashers with a
visible heater element
(depending on model)
Do not touch the heating element
during or directly after the end of a
programme. It will be hot. Danger of
burning!
Some plastic items could melt or
catch fire if they were to come into
contact with the heating element.
Therefore always place plastic items or
any other items which may not be com-
pletely heat resistant in the upper bas-
ket and ensure they cannot drop down
onto the heater element.
Any items which are too small to be
lodged securely in the upper basket
should not be cleaned in the dish-
washer.
Safety with children
Do not allow children to play in or
around the dishwasher, or to oper-
ate it. There is a danger that children
playing might shut themselves in the
dishwasher.
Keep children away from deter-
gents. Dishwasher detergents con-
tain irritant or corrosive ingredients.
They can cause burning in the mouth,
nose and throat if swallowed, or inhibit
breathing. Consult a doctor immediate-
ly if your child has swallowed or inhaled
detergent.
To avoid the danger of children
coming into contact with the dish-
washer detergent: only add detergent
just before starting the programme and
close the door, activating the child
safety lock (depending on model).
Keep children away from the dish-
washer when the door is open. There
could still be detergent residues in the
cabinet.
To ensure children do not come
into contact with detergent on
models with the "Delay start" option
make sure the dispenser is dry before
adding detergent. Wipe dry if neces-
sary. Detergent will clog if poured into a
damp dispenser and may not be thor-
oughly dispersed. If the door is open at
the end of a programme, children may
come into contact with this residue.
To avoid machine and material
damage
Do not fill the rinse aid reservoir
with powder or liquid detergent.
This will cause serious damage to the
reservoir.
Inadvertently filling the salt reser-
voir with powder or liquid dish-
washer detergent always leads to seri-
ous damage to the water softener.
Make sure you have picked up the cor-
rect packet of dishwasher salt before
filling the salt reservoir!
Do not use commercial or industrial
detergents as these may damage
material and there is a risk of severe
chemical reaction.
Warning and Safety instructions
8
The Miele Waterproof System offers
protection from water damage, pro-
vided the following conditions are met:
– The dishwasher is correctly installed
and plumbed in.
– The dishwasher is properly main-
tained and parts are replaced where
it can be seen that this is necessary.
– The stopcock has been turned off
when the appliance is not used for a
longer period of time (e.g. during hol-
idays).
,In countries where there are ar-
eas which may be subject to infesta-
tion by cockroaches or other vermin,
pay particular attention to keeping
the appliance and its surroundings
in a clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not
be covered by the appliance guar-
antee.
Repairs and maintenance
Repairs may only be carried out by
suitably qualified and competent
engineers in accordance with local and
national safety requirements. Repairs
and other work by unqualified persons
could be dangerous.
Always disconnect the appliance
from the electrical supply for main-
tenance work (switch off at wall socket
and remove the plug, or remove the
screw out fuse in countries where this is
applicable).
Disposal of your old appliance
When disposing of an old dish-
washer first make it unusable. Dis-
connect, cut off the cable and the plug
from the cable. Make the door lock in-
operative by unscrewing 2 cross-slotted
screws, so that children cannot acci-
dentally shut themselves in. Make ap-
propriate arrangements for the disposal
of the appliance.
The manufacturer cannot be held lia-
ble for damage caused by non-com-
pliance with these Warning and
Safety instructions.
Warning and Safety instructions
9
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these materi-
als away, please ensure that they are
recycled.
Disposal of your old appliance
Old appliances contain materials which
can be recycled. Please contact your
dealer, your local waste collection cen-
tre or scrap merchant about potential
recycling schemes.
Ensure that the appliance presents no
danger to children while being stored
for disposal. See the appropriate sec-
tion in the Warning and Safety instruc-
tions.
Energy saving washing
This dishwasher is exceptionally eco-
nomical in its use of water and electric-
ity. You can make the most of your ap-
pliance by following these tips:
^If your household water system is
suitable, this dishwasher can be con-
nected to a hot water supply, for fur-
ther economies.
Although all stages of the wash then
take place with hot water, savings are
made in:
- the use of primary energy,
- costs,
- programme running times.
If, however, your water is heated by
electricity we would still recommend
connection to cold water.
^For most economical dishwashing
make full use of the baskets without
overloading the dishwasher.
^Choose the programme to suit the
type of crockery being washed and
the degree of soiling.
^Select the Economy programme for
energy-saving dishwashing.
^Use the correct amounts of deter-
gent.
^Use only 2/3 of the given dosage if
baskets are only half full.
Caring for the environment
10
Before using the appliance for
the first time you require:
– approx. 2 litres of water,
– approx. 2 kg dishwasher reactivation
salt,
– domestic dishwasher detergent,
– rinse aid formulated for domestic
dishwashers.
Every dishwasher is tested at the
factory.
There will be residual water in the
appliance from this test. It is not an
indication that it has been previously
used.
Before using for the first time
11
To open the door
^Press the release catch inside the
door grip and pull forward.
If the door is opened during operation
all functions are automatically inter-
rupted.
To close the door
^Push the baskets right in, lift the door
and push until it clicks into position.
Child safety lock
The yellow key for the child safety
lock is on one of the spikes at the
front of the upper basket.
Remove the key before switching on
the dishwasher and keep it in a safe
place away from the dishwasher.
To prevent children opening the dish-
washer door during operation, use the
key to lock the door:
Horizontal setting:
The door is locked.
Vertical setting:
The door can be opened.
Before using for the first time
12
Water softener
In order to achieve good cleaning re-
sults, the dishwasher needs to operate
with soft water. Hard water results in the
build-up of calcium deposits on crock-
ery and in the dishwasher.
Mains water with a hardness level
higher than 0.7 mmol/l (4° d - German
scale) needs to be softened. This takes
place automatically in the integrated
water softener.
– The water softener must be filled with
dishwasher salt for reactivation.
– The dishwasher must be pro-
grammed to correspond to the water
hardness in your area.
– Your local water authority will be able
to advise you of the water hardness
level in your area.
Where the water hardness fluctuates
e.g. between 1.4 - 3.1 mmol/l (8 - 17 °d
German scale) always programme the
dishwasher to the higher value
(3.1 mmol/l in this example).
In the event of a fault, it will help the
service technician if you know the hard-
ness of your local water supply.
^Enter the water hardness below:
mmol/l or °d
Before using for the first time
13
Programming the water hardness
level
^Switch the dishwasher off using the
"On/Off" button.
^Turn the programme selector to the
"Stop" position.
^Press the "Start" button in and whilst
holding it in switch the dishwasher
on using the "On/Off" button. Release
the "Start" button within two seconds.
The "Salt" indicator light will flash.
Warning:
If a different indicator light comes on or
flashes, the process must be repeated.
Exception:
The "Rinse aid" indicator light will come
on if you have not yet added rinse aid
or if rinse aid needs replenishing.
^Turn the programme selector to the
position that corresponds to your wa-
ter hardness level (see chart below).
°d
German
scale
mmol/l Programme selector
setting
1 - 4 0.2 - 0.7 "1 o’clock"position
5 - 7 0.9 - 1.3 "2 o’clock"position
8 - 10 1.4 - 1.8 "3 o’clock" position
11 - 13 2.0 - 2.3 "4 o’clock" position
14 - 16 2.5 - 2.9 "5 o’clock" position
17 - 22 3.1 - 4.0 "6 o’clock" position
23 - 35 4.1 - 6.3 "7 o’clock" position
36 - 70 6.5 -12.6 "8 o’clock" position
The dishwasher is set at the factory
for a hardness level of 2.5 -2.9 mmol/l
(14 -16 °d ).
Example:
For a water hardnesss of 3.5 mmol/l,
turn the programme selector to the
"6 o’clock" position.
Before using for the first time
14
^Press the "Start" button.
The "Start" indicator light will come on.
^Turn the programme selector to the
"Stop" position.
^Switch the dishwasher off using the
"On/Off" button.
The water hardness level is now stored
in memory.
Checking the programmed water
hardness level
^Switch the dishwasher off using the
"On/Off" button.
^Turn the programme selector to the
"Stop" position.
^Press the "Start" button in and whilst
holding it in switch the dishwasher
on using the "On/Off" button. Release
the "Start" button within two seconds.
The "Salt" indicator light will flash.
Warning:
If a different indicator light comes on or
flashes, the process must be repeated.
Exception:
The "Rinse aid" indicator light will come
on if you have not yet added rinse aid
or if rinse aid needs replenishing.
^Click the progamme selector from the
"1 o’clock" position as far as the "8
o’clock" position.
When the programme selector is at the
position which corresponds to the water
hardness setting already programmed,
the "Start" indicator light will come on
(see chart "Programming and setting
the water hardness level").
^Turn the programme selector to the
"Stop" position.
^Switch the dishwasher off using the
"On/Off" button.
Before using for the first time
15
Filling the salt reservoir
If the water in your area is very soft
and constantly lower than 0.7 mmol/l
(4 °d) you do not need to add dish-
washer salt.
The water softener must, however,
still be programmed to correspond
to the water hardness level in your
area. (The salt indicator light will still
come on, but should be ignored).
Important: Before filling the salt res-
ervoir with dishwasher salt for the
first time, you must fill it with approx.
2 litres of water to enable the salt to
dissolve. Once the dishwasher has
been used, there is always sufficient
water in the reservoir.
,Inadvertently filling the salt reser-
voir with powder or liquid dish-
washer detergent always leads to
serious damage to the water soft-
ener. Make sure you have picked up
the correct packet of dishwasher salt
before filling the salt reservoir!
,Only use special coarse grained
dishwasher salt for reactivation. Do
not use other salts such as cooking
salt, agricultural grade or gritting
salt. These may contain insoluble
additives which can impair the func-
tioning of the water softener.
^Remove the lower basket and un-
screw the salt reservoir cap.
^Fill the reservoir with approx. 2 litres
of water (first use).
^Place the funnel provided over the
salt reservoir and carefully fill with salt
until the reservoir is full. The salt res-
ervoir holds approx. 2 kg of salt de-
pending on the brand used.
As the salt reservoir is filled, displaced
water will overflow.
^Clean any excess salt from around
the reservoir opening and then screw
the cap on again firmly.
^Run the "Pre-wash" programme im-
mediately to remove any traces of
salt water from the cabinet.
Before using for the first time
16
Salt indicator
The salt indicator light comes on to no-
tify you that the reservoir is empty.
^The reservoir should then be refilled
with dishwasher salt for reactivation.
(See: Filling the salt reservoir).
After the reservoir has been filled, the
water softener is automatically reacti-
vated the next time the dishwasher is
run. The salt indicator light may still be
illuminated during this process. It will
go out once the salt concentration has
reached the correct level.
Note
If the water in your area is very soft and
constantly lower than 0.7 mmol (4 °d)
you do not need to add salt to the res-
ervoir. The salt indicator light, however,
will still come on, but should be ig-
nored.
(See "After sales service" for definition
of "PC").
Before using for the first time
17
Rinse aid
Rinse aid is necessary to ensure water
does not cling and leave marks on
crockery during the drying phase.
Rinse aid is poured into the storage res-
ervoir and the amount set is dispensed
automatically.
,Inadvertently filling the rinse aid
reservoir with powder or liquid dish-
washer detergent always causes se-
rious damage to the reservoir. Only
pour rinse aid formulated for domes-
tic dishwashers into the reservoir.
Alternatively, it is possible to use
– Household vinegar with a max. 5%
acid content
or
– Liquid citric acid up to 50% acid
content.
The resulting rinsing and drying quality
will not, however, be as good as when
rinse aid is used.
,Do not use vinegar with a higher
acid content (e.g. vinegar essence
25% acid). This must not be used as
its use would damage the dish-
washer.
Adding rinse aid
^Press the button in the direction of
the arrow until the flap springs open.
Before using for the first time
18
^Add rinse aid only until it is visible on
the surface of the filter in the
opening.
The rinse aid reservoir holds approx.
130 ml.
^Close the flap firmly so that it clicks
into place. Otherwise water would en-
ter the rinse aid reservoir during a
programme.
^Wipe up any spilled rinse aid. This
prevents over-foaming occuring dur-
ing the next programme.
Rinse aid indicator
The Rinse aid indicator light on the fas-
cia comes on when the rinse aid reser-
voir needs to be replenished.
When the light comes on the reservoir
still contains sufficient rinse aid for 2 - 3
programmes.
^Add rinse aid in plenty of time.
Before using for the first time
19

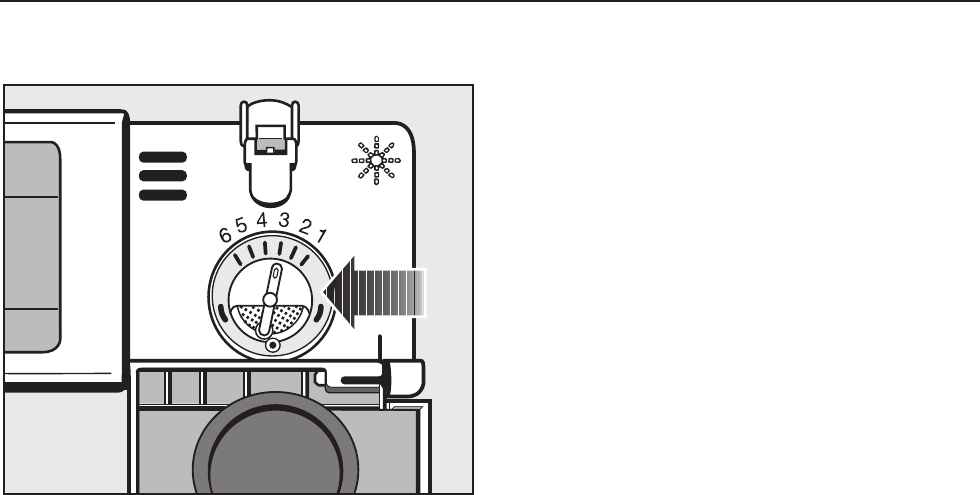

Setting the rinse aid dosage
The dosage selector has settings from
1-6. It is set to "3" (3 ml) at the factory.
Approx. 3 ml of rinse aid are then used
per programme. This is a recom-
mended setting.
If spots appear on crockery and glass-
ware:
^Use a higher setting.
If clouding or smearing appears on
crockery and glassware:
^Use a lower setting.
Before using for the first time
20
Note
^Remove coarse food residues from
crockery.
There is no need to rinse items under
running water.
,Do not wash items soiled with
ash, sand, wax, lubricating grease
or paint in the dishwasher. Ash does
not dissolve and is distributed in the
wash cabinet. Wax, sand, lubricating
grease and paint cause damage to
the dishwasher.
Crockery can be loaded anywhere in
the baskets, but the following notes
should be observed:
^Do not place crockery and cutlery in-
side other pieces where they may be
concealed.
^Load the crockery so that water can
access all surfaces. This ensures that
it is properly cleaned.
^Make sure that all items are securely
positioned.
^Hollow items such as cups, glasses,
pans, etc. must be inverted in the
basket.
^Tall, narrow, hollow items, e.g. cham-
pagne glasses, should be placed in
the centre of the basket to ensure
better water coverage.
^Deep based items should be placed
at an angle so that water can run off
them freely.
^The spray arms must not be blocked
by items which are too tall or hang
through the baskets.
If in doubt, test for free movement by
manually rotating the spray arms.
^Make sure that small items do not fall
through the holders in the baskets.
Small items, e.g. lids, should there-
fore be placed in the cutlery tray or
cutlery basket.
Some foodstuffs may contain natural
dyes, e.g. carrots, tomatoes or
ketchup. Plastic items in the dish-
washer may discolour if large quan-
tities of these foodstuffs find their
way into the appliance on the crock-
ery. The stability of plastic items is
not affected by this discolouration.
When the dishwasher is being
loaded food and drink residue may
drip onto the sides of the dish-
washer door.
These surfaces are outside the wash
cabinet and are not accessed by
water from the spray arms.
Food residue should therefore be
wiped away before the dishwasher
door is closed.
Loading the dishwasher
21
Upper basket
For small, lightweight, delicate items
such as cups, saucers, glasses, des-
sert bowls, etc.
Shallow saucepans or casserole dishes
can also be placed in the upper basket.
Long items such as soup ladles, mixing
spoons and long knives should be
placed lying down across the front of
the upper basket.
Flap up rack
To make room for tall items raise the
rack upwards.
Positioning rail
The positioning rail can be flipped over
to the middle of the basket for easy
sorting and removing of crockery.
Loading the dishwasher
22
Adjusting the upper basket
(depending on model)
In order to gain more space for taller
pieces of crockery in the bottom or up-
per basket, the upper basket can be
adjusted on three levels with 2 cm be-
tween each level.
The upper basket can also be set at an
angle with one side high and the other
side low. Ensure however, that the bas-
ket can be inserted smoothly into the
cabinet.
^Pull out the upper basket.
^Pull upwards on the levers at either
side of the upper basket.
^Adjust the basket to the desired
height.
^Then push the levers securely back
down into position.
Depending on the setting of the upper
basket, the following plate dimensions
can be accommodated.
Dishwashers with
cutlery tray
Model G 6XX
(see data plate for model number)
Upper
basket
level
Plate Ø in cm
Upper bas-
ket
Lower
basket
Top 15 30
Middle 17 28
Bottom 19 26
Model G 8XX
(see data plate for model number)
Upper
basket
level
Plate Ø in cm
Upper bas-
ket
Lower
basket
Top 20 30
Middle 22 28
Bottom 24 26
Dishwashers with cutlery basket
without adjustment to upper basket
Plate Ø in upper basket: 23 cm
Plate Ø in lower basket: 28 cm
Loading the dishwasher
23

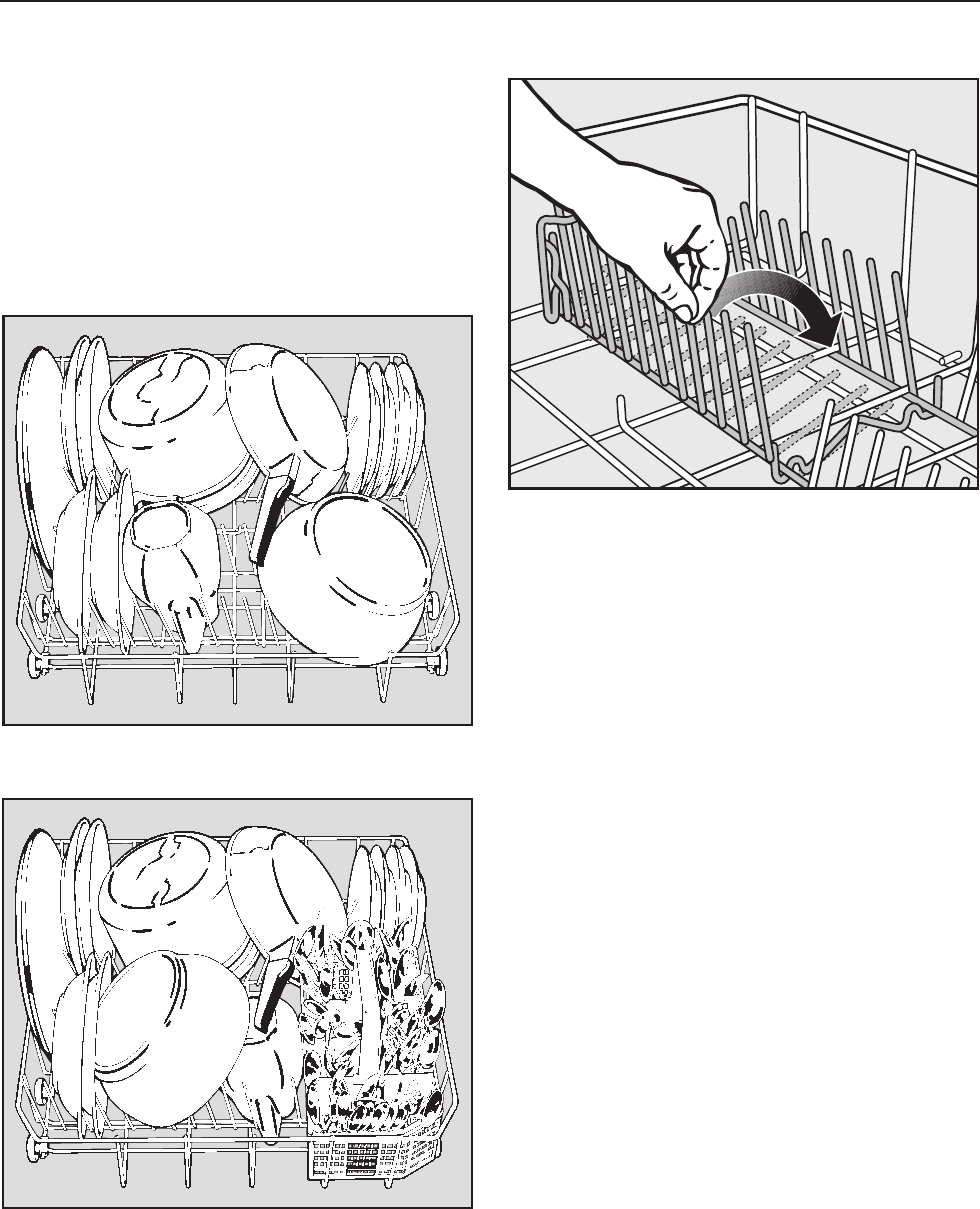

Lower basket
For larger and heavier items such as
plates, serving platters, saucepans,
bowls, etc.
Small items such as saucers can also
be placed in the lower basket.
Do not place thin, delicate glassware in
the lower basket.
Dishwashers with cutlery tray
Dishwashers with cutlery basket
Hinged spikes
Both sides of the rear section can be
lowered to make more room for large
items, e.g. pots, pans and dishes.
^Raise and then fold down one side of
the spiked insert and then do the
same to the other side.
Loading the dishwasher
24
Height limitation
The stay at the front of the upper basket
determines the max. height permissible
for items placed in the lower basket to
ensure they do not impede the move-
ment of the middle spray arm.
Bottle holder
The bottle holder, e.g. for milk and baby
bottles, can be inserted in various
positions in the lower basket. See areas
marked white in the illustration.
However, do not place a bottle holder in
the middle or in the corners. Water will
not be able to access the bottles
properly, and cleaning results will be
impaired.
Loading the dishwasher
25
Cutlery
Dishwashers with a cutlery basket
^Unsorted cutlery should be placed in
the cutlery basket with the handles
facing downwards to ensure optimum
spray water access.
,However, to avoid the risk of in-
jury cutlery with sharp points should
be placed with the handles up-
wards.
Place small spoons in the individual
slots to either side of the cutlery basket.
Loading the dishwasher
26

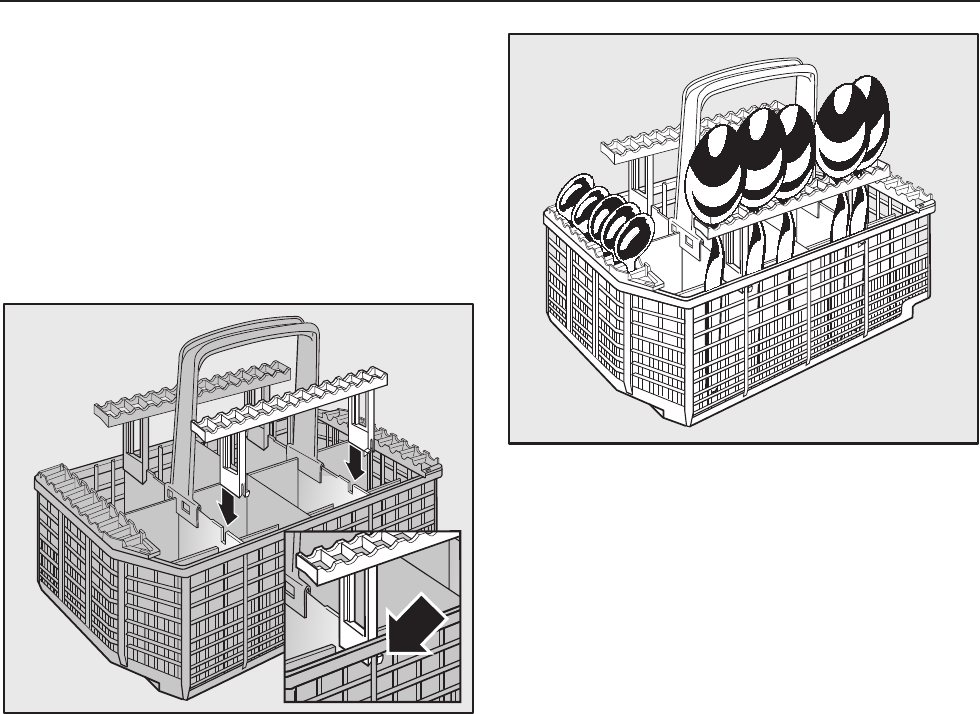

Spoon inserts for the cutlery basket
Use the inserts supplied when washing
heavily soiled spoons, e.g. tablespoons
and serving spoons.
The inserts separate the spoons to al-
low a space between them so that they
can be more easily accessed by water.
^If required, place an insert onto the
front and rear of the cutlery basket.
To remove the inserts:
^Press the engaged hooks inwards
(use a spoon handle if necessary)
and remove the insert by pulling it
upwards.
^Insert the spoons with the handles
facing downwards, using only every
other slot.
Loading the dishwasher
27
Dishwashers with a cutlery tray (SC)
For best results cutlery should be
grouped in zones, one for knives, one
for forks, one for spoons, etc.This
makes unloading much easier.
Place the blades of knives and the
prongs of forks between the holders.
Spoons, on the other hand, should be
placed with the handles between the
holders.
Longer items such as soup ladles, cake
slices, mixing spoons and long knives
should be placed lengthwise in the in-
dentation in the middle of the cutlery
tray.
The upper spray arm must not be
blocked by items which are too big
(e.g. cake slices).
The cutlery tray insert is removable.
Spoon heads should be placed in con-
tact with at least one of the serrated re-
tainers on the base of the cutlery tray to
ensure that water runs off them freely.
If spoon handles do not fit between the
holders then lay them the other way
round making sure that the head of the
spoon is in contact with the support on
the bottom of the tray.
Loading the dishwasher
28
Items not suitable for
dishwashers:
– Wooden cutlery and crockery or
items with wooden parts: these may
discolour and fade. The glue used in
these items is not dishwasher-proof
and wooden handles may come
loose after being washed in a dish-
washer.
– Craft items, antiques, valuable vases
and decorative glassware are also
not suitable for dishwashers.
– Plastic items which are not heat re-
sistant. The high temperatures in the
dishwasher may cause them to melt
or lose shape.
– Copper, brass, tin and aluminium
items may discolour or become matt.
– Colours painted over a glaze may
fade after a number of washes.
– Clouding may occur on glasses after
frequent washing. Do not wash
glassware containing lead crystal in
a dishwasher.
We recommend:
– When purchasing new crockery and
cutlery, make sure they are dish-
washer-proof.
– There are no standard guidelines for
washing glassware. When in doubt,
wash glassware by hand.
– If delicate glassware is washed in the
dishwasher ensure that only very low
temperatures are used (see
programme chart). This will reduce
the risk of clouding.
Please note
Silverware previously cleaned with a
silver polish may still be damp or spot-
ted at the end of a programme, where
water has not run off smoothly. It may
need rubbing dry with a soft cloth. Sil-
ver treated in a silver immersion dip is
usually dry at the end of a programme
but may discolour.
Silver which has been in contact with
foods containing sulphur can discolour.
These include egg yolk, onions, mayon-
naise, mustard, pulses, fish, fish brine
and marinades.
,Aluminium components (e.g. a
grease filter) must not be cleaned
with caustic alkaline commercial or
industrial cleaning agents. These
may damage material, or in extreme
cases, cause severe chemical reac-
tion. See section "Adding detergent"
for information on suitable deter-
gents.
Loading the dishwasher
29
Detergent
,Only use detergents formulated
for domestic dishwashers. Do not
use washing up liquid.
^You can use conventional powder de-
tergent, tablets or liquid dishwasher
detergent.
Refer to the dosing instructions given
by the manufacturer on the packag-
ing.
^Put powder or liquid detergent into
the dispenser compartment.
^Detergent tablets should only be put
into compartment II if this is recom-
mended by the manufacturer.
If the manufacturer recommends in-
serting tablets in the cutlery basket
do not do so. Instead place them on
the inside of the door or directly into
the wash cabinet to help them dis-
solve properly.
Detergent manufacturers give the re-
quired amount of detergent for a partic-
ular programme on their packaging.
^Use at least 30 ml of detergent for a
full load in the following programmes:
- Intensive,
- Universal plus,
- Universal,
- Normal,
- Economy.
If the manufacturer recommends a
larger amount of detergent, use the
amount recommended.
Failure to dispense the recom-
mended amount of detergent may
impair cleaning results.
If you are using 2 in 1 or 3 in 1 com-
bination tablets, please continue to
replenish the salt and rinse aid res-
ervoirs as described in this booklet.
Otherwise the cleaning and drying
performance of the machine may
deteriorate over time.
Operating the dishwasher
30
Adding detergent
,Avoid inhalation of powder de-
tergents and do not ingest dish-
washer detergent! Dishwasher de-
tergents contain irritant or corrosive
ingredients. They can cause burning
in the nose, mouth and throat if swal-
lowed, or inhibit breathing. Consult a
doctor immediately if detergent has
been swallowed or inhaled. Keep
children away from detergents and
from the dishwasher when the door
is open. There could still be deter-
gent residues in the cabinet. To
avoid the danger of children coming
into contact with the dishwasher de-
tergent only add detergent just be-
fore starting the programme and
close the door, activating the child
safety lock.
It is essential to follow the instruc-
tions given in the programme chart
at the end of the operating instruc-
tions.
For information
Compartment I holds max. 20 ml,
Compartment II holds max. 70 ml.
There are markings in compartment II
to assist with dispensing. The marks in-
dicate a level of approx. 20, 25, 30 ml
when the door is open in a horizontal
position.
^Press the opening catch on the de-
tergent dispenser. The flap will spring
open.
The flap is always open at the end of a
programme.
^Add the required amount of deter-
gent and close the flap.
^Ensure that the detergent package is
properly sealed after use. Otherwise
the detergent can lose its effective-
ness.
Operating the dishwasher
31
Programme selection
Choose your programme according to
the type of load and how dirty it is.
In most cases this will be a Universal
programme or a Universal plus
programme.
These programmes are ideally suited to
everyday mixed loads with varying de-
grees of soiling.
The different programmes and their
uses are described in the programme
chart at the end of this booklet.
Operating the dishwasher
32
Switching on
^Make sure the spray arms are not ob-
structed.
^Close the door.
^Open the stopcock, if it is closed.
^Press the "On/Off" button (13).
The "Start" indicator light (15) will flash.
Starting a programme
^When selecting a programme, refer
to the programme chart at the end of
the operating instructions.
^Turn the programme selector (16)
clockwise or anti-clockwise to the re-
quired programme.
^Press the "Start" button (15).
The programme cycle begins. The
"Start" (15) and "Wash/Rinse" (14) indi-
cator lights come on.
Do not finish a programme prema-
turely. Important programme stages
(e. g. reactivating the water softener)
could be omitted.
Programme sequence
indicator lights (14)
The "Wash/Rinse" indicator light comes
on in the pre-wash, main wash, interim
rinse and final rinse stages of a
programme.
The "Drying" indicator light comes on
during the drying stage of a
programme.
The "End" indicator light comes on
when the programme has finished.
Operating the dishwasher
33
At the end of a programme
A programme has finished when the
"End" indicator light comes on in the
programme sequence display (14).
The dishwasher can now be opened
and unloaded (see "Unloading the dish-
washer").
For safety’s sake it is advisable to al-
ways switch the dishwasher off if you
do not wish to start another programme
immediately.
Switching off
At the end of a programme:
^Turn the programme selector (16) to
the "Stop" position.
The "End" indicator light (14) goes out
and the "Start" indicator light (15)
flashes.
^Press the "On/Off" button (13).
The "Start" indicator light (15) goes out.
The dishwasher continues to use
electricity until switched off using the
"On/Off" button.
If the dishwasher is not to be used for a
longer period of time, e. g. whilst on
holiday, the stopcock should be turned
off.
Operating the dishwasher
34
Interrupting a programme
A programme is interrupted as soon as
the door is opened.
If the door is closed again, the
programme will continue from the point
it was at before the door was opened.
,Water in the dishwasher may be
hot. Danger of scalding!
Only open the door if absolutely
necessary and exercise extreme
caution when doing so. Before clos-
ing the door again, leave it ajar for
approx. 20 secs. This will enable the
temperature in the wash cabinet to
settle. Close the door firmly making
sure that it clicks into place.
Changing a programme
Important:
If the detergent dispenser flap has
already opened, do not change the
programme.
If a programme has already started and
you wish to change it proceed as fol-
lows:
^Turn the programme selector (16) to
the "Stop" position.
^Leave the programme selector (16) in
this position for at least one second.
^Then turn the programme selector
(16) to the programme you wish to
use.
^Press the "Start" button (15).
The programme cycle begins.
Operating the dishwasher
35
Additional option
Drying fan running time
During the drying phase, as long as the
door of the dishwasher remains closed,
moist air is expelled through the ventila-
tion outlet for the drying fan. The drying
fan running time can be increased to
avoid the risk of damage to a worktop
fitted above the dishwasher. If this op-
tion is selected, the fan will continue to
run for approx. 14 minutes after the end
of a programme.
Activating and deactivating in-
creased drying fan running time:
^Switch the dishwasher off using the
"On/Off" button.
^Turn the programme selector to the
"Stop" position.
^Press the "Start" button in and whilst
holding it in switch the dishwasher
on using the "On/Off" button. Release
the "Start" button within two seconds.
The "Salt" indicator light will flash.
Warning:
If a different indicator light comes on or
flashes, the process must be repeated.
Exception:
The "Rinse aid" indicator light will come
on if you have not yet added rinse aid
or if rinse aid needs replenishing.
^Turn the programme selector to the "9
o’clock" position.
– If the "Start" indicator light does not
come on:
the fan running time is not increased,
– If the "Start" indicator light does
come on:
the fan running time is increased.
^Press the "Start" button to change the
setting.
Depending on the previous setting the
"Start" indicator light will either come on
or go out.
^Turn the programme selector to the
"Stop" position.
^Switch the dishwasher off using the
"On/Off" button.
The change is now stored in memory.
Operating the dishwasher
36
Unloading the dishwasher
^Dishes tend to break and chip more
easily when they are hot.
Allow the dishes to cool until they are
comfortable enough to handle before
unloading them.
^If you open the door fully after switch-
ing off, the dishes will cool much
faster.
^First unload the lower basket, then
the upper basket and finally the cut-
lery tray (depending on model).
This will prevent water drops from the
upper basket and cutlery tray from
falling onto the dishes in the lower
basket.
Operating the dishwasher
37
Check your dishwasher regularly
(approx. every 4 - 6 months). This
way faults and problems can be
avoided.
Cleaning the filters in the wash
cabinet
The filter combination in the base of the
wash cabinet retains coarse soil from
the suds solution, preventing it access-
ing the circulation system and re-enter-
ing the cabinet through the spray arms.
,The dishwasher must not be
used without all the filters in place.
Collection of coarse soil may cause the
filters to clog.
Check the filter combination regularly
(every 4 - 6 months) and clean if neces-
sary.
^Switch the dishwasher off before-
hand.
^Turn the handle anti-clockwise to re-
lease the filter combination.
^Lift the filter combination out of the
dishwasher. Remove any coarse par-
ticles and rinse the filter under run-
ning water. Use a nylon brush if nec-
essary.
Cleaning and care
38
To clean the underside of the filter, the
flap must be opened:
^Pull back the yellow clip to do this.
^Rinse all parts under running water,
using a nylon brush if necessary.
^Then close the flap so that the clip
engages. Important: After cleaning
make sure that the clip has properly
engaged.
^Replace the filter combination so that
it lies flat in the base of the wash cab-
inet.
^Secure the filter by turning the handle
in a clockwise direction.
,Take care when you are fitting
the filter combination that it is se-
cured in position correctly. Other-
wise coarse soil could get into the
circulation system and cause a
blockage.
Cleaning and care
39
Cleaning the spray arms
Particles of food can get stuck in the
spray arm jets and bearings. The spray
arms should therefore be inspected
and cleaned regularly (approx. every
4 - 6 months).
^Switch the dishwasher off before-
hand.
Remove the spray arms as follows:
^Take out the cutlery tray (if your dish-
washer is fitted with one).
^Press the top spray arm upwards to
engage the inner ratchet. Then un-
screw the spray arm.
^Lift up the middle spray arm bto en-
gage the ratchet. Then unscrew the
spray arm b.
^Remove the lower basket.
^Pull the lower spray arm firmly up-
wards to remove it.
^Use a pointed object to push food
particles into the spray arm jets.
^Rinse thoroughly under running wa-
ter.
^Replace the spray arms and check
that they rotate freely.
Cleaning and care
40
Cleaning the wash cabinet
The wash cabinet is largely self-clean-
ing, provided that the correct amount of
detergent is always used.
If, however, there are limescale or
grease deposits in the cabinet these
can be removed with a proprietary
dishwasher cleaner.
Cleaning the door and the door
seal
^Wipe the door seals regularly with a
damp cloth to remove food deposits.
^When the dishwasher is being loaded
food and drink residue may drip onto
the sides of the dishwasher door.
These surfaces are outside the wash
cabinet and are not accessed by wa-
ter from the spray arms. Any soiling
should be wiped off these surfaces
before the door is closed.
Cleaning the control panel and
door front panel
Plastic panels:
^This type of panel should only be
wiped with a damp cloth or suitable
cleaning agent designed for use on
plastic.
,Do not use abrasive cleaning
agents, glass cleaning agents or
all-purpose cleaners. Because of
their chemical composition they
could cause serious damage to
plastic surfaces.
Stainless steel panels:
^Clean using a proprietary non-abra-
sive cleaning agent designed specifi-
cally for use on stainless steel.To help
prevent re-soiling, proprietary condi-
tioning agents for stainless steel can
also be used. Apply sparingly with an
even pressure in the direction of the
grain.
Aluminium panels:
Aluminium is affected by the way that
light falls on it, by the surrounding envi-
ronment and by the angle you observe
it from.
Aluminium is susceptible to scratching
and abrasion and must be treated with
due care.
^Soiling should be removed as soon
as possible using a damp cloth and a
little washing up liquid.
,Aluminium surfaces and controls
may suffer discolouration or damage
if soiling is left on them for too long.
Cleaning and care
41
Wood door front panels:
^Door fronts made from wood should
only be cleaned using a damp cham-
ois leather and then dried with a soft
cloth.
,Do not use any cleaning agents
containing ammonia or thinners.
These would damage the surface
structure.
E-Cloth:
A microfibre "E-Cloth" is available from
the Miele UK Spare Parts Department,
Part number 98013530, which is suit-
able for cleaning surfaces such as
stainless steel, glass, plastic and
chrome without the use of chemicals.
Cleaning and care
42
With the aid of the following guide, minor problems can be easily corrected with-
out calling in a Miele service technician, saving you both time and money.
You should, however, note the following:
,Repairs should only be carried out by a suitably qualified and trained per-
son in accordance with local and national safety regulations. Unauthorised or
incorrect repairs could cause personal injury or damage the appliance.
Problem Possible cause Remedy
The "Start" indicator
light does not flash after
the appliance has been
switched on with the
"On/Off" button.
The door is not properly
closed.
Close the door firmly.
The appliance is not
plugged in.
Insert the plug.
The fuse is defective or
has tripped.
Replace the fuse
(see data plate for
minimum fuse rating).
The dishwasher does
not start after the "Start"
button has been
pressed; the "Start" indi-
cator light is flashing.
The programme selector
is at the "Stop" position. –Turn the programme
selector to the required
programme.
–Press the "Start" button.
The dishwasher stops
during a programme.
The fuse is defective or
has tripped.
Replace the fuse
(see data plate for
minimum fuse rating).
Problem solving guide
43
Problem Possible cause Remedy
The indicator light "In-
let/Drain" lights up and
flashes alternately
The stopcock is closed. Open the stopcock fully.
The water inlet filter is
blocked.
Before rectifying the prob-
lem you must:
–Turn the programme
selector to the "Stop"
position.
–Switch the dishwasher
off using the "On/Off"
button.
then:
–Clean the water inlet fil-
ter, see "Solving prob-
lems".
The Waterproof system
has reacted.
Call the Miele Service De-
partment.
Problem solving guide
44
Problem Possible cause Remedy
The indicator light "In-
let/Drain" is flashing and
the programme does not
continue.
Before rectifying the prob-
lem you must:
–Turn the programme
selector to the "Stop"
position.
–Switch the dishwasher
off using the "On/Off"
button.
Water intake is restricted. –Open the stopcock
fully.
–Check the water inlet
filter and clean if nec-
essary, see "Cleaning
the water inlet filter".
–The water pressure at
the intake is lower than
0.3 bar. Seek profes-
sional advice.
Water outlet is restricted,
water remains in the wash
cabinet at the end of a
programme.
–Clean the filter combi-
nation, see "Cleaning
and Care".
–Clean the drain pump,
see "Cleaning the drain
pump and non-return
valve".
–Clean the non-return
valve, see "Cleaning
the drain pump and
non-return valve".
–Remove any kink in the
drain hose.
Problem solving guide
45
Problem Possible cause Remedy
The "End" and "Start"
indicator lights flash si-
multaneously at the end
of a programme
There may be a technical
fault. –Turn the programme
selector to the "Stop"
position.
–Switch the dishwasher
off using the "On/Off"
button.
After a few seconds:
–Switch the dishwasher
on using the "On/Off"
button.
–Turn the programme
selector to the required
programme.
–Press the "Start" button.
If the indicator lights flash
again, there is a technical
fault.
–Call the Miele Service
Department.
Problem solving guide
46
Problem Possible cause Remedy
Knocking noise in the
wash cabinet
The spray arm is knocking
against an item in the bas-
ket.
Interrupt the programme,
rearrange items which are
obstructing the spray arm.
Rattling noise Items of crockery are in-
secure in the wash cabi-
net.
Interrupt the programme,
rearrange the items of
crockery.
Knocking noise in the
water pipes
This may be caused by
the on-site installation or
the cross-section of the
piping.
This has no influence on
dishwasher function. If in
doubt contact a suitably
qualified plumber.
Problem solving guide
47
Problem Possible cause Remedy
The dishes are not clean The dishes were not
loaded correctly. Dishes
were placed inside other
pieces, water could not
access all surfaces.
See notes in "Loading the
dishwasher".
The outlet of the water in-
take pipe for the middle
spray arm was covered.
An insufficient amount of
water flowed into the mid-
dle spray arm.
Make sure that dishes
placed in the rear section
of the upper basket do not
cover the opening.
The programme was not
powerful enough.
Select a more intensive
programme, see
"Programme chart" at the
end of these operating in-
structions.
Not enough detergent
was dispensed.
Use more detergent, see
"Operating the dish-
washer".
Tall items are blocking the
path of the spray arms.
Rearrange the items so
that the spray arms can
rotate freely.
The spray arm jets are
blocked.
Clean the spray arm jets,
see "Cleaning and Care".
The filter combination in
the base of the wash cabi-
net is not clean or is not
correctly fitted.
This may cause the spray
arm jets to get blocked.
Clean and/or replace the
filter combination cor-
rectly. Clean the spray
arm jets, see "Cleaning
and Care".
The drain pump or non-re-
turn valve may be
blocked.
Clean the drain pump and
the non-return valve, see
"Cleaning the drain pump
and non-return valve".
Problem solving guide
48
Problem Possible cause Remedy
Dishes and glasses are
not dry or are flecked
The rinse aid amount may
be insufficient or the rinse
aid reservoir empty.
Increase the dosage or
replenish the reservoir,
see "Before using for the
first time".
Crockery was taken out of
the cabinet too soon.
Leave it in for longer, see
"Operating the dish-
washer".
White residue is visible
on cutlery and crockery,
clouding occurs on
glassware; film can be
wiped off
Not enough rinse aid was
used.
Increase the dosage, see
"Before using for the first
time".
There is no salt in the salt
reservoir.
Add dishwasher reactiva-
tion salt, see "Before using
for the first time".
The salt reservoir cap has
not been screwed on cor-
rectly.
Replace it making sure it
screws back on correctly.
The water softener is pro-
grammed to a setting
which is too low.
Programme a higher set-
ting, see "Before using for
the first time".
Combination dishwasher
detergent tablets contain-
ing rinse aid and/or salt
may have been used.
These are unsuitable as
long term use can impair
the softener unit.
Use a standard liquid,
tablet or powder deter-
gent.
Smearing appears on
glassware and cutlery,
there is a bluish sheen
on the surface of glass-
ware; film can be wiped
off
The rinse aid dosage is
set too high.
Reduce the dosage, see
"Before using for the first
time".
Problem solving guide
49
Problem Possible cause Remedy
Glassware is dull and
discoloured; film cannot
be wiped off
Glassware is not
dishwasherproof. The sur-
faces are affected.
There is no remedy.
Purchase glassware
which is dishwasher-
proof.
Tea or lipstick stains
have not been com-
pletely removed
The wash temperature of
the selected programme
was too low.
Select a programme with
a higher wash tempera-
ture.
The bleaching effect of
the detergent used is too
low.
Use a different type of de-
tergent.
Plastic items are discol-
oured
Natural dyes e.g. from
carrots, tomatoes or
ketchup may be the
cause. The amount of de-
tergent used or its bleach-
ing effect was not suffi-
cient to deal with natural
dyes.
Use more detergent, see
"Operating the dish-
washer".
Discolouration is irrever-
sible.
There are rust stains on
cutlery.
The salt reservoir cap has
not been screwed on cor-
rectly.
Replace it making sure it
screws back on correctly.
The affected items are not
corrosion resistant.
There is no remedy.
Purchase cutlery which is
dishwasher-proof.
The "Pre-wash"
programme was not run
after dishwasher salt was
added. Traces of salt
have got into the wash cy-
cle.
Always run the "Pre-wash"
programme after adding
dishwasher salt.
Problem solving guide
50
Problem Possible cause Remedy
The detergent lid cannot
be closed properly.
Clogged detergent resi-
due is blocking the catch.
Remove the residue.
Detergent residue is left
in the dispenser at the
end of a programme
The dispenser was still
damp when detergent
was added.
Make sure the dispenser
is dry before adding de-
tergent.
Water remains in the
wash cabinet at the end
of a programme
Before rectifying the prob-
lem you must:
–Turn the programme
selector to the "Stop"
position.
–Switch the dishwasher
off using the "On/Off"
button.
The filter combination in
the wash cabinet is
clogged.
Clean the filter combina-
tion, see "Cleaning and
Care".
The drain pump or non-re-
turn valve may be
blocked.
Clean the drain pump and
the non-return valve, see
"Cleaning the drain pump
and non-return valve".
The drain hose is kinked. Remove any kink in the
drain hose.
Problem solving guide
51
Cleaning the water inlet filter
A filter is incorporated in the screw con-
nection of the valve on the water inlet
hose. The filter must be cleaned when
dirty, otherwise insufficient water flows
into the wash cabinet.
,The plastic housing of the water
connection contains an electrical
component. It must not be dipped in
water.
Recommendation
If the mains water contains a large
number of insoluble substances, we
recommend fitting a large-area filter in
the connection between the stopcock
and the water inlet hose threaded un-
ion. This filter is available from the Miele
Spares Dept.
Cleaning the filter:
^Disconnect the dishwasher from the
mains supply (switch off at the mains
socket, pull out the plug , switch off
the appropriate circuit at the fuse box
or withdraw the mains fuse).
^Turn off the stopcock.
^Unscrew the inlet hose.
^Carefully remove the rubber seal.
^Withdraw the filter using pointed pli-
ers and rinse clean under running
water.
^Replace the filter and seal, making
sure they are sitting correctly.
^Reconnect the inlet hose to the stop-
cock, making sure it goes on cor-
rectly and is not cross-threaded.
^Turn on the stopcock gradually to test
for leaks. If there is a leak, the inlet
hose might not be on securely, or it
may have been screwed on at an an-
gle. Unscrew and reconnect the wa-
ter inlet valve correctly.
Solving problems
52
Cleaning the drain pump and
non-return valve
If the water has not been pumped away
at the end of a programme the drain
pump or the non-return valve might be
blocked. They are, however, easy to
clean. Watch out for glass or bone
splinters which could cause injury.
^Take the filter combination out of the
wash cabinet (see "Cleaning and
care", "Cleaning the filters in the wash
cabinet").
^Scoop the water out of the cabinet
using a suitable container. ^Raise the locking clamp for the
non-return valve.
Solving problems
53
^Lift up the non-return valve and rinse
well under running water.
^Remove all foreign objects from the
non-return valve.
The drain pump is situated under the
non-return valve (see arrow).
^Remove all foreign objects from the
drain pump (watch out for glass or
bone splinters which are particularly
difficult to detect and could cause in-
jury). Turn the drain pump impeller by
hand to check that there are no more
obstructions.
^Carefully replace the non-return valve
and secure it with the locking clamp.
Solving problems
54
Should you still have any difficulties,
please contact:
– Your Miele Dealer
or
– The Miele Service Department (see
back cover for address).
^Please quote the model type and
number of your appliance.
This information is given on the data
plate at the top of the door.
Please note that telephone calls may
be monitored and recorded to im-
prove our service.
Programme update function - PC
The programme update function (PC =
Programme correction) is designed to
enable a service technician to update
your machine’s electronics in keeping
with advances in technology.
The indicator or check light marked
"Salt PC" is used as the interface for this
programming.
Information regarding programme up-
dates will be made known by the Miele
Company as and when such develop-
ments become available.
After sales service
55
To make the most of your dishwasher
If you would like … you will need to order …
... to wash bottles,
e. g. milk or baby bottles
… . a bottle holder
… . to wash long-stemmed glassware … . a glassware insert for the upper
basket
… . to wash additional items of cut-
lery
… . a small cutlery basket for the
lower basket
Optional accessories
56
Model G 6XX (For model number see data plate)
Test standard: EN 50242 / IEC 704
Standard programme Economy
for comparison tests
(energy label):
Note: The Universal Plus 55 ° programme for normal
soiling has increased wash and drying
results with shorter running times and
increased energy requirements.
Amount washed: 12 place settings
Amount of detergent: 30g only in compartment II.
Rinse aid dispensing: Setting 3 (approx. 3 ml)
Noise measurements: Before starting a programme to measure noise,
the dishwasher door must first be opened completely,
and then closed.
Doing this will automatically close the ventilation outlet
for the Turbothermic process.
Comparison tests
57
Dishwashers with cutlery basket
Spoon inserts: Fit the two inserts into the cutlery basket
(see section on loading the dishwasher, spoon inserts)
Place six spoons at intervals in each insert.
Upper basket Lower basket
Comparison tests
58
Dishwashers with cutlery tray
Upper basket
Cutlery tray
Lower basket
Comparison tests
59
Model G 8XX (For model number see data plate)
Test standard: EN 50242 / IEC 704
Standard programme Economy
for comparison tests
(energy label):
Note: The Universal Plus 55 ° programme for normal
soiling has increased wash and drying
results with shorter running times and
increased energy requirements.
Amount washed: 14 place settings
Amount of detergent: 30g only in compartment II.
Rinse aid dispensing: Setting 3 (approx. 3 ml)
Noise measurements: Before starting a programme to measure noise,
the dishwasher door must first be opened completely,
and then closed.
Doing this will automatically close the ventilation outlet
for the Turbothermic process.
Upper basket Lower basket
Comparison tests
60
Cutlery tray
Comparison tests
61
Should you ever need to move the dish-
washer, e.g. when moving house, note
the following:
– Empty the dishwasher,
– Secure any loose parts, e. g. hoses,
mains cable, cutlery baskets, lower
basket
– Transport the dishwasher in the up-
right position.
If unavoidable, it may be transported
on its back.
Do not transport it on its side or on
the door as residual water still in the
appliance will leak out of it.
This residual water could get into the
electronic unit and cause a fault.
Transport
62
Dishwasher model * G 6XX G 8XX
Height freestanding 84.7 cm
(adjustable +4.0 cm)
-
Height built-in 81.7 cm
(adjustable + 5.0 cm)
83.7 cm
(adjustable + 5.0 cm)
Height of building in recess 82 cm (+ 5.0 cm) 84 cm (+ 5.0 cm)
Width 59.8 cm 59.8 cm
Width of building in recess 60 cm 60 cm
Depth:
Freestanding
Built-in
60 cm
57 cm
-
57 cm
Depth with door open
Freestanding
Built in
118.5 cm
115.5 cm
-
120.5 cm
Weight:
Freestanding
Freestanding SC#
Built under
Built under SC#
Integrated
Integrated SC#
approx. 61.5 kg
approx. 63 kg
approx. 57.5 kg
approx. 59 kg
approx. 53.5 kg
approx. 55.5 kg
-
-
approx. 59.5 kg
approx. 61 kg
approx. 55 kg
approx. 56.5 kg
Voltage
Rated load see data plate at the top of the door
Fuse rating
Test marks VDE, radio and television
suppressed
VDE, radio and televi-
sion suppressed
Water pressure (flow rate): 0.3 - 10 bar pressure 0.3 - 10 bar pressure
Hot water connection up to max. 60 °C up to max. 60 °C
Delivery head max. 1 m max. 1 m
Drainage length max. 4 m max. 4 m
Mains connection cable approx. 1.7 m approx. 1.7 m
Capacity 12 place settings 14 place settings
* see data plate for model number SC # = Dishwasher with cutlery tray
Technical data
63
Model G 6XX
Programme When to use Detergent
Compartment
II
(Wash cycle)
Intensive 75 ° for normally soiled pots, pans, dishes etc with dried on soiling;
for very heavy soiling, add 20% more detergent to compartment I
100 %
Universal
Plus 55 °
with a longer wash time for normally soiled crockery
with dried on soiling
100 %
Universal 55 ° for normal everyday loads 100 %
Normal 50 ° with a shorter wash time for
lightly to normally soiled crockery
where soiling has not dried on
100 %
Economy 1) for normal everyday loads,
energy saving programme
100 %
Pre-wash for rinsing crockery to avoid smells, if a complete cycle is not yet
needed.
1) Standard programme for energy labelling.
Programme chart
64
Programme sequence Consumption Duration
Energy kWh Water h:min
Pre-
wash
12
Main
wash
Interim
rinse
Final
rinse
Drying Cold
water
con-
nection
(15 °C)
Hot
water
con-
nection
(55 °C)
Litres Cold
water
con-
nection
(15 °C)
Hot
water
con-
nection
(55 °C)
X
75 °
XX
75 °
X 1.7 1.2 13 2:24 2:02
XX
55 °
XX
65 °
X 1.25 0.7 17 1:52 1:39
X
55 °
XX
65 °
X 1.2 0.6 13 1:24 1:11
X
50 °
XX
65 °
X 1.2 0.6 13 1:02 0:55
X
45 °
XX
55 °
X 1.05 0.6 13 2:48 2:37
X 0.06 0.06 5 0:11 0:11
When washing a full load in the Intensive Programme, the Universal Plus Programme, the Universal
Programme, the Normal Programme and the Economy Programme at least 30 ml of detergent are re-
quired. If the detergent manufacturer recommends using more than this you should dispense the
amount they suggest.
For the Intensive Programme add an additional 5-7 ml to compartment I.
Values quoted are in accordance with EN 50242. Results in the home may differ.
Programme chart
65
Model G 8XX (For model number see data plate)
Programme When to use Detergent
Compartment
II
(Wash cycle)
Intensive 75 ° for normally soiled pots, pans, dishes etc with dried on soiling;
for very heavy soiling, add 20% more detergent to compartment I
100 %
Universal
Plus 55 °
with a longer wash time for normally soiled crockery
with dried on soiling
100 %
Universal 55 ° for normal everyday loads 100 %
Normal 50 ° with a shorter wash time for
lightly to normally soiled crockery
where soiling has not dried on
100 %
Economy 1) for normal everyday loads,
energy saving programme
100 %
Pre-wash for rinsing crockery to avoid smells, if a complete cycle is not yet
needed.
1) Standard programme for energy labelling.
Programme chart
66
Programme sequence Consumption Duration
Energy kWh Water h:min
Pre-
wash
12
Main
wash
Interim
rinse
Final
rinse
Drying Cold
water
con-
nection
(15 °C)
Hot
water
con-
nection
(55 °C)
Litres Cold
water
con-
nection
(15 °C)
Hot
water
con-
nection
(55 °C)
X
75 °
XX
75 °
X 1.8 1.3 13 2:24 2:02
XX
55 °
XX
65 °
X 1.35 0.8 17 1:52 1:39
X
55 °
XX
65 °
X 1.3 0.7 13 1:24 1:11
X
50 °
XX
65 °
X 1.3 0.7 13 1:02 0:55
X
45 °
XX
55 °
X 1.08 0.7 13 2:48 2:37
X 0.06 0.06 5 0:11 0:11
When washing a full load in the Intensive Programme, the Universal Plus Programme, the Universal
Programme, the Normal Programme and the Economy Programme at least 30 ml of detergent are re-
quired. If the detergent manufacturer recommends using more than this you should dispense the
amount they suggest.
For the Intensive Programme add an additional 5-7 ml to compartment I.
Values quoted are in accordance with EN 50242. Results in the home may differ.
Programme chart
67
M.-Nr. 05 714 411 / V
Alteration rights reserved/ (G646/G846 Plus) / 2902
This paper consists of cellulose which has been bleached without the use of chlorine.
01
