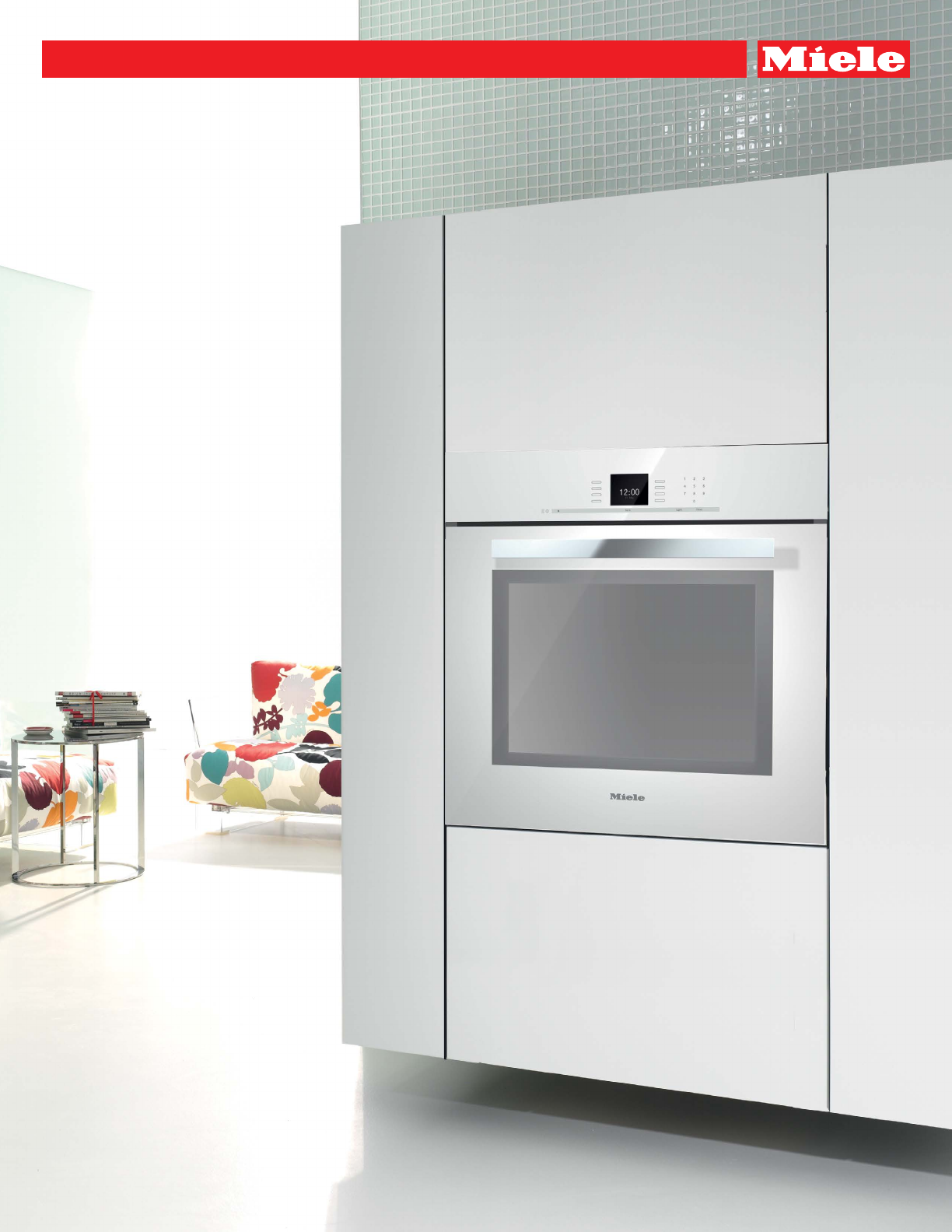

PureLine Brilliant White
30” Convection Oven
H 6680 BP BRWS
8mieleusa.com
PureLine 30” Convection Oven
H 6680 BP BRWS
FOREVER BETTER
H 6680 BP BWRS
Page 2 of 7
H 6680 BP BRWS
Features:
• SensorTronic controls: 5-line TFT
display with laterally positioned
sensor controls that clearly present
menu content
• Self Clean Oven
• 18 Operating Modes
• Rapid PreHeat
• MasterChef menu offers over 100
food types to cook to perfection
• Roast Probe for perfect roasting results
• Favorites — up to 20 recipes
• Sabbath Program
• CleanGlass Door
• Timer
• TwinPower Fans provide optimum
and even distribution of hot air
• Soft Open and Soft Close for an
easier handling

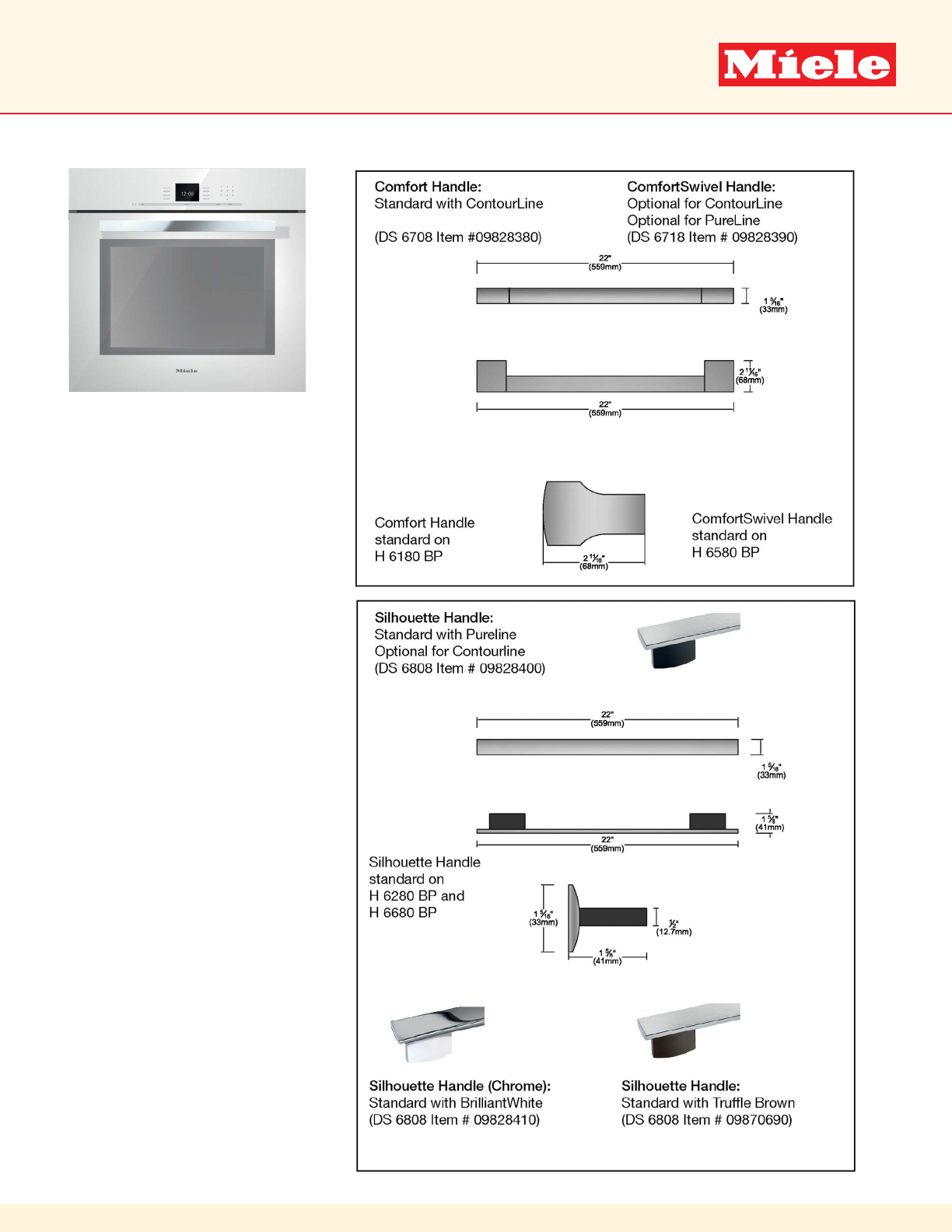

• The simple yet sleek Silhouette chrome
handle seems to oat enhancing its
modern design lines
PureLine 30” Convection Oven
H 6680 BP BRWS
FOREVER BETTER
H 6680 BP BRWS
Page 3 of 7
SPECIFICATIONS
H 6680 BP BRWS — Item 22668013USA
Overall Unit Width - Excluding Fascia Dimension 287/16” (722mm)
Overall Height - Excluding Fascia Dimension 273/4” (705mm)
Overall Unit Depth - Excluding Fascia Dimension 233/4” (603mm)
Oven Door Clearance 23” (584mm)
Overall Fascia Dimensions 2913/16” (757mm) W x 285/8” (727mm) H
x 7/8” (23mm) D
Built-In
Minimum Cabinet Width 281/2” (724mm)
Minimum Cabinet Depth 24” (610mm)
Minimum Cabinet Opening Height 281/4” (718mm)
Minimum Base Support 193 lbs
Additional Cut-outs Required
Venting cut-out required at base of cabinet
(4” x 28” / 100mm x 720mm) in the bottom
of the cabinet for power cord and ventilation
Electrical
Electrical Requirements 208/240V 30A 60Hz circuit
Power Cord Yes - NEMA 14-30 plug
Electrical Rating 120/208V, 30A, 60Hz 5800w /
120/240V, 30A, 60Hz 4400w
Total Amps 240V / 24.166A / 208V / 21.15A
Shipping
Shipping Weight 216 lbs
Shipping Dimensions 3211/16” W x 351/16” H x 305/16” L
Support
Call 800.843.7231
20/20 82020technologies.com
PRODUCT VIEWS
H 6680 BP BRWS
Page 4 of 7

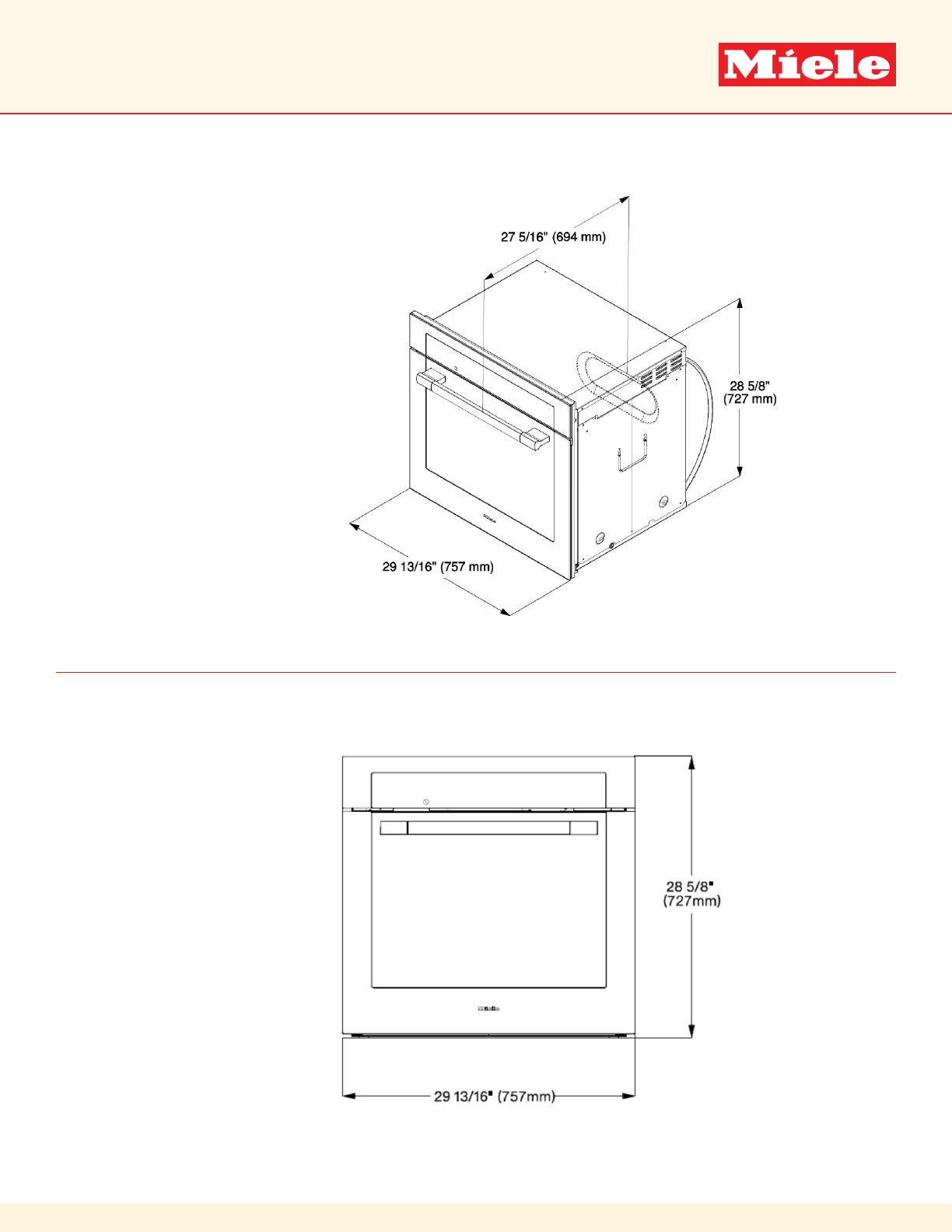

Isometric
PureLine 30” Convection Oven
H 6680 BP BRWS
FOREVER BETTER
Front
PureLine 30” Convection Oven
H 6680 BP BRWS
FOREVER BETTER
PRODUCT VIEWS

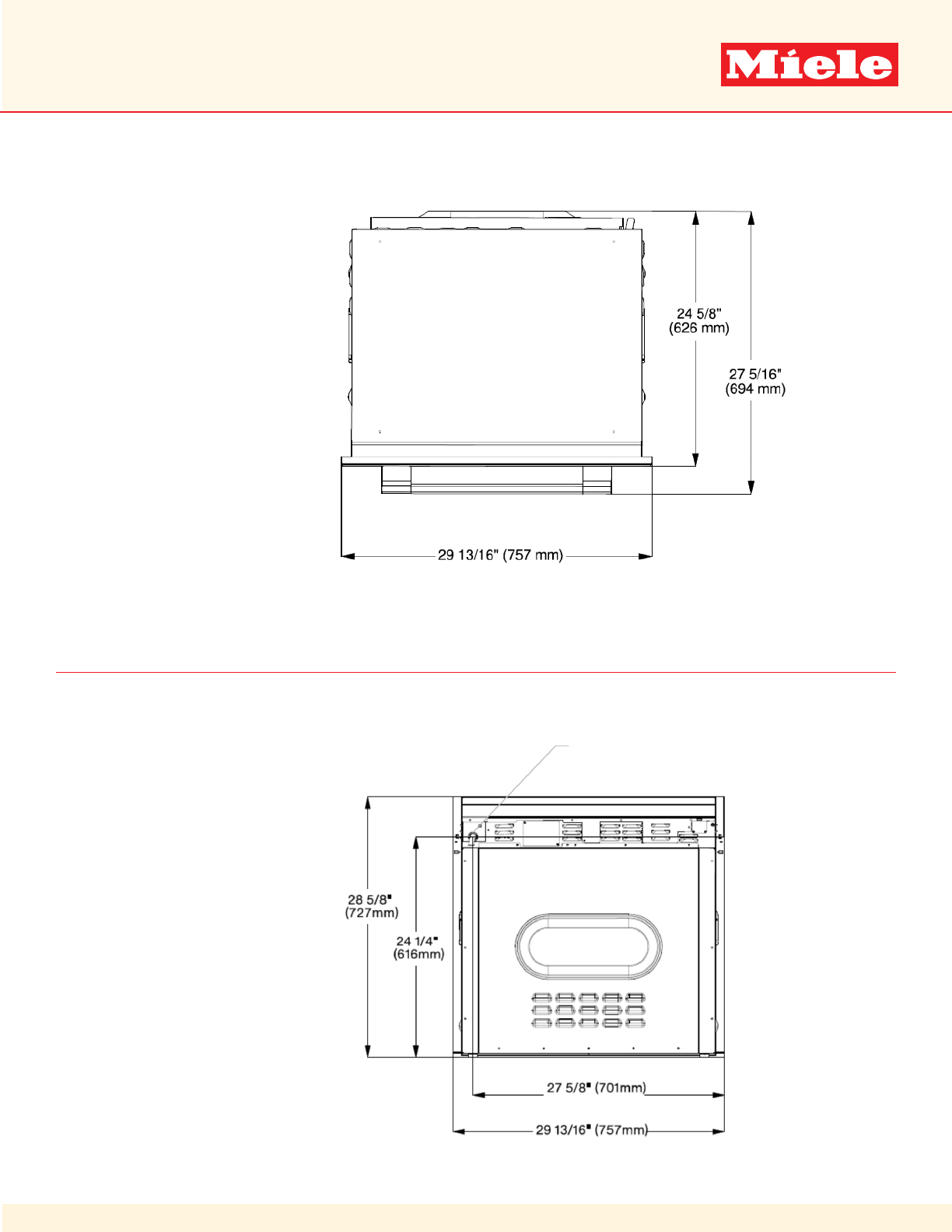

Top View
Rear View
Electrical Connection
H 6680 BP BRWS
Page 5 of 7
PureLine 30” Convection Oven
H 6680 BP BRWS
FOREVER BETTER
H 6680 BP BRWS
Page 6 of 7
INSTALLATION SPECIFICATIONS

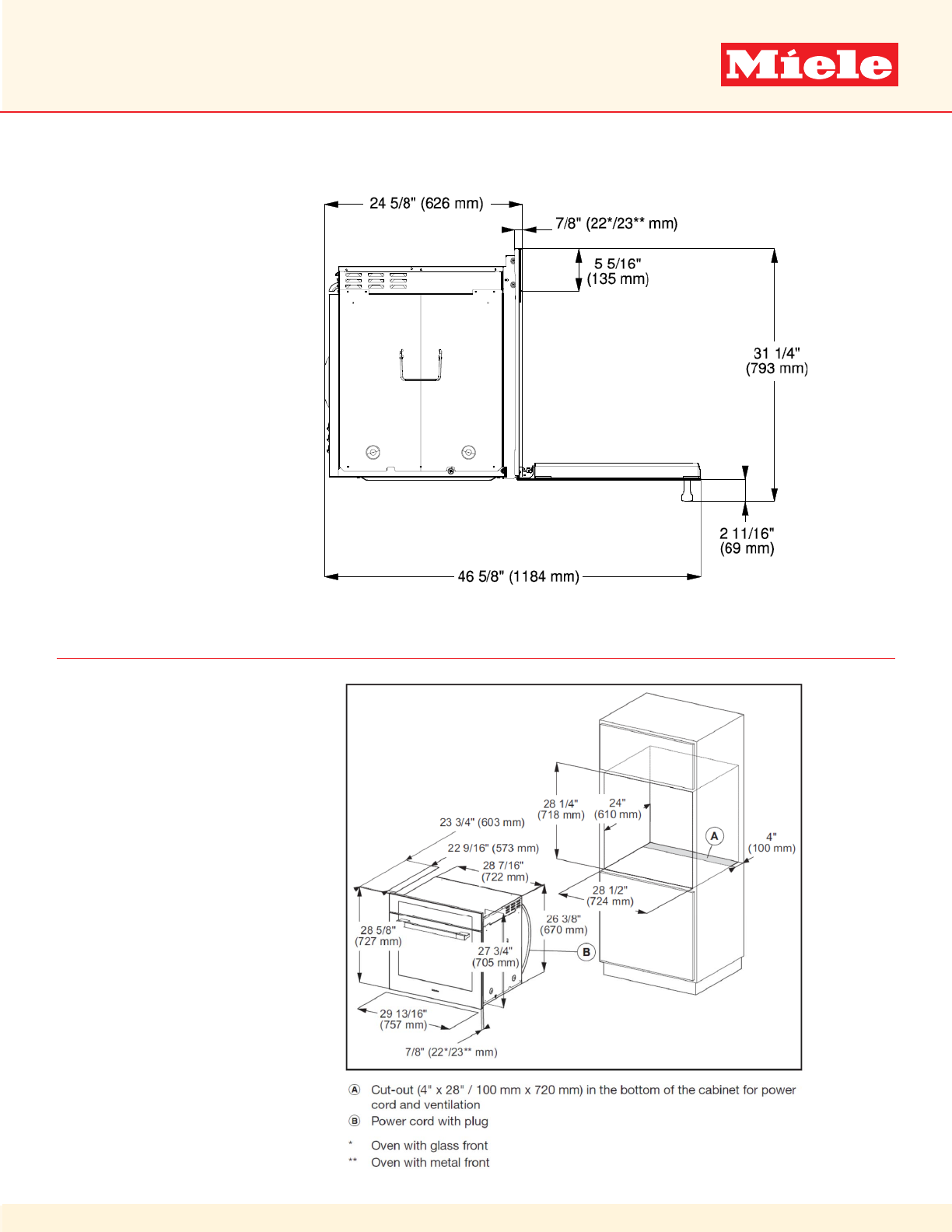

Install in Tall Cabinet
PRODUCT VIEWS
Side View
PureLine 30” Convection Oven
H 6680 BP BRWS
FOREVER BETTER
H 6680 BP BRWS
Page 7 of 7
INSTALLATION SPECIFICATIONS

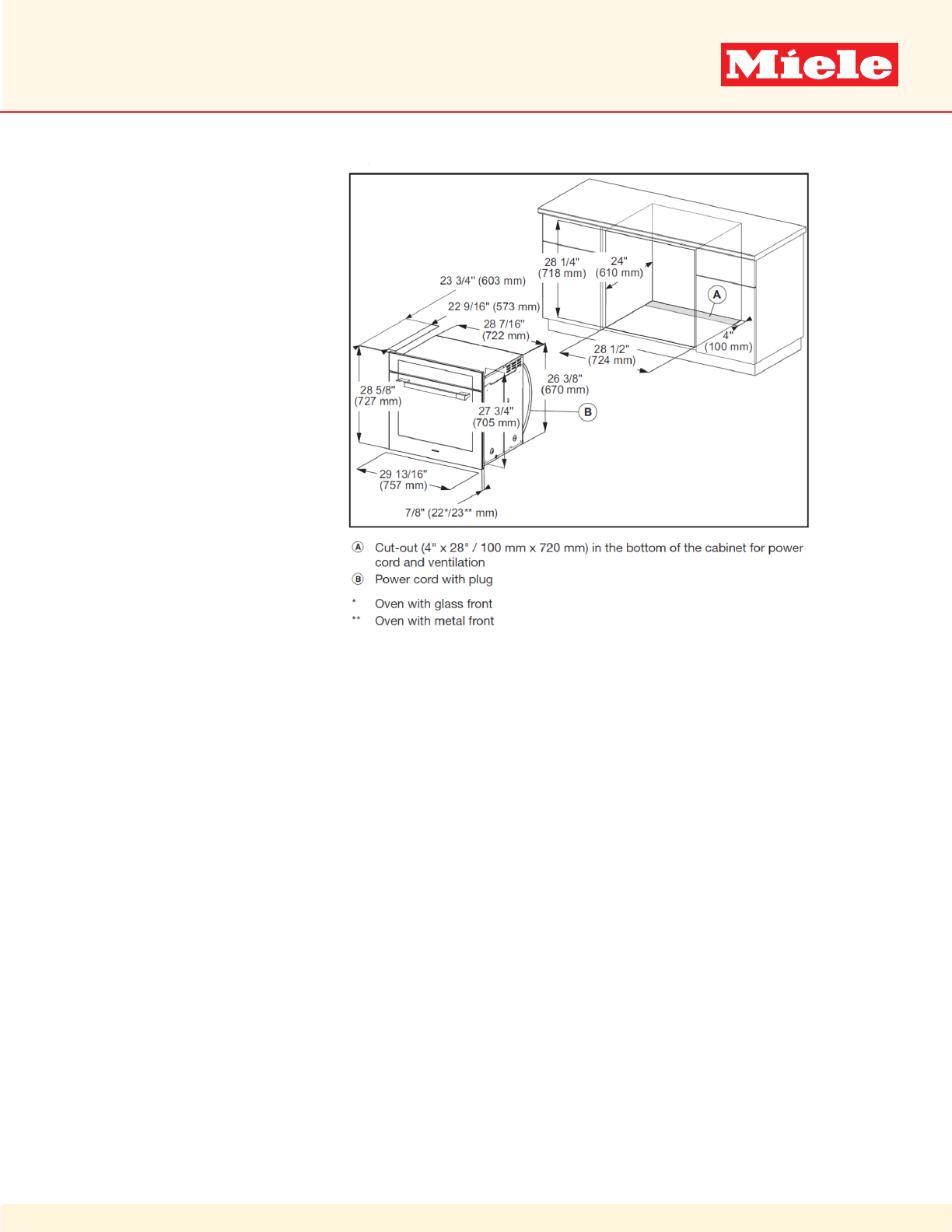

Undercounter Installation
