PureLine Brilliant White

30” Convection Oven

H 6880 BP BRWS

8mieleusa.com

PureLine 30” Convection Oven

H 6880 BP BRWS

FOREVER BETTER

H 6880 BP BRWS

Page 2 of 7

H 6880 BP BRWS

Features:

• M Touch controls are both easy to

operate and navigate. An intuitive

swipe of the screen will quickly lead

you to your desired selection

• Self Clean Oven

• 19 Operating Modes including

Moisture Plus (plumbed only)

increases the humidity in the oven

optimizing the cooking of a variety of

foods

• MasterChef Plus — fully functional

automatic programs to create 15

different types of bread at home

• MasterChef menu offers over 100

food types to cook to perfection

• Wireless Roast Probe for safe. easy

handling and perfect roasting results

• Favorites — up to 20 recipes

• Sabbath Program

• CleanGlass Door

• TwinPower Fans provide optimum

and even distribution of hot air

• Soft Open and Soft Close for

easier handling

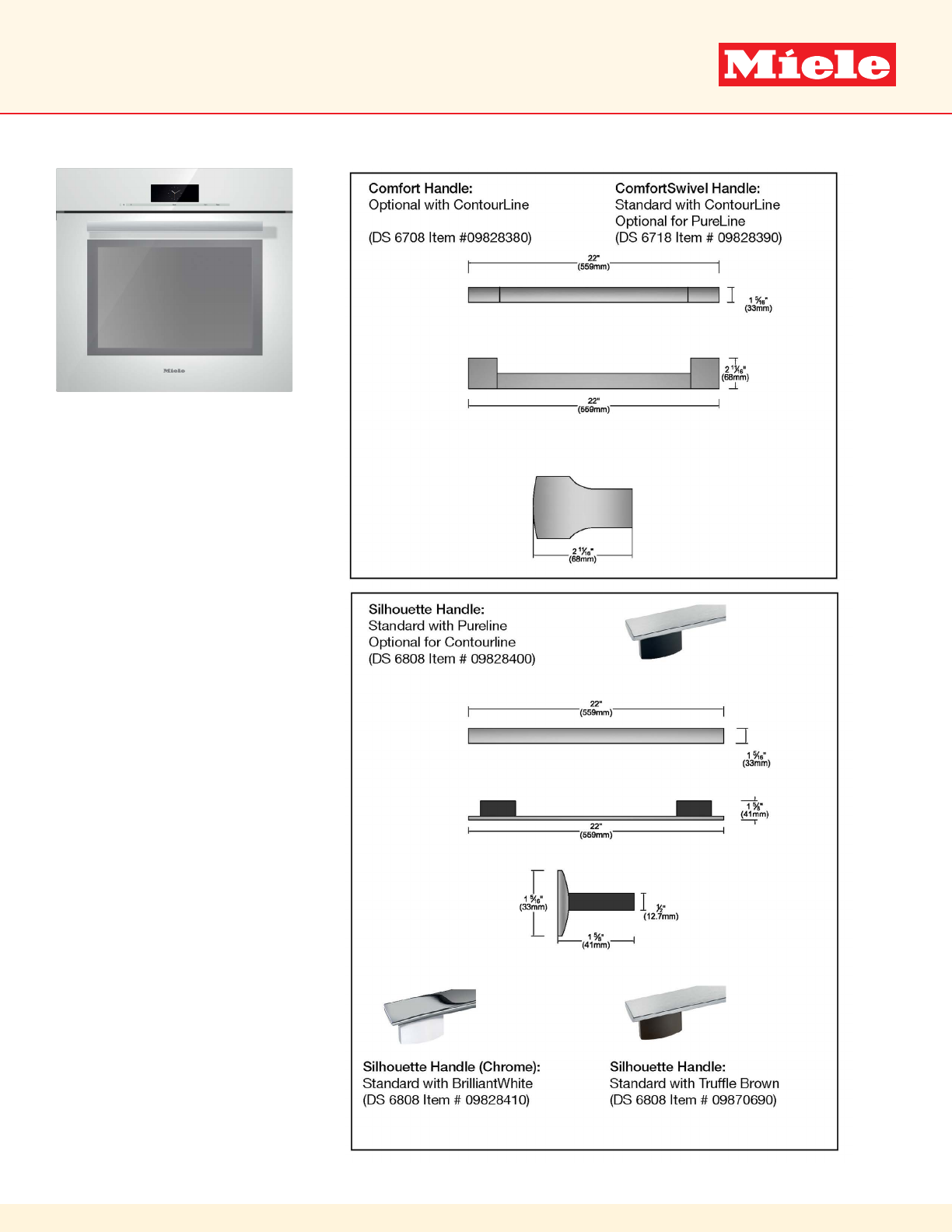

• The simple yet sleek Silhouette

chrome handle seems to oat

enhancing its modern design lines

PureLine 30” Convection Oven

H 6880 BP BRWS

FOREVER BETTER

H 6880 BP HVBR

Page 3 of 7

SPECIFICATIONS

H 6880 BP BRWS — Item 22688013USA

Overall Unit Width - Excluding Fascia Dimension 287/16” (722mm)

Overall Height - Excluding Fascia Dimension 273/4” (705mm)

Overall Unit Depth - Excluding Fascia Dimension 233/4” (603mm)

Oven Door Clearance 23” (584mm)

Overall Fascia Dimensions 2913/16” (757mm) W x 285/8” (727mm) H

x 7/8” (23mm) D

Built-In

Minimum Cabinet Width 281/2” (724mm)

Minimum Cabinet Depth 24” (610mm)

Minimum Cabinet Opening Height 281/4” (718mm)

Minimum Base Support 193 lbs

Additional Cut-outs Required

Venting cut-out required at base of cabinet

(4” x 28” / 100mm x 720mm) in the bottom

of the cabinet for power cord and ventilation

Plumbing

Plumbing Requirements

An Inline water filter, like activated carbon, is

required to reduce mineral deposits. Do not

connect to a Reverse Osmosis (RO) water

system. Connect to a cold water supply

only. Must be connected to a shut-off valve.

The water shut-off valve must be accessible

after installation.The water pressure must be

between 14.5 and 145 psi (1 and 10 bars).

If the pressure is higher, install a pressure-

reducing valve. The supplied hose has a

length of 4’ 11” (1.5 m). The hose must not

be shortened.

Plumbed Hose Connection

Supplied hose: flexible braided 4’11”

(1.5m) with 3/8” O.D. fitting for connection to

a shut-off valve

Electrical

Electrical Requirements 208/240V 30A 60Hz circuit

Power Cord Yes - NEMA 14-30 plug

Electrical Rating 120/208V, 60Hz, 5000w

120/240V, 60Hz, 6700w

Total Amps 240V / 28A / 208V / 24A

Shipping

Shipping Weight 216 lbs

Shipping Dimensions 3211/16” W x 351/16” H x 305/16” L

Support

Call 800.843.7231

20/20 82020technologies.com

PRODUCT VIEWS

H 6880 BP BRWS

Page 4 of 7

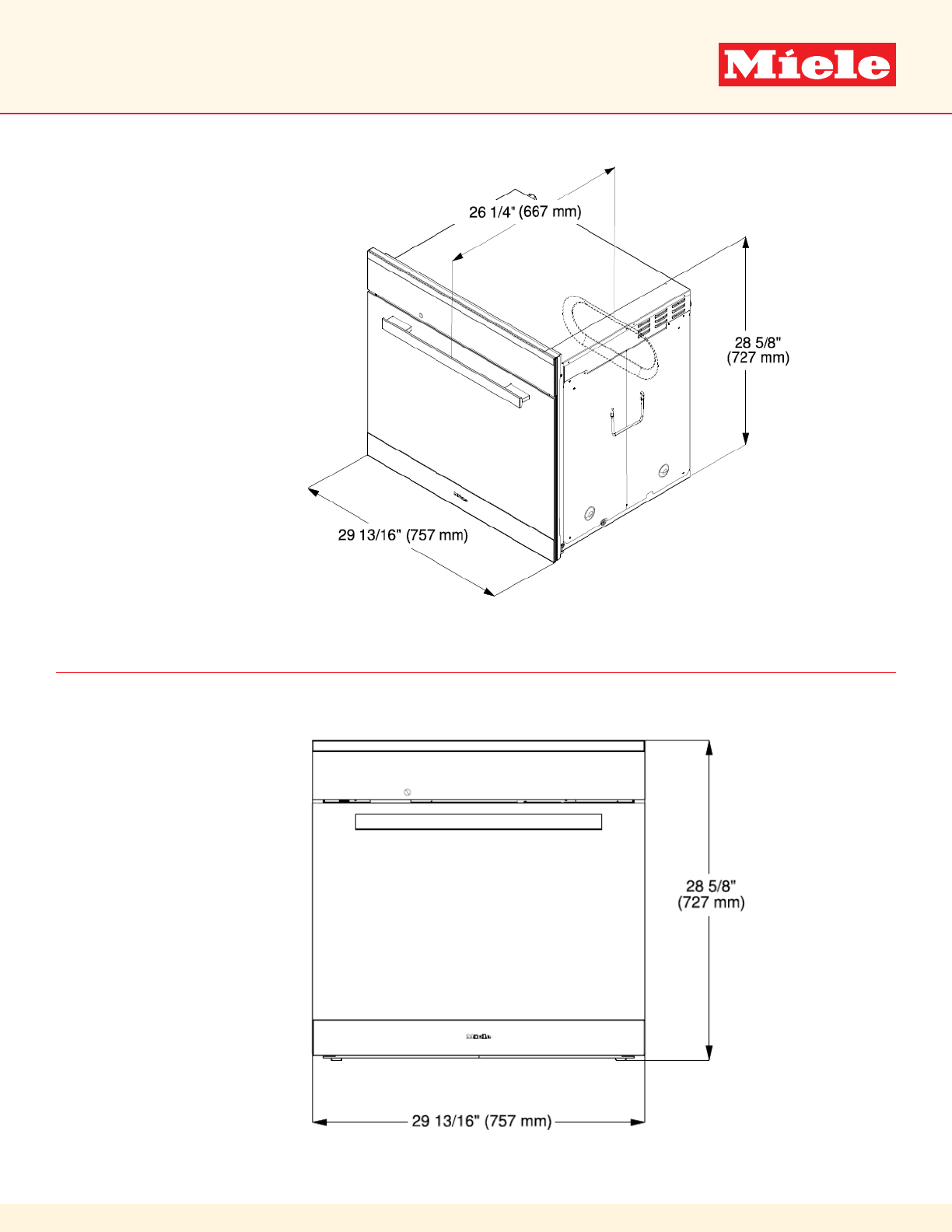

Isometric

PureLine 30” Convection Oven

H 6880 BP BRWS

FOREVER BETTER

Front

PureLine 30” Convection Oven

H 6880 BP BRWS

FOREVER BETTER

PRODUCT VIEWS

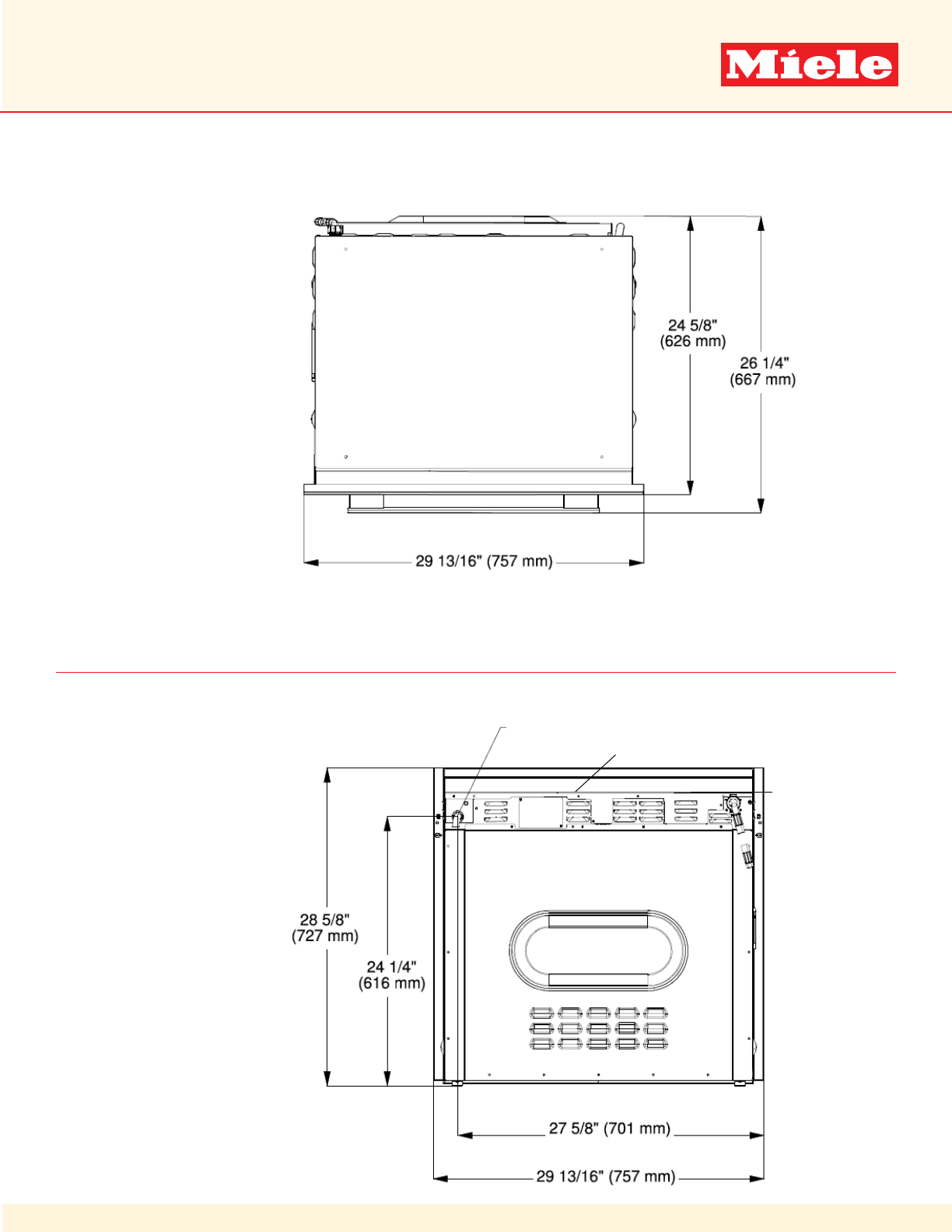

Top View

Rear View

H 6880 BP BRWS

Page 5 of 7

Electrical Connection

RemoteVision Module

Water Connection

PureLine 30” Convection Oven

H 6880 BP BRWS

FOREVER BETTER

H 6880 BP BRWS

Page 6 of 7

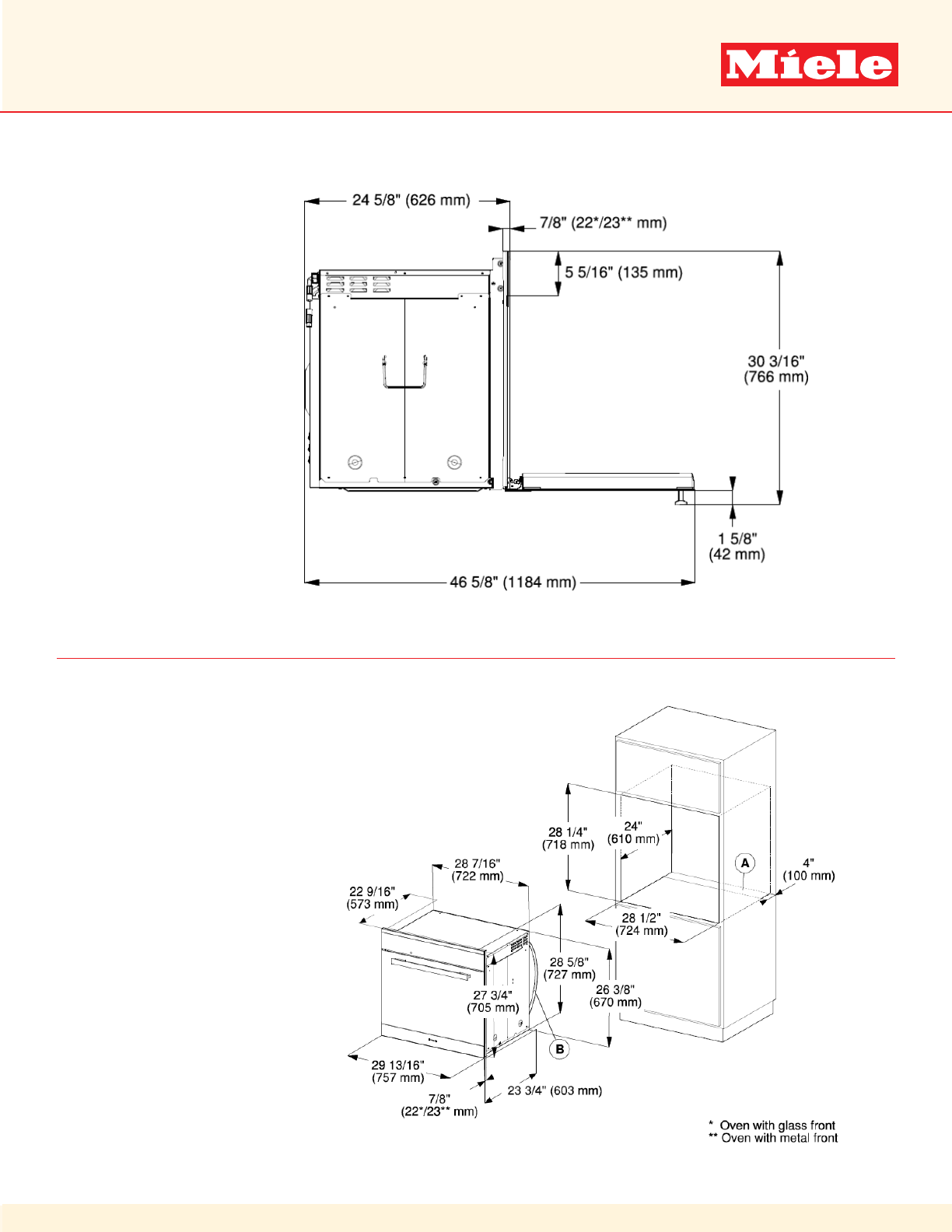

INSTALLATION SPECIFICATIONS

Install in Tall Cabinet

PRODUCT VIEWS

Side View

PureLine 30” Convection Oven

H 6880 BP BRWS

FOREVER BETTER

H 6880 BP BRWS

Page 7 of 7

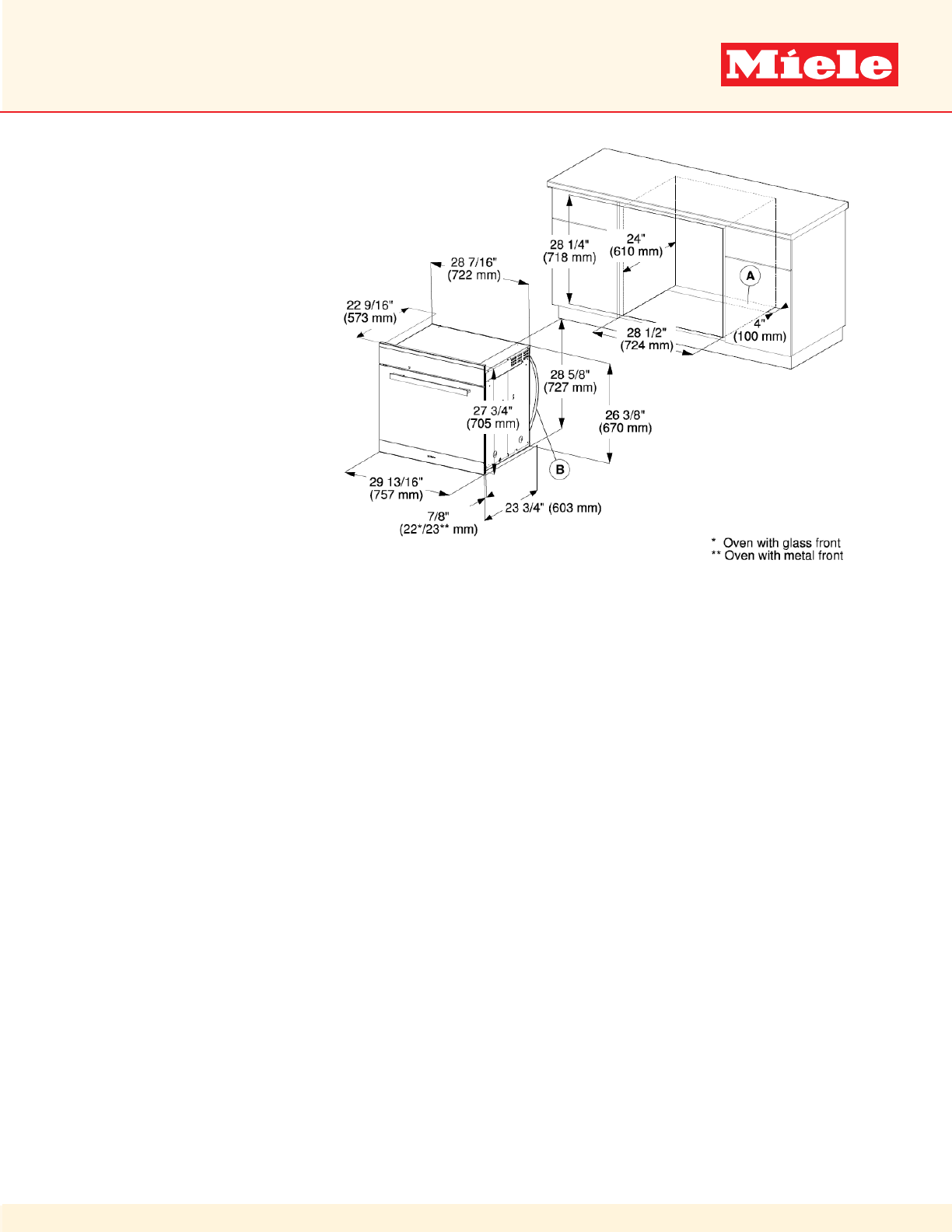

INSTALLATION SPECIFICATIONS

Undercounter Installation
