Miele Kwt 6322 Ug Specification Sheet
2015-06-11
: Miele Miele-Kwt-6322-Ug-Specification-Sheet-748411 miele-kwt-6322-ug-specification-sheet-748411 miele pdf
Open the PDF directly: View PDF
.
Page Count: 4
Under Counter Wine Storage Unit
KWT 6322 UG
8mieleusa.com
Under Counter Wine Storage Unit
KWT 6322 UG
FOREVER BETTER
KWT 6322 UG
Page 2 of 4
SPECIFICATIONS
KWT 6322 UG — Item 36632200USA
Overall Unit Width 237/16” (596mm)
Overall Unit Height 321/4” — 341/4“ (819 — 870mm)
Overall Unit Depth 221/2” (571mm)
Door Clearance 237/16” (596mm)
Niche
Minimum Cabinet Opening Width 235/8 ” (600mm)
Minimum Cabinet Opening Height 325/16” (820mm)
Minimum Cabinet Opening Depth 24” (610mm)
Electrical
Electrical Requirements 110V / 120V, 60Hz, 15 Amps (single)
110V / 120V , 60Hz, 20Amp (side-by-side)
Power Cord Yes - NEMA 5-15 plug, 6’ 63/4” (2m)
Shipping
Shipping Weight 116.8 lbs. (53 kg)
Support
Call 800.843.7231
20/20 82020technologies.com
Features:
• Built-under unit
• Tinted tempered glass door
• Push2open door
• SoftClose door
• Right hinged, convertible
• DynaCool
• Room for up to 34 bottles
• Dual temperature zones
• TouchControl panel
• LED lighting
• Active AirClean lter
• Low vibration compressor
• FlexiFrame with NoteBoard
• Side-by-Side combination available
Under Counter Wine Storage Unit
KWT 6322 UG
FOREVER BETTER
KWT 6322 UG
Page 3 of 4
Top View
Installation Dimension
Under Counter Wine Storage Unit
KWT 6322 UG
FOREVER BETTER
KWT 6322 UG
Page 4 of 4
Note: Merging kit KSK6300 is need for side-by-side combination

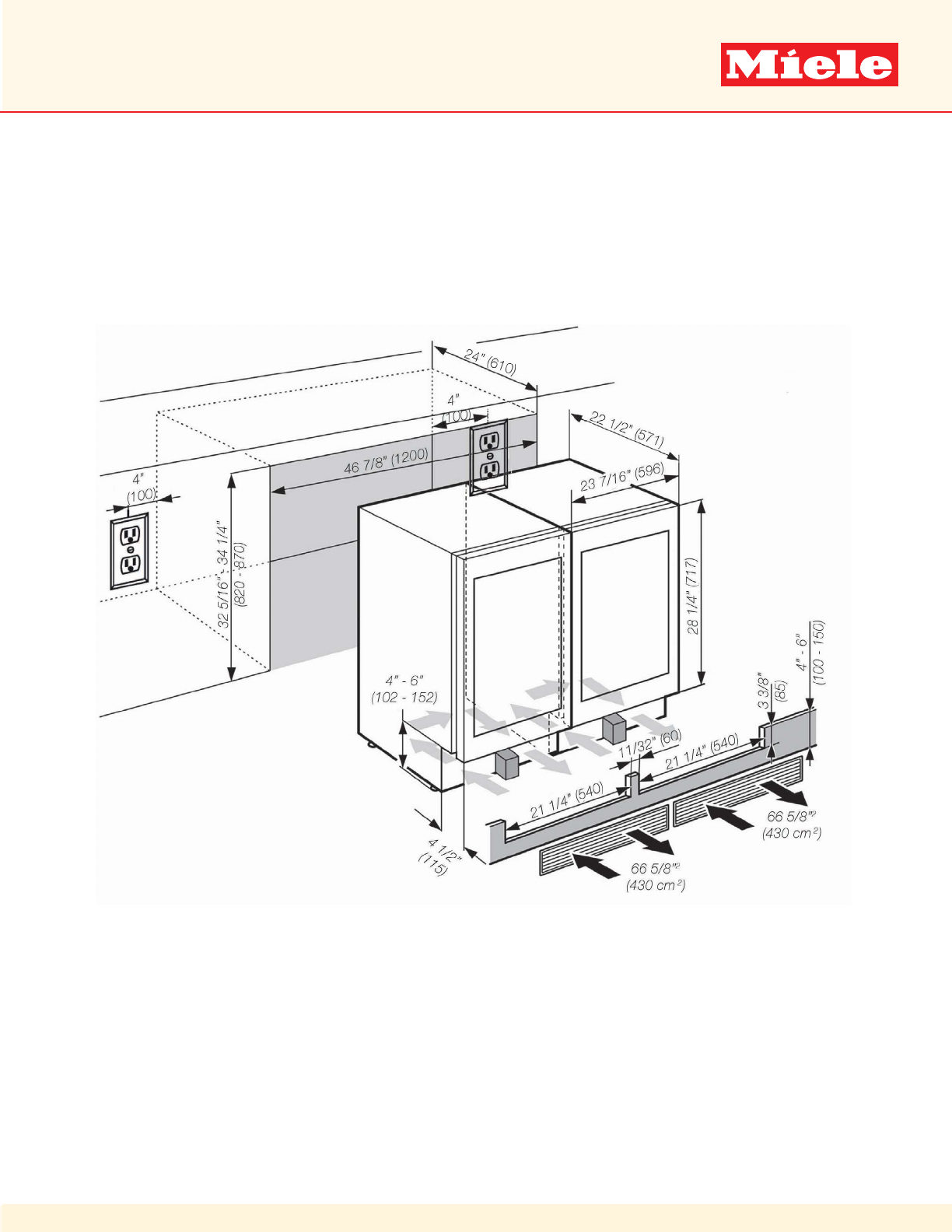

Installation Dimension
Side-by-side Combination
