Contents

Operating instructions

for Washing machine

W 3240

To avoid the risk of accidents or

damage to the machine it is

essential to read these instructions

before it is installed and used for the

first time. M.-Nr. 07 616 410

en-GB

Disposal of the packing

material

The transport and protective packing

has been selected from materials which

are environmentally friendly for disposal

and can normally be recycled.

Ensure that any plastic wrappings,

bags etc. are disposed of safely and

kept out of the reach of babies and

young children. Danger of suffocation!

Rather than just throwing these

materials away, please ensure they are

offered for recycling.

Disposal of your old machine

Electrical and electronic machines

often contain materials which, if

handled or disposed of incorrectly,

could be potentially hazardous to

human health and to the environment.

They are, however, essential for the

correct functioning of your machine.

Please do not therefore dispose of it

with your household waste.

Please dispose of it at your local

community waste collection / recycling

centre or contact your Dealer for

advice. Ensure that it presents no

danger to children while being stored

for disposal.

It should be unplugged or disconnected

from the mains electricity supply by a

competent person.

Caring for our environment

Caring for our environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Description of the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

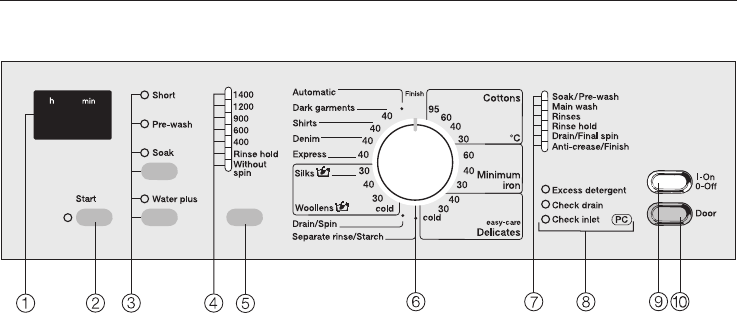

Control panel .....................................................10

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Washing environmentally and economically . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Energy and water consumption ....................................13

Detergent .....................................................13

Choosing the correct additional option (Short, Soak, Pre-wash)............13

When drying with a tumble dryer ...................................13

How to wash correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Additional options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Short............................................................19

Pre-wash ........................................................19

Soak ............................................................19

Water plus .......................................................19

Spinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Final spin speed ..................................................20

Rinse and interim spin ...........................................20

To omit the final spin (Rinse hold) ..................................20

To omit rinse and interim spin and the final spin .......................20

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Garment care label symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Contents

Changing the programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Cancelling a programme ............................................26

Interrupting a programme ...........................................26

Changing a programme ............................................26

Skipping a programme stage ........................................26

Adding or removing laundry after a programme has started ................27

Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

The correct detergent ..............................................28

Water softeners ...................................................29

Washing with several components ....................................29

Fabric conditioners and liquid starch ..................................30

Automatic dispensing of fabric conditioner or liquid starch to laundry at the

end of a programme .............................................30

Adding fabric conditioner or starch separately ........................30

Colour run and dye removers / dyes ...................................30

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

External casing and fascia panel .....................................31

Extra cleaning ..................................................31

Cleaning the detergent dispenser drawer...............................31

Cleaning the water inlet filters ........................................33

Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

The programme does not start .......................................34

The wash programme stops and a fault indicator light comes on ............35

A fault indicator light comes on but the wash programme continues as normal. . 36

General problems .................................................37

An unsatisfactory wash result ........................................38

The drum door does not open when you press the Door button..............39

Opening the drum door in the event of a blocked drain outlet and/or power failure 40

Blocked drain outlet .............................................40

Contents

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Future updates (PC) .............................................42

Appliance guarantee ............................................42

Optional spare parts and accessories ...............................42

Installation and connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

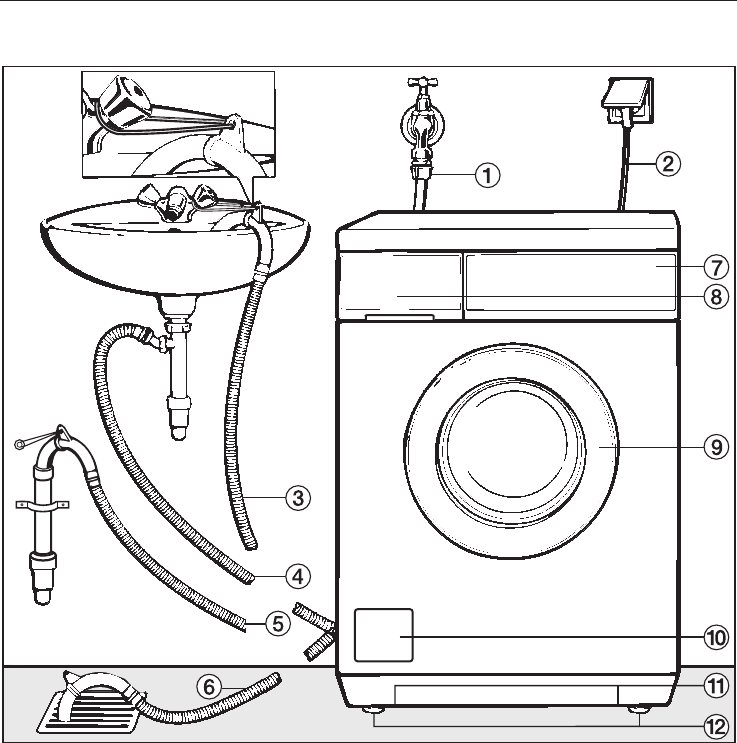

Front view........................................................43

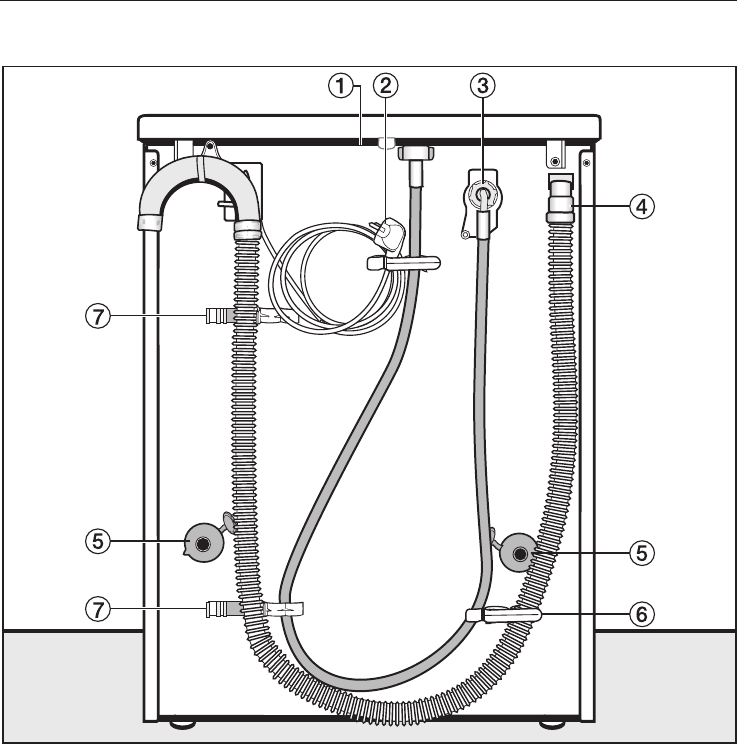

Rear view ........................................................44

Installation surface.................................................45

Installing the washing machine ....................................45

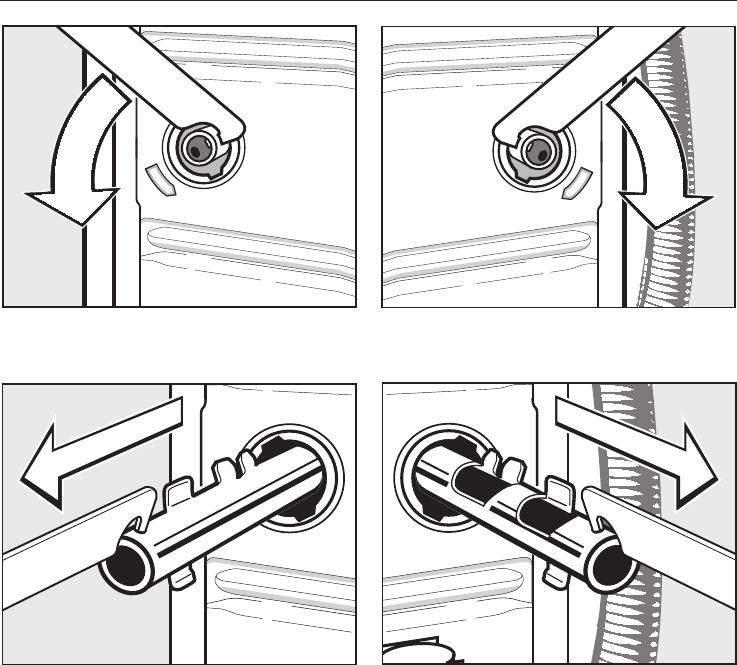

Removing the transit bars ...........................................45

Re-fitting the transit bars ............................................47

Levelling the machine ..............................................48

Screwing out and adjusting the feet .................................48

Building under a continuous worktop/in a kitchen run ...................49

Washer and Dryer stack ..........................................49

The Miele water protection system ....................................50

Connection to the water supply .......................................51

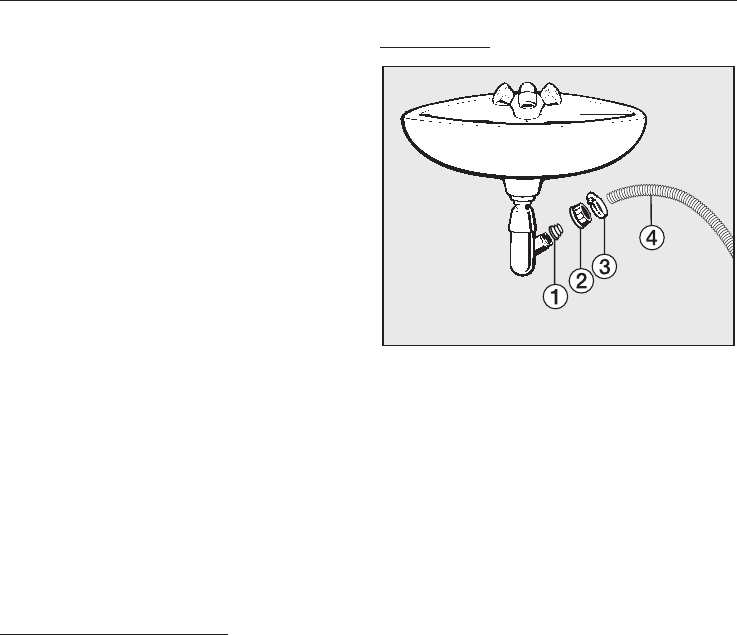

Connection to the drainage system....................................52

Electrical connection U.K. ...........................................53

Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Water plus system .................................................57

Gentle action .....................................................58

Top-up rinse for Cottons ............................................59

Memory function ..................................................60

Soak ............................................................61

Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

CareCollection ....................................................62

Contents

This washing machine conforms to

current safety requirements.

Inappropriate use can, however,

lead to personal injury and damage

to property.

To avoid the risk of accidents and

damage to the washing machine,

please read these instructions

carefully before using it for the first

time. They contain important

information on its installation, safety,

use and maintenance.

Keep these instructions in a safe

place and ensure that new users are

familiar with the content. Pass them

on to any future owner.

Correct application

~This washing machine is for

domestic use only and can only be

used to wash items which are specified

by the manufacturer to be

machine-washable on the wash care

label, and textiles composed of

hand-washable wool or wool blend

fabrics as well as satin, lace, silk and

other hand-washable garments.

Any other applications may be

dangerous. Miele cannot be held liable

for damage resulting from incorrect or

improper use or operation.

~This washing machine is not

intended for use by persons (including

children) with reduced physical,

sensory or mental capabilities, or lack

of experience and knowledge, unless

they are supervised whilst using it or

have been shown how to use it by a

person responsible for their safety.

Safety with children

~Keep children away from the

washing machine at all times. It is not a

toy! To avoid the risk of injury do not

allow children to play on or near it or to

play with its controls. Supervise

children whilst you are using it.

~Older children may only use the

washing machine if its operation has

been clearly explained to them and

they are able to use it safely,

recognising the dangers of misuse.

~For machines with a 'porthole' door,

remember that the porthole glass will

be hot when washing at very high

temperatures.

Do not let children touch it.

Warning and Safety instructions

Technical safety

~Before setting up the washing

machine, check it for any externally

visible damage.

Do not install or use a damaged

washing machine.

~Before connecting the washing

machine, ensure that the connection

data on the data plate (voltage and

connected load) match the mains

electricity supply. If in any doubt,

consult a qualified electrician.

~The electrical safety of this washing

machine can only be guaranteed when

continuity is complete between it and

an effective earthing system which

complies with current local and national

safety regulations. It is most important

that this basic safety requirement is

present and regularly tested, and

where there is any doubt the household

wiring system should be inspected by a

qualified electrician. The manufacturer

cannot be held liable for the

consequences of an inadequate

earthing system (e.g. electric shock).

~Do not connect the washing

machine to the mains electricity supply

by an extension lead. Extension leads

do not guarantee the required safety of

the appliance (e.g. danger of

overheating).

~Faulty components must only be

replaced by genuine Miele original

spare parts. Only when these parts are

fitted can the safety standards of the

machine be guaranteed.

~Unauthorised repairs could result in

unforeseen dangers for the user, for

which Miele cannot accept liability.

Repairs should only be undertaken by a

Miele approved service technician.

Ensure current is not supplied to the

machine until after maintenance or

repair work has been carried out.

~If the connection cable is faulty it

must only be replaced by a Miele

approved service technician to protect

the user from danger.

~In the event of a fault or for cleaning

purposes, the washing machine is only

completely isolated from the electricity

supply when:

– it is switched off at the wall socket

and the plug is withdrawn, or

– it is switched off at the mains, or

– the mains fuse is withdrawn, or the

screw-out fuse is removed (in

countries where this is applicable).

~This washing machine must only be

connected to the on-site water supply

using a new hose kit. Old hoses must

not be re-used.

~In countries where there are areas

which may be subject to infestation by

cockroaches or other vermin, pay

particular attention to keeping the

machine and its surroundings in a

clean condition at all times. Any

damage which may be caused by

cockroaches or other vermin will not be

covered by the guarantee.

Warning and Safety instructions

~This washing machine may only be

used in mobile installations such as

ships if a risk assessment of the

installation has been carried out by a

suitably qualified engineer.

~Do not make any alterations to the

washing machine, unless authorised to

do so by Miele.

Correct use

~Do not install your washing machine

in rooms where temperatures below

freezing may occur. Frozen hoses may

burst or split. The reliability of the

electronic control unit may be impaired

at temperatures below freezing point.

~Before using the washing machine

for the first time, check that the transit

bars at the rear of the machine have

been removed (see section on

"Installation and connection"). During

spinning, a transit bar which is still in

place may result in damage to both the

machine and adjacent furniture or

appliances.

~Turn off the stopcock if the machine

is to be left for any length of time (e.g.

holiday), especially if there is no floor

drain (gully) in the immediate vicinity.

~Flooding danger.

If hooking the drain hose into a wash

basin, check that the water can drain

off quickly enough to prevent the sink

from overflowing. Make sure the drain

hose is secure, so that the force of the

water flowing out of the hose does not

dislodge it.

~Take care to ensure that foreign

objects (e.g. nails, pins, coins, paper

clips) do not find their way into the

machine with the laundry. These may

damage components of the machine

(e.g. suds container, drum), which in

turn can result in damage to the

laundry.

~If the correct amount of detergent is

dispensed, the machine should not

need to be descaled. If, however, you

do wish to descale the machine only

use proprietary non-corrosive descaling

agents and strictly observe the

instructions on the packaging. A

special descaling agent is available to

order from the Miele Spare Parts

Department or via the internet on

www.miele-shop.com.

Warning and Safety instructions

~Textiles which have been

pre-treated in solvent based cleaning

agents must be thoroughly rinsed in

clean water before being washed in the

machine.

~Never use solvent based cleaning

agents, e.g. those containing benzene,

in this machine, as this may result in

damage to component parts and create

toxic fumes. Such agents also pose a

fire and explosion hazard.

~Never use solvent based cleaning

agents, e.g. those containing benzene,

to clean the outside surfaces of this

machine. They can cause damage to

plastic surfaces.

~Only use dyes specified by the

manufacturer as being suitable for use

in a domestic washing machine. Always

observe the manufacturer's instructions

carefully.

~Colour run and dye removers

contain sulphur compounds which can

cause damage such as corrosion. Do

not use these products in this machine.

~If liquid detergent comes into

contact with the eyes, rinse them

thoroughly with lukewarm water imme-

diately. If swallowed, seek medical

assistance immediately and retain the

packaging or label for reference. Those

with skin problems or sensitive skin

should avoid their skin coming into

contact with liquid detergent.

~Only remove laundry from the

washing machine once the drum has

stopped turning. Reaching into a

moving drum is extremely dangerous

and could result in injury.

Accessories

~Accessory parts may only be fitted

when expressly approved by Miele. If

other parts are used, guarantee,

performance and product liability

claims will be invalidated.

Miele cannot be held liable for

damage caused by non-compliance

with these Warning and Safety

instructions.

Warning and Safety instructions

Control panel

aDisplay

See the following page for more

information.

bStart button

Starts the wash programme.

cAdditional option buttons

Additional options can be added to

the basic programme.

Use the top button to select either

the Short,Pre-wash,orSoak option.

Use the lower button to select the

Water plus option.

Indicator light on = option selected

Indicator light off = option not

selected

dIndicator lights for spin speed,

Rinse hold or Without spin.

eSpin button

For selecting the final spin speed,

Rinse hold or Without spin.

fProgramme selector

For selecting the wash programme

and temperature for that programme.

The programme selector can be

turned clockwise or anti-clockwise.

gProgramme sequence indicator

lights

Show which section of the wash

programme has been reached.

hCheck lights

iI-On/0-Off button

For switching the machine on or off

or interrupting a programme.

jDoor button

Opens the machine door.

Description of the machine

Display

The display shows:

–the programme duration (Time left

display)

–the programmable functions

Programme duration

After the start of a programme, the

estimated programme duration will

appear in the display in hours and

minutes.

During the first 10 minutes the washing

machine measures how much water is

being absorbed by the laundry and

uses this to calculate the load. The

programme duration may be longer or

shorter depending on this absorbency

rate.

Programmable functions

The programmable functions can be

used to tailor washing programmes to

suit your individual requirements. In

programming mode, the display will

show the function selected.

Description of the machine

Before using the machine for the first

time ensure that it is correctly

installed and connected. See

"Installation and connection". Also

check that the drain filter is securely

tightened. Otherwise there is a risk

of water leakage during use.

This washing machine has

undergone a thorough functional test

in the factory and there will be some

residual water in the drum from this

process.

For safety reasons spinning is not

possible until the machine has been

prepared for using for the first time. To

activate the spinning function you must

run a wash programme without laundry

and without detergent.

Using detergent could result in an

excessive build-up of foam.

This also activates the ball valve. The

ball valve prevents detergent escaping

from the suds container into the sump

during a wash programme, thus making

maximum use of the detergent.

^Open the stopcock.

^Press the I-On/0-Off button in.

^Turn the programme selector to

Cottons 60°C.

^Press Start.

When this programme has finished turn

the programme selector to Finish. Your

washing machine is ready for using for

the first time.

Before using for the first time

Energy and water consumption

–Water consumption and energy

usage are determined by the size of

the load.

To make the most out of your

machine, load the maximum dry load

for the programme you are using.

–Use the Automatic and Express

programmes for small loads.

–When smaller amounts of laundry are

washed using the Cottons

programmes, the automatic load

recognition system will reduce the

amount of water, time and energy

used. This may mean that the time

left shown in the display is adjusted

during the course of the wash

programme.

– Using the Cottons 60°C programme

instead of the Cottons 95°C

programme will give energy savings

of between 35% and 45%. This is

sufficient for most levels of soiling.

For stubborn or old stains, use the

Soak option.

–Use the additional option Soak

instead of Pre-wash. If Soak is

followed immediately by a main

wash, the same suds are used.

Detergent

–Do not exceed the amounts of

detergent recommended by the

manufacturer on the packaging.

–Reduce the amount of detergent with

smaller loads (approx. 1/3less than

the amount recommended can be

used when washing a half load).

Choosing the correct additional

option (Short, Soak, Pre-wash)

Select:

–A wash programme together with the

Short option for light to normal soiling

where there are no obvious marks.

– A wash programme without any

additional options for normal to

heavy soiling with visible staining.

– A wash programme together with the

Soak option for heavily soiled

laundry.

– The Pre-wash additional option for

laundry with large amounts of dirt

(e.g. dust, sand).

When drying with a tumble dryer

Selecting the highest possible spin

speed for the wash programme will

save energy when drying in a tumble

dryer afterwards.

Washing environmentally and economically

Brief instructions

The headings numbered A,B,C,...

show the operating sequence and can

be used as brief instructions.

ASort the laundry

^Empty all pockets.

,Foreign objects (e.g. nails,

coins, paper clips, etc.) can cause

damage to garments and

components in the machine.

^Badly soiled areas, stains etc. should

be cleaned as soon as possible,

preferably whilst still fresh. Spillages

should be carefully dabbed off using

a soft colourfast cloth. Do not rub!

Badly soiled areas can be pre-treated

with liquid detergent, stain removers

etc. first, following the manufacturer's

instructions. With particularly stubborn

stains ask your dry cleaner for advice.

,If you use a solvent-based clean-

ing agent (e.g. one containing ben-

zene) to pre-treat a stain, make sure

that any plastic parts (e.g. buttons)

are protected, and that the cleaning

agent is rinsed off before washing the

garment in the machine.

,Do not use solvent-based

cleaning agents in this machine.

^Sort the laundry by colour and by

care label. Most garments have a

textile care label in the collar or side

seam.

Dark textiles often contain excess dye

and should be washed separately

several times before being included in

a mixed load. Always wash whites and

coloureds separately.

– Curtains: Remove lead weights first

or place in a laundry bag.

–Underwiring and collar stiffeners:

Any loose wiring in bras, shirt collar

stiffeners, etc. should be removed or

sewn in.

–Knitted garments, trousers and

jeans, T-shirts and sweat shirts: Turn

inside out, if recommended by the

manufacturer.

–Close any zips, fasten hooks and

eyes etc before washing.

–Fasten duvet covers etc. to prevent

small items from being rolled up

inside them.

Do not wash any items in this machine

which are specified by the

manufacturer as not washable on the

care label. (hsymbol)

How to wash correctly

BSwitch on the washing machine

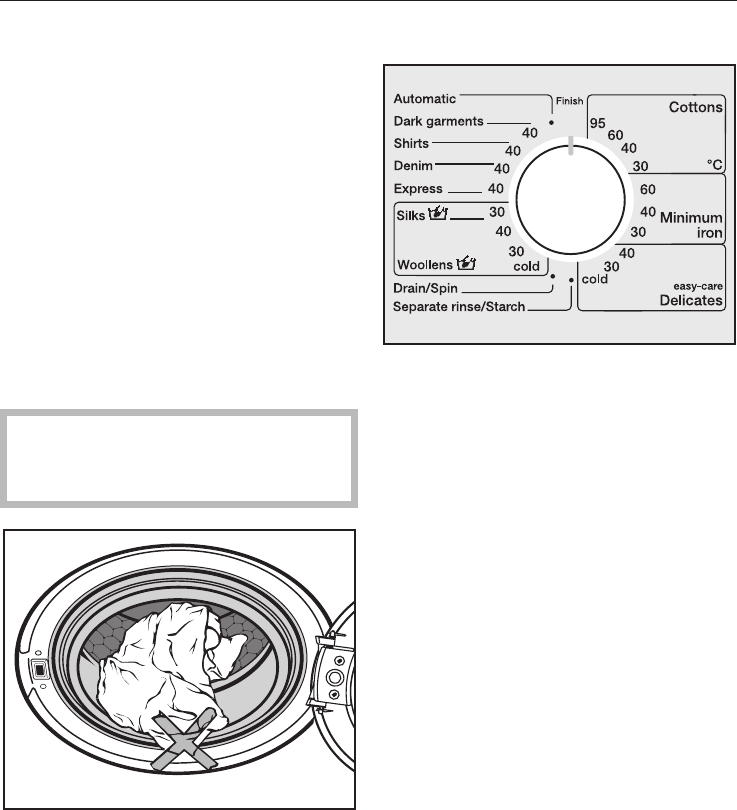

CLoad the drum

^Press the Door button to open the

drum door.

^Unfold the laundry and load loosely

in the drum. Mixing both large and

small items gives better wash results

and also helps distribute the load

evenly during spinning.

The most efficient use of energy and

water is achieved when a full load is

washed. Do not overload as this causes

creases and reduces cleaning

efficiency.

Make sure that no garments are

caught between the drum door and

seal.

^Shut the door with a gentle swing.

DSelect a programme

^Turn the programme selector to the

required programme.

The estimated programme duration will

then show in the display.

How to wash correctly

ESelect additional option(s)

Each press of the top button selects the

additional options in the following order:

Short,Pre-wash,Soak, no selection.

Use the lower button to select the Water

plus option.

^Select the option you want.

Not all the additional options are

suitable for every programme.

You can only select additional

options which are compatible with

the programme being used.

FSelect a spin speed

^Press the "Spin" button repeatedly

until the indicator light for the spin

speed you want comes on.

How to wash correctly

GAdd detergent

It is important to dispense the correct

amount, because...

. . . too little detergent results in:

–Laundry not getting properly clean

and with time it may become grey

and hard to the touch.

–Greasy particles clinging to the

laundry.

–Limescale deposits on the heater

elements.

. . . too much results in:

– Excessive foam which causes a low

level of agitation and poor wash,

rinse and spin results.

– Higher water consumption (an

additional rinse cycle will

automatically switch in).

– A burden to the environment.

^Pull out the detergent drawer and

place detergent in the compartments

as follows:

Detergent for the pre-wash (divide

the total recommended amount as

follows: add 1/3to compartment i

and 2/3to compartment j).

Detergent for the main wash,

including Soak if selected

Fabric conditioners or liquid starch

^Close the detergent drawer.

See "Detergent" for further information.

How to wash correctly

HStart the programme

^Press the flashing Start button.

The estimated programme duration will

show in the display. During the first

10 minutes the washing machine

measures how much water is being

absorbed by the laundry. The

programme duration may be longer or

shorter depending on this absorbency

rate.

IRemove the laundry

Only remove laundry from the

machine once the drum has

stopped turning. Reaching into a

moving drum is extremely

dangerous and could result in injury.

When the programme has finished, the

Anti-crease/Finish indicator light will

come on.

^Press the Door button to open the

drum door.

^Remove the laundry.

Check that all items have been

removed from the drum. Items left in

the drum could discolour other items

in the next wash or become

discoloured themselves.

^Check the folds in the door seal for

any small articles, e.g. buttons which

might be lodged there.

^Press and release the I-On/0-Off

button and turn the programme

selector to Finish.

^Close the drum door. Otherwise there

is the danger of objects being placed

inadvertently in the drum. If these

remained unnoticed and were

washed in the next load, they could

damage the laundry.

How to wash correctly

You can use the additional option

buttons to augment the basic wash

programmes.

Short

For light to nomal soiling with no

visible staining.

The duration of the main wash is

reduced.

In the Dark garments and Denim

programmes, 2 rinses will be carried

out instead of 3.

Pre-wash

For laundry with large amounts of dirt

e.g. dust, sand.

Soak

For heavily soiled and stained items

with protein stains (e.g. blood, fats

and oils, cocoa).

–A length of time of between 30

minutes and 2 hours can be

programmed in 30 minute

increments for the soak process.

–The default setting is 2 hours.

To programme in a different soak

period see "Programmable functions –

Soak duration".

Water plus

If you want to increase the water level

for a wash process you can choose one

of four settings for the Water plus

button. See "Programmable functions -

Water plus system".

The machine is set at the factory so that

the water level in the main wash and

rinses will be increased if the Water

plus button is pressed.

Additional options

Final spin speed

Programme rpm

Cottons 1400

Minimum iron 1200

Delicates 600

Automatic 900

Dark garments 1200

Shirts 600

Denim 900

Express 1400

Silks 400

Woollens 1200

Drain/Spin 1400

Separate rinse/Starch 1200

You can reduce the final spin speed.

However, you cannot select a final spin

speed higher than that shown in the

chart above.

Rinse and interim spin

There is a spin after the main wash and

between the rinses. A reduction in the

final spin speed will also reduce the

interim spin speed. If a spin speed of

less than 700 rpm is selected for a

Cottons programme, an additional rinse

is introduced.

To omit the final spin (Rinse hold)

^Select the Rinse hold setting. The

laundry will not be spun and will

remain suspended in the final rinse

water. This reduces creasing if the

laundry is not going to be removed

from the drum immediately after the

end of the programme.

–To start the final spin:

The Rinse hold indicator light above

the "Spin" button will be lit up. Use

the "Spin" button to select the spin

speed you want. The final spin will

then begin.

– To end the programme:

Press the Door button. The water will

drain away. Press the Door button

again to open the door.

To omit rinse and interim spin and

the final spin

^Select the Without spin setting. The

laundry is not spun after the final

rinse. The water will drain away and

the machine will go straight into the

anti-crease stage. An additional rinse

is introduced if this setting is selected

with the Cottons,Minimum Iron and

Automatic programmes.

Spinning

Cottons 9876* 30°C to 95°C Max. load 6.0 kg

Fabric Cottons, linens or cotton mix fabrics.

Additional options Short or Pre-wash or Soak, Water plus

Note for test institutes:

Short programme: 3.0 kg load and additional option Short

Minimum iron

876421*

30°C to 60°C Max. load 3.0 kg

Fabric Synthetics, mixed fibres and easy care cottons. Reduce the

spin speed for fabrics which crease easily.

Additional options Short or Pre-wash or Soak, Water plus

Delicates 21ac* cold to 40°C Max. load 2.0 kg

Fabric For delicate garments made of synthetic fibres, mixed

fibres, rayon and easy care cottons.

Curtains, including net curtains, specified as

machine-washable by the manufacturer.

Additional option Short or Pre-wash or Soak

Notes – Dust in curtains usually makes using a programme with

Pre-wash advisable.

– For curtains which crease easily, reduce the spin speed

or select Without spin.

Automatic 72* 40°C Max. load 3.5 kg

Fabric Mixed loads of garments suitable for the Cottons and

Minimum iron programmes. Sort according to colour.

Additional options Short or Pre-wash or Soak, Water plus

Dark garments 72* 40°C Max. load 3.0 kg

Item Dark garments made from cotton or mixed fibres.

Additional option Short or Pre-wash or Soak

Note Wash inside out.

Programme chart

Shirts 40°C Max. load 2.0 kg

Additional option Pre-wash or Soak

Notes –Pre-treat collars and cuffs if necessary.

–Wash silk garments in the Silks programme.

Denim 40°C Max. load 3.0 kg

Additional option Short or Pre-wash or Soak

Notes –Wash denim inside out.

–Denim often contains excess dye and will run during the

first few washes. Wash light and dark coloured items

separately.

Express 72* 40°C Max. load 3.0 kg

Fabric Small loads of items which require freshening up and which

can be washed in a Cottons programme.

Silks c/* 30°C Max. load 1.0 kg

Fabric Silks and other handwashable fabrics with no wool content,

e.g. satin, lace and silk.

Additional option Water plus

Note Place socks, tights, bras etc. in a washing bag.

Woollens ac/* cold to 40°C Max. load 2.0 kg

Fabric Machine-washable or hand-washable wool or wool blend

fabrics. If the care label does not specify a temperature,

wash using the cold setting.

Drain/Spin Max. load 6.0 kg

Note Make sure you select the appropriate spin speed.

Drain only: Select Without spin.

Separate rinse/Starch Max. load 6.0 kg

Note When using starch, laundry should be washed but not

treated with fabric conditioner.

* Please note that the "buckets" represent garment care label symbols. See

"Garment care label symbols".

Programme chart

Main wash Rinses Spinning

Water

level

Wash

rhythm

Water

level

Rinses Interim

spin

Final spin

Cottons dad2-41) LL

Minimum iron da(2-32) LL

Delicates ebe3–L

Automatic da(2-32) LL

Dark garments da(3LL

Shirts (a(2–L

Denim (a(3–L

Express dad2LL

Silks (d(2–L

Woollens (c(2LL

Drain/Spin –––– – L

Separate

rinse/Starch

––(1–L

d= Low water level

(= Medium water level

e= High water level

a= Normal wash rhythm

b= Gentle action

c= Woollens

d= Silks

See the following page for more information about the programme sequences.

Programme sequence

This washing machine has fully

electronic controls with automatic load

recognition. It takes in the right amount

of water required for the programme

depending on the amount of laundry

and its absorbency rate. This means

that programme cycles and durations

can vary.

The programme sequences outlined in

the chart are based on the basic

programme with a full load. Additional

options which can be selected have not

been taken into account.

The programme sequence display

shows the stage the programme has

reached.

Special features in the programme

sequences:

Anti-crease:

At the end of every programme, with

the exception of the Woollens

programme, the drum continues to turn

at intervals for up to 30 minutes to help

prevent creasing. The door can be

opened and laundry removed at any

time during the anti-crease phase.

1) A second rinse is carried out when a

temperature of 60°C to 95°C has

been selected. A third rinse is

carried out when a temperature

below 60°C is selected.

A third/fourth rinse is carried out if:

– there is too much foam in the drum

– a spin speed lower than 700 rpm has

been selected

–No uhas been selected

2) A third rinse is carried out if:

No uhas been selected

Programme sequence

Washing

The figure quoted in the bucket is the

maximum temperature the garment

can be washed at. The number of

bars under the symbol indicate the

level of agitation permitted.

9No bar under the symbol:

= normal agitation

4One bar under the symbol:

= reduced agitation

cTwo bars under the symbol:

= much reduced agitation

/Hand wash (if no temperature

is specified use the lowest

temperature or cold)

hDo not wash

Drying

The number of dots indicates the

drying temperature

qNormal temperature

rLow temperature

sDo not tumble dry

Ironing

The number of dots indicates the

ironing temperature

IHot iron (max sole plate temp.

approx. 200°C)

HMedium hot iron (max sole

plate temp. approx. 150°C)

GCool iron (max sole plate

temp. approx. 110°C). Do not

steam iron garments carrying

this symbol.

JDo not iron

Professional cleaning

fDry clean only. The letters

indicate the type of cleaning

agent required.

wProfessional Wet Clean only

DDo not dry clean

Bleaching

xAny oxidising bleaching

agent can be used

{Only use an oxygen based

bleach or a non-chlorine

bleach

zDo not bleach

Garment care label symbols

Cancelling a programme

You can cancel a programme at any

time after it has started.

^Turn the programme selector to

Finish.

The programme has been cancelled

when the Anti-crease/Finish indicator

light comes on (this can take up to 30

seconds).

If you want to select a different

programme:

^Switch the machine off and then back

on again with the I-On/0-Off button.

^Check that there is still detergent in

the detergent drawer. Add detergent,

if necessary.

^Select and start a new programme.

If you want to remove the laundry:

^Turn the programme selector to

Drain/Spin. Make sure the spin speed

is appropriate for the laundry.

^Press the Start button.

The suds will be pumped away.

^Press the Door button.

Interrupting a programme

^Switch the machine off with the

I-On/0-Off button.

To continue with the same programme:

^Switch the machine on with the

I-On/0-Off button.

Changing a programme

After the start of a programme it is no

longer possible to select a different

programme.

Temperature

It is possible to select a different

temperature up to 6 minutes after the

programme has started.

Spin speed

It is possible to change the spin speed

at any time.

Additional options

It is possible to select or deselect the

Water plus additional option up to 6

minutes after the programme has

started.

Skipping a programme stage

^Turn the programme selector to

Finish.

As soon as the programme sequence

indicator light for the programme stage

you want the programme to continue at

starts flashing:

^Turn the programme selector back to

the appropriate programme again

within 4 seconds.

Changing the programme sequence

Adding or removing laundry

after a programme has started

^Press the Door button in until the

drum door springs open.

^Add or remove items.

^Close the door.

The programme will continue

automatically.

Please note:

Once a programme has started the

machine cannot recognise any

adjustment to the load.

For this reason, if laundry is added or

removed after the start of a programme,

the machine will always complete the

programme cycle assuming a full load

which can lead to an increase in the

programme duration shown in the

display.

The door cannot be opened, if:

–the suds temperature is above 55°C.

–the water is above a certain level.

–the programme has reached the

Final spin stage.

Changing the programme sequence

The correct detergent

All modern detergents produced for automatic washing machines are suitable.

Use dispensing aids, e.g. balls, if these are supplied with the detergent. Tablets

are suitable for full loads but note that it may be impractical to reduce tablets for

smaller loads. Some tablets do not dissolve as rapidly as others and may not be

suitable for programmes with short durations.

Do not use biological detergents on silk as the enzymes may damage the silk!

Instructions for use and recommended amounts for a full load are given on the

detergent packaging.

Liquid detergent should be dispensed using a ball provided by the manufacturer

for programmes without a pre-wash.

For programmes with a pre-wash you will need to purchase a special container

from the Miele Spare Parts department which sits in the main wash compartment

jof the detergent dispenser drawer. Add liquid detergent to this container for

the main wash and to compartment ifor the pre-wash.

See "Optional accessories" at the end of this booklet for details of Miele branded

care products, including detergents and fabric conditioners.

Universal

detergent

Detergent for

coloureds

Detergent for

delicates

Cottons X X

Minimum iron X X

Delicates X

Automatic X X

Dark garments X1)

Shirts X X

Denim X1)

Express X X

Silks Liquid detergent for machine-washable silk and woollens

Woollens Liquid detergent for machine-washable woollens

Separate

rinse/Starch

Liquid starch, starch formulations, viscous liquid starch, starch

1) Only use liquid detergent

Detergent

The right amount to dispense will

depend on the following:

–The quantity of laundry.

–The soiling level of the laundry.

Lightly soiled

No visible dirt or stains. Possibly

slight body odour.

Normally soiled

Visibly dirty and/or just a few slight

stains.

Heavily soiled

Visible dirt and stains and/or dried on

soiling.

– The water hardness level.

Check with your local water supplier

if you do not know the hardness level

in your area.

Water softeners

A water softener can be used to cut

down on the use of detergents in hard

water areas. Dispense according to the

amount specified on the packaging.

First add detergent and then the water

softener.

Miele branded water softening tablets

are available from the Miele Spare Parts

Department or via the internet on

www.miele-shop.com

Use a quantity of detergent as for soft

water.

Miele do not recommend connecting

the machine to a household water

softener.

Washing with several

components

If you wash using several components

(e.g. special application detergents),

we recommend always dispensing the

agents into compartment jin the

following order:

1. Detergent

2. Water softener

3. Stain remover

This way the agents are distributed

more evenly.

Detergent

Fabric conditioners and liquid

starch

Fabric conditioners make garments soft

to handle and help prevent static cling

when tumble drying.

Starch stiffens and gives body to items

of laundry, e.g. shirts, tablecloths and

bed linen.

Automatic dispensing of fabric

conditioner or liquid starch to

laundry at the end of a programme

^Add the fabric conditioner or liquid

starch to compartment §.Do not

exceed the maximum level mark.

It will be automatically dispensed in the

last rinse. At the end of the programme

a small amount of water remains in the

fabric conditioner compartment §.

If starching frequently, the dispenser

compartment and especially the

siphon tube and fabric conditioner

channel will need regular cleaning to

remove any residual starch. See

"Cleaning the detergent dispenser

drawer". Do not add powder starch

formulations or viscous liquid starch

to the §compartment as it will clog

up. See below.

Adding fabric conditioner or starch

separately

^Dispense in accordance with

manufacturer's instructions on the

packaging.

^Add powder or viscose starch to

compartment i.

^Add the fabric conditioner or liquid

starch to compartment §.

^Turn the programme selector to

Separate rinse/Starch

^Select a spin speed.

^Press the Start button.

Colour run and dye removers /

dyes

^Do not use colour run or dye

removers in this washing machine.

^Dyes suitable for use in domestic

washing machines can be used.

However, please note that the salt

used in the dyeing process can

cause corrosion to stainless steel

components in the machine if you

dye frequently. Always observe the

manufacturer's instructions carefully.

Detergent

,Disconnect the machine from the

mains electricity supply and

withdraw the plug from the socket

before cleaning the machine.

,The washing machine must not

be hosed down.

A range of Miele branded cleaning and

conditioning agents is available to

order from the Miele Spare Parts

Department, or via the internet on

www.miele-shop.com.

External casing and fascia

panel

Clean the casing using a Miele E-Cloth,

or with a mild, non-abrasive cleaning

agent or soap and water using a well

wrung-out cloth. Wipe dry with a soft

cloth.

^The drum and any stainless steel

outer panels can be cleaned using a

suitable stainless-steel cleaning

agent following the instructions on

the packaging.

,Do not use solvents, abrasive

cleaners, glass cleaners or

all-purpose cleaning agents.

These might damage plastic

surfaces and other components

because of the chemicals they

contain.

Extra cleaning

Carry out a hot wash (70°C or above)

with powder detergent approx. every 6

weeks to help prevent deposits building

up in the machine. These can occur

when washing is mainly done at low

temperatures, and can lead to

unpleasant smells. If you have no

reason to wash occasionally at this high

temperature, then run a Cottons 95°C

programme with detergent but no

laundry at regular intervals.

Cleaning the detergent

dispenser drawer

Remove detergent residues regularly.

^Pull out the detergent dispenser

drawer until a resistance is felt. Press

down the release catch and at the

same time pull the drawer right out of

the machine.

^Clean the detergent drawer with

warm water.

Cleaning and care

^Clean the siphon.

1. Remove the siphon from

compartment §and rinse under

warm running water. Clean the

siphon tube in the same way.

2. Replace the siphon.

If starching frequently, thoroughly

clean the siphon and siphon tube

regularly. A build-up of starch will

cause them to get clogged.

Cleaning the detergent dispenser

drawer housing

^Use a bottle brush to remove

detergent residues and limescale

from the jets inside the detergent

dispenser drawer housing.

Cleaning and care

Cleaning the water inlet filters

The washing machine has two filters to

protect the inlet valves.

These filters should be checked every

six months or so, or more often if there

are frequent interruptions to the water

supply.

To clean the filter in the union in the

open end of the inlet hose:

^First turn off the stopcock.

^Unscrew the threaded union

connecting the free end of the inlet

hose to the stopcock.

^Remove rubber seal 1from the

recess.

^Using pointed pliers, take hold of

plastic filter bar 2, remove the filter

and clean it.

^Put the filter and seal back in the

reverse order and reconnect the

hose.

^Turn on the stopcock and check the

connection is watertight. If it leaks,

tighten the connection.

To clean the filter in the water inlet

valve:

^Using pliers, carefully loosen the

ribbed plastic nut on the inlet valve

and unscrew.

^Use pointed nose pliers to withdraw

the plastic filter by the bar (see

illustration). Clean, put back and

secure.

The two filters must be put back in

place after cleaning.

Cleaning and care

With the help of the following notes minor faults in the performance of the

machine, some of which may result from incorrect operation, can be put right

without contacting the Service Department.

,Repair work to electrical appliances should only be carried out by a

suitably qualified person in strict accordance with local and national safety

regulations. Repairs and other work by unqualified persons could be

dangerous. The manufacturer cannot be held liable for unauthorised work.

The programme does not start

Problem Possible cause Remedy

The Anti-crease/Finish

indicator light is not on,

or the indicator light for

the Start button is not

flashing.

There is no power to

the machine.

Check whether

– the mains plug is plugged

in and switched on.

– the fuse or circuit breaker

has tripped.

– the drum door is closed

properly.

Problem solving guide

The wash programme stops and a fault indicator light comes

Problem Possible cause Remedy A

The Check drain light

flashes. "– – –" appears

in the display.

The water outlet is

blocked.

Clean the drain filter and the

drain pump as described in

"Problem solving guide -

Opening the drum door in

the event of a blocked drain

outlet and/or power failure".

The drain hose has

been fixed too high.

The maximum delivery head

is1m.

The Check inlet light

flashes. "– – –" appears

in the display.

The water inlet is

blocked.

Open the stopcock.

The filter in the water

inlet hose is dirty.

Clean the filter.

The Check inlet and

Check drain lights are

flashing. "– – –"

appears in the display.

The water protection

system has reacted.

Call the Service Department.

The Soak/Pre-wash or

Rinses indicator light is

flashing. "– – –"

appears in the display.

There is a fault. Start the programme again.

If the fault indicators occur

again, contact the Service

Department.

ATo switch off the fault indicator: switch the washing machine off with the

I-On/0-Off button and turn the programme selector to Finish.

Problem solving guide

A fault indicator light comes on but the wash programme

continues as normal

Problem Possible cause Remedy A

The Check drain light

flashes.

The drain outlet is

restricted.

Clean the drain filter and the drain

pump as described in "Problem

solving guide - Opening the drum

door in the event of a blocked

drain outlet and/or power failure".

The Check inlet light

flashes.

The water inlet is

restricted.

Check whether

–the stopcock is opened wide

enough.

– the inlet hose is kinked.

The filter in the

water inlet hose is

dirty.

Clean the filter.

The Excess detergent

check light comes on.

Excessive foam

has built up

during washing.

Use less detergent next time and

follow the manufacturer’s

instructions on dosage given on

the packaging.

The Main wash

indicator light is

flashing.

There is a fault. Start the programme again.

If the fault indicator occurs again,

contact the Service Department.

The Anti-crease/Finish

indicator light is

flashing.

The position of the programme selector was altered

after the start of the programme. Turn the programme

selector back to the programme previously chosen.

ATo switch off the fault indicator: switch the washing machine off with the

I-On/0-Off button and turn the programme selector to Finish.

Problem solving guide

General problems

Problem Possible cause Remedy

The machine shakes

during the spin cycle.

The machine feet are not

level.

Level the machine (see

"Installation and

connection").

The laundry has not

been spun properly and

is still wet.

The machine detected an

imbalance during the final

spin and reduced the

spin speed automatically.

Include both large and

small items in the load as

this will give better

distribution.

The laundry has not

been spun satisfactorily.

The spin speed selected

was too low.

Select a higher spin

speed next time.

The pump makes

strange noises.

This is not a fault! These noises occur at the end of

a pump sequence as a normal part of the operation.

There is a lot of

detergent residue in the

detergent drawer.

The water pressure is too

low.

– Clean the filter in the

water inlet.

– Select Water plus.

Powder detergent used

with water softeners can

be sticky.

– Clean the detergent

drawer.

– Add washing powder

and then add the

water softener.

Fabric conditioner is not

completely dispensed or

too much water remains

in the §compartment.

The siphon tube is not

correctly positioned or is

clogged up.

Clean the siphon, (see

"Cleaning and care -

Cleaning the detergent

dispenser drawer").

When laundry is dry it

feels hard to the touch.

Too vigorous wash

action.

Programme in gentle

action and more water.

Not enough detergent

used.

Increase detergent dose

to prevent limescale

build up in laundry.

No fabric conditioner

used.

Use fabric conditioner in

last rinse.

Problem solving guide

An unsatisfactory wash result

Problem Possible cause Remedy

Liquid detergent

does not give the

required result.

Liquid detergents

usually contain no

bleaching agents.

They do not remove

fruit, coffee and tea

stains.

–Use a general purpose

detergent containing a

bleaching agent.

–Pour stain removers into

compartment jof the

dispenser drawer and liquid

detergent into a dispenser ball.

–Never put stain removers and

liquid detergent together in the

dispenser drawer.

Grey, greasy

particles cling to

washed laundry.

Insufficient amounts of

detergent were used

to break down the

particles of grease in

heavily soiled laundry.

– Use more detergent.

– Before washing the next load

run a Cottons 95°C programme

with powder detergent but

without a load.

A stale smell is in

the drum and on

laundry.

Low temperature

washing.

– Before washing the next load

run a Cottons 95°C programme

with powder detergent but

without a load.

White residues

which look like

powder detergent

are seen on dark

textiles after

washing.

The detergent

contained compounds

(zeolites) to aid water

softening which are

not soluble in water.

They have ended up

on the laundry.

–Try and brush off the residues

with a soft brush once the

laundry is dry.

–Wash dark textiles using a

detergent which contains no

zeolites. Liquid detergents

usually contain no zeolites.

–Use the Dark garments

programme.

Clothes are coming

out creased.

The machine was

overloaded.

–Reduce quantity of clothes in

drum.

The wrong

programme was used.

–Check care labels and the

programme chart.

–Use easy iron conditioners.

Problem solving guide

The drum door does not open when you press the Door button

Possible cause Remedy

The machine is not

connected to the

electricity supply and / or

is not switched on.

Insert the plug in the socket and switch on and / or

switch the machine on with the I-On/0-Off button.

Power cut. Open the drum door as described in "Opening the

drum door in the event of a blocked drain outlet

and/or power failure".

The door was not

correctly engaged.

Press hard against the lock side of the drum door

and then press the Door button.

There is still water in the

drum and the machine is

unable to drain.

Clean the drain filter and the drain pump as

described in the next section.

For safety reasons the drum door cannot be opened if the suds temperature is

higher than 55°C.

Problem solving guide

Opening the drum door in the

event of a blocked drain outlet

and/or power failure

^Switch the washing machine off.

There is a lever behind the detergent

drawer fascia panel.

^Remove the lever.

^Use it to open the access flap.

Blocked drain outlet

If the drain outlet is blocked, up to

25 litres of water will be retained in the

machine.

,Caution: if laundry has been

washed at a high temperature, water

draining out of the machine will still

be hot. Danger of scalding!

Procedure for draining the machine

^Place a suitable container under the

access flap.

When draining water from the

machine, do not unscrew the drain

filter completely or take it right out.

^Unscrew the drain filter lid until water

runs out.

To interrupt the flow of water:

^Tighten the drain filter back up again.

Problem solving guide

Once the flow of water ceases:

^Remove the drain filter completely.

^Clean it thoroughly.

^Remove any foreign objects (e.g.

buttons, coins, etc.) and fluff from the

filter housing. Turn the impeller by

hand to check that it rotates freely.

Any foreign object causing an

obstruction should be removed.

^Put the drain filter back in place and

secure.

,Make sure the drain filter is

securely tightened. Otherwise there

is a risk of water leakage during use.

Opening the drum door

,Always make sure that the drum

is stationary before reaching into the

machine to remove laundry.

Reaching into a moving drum is

extremely dangerous.

^Pull the emergency release

downwards (see illustration). The

drum door will open.

Problem solving guide

In the event of any faults which you

cannot remedy yourself, please

contact:

–your Miele Dealer or

–Miele (see back cover for contact

details).

When contacting your Dealer or Miele,

please quote the model and serial

number of your machine, both of which

are shown on the data plate visible

above the porthole glass when the door

is open.

N.B. A call-out charge will be applied

for service visits where the problem

could have been resolved as

described in these instructions.

Future updates (PC)

The indicator light marked PC is the

interface used by Miele service

technicians during servicing work for

testing purposes and for updating the

machine's programme data.

Appliance guarantee

Please see the guarantee card

supplied with your machine.

Optional spare parts and accessories

for this washing machine are available

from your Miele Dealer, the Miele Spare

Parts Department or via the internet at

www.miele-shop.com.

Please note that telephone calls may

be monitored and recorded for

training purposes.

After sales service

Front view

aInlet hose (tested to withstand

pressure of at least 7,000 kPa)

bElectricity supply cable

c-fFlexible drain hose (with

detachable swivel elbow)

gControl panel

hDetergent dispenser drawer

iDrum door

jAccess to drain filter, drain pump

and emergency release

kHandle recesses for moving the

machine

lFour height adjustable feet

Installation and connection

Rear view

aProtruding lid for holding when

moving the machine

bElectricity supply cable

cInlet hose (tested to withstand

pressure of at least 7,000 kPa)

dDrain hose

eTransit bar covers

fRestraining clip for inlet hose and

drain hose

gRestraining clips for transit bars

when removed

Installation and connection

Installation surface

A concrete floor is the most suitable

installation surface for a washing

machine, being far less prone to

vibration during the spin cycle than

wooden floorboards or a carpeted

surface.

Please note the following points:

^The machine must be level and

securely positioned.

^To avoid vibrations during spinning,

the machine should not be installed

on soft floor coverings.

If installing on a wooden joist floor:

^We recommend a plywood base

(at least 59x52x3 cm). The base

should span several joists and be

bolted to the joists and not only to the

floorboards. Check for the presence

of pipes and cables.

If possible, install the machine in a

corner, as this is usually the most stable

part of the floor.

,If the machine is installed on a

raised plinth, it has to be secured

against slippage during spinning

using retaining clips (available from

the Miele Spare Parts Dept).

Otherwise there is a danger of the

machine moving about.

Installing the washing machine

To manoeuvre the machine out of its

packing case to its installation site hold

it by the edge of the lid where it

protrudes to the rear of the washing

machine as well as by the handle

recesses at the front.

,Ensure that the machine feet and

the floor are dry to prevent the

machine from slipping during the

spin cycle.

Removing the transit bars

^To remove the left and right covers

1. Use a screwdriver to prise out the

cover as illustrated.

2. Pull the cover forwards to remove.

Installation and connection

^Using the spanner supplied turn the

left-hand transit bar 90°, then

^withdraw the transit bar.

^Turn the right-hand transit bar 90°,

then

^withdraw the transit bar.

Installation and connection

,To avoid the risk of injury the

holes for the transit bars must be

covered after the transit bars have

been removed.

^Fit the covers on to the two holes.

Then plug the holes as shown with

the caps.

^Secure the transit bars to the back of

the washing machine. Make sure that

holes bare fitted over retainers a.

,The washing machine must not

be moved without the transit bars in

place.

Store them as shown or keep them

in a safe place for future use. They

must be re-fitted if the machine is to

be moved again (e.g.when moving

house).

Re-fitting the transit bars

Re-fitting is carried out by reversing the

procedure.

Installation and connection

Levelling the machine

The machine must stand perfectly level

on all four feet to ensure safe and

proper operation.

Incorrect installation may increase

electricity and water consumption and

may cause the machine to move about.

Screwing out and adjusting the feet

The four adjustable screw feet are used

to level the machine. All four feet are

screwed in when the machine is

delivered.

^Using the spanner supplied turn

counternut 2in a clockwise direction.

Then turn counternut 2together with

foot 1to unscrew.

^Use a spirit level to check the

machine is standing level.

^Hold foot 1securely with a pipe

wrench. Turn counternut 2again

using the spanner supplied until it

sits firmly up against the housing.

,All four counternuts must be

firmly up against the housing. Please

also check this for the feet which did

not need adjustment. Otherwise

there is the danger of the machine

moving about.

Installation and connection

The fitting of building-under kits and

stacking kits must only be

undertaken by qualified and

competent persons, in accordance

with the instructions supplied with

the kit.

Building under a continuous

worktop/in a kitchen run

If you wish to push your machine under

a worktop and there is space to do this

without removing the lid, the

conversion kit is not necessary.

Otherwise the conversion kit is

essential.

– A special building-under conversion

kit* is required.

To ensure electrical safety, the

washing machine lid must be

replaced by the cover plate supplied

with the conversion kit.

– For installation under a work surface

900/910 mm from the floor, a raising

kit* is required.

–Connections for electricity, water and

drainage should be installed in such

a way that they remain accessible

when the machine is in place.

Fitting instructions are supplied with the

conversion kit.

All parts marked* are available from

your Dealer, the Miele Spare Parts

Department or via the internet at

www.miele-shop.com.

Washer and Dryer stack

A Miele tumble dryer can be stacked

with the washing machine. A "WTV"

stacking kit* is necessary.

Please note:

aSafety distance to wall:

at least 2 cm

bHeight:

Stacking kit with pull-out shelf:

approx. 169 cm

Stacking kit without pull-out shelf:

approx. 170 cm

Replacing the lid

If the lid has been removed in order to

fit a stacking kit or cover plate, ensure

that, if the lid is replaced, it fits securely

into the rear holders. Otherwise, it is not

properly secure for transport.

Installation and connection

The Miele water protection

system

The Miele water protection system

protects the washing machine from

water damage.

The system consists of three main

components:

1) the inlet hose

2) the electronic unit and the washing

machine housing

3) the drain hose

1) Inlet hose

The inlet hose can withstand

pressure of more than 7,000 kPa.

2) Electronic unit and washing

machine housing

– Sump

Any leaking water is collected in a

sump in the base of the machine. A

float switches off the safety valves,

preventing any more water flowing

into the machine and water in the

suds container is pumped away.

–Overflow protection

This prevents the washing machine

taking in too much water. If the water

level exceeds a certain level, the

drain pump switches in and pumps

the excess water away.

3) Drain hose

The drain hose is protected by a

ventilation system which prevents the

washing machine from being

emptied completely.

Installation and connection

Connection to the water

supply

The machine should be connected to a

mains water supply in accordance with

local and national safety regulations.

The German authorities do not require it

to have a non-return valve as the

washing machine has been designed

to comply with DIN regulations.

The machine is designed to operate

with a flow pressure of between

100 kPa and 1,000 kPa. If it is higher

than 1,000 kPa it is essential to fit a

pressure reducing valve.

Connection to the mains water supply

should incorporate a mains stopcock

with 3/4" thread. The stopcock should

be fitted by a qualified plumber.

,The connection point is subject

to mains water pressure. Turn on the

stopcock slowly and check for leaks.

Correct the position of the washer

and union if appropriate.

The washing machine is not suitable

for connection to a hot water supply

and connection to a household

water softener is not recommended.

Maintenance and care

Only use a genuine Miele hose should

you ever need a replacement or

extension. These are tested to

withstand pressure of at least

7,000 kPa.

In order to protect the water inlet

valve, the two dirt filters - one in the

open end of the inlet hose, one at

the inlet point in the machine - must

not be removed.

Extension hose

–Longer hoses 2.5 or 4.0 m in length

are available from your Miele dealer

or the Miele Spare Parts Department

as optional extras.

Installation and connection

Connection to the drainage

system

The machine drains via a drain pump

with a delivery head of 1 metre*. The

drain hose must not be kinked as this

restricts drainage. The swivel elbow at

the end of the hose can be turned in

either direction, or can be detached if

required, with a sharp twist and pull.

If required, the drain hose can be

extended to a length of 5 m. The

necessary parts can purchased from

the Miele Spare Parts Department or

your Miele dealer.

* For a delivery head of more than 1 m

(up to a max. of 1.8 m) a replacement

drain pump will need to be fitted.

Please contact the Miele Spare Parts

Department or your Miele Dealer.

Drain hose connection:

1. Direct into a sink or basin:

Please note the following:

–Hook the hose over the edge and

secure.

–Make sure that the water can drain

away freely without hindrance.

Otherwise there is a risk of water

overflowing or of some of the drained

water being sucked back into the

machine.

2. Connected securely to a plastic

drain pipe with a rubber nipple.

There is no need to use a non-return

valve.

3. Connected securely to a standpipe.

4. Connected securely to a floor gully.

Please note:

aAdapter

bNut

cHose clip

dEnd of the hose

^Fit adapter ato the sink drain outlet

using nut b.

^Attach the end of the hose dto

adapter a.

^Use a screwdriver to tighten hose

clip cup close to the nut.

Installation and connection

Electrical connection U.K.

All electrical work should be carried out

by a suitably qualified and competent

person, in strict accordance with

current national and local safety

regulations (BS 7671 in the UK).

Ensure power is not supplied to the

appliance until after installation work

has been carried out.

The appliance is supplied with a mains

cable with moulded plug ready for

connection to a 230-240V mains

supply.

Please ensure the connection data

quoted on the data plate match the

household mains supply.

Connection should be made via a

suitable switched socket which is easily

accessible after installation.

For extra safety it is advisable to install

a suitable residual current device

(RCD). Contact a qualified electrician

for advice.

Do not connect via an extension lead.

Extension leads do not guarantee the

required safety of the appliance (e.g.

danger of overheating).

Non-rewireable plugs BS 1363

The fuse cover must be refitted when

changing the fuse, and if the fuse cover

is lost, the plug must not be used until a

suitable replacement is obtained. The

colour of the correct replacement cover

is that of the coloured insert in the base

of the plug, or the colour that is

embossed in words on the base of the

plug (as applicable to the design of

plug fitted).

Replacement fuses should be ASTA

approved to BS 1362 and have the

correct rating. Replacement fuses and

fuse covers may be purchased from

your local electrical supplier.

WARNING: THIS APPLIANCE

MUST BE EARTHED

Installation and connection

Load Consumption data

Energy Water Duration

in kWh in litres Short Normal

Cottons 95°C 6.0 kg 1.99 49 2 h 09 min

60°C1) 6.0 kg 1.02 49 1 h 49 min

60°C 3.0 kg 0.75 39 59 min

40°C1) 6.0 kg 0.65 55 2 h 05 min

40°C2) 3.0 kg 0.40 39 59 min

Minimum iron 40°C1) 3.0 kg 0.50 55 1 h 02 min 1 h 19 min

Delicates 30°C 2.0 kg 0.35 69 43 min 59 min

Automatic 40°C 3.5 kg 0.35 - 0.50 40 - 55 58 min 1 h 13 min

Dark garments 40°C 3.0 kg 0.60 60 1 h 03 min 1 h 13 min

Shirts 40°C 2.0 kg 0.50 45 – 56 min

Denim 40°C 3.0 kg 0.50 52 53 min 1 h 00 min

Express 40°C 3.0 kg 0.30 34 – 33 min

Silks /30°C 1.0 kg 0.25 39 – 36 min

Woollens /30°C 2.0 kg 0.23 39 – 40 min

1) EN 60456 test programme

2) Short programme for test institutes; the Short additional option must be

selected.

Consumption data can vary from the nominal values given depending on water

pressure, water hardness, water inlet temperature, room temperature, type and

volume of load, fluctuations in the electricity supply and any additional options

selected.

Consumption data

Height 850 mm

Width 595 mm

Depth 580 mm

Depth with door open 975 mm

Height for building under 820 mm

Width for building under 600 mm

Depth for building under 600 mm

Weight 93 kg

Maximum floor load 1,600 Newton (approx. 160 kg)

Capacity 6 kg dry laundry

Voltage see data plate

Connected load see data plate

Fuse rating (UK) see data plate / plug

Consumption data see "Consumption data"

Water flow pressure min. 100 kPa (1 bar)

Water flow pressure max. 1,000 kPa (10 bar)

Inlet hose length 1.60 m

Drain hose length 1.50 m

Mains connection cable length 1.60 m

Delivery head max. 1.00 m

Maximum drainage length 5.00 m

Test certificates awarded see data plate

Technical data

Programmable functions

for changing default settings

The programmable functions can be used to tailor washing programmes to suit

your individual requirements.

The programmable functions are

activated with the help of the Start

button and the programme selector.

Water plus system

This is used to select the water intake

setting for the Water plus additional

option.

There are four different options:

Setting 1:

an increase in the rinse water level

Setting 2:

an increase in the water level in the

main wash and rinses (the washing

machine is delivered with setting 2

programmed as standard)

Setting 3:

an extra rinse cycle in the Cottons and

Minimum iron programmes

Setting 4:

an increase in the water level in the

main wash and rinses and also an extra

rinse cycle in the Cottons and Minimum

iron programmes

Follow steps Ato Gto programme

and store a setting in memory.

Before you begin, first ensure that:

–The washing machine is switched off.

–The machine is properly closed.

–The programme selector is at Finish.

APress the Start button and keep it

pressed in whilst carrying out steps

B-C.

BSwitch the machine on with the

I-On/0-Off button.

CWait until the Start button indicator

light comes on . . .

D. . . and then release the Start

button.

ETurn the programme selector to the

Cottons 60°C position:

APwill flash in the display alternating

with the number 1, 2, 3 or 4.

FEach subsequent press on the Start

button selects a different setting.

The number alternating with the Pin the

display refers to the settings as follows:

1= Setting 1 is selected

2= Setting 2 is selected

3= Setting 3 is selected

4= Setting 4 is selected

GSwitch the machine off with the

I-On/0-Off button.

The Water plus button has now been

allocated the setting you have chosen.

This setting will remain in memory until

another setting is programmed.

Programmable functions

Gentle action

Activating gentle action reduces the

drum action and is suitable for

washing slightly soiled articles more

gently.

Gentle action can be used with the

Cottons,Express and Automatic

programmes.

If Gentle action is programmed into the

machine, every wash cycle in these

programmes will be carried out with

gentle action rhythm.

The washing machine is delivered with

the Gentle action setting deactivated.

Follow steps Ato Gto programme

and store in memory.

Before you begin, first ensure that:

– The washing machine is switched off.

– The machine is properly closed.

–The programme selector is at Finish.

APress the Start button and keep it

pressed in whilst carrying out steps

B-C.

BSwitch the machine on with the

I-On/0-Off button.

CWait until the Start button indicator

light comes on . . .

D. . . and then release the Start

button.

ETurn the programme selector to the

Cottons 40°C position:

APwill flash in the display alternating

with the number 0or 1.

0= Gentle action is deactivated.

1= Gentle action is activated.

FPress the Start button to change the

display from 0to 1or from 1to 0.

GSwitch the machine off with the

I-On/0-Off button.

The setting you have selected is now

stored in memory and will remain so

until you alter it.

Programmable functions

Top-up rinse for Cottons

When this is activated, additional

water flows into the drum at the end

of the main wash to cool the suds

down. Hot suds can damage plastic

drainage pipes.

Top-up rinse takes place when a

temperature of 95°C is selected.

Top-up rinse should be activated:

–to prevent the danger of scalding if

the drain hose is hooked over the

edge of a sink or basin.

– where the drainage pipes do not

comply with DIN 1986.

The washing machine is delivered with

the Top-up rinse for Cottons

deactivated.

Follow steps Ato Gto programme

and store in memory.

Before you begin, first ensure that:

–The washing machine is switched off.

–The machine is properly closed.

–The programme selector is at Finish.

APress the Start button and keep it

pressed in whilst carrying out steps

B-C.

BSwitch the machine on with the

I-On/0-Off button.

CWait until the Start button indicator

light comes on . . .

D. . . and then release the Start

button.

ETurn the programme selector to the

Cottons 30°C position:

APwill flash in the display alternating

with the number 0or 1.

0= Top-up rinse is deactivated.

1= Top-up rinse is activated.

FPress the Start button to change the

display from 0to 1or from 1to 0.

GSwitch the machine off with the

I-On/0-Off button.

The setting you have selected is now

stored in memory and will remain so

until you alter it.

Programmable functions

Memory function

If an additional option is selected for

a programme, and / or the spin

speed is altered, the machine stores

these changes in memory at the start

of a programme.

When that particular programme is

chosen again, the washing machine will

display the additional option(s) and / or

spin speed which have been stored for

that programme in the memory.

The washing machine is delivered with

the memory function deactivated.

Follow steps Ato Gto programme

and store in memory.

Before you begin, first ensure that:

– The washing machine is switched off.

– The machine is properly closed.

– The programme selector is at Finish.

APress the Start button and keep it

pressed in whilst carrying out steps

B-C.

BSwitch the machine on with the

I-On/0-Off button.

CWait until the Start button indicator

light comes on . . .

D. . . and then release the Start

button.

ETurn the programme selector to

Minimum iron 60°C:

APwill flash in the display alternating

with the number 0or 1.

0= the memory function is

deactivated.

1= the memory function is

activated.

FPress the Start button to change the

display from 0to 1or from 1to 0.

GSwitch the machine off with the

I-On/0-Off button.

The setting you have selected is now

stored in memory and will remain so

until you alter it.

Programmable functions

Soak

A length of time of between 30 minutes

and 2 hours can be programmed in

30 minute increments for the soak

process.

If the Soak option is pressed, the

selected soak time will be carried out

for the period selected before the wash

programme is run.

The machine is delivered with a two

hour soak time set as standard.

Follow steps Ato Gto programme

and store in memory.

Before you begin, first ensure that:

– The washing machine is switched off.

– The machine is properly closed.

– The programme selector is at Finish.

APress the Start button and keep it

pressed in whilst carrying out steps

B-C.

BSwitch the machine on with the

I-On/0-Off button.

CWait until the Start button indicator

light comes on . . .

D. . . and then release the Start

button.

ETurn the programme selector to

Minimum iron 40°C:

APwill flash in the display alternating

with the number 1, 2, 3 or 4.

FEach subsequent press on the Start

button selects a different setting.

The number alternating with the Pin the

display refers to the settings as follows:

1= the soak time is 2 hours

(default setting)

2= the soak time is 1 hour 30 minutes

3= the soak time is 1 hour

4= the soak time is 30 minutes

GSwitch the machine off with the

I-On/0-Off button.

The Soak button has now been

allocated the setting you have chosen.

This setting will remain in memory until

another setting is programmed.

Programmable functions

Miele washing machines offer perfect

care for your laundry and feature a

wide range of special programmes

designed to suit the fabric being

washed. Miele have also developed a

range of specialist CareCollection

detergents and conditioning products

to offer you a complete package for

cleaning and caring for your laundry.

The Miele CareCollection detergents

and conditioning products are listed

below. You can order these and many

other useful products via the internet at:

All the products can also be ordered

via the Miele Customer Contact Centre

(see back cover for contact details).

CareCollection

Miele specialist detergents

"Outdoor wear"

This specialist detergent will clean your

water-repellent outerwear with care.

"Sportswear"

The Miele Sportswear detergent is

designed to clean sportswear whilst

taking care of the special microfibres

used in these garments. It will help to

neutralise and remove odours whilst

protecting the colour of the fabric and

preventing static build-up.

"Down Items"

This special-purpose detergent

contains a mild tenside and has been

specially formulated to keep down-filled

items supple and to give them bounce.

Miele proofing agent

This special finishing agent reproofs

garments against wind and water and

provides a dirt-repellent finish whilst

retaining elasticity and breathability.

Optional accessories

"UltraWhite" detergent

This multi-purpose powder detergent

has excellent stain removal properties

and is suitable for white and light

coloured laundry as well as heavily

soiled coloured items.

"UltraColor" detergent for coloured

garments

This liquid detergent is particularly

suitable for cleaning coloured and dark

garments. The special formulation

offers effective stain removal, even at

low temperatures, while helping to

prevent colours fading.

Liquid detergent "For Delicates"

This liquid detergent is ideal for the

gentle treatment of delicate fabrics,

such as wool and silk. Its special

formulation cleans effectively at

temperatures as low as 20°C, while

protecting the colour of your delicate

garments.

Fabric conditioner

The Miele fabric conditioner will give

your laundry a fresh, natural fragrance.

It makes garments soft to handle and

prevents static build-up during tumble

drying.

Optional accessories

Alteration rights reserved/2609/W 3240 M.-Nr. 07 616 410 / 00

Miele Washing Machine W3240 Users Manual FastIron 07300j FIPS And Common Criteria Configuration Guide

Navigation menu

Versions of this User Manual:

Views

Navigation
