Operating instructions

for Washing machine

W 3985 WPS

To avoid the risk of accidents or

damage to the machine it is

essential to read these instructions

before it is installed and used for the

first time. M.-Nr. 07 590 080

en-GB

Disposal of the packing

material

The transport and protective packing

has been selected from materials which

are environmentally friendly for disposal

and can normally be recycled.

Ensure that any plastic wrappings,

bags etc. are disposed of safely and

kept out of the reach of babies and

young children. Danger of suffocation!

Rather than just throwing these

materials away, please ensure they are

offered for recycling.

Disposal of your old machine

Electrical and electronic machines

often contain materials which, if

handled or disposed of incorrectly,

could be potentially hazardous to

human health and to the environment.

They are, however, essential for the

correct functioning of your machine.

Please do not therefore dispose of it

with your household waste.

Please dispose of it at your local

community waste collection / recycling

centre or contact your Dealer for

advice. Ensure that it presents no

danger to children while being stored

for disposal.

It should be unplugged or disconnected

from the mains electricity supply by a

competent person.

Caring for our environment

2

Caring for our environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Operating the washing machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

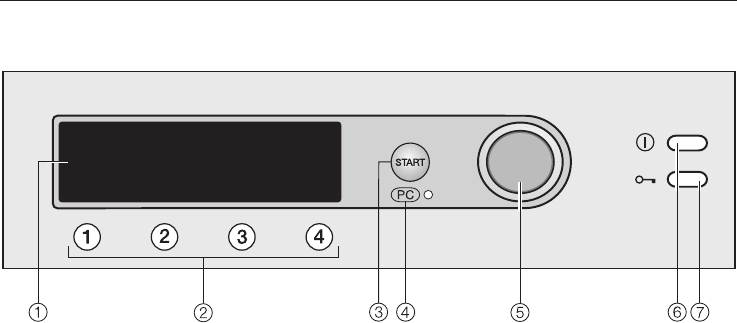

Control panel .....................................................10

Displays .........................................................11

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Washing environmentally and economically . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Energy and water consumption ....................................16

Detergent .....................................................16

How to wash correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Sort the laundry ...................................................17

Select a programme ...............................................18

Select a temperature/spin speed and extra option(s) ...................18

Changing/saving a favourite programme ...............................19

Load the drum ....................................................20

Select the Timer (if required) .........................................21

Add detergent ....................................................22

Start the programme ...............................................23

Remove the laundry when the programme has finished ....................23

Extra options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Short............................................................24

Water plus .......................................................24

Rinse hold .......................................................24

Soak ............................................................24

Pre-wash ........................................................24

Spinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Final spin speed ..................................................25

Rinse and interim spin ...........................................25

To omit the final spin (Rinse hold) ..................................25

To omit the spin between rinses and the final spin .....................25

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Contents

3

Garment care label symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Changing the programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Cancelling a programme ............................................33

Interrupting a programme ...........................................33

Changing a programme ............................................33

Adding or removing laundry after a programme has started ................34

Safety lock .......................................................34

Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

The correct detergent ..............................................35

Water softener ....................................................36

Washing with several components ....................................36

Fabric conditioners and liquid starch ..................................37

Automatic dispensing of fabric conditioner or liquid starch to laundry

at the end of a programme ........................................37

Adding fabric conditioner or liquid starch separately ...................37

Colour run and dye removers/dyes ....................................37

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

External casing and fascia panel .....................................38

Extra cleaning ..................................................38

Cleaning the detergent dispenser drawer...............................38

Cleaning the filter in the water inlet ....................................40

Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

The programme does not start .......................................41

Problems with the load size indicator ..................................42

General problems .................................................43

An unsatisfactory wash result ........................................44

The drum door cannot be opened by pressing the /button ...............45

Opening the drum door in the event of a blocked drain outlet

and/or power failure................................................46

Blocked drain outlet .............................................46

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Future updates (PC) .............................................48

Appliance guarantee ............................................48

Optional spare parts and accessories ...............................48

Contents

4

Installation and connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

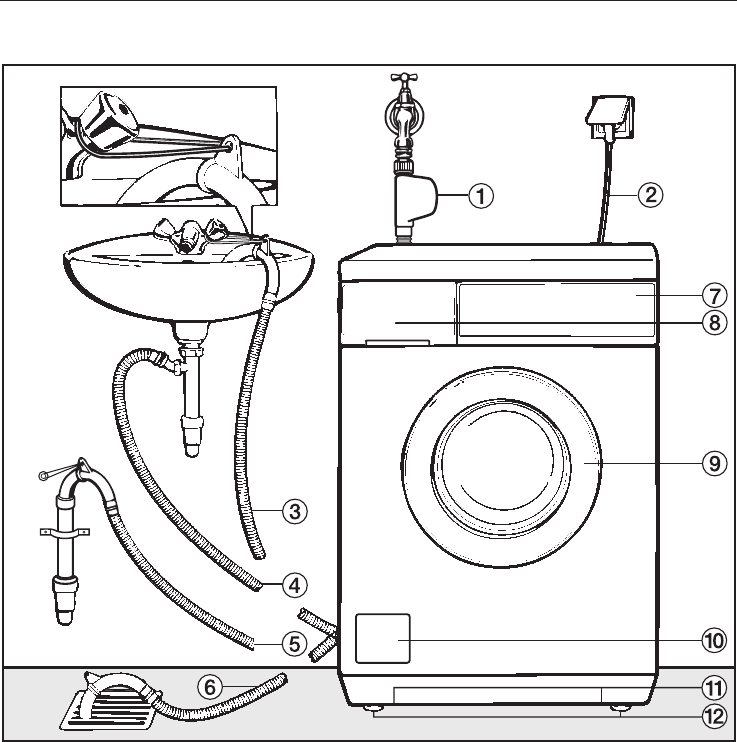

Front view........................................................49

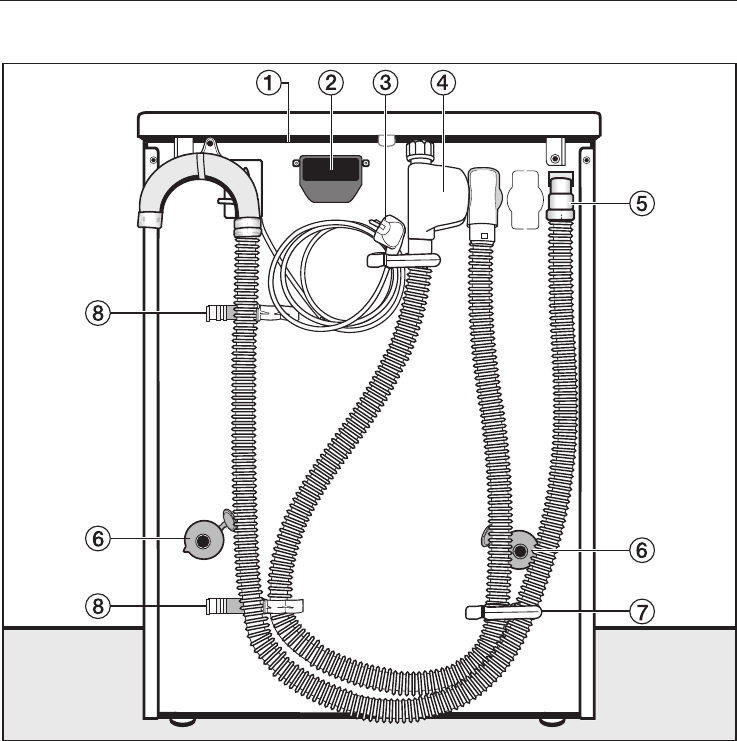

Rear view ........................................................50

Installation surface.................................................51

Installing the washing machine ....................................51

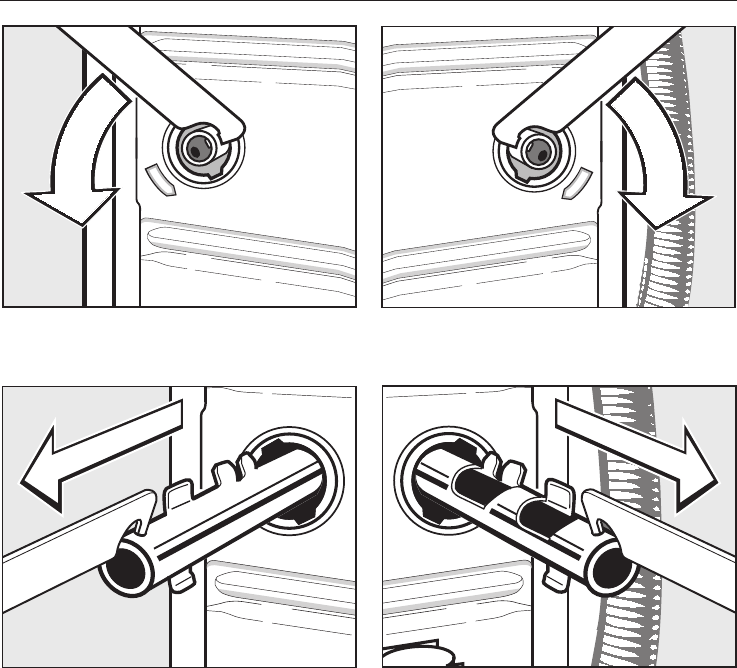

Removing the transit bars ...........................................51

Re-fitting the transit bars ............................................53

Levelling the machine ..............................................54

Screwing out and adjusting the feet .................................54

Building under a continuous worktop/in a kitchen run ...................55

Washer and Dryer stack ..........................................55

The Miele Waterproof system ........................................56

Connection to the water supply .......................................57

Connection to the drainage system....................................59

Electrical connection U.K. ...........................................60

Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Notes for test institutes: ..........................................61

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Settings menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

To open the Settings menu ..........................................64

Language !......................................................64

Time of day ......................................................65

Water plus .......................................................66

Gentle action .....................................................66

Suds cooling .....................................................66

Code ...........................................................67

Temperature .....................................................69

Buzzer ..........................................................69

Keypad tones.....................................................69

Display contrast ...................................................69

Standby .........................................................70

Memory .........................................................70

Miele{home .....................................................71

Remote access ...................................................73

Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

CareCollection ....................................................75

Contents

5

This washing machine conforms to

current safety requirements.

Inappropriate use can, however,

lead to personal injury and damage

to property.

To avoid the risk of accidents and

damage to the washing machine,

please read these instructions

carefully before using it for the first

time. They contain important

information on its installation, safety,

use and maintenance.

Keep these instructions in a safe

place and ensure that new users are

familiar with the content. Pass them

on to any future owner.

Correct application

~This washing machine is for

domestic use only and can only be

used to wash items which are specified

by the manufacturer to be

machine-washable on the wash care

label, and textiles composed of

hand-washable wool or wool blend

fabrics as well as satin, lace, silk and

other hand-washable garments.

Any other applications may be

dangerous. Miele cannot be held liable

for damage resulting from incorrect or

improper use or operation.

~This washing machine is not

intended for use by persons (including

children) with reduced physical,

sensory or mental capabilities, or lack

of experience and knowledge, unless

they are supervised whilst using it or

have been shown how to use it by a

person responsible for their safety.

Safety with children

~Keep children away from the

washing machine at all times. It is not a

toy! To avoid the risk of injury do not

allow children to play on or near it or to

play with its controls. Supervise

children whilst you are using it.

~Older children may only use the

washing machine if its operation has

been clearly explained to them and

they are able to use it safely,

recognising the dangers of misuse.

~For machines with a 'porthole' door,

remember that the porthole glass will

be hot when washing at very high

temperatures.

Do not let children touch it.

Warning and Safety instructions

6

Technical safety

~Before setting up the washing

machine, check it for any externally

visible damage.

Do not install or use a damaged

washing machine.

~Before connecting the washing

machine, ensure that the connection

data on the data plate (voltage and

connected load) match the mains

electricity supply. If in any doubt,

consult a qualified electrician.

~The electrical safety of this washing

machine can only be guaranteed when

continuity is complete between it and

an effective earthing system which

complies with current local and national

safety regulations. It is most important

that this basic safety requirement is

present and regularly tested, and

where there is any doubt the household

wiring system should be inspected by a

qualified electrician. The manufacturer

cannot be held liable for the

consequences of an inadequate

earthing system (e.g. electric shock).

~Do not connect the washing

machine to the mains electricity supply

by an extension lead. Extension leads

do not guarantee the required safety of

the appliance (e.g. danger of

overheating).

~Faulty components must only be

replaced by genuine Miele original

spare parts. Only when these parts are

fitted can the safety standards of the

machine be guaranteed.

~Unauthorised repairs could result in

unforeseen dangers for the user, for

which Miele cannot accept liability.

Repairs should only be undertaken by a

Miele approved service technician.

Ensure current is not supplied to the

machine until after maintenance or

repair work has been carried out.

~If the connection cable is faulty it

must only be replaced by a Miele

approved service technician to protect

the user from danger.

~In the event of a fault or for cleaning

purposes, the washing machine is only

completely isolated from the electricity

supply when:

– it is switched off at the wall socket

and the plug is withdrawn, or

– it is switched off at the mains, or

– the mains fuse is withdrawn, or the

screw-out fuse is removed (in

countries where this is applicable).

~The Miele "Water protection system"

protects from water damage provided

the following conditions have been met:

–the machine is correctly plumbed in

and connected to the electricity

supply.

–if a fault has been identified, the

machine must be examined by a

competent person before further use,

and repaired if necessary.

~In countries where there are areas

which may be subject to infestation by

cockroaches or other vermin, pay

particular attention to keeping the

machine and its surroundings in a

clean condition at all times. Any

damage which may be caused by

cockroaches or other vermin will not be

covered by the machine guarantee.

Warning and Safety instructions

7

~This washing machine may only be

used in mobile installations such as

ships if a risk assessment of the

installation has been carried out by a

suitably qualified engineer.

~Do not make any alterations to the

washing machine, unless authorised to

do so by Miele.

Correct use

~Do not install your washing machine

in rooms where temperatures below

freezing may occur. Frozen hoses may

burst or split. The reliability of the

electronic control unit may be impaired

at temperatures below freezing point.

~Before using the washing machine

for the first time, check that the transit

bars at the rear of the machine have

been removed (see section on

"Installation and connection"). During

spinning, a transit bar which is still in

place may result in damage to both the

machine and adjacent furniture or

appliances.

~Turn off the stopcock if the machine

is to be left for any length of time (e.g.

holiday), especially if there is no floor

drain (gully) in the immediate vicinity.

~Flooding danger.

If hooking the drain hose into a wash

basin, check that the water can drain

off quickly enough to prevent the sink

from overflowing. Make sure the drain

hose is secure, so that the force of the

water flowing out of the hose does not

dislodge it.

~Take care to ensure that foreign

objects (e.g. nails, pins, coins, paper

clips) do not find their way into the

machine with the laundry. These may

damage components of the machine

(e.g. suds container, drum), which in

turn can result in damage to the

laundry.

~If the correct amount of detergent is

dispensed, the machine should not

need to be descaled. If, however, you

do wish to descale the machine only

use proprietary non-corrosive descaling

agents and strictly observe the

instructions on the packaging. A

special descaling agent is available to

order from the Miele Spare Parts

Department or via the internet on

www.miele-shop.com.

Warning and Safety instructions

8

~Textiles which have been

pre-treated in solvent based cleaning

agents must be thoroughly rinsed in

clean water before being washed in the

machine.

~Never use solvent based cleaning

agents, e.g. those containing benzene,

in this machine, as this may result in

damage to component parts and create

toxic fumes. Such agents also pose a

fire and explosion hazard.

~Never use solvent based cleaning

agents, e.g. those containing benzene,

to clean the outside surfaces of this

machine. They can cause damage to

plastic surfaces.

~Only use dyes specified by the

manufacturer as being suitable for use

in a domestic washing machine. Always

observe the manufacturer's instructions

carefully.

~Colour run and dye removers

contain sulphur compounds which can

cause damage such as corrosion. Do

not use these products in this machine.

~If liquid detergent comes into

contact with the eyes, rinse them

thoroughly with lukewarm water imme-

diately. If swallowed, seek medical

assistance immediately and retain the

packaging or label for reference. Those

with skin problems or sensitive skin

should avoid their skin coming into

contact with liquid detergent.

~Only remove laundry from the

washing machine once the drum has

stopped turning. Reaching into a

moving drum is extremely dangerous

and could result in injury.

Accessories

~Accessory parts may only be fitted

when expressly approved by Miele. If

other parts are used, guarantee,

performance and product liability

claims will be invalidated.

Miele cannot be held liable for

damage caused by non-compliance

with these Warning and Safety

instructions.

Warning and Safety instructions

9

Control panel

aDisplay

See the following pages for more

information.

bShort cut buttons

For selecting an individual washing

programme quickly. These buttons

can be programmed to select your

own favourite wash programmes.

cStart button

dPC / Optical interface

This is used by service technicians

to run diagnostic checks on your

machine and can also be used to

update programming data in the

future.

eMulti-function selector

This is used to select menu options

(by turning it) and to confirm your

selection (by pressing it).

fKbutton

For switching the washing machine

on and off.

To save energy, the washing

machine will switch itself off

automatically 15 minutes after the

end of the programme/anti-crease

phase or after being switched on if

no other selection is made.

g/button

Opens the machine door.

Operating the washing machine

10

Displays

Entry menu

1 Cottons 60°C Programme selection ...

2 Minimum iron 40°C Settings !...

3 Automatic 40°C

4 Woollens H30°C 15:00

When the machine is switched on, the entry menu (with

default settings) appears and Programme selection is

highlighted.

Multi-function selector

Turning the multi-function selector moves the highlighting to

the next option.

Pressing the multi-function selector selects the highlighted

option.

Short cut buttons

Pressing a short cut button selects one of the four favourite

programmes shown on the left of the display. You can

customise the favourite programmes to suit your own

requirements.

The short cut buttons have different functions in the other

menus. Where this is the case, an arrow Hwill appear in the

display above the short cut button, together with a

description of its function.

Programme selection

There are two ways of selecting a programme:

–Option 1: Select the Programme selection menu in the

display and confirm your selection by pressing the

multi-function selector.

–Option 2: Press short cut button 1,2,3or 4. This will

automatically take you into the main menu of that

programme.

Operating the washing machine

11

Programme selection menu

Programme Back A

selection Cottons

Minimum iron

Delicates H

You can use the multi-function selector to select any

programme. The highlighting will move up or down

depending on the direction the multi-function selector is

turned in. The HVarrows on the right of the display,

indicate further options. Pressing the multi-function selector

takes you to the main menu of the wash programme selected.

Wash programme main menu

Cottons 60°C 1600 rpm

Extras: None

Duration 1:19 h

Detergent

+

Timer +

+

Save

+

Back A

+

Turn the multi-function selector to select and highlight the

programme, temperature, spin speed or extra options.

Pressing the multi-function selector selects the highlighted

option and opens the relevant sub-menu.

The sub-menus Detergent and Timer can be opened by

pressing the short cut button directly below them.

You return to the entry menu by pressing short cut button 4

below the word Back.

Settings menu

The Settings menu is used to alter the washing machine's

electronics to suit different requirements. See "Settings menu"

for more details.

Operating the washing machine

12

Before using the machine for the first time ensure that it is

correctly installed and connected. See "Installation and

connection". Also check that the drain filter is securely

tightened to prevent the risk of water leaks during use.

This washing machine has undergone a thorough

functional test in the factory and there will be some residual

water in the drum from this process.

The washing machine has a sensor which measures the

amount of laundry in the drum. This determines the amount of

detergent required. To allow the load size indicator to

function correctly, you must first run a wash programme

without any laundry and without detergent.

^Open the stopcock.

^Press the Kbutton in.

If the washing machine is being switched on for the first time,

the welcome screen will appear.

The welcome screen will appear in the display every time

the washing machine is switched on until a programme

lasting longer than 1 hour has been completed.

Setting the language

Einstellungen #eština

Sprache !dansk

deutsch

english H

^If the language shown is not the one you want, select the

language you do want by turning the multi-function

selector. Confirm your selection by pressing the

multi-function selector.

Before using for the first time

13

Setting the time (of day)

12:00

Set the time

^Turn the multi-function selector to select the hour and press

it to confirm your selection. Now set the minutes. Pressing

the multi-function selector again saves the time of day in

memory.

Reminder to remove transport struts

To avoid the risk of damage, the transport struts must be

removed before the machine is used for the first time. See

"Installation and connection" for instructions on how to do

this.

^Remove the transport struts (if this has not already been

done by your fitter). Then confirm that you want to continue

by pressing short cut button 4. The display will change to

show the entry menu.

Running your first programme

1 Cottons 60°C Programme selection ...

2 Minimum iron 40°C Settings !...

3 Automatic 40°C

4 Woollens H30°C 15:00

^Press short cut button 1.

Before using for the first time

14

The main menu for the Cottons programme appears

Cottons 60°C 1600 rpm

Extras: None

Duration 1:19 h

Detergent

+

Timer +

+

Save

+

Back A

+

^Press the flashing Start button.

^Switch the washing machine off at the end of the

programme.

Before you can use the washing machine, the load sensor

has to be calibrated to zero as you would with bathroom

scales.

Calibrating the load sensor to zero

^Switch on the washing machine.

^Open the drum door.

^Press short cut button 1. The main menu for the Cottons

programme appears.

^Press short cut button 1Detergent in until the display

shows:

Zero setting OK

^Switch off the washing machine.

The machine is now ready for use.

Before using for the first time

15

Energy and water consumption

–Water consumption and energy

usage are determined by the size of

the load.

To make the most out of your

machine, load the maximum dry load

for the programme you are using.

–Use the Automatic and Express

programmes for small loads.

–When smaller amounts of laundry are

washed using the Cottons

programme, the automatic load

recognition system will reduce the

amount of water, time and energy

used. This may mean that the time

left shown in the display is adjusted

during the course of the wash

programme.

– Using the Cottons 60°C programme

instead of the Cottons 95°C

programme will give energy savings

of between 35% and 45%. This is

sufficient for most levels of soiling.

For stubborn or old stains, use the

Soak extra option.

Detergent

–Do not exceed the amounts of

detergent recommended by the

manufacturer on the packaging.

–Adjust the dosage to the degree of

soiling of the laundry.

–Reduce the amount of detergent for

smaller loads. Use the Detergent

sub-menu.

Choosing the correct Extra option

(Short, Soak, Pre-wash)

Select:

– A wash programme together with the

Short extra option for light to normal

soiling where there are no obvious

marks.

– A wash programme without any extra

options for normal to heavy soiling

with visible staining.

– A wash programme together with the

Soak extra option for heavily soiled

laundry.

–The Pre-wash extra option for laundry

with large amounts of dirt (e.g. dust,

sand).

When drying with a tumble dryer

Selecting the highest possible spin

speed for the wash programme will

save energy when drying in a tumble

dryer afterwards.

Washing environmentally and economically

16

Sort the laundry

^Empty all pockets.

,Foreign objects (e.g. nails,

coins, paper clips, etc.) can cause

damage to garments and

components in the machine.

Removing marks

^Badly soiled areas, stains etc. should

be cleaned as soon as possible,

preferably whilst still fresh. Spillages

should be carefully dabbed off using

a soft, colourfast cloth. Do not rub!

Badly soiled areas can be pre-treated

with liquid detergent, stain removers

etc. first, following the manufacturer's

instructions. With particularly stubborn

stains ask your dry cleaner for advice.

,If you use a solvent-based

cleaning agent (e.g. one containing

benzene) to pre-treat a stain, make

sure that any plastic parts (e.g.

buttons) are protected, and that the

cleaning agent is rinsed off before

washing the garment in the

machine.

,Do not use solvent-based

cleaning agents in this machine.

^Sort the laundry by colour and by

care label. Most garments have a

textile care label in the collar or side

seam.

Dark textiles often contain excess dye

and should be washed separately

several times before being included in

a mixed load. Always wash whites and

coloureds separately.

– Curtains: Remove lead weights first

or place in a laundry bag.

–Underwiring and collar stiffeners:

Any loose wiring in bras, shirt collar

stiffeners, etc. should be removed or

sewn in.

–Close any zips, fasten hooks and

eyes etc before washing.

–Fasten duvet covers etc. to prevent

small items from being rolled up

inside them.

Do not wash any items in this machine

which are specified by the

manufacturer as not washable on the

care label. (hsymbol)

How to wash correctly

17

Switch on the washing machine

The interior drum lighting will come on.

Select a programme

You can select a programme either by:

–using the appropriate short cut button to select one of the

four programmes listed in the display ("favourites"), or

–going into the Programme selection menu.

Select a temperature/spin speed and extra option(s)

You can select these by turning the multi-function selector.

The option selected is then shown highlighted. Pressing the

multi-function selector selects the highlighted option and

opens the relevant sub-menu.

Temperature

Cottons 60°C 1600 rpm

Extras: None

Temperature from

Cold - 60°C a

Spin speed

Cottons 60°C 1800 pm

Extras: None

Spin speed from

0 - 1800 rpm b

Extra options

Cottons 60°C 1600 rpm

Extras Short Water plus

Pre-wash Rinse hold

Soak Back A

How to wash correctly

18

If you do not make a selection in the sub-menu within

approx. 20 seconds, the display will revert to the main

menu.

Your selection of temperature, spin speed and extra options

will now appear in the main menu.

Cottons 40°C 1200 rpm

Extras: Water plus

Duration 1:49 h

Detergent

+

Timer +

+

Save

+

Back A

+

Changing/saving a favourite programme

To save this programme as a favourite:

^Press short cut button 3.

Cottons 40°C 1200 rpm

Previous: Cottons 60°C

Extras: None 1600 rpm

Save to: 1234 Back A

^Use the multi-function selector to select the number you

want to save the programme to, and confirm your selection.

Your settings have now been saved and the favourite

programme will appear in the entry menu.

You can also save a programme as a favourite while it is

running.

How to wash correctly

19

Load the drum

^Press the /button to open the drum door.

The washing machine has a sensor which measures the

amount of laundry placed in the drum. The display shows

the percentage of the maximum load which has been

placed in the drum. The maximum load will depend on the

programme chosen.

In addition to the load size percentage, the amount of

detergent required is also shown as a % figure.

The Detergent sub-menu will appear.

Cottons 60°C 1600 rpm

Extras: None

Load Detergent

75% 75% A

The load is shown in the display in 25% steps. Loads of less

than 25% or an empty drum are shown as <25%.Ifthe

amount of laundry exceeds the maximum load, %100% will

flash in the display. Note: %100% will not appear in the display

if you have overloaded a Cottons programme.

The most efficient use of energy and water is achieved when

a full load is washed. However, do not overload as this

causes creases and reduces cleaning efficiency.

You can open the Detergent sub-menu at any time by

pressing short cut button 1.

^Unfold the laundry and load loosely in the drum. Mixing

both large and small items gives better wash results and

also helps distribute the load evenly during spinning.

Make sure that no garments are caught between the drum

door and seal.

^Shut the door with a gentle swing.

How to wash correctly

20

Select the Timer (if required)

You can use the timer to set the end time of a programme.

The start of a programme can be delayed from 30 minutes

up to a maximum of 24 hours, allowing you to make use of

night-time economy electricity rates, for example.

^Press short cut button 2to open the Timer sub-menu.

Cottons 60°C 1600 rpm

Extras: None

15:03 Start at: 15:03

Finish: 15:30

^Use the multi-function selector to select the programme

end time (when the first 30 minute stage is entered, the

programme end time will be adjusted to the next full or half

hour). Confirm your selection. The start of the programme

will now be delayed in parallel with the programme end

time you have selected.

To start the timer

^Press the Start button.

The delay start time will be shown counting down in minutes.

To cancel the timer

^Press short cut button 4.

The actual load size can only be determined accurately by

the machine once the programme has started. The

programme end time may, therefore, be a bit later or

earlier than first indicated.

How to wash correctly

21

Add detergent

The percentage amounts in the display

will help you to add the correct

percentage amount of detergent

recommended by the manufacturer.

40% = Add slightly less than half

the amount recommended

50% = Add half the amount

recommended

60% = Add slightly more than half

the amount recommended

75% = Add three quarters of

the amount recommended

100% = the full amount of detergent

recommended

You also need to take the level of

soiling and water hardness into

account.

It is important to dispense the correct

amount, as...

. . . too little detergent results in:

–Laundry not getting properly clean

and with time it may become grey

and hard to the touch.

–Greasy particles clinging to the

laundry.

–Limescale deposits on the heater

elements.

. . . too much detergent results in:

–Excessive foam which causes a low

level of agitation and poor wash,

rinse and spin results.

–High water consumption (an

additional rinse cycle will

automatically switch in).

–A burden to the environment.

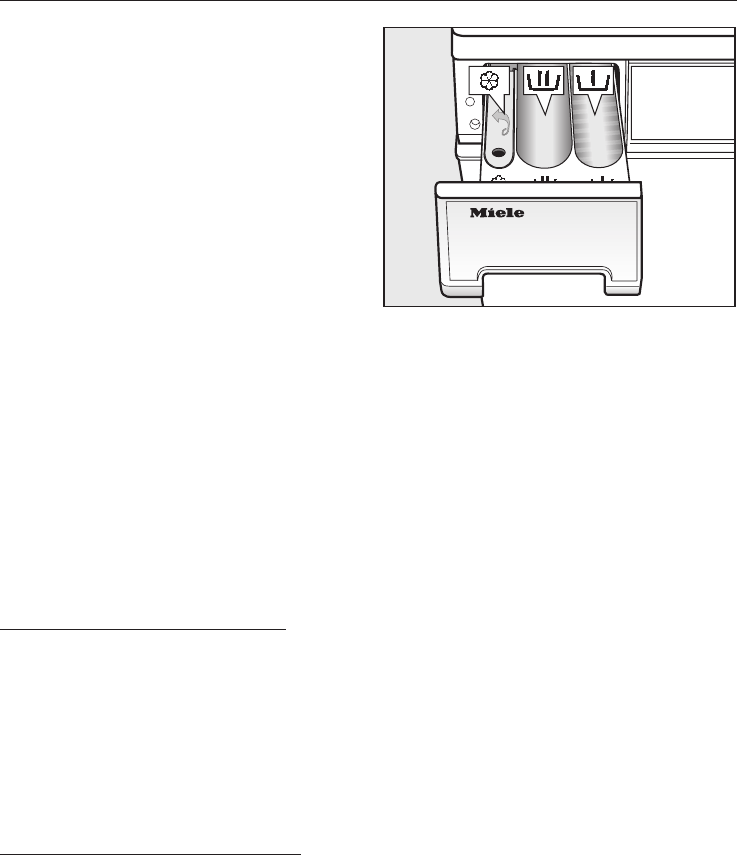

^Pull out the detergent drawer and

add detergent to the compartments

as follows:

i

Detergent for the pre-wash (divide

the total recommended amount as

follows: add 1/3to compartment i

and 2/3to compartment j)

j

Detergent for the main wash,

including Soak if selected

§

Fabric conditioner or liquid starch

^Close the detergent drawer.

See "Detergent" for further information.

How to wash correctly

22

Start the programme

^Press the flashing Start button.

The estimated programme duration and

the programme sequence will appear in

the display. During the first 10 minutes

the machine measures how much water

is being absorbed by the laundry. The

programme duration may be longer or

shorter depending on this absorbency

rate.

The drum lighting switches off once the

programme has started.

Once washing is in progress, you can

press the following short cut buttons:

– Button 2Timer +: to call up the

current time of day and the estimated

end time of the programme.

– Button 3Save: to save the current

programme as a favourite.

– Button 4Cancel: to cancel the

current programme. The suds are

pumped away immediately.

Remove the laundry when the

programme has finished

In the anti-crease phase after the

programme has finished, the following

will appear alternately in the display:

Anti-crease

and

Programme finished

Unload the drum before switching off

^Press the /button to open the drum

door.

The washing machine will switch off

automatically 15 minutes after the

end of the anti-crease phase. You will

need to press the Kbutton to switch

it back on again.

^Remove the laundry.

Check that all items have been

removed from the drum. Items left in

the drum could discolour other items

in the next wash or become

discoloured themselves.

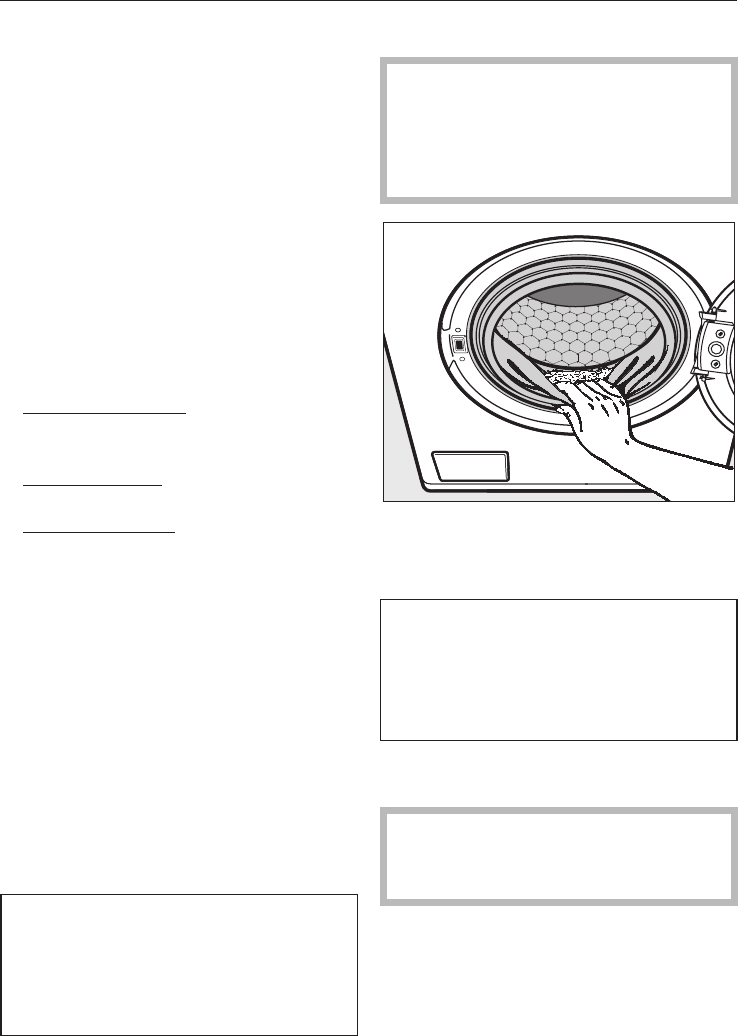

^Check the folds in the door seal for

any small articles, e.g. buttons, which

might be lodged there.

Important

Always remove the laundry before

switching the machine off. This is

important to ensure that the load size

indicator works correctly.

^Switch the machine off with the

Kbutton.

To avoid the build-up of mildew, it is

recommended that the door is left

ajar when the machine is not in use.

How to wash correctly

23

Short

For light to normal soiling with no visible staining.

The duration of the main wash is reduced.

Water plus

The water level in the main wash and the rinses will be

increased if the Water plus option is selected.

Rinse hold

See the next page.

Soak

For heavily soiled and stained items with protein stains (e.g.

blood, fats and oils, cocoa).

A length of time of between 30 minutes and 6 hours can be

chosen in 30 minute increments for the soak process.

To select the soak duration

Cottons 60°C 1600 rpm

Extras: None

15:03 Finish: 16:33

Soak duration: 0:00 h

^Use the multi-function selector to select the soak time you

want and confirm your selection.

^The soak time selected will be added to the running time of

the wash programme.

To delete the soak time

^Set the soak time to 0:00 h and confirm your selection.

Pre-wash

For laundry with large amounts of dirt e.g. dust, sand.

Extra options

24

Final spin speed

Programme rpm

Cottons 1800

Minimum iron 1200

Delicates 600

Automatic 1200

Dark garments 1200

Shirts 600

Denim 900

Express 1600

Woollens 1200

Silks 400

Sportswear 1200

Outerwear 800

Hygiene 1800

First wash 1200

Proofing 1000

Curtains 600

Pillows 1200

Starch 1500

Separate rinse 1200

Drain/Spin 1800

You can reduce the final spin speed.

However, you cannot select a final spin

speed higher than that shown in the

chart above.

Rinse and interim spin

There is a spin after the main wash and

between the rinses. A reduction in the

final spin speed will also reduce the

interim spin speed. If a spin speed of

less than 700 rpm is selected for a

Cottons programme, an additional rinse

is introduced.

To omit the final spin (Rinse hold)

^Select Rinse hold from the Extras

sub-menu. The laundry will not be

spun and will remain suspended in

the final rinse water. This reduces

creasing if the laundry is not going to

be removed from the drum immedi-

ately after the end of the programme.

–To start the final spin:

Whilst the spin speed is highlighted,

press the multi-function selector.

Select a different spin speed, if

necessary, by turning the

multi-function selector. Press the

Start button to begin the final spin.

– To end the programme:

Press the /button. The water will

drain away. Press the /button

again, to open the door.

To omit the spin between rinses and

the final spin

^Select Without spin from the Spin

speed sub-menu . The laundry is not

spun after the final rinse. The water

will drain away and the machine will

go straight into the anti-crease stage.

An additional rinse is introduced if

this setting is selected with the

Cottons,Minimum iron,Automatic

and Express programmes.

Spinning

25

Cottons 9ö8E76* cold to 95°C Max. load 6.0 kg

Fabric Cottons, linens or cotton mix fabrics, e.g. table linen, towelling,

underwear, T-shirts etc.

Extra options Short, Pre-wash or Soak, Water plus, Rinse hold

Note for test institutes:

Short programme: 3.0 kg load and Short extra option

Minimum iron

43218E76*

cold to 60°C Max. load 3.0 kg

Fabric Synthetics, mixed fibres and easy care cottons. If fabrics have a

high proportion of man-made fibres it is advisable to programme

the machine for "Gentle action". See "Settings menu".

Note Reduce the spin speed for fabrics which crease easily.

Extra options Short, Pre-wash or Soak, Water plus, Rinse hold

Delicates 4321ac* cold to 60°C Max. load 2.0 kg

Fabric For delicate garments made of synthetic fibres, mixed fibres,

rayon and easy care cottons.

Extra options Short, Pre-wash or Soak, Rinse hold

Automatic 7621* cold to 40°C Max. load 3.5 kg

Fabric Mixed loads of garments suitable for the Cottons and Minimum

iron programmes. Sort according to colour.

Note The wash parameters (e.g. water level, wash rhythm and spin

speed) are adjusted automatically in this programme to ensure

the best possible care and wash result for each item.

Extra options Short, Pre-wash or Soak, Water plus, Rinse hold

Dark garments cold to 40°C Max. load 3.0 kg

Garment Dark garments made from cotton or mixed fibres.

Note Wash inside out.

Extra options Short, Rinse hold

Programme chart

26

Shirts cold to 60°C Max. load 2.0 kg

Notes –Pre-treat collars and cuffs if necessary.

–Wash silk garments in the Silks programme.

Extra options Short, Water plus, Rinse hold

Denim cold to 60°C Max. load 3.0 kg

Notes –Wash denim inside out.

–Denim often contains excess dye and will run during the first

few washes. Wash light and dark coloured items separately.

Extra options Short, Pre-wash or Soak, Rinse hold

Express 76* cold to 40°C Max. load 3.0 kg

Item Small loads of items which require freshening up and which can

be washed in a Cottons programme.

Extra options Water plus, Rinse hold

Woollens /ac* cold to 40°C Max. load 2.0 kg

Fabric Machine-washable or hand-washable wool or wool blend fabrics.

If the care label does not specify a temperature, wash using the

cold setting.

Extra option Rinse hold

Silks /c* cold to 30°C Max. load 1.0 kg

Fabric Silks and other handwashable fabrics with no wool content, e.g.

satin, lace and silk.

Note Place tights, bras etc. in a washing bag.

Extra options Water plus, Rinse hold

Programme chart

27

Sportswear 30°C to 60°C Max. load 2.0 kg

Garment Lightly soiled sports garments which require washing or

freshening up.

Extra options Short, Pre-wash or Soak, Water plus, Rinse hold

Outerwear cold to 40°C Max. load 2.0 kg

Garment Outerwear made from micro-fibres such as Gore-Tex®,

SYMPATEX®, WINDSTOPPER®etc.

Notes –Zip up jackets before washing.

–Do not use fabric conditioner.

Extra options Short, Pre-wash or Soak, Water plus, Rinse hold

Hygiene 8* 60°C Max. load 6.0 kg

Item Fabrics which will be in direct contact with the skin, e.g.

underwear, nappies, towelling, bed linen, pillow and mattress

covers.

Note There is a longer temperature holding time in the main wash.

Extra options Pre-wash or Soak, Water plus, Rinse hold

First wash cold to 40°C Max. load 3.0 kg

Fabric New items made of cotton, towelling and polyester fabrics.

Note Use this programme to wash any chemical residues out of new

items.

Extra options Water plus, Rinse hold

Proofing 40°C Max. load 2.0 kg

Item For treating microfibre fabrics, skiwear, fine, closeweave cotton

garments (poplin) or tablecloths to provide a water and dirt

resistant finish.

Notes –The items should be freshly laundered and spun or dried

before proofing.

–For best results, the items should be heat-treated afterwards,

either in a tumble dryer or by ironing.

Extra option Rinse hold

Programme chart

28

Curtains cold to 40°C Max. load 2.0 kg

Item Curtains, including net curtains, specified as machine-washable

by the manufacturer. A pre-rinse without detergent is carried out

automatically to remove dust.

Note For curtains which crease easily, reduce the spin speed or

deselect the spin.

Extra options Water plus, Rinse hold

Pillows 40°C to 95°C 2 pillows (40 x 80 cm) or

1 pillow (80 x 80 cm)

Item Washable pillows with feather, down or synthetic fillings.

Note Please observe the instructions on the wash care label.

Extra options Water plus, Rinse hold

Starch Max. load 6.0 kg

Note The laundry (table cloths, napkins, overalls) should be washed

but not treated with fabric conditioner.

Extra option Rinse hold

Separate rinse Max. load 6.0 kg

Extra option Rinse hold

Drain Max. load 6.0 kg

For draining water from the machine.

Drain/Spin Max. load 6.0 kg

Note Make sure you select the appropriate spin speed.

* Please note that the "buckets" represent garment care label symbols. See

"Garment care label symbols".

Programme chart

29

Main wash Rinses Spinning

Water

level

Wash

rhythm

Water

level

No of

rinses

Interim

spin

Final spin

Cottons da(2-43)4) LL

Minimum iron (ce2-35) LL

Delicates ede3–L

Automatic (abc e2-35) LL

Dark garments (bd3LL

Shirts ece2–L

Denim (ce3–L

Express dbd2-35) LL

Woollens eee2LL

Silks eee2–L

Sportswear dcd2LL

Outerwear ede3L6) L

Hygiene db(3-44) LL

First wash db(2LL

Proofing (d–– – L

Curtains1) (dd3–L

Pillows2) (de3–L

Starch (c–– – L

Separate rinse ––e2–L

Drain/Spin –––– – L

d= Low water level

(= Medium water level

e= High water level

a= Intensive rhythm

b= Normal rhythm

c= Gentle rhythm

d= Sensitive rhythm

e= Handwash rhythm

See the following page for more information about the programme sequences.

Programme sequence

30

This machine has fully electronic

controls with automatic load

recognition. It takes in the right amount

of water required for the programme

depending on the amount of laundry

and its absorbency rate. This means

that programme cycles and durations

can vary.

The programme sequences outlined in

the chart are based on the basic

programme with a full load. Extra

options which can be selected have not

been taken into account.

The display shows the stage the

programme has reached.

Special features in the programme

sequences:

Anti-crease:

At the end of every programme, with

the exception of the Woollens

programme, the drum continues to turn

at intervals for up to 30 minutes to help

prevent creasing. The door can be

opened and laundry removed at any

time during the anti-crease phase.

1) Pre-rinse: A pre-rinse without

detergent is carried out automatically

to remove dust.

2) Run-up to spin: A run-up to spin is

carried out before the wash process

begins to deflate the pillows.

Subsequent water intake for the main

wash is through compartment j.

3) A second rinse is carried out when a

temperature of 60°C to 95°C has

been selected. A third rinse is

carried out when a temperature

below 60°C is selected.

4) A third or fourth rinse is carried out if:

–there is too much foam in the drum

–a spin speed lower than 700 rpm has

been selected

–Without spin has been selected

5) A third rinse is carried out if:

Without spin has been selected

6) In the Outerwear programme,

laundry is only spun after the main

wash.

Programme sequence

31

Washing

The figure quoted in the bucket is the

maximum temperature the garment

can be washed at. The number of

bars under the symbol indicates the

level of agitation permitted.

9No bar under the symbol: =

normal agitation

4One bar under the symbol: =

reduced agitation

cTwo bars under the symbol: =

much reduced agitation

/Hand wash (if no temperature

is specified use the lowest

temperature or cold)

hDo not wash

Drying

The number of dots indicates the

drying temperature

qNormal temperature

rLow temperature

sDo not tumble dry

Ironing

The number of dots indicates the

ironing temperature

IHot iron (max sole plate temp.

approx. 200°C)

HMedium hot iron (max sole

plate temp. approx. 150°C)

GCool iron (max sole plate

temp. approx. 110°C). Do not

steam iron garments carrying

this symbol.

JDo not iron

Professional cleaning

fDry clean only. The letters

indicate the type of cleaning

agent required.

p

wProfessional Wet Clean only

DDo not dry clean

Bleaching

xAny oxidising bleaching

agent can be used

{Only use an oxygen based

bleach or a non-chlorine

bleach

zDo not bleach

Garment care label symbols

32

Cancelling a programme

You can cancel a programme at any

time after it has started by pressing

short cut button 4Cancel.

The suds will be pumped away.

If you want to remove the laundry:

^Press the /button.

If you want to select a different

programme:

^Press short cut button 4Back.

^Check that there is still detergent in

the detergent drawer. Add detergent,

if necessary.

^Select and start a new programme.

Interrupting a programme

^Switch the machine off with the K

button.

To continue with the same programme:

^Switch the washing machine back on

again with the Kbutton.

Changing a programme

After the start of a programme it is no

longer possible to select a different

programme.

Temperature

It is possible to select a different

temperature up to 5 minutes after the

programme has started.

Spin speed

It is possible to change the spin speed

up until the final spin begins.

Extra options

It is possible to select or deselect the

Short and Water plus extra options up

to 5 minutes after the programme has

started.

It is not possible to make any

changes if the safety lock has been

activated.

Changing the programme sequence

33

Adding or removing laundry

after a programme has started

^Press the door button /to open the

drum door.

^Add or remove items.

^Close the drum door.

The programme will continue

automatically.

Please note:

Once a programme has started the

machine cannot recognise any

adjustment to the load.

For this reason, if laundry is added or

removed after the start of a programme,

the machine will always complete the

programme cycle assuming a full load

which can lead to a change in the

programme duration shown in the

display.

The door cannot be opened, if:

–the suds temperature is above 55°C.

–the water is above a certain level.

–the programme has reached the

Final spin stage.

If you press the /button when the

above conditions are present, the

following will appear in the display:

/Machine locked

Safety lock

The safety lock prevents the machine

from being opened and/or the

programme cancelled during a wash

programme.

To activate the safety lock

^Once the programme has started,

press the Start button for at least 6

seconds until the following appears

in the display:

Locked

The machine will now not accept any

changes and the programme will

proceed through to the end.

The safety lock is deactivated

automatically at the end of the

programme.

To deactivate the safety lock

^Press the Start button for at least 6

seconds until the following appears

in the display:

Unlocked

Changing the programme sequence

34

The correct detergent

All modern detergents produced for automatic washing machines are suitable. Use dispensing aids,

e.g. balls, if these are supplied with the detergent. Tablets are suitable for full loads, but note that it

may be impractical to reduce tablets for smaller loads. Some tablets do not dissolve as rapidly as

others, and may not be suitable for programmes with short durations.

Do not use biological detergents on silk, as the enzymes may damage the silk. Instructions for use and

recommended dosage amounts are given on the detergent packaging.

Liquid detergent should be dispensed using a ball provided by the manufacturer for programmes

without a pre-wash.

For programmes with a pre-wash you will need to purchase a special container from the Miele Spare

Parts department which sits in the main wash compartment jof the detergent dispenser drawer.

Add liquid detergent to this container for the main wash and to compartment ifor the pre-wash.

All purpose detergent

for whites*

Detergent for

coloured fabrics*

Detergent for

delicates

Cottons X X

Minimum iron X X

Delicates X

Automatic X X

Dark garments X1)

Shirts X X

Denim X1)

Express X X

Woollens Liquid detergent for machine-washable woollens

Silks Liquid detergent for machine-washable silk and woollens

Sportswear X X

Outerwear X

Hygiene X

First wash X X

Proofing Only use proofing agents which are stated by the manufacturer as being

"suitable for use on membrane textiles" as these consist of fluorochemical

compounds. Do not use proofing agents which contain paraffin. Add

proofing agents to compartment §.

Curtains X2) X2)

Pillows X1) X1)

Starch Liquid starch, starch formulations, viscous liquid starch, fabric conditioner

1) Only use liquid detergent

2) Only use powder detergent or detergent specifically designed for washing curtains

*Powder detergent, tablet detergent, liquid detergent and liquid tab detergent.

Detergent

35

The right amount to dispense will

depend on the following:

–The quantity of the laundry

–The soiling level of the laundry

Lightly soiled

No visible dirt or stains. Possibly

slight body odour.

Normally soiled

Visibly dirty and/or just a few slight

stains.

Heavily soiled

Stains and soiling clearly visible.

– The water hardness level.

Check with your local water supplier

if you do not know the hardness level

in your area.

Water softener

A water softener can be used to cut

down on the use of detergents in hard

water areas. Dispense according to the

amount specified on the packaging.

First add detergent and then the water

softener.

Miele branded water softening tablets

are available from the Miele Spare Parts

Department or via the internet on

www.miele-shop.com.

Use a quantity of detergent as for soft

water.

Miele do not recommend connecting

the machine to a household water

softener.

Washing with several

components

If you wash using several components

(e.g. special application detergents),

we recommend always dispensing the

agents into compartment jin the

following order:

1. Detergent

2. Water softener

3. Stain remover

This way the agents are distributed

more evenly.

Detergent

36

Fabric conditioners and liquid

starch

Fabric conditioners make garments soft

to handle and help prevent static cling

when tumble drying.

Starch stiffens and gives body to items

of laundry, e.g. shirts, tablecloths and

bed linen.

Automatic dispensing of fabric

conditioner or liquid starch to

laundry at the end of a programme

^Add the fabric conditioner or liquid

starch to compartment §.Do not

exceed the maximum level mark.

It will be automatically dispensed in the

last rinse. At the end of the programme

a small amount of water remains in the

fabric conditioner compartment §.

If starching frequently, thoroughly

clean the dispenser compartment,

especially the siphon tube and

fabric conditioner channel, regularly.

See "Cleaning the detergent

dispenser drawer". Do not use

powder starch formulations or

viscious liquid starch in the

§compartment as it will clog up.

See below.

Adding fabric conditioner or liquid

starch separately

^Dispense in accordance with

manufacturer's instructions on the

packaging.

^Add powder or viscose starch to

compartment i.

^Add the fabric conditioner or liquid

starch to compartment §.

^Select the Starch programme.

^Select a spin speed or the Rinse hold

extra option.

^Press the Start button.

Colour run and dye removers/

dyes

^Do not use colour run or dye

removers in this machine.

^Dyes suitable for use in domestic

washing machines can be used.

However, please note that the salt

used in the dyeing process can

cause corrosion to stainless steel

components in the machine if you

dye frequently. Follow the

manufacturer's instructions carefully.

Detergent

37

,Disconnect the machine from the

mains electricity supply and

withdraw the plug from the socket

before cleaning the machine.

,The washing machine must not

be hosed down.

A range of Miele branded cleaning and

conditioning agents is available to

order from the Miele Spare Parts

Department, or via the internet on

www.miele-shop.com.

External casing and fascia

panel

Clean the casing using a Miele E-Cloth,

or with a mild, non-abrasive cleaning

agent or soap and water using a well

wrung-out cloth. Wipe dry with a soft

cloth.

^The drum and any stainless steel

outer panels can be cleaned using a

suitable stainless-steel cleaning

agent following the instructions on

the packaging.

,Do not use solvents, abrasive

cleaners, glass cleaners or

all-purpose cleaning agents.

These might damage plastic

surfaces and other components

because of the chemicals they

contain.

Extra cleaning

Carry out a hot wash (70°C or above)

with powder detergent approx. every 6

weeks to help prevent deposits building

up in the machine. These can occur

when washing is mainly done at low

temperatures, and can lead to

unpleasant smells. If you have no

reason to wash occasionally at this high

temperature, then run a Cottons 95°C

programme with detergent but no

laundry at regular intervals.

Cleaning the detergent

dispenser drawer

For hygienic reasons, clean the entire

drawer at regular intervals.

^Pull out the detergent dispenser

drawer until a resistance is felt. Press

down the release catch and at the

same time pull the drawer right out of

the machine.

^Clean the detergent drawer with

warm water.

Cleaning and care

38

^Clean the siphon.

1. Remove the siphon from

compartment §and rinse under

warm running water. Clean the

siphon tube in the same way.

2. Replace the siphon.

If starching frequently, thoroughly

clean the siphon and siphon tube

regularly. A build-up of starch will

cause them to get clogged.

Cleaning the detergent dispenser

drawer housing

^Use a bottle brush to remove

detergent residues and limescale

from the jets inside the detergent

dispenser drawer housing.

Cleaning and care

39

Cleaning the filter in the water

inlet

The washing machine has a filter to

protect the water inlet valve.

The accessible filter in the union in the

open end of the inlet hose should be

checked every six months, or more

often if there are frequent interruptions

to the external water supply.

^First turn off the stopcock.

^Unscrew the threaded union

connecting the free end of the inlet

hose to the stopcock.

^Remove the rubber seal 1from the

recess.

^Using pointed pliers, take hold of the

plastic filter bar 2and remove.

^Clean the plastic filter.

^Put the filter and seal back in the

reverse order and reconnect the

hose.

Turn on the stopcock and check the

connection is watertight. If water drips

out, tighten the connection.

Never forget to put the filter back in

place after cleaning.

Cleaning and care

40

With the help of the following notes, minor faults in the performance of the

appliance, some of which may result from incorrect operation, can be put right

without contacting the Service Department.

,Repair work to electrical appliances should only be carried out by a

suitably qualified person in strict accordance with current local and national

safety regulations. Repairs and other work by unqualified persons could be

dangerous. The manufacturer cannot be held liable for unauthorised work.

The programme does not start

Problem Possible cause Remedy

The display remains

dark.

There is no power to the

machine.

Check whether

– the mains plug is plugged

in and switched on.

– the fuse or circuit breaker

has tripped.

You are asked to

enter a code.

Access via a code has

been activated.

Enter the code and confirm

the entry. Deactivate the

code if you do not wish this

message to appear in the

display the next time the

machine is switched on.

There is a fault

message in the

display.

A programme cannot be

started while there is a

fault message in the

display.

–Note what is shown in the

display.

–Switch the washing

machine off and then

back on again with the

Kbutton. The fault

message will be deleted.

The display is dark

and the Start button

is flashing slowly.

The display has switched

off automatically to save

energy (Standby mode).

Press one of the short cut

buttons. Standby comes to

an end.

Problem solving guide

41

Problems with the load size indicator

Problem Possible cause Remedy

The display

indicates a load of

< 25% even though

the drum is full.

There was already

laundry in the drum

when the washing

machine was switched

on. This has

decalibrated the

sensor from the zero

setting.

^To recalibrate the sensor to the

zero setting:

–Remove the laundry from the

drum and leave the door

open.

–Switch off the washing

machine.

–Switch on the washing

machine.

– Press short cut button 1. The

main menu for the Cottons

programme appears.

– Press short cut button 1

Detergent in until the display

shows:

Zero setting OK.

The display

indicates a load of

25%,50%,75% or

100% when the

drum is empty

The load size sensor

has been decalibrated

from the zero position.

Rotate the drum once. If the

display still indicates a load of

25%,50%,75% or 100%,

recalibrate the sensor to zero

again (see above section).

Problem solving guide

42

General problems

Problem Possible cause Remedy

The machine shakes

during the spin cycle.

The machine feet are not

level.

Level the machine (see

"Installation and

connection").

The laundry has not

been spun properly and

is still wet.

The machine detected an

imbalance during the final

spin and reduced the

spin speed automatically.

Include both large and

small items in the load as

this will give better

distribution.

The laundry has not

been spun satisfactorily.

The spin speed selected

was too low.

Select a higher spin

speed next time.

The pump makes

strange noises.

This is not a fault! These noises occur at the end of

a pump sequence as a normal part of the operation.

There is a lot of

detergent residue in the

detergent drawer.

The water pressure is too

low.

– Clean the water inlet

filter.

– Select Water plus.

Powder detergent used

with water softeners can

be sticky.

Add washing powder

and then add the water

softener.

Fabric conditioner is not

completely dispensed or

too much water remains

in the §compartment.

The siphon tube is not

correctly positioned, or is

clogged up.

Clean the siphon, (see

“Cleaning and care -

Cleaning the detergent

dispenser drawer”).

The display is in a

different language.

A different language has

been selected in Settings

Language !.

Set the language you

want. The flag symbol

will guide you.

When laundry is dry it

feels hard to the touch.

Too vigorous wash

action.

Programme in gentle

action and more water.

Not enough detergent

used.

Increase detergent dose

to prevent limescale

build up in laundry.

No fabric conditioner

used.

Use fabric conditioner in

last rinse.

Power cut Once power has been restored, switch the washing

machine on with the Kbutton to continue the

programme.

Problem solving guide

43

An unsatisfactory wash result

Problem Possible cause Remedy

Liquid detergent

does not give the

required result.

Liquid detergents

usually contain no

bleaching agents.

They do not remove

fruit, coffee and tea

stains.

–Use a general purpose

detergent containing a

bleaching agent.

–Pour stain removers into

compartment jof the

dispenser drawer and liquid

detergent into a dispenser ball.

–Never put stain removers and

liquid detergent together in the

dispenser drawer.

Grey, greasy

particles cling to

washed laundry.

Insufficient amounts of

detergent were used

to break down the

particles of grease in

heavily soiled laundry.

– Use more detergent.

– Before washing the next load

run a Cottons 95°C programme

with powder detergent but

without a load.

A stale smell is in

the drum and on

laundry.

Low temperature

washing.

– Before washing the next load

run a Cottons 95°C programme

with powder detergent but

without a load.

White residues

which look like

powder detergent

are seen on dark

textiles after

washing.

The detergent

contained compounds

(zeolites) to aid water

softening which are

not soluble in water.

They have ended up

on the laundry.

–Try and brush off the residues

with a soft brush once the

laundry is dry.

–Wash dark textiles using a

detergent which contains no

zeolites. Liquid detergents

usually contain no zeolites.

–Use the Dark garments

programme.

Clothes are coming

out creased.

The machine was

overloaded.

–Reduce quantity of clothes in

drum.

The wrong

programme was used.

–Check care labels and the

programme chart.

–Use easy iron conditioners.

Problem solving guide

44

The drum door cannot be opened by pressing the /button

Possible cause Remedy

The machine is not

connected to the

electricity supply and / or

is not switched on.

Insert the plug in the socket and switch on and / or

switch the machine on with the Kbutton.

The safety lock has been

activated.

Deactivate the lock as described in "Changing the

programme sequence - Safety lock".

Access via a code has

been activated.

Deactivate the code as described in "Settings

menu".

Power cut Open the drum door as described in the next

section.

The door was not

correctly engaged.

Press hard against the lock side of the drum door

and then press the /button.

There is still water in the

drum and the machine is

unable to drain.

Clean the drain filter and drain pump as described

in the next section.

For safety reasons the drum door cannot be opened if the suds temperature is

higher than 55°C.

Problem solving guide

45

Opening the drum door in the

event of a blocked drain outlet

and/or power failure

^Switch the washing machine off.

There is a lever behind the detergent

drawer fascia panel.

^Remove the lever.

^Use it to open the access flap.

Blocked drain outlet

If the drain outlet is blocked, up to

25 litres of water will be retained in the

machine.

,Caution: if laundry has been

washed at a high temperature, water

draining out of the machine will still

be hot. Danger of scalding!

Procedure for draining the machine

^Place a suitable container under the

access flap.

When draining water from the

machine, do not unscrew the drain

filter completely or take it right out.

^Unscrew the drain filter lid until water

runs out.

To interrupt the flow of water:

^Tighten the drain filter back up again.

Problem solving guide

46

Once the flow of water ceases:

^Remove the drain filter completely.

^Clean it thoroughly.

^Remove any foreign objects (e.g.

buttons, coins, etc.) and fluff from the

filter housing. Turn the impeller by

hand to check that it rotates freely.

Any foreign object causing an

obstruction should be removed.

^Put the drain filter back in place and

secure.

,Make sure the drain filter is

securely tightened. Otherwise there

is a risk of water leakage during use.

Opening the drum door

,Always make sure that the drum

is stationary before reaching into the

machine to remove laundry.

Reaching into a moving drum is

extremely dangerous.

^Pull the emergency release

downwards (see illustration). The

drum door will open.

Problem solving guide

47

In the event of any faults which you

cannot remedy yourself, please

contact:

–your Miele Dealer or

–Miele (see back cover for contact

details).

When contacting your Dealer or Miele,

please quote the model and serial

number of your machine, both of which

are shown on the data plate visible

above the porthole glass when the door

is open.

N.B. A call-out charge will be applied

for service visits where the problem

could have been resolved as

described in these instructions.

Future updates (PC)

The indicator light marked PC is the

interface used by Miele service

technicians during servicing work for

testing purposes and for updating the

machine's programme data.

Appliance guarantee

Please see the guarantee card

supplied with your machine.

Optional spare parts and accessories

Optional spare parts and accessories

for this washing machine are available

from your Miele Dealer, the Miele Spare

Parts Department or via the internet at

www.miele-shop.com.

Please note that telephone calls may

be monitored and recorded for

training purposes.

After sales service

48

Front view

aInlet hose with "Waterproof" system

bElectricity supply cable

c-fFlexible drain hose (with

detachable swivel elbow)

gControl panel

hDetergent dispenser drawer

iDrum door

jAccess to drain filter, drain pump

and emergency release

kHandle recesses for moving the

machine

lFour height adjustable feet

Installation and connection

49

Rear view

aProtruding lid for holding when

moving the machine

bSlot for Miele|home communication

module

cElectricity supply cable

dInlet hose with "Waterproof" system

eDrain hose

fTransit bar covers

gRestraining clip for inlet hose and

drain hose

hRestraining clips for transit bars

when removed

Installation and connection

50

Installation surface

A concrete floor is the most suitable

installation surface for a washing

machine, being far less prone to

vibration during the spin cycle than

wooden floorboards or a carpeted

surface.

Please note the following points:

^The machine must be level and

securely positioned.

^To avoid vibrations during spinning,

the machine should not be installed

on soft floor coverings.

If installing on a wooden joist floor:

^We recommend a plywood base

(at least 59x52x3 cm). The base

should span several joists and be

bolted to the joists and not only to the

floorboards. Check for the presence

of pipes and cables.

If possible, install the machine in a

corner, as this is usually the most stable

part of the floor.

,If the machine is installed on a

raised plinth, it has to be secured

against slippage during spinning

using retaining clips (available from

the Miele Spare Parts Dept).

Otherwise there is a danger of the

machine moving about.

Installing the washing machine

To manoeuvre the machine out of its

packing case to its installation site hold

it by the edge of the lid where it

protrudes to the rear of the washing

machine as well as by the handle

recesses at the front.

,Ensure that the machine feet and

the floor are dry to prevent the

machine from slipping during the

spin cycle.

Removing the transit bars

^To remove the left and right covers

1. Use a screwdriver to prise out the

cover as illustrated.

2. Pull the cover forwards to remove.

Installation and connection

51

^Using the spanner supplied turn the

left-hand transit bar 90°, then

^withdraw the transit bar.

^Turn the right-hand transit bar 90°,

then

^withdraw the transit bar.

Installation and connection

52

,To avoid the risk of injury the

holes for the transit bars must be

covered after the transit bars have

been removed.

^Fit the covers on to the two holes.

Then plug the holes as shown with

the caps.

^Secure the transit bars to the back of

the washing machine. Make sure that

holes bare fitted over retainers a.

,The washing machine must not

be moved without the transit bars in

place.

Store them as shown or keep them

in a safe place for future use. They

must be re-fitted if the machine is to

be moved again (e.g.when moving

house).

Re-fitting the transit bars

Re-fitting is carried out by reversing the

procedure.

Installation and connection

53

Levelling the machine

The machine must stand perfectly level

on all four feet to ensure safe and

proper operation.

Incorrect installation may increase

electricity and water consumption and

may cause the machine to move about.

False values may also show in the Load

and Detergent display.

Screwing out and adjusting the feet

The four adjustable screw feet are used

to level the machine. All four feet are

screwed in when the machine is

delivered.

^Using the spanner supplied turn

counter nut 2in a clockwise

direction. Then turn counter nut 2

together with foot 1to unscrew.

^Use a spirit level to check the

machine is standing level.

^Hold foot 1securely with a pipe

wrench. Turn counter nut 2again

using the spanner supplied until it

sits firmly up against the housing.

,All four counternuts must be

firmly up against the housing. Please

also check this for the feet which did

not need adjustment. Otherwise

there is the danger of the machine

moving about.

Installation and connection

54

The fitting of building-under kits and

stacking kits must only be

undertaken by qualified and

competent persons, in accordance

with the instructions supplied with

the kit.

Building under a continuous

worktop/in a kitchen run

If you wish to push your machine under

a worktop and there is space to do this

without removing the lid, the

conversion kit is not necessary.

Otherwise the conversion kit is

essential.

– A special building-under conversion

kit* is required.

To ensure electrical safety, the

washing machine lid must be

replaced by the cover plate supplied

with the conversion kit.

– For installation under a work surface

900/910 mm from the floor, a raising

kit* is required.

–Connections for electricity, water and

drainage should be installed in such

a way that they remain accessible

when the machine is in place.

Fitting instructions are supplied with the

conversion kit.

All parts marked* are available from

your Dealer, the Miele Spare Parts

Department or via the internet at

www.miele-shop.com.

Washer and Dryer stack

A Miele tumble dryer can be stacked

with the washing machine. A "WTV"

stacking kit* is necessary.

Please note:

aSafety distance to wall:

at least 2 cm

bHeight:

Stacking kit with pull-out shelf:

approx. 169 cm

Stacking kit without pull-out shelf:

approx. 170 cm

Replacing the lid

If the lid has been removed in order to

fit a stacking kit or cover plate, ensure

that, if the lid is replaced, it fits securely

into the rear holders. Otherwise, it is not

properly secure for transport.

Installation and connection

55

The Miele Waterproof system

The Miele Waterproof system protects

the washing machine from water

damage.

The system consists of three main

components:

1) the inlet hose

2) the electronic unit and the washing

machine housing

3) the drain hose

1) Inlet hose

– The inlet hose is fitted with an

additional electrical safety valve

which works like an automatic

stopcock and is housed in the inlet

hose connection box.

– It is pressure tested to between

7,000 and 10,000 kPa.

– The inlet hose has a protective

sleeve.

Any leaking water from the inlet hose

is fed into the sump through this

protective sleeve. A float switches off

the safety valve, preventing any

more water from flowing into the

machine and water in the suds

container is pumped away.

2) Electronic unit and washing

machine housing

–Sump

Any leaking water is collected in a

sump in the base of the machine. A

float switches off the safety valves,

preventing any more water from

flowing into the machine and water in

the suds container is pumped away.

–Overflow protection

This prevents the washing machine

taking in too much water. If the water

level exceeds a certain level, the

drain pump switches in and pumps

the excess water away.

3) Drain hose

The drain hose is protected by a

ventilation system which prevents the

washing machine from being

emptied completely.

Installation and connection

56

Connection to the water supply

,The plastic casing of the safety

valve contains electrical

components. The Waterproof system

must only be connected to its own

stopcock. It must not be connected

to mixer taps or similar and must not

be fitted in areas where there is the

risk of water or other liquids

reaching it.

Do not get wet.

The protective sleeve of the hose

must not be damaged or kinked.

The machine should be connected to

the mains water supply in accordance

with local and national safety

regulations. The German authorities do

not require it to have a non-return valve

as the washing machine has been

designed to comply with DIN

regulations.

The machine is designed to operate

with a flow pressure of between 100

and 1,000 kPa (1-10 bar). If it is higher

than 1,000 kPa it is essential to fit a

pressure reducing valve.

Connection to the mains water supply

should incorporate a mains stopcock

with 3/4" thread. The stopcock should

be fitted by a qualified plumber.

,The connection point is subject

to mains water pressure. Turn on the

stopcock slowly and check for leaks.

Correct the position of the washer

and union if appropriate.

The washing machine is not suitable

for connection to a hot water supply

and connection to a household

water softener is not recommended.

Installation and connection

57

Maintenance and care

If you intend to unscrew the Miele

Waterproof system hose from the

stopcock it is essential to disconnect

the machine from the electricity supply

first.

Only use a Miele Waterproof system

hose should you need a replacement.

In order to protect the water inlet

valve, the dirt filter in the water inlet

valve connection must not be

removed.

Extension hose

A 1.5 metre long (metal) extension hose

is available from your Miele dealer or

the Miele Spare Parts Department as an

optional extra.

This hose is tested to withstand

pressures of up to 14,000 kPa and can

be used as a flexible extension to the

water supply.

N.B. Using this hose renders the

Waterproof system safety valve on the

inlet hose ineffective.

Installation and connection

58

Connection to the drainage

system

The machine drains via a drain pump

with a delivery head of 1 metre*. The

drain hose must not be kinked as this

restricts drainage. The swivel elbow at

the end of the hose can be turned in

either direction, or can be detached if

required, with a sharp twist and pull.

If required, the drain hose can be

extended to a length of 5 m. The

necessary parts can purchased from

the Miele Spare Parts Department or

your Miele dealer.

* For a delivery head of more than 1 m

(up to a max. of 1.8 m) a replacement

drain pump will need to be fitted.

Please contact the Miele Spare Parts

Department or your Miele Dealer.

Drain hose connection:

1. Direct into a sink or basin:

Please note the following:

–Hook the hose over the edge and

secure.

–Make sure that the water can drain

away freely without hindrance.

Otherwise there is a risk of water

overflowing or of some of the drained

water being sucked back into the

machine.

2. Connected securely to a plastic

drain pipe with a rubber nipple.

There is no need to use a non-return

valve.

3. Connected securely to a standpipe.

4. Connected securely to a floor gully.

Please note:

aAdapter

bNut

cHose clip

dEnd of the hose

^Fit adapter ato the sink drain outlet

using nut b.

^Attach the end of the hose dto

adapter a.

^Use a screwdriver to tighten hose

clip cup close to the nut.

Installation and connection

59

Electrical connection U.K.

All electrical work should be carried out

by a suitably qualified and competent

person, in strict accordance with

current national and local safety

regulations (BS 7671 in the UK).

Ensure power is not supplied to the

appliance until after installation work

has been carried out.

The appliance is supplied with a mains

cable with moulded plug ready for

connection to a 230-240V mains

supply.

Please ensure the connection data

quoted on the data plate match the

household mains supply.

Connection should be made via a

suitable switched socket which is easily

accessible after installation.

For extra safety it is advisable to protect

the machine with a suitable residual

current device (RCD). Contact a

qualified electrician for advice.

Do not connect via an extension lead.

Extension leads do not guarantee the

required safety of the appliance (e.g.

danger of overheating).

Non-rewireable plugs BS 1363

The fuse cover must be refitted when

changing the fuse, and if the fuse cover

is lost, the plug must not be used until a

suitable replacement is obtained. The

colour of the correct replacement cover

is that of the coloured insert in the base

of the plug, or the colour that is

embossed in words on the base of the

plug (as applicable to the design of

plug fitted).

Replacement fuses should be ASTA

approved to BS 1362 and have the

correct rating. Replacement fuses and

fuse covers may be purchased from

your local electrical supplier.

WARNING: THIS APPLIANCE

MUST BE EARTHED

Installation and connection

60

Load Consumption data

Energy Water Duration

in kWh in litres Short Normal

Cottons 95°C 6.0 kg 1.99 47 2 h 09 min

60°C1) 6.0 kg 1.02 47 1 h 49 min

60°C 3.0 kg 0.73 39 1 h 03 min

40°C1) 6.0 kg 0.65 59 2 h 04 min

40°C2) 3.0 kg 0.36 39 59 min

Minimum iron 40°C1) 3.0 kg 0.50 55 59 min 1 h 19 min

Delicates 30°C 2.0 kg 0.35 69 49 min 59 min

Automatic 40°C 3.5 kg 0.35 - 0.50 40 - 55 – 1 h 18 min

Dark garments 40°C 3.0 kg 0.60 60 1 h 05 min 1 h 15 min

Shirts 60°C 2.0 kg 1.00 59 1 h 02 min 1 h 12 min

Denim 40°C 3.0 kg 0.50 52 50 min 1 h 00 min

Express 40°C 3.0 kg 0.30 34 – 30 min

Woollens /30°C 2.0 kg 0.23 39 – 39 min

Silks /30°C 1.0 kg 0.25 39 – 36 min

Sportswear 40°C 2.0 kg 0.35 35 47 min 1 h 07min

Outerwear 40°C 2.0 kg 0.45 59 53 Min. 1 h 03 min

Hygiene 60°C 6.0 kg 1.40 55 – 2 h 20 min

First wash 40°C 3.0 kg 0.37 35 – 51 min

Proofing 40°C 2.0 kg 0.30 12 – 29 min

Curtains 40°C 2.0 kg 0.45 38 – 55 min

Pillows 60°C 1 pillow 0.80 44 – 1 h 20 min

Notes for test institutes:

1) EN 60456 test programme

2) Short programme for test institutes; the Short extra option must be selected.

Consumption data can vary from the nominal values given depending on water

pressure, water hardness, water inlet temperature, room temperature, type and

volume of load, fluctuations in the electricity supply and any extra options

selected.

Consumption data

61

Height 850 mm

Width 595 mm

Depth 580 mm

Depth with door open 975 mm

Height for building under 820 mm

Width for building under 600 mm

Depth for building under 600 mm

Weight 94 kg

Capacity 6 kg dry laundry

Voltage see data plate

Connected load see data plate

Fuse rating see data plate / plug

Consumption data see "Consumption data"

Water flow pressure minimum 100 kPa (1 bar)

Water flow pressure maximum 1000 kPa (10 bar)

Inlet hose length 1.60 m

Drain hose length 1.50 m

Mains connection cable length 1.60 m

Delivery head max. 1.00 m

Maximum drainage length 5.00 m

LEDs Class 1

Test certificates awarded see data plate

Technical data

62

Settings menu

for changing default settings

The Settings menu is used to alter the washing machine's electronics to suit

changing requirements.

Settings can be altered at any time.

To open the Settings menu

1 Cottons 60°C Programme selection ...

2 Minimum iron 40°C Settings !...

3 Automatic 40°C

4 Woollens H30°C 15:00

^Select Settings !from the entry menu and confirm your

selection with the multi-function selector.

Selecting settings

Settings Back A

Language !

Time of day...

Water plus H

^Select the setting you want to change, and confirm your

selection.

If you do not make a selection in the sub-menu within approx.

20 seconds, the menu display will revert to the Settings

menu.

Language !

The display can be set to appear in one of several different

languages.

To select the language you want, go to the Languages !

sub-menu.

The flag after the word Language acts as a guide to prevent

a language which will not be understood from being set.

A tick will appear beside the language to show that it has

been set.

^If the language shown is not the one you want turn the

multi-function selector to highlight the one that you do want

and confirm your selection.

Settings menu

64

Time of day

First select either a 24 hour or 12 hour clock. Then set the

current time of day.

To select a 24 hour or 12 hour clock

Settings Back A

Time of day 24 h clock

12 h clock

^Select the clock option you want and confirm your

selection.

The display will then change to the screen for setting the

time.

To set the time

12:00

Set the time

^Use the multi-function selector to select the hour and

confirm your selection. Now set the minutes. Pressing the

multi-function selector again saves the time in memory.

The time can be changed at any time later on by:

1 Cottons 60°C Programme selection ...

2 Minimum iron 40°C Settings !...

3 Automatic 40°C

4 Woollens H30°C 15:00

^Highlighting the time in the Entry menu and confirming your

selection.

Settings menu

65

Water plus

This setting is used to select the

water intake setting for the Water plus

extra option.

There are three different options:

Water +

(the machine is delivered with this

option selected)

The water level is increased in the wash

and rinse stages.

Additional rinse

An extra rinse is introduced.

Water + and add. rinse

The water intake is increased in the

wash and rinse stages and an

additional rinse is also introduced.

Gentle action

Activating gentle action reduces the

drum action and is suitable for

washing slightly soiled items more

gently. It should be activated for

garments with a single bar under the

care label and for articles which feel

too hard after they have been dried.

Gentle action can be activated for the

Cottons and the Minimum iron

programmes.

The washing machine is delivered with

the Gentle action setting deactivated.

Suds cooling

When this is activated, additional

water flows into the drum at the end

of the main wash to cool the suds

down. Hot suds can damage plastic

drainage pipes.

Suds cooling takes place when a

Cottons programme with a temperature

of 70°C or higher is selected.

Suds cooling should be activated:

–to prevent the danger of scalding if

the drain hose is hooked over the

edge of a sink or basin.

–where the drainage pipes do not

comply with DIN 1986.

The machine is delivered with Suds

cooling deactivated.

Settings menu

66

Code

The code prevents your machine being used without your

knowledge.

When the code has been activated, you have to enter a code

after switching the washing machine on. Otherwise the

washing machine cannot be operated.

To activate the Code

Settings Back A

Code Activate

^Select Activate and confirm your selection.

To enter the Code

The display will now request that a code is entered. The code

is 125 and cannot be altered.

0__

Enter code

^Turn the multi-function selector until the number 1appears.

Then press it to confirm your selection of this number. Now

enter the second number.

Repeat the process until all three numbers have been

entered.

Settings menu

67

After the last number has been entered, you must confirm the

code with OK.

125

Confirm code

OK

H

Back A

H

^Confirm the code by pressing short cut button 1.

XCode OK

Code active when machine is switched off

^Switch off the washing machine.

To use the washing machine when the code is activated

When the machine is switched on again, the display will

request the code.

^Enter code 125 as described above, and confirm the entry.

The washing machine is now unlocked and ready for use.

To deactivate the Code

Proceed as for activating the code.

Settings menu

68

Temperature

You can chose for the temperature to

be displayed in °C/Celsius or

°F/Fahrenheit.

Buzzer

When the buzzer function has been

activated, an audible tone sounds at

the end of a programme or when

Rinse hold is reached.

There are three different options:

Off

(the machine is delivered with this

option selected as standard)

The buzzer is switched off but sounds

at maximum volume if there is a fault.

Normal

The buzzer sounds at the end of a

programme or when Rinse hold is

reached.

Loud

The buzzer sounds at maximum volume

at the end of a programme or when

Rinse hold is reached.

Keypad tones

An audible tone sounds when the

Start button, a short cut button or the

multi-function selector is operated.

The machine is delivered with the

keypad tone switched off.

Display contrast

There are ten different display

contrast settings.

The machine is delivered with the

display contrast on Setting 5.

This will change as soon as a different

setting is chosen.

Settings menu

69

Standby

To save energy, the display goes out

and the indicator light for the Start

button flashes slowly.

The display will always go out,

–if a programme is not selected within

10 minutes of the machine being

switched on.

–10 minutes after the end of a

programme.

Operating the multi-function selector or

one of the short cut buttons switches

the display back on again.

You can also choose whether you want

the display to go out 10 minutes after a

programme has started or to remain

visible throughout the programme.

On

The standby function is switched on.

When this option is selected, the

display will go out 10 minutes after a

programme has started.

Not in current prog.

(the machine is delivered with this

option selected as standard)

The standby function is switched off.

The display will remain visible during a

programme.

Memory

If an extra option has been selected

for a programme, or the

recommended temperature or spin

speed has been altered, the machine

will store the changes in memory at

the start of a programme.

These settings will appear in the

display the next time this programme is

selected via the Programme selection

menu.

The memory function is not active when

favourite programmes are selected

using the short cut buttons.

The machine is delivered with the

memory function deactivated.

To close the Settings menu

^Select Back and confirm your

selection.

The display will revert to the entry

menu.

Settings menu

70

The following settings only appear if Communication

module XKM 2000 has been fitted to the washing machine.

Miele{home

This communication enabled washing machine can

transmit programme data through the power lines to the

Miele|home system. The washing machine must be

signed on to the Miele|home system.

Please read the separate operating instructions supplied

with the Miele|home system before you sign on the

washing machine.

Signing on

Settings Back A

Mieleqhome Sign on

^Select Sign on and confirm your selection.

The signing on process will begin. If signing on is successful,

the following will appear after a while :

k

Sign on successful

When the washing machine is in operation, programme data

will be transmitted from it over the power lines.

Settings menu

71

If signing on is unsuccessful:

^Check that the Miele|home system is active.

^Activate the signing on of a new appliance on the

Miele|home system.

^Repeat the signing on process on the washing machine.

Signing off

You can sign off the washing machine if you no longer want

the programme data to be transmitted. Proceed as for

signing on.

Switching off time of day synchronisation

When the signing on process has been successful, the time

of day on the washing machine will be synchronised

automatically with the Miele|home system time of day. This

is useful for example when changing from summer time to

winter time as you only have to change the time on the

Miele|home system.

You can turn this feature off if you want the time on your

washing machine to be different from the time on the

Miele|home system.

To do this, select the Time of day sub-menu from the Settings

menu.

Settings Back A

Time of day 24 h clock

12 h clock

Synchronise

^Select Synchronise and confirm your selection.

^This opens the Synchronise sub-menu.

^Select Off and confirm your selection.

Synchronisation is deactivated.

Settings menu

72

Remote access

This option will be made available in the future.

When available it will enable the washing machine to be

switched on remotely and monitored using another appliance

(e.g. a computer or mobile phone).

Your Miele Dealer will be able to tell you when it becomes

available.

It offers two options:

On

Remote access active. The washing machine can, if wished,

be operated from a remote source. (This option should only

be selected if your computer / mobile phone is confirgured

for this).

Off (the machine is delivered with this option selected as

standard)

Remote access not active.

The entry menu will look like this when remote access is activated:

1 Remote access 60°C Programme selection ...

2 Minimum iron 40°C Settings F...

3 Automatic 40°C

4 Woollens H30°C 15:00

Short cut button 1is automatically set up for Remote access.

The programme previously allocated to button 1remains

stored in memory for this button. It will reappear when the

remote access function is deactivated.

Settings menu

73

You have two options:

Remote access

You can select and start a programme using a mobile phone

or computer.

^Press short cut button 1.

^Press the Start button.

No programme selected

Waiting for remote start ...

Cancel

+

Remote start

You have to select the programme on your washing machine

and then start it later on using your computer or mobile

phone.

Cottons 60°C 1600 rpm

Extras: None Remote start: off

Duration 1:19 h

Detergent

+

Timer +

+

Save

+

Back A

+

^Turn the multi-function selector to Remote start and press it

to confirm your selection.

^Switch remote start on.

^Start the programme.

Cottons 60°C 1600 rpm

Extras: None

Waiting for remote start ...

Detergent

+

Timer +

+

Save

+

Cancel

+

Settings menu

74

Miele washing machines offer perfect

care for your laundry and feature a

wide range of special programmes

designed to suit the fabric being

washed. Miele have also developed a

range of specialist CareCollection

detergents and conditioning products

to offer you a complete package for

cleaning and caring for your laundry.

The Miele CareCollection detergents

and conditioning products are listed

below. You can order these and many

other useful products via the internet at:

All the products can also be ordered

via the Miele Customer Contact Centre

(see back cover for contact details).

CareCollection

Miele specialist detergents

"Outdoor wear"

This specialist detergent will clean your

water-repellent outerwear with care.

"Sportswear"

The Miele Sportswear detergent is

designed to clean sportswear whilst

taking care of the special microfibres

used in these garments. It will help to

neutralise and remove odours whilst

protecting the colour of the fabric and

preventing static build-up.

"Down Items"

This special-purpose detergent

contains a mild tenside and has been

specially formulated to keep down-filled

items supple and to give them bounce.

Miele proofing agent

This special finishing agent reproofs

garments against wind and water and

provides a dirt-repellent finish whilst

retaining elasticity and breathability.

Optional accessories

75

"UltraWhite" detergent

This multi-purpose powder detergent

has excellent stain removal properties

and is suitable for white and light

coloured laundry as well as heavily

soiled coloured items.

"UltraColor" detergent for coloured

garments

This liquid detergent is particularly

suitable for cleaning coloured and dark

garments. The special formulation

offers effective stain removal, even at

low temperatures, while helping to

prevent colours fading.

Liquid detergent "For Delicates"

This liquid detergent is ideal for the

gentle treatment of delicate fabrics,

such as wool and silk. Its special

formulation cleans effectively at

temperatures as low as 20°C, while

protecting the colour of your delicate

garments.

Fabric conditioner

The Miele fabric conditioner will give

your laundry a fresh, natural fragrance.

It makes garments soft to handle and

prevents static build-up during tumble

drying.

Optional accessories

76

77

78

79

Alteration rights reserved/3909/W 3985 WPS M.-Nr. 07 590 080 / 01
