Operating instructions

for Washing machine

W 865

It is essential to read these

operating instructions before

installing or using the machine, to

avoid the risk of accidents, or damage

to the machine.

G

M.-Nr. 05 603 360

Disposal of the packing

material

The transport and protective packing

has been selected from materials which

are environmentally friendly for disposal

and can normally be recycled.

Ensure that any plastic wrappings,

bags etc. are disposed safely and kept

out of the reach of babies and young

children. Danger suffocation!

Rather than just throwing these materi-

als away, please ensure they are of-

fered for recycling.

Disposal of your old appliance

Old appliances contain materials which

can be recycled. Please contact your

dealer, your local waste collection cen-

tre or scrap merchant about potential

recycling schemes.

Ensure that the appliance presents no

danger to children while being stored

for disposal. See the appropriate ad-

vice in the "Warning and safety instruc-

tions".

Caring for our environment

2

Caring for our environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Guide to the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Front view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Warning and safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Washing environmentally and economically. . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Flushing out the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Water hardness reminder dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

How to wash correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Brief guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Before washing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

To start a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

At the end of a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Adding or removing washing after programme start. . . . . . . . . . . . . . . . . . . . . . . 17

Programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

. . . interruption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

. . . alteration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

. . . Skipping a programme stage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Adding detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

It is important to dispense the correct amount, because . . . . . . . . . . . . . . . . . . . 19

Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Water softeners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Fabric conditioners, texturisers, liquid starch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Automatic fabric conditioners, texturisers, or liquid starch . . . . . . . . . . . . . . . 21

Separate fabric conditioner or texturiser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Starching separately. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Contents

3

Programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Programme selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Sequence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Care symbols - washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Additional options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Soak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Pre-wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Short. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Water plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Spin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Electronic programme locking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Maximum water level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Water plus system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Activating the icompartment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Soak time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Gentle action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Top-up rinse for Cottons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Memory function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Cleaning the washing machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Extra cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Cleaning the detergent dispenser drawer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Cleaning the fluff (drain) filter and pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

To clean the water inlet filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

To clean the filter in the union in the open end of the inlet hose: . . . . . . . . . . . 43

To clean the filter in the water inlet valve: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Contents

4

Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

The programme does not start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

The wash programme stops and a fault indicator light comes on. . . . . . . . . . . . . 45

A fault indicator light comes on but the wash programme continues as normal. . 46

General problems or an unsatisfactory wash result . . . . . . . . . . . . . . . . . . . . . . . 47

Opening the drum door in the event of a power failure. . . . . . . . . . . . . . . . . . . . . 50

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Customer contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Appliance guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Future updates (PC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Installation surface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Removing the transit fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Re-fitting the transit bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Levelling the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Screwing out and adjusting the feet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Building under a worktop. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Washer and Dryer stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Connection to water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Connection to the drainage system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Contents

5

Front view

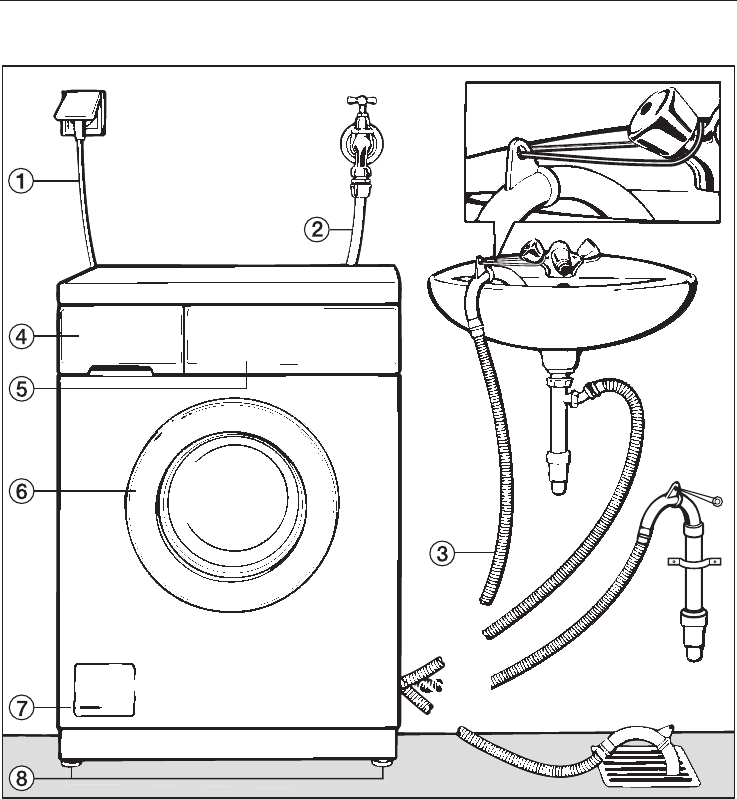

aElectric supply cable

bInlet hose (able to withstand pres-

sures of at least 70 bar)

cFlexible drain hose (with detachable

swivel elbow)

dDetergent dispenser drawer

eFacia panel with controls

fDoor

gAccess panel for drain pump, drain

filter and emergency door release

hFour height adjustable feet

Guide to the machine

6

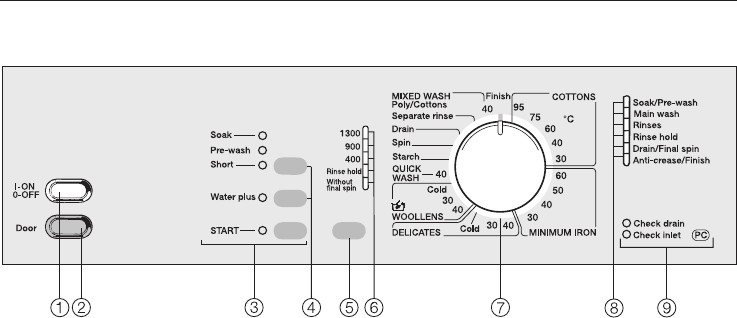

Control panel

aI-ON/0-OFF button

To switch the machine ON or OFF or

to interrupt a programme.

bDoor button

Opens the machine door.

cSTART button

Starts the wash programme

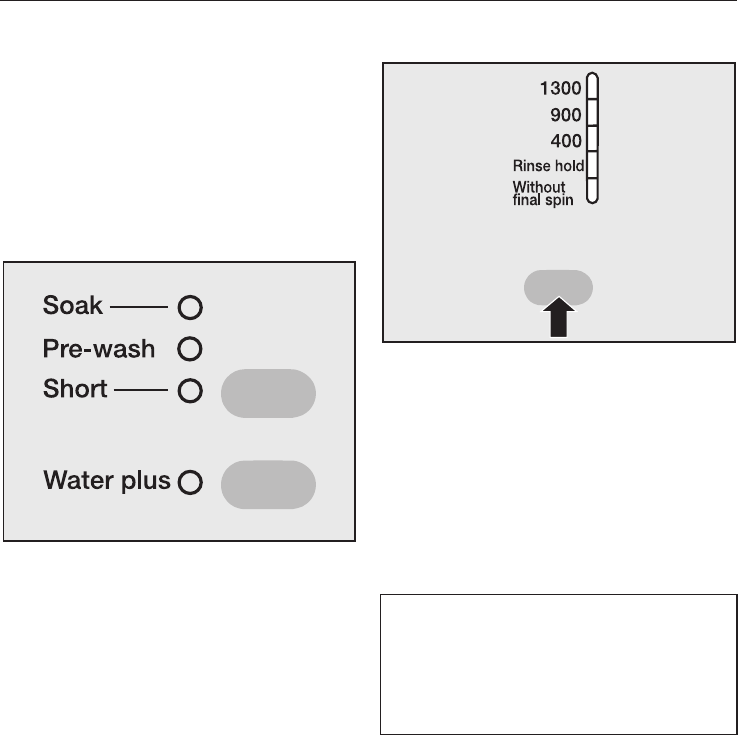

dButtons for additional functions

The upper button is used to select ei-

ther the

Soak

,

pre-wash

or

Short

wash

additional option.

The lower button is used to select the

additional option

Water plus

.

Indicator light on = selected

Indicator light off = not selected

e"Spin" button

For spin speed,

Rinse hold

and

With-

out final spin

fIndicator lights

Showing the selected spin speed.

gProgramme selector

Can be turned clockwise and

anti-clockwise.

hProgramme sequence indicator

lights

iCheck lights

Guide to the machine

7

Read the operating instructions be-

fore using this machine for the first

time. They contain important infor-

mation about the safety, use and

maintenance of the machine. This

way you will avoid the risk of acci-

dents and damage to the machine.

Keep these operating instructions in

a safe place and ensure that new

users are familiar with the content.

Pass them on to any future owner of

the machine.

Correct usage

Only use the washing machine to

wash items which are specified by

the manufacturer to be machine-wash-

able on the wash-care label, and tex-

tiles composed of hand-washable wool

or wool blend fabrics as well as satin,

lace, silk and other hand-washable gar-

ments.

Any other applications may be danger-

ous. The manufacturer is not liable for

damage resulting from improper use or

operation.

This appliance should not be oper-

ated by children. Supervise its use

by the elderly or infirm.

Technical safety

Before setting up the machine,

check it for any externally visible

damage. Do not install and use a dam-

aged machine.

Before connecting the machine,

ensure that the connection data on

the data plate (fusing, voltage and fre-

quency) match the mains electricity

supply. If in any doubt, consult a quali-

fied electrician.

The electrical safety of this appli-

ance can only be guaranteed when

continuity is complete between the ma-

chine and an effective earthing system

which complies with local and national

regulations. It is most important that this

basic safety requirement is regularly

tested by a qualified electrician.

The manufacturer cannot be held liable

for the consequences of an inadequate

earthing system (e.g. electric shock).

Do not connect the appliance to

the mains electricity supply by an

extension lead. Extension leads do not

guarantee the required safety of the

appliance (e.g. danger of overheating).

The machine is built in accordance

with current safety requirements.

Unauthorised repairs could result in un-

foreseen dangers for the user, for which

the manufacturer cannot accept liabilty.

Repairs should only be undertaken by a

Miele approved engineer.

Ensure current is not supplied to the

appliance while maintenance or repair

work is being carried out.

The machine is only completely

isolated from the electricity supply

when:

–it is switched off at the wall socket

and the plug is withdrawn, or

–it is switched off at the mains, or

–the mains fuse is withdrawn.

Warning and safety instructions

8

This machine must only be con-

nected to the on-site water supply

using a new hose kit. Old hoses must

not be re-used. Check the hose regu-

larly for signs of wear and tear. Change

in good time to avoid the risk of leaks

and subsequent damage.

Faulty components must only be

exchanged for Miele original spare

parts. Only when these parts are fitted

can the safety standards of the ma-

chine be guaranteed.

In countries where there are areas

which may be subject to infestation

by cockroaches or other vermin, pay

particular attention to keeping the appli-

ance and its surroundings in a clean

condition at all times. Any damage

which may be caused by cockroaches

or other vermin will not be covered by

the appliance guarantee.

Use

This equipment is not designed for

maritime use or for use in mobile

installations such as caravans, aircraft

etc. However it may be suitable for

such usage subject to a risk assess-

ment of the installation being carried

out by a suitably qualified engineer.

Do not install your washing ma-

chine in rooms where temperatures

below freezing may occur. Frozen

hoses may burst under pressure. The

reliability of the electronic control sys-

tem may be impaired at temperatures

below freezing point.

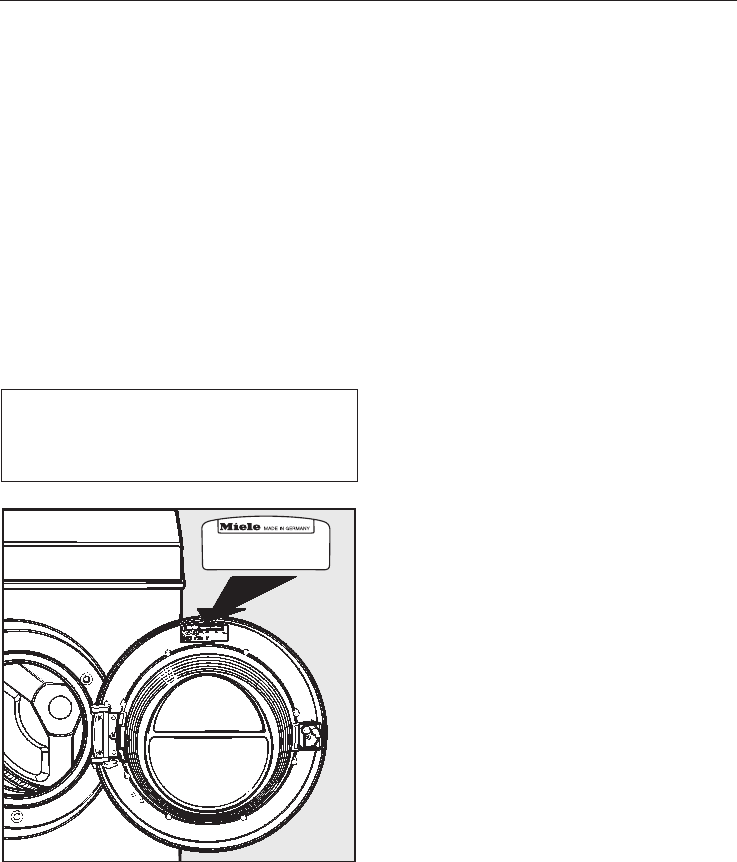

Before using the machine for the

first time, check that the transit fit-

ting at the rear of the machine has been

removed (see section on "Installation").

During spinning, a transit fitting which is

still in place may result in damage to

both the machine and adjacent furni-

ture or appliances.

Turn off the stopcock if the ma-

chine is to be left for any length of

time (e.g. holiday), especially if there is

no floor drain (gully) in the immediate

vicinity.

Flooding danger.

If hooking the drain hose into a

wash basin, check that the water can

drain off quickly enough to prevent the

sink from overflowing.

Make sure the drain hose is secure, so

that the force of the water flowing out of

the hose does not dislodge it. Other-

wise this will result in flooding.

Take care to ensure that foreign ob-

jects (e.g. nails, needles, coins,

paper clips, etc.) do not find their way

into the machine with the washing (e.g.

in pockets). Foreign objects can dam-

age components of the machine, which

in turn can result in damage to the

washing.

Warning and safety instructions

9

If the correct amount of detergent

is dispensed, the machine should

not need to be descaled. If, however,

you do wish to descale the machine

only use proprietary non-corrosive

descaling agents and strictly observe

the instructions on the packaging. If in

doubt, contact the Miele Customer Ser-

vice Dept. or your Miele Dealer.

Textiles which have been

pre-treated in solvent based clean-

ing agents must be thoroughly rinsed in

clean water before being washed in the

machine.

Never use solvent based cleaning

agents in this machine, as this may

result in damage to component parts

and create toxic fumes. Such deter-

gents also pose a fire and explosion

hazard.

Only use dyes specified by the

manufacturer as being suitable for

use in a domestic washing machine. Al-

ways observe the manufacturer's in-

structions carefully.

Colour run and dye removers con-

tain sulphur compounds which can

cause damage such as corrosion. Do

not use these products in this machine.

For machines with a ‘porthole’

door, remember that the porthole

glass will be hot when washing at very

high temperatures. Do not let children

touch it.

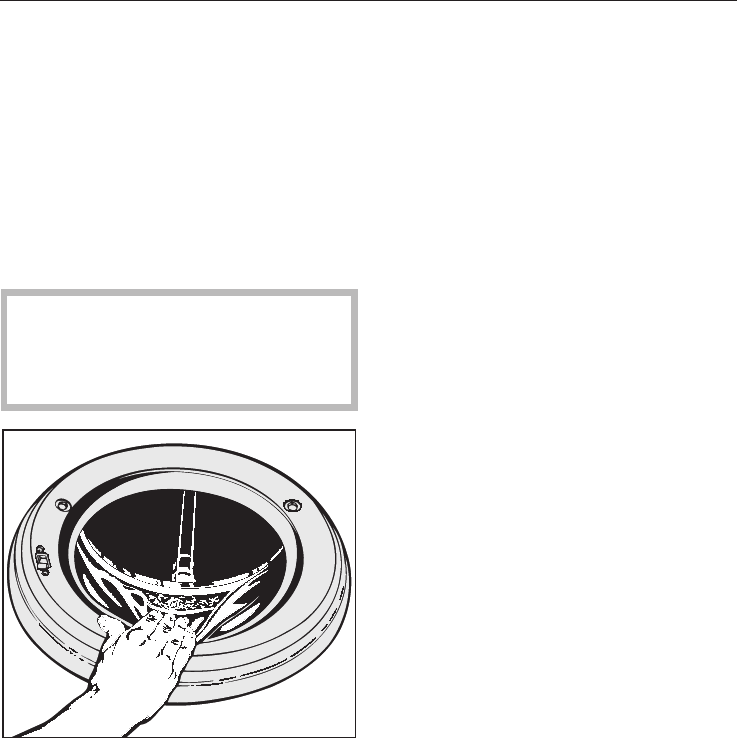

Always make sure the drum is sta-

tionary before reaching in to re-

move washing. Reaching into a moving

drum is extremely dangerous.

Accessories

Accessory parts may only be fitted

when expressly approved by Miele.

If other parts are used, guarantee, per-

formance and product liability claims

will be invalidated.

Disposal of your old machine

Before discarding an old machine

unplug it. Render the plug useless.

Cut off the cable directly behind the ap-

pliance to prevent misuse. This should

be done by a competent person.

Warning and safety instructions

10

–Water consumption and energy us-

age are determined by the size of the

load. Load to the maximum recom-

mended for the programme selected.

–Programme durations can vary con-

siderably due to the automatic load

adjustment feature. Depending on

the amount of laundry, the main wash

may be shortened and one rinse

omitted.

–Use the

Mixed Wash

programme or

the

Quick Wash

programme for

smaller amounts of laundry.

– To save energy wash normally and

lightly soiled laundry at lower tem-

peratures. The 95°C Cottons

programme is probably only needed

in exceptional circumstances, e.g.

for oil based stains or where a very

hot wash is required.

– A main wash (programme without

pre-wash) is sufficient to clean nor-

mally soiled laundry.

–By using the additional option

Soak

for heavily soiled laundry you can se-

lect a lower temperature in the main

wash.

–Use the additional option

Soak

in-

stead of

Pre-wash

with heavily soiled

laundry.

If

Soak

is followed immediately by a

main wash the same suds are used.

–Use the

Short

wash option for nor-

mally or very lightly soiled laundry.

–Do not exceed the amounts of deter-

gent which may be recommended by

the manufacturer on the packaging.

–Reduce the amounts of detergent

with smaller loads, (e.g. with a half

load, approx. one third less deter-

gent).

–Select the highest suitable spin

speed in the wash programme when

tumble drying afterwards.

Washing environmentally and economically

11

Before using the machine for the first

time ensure that it is correctly in-

stalled and connected. See the rele-

vant section under "Installation".

Also check that the fluff filter is se-

curely tightened. Otherwise there is

a risk of water leakage during use.

Flushing out the machine

Any residual lubricants and water from

testing still in the machine should be

flushed out as follows:

^Turn on the stopcock.

^Do not load any laundry.

^Add detergent to compartment j,

however only add max.1/4of the

amount recommended on the pack-

aging for a full load.

^Press the I-ON/0-OFF button in.

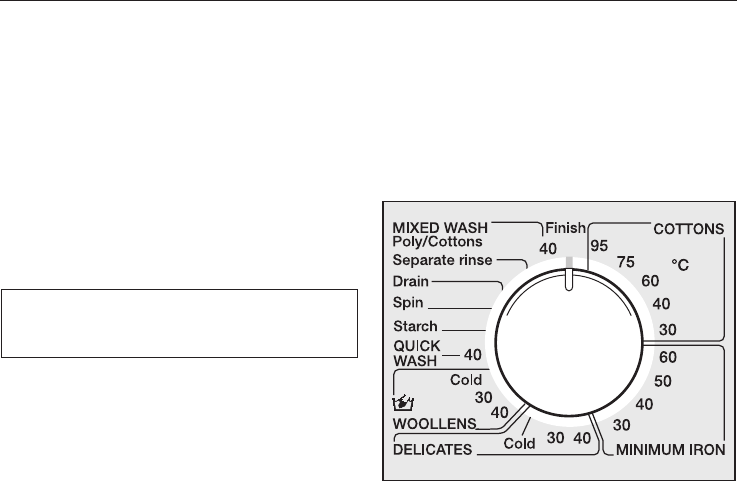

^Turn the programme selector to COT-

TONS 60°C.

Important!

This programme must be selected in or-

der to prepare the machine for spinning

and to activate the ball valve.

^Press the

Water plus

button in. The

indicator light next to it will come on.

^Press the "Spin" button repeatedly un-

til the

Without final spin

indicator light

comes on.

^Press the START button.

^When this programme has finished

your washing machine is ready for

using for the first time.

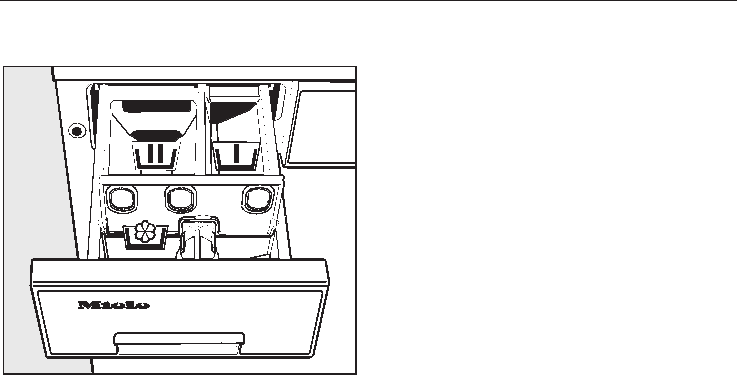

Water hardness reminder dial

Several factors including the water

hardness level in your area will affect

how much detergent you should use.

The small dial in the detergent dis-

penser drawer can be set purely as a

reminder of the hardness level.

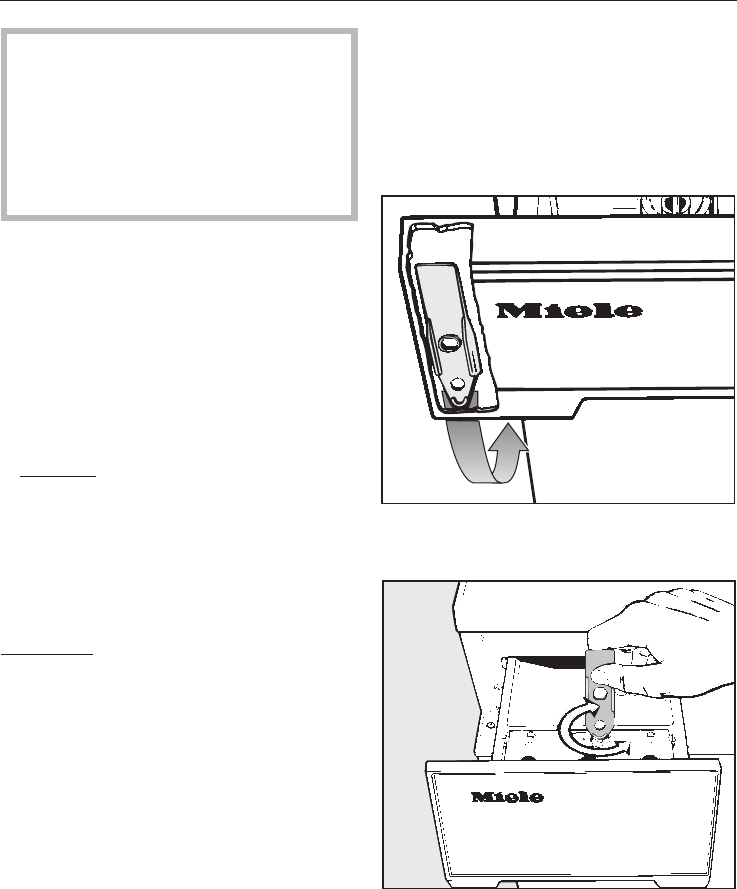

^Remove the yellow spatula from in-

side the dispenser drawer.

^Adjust the dial to the appropriate set-

ting (1 = soft, 4 = very hard).

Before using for the first time

12

Brief guide

The headings numbered (A,B,C,...)

show the operating sequence and can

be used as a brief guide.

Before washing

ASort the laundry.

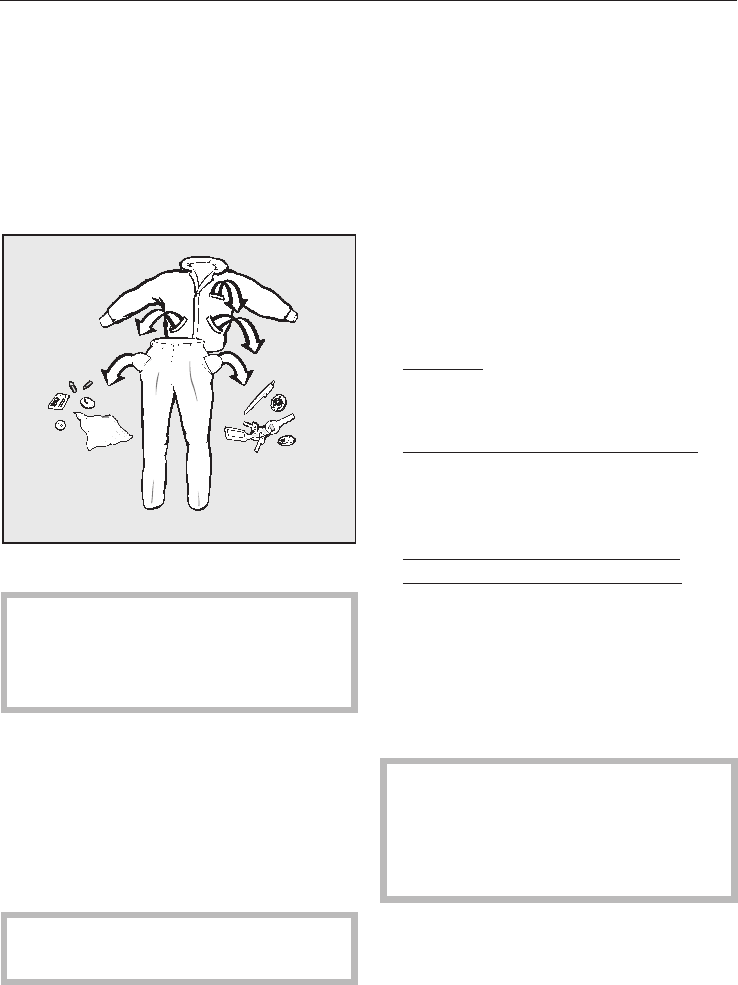

^Empty all pockets.

Foreign objects (e.g. nails, coins,

paper clips, etc.) can cause dam-

age to textiles and components in

the machine.

^Badly soiled areas, e.g. collars and

cuffs, and water soluble stains can

be pre-treated with bar soap, liquid

detergent or detergent mixed into a

solution or paste.

With particularly stubborn stains ask

your dry cleaner for advice.

Do not use solvent-based cleaning

agents in this machine.

^Sort the washing by colour and by

care label symbols. Most garments

have a textile care label in the collar

or side seam.

Dark textiles often contain excess dye

and should be washed separately sev-

eral times before being included in a

mixed load. Always wash whites and

coloureds separately.

Delicate textiles should be washed sep-

arately in a delicates programme (use a

washing bag where appropriate).

–Curtains:

Remove lead weights and strips or

place in a laundry bag.

– Underwiring and collar stiffeners:

Any loose wiring in bras, shirt collar

stiffeners, etc. should be removed or

sewn in.

– Knitted garments, trousers and

jeans, T-shirts and sweat shirts:

Turn inside out, if recommended by

the manufacturer.

–Close any zips, fasten hooks and

eyes etc. before washing.

–Fasten duvet covers to prevent

smaller items rolling up inside them.

Do not wash any items in this ma-

chine which are specified by the

manufacturer as non-machine

washable on the care label. (h

symbol)

How to wash correctly

13

BPress the Door button.

CLoad the drum.

Unfold washing and load loosely in the

drum. To achieve best results it is ad-

visable to make up mixed loads con-

sisting of both large and small items.

This improves the washing effect and

helps distribute the load evenly to keep

the machine stable and reduce the

noise level during spinning.

Overloading reduces the wash result

and causes more creasing.

Maximum load weights are noted be-

low:

COTTONS . . . . . . . . . . . . . . . . . . 5.0 kg

MINIMUM IRON. . . . . . . . . . . . . . 2.5 kg

DELICATES/SYNTHETICS . . . . . . 1.0 kg

WOOLLENS /. . . . . . . . . . . . . . 2.0 kg

QUICK WASH . . . . . . . . . . . . . . . 2.5 kg

MIXED WASH (Poly/Cottons). . . . 3.0 kg

DShut the door with a light swing

but do not slam it. Do not push on

the door to shut it.

Make sure that there is no obstruction

between the drum door and seal.

EOpen the stopcock.

FAdd detergent.

See section on "detergent" for details.

To start a programme

GPress in the I-ON/0-OFF button.

–The programme selector should be

pointing to Finish, the indicator light

Anti crease/Finish

is lit up in the

sequence display.

HTurn the programme selector to

the programme required

See section "Programmes, Programme

survey".

How to wash correctly

14

ISelect any additional option re-

quired.

A maximum of two additional options

can be chosen, provided they are com-

patible with the programme selected,

(see the Programme survey in the Sec-

tion on programmes). Only one option

out of

Soak

,

Pre-wash

and

Short wash

can be selected.

^Press the button for the

Soak

,

Pre-wash

or

Short wash

additional

options, until the indicator for the

chosen option lights up.

^Press the button for the

Water plus

option, if required.

An additional option that has been se-

lected can be de-selected by pressing

the button.

JSelect a spin speed.

^Press the "Spin" button enough times

until the indicator light for the re-

quired final spin speed lights up.

In some programmes the maximum

spin speed is limited. The machine will

not allow a higher spin speed to be se-

lected (see section on "programmes").

Memory-Function

If the last time a programme was run

an additional option or different spin

speed was selected,the machine will

have stored this information in its

memory.

The next time that programme is se-

lected the machine offers the additional

option and / or spin already stored in

memory (see "Programmable func-

tions").

KPress the START button.

The programme now starts.

How to wash correctly

15

At the end of a programme

When the

Finish

indicator light comes

on the laundry can be removed from

the drum:

LPress the Door button.

MPress and release the I-ON/0-OFF

button and turn the programme se-

lector to the Finish position.

NRemove the washing.

,Only remove washing from the

machine once the drum has

stopped turning, otherwise you may

seriously injure yourself.

OCheck the folds in the door seal for

any small articles e.g. buttons

which might be lodged there.

PClose the stopcock.

QClose the drum door.

Otherwise there is a danger of objects

being placed inadvertently in the drum.

If these remained unnoticed and were

washed in the next load, they could

damage the washing.

How to wash correctly

16

Adding or removing washing

after programme start

Washing can be added or removed af-

ter the programme has already started,

when using the following programmes.

–COTTONS

–MINIMUM IRON

–WOOLLENS /

–QUICK WASH

–Starch

–MIXED WASH

^Press the

Door

button and hold it until

the door springs open.

^Add or remove items

^Shut the door.

The programme will automatically con-

tinue.

– Apart from some exceptional cases

the door can be opened during all

sections of COTTONS, WOOLLENS,

QUICK WASH,

Starch

and MIXED

WASH -

Poly/Cottons

(high cotton

percentage) programmes.

–With MINIMUM IRON and

MIXED WASH -

Poly/Cottons

(high

polyester percentage) the door can

be opened during the main wash

with some exceptions.

General exceptions:

The door cannot be opened when:

–the suds temperature is above 55°C.

–the additional option

Water plus

has

been selected,

–programme locking is switched on,

–the programme has reached the

Fi-

nal spin

stage.

How to wash correctly

17

Programme . . .

. . . interruption

^Press the I-ON/0-OFF button.

^To continue with the same

programme press the I-ON/0-OFF

button again.

. . . alteration

The machine will accept the following

changes after the START button has

been pressed,

– selection of a different temperature,

extra selection or de-selection of the

Water plus

option can be carried out

up to 6 minutes after start.

– the spin speed for final spin can be

changed if the programme permits.

After start it is no longer possible to se-

lect a different programme.

If a different programme or 6 minutes

after start another temperature is se-

lected the indicator light

Anti-crease/Finish

flashes. This does

not affect the programme sequence.

The indicator light goes out when the

programme selector is set back to the

programme or temperature previously

chosen.

To select a different programme pro-

ceed as follows:

^With the I-ON/0-OFF button switch off

the appliance.

^Turn the programme selector to

Fin-

ish

.

^Switch the machine on with the

I-ON/0-OFF button.

^Select a new programme.

^Press the START button.

. . . Skipping a programme stage

^Turn the programme selector to

Fin-

ish

.

As soon as the programme sequence

light for the stage at which the

programme should continue starts

flashing:

^Turn the programme selector switch

to the appropriate programme within

4 seconds.

When programme locking has been

activated the programme cannot be

changed nor can a programme

stage be repeated or left out.

How to wash correctly

18

All modern detergents produced for

automatic washing machines are suit-

able, including liquid, compact (con-

centrated), tablets, liquid tablets and

special application detergents. Use dis-

pensing aids, e.g. balls, if these are

supplied with the detergent. Tablets are

suitable for full loads, but note that it

may be impractical to reduce tablets by

proportion to suit smaller loads.

Woollens and knitwear containing wool

mixtures and hand-washable garments

should be washed using a detergent

specifically designed for washing

woollens.

Silk should be washed using a liquid

detergent specifically designed for

washing woollens. Do not use biologi-

cal detergents on silk as the enzymes

may damage the silk!

Add detergent according to the amount

recommended on the packaging. The

right amount to dispense will depend

on the following:

–The quantity of laundry.

–The soiling level of the laundry.

Lightly soiled

No visible dirt or stains. Possibly

slight body odour.

Normally soiled

Visibly dirty and/or just a few slight

stains.

Heavily soiled

Stains and soiling clearly visible.

–The water hardness level

Check with your local water supplier

if you do not know the water hard-

ness level in your area.

Water Hardness

Hardness

range

Type of

water

(hardness)

Hardness

level in

mmol / l

°dH

German

I soft 0 - 1.3 0 - 7

II medium 1.3 - 2.5 7 - 14

III hard 2.5 - 3.8 14 - 21

IV very hard over 3.8 over 21

It is important to dispense the

correct amount, because . . .

. . . too little has the following results:

– Laundry will not be properly clean

and will in time become grey and

hard to the touch.

– Greasy particles cling to the laundry.

– Limescale deposits on the heater el-

ements.

. . . too much results in the following:

– Excessive foam.

–Low level of agitation.

–Poor washing, rinsing and spinning

results.

–High water consumption (an addi-

tional rinse cycle will automatically

switch in).

–Burdening the environment.

Adding detergent

19

Adding detergent

i= Compartment for pre-wash.

This compartment is also used

for starch formulations when

starching separately.

j= Compartment main wash

p= Compartment fabric conditioner

Water is taken in through compartment

iin the pre-wash.

Water is taken in through compartment

jin the main wash. If the capacity of

compartment jis insufficient for the

amount of detergent needed for a

COTTONS programme (e.g. in very

hard water areas), the machine can be

programmed so that water and deter-

gent can also be taken into the main

wash through compartment i, see

"Programmable functions", "Activating

compartment i".

Water softeners

A water softener can be used to cut

down on the use of detergents in ex-

tremely hard water areas. Dispense ac-

cording to the amount specified on the

packaging. First add detergent and

then the water softener.

Dispense detergent as specified for

soft water areas.

Miele do not recommend connecting

the machine to a household water soft-

ener.

If you wash using several components

(e.g. special application detergents),

we recommend always dispensing the

agents into compartment jin the fol-

lowing order:

1. Detergent

2. Water softener

3. Stain remover

This way the agents are distributed

more efficiently.

Fabric conditioners,

texturisers, liquid starch

Fabric conditioners make garments soft

and fluffy to handle and help prevent

static cling when tumble drying.

Texturisers are synthetic starch formula-

tions and give body to items e.g. shirts,

tablecloths and bed linen.

Starch gives body to items of washing.

^Dispense according to the amount

specified on the packaging.

Adding detergent

20

Automatic fabric conditioners,

texturisers, or liquid starch

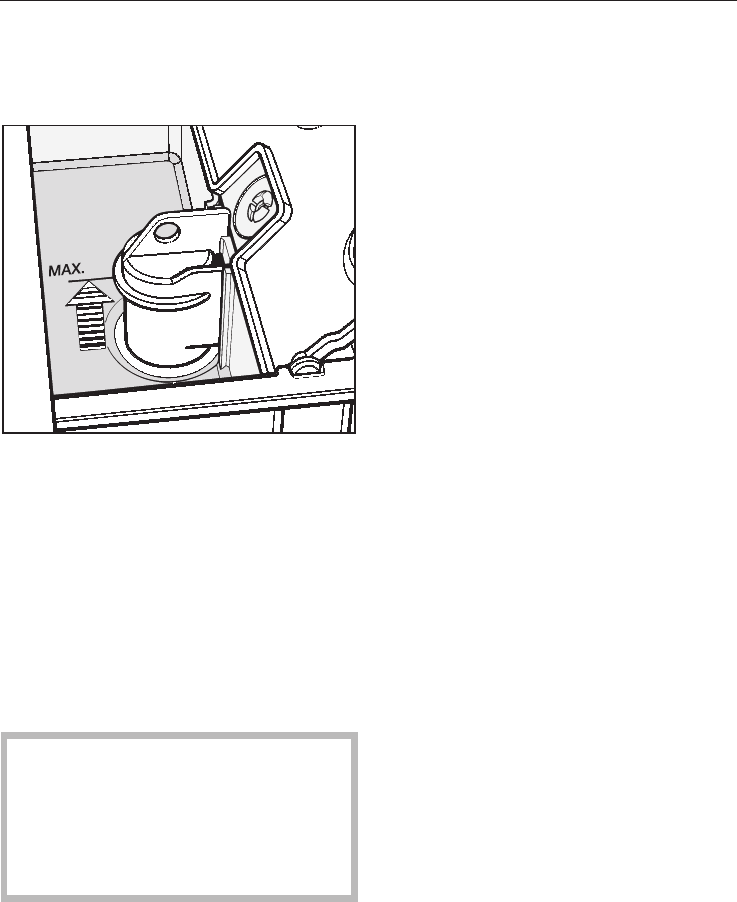

^Open the lid of compartment p.

^Add the fabric conditioner, texturiser

or liquid starch. Do not exceed the

maximum level mark.

^Close the compartment lid.

^Push the drawer back in.

The conditioner, texturiser or liquid

starch is automatically dispensed in the

last rinse. At the end of the programme

a small amount of water remains in the

fabric conditioner compartment p.

If starching frequently, clean the dis-

penser compartment and especially

the siphon tube and conditioner

channel. (See section on the deter-

gent dispenser drawer in "Cleaning

and Care") .

Separate fabric conditioner or

texturiser

^Add fabric conditioner or texturiser to

the compartment p.

^Turn the programme selector to

Starch

.

^Select a spin speed.

^Press the START button.

Starching separately

^Measure and prepare starch in ac-

cordance with the manufacturer’s in-

structions.

^Add the starch to compartment i.

^Turn the programme selector to

Starch

.

^Select a spin speed.

^Press the START button.

Adding detergent

21

Programme selection

Programme Fabric Temperature max.

spin speed

COTTONS

e

Cottons and linen fabrics, e.g. bed linen, table

linen, towelling, jeans, underwear, T-shirts, nap-

pies.

95°C to 30°C 1300

COTTONS

e

Wash load as for standard tests 60°C 1300

MINIMUM IRON

ef

(60°C) white nylon, white polyester fabrics (50°C),

coloured nylon, polyester, cotton and viscose fab-

rics with special finishes, acrylic, cotton fabrics,

coloured polyester / cotton fabrics, (40°/30°C) min-

imum iron fabrics not washable at higher tempera-

tures

60°C to 30°C 900

DELICATES

f

Acrylics, acetate and triacetate, socks and stock-

ings in man-made fibres, (not wool or wool blends)

40°C to cold 400

Curtains, specified machine-washable by the

manufacturer (pre-wash probably advisable).

30°C to cold 400

WOOLLENS

/g

Programme for machine-washable or hand-wash-

able wool or wool blend fabrics.

40°C to cold 900

Also suitable for satin, lace, silk and other

hand-washable garments*.

*

QUICK WASH

e

Very lightly soiled fabrics, which can be washed in

the Cottons programme.

40°C 1300

Starch Table cloths, napkins, overalls, uniforms. cold 1300

Spin Articles which can be spun, e.g. handwashed

items, max weight according to fabric.

900

Drain

Separate rinse

f

Articles which should be washed by hand and

only rinsed and spun in the machine.

cold 1300

MIXED WASH

Poly/Cottons

Suitable for small loads of garments made from

man-made fibres and cotton garments which can

be washed together. Sort according to colour.

40°C 900

cold:

If

Cold

is selected for the temperature, the water is warmed to 24°C. This uniform temperature helps

the effect of the detergent.

Programmes

22

max. load Additional options Notes

5 kg –Soak

–Pre-wash

–Short

–Water plus

(Option 1,2,3,4)

With heavily soiled items select

Soak

or

Pre-wash

. Wash

dark colours in liquid detergent.

For normally soiled items select

Short

.

5 kg For test institutes:

Programme setting for tests according to EN 60456 Stan-

dard Programme

2.5 kg –Soak

–Pre-wash

–Short

–Water plus

(Option 1,2,4)

With heavily soiled items select

Soak

or

Pre-wash

For normally soiled items select

Short

fIf fabrics have a high proportion of man-made fibres

it is advisable to programme the machine for

Gentle

Action

. see "Programmable functions"

1 kg –Soak

–Pre-wash

–Short

Use the Wool programme for textiles with wool content

Fill the drum

loosely 1/2to 3/4

full

–Soak

–Pre-wash

–Short

Dust in curtains usually makes pre-wash advisable.

2 kg

Do not overload

Use liquid wool detergent.

Hand washable garments will not shrink, stretch, matt or felt

beyond the accepted tolerance.

*For satin, lace, silk and other hand washable garments

manually reduce the spin speed or select without final spin.

2.5 kg –Water plus

(Option 1,2,4)

Add less detergent (half load)

5 kg The washing should be washed, but not treated with fabric

conditioner.

5 kg

5 kg

3 kg –Soak

–Pre-wash

–Short

–Water plus

(Option 1,2,3*,4*)

The water level, number of rinses and programme time are

set automatically in relation to composition of the washing

(see "Programmes" Sequence).

*Option is only carried out with a high proportion of cotton.

See Section on Additional options for more details.

Programmes

23

Sequence

COTTONS1) MINIMUM

IRON1) DELICATES WOOLLENS

/

Soak optional optional optional –

Pre-wash optional optional optional –

Main wash ßßßß

Top-up rinse from 75°C programmable – – –

Graduated rinsing – from 50°C – –

No. of rinses

–normal

–part load

–short

3 or 42)

2

2

3

2

2

3

3

3

2

2

–

Rinse and interim spin (rpm) max. 1000 max. 500 – max. 600

Final spin (rpm) max. 1300 max. 900 max. 400 max. 1300

Anti-crease, loosen max. 30 mins max. 30 mins max. 30 mins –

Rinse hold optional optional optional optional

Without final spin optional optional optional optional

Wash rhythm normal normal gentle action Wool

Water level – Wash

– Rinse

low

low

low

medium

high

high

medium

medium

Explanations:

ßProgramme section included

– Programme section not included

1) Load recognition:

The programme sequence is modified in these programmes according to the absorbency of the load.

2) A 4th rinse automatically switches in if there is too much foam in the drum, or if a spin speed lower

than 700 rpm has been selected.

Wool:

Wool is susceptible to damage from movement when it is wet. The wash action during the course of

the programme is low.

Programmes

24

Quick Wash Starch Spin Separate rinse MIXED WASH 1)

high cotton

content

high polyester

content

––––optional optional

–ß– – optional optional

ß–––ßß

––––––

–––––ß

2

2

–

–

–

–

–

–

–

2

–

–

3 or 42)

2

2

3

2

2

max. 500 – – – max. 900 max. 500

max. 1300 max. 1300 max. 1300 max. 900 max. 900 max. 900

max. 30 mins max. 30 mins max. 30 mins – max. 30 mins max. 30 mins

optional optional – optional optional optional

optional optional 2 optional optional optional

normal normal – gentle action normal normal

low

medium

low

–

–

–

–

high

low

low

low

medium

Top-up rinse (programmable):

At the end of the main wash additional water flows into the drum, and the suds are cooled slightly. Hot

water might damage plastic drain pipes.

Graduated rinsing:

The suds are cooled at the end of the wash cycle by water flowing in and being pumped away at inter-

vals thereby minimising crease formation.

Rinse and interim spin:

There is a spin between the rinses.

Final spin:

The maximum spin speed according to the programme can be selected with the Spin button. In the

programmes MINIMUM IRON, DELICATES, WOOLLENS, Separate rinse and MIXED WASH, the spin

speed is automatically limited to the above stated maximum spin speed.

Anti-crease, loosen:

The anti-crease action guards against the tendency for creases to set in if laundry is not removed from

the drum as soon as a programme has finished. There is drum movement twice a minute. The door

can be opened and laundry removed at any time during the anticrease phase.

Programmes

25

Care symbols - washing

Care

symbols

Fabric

types

Description of

process

Programme:

(select the appropriate temperature ac-

cording to the temperature on the care

label symbol)

e

no bar

Cottons Normal (maxi-

mum) machine

action and nor-

mal spinning

Cottons, Minimum iron, Quick wash

f*

single bar

Synthetics Reduced (me-

dium) machine

action and re-

duced spinning

Delicates

*If the gentle action option has been

programmed into your machine via the

programmable functions, garments

with a single bar under the care label

fcan also be processed using a

Cottons, Minimum Iron, Quick wash,

Mixed Wash or Starch programme.

g

broken

bar

Woollens Much reduced

(minimum) ma-

chine action but

with normal

spinning

Hand Wash Woollens programmes.

Programmes

26

Important - other care symbols

/Hand wash (if a temperature

is not specified, use the low-

est temperature or cold)

hDo not wash

apf Dry clean

DDo not dry clean

ySuitable for chlorine bleach-

ing

zDo not use chlorine bleach

Tumble dry

qAt normal temperature

rAt low temperature

sDo not tumble dry

Ironing

IHot iron

HMedium hot iron

GCool iron

JDo not iron

N.B. If you have any textiles with the

older wash care labels, select a

programme according to the label be-

low:

[:\] Cottons

?;\ Minimum iron

={ Delicates

#Woollens

Programmes

27

To select an additional option to the ba-

sic programme press the button for that

option. The indicator light for the option

comes on.

If an additional option is chosen which

is incompatible with the basic

programme, (see Programme selection

chart), the indicator light goes out when

the button is released.

If a spin speed is chosen which is un-

suitable for the programme (see

Programme selection chart), pressing

the button has no effect.

Soak

For heavily soiled and stained items

with protein stains (e.g. blood, fats

and oils, cocoa).

– A length of time of between 30 min-

utes and 2 hours can be chosen, in

30 minute periods, for the

Soak

pro-

cess.

–The machine is set as standard to

two hours soak time.

See the section "Programmable func-

tions" for reprogramming to a differ-

ent time.

Adding detergent for the Soak op-

tion:

Add the total amount into compart-

ment jor directly on to the laundry

in the drum.

Pre-wash

For heavily soiled and stained items

Short

This shortens the programme running

time. For normally soiled items.

In the COTTONS, MINIMUM IRON and

MIXED WASH

Poly/Cottons

programmes only two rinse cycles are

carried out with a higher water level.

Additional options

28

Water plus

The water level increases in

soak

,

pre-wash

,

main wash

and/or

rinses

,

and / or an extra rinse can be carried

out.

You can choose between four options

for the

Water plus

button.

The options can be called up through

one of the programmable functions,

(see Water plus system in the Section

on programmable functions).

Switching off the additional options

If an additional option is switched on

(and the indicator light in the button is

lit up), the option can be switched off

by pressing the button. The indicator

light goes out.

Spin

A final spin is carried out at the end

of each of the basic programmes, if a

spin speed had been selected.

Without final spin

Interim rinse and spin is carried out in

the relevant programmes.

Washing is not spun after the final rinse,

but the water is drained away, and the

machine goes straight into the

anti-crease stage.

Rinse hold

Interim rinse and spin is carried out

during the programme cycle.

The washing remains suspended in wa-

ter after the final rinse.

This helps to reduce the possibility of

creasing if the washing is left for some

time before being taken out of the ma-

chine.

To continue the programme:

Select the required spin speed with the

Spin button.

The maximum spin speed is automati-

cally limited according to the basic

wash programme chosen, (See

Programme Survey section).

Additional options

29

Electronic programme locking

Programme locking prevents the ma-

chine from being opened or the

programme cancelled during a wash

programme.

Switching on programme locking

^Select a programme, (see Brief guide

to washing correctly).

^Press the START button for at least 5

seconds.

Programme locking is now activated.

The machine will now not accept any

changes, and the wash programme

proceeds through to the end.

At the end of the wash programme, the

programme locking is discontinued, so

that a new wash programme can be

chosen.

Switching off programme locking

early

^Press the START button for at least 5

seconds.

Exception:

The indicator light

Anti-crease/Finish

in

the Sequence display flashes.

^Turn the programme selector to the

programme previously chosen. The

Anti-crease/Finish

light goes out.

^Press the START button for at least 5

seconds.

To check if programme locking is

switched on

^- Press the ‘Spin’ button.

– If the spin speed indicator light does

not change:

Programme locking is activated.

– If the spin speed indicator light

changes:

Programme locking is not activated.

Additional options

30

Programmable functions enable the

user to introduce further features as

required. They remain stored in

memory until they are cancelled by

the user.

Maximum water level

The water level for rinsing is automat-

ically raised to the maximum level

where rinse results are particularly

important.

It is effective for the rinses in the follow-

ing programmes:

- COTTONS

- MINIMUM IRON

- QUICK WASH

- MIXED WASH -

Poly/Cottons

Before the "Maximum water level" pro-

grammable function can be selected

you must first select programming

mode.

Selecting programming mode

AThe machine must be switched off

and the drum door closed. The

programme selector must point to

Finish

.

BPress the additional option buttons

Short

and

Water plus

at the same

time and hold pressed in and:

C. . . switch the machine on with the

I-ON/0-OFF-button.

DLet go of all these buttons.

The indicator light

Main wash

flashes in

the sequence display.

Selecting the programmable function

To select the "Maximum water level"

programmable function: turn the

programme selector to -

MIXED WASH Poly/Cottons***.

Activating

To activate "Maximum water level"

press the START button once.

The

Rinses

light comes on in the se-

quence display.

Storing in memory

To store the "Maximum water level" pro-

grammable function in the memory

SWITCH the machine OFF with the

I-ON/0-OFF button.

The "Maximum water level" programma-

ble function is now stored in the ma-

chine’s memory and is effective in the

programmes described above until

such time as you may wish to deacti-

vate it.

Deactivating

To deactivate the use of a maximum

water level in the rinses repeat the pro-

cedure given above from point Aas far

as the *** shown above. Press the

START button and the

Rinses

indicator

light will go out. The function is now de-

activated. Store in memory by pressing

the I-ON/0-OFF button.

Programmable functions

31

Water plus system

The

Water plus

button offers four op-

tions, increasing water level and / or

bringing in an extra rinse cycle. To

activate the option press the

Water

plus

button when selecting your wash

programme before pressing the

START button.

Option 1

Increase in the rinse water level in the

COTTONS, MINIMUM IRON, QUICK

WASH and MIXED WASH -

Poly/Cottons

programmes, where for ex-

ample rinse results are particularly im-

portant.

Option 2

Increase in the water level in all stages

of the COTTONS, MINIMUM IRON,

QUICK WASH and MIXED WASH -

Poly/Cottons

programmes. It is particu-

larly suitable for fabrics that need spe-

cial care, or where extra attention must

be given to dissolving detergent. This

option is already set when the machine

is delivered from the factory.

Option 3

An extra rinse cycle is introduced to the

Cottons programme, e.g. when rinse re-

sults are particularly important.

Option 4

Increase in the water level in all stages

of the COTTONS, MINIMUM IRON,

QUICK WASH and MIXED WASH -

Poly/Cottons

programmes and adds an

extra rinse cycle to the COTTONS

programme, e.g. when rinse results are

particularly important.

Before the "Water plus system" pro-

grammable function can be selected

you must first select programming

mode.

Selecting programming mode

AThe machine must be switched off

and the drum door closed. The

programme selector must point to

Finish

.

BPress the additional option buttons

Short

and

Water plus

at the same

time and hold pressed in and:

C. . . switch the machine on with the

I-ON/0-OFF-button.

DLet go of all these buttons.

The indicator light

Main wash

flashes in

the sequence display.

Selecting the programmable function

To select the "Water plus system" pro-

grammable function turn the

programme selector to - Separate

rinse. The indicator lights in the se-

quence display correspond to the four

options available. As Option 2 has been

set at the factory, when the programme

selector is turned

Separate rinse

, the in-

dicator light for Option 2

Rinse hold

will

come on.

Programmable functions

32

Selecting the Options

By pressing the START button you can

select the other options. To confirm a

new selection another indicator light co-

mes on and the previous one goes out.

Each time START is pressed a different

indicator light comes on. The indicator

lights correspond the the four options

as follows:

Option 1 =

Rinse

Option 2 =

Rinse hold

Option 3 =

Drain / Spin

Option 4 =

Anti crease / Finish

Storing in memory

When you have selected the Option you

require, SWITCH the machine OFF with

the I-ON/0-OFF button. The Option is

stored in the machine’s memory.

Programmable functions

33

Activating the i

compartment

This function should be activated if

traditional "big box" detergents are

used. For the first 10 seconds of the

Cottons main wash cycle water flows

in through compartment i.

Compartment jmay sometimes not

be able to hold the total amount of de-

tergent required when:

- the water is very hard (over 3.8

mmol/l, water hardness level IV) and

- the washing is heavily soiled.

In this case compartment ican be

used to flush in the extra detergent for

the main wash.

Before the "Activating the icompart-

ment" programmable function can be

selected you must first select program-

ming mode.

Selecting programming mode

AThe machine must be switched off

and the drum door closed. The

programme selector must point to

Finish

.

BPress the additional option buttons

Short

and

Water plus

at the same

time and hold pressed in and:

C. . . switch the machine on with the

I-ON/0-OFF-button.

DLet go of all these buttons.

The indicator light

Main wash

flashes in

the sequence display.

Selecting the programmable function

To select the "Activating the icom-

partment" programmable function turn

the programme selector to - Spin ***.

Activating

To activate "Activating the icompart-

ment" press the START button once.

The

Rinses

light comes on in the se-

quence display.

Storing in memory

To store the "Activating the icompart-

ment" programmable function in the

memory SWITCH the machine OFF with

the I-ON/0-OFF button.

The "Activating the icompartment"

programmable function is now stored in

the machine’s memory.

Deactivating

To deactivate the use of Compartment

irepeat the procedure given above

from point Aas far as the *** shown

above. Press the START button and the

Rinses

indicator light will go out. The

function is deactivated. Store in mem-

ory by pressing the I-ON/0-OFF button.

Programmable functions

34

Soak time

This is accessed for a programme by

pressing the SOAK button on the fa-

cia.

You can programme a soak time of:

- 2 hours (factory setting) or

- 1 hour 30 mins or

- 1 hour or

- 30 mins.

A "Soak time" of 2 hours is set at the

factory. If you wish to change this stan-

dard setting to one of the times listed

above, you must first select program-

ming mode.

Selecting programming mode

AThe machine must be switched off

and the drum door closed. The

programme selector must point to

Finish

.

BPress the additional option buttons

Short

and

Water plus

at the same

time and hold pressed in and:

C. . . switch the machine on with the

I-ON/0-OFF-button.

DLet go of all these buttons.

The indicator light

Main wash

flashes in

the sequence display.

Selecting the programmable function

To select the "Soak time" programmable

function turn the programme selector to

-WOOLLENS Cold.

The

Rinse

indicator light comes on in

the sequence display. This shows that

a "Soak time" of 2 hours is currently se-

lected (factory setting).

Selecting a different "Soak time"

By pressing the START button a various

number of times you can select differ-

ent soak times. To confirm that a differ-

ent soak time has been selected, the

previous indicator light goes out and a

new indicator light comes on.

Each time START is pressed a different

indicator light will come on. The indica-

tor lights correspond to the 4 soak

times available as follows:

2 hours =

Rinse

1 hour 30 mins =

Rinse hold

1 hour =

Drain\Spin

30 mins =

Anti crease\Finish

Storing in memory

When you have selected the soak time

you require, SWITCH the machine OFF

with the I-ON/0-OFF button.

The "Soak time" you have selected is

now stored in the machine’s memory.

Programmable functions

35

Gentle action

For gentle washing of slightly soiled

items. Drum action is reduced.

Gentle action can be used with the

COTTONS, MINIMUM IRON, QUICK

WASCH, MIXED WASH -

Poly/Cottons

and

Starch

programmes.

If "Gentle action" has been pro-

grammed, every wash cycle in these

programmes is carried out with gentle

action rhythm.

Before the "Gentle action" programma-

ble function can be selected you must

first select programming mode.

Selecting programming mode

AThe machine must be switched off

and the drum door closed. The

programme selector must point to

Finish

.

BPress the additional option buttons

Short

and

Water plus

at the same

time and hold pressed in and:

C. . . switch the machine on with the

I-ON/0-OFF-button.

DLet go of all these buttons.

The indicator light

Main wash

flashes in

the sequence display.

Selecting the programmable function

To select the "Gentle action" program-

mable function turn the programme se-

lector to -

WOOLLENS 40 °C ***.

Activating

To activate "Gentle action" press the

START button once.

The

Rinses

light comes on in the se-

quence display.

Storing the programmable function

in memory

To store the "Gentle action" programma-

ble function in the memory SWITCH the

machine OFF with the I-ON/0-OFF but-

ton.

The "Gentle action" programmable

function is now stored in the machine’s

memory.

Deactivating

If the "Gentle action" programmable

function is no longer required it can be

deactivated. To do so repeat the proce-

dure given above from point Aas far

as the *** shown above. Press the

START button and the

Rinses

indicator

light will go out. The function is now de-

activated. Store in memory by pressing

the I-ON/0-OFF button.

Programmable functions

36

Top-up rinse for Cottons

At the end of the main wash addi-

tional water flows into the drum to

cool the suds down.

Hot suds can damage plastic drainage

pipes.

Top-up rinse takes place when temper-

atures of 95°C and 75°C are selected.

Top-up rinse should be activated:

–to prevent the danger of scalding if

the drain hose is hooked over the

edge of a sink or basin.

– where the drainage pipes do not

comply with DIN 1986.

The washing machine is delivered with

the "Top-up rinse for Cottons" deacti-

vated.

Before the "Top-up rinse for Cottons"

programmable function can be se-

lected you must first select program-

ming mode.

Selecting programming mode

AThe machine must be switched off

and the drum door closed. The

programme selector must point to

Finish

.

BPress the additional option buttons

Short

and

Water plus

at the same

time and hold pressed in and:

C. . . switch the machine on with the

I-ON/0-OFF-button.

DLet go of all these buttons.

The indicator light

Main wash

flashes in

the sequence display.

Selecting the programmable function

To select the "Top-up rinse for Cottons"

programmable function turn the

programme selector to -

DELICATES cold ***.

Activating

To activate "Top-up rinse for Cottons"

press the START button once.

The

Rinses

light comes on in the se-

quence display.

Storing in memory

To store the "Top-up rinse for Cottons"

programmable function in the memory

SWITCH the machine OFF with the

I-ON/0-OFF button.

The "Top-up rinse for Cottons" program-

mable function is now stored in the ma-

chine’s memory.

Deactivating

If the "Top-up rinse for Cottons" pro-

grammable function is no longer re-

quired it can be deactivated. To do so

repeat the procedure given above from

point Aas far as the *** shown above.

Press the START button and the

Rinses

indicator light will go out. The function

is now deactivated. Store in memory by

pressing the I-ON/0-OFF button.

Programmable functions

37

Memory function

If an additional option is selected for

a programme, and / or the spin op-

tion is altered, the machine stores

these changes in memory at the start

of a programme.

The memory function is active when the

machine is first delivered but can be

programmed to be switched off.

Deactivating

First select programming mode.

Selecting programming mode

AThe machine must be switched off

and the drum door closed. The

programme selector must point to

Finish

.

BPress the additional option buttons

Short

and

Water plus

at the same

time and hold pressed in and:

C. . . switch the machine on with the

I-ON/0-OFF-button.

DLet go of all these buttons.

The indicator light

Main wash

flashes in

the sequence display.

Deactivating the programmable func-

tion

To de-select the "Memory" programma-

ble function turn the programme selec-

tor to

DELICATES 30°C ***.

As this programmable function is active

when the machine is first delivered, the

Rinses

indicator light will come on in

the sequence display as soon as the

programme selector is turned to

DELICATES 30°C.

To deactivate the "Memory" function

press the START button and the light

will go out. The memory function is now

deactivated.

Storing in memory

To store this setting in memory SWITCH

the machine OFF with the I-ON/0-OFF

button.

Reactivating

To reactivate the memory function re-

peat the procedure given above from

point Aas far as the *** shown above.

Pressing the START button again will re-

activate the "Memory" function and the

Rinses

indicator light will come on

again. The function is now reactivated.

Store in memory by pressing the

I-ON/0-OFF button.

Programmable functions

38

Cleaning the washing machine

^Clean the casing with a mild

non-abrasive detergent or soap and

water. Wipe dry with a soft cloth.

^Clean the facia panel and lid with a

damp cloth and dry with a soft cloth.

^The drum can be cleaned using a

suitable proprietary stainless steel

cleaner.

Do not use solvents, abrasive

cleaners, glass cleaners or all-pur-

pose cleaners. These might cause

damage to the plastic surfaces be-

cause of the chemicals they contain.

The washing machine must not be

hosed down.

E-cloth

A microfibre "E-Cloth" is available from

the Miele UK Spare Parts Department,

Part Number 98013530, which is suit-

able for cleaning surfaces such as

stainless steel, glass, plastic and

chrome without the use of chemicals.

Extra cleaning

Carrying out a hot wash (70°C or

above) with powder detergent approx.

once every six weeks will help prevent

deposits building up in the machine.

These can occur when washing is

mainly done at low temperatures, and

lead to unpleasant smells. If you have

no reason to wash laundry occasionally

at this high temperature, then carry out

a 95°C COTTONS programme as a

cleaning cycle with powder detergent,

but not laundry, at regular intervals.

Cleaning and care

39

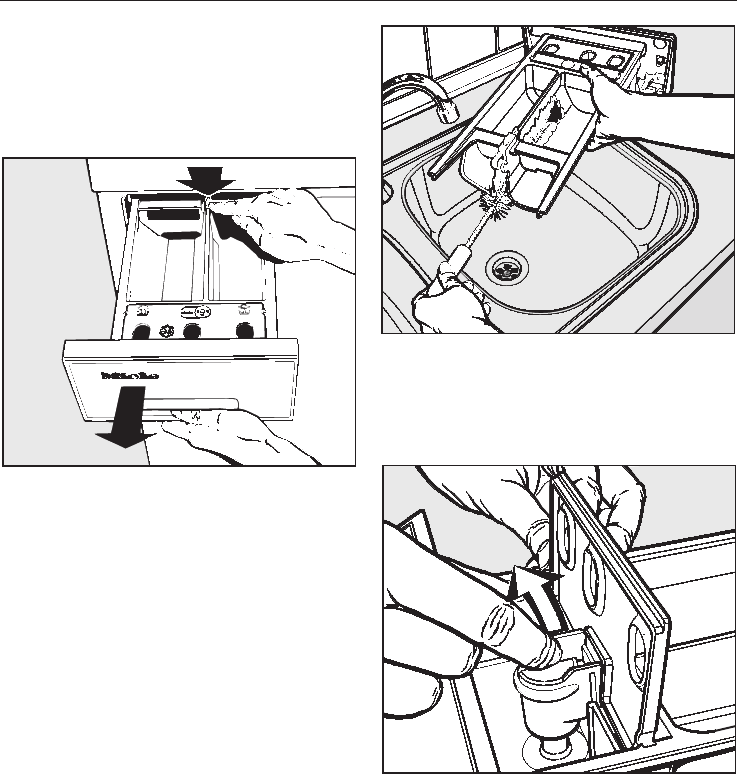

Cleaning the detergent dis-

penser drawer

^Pull out the detergent dispenser

drawer until a resistance is felt.

^Press down the red release catch

and at the same time pull the drawer

right out of the machine.

^Clean the dispenser compartments

and conditioner channel.

Regularly remove any detergent resi-

dues.

^Remove the siphon from compart-

ment p.

Wash under running warm water and

replace.

Over time, detergent residue can build

up in the water jets in the top of the de-

tergent drawer housing.

^Before replacing the detergent

drawer, use a bottle brush or similar

to clean them out.

Cleaning and care

40

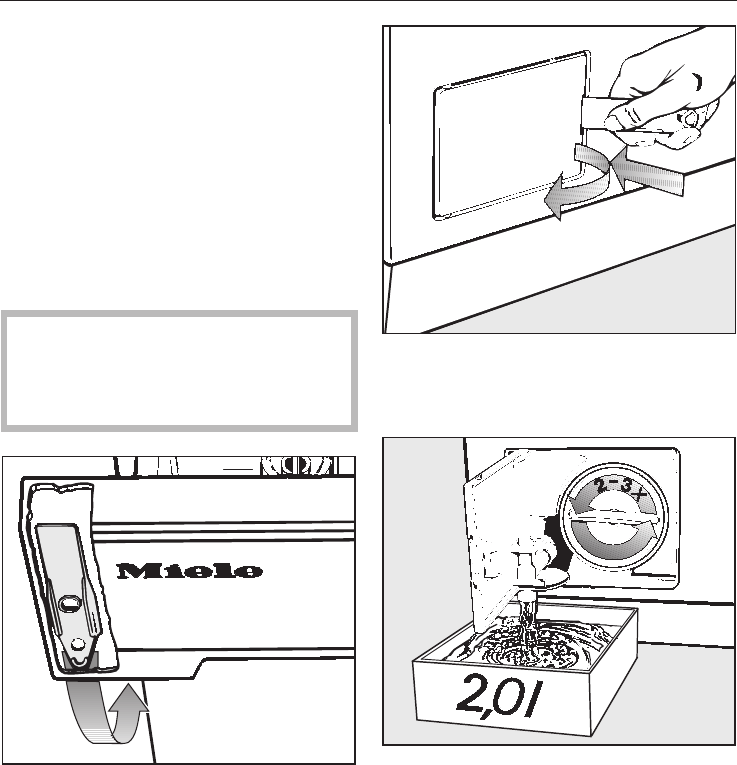

Cleaning the fluff (drain) filter

and pump

Check the fluff (drain) filter initially after

3-4 washes to ascertain how often it is

likely to require cleaning.

With normal cleaning approx. 2 litres of

water run out.

If the drain outlet is clogged, more wa-

ter will be retained in the machine (up

to 25 litres).

Caution: If laundry has been washed

at a high temperature, water drain-

ing out of the machine will still be

hot.

Take the (yellow) filter flap opener from

behind the detergent drawer facia

panel, (see illustration above).

^Open the flap.

^Place a dish under the drain fixture.

^Turn the fluff filter lid round 2-3 times.

Do not take it right out.

With large volumes of water, when the

dish is full screw the fluff filter back into

position, and empty the dish before re-

peating the procedure.

Cleaning and care

41

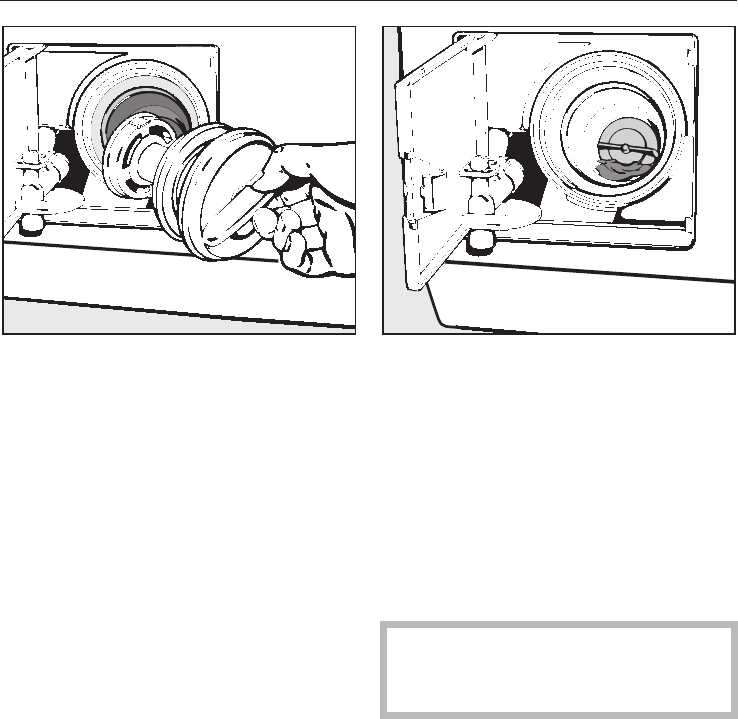

^Once the flow of water ceases, re-

move the fluff filter completely.

^Clean the fluff filter thoroughly.

^Remove any foreign objects (e.g.

buttons, coins, etc.) and fluff.

^Turn the impeller by hand to make

sure it rotates freely. Any foreign ob-

jects causing an obstruction should

be removed.

^Clean the inside of the fluff filter hous-

ing.

Remove any deposits of limescale and

detergent or foreign objects from the

thread of the filter housing and filter unit

as they can cause water to leak.

Limescale deposits are often a sign of

using too little detergent.

^Put the fluff filter back in place and

secure it.

Make sure the fluff filter is securely

tightened. Otherwise there is a risk

of water leakage during use.

After cleaning

^Pour approx. 2 litres of water into the

detergent dispenser compartment

jto reactivate the ball valve which

keeps detergent in circulation in the

suds.

Cleaning and care

42

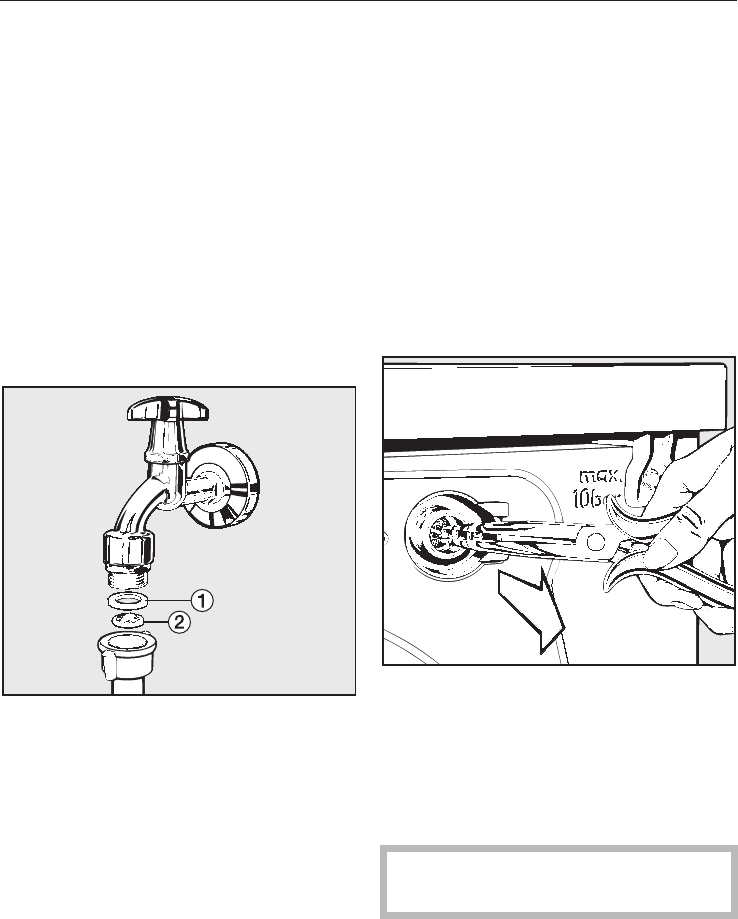

To clean the water inlet filters

The washing machine has two filters to

protect the inlet valves.These filters

should be checked every 6 months or

so, or more often if there are frequent

interruptions to the water supply.

To clean the filter in the union in the

open end of the inlet hose:

^First turn off the stopcock.

^Unscrew the threaded union connect-

ing the free end of the inlet hose to

the stopcock.

^Remove the rubber seal from the re-

cess.

^Using pointed pliers, take hold

of the plastic filter bar, remove the fil-

ter and clean.

^Put the filter and seal back in the re-

verse order and reconnect the hose.

Turn on the stopcock and check the

connection is watertight.

Inspect the inlet hose which is sub-

jected to high pressure while the ma-

chine is in operation. The hose should

be replaced if there are small cracks in

the surface, or if it has been otherwise

damaged.

If replacing the inlet hose only use a

hose able to withstand pressure of at

least 70 bar. Miele’s own hoses meet

this requirement.

To clean the filter in the water inlet

valve:

^Using pliers, carefully loosen the

ribbed plastic nut on the inlet valve,

and unscrew.

^Use water pump pliers to withdraw

the plastic filter by the bar (see illus-

tration). Clean, put back and secure.

The two filters must be put back in

place after cleaning.

Cleaning and care

43

With the help of the following notes minor faults in the performance of the appli-

ance, some of which may result from incorrect operation, can be put right without

contacting the Service Department.

,Repair work to electrical appliances should only be carried out by a suit-

ably qualified person in accordance with local and national safety regulations.

Unauthorised repairs could be dangerous.

The chart is divided into the following sections to help you:

–The programme does not start.

–The wash programme stops and a fault indicator light comes on.

–A fault indicator light comes on but the wash programme continues as normal.

–General problems or an unsatisfactory wash result.

The programme does not start.

What to do if . . . Possible cause Remedy

The Anti-crease/Fin-

ish indicator light is

not on, or the START

indicator light is not

flashing.

There is no power. Check that

–the door is properly closed.

–the mains plug is plugged in.

–the fuse or circuit breaker has

not tripped.

The programme does

not start when Spin

has been selected.

The washing ma-

chine has not been

prepared for using

for the first time.

Prepare the machine as de-

scribed in "Before using for the

first time".

At the end of one

programme you can-

not start the next

programme.

The programme se-

lector has not been

turned past the

Finish

postion.

Turn the programme selector to

the

Finish

postion and then to the

programme you want to run.

Problem solving guide

44

The wash programme stops and a fault indicator light comes

on.

What to do if . . . Possible cause Remedy

The Check drain indica-

tor light is flashing.

The water outlet is

blocked.

Clean the fluff (drain) filter

and drain pump.

The drain hose has

been fixed too high.

The maximum drain height

is 1 m.

The Check inlet indicator

light is flashing.

The water inlet is

blocked –Open the stopcock.

–Start the programme

again.

One of the following indi-

cator lights is flashing:

–Soak/Pre-wash

–Main wash

–Rinses

–Rinse hold

There is a fault. –Press I-ON/0-OFF button

to release it.

–Turn the programme se-

lector to

Finish

.

–Press I-ON/0-OFF button

in.

–Re-start the programme.

–If the fault indicators oc-

cur again, contact the

Service Department.

Problem solving guide

45

A fault indicator light comes on but the wash programme

continues as normal.

What to do if ... Possible cause Remedy

The Check drain light

flashes.

The drain outlet is

restricted.

Clean the fluff (drain) filter

and drain pump.

The Check inlet light

flashes.

The water inlet is re-

stricted or the water

pressure is too low.

–make sure the stopcock is

opened wide enough.

–make sure the inlet hose is

not kinked.

The filter in the inlet

hose is dirty.

Clean the filter.

The Drain/Final spin indi-

cator light flashes in the

programme sequence dis-

play.

The final spin has

not taken place. The

machine detected

an imbalance.

–Loosen and re-distribute

the washing.

–Select the programme

Spin

or

Drain

.

–Take into account the spin

speed of the relevant

programme.

The Anti-crease/Finish in-

dicator light flashes in the

programme sequence dis-

play.

The position of the programme selector was al-

tered after the start of the programme. Turn the

programme selector back to the programme previ-

ously chosen.

Problem solving guide

46

General problems or an unsatisfactory wash result

What to do if . . . Possible cause Remedy

The machine shakes

during the spin cycle.

The four feet are not

resting evenly on the

floor.

Level the machine. See advice

on installation.

The laundry has not

been spun satisfacto-

rily.

The spin speed se-

lected was too low.

Select a higher spin speed

next time.

The drum door cannot

be opened by press-

ing the Door button.

The machine is not

connected to the elec-

tricity supply.

Put the plug in the socket and

switch on.

Power cut. Open the drum door as de-

scribed in the section "Open-

ing the door in the event of a

power failure".

The door was not cor-

rectly engaged.

Press hard against the lock

side of the drum door and then

press the

Door

button.

There is still water in

the drum and the ma-

chine is unable to

drain.

Clean the fluff (drain) filter and

the drain pump.

For safety reasons the drum door cannot be opened if

the suds temperature is higher than 55°C.

Problem solving guide

47

What to do if . . . Possible cause Remedy

The pump makes

strange noises.

These do not indicate a fault. They occur at the begin-

ning and end of a pumping sequence as a normal part

of the operation.

Large residues of de-

tergent remain in the

dispenser drawer.

The water supply pres-

sure is too low. –Clean the filter in the water

inlet system.

–It may be useful to press the

Water plus button.

Washing powder used

with water softener

tends to become

sticky.

Pour washing powder into the

dispenser before adding any

water softener.

Fabric conditioner is

not completely dis-

pensed or too much

water remains in the

pcompartment.

The siphon is either in-

correctly positioned or

clogged.

Clean the siphon, see

"Cleaning and care - Cleaning

the detergent drawer".

The fabric conditioner

channel is clogged.

Clean the fabric conditioner

channel.

Liquid detergent does

not give the required

result.

Liquid detergents do

not contain bleaching

agents. They do not

remove fruit, coffee

and tea stains.

–Use a general purpose

washing machine powder

containing a bleaching

agent.

–Pour stain removers into

compartment jof the dis-

penser drawer and liquid

detergent into a dispenser

ball.

–Never put stain removers

and liquid detergent to-

gether in the dispenser

drawer.

Problem solving guide

48

What to do if . . . Possible cause Remedy

Grey, greasy parti-

cles cling to

washed laundry.

Insufficient amounts of

detergent were used to

break down the particles

of grease, e.g. from oils

and lotions, in heavily

soiled laundry.

–Add more detergent.

–Before washing the next load

run a COTTONS programme

at 70°C or above with pow-

der detergent but without a

load. (See "Extra cleaning" in

Cleaning and Care).

There are white res-

idues which look

like powder deter-

gent on dark col-

oured laundry.

The detergent contained

compounds (zeolites) to

aid water softening

which are not soluble in

water. These have

ended up on the laundry.

–Try and brush off the resi-

dues with a soft brush once

the laundry is dry.

–Use a liquid detergent to

wash dark coloured textiles.

Liquid detergents usually

contain no zeolites.

Problem solving guide

49

Opening the drum door in the

event of a power failure

^Switch off the washing machine.

^Open the fluff (drain) filter flap and

drain the water as described in

"Cleaning and care", (fluff (drain) filter

and pump).

Caution: if laundry has been washed

at a high temperature, water drain-

ing out of the machine will still be

hot.

Always make sure the drum is sta-

tionary before reaching in to the ma-

chine to remove washing. Reaching

into a moving drum is extremely

dangerous.

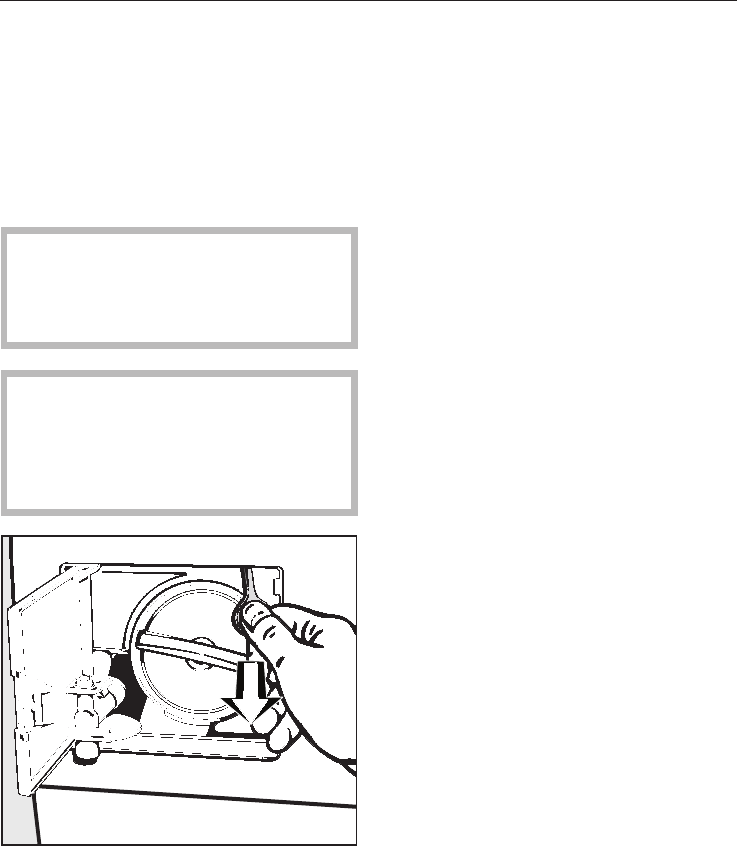

^Pull the emergency door latch down-

wards (see illustration). The machine

door will then open.

To check water pressure

^Place a bucket under the stopcock.

^Turn on the stopcock.

If 5 litres of water flow into the bucket in

15 seconds the water pressure is cor-

rect.

Problem solving guide

50

Customer contact

In the event of any faults which you

cannot remedy yourself please contact

–Your Miele Dealer or

–Your nearest Miele Service depart-

ment (see back cover for the ad-

dress).

When contacting the Service Depart-

ment, please quote the Model and Se-

rial nos. of your appliance, both of

which are shown on the data plate visi-

ble above the porthole glass when the

door is opened.

Please note that telephone calls may

be monitored and recorded to im-

prove our service.

Appliance guarantee

The appliance is guaranteed for a pe-

riod of 1 year.

See the guarantee card supplied with

the machine for further details.

Future updates (PC)

The indicator light or check light

marked PC is reserved for the service

engineer, for updates to your machine

in future years.

When for example technological devel-

opments offer advanced modifications

to your existing programme cycles, a

service engineer will be able to input

these into your machine controls.

Miele will provide information when

such possibilities become available.

After sales service

51

Installation surface

A concrete floor is the most suitable in-

stallation surface for a washing ma-

chine, being far less prone to vibration

during the spin cycle than wooden

floorboards or a carpeted surface.

Please note the following points:

^The machine must be level and se-

curely positioned.

^To avoid vibrations during spinning,

the machine should not be installed

on soft floor coverings.

^If installing on a wooden joist floor, we

recommend a plywood base at least

30 mm thick, 590 x 520 mm wide.

The base should span several joists

and be bolted to the joists, not only to

the floorboards. Check for the pres-

ence of pipes and cables first.

The most stable part of the floor is

usually in the corner.

,If the machine is installed on a

raised plinth, it has to be secured

against slippage during spin using

retaining clips (available from the

Miele Spare Parts Dept).

Installation

Lift the machine from its packaging

base and move it to its site. Please

note:

^Do not lift the machine by the drum

door.

^Ensure that the machine feet and the

floor are dry to prevent the machine

from slipping during the spin cycle.

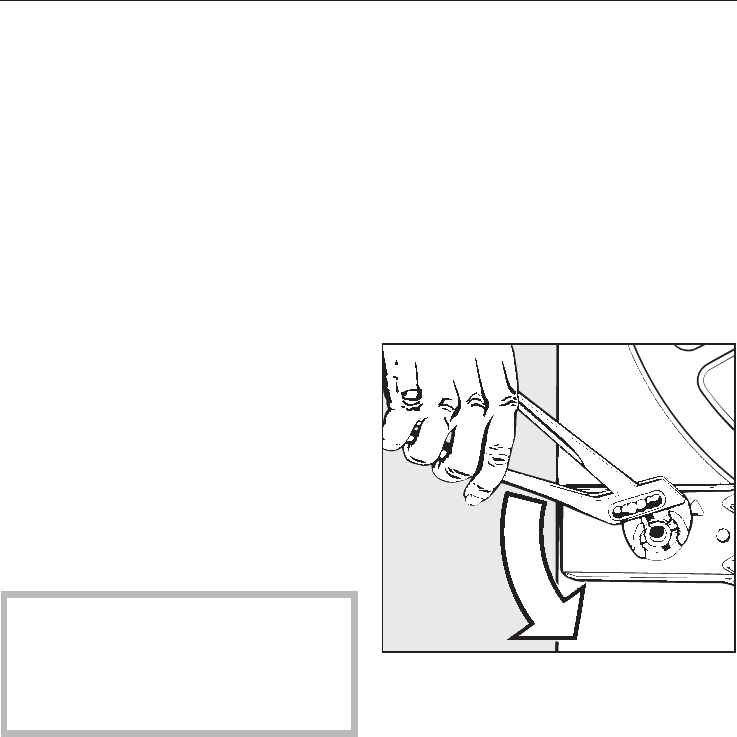

Removing the transit fitting

ATurn the left-hand transit bar 90°.

Installation

52

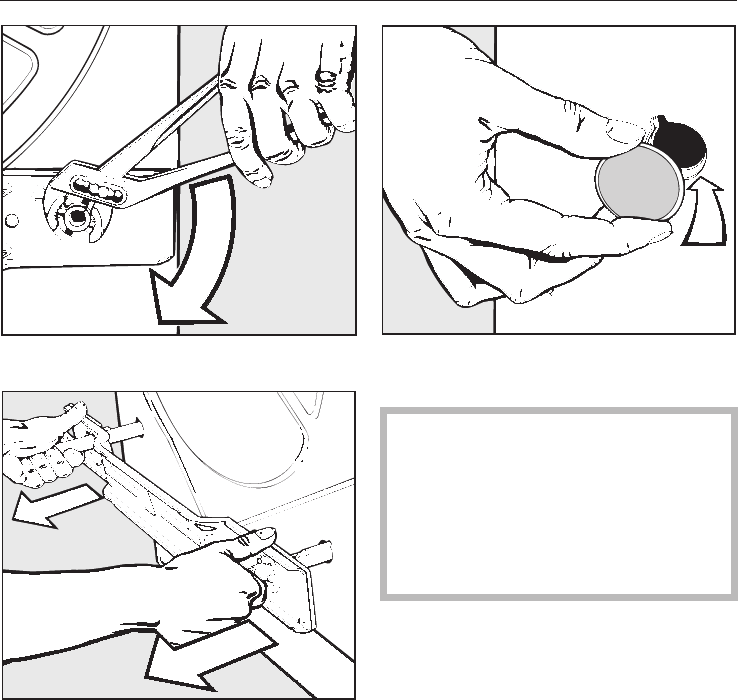

BTurn the right-hand transit bar 90°.

CWithdraw the two bars together with

the support plate.

DPlug the two holes with the plastic

caps supplied.

,The washing machine must not

be moved without the transit bars in

place.

Store the transit bars in a safe place

for future use. They must be re-fitted

if the machine is to be moved again

(e.g.when moving house).

Re-fitting the transit bars

Re-fitting is carried out by reversing the

procedure.

Installation

53

Levelling the machine

The machine must stand perfectly level

on all four feet to ensure safe and

proper operation.

Incorrect installation may increase elec-

tricity and water consumption and may

cause the machine to move about.

The four adjustable screw feet are used

to level the machine. All four feet are

screwed in when the machine is deliv-

ered.

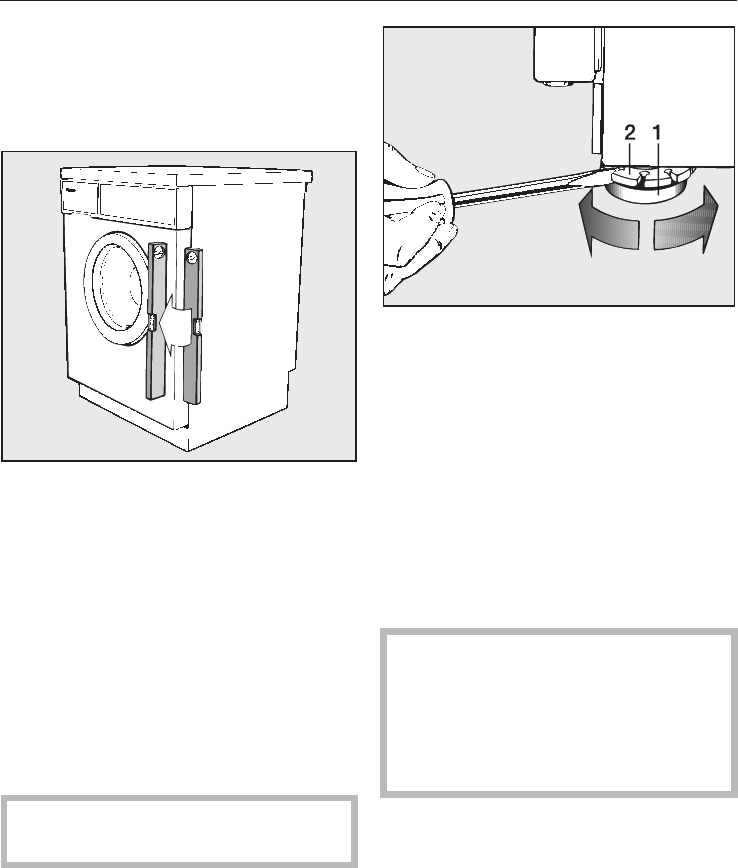

Screwing out and adjusting the feet

^Gently tip the machine and prop it up

using a solid wooden wedge for ex-

ample, to ensure stability.

Make sure the machine does not slip

as this could cause injury.

^With a screwdriver loosen and turn

the foot 1together with the

counternut 2to the left, (see illustra-

tion below) and screw out.

^Put the machine back on all four feet.

^Use a spirit level to check the ma-

chine is standing level.

^Hold the foot 1firm using a pipe

wrench and turn the counternut 2to

the right firmly up against the housing

with a screwdriver.

All four counternuts must be firmly

up against the housing. Please also

check this for the feet which did not

need adjustment. Otherwise there is

the danger of the machine moving

about.

Installation

54

Building under a worktop

^A special building under conversion

kit* is required which includes a

cover plate to replace the machine’s

lid.

^Fitting instructions are supplied with

the conversion kit.

N.B. Cover plate

The cover plate must be fitted in place

of the machine’s lid to ensure electrical

safety . However, if you wish to push

your machine under a worktop and

there is space to do this without re-

moving the lid, the conversion kit is not

necessary. Otherwise the conversion kit

is essential.

^For installation under a work surface

900/910 mm from the floor, a raising

kit* is also required.

^To ensure electrical safety the con-

version kit and raising kit must be fit-

ted by a suitably qualified installer.

^Connections for electricity, water and

drainage should be installed in such

a way that they remain accessible

when the machine is in place.

Washer and Dryer stack

A Miele tumble dryer can be stacked

with the washing machine. A WTV

stacking kit* is necessary and can be

purchased from the Miele Spare Parts

Department.

* All parts marked with a * are available

from the Miele Spare Parts or Sales De-

partment, and must be fitted by a suit-

ably competent person according to

the instructions supplied with the kit.

Installation

55

Connection to water supply

The machine should be connected to a

mains water supply in accordance with

standard regulations. In Germany the

washing machine is not required to

have a non-return valve as it has been

designed to comply with the relevant

German DIN standard.

Connection to the mains water supply

should incorporate a mains stopcock

with 3/4’’ thread. The stopcock should

be fitted by a qualified plumber.

The approx. 1.5 m long 3/8" pressure

hose should be connected to the stop-

cock via the 3/4" threaded union.

This pressure hose is not suitable for

connection to a hot water supply.

Please make sure the washer sits cor-

rectly in the union.

The connection point is subject to

mains water pressure. Turn on the stop-

cock slowly and check for leaks.

If replacing the inlet hose only use a

hose able to withstand pressure of at

least 70 bar. This also applies to all

fixtures and fittings used. Miele origi-

nal parts fulfil this condition.

Longer hoses 2.5 or 4 metres in length

are available as optional extras.

The machine is designed to operate

with a water flow pressure of 1 bar mini-

mum up to 10 bar maximum. The static

water pressure must not exceed 10 bar.

If it is higher than 10 bar it is essential

to fit a reducer valve.

There is a minimum flow pressure of 1

bar pressure if 5 litres of water flow into

a suitable container in 15 seconds.

The two dirt filters - one in the open end

of the inlet hose, one at the inlet point in

the solenoid valve must not be re-

moved.

Installation

56

Connection to the drainage

system

The machine drains via a drain pump

with a delivery head of 1 metre.

The drain hose is 1.5 m long. It must

not be kinked as this restricts drainage.

The swivel elbow at the end of the hose

can be turned in either direction, or can

be detached if required, with a sharp

twist and pull.

Drain hose connection:

1. Direct into a sink or basin:

Please note the following

–Hook the hose over the edge and se-

cure.

–Make sure that the water can drain

away freely without hindrance. Other-

wise there is a risk of water overflow-

ing or of some of the drained water

being sucked back into the machine.

2. Connected securely to a plastic drain

pipe with a rubber nipple. There is no

need to use a non-return valve.

3. Connected securely to a standpipe.

4. Connected securely to a floor gully.

If required, the drain hose can be ex-

tended to a length of 5 m. The neces-

sary parts can be purchased from the

Miele Spare Parts Department, or your

Miele dealer.

For a delivery head of more than 1 m

(up to a maximum of 1.8 m) a second

Duo-drain pump is available with the

corresponding conversion kit from the

Miele Spare Parts Department or your

Miele dealer.

Installation

57

Electrical connection U.K.

All electrical work should be carried out

only by a suitably qualified and compe-

tent person, in strict accordance with

national and local safety regulations.

Ensure power is not supplied to the ap-

pliance while installation work is being

carried out.

The appliance is supplied with a mains

cable with moulded plug for connection

to a 230-240V mains supply. The volt-

age, rated load and fuse rating are

given on the data plate. Please ensure

these match the household mains sup-

ply.

Connection should be made via a fused

plug and suitable switched socket

which is easily accessible after installa-

tion.

For extra safety it is advisable to install

a residual current device (RCD), with a

trip current of 30 mA (in accordance

with DIN VDE 0664, VDE 0100, section

739).

Do not connect via an extension lead.

Electrical connection U.K.

Non-rewireable plugs BS 1363

If this machine is fitted with a

non-rewireable plug and the socket out-

lets are not suitable for the plug sup-

plied or if the existing plug needs to be

replaced by a new one, the old plug will

need to be cut off and an appropriate

plug fitted. The fuse carrier and the

fuse should be removed from the old

plug and disposed of.

The plug cut from the cable should then

be disposed of and on no account be

inserted into any socket elsewhere in

the house (electric shock hazard).

The fuse cover must be refitted when

changing the fuse, and if the fuse cover

is lost, the plug must not be used until a

suitable replacement is obtained. The

colour of the correct replacement cover

is that of the coloured insert in the base

of the plug, or the colour that is em-

bossed in words on the base of the

plug (as applicable to the design of

plug fitted).

Replacement fuses should be ASTA ap-

proved to BS 1362 and have the cor-

rect rating. Replacement fuse covers

may be purchased from your local elec-

trical supplier or Service agent.

Installation

58

Important

The wires in the mains lead are col-

oured in accordance with the following

code:

Green/yellow = earth

Blue = neutral

Brown = live

If the colours of the wires in the mains

lead of this appliance do not corre-

spond with the coloured markings iden-

tifying the terminals of your plug, pro-

ceed as follows:

^The wire which is coloured green and

yellow must be connected to the ter-

minal in the plug which is marked

with the letter E or by the earth sym-

bol zor coloured green, or green

and yellow.

^The wire which is coloured blue must

be connected to the terminal in the

plug which is marked with the letter N

or coloured black.

^The wire which is coloured brown

must be connected to the terminal in

the plug which is marked with the let-

ter L or coloured red.

WARNING: THIS APPLIANCE

MUST BE EARTHED

Installation

59

Programme

(without any additional op-

tions or

programmable functions)

Load Consumption data

Energy Water Programme time

in kWh litres normal short

COTTONS

95°C 5.0 kg 1.70 52 1 h 54 mins 1 h 26 mins

60°C* 5.0 kg 0.95 52 1 h 58 mins 1 h 16 mins

40°C 5.0 kg 0.55 52 1 h 58 mins 1 h 06 mins

MINIMUM IRON

40°C 2.5 kg 0.45 58 1 h 15 mins 49 mins

DELICATES

30°C 1.0 kg 0.40 75 58 mins 49 mins

WOOLLENS

30°C 2.0 kg 0.23 35 35 mins –

* EN 60456

Consumption data can vary from the nominal values given depending on water

pressure, water hardness, water inlet temperature, room temperature, type and

volume of load, fluctuations in the electricity supply and any additional func-

tions selected.

N.B.

Consumption data obtained from a machine designed for the German market.

Consumption data

60

Height 85.0 cm

Width 59.5 cm

Depth 60.0 cm

Depth with door open 97.0 cm

Weight 92 kg

Max. floor load 1600 Newton (ca. 160 kg)

Capacity 5 kg Dry laundry

Voltage see Data plate

Rated load see Data plate

Fuse rating see Data plate

Water flow pressure min. 1 bar (100 kPa)

Static water pressure max. 10 bar (1000 kPa)

Drain pump head max. 1.00 m

Drain pump length max. 5.00 m

Test certificates awarded Radio/TV suppression, VDE

Technical Data

61

62

63

M.-Nr. 05 603 360 / V04

Alteration rights reserved/3702

This paper consists of cellulose which has been bleached without the use of chlorine.
